Virtual Router in CloudStack 4.4
The document discusses the implementation and enhancements of virtual routers in CloudStack 4.4, highlighting the architecture and command execution flow. Key improvements include the introduction of the virtualRoutingResource for command handling, an aggregation mechanism for accelerating command execution, and a new virtualRouterDeployer interface. It also covers performance testing and future optimization plans for virtual routers, aiming to streamline configuration updates.
More Related Content
Similar to Virtual Router in CloudStack 4.4
![Number_Guessing_Game_Dsbsbssbzboc[1].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/numberguessinggamedoc1-251206215042-a076fc05-thumbnail.jpg?width=640&height=640&fit=bounds)
Virtual Router in CloudStack 4.4
- 1. Virtual Router inCloudStack 4.4 Sheng Yang Virtual Router in CloudStack 4.4 Sheng Yang

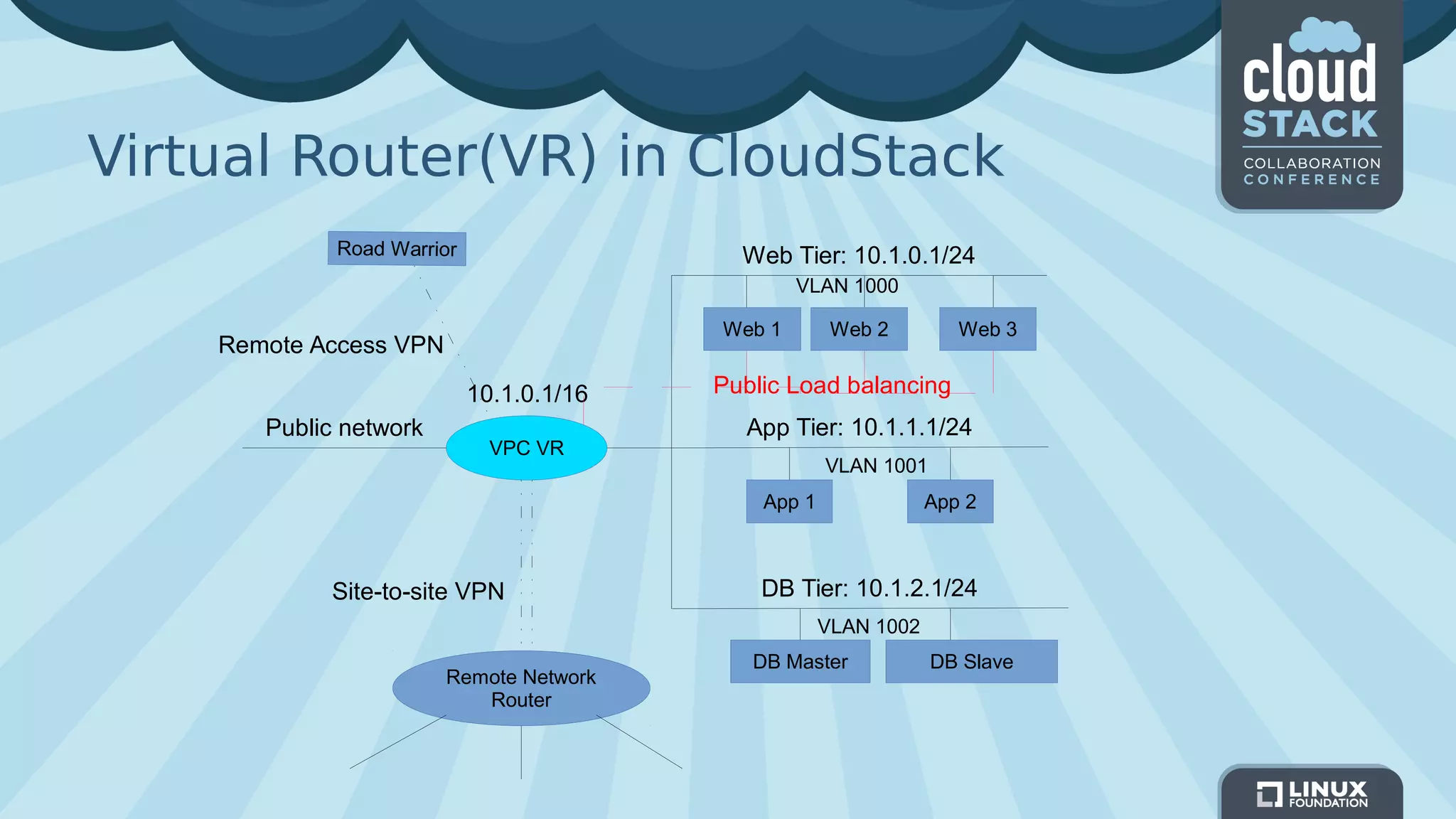

- 2. Virtual Router(VR) inCloudStack VPC VR Public network Web Tier: 10.1.0.1/24 App Tier: 10.1.1.1/24 DB Tier: 10.1.2.1/24 Web 1 Web 3Web 2 App 1 App 2 DB Master DB Slave 10.1.0.1/16 Site-to-site VPN Remote Access VPN Public Load balancing VLAN 1001 VLAN 1000 VLAN 1002 Remote Network Router

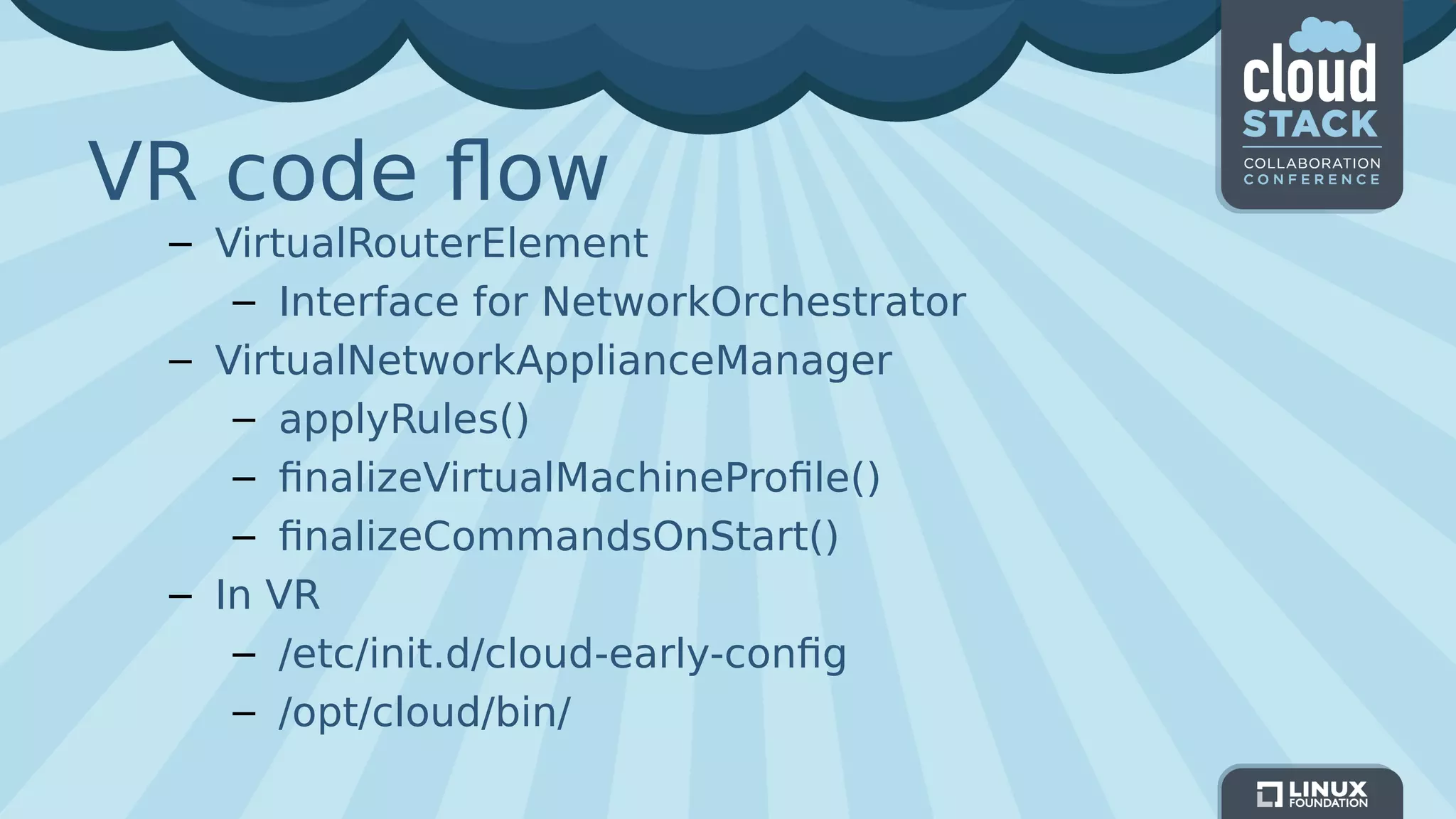

- 3. VR code flow –VirtualRouterElement – Interface for NetworkOrchestrator – VirtualNetworkApplianceManager – applyRules() – finalizeVirtualMachineProfile() – finalizeCommandsOnStart() – In VR – /etc/init.d/cloud-early-config – /opt/cloud/bin/

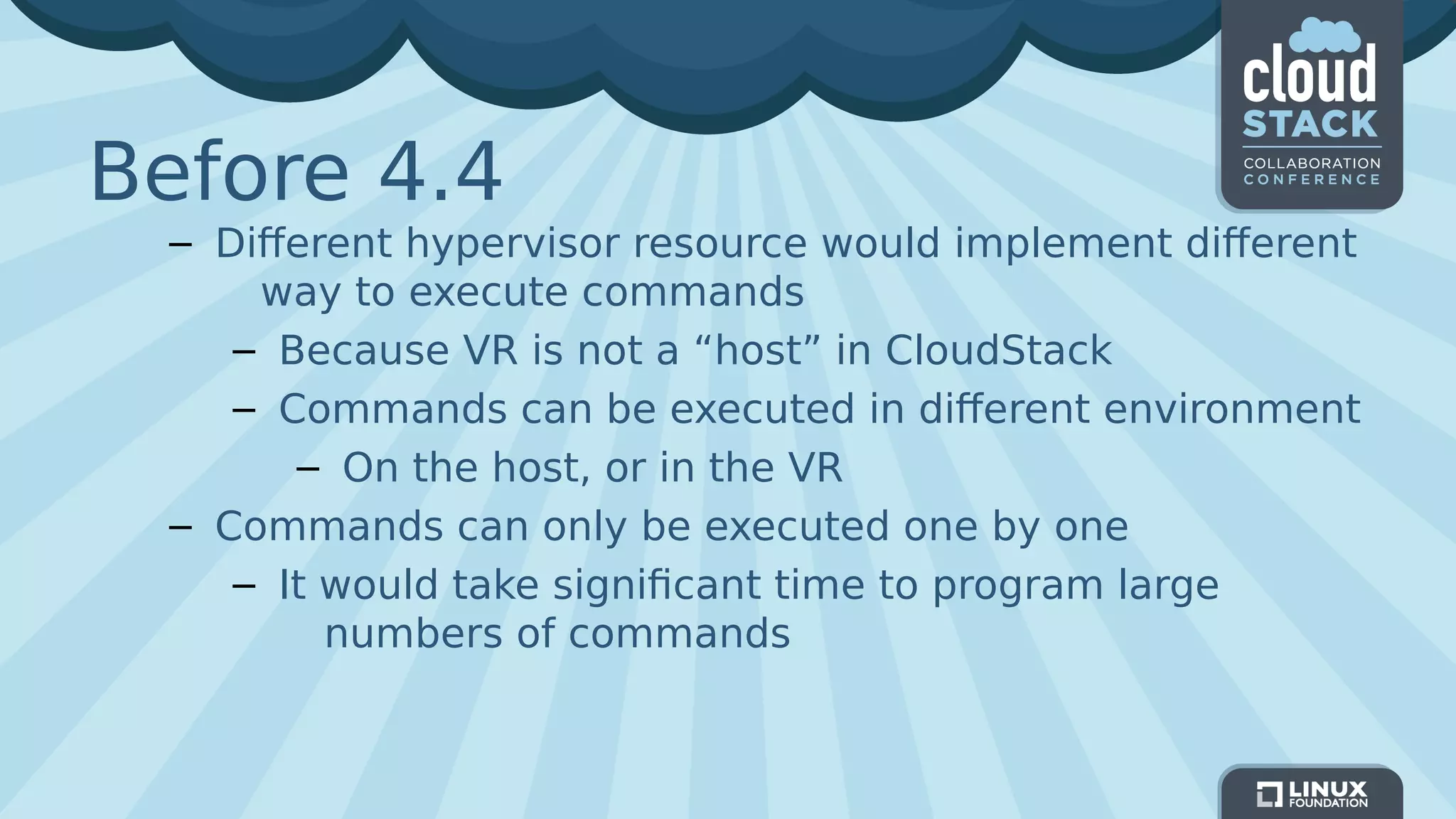

- 4. Before 4.4 – Differenthypervisor resource would implement different way to execute commands – Because VR is not a “host” in CloudStack – Commands can be executed in different environment – On the host, or in the VR – Commands can only be executed one by one – It would take significant time to program large numbers of commands

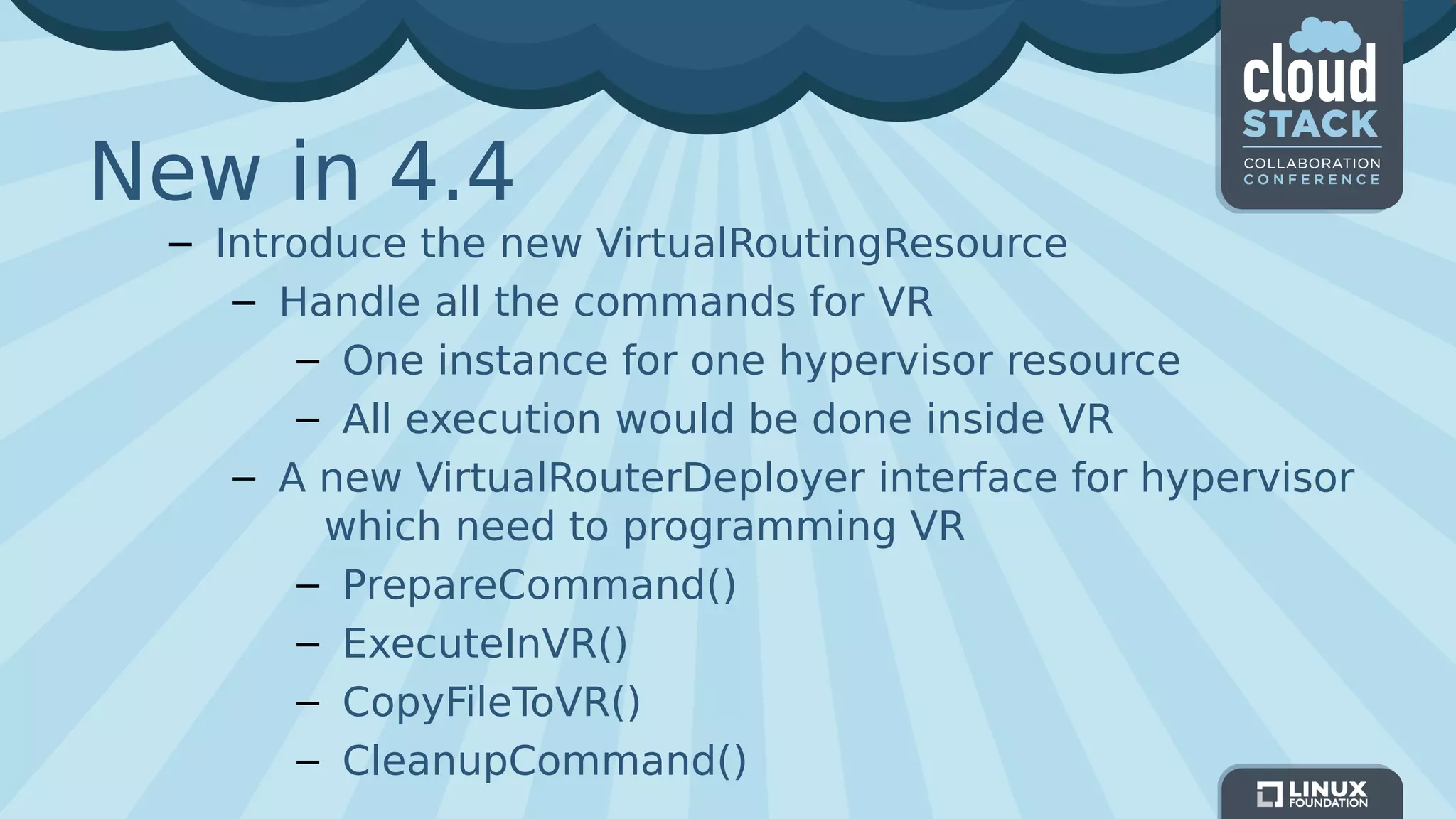

- 5. New in 4.4 –Introduce the new VirtualRoutingResource – Handle all the commands for VR – One instance for one hypervisor resource – All execution would be done inside VR – A new VirtualRouterDeployer interface for hypervisor which need to programming VR – PrepareCommand() – ExecuteInVR() – CopyFileToVR() – CleanupCommand()

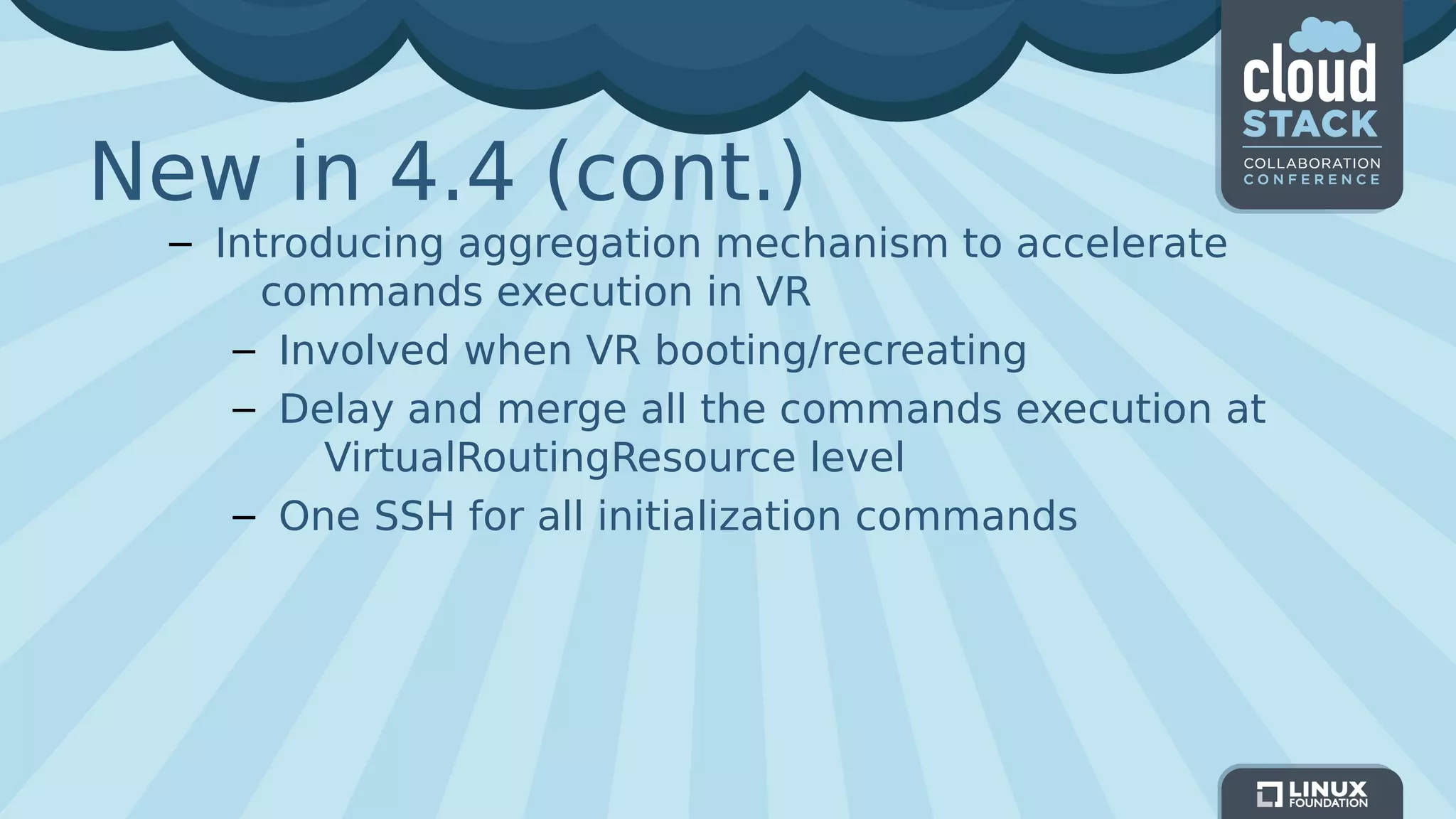

- 6. New in 4.4(cont.) – Introducing aggregation mechanism to accelerate commands execution in VR – Involved when VR booting/recreating – Delay and merge all the commands execution at VirtualRoutingResource level – One SSH for all initialization commands

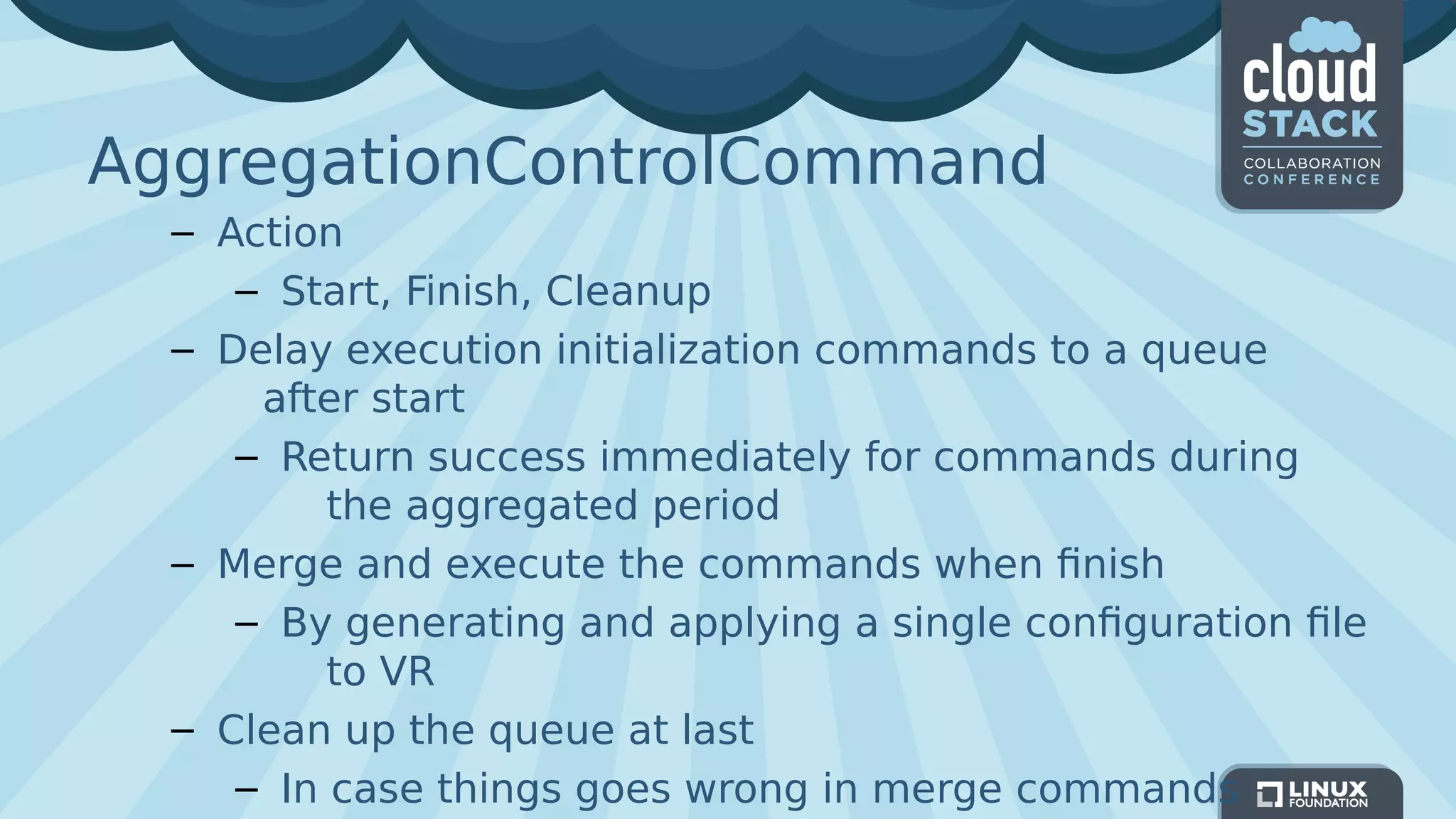

- 7. AggregationControlCommand – Action – Start,Finish, Cleanup – Delay execution initialization commands to a queue after start – Return success immediately for commands during the aggregated period – Merge and execute the commands when finish – By generating and applying a single configuration file to VR – Clean up the queue at last – In case things goes wrong in merge commands

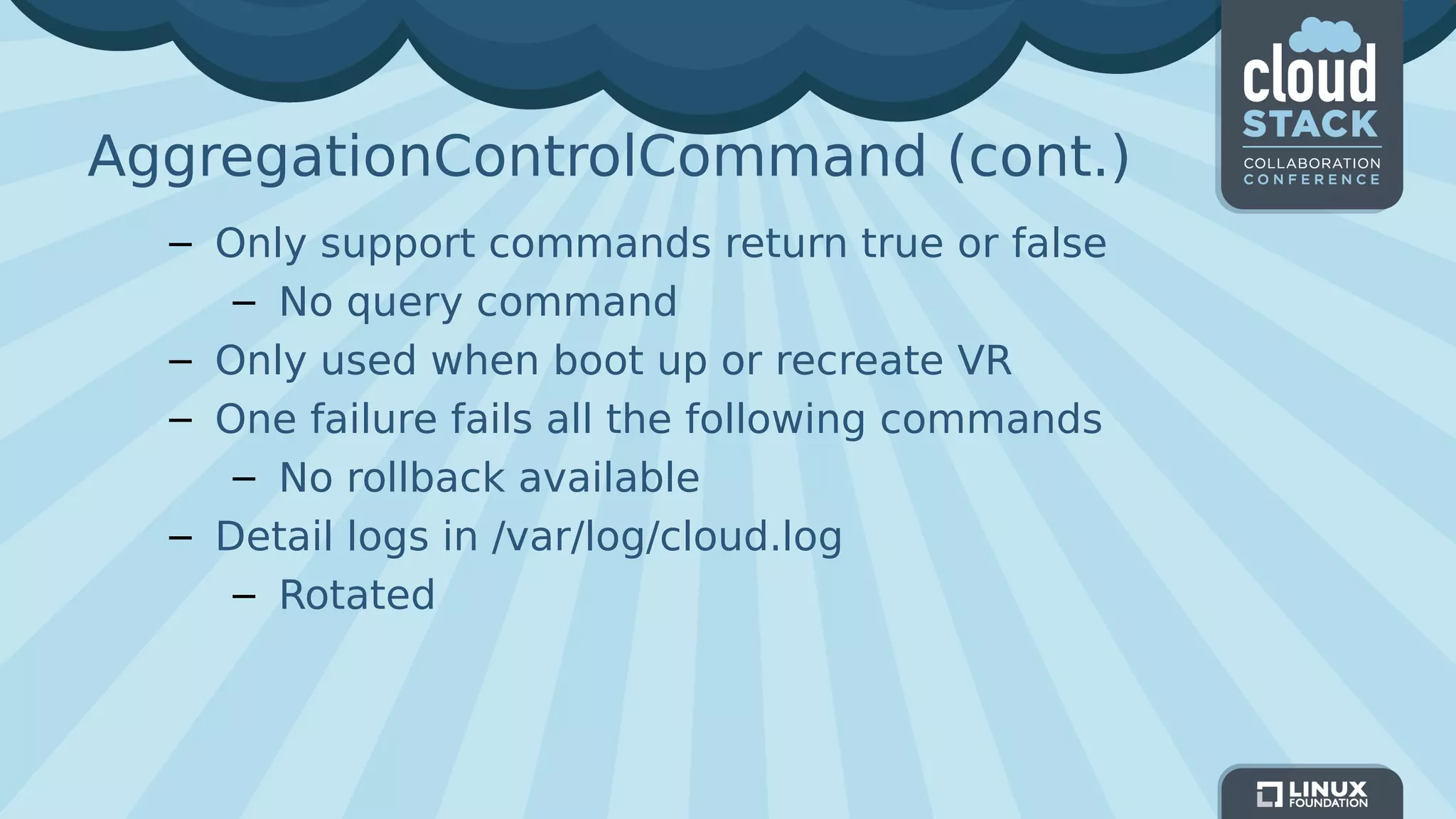

- 8. AggregationControlCommand (cont.) – Onlysupport commands return true or false – No query command – Only used when boot up or recreate VR – One failure fails all the following commands – No rollback available – Detail logs in /var/log/cloud.log – Rotated

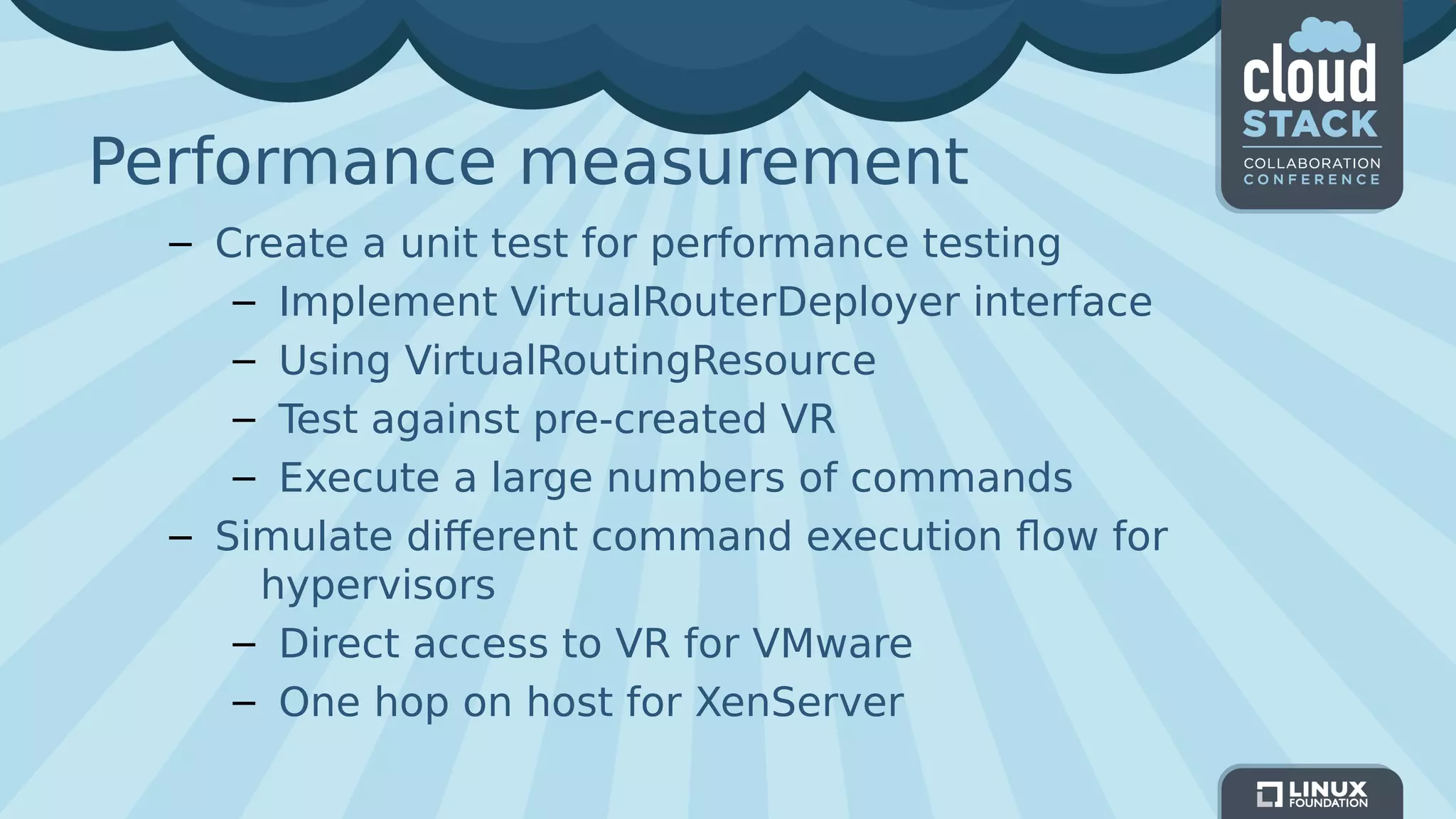

- 9. Performance measurement – Createa unit test for performance testing – Implement VirtualRouterDeployer interface – Using VirtualRoutingResource – Test against pre-created VR – Execute a large numbers of commands – Simulate different command execution flow for hypervisors – Direct access to VR for VMware – One hop on host for XenServer

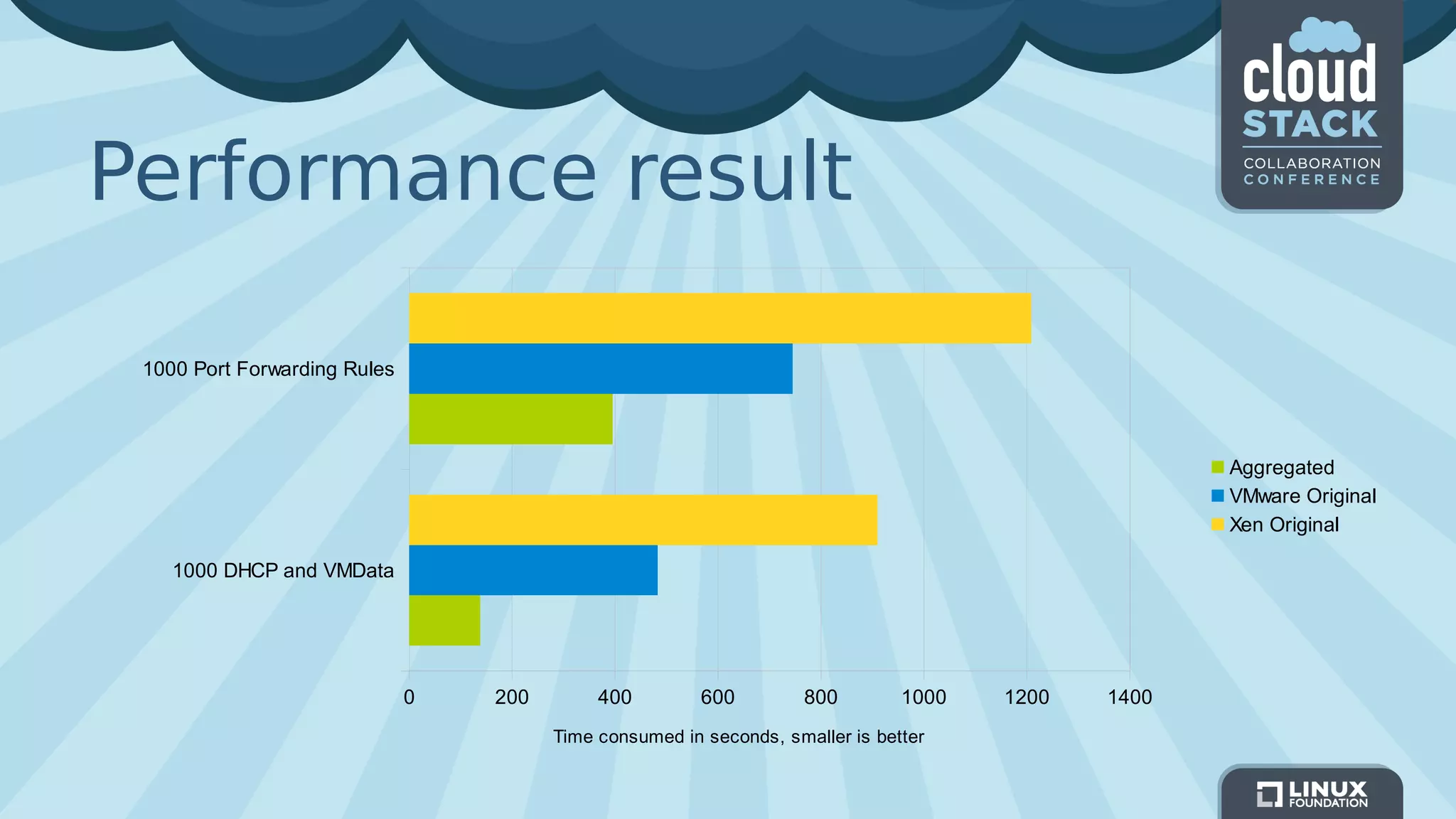

- 10. Performance result 1000 DHCPand VMData 1000 Port Forwarding Rules 0 200 400 600 800 1000 1200 1400 Aggregated VMware Original Xen Original Time consumed in seconds, smaller is better

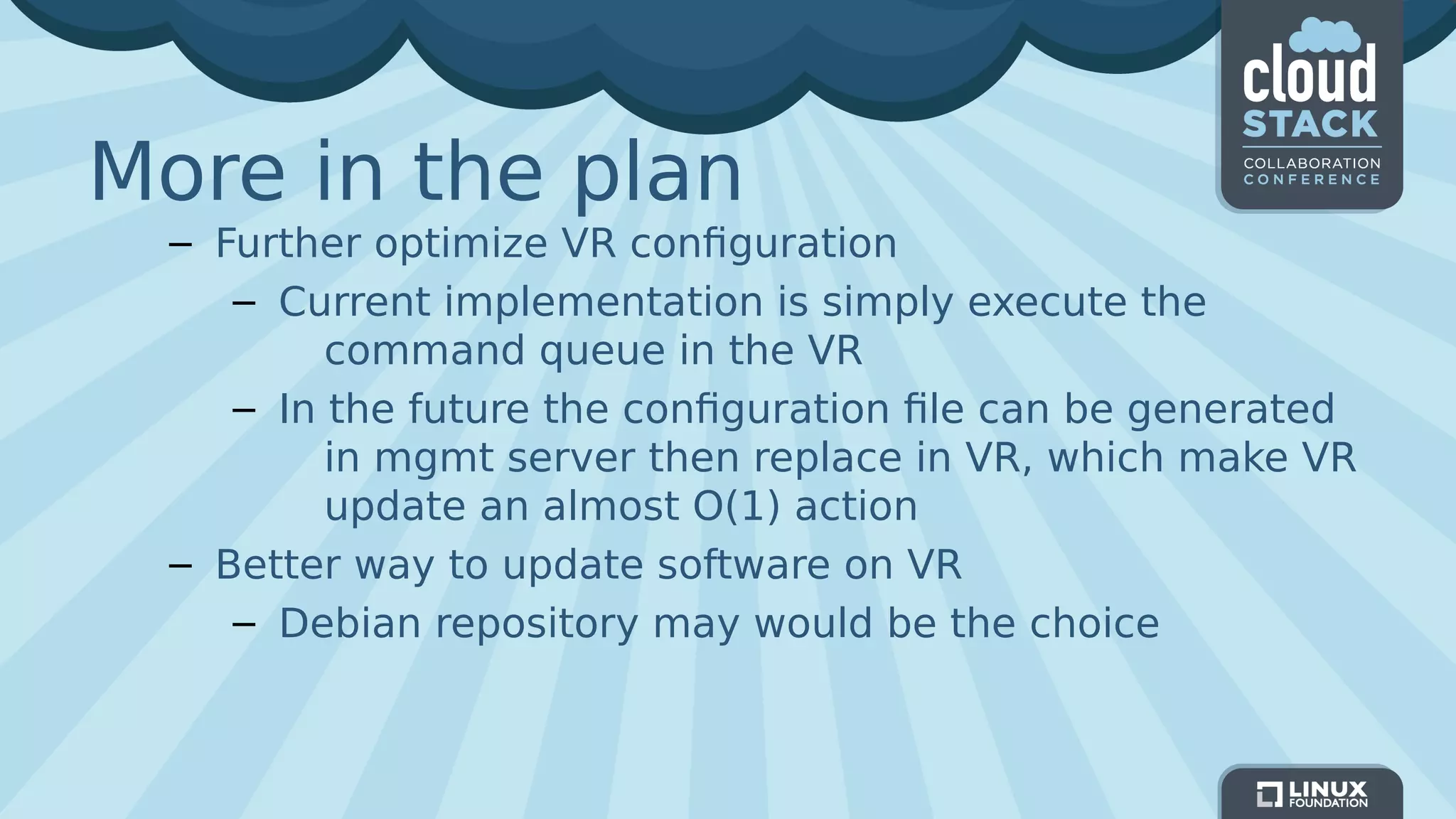

- 11. More in theplan – Further optimize VR configuration – Current implementation is simply execute the command queue in the VR – In the future the configuration file can be generated in mgmt server then replace in VR, which make VR update an almost O(1) action – Better way to update software on VR – Debian repository may would be the choice
- 12.
