Understanding vSAN
Architecture Components
vSAN Terminology
• CMMDS - Cluster Monitoring, Membership, and Directory Service
• CLOMD - Cluster Level Object Manager Daemon
• OSFSD - Object Storage File System Daemon
• CLOM - Cluster Level Object Manager
• OSFS - Object Storage File System
• RDT - Reliable Datagram Transport
• VSANVP - Virtual SAN Vendor Provider
• SPBM - Storage Policy-Based Management
• UUID - Universally unique identifier
• SSD - Solid-State Drive
• MD - Magnetic disk
• VSA - Virtual Storage Appliance
• RVC - Ruby vSphere Console

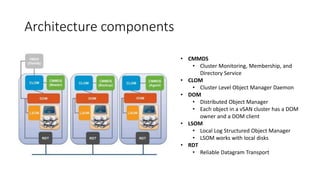

Architecture components
• CMMDS
• Cluster Monitoring, Membership, and
Directory Service
• CLOM
• Cluster Level Object Manager Daemon
• DOM
• Distributed Object Manager
• Each object in a vSAN cluster has a DOM
owner and a DOM client
• LSOM
• Local Log Structured Object Manager
• LSOM works with local disks
• RDT
• Reliable Datagram Transport

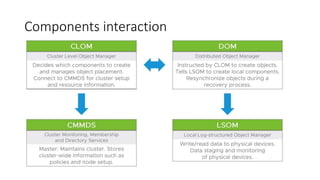

Components interaction
CMDDS
• It inventories all items, such as hosts, networks,
and devices
• It stores object metadata information, such as policy-related
information on an in-memory database
• It discovers, maintains, and establishes a cluster of networked node
members
• It defines the cluster roles: Master, Backup, and Agent

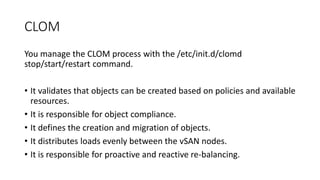

CLOM
You manage the CLOM process with the /etc/init.d/clomd
stop/start/restart command.
• It validates that objects can be created based on policies and available
resources.
• It is responsible for object compliance.
• It defines the creation and migration of objects.
• It distributes loads evenly between the vSAN nodes.
• It is responsible for proactive and reactive re-balancing.

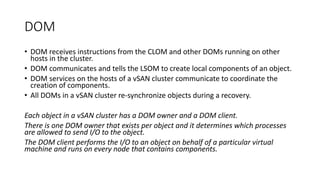

DOM
• DOM receives instructions from the CLOM and other DOMs running on other
hosts in the cluster.
• DOM communicates and tells the LSOM to create local components of an object.
• DOM services on the hosts of a vSAN cluster communicate to coordinate the
creation of components.
• All DOMs in a vSAN cluster re-synchronize objects during a recovery.
Each object in a vSAN cluster has a DOM owner and a DOM client.
There is one DOM owner that exists per object and it determines which processes
are allowed to send I/O to the object.
The DOM client performs the I/O to an object on behalf of a particular virtual
machine and runs on every node that contains components.

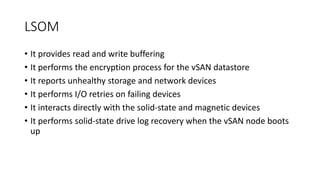

LSOM
• It provides read and write buffering
• It performs the encryption process for the vSAN datastore
• It reports unhealthy storage and network devices
• It performs I/O retries on failing devices
• It interacts directly with the solid-state and magnetic devices
• It performs solid-state drive log recovery when the vSAN node boots
up

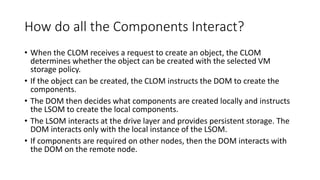

How do all the Components Interact?
• When the CLOM receives a request to create an object, the CLOM
determines whether the object can be created with the selected VM
storage policy.
• If the object can be created, the CLOM instructs the DOM to create the
components.
• The DOM then decides what components are created locally and instructs
the LSOM to create the local components.
• The LSOM interacts at the drive layer and provides persistent storage. The
DOM interacts only with the local instance of the LSOM.
• If components are required on other nodes, then the DOM interacts with
the DOM on the remote node.

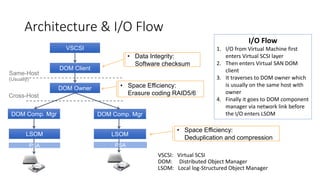

Architecture & I/O Flow
10
VSCSI
DOM Client
DOM Owner
DOM Comp. Mgr DOM Comp. Mgr
LSOM LSOM
Same-Host
(Usually)
Cross-Host
PSA PSA
• Data Integrity:
Software checksum
• Space Efficiency:
Erasure coding RAID5/6
• Space Efficiency:
Deduplication and compression
VSCSI: Virtual SCSI
DOM: Distributed Object Manager
LSOM: Local log-Structured Object Manager
I/O Flow
1. I/O from Virtual Machine first
enters Virtual SCSI layer
2. Then enters Virtual SAN DOM
client
3. It traverses to DOM owner which
is usually on the same host with
owner
4. Finally it goes to DOM component
manager via network link before
the I/O enters LSOM

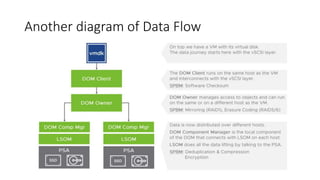

Another diagram of Data Flow
vSAN troubleshooting
Troubleshooting tools
• RVC
• vsan.observer
• vsan.disks_info
• vsan.disks_stats
• vsan.disk_object_info
• vsan.cmmds_find
• ESXCLI
• esxcli vsan debug disk list
• Objects tools
• /usr/lib/vmware/osfs/bin/objtool

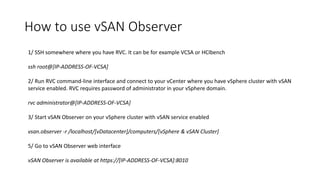

How to use vSAN Observer
1/ SSH somewhere where you have RVC. It can be for example VCSA or HCIbench
ssh root@[IP-ADDRESS-OF-VCSA]
2/ Run RVC command-line interface and connect to your vCenter where you have vSphere cluster with vSAN
service enabled. RVC requires password of administrator in your vSphere domain.
rvc administrator@[IP-ADDRESS-OF-VCSA]
3/ Start vSAN Observer on your vSphere cluster with vSAN service enabled
vsan.observer -r /localhost/[vDatacenter]/computers/[vSphere & vSAN Cluster]
5/ Go to vSAN Observer web interface
vSAN Observer is available at https://[IP-ADDRESS-OF-VCSA]:8010
