1. Lecture 1
Data Types Part 2
23/10/2018 Data Types Lecture 1 Part 2 1

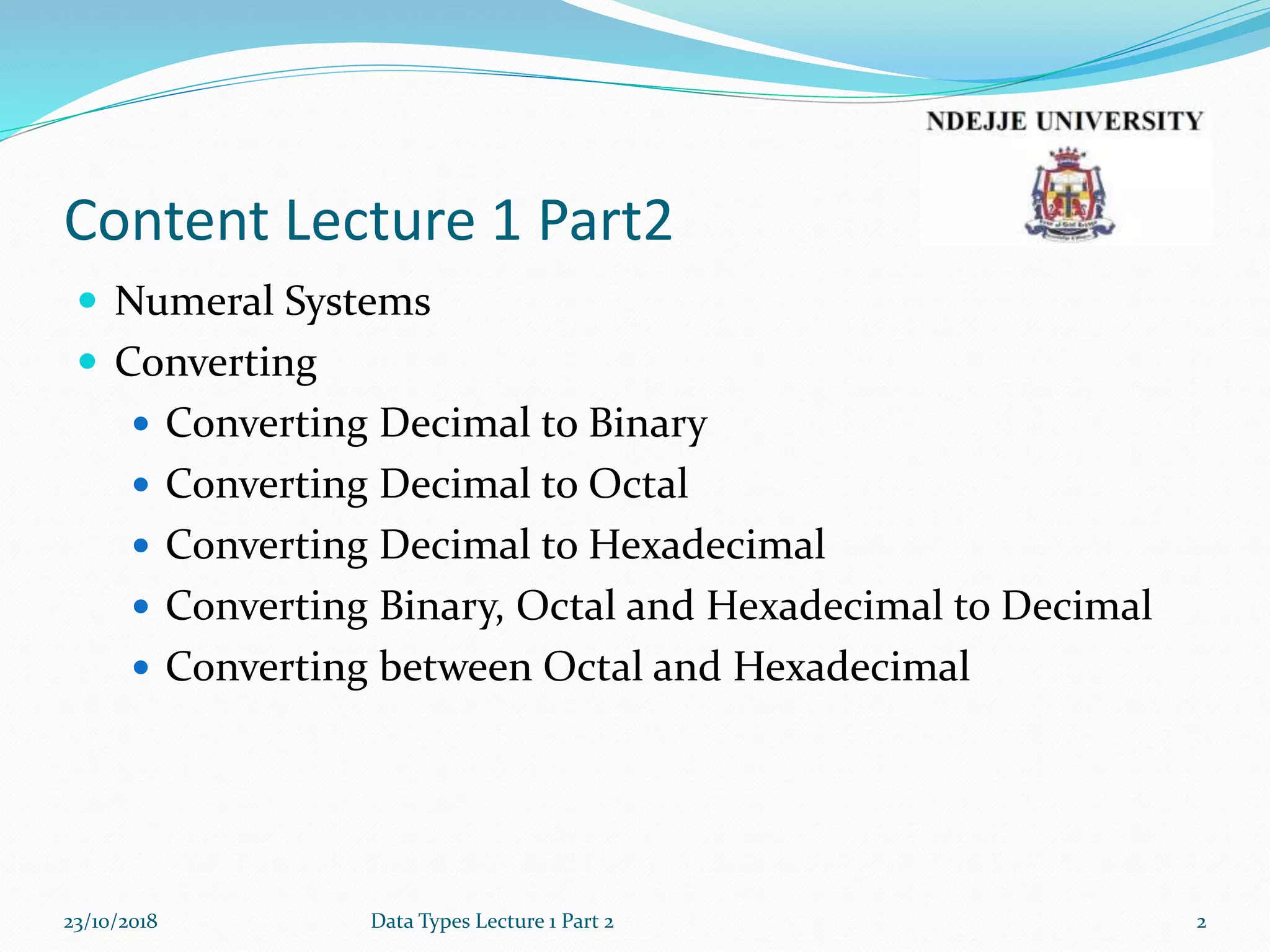

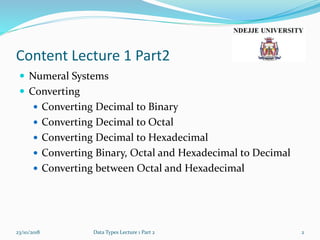

2. Content Lecture 1 Part2
 Numeral Systems
 Converting
 Converting Decimal to Binary
 Converting Decimal to Octal
 Converting Decimal to Hexadecimal
 Converting Binary, Octal and Hexadecimal to Decimal
 Converting between Octal and Hexadecimal
23/10/2018 Data Types Lecture 1 Part 2 2

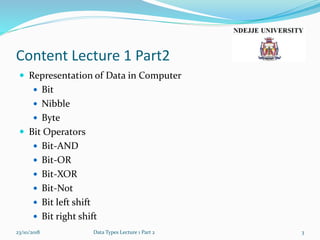

3. Content Lecture 1 Part2
 Representation of Data in Computer
 Bit
 Nibble
 Byte
 Bit Operators

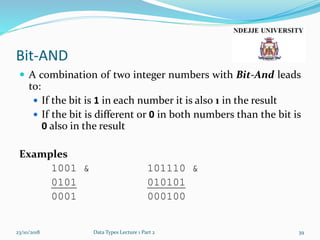

 Bit-AND
 Bit-OR

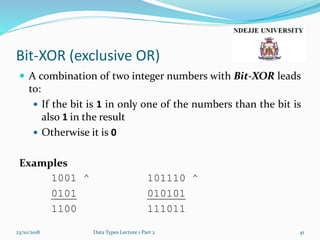

 Bit-XOR

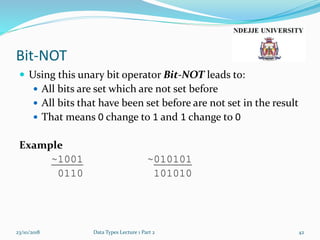

 Bit-Not

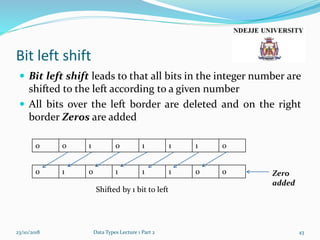

 Bit left shift
 Bit right shift
23/10/2018 Data Types Lecture 1 Part 2 3

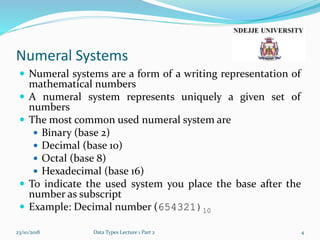

4. Numeral Systems
 Numeral systems are a form of a writing representation of
mathematical numbers
 A numeral system represents uniquely a given set of
numbers
 The most common used numeral system are
 Binary (base 2)
 Decimal (base 10)
 Octal (base 8)
 Hexadecimal (base 16)
 To indicate the used system you place the base after the
number as subscript
 Example: Decimal number (654321)10
23/10/2018 Data Types Lecture 1 Part 2 4

5. Numeral Systems
 Binary
 The binary numeral system is the number system to base 2
 It uses only the digit 0 and 1
 Internally used by all modern computers
 Example: (01001101)2
 Octal
 The octal numeral system is the number system to base 8
 It uses the digits 0 to 7
 Used for example for file permissions under Unix systems
(chmod)
23/10/2018 Data Types Lecture 1 Part 2 5

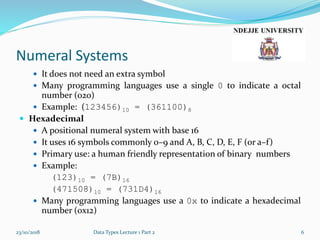

6. Numeral Systems
 It does not need an extra symbol
 Many programming languages use a single 0 to indicate a octal
number (020)
 Example: (123456)10 = (361100)8
 Hexadecimal
 A positional numeral system with base 16
 It uses 16 symbols commonly 0–9 and A, B, C, D, E, F (or a–f)
 Primary use: a human friendly representation of binary numbers
 Example:
(123)10 = (7B)16
(471508)10 = (731D4)16
 Many programming languages use a 0x to indicate a hexadecimal
number (0x12)
23/10/2018 Data Types Lecture 1 Part 2 6

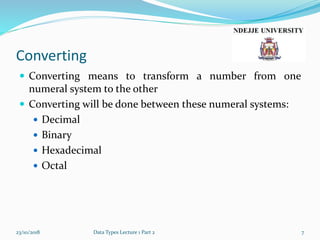

7. Converting
 Converting means to transform a number from one
numeral system to the other
 Converting will be done between these numeral systems:
 Decimal
 Binary
 Hexadecimal
 Octal
23/10/2018 Data Types Lecture 1 Part 2 7

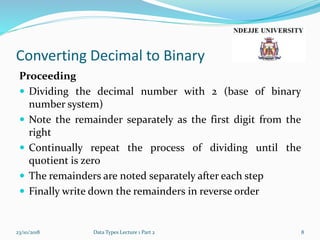

8. Converting Decimal to Binary
Proceeding
 Dividing the decimal number with 2 (base of binary
number system)
 Note the remainder separately as the first digit from the
right
 Continually repeat the process of dividing until the
quotient is zero
 The remainders are noted separately after each step
 Finally write down the remainders in reverse order
23/10/2018 Data Types Lecture 1 Part 2 8

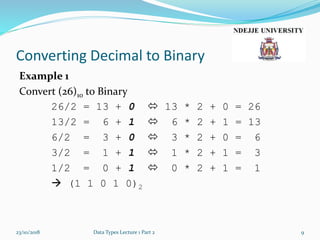

9. Converting Decimal to Binary
Example 1
Convert (26)10 to Binary
26/2 = 13 + 0  13 * 2 + 0 = 26
13/2 = 6 + 1  6 * 2 + 1 = 13
6/2 = 3 + 0  3 * 2 + 0 = 6
3/2 = 1 + 1  1 * 2 + 1 = 3
1/2 = 0 + 1  0 * 2 + 1 = 1
 (1 1 0 1 0)2
23/10/2018 Data Types Lecture 1 Part 2 9

10. Converting Decimal to Binary
Example 2
Convert (381)10 to Binary
381/2 = 190 + 1  190 * 2 + 1 = 381
190/2 = 95 + 0  95 * 2 + 0 = 190
95/2 = 47 + 1  47 * 2 + 1 = 95
47/2 = 23 + 1  23 * 2 + 1 = 47
23/2 = 11 + 1  11 * 2 + 1 = 23
11/2 = 5 + 1  5 * 2 + 1 = 11
5/2 = 2 + 1  2 * 2 + 1 = 5
2/2 = 1 + 0  1 * 2 + 0 = 2
1/2 = 0 + 1  0 * 2 + 1 = 1
 (1 0 1 1 1 1 1 0 1)2
23/10/2018 Data Types Lecture 1 Part 2 10

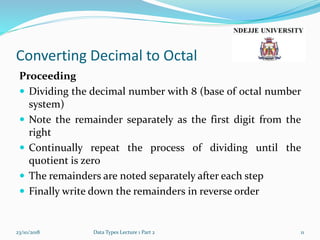

11. Converting Decimal to Octal
Proceeding
 Dividing the decimal number with 8 (base of octal number
system)
 Note the remainder separately as the first digit from the
right
 Continually repeat the process of dividing until the
quotient is zero
 The remainders are noted separately after each step
 Finally write down the remainders in reverse order
23/10/2018 Data Types Lecture 1 Part 2 11

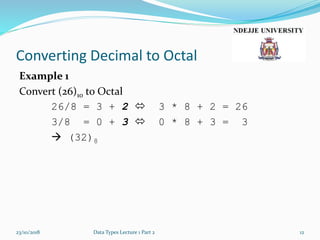

12. Converting Decimal to Octal
Example 1
Convert (26)10 to Octal
26/8 = 3 + 2  3 * 8 + 2 = 26
3/8 = 0 + 3  0 * 8 + 3 = 3
 (32)8
23/10/2018 Data Types Lecture 1 Part 2 12

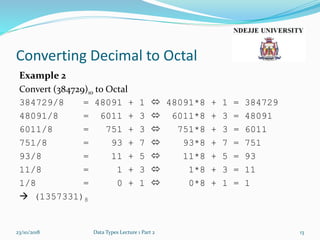

13. Converting Decimal to Octal
Example 2
Convert (384729)10 to Octal
384729/8 = 48091 + 1  48091*8 + 1 = 384729
48091/8 = 6011 + 3  6011*8 + 3 = 48091
6011/8 = 751 + 3  751*8 + 3 = 6011
751/8 = 93 + 7  93*8 + 7 = 751
93/8 = 11 + 5  11*8 + 5 = 93
11/8 = 1 + 3  1*8 + 3 = 11
1/8 = 0 + 1  0*8 + 1 = 1
 (1357331)8
23/10/2018 Data Types Lecture 1 Part 2 13

14. Converting Decimal to
Hexadecimal
Proceeding
 Dividing the decimal number with 16 (base of hexadecimal
number system)
 Note the remainder separately as the first digit from the
right
 If it exceeds 9 convert it into the hexadecimal letter (10 to
A, 11 to B, 12 to C, 13 to D, 14 to E, 15 to F)
 Continually repeat the process of dividing until the
quotient is zero
 The remainders are noted separately after each step
 Finally write down the remainders in reverse order
23/10/2018 Data Types Lecture 1 Part 2 14

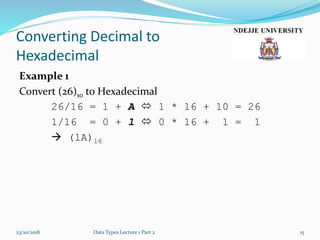

15. Converting Decimal to
Hexadecimal
Example 1
Convert (26)10 to Hexadecimal
26/16 = 1 + A  1 * 16 + 10 = 26
1/16 = 0 + 1  0 * 16 + 1 = 1
 (1A)16
23/10/2018 Data Types Lecture 1 Part 2 15

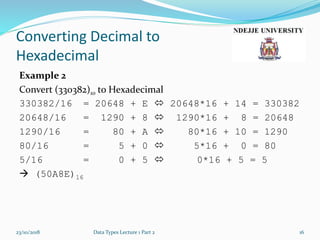

16. Converting Decimal to
Hexadecimal
Example 2
Convert (330382)10 to Hexadecimal
330382/16 = 20648 + E  20648*16 + 14 = 330382
20648/16 = 1290 + 8  1290*16 + 8 = 20648
1290/16 = 80 + A  80*16 + 10 = 1290
80/16 = 5 + 0  5*16 + 0 = 80
5/16 = 0 + 5  0*16 + 5 = 5
 (50A8E)16
23/10/2018 Data Types Lecture 1 Part 2 16

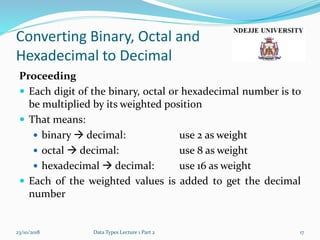

17. Converting Binary, Octal and
Hexadecimal to Decimal
Proceeding
 Each digit of the binary, octal or hexadecimal number is to
be multiplied by its weighted position
 That means:
 binary  decimal: use 2 as weight
 octal  decimal: use 8 as weight
 hexadecimal  decimal: use 16 as weight
 Each of the weighted values is added to get the decimal
number
23/10/2018 Data Types Lecture 1 Part 2 17

18. Converting Binary, Octal and
Hexadecimal to Decimal
Example 1 Convert Binary to Decimal
Therefore the weight is 2
Convert (11010)2 to Decimal
Binary 1 1 0 1 0
Weight 24 23 22 21 20
1*24 + 1*23 + 0*22 + 1*21 + 0*20
Sum 16 + 8 + 0 + 2 + 0 = (26)10
23/10/2018 Data Types Lecture 1 Part 2 18

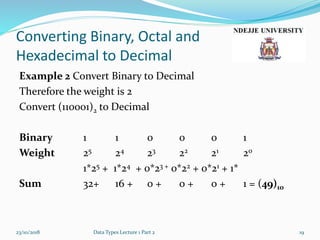

19. Converting Binary, Octal and
Hexadecimal to Decimal
Example 2 Convert Binary to Decimal
Therefore the weight is 2
Convert (110001)2 to Decimal
Binary 1 1 0 0 0 1
Weight 25 24 23 22 21 20
1*25 + 1*24 + 0*23 + 0*22 + 0*21 + 1*
Sum 32+ 16 + 0 + 0 + 0 + 1 = (49)10
23/10/2018 Data Types Lecture 1 Part 2 19

20. Converting Binary, Octal and
Hexadecimal to Decimal
Example 1 Convert Octal to Decimal
Therefore the weight is 8
Convert (32)8 to Decimal
Octal 3 2
Weight 81 80
3*81 + 2*80
24 + 2
Sum 24 + 2 = (26)10
23/10/2018 Data Types Lecture 1 Part 2 20

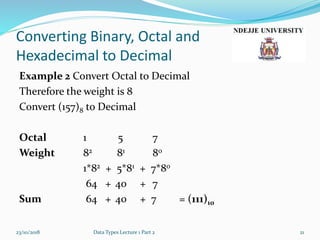

21. Converting Binary, Octal and
Hexadecimal to Decimal
Example 2 Convert Octal to Decimal
Therefore the weight is 8
Convert (157)8 to Decimal
Octal 1 5 7
Weight 82 81 80
1*82 + 5*81 + 7*80
64 + 40 + 7
Sum 64 + 40 + 7 = (111)10
23/10/2018 Data Types Lecture 1 Part 2 21

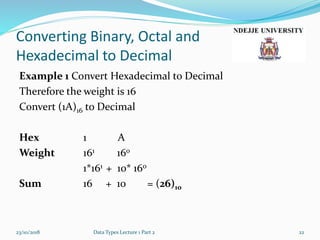

22. Converting Binary, Octal and
Hexadecimal to Decimal
Example 1 Convert Hexadecimal to Decimal
Therefore the weight is 16
Convert (1A)16 to Decimal
Hex 1 A
Weight 161 160
1*161 + 10* 160
Sum 16 + 10 = (26)10
23/10/2018 Data Types Lecture 1 Part 2 22

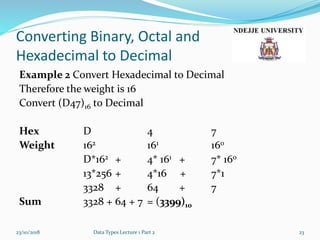

23. Converting Binary, Octal and
Hexadecimal to Decimal
Example 2 Convert Hexadecimal to Decimal
Therefore the weight is 16
Convert (D47)16 to Decimal
Hex D 4 7
Weight 162 161 160
D*162 + 4* 161 + 7* 160
13*256 + 4*16 + 7*1
3328 + 64 + 7
Sum 3328 + 64 + 7 = (3399)10
23/10/2018 Data Types Lecture 1 Part 2 23

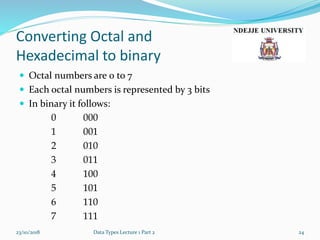

24. Converting Octal and
Hexadecimal to binary
 Octal numbers are 0 to 7
 Each octal numbers is represented by 3 bits
 In binary it follows:
0 000
1 001
2 010
3 011
4 100
5 101
6 110
7 111
23/10/2018 Data Types Lecture 1 Part 2 24

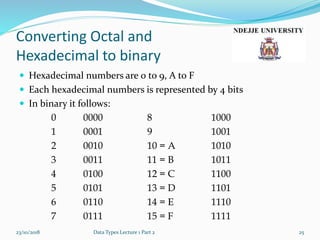

25. Converting Octal and
Hexadecimal to binary
 Hexadecimal numbers are 0 to 9, A to F
 Each hexadecimal numbers is represented by 4 bits
 In binary it follows:
0 0000 8 1000
1 0001 9 1001
2 0010 10 = A 1010
3 0011 11 = B 1011
4 0100 12 = C 1100
5 0101 13 = D 1101
6 0110 14 = E 1110
7 0111 15 = F 1111
23/10/2018 Data Types Lecture 1 Part 2 25

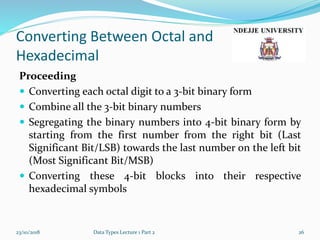

26. Converting Between Octal and
Hexadecimal
Proceeding
 Converting each octal digit to a 3-bit binary form
 Combine all the 3-bit binary numbers
 Segregating the binary numbers into 4-bit binary form by
starting from the first number from the right bit (Last
Significant Bit/LSB) towards the last number on the left bit
(Most Significant Bit/MSB)
 Converting these 4-bit blocks into their respective
hexadecimal symbols
23/10/2018 Data Types Lecture 1 Part 2 26

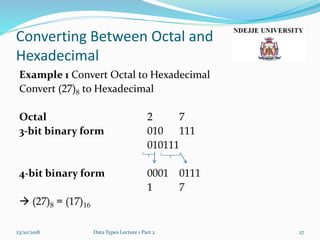

27. Converting Between Octal and
Hexadecimal
Example 1 Convert Octal to Hexadecimal
Convert (27)8 to Hexadecimal
Octal 2 7
3-bit binary form 010 111
010111
4-bit binary form 0001 0111
1 7
 (27)8 = (17)16
23/10/2018 Data Types Lecture 1 Part 2 27

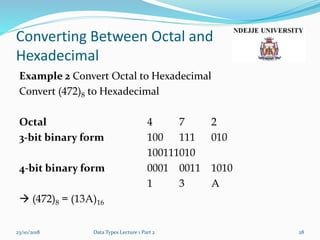

28. Converting Between Octal and
Hexadecimal
Example 2 Convert Octal to Hexadecimal
Convert (472)8 to Hexadecimal
Octal 4 7 2
3-bit binary form 100 111 010
100111010
4-bit binary form 0001 0011 1010
1 3 A
 (472)8 = (13A)16
23/10/2018 Data Types Lecture 1 Part 2 28

29. Converting Between Octal and
Hexadecimal
Example 1 Convert Hexadecimal to Octal
Convert (17)16 to Octal
Hex 1 7
4-bit binary form 0001 0111
00 010 111
3-bit binary form 010 111
2 7
 (17)16 = (27)8
23/10/2018 Data Types Lecture 1 Part 2 29

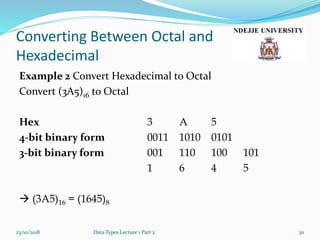

30. Converting Between Octal and
Hexadecimal
Example 2 Convert Hexadecimal to Octal
Convert (3A5)16 to Octal
Hex 3 A 5
4-bit binary form 0011 1010 0101
3-bit binary form 001 110 100 101
1 6 4 5
 (3A5)16 = (1645)8
23/10/2018 Data Types Lecture 1 Part 2 30

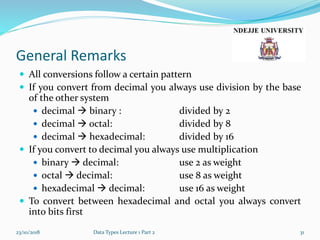

31. General Remarks
 All conversions follow a certain pattern
 If you convert from decimal you always use division by the base
of the other system
 decimal  binary : divided by 2
 decimal  octal: divided by 8
 decimal  hexadecimal: divided by 16
 If you convert to decimal you always use multiplication
 binary  decimal: use 2 as weight
 octal  decimal: use 8 as weight
 hexadecimal  decimal: use 16 as weight
 To convert between hexadecimal and octal you always convert
into bits first
23/10/2018 Data Types Lecture 1 Part 2 31

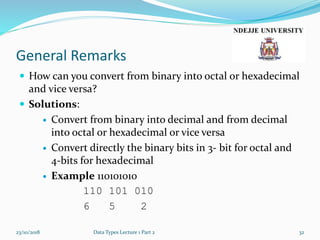

32. General Remarks
 How can you convert from binary into octal or hexadecimal
and vice versa?
 Solutions:
 Convert from binary into decimal and from decimal
into octal or hexadecimal or vice versa
 Convert directly the binary bits in 3- bit for octal and
4-bits for hexadecimal
 Example 110101010
110 101 010
6 5 2
23/10/2018 Data Types Lecture 1 Part 2 32

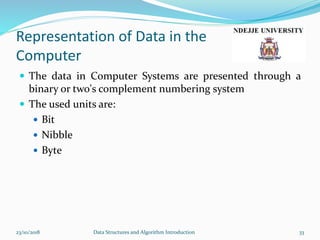

33. Representation of Data in the
Computer
 The data in Computer Systems are presented through a
binary or two's complement numbering system
 The used units are:
 Bit
 Nibble
 Byte
23/10/2018 Data Structures and Algorithm Introduction 33

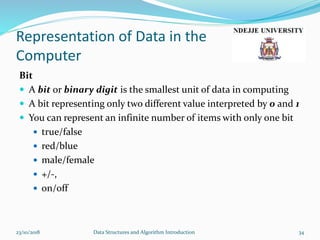

34. Representation of Data in the
Computer
Bit
 A bit or binary digit is the smallest unit of data in computing
 A bit representing only two different value interpreted by 0 and 1
 You can represent an infinite number of items with only one bit
 true/false
 red/blue
 male/female
 +/-,
 on/off
23/10/2018 Data Structures and Algorithm Introduction 34

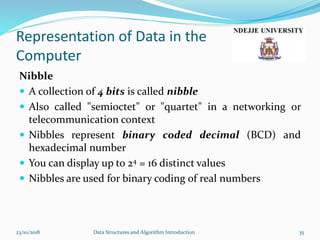

35. Representation of Data in the
Computer
Nibble
 A collection of 4 bits is called nibble
 Also called "semioctet" or "quartet" in a networking or
telecommunication context
 Nibbles represent binary coded decimal (BCD) and
hexadecimal number
 You can display up to 24 = 16 distinct values
 Nibbles are used for binary coding of real numbers
23/10/2018 Data Structures and Algorithm Introduction 35

36. Representation of Data in the
Computer
Bytes
 A byte is a collection of 8 bits and is the smallest addressable
data item on the microprocessor
 The bits of a byte are normally numbered from 0 to 7 by
Bit 0: lower order bit or least significant bit
Bits 0 – 3: low order nibble
Bits 4 – 7: high order nibble
Bit 7: high order bit or most significant bit
 A byte can represent 28 = 256 different values. It can represent
number values from 0 … 255 or signed number from -128 to 127
 The most important use for a byte is holding a character (see
Char type)
23/10/2018 Data Structures and Algorithm Introduction 36

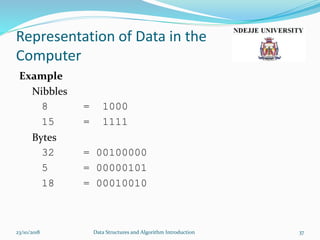

37. Representation of Data in the
Computer
Example
Nibbles
8 = 1000
15 = 1111
Bytes
32 = 00100000
5 = 00000101
18 = 00010010
23/10/2018 Data Structures and Algorithm Introduction 37

38. Bit operators
Bit operators are a powerful and a very machine close
concept.
The following bit operators exist:
& Bit-AND
| Bit-OR
^ Bit-XOR
~ Bit-NOT (1 complement)
<< Bit left shift
>> Bit right shift
23/10/2018 Data Types Lecture 1 Part 2 38

39. Bit-AND
 A combination of two integer numbers with Bit-And leads
to:
 If the bit is 1 in each number it is also 1 in the result
 If the bit is different or 0 in both numbers than the bit is
0 also in the result
Examples
1001 & 101110 &
0101 010101
0001 000100
23/10/2018 Data Types Lecture 1 Part 2 39

40. Bit-OR
 A combination of two integer numbers with Bit-OR leads
to:
 If the bit is 1 in one of the numbers the bit is also 1 in
the result
 Otherwise it is 0
Examples
1001 | 101110 |
0101 010101
1101 111111
23/10/2018 Data Types Lecture 1 Part 2 40

41. Bit-XOR (exclusive OR)
 A combination of two integer numbers with Bit-XOR leads
to:
 If the bit is 1 in only one of the numbers than the bit is
also 1 in the result
 Otherwise it is 0
Examples
1001 ^ 101110 ^
0101 010101
1100 111011
23/10/2018 Data Types Lecture 1 Part 2 41

42. Bit-NOT
 Using this unary bit operator Bit-NOT leads to:
 All bits are set which are not set before
 All bits that have been set before are not set in the result
 That means 0 change to 1 and 1 change to 0
Example
~1001 ~010101
0110 101010
23/10/2018 Data Types Lecture 1 Part 2 42

43. Bit left shift
 Bit left shift leads to that all bits in the integer number are
shifted to the left according to a given number
 All bits over the left border are deleted and on the right
border Zeros are added
23/10/2018 Data Types Lecture 1 Part 2 43
0 0 1 0 1 1 1 0
0 1 0 1 1 1 0 0 Zero
added
Shifted by 1 bit to left

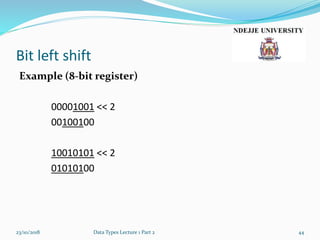

44. Bit left shift
Example (8-bit register)
00001001 << 2
00100100
10010101 << 2
01010100
23/10/2018 Data Types Lecture 1 Part 2 44

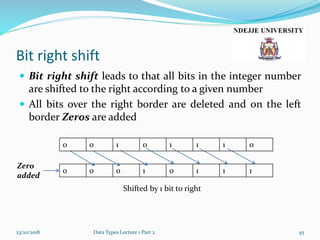

45. Bit right shift
 Bit right shift leads to that all bits in the integer number
are shifted to the right according to a given number
 All bits over the right border are deleted and on the left
border Zeros are added
23/10/2018 Data Types Lecture 1 Part 2 45
0 0 1 0 1 1 1 0
0 0 0 1 0 1 1 1
Shifted by 1 bit to right
Zero
added

46. Bit right shift
Example (8-bit register)
00001001 >> 2
00000010
10010101 >> 2
00100101
23/10/2018 Data Types Lecture 1 Part 2 46

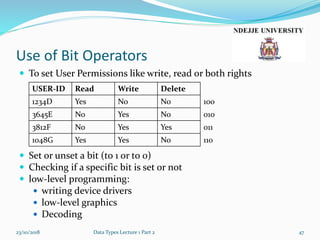

47. Use of Bit Operators
 To set User Permissions like write, read or both rights
 Set or unset a bit (to 1 or to 0)
 Checking if a specific bit is set or not
 low-level programming:
 writing device drivers
 low-level graphics
 Decoding
23/10/2018 Data Types Lecture 1 Part 2 47
USER-ID Read Write Delete
1234D Yes No No 100
3645E No Yes No 010
3812F No Yes Yes 011
1048G Yes Yes No 110

48. Any
questions?
23/10/2018 Data Types Lecture 1 Part 2 48
