This document discusses various diode applications including load line analysis, rectifier circuits, clipping circuits, clamping circuits, and zener diode circuits. Key points covered include:

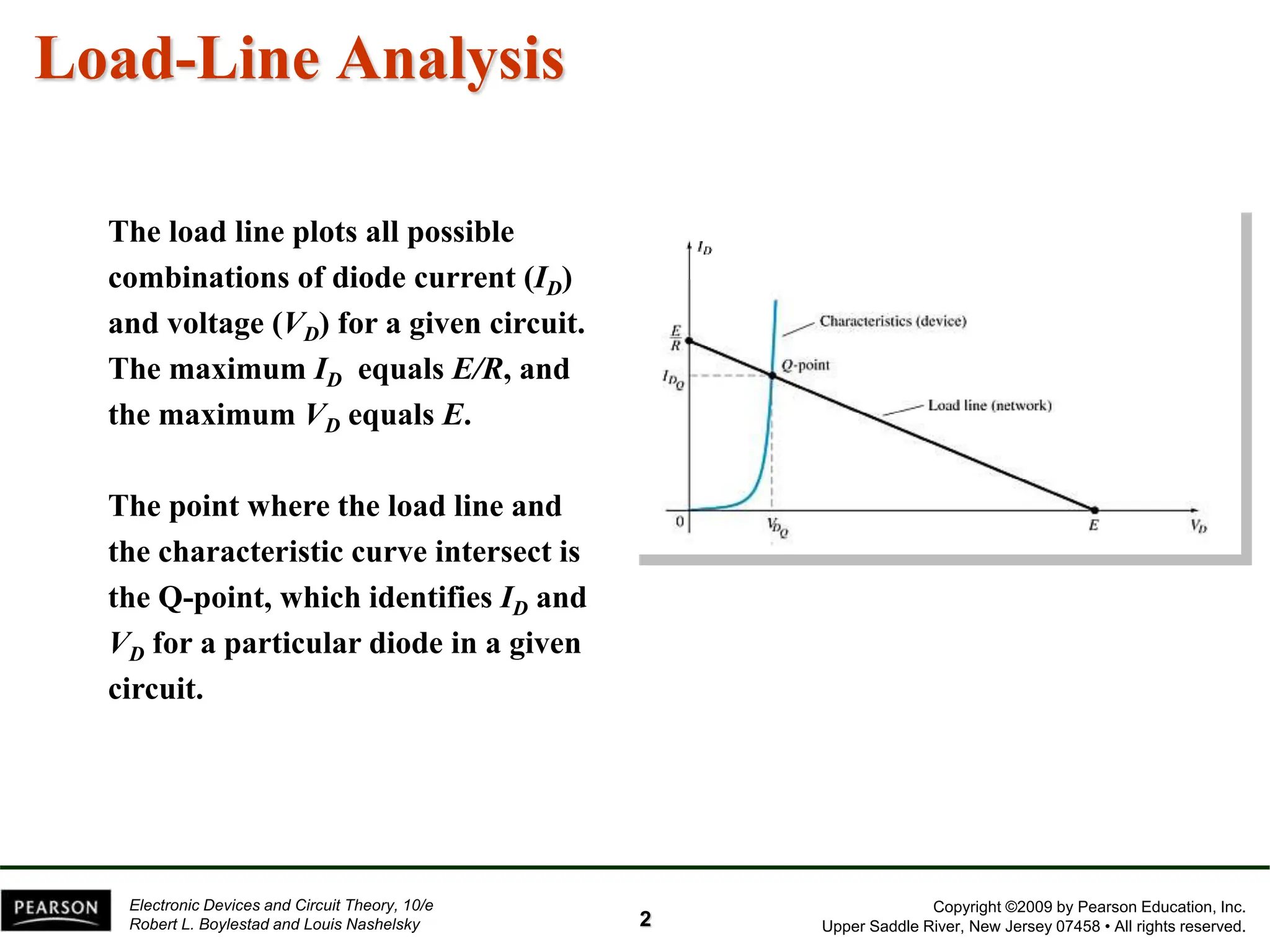

- Load line analysis plots all possible current and voltage combinations for a diode in a given circuit.
- Rectifier circuits like half-wave and full-wave rectifiers are used to convert AC to DC. Full-wave rectifiers produce a greater DC output of 0.636Vm.
- Clipping and clamping circuits use diodes to modify signal waveforms by "clipping" or "clamping" portions of the signal.
- Zener diodes can be used to regulate voltage or provide overvoltage protection when operated in reverse bias at
