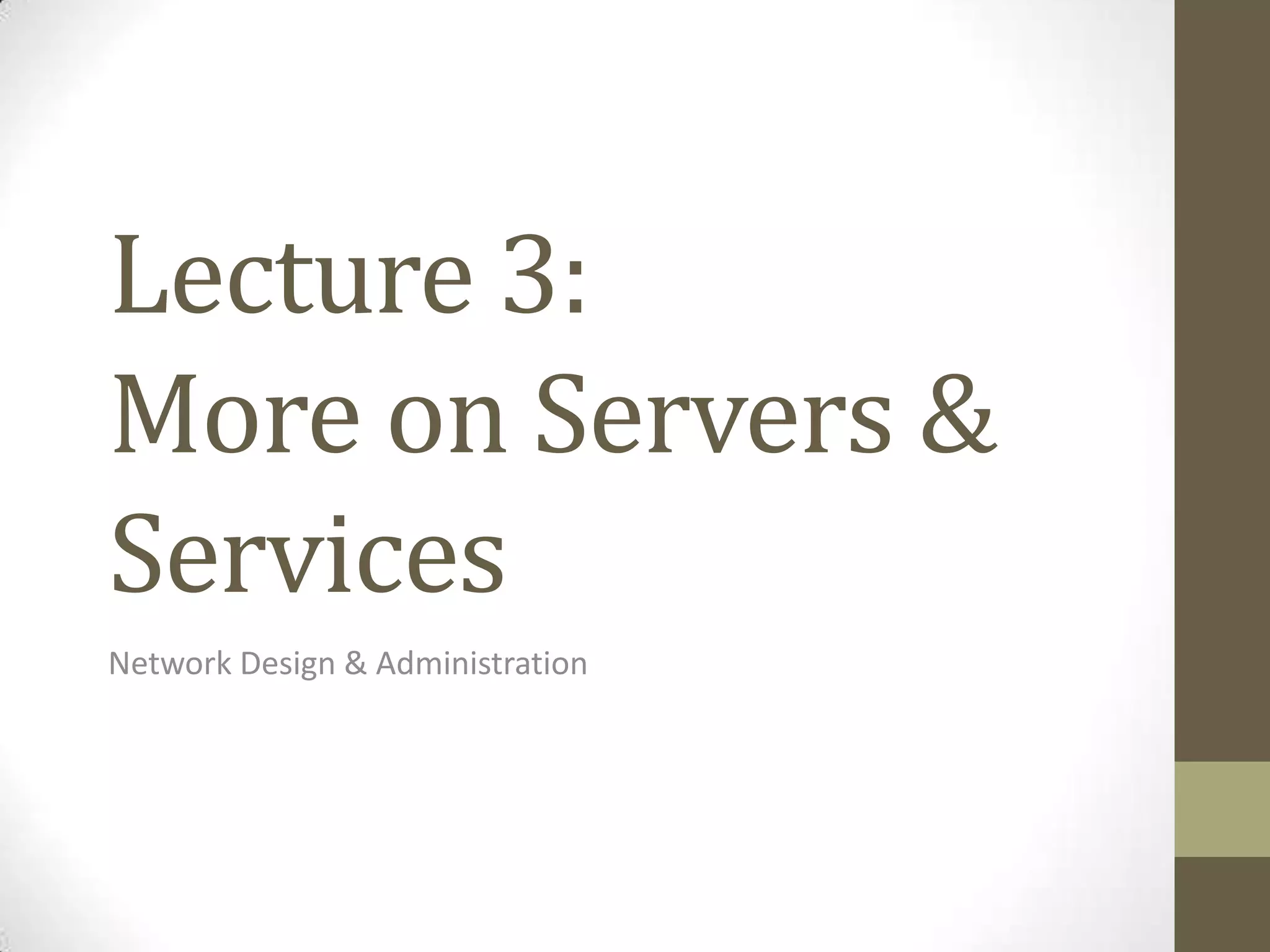

1. Lecture 3:
More on Servers &
Services
Network Design & Administration

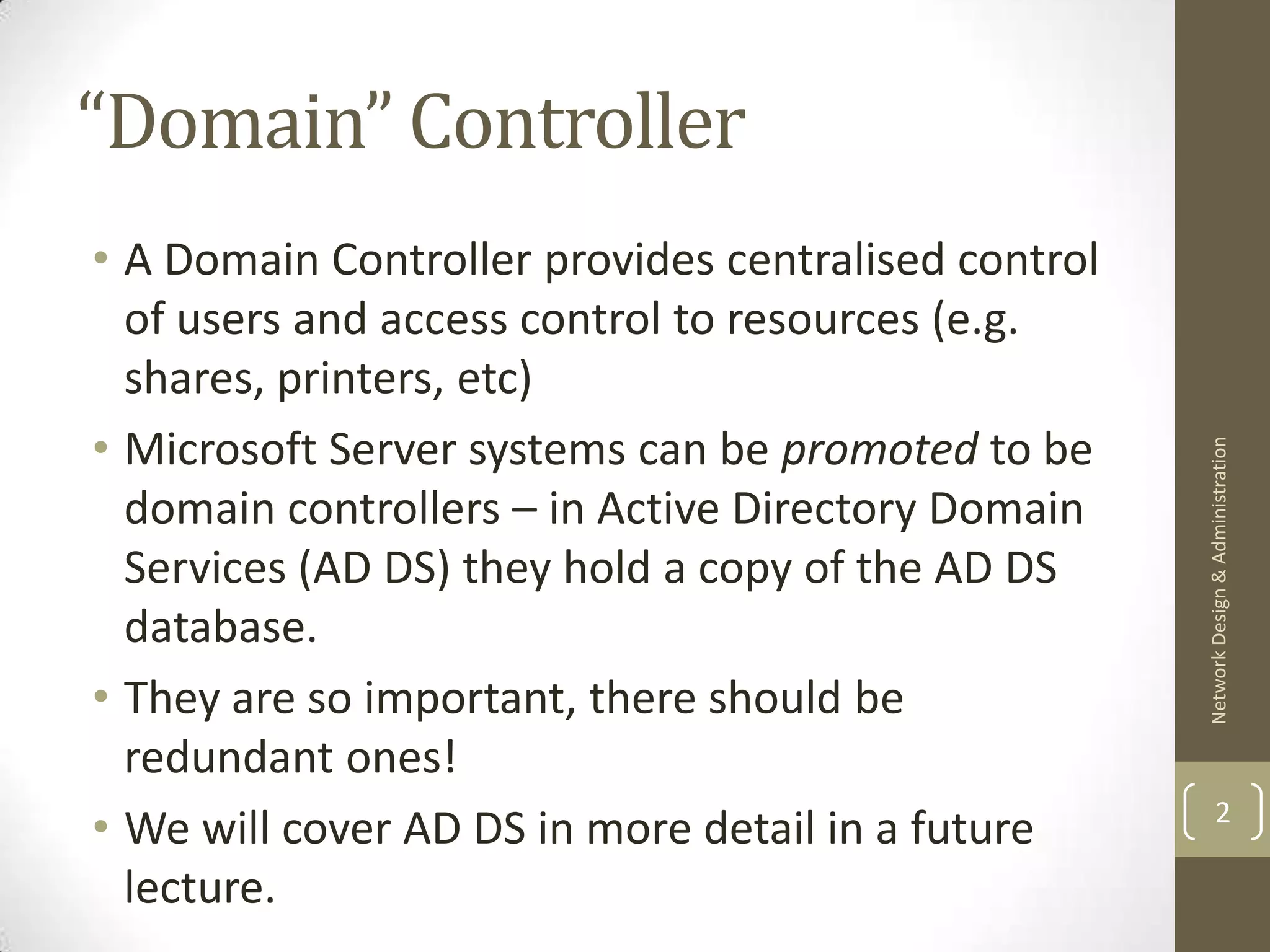

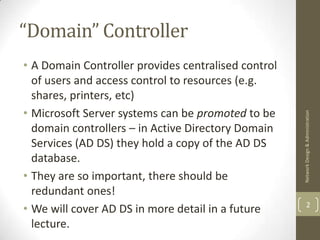

2. “Domain” Controller
• A Domain Controller provides centralised control
of users and access control to resources (e.g.
shares, printers, etc)
• Microsoft Server systems can be promoted to be
Network Design & Administration
domain controllers – in Active Directory Domain
Services (AD DS) they hold a copy of the AD DS
database.
• They are so important, there should be
redundant ones!
2
• We will cover AD DS in more detail in a future
lecture.

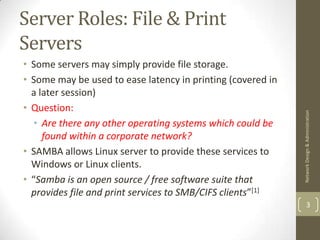

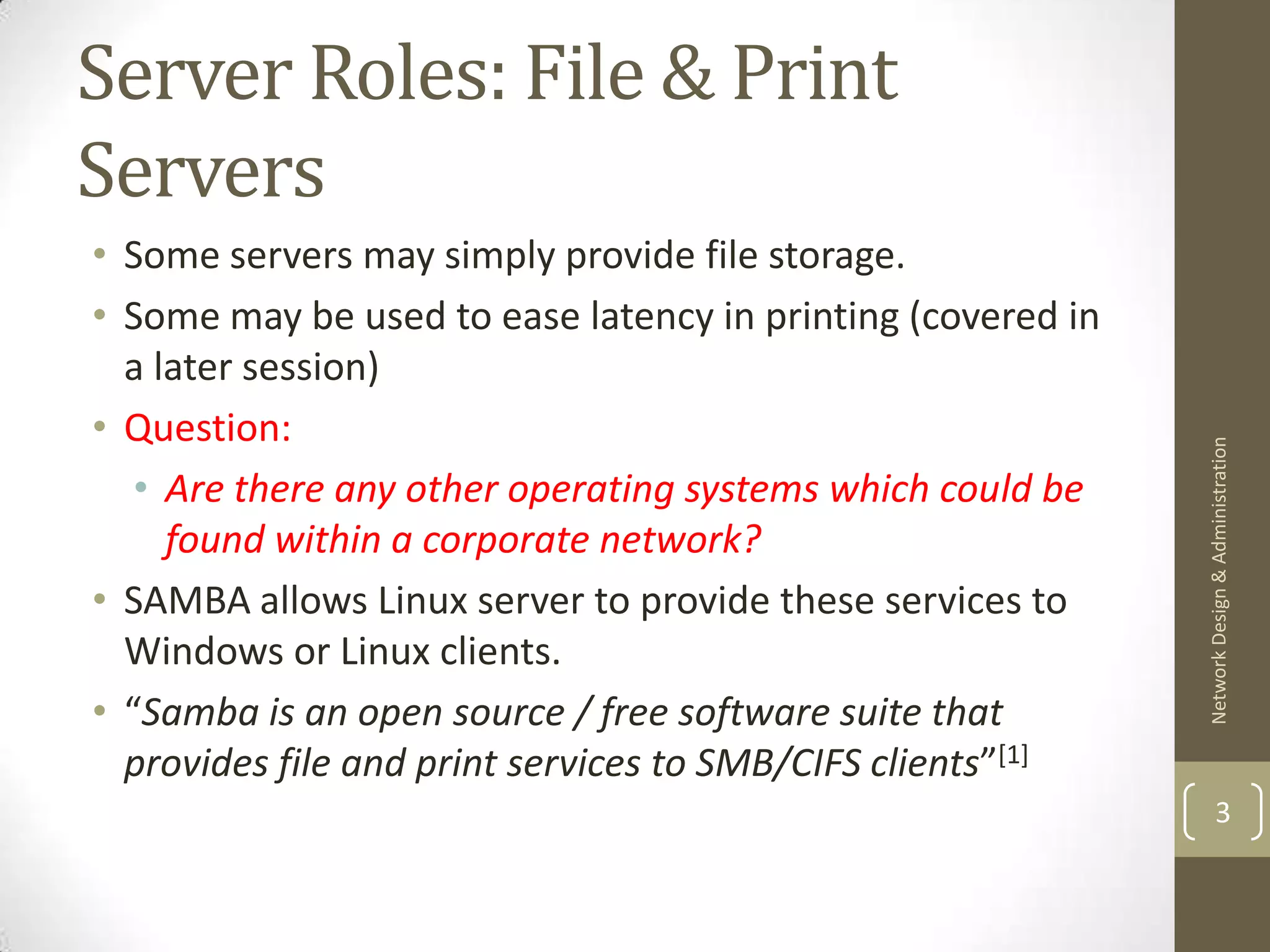

3. Server Roles: File & Print
Servers
• Some servers may simply provide file storage.
• Some may be used to ease latency in printing (covered in
a later session)
• Question:
Network Design & Administration
• Are there any other operating systems which could be
found within a corporate network?
• SAMBA allows Linux server to provide these services to
Windows or Linux clients.
• “Samba is an open source / free software suite that
provides file and print services to SMB/CIFS clients”[1]
3

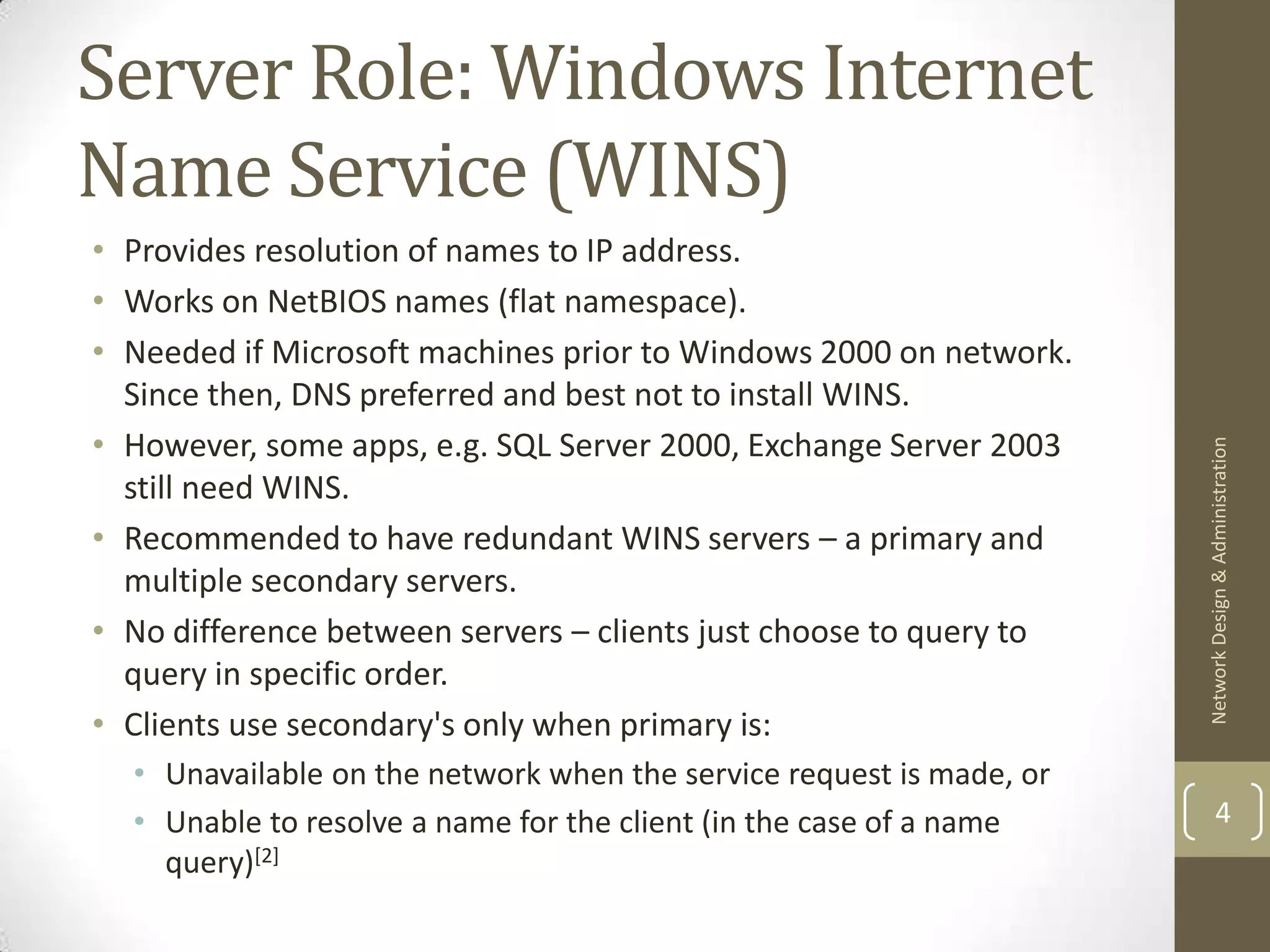

4. Server Role: Windows Internet
Name Service (WINS)
• Provides resolution of names to IP address.
• Works on NetBIOS names (flat namespace).
• Needed if Microsoft machines prior to Windows 2000 on network.
Since then, DNS preferred and best not to install WINS.
• However, some apps, e.g. SQL Server 2000, Exchange Server 2003
Network Design & Administration
still need WINS.
• Recommended to have redundant WINS servers – a primary and
multiple secondary servers.
• No difference between servers – clients just choose to query to
query in specific order.
• Clients use secondary's only when primary is:
• Unavailable on the network when the service request is made, or
• Unable to resolve a name for the client (in the case of a name 4
query)[2]

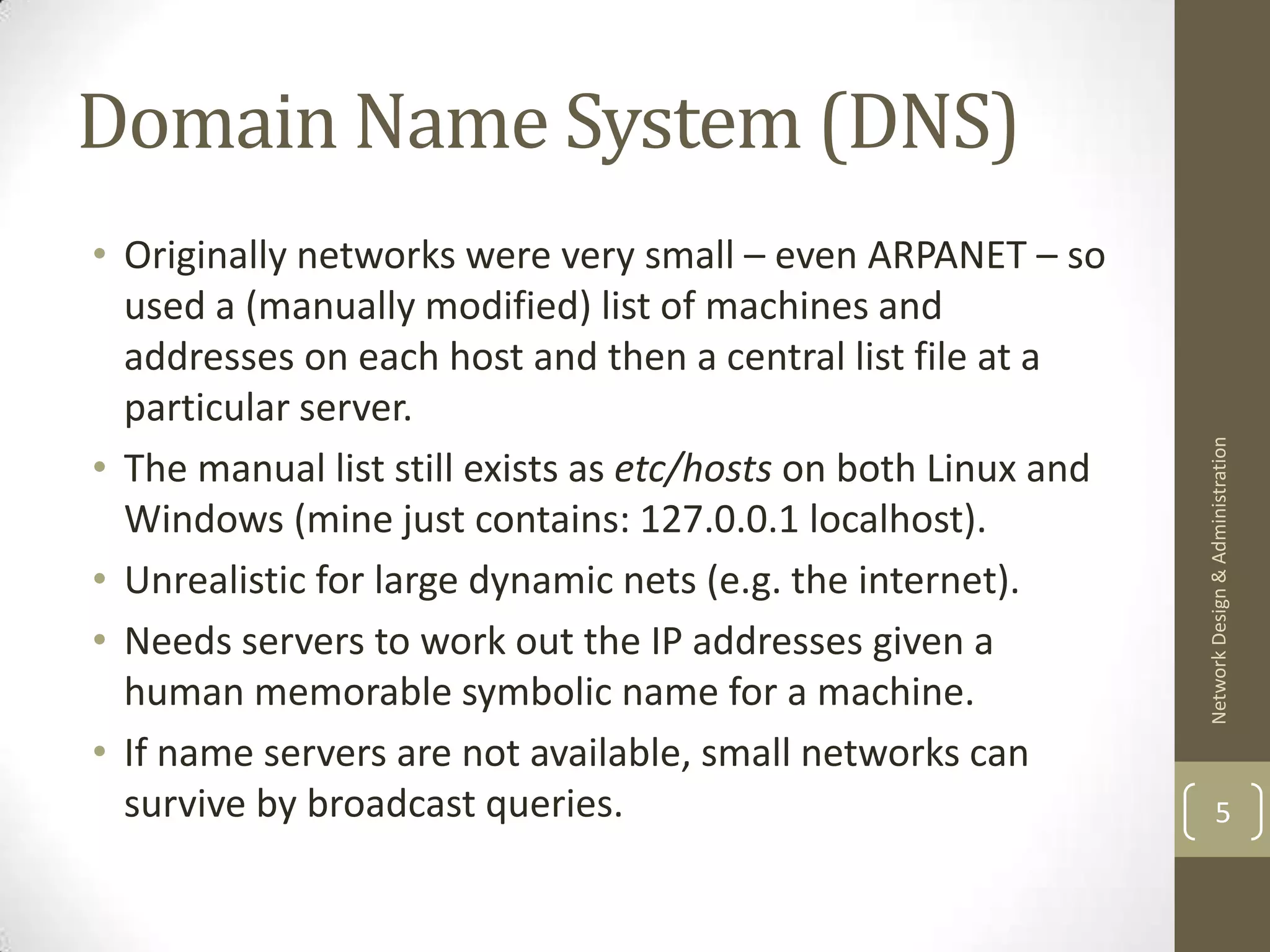

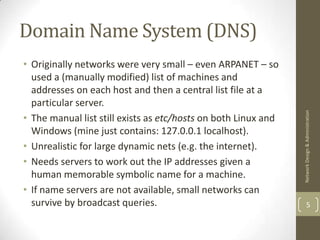

5. Domain Name System (DNS)
• Originally networks were very small – even ARPANET – so
used a (manually modified) list of machines and
addresses on each host and then a central list file at a
particular server.
Network Design & Administration
• The manual list still exists as etc/hosts on both Linux and
Windows (mine just contains: 127.0.0.1 localhost).
• Unrealistic for large dynamic nets (e.g. the internet).
• Needs servers to work out the IP addresses given a
human memorable symbolic name for a machine.
• If name servers are not available, small networks can
survive by broadcast queries. 5

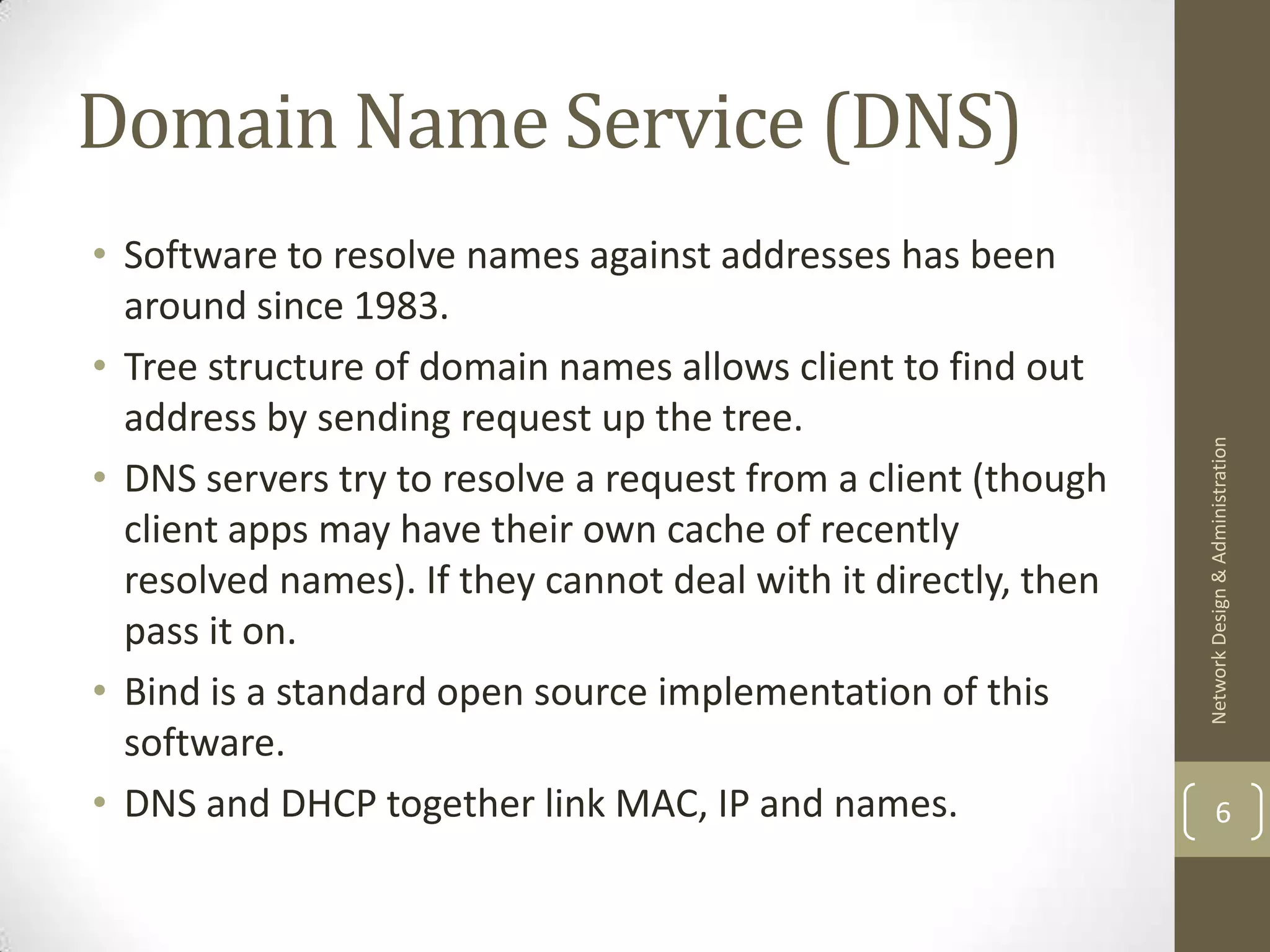

6. Domain Name Service (DNS)
• Software to resolve names against addresses has been
around since 1983.
• Tree structure of domain names allows client to find out
address by sending request up the tree.
Network Design & Administration
• DNS servers try to resolve a request from a client (though
client apps may have their own cache of recently
resolved names). If they cannot deal with it directly, then
pass it on.
• Bind is a standard open source implementation of this
software.
• DNS and DHCP together link MAC, IP and names. 6

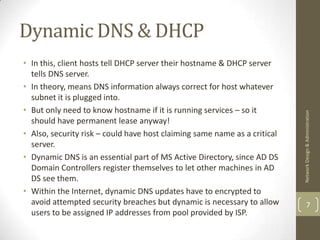

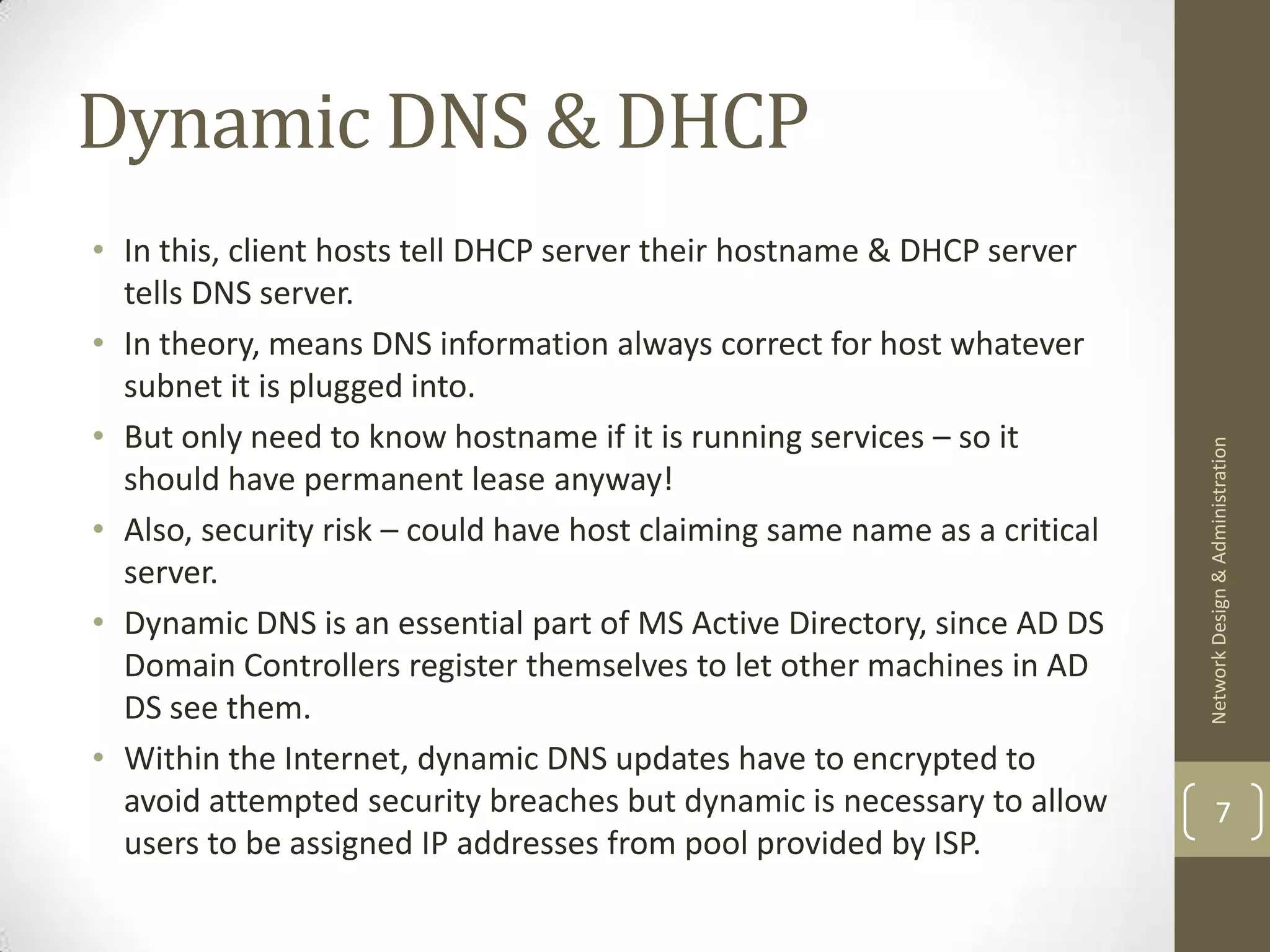

7. Dynamic DNS & DHCP
• In this, client hosts tell DHCP server their hostname & DHCP server
tells DNS server.
• In theory, means DNS information always correct for host whatever
subnet it is plugged into.
• But only need to know hostname if it is running services – so it
Network Design & Administration
should have permanent lease anyway!
• Also, security risk – could have host claiming same name as a critical
server.
• Dynamic DNS is an essential part of MS Active Directory, since AD DS
Domain Controllers register themselves to let other machines in AD
DS see them.
• Within the Internet, dynamic DNS updates have to encrypted to
avoid attempted security breaches but dynamic is necessary to allow 7
users to be assigned IP addresses from pool provided by ISP.

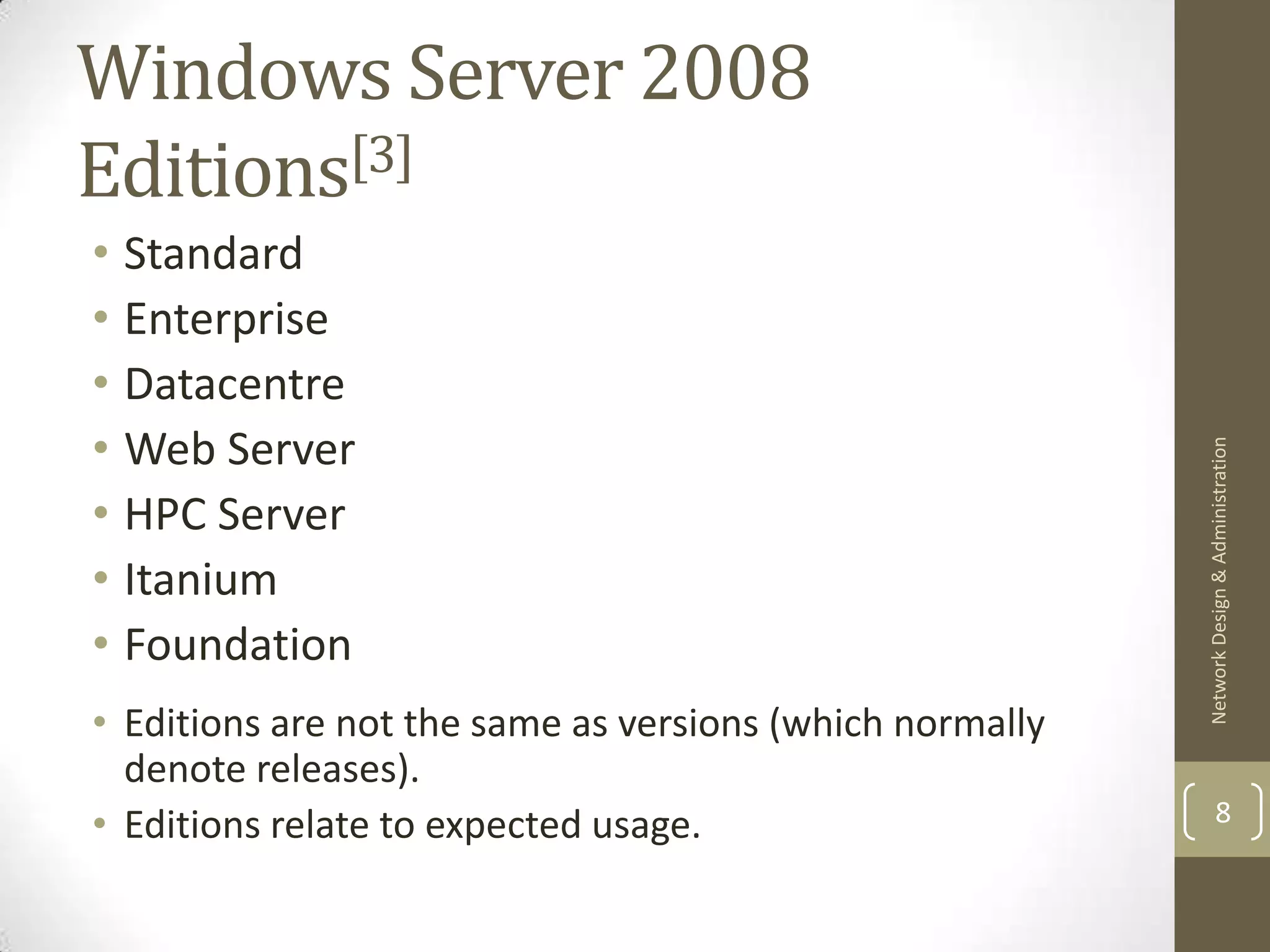

8. Windows Server 2008
Editions[3]
• Standard
• Enterprise
• Datacentre
• Web Server
Network Design & Administration
• HPC Server
• Itanium
• Foundation
• Editions are not the same as versions (which normally
denote releases).
• Editions relate to expected usage. 8

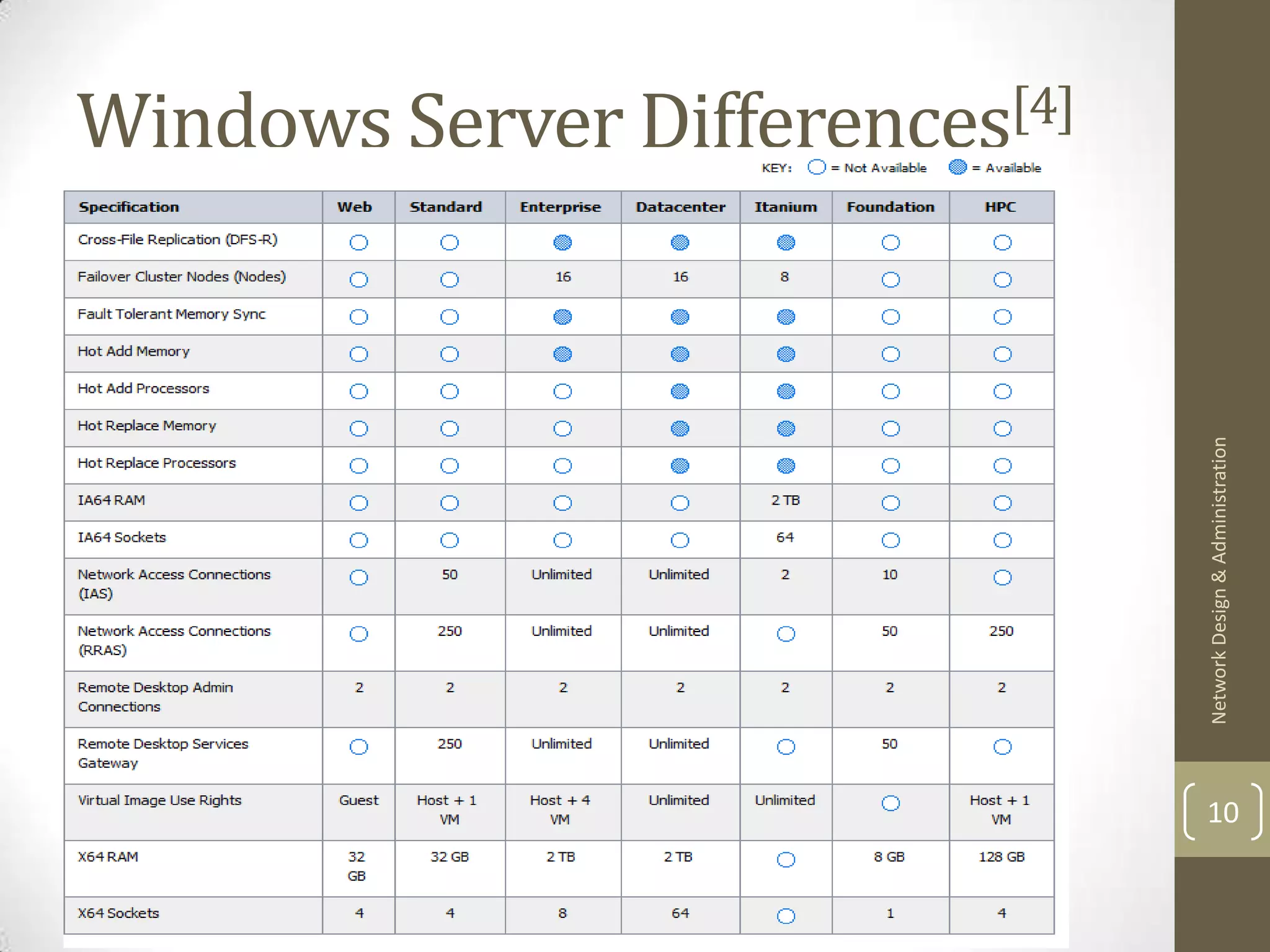

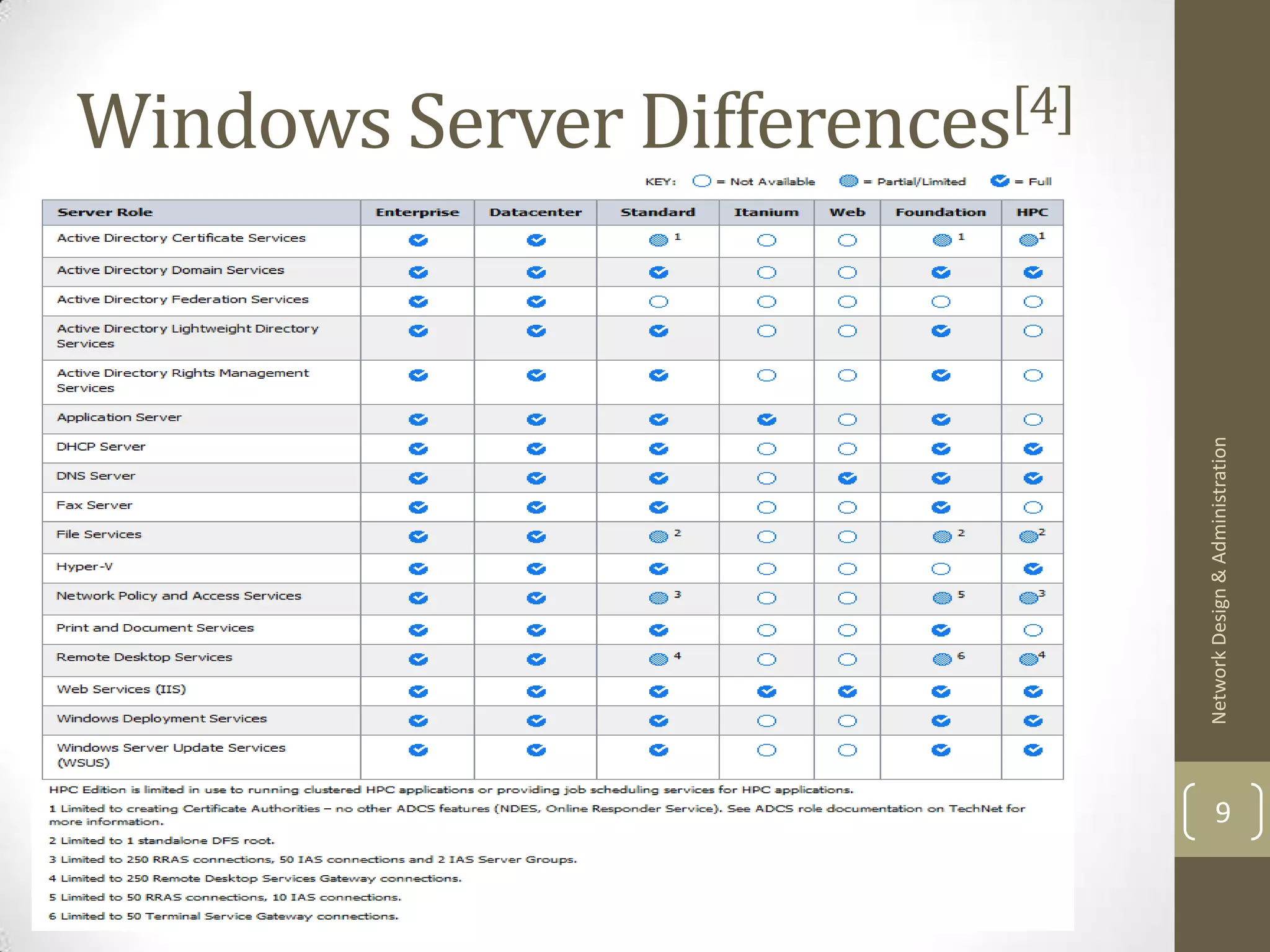

9. Windows Server Differences[4]
Network Design & Administration
9

10. Windows Server Differences[4]
Network Design & Administration
10

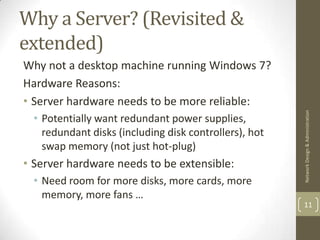

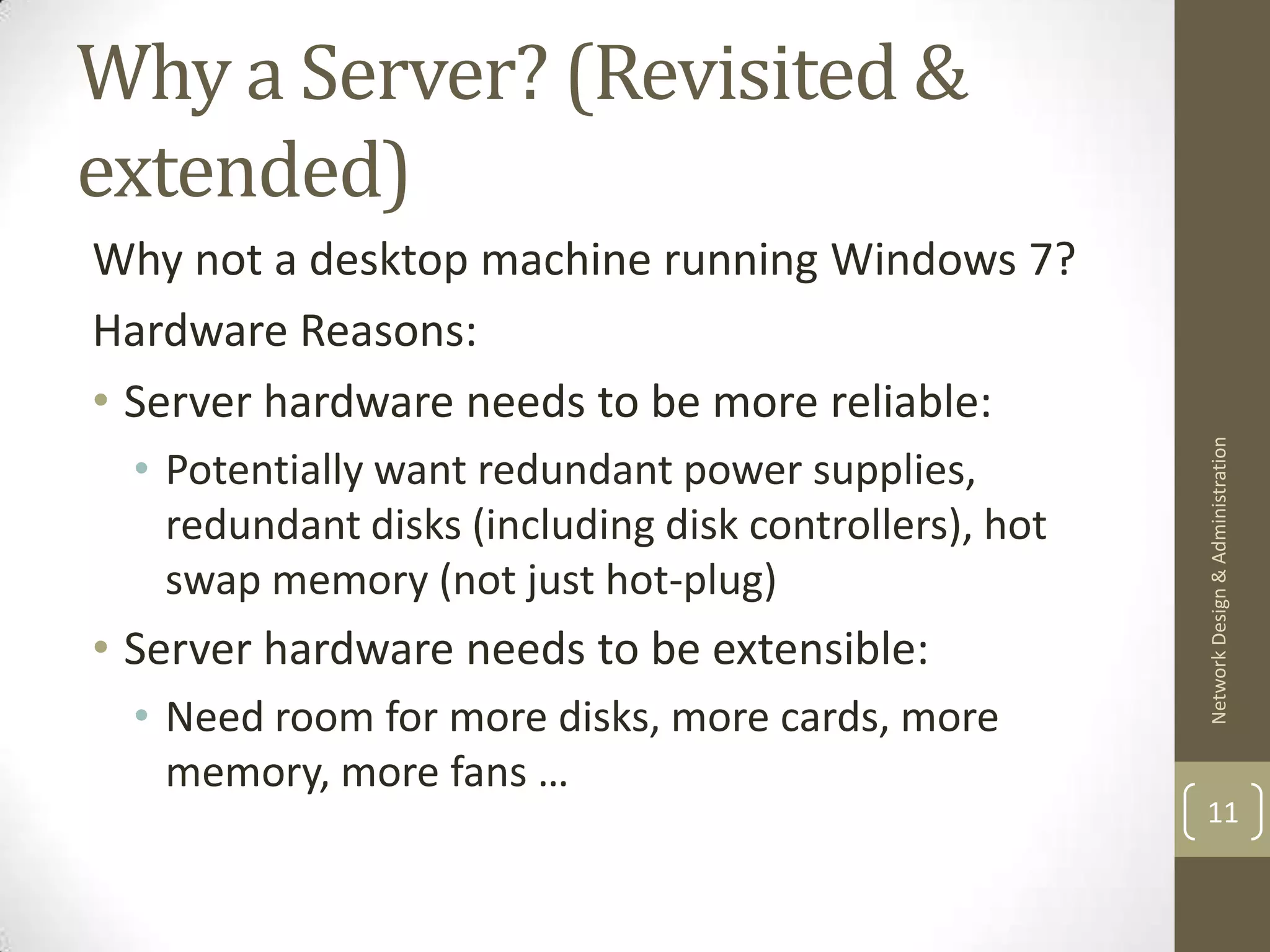

11. Why a Server? (Revisited &
extended)
Why not a desktop machine running Windows 7?
Hardware Reasons:
• Server hardware needs to be more reliable:
Network Design & Administration
• Potentially want redundant power supplies,
redundant disks (including disk controllers), hot
swap memory (not just hot-plug)
• Server hardware needs to be extensible:
• Need room for more disks, more cards, more
memory, more fans …
11

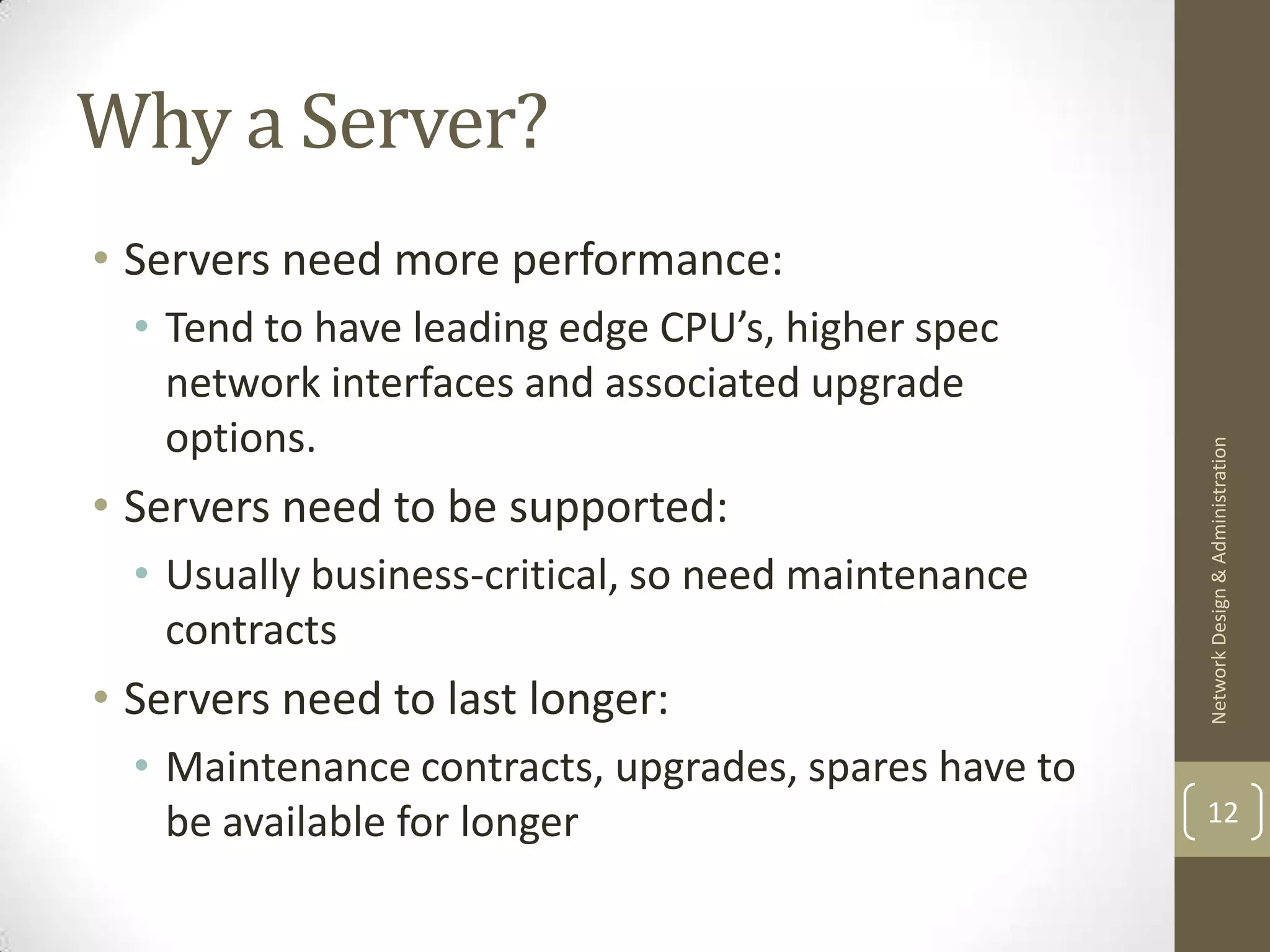

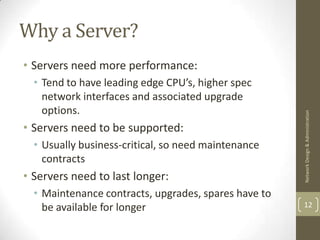

12. Why a Server?
• Servers need more performance:
• Tend to have leading edge CPU’s, higher spec
network interfaces and associated upgrade
options.
Network Design & Administration
• Servers need to be supported:
• Usually business-critical, so need maintenance
contracts
• Servers need to last longer:
• Maintenance contracts, upgrades, spares have to
be available for longer 12

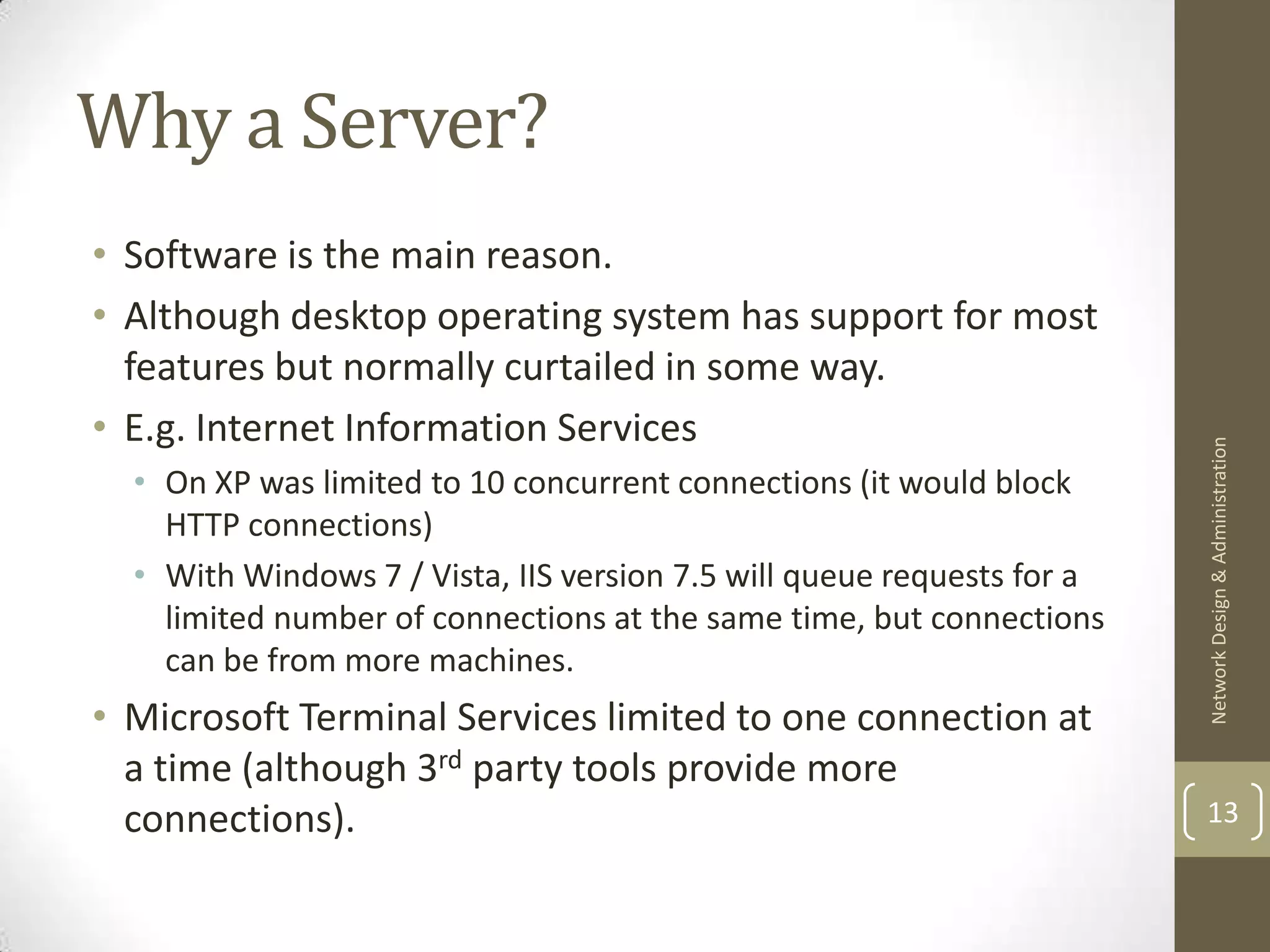

13. Why a Server?
• Software is the main reason.
• Although desktop operating system has support for most
features but normally curtailed in some way.
• E.g. Internet Information Services
Network Design & Administration
• On XP was limited to 10 concurrent connections (it would block
HTTP connections)
• With Windows 7 / Vista, IIS version 7.5 will queue requests for a
limited number of connections at the same time, but connections
can be from more machines.
• Microsoft Terminal Services limited to one connection at
a time (although 3rd party tools provide more
connections). 13

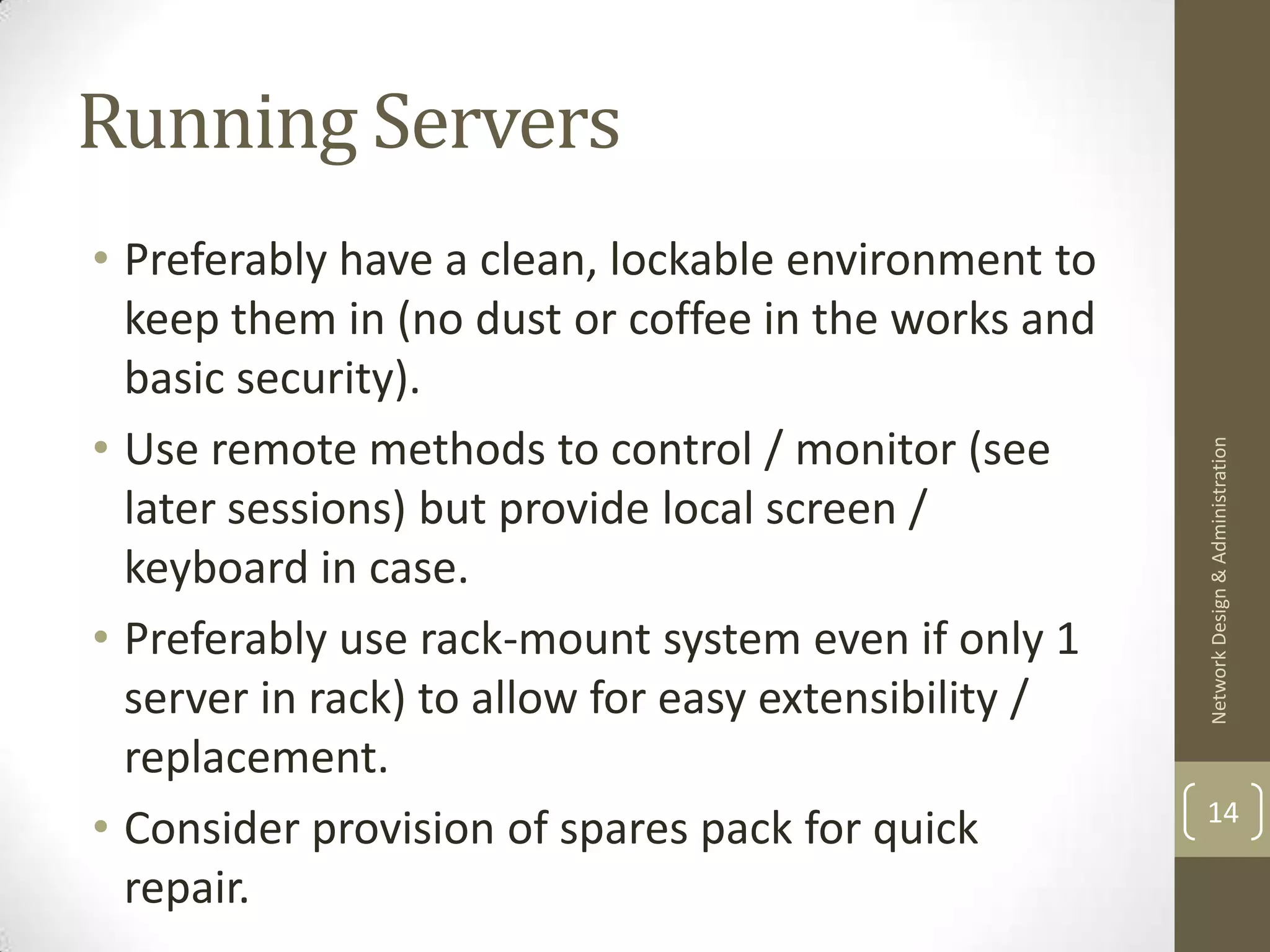

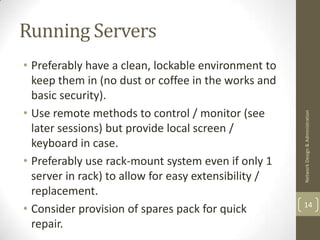

14. Running Servers
• Preferably have a clean, lockable environment to
keep them in (no dust or coffee in the works and
basic security).
• Use remote methods to control / monitor (see
Network Design & Administration
later sessions) but provide local screen /
keyboard in case.
• Preferably use rack-mount system even if only 1
server in rack) to allow for easy extensibility /
replacement.
14
• Consider provision of spares pack for quick
repair.

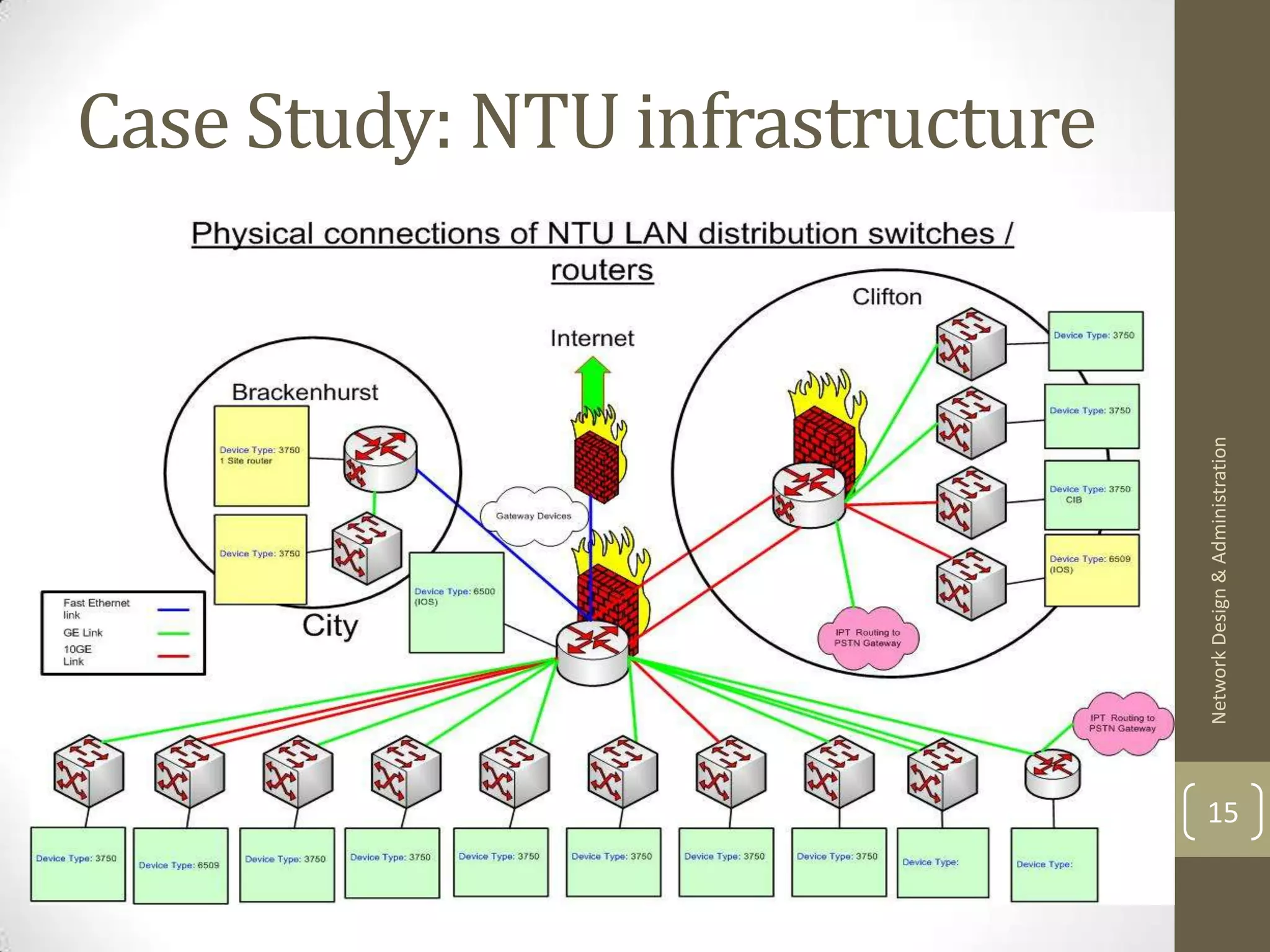

15. Case Study: NTU infrastructure
Network Design & Administration
15

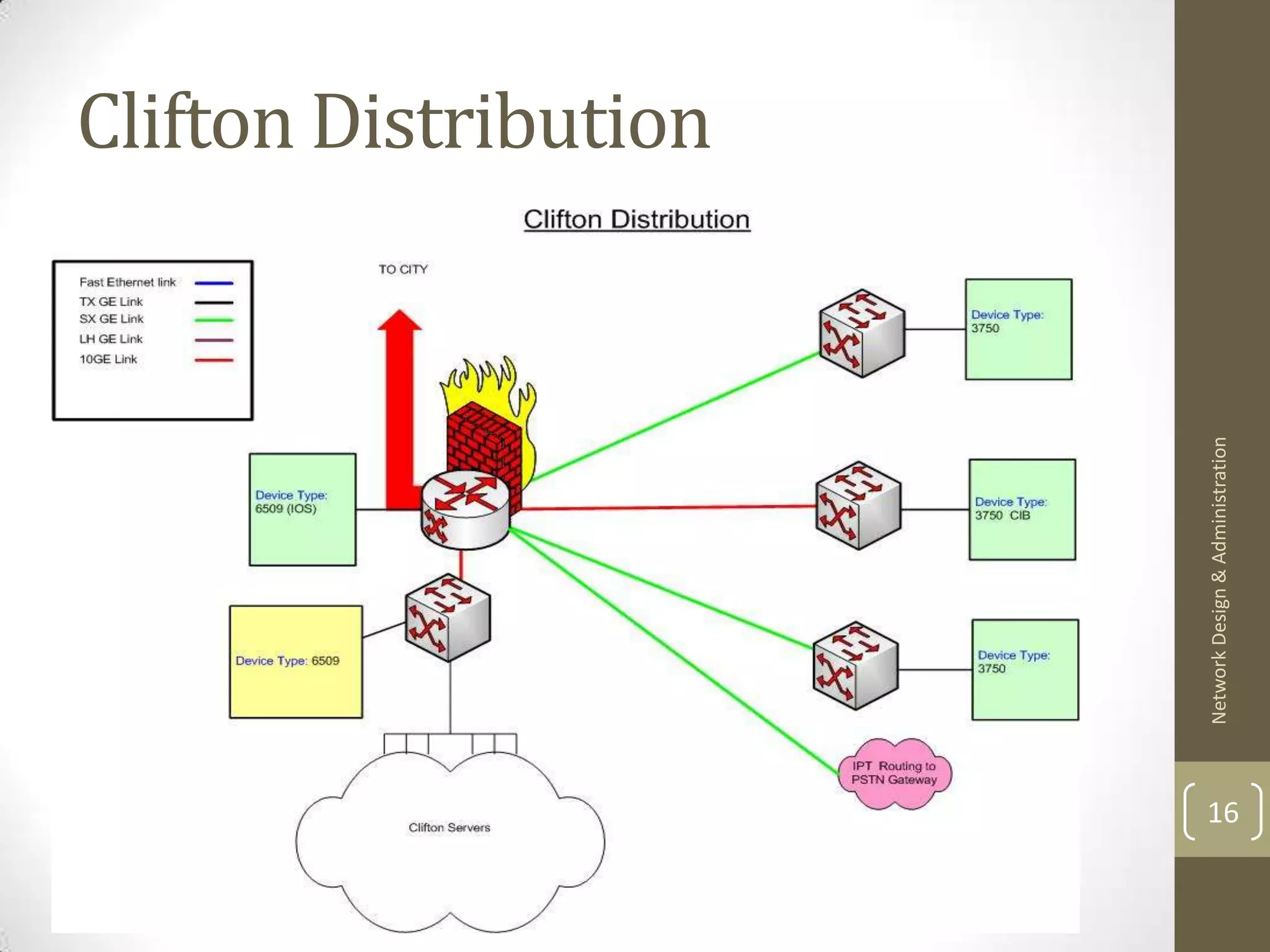

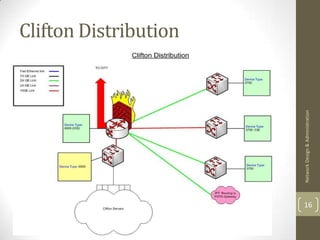

16. Clifton Distribution
Network Design & Administration
16

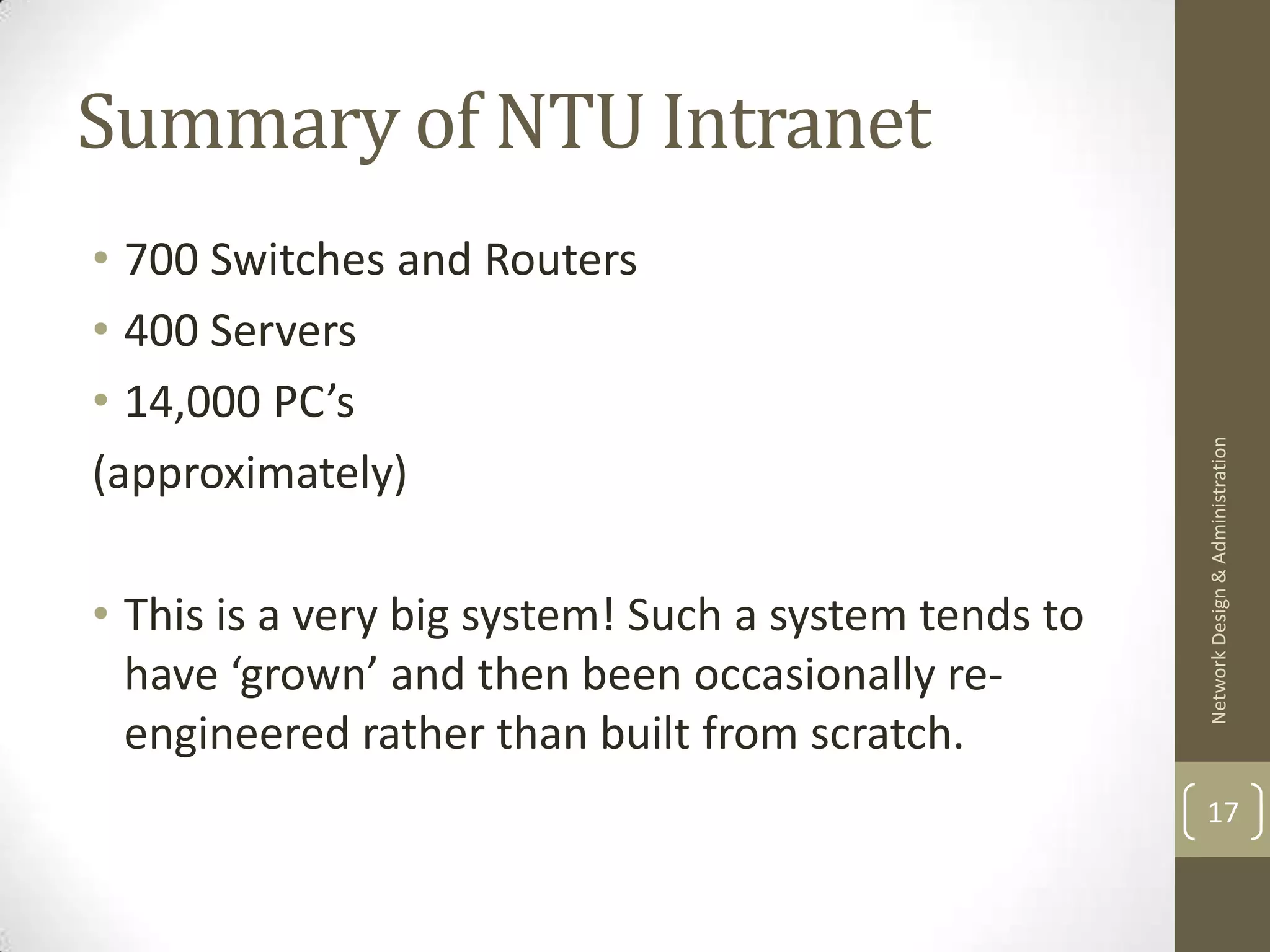

17. Summary of NTU Intranet
• 700 Switches and Routers
• 400 Servers
• 14,000 PC’s
Network Design & Administration
(approximately)
• This is a very big system! Such a system tends to
have ‘grown’ and then been occasionally re-
engineered rather than built from scratch.
17

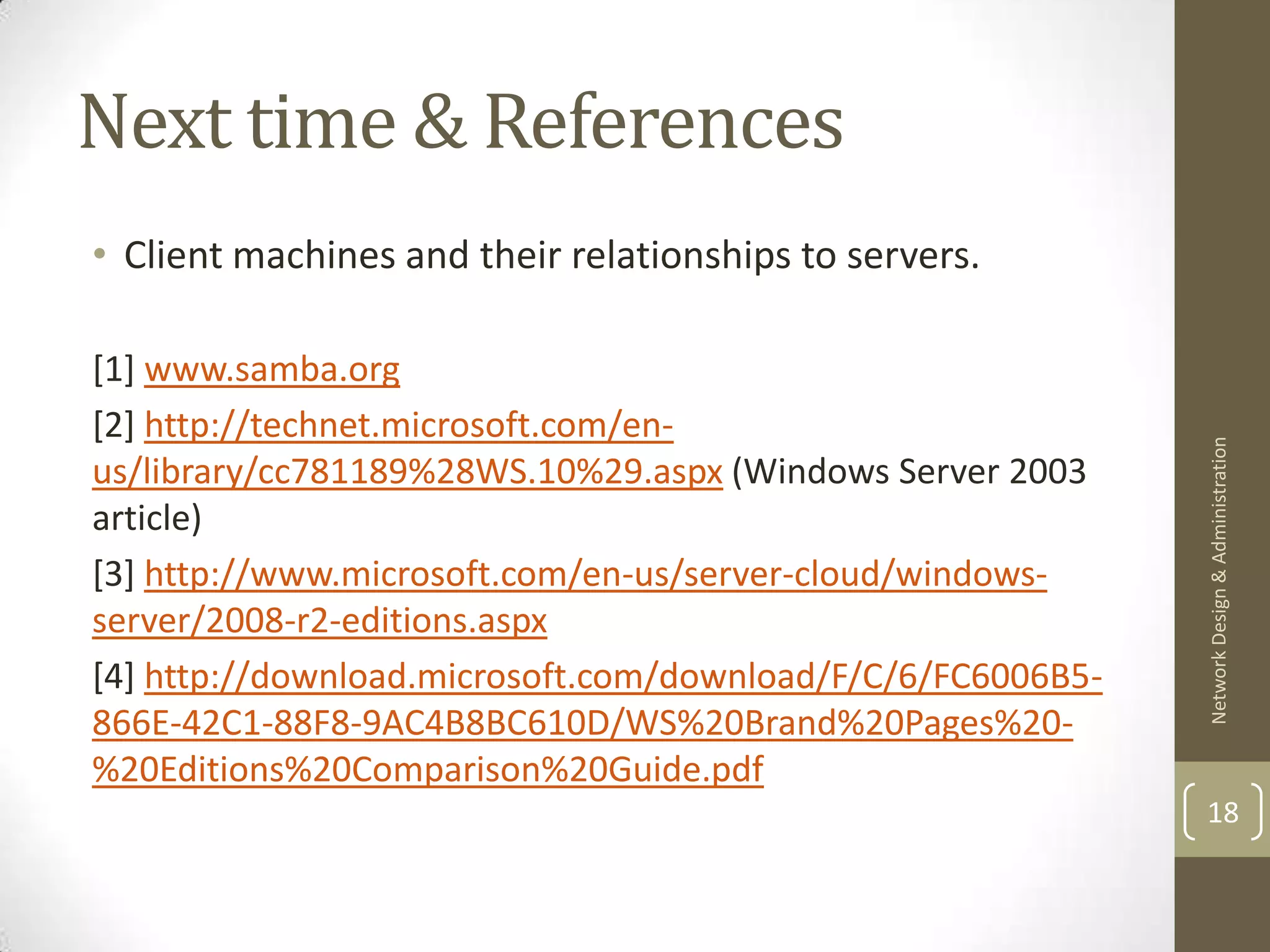

18. Next time & References
• Client machines and their relationships to servers.
[1] www.samba.org
[2] http://technet.microsoft.com/en-
Network Design & Administration
us/library/cc781189%28WS.10%29.aspx (Windows Server 2003
article)
[3] http://www.microsoft.com/en-us/server-cloud/windows-
server/2008-r2-editions.aspx
[4] http://download.microsoft.com/download/F/C/6/FC6006B5-
866E-42C1-88F8-9AC4B8BC610D/WS%20Brand%20Pages%20-
%20Editions%20Comparison%20Guide.pdf
18
