Lect 07 data replication

Lecture 7 Data Replication
Department of Computer Science, Kardan University
Data Replication in SQL Server 2012
Lect-7
Prepared by
Bilal Khan

2
 The word replication comes from the Latin word
replicare, which means to repeat.
 Replication describes the process of reproducing or
duplicating
 Storing a separate copy of database at each of two or
three or more sites

3

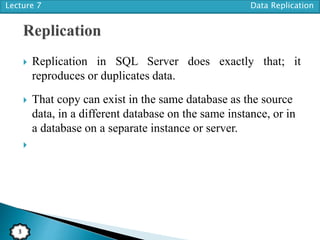

 Replication in SQL Server does exactly that; it
reproduces or duplicates data.
 That copy can exist in the same database as the source
data, in a different database on the same instance, or in
a database on a separate instance or server.


4

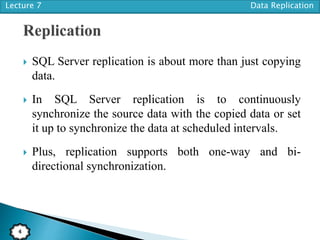

 SQL Server replication is about more than just copying
data.
 In SQL Server replication is to continuously
synchronize the source data with the copied data or set
it up to synchronize the data at scheduled intervals.
 Plus, replication supports both one-way and bi-
directional synchronization.

5

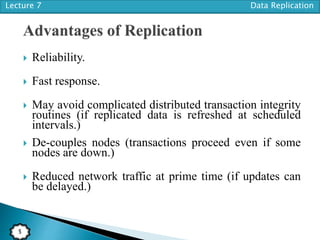

 Reliability.
 Fast response.
 May avoid complicated distributed transaction integrity
routines (if replicated data is refreshed at scheduled
intervals.)
 De-couples nodes (transactions proceed even if some
nodes are down.)
 Reduced network traffic at prime time (if updates can
be delayed.)

6

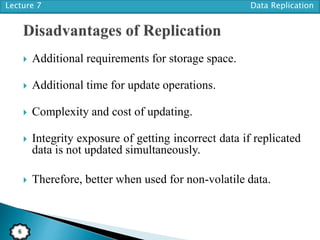

 Additional requirements for storage space.
 Additional time for update operations.
 Complexity and cost of updating.
 Integrity exposure of getting incorrect data if replicated
data is not updated simultaneously.
 Therefore, better when used for non-volatile data.

7

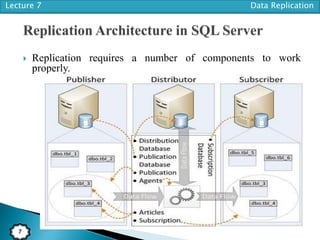

 Replication requires a number of components to work
properly.

8

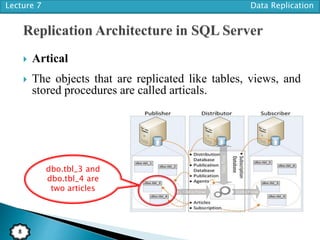

 Artical
 The objects that are replicated like tables, views, and
stored procedures are called articals.
dbo.tbl_3 and
dbo.tbl_4 are
two articles

9
 Artical
 An article's properties determine whether that article
contains the entire object or a part of object.
 Multiple articles can be created on a single object.

10
 Publication
 A Publication is group of related data and objects that
we want to replicate together.
 A publication is a collection of articles grouped
together as one unit.
 Every article is defined to be part of exactly one
publication. However, you can define different articles
on the same object in separate publications.

11

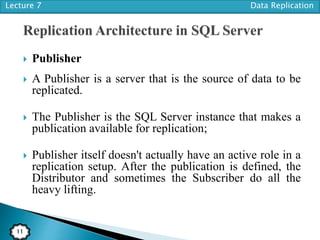

 Publisher
 A Publisher is a server that is the source of data to be
replicated.
 The Publisher is the SQL Server instance that makes a
publication available for replication;
 Publisher itself doesn't actually have an active role in a
replication setup. After the publication is defined, the
Distributor and sometimes the Subscriber do all the
heavy lifting.

12
 Subscriber
 There are two types of subscriptions:
 Push subscriptions
 The Distributor directly updates the data in the Subscriber
database.
 Pull subscriptions
 The Subscriber asks the Distributor regularly if any new
changes are available, and then updates the data in the
subscription database itself.

13

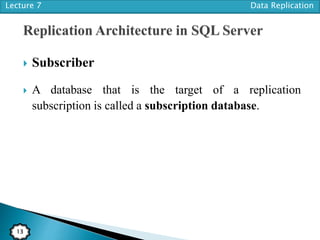

 Subscriber
 A database that is the target of a replication
subscription is called a subscription database.

14

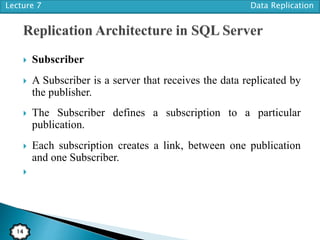

 Subscriber
 A Subscriber is a server that receives the data replicated by
the publisher.
 The Subscriber defines a subscription to a particular
publication.
 Each subscription creates a link, between one publication
and one Subscriber.


15

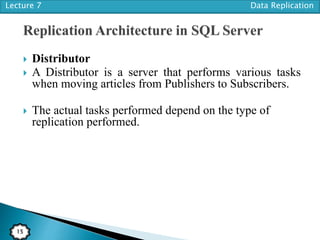

 Distributor
 A Distributor is a server that performs various tasks
when moving articles from Publishers to Subscribers.
 The actual tasks performed depend on the type of
replication performed.

16
 Distributor
 Each Publisher is linked to a single Distributor.
 The Distributor identifies changes to the articles on each of its
Publishers.
 The Distributor notify the Subscribers that an article has
changed.
 The information about changes are stored in the distribution
database until all Subscribers have been notified or the retention
period has expired.

17

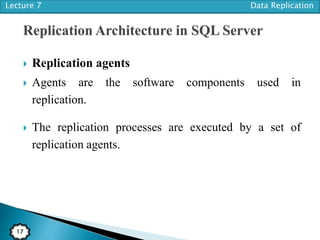

 Replication agents
 Agents are the software components used in
replication.
 The replication processes are executed by a set of
replication agents.

18

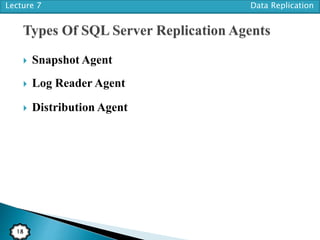

 Snapshot Agent
 Log Reader Agent
 Distribution Agent

19

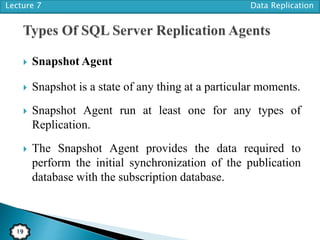

 Snapshot Agent
 Snapshot is a state of any thing at a particular moments.
 Snapshot Agent run at least one for any types of
Replication.
 The Snapshot Agent provides the data required to
perform the initial synchronization of the publication
database with the subscription database.

20

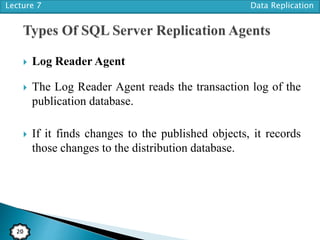

 Log Reader Agent
 The Log Reader Agent reads the transaction log of the
publication database.
 If it finds changes to the published objects, it records
those changes to the distribution database.

21

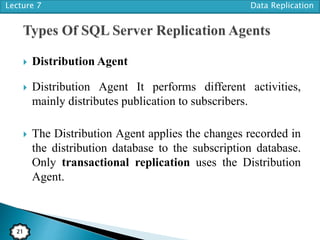

 Distribution Agent
 Distribution Agent It performs different activities,
mainly distributes publication to subscribers.
 The Distribution Agent applies the changes recorded in
the distribution database to the subscription database.
Only transactional replication uses the Distribution
Agent.

22

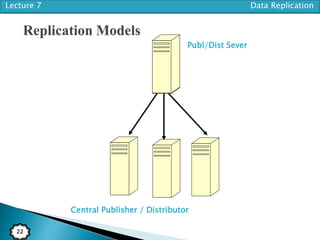

Central Publisher / Distributor
Publ/Dist Sever

23
Publisher / Remote Distributor
Publisher
Remote
Distr

24

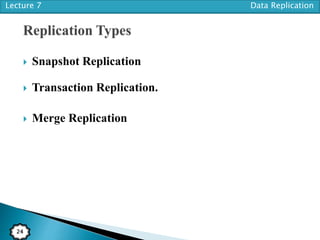

 Snapshot Replication
 Transaction Replication.
 Merge Replication

25

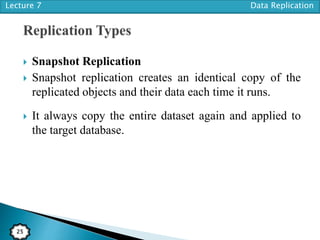

 Snapshot replication creates an identical copy of the
replicated objects and their data each time it runs.
 It always copy the entire dataset again and applied to
the target database.

26

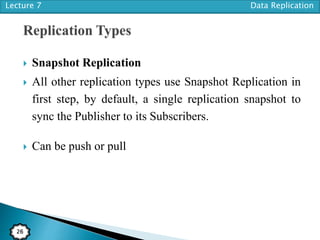

 All other replication types use Snapshot Replication in
first step, by default, a single replication snapshot to
sync the Publisher to its Subscribers.
 Can be push or pull

27
 Transaction Replication
 Transactional replication copies data uni-directionally
from the source database to the target database.
 This replication type uses the log files associated with
the source database to keep data in sync. If a change is
made to the source database, that change can be
immediately synced to the target database, or the
synchronization can be scheduled.

28

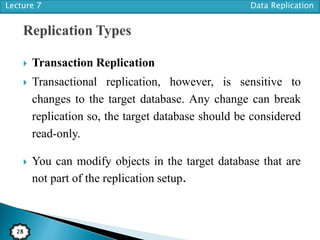

 Transactional replication, however, is sensitive to
changes to the target database. Any change can break
replication so, the target database should be considered
read-only.
 You can modify objects in the target database that are
not part of the replication setup.

29

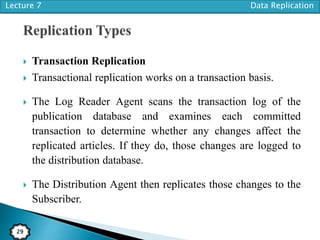

 Transactional replication works on a transaction basis.
 The Log Reader Agent scans the transaction log of the
publication database and examines each committed
transaction to determine whether any changes affect the
replicated articles. If they do, those changes are logged to
the distribution database.
 The Distribution Agent then replicates those changes to the
Subscriber.

30

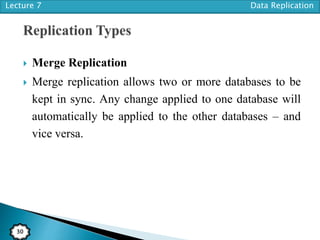

 Merge replication allows two or more databases to be
kept in sync. Any change applied to one database will
automatically be applied to the other databases – and
vice versa.

31
 Merge replication allow data changes on the Publisher
as well as the Subscriber,
 Merge replication also allows for disconnected
scenarios.
◦ For example, if a Subscriber is disconnected from a Publisher
during part of the day, the Subscriber and Publisher are
synchronized when they are reconnected.

32
Have a Nice Day
