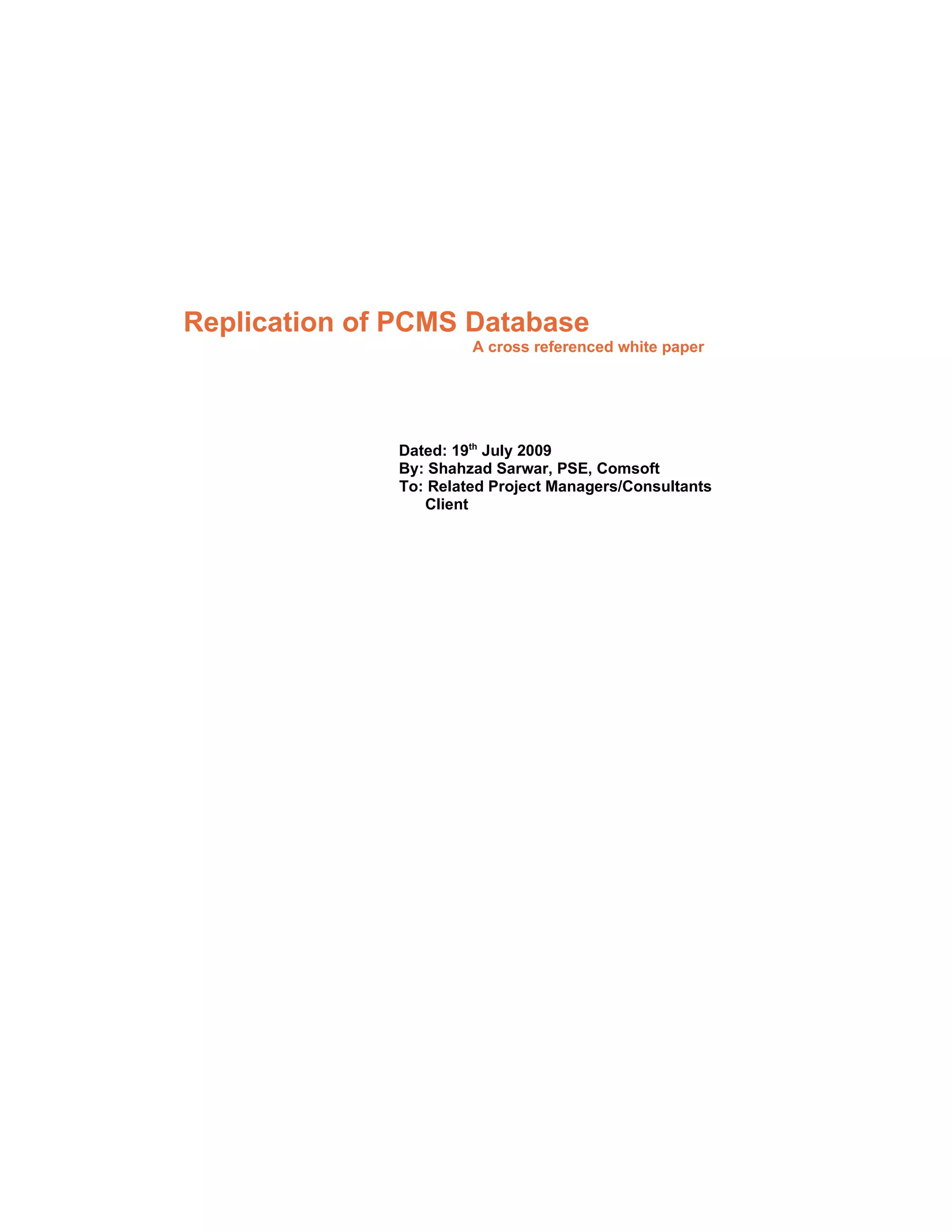

1. Replication of PCMS Database
A cross referenced white paper
Dated: 19th July 2009
By: Shahzad Sarwar, PSE, Comsoft
To: Related Project Managers/Consultants
Client

2. Table of Content

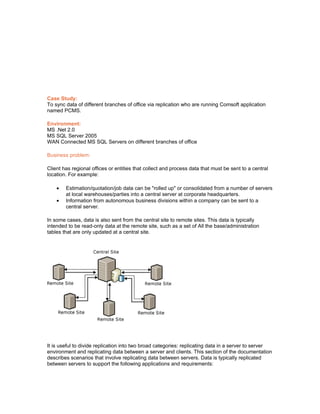

3. Case Study:
To sync data of different branches of office via replication who are running Comsoft application
named PCMS.
Environment:
MS .Net 2.0
MS SQL Server 2005
WAN Connected MS SQL Servers on different branches of office
Business problem:
Client has regional offices or entities that collect and process data that must be sent to a central
location. For example:
• Estimation/quotation/job data can be "rolled up" or consolidated from a number of servers
at local warehouses/parties into a central server at corporate headquarters.
• Information from autonomous business divisions within a company can be sent to a
central server.
In some cases, data is also sent from the central site to remote sites. This data is typically
intended to be read-only data at the remote site, such as a set of All the base/administration
tables that are only updated at a central site.
It is useful to divide replication into two broad categories: replicating data in a server to server
environment and replicating data between a server and clients. This section of the documentation
describes scenarios that involve replicating data between servers. Data is typically replicated
between servers to support the following applications and requirements:

4. • Improving scalability and availability
Maintaining continuously-updated copies of data allows read activity to be scaled across
multiple servers. The redundancy resulting from maintaining multiple copies of the same
data is crucial during planned and unplanned system maintenance.
• Data warehousing and reporting
Data warehouse and reporting servers often use data from online transaction processing
(OLTP) servers. Use replication to move data between OLTP servers and reporting and
decision support systems.
• Integrating data from multiple sites
Data is often "rolled up" from remote offices and consolidated at a central office.
Similarly, data can be replicated out to remote offices.
• Integrating heterogeneous data
Some applications depend on data being sent to or from databases other than SQL
Server. Use replication to integrate data from non-SQL Server databases.
• Offloading batch processing
Batch operations are often too resource intensive to run on an OLTP server. Use
replication to offload processing to a dedicated batch processing server.
Common Requirements for This Scenario
Applications for regional offices typically have the following requirements, which an appropriate
replication solution must address:
• The system must maintain transactional consistency.
• The system should have low latency: updates at the remote sites must reach the central
site quickly.
• The system should have high throughput: it should handle the replication of a large
number of transactions.
• Replication processing should require minimal overhead on the remote sites.
• Data changes might flow in both directions: in some cases, read-only data is sent to
remote sites, in addition to data being consolidated from the remote sites to the central
site.
• The data required at the central site might be a subset of the data available at each
remote site.
Technical Architecture of Solution:
Replication Publishing Model Overview
Microsoft SQL Server uses a publishing industry metaphor to describe the components of the
replication system. The components include the Publisher, Subscribers, publications and articles,
and subscriptions.
• In the diagram above, each remote site is a Publisher. Some or all of the data at the
remote site is included in the publication, with each table of data being an article (articles
can also be other database objects, such as stored procedures). The central site is a
Subscriber to these publications, receiving schema and data as subscriptions.
• The central site also serves as a Publisher for the data that is sent to the remote sites.
Each remote site Subscribes to the publication from the central site.

5. For more information on the components of the system, see Replication Publishing Model
Overview.
Microsoft SQL Server 2005 provides the following types of replication for use in distributed
applications:
• Transactional replication.
• Merge replication.
• Snapshot replication.
Our scenario is best implemented with transactional replication, which is well suited to handle the
requirements outlined in the previous section. By design, transactional replication addresses the
principal requirements for this scenario:
• Transactional consistency
• Low latency
• High Throughput
• Minimal overhead
Transactional Replication Overview
Transactional replication typically starts with a snapshot of the publication database objects and
data. As soon as the initial snapshot is taken, subsequent data changes and schema
modifications made at the Publisher are usually delivered to the Subscriber as they occur (in near
real time). The data changes are applied to the Subscriber in the same order and within the same
transaction boundaries as they occurred at the Publisher; therefore, within a publication,
transactional consistency is guaranteed.
Transactional replication is implemented by the SQL Server Snapshot Agent, Log Reader Agent,
and Distribution Agent. The Snapshot Agent prepares snapshot files containing schema and data
of published tables and database objects, stores the files in the snapshot folder, and records
synchronization jobs in the distribution database on the Distributor.
The Log Reader Agent monitors the transaction log of each database configured for transactional
replication and copies the transactions marked for replication from the transaction log into the
distribution database, which acts as a reliable store-and-forward queue. The Distribution Agent

6. copies the initial snapshot files from the snapshot folder and the transactions held in the
distribution database tables to Subscribers.
Incremental changes made at the Publisher flow to Subscribers according to the schedule of the
Distribution Agent, which can run continuously for minimal latency, or at scheduled intervals.
Because changes to the data must be made at the Publisher (when transactional replication is
used without immediate updating or queued updating options), update conflicts are avoided.
Ultimately, all Subscribers will achieve the same values as the Publisher.

7. Implementation Plan:
• Test case requirement are as:
 2 deployments of PCMS with SQL Server 2005
 3 days replication monitoring.
• Querying client for environment about production setup.
• Transactional replication implementation and monitoring for 1 week.
• Training to client end database administrators about replication monitoring.
• User Guide/ monitoring guide for client.
Reference:
http://msdn.microsoft.com/en-us/library/ms151314(SQL.90).aspx
http://blog.csdn.net/longrujun/archive/2006/06/09/783357.aspx
http://msdn.microsoft.com/en-us/library/ms151847(SQL.90).aspx
