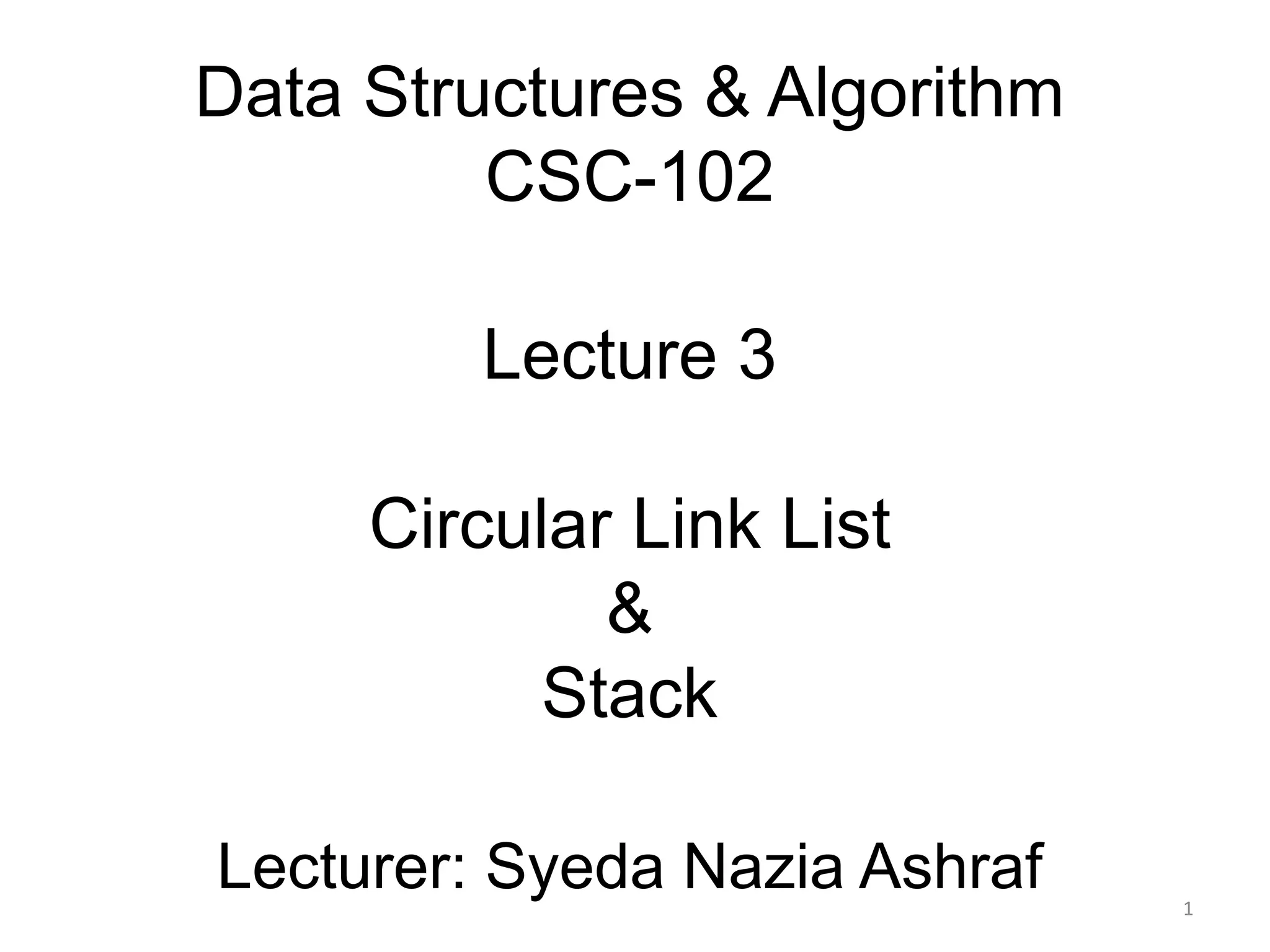

LEC3-DS ALGO(updated).pdf

Data Structures & Algorithm
CSC-102
Lecture 3
Circular Link List
&
Stack
Lecturer: Syeda Nazia Ashraf 1

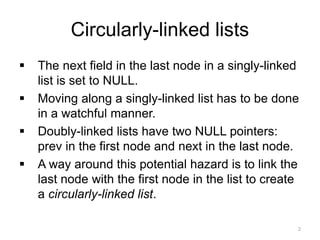

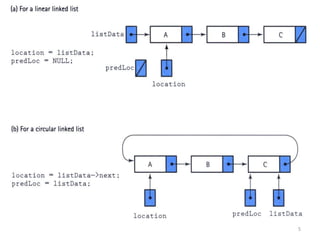

Circularly-linked lists
▪ The next field in the last node in a singly-linked
list is set to NULL.
▪ Moving along a singly-linked list has to be done
in a watchful manner.
▪ Doubly-linked lists have two NULL pointers:
prev in the first node and next in the last node.
▪ A way around this potential hazard is to link the
last node with the first node in the list to create
a circularly-linked list.
2

Cicularly Linked List
▪ Two views of a circularly linked list:
2 6 8 7 1
head
current
size=5
2
8
7
1
head
current
size=5
6
3

6

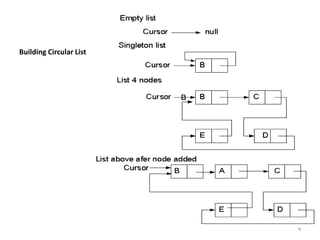

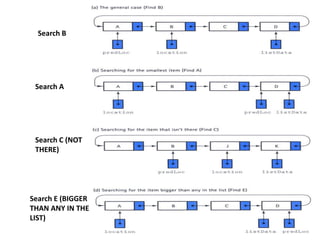

Search B
Search A
Search C (NOT
THERE)
Search E (BIGGER
THAN ANY IN THE
LIST)

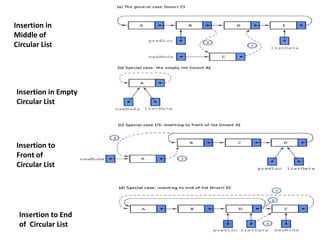

7
Insertion in
Middle of
Circular List
Insertion to
Front of
Circular List
Insertion to End
of Circular List
Insertion in Empty
Circular List

8
Deletion from
Middle of
Circular List
Deletion of smallest
item of Circular List
Deletion of only
item in Circular
List
Deletion of largest
item in Circular List

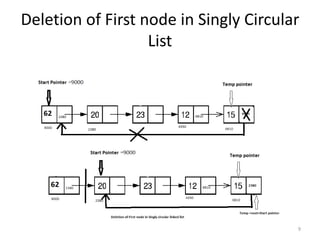

Deletion of First node in Singly Circular
List
9

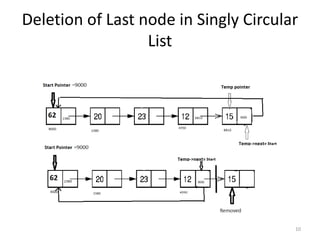

Deletion of Last node in Singly Circular
List
10

Josephus Problem

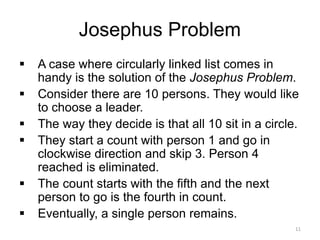

▪ A case where circularly linked list comes in
handy is the solution of the Josephus Problem.
▪ Consider there are 10 persons. They would like
to choose a leader.
▪ The way they decide is that all 10 sit in a circle.
▪ They start a count with person 1 and go in
clockwise direction and skip 3. Person 4
reached is eliminated.
▪ The count starts with the fifth and the next
person to go is the fourth in count.
▪ Eventually, a single person remains.
11

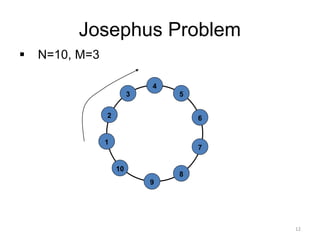

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
12

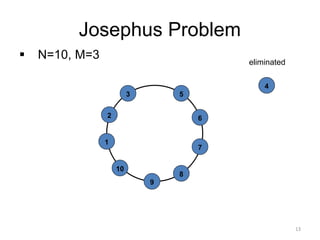

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
13

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
14

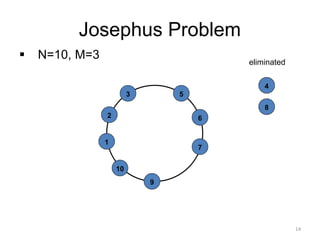

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
15

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
16

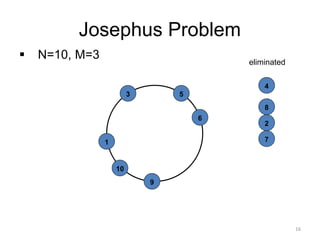

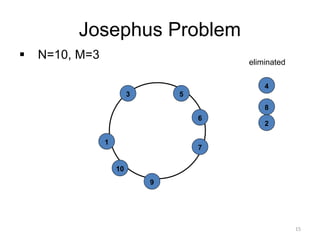

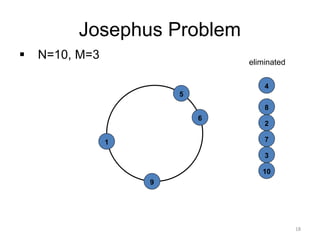

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
17

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
18

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
19

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
20

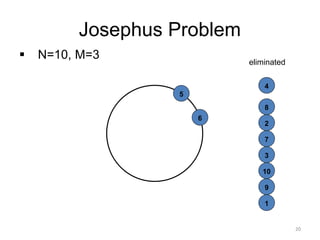

Josephus Problem
▪ N=10, M=3
9
8
7
6
5
4
3
2
1
10
eliminated
21

STACKS, QUEUES, RECURSION
Introduction
The linear lists and linear arrays – allowed one to
insert and delete elements at any place in the list
•At the beginning
•At the end, or
•In the middle
To restrict insertion and deletions so that they
can take place only at the beginning, or at the
end of the list, not in the middle.
Two of the data structures that are useful are:
•Stacks
•Queue
22

STACK

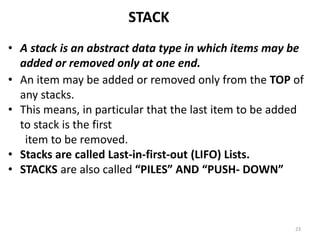

• A stack is an abstract data type in which items may be
added or removed only at one end.
• An item may be added or removed only from the TOP of
any stacks.
• This means, in particular that the last item to be added
to stack is the first
item to be removed.
• Stacks are called Last-in-first-out (LIFO) Lists.
• STACKS are also called “PILES” AND “PUSH- DOWN”
23

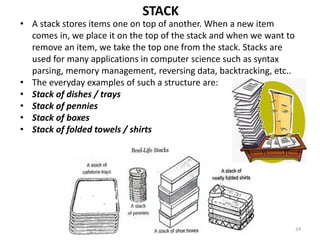

24
• A stack stores items one on top of another. When a new item
comes in, we place it on the top of the stack and when we want to
remove an item, we take the top one from the stack. Stacks are
used for many applications in computer science such as syntax
parsing, memory management, reversing data, backtracking, etc..
• The everyday examples of such a structure are:
• Stack of dishes / trays
• Stack of pennies
• Stack of boxes
• Stack of folded towels / shirts
STACK

STACKS

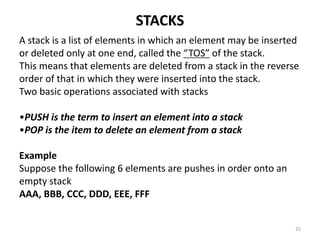

A stack is a list of elements in which an element may be inserted
or deleted only at one end, called the “TOS” of the stack.
This means that elements are deleted from a stack in the reverse
order of that in which they were inserted into the stack.
Two basic operations associated with stacks
•PUSH is the term to insert an element into a stack
•POP is the item to delete an element from a stack
Example
Suppose the following 6 elements are pushes in order onto an
empty stack
AAA, BBB, CCC, DDD, EEE, FFF
25

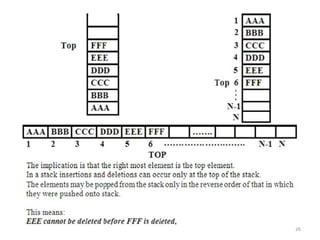

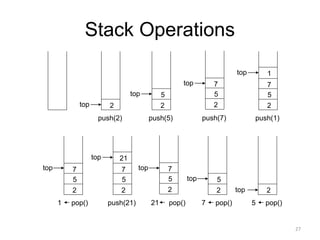

Stack Operations
push(2)
top 2
push(5)
top
2
5
push(7)
top
2
5
7
push(1)
top
2
5
7
1
1 pop()
top
2
5
7
push(21)
top
2
5
7
21
21 pop()
top
2
5
7
7 pop()
2
5
top
5 pop()
2
top
27

POSTPONED DECISIONS
Stacks are frequently used to indicate the order of the processing of data when certain
steps of the processing must be postponed until other conditions are fulfilled.
Suppose we have three procedures in a project A,B, C
ARRAY REPRESENTATION OF STACKS
STACKS may be represented by means of a linear array.
•Each of our STACKS will be maintained by linear array STACKS,
•A pointer variable TOS which contains the location of the top element of the stack,
•Variable MAXSTK, which gives the maximum number of elements that, can be held by the
stack.
The Condition
TOP =0 or TOP= NULL indicate that stack is empty
XXX YYY ZZZ
1 2 3 4 5 6 7 8
Top=3 MAXSTK
=8
Stack has 3 elements => since TOP =3
There is room for 5 more items since MAXSTK =8
d e f
28

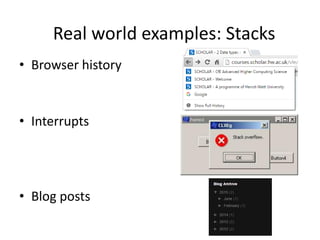

Real world examples: Stacks
• Browser history
• Interrupts
• Blog posts

Real world examples: Stacks
• Undo function
• To do lists

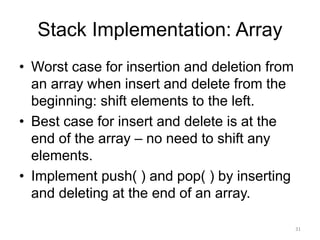

Stack Implementation: Array
• Worst case for insertion and deletion from
an array when insert and delete from the
beginning: shift elements to the left.
• Best case for insert and delete is at the
end of the array – no need to shift any
elements.
• Implement push( ) and pop( ) by inserting
and deleting at the end of an array.
31

Stack using an Array
top
2
5
7
1
2 5 7 1
0 1 3
2 4
top = 3
32

Stack using an Array

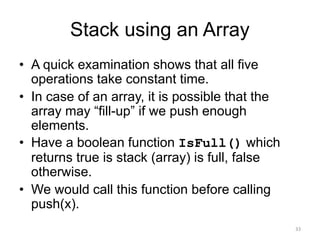

• A quick examination shows that all five
operations take constant time.
• In case of an array, it is possible that the
array may “fill-up” if we push enough
elements.
• Have a boolean function IsFull() which
returns true is stack (array) is full, false
otherwise.
• We would call this function before calling
push(x).
33

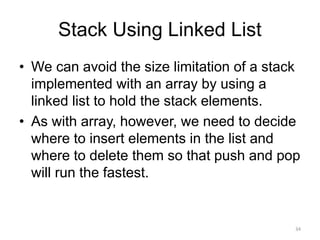

Stack Using Linked List
• We can avoid the size limitation of a stack
implemented with an array by using a
linked list to hold the stack elements.
• As with array, however, we need to decide
where to insert elements in the list and
where to delete them so that push and pop
will run the fastest.
34

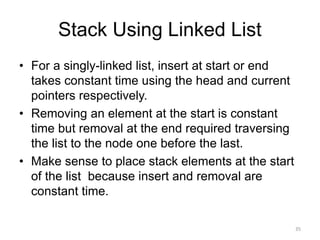

• For a singly-linked list, insert at start or end
takes constant time using the head and current
pointers respectively.
• Removing an element at the start is constant
time but removal at the end required traversing
the list to the node one before the last.
• Make sense to place stack elements at the start
of the list because insert and removal are
constant time.
35

• No need for the current pointer; head is enough.
top
2
5
7
1
1 7 5 2
head
36

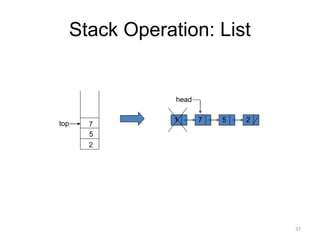

Stack Operation: List
top
2
5
7
1 7 5 2
head
37

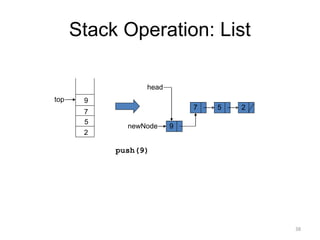

Stack Operation: List
top
2
5
7
9
7 5 2
head
push(9)
9
newNode
38

Stack: Array or List
• Since both implementations support stack
operations in constant time, any reason to
choose one over the other?
• Allocating and deallocating memory for list
nodes does take more time than preallocated
array.
• List uses only as much memory as required by
the nodes; array requires allocation ahead of
time.
• List pointers (head, next) require extra memory.
• Array has an upper limit; List is limited by
dynamic memory allocation.
39

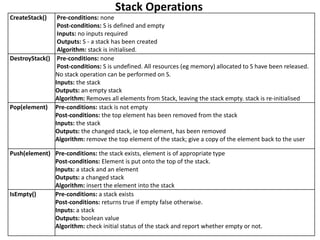

40
CreateStack() Pre-conditions: none
Post-conditions: S is defined and empty
Inputs: no inputs required
Outputs: S - a stack has been created
Algorithm: stack is initialised.
DestroyStack() Pre-conditions: none
Post-conditions: S is undefined. All resources (eg memory) allocated to S have been released.
No stack operation can be performed on S.
Inputs: the stack
Outputs: an empty stack
Algorithm: Removes all elements from Stack, leaving the stack empty. stack is re-initialised
Pop(element) Pre-conditions: stack is not empty
Post-conditions: the top element has been removed from the stack
Inputs: the stack
Outputs: the changed stack, ie top element, has been removed
Algorithm: remove the top element of the stack; give a copy of the element back to the user
Push(element) Pre-conditions: the stack exists, element is of appropriate type
Post-conditions: Element is put onto the top of the stack.
Inputs: a stack and an element
Outputs: a changed stack
Algorithm: insert the element into the stack
IsEmpty() Pre-conditions: a stack exists
Post-conditions: returns true if empty false otherwise.
Inputs: a stack
Outputs: boolean value
Algorithm: check initial status of the stack and report whether empty or not.
Stack Operations

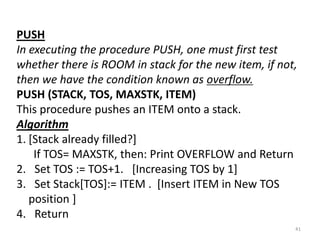

PUSH
In executing the procedure PUSH, one must first test
whether there is ROOM in stack for the new item, if not,
then we have the condition known as overflow.
PUSH (STACK, TOS, MAXSTK, ITEM)
This procedure pushes an ITEM onto a stack.
Algorithm
1. [Stack already filled?]
If TOS= MAXSTK, then: Print OVERFLOW and Return
2. Set TOS := TOS+1. [Increasing TOS by 1]
3. Set Stack[TOS]:= ITEM . [Insert ITEM in New TOS
position ]
4. Return
41

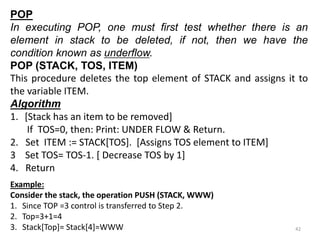

POP
In executing POP, one must first test whether there is an
element in stack to be deleted, if not, then we have the
condition known as underflow.
POP (STACK, TOS, ITEM)
This procedure deletes the top element of STACK and assigns it to
the variable ITEM.
Algorithm
1. [Stack has an item to be removed]
If TOS=0, then: Print: UNDER FLOW & Return.
2. Set ITEM := STACK[TOS]. [Assigns TOS element to ITEM]
3 Set TOS= TOS-1. [ Decrease TOS by 1]
4. Return

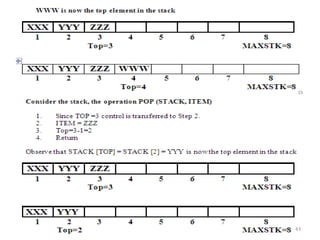

Example:
Consider the stack, the operation PUSH (STACK, WWW)
1. Since TOP =3 control is transferred to Step 2.
2. Top=3+1=4
3. Stack[Top]= Stack[4]=WWW 42

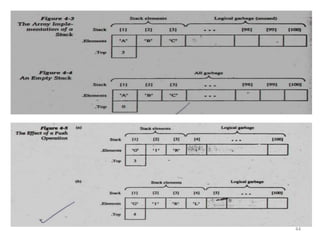

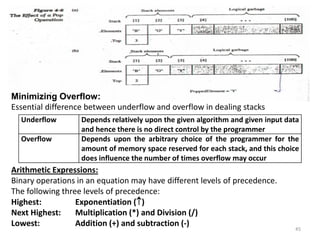

Minimizing Overflow:
Essential difference between underflow and overflow in dealing stacks
Underflow Depends relatively upon the given algorithm and given input data
and hence there is no direct control by the programmer
Overflow Depends upon the arbitrary choice of the programmer for the
amount of memory space reserved for each stack, and this choice
does influence the number of times overflow may occur
Arithmetic Expressions:
Binary operations in an equation may have different levels of precedence.
The following three levels of precedence:
Highest: Exponentiation ()
Next Highest: Multiplication (*) and Division (/)
Lowest: Addition (+) and subtraction (-)
45

INFIX PREFIX
(A+B)*C [+AB]*C =*+ABC
A+(B*C) A+[*BC]=+A*BC
(A+B)/(C-D) [+AB]/[-CD]= /+AB-CD

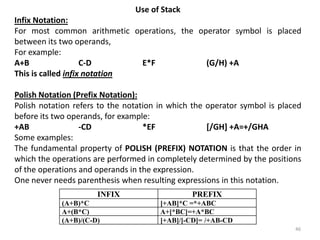

Use of Stack
Infix Notation:
For most common arithmetic operations, the operator symbol is placed
between its two operands,
For example:
A+B C-D E*F (G/H) +A
This is called infix notation
Polish Notation (Prefix Notation):
Polish notation refers to the notation in which the operator symbol is placed
before its two operands, for example:
+AB -CD *EF [/GH] +A=+/GHA
Some examples:
The fundamental property of POLISH (PREFIX) NOTATION is that the order in
which the operations are performed in completely determined by the positions
of the operations and operands in the expression.
One never needs parenthesis when resulting expressions in this notation.
46

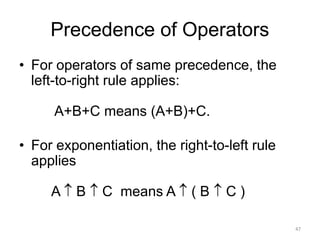

Precedence of Operators
• For operators of same precedence, the
left-to-right rule applies:
A+B+C means (A+B)+C.
• For exponentiation, the right-to-left rule
applies
A  B  C means A  ( B  C )
47

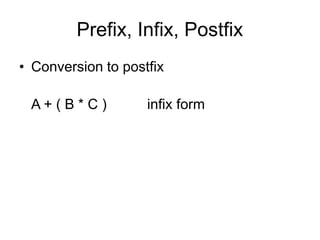

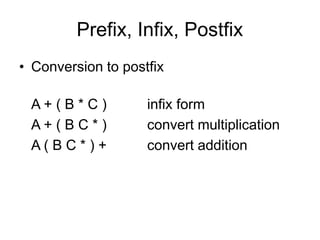

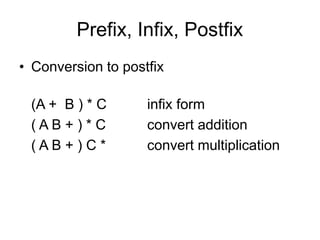

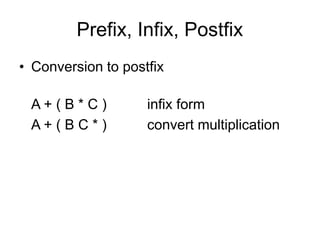

Prefix, Infix, Postfix
• Conversion to postfix
A + ( B * C ) infix form

A + ( B C * ) convert multiplication

A ( B C * ) + convert addition

A ( B C * ) + convert addition
A B C * + postfix form

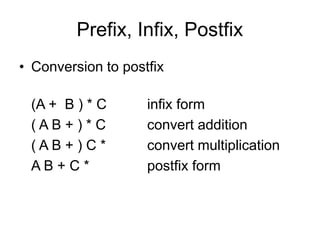

(A + B ) * C infix form

( A B + ) * C convert addition

( A B + ) C * convert multiplication

( A B + ) C * convert multiplication
A B + C * postfix form

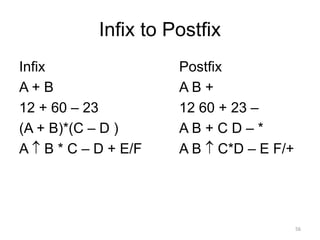

Infix to Postfix
Infix Postfix
A + B A B +
12 + 60 – 23 12 60 + 23 –
(A + B)*(C – D ) A B + C D – *
A  B * C – D + E/F A B  C*D – E F/+
56

Reverse Polish Notation
Refers to the analogous notation in which the
operator symbol is placed after its two operands
AB+ CD- EF* GHA/+
This notation is called POSTFIX or suffix notation.
The computer usually evaluates an arithmetic
expression written in infix notation into steps:
First converts the expression to postfix notation
and
Evaluates the postfix expression
Stack is the main tool that is used to accomplish
given task.
57

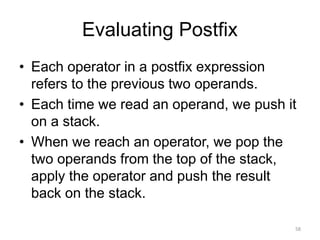

Evaluating Postfix
• Each operator in a postfix expression
refers to the previous two operands.
• Each time we read an operand, we push it
on a stack.
• When we reach an operator, we pop the
two operands from the top of the stack,
apply the operator and push the result
back on the stack.
58

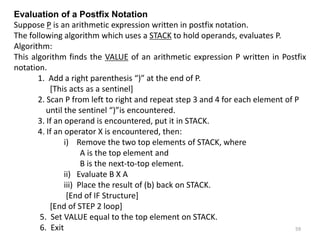

Evaluation of a Postfix Notation
Suppose P is an arithmetic expression written in postfix notation.
The following algorithm which uses a STACK to hold operands, evaluates P.
Algorithm:
This algorithm finds the VALUE of an arithmetic expression P written in Postfix
notation.
1. Add a right parenthesis “)” at the end of P.
[This acts as a sentinel]
2. Scan P from left to right and repeat step 3 and 4 for each element of P
until the sentinel “)”is encountered.
3. If an operand is encountered, put it in STACK.
4. If an operator X is encountered, then:
i) Remove the two top elements of STACK, where
A is the top element and
B is the next-to-top element.
ii) Evaluate B X A
iii) Place the result of (b) back on STACK.
[End of IF Structure]
[End of STEP 2 loop]
5. Set VALUE equal to the top element on STACK.
6. Exit 59

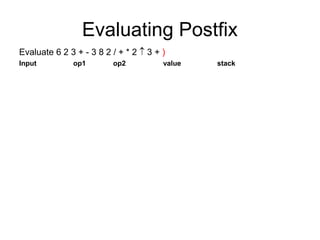

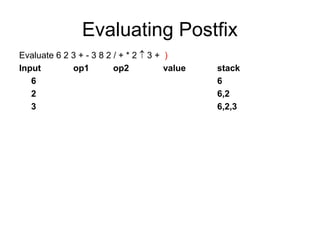

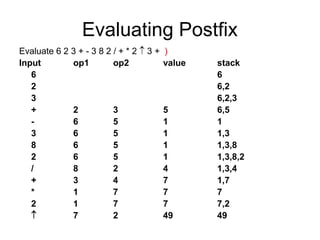

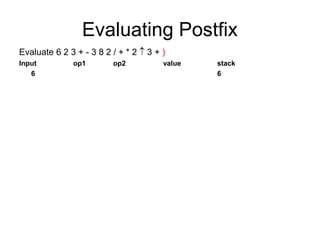

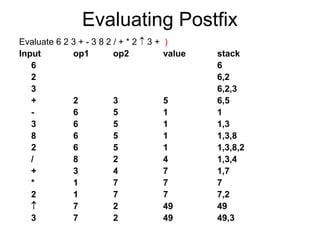

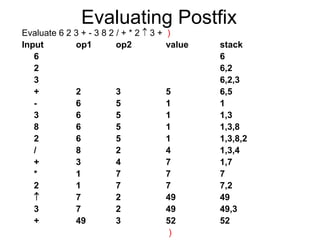

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
Input op1 op2 value stack

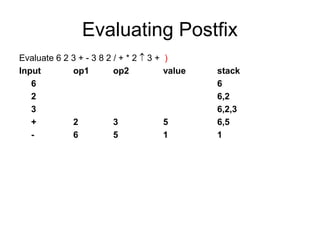

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6

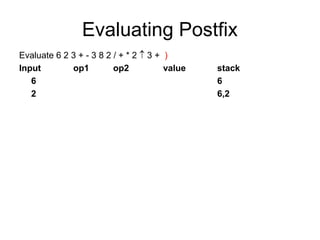

2 6,2

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3

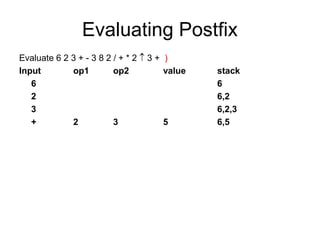

+ 2 3 5 6,5

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3

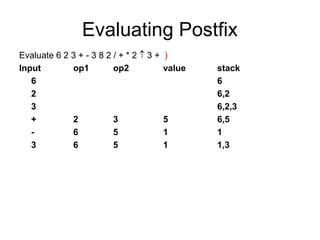

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3

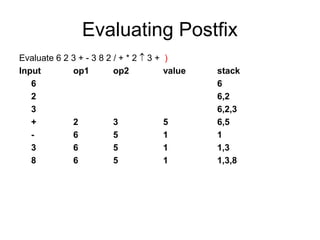

8 6 5 1 1,3,8

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8

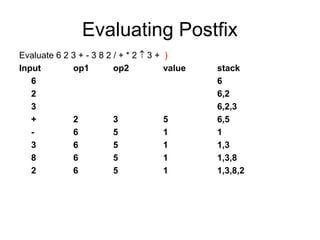

2 6 5 1 1,3,8,2

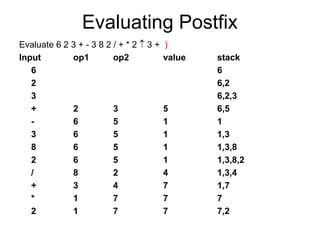

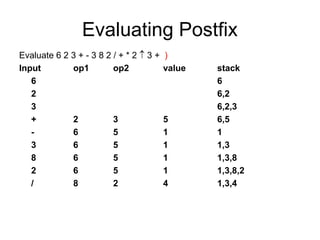

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7

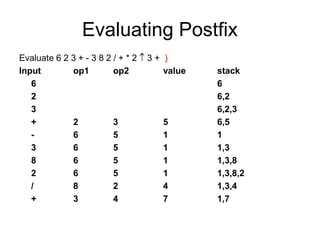

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7

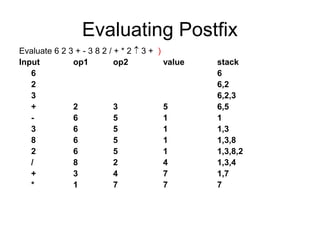

* 1 7 7 7

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7
* 1 7 7 7
2 1 7 7 7,2

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7
* 1 7 7 7
2 1 7 7 7,2
 7 2 49 49

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7
* 1 7 7 7
2 1 7 7 7,2
 7 2 49 49
3 7 2 49 49,3

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7
* 1 7 7 7
2 1 7 7 7,2
 7 2 49 49
3 7 2 49 49,3
+ 49 3 52 52

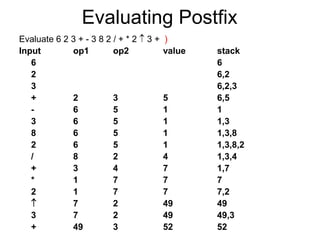

Evaluating Postfix
Evaluate 6 2 3 + - 3 8 2 / + * 2  3 + )
6 6
2 6,2
3 6,2,3
+ 2 3 5 6,5
- 6 5 1 1
3 6 5 1 1,3
8 6 5 1 1,3,8
2 6 5 1 1,3,8,2
/ 8 2 4 1,3,4
+ 3 4 7 1,7
* 1 7 7 7
2 1 7 7 7,2
 7 2 49 49
3 7 2 49 49,3
+ 49 3 52 52
)

Example:
Consider the following arithmetic expression P written in Postfix notation:
P: 5, 6, 2, +,*, 12, 4, /,-
Commas are used to separate the elements of P so that 5, 6, 2 is not interpreted as the number 562.
Symbol
Scanned
STACK
5 5
6 5,6
2 5,6,2
+ 5,8
* 40
12 40,12
4 40, 12, 4
/ 40, 3
- 37
)
Equivalent INFIX EXPRESSION is:
Q: 5* (6+2)-12/4
Parenthesis are necessary for the infix expression Q but not for the postfix expression P
First we add a right parenthesis at the end of P.
The elements are labeled from left to right
The final number in STACK, 37 which is assigned to value when the sentinel “)” is scanned is
the value of P. 77

78

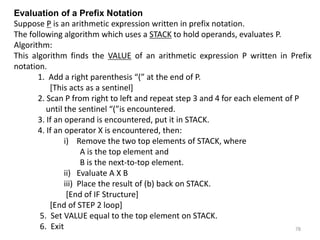

Evaluation of a Prefix Notation
Suppose P is an arithmetic expression written in prefix notation.
The following algorithm which uses a STACK to hold operands, evaluates P.
Algorithm:
This algorithm finds the VALUE of an arithmetic expression P written in Prefix
notation.
1. Add a right parenthesis “(” at the end of P.
[This acts as a sentinel]
2. Scan P from right to left and repeat step 3 and 4 for each element of P
until the sentinel “(”is encountered.
3. If an operand is encountered, put it in STACK.
4. If an operator X is encountered, then:
i) Remove the two top elements of STACK, where
A is the top element and
B is the next-to-top element.
ii) Evaluate A X B
iii) Place the result of (b) back on STACK.
5. Set VALUE equal to the top element on STACK.
6. Exit

80

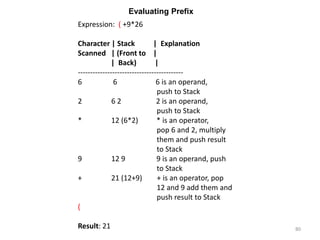

Expression: ( +9*26
Character | Stack | Explanation
Scanned | (Front to |
| Back) |
-------------------------------------------
6 6 6 is an operand,
push to Stack
2 6 2 2 is an operand,
push to Stack
* 12 (6*2) * is an operator,
pop 6 and 2, multiply
them and push result
to Stack
9 12 9 9 is an operand, push
to Stack
+ 21 (12+9) + is an operator, pop
12 and 9 add them and
push result to Stack
(
Result: 21

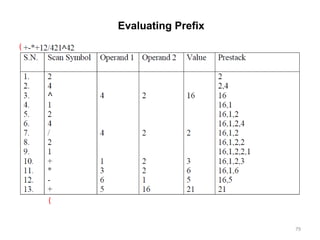

Evaluating Prefix

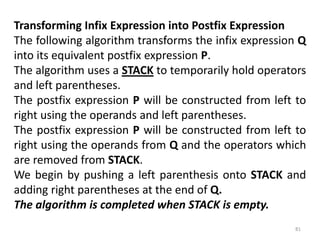

Transforming Infix Expression into Postfix Expression
The following algorithm transforms the infix expression Q
into its equivalent postfix expression P.
The algorithm uses a STACK to temporarily hold operators
and left parentheses.
The postfix expression P will be constructed from left to
right using the operands and left parentheses.
The postfix expression P will be constructed from left to
right using the operands from Q and the operators which
are removed from STACK.
We begin by pushing a left parenthesis onto STACK and
adding right parentheses at the end of Q.
The algorithm is completed when STACK is empty.
81

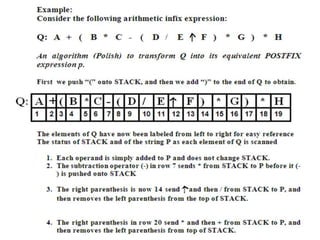

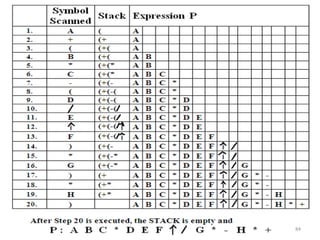

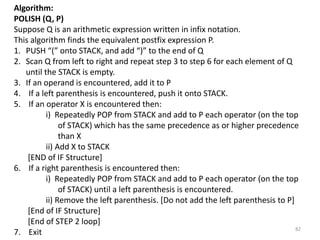

Algorithm:
POLISH (Q, P)
Suppose Q is an arithmetic expression written in infix notation.
This algorithm finds the equivalent postfix expression P.
1. PUSH “(” onto STACK, and add “)” to the end of Q
2. Scan Q from left to right and repeat step 3 to step 6 for each element of Q
until the STACK is empty.
3. If an operand is encountered, add it to P
4. If a left parenthesis is encountered, push it onto STACK.
5. If an operator X is encountered then:
i) Repeatedly POP from STACK and add to P each operator (on the top
of STACK) which has the same precedence as or higher precedence
than X
ii) Add X to STACK
[END of IF Structure]
6. If a right parenthesis is encountered then:
i) Repeatedly POP from STACK and add to P each operator (on the top
of STACK) until a left parenthesis is encountered.
ii) Remove the left parenthesis. [Do not add the left parenthesis to P]
7. Exit 82

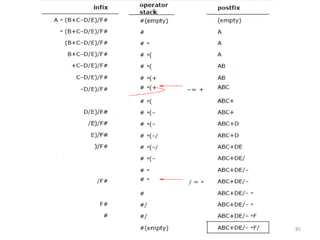

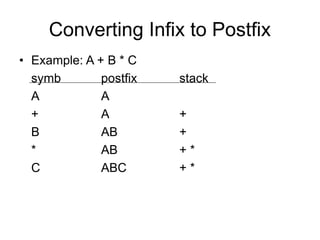

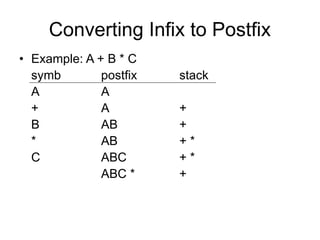

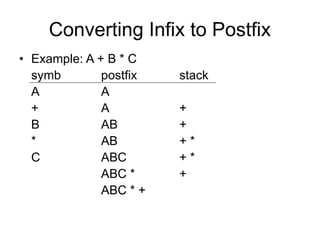

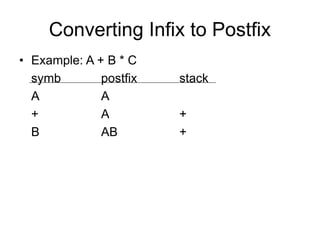

Converting Infix to Postfix

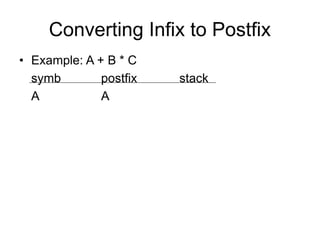

• Example: A + B * C
symb postfix stack
A A

symb postfix stack
A A
+ A +

symb postfix stack
A A
+ A +
B AB +

symb postfix stack
A A
+ A +
B AB +
* AB + *

symb postfix stack
A A
+ A +
B AB +
* AB + *
C ABC + *

symb postfix stack
A A
+ A +
B AB +
* AB + *
C ABC + *
ABC * +

symb postfix stack
A A
+ A +
B AB +
* AB + *
C ABC + *
ABC * +
ABC * +

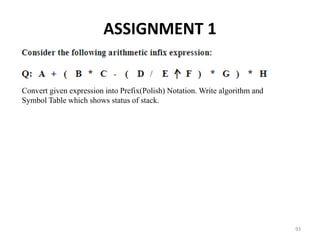

ASSIGNMENT 1
Convert given expression into Prefix(Polish) Notation. Write algorithm and
Symbol Table which shows status of stack.
93

LEC3-DS ALGO(updated).pdf

More Related Content

What's hot

Similar to LEC3-DS ALGO(updated).pdf

More from MuhammadUmerIhtisham

Recently uploaded

LEC3-DS ALGO(updated).pdf
