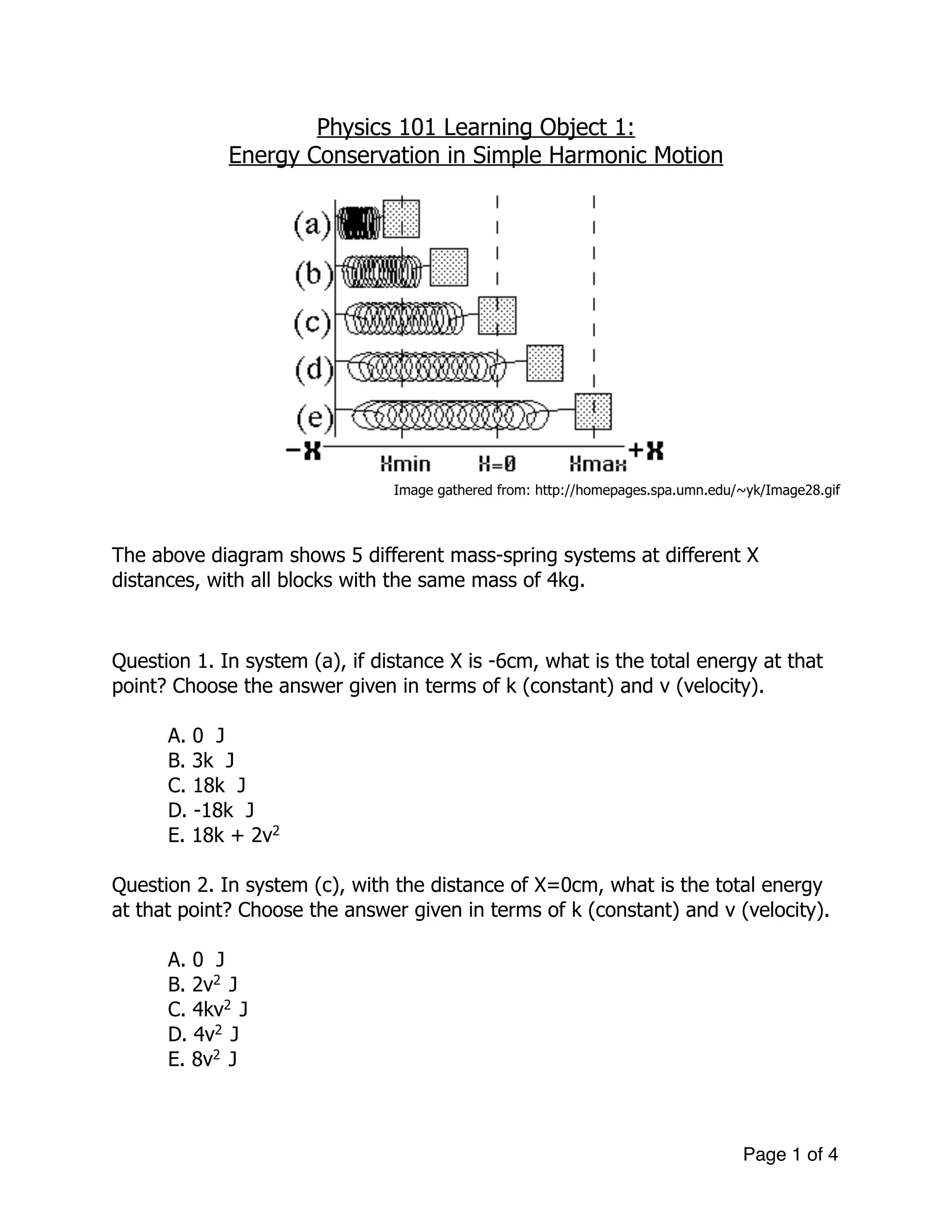

1. Physics 101 Learning Object 1:
Energy Conservation in Simple Harmonic Motion
!
Image gathered from: http://homepages.spa.umn.edu/~yk/Image28.gif
!
!
The above diagram shows 5 different mass-spring systems at different X
distances, with all blocks with the same mass of 4kg.
!
!
Question 1. In system (a), if distance X is -6cm, what is the total energy at that
point? Choose the answer given in terms of k (constant) and v (velocity).
A. 0 J
B. 3k J
C. 18k J
D. -18k J
E. 18k + 2v2
!
Question 2. In system (c), with the distance of X=0cm, what is the total energy
at that point? Choose the answer given in terms of k (constant) and v (velocity).
!
A. 0 J
B. 2v2
J
C. 4kv2
J
D. 4v2
J
E. 8v2
J
!
Page of1 4

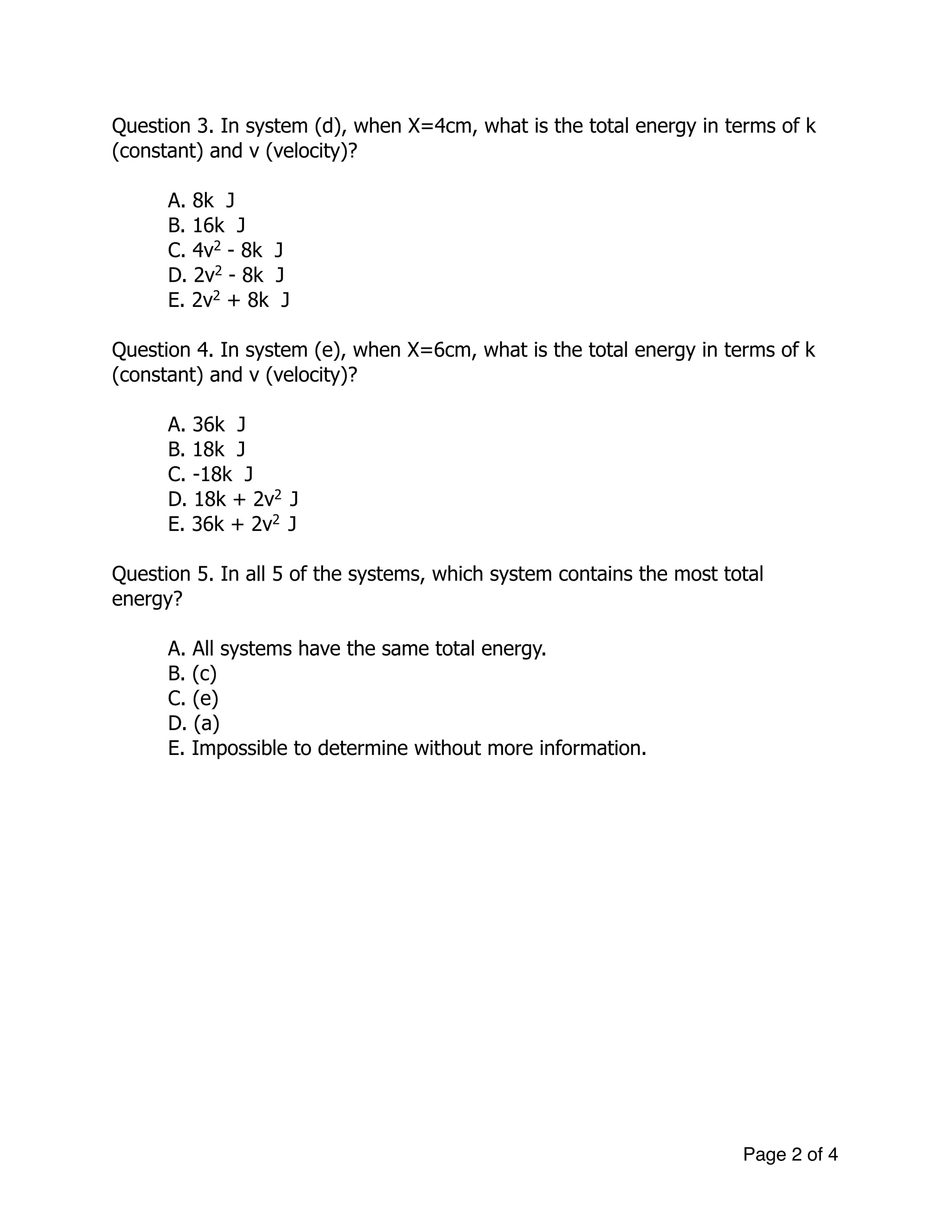

2. Question 3. In system (d), when X=4cm, what is the total energy in terms of k
(constant) and v (velocity)?
!
A. 8k J
B. 16k J
C. 4v2
- 8k J
D. 2v2
- 8k J
E. 2v2
+ 8k J
!
Question 4. In system (e), when X=6cm, what is the total energy in terms of k
(constant) and v (velocity)?
!
A. 36k J
B. 18k J
C. -18k J
D. 18k + 2v2
J
E. 36k + 2v2
J
!
Question 5. In all 5 of the systems, which system contains the most total
energy?
!
A. All systems have the same total energy.
B. (c)
C. (e)
D. (a)
E. Impossible to determine without more information.
!
!
!
!
!
!
!
!
!
!
!
!
!
Page of2 4

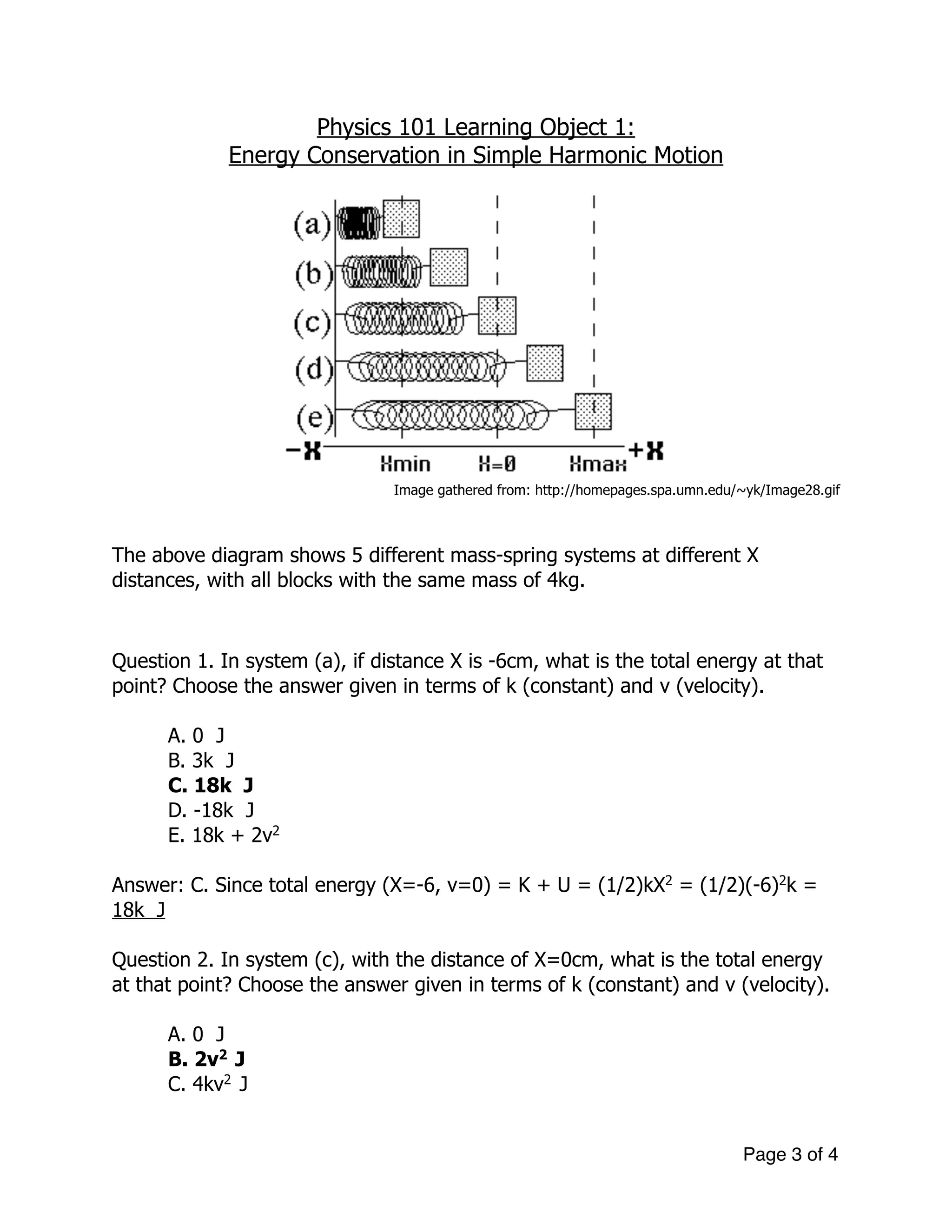

3. Physics 101 Learning Object 1:
Energy Conservation in Simple Harmonic Motion
!
Image gathered from: http://homepages.spa.umn.edu/~yk/Image28.gif
!
!
The above diagram shows 5 different mass-spring systems at different X
distances, with all blocks with the same mass of 4kg.
!
!
Question 1. In system (a), if distance X is -6cm, what is the total energy at that
point? Choose the answer given in terms of k (constant) and v (velocity).
A. 0 J
B. 3k J
C. 18k J
D. -18k J
E. 18k + 2v2
!
Answer: C. Since total energy (X=-6, v=0) = K + U = (1/2)kX2
= (1/2)(-6)2
k =
18k J
!
Question 2. In system (c), with the distance of X=0cm, what is the total energy
at that point? Choose the answer given in terms of k (constant) and v (velocity).
!
A. 0 J
B. 2v2
J
C. 4kv2
J
Page of3 4

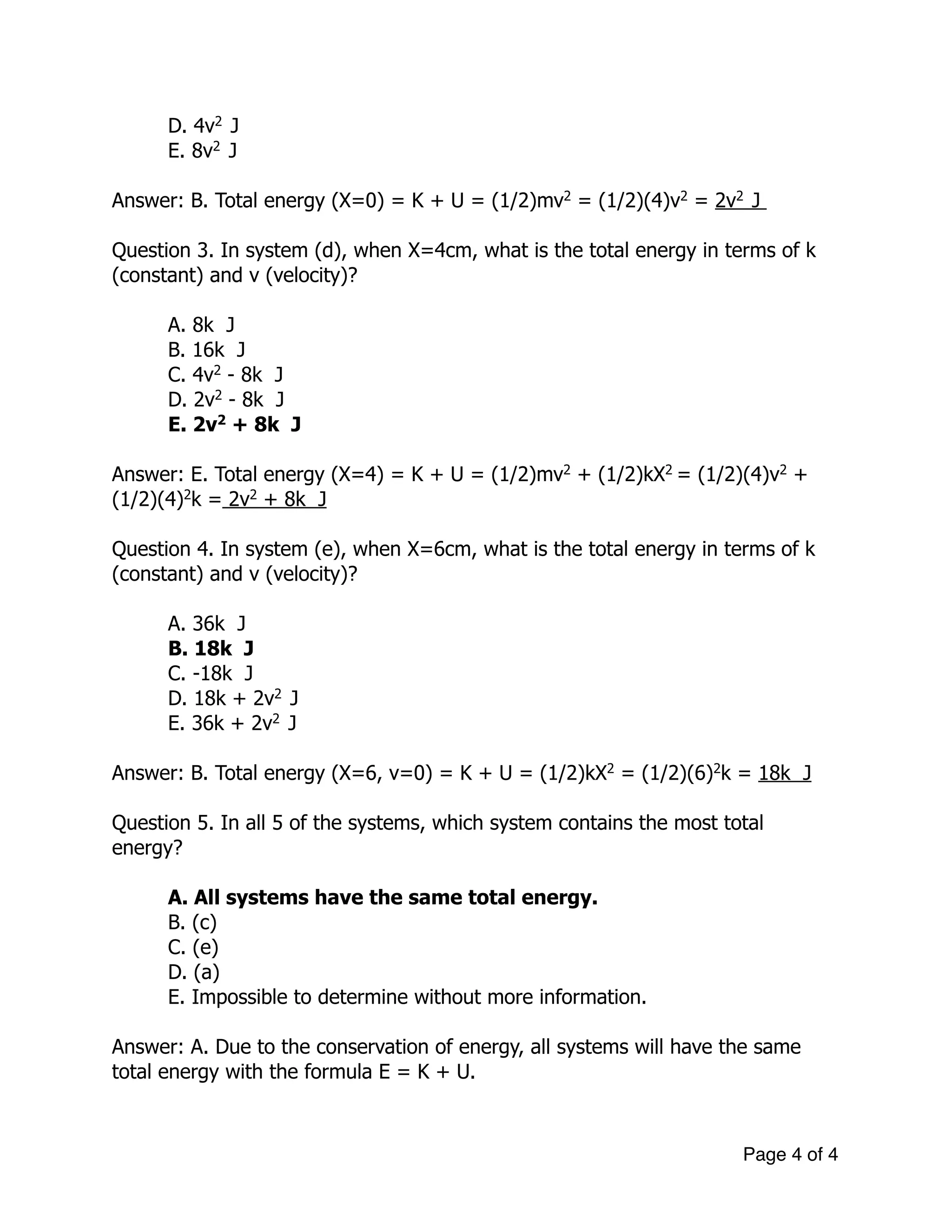

4. D. 4v2
J
E. 8v2
J
!
Answer: B. Total energy (X=0) = K + U = (1/2)mv2
= (1/2)(4)v2
= 2v2
J
!
Question 3. In system (d), when X=4cm, what is the total energy in terms of k
(constant) and v (velocity)?
!
A. 8k J
B. 16k J
C. 4v2
- 8k J
D. 2v2
- 8k J
E. 2v2
+ 8k J
!
Answer: E. Total energy (X=4) = K + U = (1/2)mv2
+ (1/2)kX2
= (1/2)(4)v2
+
(1/2)(4)2
k = 2v2
+ 8k J
!
Question 4. In system (e), when X=6cm, what is the total energy in terms of k
(constant) and v (velocity)?
!
A. 36k J
B. 18k J
C. -18k J
D. 18k + 2v2
J
E. 36k + 2v2
J
!
Answer: B. Total energy (X=6, v=0) = K + U = (1/2)kX2
= (1/2)(6)2
k = 18k J
!
Question 5. In all 5 of the systems, which system contains the most total
energy?
!
A. All systems have the same total energy.
B. (c)
C. (e)
D. (a)
E. Impossible to determine without more information.
Answer: A. Due to the conservation of energy, all systems will have the same
total energy with the formula E = K + U.
