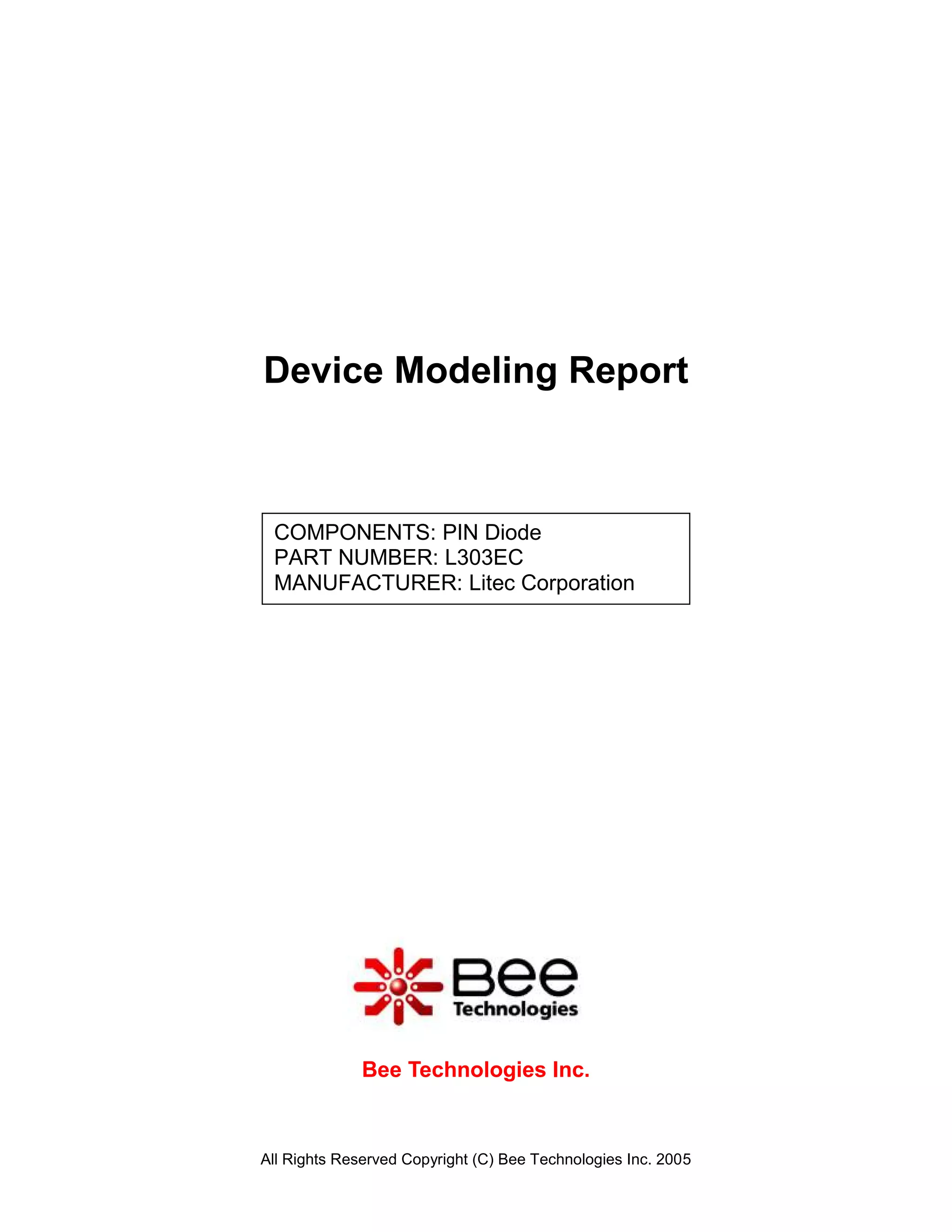

1. Device Modeling Report
COMPONENTS: PIN Diode
PART NUMBER: L303EC
MANUFACTURER: Litec Corporation
Bee Technologies Inc.
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

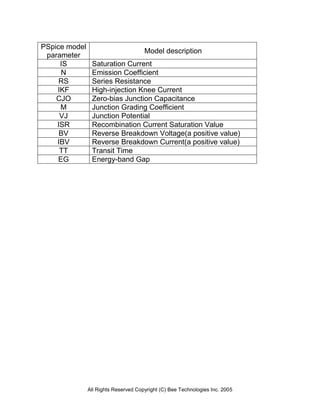

2. PSpice model
Model description
parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

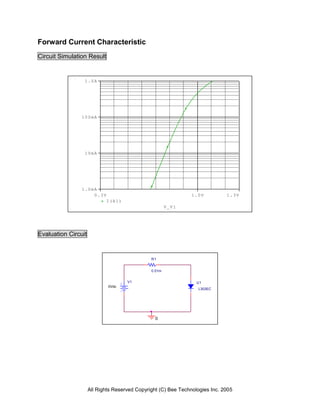

3. Forward Current Characteristic
Circuit Simulation Result
1.0A
100mA
10mA
1.0mA
0.3V 1.0V 1.3V
I(R1)
V_V1
Evaluation Circuit
R1
0.01m
V1 U1
0Vdc
L303EC
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

4. Comparison Graph
Circuit Simulation Result
Simulation Result
VF(V)
IF(mA) Error(%)
Measurement Simulation
1.000 0.660 0.661 0.152
2.000 0.690 0.692 0.290
5.000 0.735 0.734 -0.136
10.000 0.765 0.766 0.131
20.000 0.800 0.800 0.000
50.000 0.848 0.844 -0.472
100.000 0.880 0.882 0.227
200.000 0.925 0.926 0.108
500.000 1.010 1.010 0.000
1000.000 1.108 1.107 -0.090
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

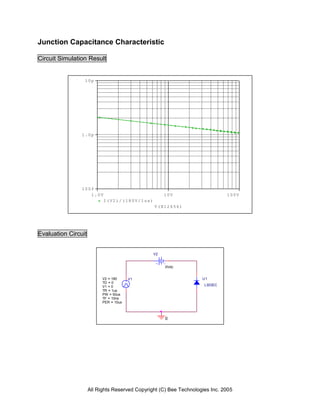

5. Junction Capacitance Characteristic
Circuit Simulation Result
10p
1.0p
100f
1.0V 10V 100V
I(V2)/(180V/1us)
V(N12656)
Evaluation Circuit
V2
0Vdc
V2 = 180 V1 U1
TD = 0
V1 = 0 L303EC
TR = 1us
PW = 50us
TF = 10ns
PER = 10us
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

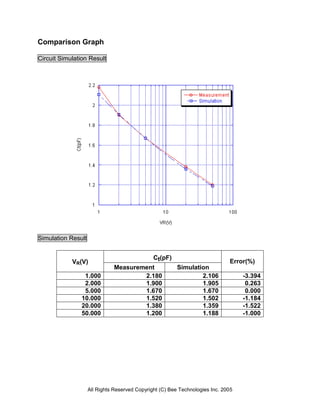

6. Comparison Graph
Circuit Simulation Result
Simulation Result
Ct(pF)
VR(V) Error(%)
Measurement Simulation
1.000 2.180 2.106 -3.394
2.000 1.900 1.905 0.263
5.000 1.670 1.670 0.000
10.000 1.520 1.502 -1.184
20.000 1.380 1.359 -1.522
50.000 1.200 1.188 -1.000
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

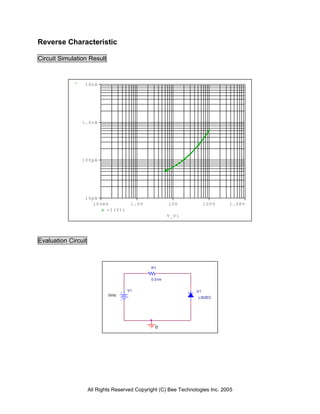

7. Reverse Characteristic
Circuit Simulation Result
10nA
1.0nA
100pA
10pA
100mV 1.0V 10V 100V 1.0KV
-I(V1)
V_V1
Evaluation Circuit
R1
0.01m
V1 U1
0Vdc
L303EC
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005

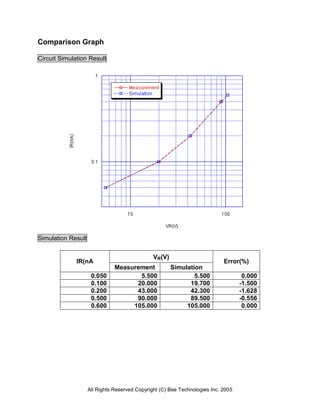

8. Comparison Graph
Circuit Simulation Result
Simulation Result
VR(V)
IR(nA Error(%)
Measurement Simulation
0.050 5.500 5.500 0.000
0.100 20.000 19.700 -1.500
0.200 43.000 42.300 -1.628
0.500 90.000 89.500 -0.556
0.600 105.000 105.000 0.000
All Rights Reserved Copyright (C) Bee Technologies Inc. 2005
