L2 bench joinery unit 211 power point presentation 4
•
Download as PPTX, PDF
•
1 like
•
2,135 views
G
gsr101
Follow
Operate a circular saw
Read less
Read more
Education
Report
Share
Report
Share
1 of 16
Download now
Recommended
L2 bench joinery unit 211 power point presentation 2
L2 bench joinery unit 211 power point presentation 2
gsr101
L2 bench joinery unit 211 power point presentation 1
L2 bench joinery unit 211 power point presentation 1
gsr101
L2 bench joinery unit 211 power point presentation 3
L2 bench joinery unit 211 power point presentation 3
gsr101
L2 bench joinery unit 212 power point presentation 1
L2 bench joinery unit 212 power point presentation 1
gsr101
L2 bench joinery unit 212 power point presentation 5
L2 bench joinery unit 212 power point presentation 5
gsr101
6706 l2u214 powerpoint_3
6706 l2u214 powerpoint_3
gsr101
unit 210 - capentry maintenance ppt 5
unit 210 - capentry maintenance ppt 5
kevin porter
101 Level 1 Principles of building construction, information and communication
101 Level 1 Principles of building construction, information and communication
gsr101
Recommended
L2 bench joinery unit 211 power point presentation 2
L2 bench joinery unit 211 power point presentation 2
gsr101
L2 bench joinery unit 211 power point presentation 1
L2 bench joinery unit 211 power point presentation 1
gsr101
L2 bench joinery unit 211 power point presentation 3
L2 bench joinery unit 211 power point presentation 3
gsr101
L2 bench joinery unit 212 power point presentation 1
L2 bench joinery unit 212 power point presentation 1
gsr101
L2 bench joinery unit 212 power point presentation 5
L2 bench joinery unit 212 power point presentation 5
gsr101
6706 l2u214 powerpoint_3
6706 l2u214 powerpoint_3
gsr101
unit 210 - capentry maintenance ppt 5
unit 210 - capentry maintenance ppt 5
kevin porter
101 Level 1 Principles of building construction, information and communication
101 Level 1 Principles of building construction, information and communication
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
unit 211 PPT 4
unit 211 PPT 4
kevin porter
6706 unit 209 ppt 2
6706 unit 209 ppt 2
kevin porter
unit 210 - capentry maintenance ppt 1
unit 210 - capentry maintenance ppt 1
kevin porter
Unit 201 Health, safety and welfare in construction
Unit 201 Health, safety and welfare in construction
gsr101
unit 210 - capentry maintenance ppt 4
unit 210 - capentry maintenance ppt 4
kevin porter
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
Foundations 3
Foundations 3
michael mcewan
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
unit 210 - capentry maintenance ppt 2
unit 210 - capentry maintenance ppt 2
kevin porter
Unit 101: Principles of building construction, information and communication
Unit 101: Principles of building construction, information and communication
DjCurrie
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
kevin porter
unit 213 power point presentation 1
unit 213 power point presentation 1
gsr101
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
kevin porter
Adhesives 1
Adhesives 1
michael mcewan
101 Level 1 Principles of building construction, information and communication
101 Level 1 Principles of building construction, information and communication
gsr101
6706 unit 209 ppt 4
6706 unit 209 ppt 4
kevin porter
L2 bench joinery unit 211 power point presentation 5
L2 bench joinery unit 211 power point presentation 5
gsr101
L2 bench joinery unit 213 power point presentation 4
L2 bench joinery unit 213 power point presentation 4
gsr101
More Related Content
What's hot
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
unit 211 PPT 4
unit 211 PPT 4
kevin porter
6706 unit 209 ppt 2
6706 unit 209 ppt 2
kevin porter
unit 210 - capentry maintenance ppt 1
unit 210 - capentry maintenance ppt 1
kevin porter
Unit 201 Health, safety and welfare in construction
Unit 201 Health, safety and welfare in construction
gsr101
unit 210 - capentry maintenance ppt 4
unit 210 - capentry maintenance ppt 4
kevin porter
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
Foundations 3
Foundations 3
michael mcewan
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
gsr101
unit 210 - capentry maintenance ppt 2
unit 210 - capentry maintenance ppt 2
kevin porter
Unit 101: Principles of building construction, information and communication
Unit 101: Principles of building construction, information and communication
DjCurrie
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
kevin porter
unit 213 power point presentation 1
unit 213 power point presentation 1
gsr101
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
kevin porter
Adhesives 1
Adhesives 1
michael mcewan
101 Level 1 Principles of building construction, information and communication
101 Level 1 Principles of building construction, information and communication
gsr101
6706 unit 209 ppt 4
6706 unit 209 ppt 4
kevin porter
What's hot
(20)
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
unit 211 PPT 4
unit 211 PPT 4
6706 unit 209 ppt 2
6706 unit 209 ppt 2
unit 210 - capentry maintenance ppt 1
unit 210 - capentry maintenance ppt 1
Unit 201 Health, safety and welfare in construction
Unit 201 Health, safety and welfare in construction
unit 210 - capentry maintenance ppt 4
unit 210 - capentry maintenance ppt 4
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
Foundations 3
Foundations 3
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
Unit 113: Maintain and use carpentry and joinery hand tools
unit 210 - capentry maintenance ppt 2
unit 210 - capentry maintenance ppt 2
Unit 101: Principles of building construction, information and communication
Unit 101: Principles of building construction, information and communication
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
unit 213 power point presentation 1
unit 213 power point presentation 1
unit 207 carry out first fix flooring and roofing
unit 207 carry out first fix flooring and roofing
Adhesives 1
Adhesives 1
101 Level 1 Principles of building construction, information and communication
101 Level 1 Principles of building construction, information and communication
6706 unit 209 ppt 4
6706 unit 209 ppt 4
Viewers also liked
L2 bench joinery unit 211 power point presentation 5
L2 bench joinery unit 211 power point presentation 5
gsr101
L2 bench joinery unit 213 power point presentation 4
L2 bench joinery unit 213 power point presentation 4
gsr101
L2 bench joinery unit 213 power point presentation 5
L2 bench joinery unit 213 power point presentation 5
gsr101
L2 bench joinery unit 213 power point presentation 3
L2 bench joinery unit 213 power point presentation 3
gsr101
L2 bench joinery unit 213 power point presentation 2
L2 bench joinery unit 213 power point presentation 2
gsr101
201 Health, safety and welfare in construction
201 Health, safety and welfare in construction
gsr101
L2 bench joinery unit 212 power point presentation 3
L2 bench joinery unit 212 power point presentation 3
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
6706 l2u214 powerpoint_2
6706 l2u214 powerpoint_2
gsr101
6706 l2u214 powerpoint_1
6706 l2u214 powerpoint_1
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
6706 l2u214 powerpoint_4
6706 l2u214 powerpoint_4
gsr101
6706 l2u214 powerpoint_5
6706 l2u214 powerpoint_5
gsr101
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
gsr101
Roofs
Roofs
michael mcewan
Viewers also liked
(15)
L2 bench joinery unit 211 power point presentation 5
L2 bench joinery unit 211 power point presentation 5
L2 bench joinery unit 213 power point presentation 4
L2 bench joinery unit 213 power point presentation 4
L2 bench joinery unit 213 power point presentation 5
L2 bench joinery unit 213 power point presentation 5
L2 bench joinery unit 213 power point presentation 3
L2 bench joinery unit 213 power point presentation 3
L2 bench joinery unit 213 power point presentation 2
L2 bench joinery unit 213 power point presentation 2
201 Health, safety and welfare in construction
201 Health, safety and welfare in construction
L2 bench joinery unit 212 power point presentation 3
L2 bench joinery unit 212 power point presentation 3
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
6706 l2u214 powerpoint_2
6706 l2u214 powerpoint_2
6706 l2u214 powerpoint_1
6706 l2u214 powerpoint_1
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
6706 l2u214 powerpoint_4
6706 l2u214 powerpoint_4
6706 l2u214 powerpoint_5
6706 l2u214 powerpoint_5
Unit 115: Produce woodworking joints
Unit 115: Produce woodworking joints
Roofs
Roofs
Similar to L2 bench joinery unit 211 power point presentation 4
unit 211 PPT 1
unit 211 PPT 1
kevin porter
unit 211 PPT 3
unit 211 PPT 3
kevin porter
Power tools and abrasives 3
Power tools and abrasives 3
michael mcewan
6708 13 l1_123_presentation_3
6708 13 l1_123_presentation_3
Robbie Blake
Double hacksaw
Double hacksaw
mechvignesan
Manufacturing Engineering 2, cutting tools and tool holders
Manufacturing Engineering 2, cutting tools and tool holders
Gaurav Mistry
Wood Working on Circular Saw Planer Machine.pptx
Wood Working on Circular Saw Planer Machine.pptx
Sai Venkatesh Vadapalli
Lindstrom catalogue
Lindstrom catalogue
gutman barzilai company
Presentation multi.pptx
Presentation multi.pptx
basilpaulmvp
unit 213 ppt 2
unit 213 ppt 2
kevin porter
Theory of metal cutting
Theory of metal cutting
Arul R
04 metal cutting(1)
04 metal cutting(1)
Thulasikanth Vaddi
04metalcutting1 161019143042
04metalcutting1 161019143042
manojkumarg1990
IRJET- Design and Fabrication of Skiving and Burnishing Tool
IRJET- Design and Fabrication of Skiving and Burnishing Tool
IRJET Journal
LPI_Cutting_Training Module 0522.ppt
LPI_Cutting_Training Module 0522.ppt
Kelsey Reece
Automotive servicing
Automotive servicing
KateGonzales7
Cutting training module
Cutting training module
Kelsey Reece
Oshlun 2014 catalog
Oshlun 2014 catalog
E. Renee Whitman
Investigations on Milling Tool: - A Literature Review
Investigations on Milling Tool: - A Literature Review
IJRES Journal
Swivel base vice Production Manufacturing
Swivel base vice Production Manufacturing
Shivam Padmani
Similar to L2 bench joinery unit 211 power point presentation 4
(20)
unit 211 PPT 1
unit 211 PPT 1
unit 211 PPT 3
unit 211 PPT 3
Power tools and abrasives 3
Power tools and abrasives 3
6708 13 l1_123_presentation_3
6708 13 l1_123_presentation_3
Double hacksaw
Double hacksaw
Manufacturing Engineering 2, cutting tools and tool holders
Manufacturing Engineering 2, cutting tools and tool holders
Wood Working on Circular Saw Planer Machine.pptx
Wood Working on Circular Saw Planer Machine.pptx
Lindstrom catalogue
Lindstrom catalogue
Presentation multi.pptx
Presentation multi.pptx
unit 213 ppt 2
unit 213 ppt 2
Theory of metal cutting
Theory of metal cutting
04 metal cutting(1)
04 metal cutting(1)
04metalcutting1 161019143042
04metalcutting1 161019143042
IRJET- Design and Fabrication of Skiving and Burnishing Tool
IRJET- Design and Fabrication of Skiving and Burnishing Tool
LPI_Cutting_Training Module 0522.ppt
LPI_Cutting_Training Module 0522.ppt
Automotive servicing
Automotive servicing
Cutting training module
Cutting training module
Oshlun 2014 catalog
Oshlun 2014 catalog
Investigations on Milling Tool: - A Literature Review
Investigations on Milling Tool: - A Literature Review
Swivel base vice Production Manufacturing
Swivel base vice Production Manufacturing
Recently uploaded
Activity 01 - Artificial Culture (1).pdf
Activity 01 - Artificial Culture (1).pdf
ciinovamais
Código Creativo y Arte de Software | Unidad 1
Código Creativo y Arte de Software | Unidad 1
Maestría en Comunicación Digital Interactiva - UNR
Staff of Color (SOC) Retention Efforts DDSD
Staff of Color (SOC) Retention Efforts DDSD
David Douglas School District
Student login on Anyboli platform.helpin
Student login on Anyboli platform.helpin
RaunakKeshri1
Introduction to ArtificiaI Intelligence in Higher Education
Introduction to ArtificiaI Intelligence in Higher Education
pboyjonauth
Web & Social Media Analytics Previous Year Question Paper.pdf
Web & Social Media Analytics Previous Year Question Paper.pdf
Jayanti Pande
Sanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdf
sanyamsingh5019
Z Score,T Score, Percential Rank and Box Plot Graph
Z Score,T Score, Percential Rank and Box Plot Graph
Thiyagu K
microwave assisted reaction. General introduction
microwave assisted reaction. General introduction
Maksud Ahmed
Interactive Powerpoint_How to Master effective communication
Interactive Powerpoint_How to Master effective communication
nomboosow
SOCIAL AND HISTORICAL CONTEXT - LFTVD.pptx
SOCIAL AND HISTORICAL CONTEXT - LFTVD.pptx
iammrhaywood
Privatization and Disinvestment - Meaning, Objectives, Advantages and Disadva...
Privatization and Disinvestment - Meaning, Objectives, Advantages and Disadva...
RKavithamani
Arihant handbook biology for class 11 .pdf
Arihant handbook biology for class 11 .pdf
chloefrazer622
mini mental status format.docx
mini mental status format.docx
PoojaSen20
Organic Name Reactions for the students and aspirants of Chemistry12th.pptx
Organic Name Reactions for the students and aspirants of Chemistry12th.pptx
VS Mahajan Coaching Centre
Industrial Policy - 1948, 1956, 1973, 1977, 1980, 1991
Industrial Policy - 1948, 1956, 1973, 1977, 1980, 1991
RKavithamani
Separation of Lanthanides/ Lanthanides and Actinides
Separation of Lanthanides/ Lanthanides and Actinides
FatimaKhan178732
TataKelola dan KamSiber Kecerdasan Buatan v022.pdf
TataKelola dan KamSiber Kecerdasan Buatan v022.pdf
Sarwono Sutikno, Dr.Eng.,CISA,CISSP,CISM,CSX-F
Mattingly "AI & Prompt Design: The Basics of Prompt Design"
Mattingly "AI & Prompt Design: The Basics of Prompt Design"
National Information Standards Organization (NISO)
1029-Danh muc Sach Giao Khoa khoi 6.pdf
1029-Danh muc Sach Giao Khoa khoi 6.pdf
QucHHunhnh
Recently uploaded
(20)
Activity 01 - Artificial Culture (1).pdf
Activity 01 - Artificial Culture (1).pdf
Código Creativo y Arte de Software | Unidad 1
Código Creativo y Arte de Software | Unidad 1
Staff of Color (SOC) Retention Efforts DDSD
Staff of Color (SOC) Retention Efforts DDSD
Student login on Anyboli platform.helpin
Student login on Anyboli platform.helpin
Introduction to ArtificiaI Intelligence in Higher Education
Introduction to ArtificiaI Intelligence in Higher Education
Web & Social Media Analytics Previous Year Question Paper.pdf
Web & Social Media Analytics Previous Year Question Paper.pdf
Sanyam Choudhary Chemistry practical.pdf
Sanyam Choudhary Chemistry practical.pdf
Z Score,T Score, Percential Rank and Box Plot Graph
Z Score,T Score, Percential Rank and Box Plot Graph
microwave assisted reaction. General introduction
microwave assisted reaction. General introduction
Interactive Powerpoint_How to Master effective communication
Interactive Powerpoint_How to Master effective communication
SOCIAL AND HISTORICAL CONTEXT - LFTVD.pptx
SOCIAL AND HISTORICAL CONTEXT - LFTVD.pptx
Privatization and Disinvestment - Meaning, Objectives, Advantages and Disadva...
Privatization and Disinvestment - Meaning, Objectives, Advantages and Disadva...
Arihant handbook biology for class 11 .pdf
Arihant handbook biology for class 11 .pdf
mini mental status format.docx
mini mental status format.docx
Organic Name Reactions for the students and aspirants of Chemistry12th.pptx
Organic Name Reactions for the students and aspirants of Chemistry12th.pptx
Industrial Policy - 1948, 1956, 1973, 1977, 1980, 1991
Industrial Policy - 1948, 1956, 1973, 1977, 1980, 1991
Separation of Lanthanides/ Lanthanides and Actinides
Separation of Lanthanides/ Lanthanides and Actinides
TataKelola dan KamSiber Kecerdasan Buatan v022.pdf
TataKelola dan KamSiber Kecerdasan Buatan v022.pdf
Mattingly "AI & Prompt Design: The Basics of Prompt Design"
Mattingly "AI & Prompt Design: The Basics of Prompt Design"
1029-Danh muc Sach Giao Khoa khoi 6.pdf
1029-Danh muc Sach Giao Khoa khoi 6.pdf
L2 bench joinery unit 211 power point presentation 4
1.
© 2013 City

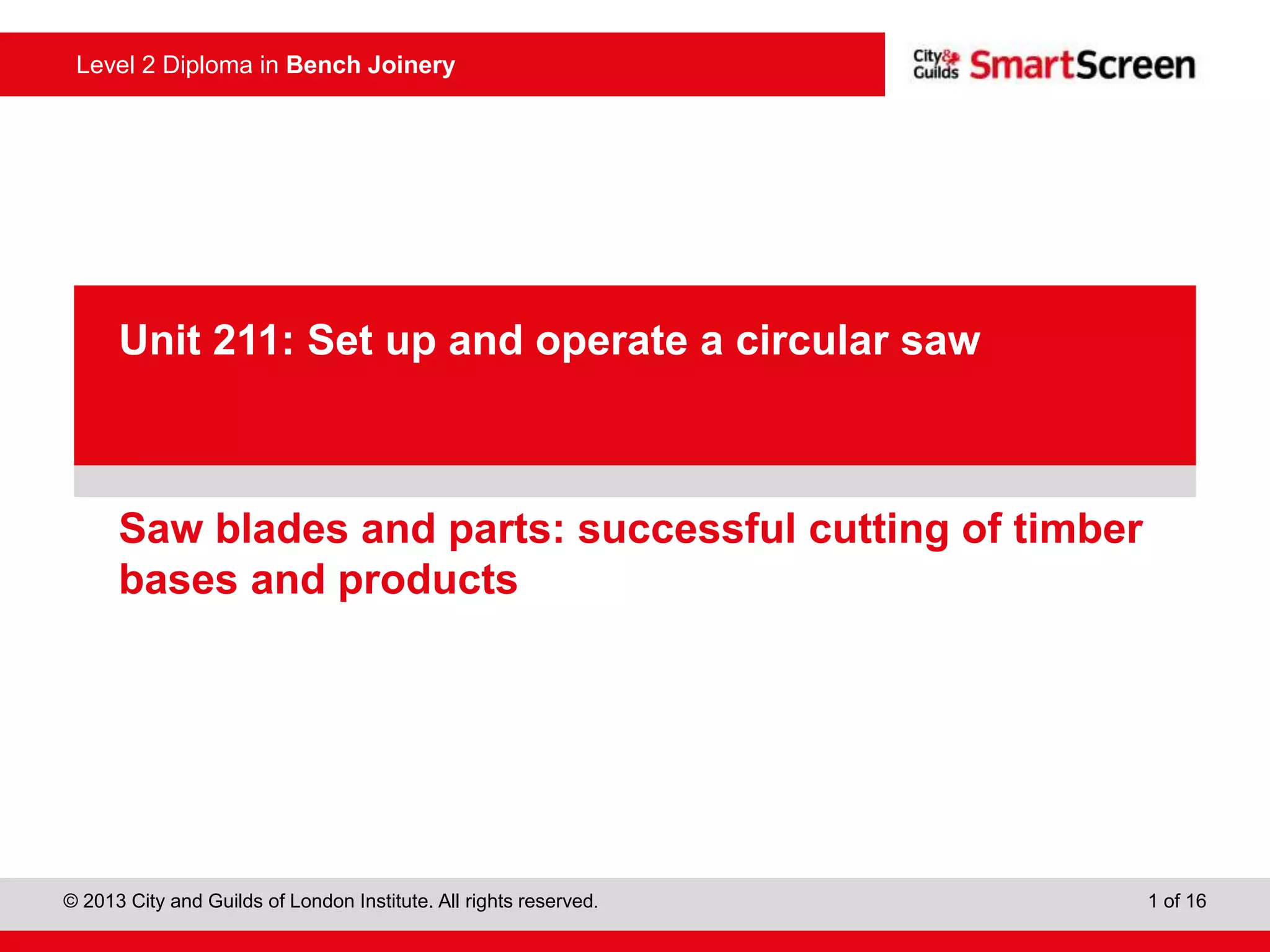

and Guilds of London Institute. All rights reserved. 1 of 16 Level 2 Diploma in Bench Joinery PowerPointpresentation Saw blades and parts: successful cutting of timber bases and products Unit 211: Set up and operate a circular saw

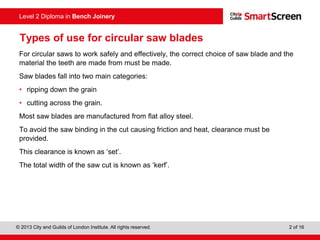

2.
© 2013 City
and Guilds of London Institute. All rights reserved. 2 of 16 Level 2 Diploma in Bench Joinery Types of use for circular saw blades For circular saws to work safely and effectively, the correct choice of saw blade and the material the teeth are made from must be made. Saw blades fall into two main categories: • ripping down the grain • cutting across the grain. Most saw blades are manufactured from flat alloy steel. To avoid the saw binding in the cut causing friction and heat, clearance must be provided. This clearance is known as ‘set’. The total width of the saw cut is known as ‘kerf’.
3.
© 2013 City

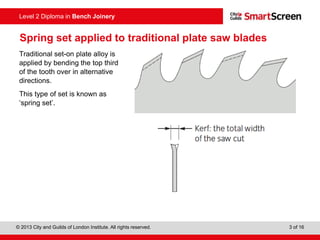

and Guilds of London Institute. All rights reserved. 3 of 16 Level 2 Diploma in Bench Joinery Spring set applied to traditional plate saw blades Traditional set-on plate alloy is applied by bending the top third of the tooth over in alternative directions. This type of set is known as ‘spring set’.

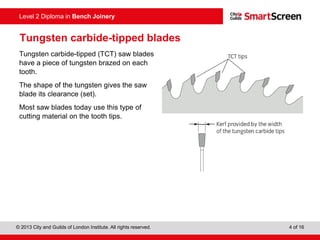

4.
© 2013 City
and Guilds of London Institute. All rights reserved. 4 of 16 Level 2 Diploma in Bench Joinery Tungsten carbide-tipped blades Tungsten carbide-tipped (TCT) saw blades have a piece of tungsten brazed on each tooth. The shape of the tungsten gives the saw blade its clearance (set). Most saw blades today use this type of cutting material on the tooth tips.

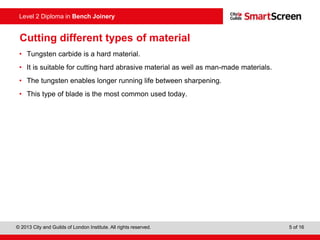

5.
© 2013 City
and Guilds of London Institute. All rights reserved. 5 of 16 Level 2 Diploma in Bench Joinery Cutting different types of material • Tungsten carbide is a hard material. • It is suitable for cutting hard abrasive material as well as man-made materials. • The tungsten enables longer running life between sharpening. • This type of blade is the most common used today.
6.
© 2013 City

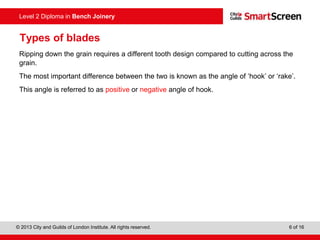

and Guilds of London Institute. All rights reserved. 6 of 16 Level 2 Diploma in Bench Joinery Types of blades Ripping down the grain requires a different tooth design compared to cutting across the grain. The most important difference between the two is known as the angle of ‘hook’ or ‘rake’. This angle is referred to as positive or negative angle of hook.
7.
© 2013 City

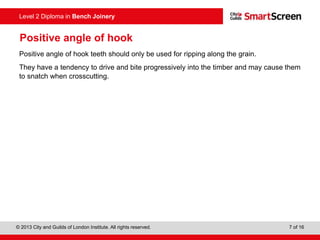

and Guilds of London Institute. All rights reserved. 7 of 16 Level 2 Diploma in Bench Joinery Positive angle of hook Positive angle of hook teeth should only be used for ripping along the grain. They have a tendency to drive and bite progressively into the timber and may cause them to snatch when crosscutting.

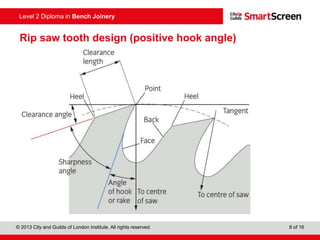

8.
© 2013 City
and Guilds of London Institute. All rights reserved. 8 of 16 Level 2 Diploma in Bench Joinery Rip saw tooth design (positive hook angle)

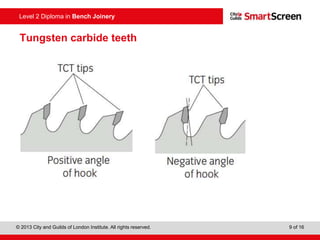

9.
© 2013 City
and Guilds of London Institute. All rights reserved. 9 of 16 Level 2 Diploma in Bench Joinery Tungsten carbide teeth

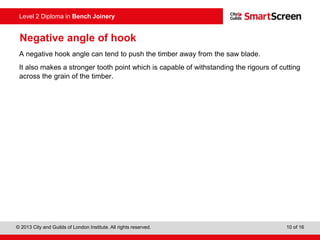

10.
© 2013 City
and Guilds of London Institute. All rights reserved. 10 of 16 Level 2 Diploma in Bench Joinery Negative angle of hook A negative hook angle can tend to push the timber away from the saw blade. It also makes a stronger tooth point which is capable of withstanding the rigours of cutting across the grain of the timber.
11.
© 2013 City

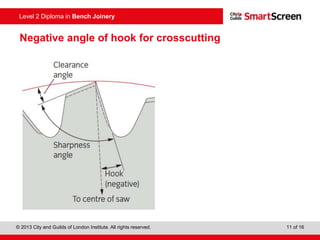

and Guilds of London Institute. All rights reserved. 11 of 16 Level 2 Diploma in Bench Joinery Negative angle of hook for crosscutting

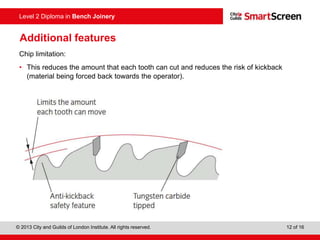

12.
© 2013 City
and Guilds of London Institute. All rights reserved. 12 of 16 Level 2 Diploma in Bench Joinery Additional features Chip limitation: • This reduces the amount that each tooth can cut and reduces the risk of kickback (material being forced back towards the operator).
13.
© 2013 City

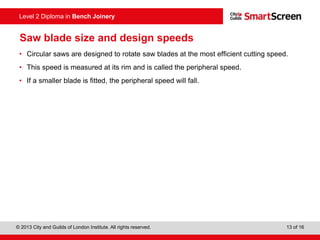

and Guilds of London Institute. All rights reserved. 13 of 16 Level 2 Diploma in Bench Joinery Saw blade size and design speeds • Circular saws are designed to rotate saw blades at the most efficient cutting speed. • This speed is measured at its rim and is called the peripheral speed. • If a smaller blade is fitted, the peripheral speed will fall.
14.
© 2013 City

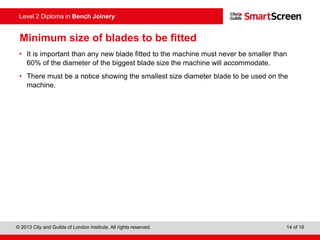

and Guilds of London Institute. All rights reserved. 14 of 16 Level 2 Diploma in Bench Joinery Minimum size of blades to be fitted • It is important than any new blade fitted to the machine must never be smaller than 60% of the diameter of the biggest blade size the machine will accommodate. • There must be a notice showing the smallest size diameter blade to be used on the machine.

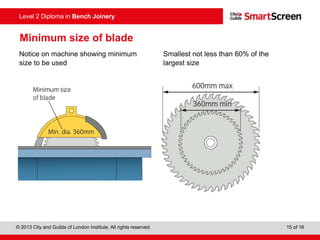

15.
© 2013 City
and Guilds of London Institute. All rights reserved. 15 of 16 Level 2 Diploma in Bench Joinery Minimum size of blade Notice on machine showing minimum size to be used Smallest not less than 60% of the largest size
16.
© 2013 City

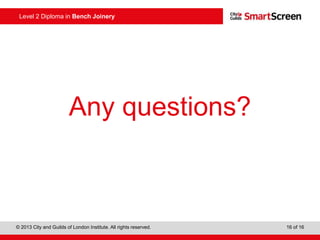

and Guilds of London Institute. All rights reserved. 16 of 16 Level 2 Diploma in Bench Joinery Any questions?
