1. © 2013 City and Guilds of London Institute. All rights reserved. 1 of 15
Level 2 Diploma in Bench Joinery
PowerPointpresentation
Presentation 2
Unit 213: Mark out from setting out details for
bench joinery products

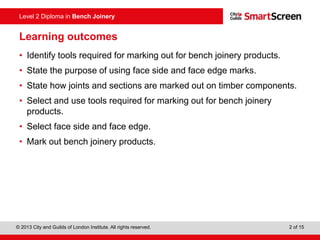

2. © 2013 City and Guilds of London Institute. All rights reserved. 2 of 15
Level 2 Diploma in Bench Joinery
Learning outcomes
• Identify tools required for marking out for bench joinery products.
• State the purpose of using face side and face edge marks.
• State how joints and sections are marked out on timber components.
• Select and use tools required for marking out for bench joinery
products.
• Select face side and face edge.
• Mark out bench joinery products.

3. © 2013 City and Guilds of London Institute. All rights reserved. 3 of 15
Level 2 Diploma in Bench Joinery
Tutor guidance
Following is all about naming parts of a bench joinery product and
naming tools required for marking out.
The drawing is the same but each slide is dedicated to small sections
of the whole.
Discuss each slide in depth as each answer is revealed.

4. © 2013 City and Guilds of London Institute. All rights reserved. 4 of 15
Level 2 Diploma in Bench Joinery
On the following slide is a picture of a small garden gate,
can you identify:
• face side and edge marks
• width measurement
• height measurement
• thickness measurement
• end grain
• diagonal brace
• dovetail
• half lap
• tee bridal joint
• the horns
• stiles
• rails
• centre brace

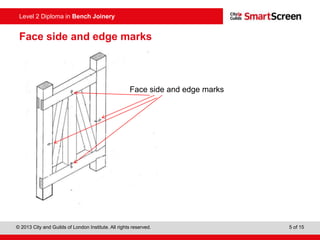

5. © 2013 City and Guilds of London Institute. All rights reserved. 5 of 15
Level 2 Diploma in Bench Joinery
Face side and edge marks
Face side and edge marks

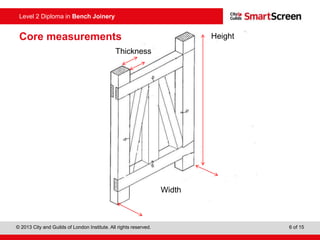

6. © 2013 City and Guilds of London Institute. All rights reserved. 6 of 15
Level 2 Diploma in Bench Joinery
Width
Height
Thickness
Core measurements

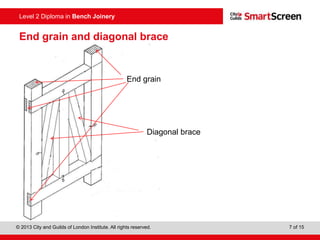

7. © 2013 City and Guilds of London Institute. All rights reserved. 7 of 15
Level 2 Diploma in Bench Joinery
End grain
Diagonal brace
End grain and diagonal brace

8. © 2013 City and Guilds of London Institute. All rights reserved. 8 of 15

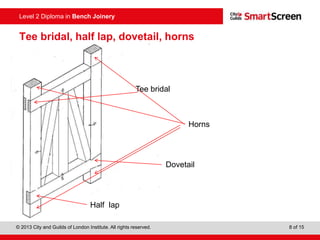

Level 2 Diploma in Bench Joinery
Dovetail
Half lap
Tee bridal
Horns
Tee bridal, half lap, dovetail, horns

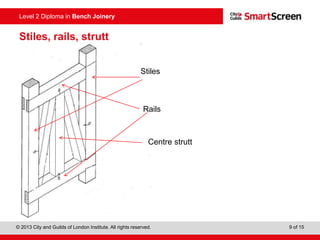

9. © 2013 City and Guilds of London Institute. All rights reserved. 9 of 15
Level 2 Diploma in Bench Joinery
Stiles, rails, strutt
Stiles
Rails
Centre strutt

10. © 2013 City and Guilds of London Institute. All rights reserved. 10 of 15
Level 2 Diploma in Bench Joinery
Which tools?
Now that you have identified some marking out features.
How many marking out tools can you name for each joint?
On the following slides, name the tools required to mark out each joint
or shape on the material.

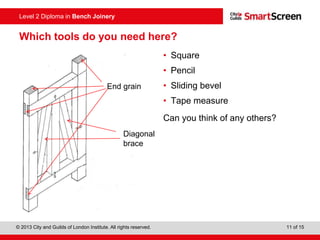

11. © 2013 City and Guilds of London Institute. All rights reserved. 11 of 15
Level 2 Diploma in Bench Joinery
Which tools do you need here?
• Square
• Pencil
• Sliding bevel
• Tape measure
Can you think of any others?
End grain
Diagonal
brace

12. © 2013 City and Guilds of London Institute. All rights reserved. 12 of 15
Level 2 Diploma in Bench Joinery
Which tools do you need here?
• Marking gauge
• Sliding bevel
• Dovetail template
• Pencil
• Set square
• Tape measure
Can you think of any
others?
Dovetail
half lap

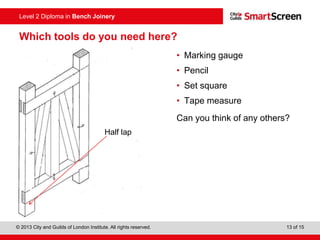

13. © 2013 City and Guilds of London Institute. All rights reserved. 13 of 15
Level 2 Diploma in Bench Joinery
Which tools do you need here?
• Marking gauge
• Pencil
• Set square
• Tape measure
Can you think of any others?
Half lap

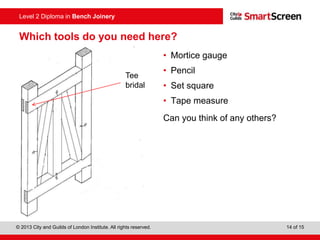

14. © 2013 City and Guilds of London Institute. All rights reserved. 14 of 15
Level 2 Diploma in Bench Joinery
Which tools do you need here?
• Mortice gauge
• Pencil
• Set square
• Tape measure
Can you think of any others?
Tee
bridal

15. © 2013 City and Guilds of London Institute. All rights reserved. 15 of 15
Level 2 Diploma in Bench Joinery
Any questions?
