Service Oriented Architecture (SOA) Presentation by Biniam Asnake

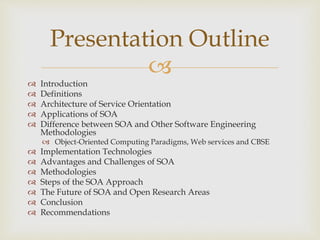

2. 
 Introduction
 Definitions
 Architecture of Service Orientation
 Applications of SOA
 Difference between SOA and Other Software Engineering
Methodologies
 Object-Oriented Computing Paradigms, Web services and CBSE
 Implementation Technologies
 Advantages and Challenges of SOA
 Methodologies
 Steps of the SOA Approach

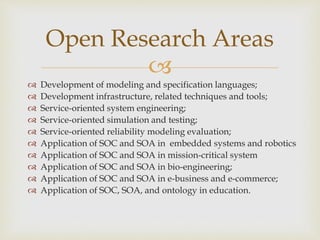

 The Future of SOA and Open Research Areas
 Conclusion
 Recommendations
Presentation Outline

3. 
 Modern enterprises need to respond effectively and
quickly to opportunities in today’s ever more competitive
and global markets.
 Motivators for SOA:
 Too few software engineers and too many programmers
 increasing nature of distributed systems
 heterogeneity of systems and computing environments
 dynamics of operating environments
 transparency of communication infrastructure details and
 process-orientation requires multiple services.
Introduction

4. 
 SOA is designed to:
 allow developers to overcome many distributed enterprise
computing challenges including:
 application integration
 transaction management
 security policies
 allow multiple platforms and protocols and leveraging
numerous access devices and legacy systems.
 The SOA as a design philosophy is independent of any
specific technology, e.g., Web-services or J2EE enterprise
beans.
… Introduction

5. 
Now, service-oriented architectures (SOAs) are
being promoted as the next evolutionary step to
help IT organizations meet their ever more-
complex challenges.
 The purpose of this paper is to give brief introduction to
the architecture, applications, advantages and challenges,
similarity and difference with other methodologies,
implementation technologies, the steps and the future and
research areas of SOA. Finally, the recommendations are
forwarded.
… Introduction

6. 

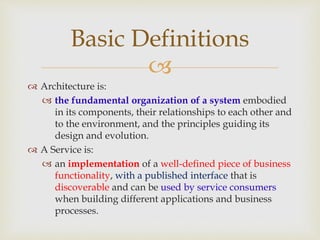

 Architecture is:
 the fundamental organization of a system embodied
in its components, their relationships to each other and
to the environment, and the principles guiding its
design and evolution.
 A Service is:
 an implementation of a well-defined piece of business
functionality, with a published interface that is
discoverable and can be used by service consumers
when building different applications and business
processes.
Basic Definitions

7. 
Features of Service in SOA
 Interface contract
 Interoperability
 Dynamically discovered
 Public vs. Published interface
 The most popular type of services available today utilize
Web services Standards:
 Web Services Description Language (WSDL),
 Simple Object Access Protocol (SOAP), and
 Universal Description, Discovery and Integration registry
(UDDI)
… Basic Definitions

8. 
 The World Wide Web Consortium (W3C) refers to
SOA as:
'A set of components which can be invoked, and whose
interface descriptions can be published and discovered'.
 CBDI rejects this definition on two counts:
1. the components (or implementations) will often not
be a set.
2. the W3C definition of architecture only considers the
implemented and deployed components, rather than
the science, art or practice of building the architecture.
Definition of SOA

9. 
 Hence, CBDI recommends SOA is more usefully defined as:
“The policies, practices, frameworks that enable application
functionality to be provided and consumed as sets of
services published at a granularity relevant to the service
consumer. Services can be invoked, published and discovered,
and are abstracted away from the implementation using a single,
standards-based form of interface.”
 The Service-Oriented Computing (SOC) paradigm refers to:
the set of concepts, principles, and methods that
represent computing in SOA in which software
applications are constructed based on independent
component services with standard interfaces.
… Definition of SOA

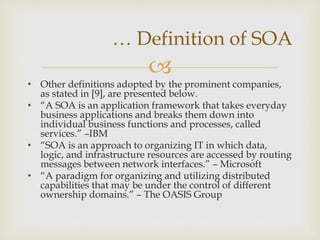

10. 
• Other definitions adopted by the prominent companies,
as stated in [9], are presented below.
• “A SOA is an application framework that takes everyday
business applications and breaks them down into
individual business functions and processes, called
services.” –IBM
• “SOA is an approach to organizing IT in which data,
logic, and infrastructure resources are accessed by routing
messages between network interfaces.” – Microsoft
• “A paradigm for organizing and utilizing distributed
capabilities that may be under the control of different
ownership domains.” – The OASIS Group
… Definition of SOA

11. 

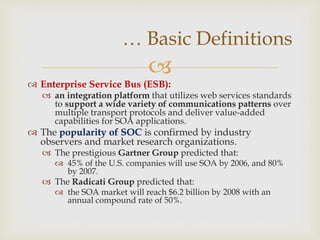

 Enterprise Service Bus (ESB):
 an integration platform that utilizes web services standards
to support a wide variety of communications patterns over
multiple transport protocols and deliver value-added
capabilities for SOA applications.
 The popularity of SOC is confirmed by industry
observers and market research organizations.
 The prestigious Gartner Group predicted that:
 45% of the U.S. companies will use SOA by 2006, and 80%
by 2007.
 The Radicati Group predicted that:
 the SOA market will reach $6.2 billion by 2008 with an
annual compound rate of 50%.
… Basic Definitions

12. 

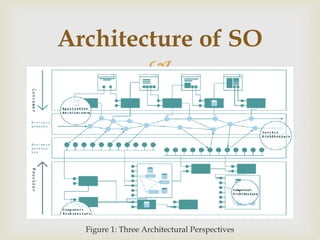

Figure 1: Three Architectural Perspectives
Architecture of SO

13. 
 SOA can provide a secure, reliable and agile architecture
that benefits the entire institution.
 What makes SOA valuable is its ability to reuse business
functions in different combinations.
 SOA can be applied in B2B e-commerce, Enterprise
Application Integration (EAI), application-to-application,
government, embedded systems and cloud computing.
 The SOA’s loose-coupling principle make them
indispensable for enterprise-wide and cross-enterprise
applications.
Applications of SOA

14.  All major software manufacturers and vendors are promoting
support for SOA.
 As a result, every major development platform now officially
supports the creation of service-oriented solutions.
 All major computer corporations, including BEA, IBM,
Microsoft, Oracle, HP, SAP, Intel, Cisco, Juniper, and Sun
Microsystems, have moved towards the SOC paradigm.
 Languages, protocols, and standards have been developed to
support and to regulate SOC applications.
 Numerous frameworks, specification languages, and tools have
been created.
 Furthermore, government agencies, such as the U.S.
Department of Defense (DoD) and NASA, have adopted SOC.
… Application of SOA

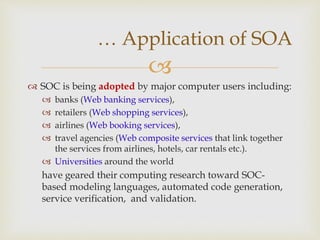

15. 
 SOC is being adopted by major computer users including:
 banks (Web banking services),
 retailers (Web shopping services),
 airlines (Web booking services),
 travel agencies (Web composite services that link together
the services from airlines, hotels, car rentals etc.).
 Universities around the world
have geared their computing research toward SOC-
based modeling languages, automated code generation,
service verification, and validation.
… Application of SOA

16. Features Object-Oriented Computing Service-Oriented Computing
Methodology tightly coupled classes
inheritance relationships
loosely coupled services and composing them into
executable applications.
Level of
abstraction and
cooperation
a single team responsible for the entire life
cycle
Developers must have knowledge of
application domain and programming.
Development is delegated to three independent
parties: application builder, service provider, and
service broker.
Code sharing
and reuse
Code reuse through inheritance of class
members and through library functions.
Library functions have to be imported at
compilation time and are platform
dependent.
Services have standard interfaces and are
published on Internet repository.
They are platform-independent and can be
searched and remotely accessed.
Dynamic
binding and
re-composition
The method must have been linked to the
executable code before the application is
deployed.
The services can be discovered after the
application has been deployed. This feature
allows an application to be recomposed at
runtime.
System
maintenance
Users need to upgrade their software
regularly. The application has to be
stopped to perform the upgrading.
The service code resides on service providers'
computers. Services can be updated without
users' involvement.
SO vs. OO Computing Paradigms

17. 
 Web Service:
 Is a software system designed to support
interoperable machine-to-machine interaction
over a network.
 seem to become the preferred implementation
technology for realizing the SOA promise of
maximum service sharing, reuse, and interoperability.
 SOA is potentially much wider in its scope than simply
defining service implementation, addressing the quality
of the service from the perspective of the provider and the
consumer.
 Web services are not a mandatory component of a SOA.
SOA vs. Web services

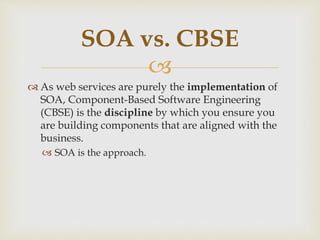

18. 
 As web services are purely the implementation of
SOA, Component-Based Software Engineering
(CBSE) is the discipline by which you ensure you
are building components that are aligned with the
business.
 SOA is the approach.
SOA vs. CBSE

19.  Includes:
 XML Web Services, Common Object Request Broker
Architecture (CORBA), Java Remote Method Invocation
(RMI), .Net Remoting, Message Oriented Middleware
(MOM) – IMB’s MQSeries, Microsoft Message Queuing
(MSMQ), Java Message Service, TCP/IP and Email
 The major platforms that support SOA are:
 IBM: WebSphere SOA Product Suite
 BEA: Aqualogic (WebLogic)
 Oracle: Fusion Middleware
 Microsoft: .NET
 SAP: NetWeaver
 LogicBlaze: open source solution from Apache foundation
Implementation Technologies

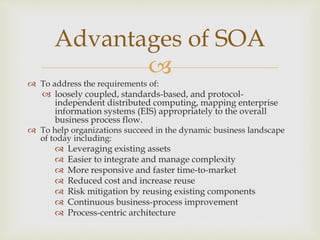

20. 
 To address the requirements of:
 loosely coupled, standards-based, and protocol-
independent distributed computing, mapping enterprise
information systems (EIS) appropriately to the overall
business process flow.
 To help organizations succeed in the dynamic business landscape
of today including:
 Leveraging existing assets
 Easier to integrate and manage complexity
 More responsive and faster time-to-market
 Reduced cost and increase reuse
 Risk mitigation by reusing existing components
 Continuous business-process improvement
 Process-centric architecture
Advantages of SOA

21. 
 Additional advantages of SOA includes:
Security
Interoperability
Reusability
Flexibility
Ease of assembling new business processes
 Generally, SOA is by no means a silver bullet, and
migration to SOA is not an easy task.
 Rather than migrating the whole enterprise, migrate an
appropriate subset of business functions as the business
need arises or is anticipated.
… Advantages of SOA

22. 

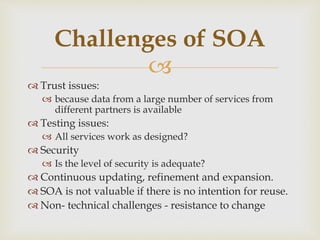

 Trust issues:
 because data from a large number of services from
different partners is available
 Testing issues:
 All services work as designed?
 Security
 Is the level of security is adequate?
 Continuous updating, refinement and expansion.
 SOA is not valuable if there is no intention for reuse.
 Non- technical challenges - resistance to change
Challenges of SOA

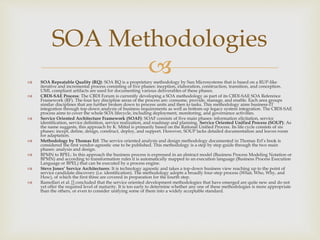

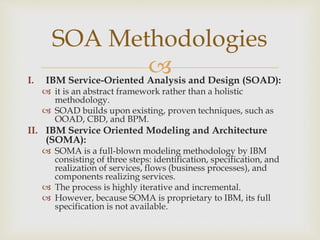

23. 1. IBM Service-Oriented Analysis and Design (SOAD)

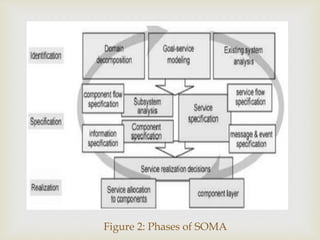

2. IBM Service Oriented Modeling and Architecture (SOMA)

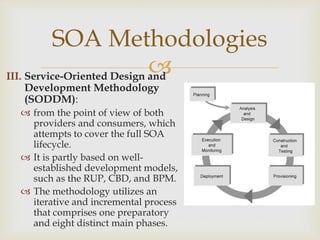

3. Service-Oriented Design and Development Methodology (SODDM)
4. SOA Repeatable Quality (RQ)
5. CBDI-SAE Process
6. Service Oriented Architecture Framework (SOAF)
7. Service Oriented Unified Process (SOUP)
8. Methodology by Thomas Erl
9. BPMN to BPEL (Business Process Modeling Notation to Business
Process Execution Language)
10. Steve Jones’ Service Architectures
 The service oriented development methodologies that have emerged
are quite new and do not yet offer the required level of maturity.
 Hence, it is too early to determine whether any one of these
methodologies is more appropriate than the others, or even to
consider unifying some of them into a widely acceptable standard.
SOA Methodologies

24. 
 are not necessarily linear and sequential
 but rather exploratory and iterative, incrementing
functionality and understanding of the team as the project
proceeds.
 The steps are:
1) Domain decomposition
2) Goal-service model creation
3) Subsystem analysis
4) Service allocation:
5) Component specification
6) Structure components and services using patterns
7) Technology realization mapping
7 Steps of the SOA Approach

25. Figure 2: Seven main steps of the SOA approach

26. 
 Two new, emerging concepts are beginning to be
implemented: grid computing and on demand
computing.
 SOA becomes the DNA of grid computing and on
demand computing.
 Applying SOA allows you to maximize resource
utilization in a grid environment.
 SOA is an enabling architecture for on demand
applications. Thus, applications must operate in an
SOA to realize the benefits of on demand.
The Future of SOA

27. 
 Development of modeling and specification languages;
 Development infrastructure, related techniques and tools;
 Service-oriented system engineering;
 Service-oriented simulation and testing;
 Service-oriented reliability modeling evaluation;
 Application of SOC and SOA in embedded systems and robotics
 Application of SOC and SOA in mission-critical system
 Application of SOC and SOA in bio-engineering;
 Application of SOC and SOA in e-business and e-commerce;
 Application of SOC, SOA, and ontology in education.
Open Research Areas

28. 

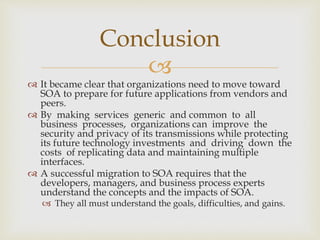

 It became clear that organizations need to move toward
SOA to prepare for future applications from vendors and
peers.
 By making services generic and common to all
business processes, organizations can improve the
security and privacy of its transmissions while protecting
its future technology investments and driving down the
costs of replicating data and maintaining multiple
interfaces.
 A successful migration to SOA requires that the
developers, managers, and business process experts
understand the concepts and the impacts of SOA.
 They all must understand the goals, difficulties, and gains.
Conclusion

29. 
 In our country, Ethiopia, a lot of manual systems should be
automated to get the benefits provided by IT.
 But, software development is at an infant stage and most systems are
being developed using traditional methodologies.
 Because we do not have many systems, there should be a way to
use a service or functionality provided by other similar firms.
 SOA can be applied in different organizations and departments.
 Therefore, I recommend SOA to be adopted in major sectors such
as airlines, banks, tour and travel agencies and universities to
speed decision making, to provide relevant information, improve
the security and privacy of information.
 In addition to the application in organizations, I also recommend
teaching, specially university undergraduate students, about the
SOA design and development to enable organizations use similar
services with minimized cost.
Recommendations

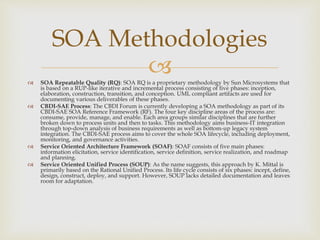

31.  SOA Repeatable Quality (RQ): SOA RQ is a proprietary methodology by Sun Microsystems that
is based on a RUP-like iterative and incremental process consisting of five phases: inception,
elaboration, construction, transition, and conception. UML compliant artifacts are used for
documenting various deliverables of these phases.
 CBDI-SAE Process: The CBDI Forum is currently developing a SOA methodology as part of its
CBDI-SAE SOA Reference Framework (RF). The four key discipline areas of the process are:
consume, provide, manage, and enable. Each area groups similar disciplines that are further
broken down to process units and then to tasks. This methodology aims business-IT integration
through top-down analysis of business requirements as well as bottom-up legacy system
integration. The CBDI-SAE process aims to cover the whole SOA lifecycle, including deployment,
monitoring, and governance activities.
 Service Oriented Architecture Framework (SOAF): SOAF consists of five main phases:
information elicitation, service identification, service definition, service realization, and roadmap
and planning.
 Service Oriented Unified Process (SOUP): As the name suggests, this approach by K. Mittal is
primarily based on the Rational Unified Process. Its life cycle consists of six phases: incept, define,
design, construct, deploy, and support. However, SOUP lacks detailed documentation and leaves
room for adaptation.
SOA Methodologies

32.  SOA Repeatable Quality (RQ): SOA RQ is a proprietary methodology by Sun Microsystems that is based on a RUP-like
iterative and incremental process consisting of five phases: inception, elaboration, construction, transition, and conception.
UML compliant artifacts are used for documenting various deliverables of these phases.
 CBDI-SAE Process: The CBDI Forum is currently developing a SOA methodology as part of its CBDI-SAE SOA Reference
Framework (RF). The four key discipline areas of the process are: consume, provide, manage, and enable. Each area groups
similar disciplines that are further broken down to process units and then to tasks. This methodology aims business-IT
integration through top-down analysis of business requirements as well as bottom-up legacy system integration. The CBDI-SAE
process aims to cover the whole SOA lifecycle, including deployment, monitoring, and governance activities.
 Service Oriented Architecture Framework (SOAF): SOAF consists of five main phases: information elicitation, service
identification, service definition, service realization, and roadmap and planning. Service Oriented Unified Process (SOUP): As
the name suggests, this approach by K. Mittal is primarily based on the Rational Unified Process. Its life cycle consists of six
phases: incept, define, design, construct, deploy, and support. However, SOUP lacks detailed documentation and leaves room
for adaptation.
 Methodology by Thomas Erl: The service oriented analysis and design methodology documented in Thomas Erl’s book is
considered the first vendor-agnostic one to be published. This methodology is a step by step guide through the two main
phases: analysis and design.
 BPMN to BPEL: In this approach the business process is expressed in an abstract model (Business Process Modeling Notation or
BPMN) and according to transformation rules it is automatically mapped to an execution language (Business Process Execution
Language or BPEL) that can be executed by a process engine.
 Steve Jones’ Service Architectures: It is technology agnostic and takes a top-down business view reaching up to the point of
service candidate discovery (i.e. identification). The methodology adopts a broadly four-step process (What, Who, Why, and
How), of which the first three are covered in preparation for the fourth step.
 Ramollari et al. [] concluded that the service oriented development methodologies that have emerged are quite new and do not
yet offer the required level of maturity. It is too early to determine whether any one of these methodologies is more appropriate
than the others, or even to consider unifying some of them into a widely acceptable standard.
SOA Methodologies

33. I. IBM Service-Oriented Analysis and Design (SOAD):
 it is an abstract framework rather than a holistic
methodology.
 SOAD builds upon existing, proven techniques, such as
OOAD, CBD, and BPM.
II. IBM Service Oriented Modeling and Architecture
(SOMA):
 SOMA is a full-blown modeling methodology by IBM
consisting of three steps: identification, specification, and
realization of services, flows (business processes), and
components realizing services.
 The process is highly iterative and incremental.
 However, because SOMA is proprietary to IBM, its full
specification is not available.
SOA Methodologies

34. 
Figure 2: Phases of SOMA

35. III. Service-Oriented Design and
Development Methodology
(SODDM):
 from the point of view of both
providers and consumers, which
attempts to cover the full SOA
lifecycle.
 It is partly based on well-
established development models,
such as the RUP, CBD, and BPM.
 The methodology utilizes an
iterative and incremental process
that comprises one preparatory
and eight distinct main phases.
SOA Methodologies
