1. Laurence Robinson
E.ON Technologies (Ratcliffe) Limited
CO2QUEST

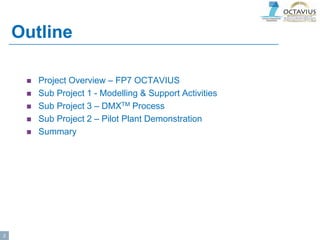

2. Outline
 Project Overview – FP7 OCTAVIUS
 Sub Project 1 - Modelling & Support Activities
 Sub Project 3 – DMXTM Process
 Sub Project 2 – Pilot Plant Demonstration
 Summary
2

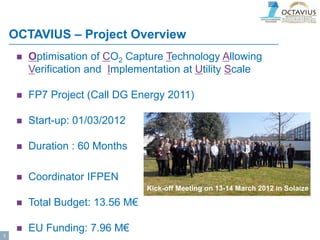

3. OCTAVIUS – Project Overview
 Optimisation of CO2 Capture Technology Allowing
Verification and Implementation at Utility Scale
 FP7 Project (Call DG Energy 2011)
 Start-up: 01/03/2012
 Duration : 60 Months
 Coordinator IFPEN
 Total Budget: 13.56 M€
 EU Funding: 7.96 M€
Kick-off Meeting on 13-14 March 2012 in Solaize
3

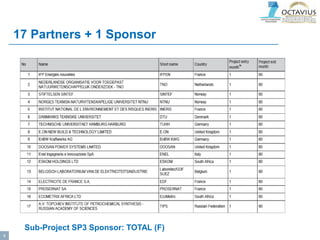

4. 17 Partners + 1 Sponsor
Sub-Project SP3 Sponsor: TOTAL (F)
4

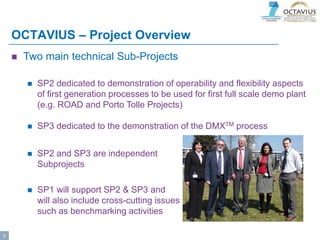

5. OCTAVIUS – Project Overview
 Two main technical Sub-Projects
 SP2 dedicated to demonstration of operability and flexibility aspects
of first generation processes to be used for first full scale demo plant
(e.g. ROAD and Porto Tolle Projects)
 SP3 dedicated to the demonstration of the DMXTM process
 SP2 and SP3 are independent
Subprojects
 SP1 will support SP2 & SP3 and
will also include cross-cutting issues
such as benchmarking activities
5

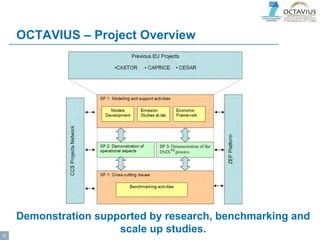

6. OCTAVIUS – Project Overview
6
Demonstration supported by research, benchmarking and
scale up studies.

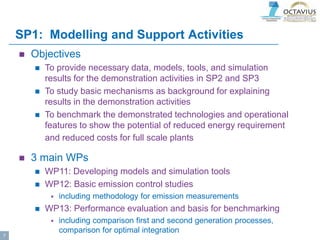

7. SP1: Modelling and Support Activities
 Objectives
 To provide necessary data, models, tools, and simulation
results for the demonstration activities in SP2 and SP3
 To study basic mechanisms as background for explaining
results in the demonstration activities
 To benchmark the demonstrated technologies and operational
features to show the potential of reduced energy requirement
and reduced costs for full scale plants
 3 main WPs
 WP11: Developing models and simulation tools
 WP12: Basic emission control studies
 including methodology for emission measurements
 WP13: Performance evaluation and basis for benchmarking
 including comparison first and second generation processes,
comparison for optimal integration
7

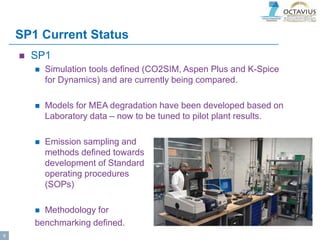

8. SP1 Current Status
 SP1
 Simulation tools defined (CO2SIM, Aspen Plus and K-Spice
for Dynamics) and are currently being compared.
 Models for MEA degradation have been developed based on
Laboratory data – now to be tuned to pilot plant results.
 Emission sampling and
methods defined towards
development of Standard
operating procedures
(SOPs)
 Methodology for
benchmarking defined.
8

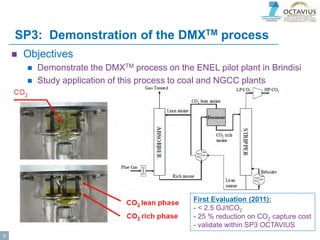

9. SP3: Demonstration of the DMXTM process
 Objectives
 Demonstrate the DMXTM process on the ENEL pilot plant in Brindisi
 Study application of this process to coal and NGCC plants
First Evaluation (2011):
- < 2.5 GJ/tCO2
- 25 % reduction on CO2 capture cost
- validate within SP3 OCTAVIUS
9

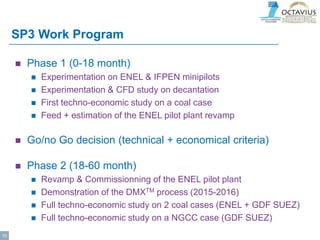

10.  Phase 1 (0-18 month)
 Experimentation on ENEL & IFPEN minipilots
 Experimentation & CFD study on decantation
 First techno-economic study on a coal case
 Feed + estimation of the ENEL pilot plant revamp
 Go/no Go decision (technical + economical criteria)
 Phase 2 (18-60 month)
 Revamp & Commissionning of the ENEL pilot plant
 Demonstration of the DMXTM process (2015-2016)
 Full techno-economic study on 2 coal cases (ENEL + GDF SUEZ)
 Full techno-economic study on a NGCC case (GDF SUEZ)
SP3 Work Program
10

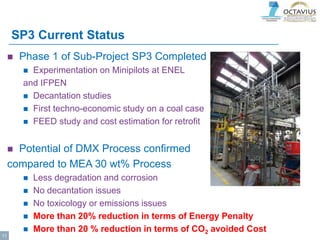

11. SP3 Current Status
 Phase 1 of Sub-Project SP3 Completed
 Experimentation on Minipilots at ENEL
and IFPEN
 Decantation studies
 First techno-economic study on a coal case
 FEED study and cost estimation for retrofit
 Potential of DMX Process confirmed
compared to MEA 30 wt% Process
 Less degradation and corrosion
 No decantation issues
 No toxicology or emissions issues
 More than 20% reduction in terms of Energy Penalty
 More than 20 % reduction in terms of CO2 avoided Cost
11

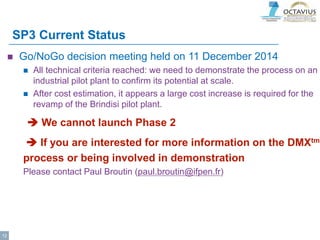

12. SP3 Current Status
 Go/NoGo decision meeting held on 11 December 2014
 All technical criteria reached: we need to demonstrate the process on an
industrial pilot plant to confirm its potential at scale.
 After cost estimation, it appears a large cost increase is required for the
revamp of the Brindisi pilot plant.
 We cannot launch Phase 2
 If you are interested for more information on the DMXtm
process or being involved in demonstration
Please contact Paul Broutin (paul.broutin@ifpen.fr)
12

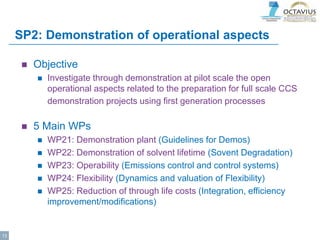

13. SP2: Demonstration of operational aspects
 Objective
 Investigate through demonstration at pilot scale the open
operational aspects related to the preparation for full scale CCS
demonstration projects using first generation processes
 5 Main WPs
 WP21: Demonstration plant (Guidelines for Demos)
 WP22: Demonstration of solvent lifetime (Sovent Degradation)
 WP23: Operability (Emissions control and control systems)
 WP24: Flexibility (Dynamics and valuation of Flexibility)
 WP25: Reduction of through life costs (Integration, efficiency
improvement/modifications)
13

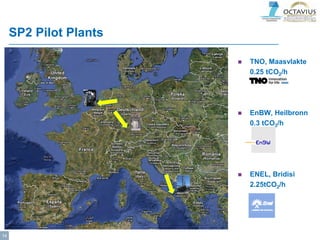

14. SP2 Pilot Plants
 TNO, Maasvlakte
0.25 tCO2/h
 EnBW, Heilbronn
0.3 tCO2/h
 ENEL, Bridisi
2.25tCO2/h
14

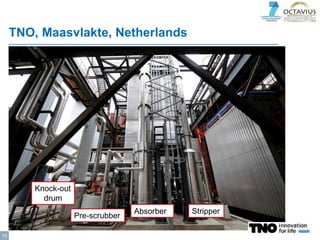

15. TNO, Maasvlakte, Netherlands
Knock-out
drum
Pre-scrubber
Absorber Stripper
15

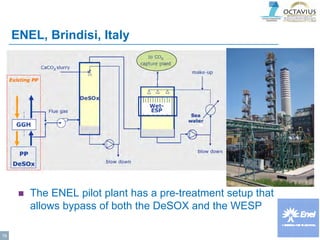

16. ENEL, Brindisi, Italy
 The ENEL pilot plant has a pre-treatment setup that
allows bypass of both the DeSOX and the WESP
16

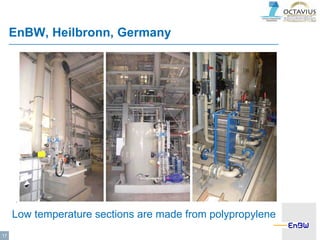

17. EnBW, Heilbronn, Germany
17
Low temperature sections are made from polypropylene

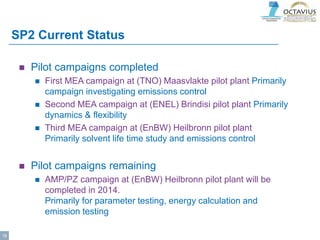

18. SP2 Current Status
 Pilot campaigns completed
 First MEA campaign at (TNO) Maasvlakte pilot plant Primarily
campaign investigating emissions control
 Second MEA campaign at (ENEL) Brindisi pilot plant Primarily
dynamics & flexibility
 Third MEA campaign at (EnBW) Heilbronn pilot plant
Primarily solvent life time study and emissions control
 Pilot campaigns remaining
 AMP/PZ campaign at (EnBW) Heilbronn pilot plant will be
completed in 2014.
Primarily for parameter testing, energy calculation and
emission testing
18

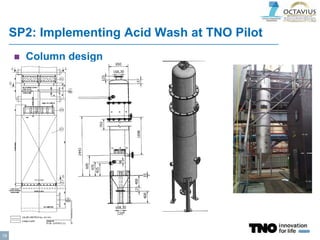

19. SP2: Implementing Acid Wash at TNO Pilot
 Column design
19

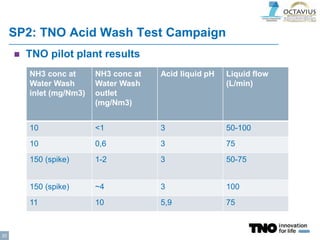

20. SP2: TNO Acid Wash Test Campaign
 TNO pilot plant results
20
NH3 conc at
Water Wash
inlet (mg/Nm3)
NH3 conc at
Water Wash
outlet
(mg/Nm3)
Acid liquid pH Liquid flow
(L/min)
10 <1 3 50-100
10 0,6 3 75
150 (spike) 1-2 3 50-75
150 (spike) ~4 3 100
11 10 5,9 75

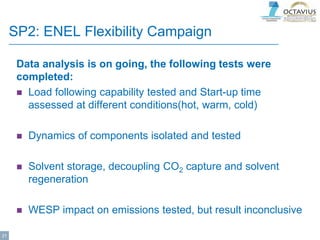

21. SP2: ENEL Flexibility Campaign
Data analysis is on going, the following tests were
completed:
 Load following capability tested and Start-up time
assessed at different conditions(hot, warm, cold)
 Dynamics of components isolated and tested
 Solvent storage, decoupling CO2 capture and solvent
regeneration
 WESP impact on emissions tested, but result inconclusive
21

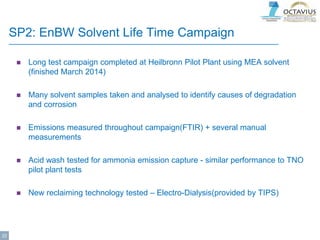

22. SP2: EnBW Solvent Life Time Campaign
 Long test campaign completed at Heilbronn Pilot Plant using MEA solvent
(finished March 2014)
 Many solvent samples taken and analysed to identify causes of degradation
and corrosion
 Emissions measured throughout campaign(FTIR) + several manual
measurements
 Acid wash tested for ammonia emission capture - similar performance to TNO
pilot plant tests
 New reclaiming technology tested – Electro-Dialysis(provided by TIPS)
22

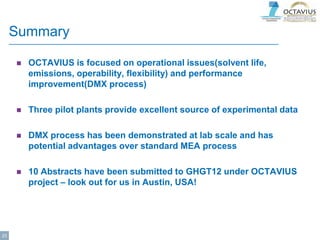

23. Summary
 OCTAVIUS is focused on operational issues(solvent life,
emissions, operability, flexibility) and performance
improvement(DMX process)
 Three pilot plants provide excellent source of experimental data
 DMX process has been demonstrated at lab scale and has
potential advantages over standard MEA process
 10 Abstracts have been submitted to GHGT12 under OCTAVIUS
project – look out for us in Austin, USA!
23

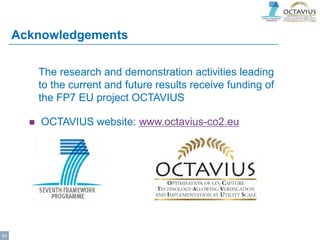

24. Acknowledgements
The research and demonstration activities leading
to the current and future results receive funding of
the FP7 EU project OCTAVIUS
 OCTAVIUS website: www.octavius-co2.eu
