KubeVirt enables running virtual machines alongside containers on Kubernetes clusters. It allows virtual machines to be scheduled and managed just like containers. KubeVirt focuses on enabling existing virtualized workloads to run on Kubernetes and integrates features like storage, networking, metrics, and monitoring. Example use cases include starting with a virtual machine, building new services on VMs and containers together, and decomposing existing virtualized workloads.

1. KubeVirt
Friendly coexistence of Virtual Machines and Containers on Kubernetes
using KubeVirt

2. DISCLAIMER
This is not a product pitch, this is R&D.
There be dragons!

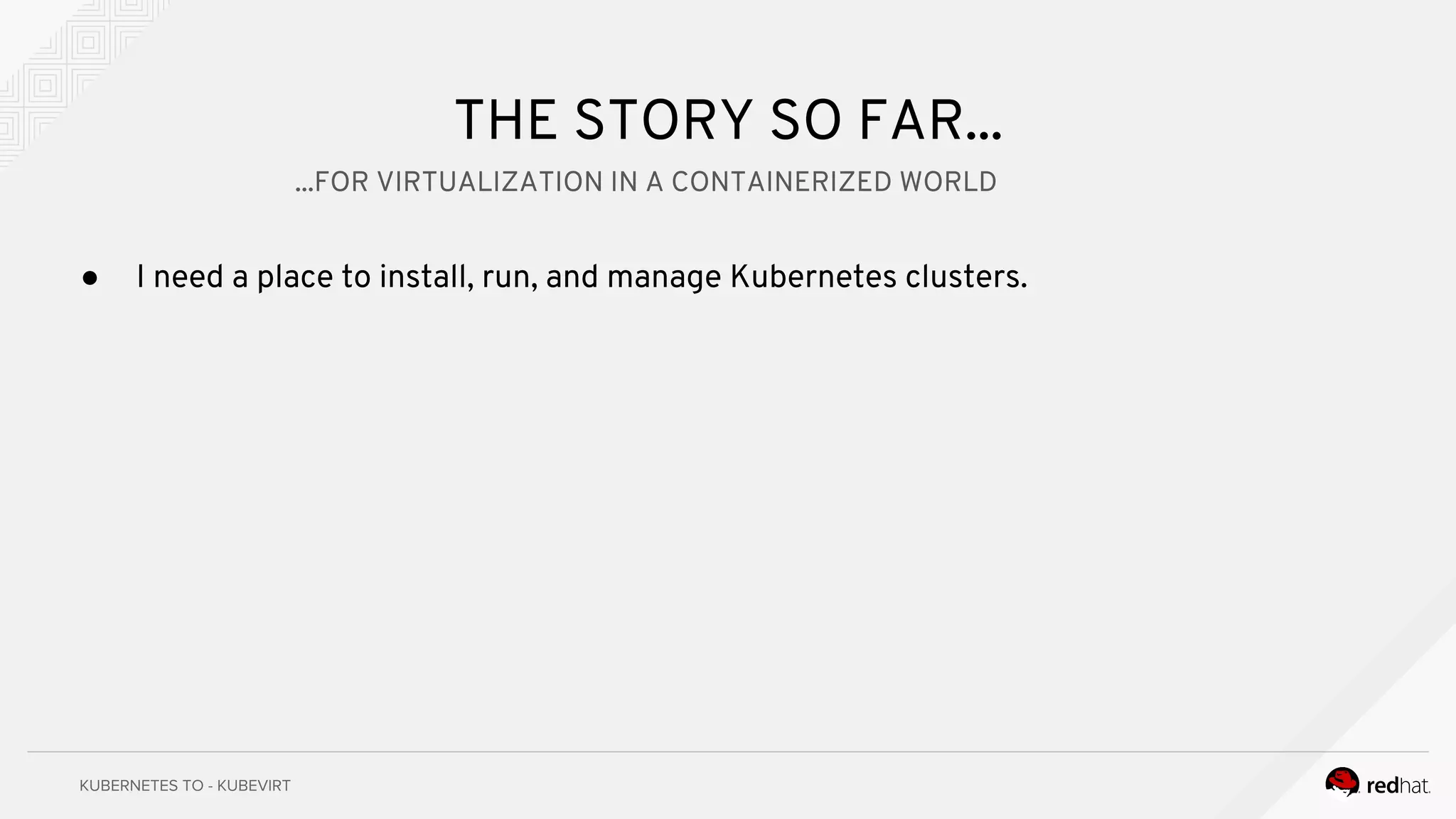

3. THE STORY SO FAR...
● I need a place to install, run, and manage Kubernetes clusters.
...FOR VIRTUALIZATION IN A CONTAINERIZED WORLD

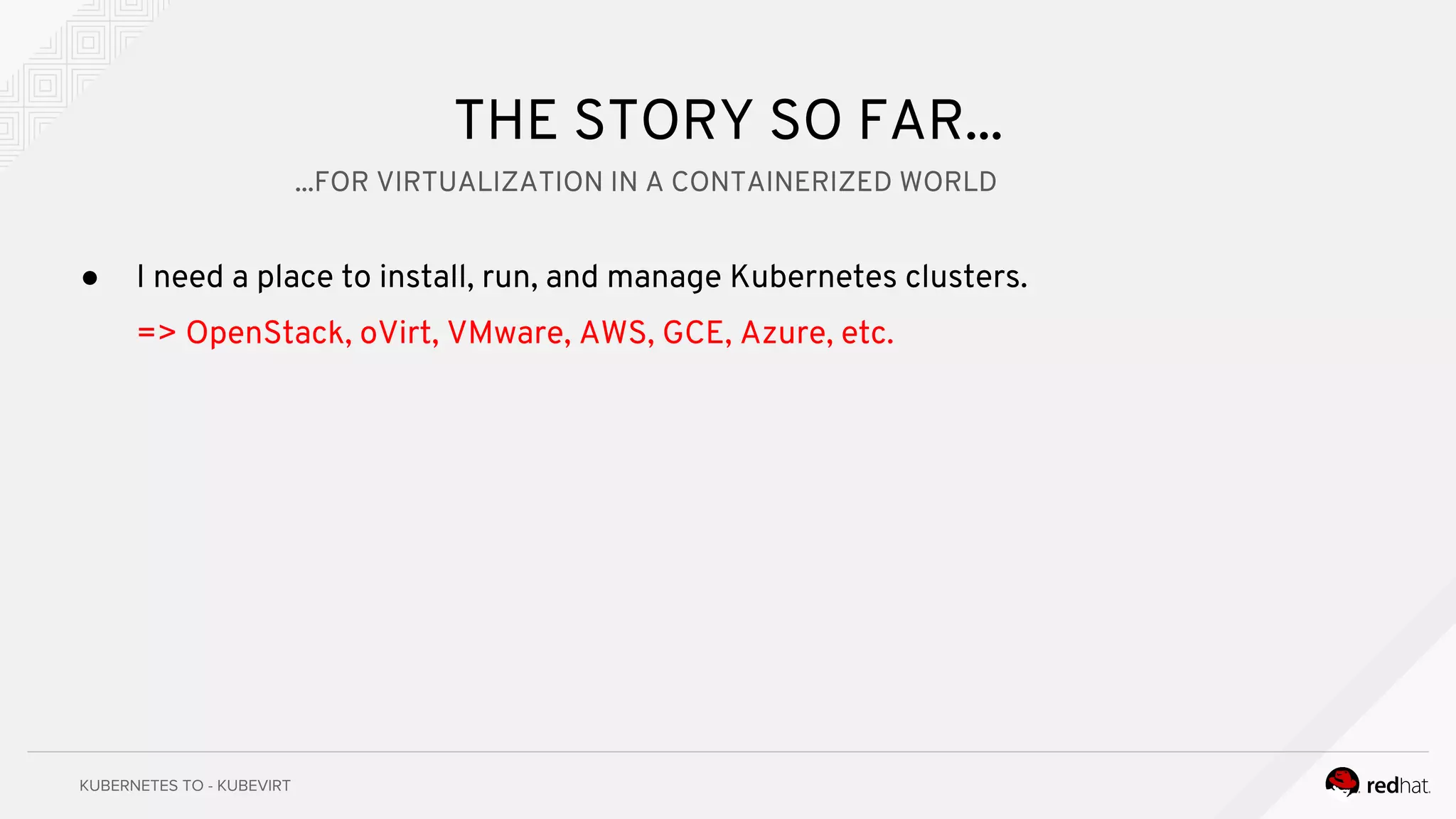

4. THE STORY SO FAR...
● I need a place to install, run, and manage Kubernetes clusters.
=> OpenStack, oVirt, VMware, AWS, GCE, Azure, etc.
...FOR VIRTUALIZATION IN A CONTAINERIZED WORLD

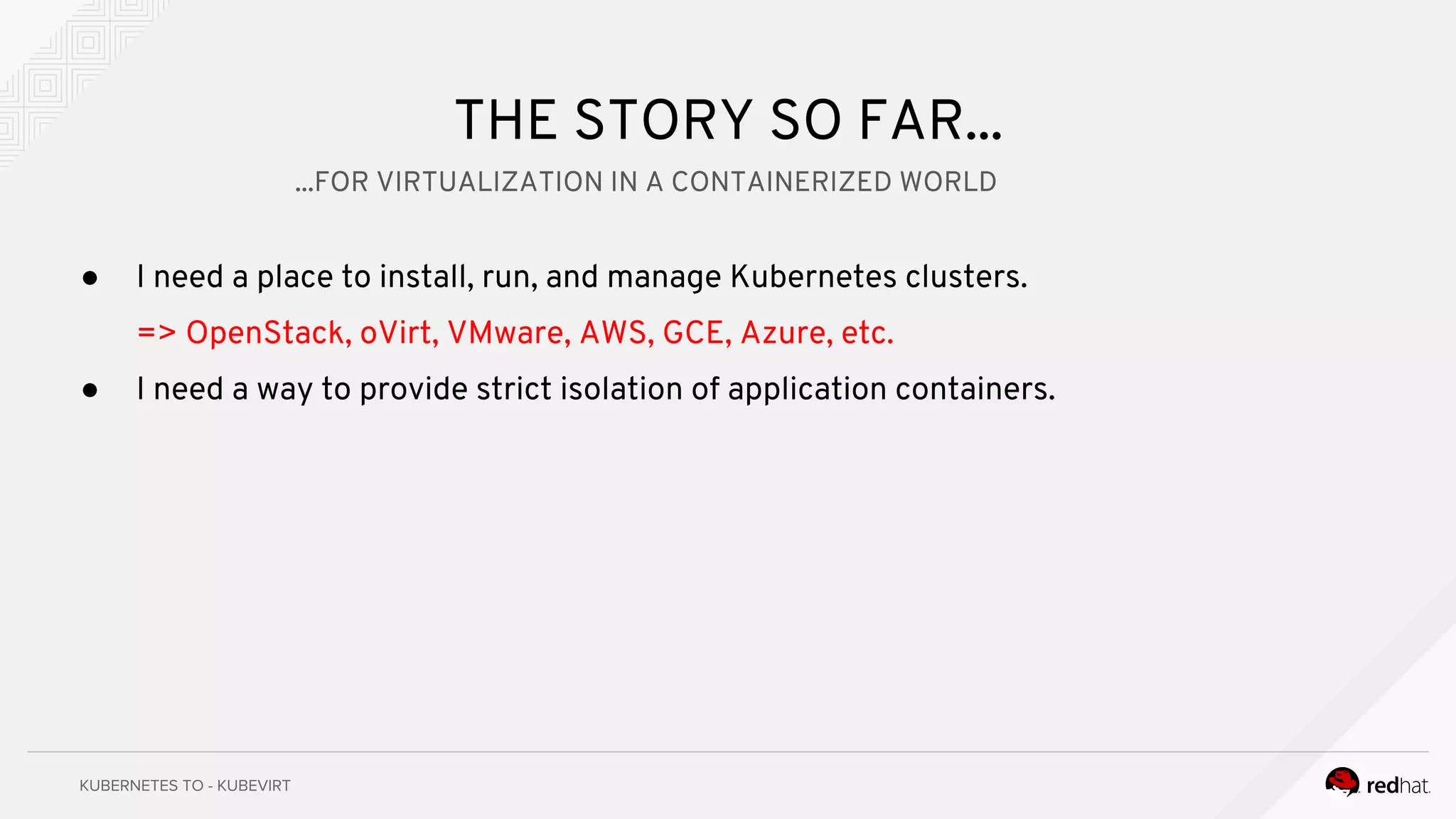

5. THE STORY SO FAR...
● I need a place to install, run, and manage Kubernetes clusters.
=> OpenStack, oVirt, VMware, AWS, GCE, Azure, etc.
● I need a way to provide strict isolation of application containers.
...FOR VIRTUALIZATION IN A CONTAINERIZED WORLD

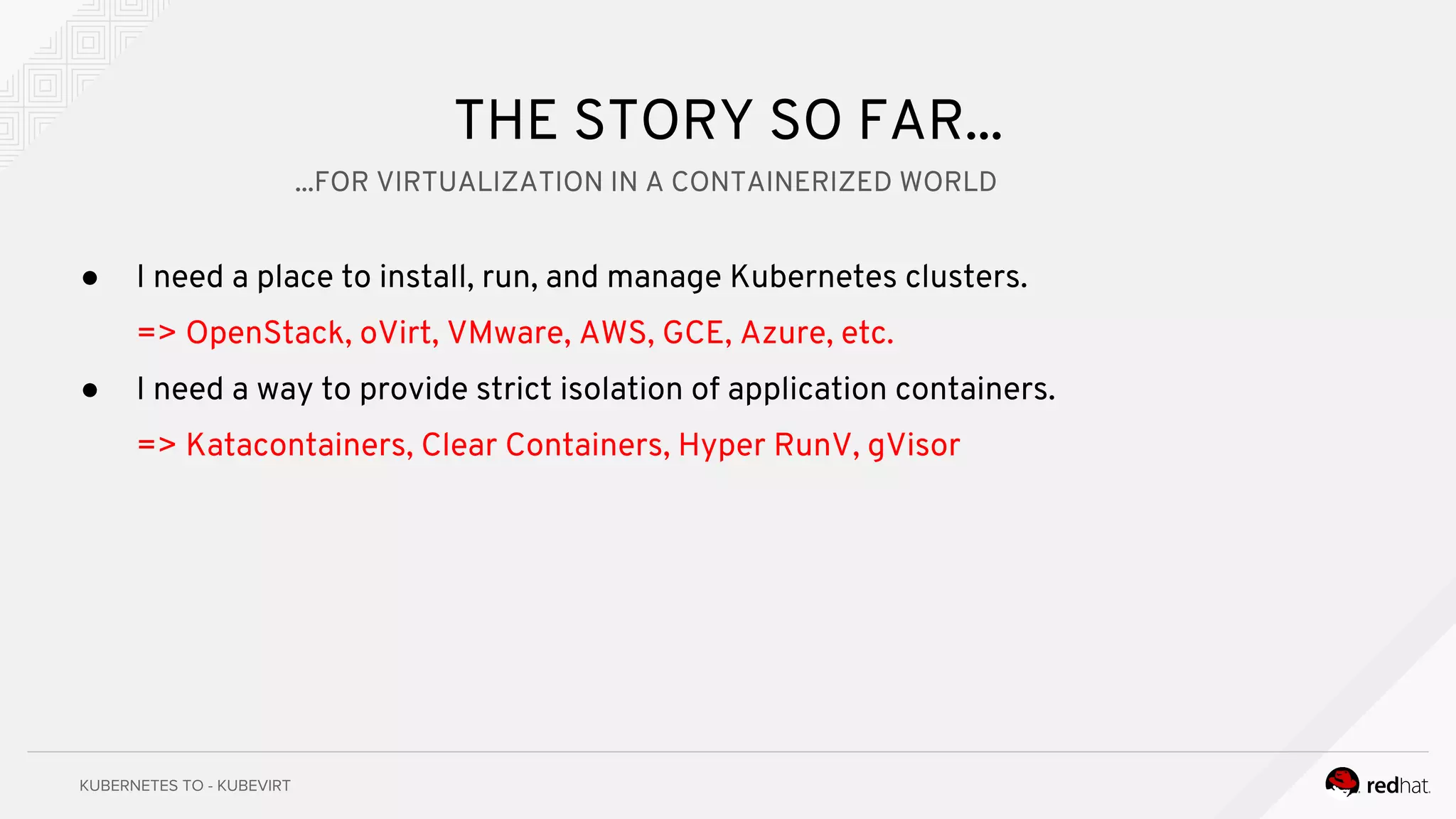

6. THE STORY SO FAR...
● I need a place to install, run, and manage Kubernetes clusters.
=> OpenStack, oVirt, VMware, AWS, GCE, Azure, etc.
● I need a way to provide strict isolation of application containers.
=> Katacontainers, Clear Containers, Hyper RunV, gVisor
...FOR VIRTUALIZATION IN A CONTAINERIZED WORLD

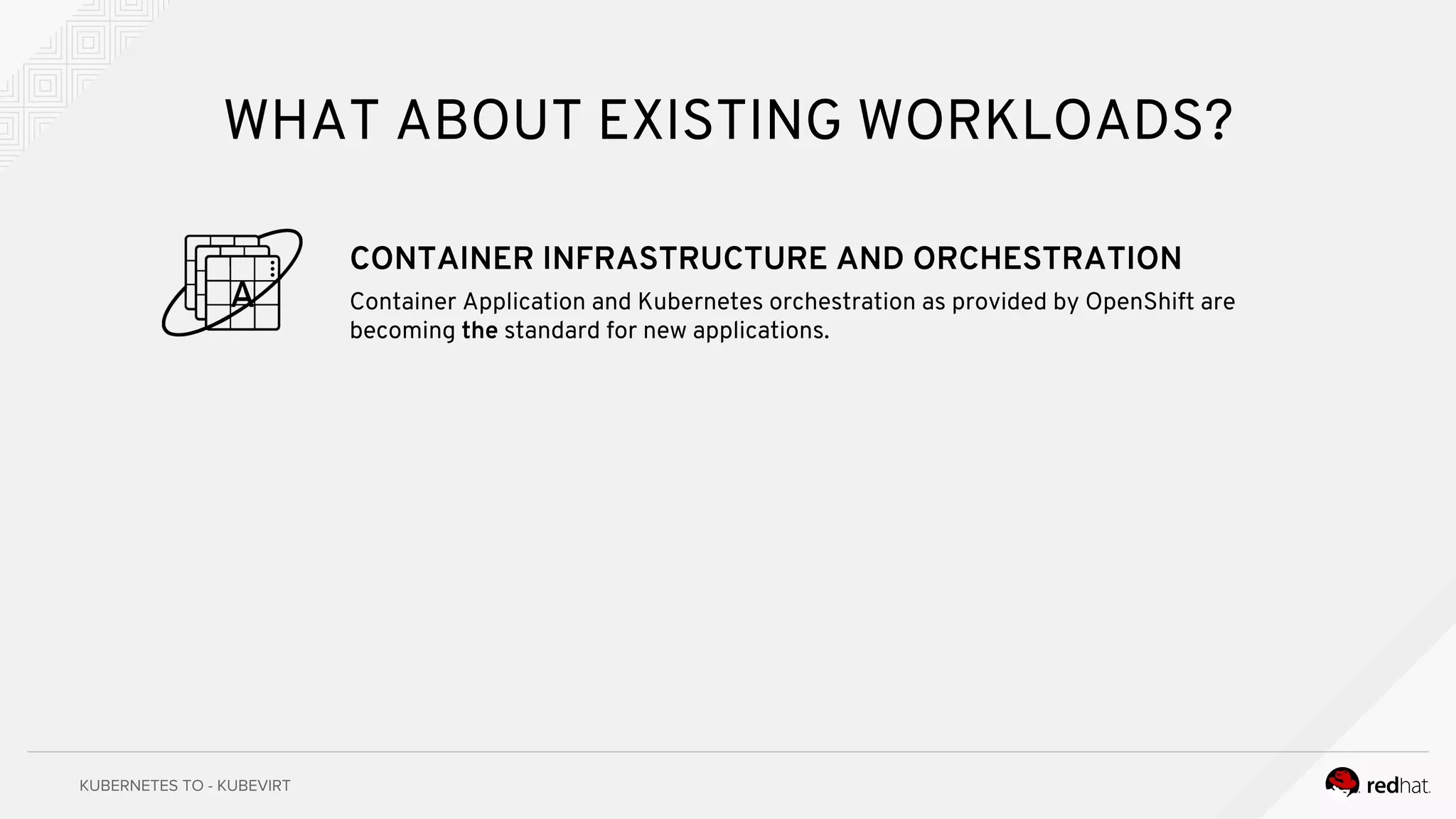

7. WHAT ABOUT EXISTING WORKLOADS?
CONTAINER INFRASTRUCTURE AND ORCHESTRATION
Container Application and Kubernetes orchestration as provided by OpenShift are
becoming the standard for new applications.

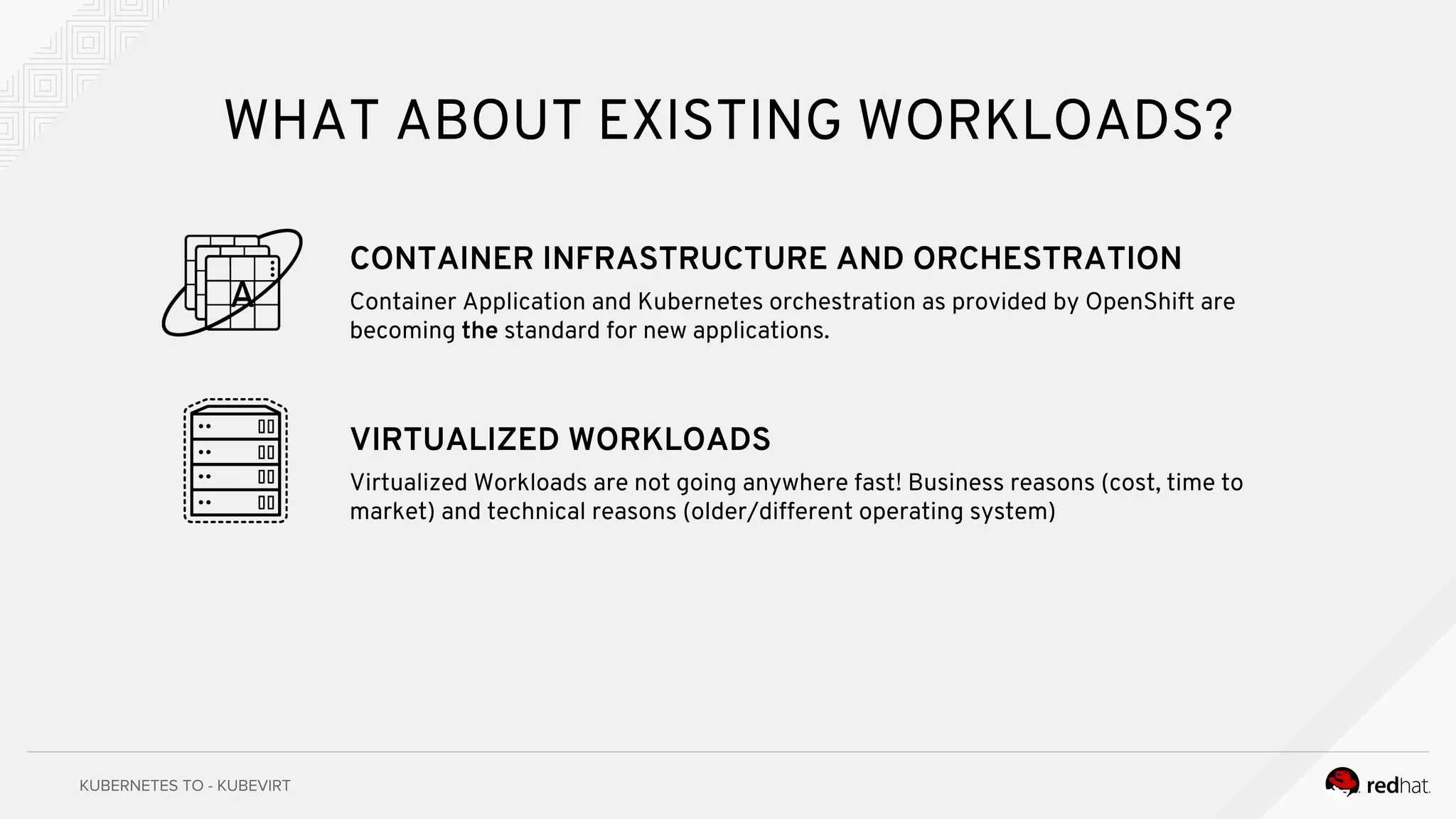

8. WHAT ABOUT EXISTING WORKLOADS?
CONTAINER INFRASTRUCTURE AND ORCHESTRATION
Container Application and Kubernetes orchestration as provided by OpenShift are
becoming the standard for new applications.
VIRTUALIZED WORKLOADS
Virtualized Workloads are not going anywhere fast! Business reasons (cost, time to
market) and technical reasons (older/different operating system)

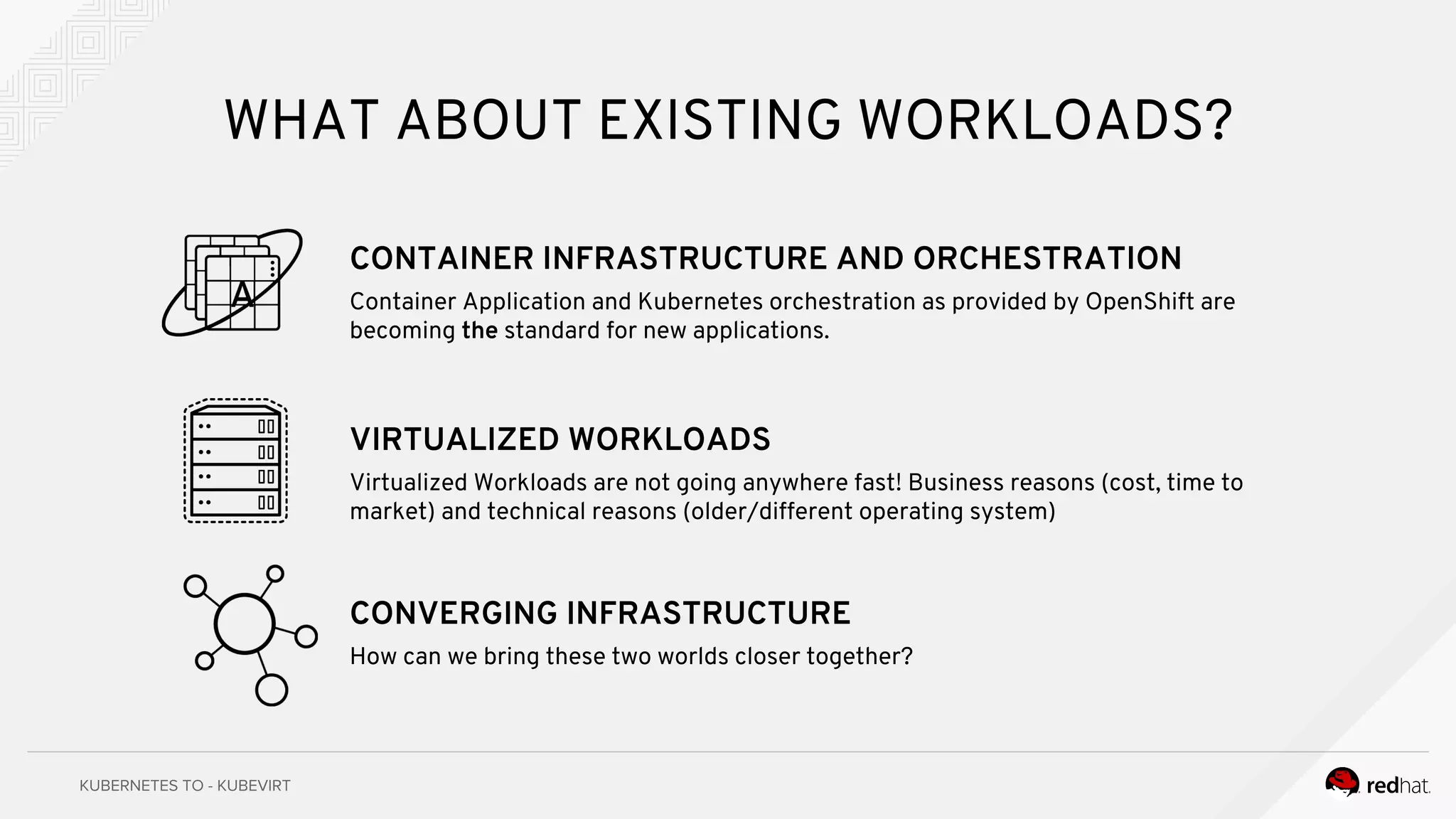

9. WHAT ABOUT EXISTING WORKLOADS?
CONTAINER INFRASTRUCTURE AND ORCHESTRATION
Container Application and Kubernetes orchestration as provided by OpenShift are
becoming the standard for new applications.
VIRTUALIZED WORKLOADS
Virtualized Workloads are not going anywhere fast! Business reasons (cost, time to
market) and technical reasons (older/different operating system)
CONVERGING INFRASTRUCTURE
How can we bring these two worlds closer together?

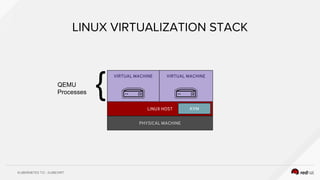

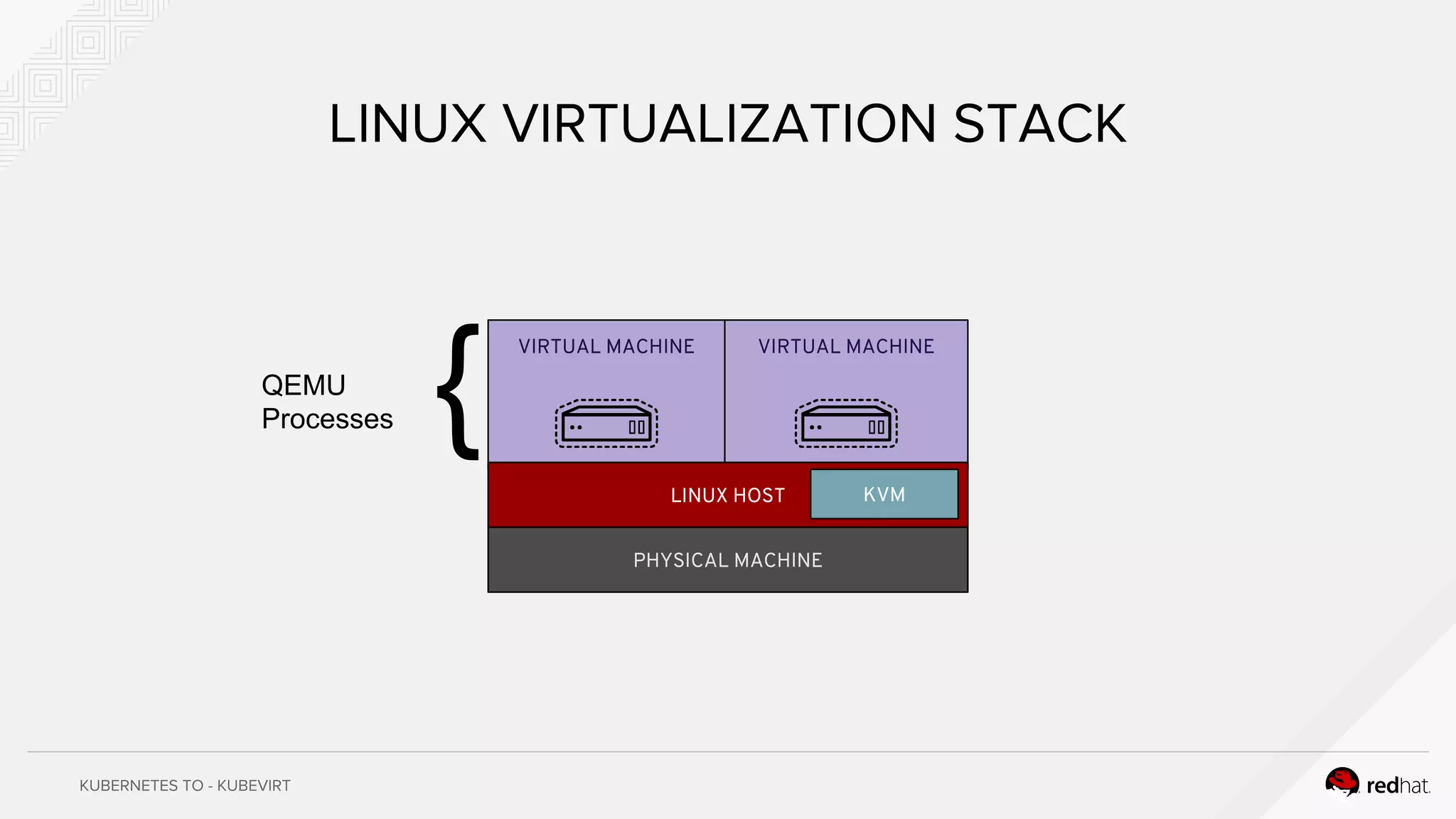

10. VIRTUAL MACHINE VIRTUAL MACHINE
LINUX HOST
PHYSICAL MACHINE
KVM
{QEMU
Processes

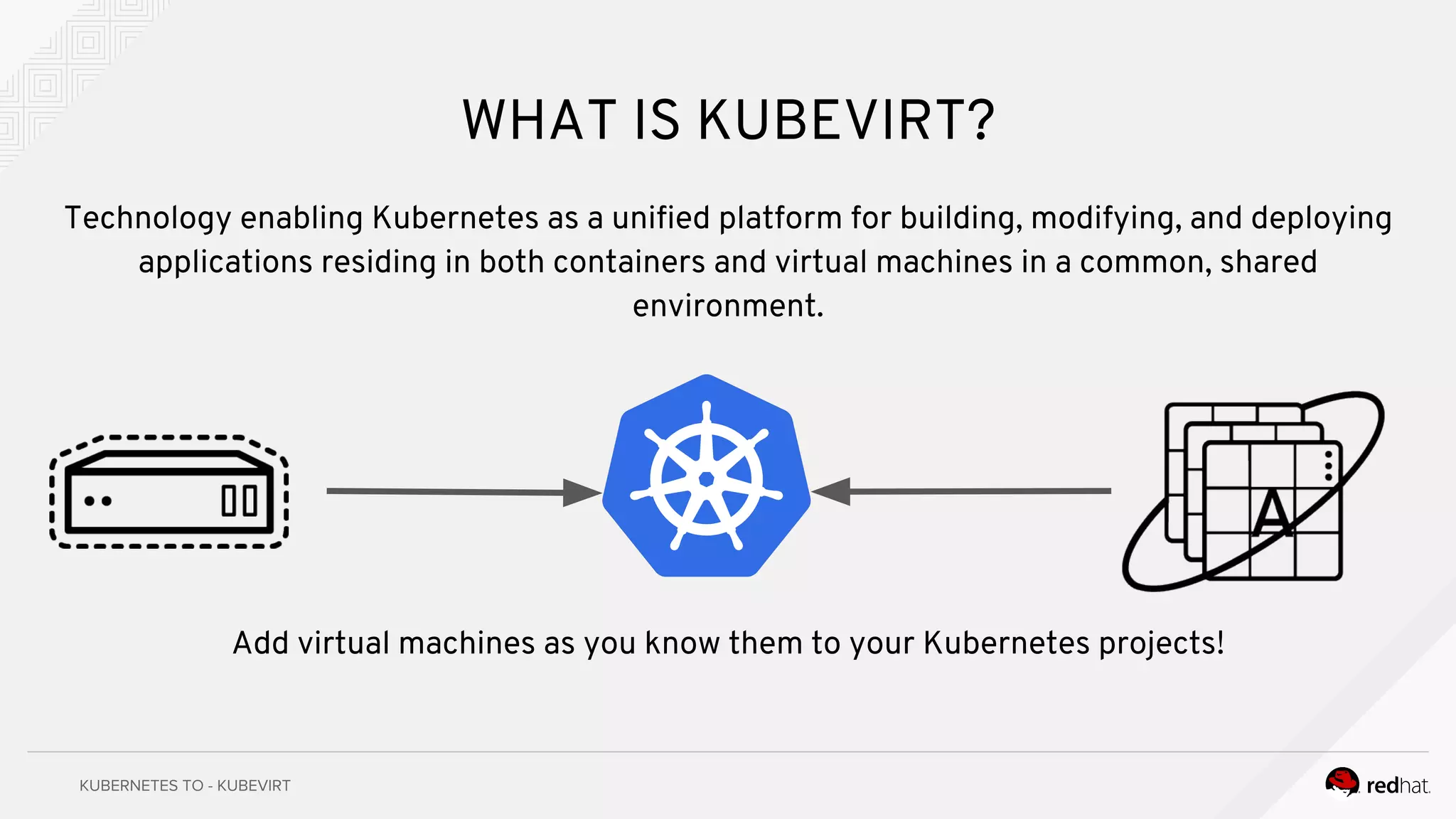

11. WHAT IS KUBEVIRT?
Technology enabling Kubernetes as a unified platform for building, modifying, and deploying
applications residing in both containers and virtual machines in a common, shared
environment.
Add virtual machines as you know them to your Kubernetes projects!

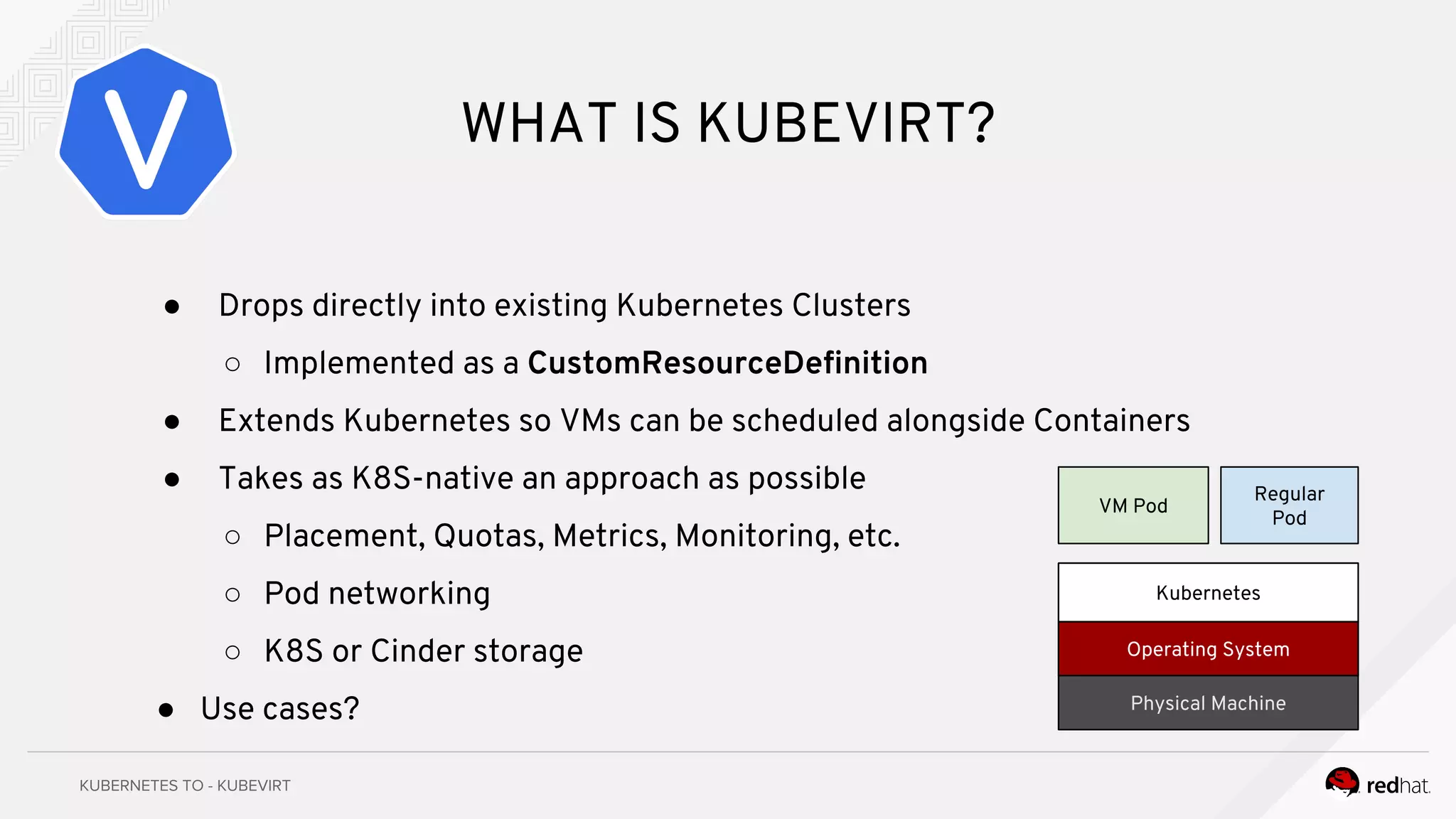

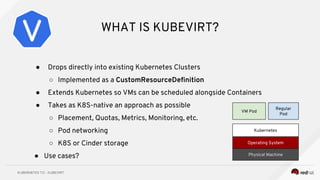

12. WHAT IS KUBEVIRT?
● Drops directly into existing Kubernetes Clusters
○ Implemented as a CustomResourceDefinition
● Extends Kubernetes so VMs can be scheduled alongside Containers
● Takes as K8S-native an approach as possible
○ Placement, Quotas, Metrics, Monitoring, etc.
○ Pod networking
○ K8S or Cinder storage
● Use cases?
Operating System
Kubernetes
Physical Machine
VM Pod
Regular
Pod

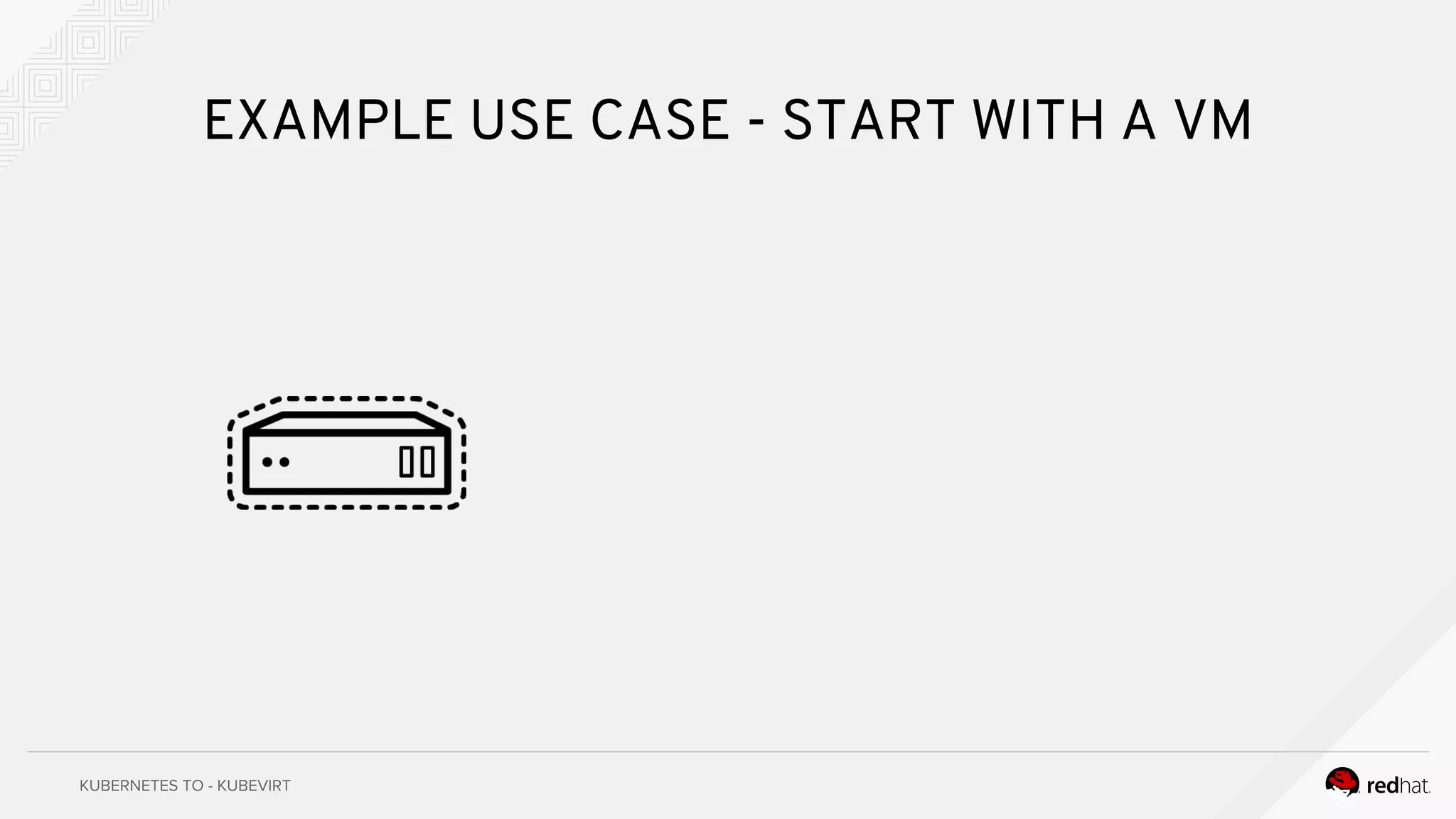

13. EXAMPLE USE CASE - START WITH A VM

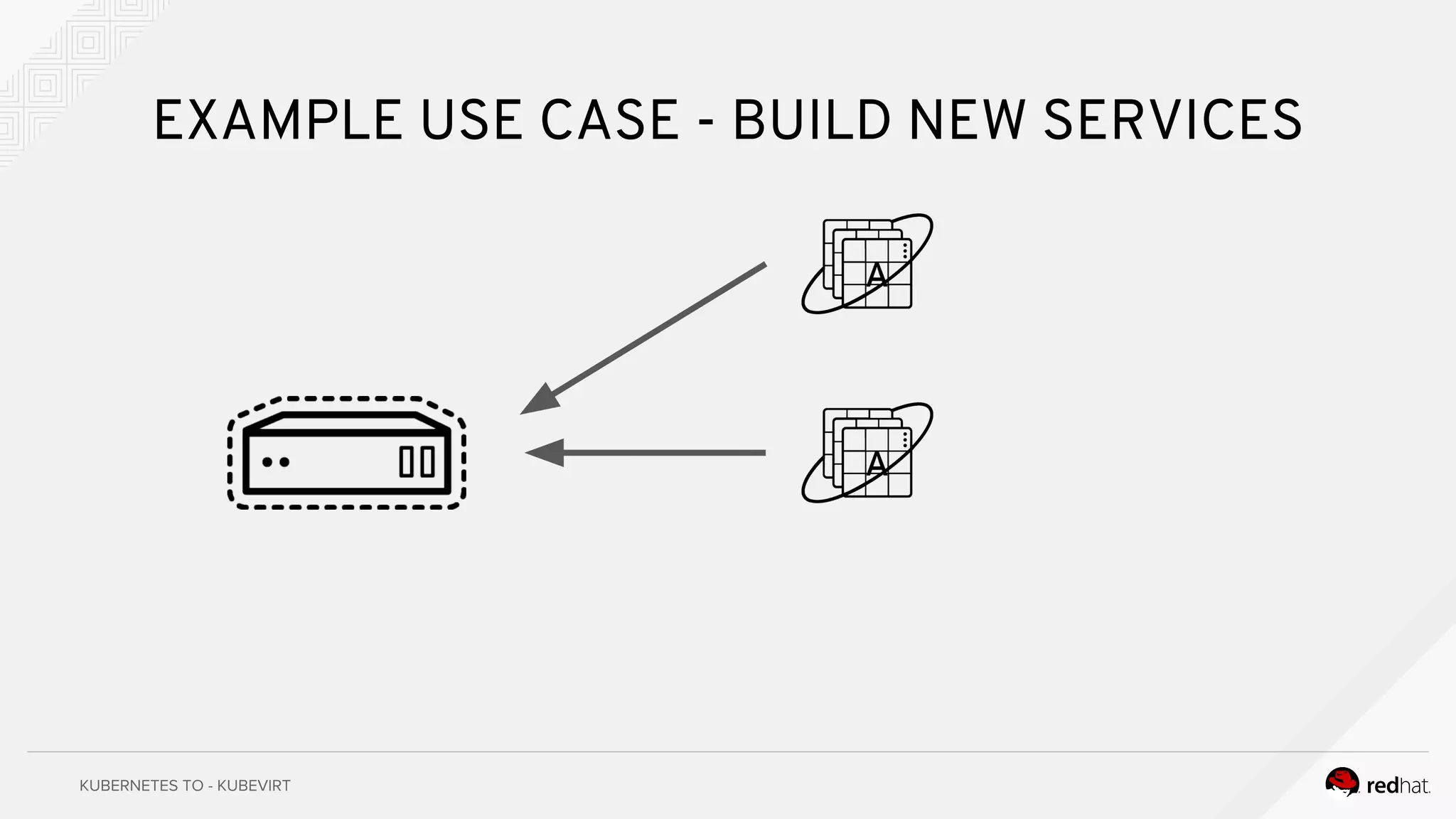

14. EXAMPLE USE CASE - BUILD NEW SERVICES

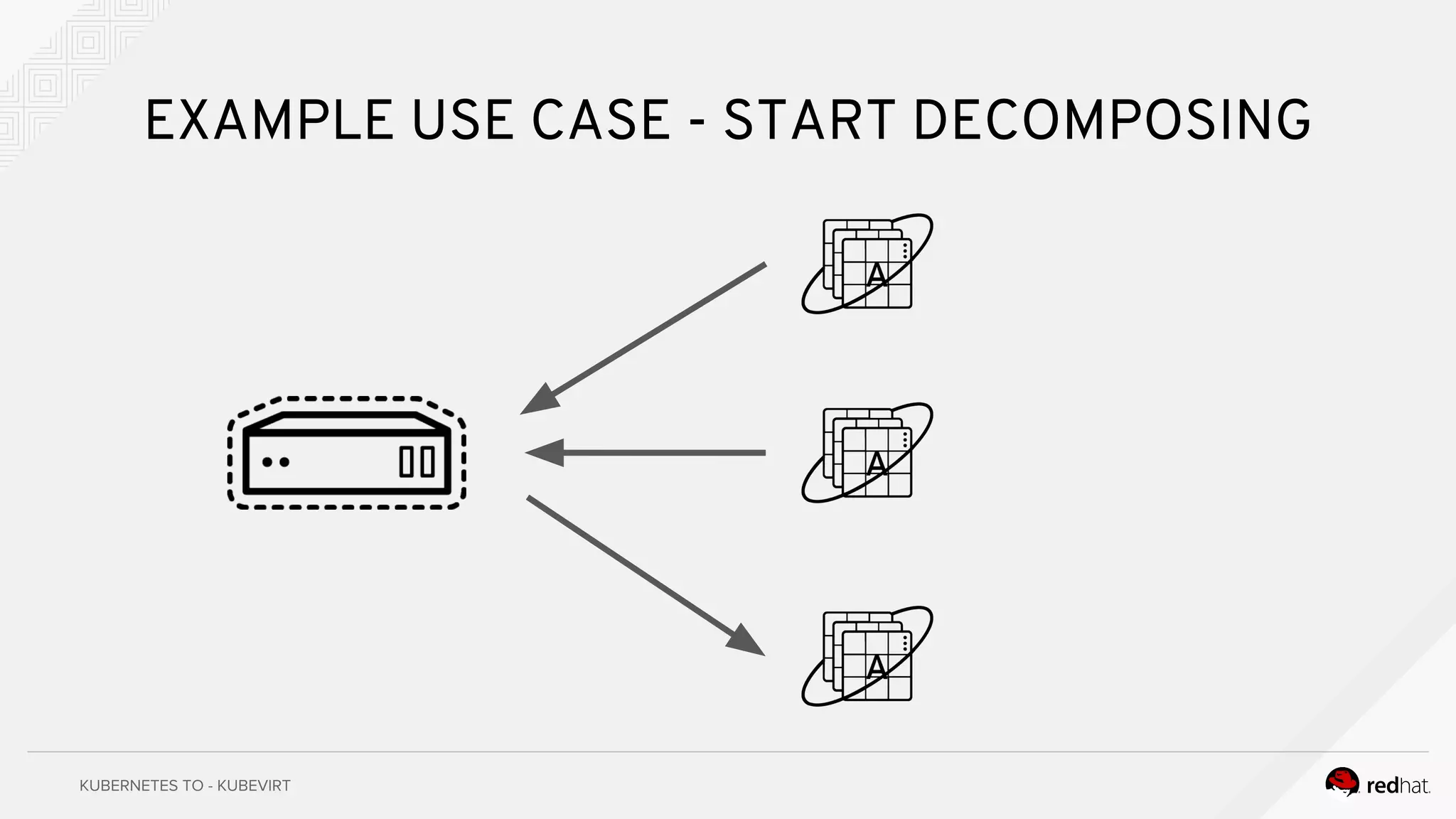

15. EXAMPLE USE CASE - START DECOMPOSING

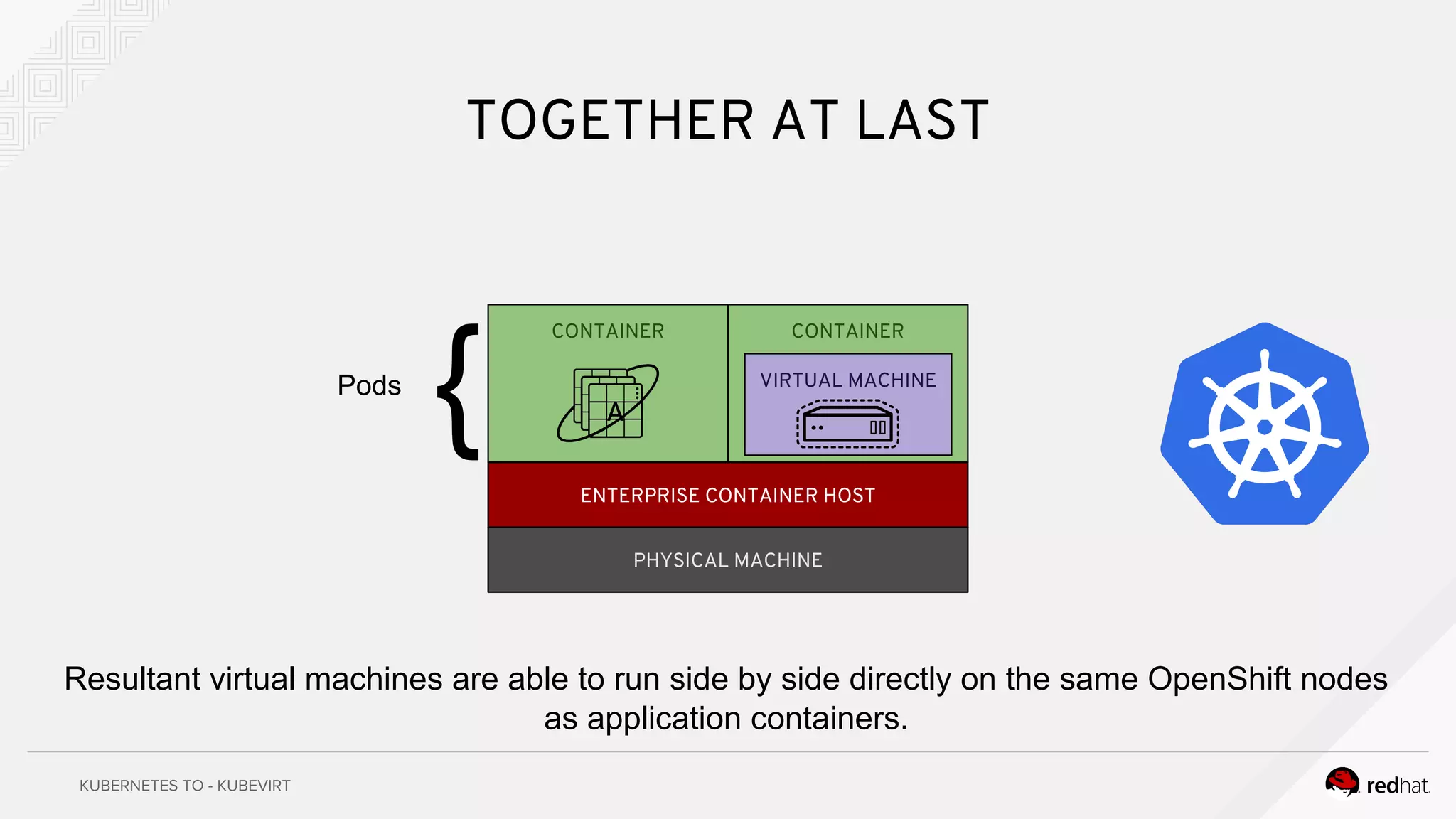

16. CONTAINER
TOGETHER AT LAST
VIRTUAL MACHINE
ENTERPRISE CONTAINER HOST
PHYSICAL MACHINE
CONTAINER
Resultant virtual machines are able to run side by side directly on the same OpenShift nodes
as application containers.
{Pods

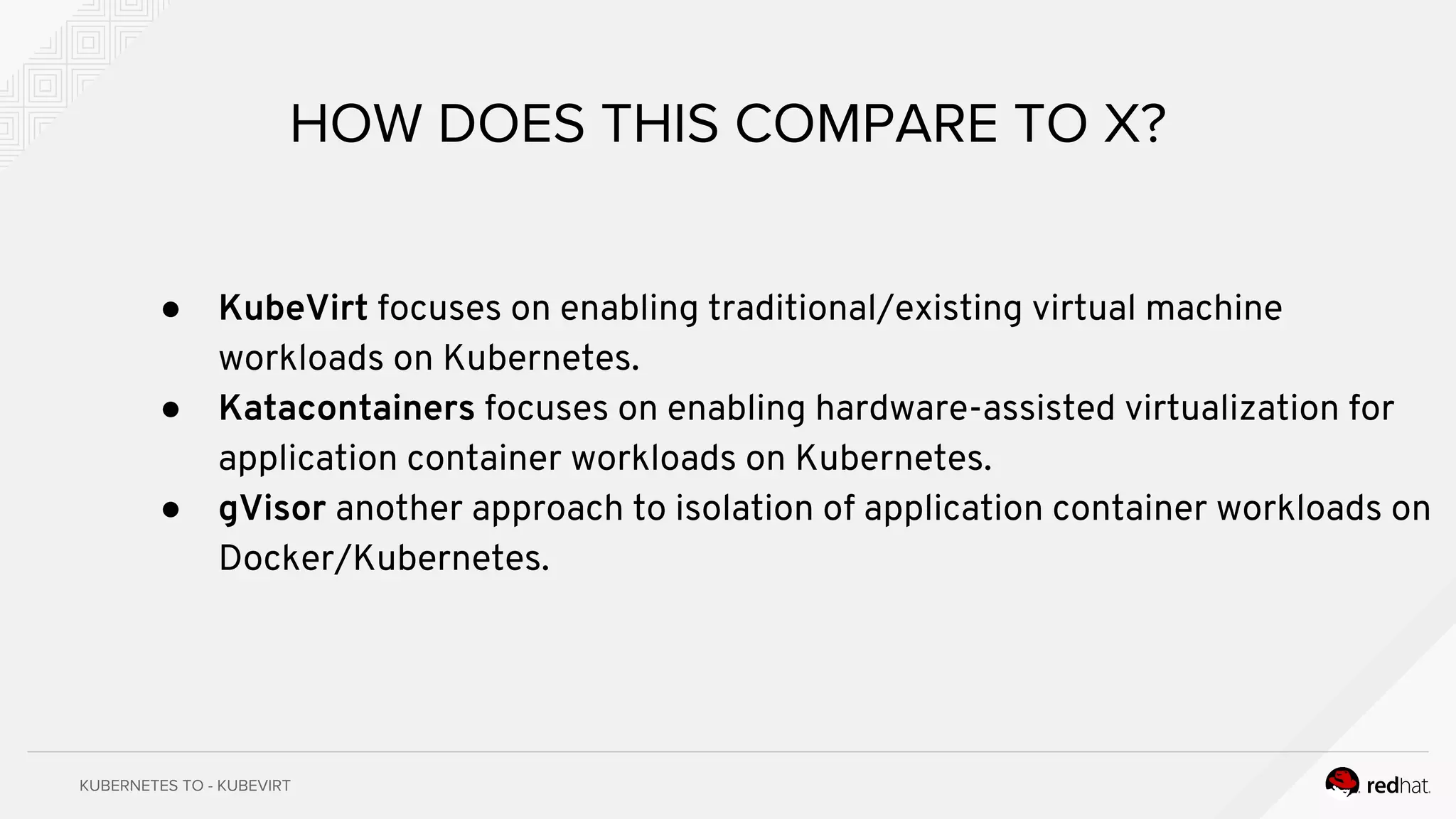

17. ● KubeVirt focuses on enabling traditional/existing virtual machine
workloads on Kubernetes.
● Katacontainers focuses on enabling hardware-assisted virtualization for
application container workloads on Kubernetes.
● gVisor another approach to isolation of application container workloads on
Docker/Kubernetes.

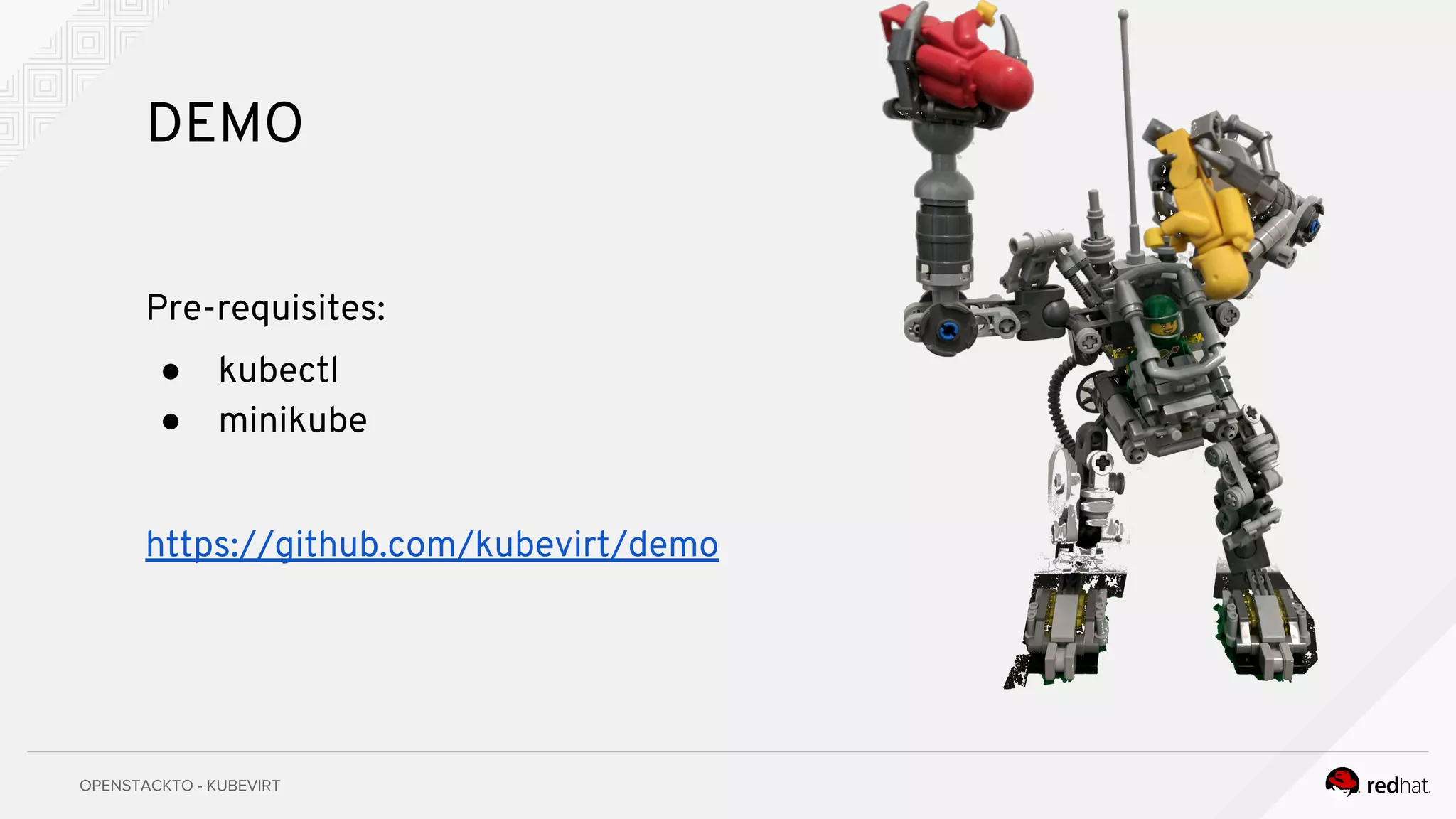

19. DEMO
Pre-requisites:
● kubectl
● minikube
https://github.com/kubevirt/demo

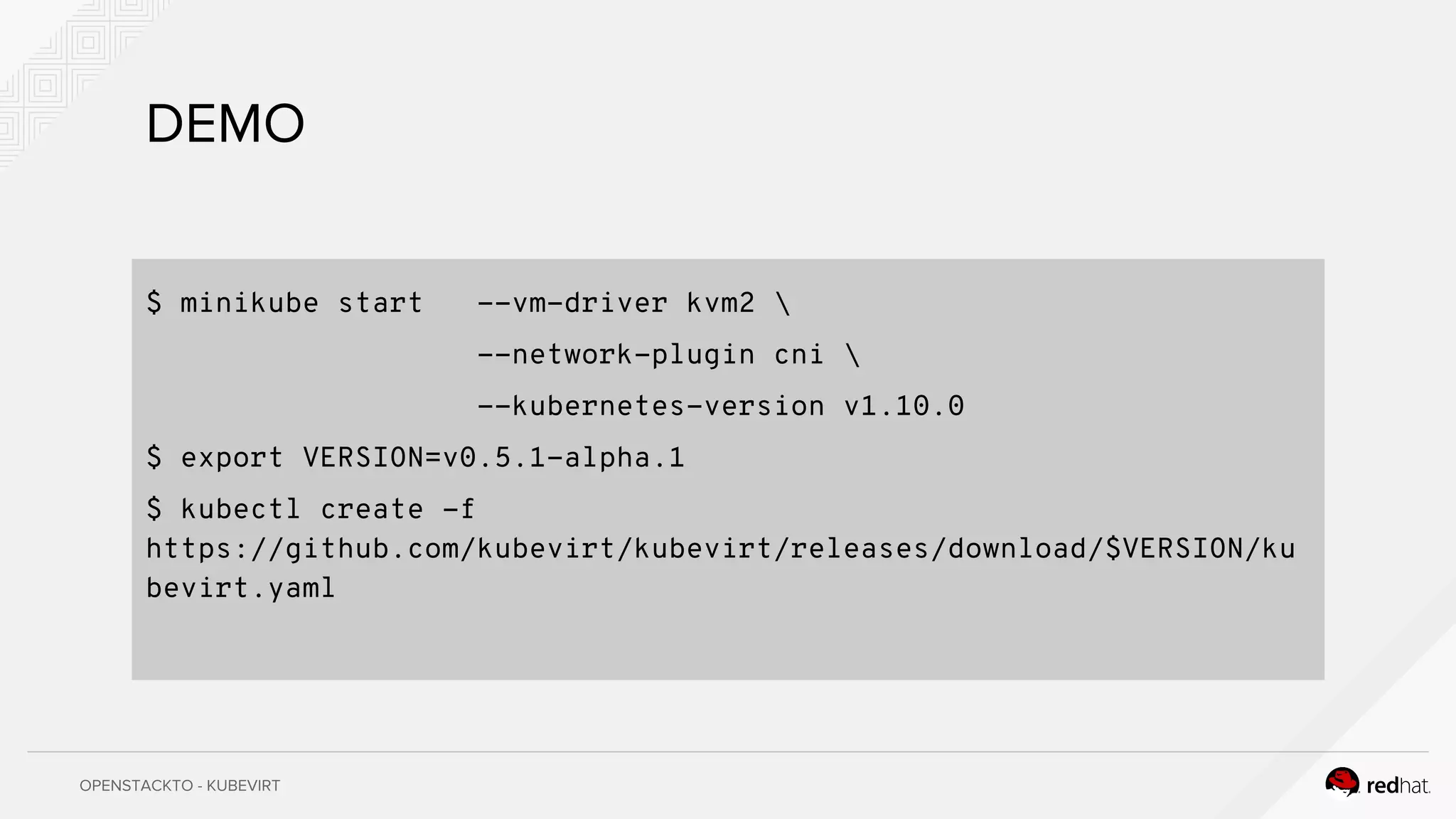

20. $ minikube start --vm-driver kvm2
--network-plugin cni
--kubernetes-version v1.10.0
$ export VERSION=v0.5.1-alpha.1
$ kubectl create -f
https://github.com/kubevirt/kubevirt/releases/download/$VERSION/ku
bevirt.yaml

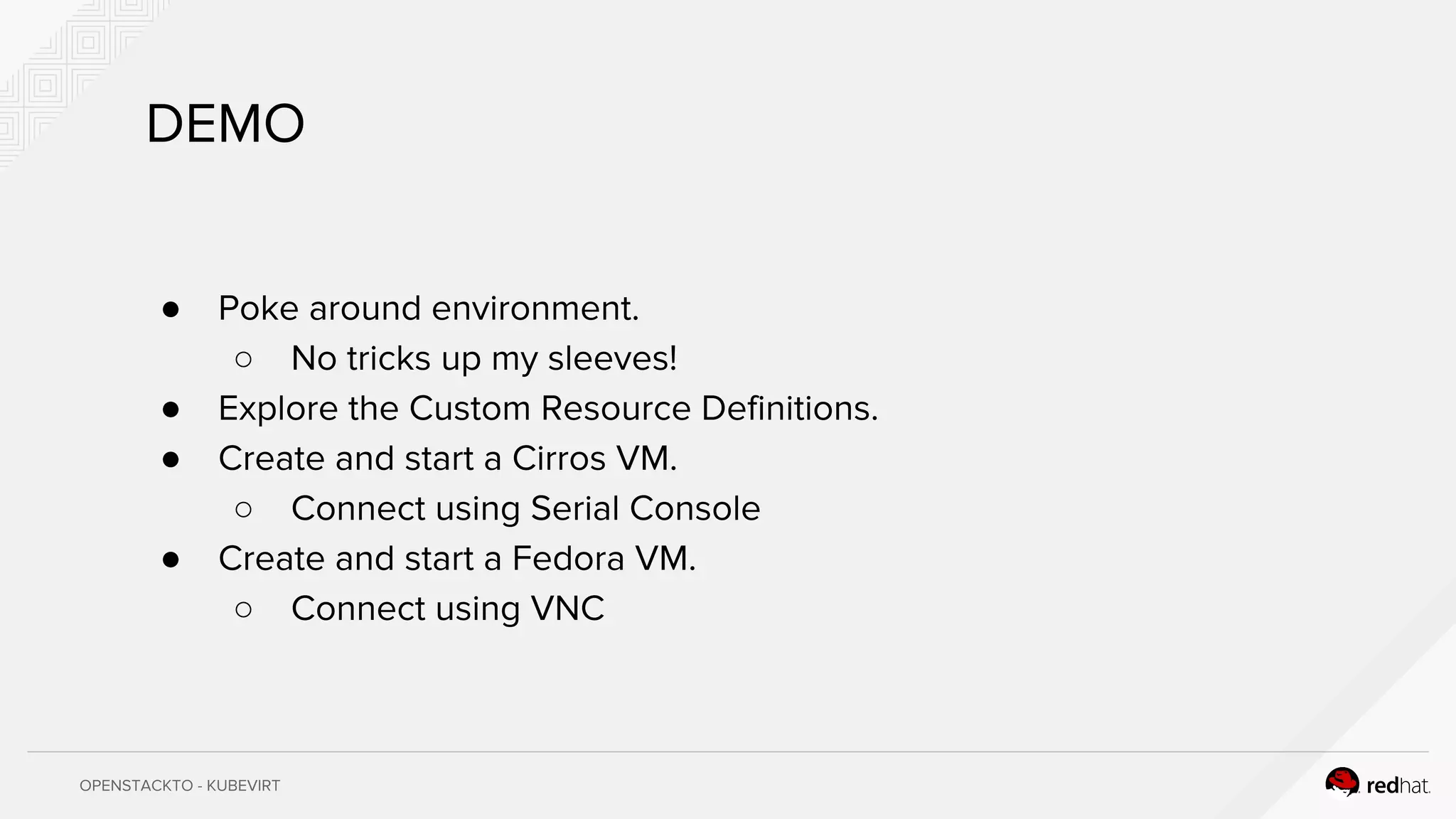

21. ●
○
●
●
○
●
○

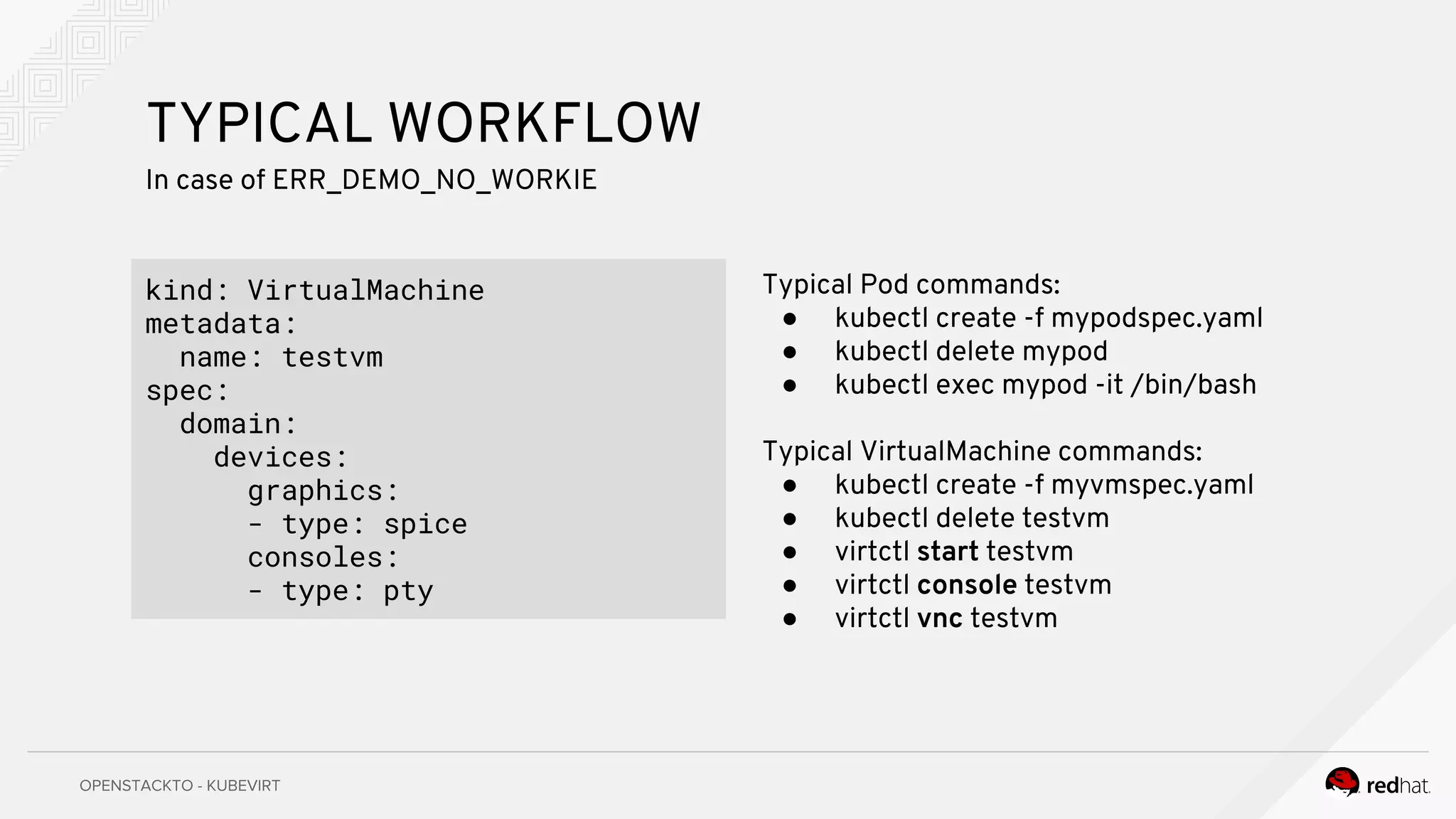

22. TYPICAL WORKFLOW
kind: VirtualMachine
metadata:
name: testvm
spec:
domain:
devices:
graphics:
- type: spice
consoles:
- type: pty
In case of ERR_DEMO_NO_WORKIE
Typical Pod commands:
● kubectl create -f mypodspec.yaml
● kubectl delete mypod
● kubectl exec mypod -it /bin/bash
Typical VirtualMachine commands:
● kubectl create -f myvmspec.yaml
● kubectl delete testvm
● virtctl start testvm
● virtctl console testvm
● virtctl vnc testvm

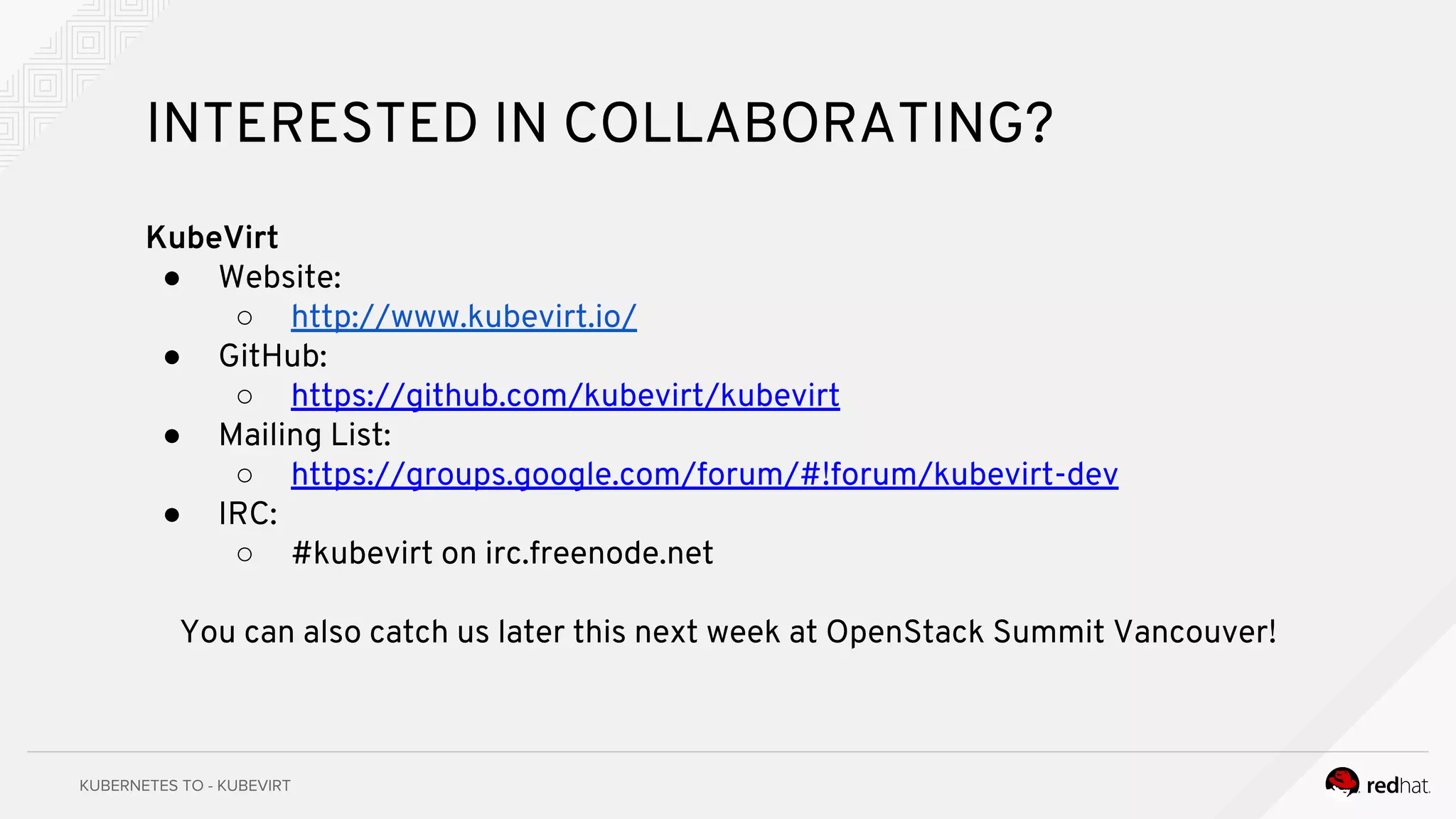

23. INTERESTED IN COLLABORATING?
KubeVirt
● Website:
○ http://www.kubevirt.io/
● GitHub:
○ https://github.com/kubevirt/kubevirt
● Mailing List:
○ https://groups.google.com/forum/#!forum/kubevirt-dev
● IRC:
○ #kubevirt on irc.freenode.net
You can also catch us later this next week at OpenStack Summit Vancouver!

24. We Want to Hear From You!
Provide your input on your
infrastructure and use cases
Take this survey
https://bit.ly/2HJbUfx
