1. A CONTAINER STACK FOR OPENSTACK
OpenStackSV 2016 #OSSV16
Stephen Gordon (@xsgordon)
Principal Product Manager, Red Hat
August 9th 2016

2. A CONTAINER STACK FOR OPENSTACK - #OSSV162
OPENSTACK
Open source cloud computing
platform for building massively
scalable clouds.
Open source system for
automating deployment,
scaling and management of
containerized applications.
Provides framework for
building distributed platforms.
KUBERNETES
An integrated infrastructure
platform to run, orchestrate,
monitor and scale containers.
Built around Kubernetes and
Docker.
OPENSHIFT
A CONTAINER STACK FOR OPENSTACK
+ +

3. WHY CONTAINERS AND OPENSTACK?

4. A CONTAINER STACK FOR OPENSTACK - #OSSV164
APPLICATION CONTAINERS
1. Code: mysqld
2. Configuration: /etc/my.cnf
3. Data: /var/lib/mysql
4. Other stuff :-)
CODE, CONFIGURATION, DATA

5. A CONTAINER STACK FOR OPENSTACK - #OSSV165
EXPOSITION OF RESOURCES

6. A CONTAINER STACK FOR OPENSTACK - #OSSV166
CONSUMPTION OF RESOURCES

7. A CONTAINER STACK FOR OPENSTACK - #OSSV167
LOAD APPLICATIONS AT THE FACTORY, NOT THE DOCK

8. A CONTAINER STACK FOR OPENSTACK - #OSSV168
CONTAINER PATTERNS
INFRASTRUCTURE

9. A CONTAINER STACK FOR OPENSTACK - #OSSV169

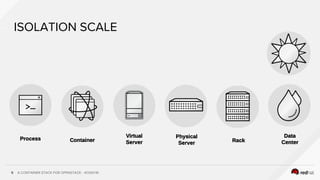

ISOLATION SCALE

10. WHY OPENSHIFT AND OPENSTACK?

11. A CONTAINER STACK FOR OPENSTACK - #OSSV1611
TRUSTED CONTAINER OPERATING SYSTEM
RED HAT ENTERPRISE LINUX
CONTAINER CONTAINERCONTAINER CONTAINER CONTAINER
CONTAINER RUNTIME & PACKAGING
(DOCKER)
ATOMIC HOST

12. A CONTAINER STACK FOR OPENSTACK - #OSSV1612
SERVICE CATALOG
(LANGUAGE RUNTIMES, MIDDLEWARE, DATABASES, …)
SELF-SERVICE
APPLICATION LIFECYCLE MANAGEMENT
(CI / CD)
BUILD AUTOMATION DEPLOYMENT AUTOMATION
CONTAINER CONTAINERCONTAINER CONTAINER CONTAINER
NETWORKIN
G
SECURITYSTORAGE REGISTRY
LOGS &
METRICS
CONTAINER ORCHESTRATION & CLUSTER MANAGEMENT
(KUBERNETES)
RED HAT ENTERPRISE LINUX
CONTAINER RUNTIME & PACKAGING
(DOCKER)
ATOMIC HOST
INFRASTRUCTURE AUTOMATION & COCKPIT

13. OK! HOW?

14. A CONTAINER STACK FOR OPENSTACK - #OSSV1614
OPENSHIFT ON OPENSTACK
Architectural tenets:
● Technical independence
● Contextual awareness
● Avoiding redundancy
● Simplified management
?

15. A CONTAINER STACK FOR OPENSTACK - #OSSV1615
CURRENT STATE
● Orchestration and auto-scaling
via Heat templates and
Ceilometer
● Block Storage via Cinder
volumes.
● Networking via Neutron
networks.
● Load Balancing via Neutron
LBaaS
● Compute via Nova virtual
machines.

16. A CONTAINER STACK FOR OPENSTACK - #OSSV1616
IDEAL STATE (ROADMAP)
● Networking integration via
Kuryr
● Re-validate architecture on
bare-metal using Ironic
● DNS via Designate
● Load Balancing via Octavia
(LBaaS V2)
● File Storage via Manila

17. A CONTAINER STACK FOR OPENSTACK - #OSSV1617
TAKEAWAYS
● OpenStack enables operations to expose resources
● OpenShift, built on Kubernetes, enables developers to consume resources and manage
their application life-cycle.
● OpenShift + OpenStack = Distributed Systems Operating System

18. A CONTAINER STACK FOR OPENSTACK - #OSSV1618
SUPPORTING MATERIALS
● Manual pre-provisioning:
○ https://blog.openshift.com/setting-openshift-3-openstack/
● Automated pre-provisioning via Heat:
○ https://github.com/redhat-openstack/openshift-on-openstack
● Kubernetes OpenStack SIG
○ https://github.com/kubernetes/community/blob/master/sig-openstack/README.md
● OpenShift Online (Next Gen) Developer Preview
○ https://www.openshift.com/devpreview/
● OpenShift Origin
○ http://openshift.org
● Catch me (and my slides) on Twitter - @xsgordon
