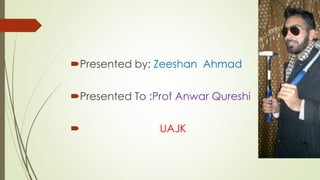

1. Presented by: Zeeshan Ahmad
Presented To :Prof Anwar Qureshi
 UAJK

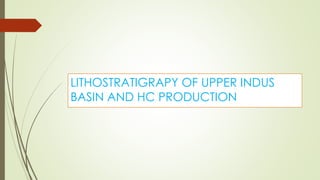

2. LITHOSTRATIGRAPY OF UPPER INDUS
BASIN AND HC PRODUCTION

3.  The Kohat-Potwar Basin also called Upper Indus Basin is
situated in northern Pakistan and located between lat.
32° and 34° N and, long. 70° and 74° E.

4. Depositional Settings of the Kohat-
Potwar Basin
 Sedimentation in the Kohat-Potwar area began in the
Precambrian and lasted until the Pleistocene.
 Three major unconformities in the area are Ordovician to
Carboniferous , Mesozoic to late Permian and Eocene to
Oligocene.
 Salt Range Formation which is overlain metamorphic
rocks reported as the oldest sedimentary rocks in the
Kohat-Potwar Basin

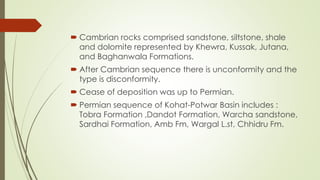

5.  Cambrian rocks comprised sandstone, siltstone, shale
and dolomite represented by Khewra, Kussak, Jutana,
and Baghanwala Formations.
 After Cambrian sequence there is unconformity and the
type is disconformity.
 Cease of deposition was up to Permian.
 Permian sequence of Kohat-Potwar Basin includes :
Tobra Formation ,Dandot Formation, Warcha sandstone,
Sardhai Formation, Amb Fm, Wargal L.st, Chhidru Fm.

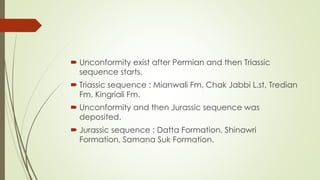

6.  Unconformity exist after Permian and then Triassic
sequence starts.
 Triassic sequence : Mianwali Fm, Chak Jabbi L.st, Tredian
Fm, Kingriali Fm.
 Unconformity and then Jurassic sequence was
deposited.
 Jurassic sequence : Datta Formation, Shinawri
Formation, Samana Suk Formation.

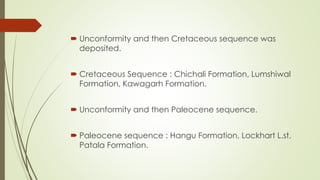

7.  Unconformity and then Cretaceous sequence was
deposited.
 Cretaceous Sequence : Chichali Formation, Lumshiwal
Formation, Kawagarh Formation.
 Unconformity and then Paleocene sequence.
 Paleocene sequence : Hangu Formation, Lockhart L.st,
Patala Formation.

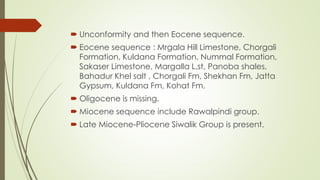

8.  Unconformity and then Eocene sequence.
 Eocene sequence : Mrgala Hill Limestone, Chorgali
Formation, Kuldana Formation, Nummal Formation,
Sakaser Limestone, Margalla L.st, Panoba shales,
Bahadur Khel salt , Chorgali Fm, Shekhan Fm, Jatta
Gypsum, Kuldana Fm, Kohat Fm.
 Oligocene is missing.
 Miocene sequence include Rawalpindi group.
 Late Miocene-Pliocene Siwalik Group is present.

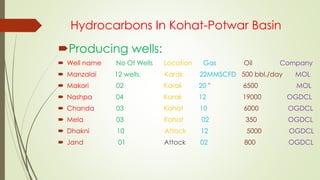

9. Hydrocarbons In Kohat-Potwar Basin
Producing wells:
 Well name No Of Wells Location Gas Oil Company
 Manzalai 12 wells. Karak 22MMSCFD 500 bbl./day MOL
 Makori 02 Karak 20 " 6500 MOL
 Nashpa 04 Karak 12 19000 OGDCL
 Chanda 03 Kohat 10 6000 OGDCL
 Mela 03 Kohat 02 350 OGDCL
 Dhakni 10 Attock 12 5000 OGDCL
 Jand 01 Attock 02 800 OGDCL

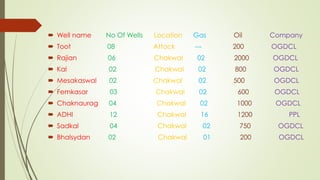

10.  Well name No Of Wells Location Gas Oil Company
 Toot 08 Attock --- 200 OGDCL
 Rajian 06 Chakwal 02 2000 OGDCL
 Kal 02 Chakwal 02 800 OGDCL
 Mesakaswal 02 Chakwal 02 500 OGDCL
 Femkasar 03 Chakwal 02 600 OGDCL
 Chaknaurag 04 Chakwal 02 1000 OGDCL
 ADHI 12 Chakwal 16 1200 PPL
 Sadkal 04 Chakwal 02 750 OGDCL
 Bhalsydan 02 Chakwal 01 200 OGDCL

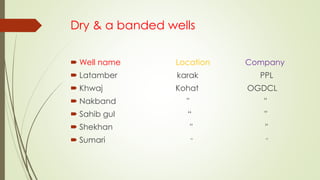

11. Dry & a banded wells
 Well name Location Company
 Latamber karak PPL
 Khwaj Kohat OGDCL
 Nakband " "
 Sahib gul “ "
 Shekhan " "
 Sumari " "

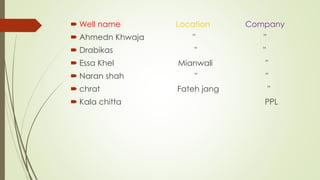

12.  Well name Location Company
 Ahmedn Khwaja " "
 Drabikas " "
 Essa Khel Mianwali "
 Naran shah " "
 chrat Fateh jang "
 Kala chitta PPL
