This tutorial will introduce the three levels of the HDF-Java products: the HDF-Java wrapper (or Java Native Interfaces to the standard HDF libraries), the HDF-Java object package, and the HDFView. The Java wrapper provides standard Java APIs that allow applications to call the C HDF libraries from Java. The HDF-Java object package implements HDF data objects, e.g. Groups and Datasets, in an object-oriented form and makes it easy for applications to use the libraries. The HDFView is a visual tool for browsing and editing HDF4 and HDF5 files.

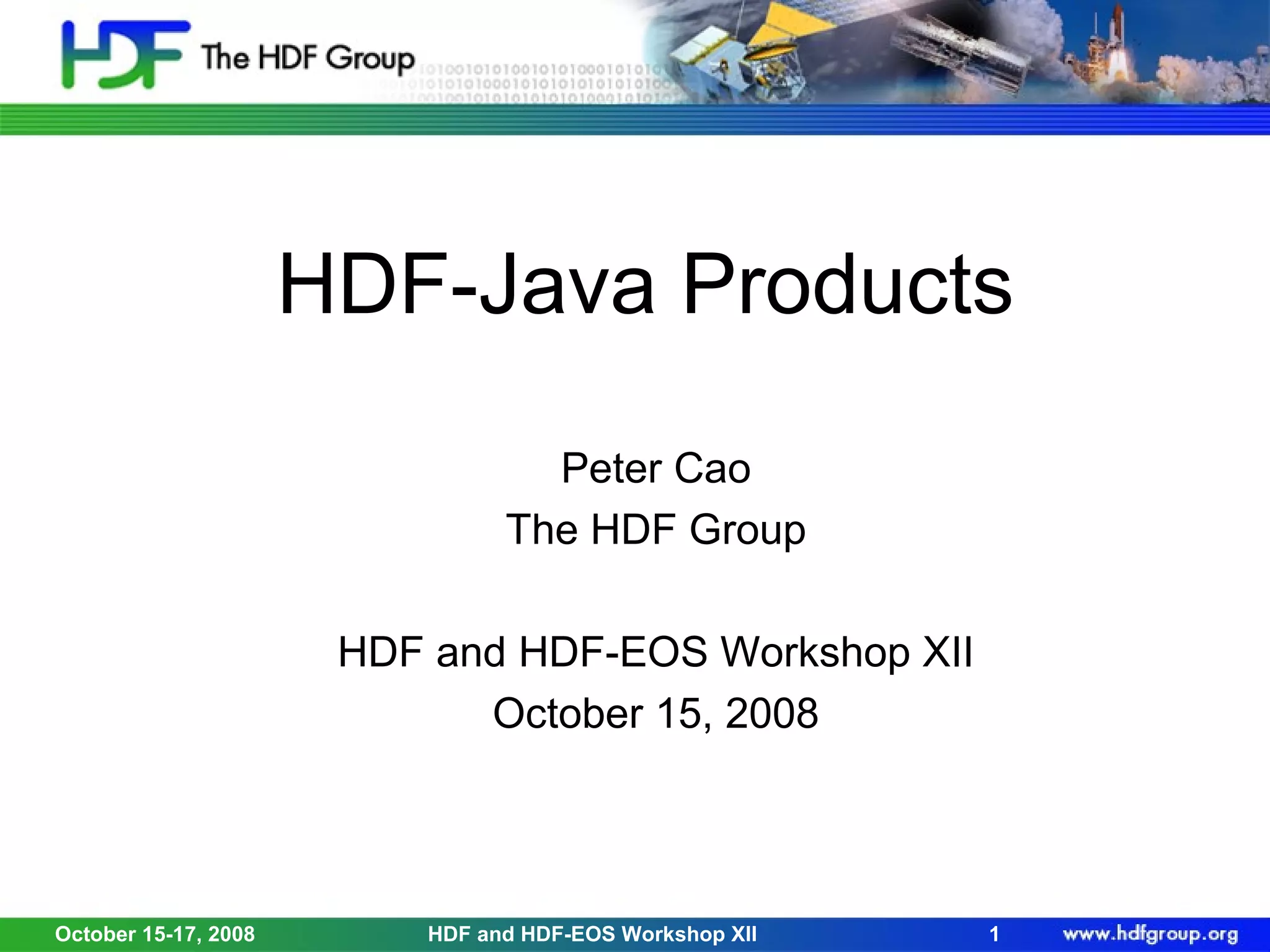

1. HDF-Java Products
Peter Cao
The HDF Group
HDF and HDF-EOS Workshop XII
October 15, 2008
October 15-17, 2008
HDF and HDF-EOS Workshop XII
1

2. What are the HDF-Java products?
HDF-Java
HDF
Java
Wrapper
October 15-17, 2008
Object
Package
HDF and HDF-EOS Workshop XII
Viewer
Editor
2

3. Java Wrapper
HDF
October 15-17, 2008
HDF and HDF-EOS Workshop XII
3

4. Java Wrapper
Pure Java
Library
HDF
Java Native
Interface
a programming framework
that allows Java code to call
and be called by
applications and libraries
written in other languages
HDF
October 15-17, 2008
HDF and HDF-EOS Workshop XII
4

5. Pure Java Library
• Pros:
− True platform independence
− Direct access to file (no data
conversion between C and Java)
Pure Java
Library
• Cons:
HDF
October 15-17, 2008
− Substantial amount of work to
implement
− Hard to maintain (new features or
format changes)
HDF and HDF-EOS Workshop XII
5

6. HDF JNI
• Pros:
HDF
Java Native
Interface
HDF
October 15-17, 2008
− Easy to implement
− Easy to maintain
• Cons:
− Requires data conversion between C
and Java
− HDF JNI is platform dependent
HDF and HDF-EOS Workshop XII
6

7. Java Wrapper
Java Native
Interface
HDF
October 15-17, 2008
libjhdf.so
(or dll)
libjhdf5.so
(or dll)
HDF4
library
HDFLibrary.java
H5.java
HDF5
library
HDF and HDF-EOS Workshop XII
7

8. Java Wrapper: C versus Java
hid_t H5Fcreate (
const char *name,
unsigned flags,
hid_t create_id,
hid_t access_id );
public static native int H5Fcreate (
String name,
int flags,
int create_id,
int access_id);
hid_t H5Fopen (
const char *name,
unsigned flags,
hid_t access_id );
public static native int H5Fopen (
String name,
int flags,
int access_id);
herr_t H5Fclose (
hid_t file_id );
public static native int H5Fclose (
int file_id);
C
October 15-17, 2008
Java
HDF and HDF-EOS Workshop XII
8

9. Object Package
HDF-Java
HDF
Java
Wrapper
October 15-17, 2008
Object
Package
HDF and HDF-EOS Workshop XII
Viewer
Editor
9

10. Java Wrapper: simple dataset read
int fid, did, sid, tid, rank;
long dims[], maxDims[];
Object theData;
fid = H5.H5Fopen( fname, HDF5Constants.H5F_ACC_RDWR,
did = H5.H5Dopen(fid, dname);
sid = H5.H5Dget_space(did);
tid = H5.H5Dget_type(did);
rank = H5.H5Sget_simple_extent_ndims(sid);
HDF5Constants.H5P_DEFAULT );
dims = new long[rank];
maxDims = new long[rank];
H5.H5Sget_simple_extent_dims(sid, dims, maxDims);
theData = allocateArray(tid, dims);
H5.H5Dread( did, tid, HDF5Constants.H5S_ALL, HDF5Constants.H5S_ALL, HDF5Constants.H5P_DEFAULT, theData);
H5.H5Sclose(sid);
H5.H5Tclose(tid);
H5.H5Dclose(did);
H5.H5Fclose(fid);
October 15-17, 2008
HDF and HDF-EOS Workshop XII
10

11. Object Package: the easy way
theData = Dataset.read();
October 15-17, 2008
HDF and HDF-EOS Workshop XII
11

12. Object Package: main purposes
• Simplifies access to HDF files
• Separates applications from libraries
− Modular design
− Client server model
• Makes testing and maintenance easy
October 15-17, 2008
HDF and HDF-EOS Workshop XII
12

13. Object Package: levels of objects
Abstract classes
Implementation
October 15-17, 2008
Common Objects
ncsa.hdf.object
jhdfobj.jar
HDF4
ncsa.hdf.object.h4
jhdf4obj.jar
HDF and HDF-EOS Workshop XII
HDF5
ncsa.hdf.object.h5
jhdf5obj.jar
13

14. Object Package: abstract classes
FileFormat
HObject
Dataset
Group
ScalarDS
October 15-17, 2008
HDF and HDF-EOS Workshop XII
CompoundDS
14

15. Object Package: HDF4 implementation
Group
H4Group
ScalarDS
H4SDS
H4GRImage
CompounDS
H4Vdata
H4File
FileFormat
October 15-17, 2008
HDF and HDF-EOS Workshop XII
15

16. Object Package: HDF5 implementation
Group
ScalarDS
H5Group
H5ScalarDS
CompounDS
H5CompoundDS
H5File
FileFormat
October 15-17, 2008
HDF and HDF-EOS Workshop XII
16

17. Object Package: file create
import ncsa.hdf.object.*;
public class H5FileCreate
{
private static String fname = "H5FileCreate.h5";
public static void main( String args[] ) throws Exception
{
FileFormat fileFormat = FileFormat.getFileFormat(FileFormat.FILE_TYPE_HDF5);
fileFormat.createFile(fname, FileFormat.FILE_CREATE);
}
}
October 15-17, 2008
HDF and HDF-EOS Workshop XII
17

18. HDFView
HDF-Java
HDF
Java
Wrapper
October 15-17, 2008
Object
Package
HDF and HDF-EOS Workshop XII
Viewer
Editor
18

19. HDFView: basic components
October 15-17, 2008
HDF and HDF-EOS Workshop XII
19

20. HDFView: GUI components
TreeView
HDFView
(GUI)
MetaDataView
UserImp
UserImp
TableView
ImageView
TextView
UserImp
UserImp
UserImp
October 15-17, 2008
HDF and HDF-EOS Workshop XII
20

21. HDFView: all together
October 15-17, 2008
HDF and HDF-EOS Workshop XII
21

22. What are the HDF-Java products?
HDF-Java
HDF
Java
Wrapper
October 15-17, 2008
Object
Package
HDF and HDF-EOS Workshop XII
Viewer
Editor
22
