The document discusses migrating from HDF5 1.6 to HDF5 1.8. It provides an overview of new features in HDF5 1.8, including a revised file format, improvements to group storage, new link types like external links, and enhanced error handling. The document recommends helping with the transition to HDF5 1.8 by discussing beneficial new features and awareness of compatibility issues when moving from 1.6 to 1.8.

1. Migrating from HDF5 1.6 to
HDF5 1.8
October 15, 2008
HDF and HDF-EOS Workshop XII
1

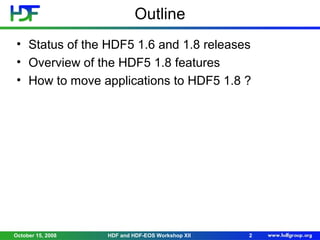

2. Outline
• Status of the HDF5 1.6 and 1.8 releases
• Overview of the HDF5 1.8 features
• How to move applications to HDF5 1.8 ?
October 15, 2008
HDF and HDF-EOS Workshop XII
2

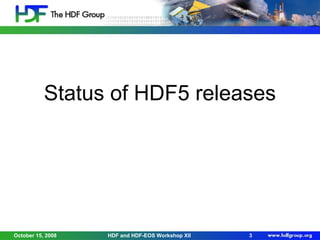

3. Status of HDF5 releases
October 15, 2008
HDF and HDF-EOS Workshop XII
3

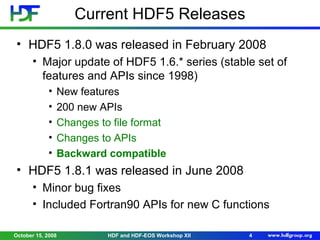

4. Current HDF5 Releases
• HDF5 1.8.0 was released in February 2008
• Major update of HDF5 1.6.* series (stable set of
features and APIs since 1998)
•
•
•
•
•
New features
200 new APIs
Changes to file format
Changes to APIs
Backward compatible
• HDF5 1.8.1 was released in June 2008
• Minor bug fixes
• Included Fortran90 APIs for new C functions
October 15, 2008
HDF and HDF-EOS Workshop XII
4

5. Current HDF5 Releases
• HDF5 1.6.7 was released in February 2008
• Addressed backward compatibility bug for reading
files with corrupted object header information
• New maintenance releases will be in November
2008
• HDF5 1.6.8 and 1.8.2
• Minor bug fixes
• Tools improvements
• Current plans are to support HDF5 1.6 and 1.8
until November 2009
October 15, 2008
HDF and HDF-EOS Workshop XII
5

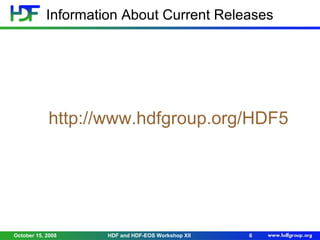

6. Information About Current Releases
http://www.hdfgroup.org/HDF5
October 15, 2008
HDF and HDF-EOS Workshop XII
6

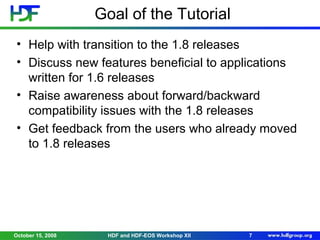

7. Goal of the Tutorial
• Help with transition to the 1.8 releases
• Discuss new features beneficial to applications
written for 1.6 releases
• Raise awareness about forward/backward
compatibility issues with the 1.8 releases
• Get feedback from the users who already moved
to 1.8 releases
October 15, 2008
HDF and HDF-EOS Workshop XII
7

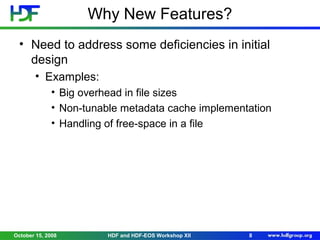

8. Why New Features?
• Need to address some deficiencies in initial
design
• Examples:
• Big overhead in file sizes
• Non-tunable metadata cache implementation
• Handling of free-space in a file
October 15, 2008
HDF and HDF-EOS Workshop XII
8

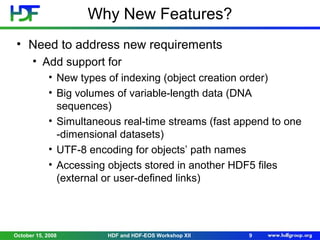

9. Why New Features?
• Need to address new requirements
• Add support for
• New types of indexing (object creation order)
• Big volumes of variable-length data (DNA
sequences)
• Simultaneous real-time streams (fast append to one
-dimensional datasets)
• UTF-8 encoding for objects’ path names
• Accessing objects stored in another HDF5 files
(external or user-defined links)
October 15, 2008
HDF and HDF-EOS Workshop XII
9

10. What Did We Do in HDF5 1.8?
•
•
•
•
•
•
•
•
Extended File Format Specification
Reviewed group implementations
Introduced new link object
Revamped metadata cache implementation
Improved handling of datasets and datatypes
Introduced shared object header message
Extended error handling
Enhanced backward/forward APIs and file format
compatibility
October 15, 2008
HDF and HDF-EOS Workshop XII
10

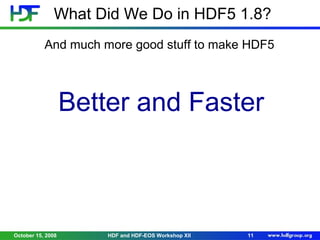

11. What Did We Do in HDF5 1.8?
And much more good stuff to make HDF5
Better and Faster
October 15, 2008
HDF and HDF-EOS Workshop XII
11

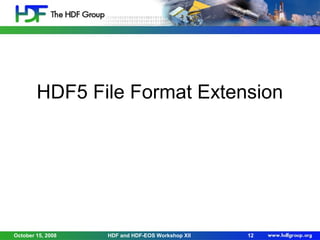

12. HDF5 File Format Extension
October 15, 2008
HDF and HDF-EOS Workshop XII
12

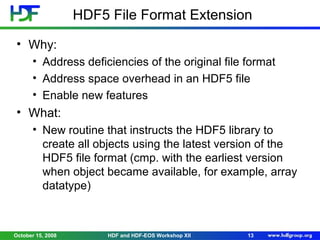

13. HDF5 File Format Extension
• Why:
• Address deficiencies of the original file format
• Address space overhead in an HDF5 file
• Enable new features
• What:
• New routine that instructs the HDF5 library to
create all objects using the latest version of the
HDF5 file format (cmp. with the earliest version
when object became available, for example, array
datatype)
October 15, 2008
HDF and HDF-EOS Workshop XII
13

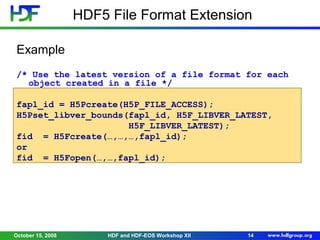

14. HDF5 File Format Extension
Example
/* Use the latest version of a file format for each
object created in a file */
fapl_id = H5Pcreate(H5P_FILE_ACCESS);
H5Pset_libver_bounds(fapl_id, H5F_LIBVER_LATEST,
H5F_LIBVER_LATEST);
fid = H5Fcreate(…,…,…,fapl_id);
or
fid = H5Fopen(…,…,fapl_id);
October 15, 2008
HDF and HDF-EOS Workshop XII
14

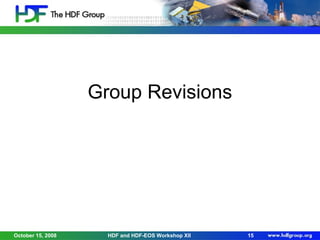

15. Group Revisions
October 15, 2008
HDF and HDF-EOS Workshop XII
15

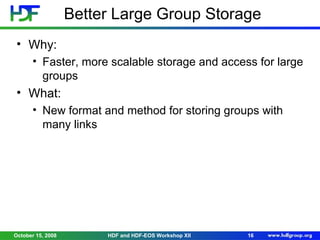

16. Better Large Group Storage
• Why:
• Faster, more scalable storage and access for large
groups
• What:
• New format and method for storing groups with
many links
October 15, 2008
HDF and HDF-EOS Workshop XII
16

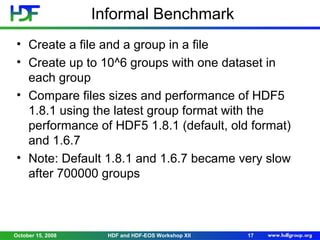

17. Informal Benchmark
• Create a file and a group in a file
• Create up to 10^6 groups with one dataset in
each group
• Compare files sizes and performance of HDF5
1.8.1 using the latest group format with the
performance of HDF5 1.8.1 (default, old format)
and 1.6.7
• Note: Default 1.8.1 and 1.6.7 became very slow
after 700000 groups
October 15, 2008
HDF and HDF-EOS Workshop XII
17

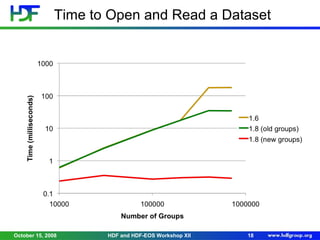

18. Time to Open and Read a Dataset
October 15, 2008
HDF and HDF-EOS Workshop XII
18

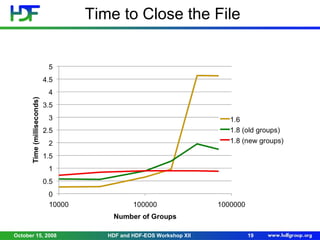

19. Time to Close the File
October 15, 2008
HDF and HDF-EOS Workshop XII
19

20. File Size
October 15, 2008
HDF and HDF-EOS Workshop XII
20

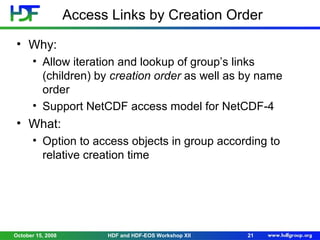

21. Access Links by Creation Order
• Why:
• Allow iteration and lookup of group’s links
(children) by creation order as well as by name
order
• Support NetCDF access model for NetCDF-4
• What:
• Option to access objects in group according to
relative creation time
October 15, 2008
HDF and HDF-EOS Workshop XII
21

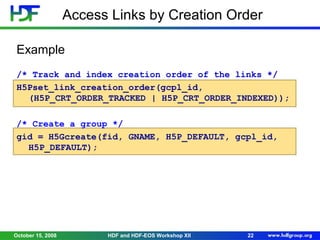

22. Access Links by Creation Order
Example
/* Track and index creation order of the links */
H5Pset_link_creation_order(gcpl_id,
(H5P_CRT_ORDER_TRACKED | H5P_CRT_ORDER_INDEXED));
/* Create a group */
gid = H5Gcreate(fid, GNAME, H5P_DEFAULT, gcpl_id,
H5P_DEFAULT);
October 15, 2008
HDF and HDF-EOS Workshop XII
22

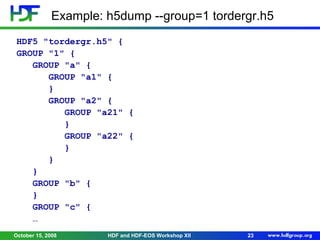

23. Example: h5dump --group=1 tordergr.h5
HDF5 "tordergr.h5" {
GROUP "1" {
GROUP "a" {
GROUP "a1" {
}
GROUP "a2" {
GROUP "a21" {
}
GROUP "a22" {
}
}
}
GROUP "b" {
}
GROUP "c" {
…
October 15, 2008
HDF and HDF-EOS Workshop XII
23

24. Example: h5dump --sort_by=creation_order
HDF5 "tordergr.h5" {
GROUP "1" {
GROUP "c" {
}
GROUP "b" {
}
GROUP "a" {
GROUP "a1" {
}
GROUP "a2" {
GROUP "a22" {
}
GROUP "a21" {
}
}
}
October 15, 2008
HDF and HDF-EOS Workshop XII
24

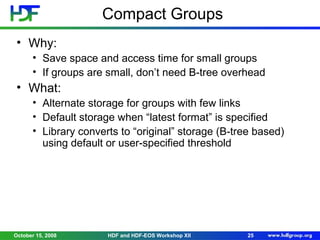

25. Compact Groups
• Why:
• Save space and access time for small groups
• If groups are small, don’t need B-tree overhead
• What:
• Alternate storage for groups with few links
• Default storage when “latest format” is specified
• Library converts to “original” storage (B-tree based)
using default or user-specified threshold
October 15, 2008
HDF and HDF-EOS Workshop XII
25

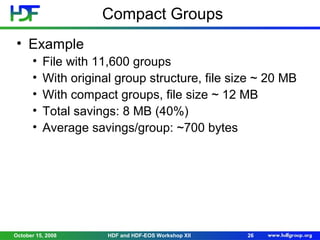

26. Compact Groups
• Example
•
•
•
•
•
File with 11,600 groups
With original group structure, file size ~ 20 MB
With compact groups, file size ~ 12 MB
Total savings: 8 MB (40%)
Average savings/group: ~700 bytes
October 15, 2008
HDF and HDF-EOS Workshop XII
26

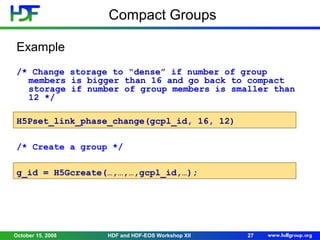

27. Compact Groups
Example
/* Change storage to “dense” if number of group
members is bigger than 16 and go back to compact
storage if number of group members is smaller than
12 */
H5Pset_link_phase_change(gcpl_id, 16, 12)
/* Create a group */
g_id = H5Gcreate(…,…,…,gcpl_id,…);
October 15, 2008
HDF and HDF-EOS Workshop XII
27

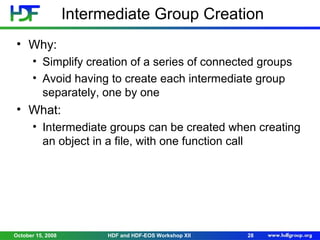

28. Intermediate Group Creation
• Why:
• Simplify creation of a series of connected groups
• Avoid having to create each intermediate group
separately, one by one
• What:
• Intermediate groups can be created when creating
an object in a file, with one function call
October 15, 2008
HDF and HDF-EOS Workshop XII
28

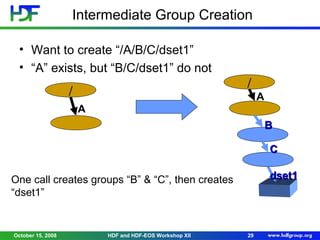

29. Intermediate Group Creation
• Want to create “/A/B/C/dset1”
• “A” exists, but “B/C/dset1” do not
/
/
A
A
B
C
dset1
One call creates groups “B” & “C”, then creates
“dset1”
October 15, 2008
HDF and HDF-EOS Workshop XII
29

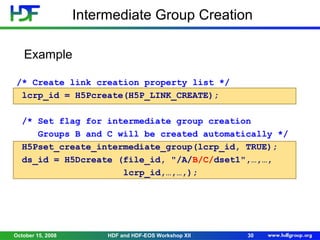

30. Intermediate Group Creation
Example
/* Create link creation property list */
lcrp_id = H5Pcreate(H5P_LINK_CREATE);
/* Set flag for intermediate group creation
Groups B and C will be created automatically */
H5Pset_create_intermediate_group(lcrp_id, TRUE);
ds_id = H5Dcreate (file_id, "/A/B/C/dset1",…,…,
lcrp_id,…,…,);
October 15, 2008
HDF and HDF-EOS Workshop XII
30

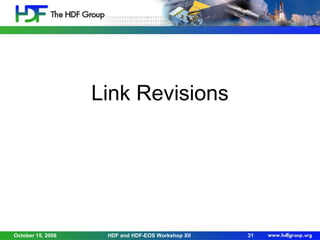

31. Link Revisions
October 15, 2008
HDF and HDF-EOS Workshop XII
31

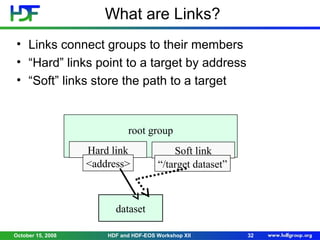

32. What are Links?
• Links connect groups to their members
• “Hard” links point to a target by address
• “Soft” links store the path to a target
root group
Hard link
<address>
Soft link
“/target dataset”
dataset
October 15, 2008
HDF and HDF-EOS Workshop XII
32

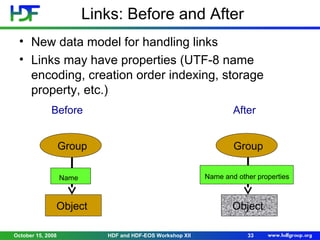

33. Links: Before and After
• New data model for handling links
• Links may have properties (UTF-8 name
encoding, creation order indexing, storage
property, etc.)
Before
After
Group
Group
Name and other properties
Name
Object
October 15, 2008
Object
HDF and HDF-EOS Workshop XII
33

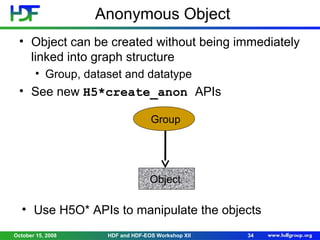

34. Anonymous Object
• Object can be created without being immediately
linked into graph structure
• Group, dataset and datatype
• See new H5*create_anon APIs
Group
Object
• Use H5O* APIs to manipulate the objects
October 15, 2008
HDF and HDF-EOS Workshop XII
34

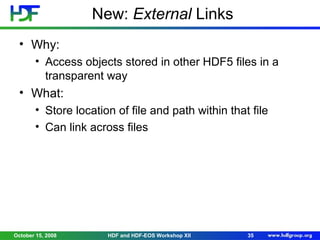

35. New: External Links
• Why:
• Access objects stored in other HDF5 files in a
transparent way
• What:
• Store location of file and path within that file
• Can link across files
October 15, 2008
HDF and HDF-EOS Workshop XII
35

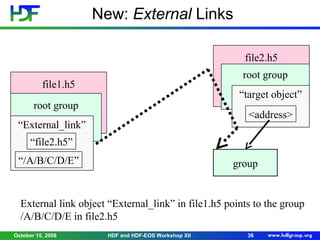

36. New: External Links
file2.h5
root group
file1.h5
“target object”
root group
<address>
“External_link”
“file2.h5”
“/A/B/C/D/E”
group
External link object “External_link” in file1.h5 points to the group
/A/B/C/D/E in file2.h5
October 15, 2008
HDF and HDF-EOS Workshop XII
36

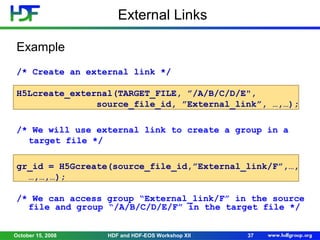

37. External Links
Example
/* Create an external link */
H5Lcreate_external(TARGET_FILE, ”/A/B/C/D/E",
source_file_id, ”External_link”, …,…);
/* We will use external link to create a group in a
target file */
gr_id = H5Gcreate(source_file_id,”External_link/F”,…,
…,…,…);
/* We can access group “External_link/F” in the source
file and group “/A/B/C/D/E/F” in the target file */
October 15, 2008
HDF and HDF-EOS Workshop XII
37

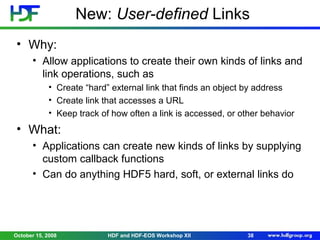

38. New: User-defined Links
• Why:
• Allow applications to create their own kinds of links and
link operations, such as
• Create “hard” external link that finds an object by address
• Create link that accesses a URL
• Keep track of how often a link is accessed, or other behavior
• What:
• Applications can create new kinds of links by supplying
custom callback functions
• Can do anything HDF5 hard, soft, or external links do
October 15, 2008
HDF and HDF-EOS Workshop XII
38

39. Traversing an HDF5 File
October 15, 2008
HDF and HDF-EOS Workshop XII
39

40. Traversing HDF5 File
• Why:
• Allow applications to iterate through the objects in a
group or visit recursively all objects under a group
• What:
• New APIs to traverse a group hierarchy
• New APIs to iterate through a group using different
types of indices (name or creation order)
• H5Giterate is deprecated in favor of new functions
October 15, 2008
HDF and HDF-EOS Workshop XII
40

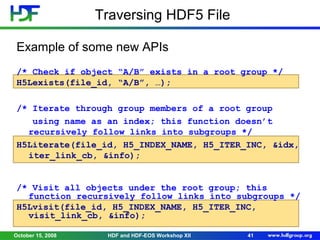

41. Traversing HDF5 File
Example of some new APIs
/* Check if object “A/B” exists in a root group */
H5Lexists(file_id, “A/B”, …);
/* Iterate through group members of a root group
using name as an index; this function doesn’t
recursively follow links into subgroups */
H5Literate(file_id, H5_INDEX_NAME, H5_ITER_INC, &idx,
iter_link_cb, &info);
/* Visit all objects under the root group; this
function recursively follow links into subgroups */
H5Lvisit(file_id, H5_INDEX_NAME, H5_ITER_INC,
visit_link_cb, &info);
October 15, 2008
HDF and HDF-EOS Workshop XII
41

42. Traversing HDF5 File
• Things to remember
• Never use H5Ldelete in any HDF5 iterate or
visit call back functions
• Always close parent object before deleting a
child object
October 15, 2008
HDF and HDF-EOS Workshop XII
42

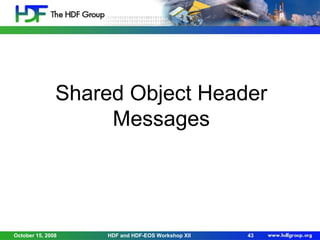

43. Shared Object Header
Messages
October 15, 2008
HDF and HDF-EOS Workshop XII
43

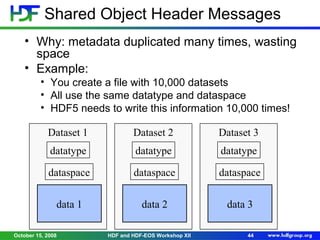

44. Shared Object Header Messages
• Why: metadata duplicated many times, wasting
space
• Example:
• You create a file with 10,000 datasets
• All use the same datatype and dataspace
• HDF5 needs to write this information 10,000 times!
Dataset 1
Dataset 2
Dataset 3
datatype
datatype
datatype
dataspace
dataspace
dataspace
data 1
data 2
data 3
October 15, 2008
HDF and HDF-EOS Workshop XII
44

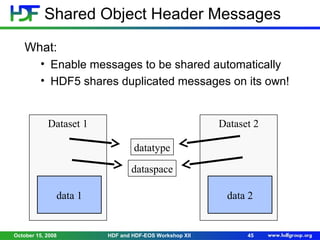

45. Shared Object Header Messages
What:
• Enable messages to be shared automatically
• HDF5 shares duplicated messages on its own!
Dataset 1
Dataset 2
datatype
dataspace
data 1
October 15, 2008
data 2
HDF and HDF-EOS Workshop XII
45

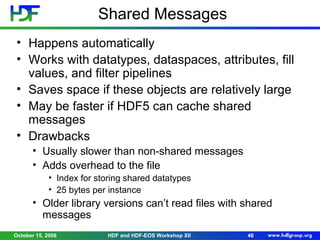

46. Shared Messages
• Happens automatically
• Works with datatypes, dataspaces, attributes, fill
values, and filter pipelines
• Saves space if these objects are relatively large
• May be faster if HDF5 can cache shared
messages
• Drawbacks
• Usually slower than non-shared messages
• Adds overhead to the file
• Index for storing shared datatypes
• 25 bytes per instance
• Older library versions can’t read files with shared
messages
October 15, 2008
HDF and HDF-EOS Workshop XII
46

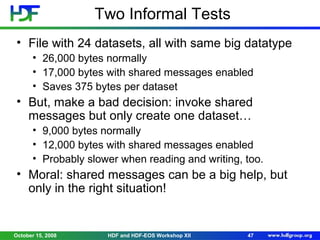

47. Two Informal Tests
• File with 24 datasets, all with same big datatype
• 26,000 bytes normally
• 17,000 bytes with shared messages enabled
• Saves 375 bytes per dataset
• But, make a bad decision: invoke shared
messages but only create one dataset…
• 9,000 bytes normally
• 12,000 bytes with shared messages enabled
• Probably slower when reading and writing, too.
• Moral: shared messages can be a big help, but
only in the right situation!
October 15, 2008
HDF and HDF-EOS Workshop XII
47

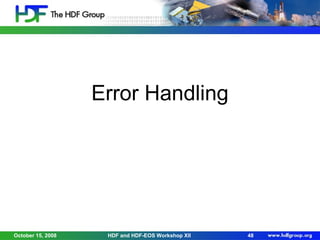

48. Error Handling
October 15, 2008
HDF and HDF-EOS Workshop XII
48

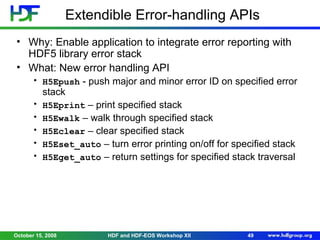

49. Extendible Error-handling APIs
• Why: Enable application to integrate error reporting with
HDF5 library error stack
• What: New error handling API
• H5Epush - push major and minor error ID on specified error
stack
•
•
•
•
•
H5Eprint – print specified stack
H5Ewalk – walk through specified stack
H5Eclear – clear specified stack
H5Eset_auto – turn error printing on/off for specified stack
H5Eget_auto – return settings for specified stack traversal
October 15, 2008
HDF and HDF-EOS Workshop XII
49

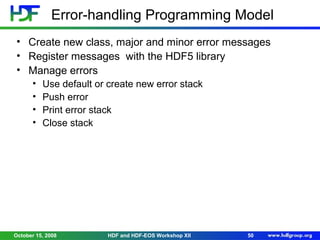

50. Error-handling Programming Model
• Create new class, major and minor error messages
• Register messages with the HDF5 library
• Manage errors
•
•
•
•
Use default or create new error stack
Push error
Print error stack
Close stack
October 15, 2008
HDF and HDF-EOS Workshop XII
50

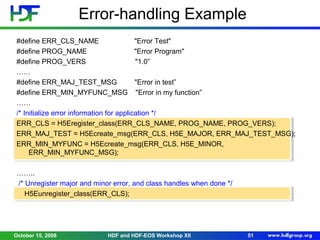

51. Error-handling Example
#define ERR_CLS_NAME
"Error Test"
#define PROG_NAME
"Error Program"
#define PROG_VERS
"1.0”
……
#define ERR_MAJ_TEST_MSG
"Error in test”
#define ERR_MIN_MYFUNC_MSG "Error in my function”
……
/* Initialize error information for application */
ERR_CLS = H5Eregister_class(ERR_CLS_NAME, PROG_NAME, PROG_VERS);
ERR_MAJ_TEST = H5Ecreate_msg(ERR_CLS, H5E_MAJOR, ERR_MAJ_TEST_MSG);
ERR_MIN_MYFUNC = H5Ecreate_msg(ERR_CLS, H5E_MINOR,
ERR_MIN_MYFUNC_MSG);
……..
/* Unregister major and minor error, and class handles when done */
H5Eunregister_class(ERR_CLS);
October 15, 2008
HDF and HDF-EOS Workshop XII
51

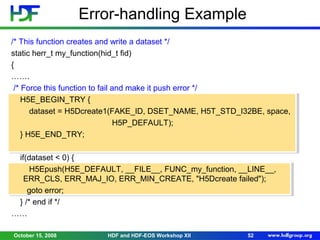

52. Error-handling Example
/* This function creates and write a dataset */
static herr_t my_function(hid_t fid)
{
…….
/* Force this function to fail and make it push error */
H5E_BEGIN_TRY {
dataset = H5Dcreate1(FAKE_ID, DSET_NAME, H5T_STD_I32BE, space,
H5P_DEFAULT);
} H5E_END_TRY;
if(dataset < 0) {
H5Epush(H5E_DEFAULT, __FILE__, FUNC_my_function, __LINE__,
ERR_CLS, ERR_MAJ_IO, ERR_MIN_CREATE, "H5Dcreate failed");
goto error;
} /* end if */
……
October 15, 2008
HDF and HDF-EOS Workshop XII
52

53. Error-handling Example

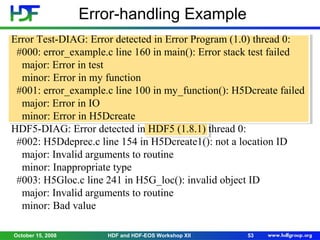

Error Test-DIAG: Error detected in Error Program (1.0) thread 0:
#000: error_example.c line 160 in main(): Error stack test failed
major: Error in test
minor: Error in my function
#001: error_example.c line 100 in my_function(): H5Dcreate failed
major: Error in IO
minor: Error in H5Dcreate
HDF5-DIAG: Error detected in HDF5 (1.8.1) thread 0:
#002: H5Ddeprec.c line 154 in H5Dcreate1(): not a location ID
major: Invalid arguments to routine
minor: Inappropriate type
#003: H5Gloc.c line 241 in H5G_loc(): invalid object ID
major: Invalid arguments to routine
minor: Bad value
October 15, 2008
HDF and HDF-EOS Workshop XII
53

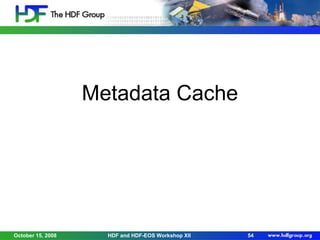

54. Metadata Cache
October 15, 2008
HDF and HDF-EOS Workshop XII
54

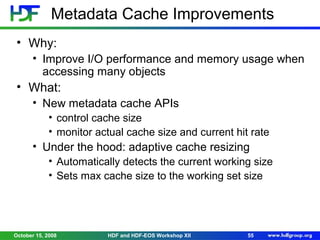

55. Metadata Cache Improvements
• Why:
• Improve I/O performance and memory usage when
accessing many objects
• What:
• New metadata cache APIs
• control cache size
• monitor actual cache size and current hit rate
• Under the hood: adaptive cache resizing
• Automatically detects the current working size
• Sets max cache size to the working set size
October 15, 2008
HDF and HDF-EOS Workshop XII
55

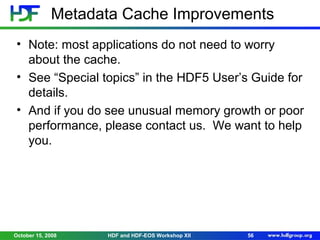

56. Metadata Cache Improvements
• Note: most applications do not need to worry
about the cache.
• See “Special topics” in the HDF5 User’s Guide for
details.
• And if you do see unusual memory growth or poor
performance, please contact us. We want to help
you.
October 15, 2008
HDF and HDF-EOS Workshop XII
56

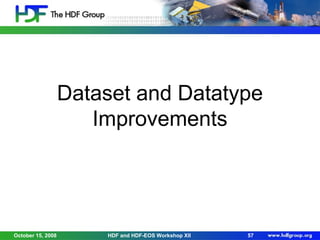

57. Dataset and Datatype
Improvements
October 15, 2008
HDF and HDF-EOS Workshop XII
57

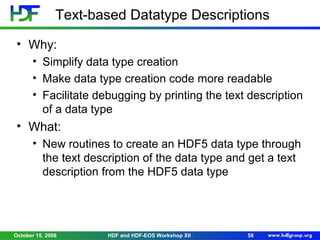

58. Text-based Datatype Descriptions
• Why:
• Simplify data type creation
• Make data type creation code more readable
• Facilitate debugging by printing the text description
of a data type
• What:
• New routines to create an HDF5 data type through
the text description of the data type and get a text
description from the HDF5 data type
October 15, 2008
HDF and HDF-EOS Workshop XII
58

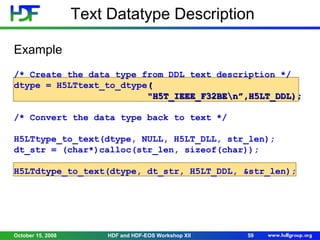

59. Text Datatype Description
Example
/* Create the data type from DDL text description */
dtype = H5LTtext_to_dtype(
"H5T_IEEE_F32BEn”,H5LT_DDL);
/* Convert the data type back to text */
H5LTtype_to_text(dtype, NULL, H5LT_DLL, str_len);
dt_str = (char*)calloc(str_len, sizeof(char));
H5LTdtype_to_text(dtype, dt_str, H5LT_DDL, &str_len);
October 15, 2008
HDF and HDF-EOS Workshop XII
59

60. Serialized Datatypes and Dataspaces
• Why:
• Allow datatype and dataspace info to be
transmitted between processes
• Allow datatype/dataspace to be stored in nonHDF5 files
• What:
• A new set of routines to serialize/deserialize HDF5
datatypes and dataspaces.
October 15, 2008
HDF and HDF-EOS Workshop XII
60

61. Serialized Datatypes and Dataspaces
Example
/* Find the buffer length and encode a datatype into
buffer */
status = H5Tencode(t_id, NULL, &cmpd_buf_size);
cmpd_buf = (unsigned char*)calloc(1, cmpd_buf_size);
H5Tencode(t_id, cmpd_buf, &cmpd_buf_size)
/* Decode a binary description of a datatype and
retune a datatype handle */
t_id = H5Tdecode(cmpd_buf);
October 15, 2008
HDF and HDF-EOS Workshop XII
61

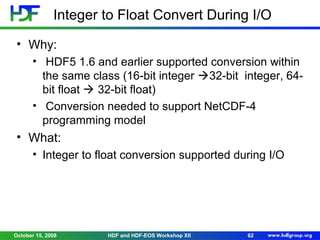

62. Integer to Float Convert During I/O
• Why:
• HDF5 1.6 and earlier supported conversion within
the same class (16-bit integer 32-bit integer, 64bit float  32-bit float)
• Conversion needed to support NetCDF-4
programming model
• What:
• Integer to float conversion supported during I/O
October 15, 2008
HDF and HDF-EOS Workshop XII
62

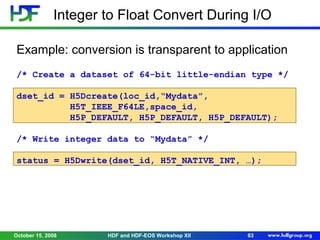

63. Integer to Float Convert During I/O
Example: conversion is transparent to application
/* Create a dataset of 64-bit little-endian type */
dset_id = H5Dcreate(loc_id,“Mydata”,
H5T_IEEE_F64LE,space_id,
H5P_DEFAULT, H5P_DEFAULT, H5P_DEFAULT);
/* Write integer data to “Mydata” */
status = H5Dwrite(dset_id, H5T_NATIVE_INT, …);
October 15, 2008
HDF and HDF-EOS Workshop XII
63

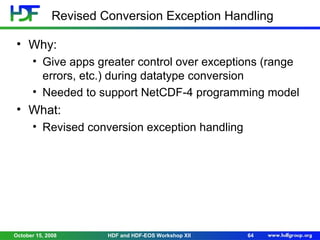

64. Revised Conversion Exception Handling
• Why:
• Give apps greater control over exceptions (range
errors, etc.) during datatype conversion
• Needed to support NetCDF-4 programming model
• What:
• Revised conversion exception handling
October 15, 2008
HDF and HDF-EOS Workshop XII
64

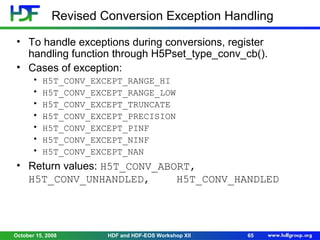

65. Revised Conversion Exception Handling
• To handle exceptions during conversions, register
handling function through H5Pset_type_conv_cb().
• Cases of exception:
•
•
•
•
•
•
•
H5T_CONV_EXCEPT_RANGE_HI
H5T_CONV_EXCEPT_RANGE_LOW
H5T_CONV_EXCEPT_TRUNCATE
H5T_CONV_EXCEPT_PRECISION
H5T_CONV_EXCEPT_PINF
H5T_CONV_EXCEPT_NINF
H5T_CONV_EXCEPT_NAN
• Return values: H5T_CONV_ABORT,
H5T_CONV_UNHANDLED,
H5T_CONV_HANDLED
October 15, 2008
HDF and HDF-EOS Workshop XII
65

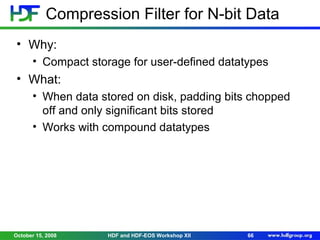

66. Compression Filter for N-bit Data
• Why:
• Compact storage for user-defined datatypes
• What:
• When data stored on disk, padding bits chopped
off and only significant bits stored
• Works with compound datatypes
October 15, 2008
HDF and HDF-EOS Workshop XII
66

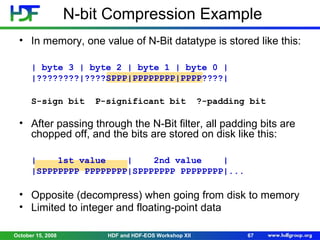

67. N-bit Compression Example
• In memory, one value of N-Bit datatype is stored like this:
| byte 3 | byte 2 | byte 1 | byte 0 |
|????????|????SPPP|PPPPPPPP|PPPP????|
S-sign bit
P-significant bit
?-padding bit
• After passing through the N-Bit filter, all padding bits are
chopped off, and the bits are stored on disk like this:
|
1st value
|
2nd value
|
|SPPPPPPP PPPPPPPP|SPPPPPPP PPPPPPPP|...
• Opposite (decompress) when going from disk to memory
• Limited to integer and floating-point data
October 15, 2008
HDF and HDF-EOS Workshop XII
67

68. N-bit Compression Example
Example
/* Create a N-bit datatype */
dt_id = H5Tcopy(H5T_STD_I32LE);
H5Tset_precision(dt_id, 16);
H5Tset_offset(dt_id, 4);
/* Create and write a dataset */
dcpl_id = H5Pcreate(H5P_DATASET_CREATE);
H5Pset_chunk(dcpl_id, …);
H5Pset_nbit(dcpl_id);
dset_id = H5Dcreate(…,…,…,…,…,dcpl_id,…);
H5Dwrite(dset_id,…,…,…,…,buf);
October 15, 2008
HDF and HDF-EOS Workshop XII
68

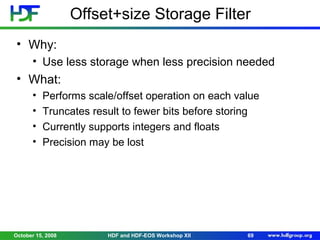

69. Offset+size Storage Filter
• Why:
• Use less storage when less precision needed
• What:
•
•
•
•
Performs scale/offset operation on each value
Truncates result to fewer bits before storing
Currently supports integers and floats
Precision may be lost
October 15, 2008
HDF and HDF-EOS Workshop XII
69

70. Example with Floating-Point Type
• Data: {104.561, 99.459, 100.545, 105.644}
• Choose scaling factor: decimal precision to keep
E.g. scale factor D = 2
1. Find minimum value (offset): 99.459
2. Subtract minimum value from each element
Result: {5.102, 0, 1.086, 6.185}
3. Scale data by multiplying 10D = 100
Result: {510.2, 0, 108.6, 618.5}
4. Round the data to integer
Result: {510 , 0, 109, 619}
5. Pack and store using min number of bits
October 15, 2008
HDF and HDF-EOS Workshop XII
70

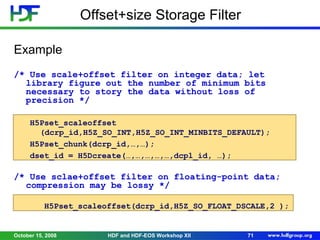

71. Offset+size Storage Filter
Example
/* Use scale+offset filter on integer data; let
library figure out the number of minimum bits
necessary to story the data without loss of
precision */
H5Pset_scaleoffset
(dcrp_id,H5Z_SO_INT,H5Z_SO_INT_MINBITS_DEFAULT);
H5Pset_chunk(dcrp_id,…,…);
dset_id = H5Dcreate(…,…,…,…,…,dcpl_id, …);
/* Use sclae+offset filter on floating-point data;
compression may be lossy */
H5Pset_scaleoffset(dcrp_id,H5Z_SO_FLOAT_DSCALE,2 );
October 15, 2008
HDF and HDF-EOS Workshop XII
71

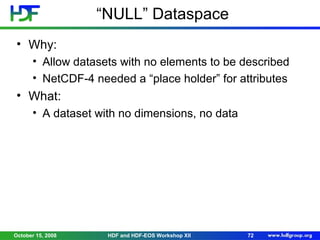

72. “NULL” Dataspace
• Why:
• Allow datasets with no elements to be described
• NetCDF-4 needed a “place holder” for attributes
• What:
• A dataset with no dimensions, no data
October 15, 2008
HDF and HDF-EOS Workshop XII
72

73. NULL Dataspace
Example
/* Create a dataset with “NULL” dataspace*/
sp_id
= H5Screate(H5S_NULL);
dset_id = H5Dcreate(…,"SDS.h5”,…,sp_id,…,…,…);
HDF5 "SDS.h5" {
GROUP "/" {
DATASET "IntArray" {
DATATYPE H5T_STD_I32LE
DATASPACE NULL
DATA {
}
}
}
}
October 15, 2008
HDF and HDF-EOS Workshop XII
73

74. Part II
How to Move an Application
to HDF5 1.8
October 15, 2008
HDF and HDF-EOS Workshop XII
74

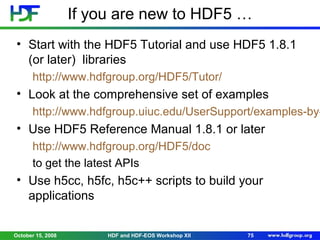

75. If you are new to HDF5 …
• Start with the HDF5 Tutorial and use HDF5 1.8.1
(or later) libraries
http://www.hdfgroup.org/HDF5/Tutor/
• Look at the comprehensive set of examples
http://www.hdfgroup.uiuc.edu/UserSupport/examples-by-
• Use HDF5 Reference Manual 1.8.1 or later
http://www.hdfgroup.org/HDF5/doc
to get the latest APIs
• Use h5cc, h5fc, h5c++ scripts to build your
applications
October 15, 2008
HDF and HDF-EOS Workshop XII
75

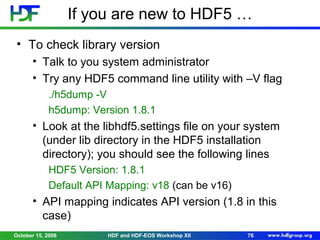

76. If you are new to HDF5 …
• To check library version
• Talk to you system administrator
• Try any HDF5 command line utility with –V flag
./h5dump -V
h5dump: Version 1.8.1
• Look at the libhdf5.settings file on your system
(under lib directory in the HDF5 installation
directory); you should see the following lines
HDF5 Version: 1.8.1
Default API Mapping: v18 (can be v16)
• API mapping indicates API version (1.8 in this
case)
October 15, 2008
HDF and HDF-EOS Workshop XII
76

77. If you are new to HDF5 …

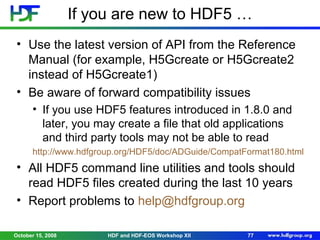

• Use the latest version of API from the Reference
Manual (for example, H5Gcreate or H5Gcreate2
instead of H5Gcreate1)
• Be aware of forward compatibility issues
• If you use HDF5 features introduced in 1.8.0 and
later, you may create a file that old applications
and third party tools may not be able to read
http://www.hdfgroup.org/HDF5/doc/ADGuide/CompatFormat180.html
• All HDF5 command line utilities and tools should
read HDF5 files created during the last 10 years
• Report problems to help@hdfgroup.org
October 15, 2008
HDF and HDF-EOS Workshop XII
77

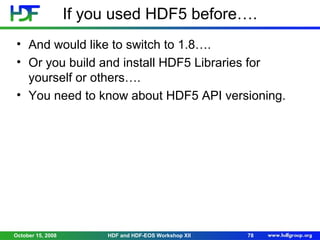

78. If you used HDF5 before….
• And would like to switch to 1.8….
• Or you build and install HDF5 Libraries for
yourself or others….
• You need to know about HDF5 API versioning.
October 15, 2008
HDF and HDF-EOS Workshop XII
78

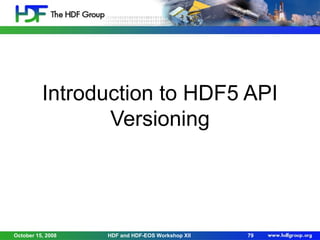

79. Introduction to HDF5 API
Versioning
October 15, 2008
HDF and HDF-EOS Workshop XII
79

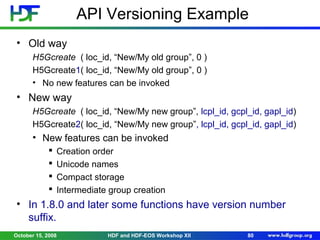

80. API Versioning Example
• Old way
H5Gcreate ( loc_id, “New/My old group”, 0 )
H5Gcreate1( loc_id, “New/My old group”, 0 )
• No new features can be invoked
• New way
H5Gcreate ( loc_id, “New/My new group”, lcpl_id, gcpl_id, gapl_id)
H5Gcreate2( loc_id, “New/My new group”, lcpl_id, gcpl_id, gapl_id)
• New features can be invoked




Creation order
Unicode names
Compact storage
Intermediate group creation
• In 1.8.0 and later some functions have version number
suffix.
October 15, 2008
HDF and HDF-EOS Workshop XII
80

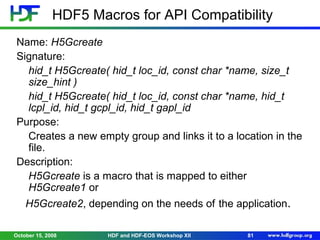

81. HDF5 Macros for API Compatibility
Name: H5Gcreate
Signature:
hid_t H5Gcreate( hid_t loc_id, const char *name, size_t
size_hint )
hid_t H5Gcreate( hid_t loc_id, const char *name, hid_t
lcpl_id, hid_t gcpl_id, hid_t gapl_id
Purpose:
Creates a new empty group and links it to a location in the
file.
Description:
H5Gcreate is a macro that is mapped to either
H5Gcreate1 or
H5Gcreate2, depending on the needs of the application.
October 15, 2008
HDF and HDF-EOS Workshop XII
81

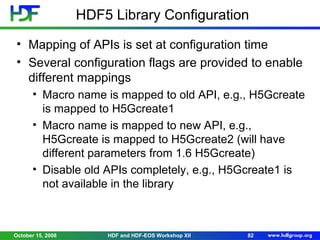

82. HDF5 Library Configuration
• Mapping of APIs is set at configuration time
• Several configuration flags are provided to enable
different mappings
• Macro name is mapped to old API, e.g., H5Gcreate
is mapped to H5Gcreate1
• Macro name is mapped to new API, e.g.,
H5Gcreate is mapped to H5Gcreate2 (will have
different parameters from 1.6 H5Gcreate)
• Disable old APIs completely, e.g., H5Gcreate1 is
not available in the library
October 15, 2008
HDF and HDF-EOS Workshop XII
82

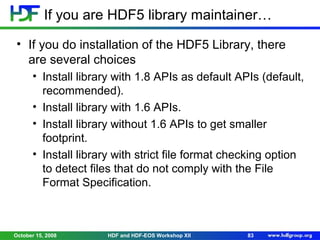

83. If you are HDF5 library maintainer…
• If you do installation of the HDF5 Library, there
are several choices
• Install library with 1.8 APIs as default APIs (default,
recommended).
• Install library with 1.6 APIs.
• Install library without 1.6 APIs to get smaller
footprint.
• Install library with strict file format checking option
to detect files that do not comply with the File
Format Specification.
October 15, 2008
HDF and HDF-EOS Workshop XII
83

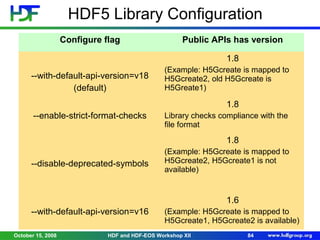

84. HDF5 Library Configuration
Configure flag
Public APIs has version
1.8
--with-default-api-version=v18
(default)
(Example: H5Gcreate is mapped to
H5Gcreate2, old H5Gcreate is
H5Greate1)
1.8
--enable-strict-format-checks
Library checks compliance with the
file format
1.8
--disable-deprecated-symbols
(Example: H5Gcreate is mapped to
H5Gcreate2, H5Gcreate1 is not
available)
1.6
--with-default-api-version=v16
October 15, 2008
(Example: H5Gcreate is mapped to
H5Gcreate1, H5Gcreate2 is available)
HDF and HDF-EOS Workshop XII
84

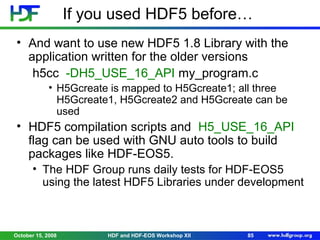

85. If you used HDF5 before…
• And want to use new HDF5 1.8 Library with the
application written for the older versions
h5cc -DH5_USE_16_API my_program.c
• H5Gcreate is mapped to H5Gcreate1; all three
H5Gcreate1, H5Gcreate2 and H5Gcreate can be
used
• HDF5 compilation scripts and H5_USE_16_API
flag can be used with GNU auto tools to build
packages like HDF-EOS5.
• The HDF Group runs daily tests for HDF-EOS5
using the latest HDF5 Libraries under development
October 15, 2008
HDF and HDF-EOS Workshop XII
85

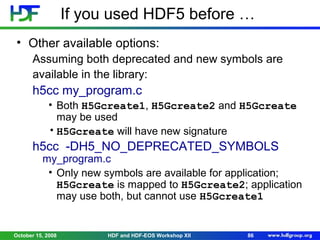

86. If you used HDF5 before …
• Other available options:
Assuming both deprecated and new symbols are
available in the library:
h5cc my_program.c
• Both H5Gcreate1, H5Gcreate2 and H5Gcreate
may be used
• H5Gcreate will have new signature
h5cc -DH5_NO_DEPRECATED_SYMBOLS
my_program.c
• Only new symbols are available for application;
H5Gcreate is mapped to H5Gcreate2; application
may use both, but cannot use H5Gcreate1
October 15, 2008
HDF and HDF-EOS Workshop XII
86

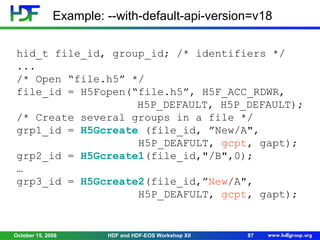

87. Example: --with-default-api-version=v18
hid_t file_id, group_id; /* identifiers */
...
/* Open “file.h5” */
file_id = H5Fopen(“file.h5”, H5F_ACC_RDWR,
H5P_DEFAULT, H5P_DEFAULT);
/* Create several groups in a file */
grp1_id = H5Gcreate (file_id, ”New/A",
H5P_DEAFULT, gcpt, gapt);
grp2_id = H5Gcreate1(file_id,"/B",0);
…
grp3_id = H5Gcreate2(file_id,”New/A",
H5P_DEAFULT, gcpt, gapt);
October 15, 2008
HDF and HDF-EOS Workshop XII
87

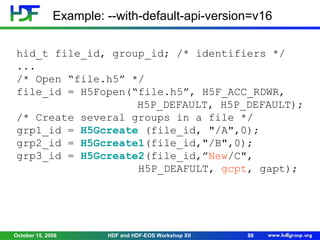

88. Example: --with-default-api-version=v16
hid_t file_id, group_id; /* identifiers */
...
/* Open “file.h5” */
file_id = H5Fopen(“file.h5”, H5F_ACC_RDWR,
H5P_DEFAULT, H5P_DEFAULT);
/* Create several groups in a file */
grp1_id = H5Gcreate (file_id, "/A",0);
grp2_id = H5Gcreate1(file_id,"/B",0);
grp3_id = H5Gcreate2(file_id,”New/C",
H5P_DEAFULT, gcpt, gapt);
October 15, 2008
HDF and HDF-EOS Workshop XII
88

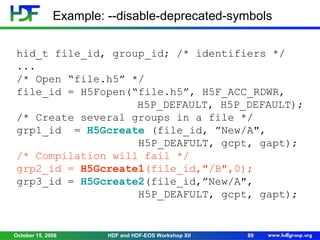

89. Example: --disable-deprecated-symbols
hid_t file_id, group_id; /* identifiers */
...
/* Open “file.h5” */
file_id = H5Fopen(“file.h5”, H5F_ACC_RDWR,
H5P_DEFAULT, H5P_DEFAULT);
/* Create several groups in a file */
grp1_id = H5Gcreate (file_id, ”New/A",
H5P_DEAFULT, gcpt, gapt);
/* Compilation will fail */
grp2_id = H5Gcreate1(file_id,"/B",0);
grp3_id = H5Gcreate2(file_id,”New/A",
H5P_DEAFULT, gcpt, gapt);
October 15, 2008
HDF and HDF-EOS Workshop XII
89

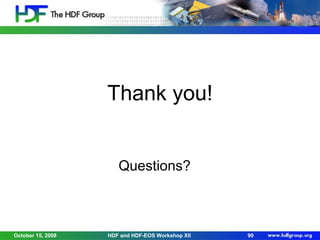

90. Thank you!
Questions?
October 15, 2008
HDF and HDF-EOS Workshop XII
90

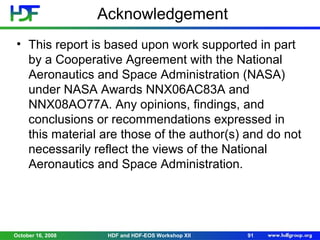

91. Acknowledgement
• This report is based upon work supported in part
by a Cooperative Agreement with the National
Aeronautics and Space Administration (NASA)
under NASA Awards NNX06AC83A and
NNX08AO77A. Any opinions, findings, and
conclusions or recommendations expressed in
this material are those of the author(s) and do not
necessarily reflect the views of the National
Aeronautics and Space Administration.
October 16, 2008
HDF and HDF-EOS Workshop XII
91
