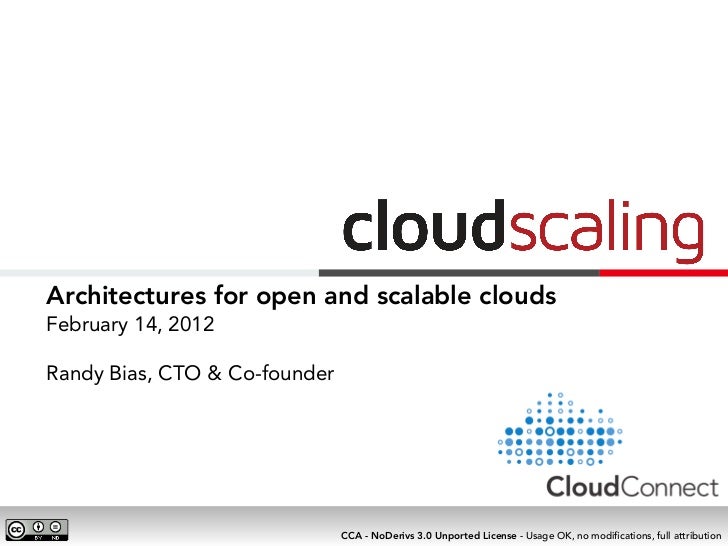

Architectures for open and scalable clouds

Randy Bias
Randy BiasCloud Pioneer, Founding Member of OpenStack Foundation, and Technology Disruptor
Architectures for open and scalable clouds
February 14, 2012

Randy Bias, CTO & Co-founder




                               CCA - NoDerivs 3.0 Unported License - Usage OK, no modifications, full attribution
Our Perspective on Cloud Computing
      It came from the large Internet players.




                        2
A Story of Two Clouds




          3
A Story of Two Clouds




          4

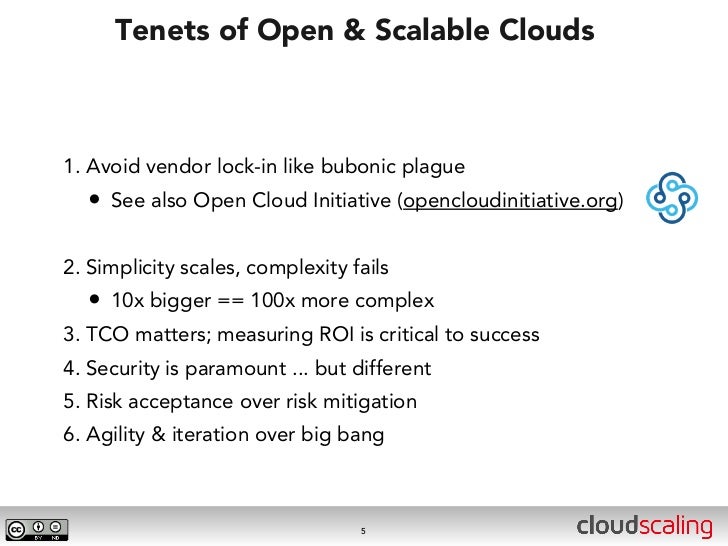

Tenets of Open & Scalable Clouds



1. Avoid vendor lock-in like bubonic plague
  • See also Open Cloud Initiative (opencloudinitiative.org)

2. Simplicity scales, complexity fails
  • 10x bigger == 100x more complex
3. TCO matters; measuring ROI is critical to success
4. Security is paramount ... but different
5. Risk acceptance over risk mitigation
6. Agility & iteration over big bang



                                  5

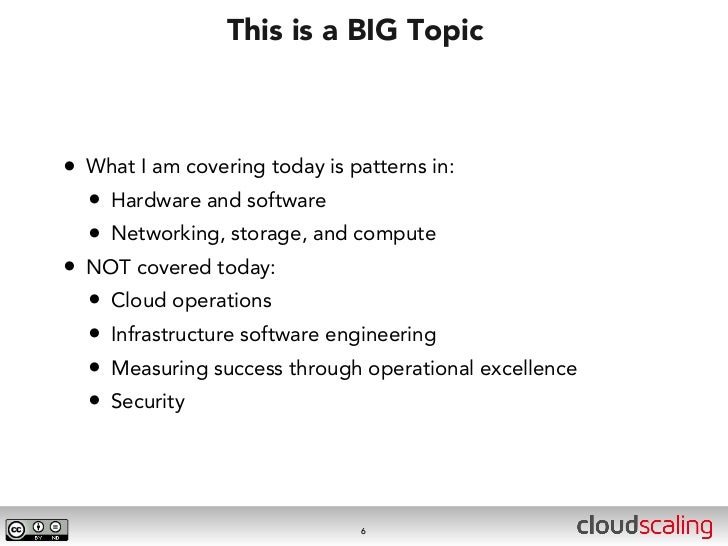

This is a BIG Topic



• What I am covering today is patterns in:
  • Hardware and software
  • Networking, storage, and compute
• NOT covered today:
  • Cloud operations
  • Infrastructure software engineering
  • Measuring success through operational excellence
  • Security



                              6

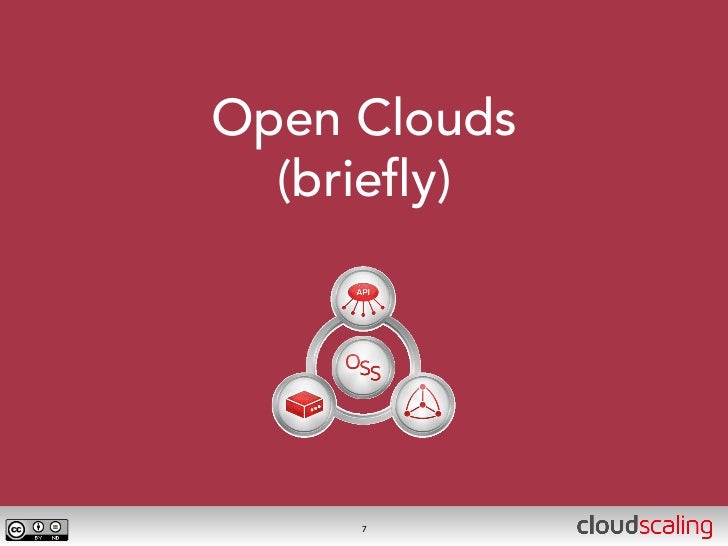

Open Clouds
  (briefly)




     7

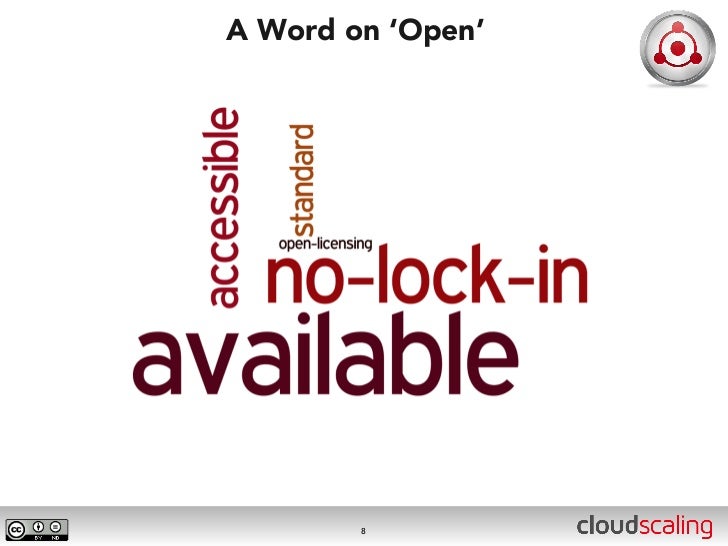

A Word on ‘Open’




        8
Here we go ...

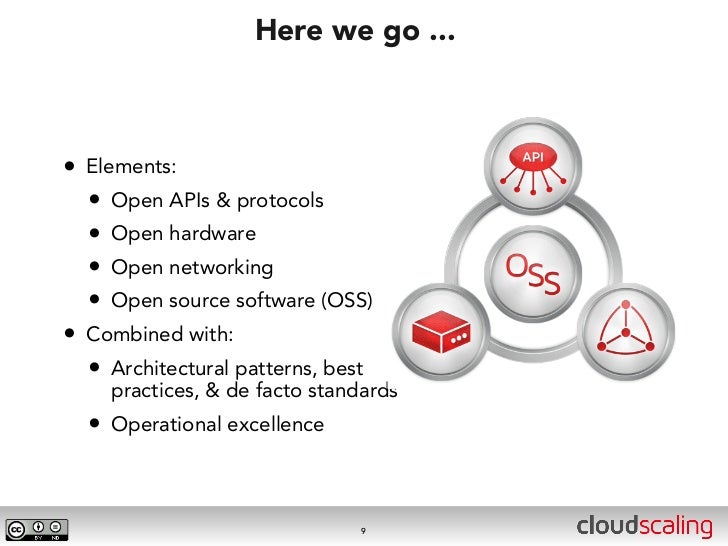

• Elements:
  • Open APIs & protocols
  • Open hardware
  • Open networking
  • Open source software (OSS)
• Combined with:
  • Architectural patterns, best
    practices, & de facto standards
  • Operational excellence


                               9

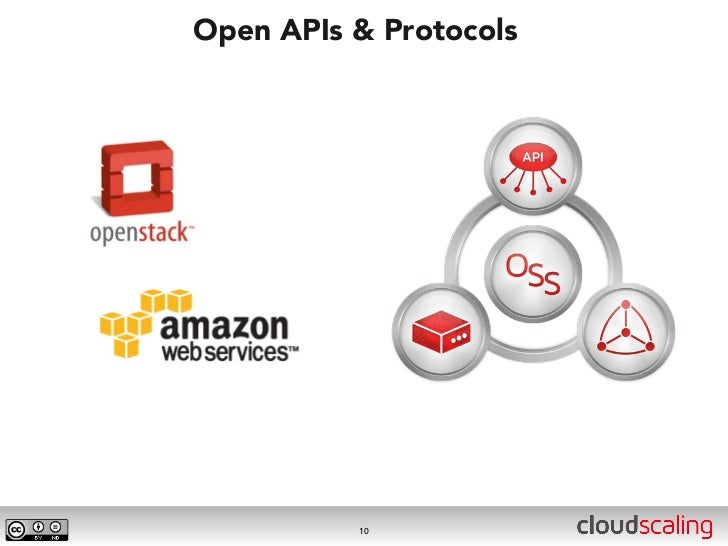

Open APIs & Protocols




          10
Open Hardware




      11

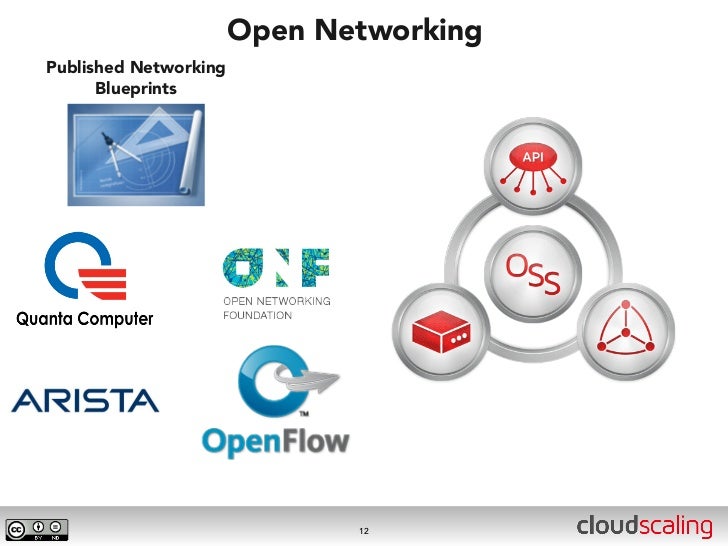

Open Networking
Published Networking
      Blueprints




                              12
Open Source Software




Open Cloud OS




                          13
Open & Scalable
Cloud Patterns



       14

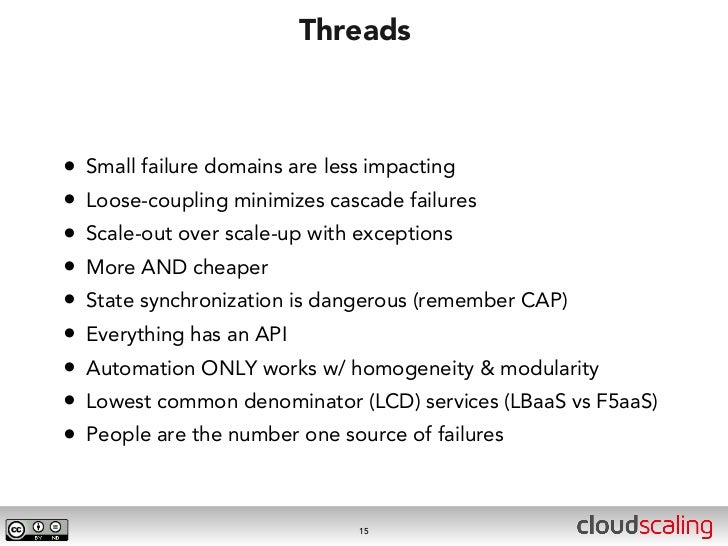

Threads



•   Small failure domains are less impacting
•   Loose-coupling minimizes cascade failures
•   Scale-out over scale-up with exceptions
•   More AND cheaper
•   State synchronization is dangerous (remember CAP)
•   Everything has an API
•   Automation ONLY works w/ homogeneity & modularity
•   Lowest common denominator (LCD) services (LBaaS vs F5aaS)
•   People are the number one source of failures



                                 15

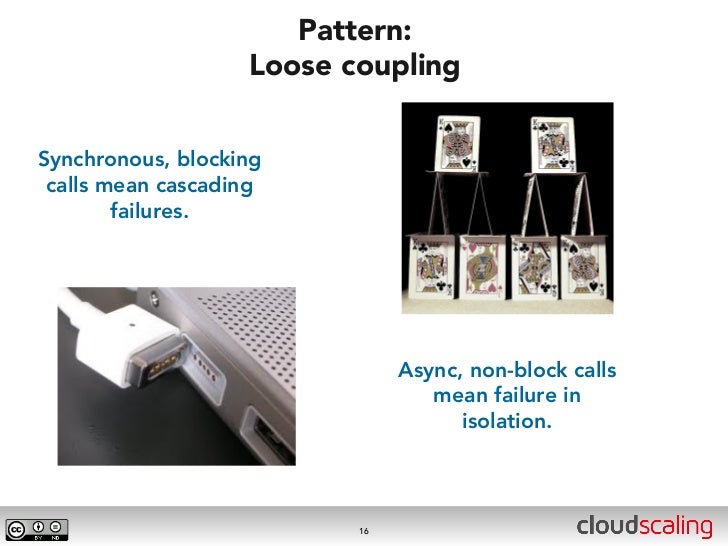

Pattern:
                   Loose coupling


Synchronous, blocking
 calls mean cascading
        failures.




                               Async, non-block calls
                                  mean failure in
                                     isolation.



                          16

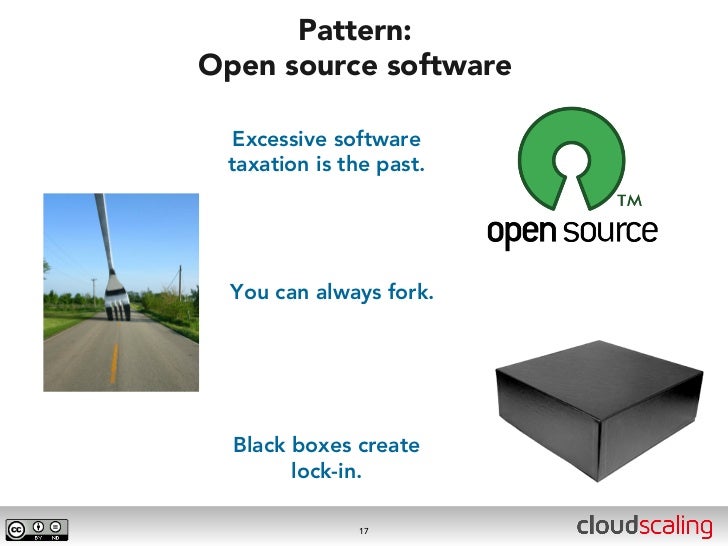

Pattern:
Open source software

  Excessive software
 taxation is the past.




  You can always fork.




  Black boxes create
        lock-in.

              17

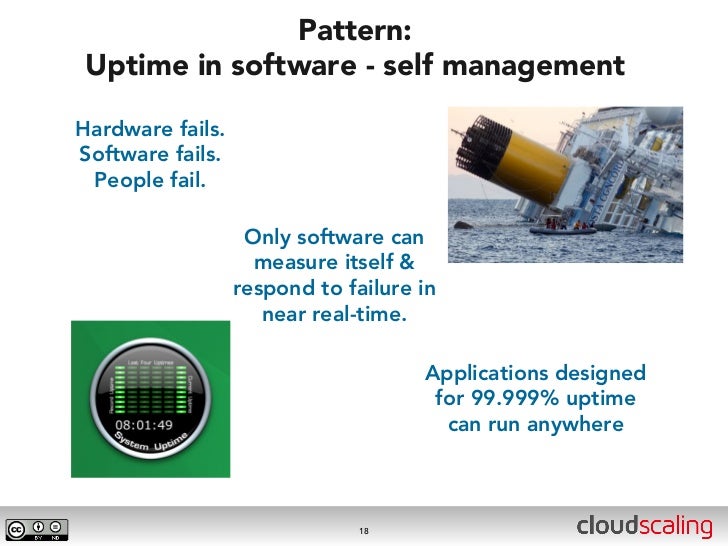

Pattern:
Uptime in software - self management

Hardware fails.
Software fails.
 People fail.

                   Only software can
                    measure itself &
                  respond to failure in
                     near real-time.

                                     Applications designed
                                      for 99.999% uptime
                                       can run anywhere



                               18

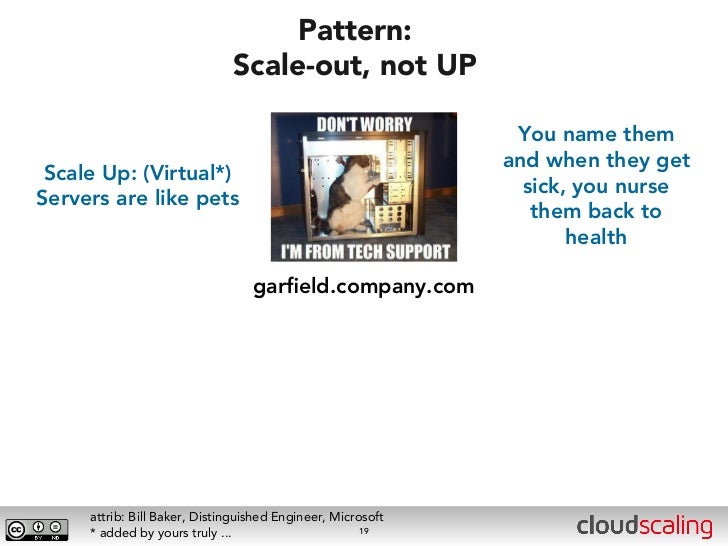

Pattern:
                              Scale-out, not UP

                                                              You name them
                                                             and when they get
 Scale Up: (Virtual*)
                                                               sick, you nurse
Servers are like pets
                                                                them back to
                                                                    health

                                  garfield.company.com




     attrib: Bill Baker, Distinguished Engineer, Microsoft
     * added by yours truly ...                       19

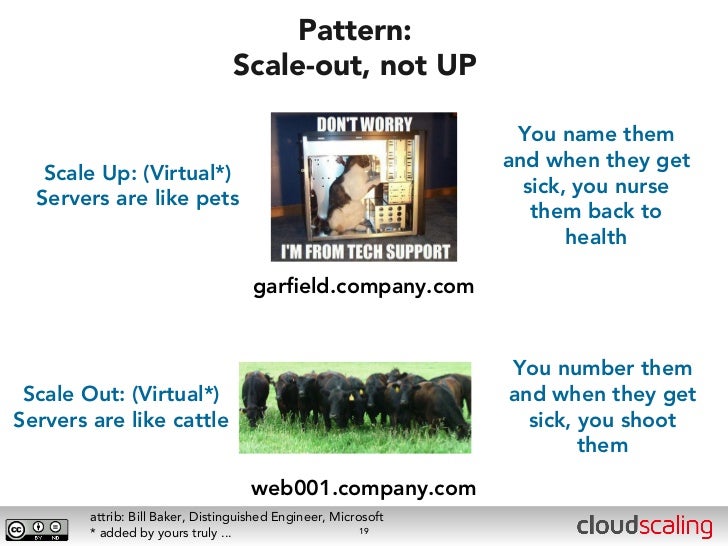

Pattern:
                                 Scale-out, not UP

                                                                 You name them
                                                                and when they get
   Scale Up: (Virtual*)
                                                                  sick, you nurse
  Servers are like pets
                                                                   them back to
                                                                       health

                                     garfield.company.com


                                                                You number them
 Scale Out: (Virtual*)                                          and when they get
Servers are like cattle                                           sick, you shoot
                                                                        them

                                     web001.company.com
        attrib: Bill Baker, Distinguished Engineer, Microsoft
        * added by yours truly ...                       19

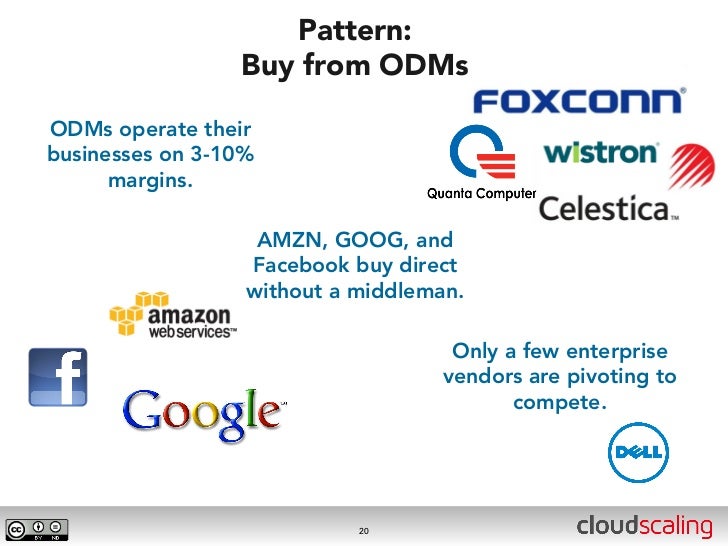

Pattern:
                 Buy from ODMs

ODMs operate their
businesses on 3-10%
      margins.

                   AMZN, GOOG, and
                  Facebook buy direct
                  without a middleman.

                                     Only a few enterprise
                                    vendors are pivoting to
                                           compete.




                            20

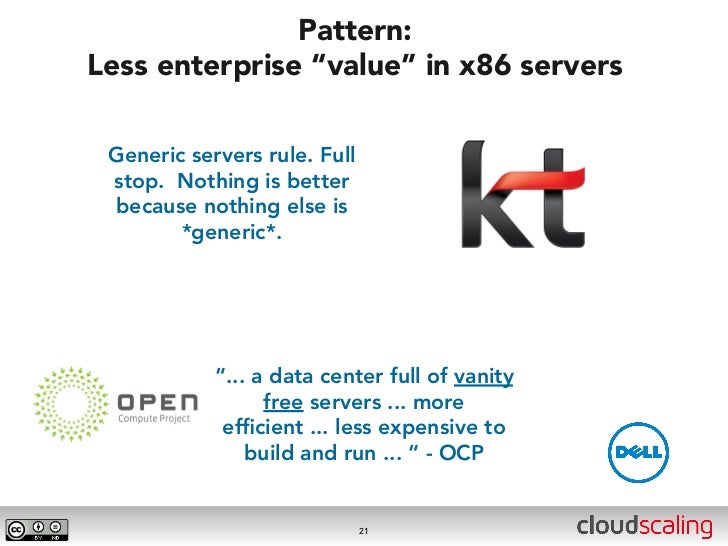

Pattern:
Less enterprise “value” in x86 servers

 Generic servers rule. Full
 stop. Nothing is better
 because nothing else is
        *generic*.




            “... a data center full of vanity
                  free servers ... more
             efficient ... less expensive to
                build and run ... “ - OCP


                              21

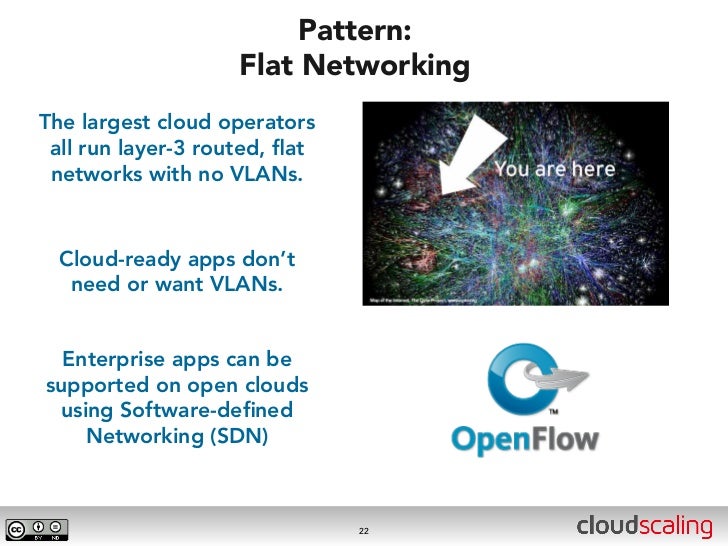

Pattern:
                    Flat Networking
The largest cloud operators
 all run layer-3 routed, flat
 networks with no VLANs.



  Cloud-ready apps don’t
   need or want VLANs.


  Enterprise apps can be
supported on open clouds
 using Software-defined
    Networking (SDN)



                               22

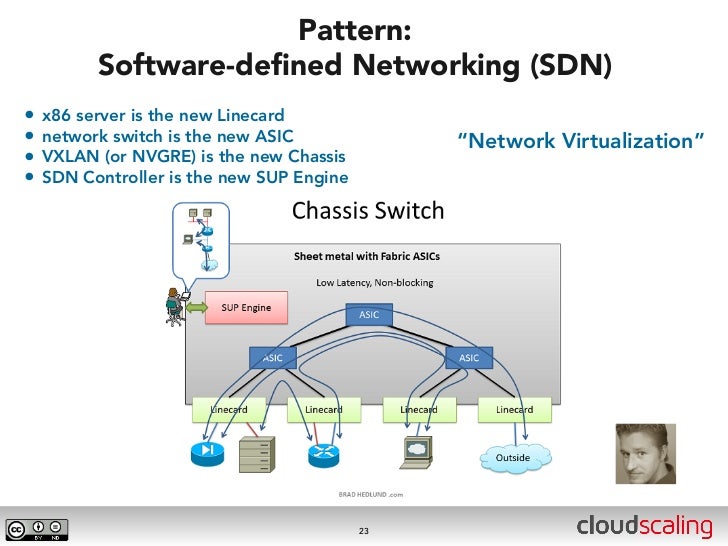

Pattern:
          Software-defined Networking (SDN)
•   x86 server is the new Linecard
•   network switch is the new ASIC              “Network Virtualization”
•   VXLAN (or NVGRE) is the new Chassis
•   SDN Controller is the new SUP Engine




                                           23

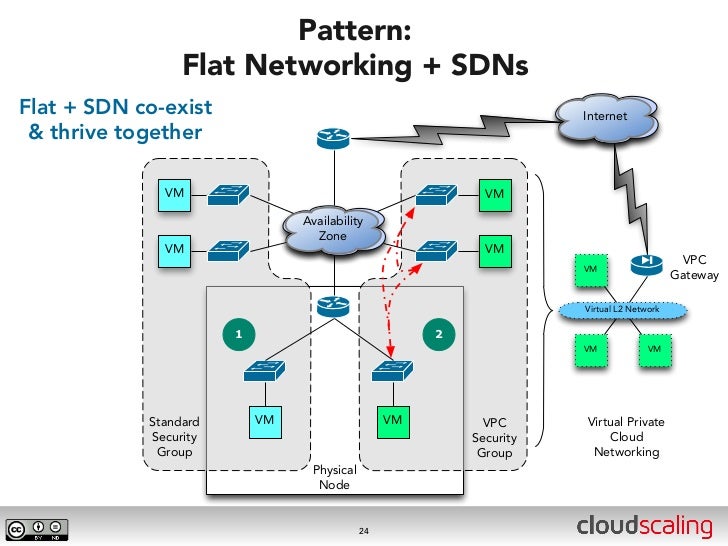

Pattern:
                 Flat Networking + SDNs
Flat + SDN co-exist                                                  Internet
 & thrive together

              VM                                            VM

                                Availability
                                  Zone
              VM                                            VM
                                                                                           VPC
                                                                     VM
                                                                                          Gateway

                                                                     Virtual L2 Network

                       1                              2
                                                                     VM             VM




            Standard       VM                    VM         VPC      Virtual Private
            Security                                      Security       Cloud
             Group                                         Group      Networking
                                 Physical
                                  Node


                                            24

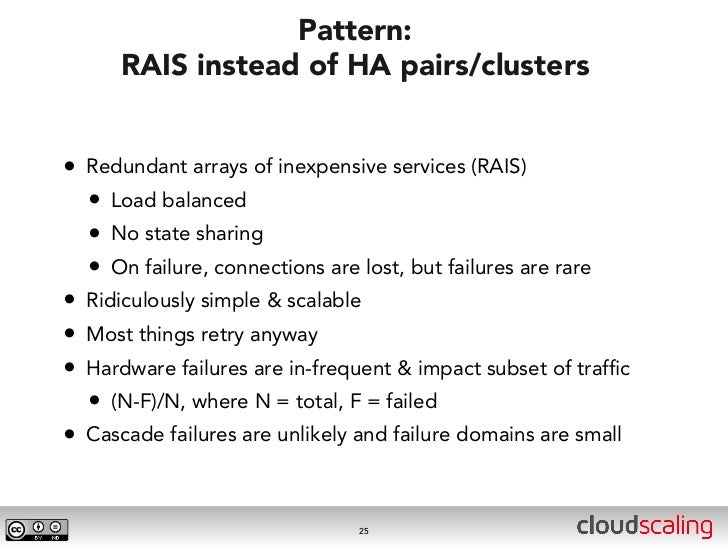

Pattern:
      RAIS instead of HA pairs/clusters


• Redundant arrays of inexpensive services (RAIS)
  • Load balanced
  • No state sharing
  • On failure, connections are lost, but failures are rare
• Ridiculously simple & scalable
• Most things retry anyway
• Hardware failures are in-frequent & impact subset of traffic
  • (N-F)/N, where N = total, F = failed
• Cascade failures are unlikely and failure domains are small


                               25

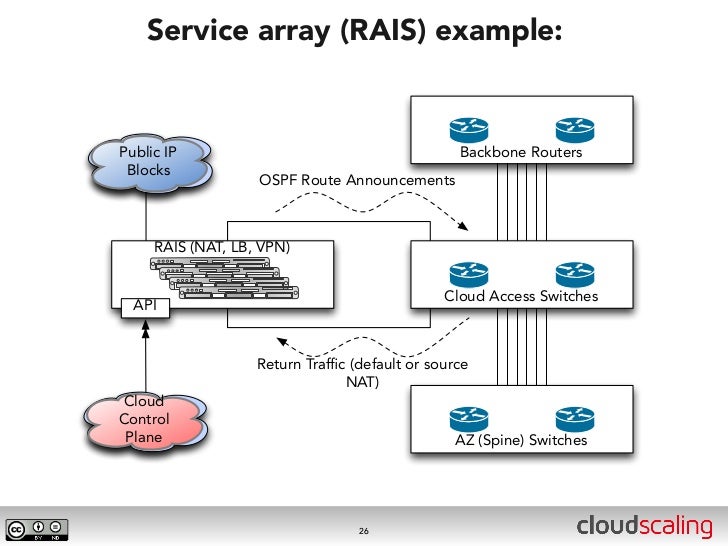

Service array (RAIS) example:


Public IP                                        Backbone Routers
 Blocks
                   OSPF Route Announcements



     RAIS (NAT, LB, VPN)


                                               Cloud Access Switches
  API


                   Return Traffic (default or source
                                NAT)
Cloud
Control
 Plane                                           AZ (Spine) Switches




                                  26
Pattern:

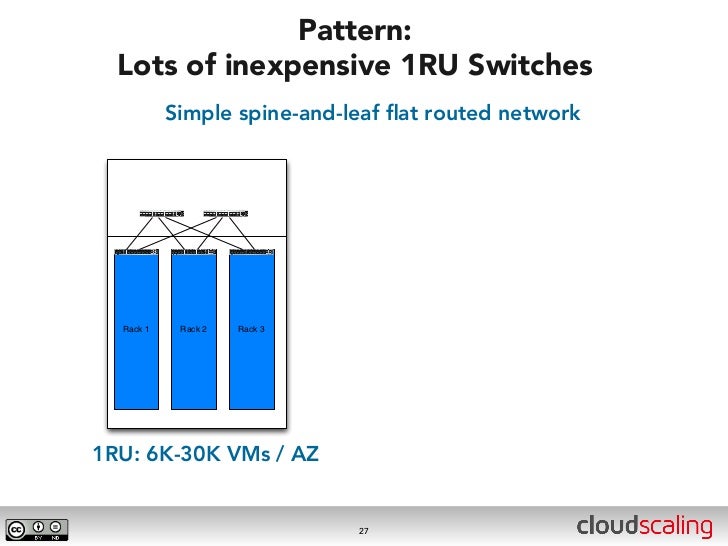

  Lots of inexpensive 1RU Switches
           Simple spine-and-leaf flat routed network




  Rack 1    Rack 2   Rack 3




1RU: 6K-30K VMs / AZ


                              27

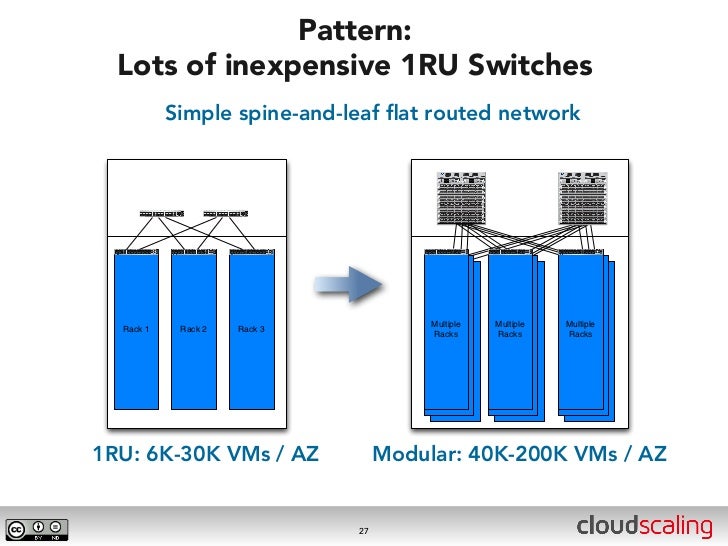

Pattern:
  Lots of inexpensive 1RU Switches
           Simple spine-and-leaf flat routed network




                                        Multiple   Multiple   Multiple
  Rack 1    Rack 2   Rack 3
                                        Racks2
                                         Rack      Racks2
                                                    Rack      Racks2
                                                               Rack
                                          Rack 1     Rack 1     Rack 1




1RU: 6K-30K VMs / AZ               Modular: 40K-200K VMs / AZ


                              27

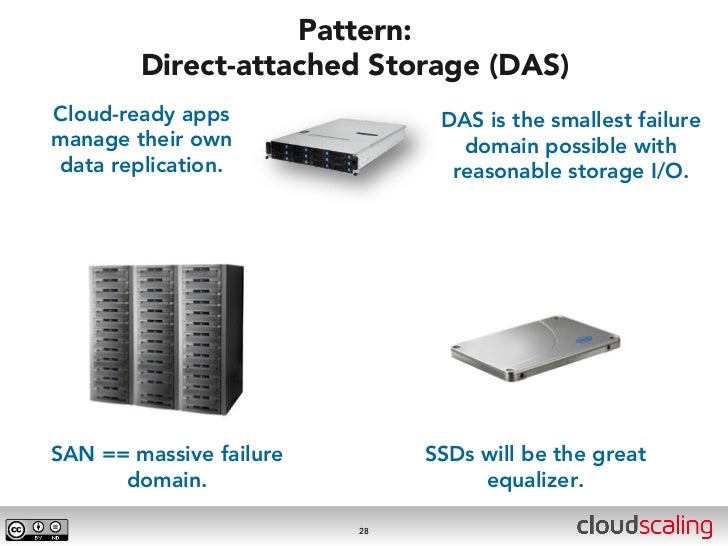

Pattern:
        Direct-attached Storage (DAS)
Cloud-ready apps               DAS is the smallest failure
manage their own                 domain possible with
data replication.               reasonable storage I/O.




SAN == massive failure        SSDs will be the great
      domain.                      equalizer.

                         28

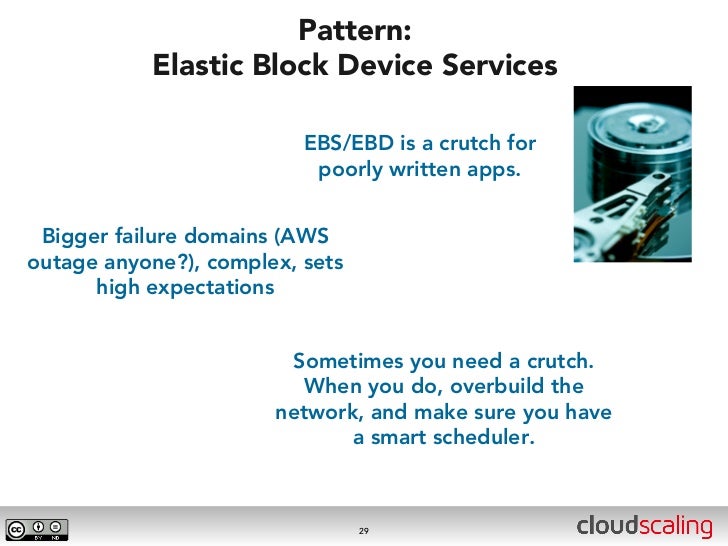

Pattern:
           Elastic Block Device Services

                          EBS/EBD is a crutch for
                           poorly written apps.


 Bigger failure domains (AWS
outage anyone?), complex, sets
      high expectations


                        Sometimes you need a crutch.
                          When you do, overbuild the
                       network, and make sure you have
                              a smart scheduler.



                                 29
Pattern:

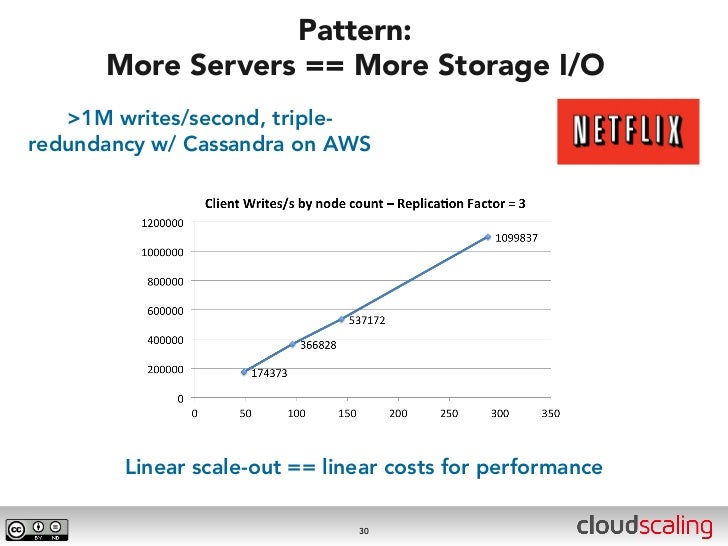

      More Servers == More Storage I/O
   >1M writes/second, triple-
redundancy w/ Cassandra on AWS




        Linear scale-out == linear costs for performance

                               30

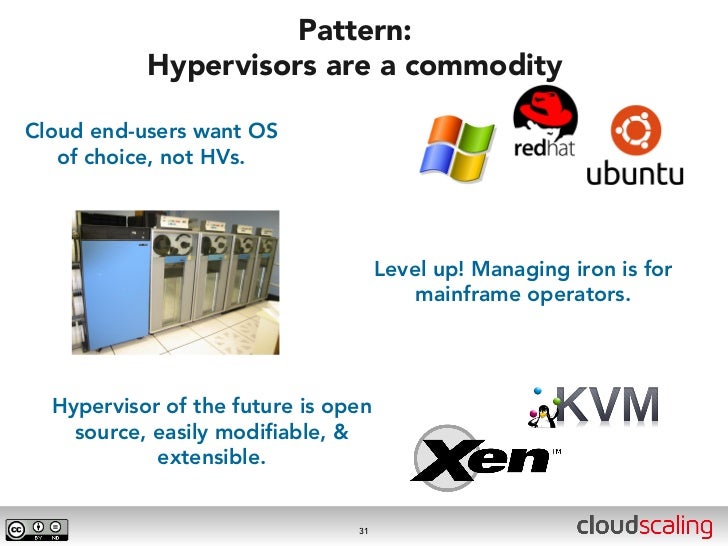

Pattern:
           Hypervisors are a commodity

Cloud end-users want OS
   of choice, not HVs.




                                     Level up! Managing iron is for
                                         mainframe operators.




  Hypervisor of the future is open
    source, easily modifiable, &
            extensible.


                                31
Open Cloud System
Simply Scaled        Production Ready




     randyb@cloudscaling.com
           @randybias




                32
