The document compares several Java IDEs based on their features and suitability for J2EE development. It evaluates Netbeans, Eclipse, IntelliJ IDEA Community Edition, and IntelliJ IDEA Ultimate Edition. It finds that IntelliJ IDEA has the most features out of the box but is commercial. Netbeans and Eclipse are free and also have equivalent J2EE features, though Eclipse may require more plugins. The document concludes that for simplicity Netbeans is best if cost is a concern, while Eclipse is lightweight with good plugin support.

1.
Rajasekar D

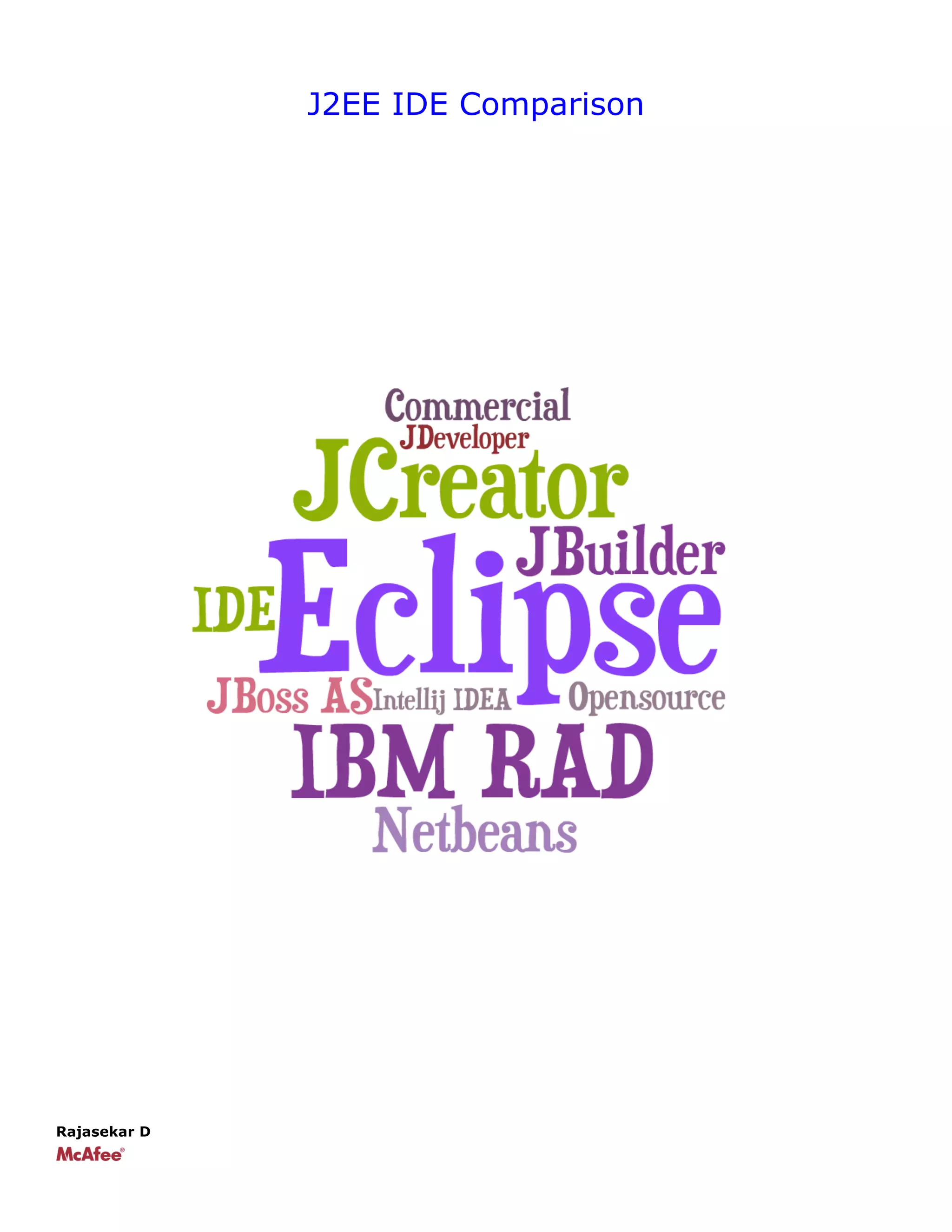

J2EE IDE Comparison

2. 2
IDE
COMPARISON

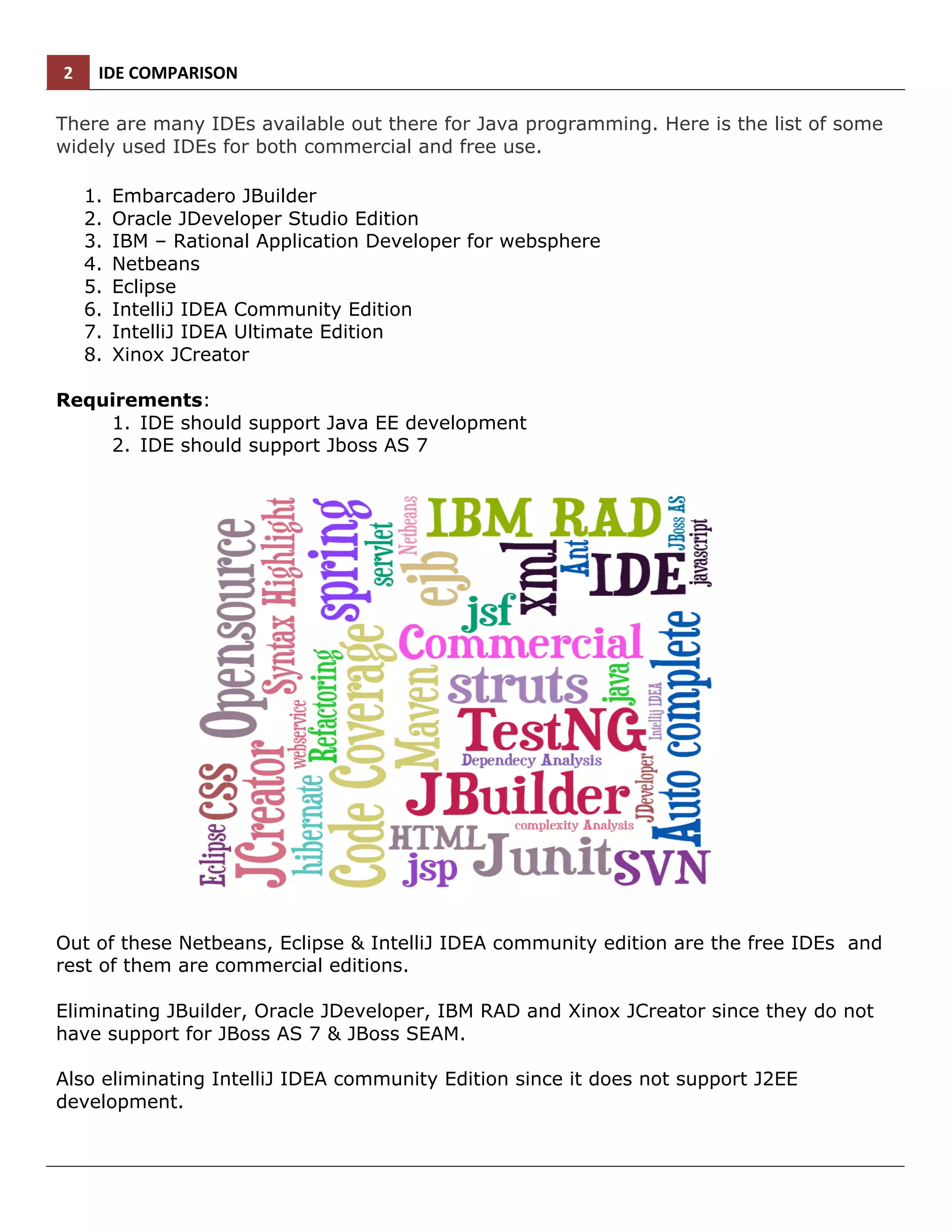

There are many IDEs available out there for Java programming. Here is the list of some
widely used IDEs for both commercial and free use.
1. Embarcadero JBuilder
2. Oracle JDeveloper Studio Edition
3. IBM – Rational Application Developer for websphere
4. Netbeans
5. Eclipse
6. IntelliJ IDEA Community Edition
7. IntelliJ IDEA Ultimate Edition
8. Xinox JCreator
Requirements:
1. IDE should support Java EE development
2. IDE should support Jboss AS 7
Out of these Netbeans, Eclipse & IntelliJ IDEA community edition are the free IDEs and
rest of them are commercial editions.
Eliminating JBuilder, Oracle JDeveloper, IBM RAD and Xinox JCreator since they do not
have support for JBoss AS 7 & JBoss SEAM.
Also eliminating IntelliJ IDEA community Edition since it does not support J2EE
development.

3. IDE
COMPARISON
3
Below is the comparison table based upon the features that are commonly used in J2EE
development. There are lots of other features out of the box, which are not included.
Features Netbeans 7.3
Eclipse 4.3 for
J2EE
IntelliJ Idea
12 Ultimate
Edition
Platforms
Windows ✓ ✓ ✓
Linux ✓ ✓ ✓
Mac ✓ ✓ ✓
Solaris ✓ ✗ ✗
Languages
Java 7 ✓ ✓ ✓
XML/XSD/DTD ✓ ✓ ✓
HTML ✓ ✓ ✓
CSS ✓ ✓ ✓
Javascript ✓ ✓ ✓
Flex/ Action Script ✗ ✗ ✓
GWT ✗ Google plugin ✓
JavaFx ✓
JavaFX tooling
plugin
✓
Editor
Auto Code
Completion
✓ ✓ ✓
Syntax Highlight ✓ ✓ ✓
Live parsing ✓ ✓ ✓
Refactoring ✓ ✓ ✓
Navigation ✓ ✓ ✓
Smart Suggestions ✓ ✓ ✓
Hierarchy Inspection ✓ ✓ ✓
Diff & Merge ✓ ✗ ✓
Code Coverage
Plugin : Code
coverage
Plugin : eclemma ✓
Bytecode Analysis ✓ Plugin : findbugs ✓
Code Complexity
Analysis
Simple Code
Metrics
Plugin :
eclipsemetrics
✓
Dependancy
Analysis (Circular)
✓
Plugin :
jdepend4eclipse
✓

4. 4
IDE
COMPARISON
Source Code
Analysis
✓ Plugin : PMD ✓
J2EE
Java EE Java EE 6 Java EE 6 ✓
JSP ✓
JPA JPA 2.1 JPA 2.1 ✓
JSF JSF 2.2 JSF 2.2 ✓
Servlet Servlet 3.0 Servlet 3.1 ✓
EJB EJB 3.2 EJB 3.2 ✓
JAX-RS JAX-RS 2.0 ✓ ✓
JAX-WS JAX-WS 2.2 ✓ ✓
JAXB JAXB-2.2 ✓ ✓
Framework
Spring(Core, MVC,
WebFlow, Web
Service)
✓ ✓ ✓
Struts ✓ ✓ ✓
Hibernate ✓ ✓ ✓
HPQL ✓ ✗ ✓
Jboss Seam ✓ ✓ ✓
App Server
Jboss support ✓ Plugin ✓
Unit Testing
Junit ✓ ✓ ✓
TestNG ✓ ✓ ✓
Inbuilt Browser ✓ ✓ ✗
Inbuilt Profiler ✓ ✗ ✗
Version Control
SVN ✓ Plugin : SVN ✓
Build Tools
Maven ✓ Plugin : Maven ✓
Ant ✓ ✓ ✓

5. IDE
COMPARISON
5
Pros:
1. Light weight and fast as compared to other IDEs
2. Massive 3rd
Party plugin support.
3. IDE looks amazing, across all systems, and it is quite responsive great interface
overall!
4. Ability to format to your line wrapping width.
5. Refactoring support ascends from heaven! Amazing control over the formatting of
java source code, which can be saved as a profile.
6. Pasting code formats code automatically!
7. Editor tabs can be moved around with drag-and-drop.
8. Have both docked views and fast views (most editors only offer one or the other).
Can double-click editor tabs to expand to full workspace view.
9. Package view has very nice filtering abilities, for what to show/not show (can now
filter closed packages, selected working set).
10. Context aware templates tab/shift-tab to jump to different insertion points
(markers).
Cons:
1. Need to manually install and configure required plugins.
Pros:
1. Power full code completion engine.
2. Inbuilt features. Unlike Eclipse most of the features are inbuilt in IDE.
3. Creating custom tag libraries was very easy, step-by-step process straightforward.
4. View generated source code for JSP.
5. Full JSP tag repository support in JSP editor.
6. Integrated HTTP monitor.
7. Ability to move around tabs. Also tabs don't wrap to next line.
8. Can move around all views, group as tabs, etc. Easy to customize placements, but
doesn't get too complicated like with "workspaces" in eclipse.

6. 6
IDE
COMPARISON
9. Javadoc wizard could come in handy, definitely a cool feature, more than just a
GUI.
10. Block indenting/unindenting function, great for XML/XHTML (hardly need it
with the code reformatting).
11. Integrated database browser, manipulator, easy to setup.
Cons:
1. Slower & Consumes more memory than eclipse since it has all features inbuilt.
2. Bit difficult to understand and get used to GUI
3. Cannot import sources from somewhere else into project, rather you can only
mount them where they are.
Pros
1. Supports lot of features & languages out of the box.
2. Power full code completion, Auto support, Refactoring.
3. Advanced & Easy Graphical Editors
4. All J2EE features are inbuilt.
5. Only IDE that has integrated support for Javascript and JQUery.
6. Simple & Easy to understand Project view.
7. Classic UI themes
8. Extended support for STRUTS configuration.
9. Integrated class browser.
10. Key map hints in UI menus update to reflect current key mappings, not just
the default set.
11. Ant view allows for filtering of targets using a pick list (great for huge build
files).
Cons
1. Commercial Product

7. IDE
COMPARISON
7
Verdict:
All though all the IDE’s has got all the features, when it comes to simplicity,
performance, User Interface and extended support out of the box, IntelliJ IDEA wins the
race.
But if cost is the matter, Netbeans and Eclipse has a tough competition.
Both the IDE's have equivalent features concerning J2EE programming. The election is
mainly a matter of personal preferences
Both have got its own User-Interface style and configurations.
If some one needs an IDE that has all features inbuilt and expects a minimal
configuration then Netbeans is the right choice.
And if installing & configuring is not a deal, Eclipse is the best light weight and fast IDE
with plug and go features.
And there is way to make use of both the IDE’s. Ant or Maven based projects can be
imported and used in any IDE. So instead creating an IDE based Java project, creating
a build tool based project allows it to be used universally.
