Presentation about new concepts and features that came with Android Studio. Advantages over eclipse. Explanation about Gradle. Productivity with Android Studio. Shotcuts migration from Eclipse.

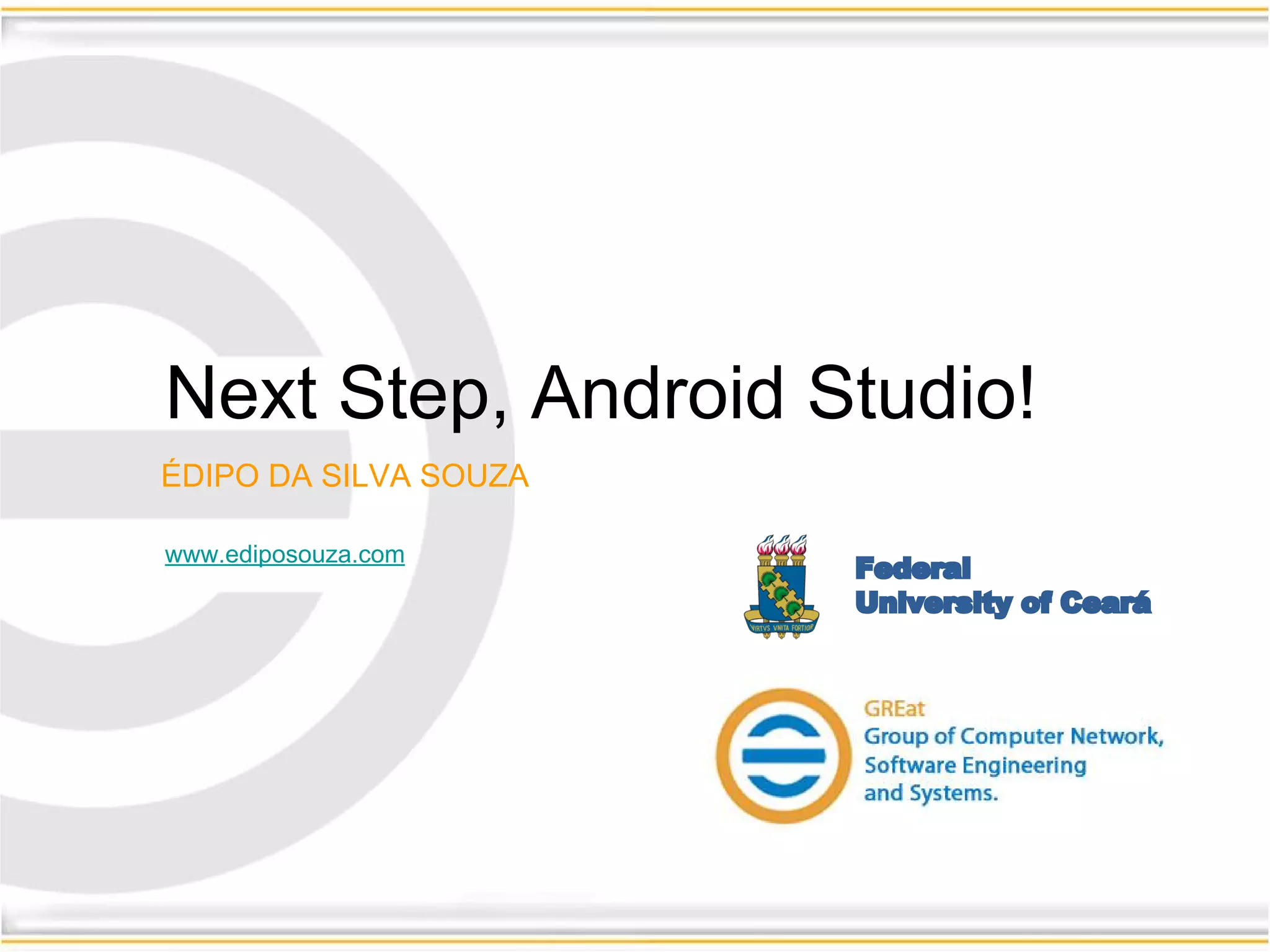

1. Next Step, Android Studio!
Federal University of Ceará
Federal
University of Ceará
ÉDIPO DA SILVA SOUZA
www.ediposouza.com

2. • Introduction
• New Concepts
• Advantages
• Gradle
• The Environment
• Features
• Productivity
Federal University of Ceará
SCHObEjeDtivUoLE

3. Federal University of Ceará
Objetivo
INTRODUCTION
• Google project
• Alpha version 0.1 was announced in Google IO 2013 (May/15)
• Beta version 0.8 was announced in Google IO 2014 (June/25)
• Actual(Nov/18) beta version is 0.8.14
• Actual(Nov/18) canary version is 0.9.3
• Based on JetBrain' IntelliJ IDEA
• Gradle based build system and dependency manager
• Free available for Windows, Mac OS X and Linux
• Support for Java 7 language features

4. NEW CONCEPTS
Federal University of Ceará
Objetivo
• One Project open at time
• New project structure
• Build-in dependency manager
• Dependency (Eclipse jar files in libs)
• Modules (Eclipse project library)

5. Federal University of Ceará
Objetivo
ADVANTAGES
• IntelliJ IDEA is faster and lighter
• Very stable and does not leak memory forcing constant reboots
• No need to constantly clean my projects
• Layout editor tools are vastly improved
• Live layout let you see the UI preview as you type layout XML
• UI previews elements and correspondent layout XML tag are synchronized
• Many news Lint checks
• Better code complete action
• Smart Code Completion
• Integrated console terminal
• Integrated Version Control more efficient
• Can use external merging tool

6. Federal University of Ceará
Objetivo
What???
GRADLE
Gradle is a project automation tool used for Android Studio as build system
and dependency manager.
Cool, but what is a dependency???
Understand how what you know as a library, whether a jar file or a project
marked as ‘is library’. If you project need external sources, it’s a dependency.
Without it...
• We search on google for a jar file, download and put it on libs folder.
• Push the jar files to our remote repository, making it grow up.
• Have some painkiller when us taken a project that use a old jar version (what
we don’t know) and when we put the latest jar version, it broken.

7. Federal University of Ceará
Objetivo
GRADLE
With it!!!
• We just need to indicate the package of the dependence we want.
• We can specify the dependency version or ‘+’ for latest version.
• Gradle search the dependency, download and configure your project to use it.
• With scripted build process, we can customize to add new features.
• Build variants make easy to configure an Internal, Demo, Free, Paid build.
• Export APKs with the version number in the filename
• Run a script when your APK is exported like automatically upload the APK to
TestFlight for internal testing.
After hate it, you will love it!

8. THE ENVIRONMENT
Federal University of Ceará

9. THE ENVIRONMENT
Federal University of Ceará

10. Federal University of Ceará
Objetivo
Better Project Wizard
• Steps better distributed.
• Helper for choose the
Minimum/Maximum SDK level.
• Many Templates.
• Better Template configuration.
FEATURES
Source: http://tools.android.com/recent/androidstudio061released

11. Federal University of Ceará
Objetivo
FEATURES
Android Project View
• Groups the build files for all modules at the
top level of the project hierarchy.
• Shows the most important source directories
at the top level of the module hierarchy.
• Groups all the manifest files for each module.
• Shows resource files from all Gradle source
sets.
• Groups resource files for different locales,
orientations, and screen types in a single
group per resource type.
Source: http://developer.android.com/sdk/installing/studio-androidview.html

12. Federal University of Ceará
Objetivo
FEATURES
New Layout Editor
• You can edit the XML layout and see the
preview at same time.
• Synchronized XML Tag and layout selection.
• Resource inlining like strings and dimens.
• Multi layout and real time preview based in
many device configuration (Language, RTL,
Android version, Screen Size, SDK version).
• Save screenshot from Layout editor preview.
• Support for xliff strings in Layout Rendering.
Source: http://tools.android.com/recent/androidstudiobetareleased

13. Federal University of Ceará
Objetivo
Designtime Layout Attributes
You can edit the XML layout and see the preview at same time.
• text
• visibility
• listitem
• listheader
• listfooter
• menu
• actionBarNavMode
• fastScrollAlwaysVisible
FEATURES
More info: http://tools.android.com/tech-docs/tools-attributes Source: http://tools.android.com/tips/layout-designtime-attributes

14. Federal University of Ceará
Objetivo
FEATURES
Enhanced Code Editor
• Instant Completion
• Context-aware Completion
• Smart code completion search
• Multi-language Refactorings
• Drawable preview in code editor
• Color preview in code editor
• Code visualization simplified
• Resource inline
More info:
● http://www.jetbrains.com/idea/features/refactoring.html
● http://www.jetbrains.com/idea/features/code_completion.html
● http://jetbrains.dzone.com/articles/top-20-code-completions-in-intellij-idea
Source: http://tools.android.com/recent/androidstudio044released

15. Federal University of Ceará
Objetivo
New AVD Manager
• Wizard for AVD creation.
• More integrated to IDE.
• Easy to create a new AVD
base on existence hardware.
• Differents device category.
FEATURES
Source: http://tools.android.com/recent/androidstudio0812released

16. Federal University of Ceará
Objetivo
FEATURES
Library Dependency Editor
• More easy than just type the package.
• Easy search for the library package.
• Google libraries.
• Most commonly requested libraries.
Source: http://tools.android.com/recent/androidstudio045released

17. Federal University of Ceará
Objetivo
Translate Editor
• Multi language at same time.
• Check untranslated strings.
• Quick Inline edit.
• Open it with right click on a file
named "strings.xml".
FEATURES
Source: http://tools.android.com/recent/androidstudio087released

18. Federal University of Ceará
Objetivo
FEATURES
• Integrated terminal console
• Integrated Version control
• Build variants
• Live updated with small patch
• Screen record feature in DDMS
• Drawable preview in code editor (Shapes, Colors, Menus).
• Bitmap rendering in the debugger
• New memory monitor
• Code Checker
• Copyright manager
• Auto import

19. Federal University of Ceará
Objetivo
PRODUCTIVITY
List keyboard shortcuts for common operations.
Source: http://developer.android.com/sdk/installing/studio-tips.html

20. Federal University of Ceará
PRODOUbjeCtivToIVITY
Source: http://developer.android.com/sdk/installing/studio-tips.html

21. Federal University of Ceará
Objetivo
PRODUCTIVITY
Mac OSX Windows/Linux Eclipse (Windows) equivalent Description
● Cmd+ ← Ctrl+Y Ctrl+D Delete line
● Cmd+Shift+ ← Ctrl+shift+ ← - Last edit location
● Cmd+Option+V Ctrl+Alt+V Alt+Shift+L Extract variable
● Cmd+Option+F Ctrl+Alt+F - Extract Field
● Cmd+Option+C Ctrl+Alt+C - Extract constant
● Cmd+Option+P Ctrl+Alt+P - Extract param
● Cmd+Option+M Ctrl+Alt+M Alt+Shift+M Extract Method
● Cmd+Option+T Ctrl+Alt+T Alt+Shift+Z Surround with
● Cmd+Option+/ Ctrl+Shift+/ Ctrl+Shift+/ Block Comment
● Cmd+/ Ctrl+/ Ctrl+Shift+C Inline Comment
● Cmd+P Ctrl+P Ctrl+Shift+Space Show method params
● Cmd+1 Alt+1 Alt+Shift+Q, P Show/hide Project view
● Cmd+ + Ctrl+ + - Expand block
● Cmd+ - Ctrl+ - - Contract block
● Cmd+J Ctrl+J - Live template

22. Federal University of Ceará
Objetivo
PRODUCTIVITY
Mac OSX Windows/Linux Eclipse (Windows) equivalent Description
● Cmd+K Ctrl+K Ctrl+# Commit vcs changes
● Cmd+T Ctrl+T - Update vcs changes
● Ctrl+V Ctrl+ ` - Version Control popup
● Ctrl+Enter Alt+Insert Ctrl+Shift+S Generate popup
● Ctrl+Tab Ctrl+Tab - Next tab
● Ctrl+Shift+Tab Ctrl+Shift+Tab - Previous tab
● Ctrl+R Shift+F10 Ctrl+F11 Run app
● Ctrl+D Shift+F9 F11 Debug app
● Ctrl+O Ctrl+O - Override method
● Ctrl+Up Alt+Up Ctrl+Shift+Up Navigate next method
● Ctrl+Down Alt+Down Ctrl+Shift+Down Navigate previous method
● Crtl+Option+O Ctrl+Alt+O Ctrl+Shift+O Organize imports
● Option+Space Ctrl+Shift+I - Quick definition
● Option+Enter Alt+Enter Ctrl+1 Quick Fix
● Shift+F6 Shift+F6 Alt+Shift+R Rename refactoring

23. Federal University of Ceará
Objetivo
PRODUCTIVITY
Android Studio have many many keyboard shortcuts, to learn some of the most useful, check the Philippe
Breault work on Google+ and his blog.
• https://plus.google.com/u/0/+PhilippeBreault/posts
• https://github.com/pavlospt/Android-Studio-Tips-by-Philippe-Breault/wiki
• http://www.developerphil.com/android-studio-tips-of-the-day-roundup-1/
• http://www.developerphil.com/android-studio-tips-of-the-day-roundup-2/

24. Federal University of Ceará
Thank you!!!
Contact:
edipo2s@gmail.com
More info:
http://ediposouza.com/iniciando-com-o-android-studio?lang=en
