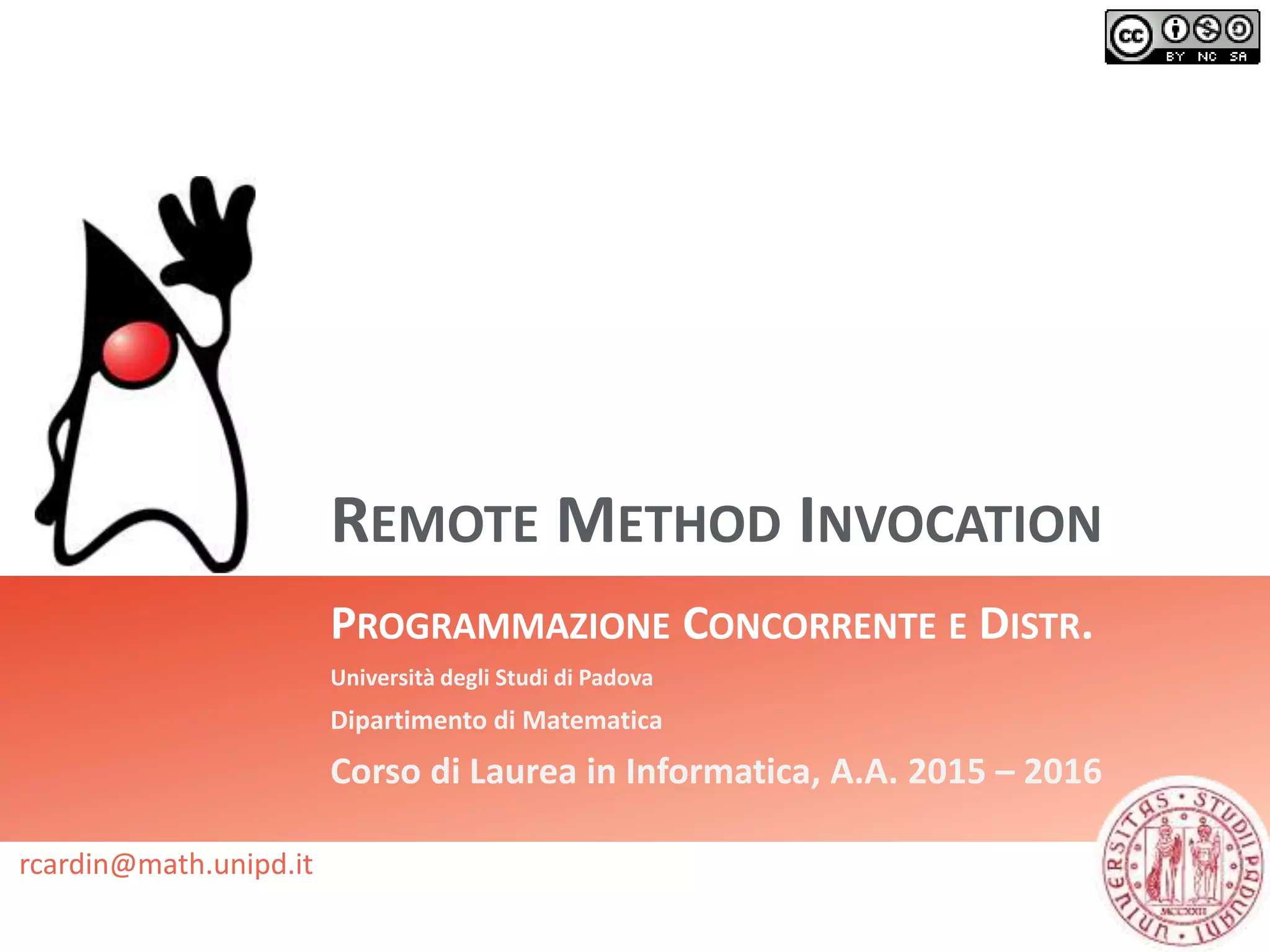

Java - Remote method invocation

REMOTE METHOD INVOCATION
PROGRAMMAZIONE CONCORRENTE E DISTR.
Università degli Studi di Padova
Dipartimento di Matematica
Corso di Laurea in Informatica, A.A. 2015 – 2016
rcardin@math.unipd.it

Programmazione concorrente e distribuita

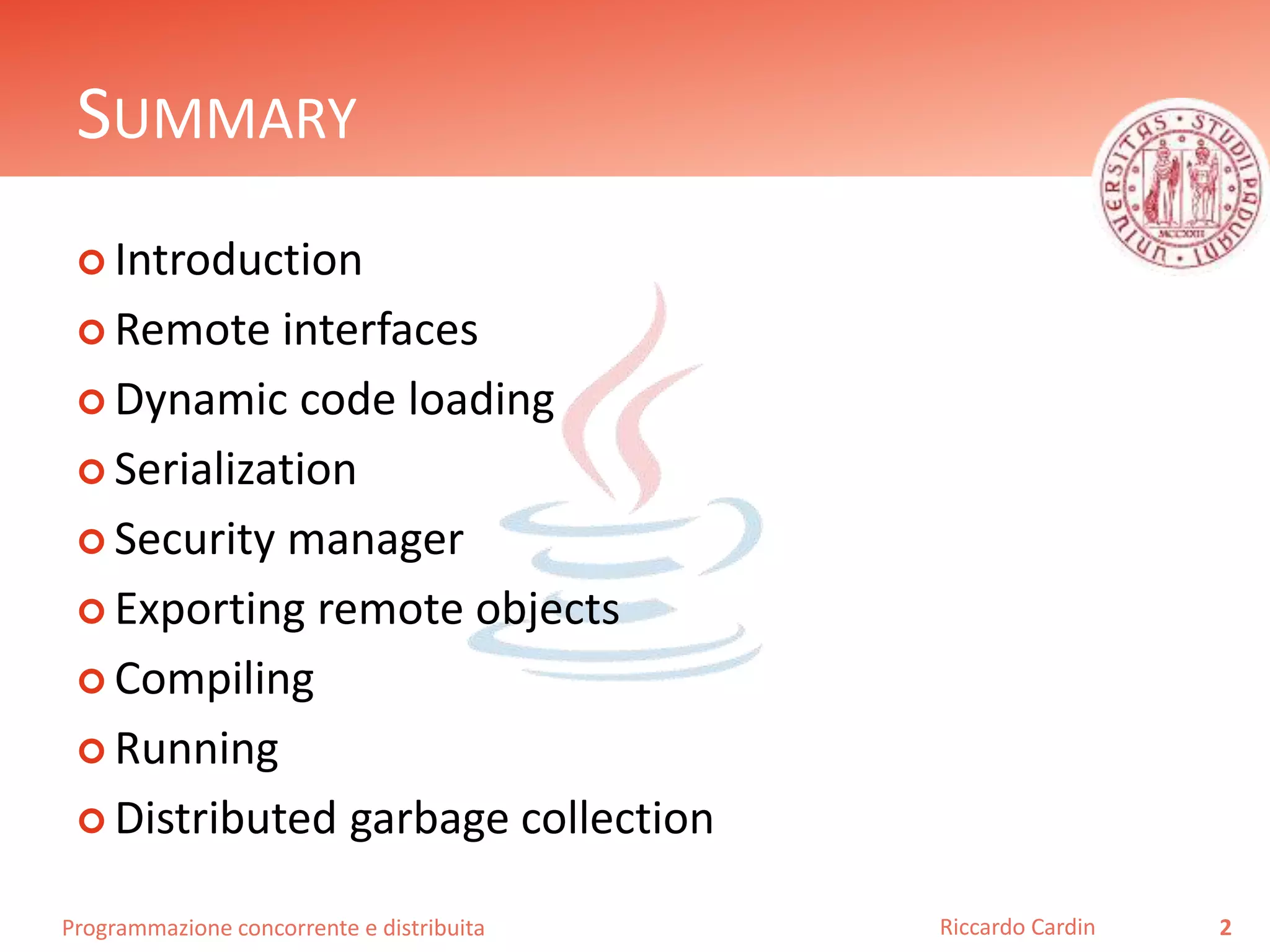

SUMMARY
 Introduction
 Remote interfaces
 Dynamic code loading
 Serialization
 Security manager
 Exporting remote objects
 Compiling
 Running
 Distributed garbage collection
2Riccardo Cardin

INTRODUCTION
 RMI allows applications to call object methods
located remotely
 A server program creates some remote objects
 A client program obtains a remote reference and
then invokes methods on them
 Distributed object application
 Sharing resources, processing load across systems
 RMI provides mechanism by which the server and the
client communicate
 Using low level communication (i.e. sockets) is harder and
less performing
 Serialization has a cost and its difficult to share some state
3Riccardo Cardin

INTRODUCTION
 Distributed object applications need to do the
following
 Locate remote objects
 Application can register its remote objects with RMI's simple
naming facility, the RMI registry
 Communicate with remote objects
 Details of communication between remote objects are
handled by RMI
 Load class definitions for objects that are passed
around
 RMI provides mechanisms for loading an object's class
definitions as well as for transmitting an object's data
4Riccardo Cardin

INTRODUCTION
5Riccardo Cardin
1
2
3
4
5
6
Client side Server side

CREATING DISTRIBUTED APPLICATIONS
 Developing a distributed application using RMI
involves these general steps:
 Designing and implementing the components
 Defining the remote interfaces
 Implementing the remote objects
 Implementing the clients
 Compiling sources
 Making classes network accessible
 Typically a web server is used for this purpose
 Starting the application
 Registry, server, client, ...
6Riccardo Cardin

CREATING DISTRIBUTED APPLICATIONS
7Riccardo Cardin

REMOTE INTERFACES
 Distributed application are made up of remote
interfaces and classes
 Objects with methods that can be invoked across Java
virtual machines are called remote objects.
 A remote interfaces has the following characteristics
 Extends the interface java.rmi.Remote
 Each method of the interface
declares java.rmi.RemoteException in its throws clause
 Remote objects are treated like an object reference
 A local representation (remote stub) is sent to other JVMs
 Implementation of the Remote proxy pattern
 Any other object is copied before being sent
8Riccardo Cardin

REMOTE INTERFACES
 Each interface defines a specific protocol
 It’s important to clearly separate methods’ interfaces
from their implementation
 Methods of an interface that extends Remote can be
invoked from another JVM
 Remote methods MUST throw a RemoteException
 A checked exception used to indicate either a communication
failure or a protocol error
 Remote interfaces are defined server side
9Riccardo Cardin
// The interface implements java.rmi.Remote and its unique method
// throws a java.rmi.RemoteException
public interface Compute extends Remote {
<T> T executeTask(Task<T> t) throws RemoteException;
}

REMOTE INTERFACES
 A remote interface must be implemented
 The implementing class can declare more methods,
but these will not be seen by the clients
 Parameters of remote methods follow these rules:
 Remote objects are passed by reference. Changes made
remotely are reflected in the original remote object
 A stub is a proxy to the remote object that communicates
with the original remote object
 Local objects are passed by copy, using serialization
 Changes are not propagated back in any way
10Riccardo Cardin
public class ComputeEngine implements Compute {
// Implement at least remote methods
}

REMOTE INTERFACES
11Riccardo Cardin

DYNAMIC CODE LOADING
 Interfaces that are not marked as remote must
be serializable
 Type that are not marked as remote are passed by
copy, using serialization
 Use java.io.Serializable has a marked interface
 The implementation will be dinamically downloaded
by RMI into the host JVM
 This is possibile beacuse all objects are written in Java
12Riccardo Cardin
// This is not a remote intefaces, but it is used in the protocol
// defined by a remote method. It’s implementation must implement
// also the Serializable interface
public interface Task<T> {
T execute();
}

SERIALIZATION
 Representation of an object as a sequence of
bytes, that includes data as well as type
 The process is JVM independent
 Serialization process uses the stream API
 ObjectInputStream and ObjectOutputStream types
 Deserialization is the opposite process
 The type must implement java.io.Serializable
 All fields in the class must be serializable. If a field is not, it
must be marked as transient
 Transient fields are not serialized and are lost intentionally
 A transient variable cannot be final or static
 Serialization is used by RMI, EJB and so on
13Riccardo Cardin

SECURITY MANAGER
 Defines the outer boundaries of the sandbox for
downloaded (untrusted) code
 It descends from class java.lang.SecurityManager
 Security policies specify actions that are unsafe
 Accept or open a socket from/to a host and port
 Modify a thread (change its priority, ...)
 Interact with file system
 Interact with system properties
 Exit an application
 For every unsafe action there is a corresponding
checkXXX method
 Actions not allowed throw a SecurityException
14Riccardo Cardin

SECURITY MANAGER
 RMI programs must install a security manager
 Otherwise RMI will not download classes
 Only one security manager can be installed
 By default, an application has no security manager installed
 Policies are specified using *.policy files
 Server and client application must specify their policy file
 Default file: java.home/lib/security/java.policy
 Use -Djava.security.policy property specify a file
15Riccardo Cardin
if (System.getSecurityManager() == null) {
System.setSecurityManager(new SecurityManager());
}
grant codeBase "file:/home/ann/src/" {
permission java.security.AllPermission;
};

SECURITY MANAGER
16Riccardo Cardin

EXPORTING REMOTE OBJECTS
 Remote objects need to be exported to the RMI
runtime
 Exporting means create stub objects that expose the
remote methods to clients
 Stub is the client placeholder for the remote object
 The stub implements the remote interface
 It is a remote proxy to the remote object
 2° arg to exportObject is the listening port for incoming
connection
17Riccardo Cardin
Compute engine = new ComputeEngine();
// Listening to port 0 means to listen on every port
Compute stub =
(Compute) UnicastRemoteObject.exportObject(engine, 0);

18Riccardo Cardin

 RMI Registry: a remote map for other remote
objects, indexed by names
 The server register a remote object (stub), the client
retrieve it using the same name
 The java.rmi.Naming type provides methods for
storing and obtaining references to remote objects
 Available methods are bind, unbind and rebind
 The name argument specifies the host and port of the registry
 The object represents the remote object (stub) to expose to
clients
19Riccardo Cardin
// Name is a string that represents an URL without the scheme
// //host:port/name
Naming.bind(name, object)

 RMI Registry
 The creation and lookup of a new Registry can be
done using the type LocateRegistry
 A registry is a remote object binded to a fixed name
 This type offers also an API to interact with the registry
 For security reasons, an application can bind an object with a
registry running on the same host
 Using the lookup method, a client can retrieve a stub
20Riccardo Cardin
// Retrieves the default registry listening on port 1099
Registry registry = LocateRegistry.getRegistry();
// Asks the registry to bind a stub to a name
registry.rebind(name, stub);
// The name was the same used to bind the object
Compute comp = (Compute) registry.lookup(name);

21Riccardo Cardin
A client looks up from the
RMI registry a stub binded
to a name
A server bind a stub to a
specific name in a RMI
registry
The client calls remote
methods, passing
serializable type as
arguments
1
2
3

COMPILING
 Compilation of an RMI program requires a series
of different steps
 Create an archive (JAR) with remote interfaces
 This archive will be shared across server and clients
 The above jar needs to be shared with the registry
 Definitions that can be automatically downloaded
have to be placed in a public folder
 For example, use an HTTP web server for this purpose
 Build server classes
22Riccardo Cardin
javac compute/Compute.java compute/Task.java
jar cvf compute.jar compute/*.class
javac -cp c:homeannpublic_htmlclassescompute.jar
engineComputeEngine.java

COMPILING
 Compilation of an RMI program requires a series
of different steps
 Build client classes
 The Task interface needs to be public accessible
 The client needs also the jar of remote interfaces
 Defining security policies for server and clients
 Create a *.policy file for each actor, specifying which
actions are allowed to be performed by the downloaded code
23Riccardo Cardin
javac -cp /home/jones/public_html/classes/compute.jar
client/ComputePi.java client/Pi.java
cp client/Pi.class /home/jones/public_html/classes/client
grant codeBase "file:/home/ann/src/" {
permission java.security.AllPermission;
};

RUNNING
 Starting the server components
 Start the RMI registry, given with the JDK platform
 Start the server program
 Use java.rmi.server.codebase to specify the location of
remote interfaces archive
 Use java.rmi.server.hostname to specify the host for
stubs exported from the server JVM
 By default RMI uses the the IP address of the host
 Use java.security.policy to specify the policy file
24Riccardo Cardin
start rmiregistry 1099 :: By default the registry run on port 1099
java -cp c:homeannsrc;c:classescompute.jar
-Djava.rmi.server.codebase= file:/c:/classes/compute.jar
-Djava.rmi.server.hostname=mycomputer.example.com
-Djava.security.policy=server.policy engine.ComputeEngine

RUNNING
 Starting the client component
 Start the client program
 Use java.rmi.server.codebase to specify the location of
client’s interfaces implementation
 Use java.security.policy to specify the policy file
 The host name of the server can be supplied as an argument
of the program
25Riccardo Cardin
java -cp c:homejonessrc;c:classescompute.jar
-Djava.rmi.server.codebase=file:/c:/classes/
-Djava.security.policy=client.policy
client.ComputePi mycomputer.example.com 45

RUNNING
26Riccardo Cardin
The registry search the stub
implementation into the web
server
The implementation of client
interfaces are loaded by the
server from the public codebase

RUNNING
27Riccardo Cardin

DISTRIBUTED GARBAGE COLLECTION
 RMI uses a reference-counting algorithm
 Keeps track of all live references within each JVM
 The first reference to a remote object sends a “referenced”
message to the server for that object. Reference count is
incremented
 As live references are found to be unreferenced in local JVM,
the count is decremented. When the last reference has been
discarded, an unreferenced message is sent
 When a remote object is not referenced by any client, the
RMI runtime refers to it using a weak reference
 Due to connection delays, it is possible that
premature collection of remote object will occur
 A reference to this object will thrown a RemoteException
28Riccardo Cardin

EXAMPLES
29Riccardo Cardin
https://github.com/rcardin/pcd-snippets

REFERENCES
 The Java Tutorials: RMI
https://docs.oracle.com/javase/tutorial/rmi/
 The Java Tutorials: Security Manager
https://docs.oracle.com/javase/tutorial/essential/environment/sec
urity.html
 Java security: How to install the security manager and customize
your security policy
http://www.javaworld.com/article/2077067/core-java/java-
security---how-to-install-the-security-manager-and-customize-your-
security-policy.html
 Default Policy Implementation and Policy File Syntax
http://docs.oracle.com/javase/7/docs/technotes/guides/security/P
olicyFiles.html
30Riccardo Cardin

REFERENCES
 Java RMI : What is the role of the stub-skeleton that are generated
by the rmic compiler
http://stackoverflow.com/questions/16886889/java-rmi-what-is-
the-role-of-the-stub-skeleton-that-are-generated-by-the-rmic
 Java – Serialization
http://www.tutorialspoint.com/java/java_serialization.htm
 Garbage Collection of Remote Objects
https://docs.oracle.com/javase/8/docs/platform/rmi/spec/rmi-
arch4.html
31Riccardo Cardin

Java - Remote method invocation

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (16)

Similar to Java - Remote method invocation

Similar to Java - Remote method invocation (20)

More from Riccardo Cardin

More from Riccardo Cardin (7)

Recently uploaded

Recently uploaded (20)

Java - Remote method invocation
