This document discusses techniques for continuous database migration. It introduces Carbon5, an open source database migration framework. Carbon5 works by having each schema change stored as a separate SQL script file. It tracks which changes have been applied to prevent duplicate executions. The document contrasts Maven-driven and embedded modes of using Carbon5. With Maven-driven, migrations run as Maven goals; with embedded, a bean handles migrations on application startup. Best practices discussed include feature-based script organization and avoiding direct database changes outside the framework. Alternatives like Flyway and NoSQL migration approaches are also briefly covered.

1. Continuous DB migration
Boris Trofimov
@b0ris_1
www.btrofimoff.com

2. Agenda
 Dealing with changes
 Perfect solution or Continuous DB migration
 Carbon5 Introduction
 Maven-driven mode
 Embedded mode
 Pros/Cos and best practices

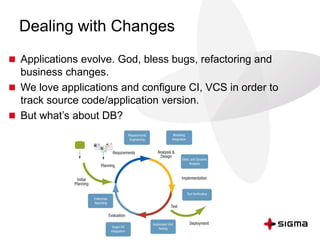

3. Dealing with Changes
 Applications evolve. God, bless bugs, refactoring and
business changes.
 We love applications and configure CI, VCS in order to
track source code/application version.
 But what’s about DB?

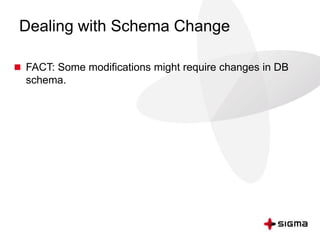

4. Dealing with Schema Change
 FACT: Some modifications might require changes in DB
schema.

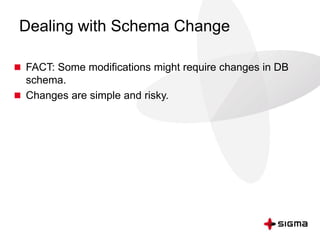

5. Dealing with Schema Change
 FACT: Some modifications might require changes in DB
schema.
 Changes are simple and risky.

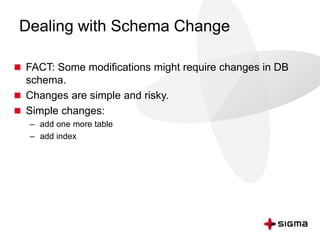

6. Dealing with Schema Change
 FACT: Some modifications might require changes in DB
schema.
 Changes are simple and risky.
 Simple changes:
– add one more table
– add index

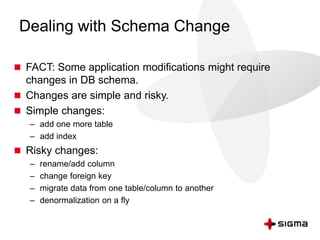

7. Dealing with Schema Change
 FACT: Some application modifications might require
changes in DB schema.
 Changes are simple and risky.
 Simple changes:
– add one more table
– add index
 Risky changes:
– rename/add column
– change foreign key
– migrate data from one table/column to another
– denormalization on a fly

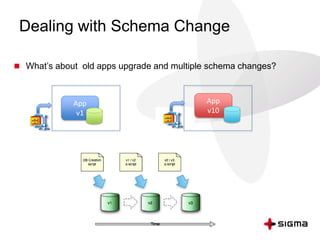

8. Dealing with Schema Change
 What’s about old apps upgrade and multiple schema changes?
App
v1
App
v10

9. The Impact
 Risks to lose data
 Painful downtime
 Risks to break application (see #1 and #2)
 Resources, efforts and budget

10. Friday’s deployment in some teams

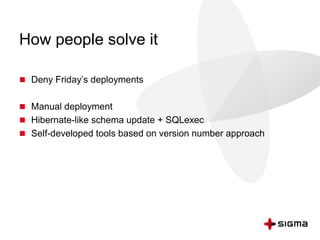

11. How people solve it
 Deny Friday’s deployments
 Manual deployment
 Hibernate-like schema update + SQLexec
 Self-developed tools based on version number approach

12. Perfect solution
 Dedicated reusable framework
 Every Feature request leads to separated SQL migration script.
 Framework tracks which changes were not applied and applies
them.
 Configurable time to launch apply procedure
 Prevent Double changes
 Have Change Log
 Simple integration to existent project

13. Continuous DB Migration approach
min + automatic migration = Continuous DB Migration

14. Carbon V

15. Why Carbon V
 DB-migration framework
 Open Source project
 Lightweight framework
 Simple usage

16. How it works
 Dedicated project folder for SQL migration scripts. This folder
should be available when framework takes control.
 Each SQL migration script is pure SQL/DDL file with migration
SQL code for specific feature
 Each Delta file should have name
YYYYMMDDHHMMSS_<FEATURE>.sql
 When framework take control it checks and applies only new
changes.
 C5 uses own JDBC connection.
 Way to re-usue existent DataSources with connection params

17. No magic, just…
 C5 creates own table “schema_version” inside your database
 C5 controls this table by itself (no needs to create or update).
sql_file_name date duration
201405170900_user_auth.sql 2014-05-17
13:00:00
8 sec
201404130400_award_4565.sql 2014-04-14
14:00:00
6 sec

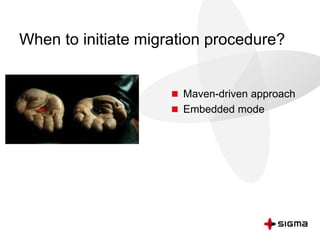

18. When to initiate migration procedure?
 Maven-driven approach
 Embedded mode

19. Maven-driven mode

20. Maven-driven mode

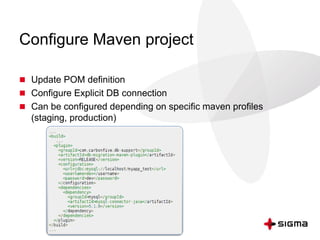

21. Configure Maven project
 Update POM definition
 Configure Explicit DB connection
 Can be configured depending on specific maven profiles
(staging, production)

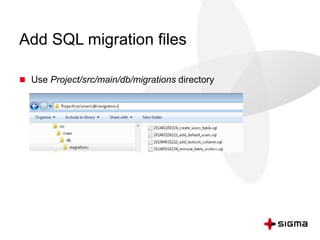

22. Add SQL migration files
 Use Project/src/main/db/migrations directory

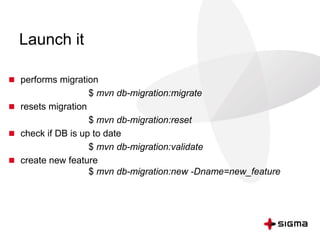

23. Launch it
 performs migration
$ mvn db-migration:migrate
 resets migration
$ mvn db-migration:reset
 check if DB is up to date
$ mvn db-migration:validate
 create new feature
$ mvn db-migration:new -Dname=new_feature

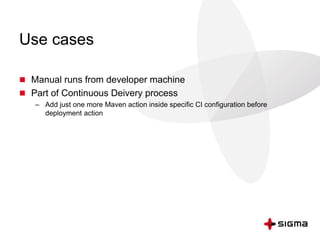

24. Use cases
 Manual runs from developer machine
 Part of Continuous Deivery process
– Add just one more Maven action inside specific CI configuration before
deployment action

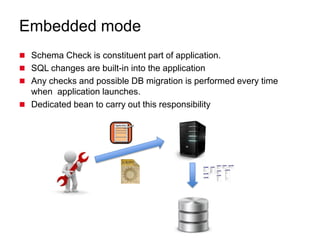

25. Embedded mode

26. Embedded mode
 Schema Check is constituent part of application.
 SQL changes are built-in into the application
 Any checks and possible DB migration is performed every time
when application launches.
 Dedicated bean to carry out this responsibility

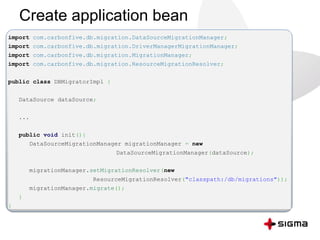

27. Create application bean
import com.carbonfive.db.migration.DataSourceMigrationManager;
import com.carbonfive.db.migration.DriverManagerMigrationManager;
import com.carbonfive.db.migration.MigrationManager;
import com.carbonfive.db.migration.ResourceMigrationResolver;
public class DBMigratorImpl {
DataSource dataSource;
...
public void init(){
DataSourceMigrationManager migrationManager = new
DataSourceMigrationManager(dataSource);
migrationManager.setMigrationResolver(new
ResourceMigrationResolver("classpath:/db/migrations"));
migrationManager.migrate();
}
}

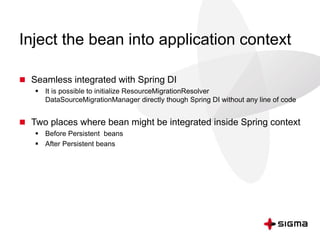

28. Inject the bean into application context
 Seamless integrated with Spring DI
 It is possible to initialize ResourceMigrationResolver
DataSourceMigrationManager directly though Spring DI without any line of code
 Two places where bean might be integrated inside Spring context
 Before Persistent beans
 After Persistent beans

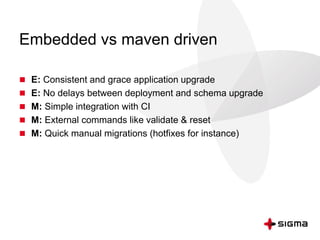

29. Embedded vs maven driven
 E: Consistent and grace application upgrade
 E: No delays between deployment and schema upgrade
 M: Simple integration with CI
 M: External commands like validate & reset
 M: Quick manual migrations (hotfixes for instance)

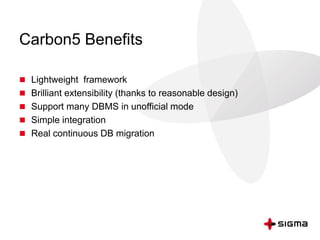

30. Carbon5 Benefits
 Lightweight framework
 Brilliant extensibility (thanks to reasonable design)
 Support many DBMS in unofficial mode
 Simple integration
 Real continuous DB migration

31. Need more features?

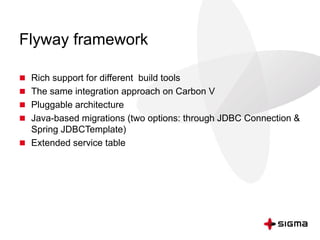

33. Flyway framework
 Rich support for different build tools
 The same integration approach on Carbon V
 Pluggable architecture
 Java-based migrations (two options: through JDBC Connection &
Spring JDBCTemplate)
 Extended service table

34. Best practices
 Feature driven development (each SQL feature change in own
file)
 Make sql files safe in order to prevent it from double execution
 Keep database connection settings in single place (use shared
DataSource)
 Do not make structure changes to the DB outside of your
framework

35. What’s about schemaless
?

37. NoSQL migration approach
 No dedicated explicit migration procedure (solved on business
level in case of needs)
 No shutdown or downtime
 Rolling update
– Every domain entity has version number
– your v2 application should handle the v1 db format
– Write code to convert entity to v2 on a fly (repository level)
– Write modified entities to v2 on demand
 Some DBs like RavenDB are able to perform auto-migration

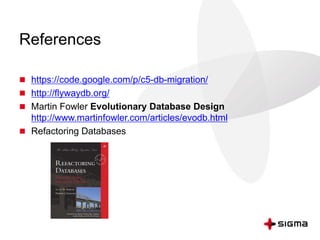

38. References
 https://code.google.com/p/c5-db-migration/
 http://flywaydb.org/
 Martin Fowler Evolutionary Database Design
http://www.martinfowler.com/articles/evodb.html
 Refactoring Databases

39. Presentation in a nutshell
 Keep in mind this problem
 Do not invent wheels, use external frameworks/techniques
 And do not be afraid of Friday’s deployment then.

40. Thank you!
Q&A
