Utilizing MySQL as a document store and storing data in NO SQL fashion it is not only possible, but it also brings the advantages of NO SQL operations together with the power of a relational database. Combining this two aspects it is possible to get fast access to data for applications which want to benefit of the simplicity of NO SQL, but also it is possible to benefit of the granularity of SQL operations for analytics and insights. In the end, using MySQL as a document store, NO SQL take the meaning of Not Only SQL!

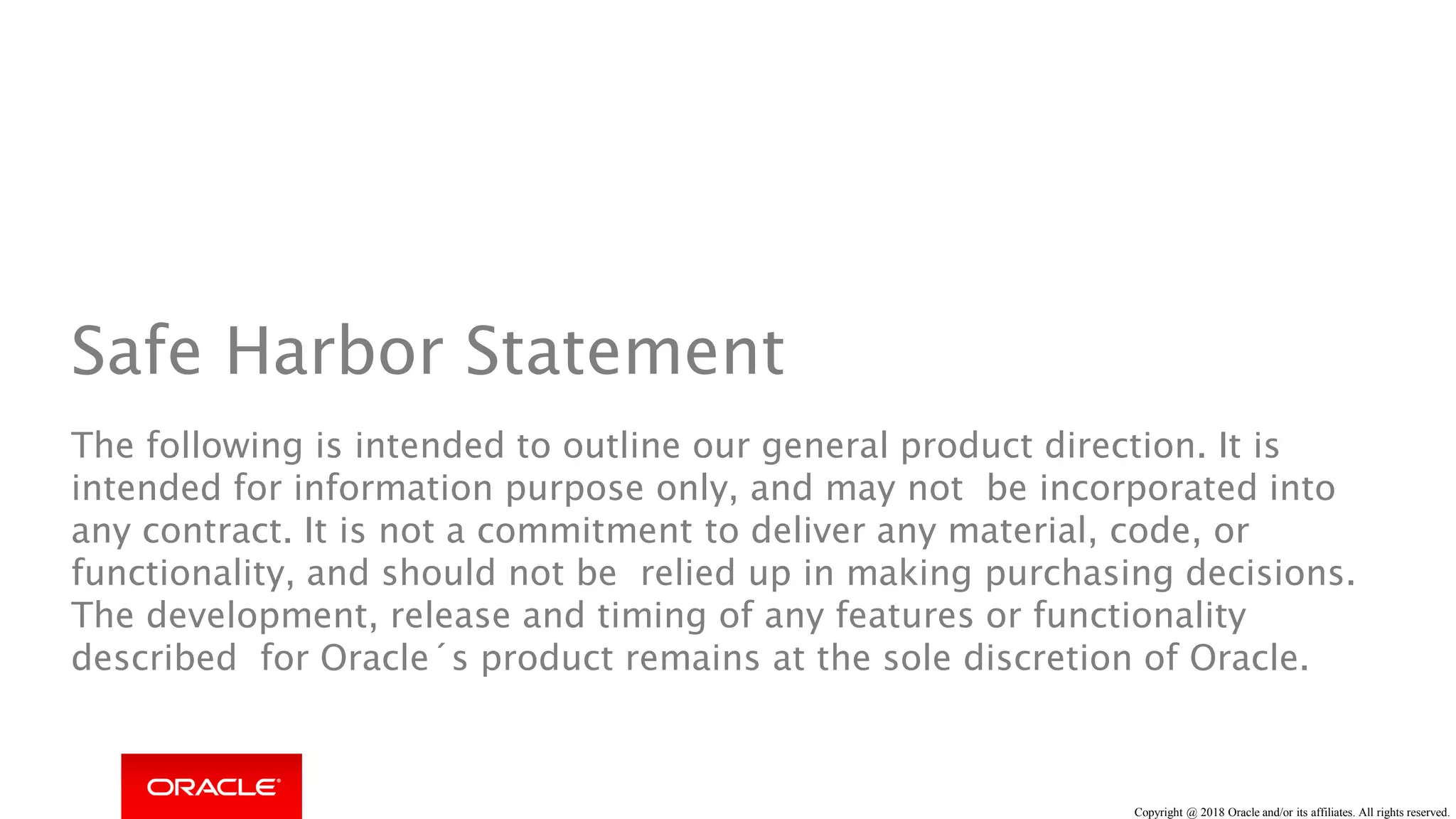

2. Safe Harbor Statement
The following is intended to outline our general product direction. It is
intended for information purpose only, and may not be incorporated into
any contract. It is not a commitment to deliver any material, code, or
functionality, and should not be relied up in making purchasing decisions.
The development, release and timing of any features or functionality
described for Oracle´s product remains at the sole discretion of Oracle.
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
3. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
Agenda
• Relational vs NoSQL databases
• MySQL Document Store: the solution
• Takeaways
• Demo
4. RDBMS & MySQL
Relational vs NoSQL databases
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
5. Relational Databases
Data Integrity
normalization
constraints (foreign keys, ...)
Atomicity, Consistency, Isolation, Durability
ACID compliant
transactions
SQL
powerfull query language
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
6. Schemaless
no schema design, no normalization, no foreign keys, no data types, ...
very quick initial development
Flexible data structure
embedded arrays or objects
valid solution when natural data can´t be
modeled optimally into a relational model
objects persistence without the use of any ORM - mapping object-oriented
JSON
close to frontend
native in JS
easy to learn
NoSQL or Document Store
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
7. How DBAs see data How Developers see data
{
"GNP" : 249704,
"Name" : "Belgium",
"government" : {
"GovernmentForm" :
"Constitutional Monarchy, Federation",
"HeadOfState" : "Philippe I "
} ,
"_id" : "BEL",
"IndepYear" : 1830,
"demographics" : {
"Population" : 10239000,
"LifeExpectancy" : 77.8000030517578
} ,
"geography" : {
"Region" : "Western Europe",
"SurfaceArea" : 30518,
"Continent" : "Europe"
}
}
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
8. DMBS or NoSQL ?
Why not both ?
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
9. The MySQL Document Store !
SQL is now optional !
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
10. A solution for all
34 / 112
Developers:
[✔] Schemaless or/and Schema
[✔] Rapid Prototyping/Simpler APIs
[✔] Document Model
[✔] Transactions
Operations:
[✔] Performance Management/Visibility
[✔] Robust Replication, Backup, Restore
[✔] Comprehensive Tooling Ecosystem
[✔] Simpler application schema upgrades
Business Owner:
[✔] Don’t lose my data = ACID transactions
[✔] Capture all my data = Extensible/Schemaless
[✔] Products On Schedule/Time to Market = Rapid Development
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
11. MySQL Document Store
the Solution
35 / 112
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
12. 35 / 112
MySQL Document Store
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
13. X DevAPI Connectors for
C++, Java, .Net, Node.js, Python, PHP
working with Communities
New MySQL Shell
Command Completion
Python, JavaScript & SQL modes
Admin functions
New Util object
A new high-level session concept that can scale from
single MySQL Server to a multiple server environment
Non-blocking, asynchronous calls follow common
language pat erns
Supports CRUD operations
37 / 112
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
14. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
MySQL Documents and Collections
• Collections are containers for documents
– These documents share a purpose
– Possibly share one or more indexes
– Each collection has a unique name
– Exists within a single schema
• Within a Collection you can
– Add(), Find(), Modify(), and Remove() - JSON documents
• Collections can be
– Create(), List(), Drop()
15. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
Operation Document Relational
Create Collection.add() Table.insert()
Read Collection.find() Table.select()
Update Collection.modify() Table.update()
Delete Collection.remove() Table.delete()
• Use SQL, CRUD APIs – Document (NoSQL) and Relational (SQL), or “All of the Above”
– All of this is in addition to the Classic APIs
MySQL X DevAPI included in Shell and Connectors
16. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
It relies on the proven MySQL InnoDB’s strength & robustness:
• innodb_flush_log_at_trx_commit = 1
• innodb_doublewrite = ON
• sync_binlog = 1
• transaction_isolation = REPEATABLE-READ | READ-COMMITTED | ...
We do care about your data!
MySQL Document Store is Full ACID
ACID transactions = Don’t lose my data
17. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
MySQL Shell 8.0.11+
MySQL
Server 5.7
MySQL 8.0
Upgrade Checker
Prompt Themes
Auto Completion
&
Command History
MySQL
Server 8.0
Document Store
X DevAPI
InnoDB ClusterSQL CLI
Output Formats
(Table, JSON, Tabbed)
Batch Execution
JavaScript
Python
SQL
18. MySQL Document Store: Architecture
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
19. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
MySQL X devAPI connector for:
• Java
https://insidemysql.com/connector-j-8-0-11-the-face-for-your-brand-new-document-oriented-database/
• .NET
https://insidemysql.com/introducing-connector-net-with-full-support-for-mysql-8-0/
• Node.JS
https://insidemysql.com/introducing-connector-node-js-for-mysql-8-0/
• C++
https://insidemysql.com/what-is-new-in-connector-c-8-0/
• Python
https://insidemysql.com/using-mysql-connector-python-8-0-with-mysql-8-0/
• PHP
https://insidemysql.com/introducing-the-mysql-x-devapi-php-extension-for-mysql-8-0/
• ODBC
https://insidemysql.com/what-is-new-in-connector-odbc-8-0/
https://insidemysql.com/mysql-8-0-welcome-to-the-devapi/
Write application using X DevAPI
20. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
what do I gain ?
Takeaways
21. This is the best of the two worlds in one product !
Data integrity
ACID Compliant
Transactions
SQL
schemaless
flexible data structure
easy to start (CRUD)
Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
22. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
Resources
Topic Link(s)
MySQL as a Document Store https://dev.mysql.com/doc/refman/8.0/en/document-store.html
MySQL Shell User Guide https://dev.mysql.com/doc/mysql-shell-excerpt/8.0/en/index.html
MySQL Shell Documentation https://dev.mysql.com/doc/dev/mysqlsh-api-javascript/8.0/
https://dev.mysql.com/doc/dev/mysqlsh-api-python/8.0/
X Dev API User Guide https://dev.mysql.com/doc/x-devapi-userguide/en/
X Plugin https://dev.mysql.com/doc/refman/8.0/en/x-plugin.html
MySQL Engineering Blog https://insidemysql.com/mysql-8-0-welcome-to-the-devapi/
https://insidemysql.com/mysql-document-store-crud-quick-start/
MySQL JSON Data Type https://dev.mysql.com/doc/refman/8.0/en/json.html
Blogs http://dasini.net/blog/2015/11/17/30-mins-avec-json-en-mysql/
http://dasini.net/blog/2015/11/30/json-et-colonnes-generees-avec-mysql
http://mysqlserverteam.com/tag/json/
http://mysqlserverteam.com/category/docstore/
22
23. Copyright @ 2018 Oracle and/or its affiliates. All rights reserved.
