1. Distributed, Robust Software
Made Easy
Introducing the
JActor Cluster Platform
Bill La Forge, CTO
JActor Consulting Pvt. Ltd
laforge49@gmail.com
http://jactorconsulting.com

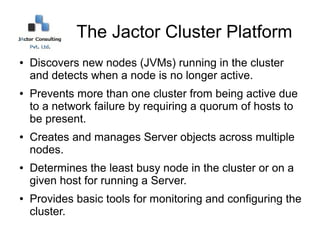

2. The Jactor Cluster Platform
● Discovers new nodes (JVMs) running in the cluster
and detects when a node is no longer active.
● Prevents more than one cluster from being active due
to a network failure by requiring a quorum of hosts to
be present.
● Creates and manages Server objects across multiple
nodes.
● Determines the least busy node in the cluster or on a
given host for running a Server.
● Provides basic tools for monitoring and configuring the
cluster.

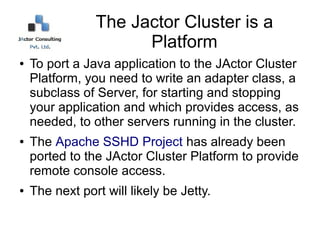

3. The Jactor Cluster is a
Platform
● To port a Java application to the JActor Cluster
Platform, you need to write an adapter class, a
subclass of Server, for starting and stopping
your application and which provides access, as
needed, to other servers running in the cluster.
● The Apache SSHD Project has already been
ported to the JActor Cluster Platform to provide
remote console access.
● The next port will likely be OSGi.

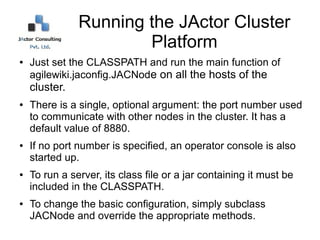

4. Running the JActor Cluster
Platform
● Just set the CLASSPATH and run the main function of
agilewiki.jaconfig.JACNode on all the hosts of the
cluster.
● There is a single, optional argument: the port number used
to communicate with other nodes in the cluster. It has a
default value of 8880.
● If no port number is specified, an operator console is also
started up.
● To run a server, its class file or a jar containing it must be
included in the CLASSPATH.
● To change the basic configuration, simply subclass
JACNode and override the appropriate methods.

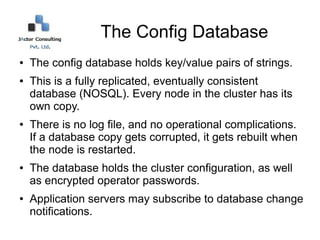

5. The Config Database
● The config database holds key/value pairs of strings.
● This is a fully replicated, eventually consistent
database (NOSQL). Every node in the cluster has its
own copy.
● There is no log file, and no operational complications.
If a database copy gets corrupted, it gets rebuilt when
the node is restarted.
● The database holds the cluster configuration, as well
as encrypted operator passwords.
● Application servers may subscribe to database change
notifications.

6. Cluster Commands (1)
● help lists the cluster commands.
● halt exits the local node.
● who lists the operators that are logged in
across the cluster.
● broadcast sends a message to all users.
● write {name} {msg} sends the msg to an
operator.

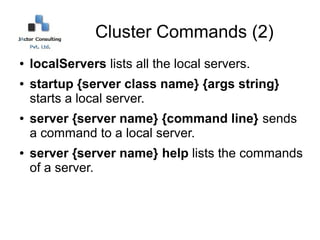

7. Cluster Commands (2)
● localServers lists all the local servers.
● startup {server class name} {args string}
starts a local server.
● server {server name} {command line} sends
a command to a local server.
● server {server name} help lists the commands
of a server.

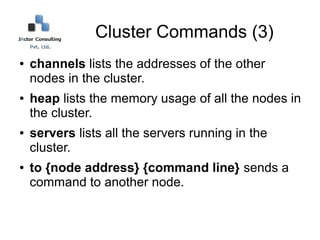

8. Cluster Commands (3)
● channels lists the addresses of the other
nodes in the cluster.
● heap lists the memory usage of all the nodes in
the cluster.
● servers lists all the servers running in the
cluster.
● to {node address} {command line} sends a
command to another node.

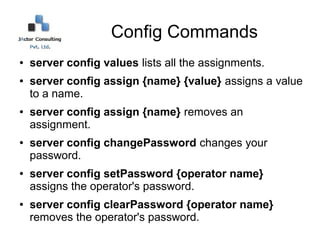

9. Config Commands
● server config values lists all the assignments.
● server config assign {name} {value} assigns a value
to a name.
● server config assign {name} removes an
assignment.
● server config changePassword changes your
password.
● server config setPassword {operator name}
assigns the operator's password.
● server config clearPassword {operator name}
removes the operator's password.

10. Quorum
● A cluster is not active unless it has a quorum of hosts.
This prevents multiple clusters from running with
inconsistent state due to a networking failure.
● The value quorum.totalHostCount must be set in the
config database. The quorum is calculated as
totalHostCount / 2 + 1.
● Example: server config assign
quorum.totalHostCount 5 requires a quorum of 3.
● With a totalHostCount of 5, the cluster will remain
active even if 2 hosts are down.

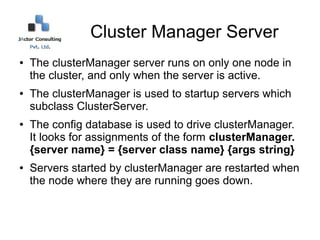

11. Cluster Manager Server
● The clusterManager server runs on only one node in
the cluster, and only when the server is active.
● The clusterManager is used to startup servers which
subclass ClusterServer.
● The config database is used to drive clusterManager.
It looks for assignments of the form clusterManager.
{server name} = {server class name} {args string}
● Servers started by clusterManager are restarted when
the node where they are running goes down.

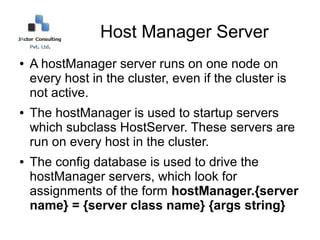

12. Host Manager Server
● A hostManager server runs on one node on
every host in the cluster, even if the cluster is
not active.
● The hostManager is used to startup servers
which subclass HostServer. These servers are
run on every host in the cluster.
● The config database is used to drive the
hostManager servers, which look for
assignments of the form hostManager.{server
name} = {server class name} {args string}

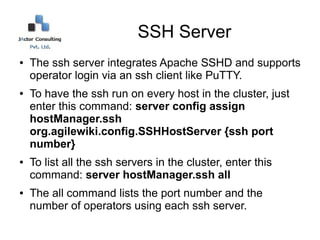

13. SSH Server
● The ssh server integrates Apache SSHD and supports
operator login via an ssh client like PuTTY.
● To have the ssh run on every host in the cluster, just
enter this command: server config assign
hostManager.ssh
org.agilewiki.config.SSHHostServer {ssh port
number}
● To list all the ssh servers in the cluster, enter this
command: server hostManager.ssh all
● The all command lists the port number and the
number of operators using each ssh server.
