- 1. So#ware Defined Networks using OpenContrail Kraków 2014
- 2. Outline • Why – Data-‐center architectures – Networking challenges • How – SDN – Cloud orchestraDon -‐ OpenStack – OpenContrail architecture • Discussion
- 3. Datacenter architecture server server server server server server server server server server server server Clos network

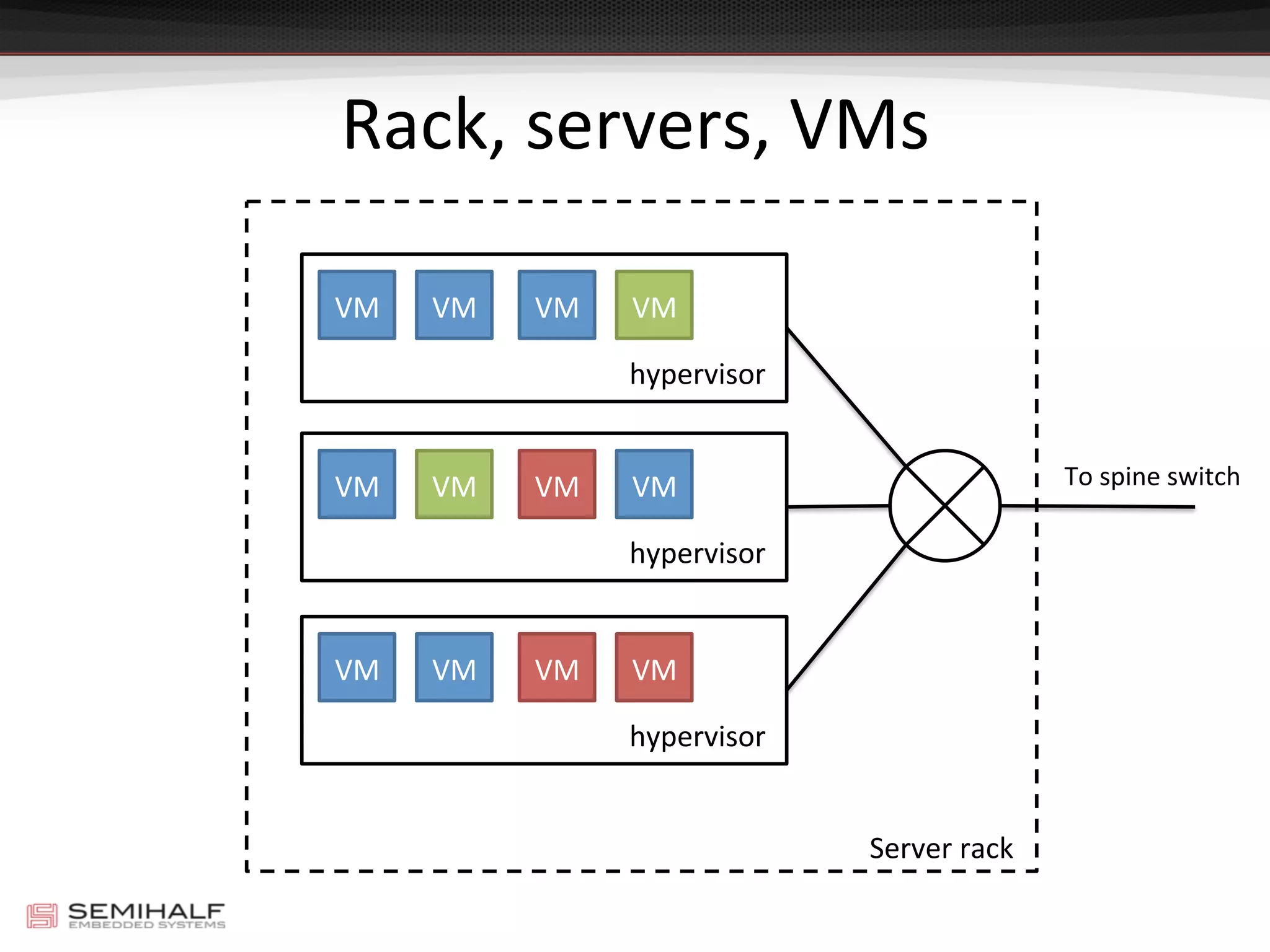

- 4. Rack, servers, VMs VM VM VM VM hypervisor VM VM VM VM hypervisor VM VM VM VM hypervisor Server rack To spine switch
- 5. ObservaDons • Majority of network endpoints are virtual • Network isolaDon between them has to be available • While using the same physical network

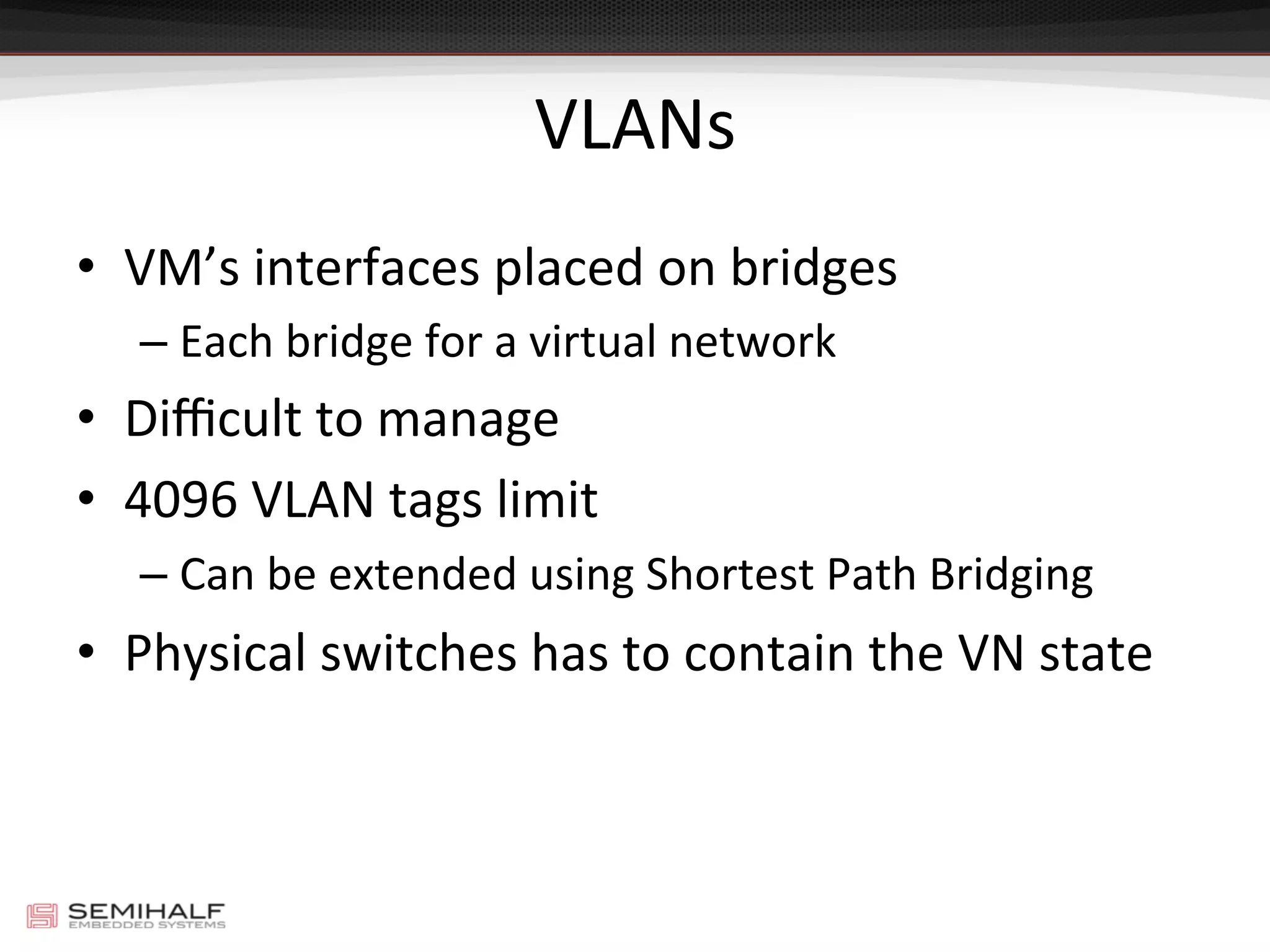

- 6. VLANs • VM’s interfaces placed on bridges – Each bridge for a virtual network • Difficult to manage • 4096 VLAN tags limit – Can be extended using Shortest Path Bridging • Physical switches has to contain the VN state
- 7. VM migraDon example VM1 VM2 Server 1 VM3 VM4 VM5 Server 2 VM6 VM7 VM8 Server 3 VM9 Physical switch Virtual networks: 1 2 3
- 8. VM migraDon example VM1 VM2 Server 1 VM3 VM4 VM5 Server 2 VM6 VM7 VM8 Server 3 VM9 Physical switch Virtual networks: 1 2 3 VM9 Payload Eth + VLAN tag + IP

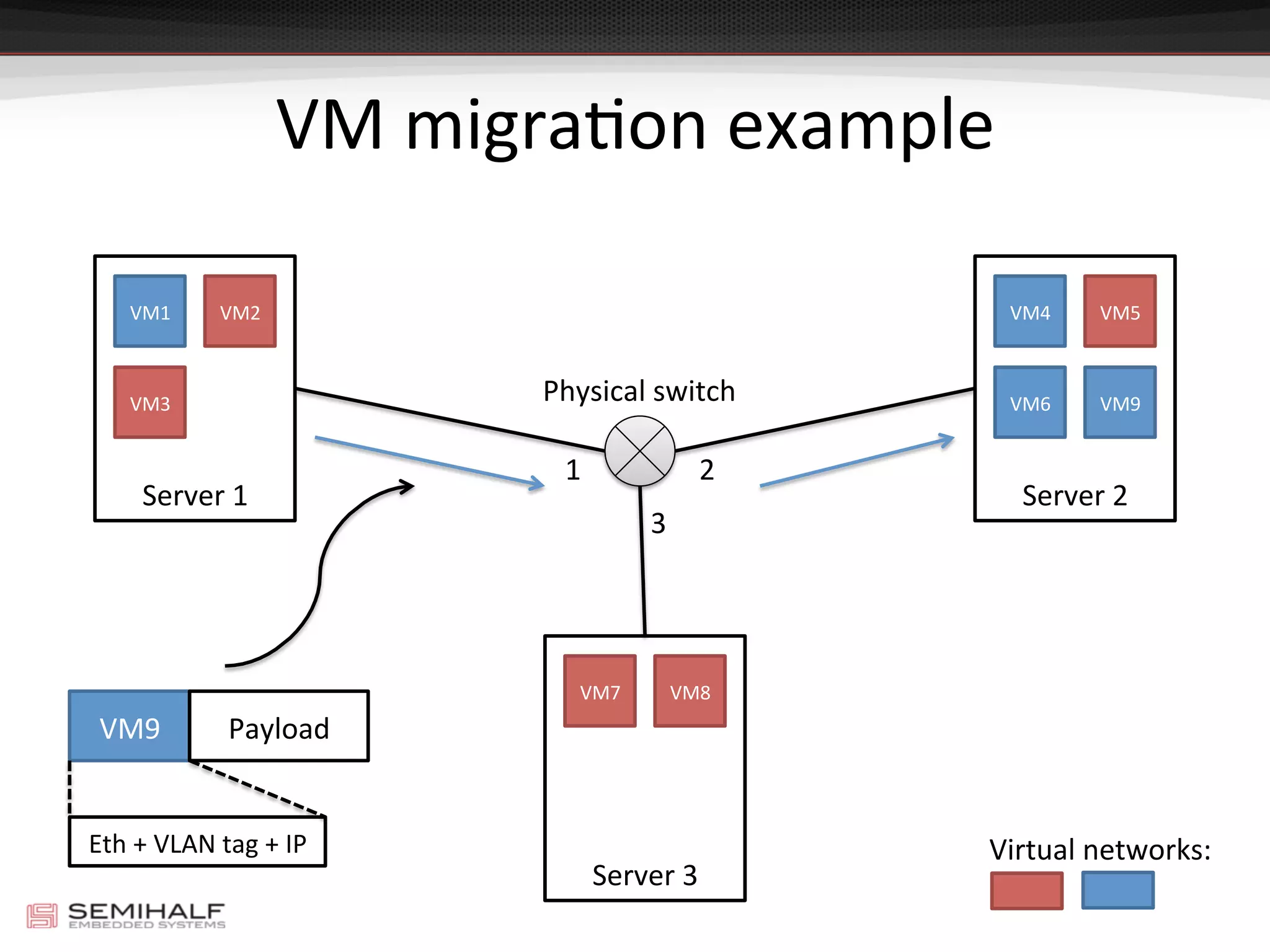

- 9. VM migraDon example VM1 VM2 Server 1 VM3 VM4 VM5 Server 2 VM6 VM7 VM8 Server 3 VM9 Physical switch Virtual networks: 1 2 3 VM9 Payload Eth + VLAN tag + IP
- 10. Centralized configuraDon server server server server server server server server server server server server Lot of switches

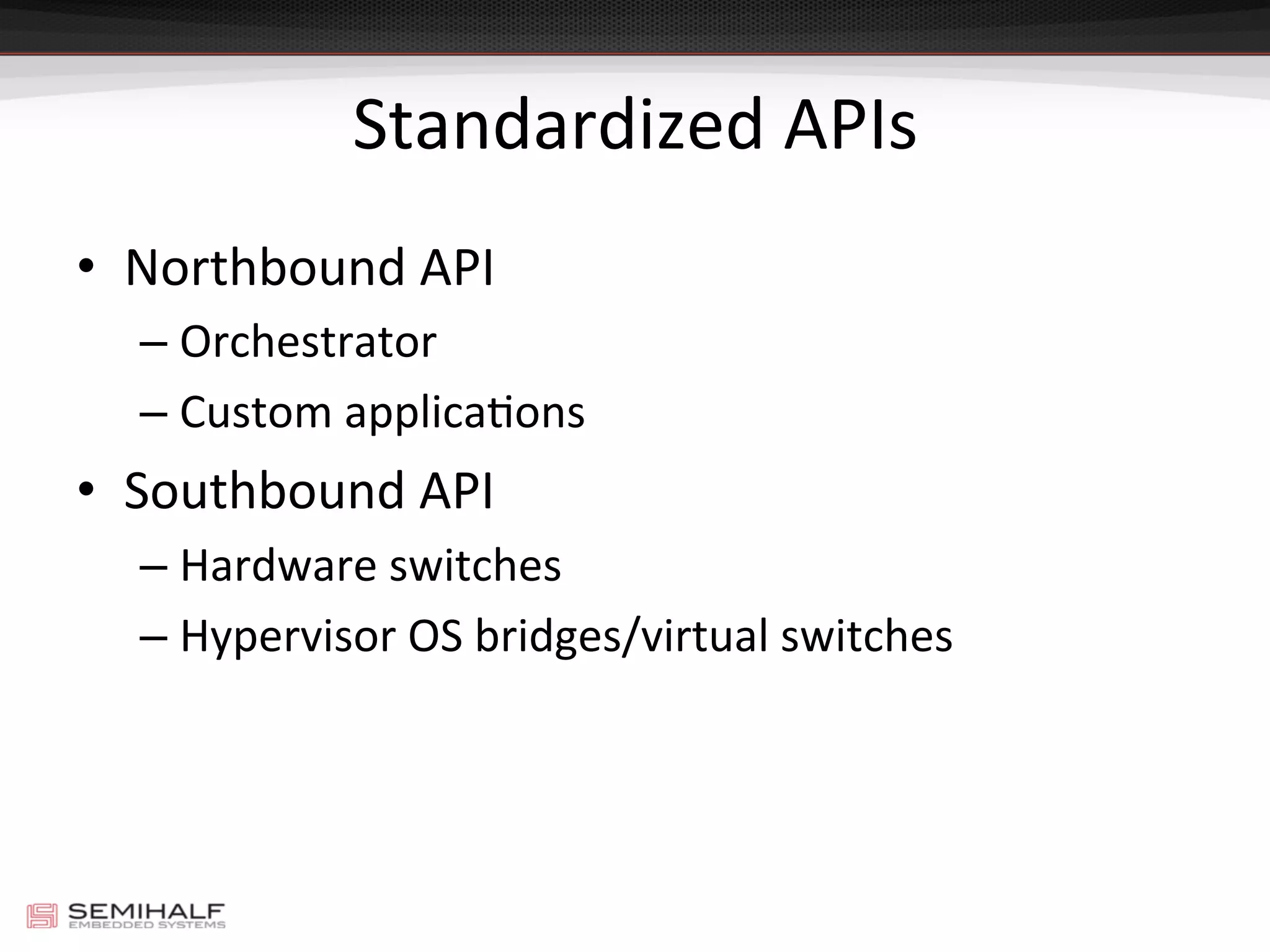

- 11. Standardized APIs • Northbound API – Orchestrator – Custom applicaDons • Southbound API – Hardware switches – Hypervisor OS bridges/virtual switches

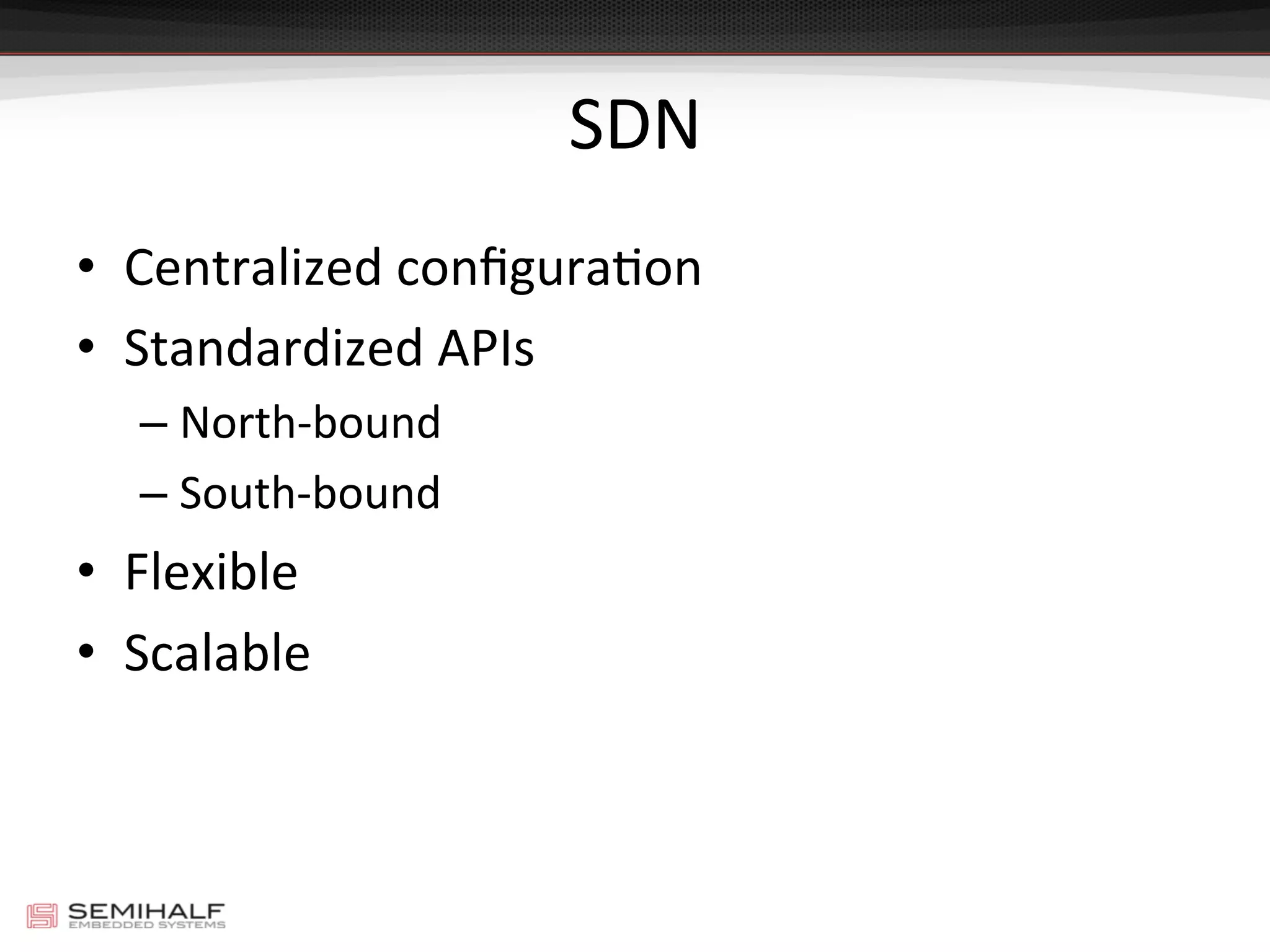

- 12. SDN • Centralized configuraDon • Standardized APIs – North-‐bound – South-‐bound • Flexible • Scalable
- 13. OpenFlow • Defines both northbound and southbound APIS • Assumes “dummy” cheap switches – Only forwarding tables – Managed via API by the controller • Considered the enabler of SDN – Not true actually
- 14. OpenFlow server server server OpenFlow hardware swithes VM VM VM VM In-‐hypervisor so#ware switch
- 15. Overlay networking • “Old” technology, new for data-‐centers • Physical underlay network – IP fabric – No tenant state • Virtual overlay network – Tenant state – Dynamic tunnels (MPLSoGRE, VXLAN, etc.)
- 16. VM migraDon example VM1 VM2 Server 1 VM3 VM4 VM5 Server 2 VM6 VM7 VM8 Server 3 VM9 Physical switch Virtual networks: 1 2 3 S3 VM9 Payload Physical network:
- 17. VM migraDon example VM1 VM2 Server 1 VM3 VM4 VM5 Server 2 VM6 VM7 VM8 Server 3 VM9 Physical switch Virtual networks: 1 2 3 S2 VM9 Payload Physical network:

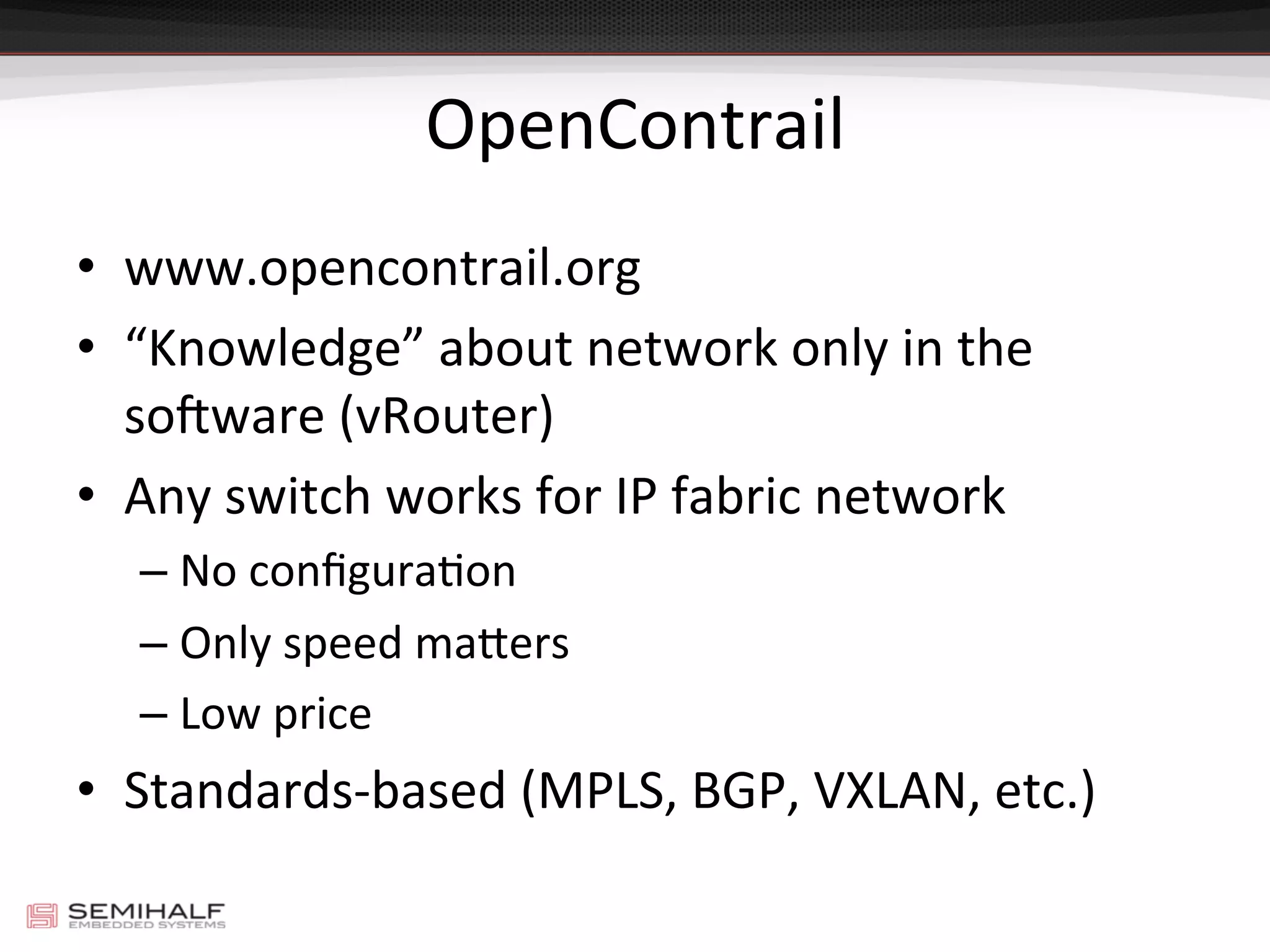

- 18. OpenContrail • www.opencontrail.org • “Knowledge” about network only in the so#ware (vRouter) • Any switch works for IP fabric network – No configuraDon – Only speed majers – Low price • Standards-‐based (MPLS, BGP, VXLAN, etc.)
- 19. Cloud orchestraDon • OpenStack • “Massively scalable cloud operaDng system” • Aims to manage – Compute (Nova) – Storage (Swi#, Cinder) – Network (Neutron) • Separates configuraDon and compute nodes
- 20. SDN in cloud orchestraDon Source: www.opencontrail.org
- 21. Architecture overview Source: www.opencontrail.org

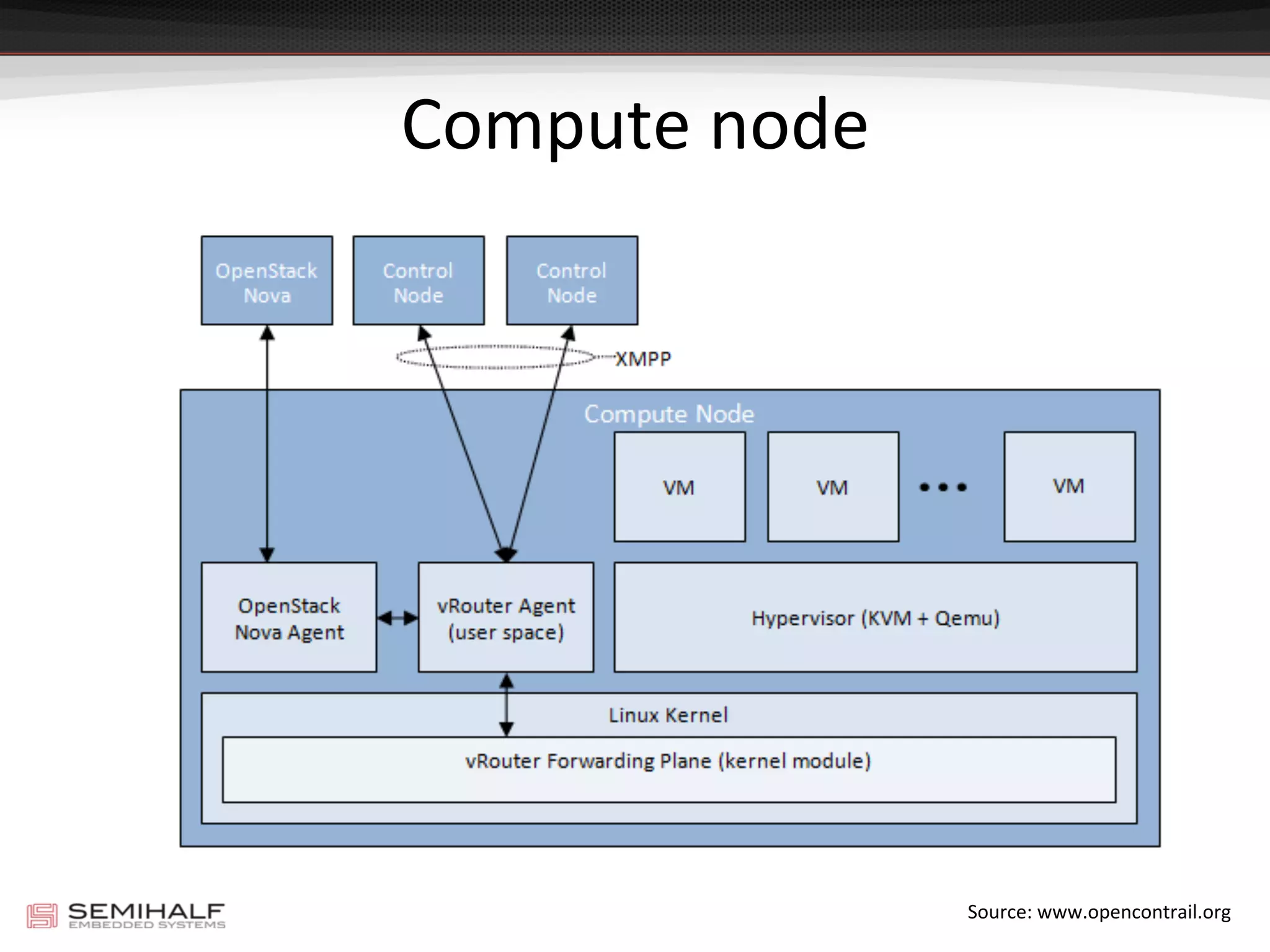

- 22. Compute node Source: www.opencontrail.org
- 23. vRouter forwarding plane Source: www.opencontrail.org
- 24. MPLSoGRE example Source: www.opencontrail.org

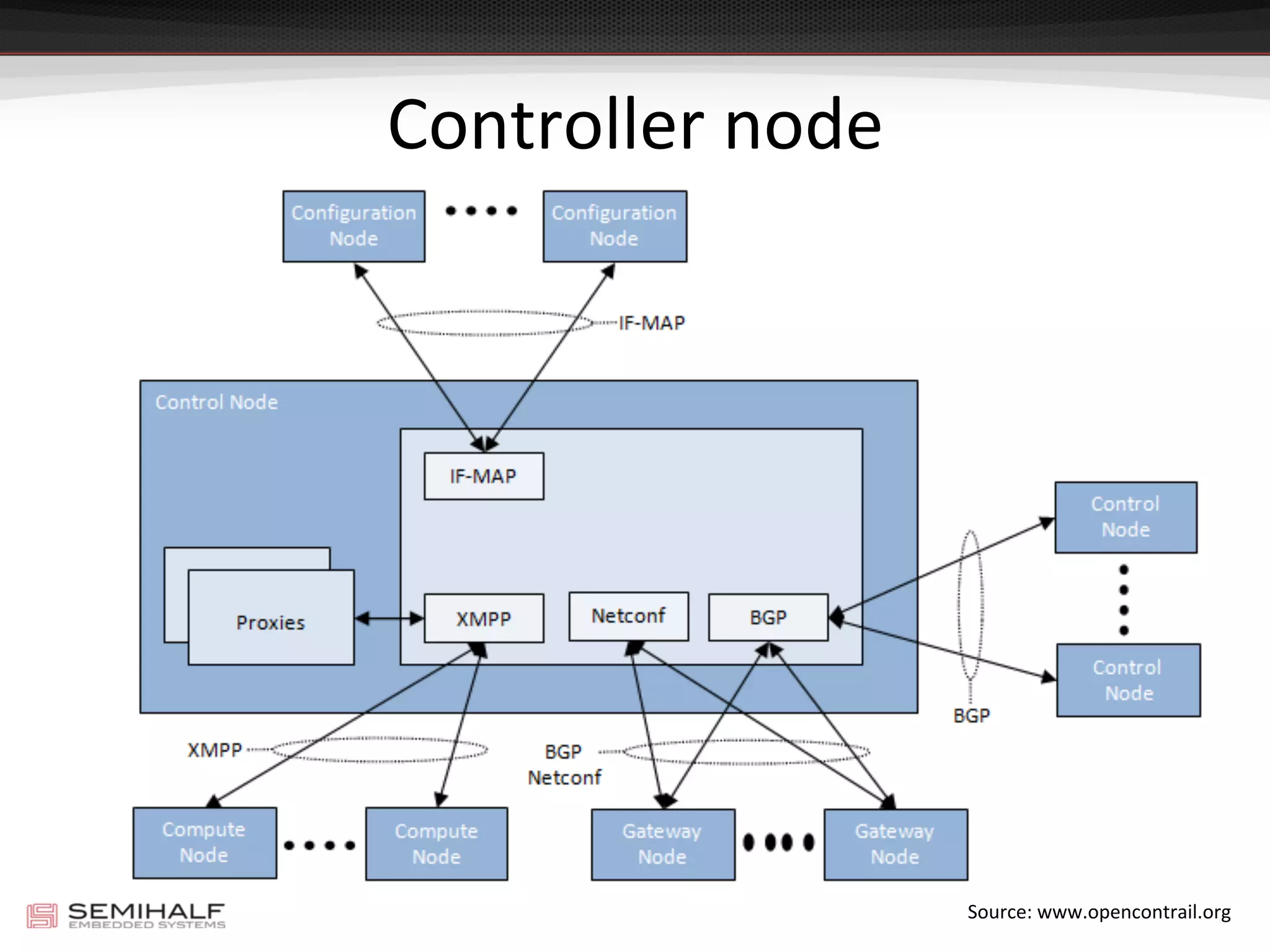

- 25. Controller node Source: www.opencontrail.org
- 26. ConfiguraDon node Source: www.opencontrail.org
- 27. AnalyDcs node Source: www.opencontrail.org
- 28. Network FuncDons VirtualizaDon • Chaining of service VM • Load balancer VM, DPI VM, Firewall, etc. • High level descripDon (snort lang) • allow any src-vn -> dst-vn svc-1, svc-2 Source: www.opencontrail.org

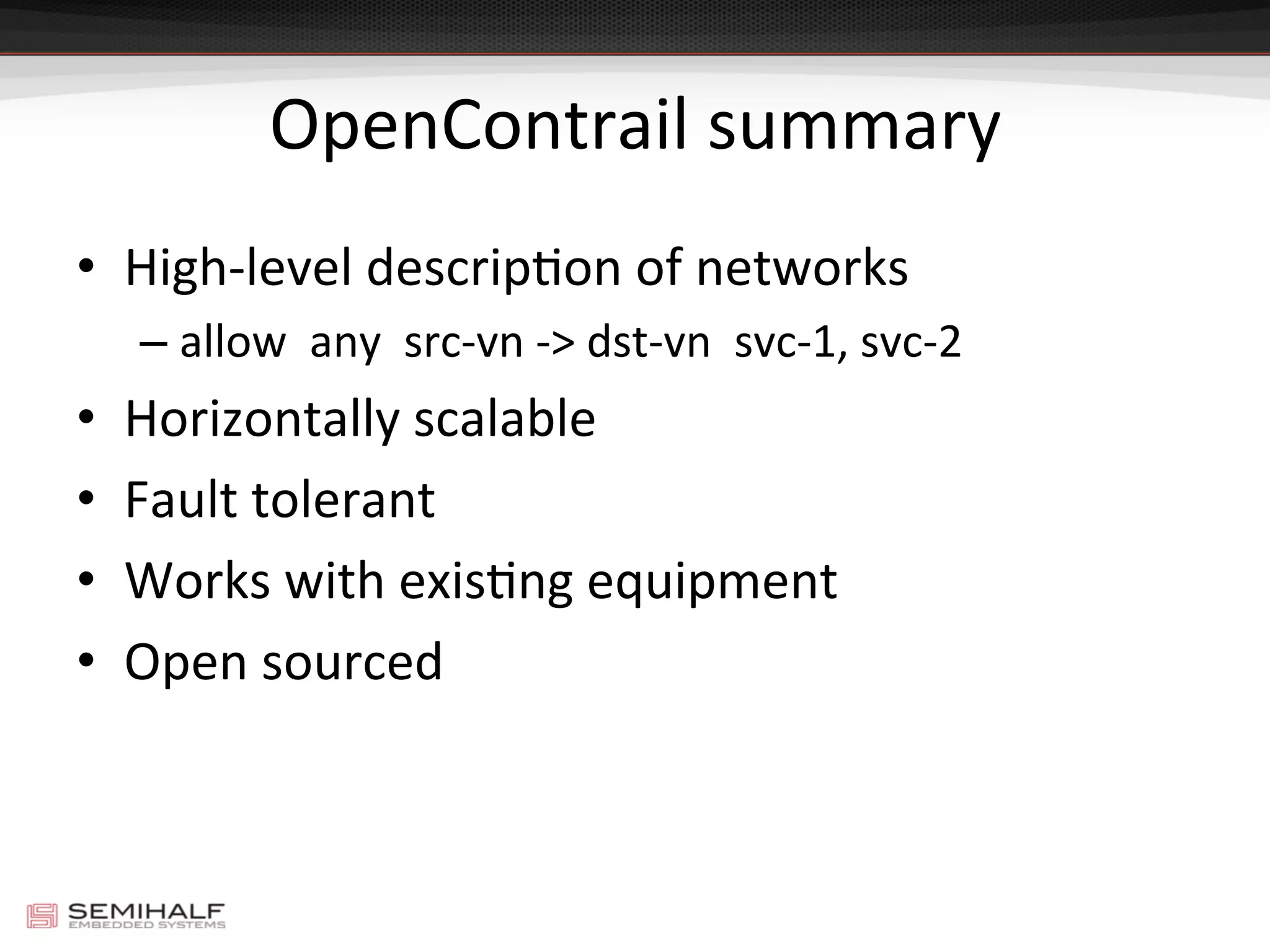

- 29. OpenContrail summary • High-‐level descripDon of networks – allow any src-‐vn -‐> dst-‐vn svc-‐1, svc-‐2 • Horizontally scalable • Fault tolerant • Works with exisDng equipment • Open sourced

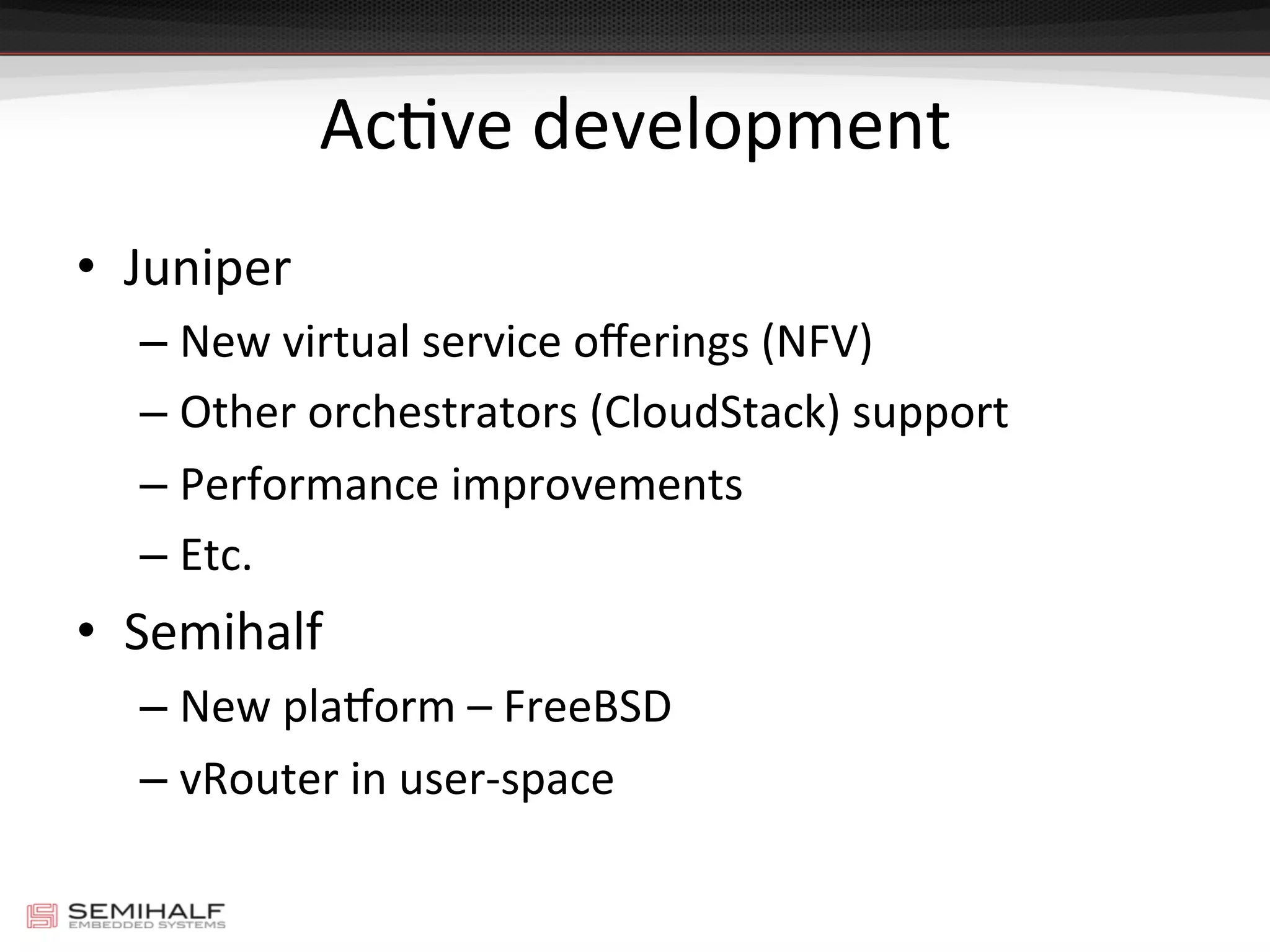

- 30. AcDve development • Juniper – New virtual service offerings (NFV) – Other orchestrators (CloudStack) support – Performance improvements – Etc. • Semihalf – New plaoorm – FreeBSD – vRouter in user-‐space
- 31. Any quesDons?
