MySQL Proxy is a tool that sits in front of MySQL servers to provide more flexibility. It can transform, handle, or block requests and supports load balancing, failover, and using Lua scripts to customize behavior. MySQL Proxy aims to be transparent to applications and handles thousands of parallel connections.

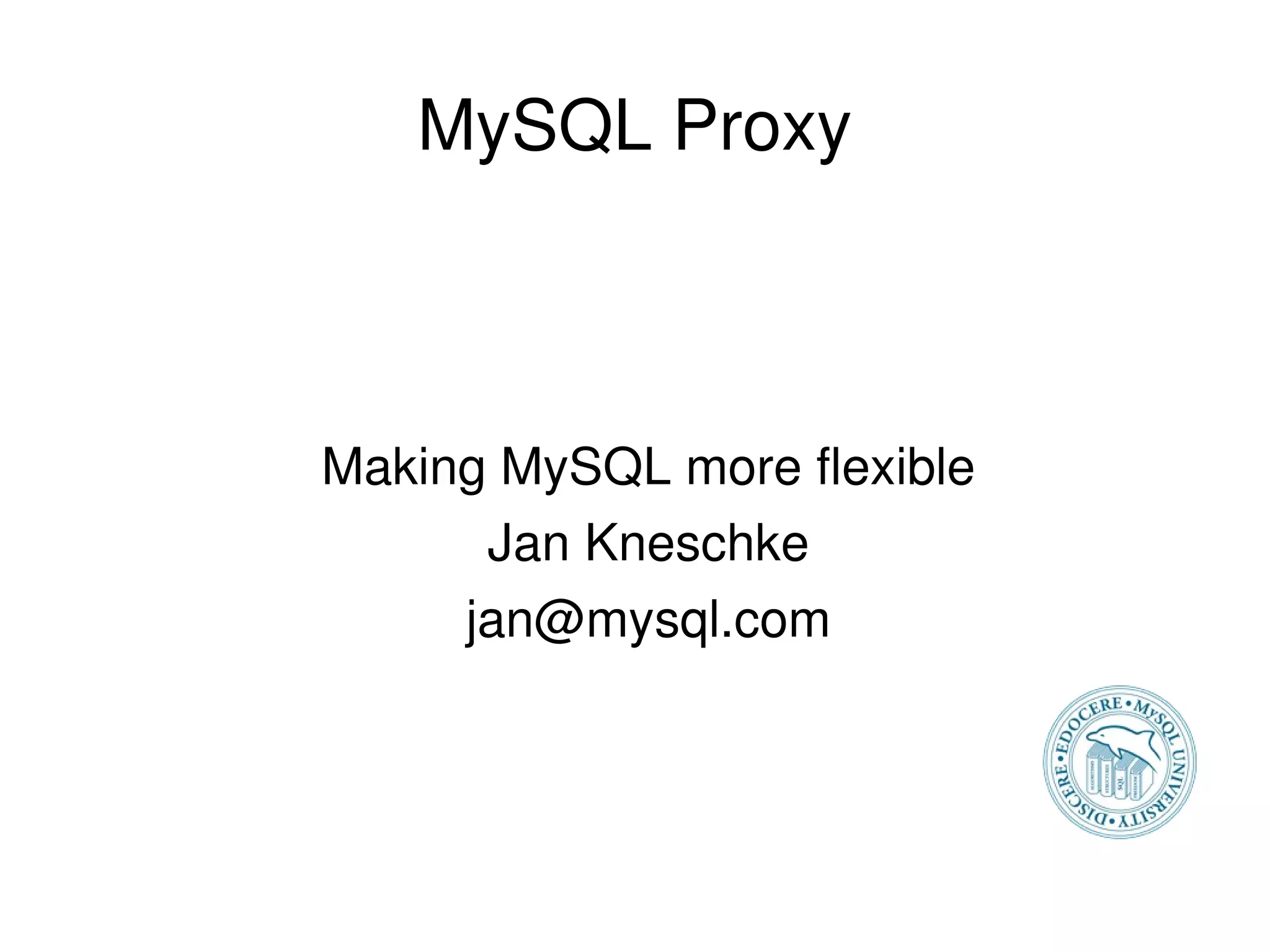

1. MySQL Proxy
Making MySQL more flexible
Jan Kneschke
jan@mysql.com

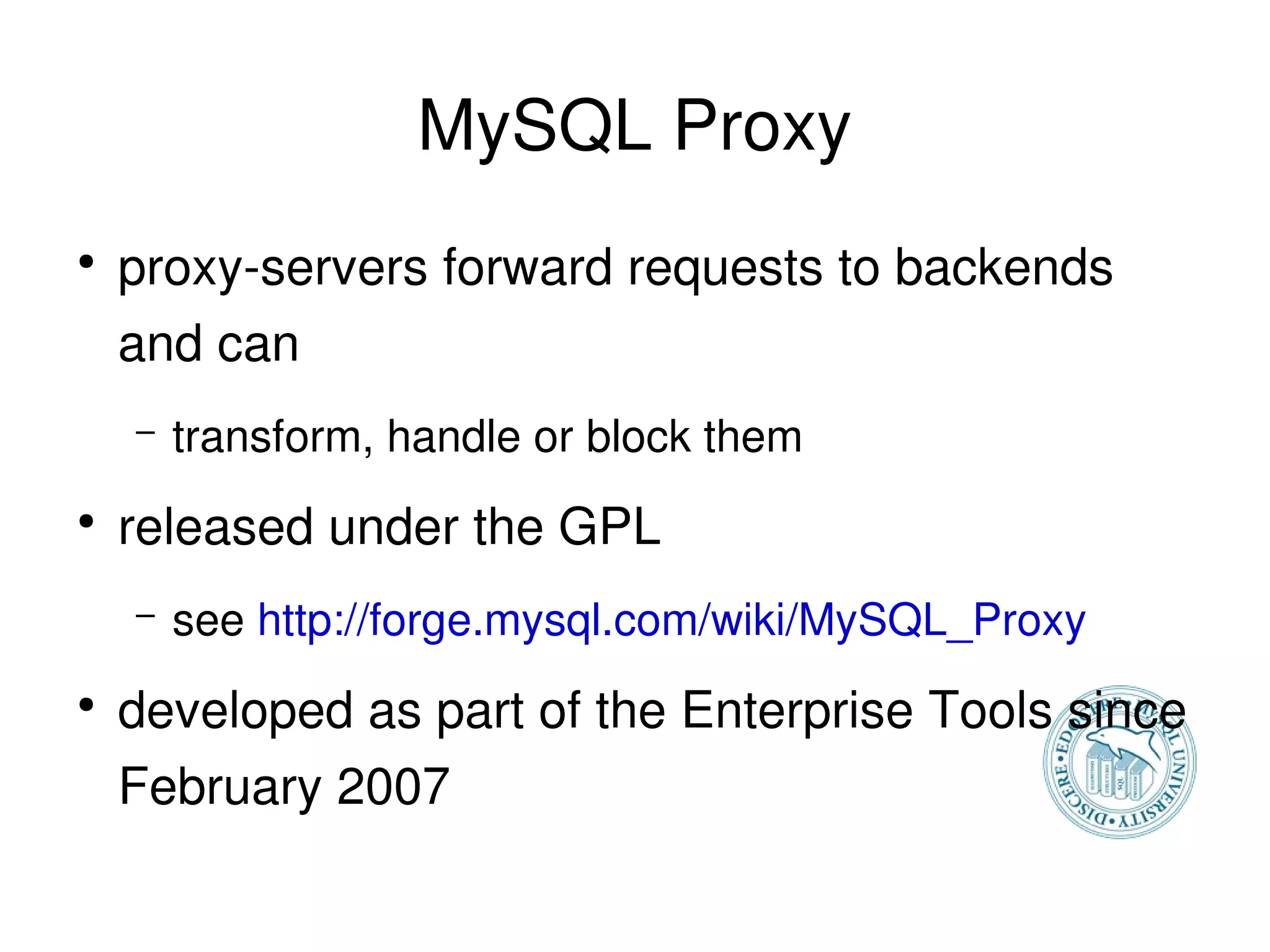

2. MySQL Proxy
proxy­servers forward requests to backends
●
and can
transform, handle or block them
–
released under the GPL
●
see http://forge.mysql.com/wiki/MySQL_Proxy
–
developed as part of the Enterprise Tools since
●
February 2007

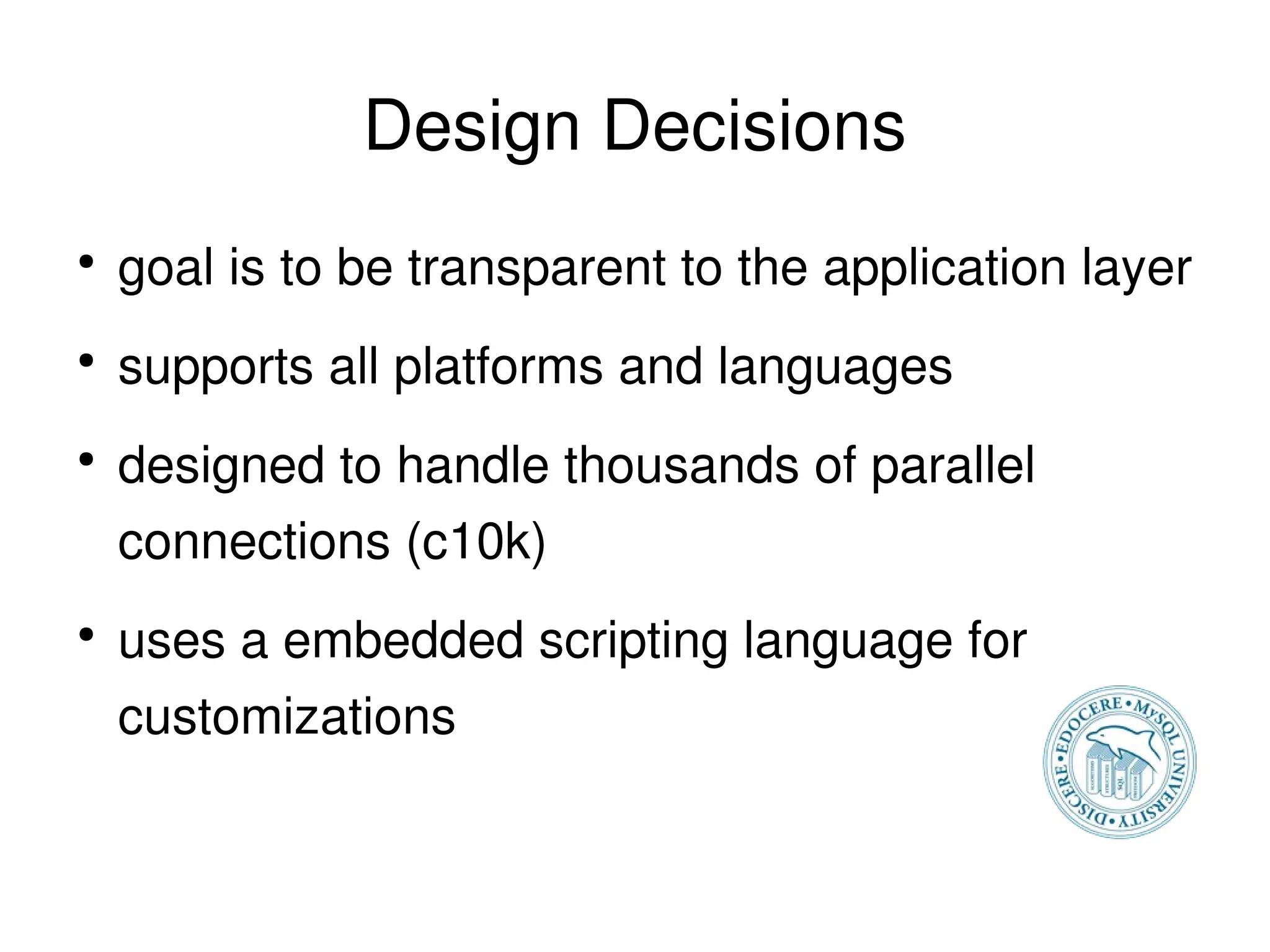

3. Design Decisions
goal is to be transparent to the application layer
●
supports all platforms and languages
●
designed to handle thousands of parallel
●
connections (c10k)
uses a embedded scripting language for
●
customizations

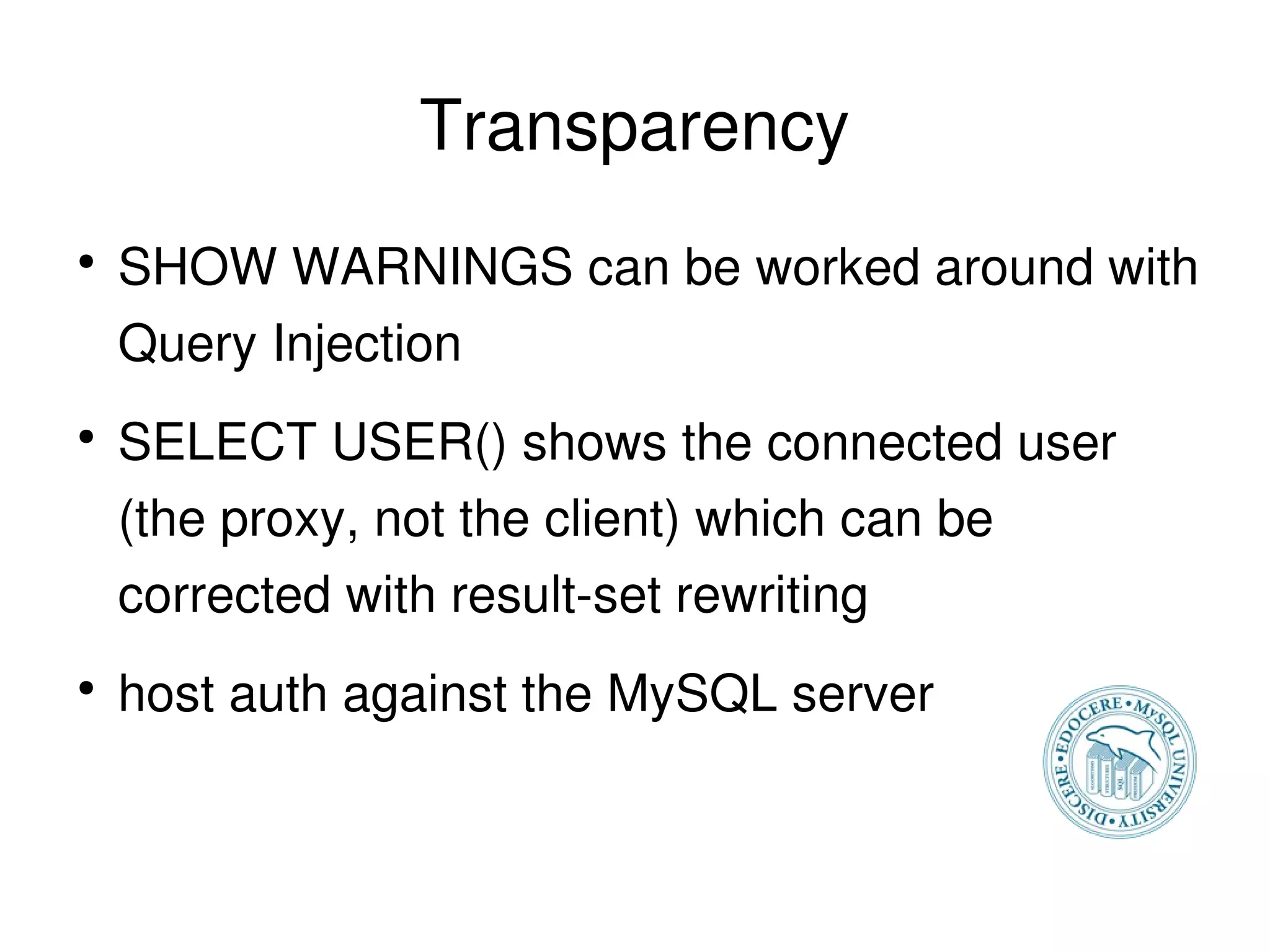

4. Transparency
SHOW WARNINGS can be worked around with
●
Query Injection
SELECT USER() shows the connected user
●
(the proxy, not the client) which can be
corrected with result­set rewriting
host auth against the MySQL server
●

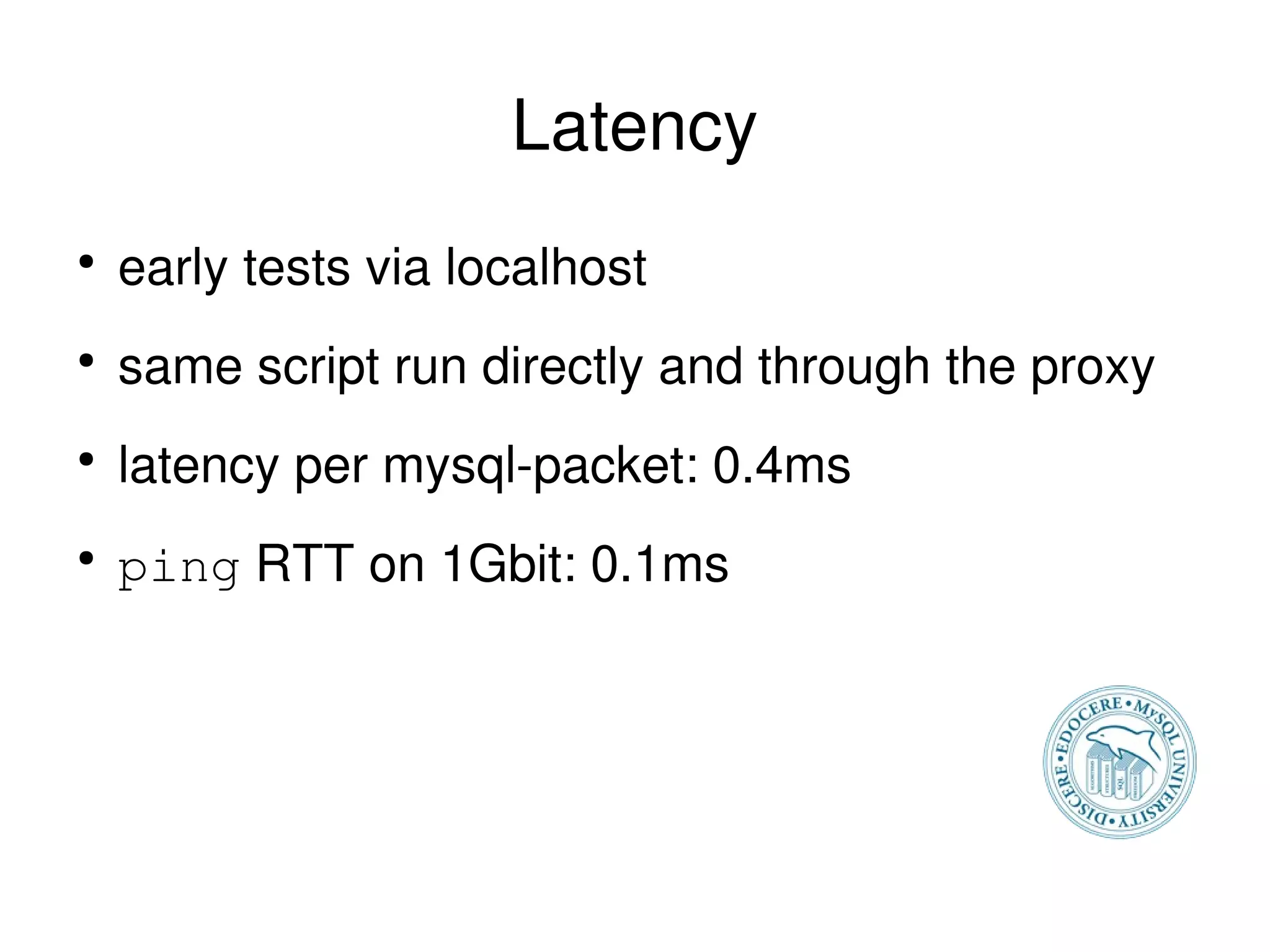

5. Latency
early tests via localhost
●
same script run directly and through the proxy
●
latency per mysql­packet: 0.4ms
●
ping RTT on 1Gbit: 0.1ms
●

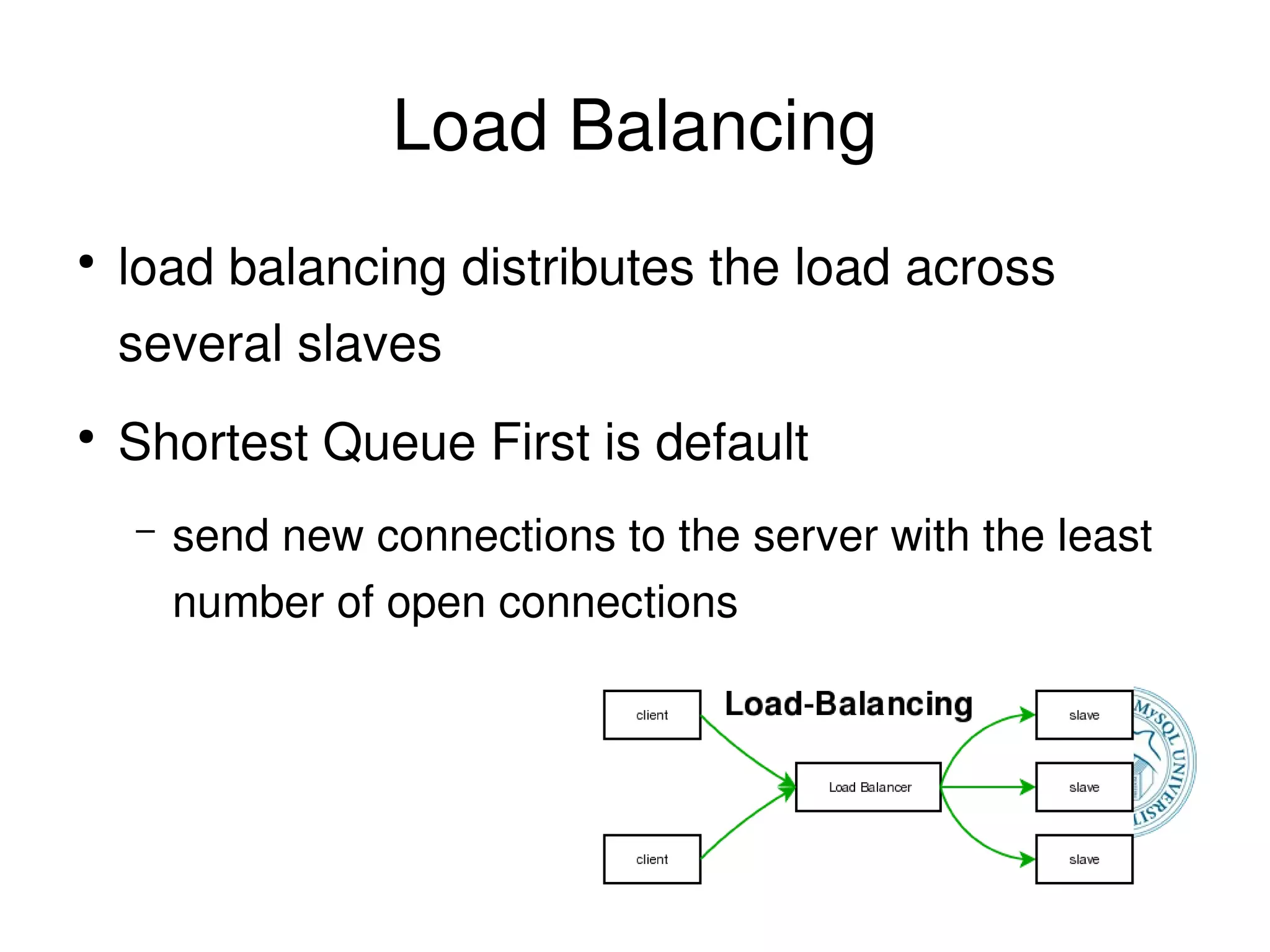

6. Load Balancing
load balancing distributes the load across
●
several slaves
Shortest Queue First is default
●
send new connections to the server with the least
–
number of open connections

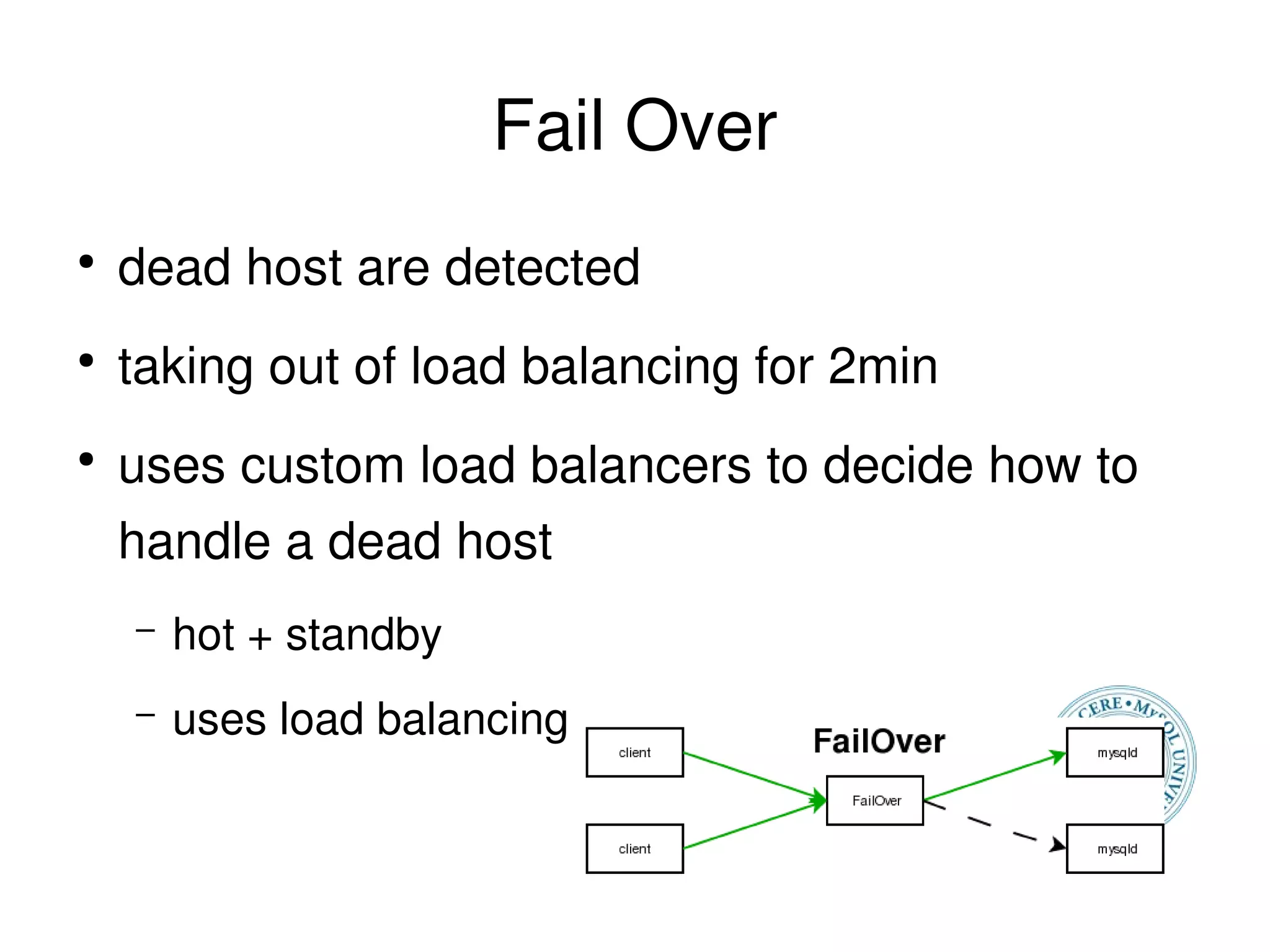

7. Fail Over
dead host are detected
●
taking out of load balancing for 2min
●
uses custom load balancers to decide how to
●
handle a dead host
hot + standby
–
uses load balancing
–

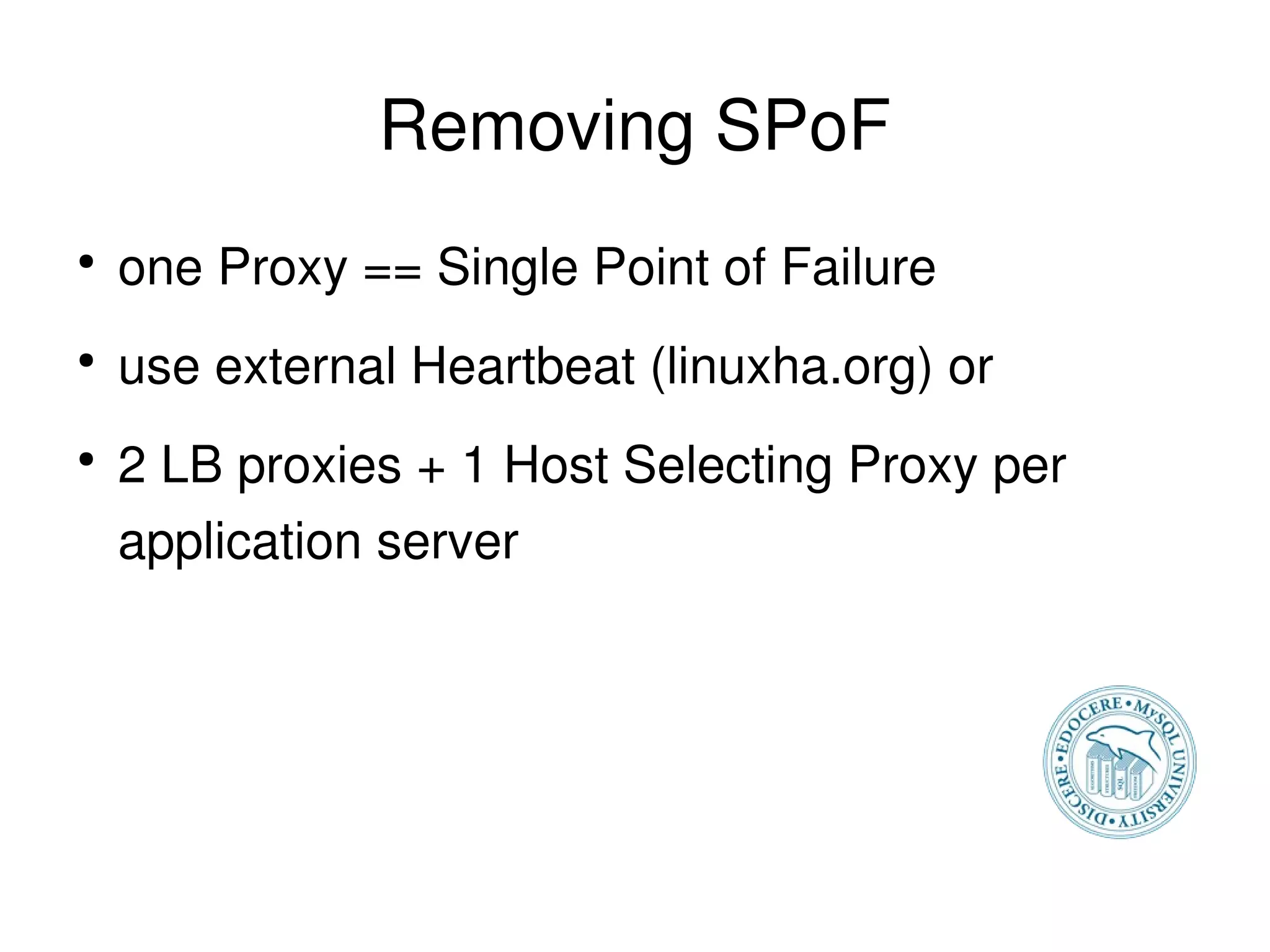

8. Removing SPoF
one Proxy == Single Point of Failure
●
use external Heartbeat (linuxha.org) or
●
2 LB proxies + 1 Host Selecting Proxy per
●
application server

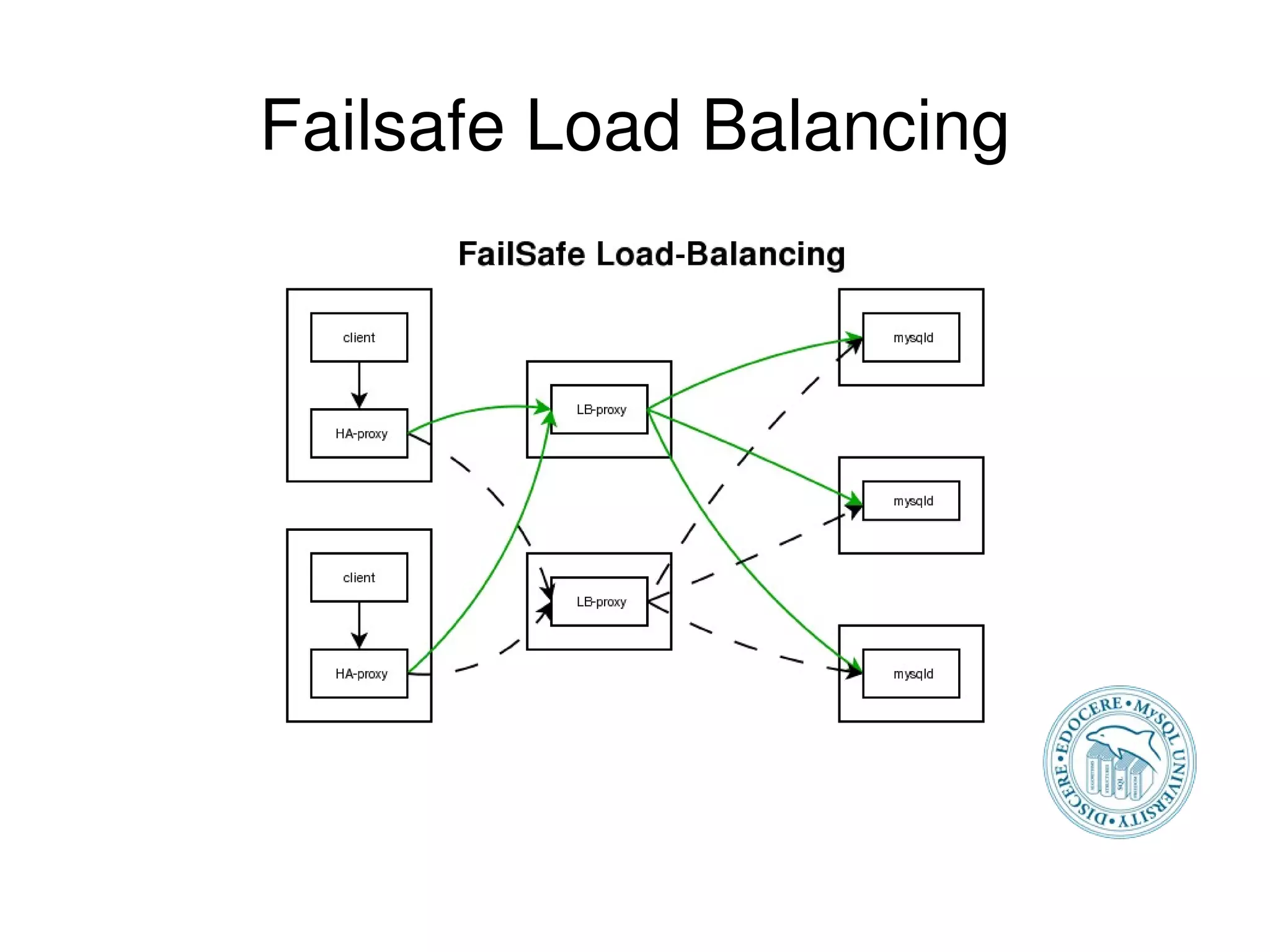

9. Failsafe Load Balancing

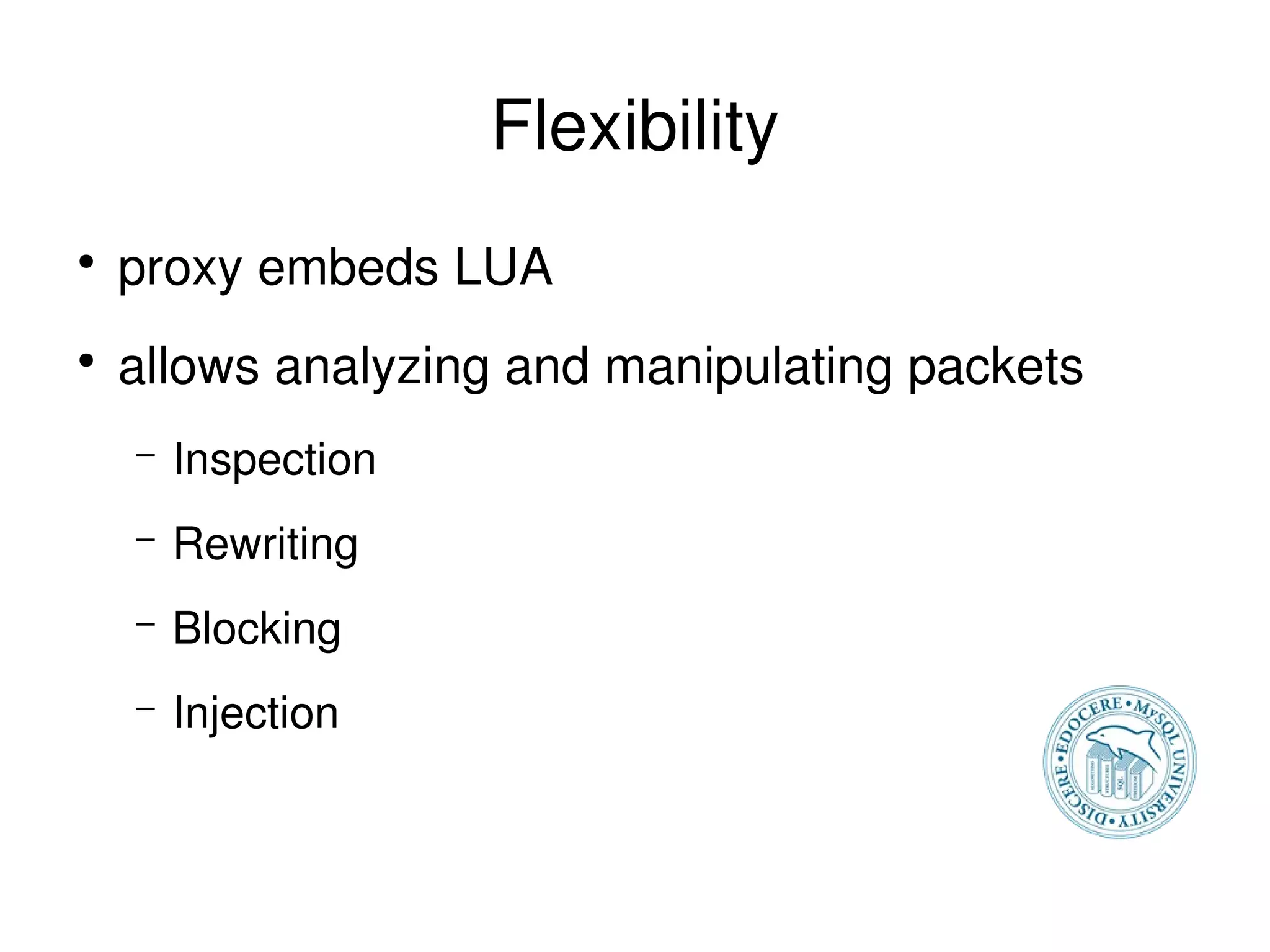

10. Flexibility
proxy embeds LUA
●
allows analyzing and manipulating packets
●
Inspection
–
Rewriting
–
Blocking
–
Injection
–

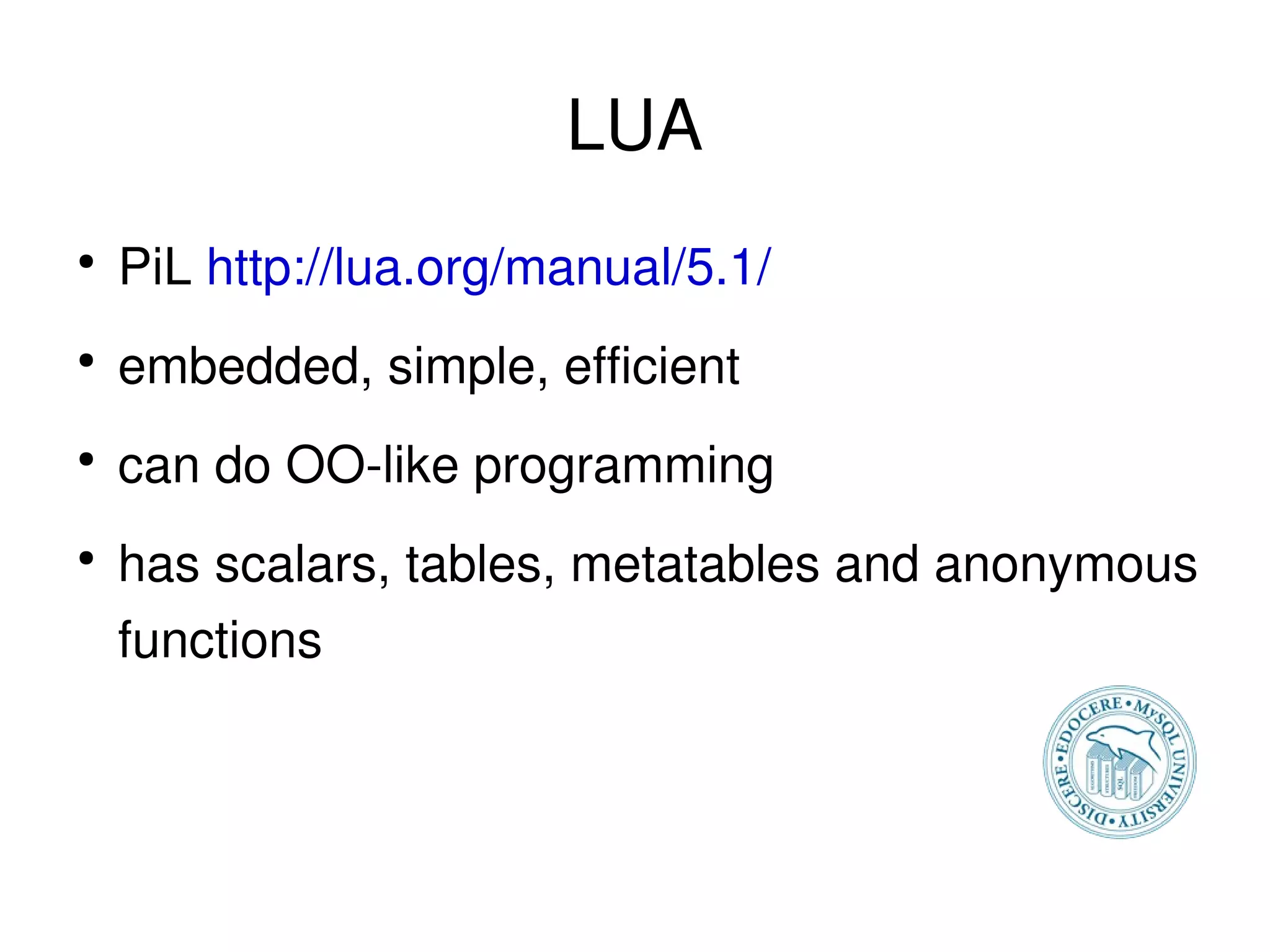

11. LUA
PiL http://lua.org/manual/5.1/
●
embedded, simple, efficient
●
can do OO­like programming
●
has scalars, tables, metatables and anonymous
●
functions

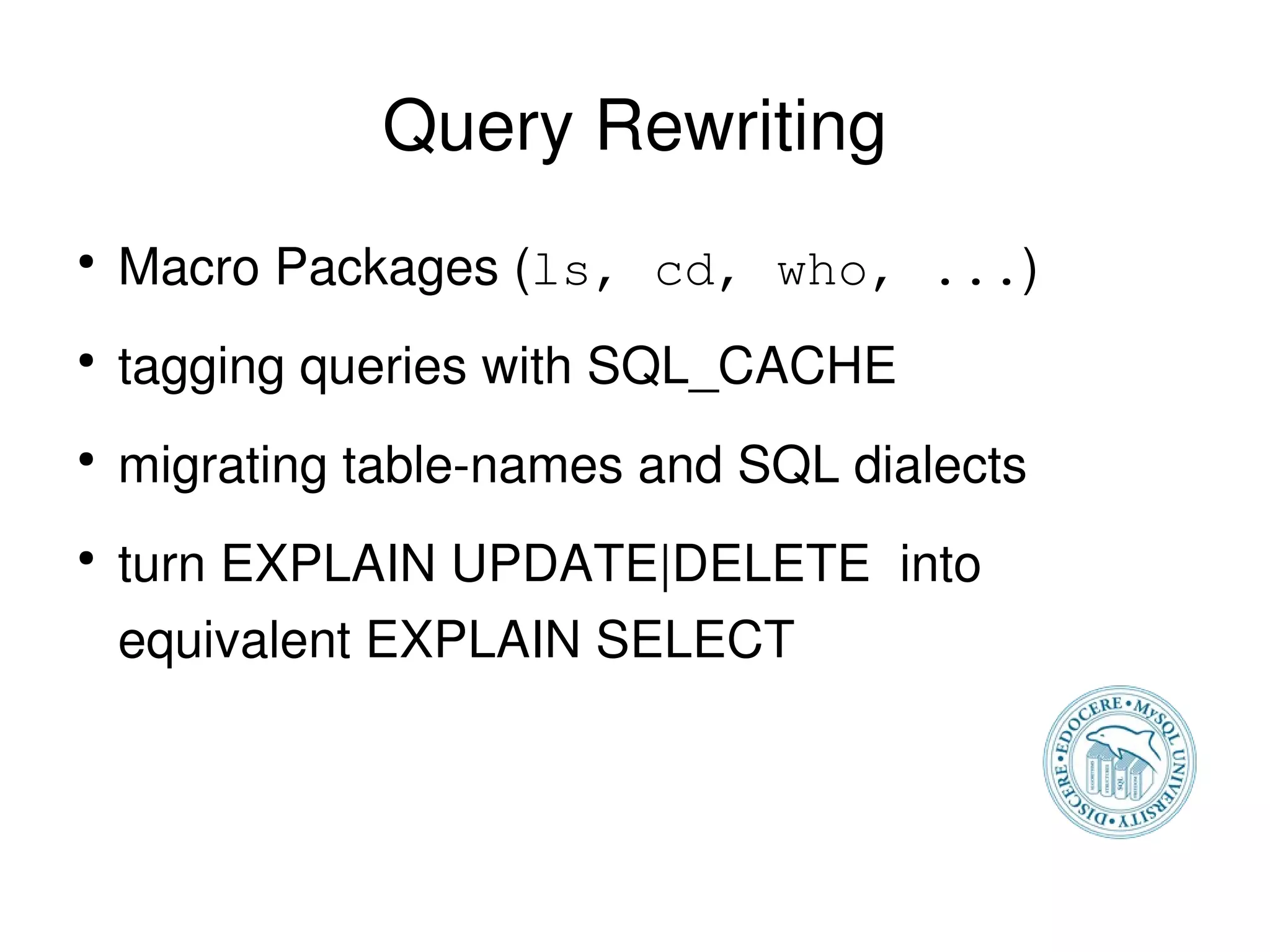

12. Query Rewriting
Macro Packages (ls, cd, who, ...)
●
tagging queries with SQL_CACHE
●
migrating table­names and SQL dialects
●
turn EXPLAIN UPDATE|DELETE into
●
equivalent EXPLAIN SELECT

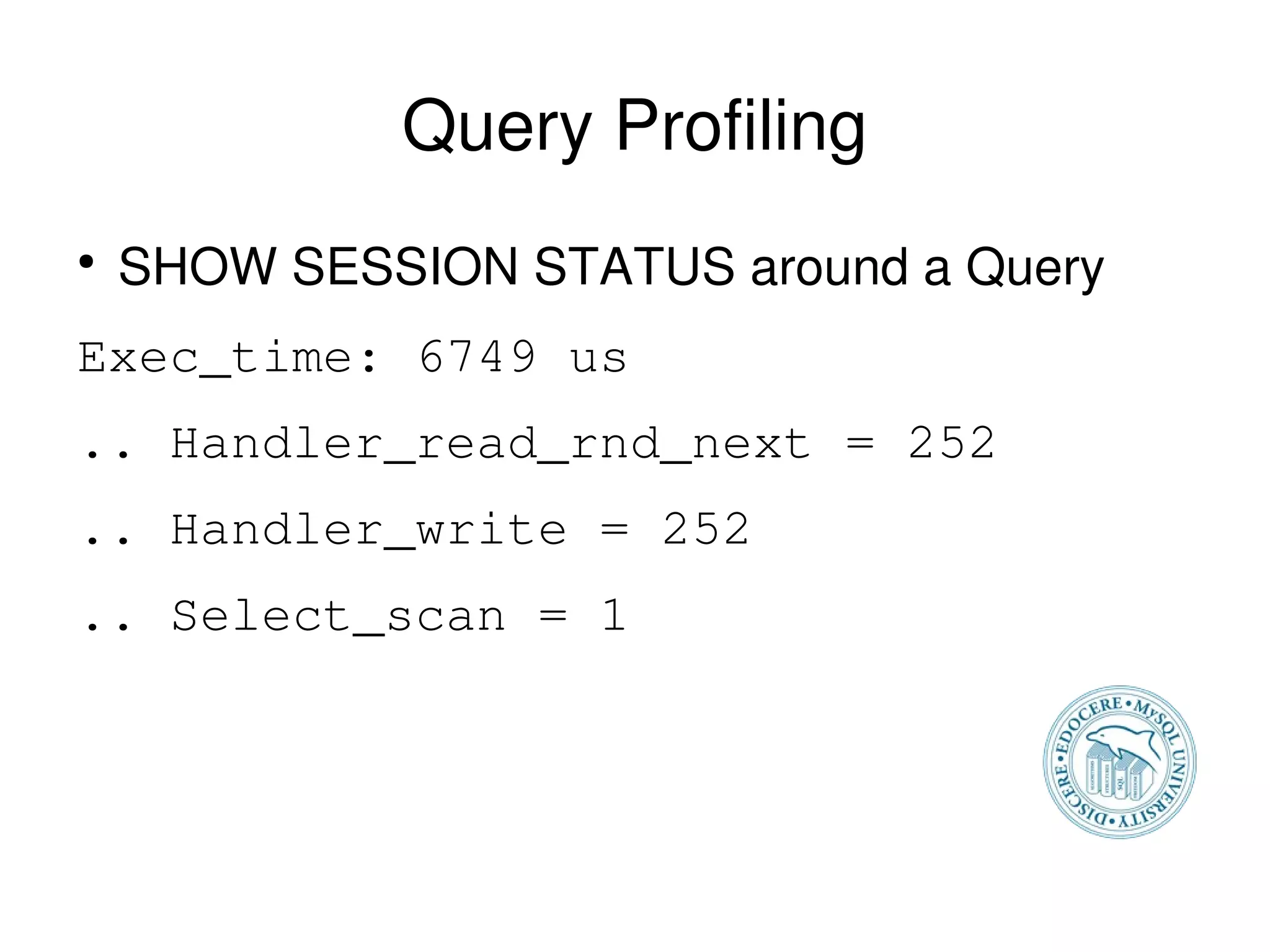

13. Query Profiling
SHOW SESSION STATUS around a Query
●
Exec_time: 6749 us
.. Handler_read_rnd_next = 252
.. Handler_write = 252
.. Select_scan = 1

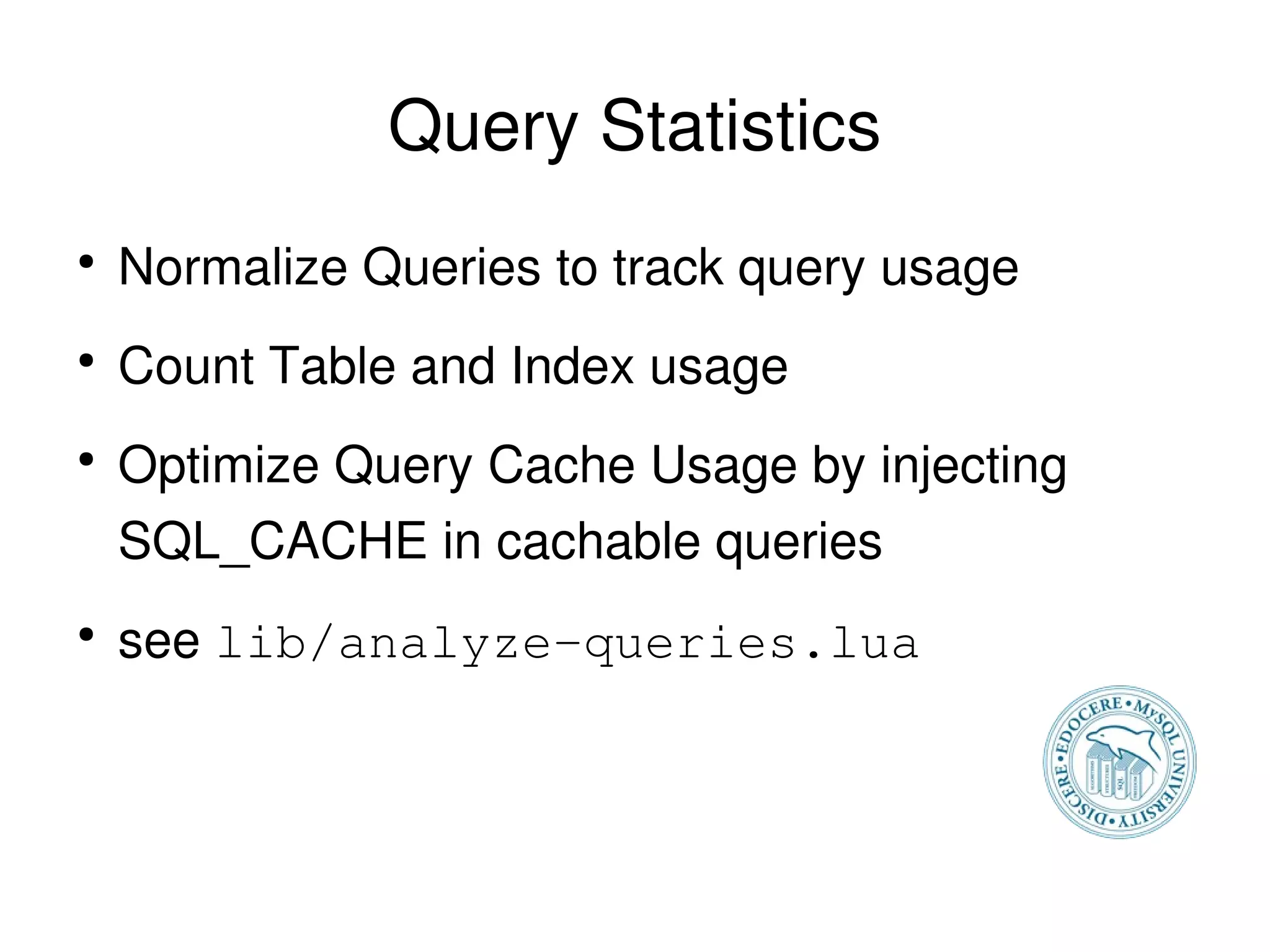

14. Query Statistics
Normalize Queries to track query usage
●
Count Table and Index usage
●
Optimize Query Cache Usage by injecting
●
SQL_CACHE in cachable queries
see lib/analyze­queries.lua
●

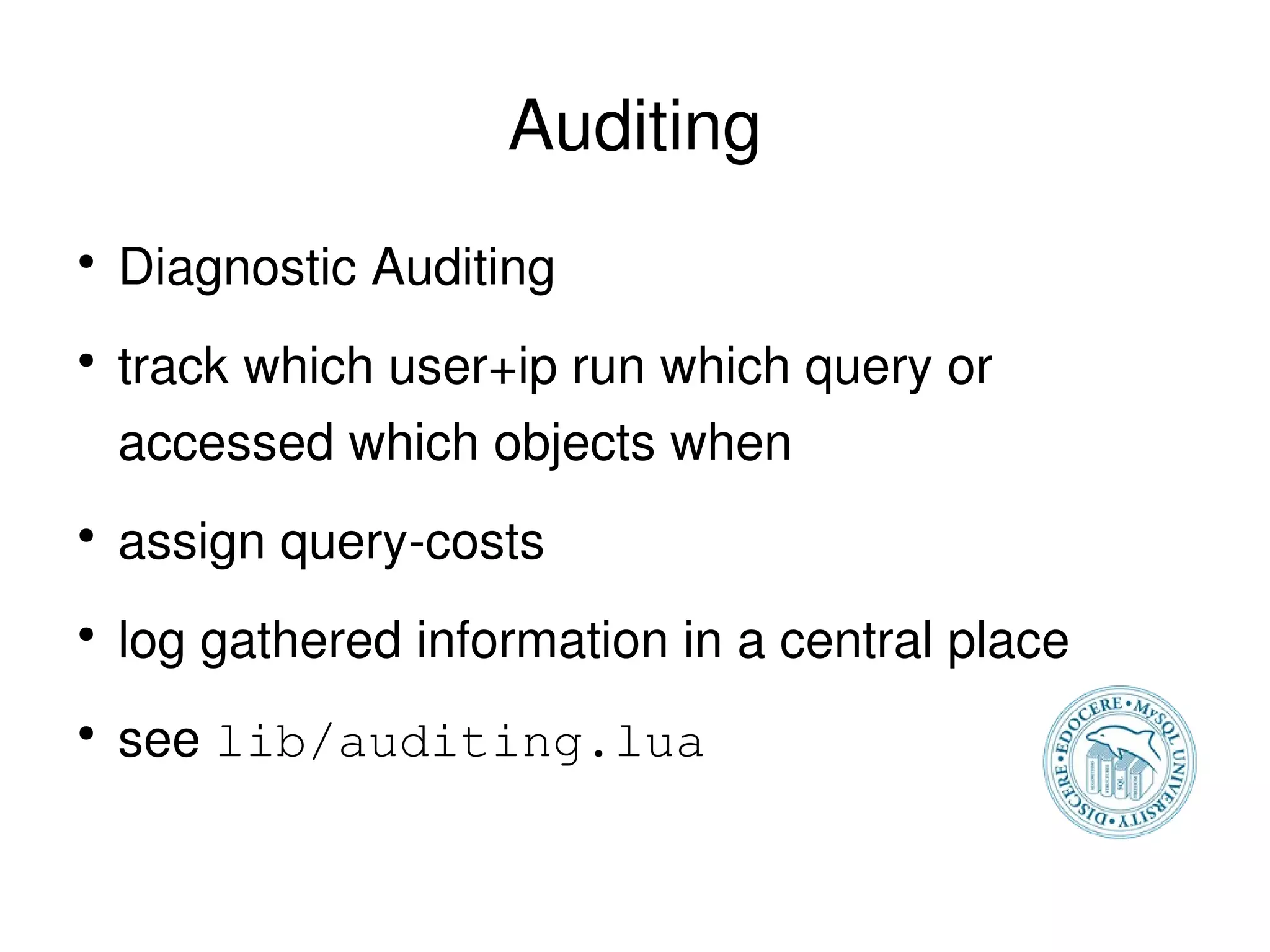

15. Auditing
Diagnostic Auditing
●
track which user+ip run which query or
●
accessed which objects when
assign query­costs
●
log gathered information in a central place
●
see lib/auditing.lua
●

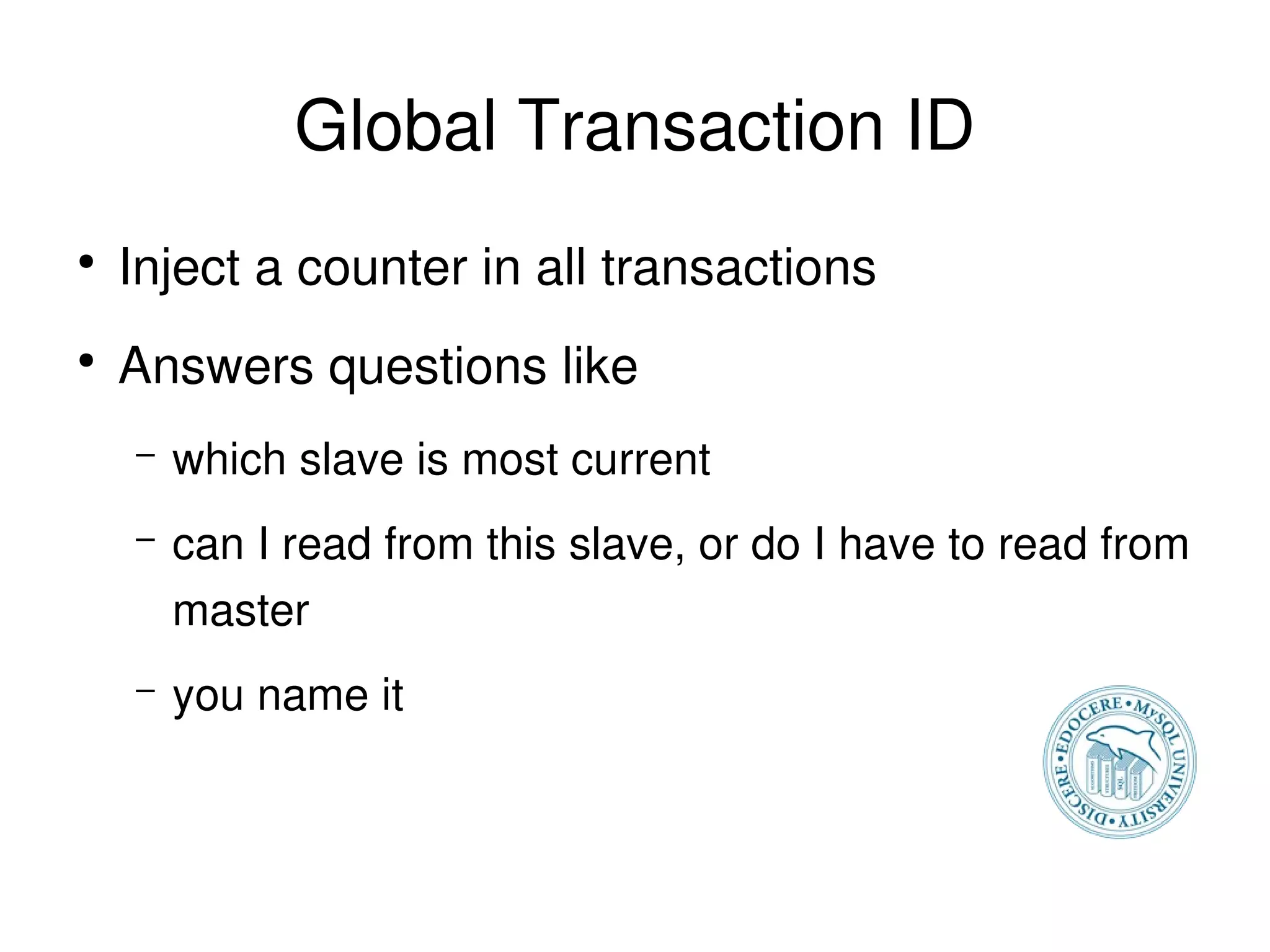

16. Global Transaction ID
Inject a counter in all transactions
●
Answers questions like
●
which slave is most current
–
can I read from this slave, or do I have to read from
–
master
you name it
–

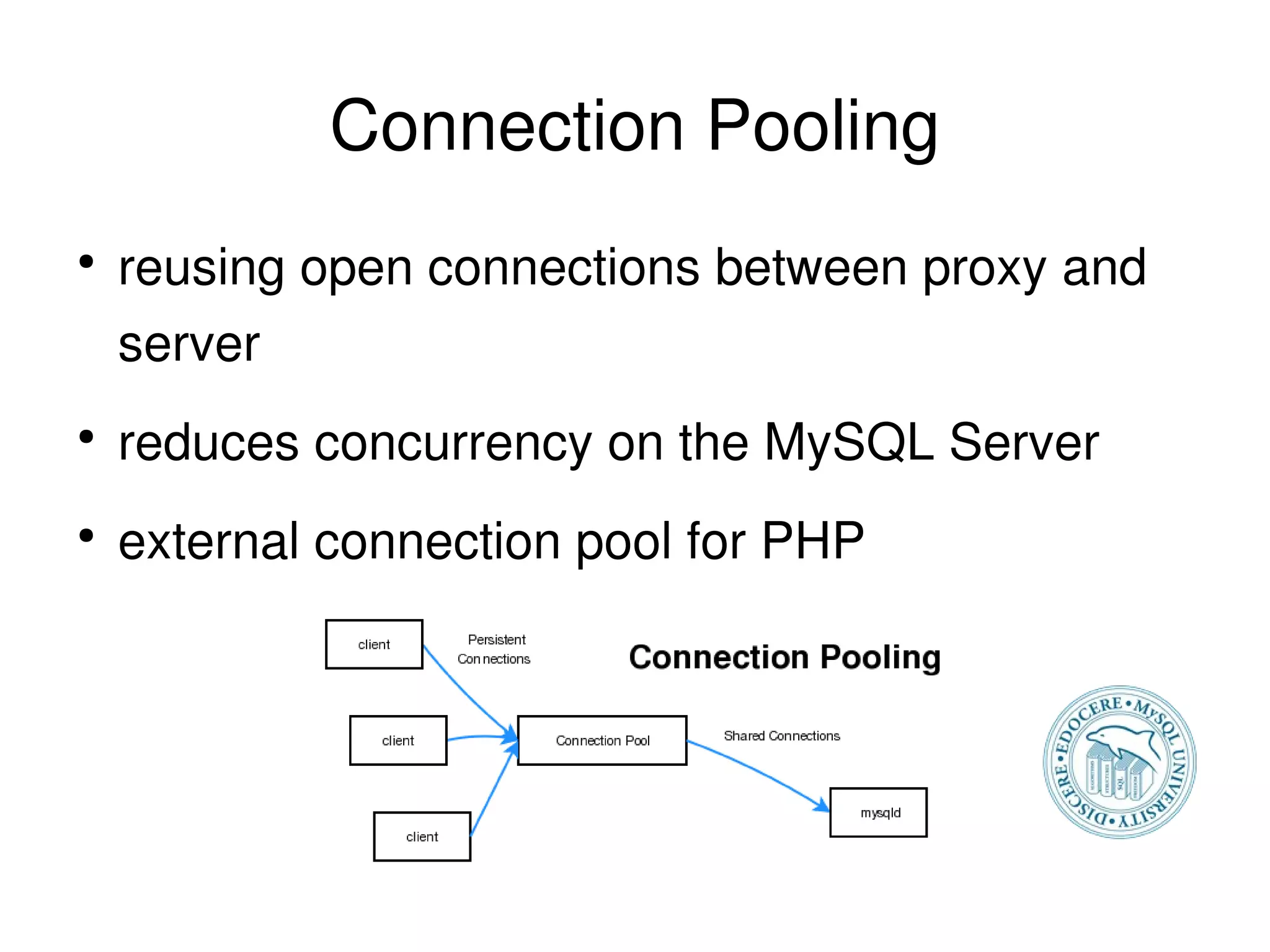

17. Connection Pooling
reusing open connections between proxy and
●
server
reduces concurrency on the MySQL Server
●
external connection pool for PHP
●

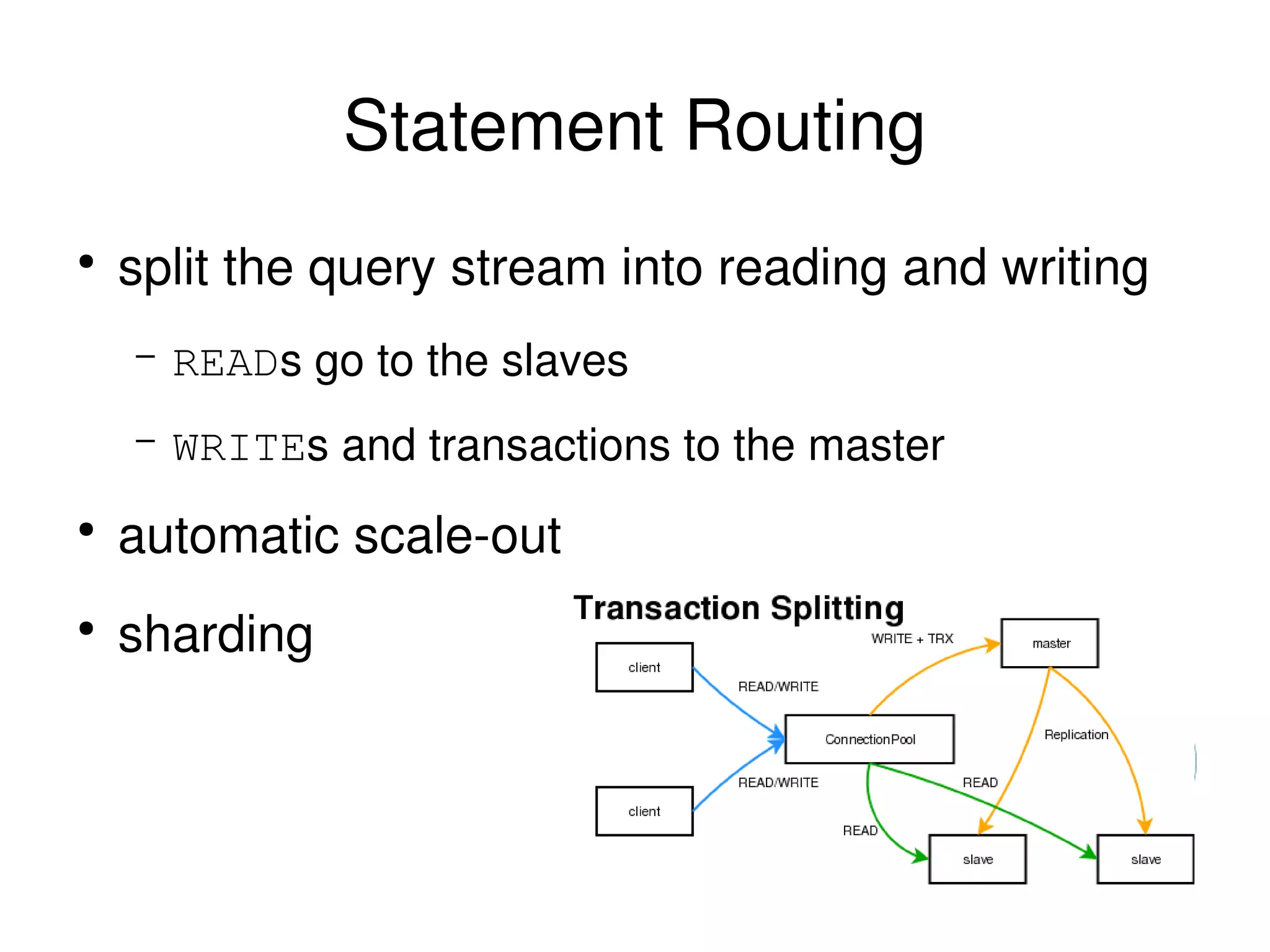

18. Statement Routing
split the query stream into reading and writing
●
READs go to the slaves
–
WRITEs and transactions to the master
–
automatic scale­out
●
sharding
●

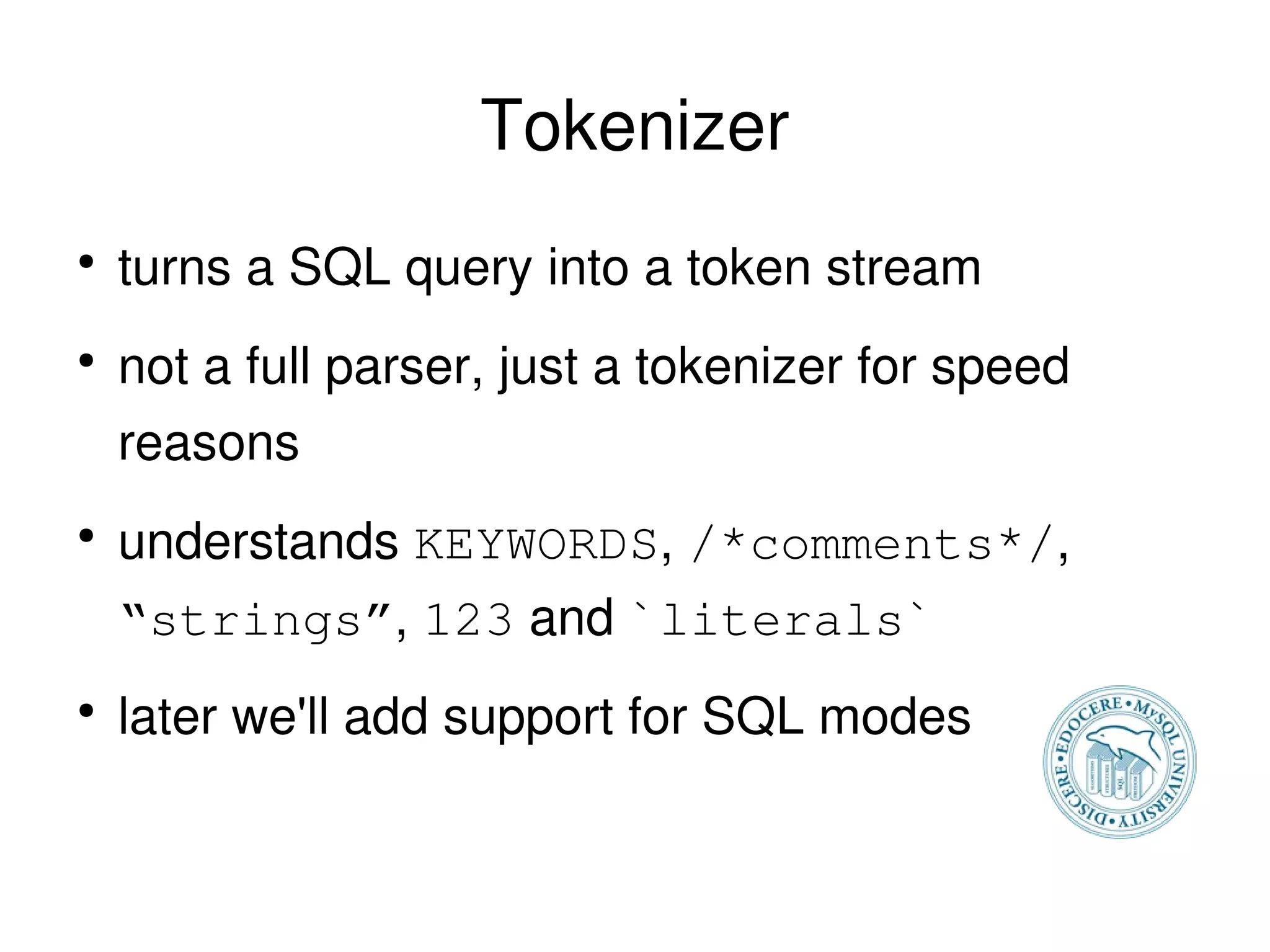

19. Tokenizer
turns a SQL query into a token stream
●
not a full parser, just a tokenizer for speed
●
reasons
understands KEYWORDS, /*comments*/,
●
“strings”, 123 and `literals`
later we'll add support for SQL modes
●

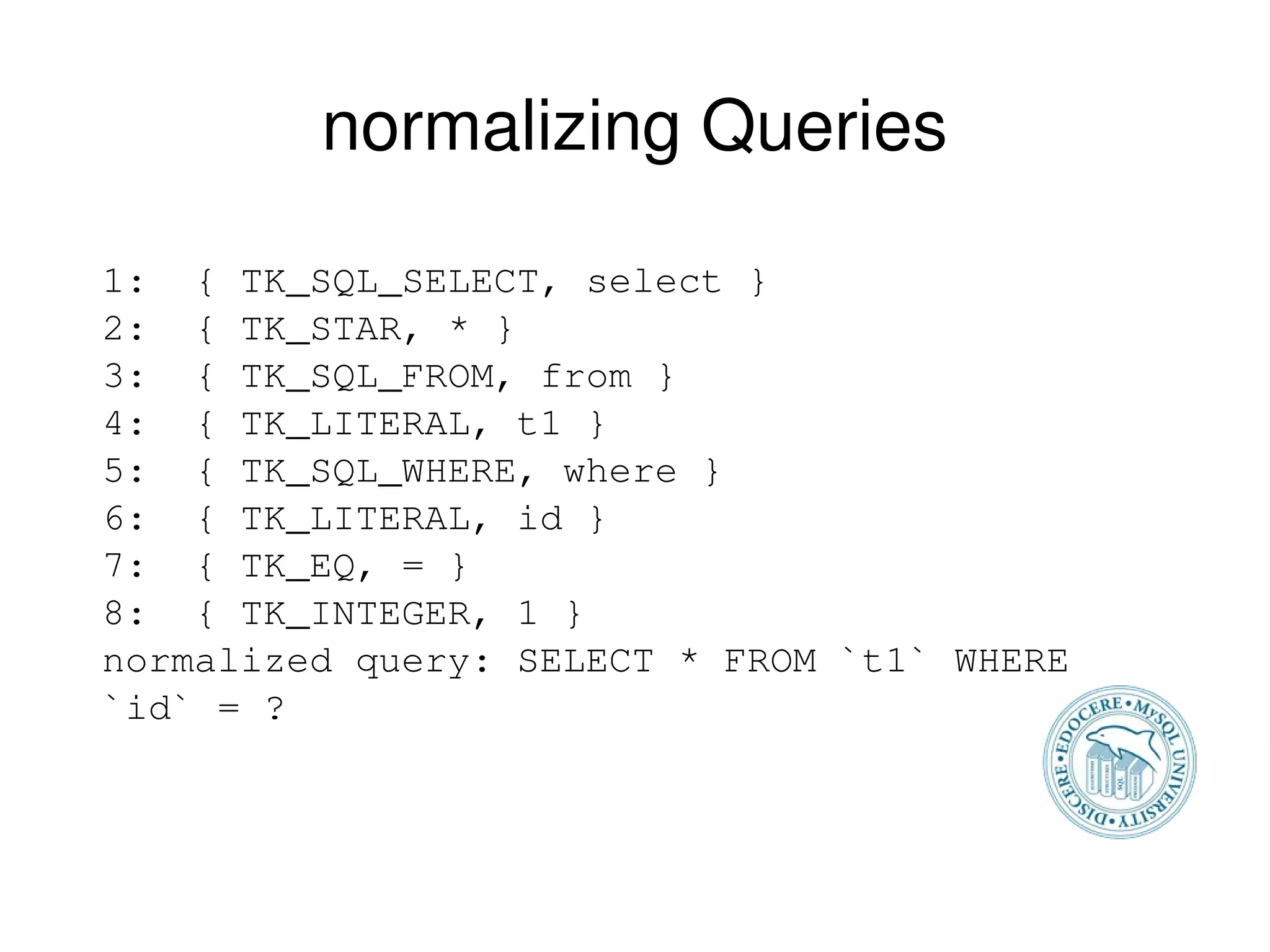

20. normalizing Queries
1: { TK_SQL_SELECT, select }
2: { TK_STAR, * }
3: { TK_SQL_FROM, from }
4: { TK_LITERAL, t1 }
5: { TK_SQL_WHERE, where }
6: { TK_LITERAL, id }
7: { TK_EQ, = }
8: { TK_INTEGER, 1 }
normalized query: SELECT * FROM `t1` WHERE
`id` = ?

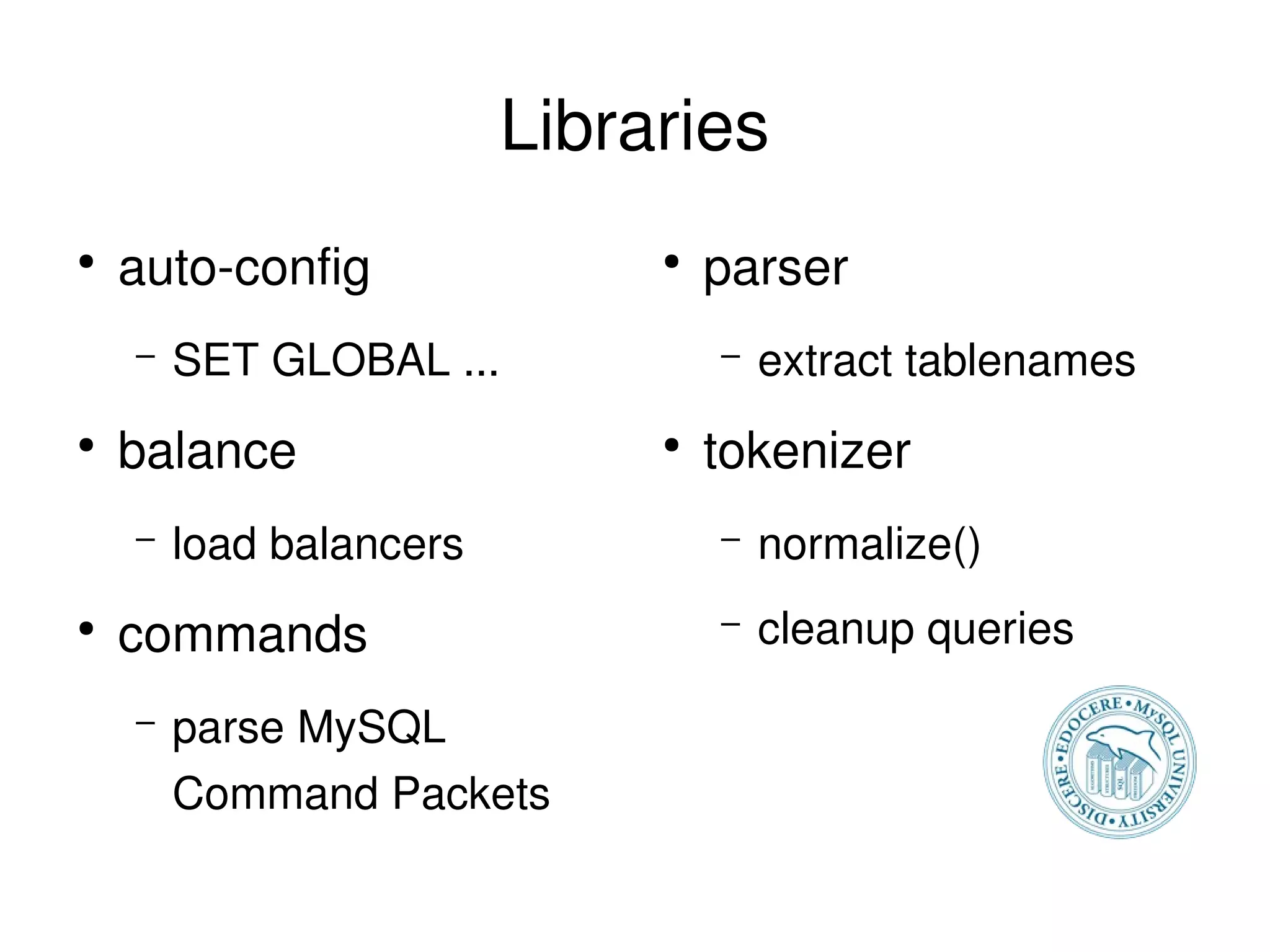

21. Libraries
auto­config parser
● ●
SET GLOBAL ... extract tablenames
– –
balance tokenizer
● ●
load balancers normalize()
– –
cleanup queries
commands –
●
parse MySQL
–
Command Packets

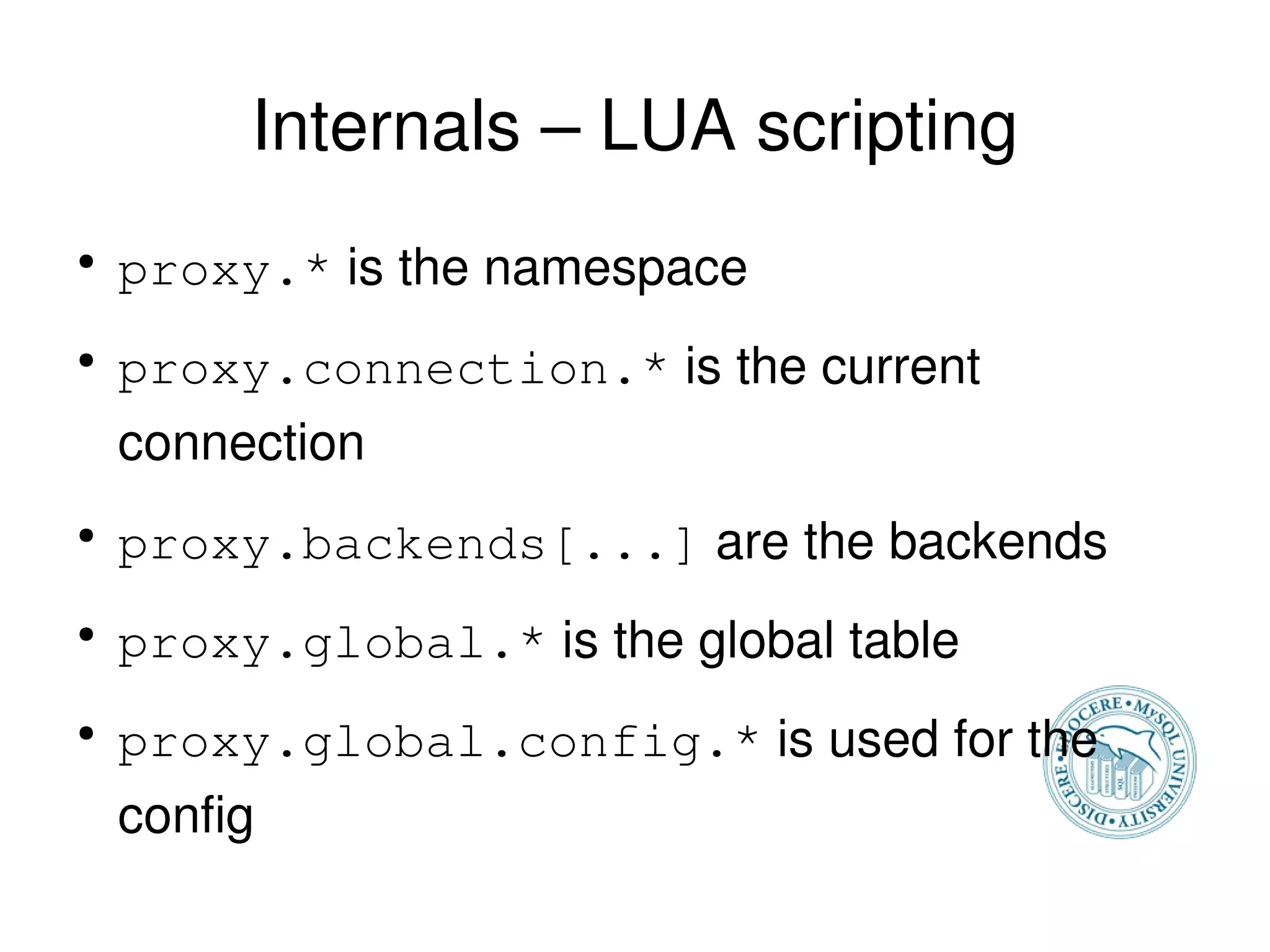

22. Internals – LUA scripting
proxy.* is the namespace
●
proxy.connection.* is the current
●
connection
proxy.backends[...] are the backends
●
proxy.global.* is the global table
●
proxy.global.config.* is used for the
●
config

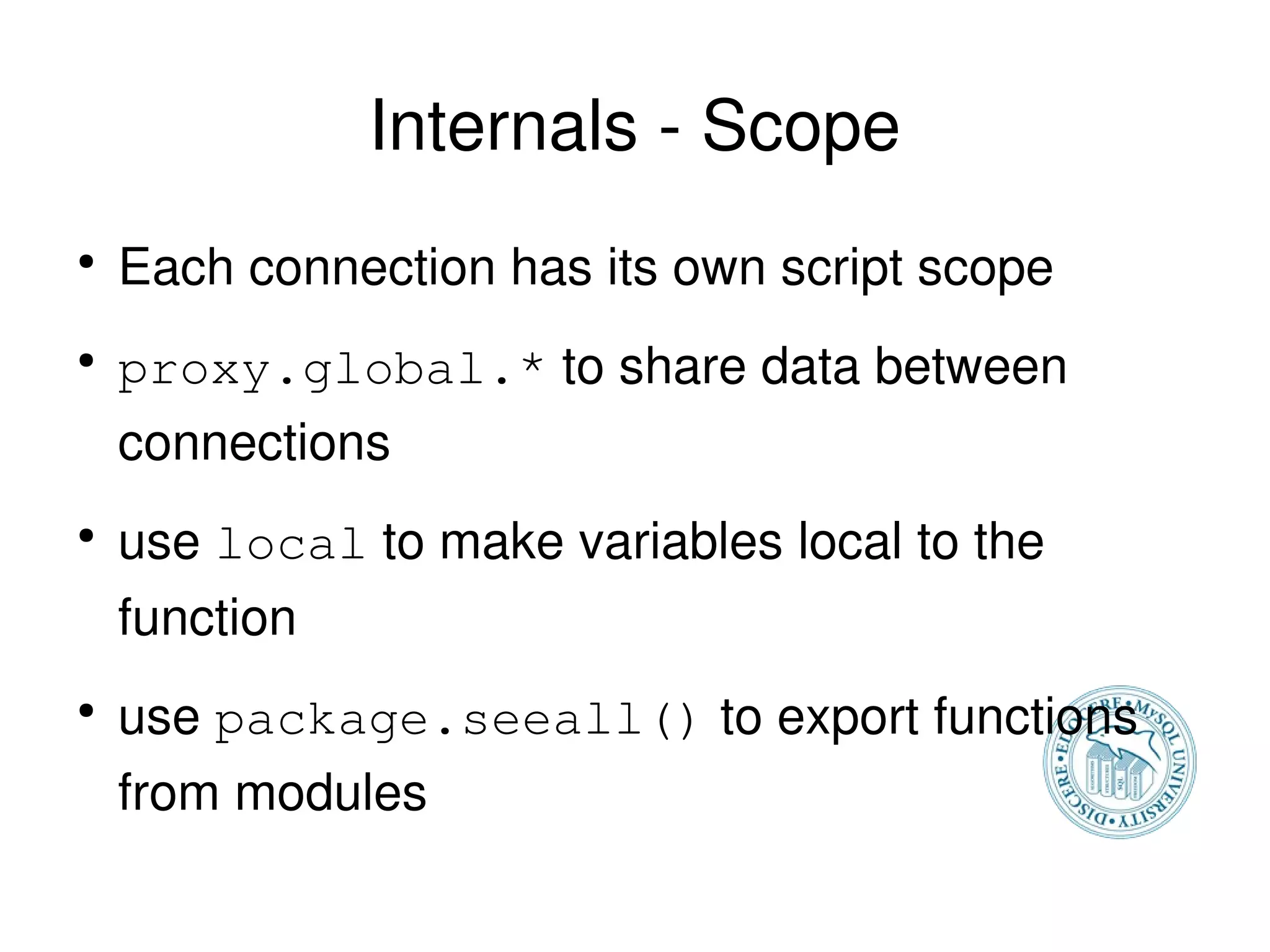

23. Internals ­ Scope
Each connection has its own script scope
●
proxy.global.* to share data between
●
connections
use local to make variables local to the
●
function
use package.seeall() to export functions
●
from modules

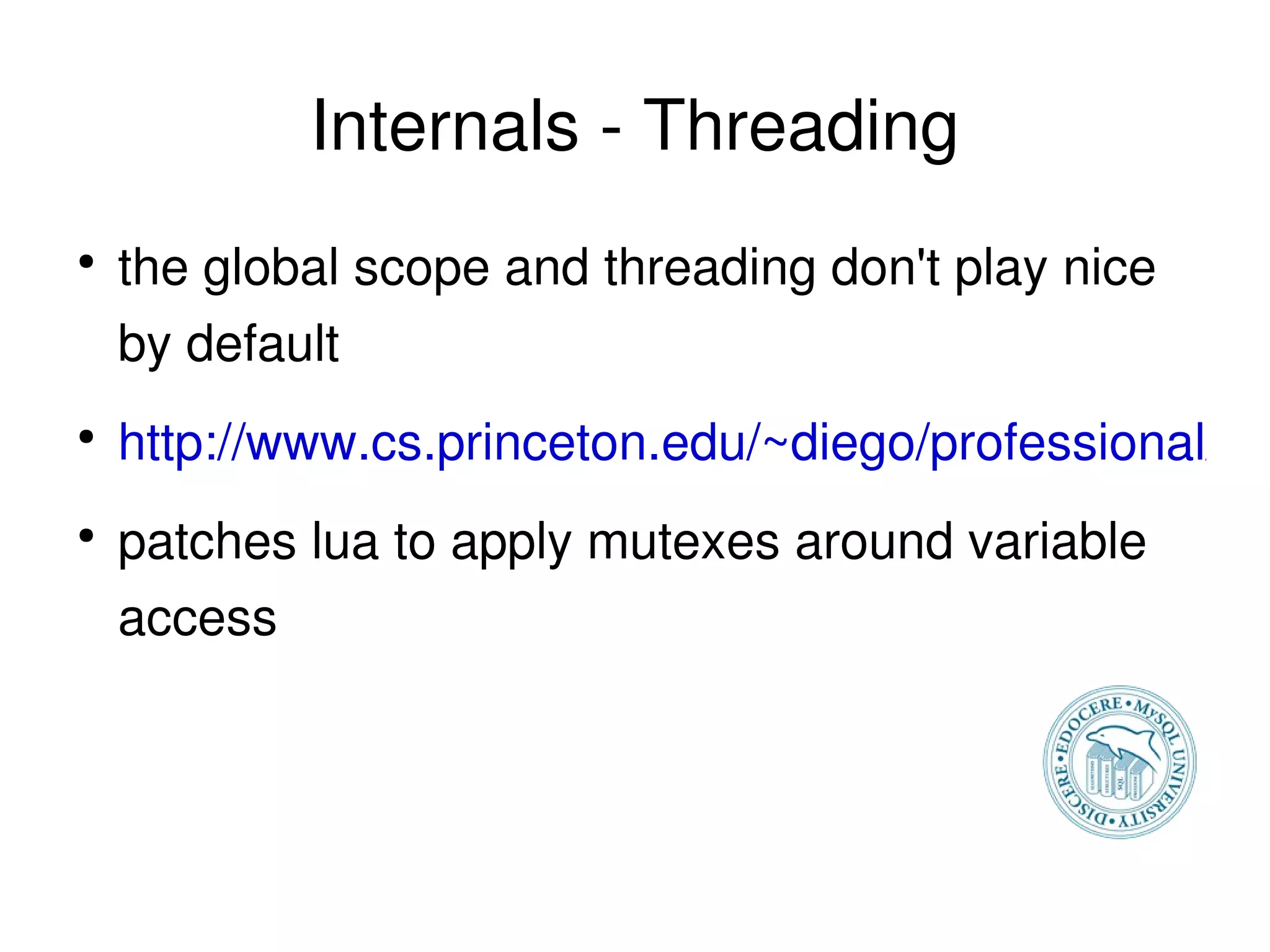

24. Internals ­ Threading
the global scope and threading don't play nice
●
by default
http://www.cs.princeton.edu/~diego/professional/lua
●
patches lua to apply mutexes around variable
●
access

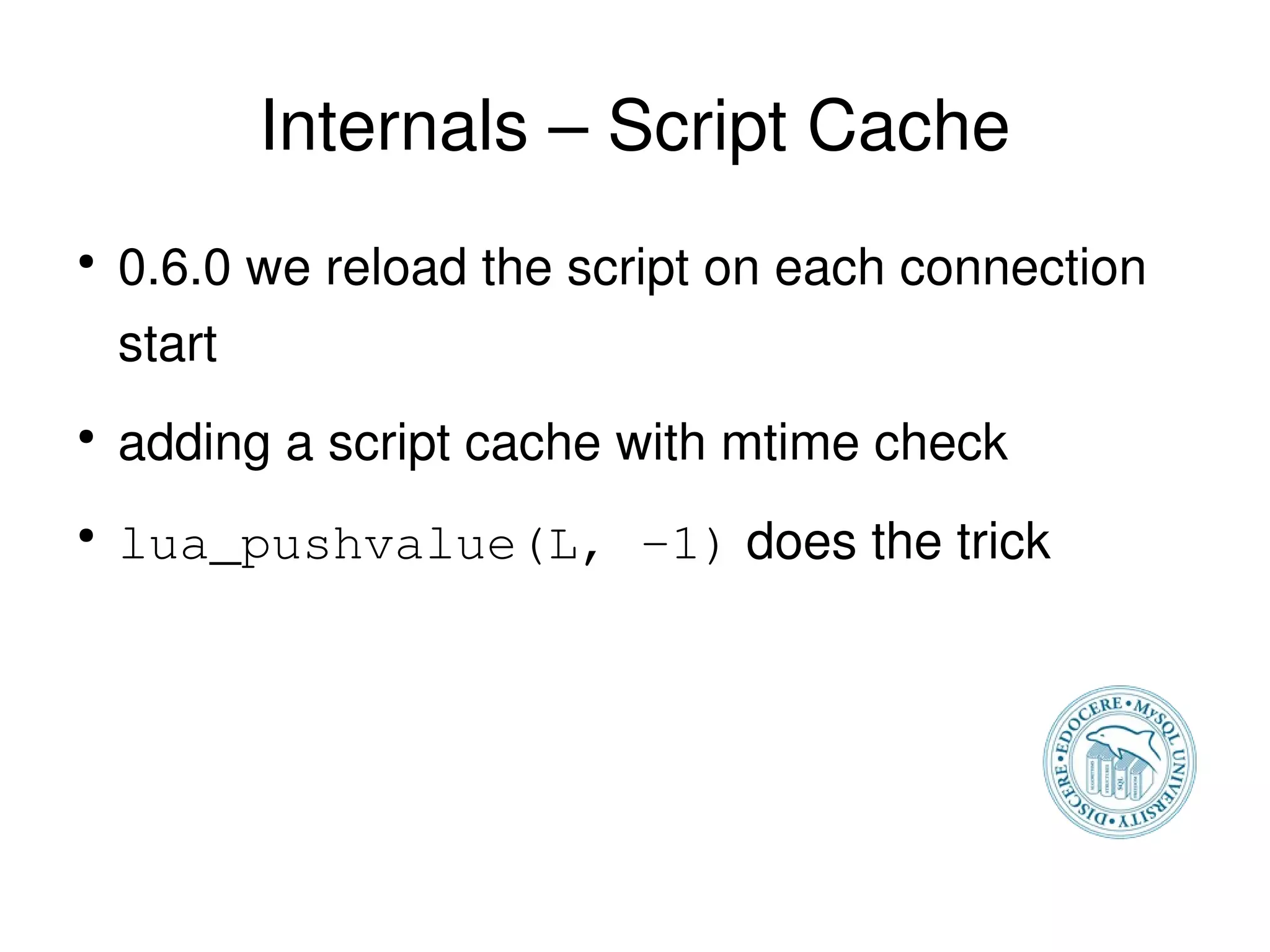

25. Internals – Script Cache
0.6.0 we reload the script on each connection
●
start
adding a script cache with mtime check
●
lua_pushvalue(L, ­1) does the trick
●

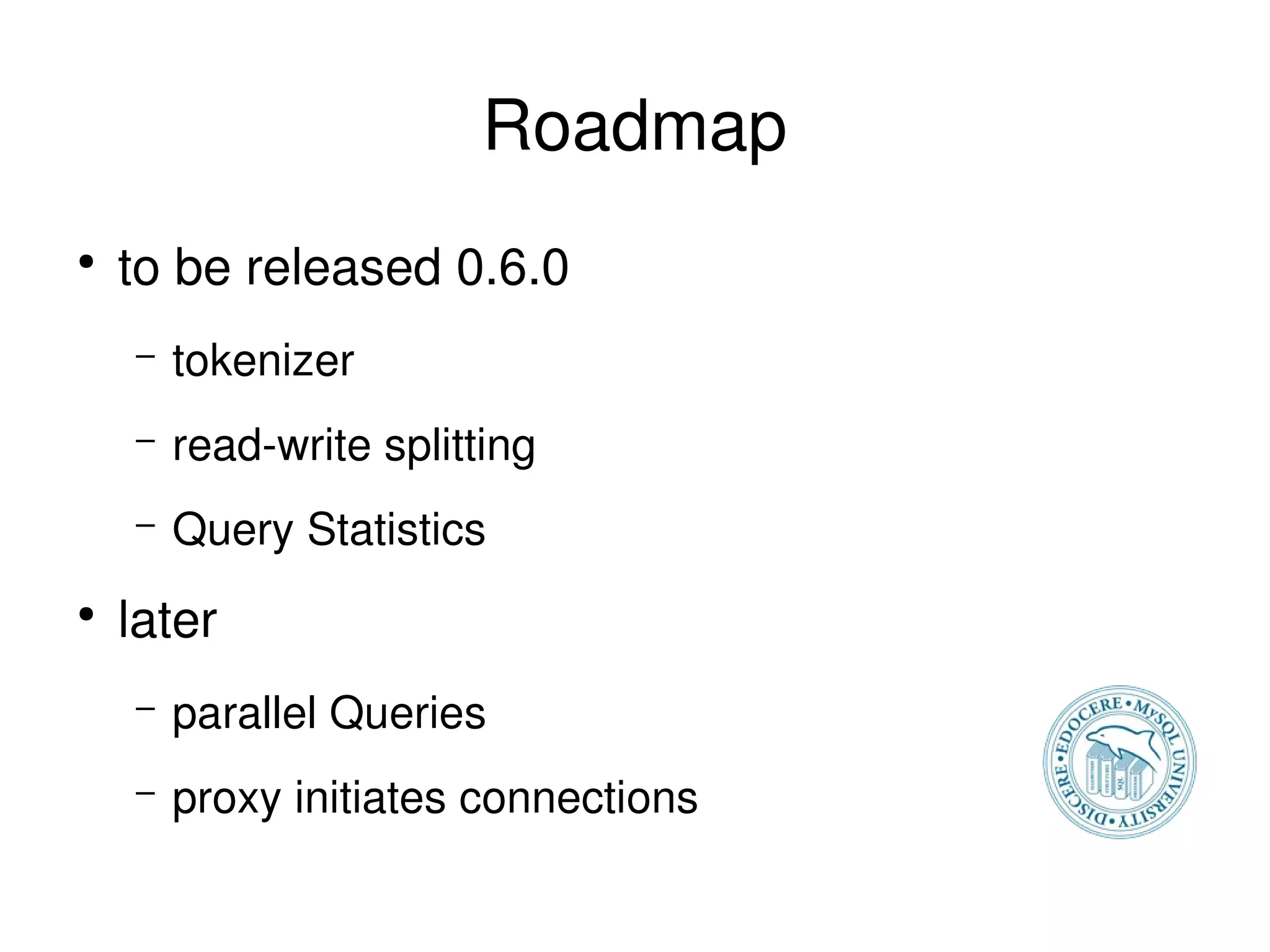

26. Roadmap
to be released 0.6.0
●
tokenizer
–
read­write splitting
–
Query Statistics
–
later
●
parallel Queries
–
proxy initiates connections
–

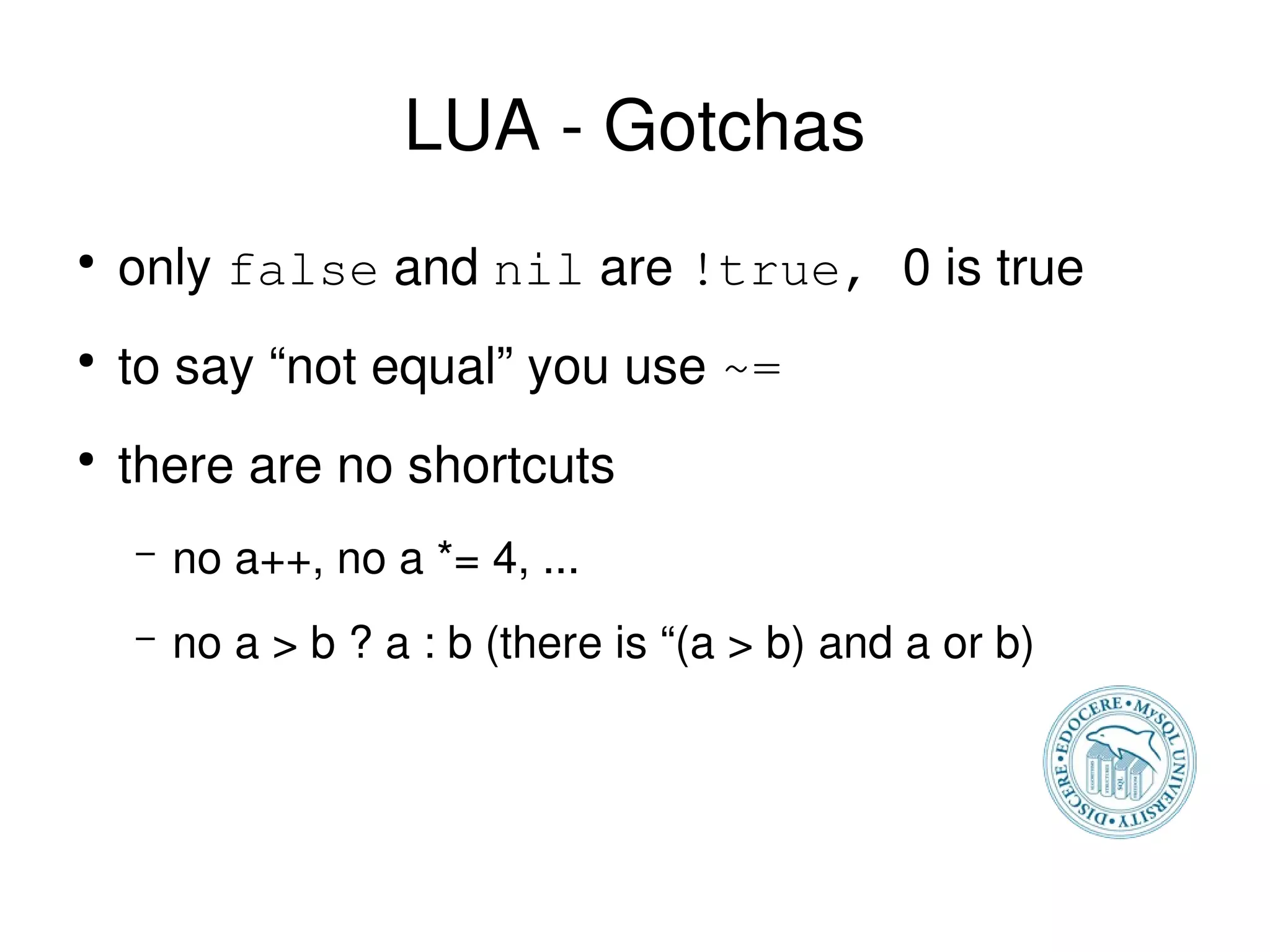

27. LUA ­ Gotchas
only false and nil are !true, 0 is true
●
to say “not equal” you use ~=
●
there are no shortcuts
●
no a++, no a *= 4, ...
–
no a > b ? a : b (there is “(a > b) and a or b)
–
