1. jQuery Makes Writing JavaScript
Fun Again
Doris Chen Ph.D.
Developer Evangelist
Microsoft
http://blogs.msdn.com/b/dorischen/

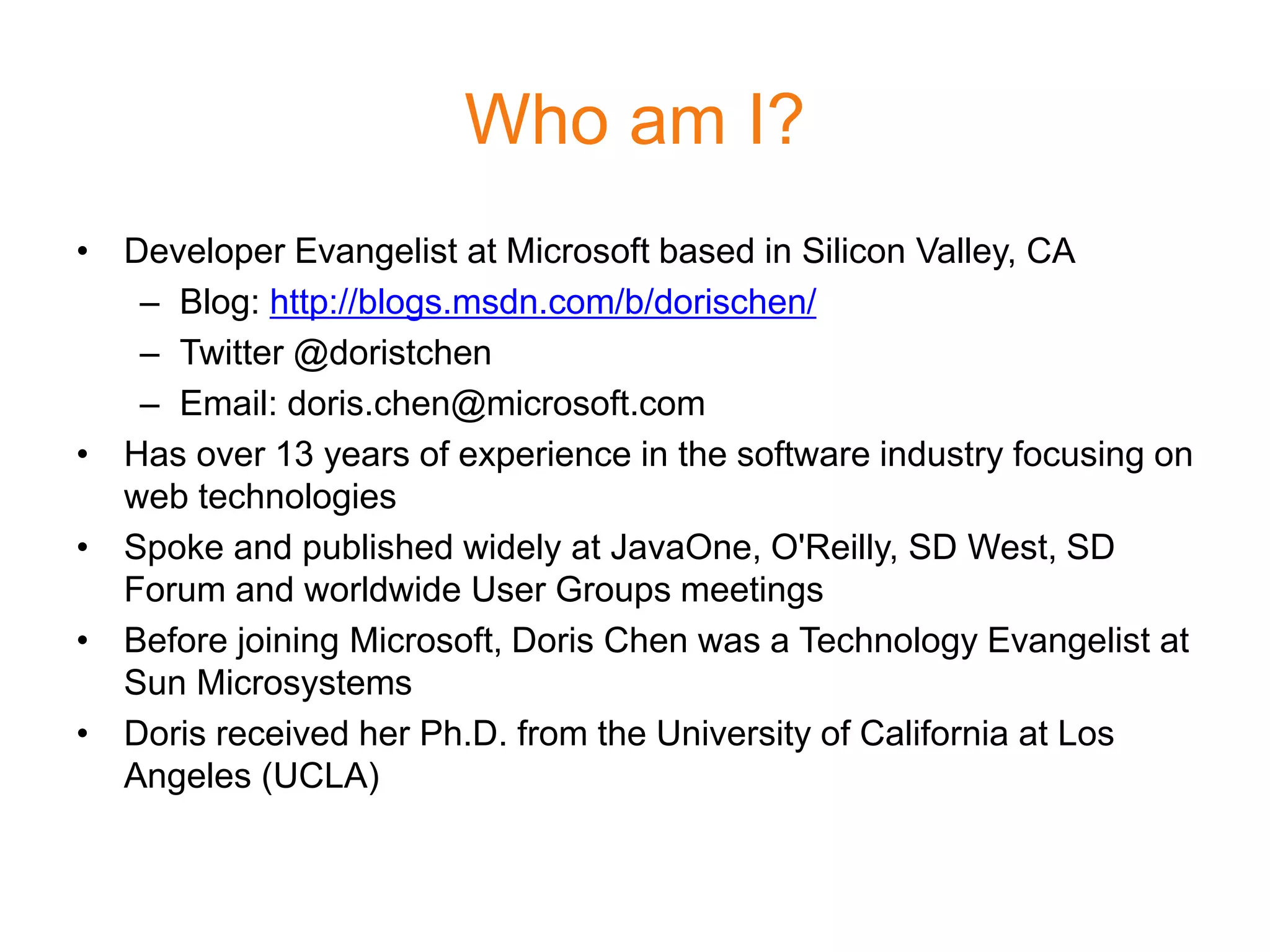

2. Who am I?
• Developer Evangelist at Microsoft based in Silicon Valley, CA
– Blog: http://blogs.msdn.com/b/dorischen/
– Twitter @doristchen
– Email: doris.chen@microsoft.com
• Has over 13 years of experience in the software industry focusing on
web technologies
• Spoke and published widely at JavaOne, O'Reilly, SD West, SD
Forum and worldwide User Groups meetings
• Before joining Microsoft, Doris Chen was a Technology Evangelist at
Sun Microsystems
• Doris received her Ph.D. from the University of California at Los
Angeles (UCLA)

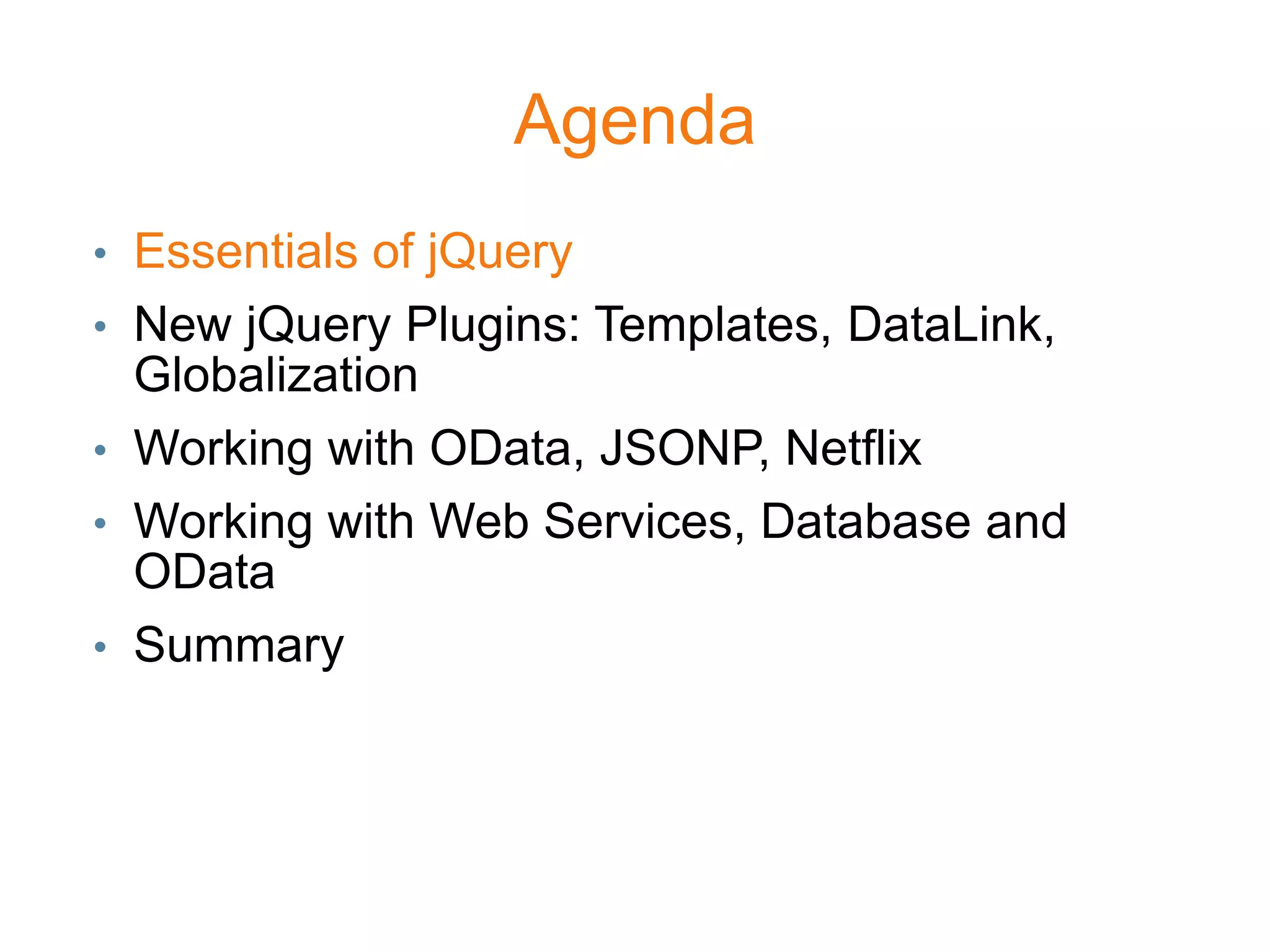

3. Agenda
• Essentials of jQuery
• New jQuery Plugins: Templates, DataLink,
Globalization
• Working with OData, JSONP, Netflix
• Working with Web Services, Database and
OData
• Summary

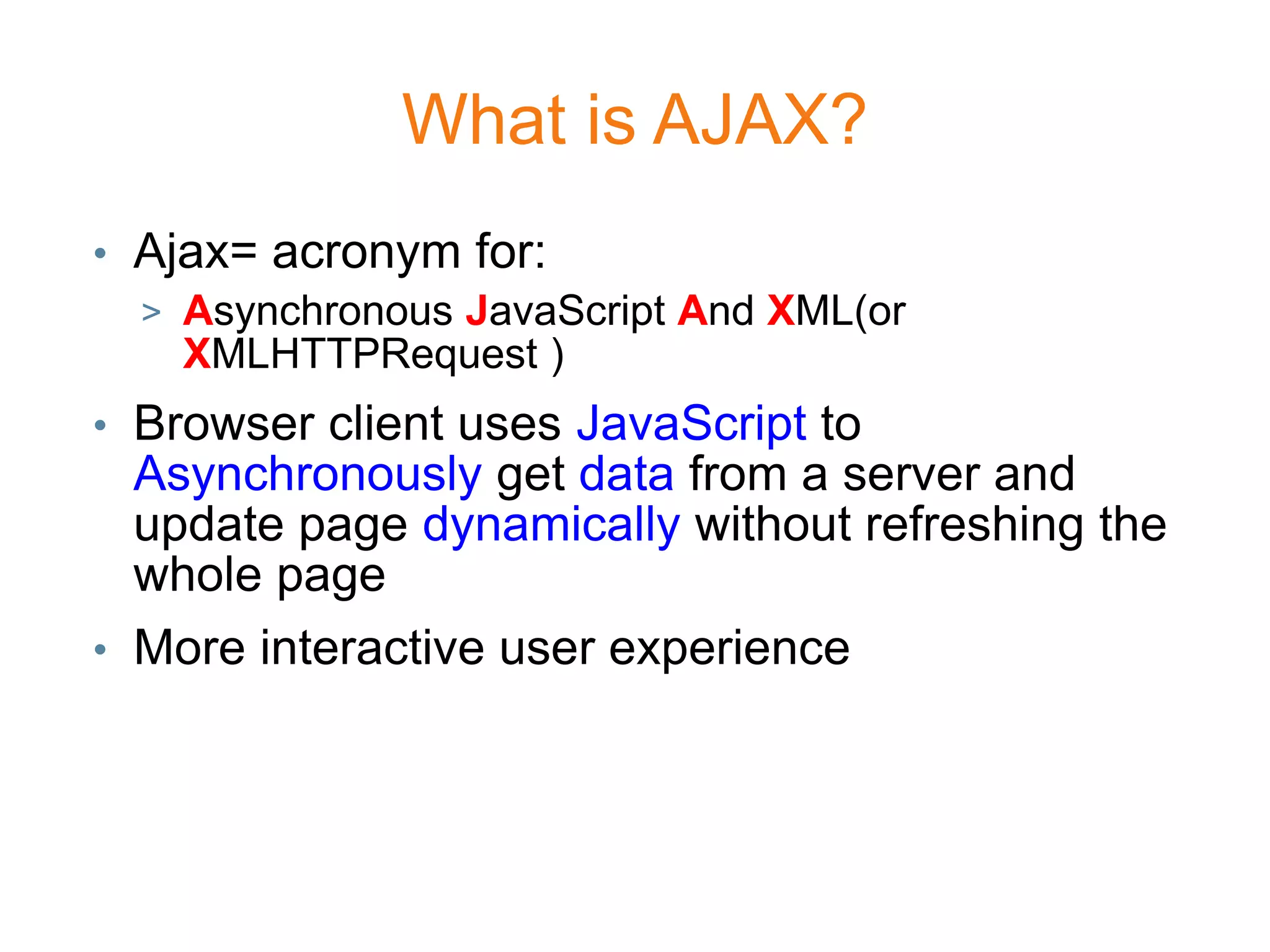

4. What is AJAX?
• Ajax= acronym for:
> Asynchronous JavaScript And XML(or
XMLHTTPRequest )
• Browser client uses JavaScript to
Asynchronously get data from a server and
update page dynamically without refreshing the
whole page
• More interactive user experience

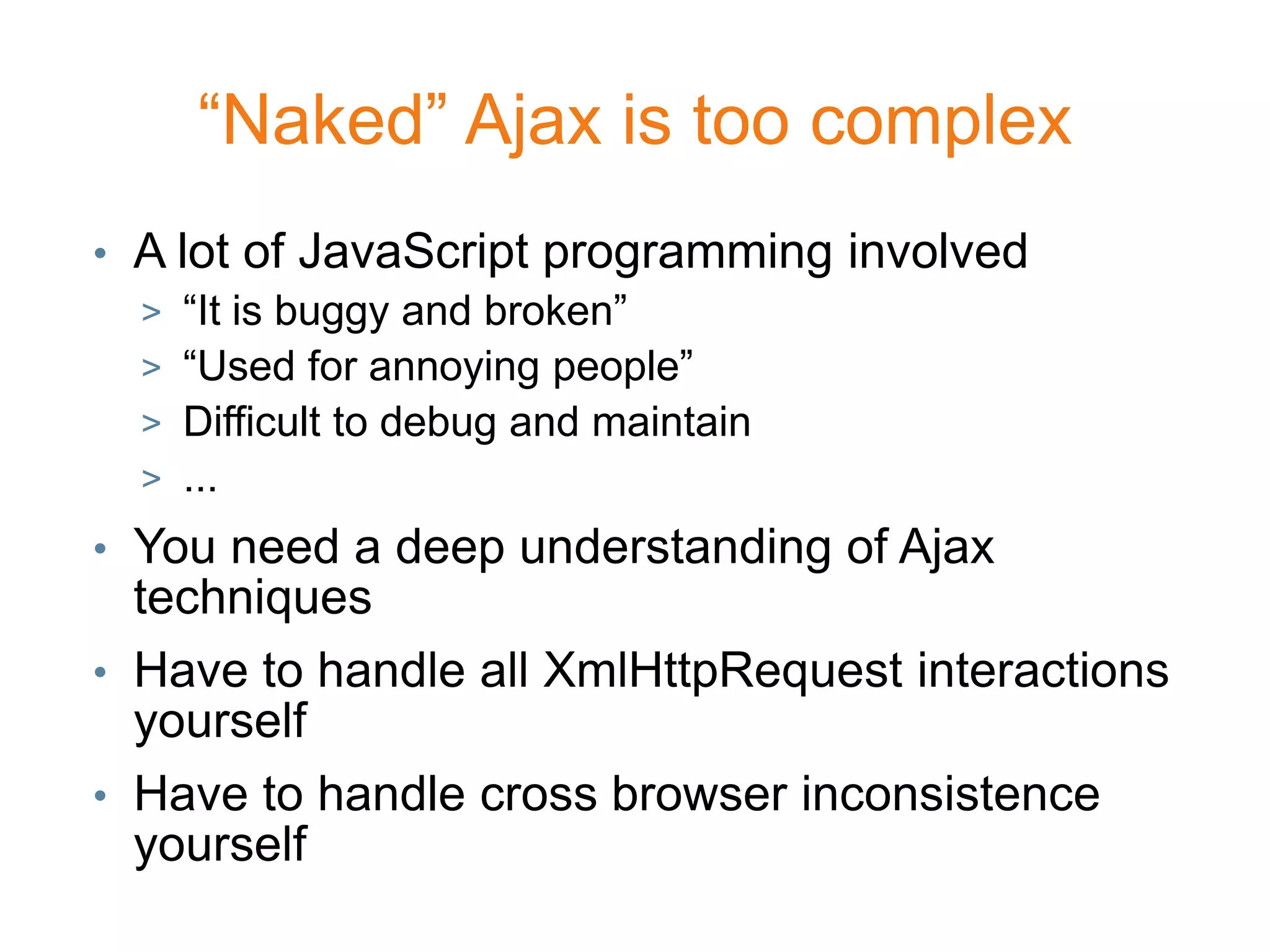

5. “Naked” Ajax is too complex
• A lot of JavaScript programming involved
> “It is buggy and broken”
> “Used for annoying people”
> Difficult to debug and maintain
> ...
• You need a deep understanding of Ajax
techniques
• Have to handle all XmlHttpRequest interactions
yourself
• Have to handle cross browser inconsistence
yourself

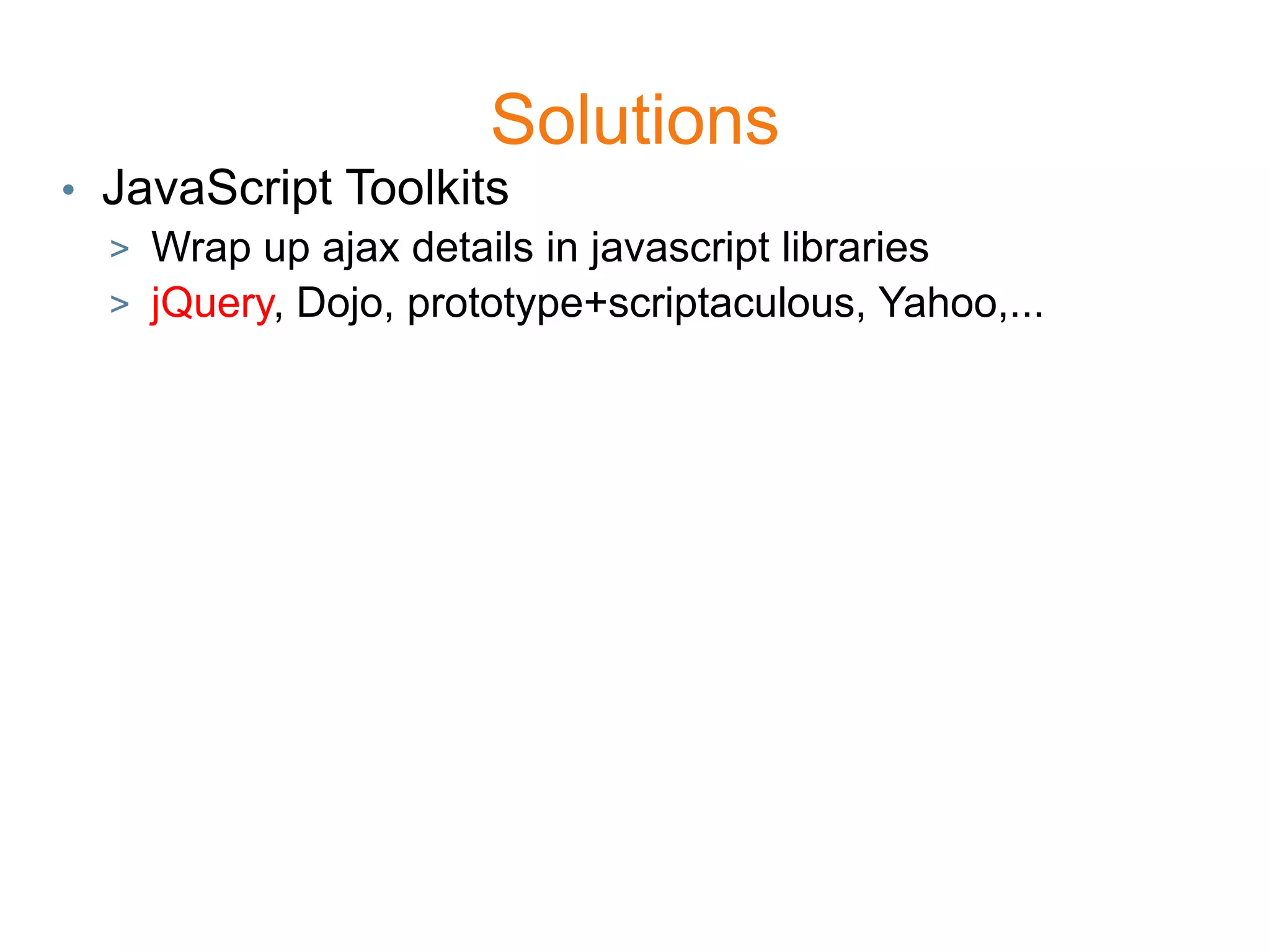

6. Solutions
• JavaScript Toolkits
> Wrap up ajax details in javascript libraries
> jQuery, Dojo, prototype+scriptaculous, Yahoo,...

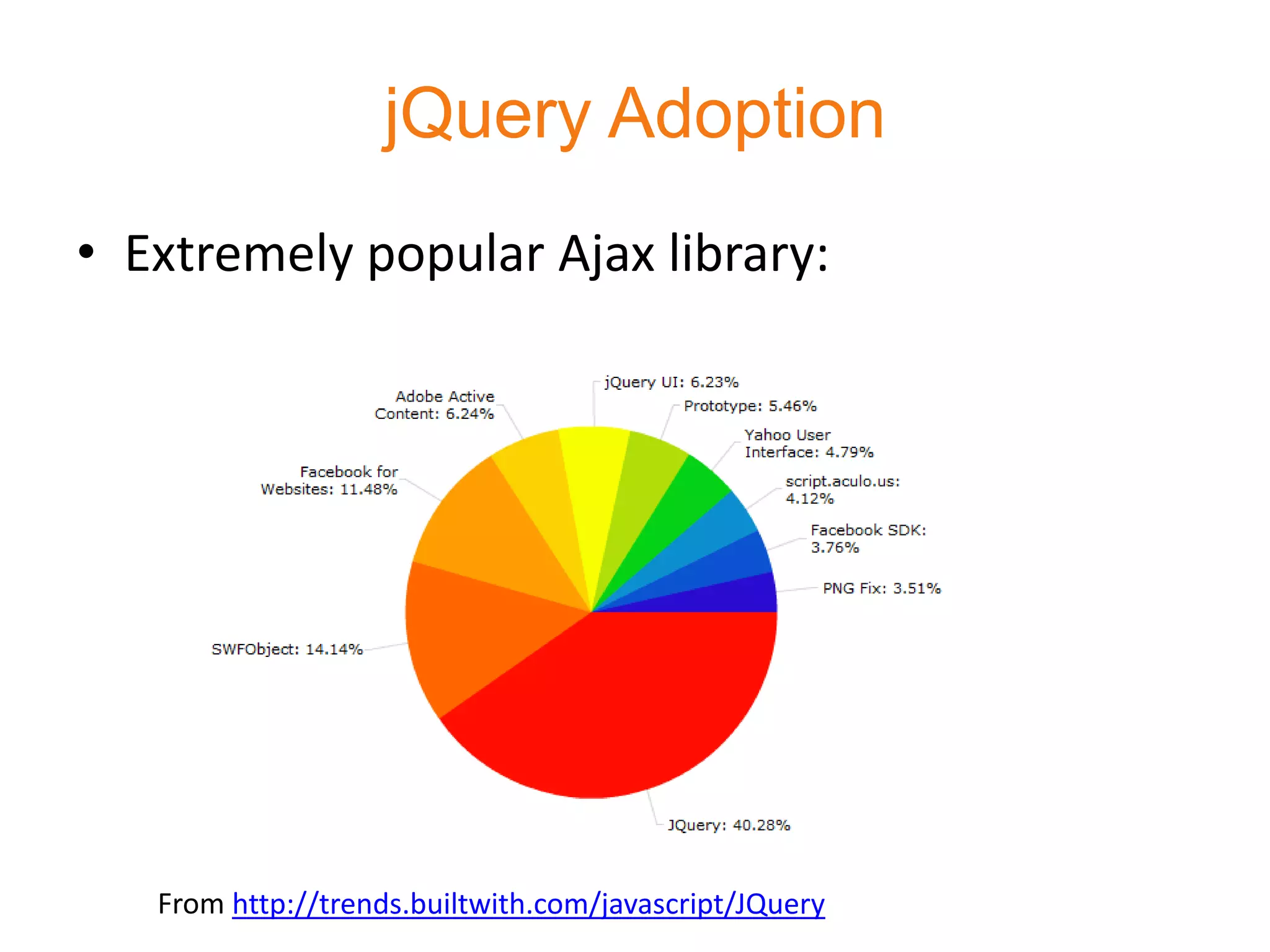

7. jQuery Adoption
http://trends.builtwith.com/javascript/JQuery

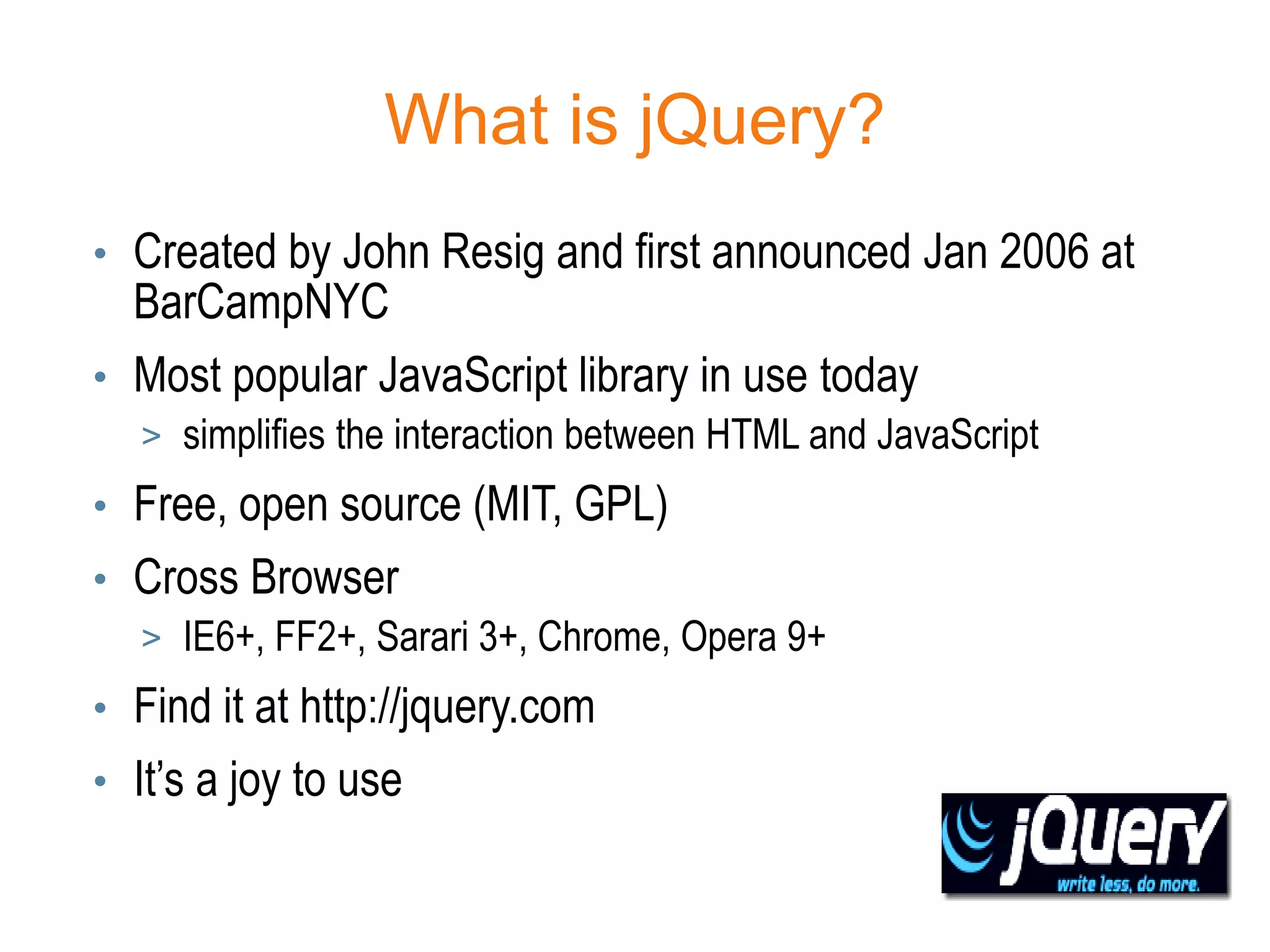

8. What is jQuery?
• Created by John Resig and first announced Jan 2006 at
BarCampNYC
• Most popular JavaScript library in use today
> simplifies the interaction between HTML and JavaScript
• Free, open source (MIT, GPL)
• Cross Browser
> IE6+, FF2+, Sarari 3+, Chrome, Opera 9+
• Find it at http://jquery.com
• It’s a joy to use

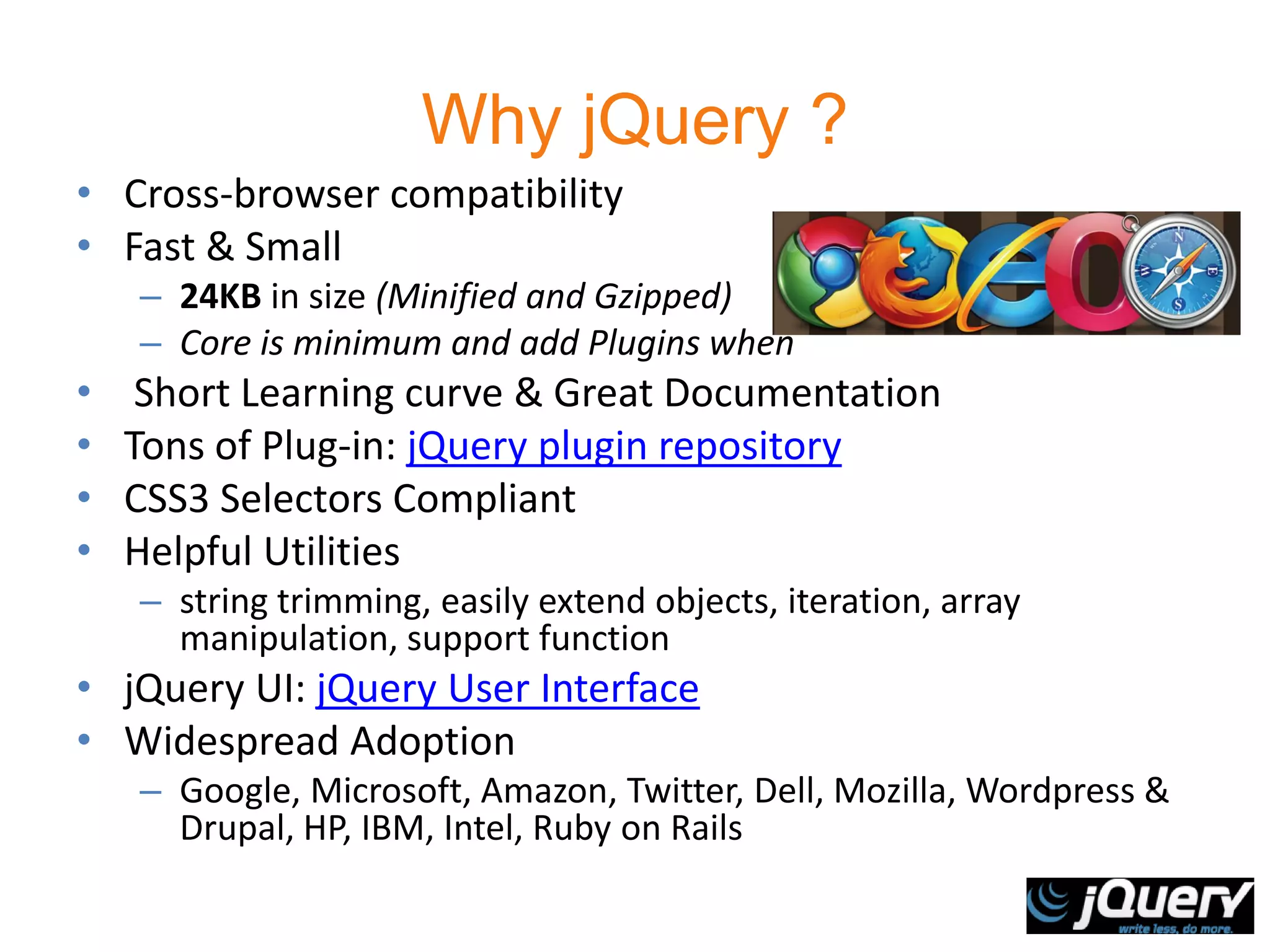

9. Why jQuery ?
• Cross-browser compatibility
• Fast & Small
– 24KB in size (Minified and Gzipped)
– Core is minimum and add Plugins when
• Short Learning curve & Great Documentation
• Tons of Plug-in: jQuery plugin repository
• CSS3 Selectors Compliant
• Helpful Utilities
– string trimming, easily extend objects, iteration, array
manipulation, support function
• jQuery UI: jQuery User Interface
• Widespread Adoption
– Google, Microsoft, Amazon, Twitter, Dell, Mozilla, Wordpress &
Drupal, HP, IBM, Intel, Ruby on Rails

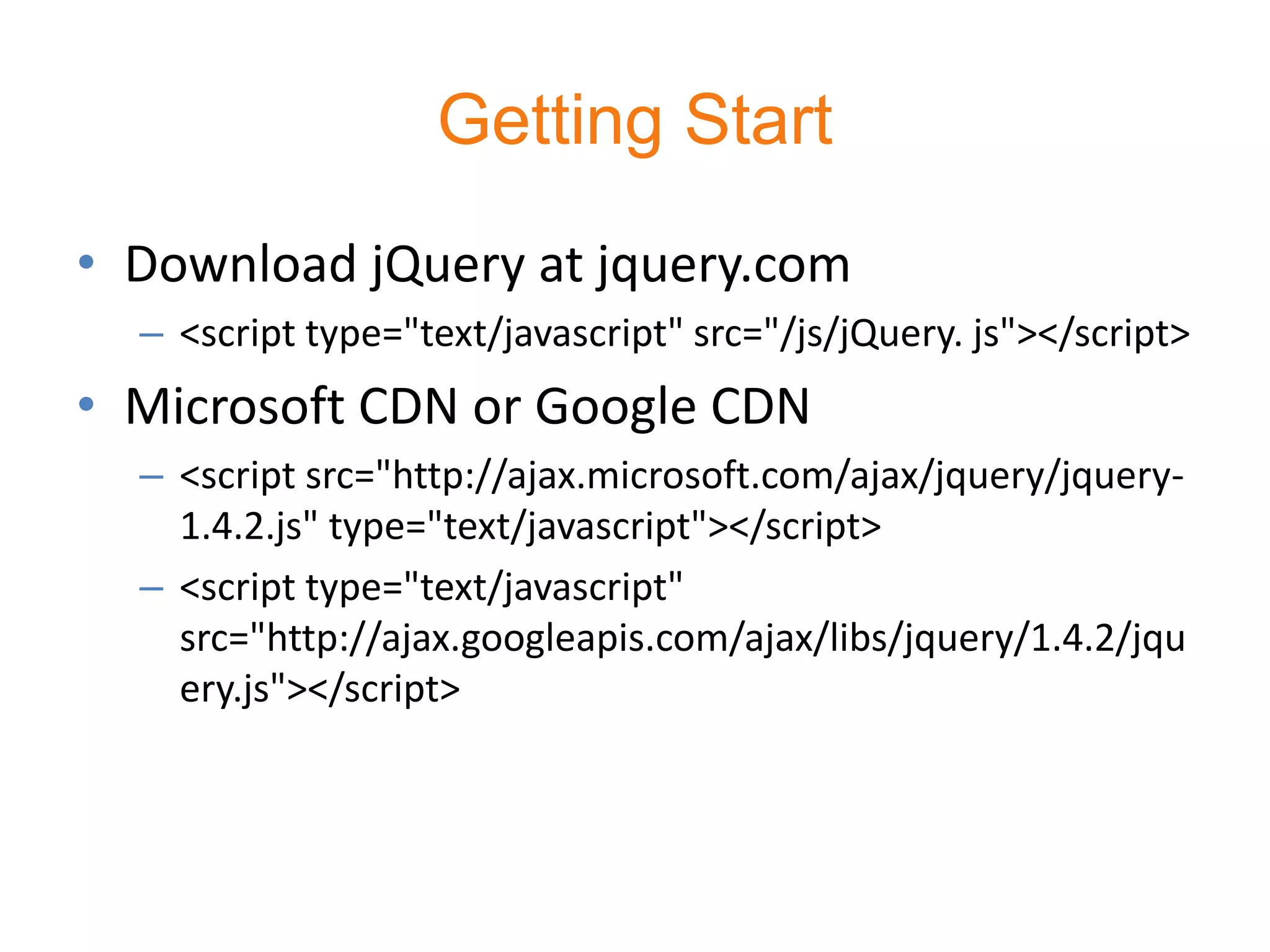

10. Getting Start
• Download jQuery at jquery.com
– <script type="text/javascript" src="/js/jQuery. js"></script>
• Microsoft CDN or Google CDN
– <script src="http://ajax.microsoft.com/ajax/jquery/jquery-
1.4.2.js" type="text/javascript"></script>
– <script type="text/javascript"
src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jqu
ery.js"></script>

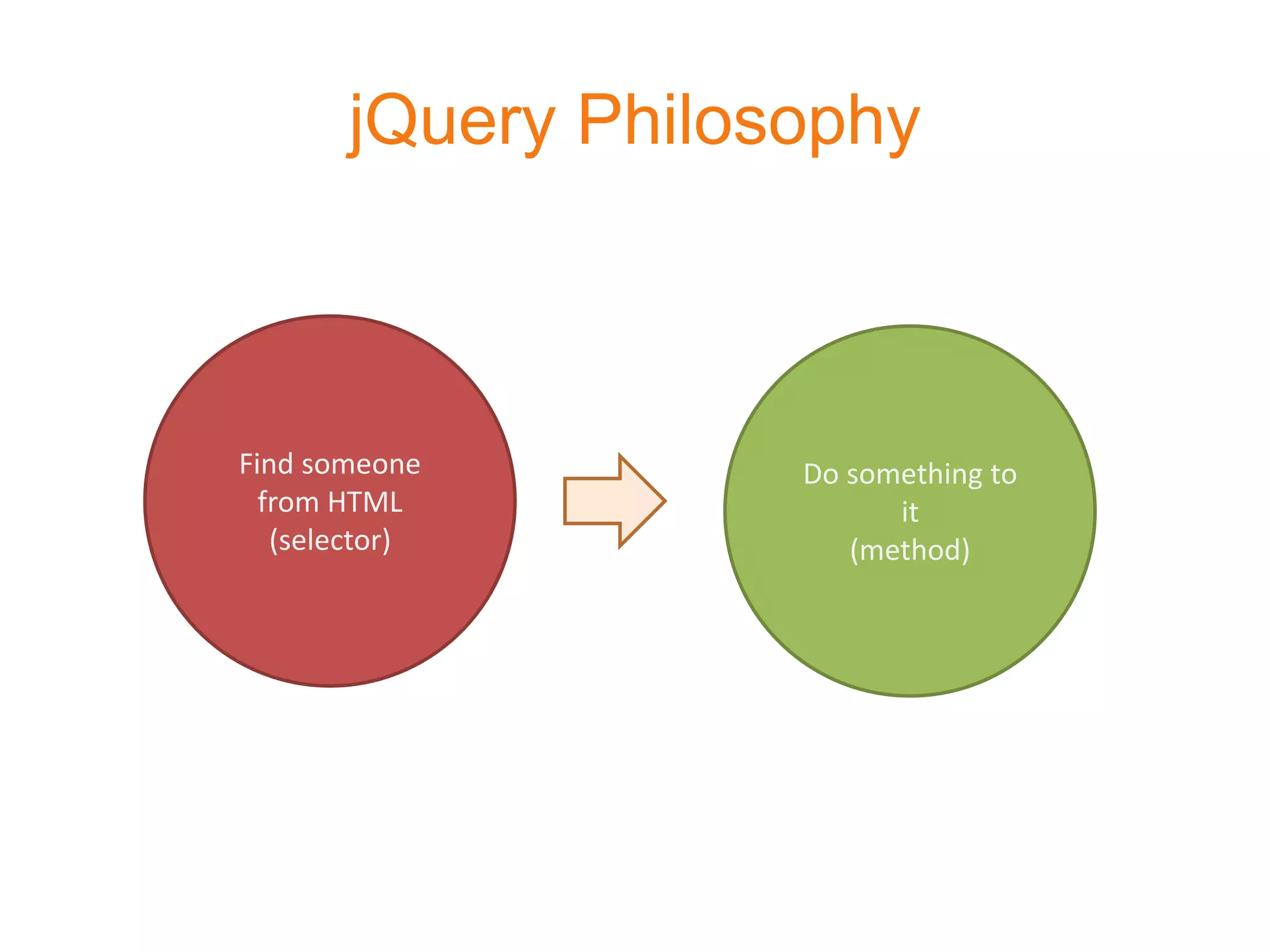

11. jQuery Philosophy
Find someone Do something to
from HTML it
(selector) (method)

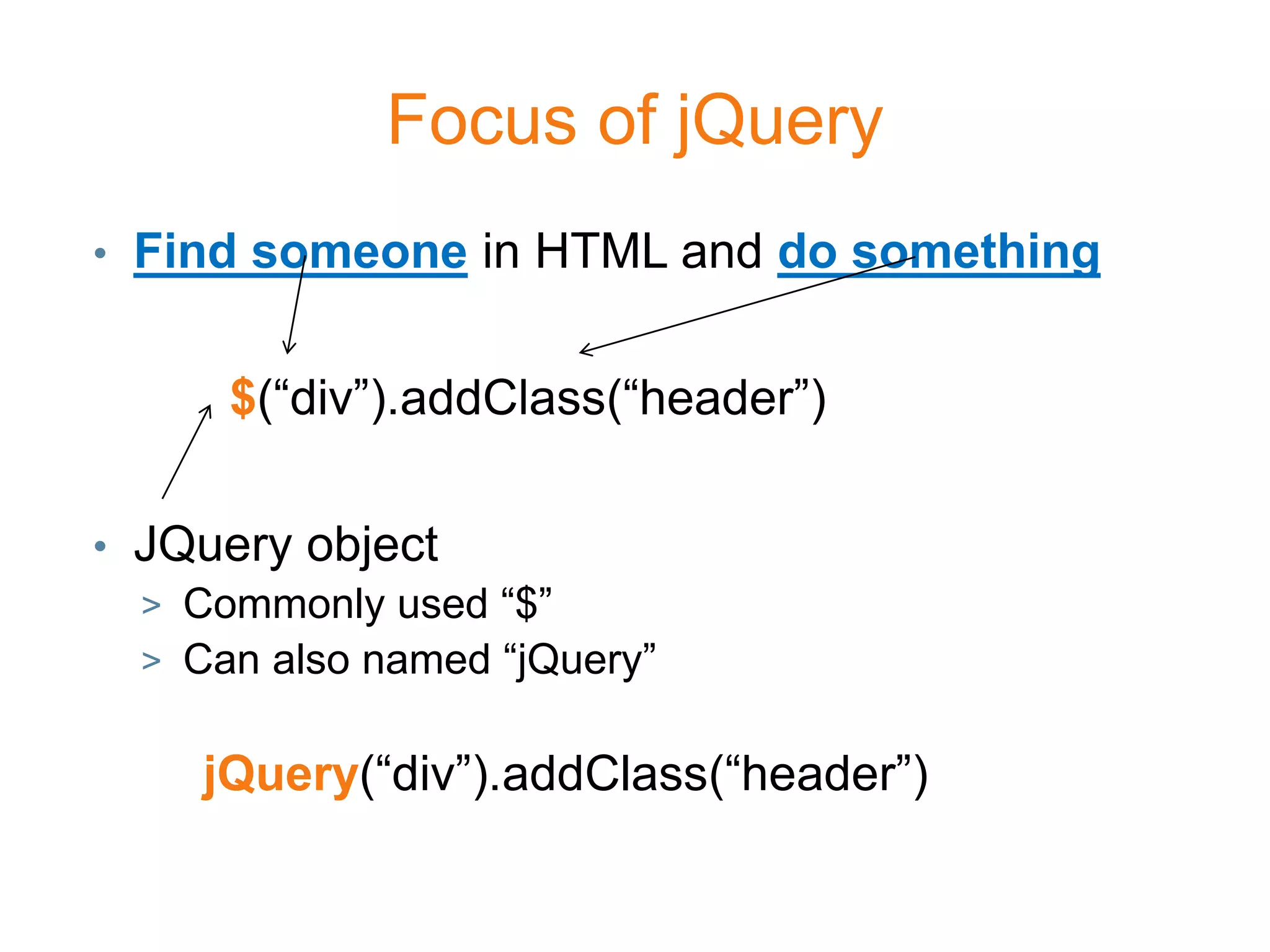

12. Focus of jQuery
• Find someone in HTML and do something
$(“div”).addClass(“header”)
• JQuery object
> Commonly used “$”
> Can also named “jQuery”
jQuery(“div”).addClass(“header”)

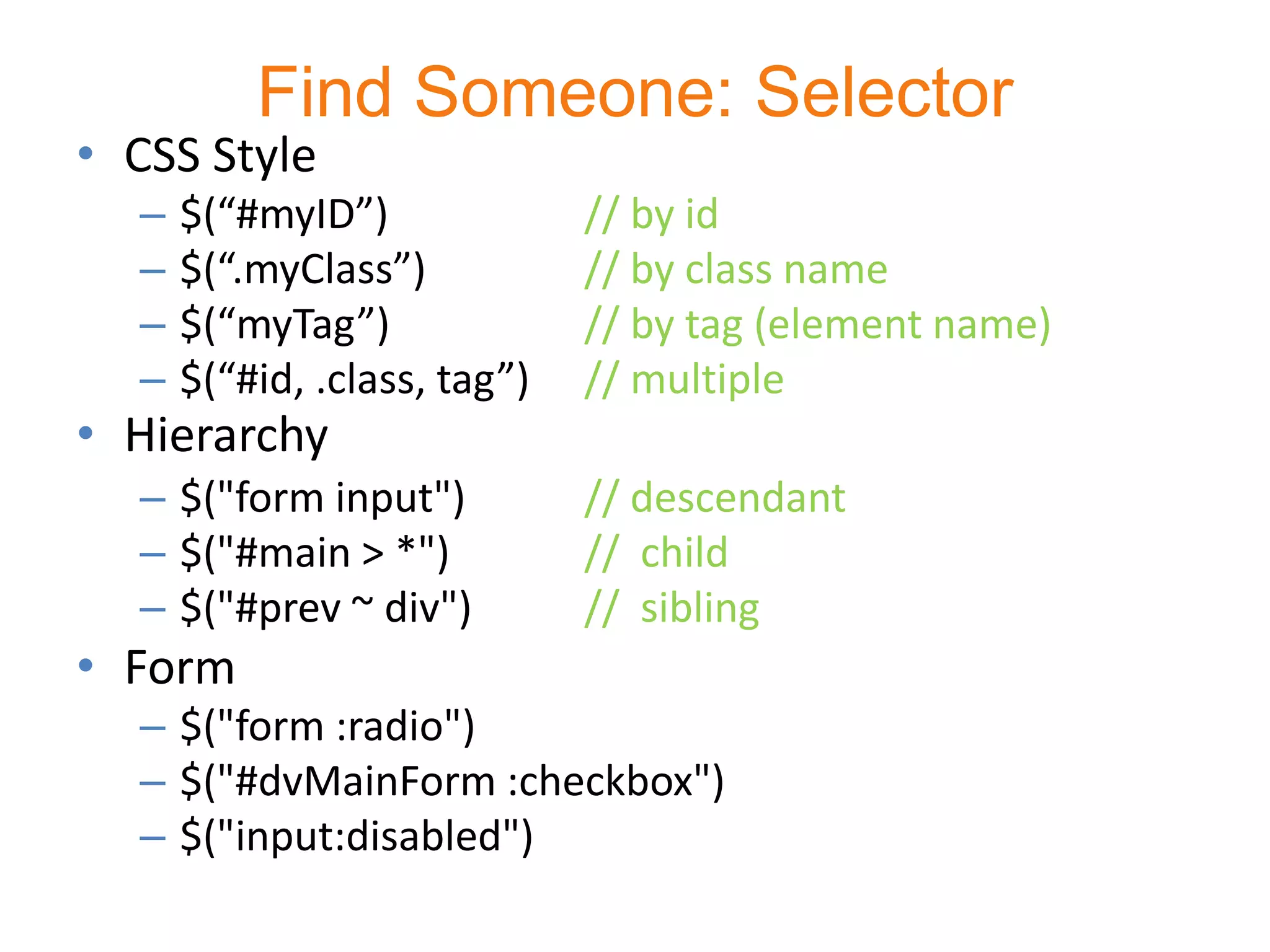

13. Find Someone: Selector
• CSS Style
– $(“#myID”) // by id
– $(“.myClass”) // by class name
– $(“myTag”) // by tag (element name)
– $(“#id, .class, tag”) // multiple
• Hierarchy
– $("form input") // descendant
– $("#main > *") // child
– $("#prev ~ div") // sibling
• Form
– $("form :radio")
– $("#dvMainForm :checkbox")
– $("input:disabled")

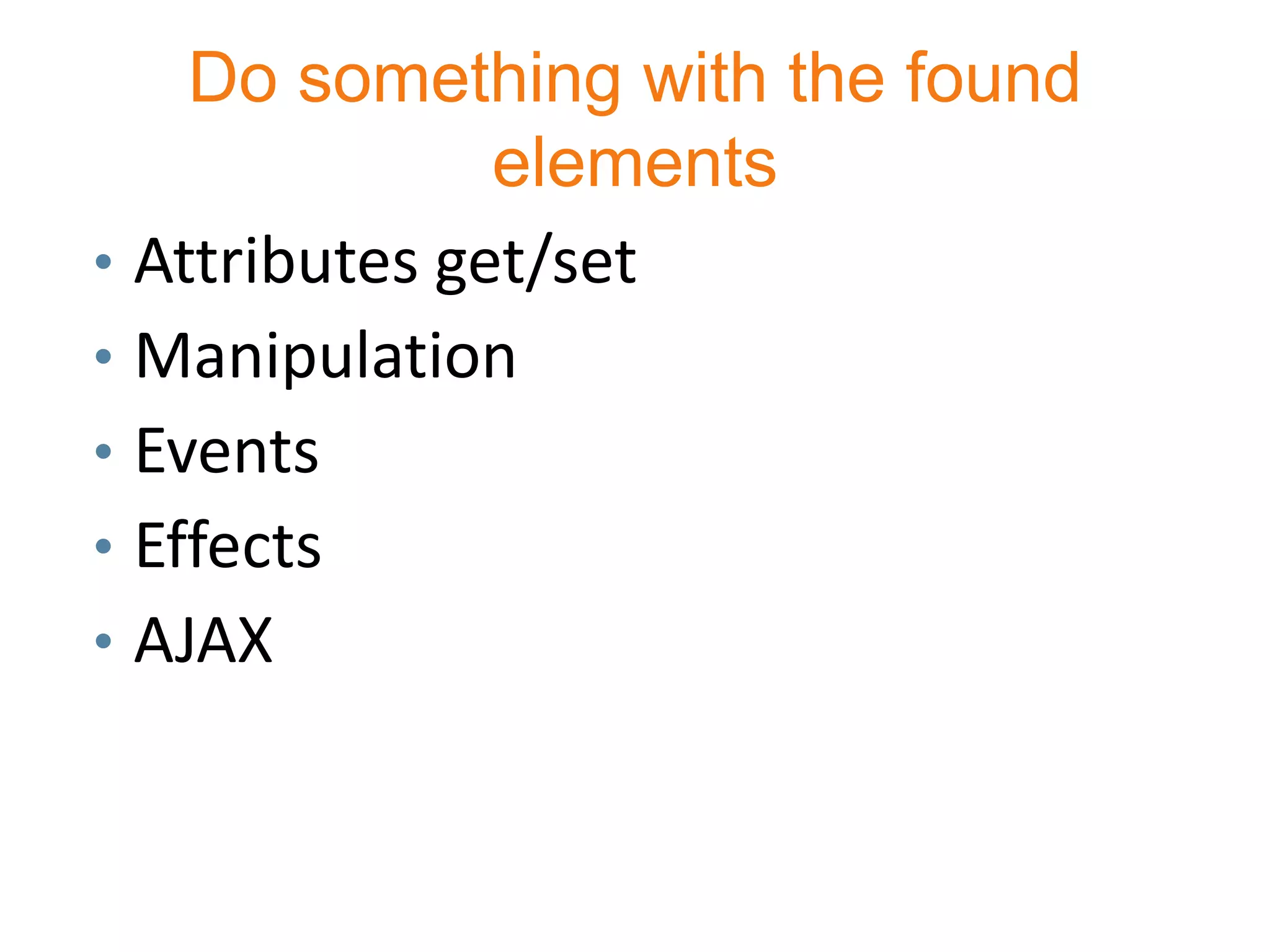

14. Do something with the found
elements
• Attributes get/set
• Manipulation
• Events
• Effects
• AJAX

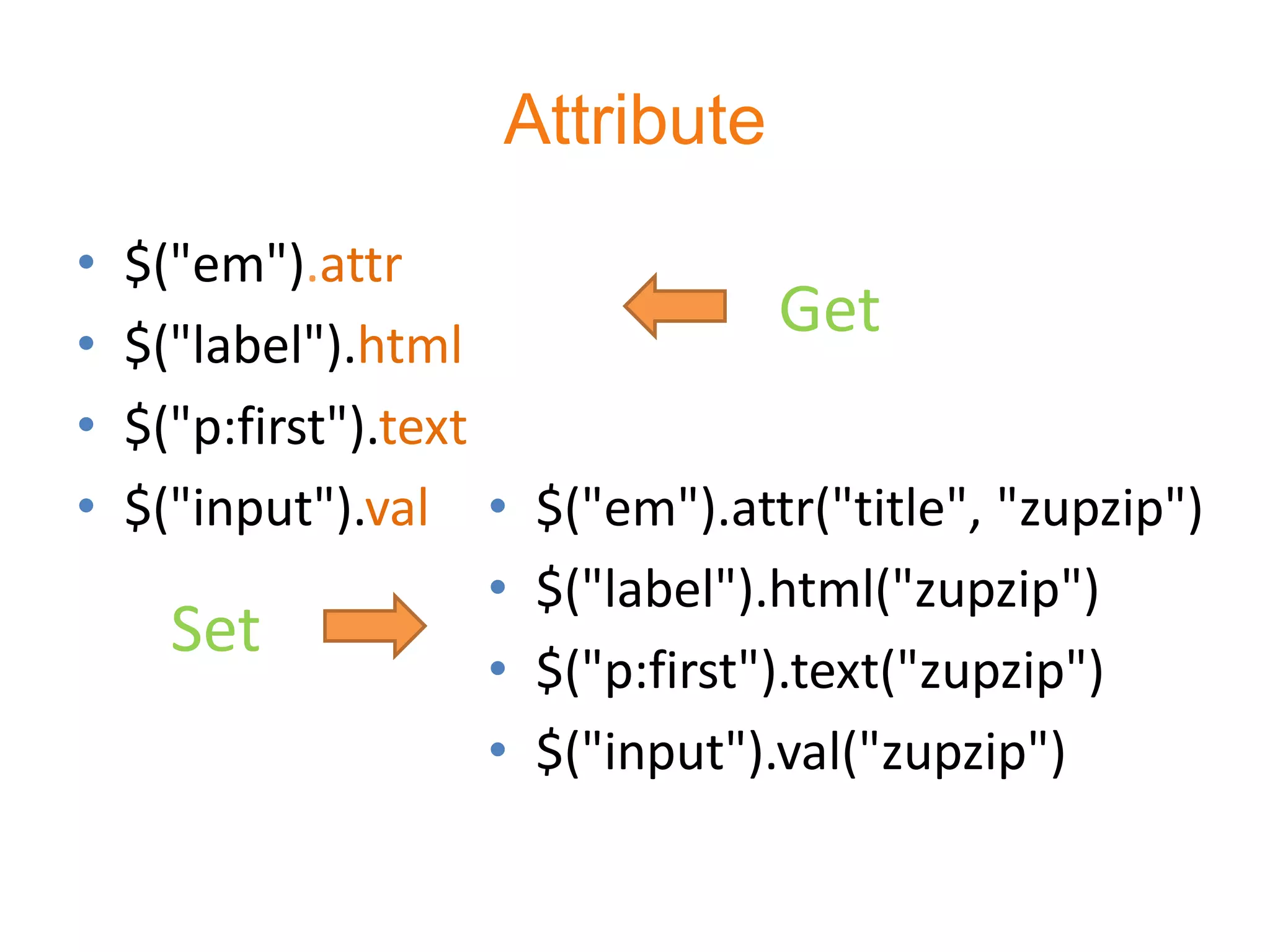

15. Attribute
• $("em").attr("title")
• $("label").html()
Get
• $("p:first").text()
• $("input").val() • $("em").attr("title", "zupzip")
• $("label").html("zupzip")
Set
• $("p:first").text("zupzip")
• $("input").val("zupzip")

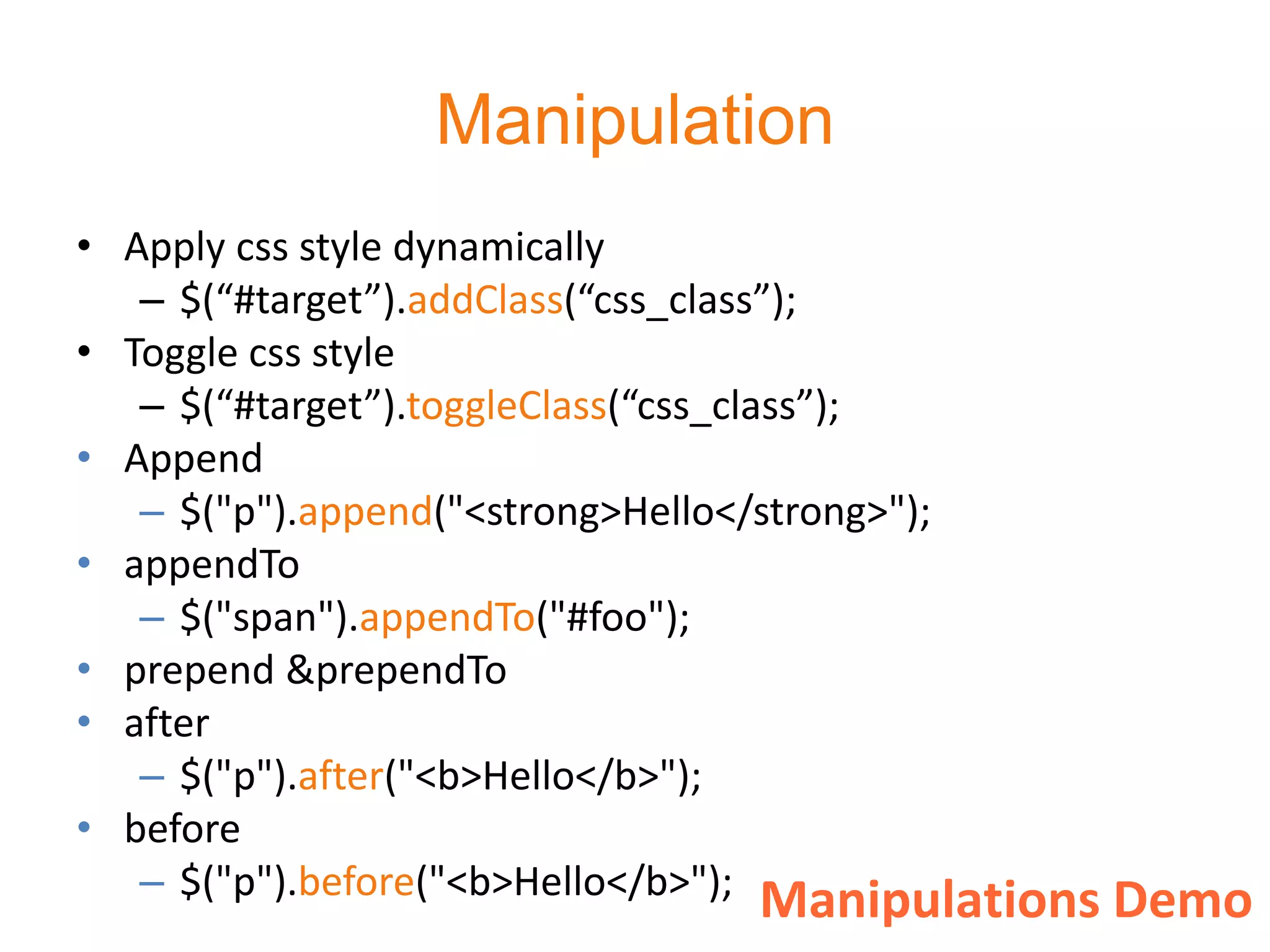

16. Manipulation
• Apply css style dynamically
– $(“#target”).addClass(“css_class”);
• Toggle css style
– $(“#target”).toggleClass(“css_class”);
• Append
– $("p").append("<strong>Hello</strong>");
• appendTo
– $("span").appendTo("#foo");
• prepend &prependTo
• after
– $("p").after("<b>Hello</b>");
• before
– $("p").before("<b>Hello</b>"); Manipulations Demo

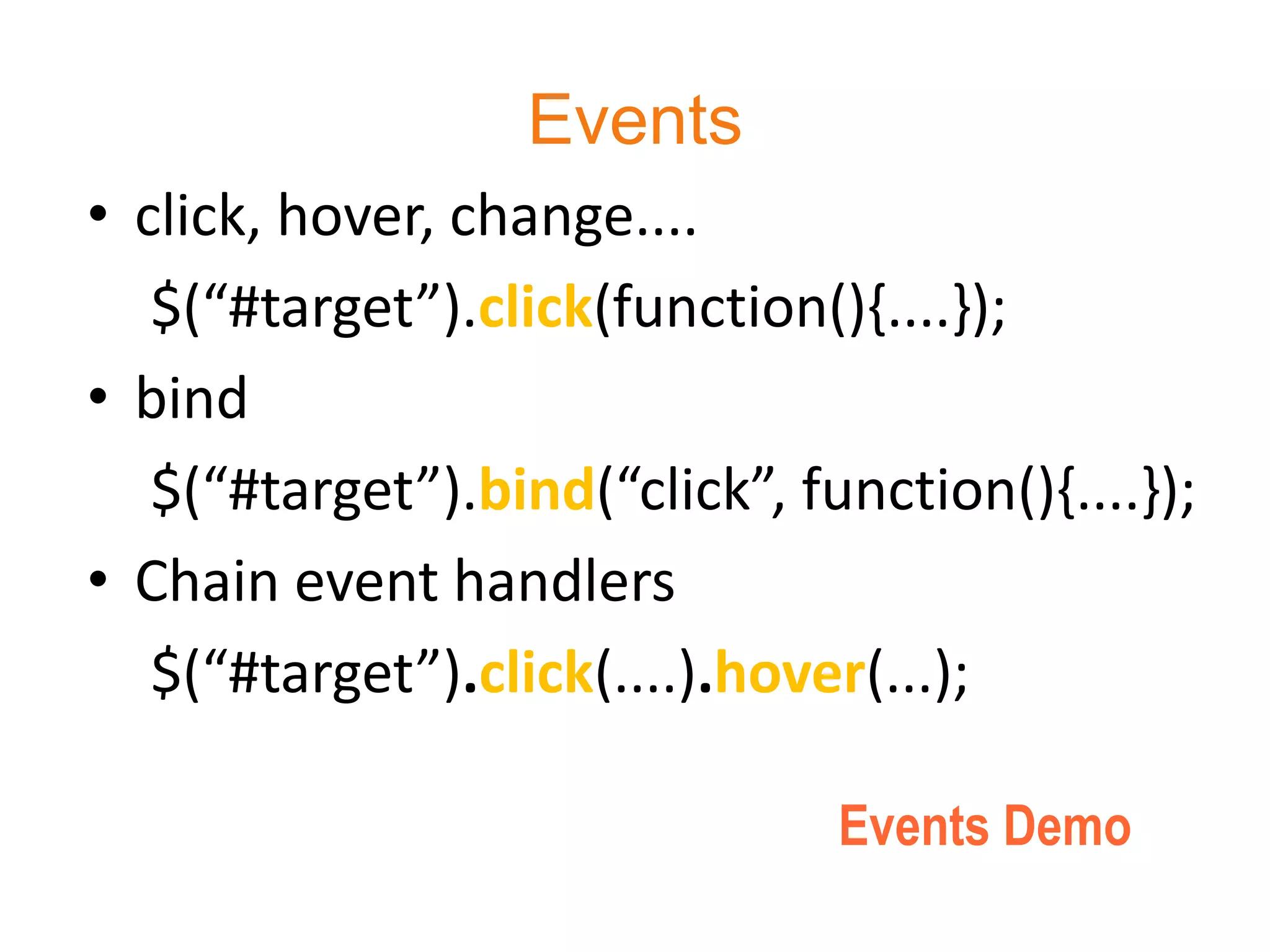

17. Events
• click, hover, change....
$(“#target”).click(function(){....});
• bind
$(“#target”).bind(“click”, function(){....});
• Chain event handlers
$(“#target”).click(....).hover(...);
Events Demo

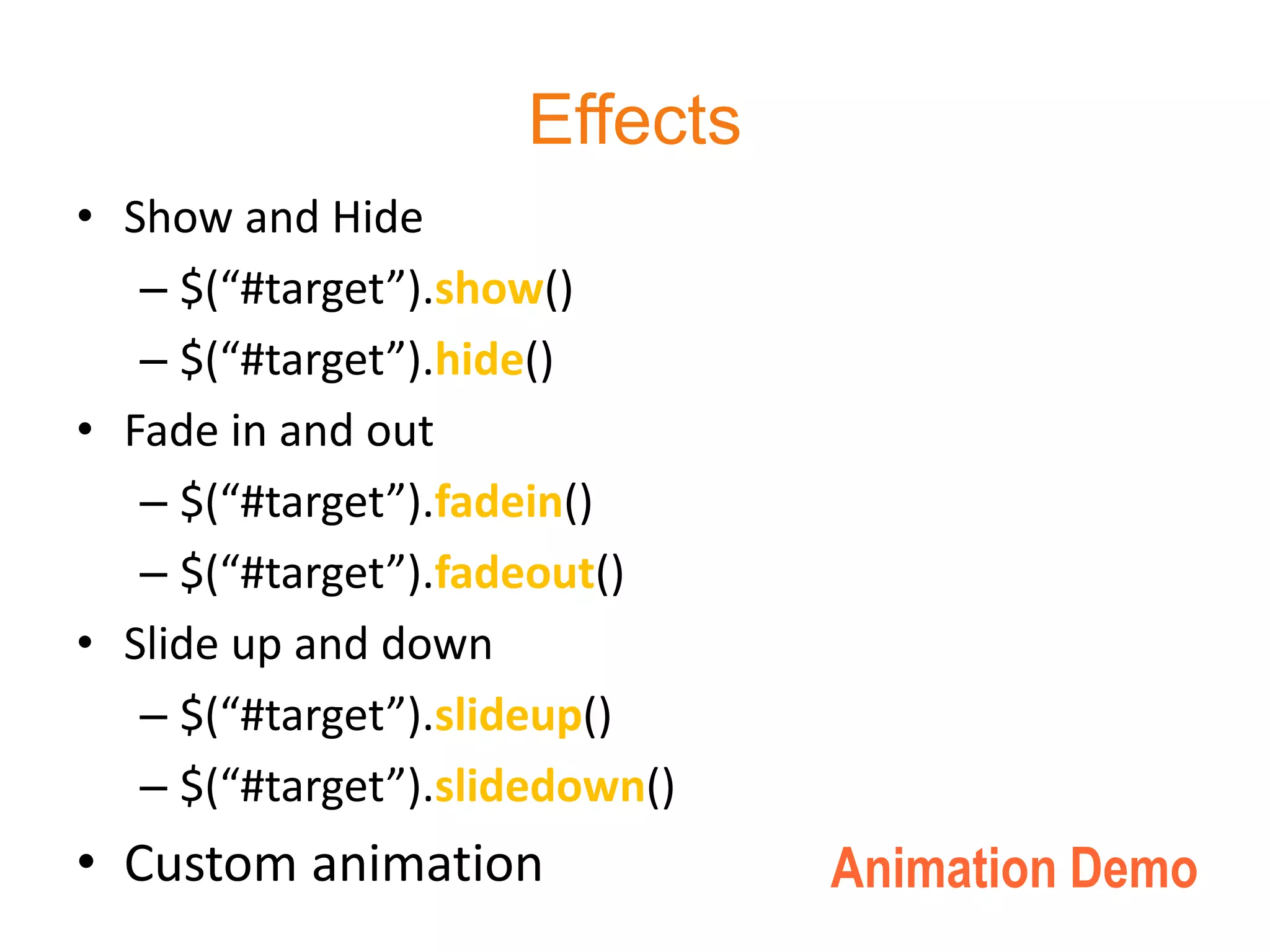

18. Effects
• Show and Hide
– $(“#target”).show()
– $(“#target”).hide()
• Fade in and out
– $(“#target”).fadein()
– $(“#target”).fadeout()
• Slide up and down
– $(“#target”).slideup()
– $(“#target”).slidedown()
• Custom animation Animation Demo

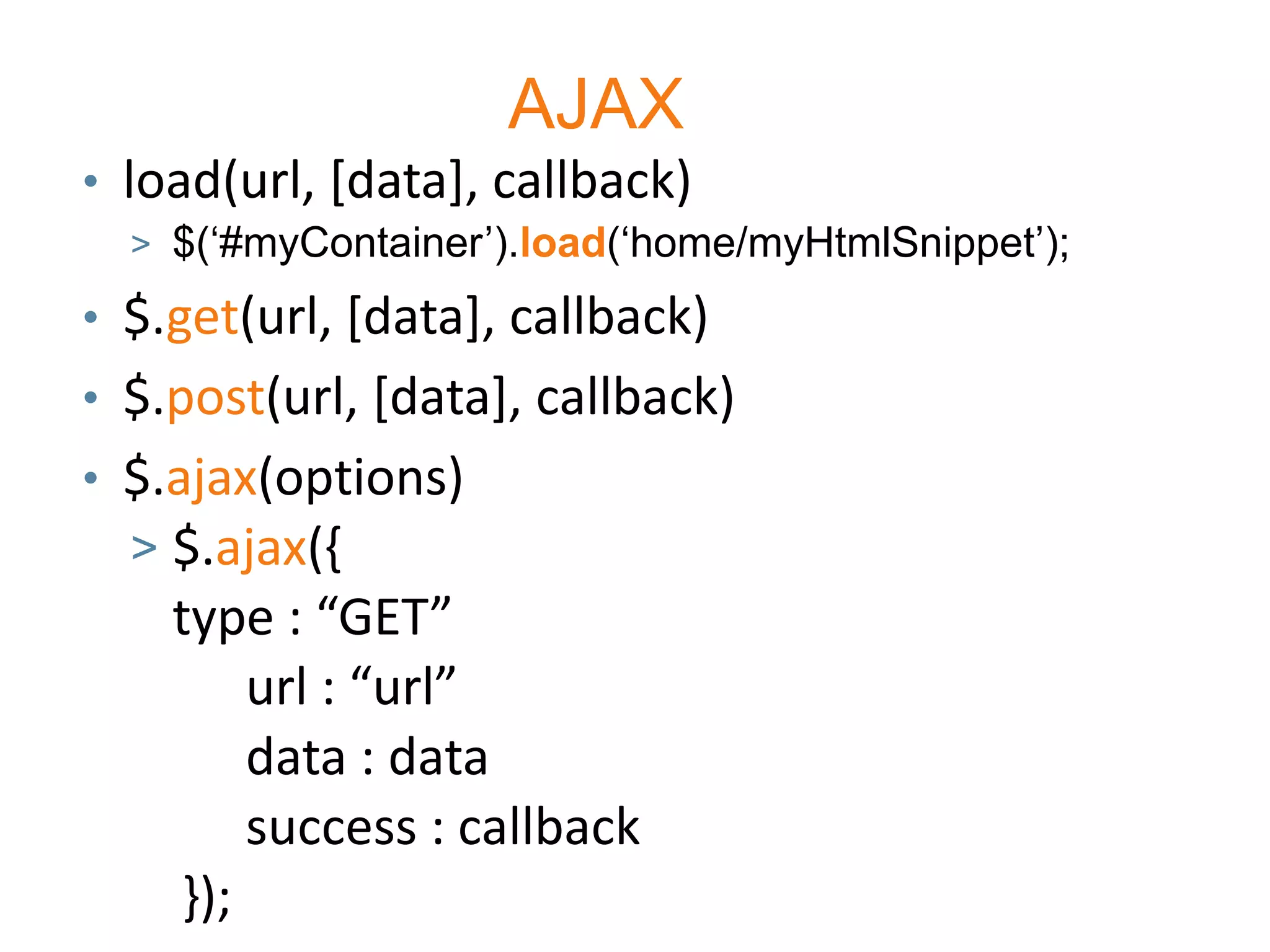

19. AJAX
• load(url, [data], callback)
> $(„#myContainer‟).load(„home/myHtmlSnippet‟);
• $.get(url, [data], callback)
• $.post(url, [data], callback)
• $.ajax(options)
> $.ajax({
type : “GET”
url : “url”
data : data
success : callback
});

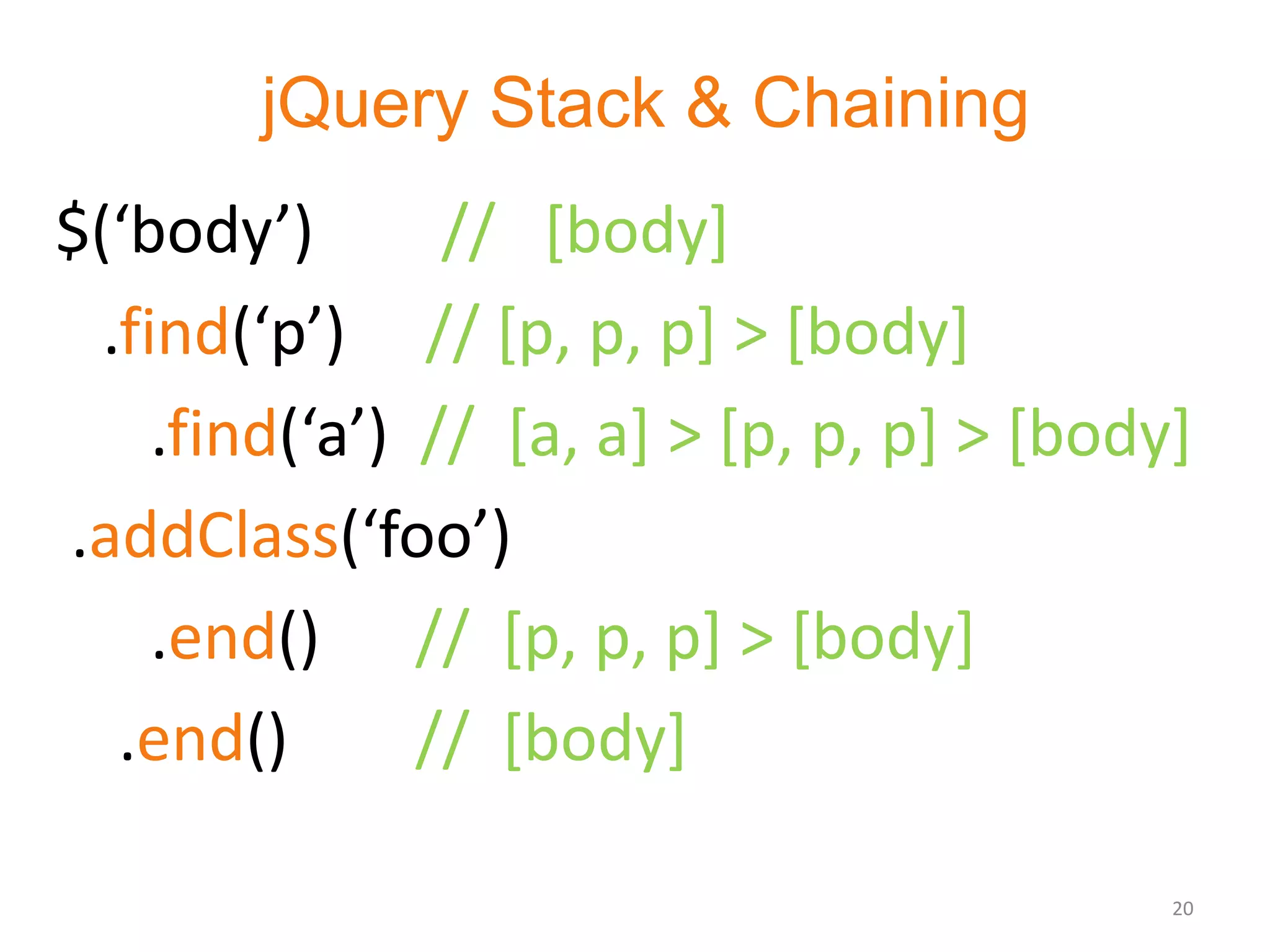

20. jQuery Stack & Chaining
$(‘body’) // [body]
.find(‘p’) // [p, p, p] > [body]
.find(‘a’) // [a, a] > [p, p, p] > [body]
.addClass(‘foo’)
.end() // [p, p, p] > [body]
.end() // [body]
20

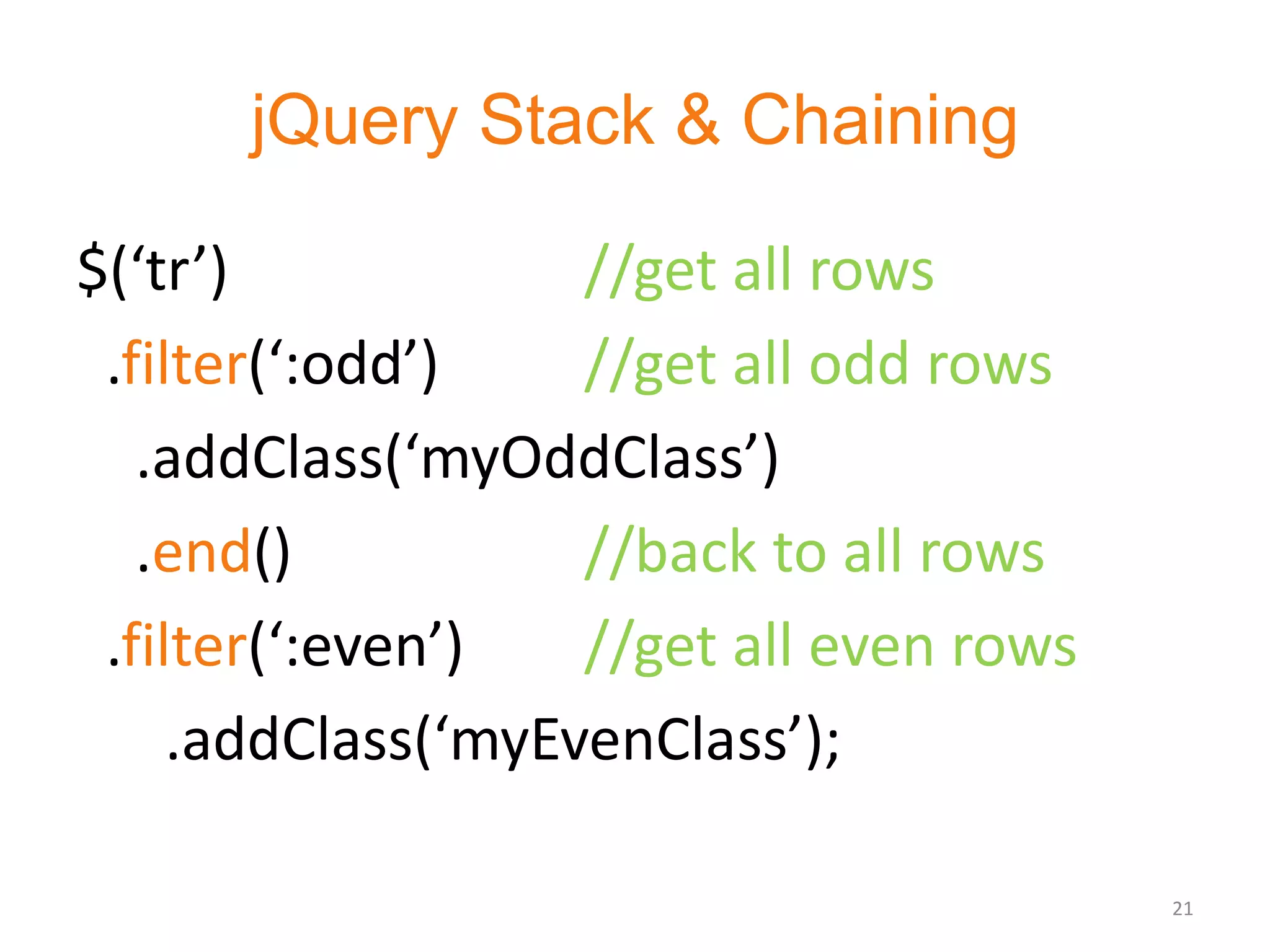

21. jQuery Stack & Chaining
$(‘tr’) //get all rows
.filter(‘:odd’) //get all odd rows
.addClass(‘myOddClass’)
.end() //back to all rows
.filter(‘:even’) //get all even rows
.addClass(‘myEvenClass’);
21

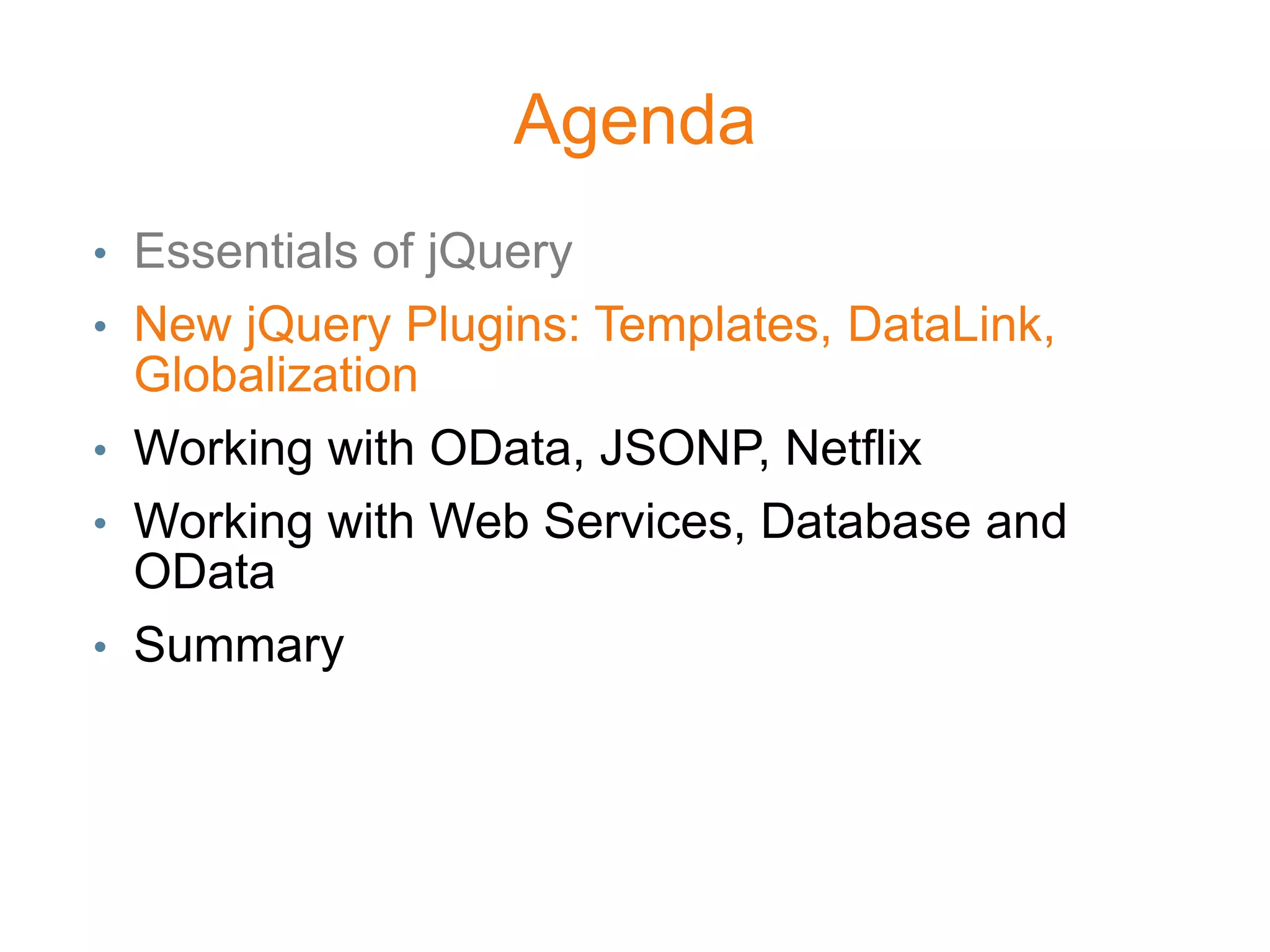

22. Agenda
• Essentials of jQuery
• New jQuery Plugins: Templates, DataLink,
Globalization
• Working with OData, JSONP, Netflix
• Working with Web Services, Database and
OData
• Summary

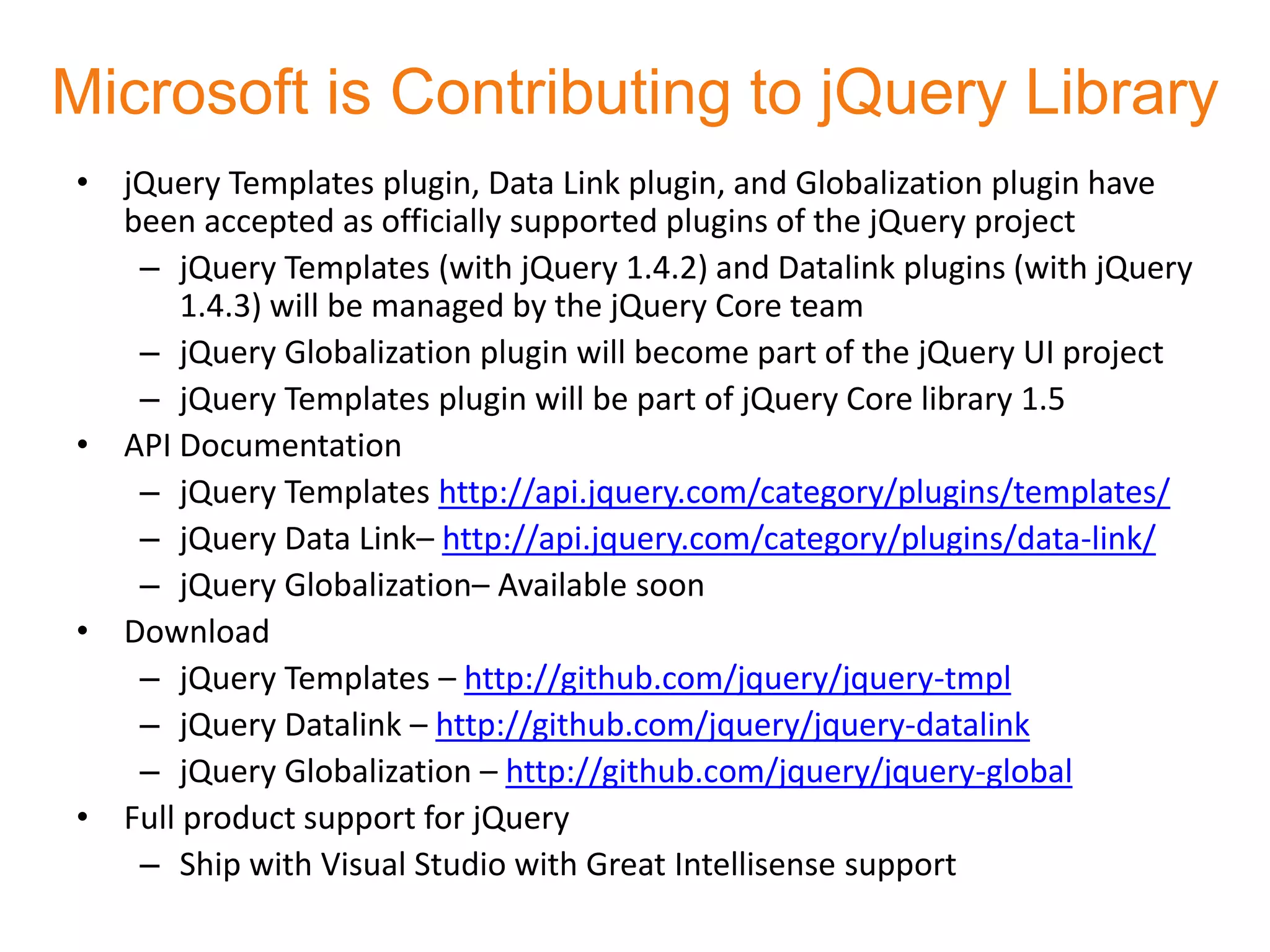

23. Microsoft is Contributing to jQuery Library
• jQuery Templates plugin, Data Link plugin, and Globalization plugin have
been accepted as officially supported plugins of the jQuery project
– jQuery Templates (with jQuery 1.4.2) and Datalink plugins (with jQuery
1.4.3) will be managed by the jQuery Core team
– jQuery Globalization plugin will become part of the jQuery UI project
– jQuery Templates plugin will be part of jQuery Core library 1.5
• API Documentation
– jQuery Templates http://api.jquery.com/category/plugins/templates/
– jQuery Data Link– http://api.jquery.com/category/plugins/data-link/
– jQuery Globalization– Available soon
• Download
– jQuery Templates – http://github.com/jquery/jquery-tmpl
– jQuery Datalink – http://github.com/jquery/jquery-datalink
– jQuery Globalization – http://github.com/jquery/jquery-global
• Full product support for jQuery
– Ship with Visual Studio with Great Intellisense support

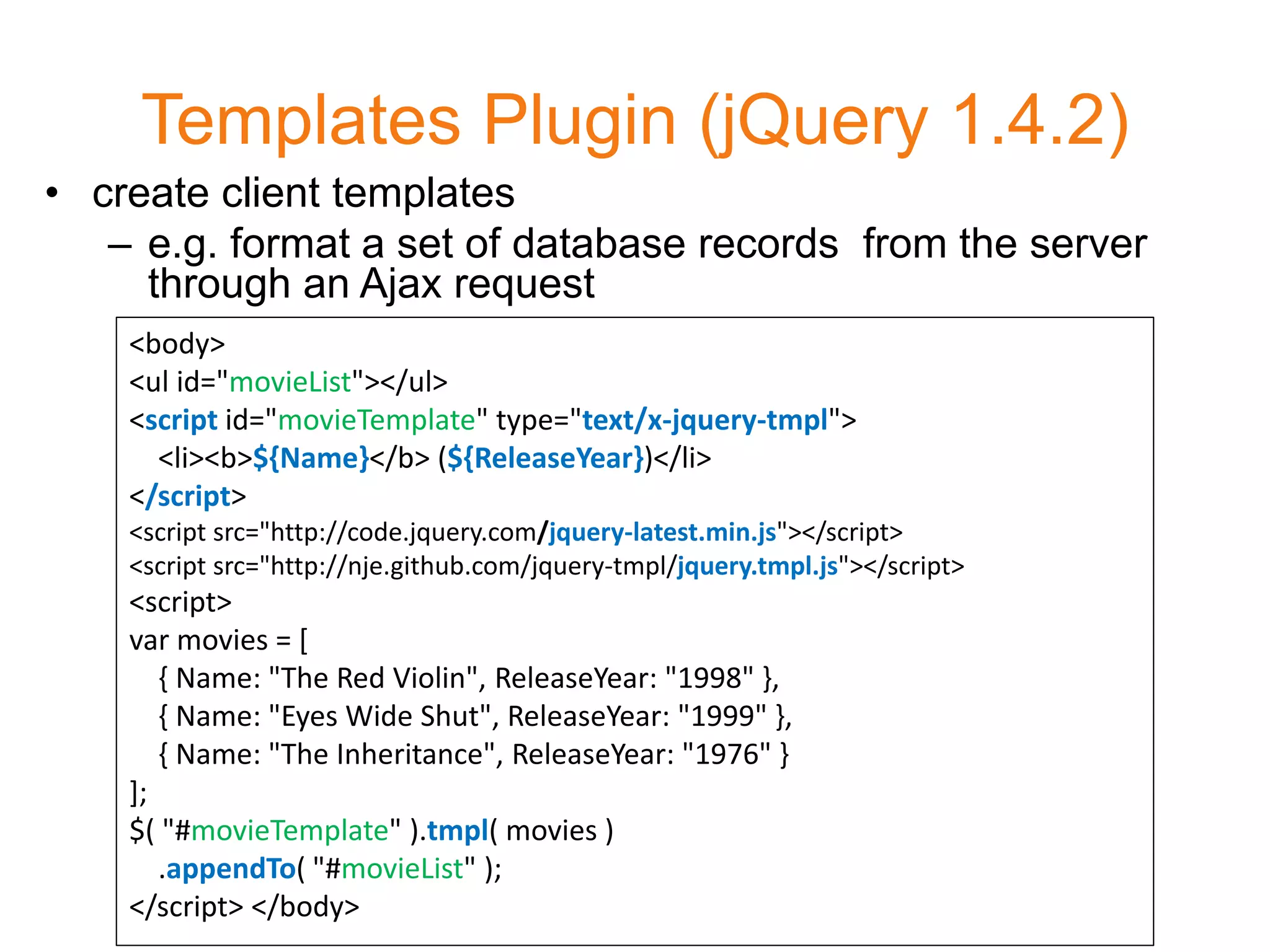

24. Templates Plugin (jQuery 1.4.2)
• create client templates
– e.g. format a set of database records from the server
through an Ajax request
<body>
<ul id="movieList"></ul>
<script id="movieTemplate" type="text/x-jquery-tmpl">
<li><b>${Name}</b> (${ReleaseYear})</li>
</script>
<script src="http://code.jquery.com/jquery-latest.min.js"></script>
<script src="http://nje.github.com/jquery-tmpl/jquery.tmpl.js"></script>
<script>
var movies = [
{ Name: "The Red Violin", ReleaseYear: "1998" },
{ Name: "Eyes Wide Shut", ReleaseYear: "1999" },
{ Name: "The Inheritance", ReleaseYear: "1976" }
];
$( "#movieTemplate" ).tmpl( movies )
.appendTo( "#movieList" );
</script> </body>

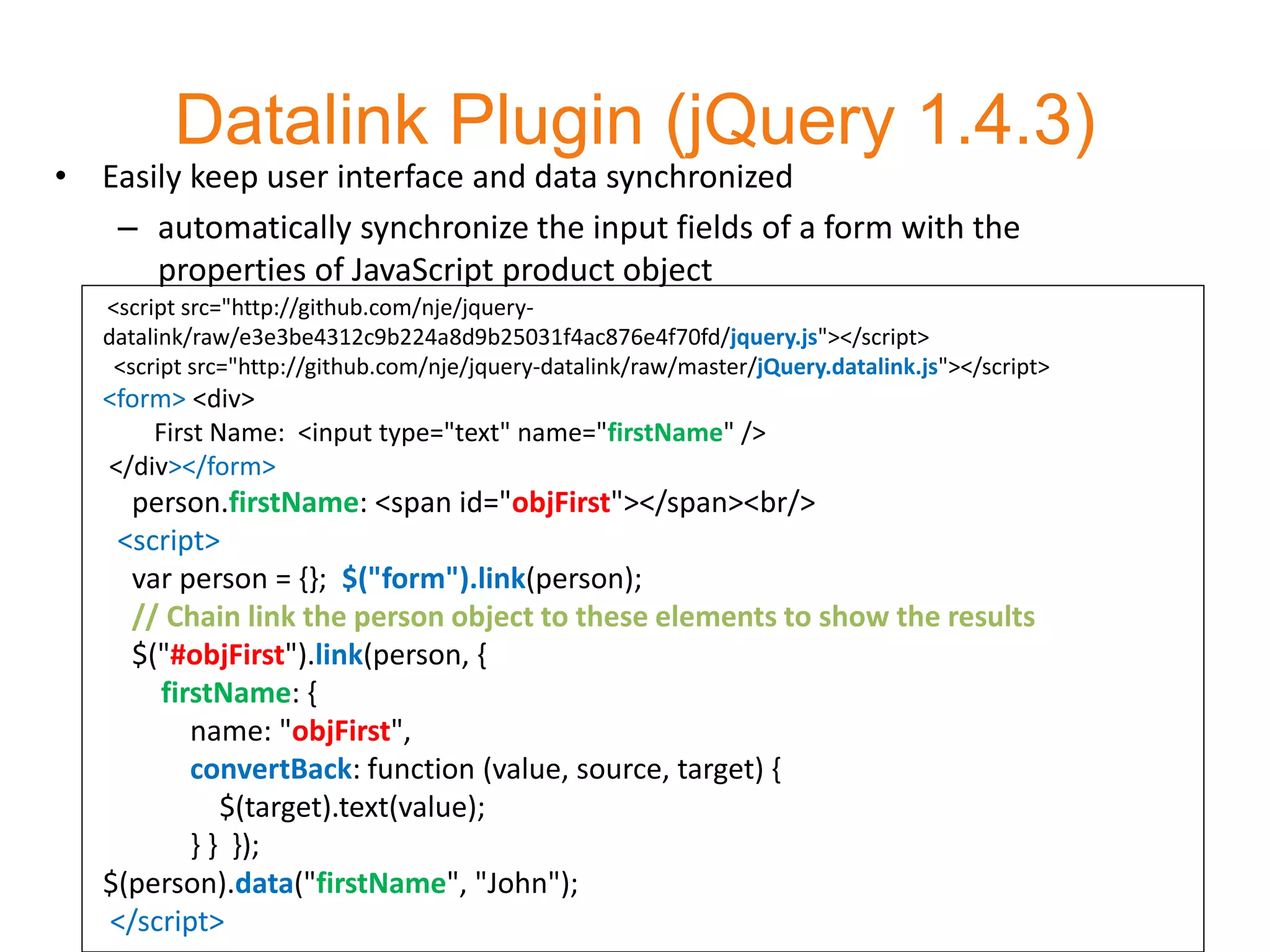

25. Datalink Plugin (jQuery 1.4.3)
• Easily keep user interface and data synchronized
– automatically synchronize the input fields of a form with the
properties of JavaScript product object
<script src="http://github.com/nje/jquery-
datalink/raw/e3e3be4312c9b224a8d9b25031f4ac876e4f70fd/jquery.js"></script>
<script src="http://github.com/nje/jquery-datalink/raw/master/jQuery.datalink.js"></script>
<form> <div>
First Name: <input type="text" name="firstName" />
</div></form>
person.firstName: <span id="objFirst"></span><br/>
<script>
var person = {}; $("form").link(person);
// Chain link the person object to these elements to show the results
$("#objFirst").link(person, {
firstName: {
name: "objFirst",
convertBack: function (value, source, target) {
$(target).text(value);
} } });
$(person).data("firstName", "John");
</script>

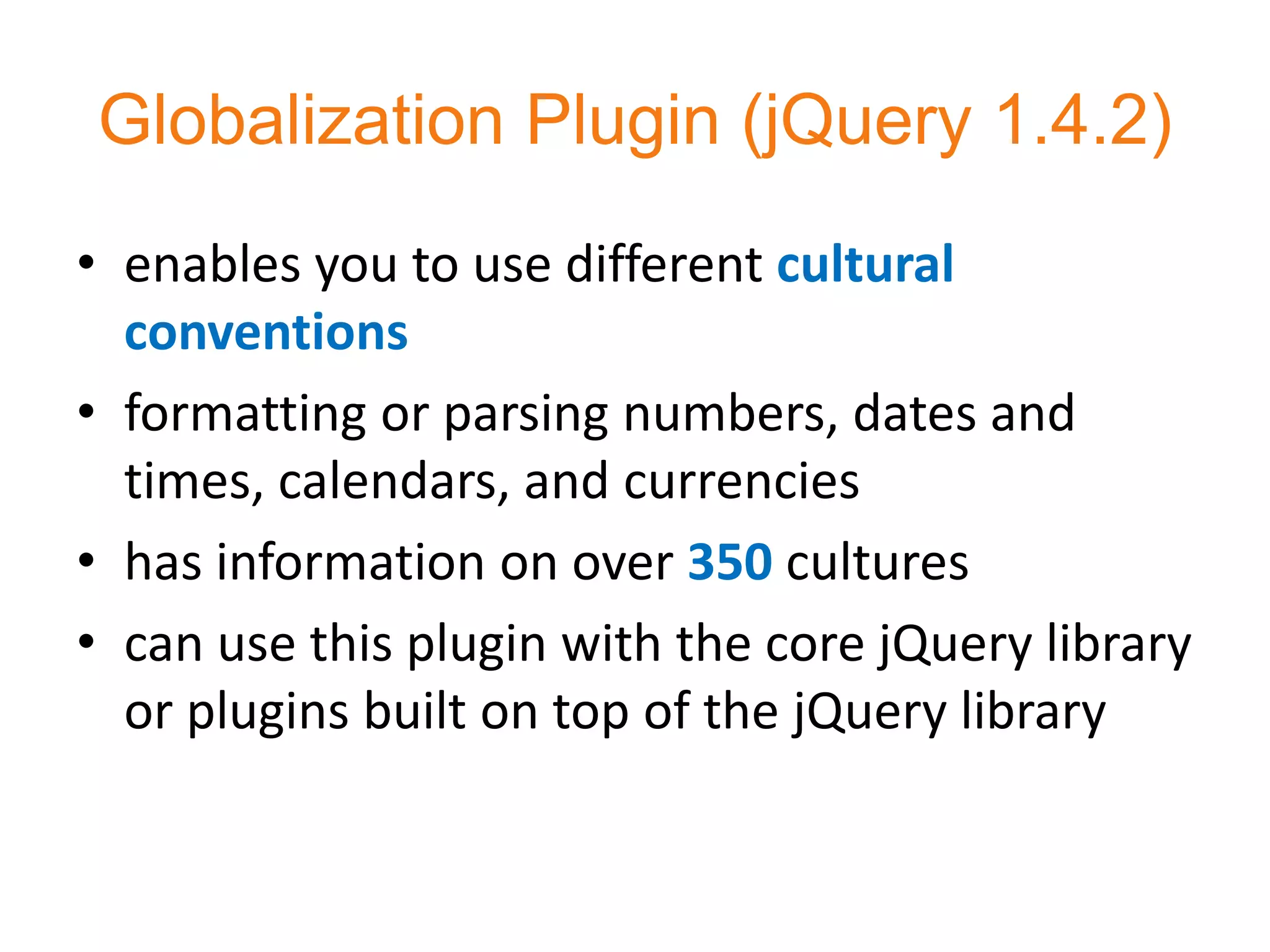

26. Globalization Plugin (jQuery 1.4.2)
• enables you to use different cultural
conventions
• formatting or parsing numbers, dates and
times, calendars, and currencies
• has information on over 350 cultures
• can use this plugin with the core jQuery library
or plugins built on top of the jQuery library

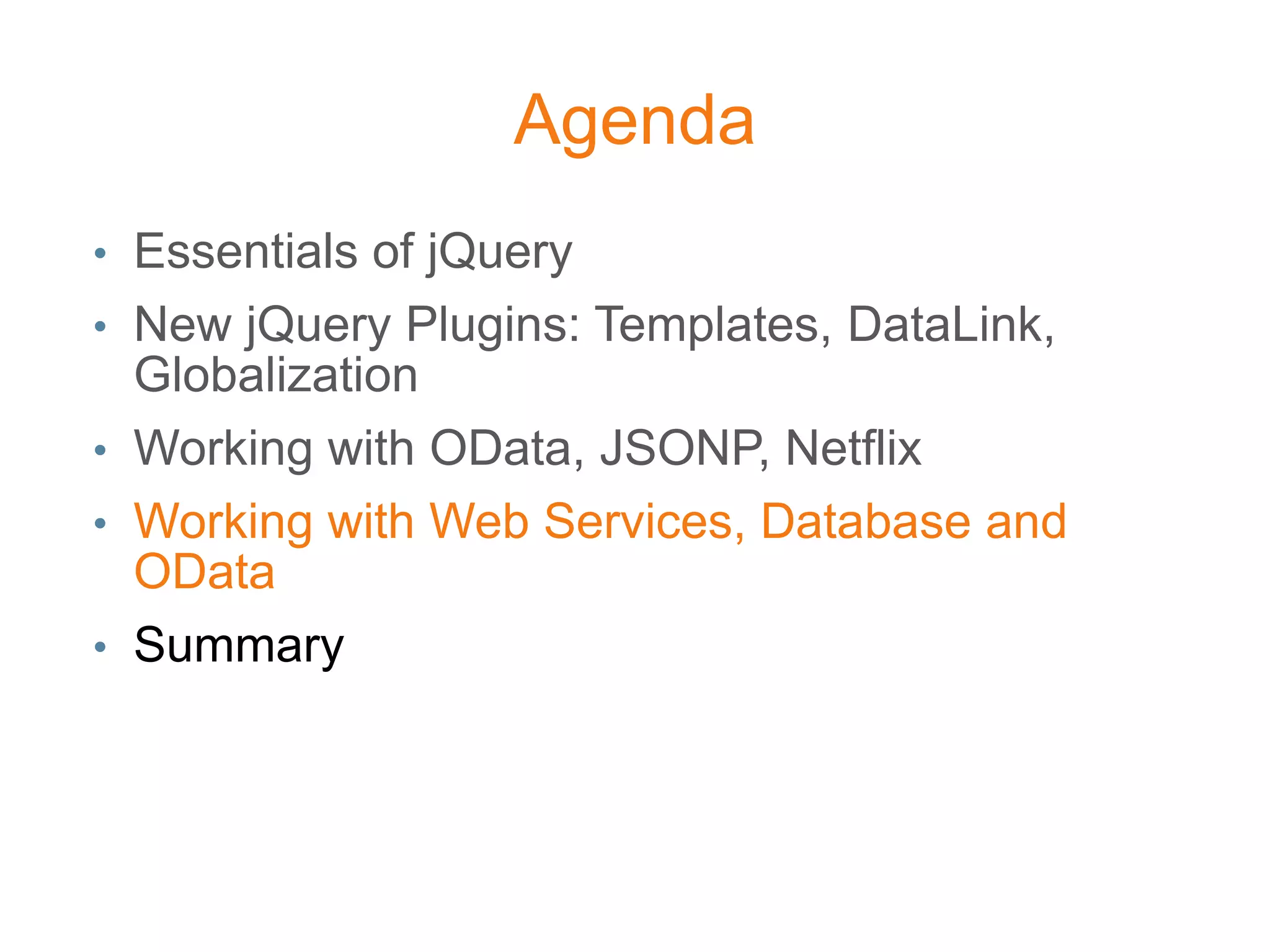

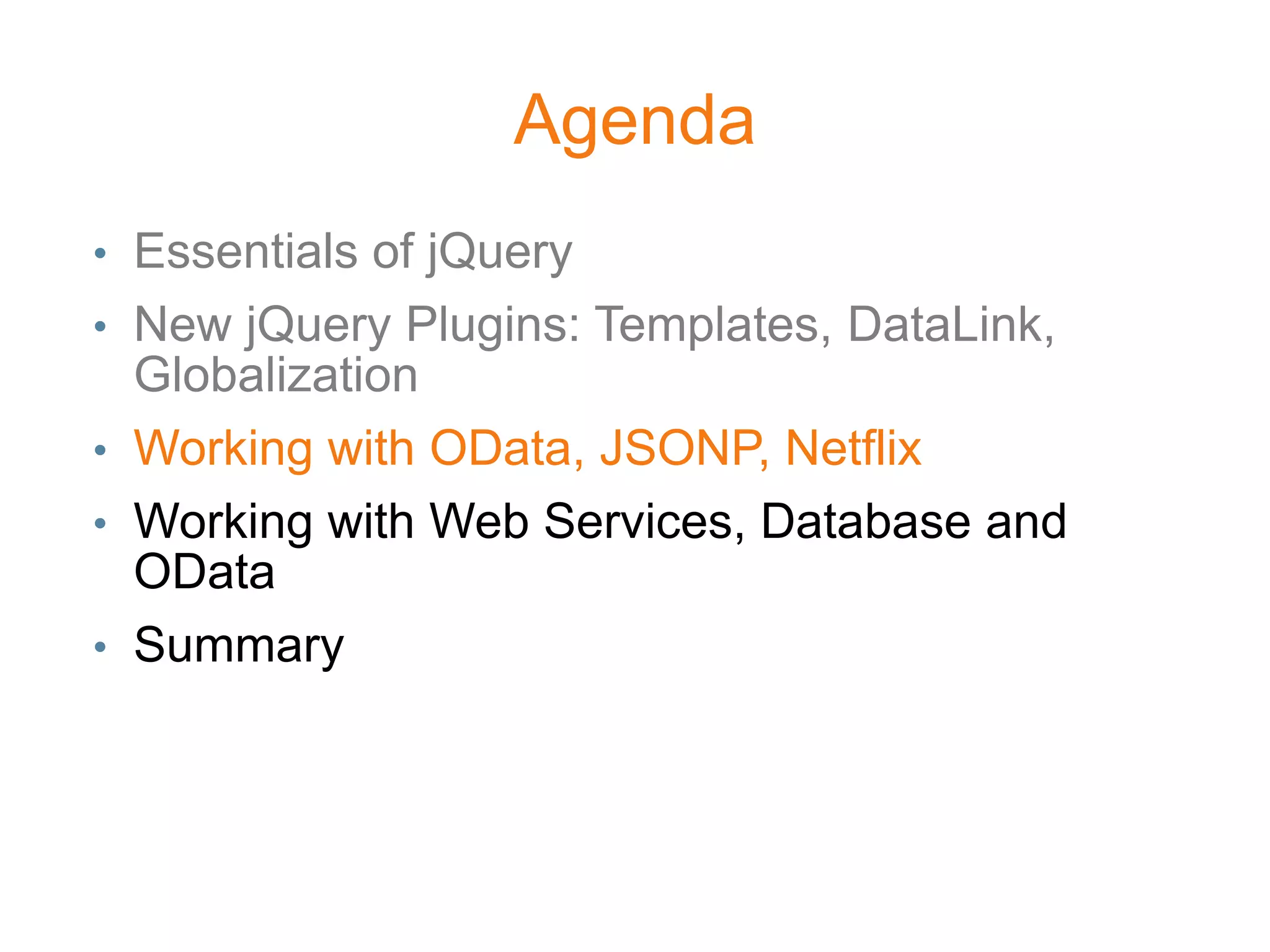

27. Agenda
• Essentials of jQuery
• New jQuery Plugins: Templates, DataLink,
Globalization
• Working with OData, JSONP, Netflix
• Working with Web Services, Database and
OData
• Summary

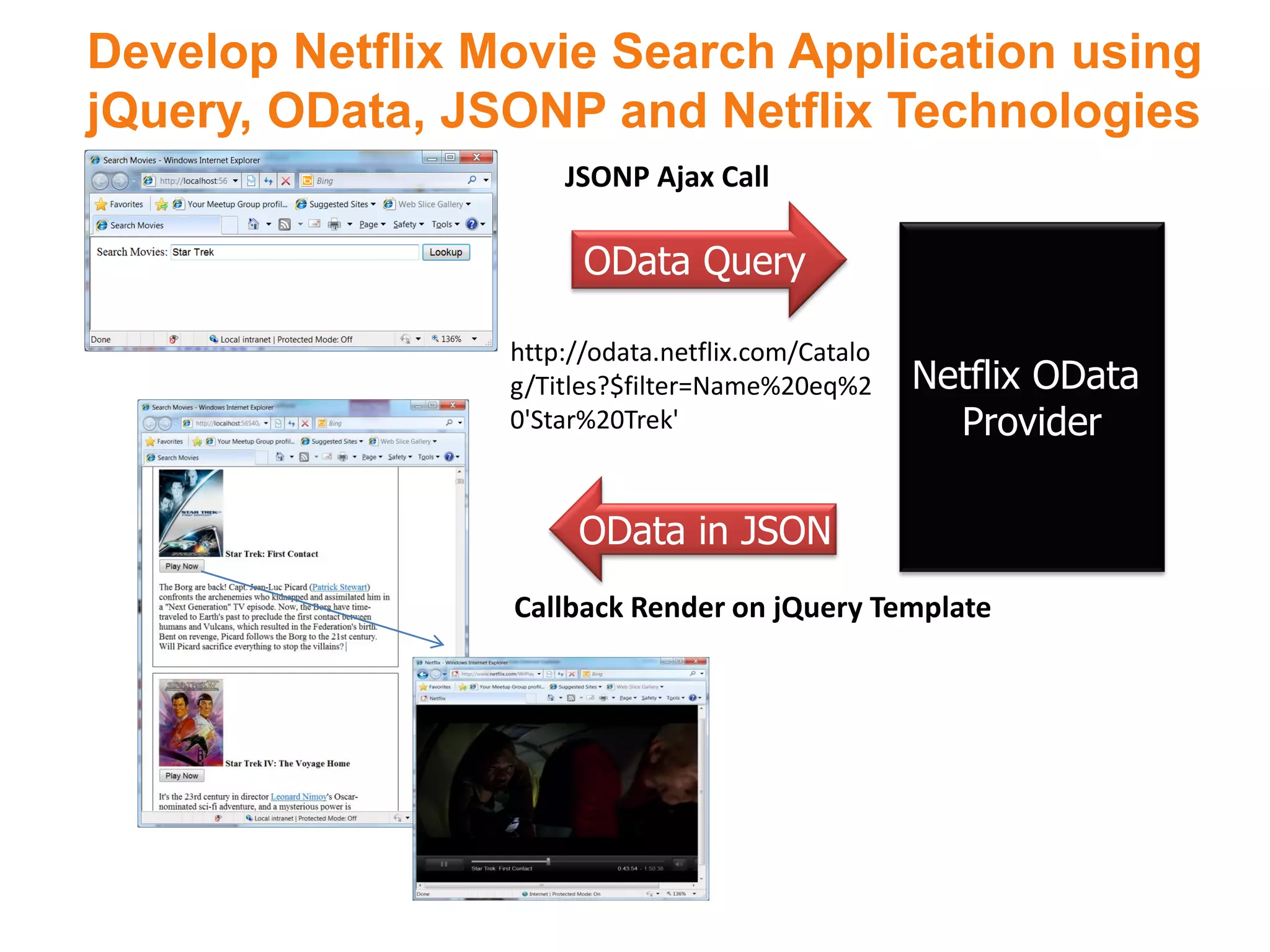

28. Develop Netflix Movie Search Application using
jQuery, OData, JSONP and Netflix Technologies
JSONP Ajax Call
OData Query
http://odata.netflix.com/Catalo
g/Titles?$filter=Name%20eq%2 Netflix OData
0'Star%20Trek' Provider
OData in JSON
Callback Render on jQuery Template

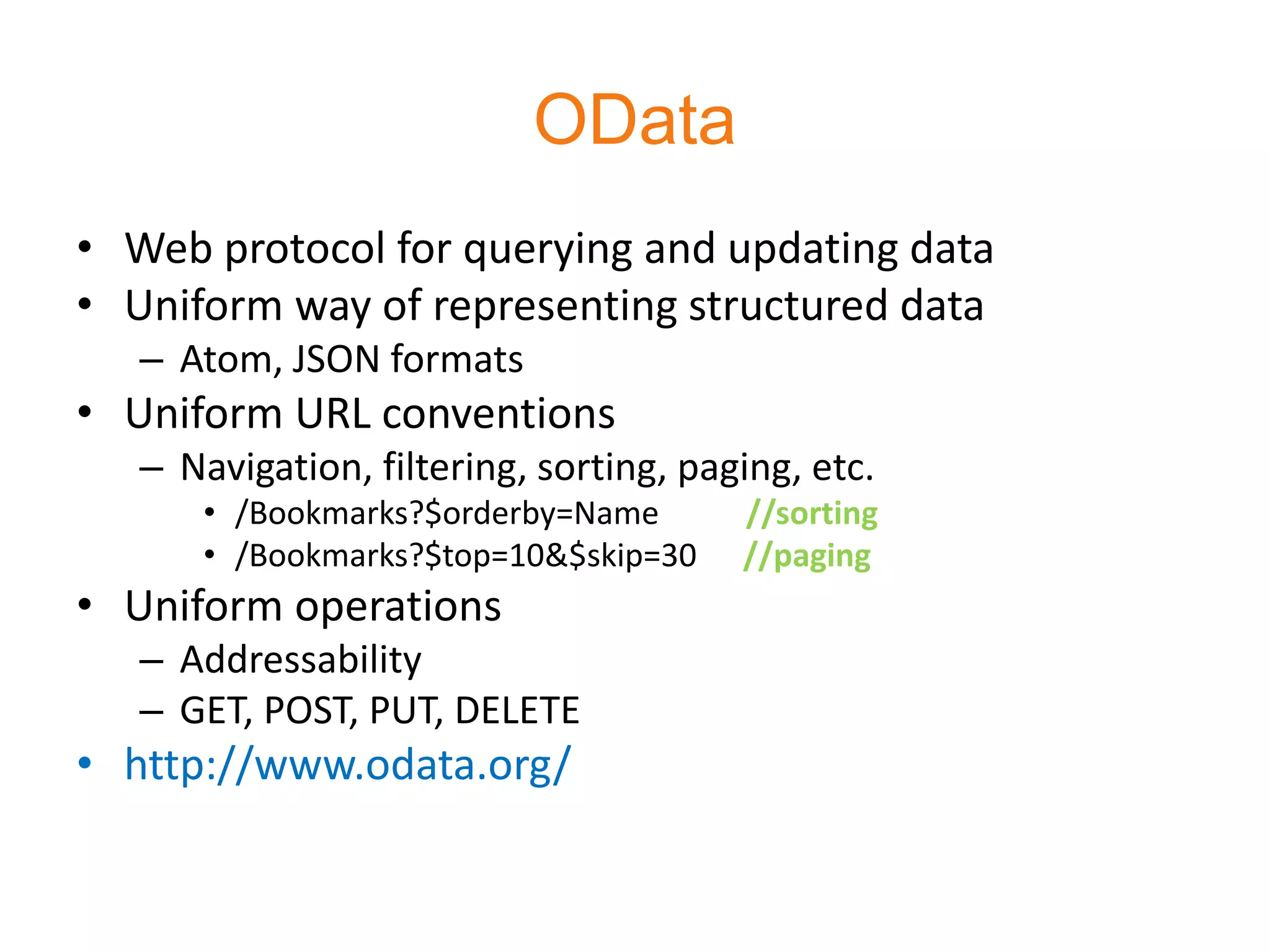

29. OData
• Web protocol for querying and updating data
• Uniform way of representing structured data
– Atom, JSON formats
• Uniform URL conventions
– Navigation, filtering, sorting, paging, etc.
• /Bookmarks?$orderby=Name //sorting
• /Bookmarks?$top=10&$skip=30 //paging
• Uniform operations
– Addressability
– GET, POST, PUT, DELETE
• http://www.odata.org/

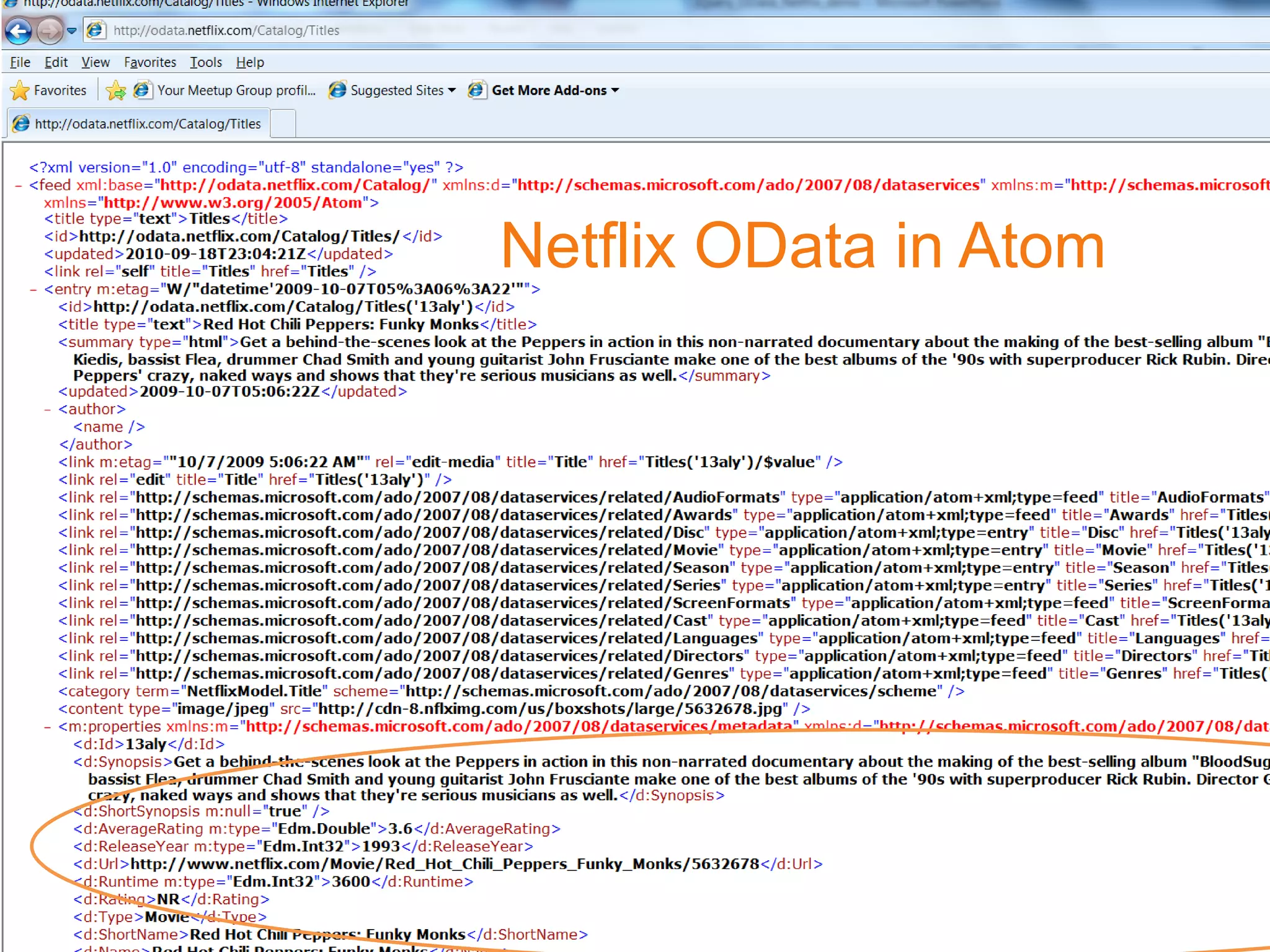

30. Netflix OData in Atom

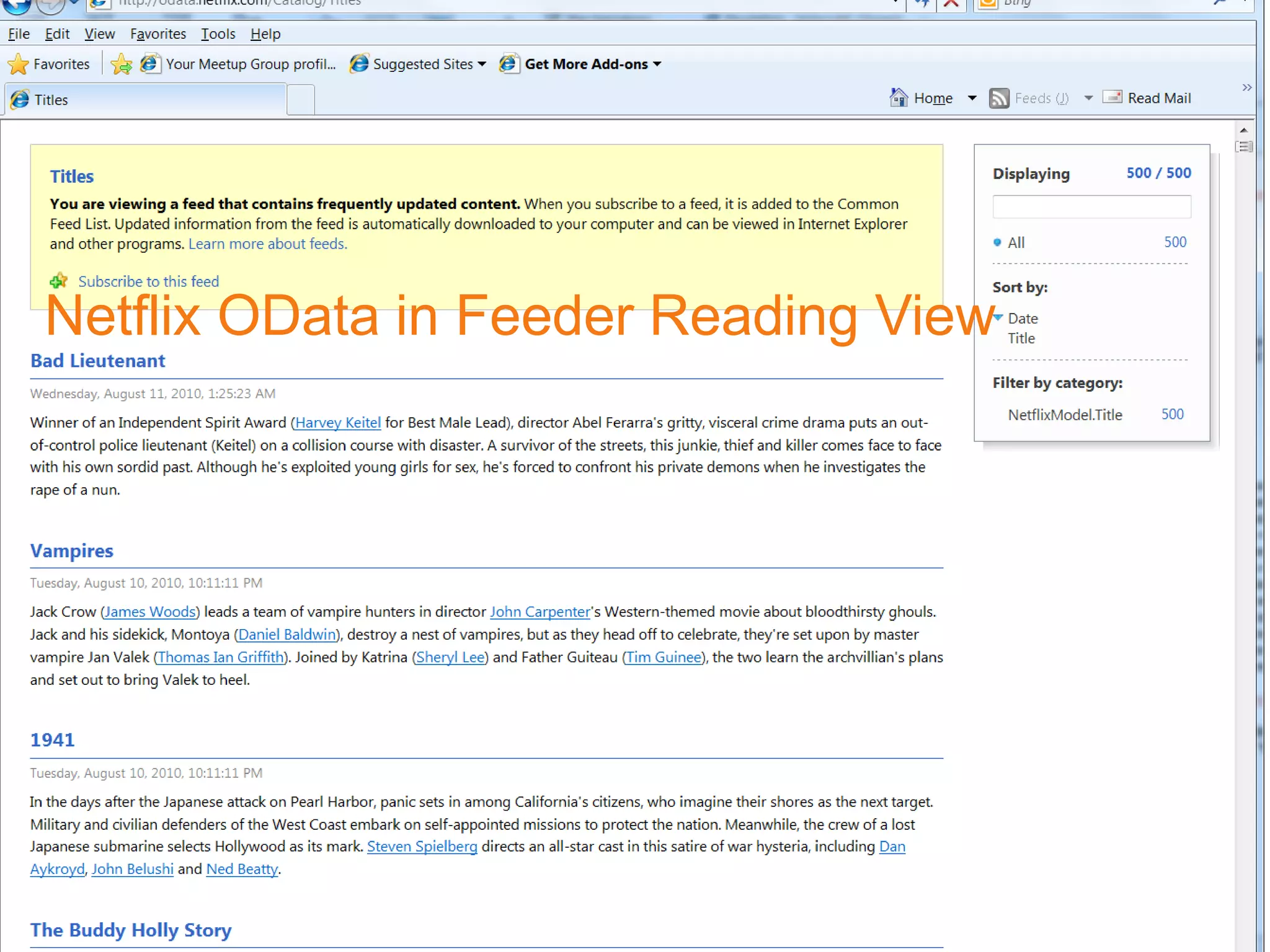

31. Netflix OData in Feeder Reading View

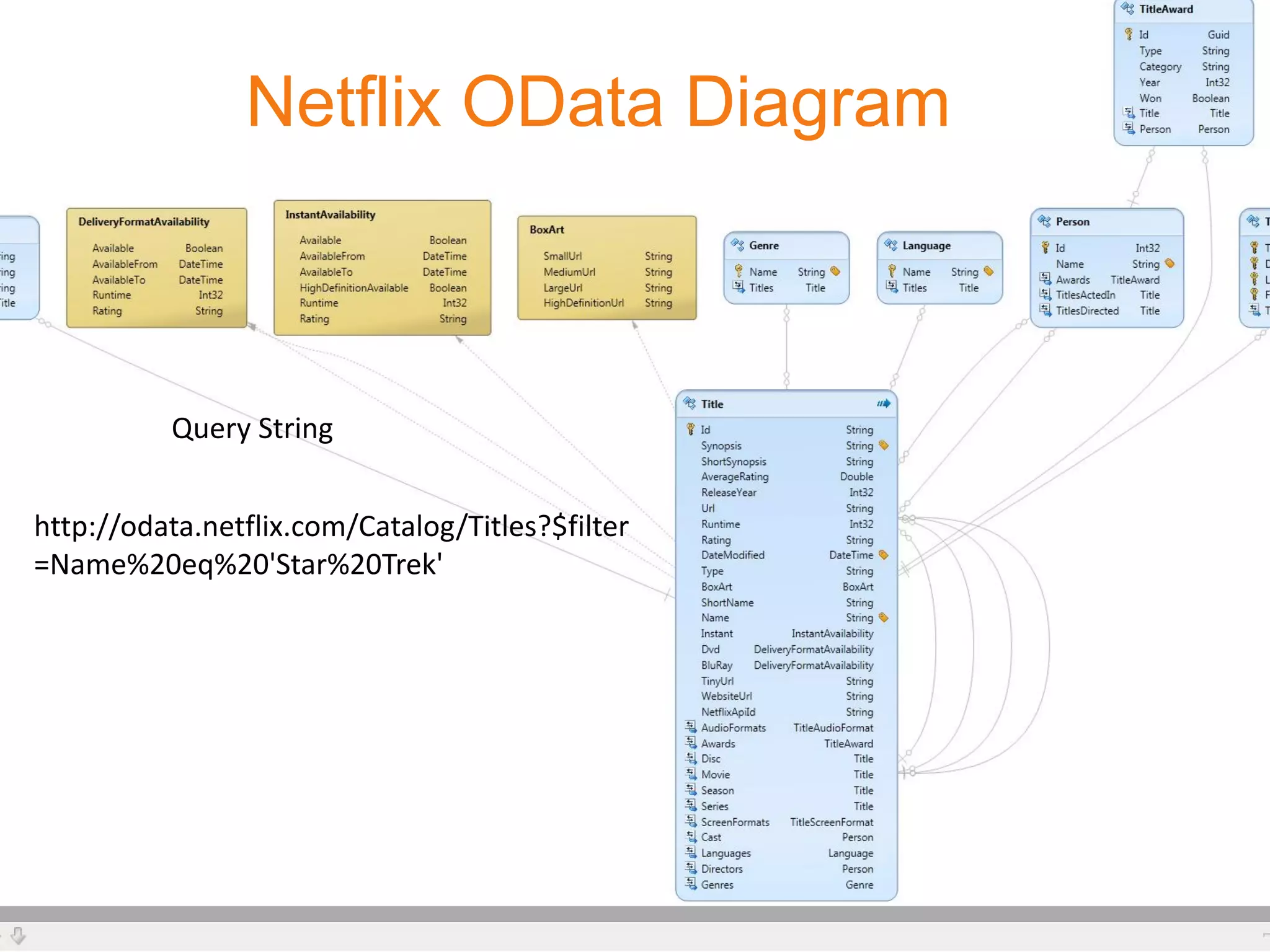

32. Netflix OData Diagram
Query String
http://odata.netflix.com/Catalog/Titles?$filter
=Name%20eq%20'Star%20Trek'

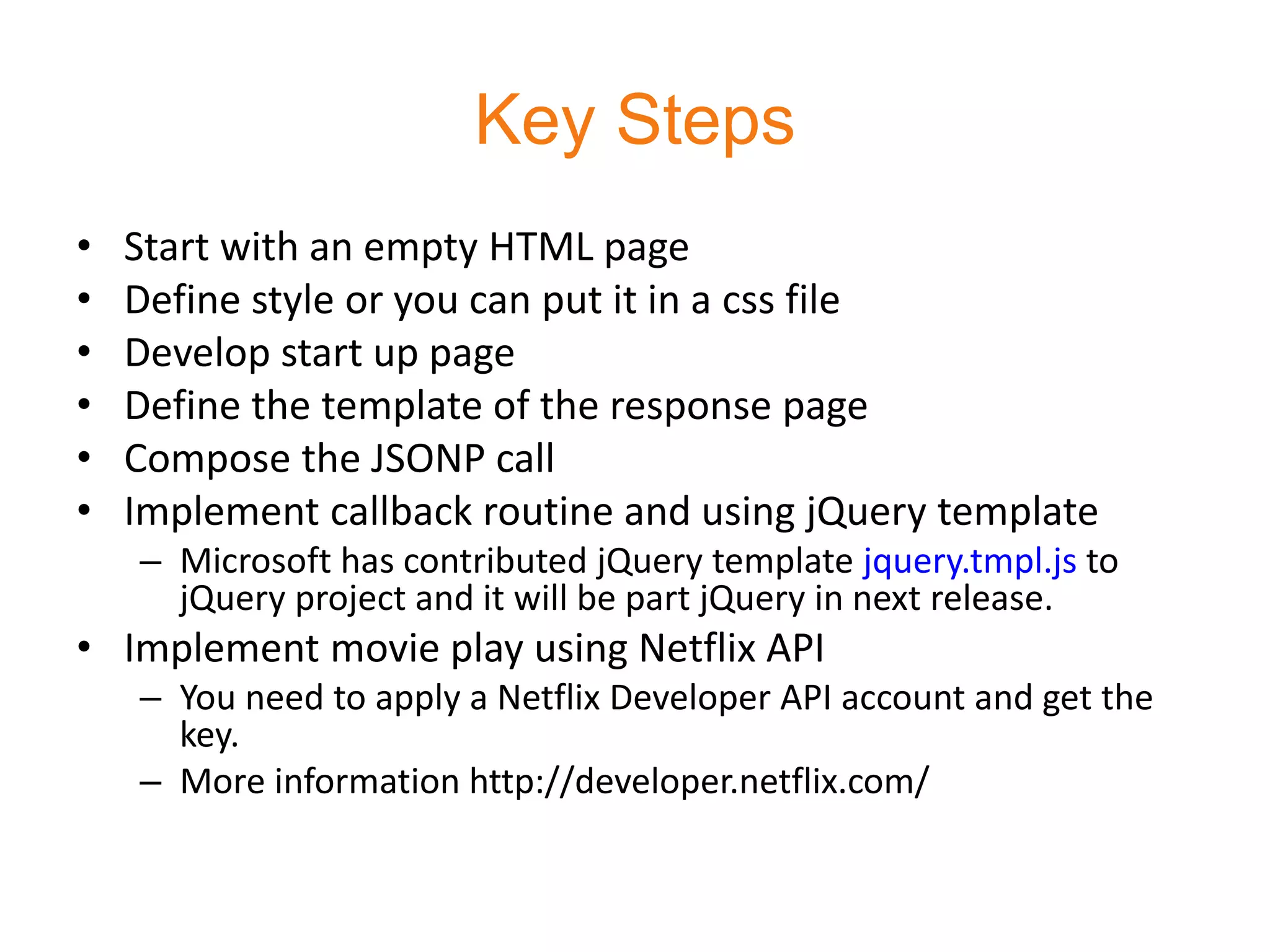

33. Key Steps
• Start with an empty HTML page
• Define style or you can put it in a css file
• Develop start up page
• Define the template of the response page
• Compose the JSONP call
• Implement callback routine and using jQuery template
– Microsoft has contributed jQuery template jquery.tmpl.js to
jQuery project and it will be part jQuery in next release.
• Implement movie play using Netflix API
– You need to apply a Netflix Developer API account and get the
key.
– More information http://developer.netflix.com/

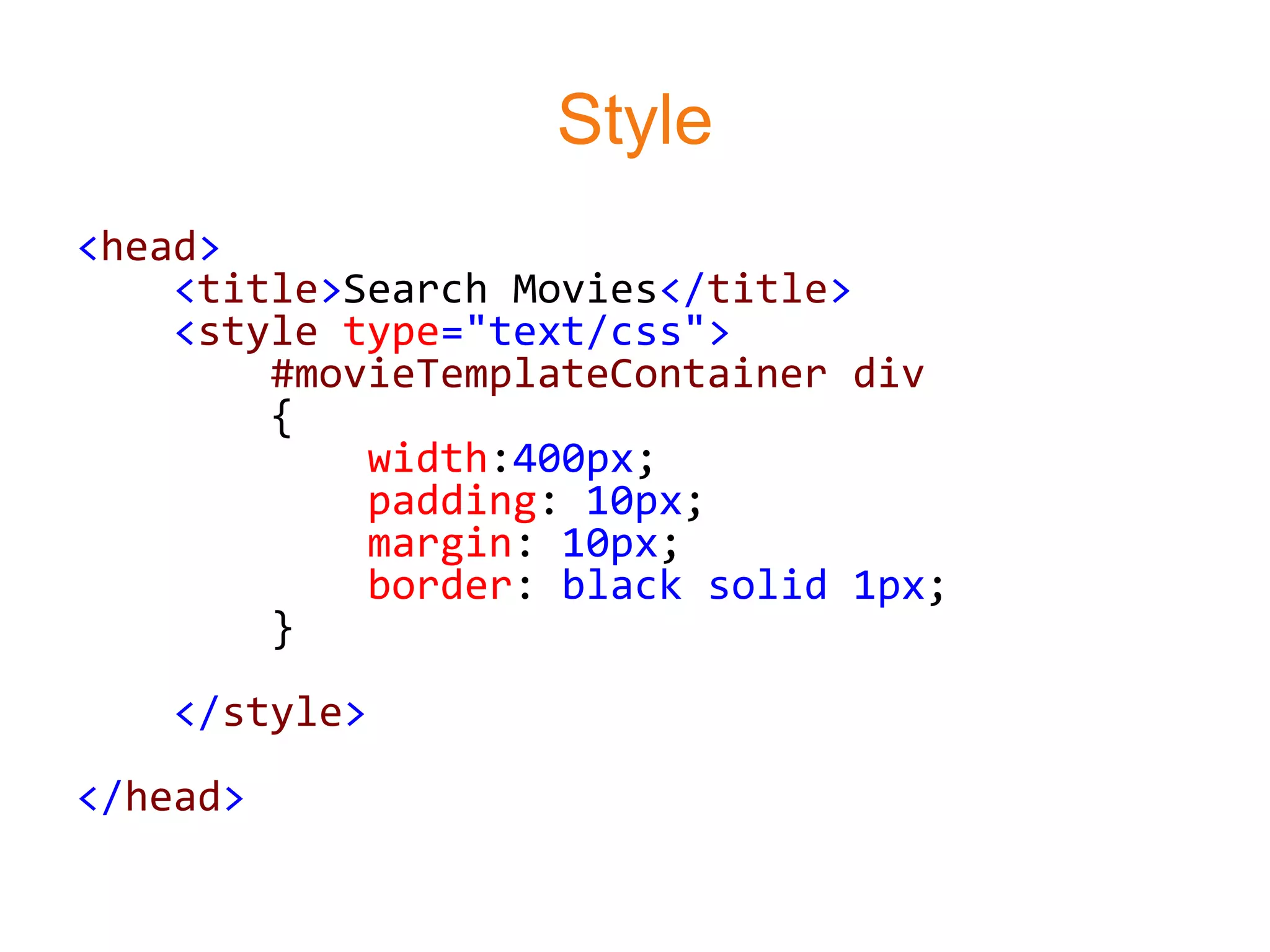

34. Style
<head>
<title>Search Movies</title>
<style type="text/css">
#movieTemplateContainer div
{
width:400px;
padding: 10px;
margin: 10px;
border: black solid 1px;
}
</style>
</head>

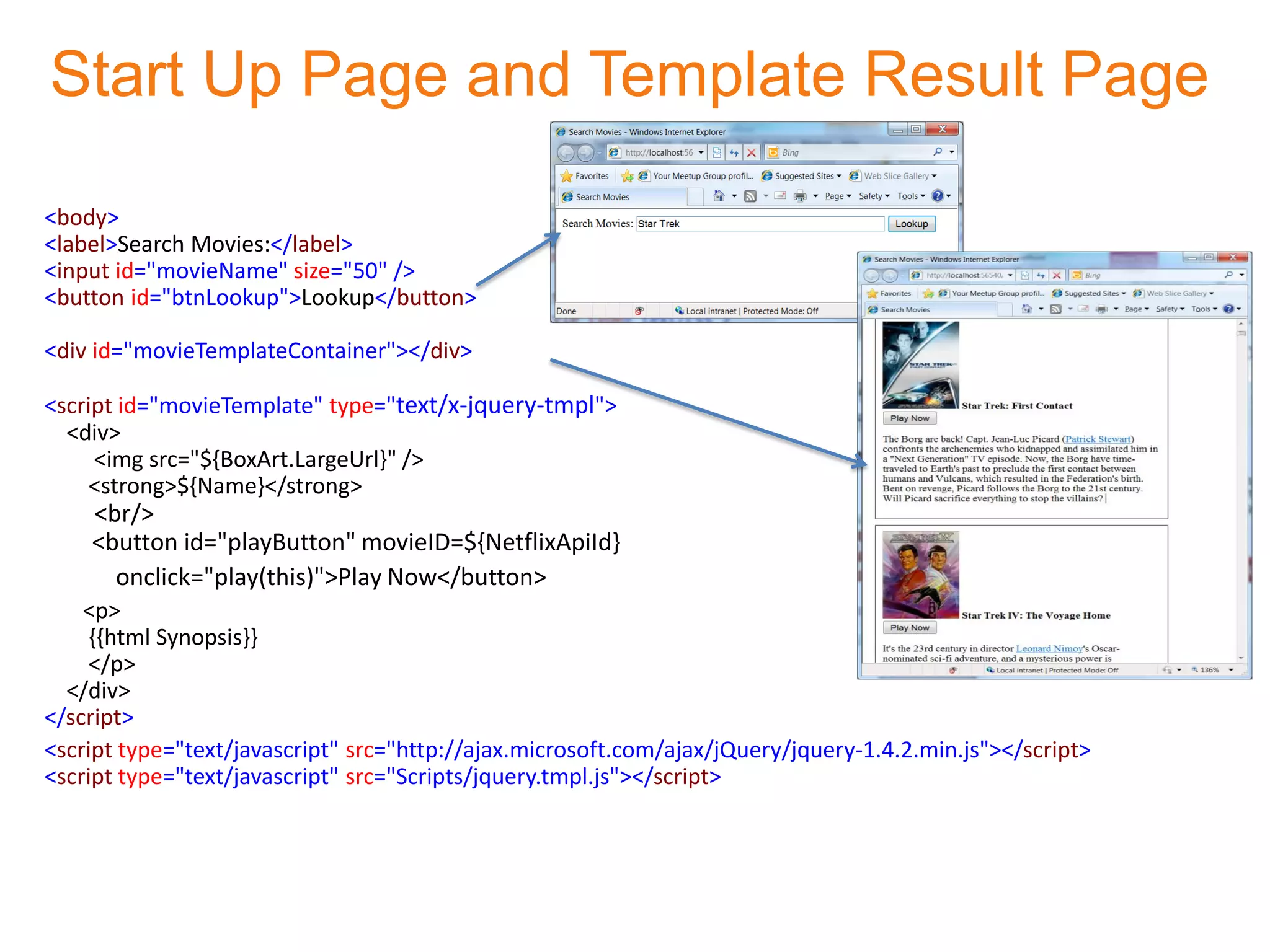

35. Start Up Page and Template Result Page
<body>
<label>Search Movies:</label>
<input id="movieName" size="50" />
<button id="btnLookup">Lookup</button>
<div id="movieTemplateContainer"></div>
<script id="movieTemplate" type="text/x-jquery-tmpl">
<div>
<img src="${BoxArt.LargeUrl}" />
<strong>${Name}</strong>
<br/>
<button id="playButton" movieID=${NetflixApiId}
onclick="play(this)">Play Now</button>
<p>
{{html Synopsis}}
</p>
</div>
</script>
<script type="text/javascript" src="http://ajax.microsoft.com/ajax/jQuery/jquery-1.4.2.min.js"></script>
<script type="text/javascript" src="Scripts/jquery.tmpl.js"></script>

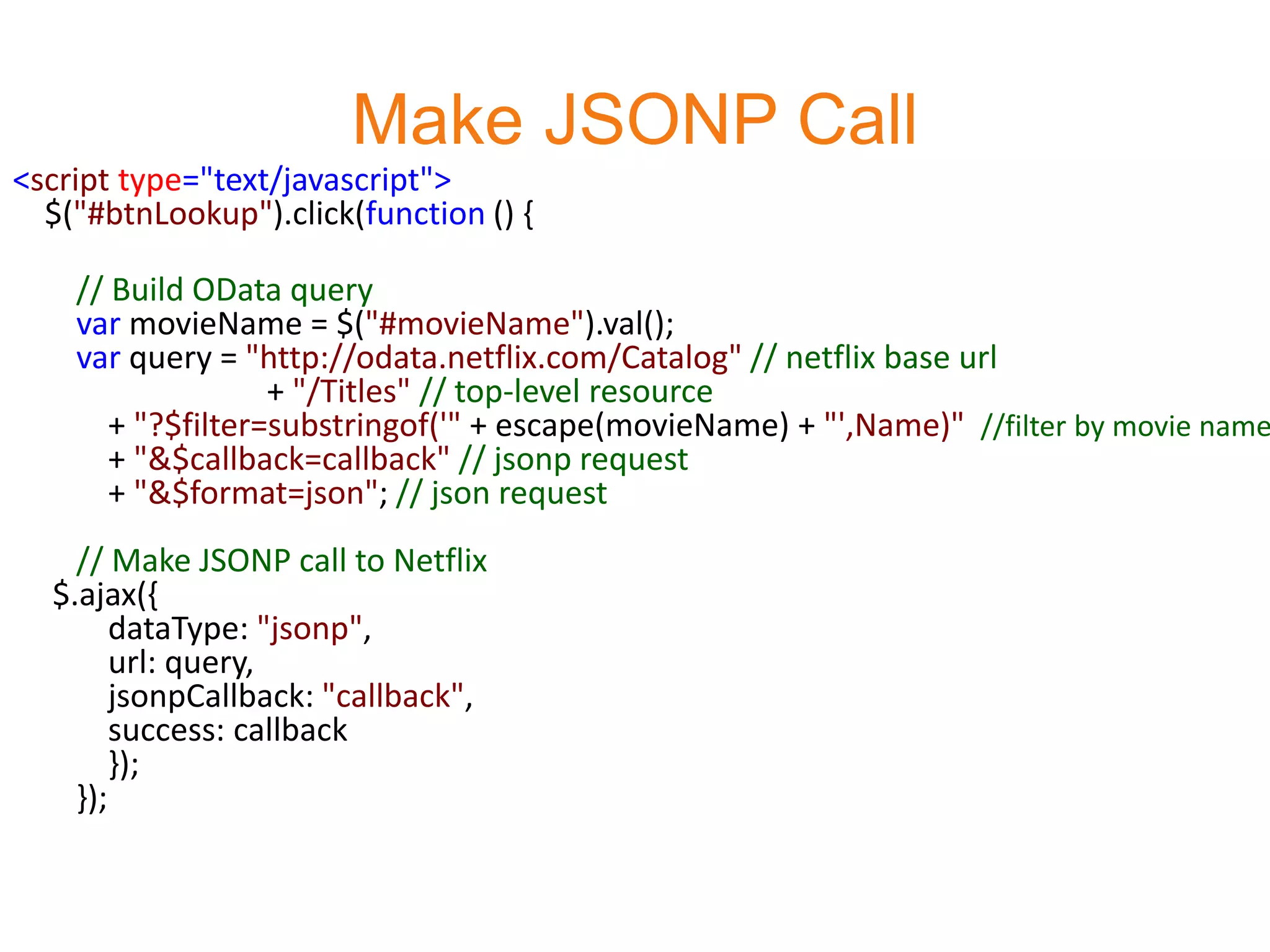

36. Make JSONP Call
<script type="text/javascript">
$("#btnLookup").click(function () {
// Build OData query
var movieName = $("#movieName").val();
var query = "http://odata.netflix.com/Catalog" // netflix base url
+ "/Titles" // top-level resource
+ "?$filter=substringof('" + escape(movieName) + "',Name)" //filter by movie name
+ "&$callback=callback" // jsonp request
+ "&$format=json"; // json request
// Make JSONP call to Netflix
$.ajax({
dataType: "jsonp",
url: query,
jsonpCallback: "callback",
success: callback
});
});

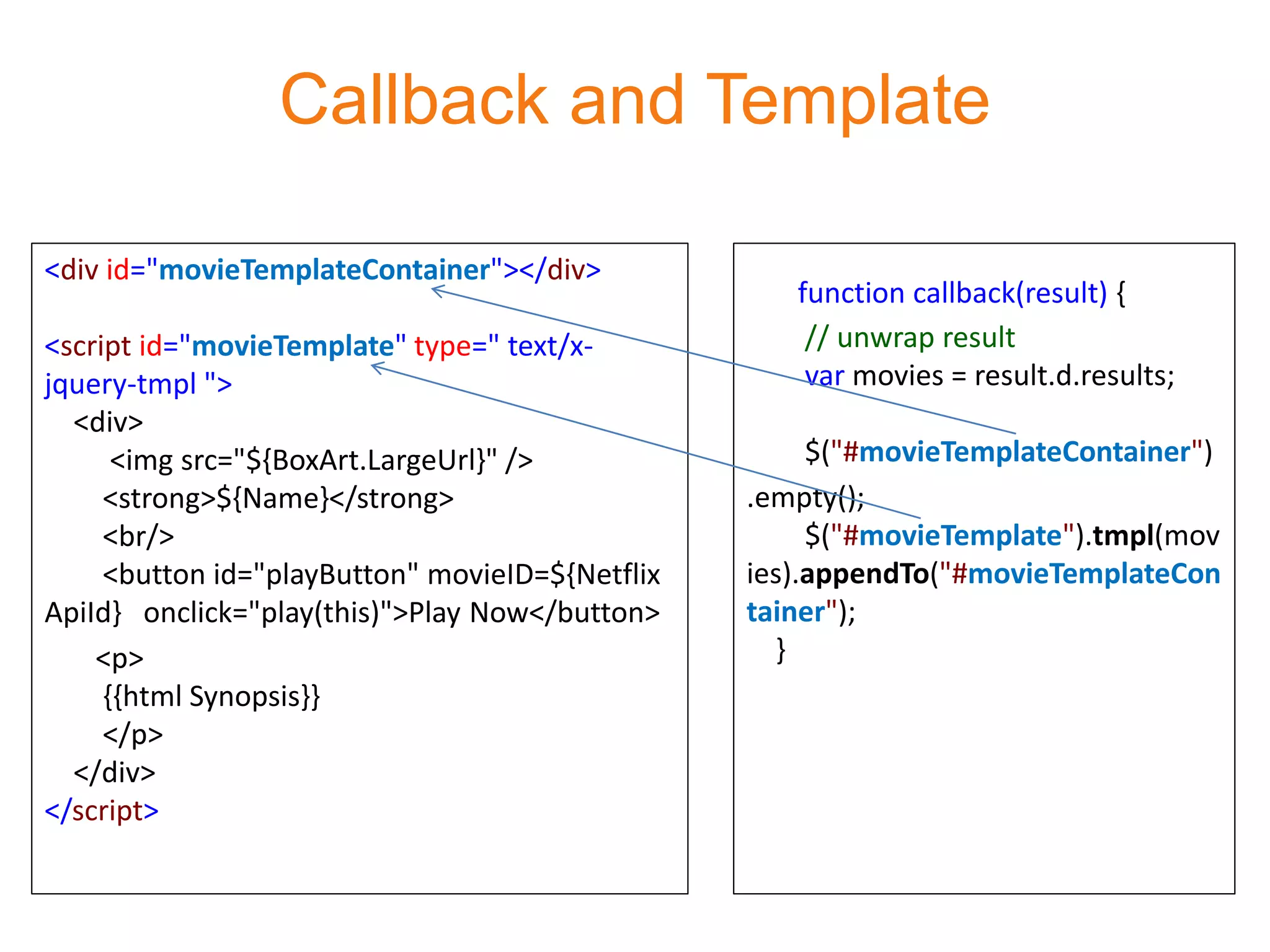

37. Callback and Template
<div id="movieTemplateContainer"></div>
function callback(result) {
<script id="movieTemplate" type=" text/x- // unwrap result
jquery-tmpl "> var movies = result.d.results;
<div>
<img src="${BoxArt.LargeUrl}" /> $("#movieTemplateContainer")
<strong>${Name}</strong> .empty();
<br/> $("#movieTemplate").tmpl(mov
<button id="playButton" movieID=${Netflix ies).appendTo("#movieTemplateCon
ApiId} onclick="play(this)">Play Now</button> tainer");
<p> }
{{html Synopsis}}
</p>
</div>
</script>

38. Netflix Movie Play
function play(mvInfo) {
var id = $(mvInfo).attr("movieID").substring(45);
javascript: nflx.openPlayer('http://api.netflix.com/cat
alog/movie/'+id, 0, 0, ‘YOUR NETFLIX DEVELOPER ACCOUNT
KEY');
}
</script>
<script src="http://jsapi.netflix.com/us/api/js/api.js"></sc
ript>
</body>

40. Agenda
• Essentials of jQuery
• New jQuery Plugins: Templates, DataLink,
Globalization
• Working with OData, JSONP, Netflix
• Working with Web Services, Database and
OData
• Summary

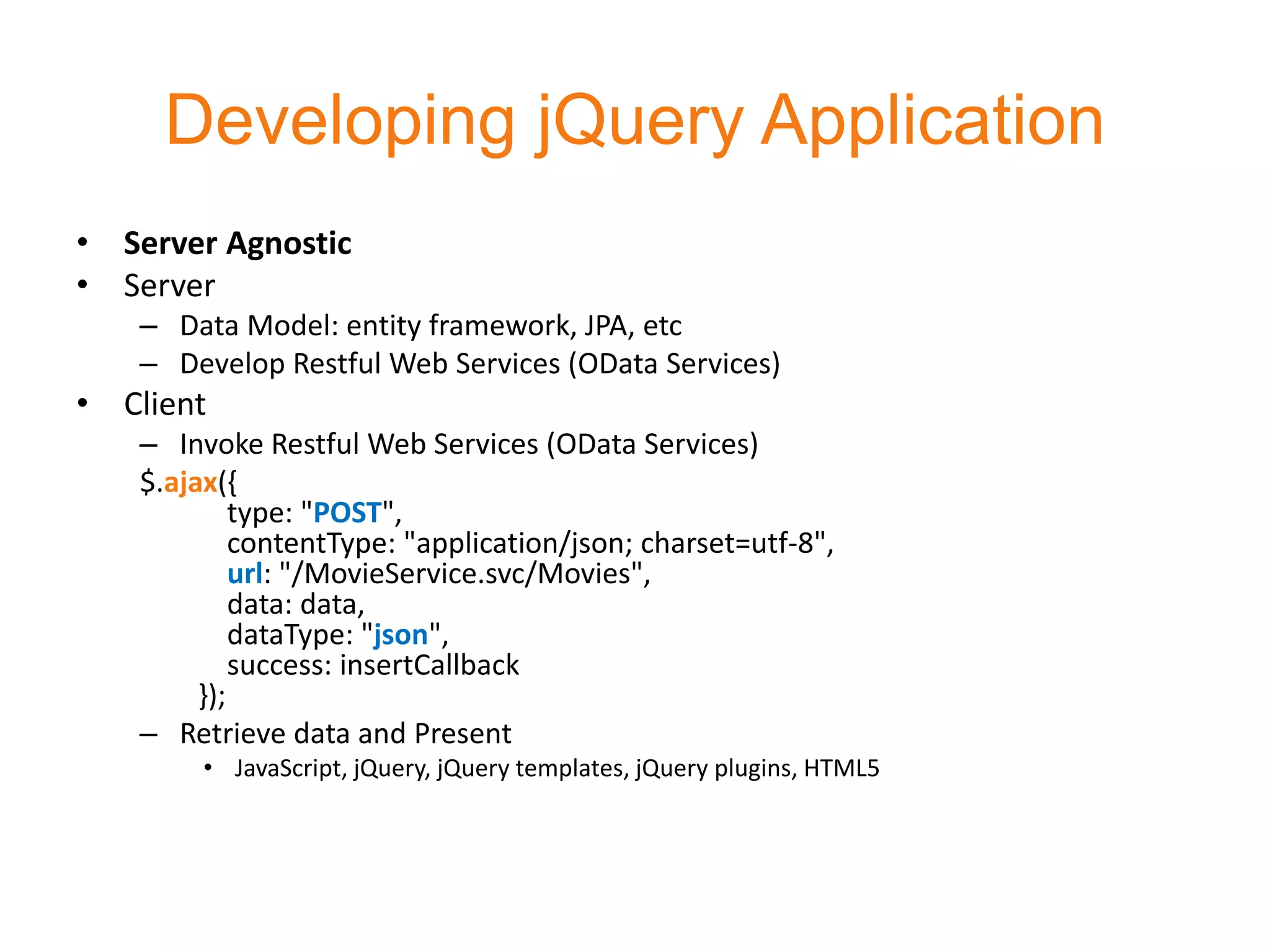

41. Developing jQuery Application
• Server Agnostic
• Server
– Data Model: entity framework, JPA, etc
– Develop Restful Web Services (OData Services)
• Client
– Invoke Restful Web Services (OData Services)
$.ajax({
type: "POST",
contentType: "application/json; charset=utf-8",
url: "/MovieService.svc/Movies",
data: data,
dataType: "json",
success: insertCallback
});
– Retrieve data and Present
• JavaScript, jQuery, jQuery templates, jQuery plugins, HTML5

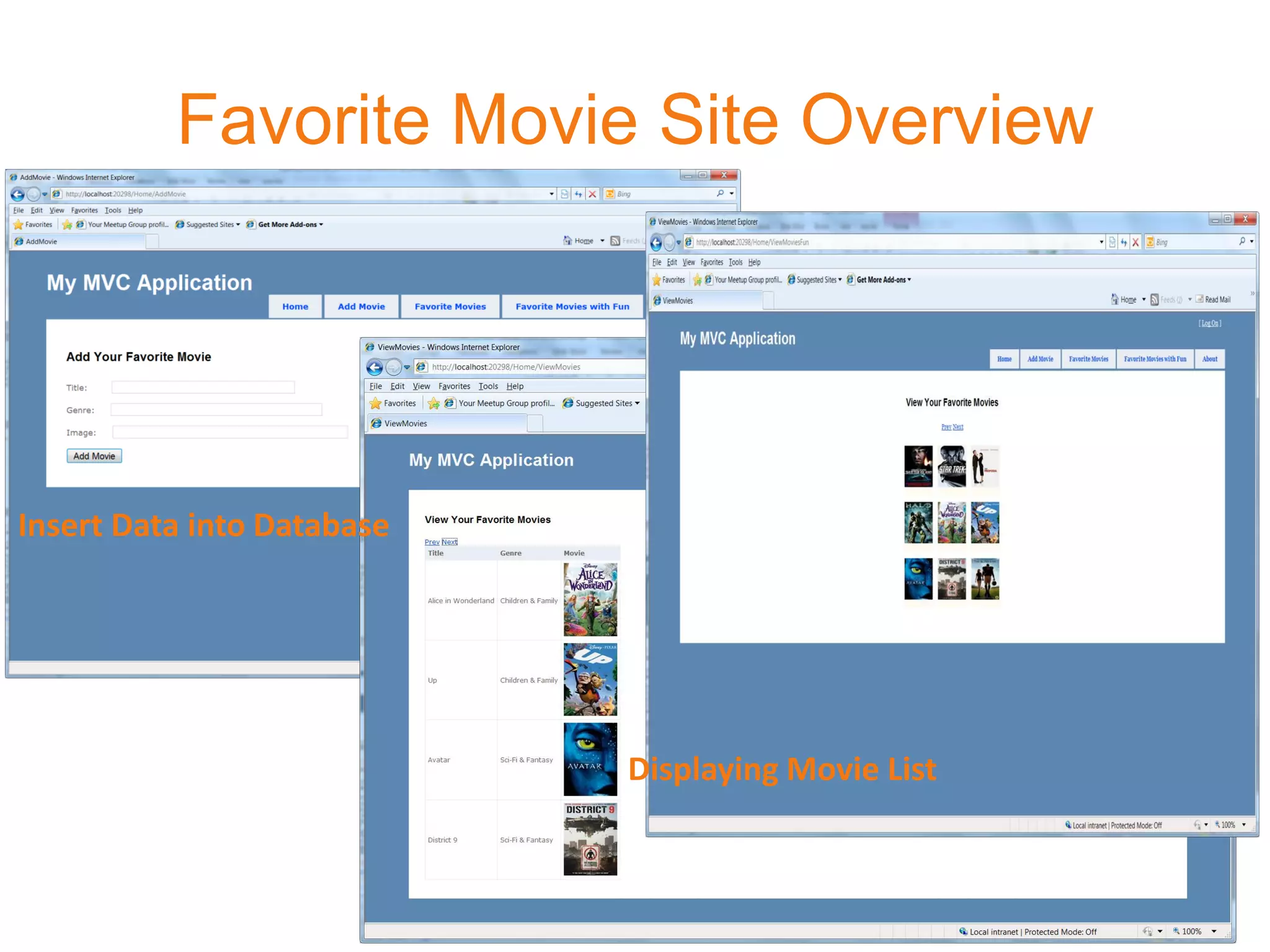

42. Favorite Movie Site Overview
Insert Data into Database
Displaying Movie List

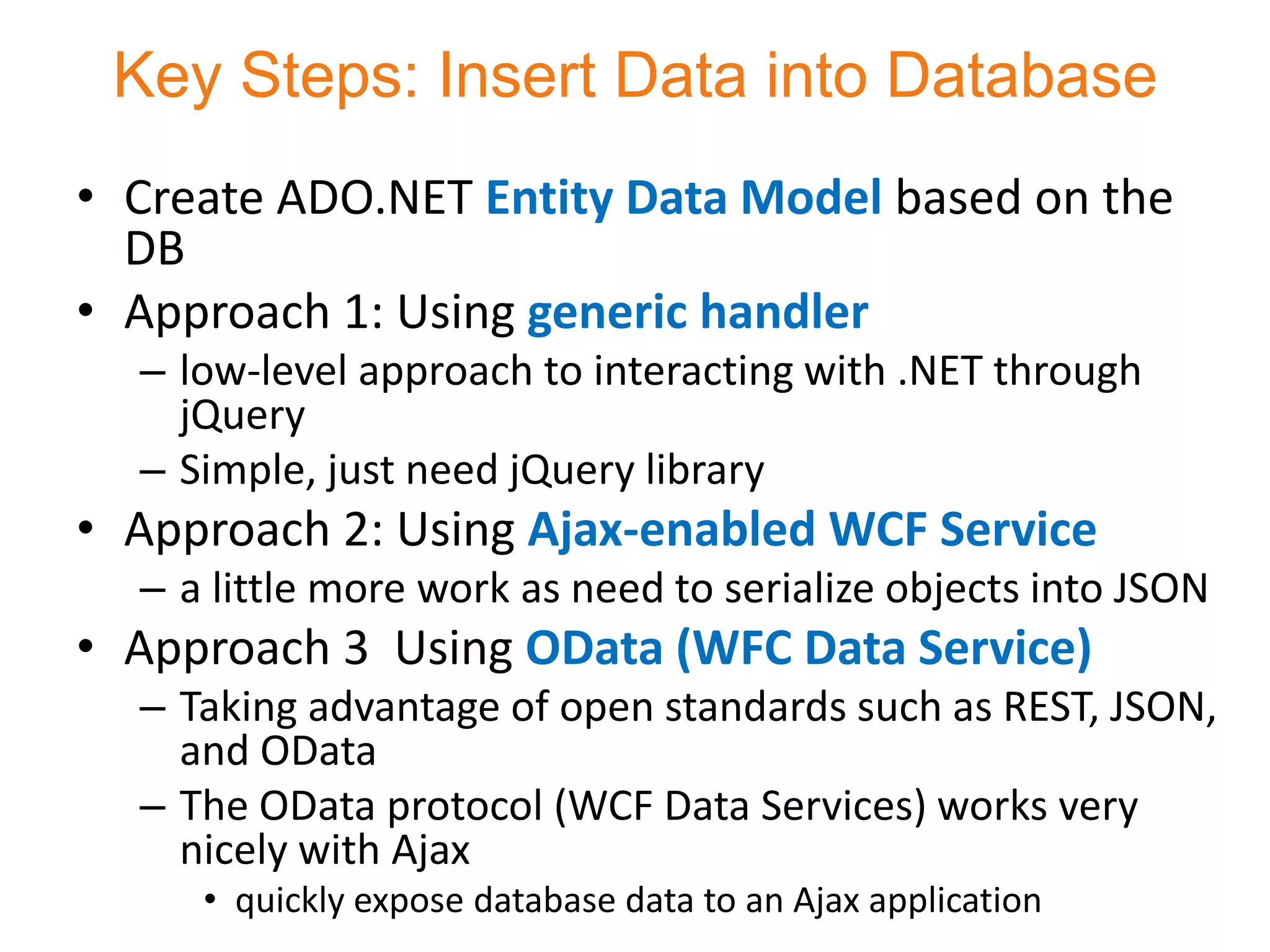

43. Key Steps: Insert Data into Database
• Create ADO.NET Entity Data Model based on the
DB
• Approach 1: Using generic handler
– low-level approach to interacting with .NET through
jQuery
– Simple, just need jQuery library
• Approach 2: Using Ajax-enabled WCF Service
– a little more work as need to serialize objects into JSON
• Approach 3 Using OData (WFC Data Service)
– Taking advantage of open standards such as REST, JSON,
and OData
– The OData protocol (WCF Data Services) works very
nicely with Ajax
• quickly expose database data to an Ajax application

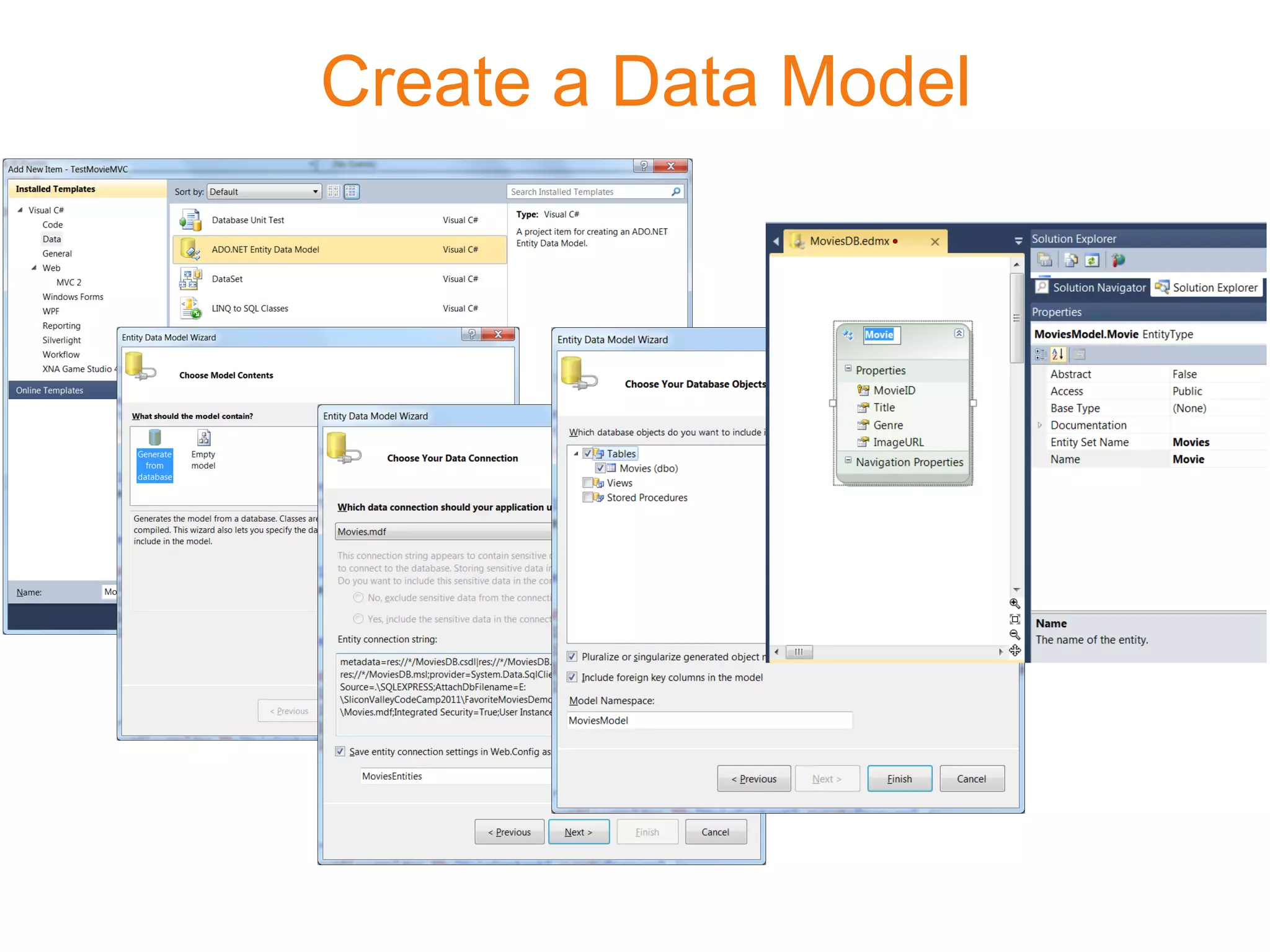

44. Create a Data Model

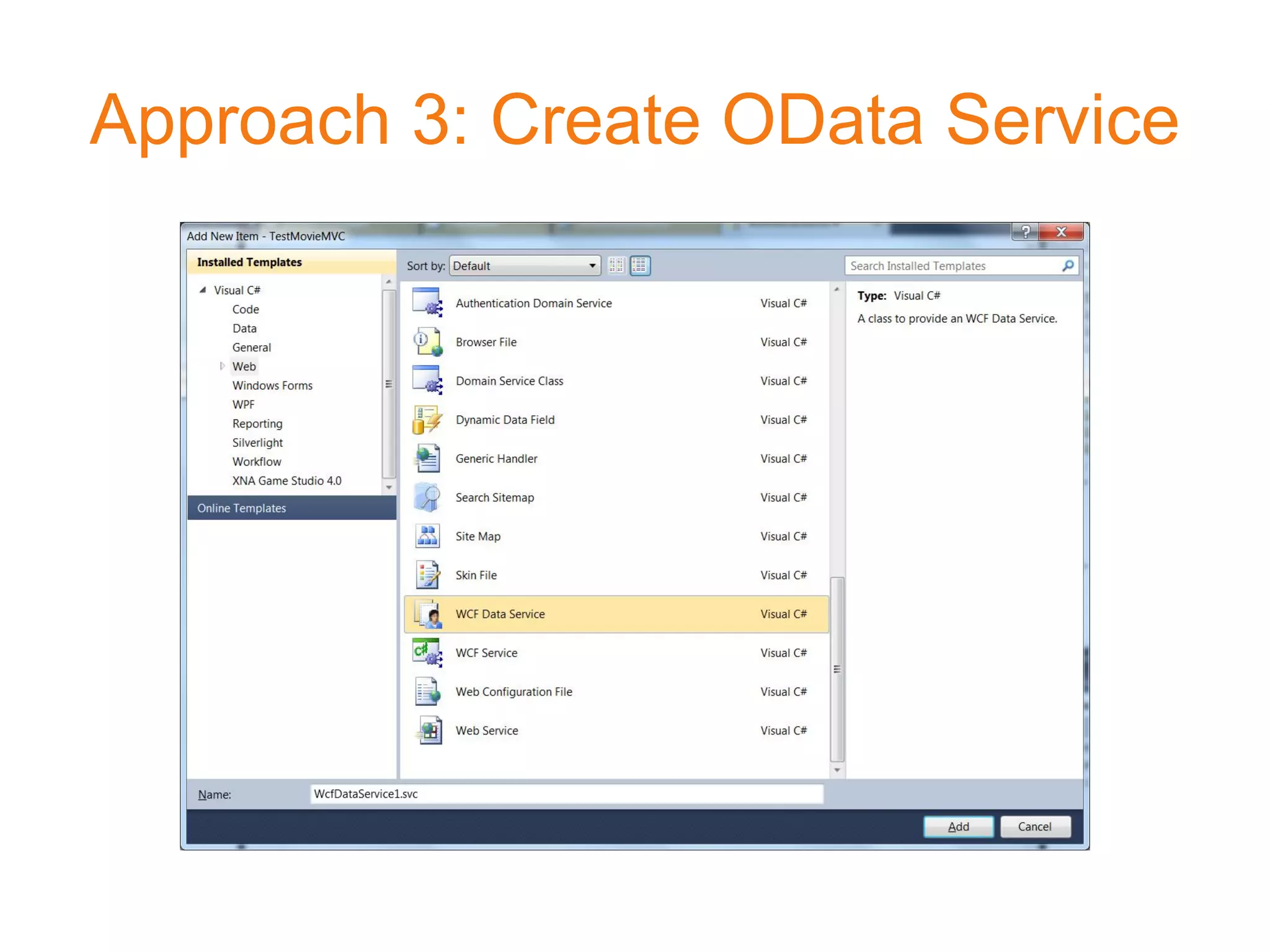

45. Approach 3: Create OData Service

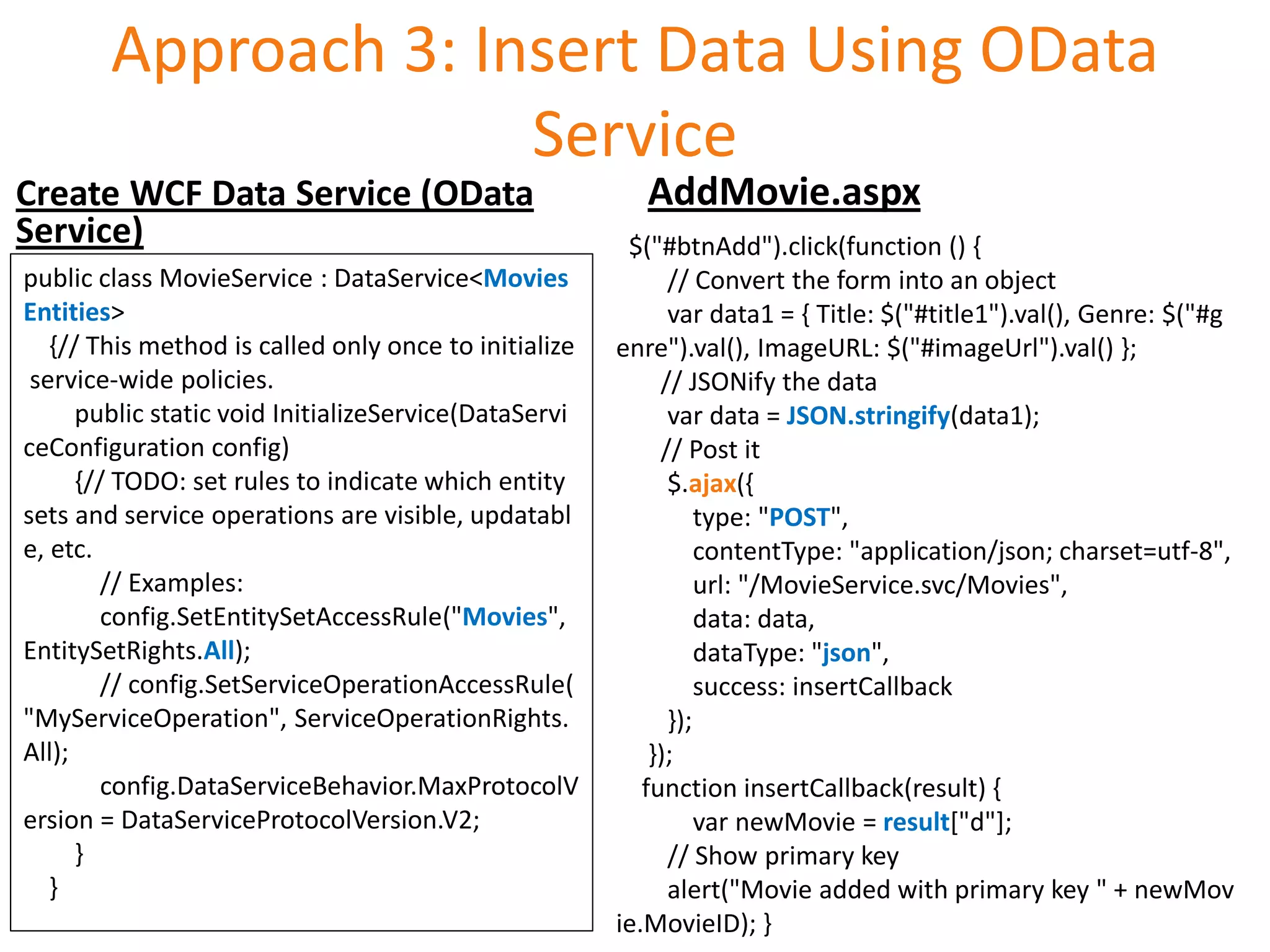

46. Approach 3: Insert Data Using OData
Service
Create WCF Data Service (OData AddMovie.aspx
Service) $("#btnAdd").click(function () {
public class MovieService : DataService<Movies // Convert the form into an object
Entities> var data1 = { Title: $("#title1").val(), Genre: $("#g
{// This method is called only once to initialize enre").val(), ImageURL: $("#imageUrl").val() };
service-wide policies. // JSONify the data
public static void InitializeService(DataServi var data = JSON.stringify(data1);
ceConfiguration config) // Post it
{// TODO: set rules to indicate which entity $.ajax({
sets and service operations are visible, updatabl type: "POST",
e, etc. contentType: "application/json; charset=utf-8",
// Examples: url: "/MovieService.svc/Movies",
config.SetEntitySetAccessRule("Movies", data: data,
EntitySetRights.All); dataType: "json",
// config.SetServiceOperationAccessRule( success: insertCallback
"MyServiceOperation", ServiceOperationRights. });
All); });
config.DataServiceBehavior.MaxProtocolV function insertCallback(result) {
ersion = DataServiceProtocolVersion.V2; var newMovie = result["d"];
} // Show primary key
} alert("Movie added with primary key " + newMov
ie.MovieID); }

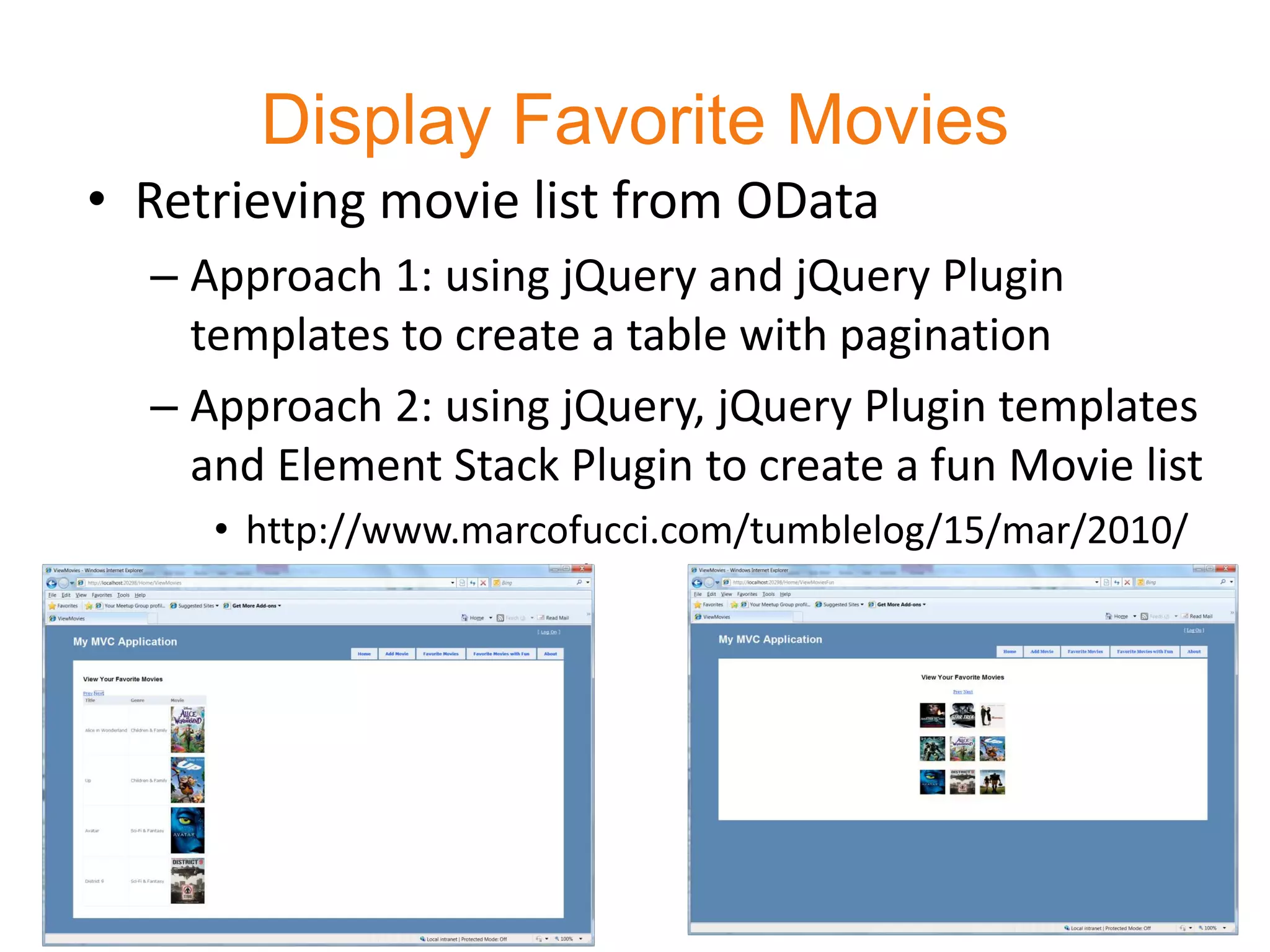

47. Display Favorite Movies
• Retrieving movie list from OData
– Approach 1: using jQuery and jQuery Plugin
templates to create a table with pagination
– Approach 2: using jQuery, jQuery Plugin templates
and Element Stack Plugin to create a fun Movie list
• http://www.marcofucci.com/tumblelog/15/mar/2010/
elementstack_v1-1/

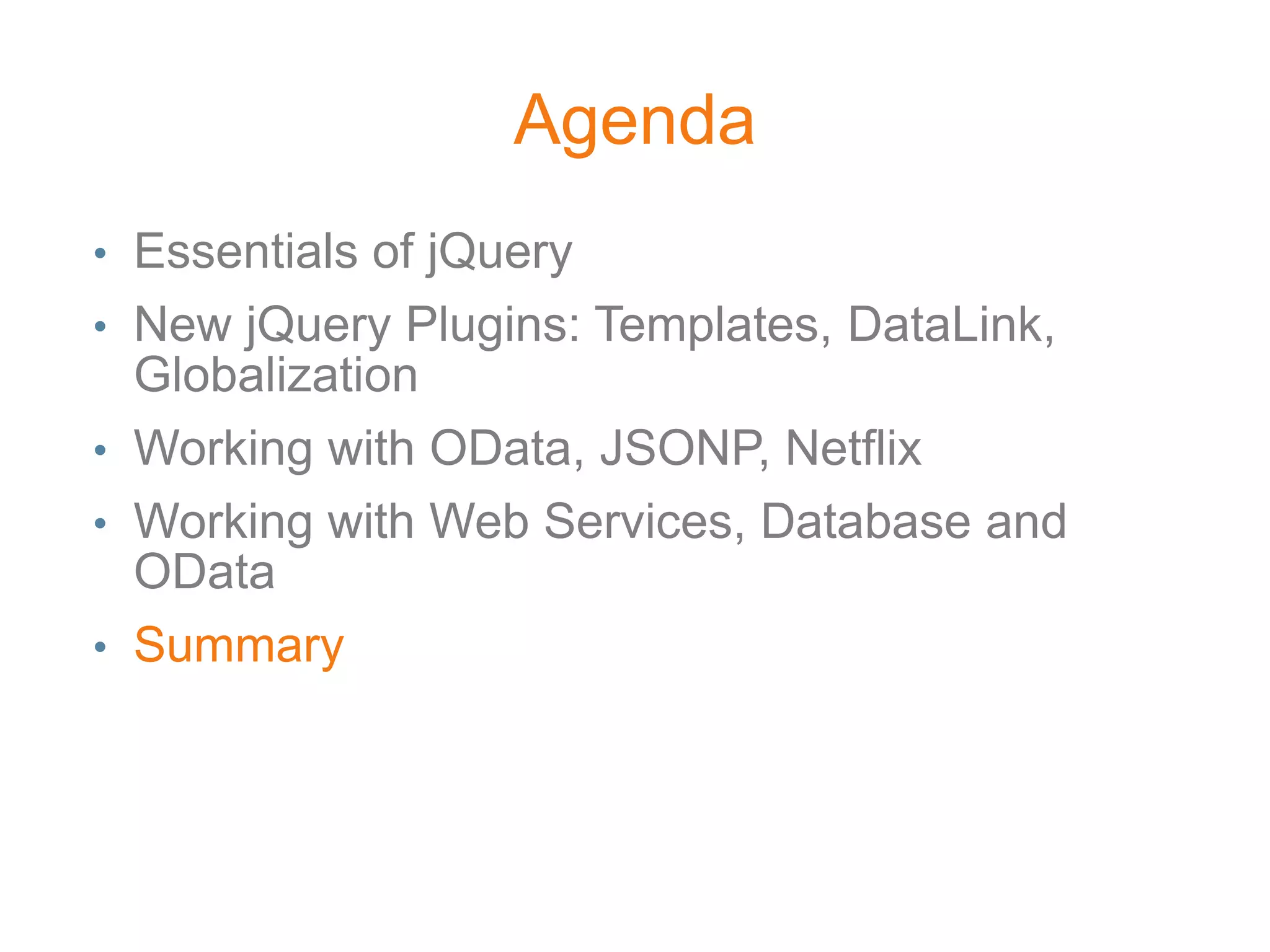

48. Agenda
• Essentials of jQuery
• New jQuery Plugins: Templates, DataLink,
Globalization
• Working with OData, JSONP, Netflix
• Working with Web Services, Database and
OData
• Summary

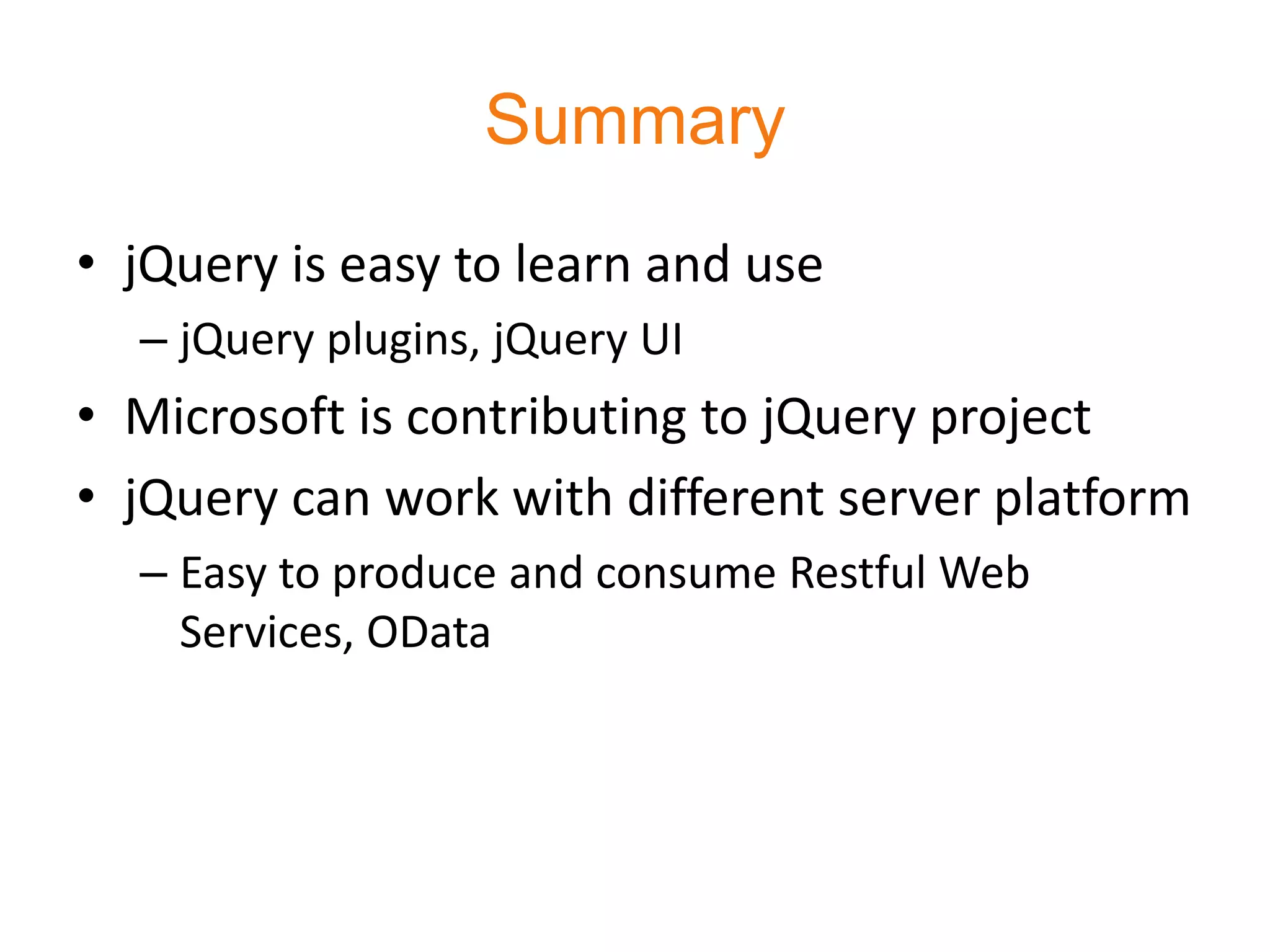

49. Summary
• jQuery is easy to learn and use
– jQuery plugins, jQuery UI
• Microsoft is contributing to jQuery project
• jQuery can work with different server platform
– Easy to produce and consume Restful Web
Services, OData

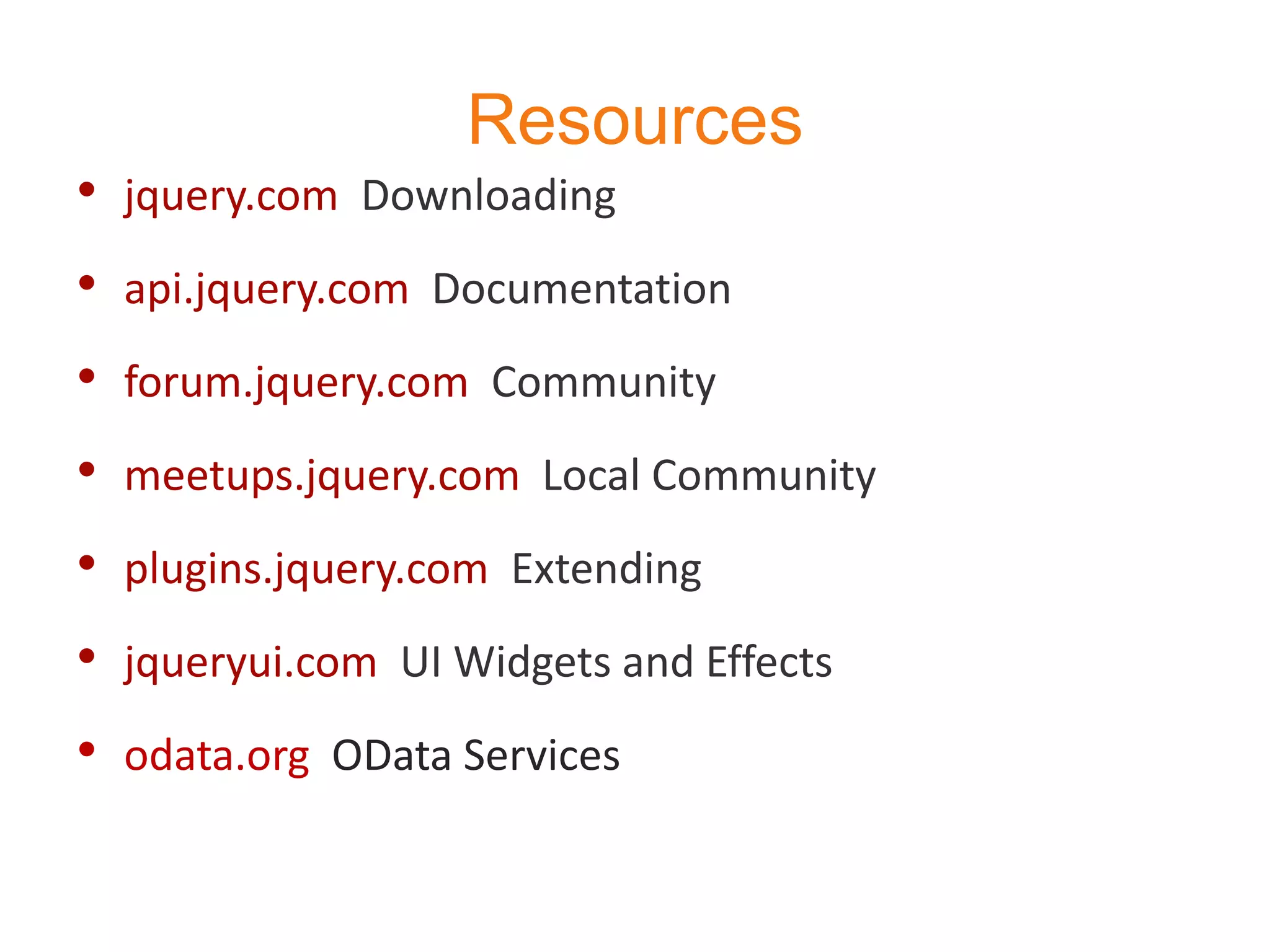

50. Resources
• jquery.com Downloading
• api.jquery.com Documentation
• forum.jquery.com Community
• meetups.jquery.com Local Community
• plugins.jquery.com Extending
• jqueryui.com UI Widgets and Effects
• odata.org OData Services

51. Upcoming Web Camps
1 Day MVC and jQuery Web Camp
Feb. 26th, 2011, Mountain View, CA
March 25th, 2011, Seattle, WA
Free, learning innovative web technology,
hands on experience
Detail and Registration http://bit.ly/gT9sBb

52. jQuery Makes Writing JavaScript
Fun Again
Doris Chen Ph.D.
doris.chen@microsoft.com
Developer Evangelist
Microsoft
http://blogs.msdn.com/b/dorischen/
