This document discusses the internals of the ixgbe driver, which is the Intel 10 Gigabit Ethernet driver for Linux. It describes how the driver handles transmission and reception of packets using ring buffers and NAPI. It also discusses how the driver supports eXpress Data Path (XDP) by using a separate ring for XDP packets and adjusting page reference counts to support XDP operations like redirection. Upcoming features that will improve XDP support for this driver are also mentioned.

1. ixgbe Internals
SUSE Labs Taipei Technology Sharing Day 2018
Gary Lin
Software Engineer, SUSE Labs
glin@suse.com

2. ixgbe?

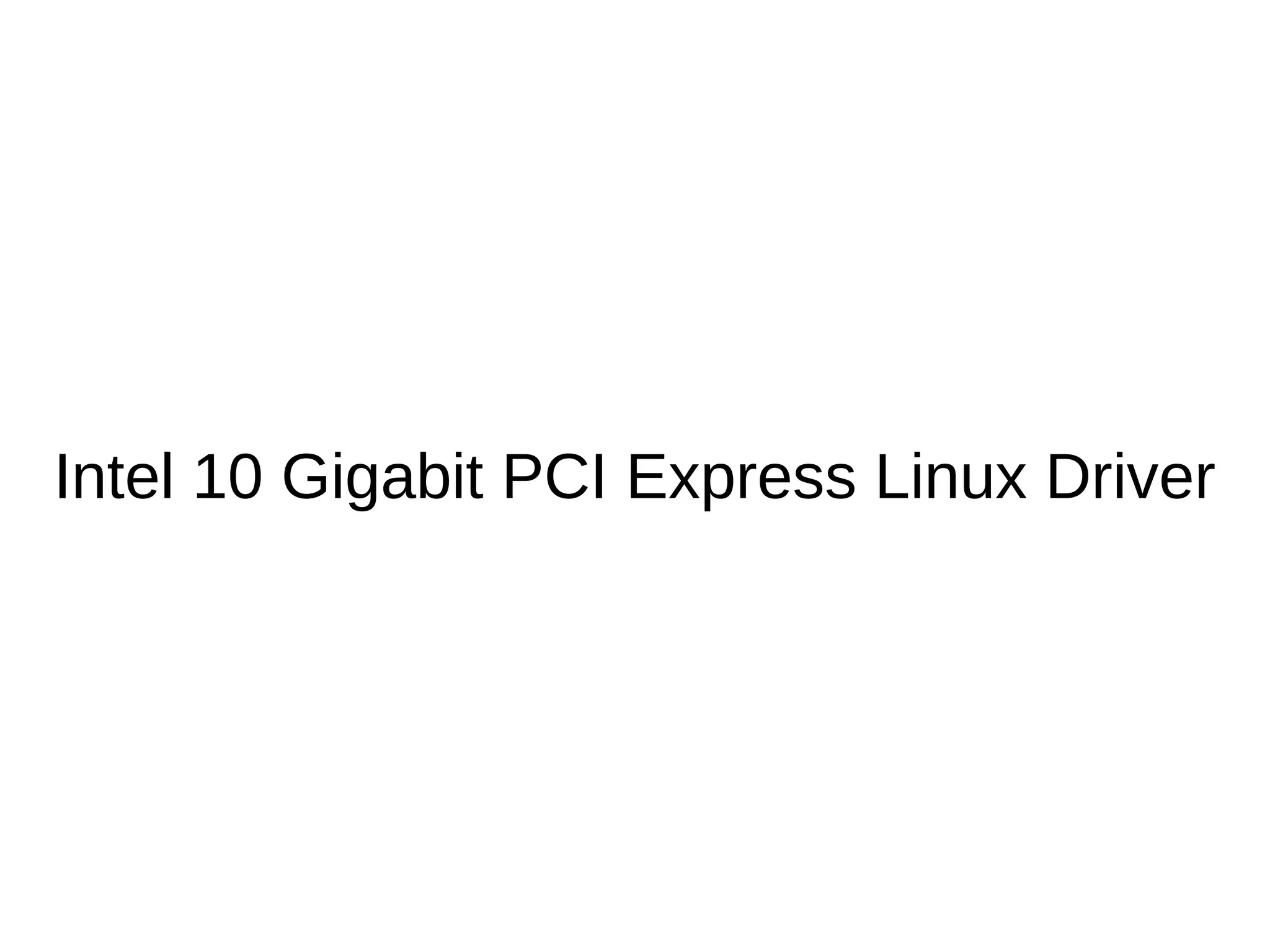

3. Intel 10 Gigabit PCI Express Linux Driver

4. Why ixgbe?
●
The first driver supporting XDP_REDIRECT in
Linux kernel mainline
●
Using a different memory model for XDP
●
Just For Fun™

5. Overview

6. NIC
driver
Application
Network Stack
QDISC
From Driver to AP
TX
RX
NAPI

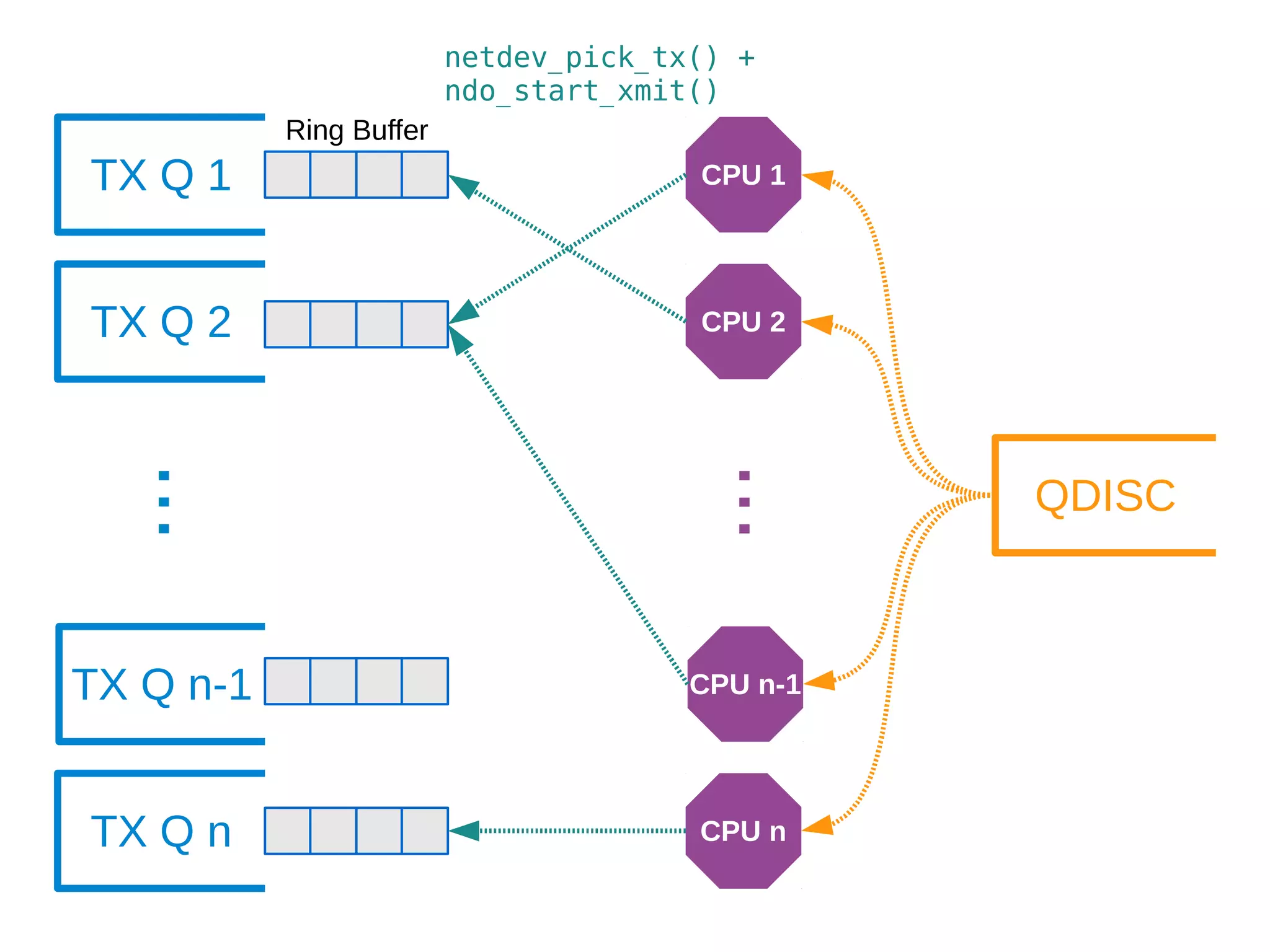

7. TX – QDISC

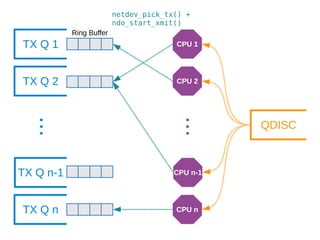

8. ... CPU 1
CPU 2
CPU n
TX Q 1
TX Q 2
TX Q n-1
TX Q n
CPU n-1
Ring Buffer
...
QDISC
netdev_pick_tx() +
ndo_start_xmit()

9. RX – NAPI

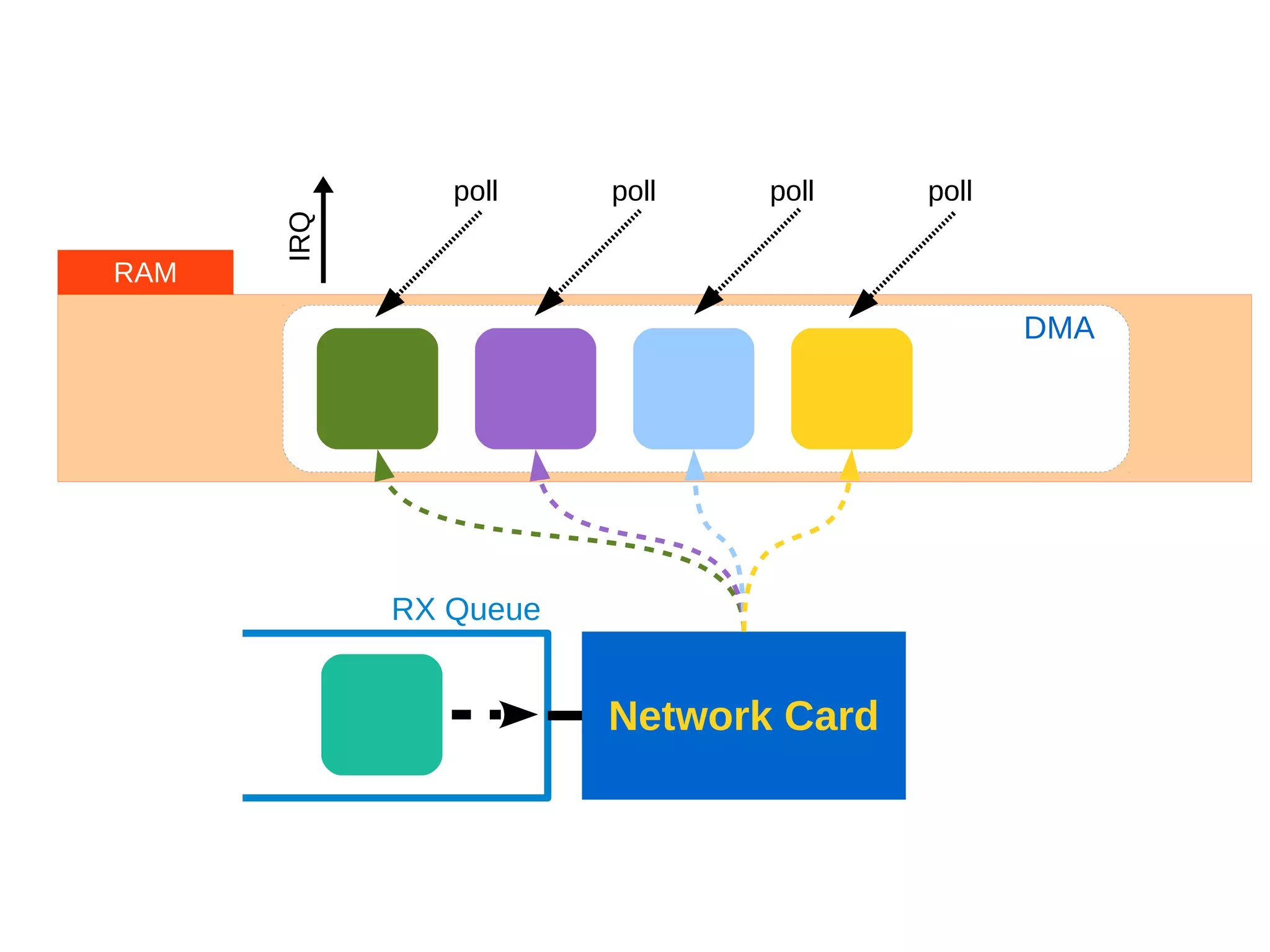

10. RAM
Network Card
DMA
poll poll poll poll
IRQ
RX Queue

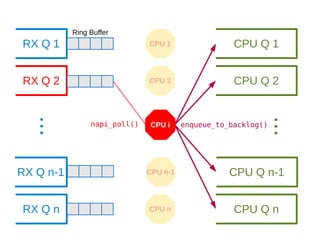

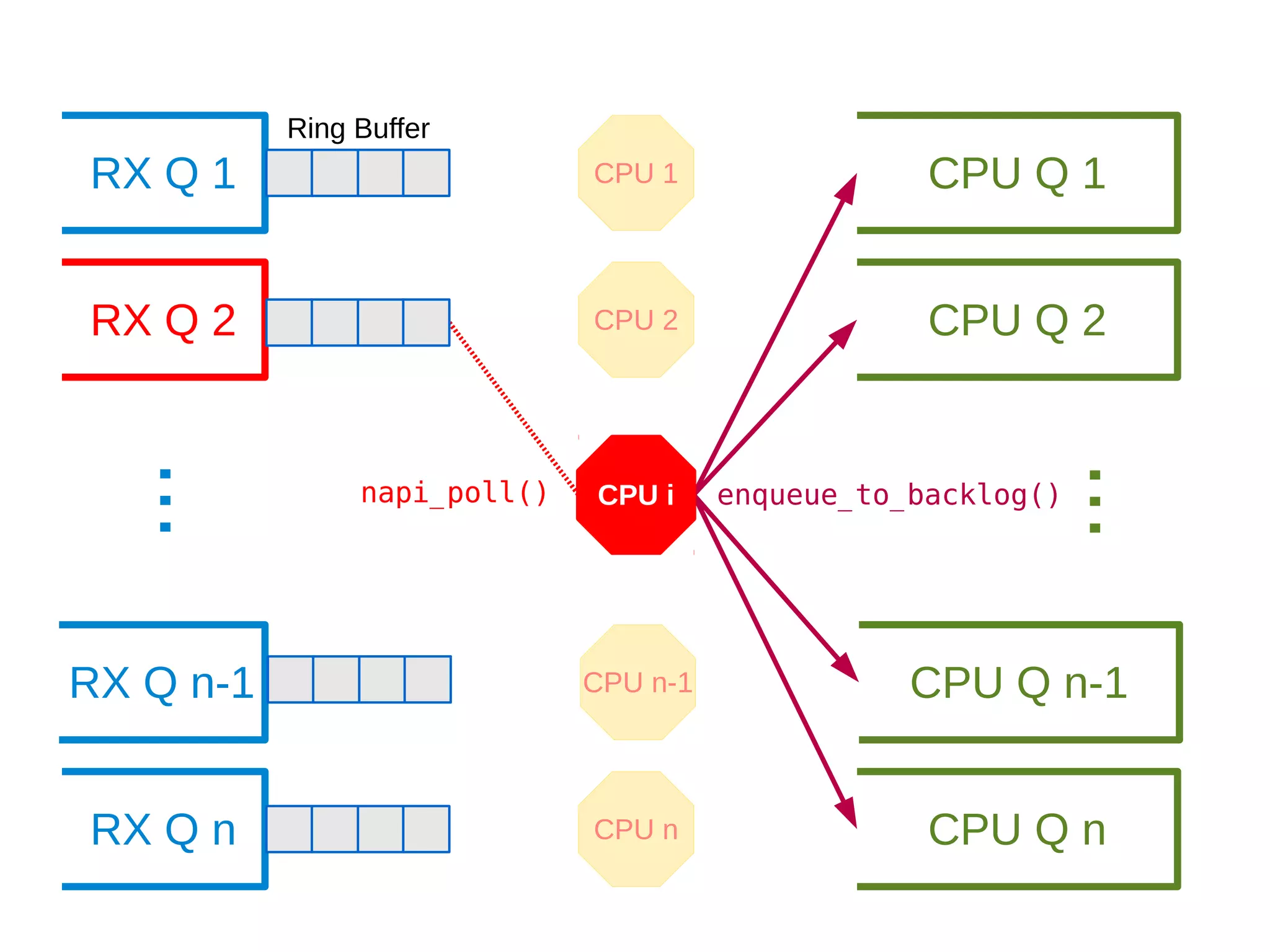

11. ... CPU 1
CPU 2
CPU n
napi_poll()
CPU Q 1
CPU Q 2
CPU Q n
...
enqueue_to_backlog()
RX Q 1
RX Q 2
RX Q n-1
RX Q n
CPU n-1 CPU Q n-1
CPU i
Ring Buffer

12. Ring Buffers in ixgbe

13. TX Ring
RX Ring
XDP Ring

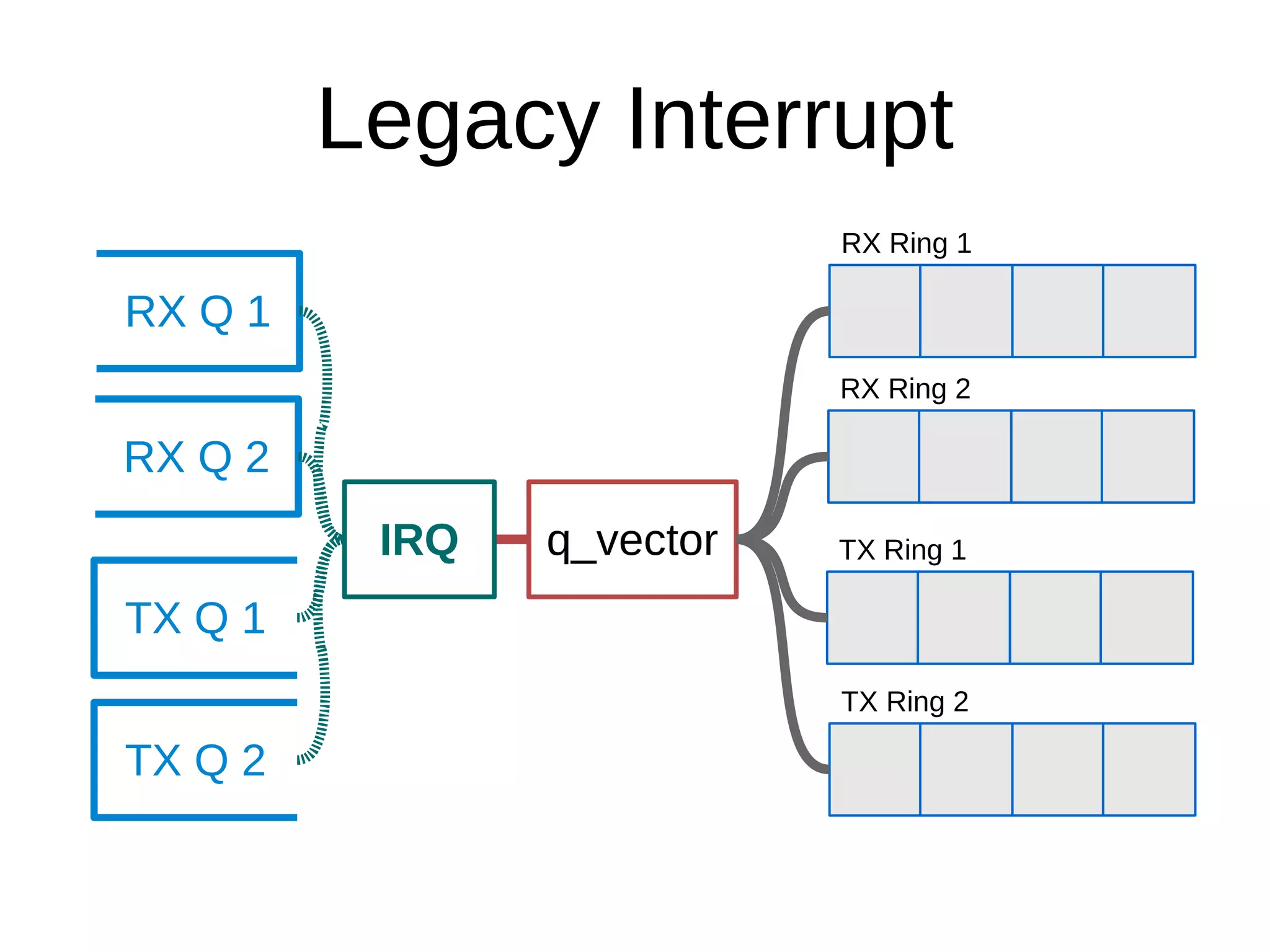

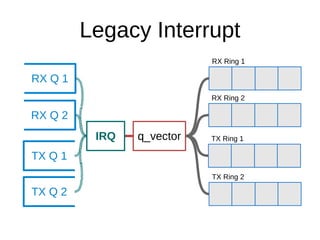

14. RX Q 2
IRQ q_vector
RX Ring 2
TX Q 1
TX Ring 1
Legacy Interrupt
RX Q 1
TX Q 2
RX Ring 1
TX Ring 2

15. RX Q IRQ q_vector
RX Ring
TX Q IRQ q_vector
TX Ring
RX Q
IRQ q_vector
RX Ring
TX Q
TX Ring

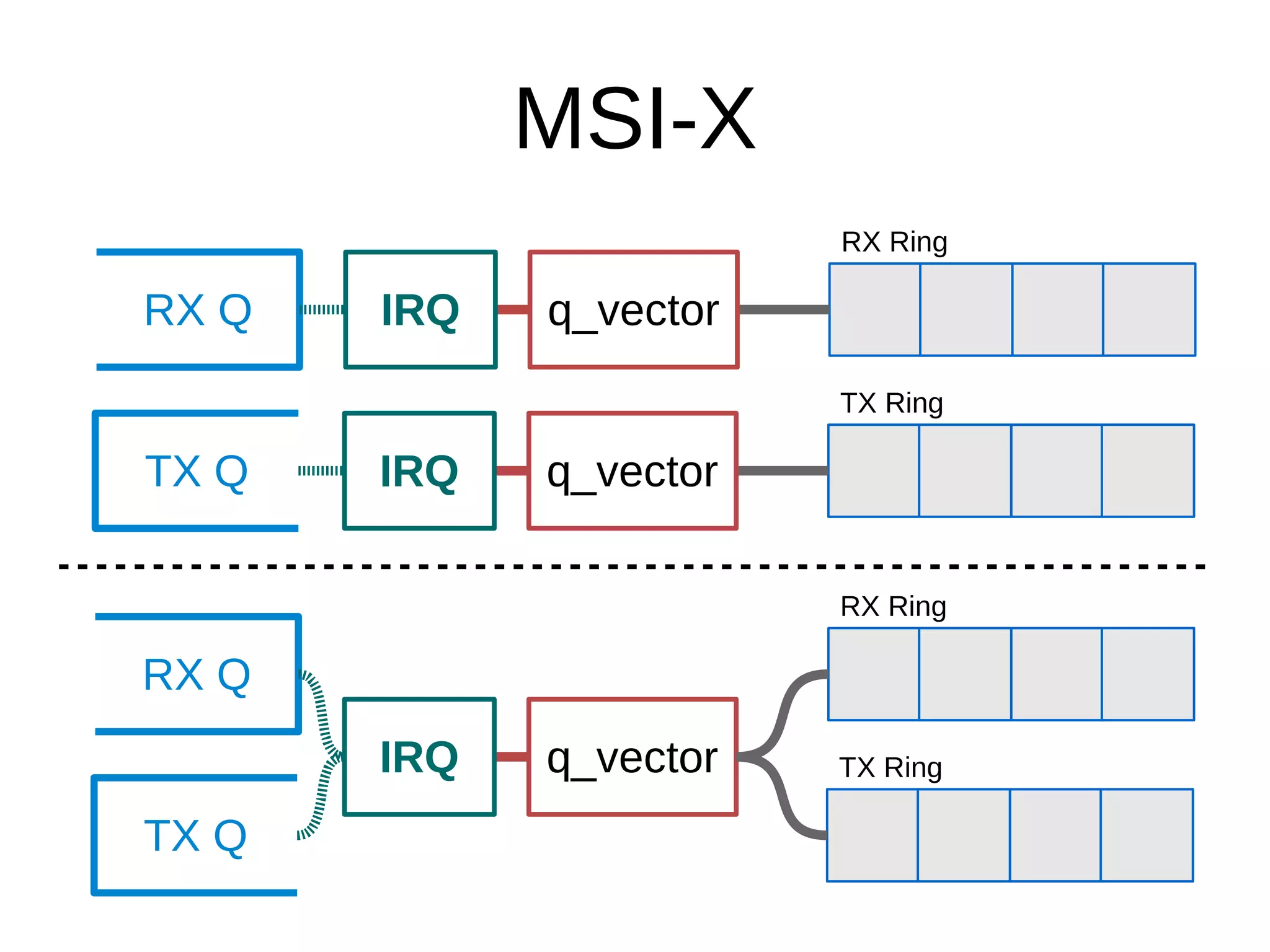

MSI-X

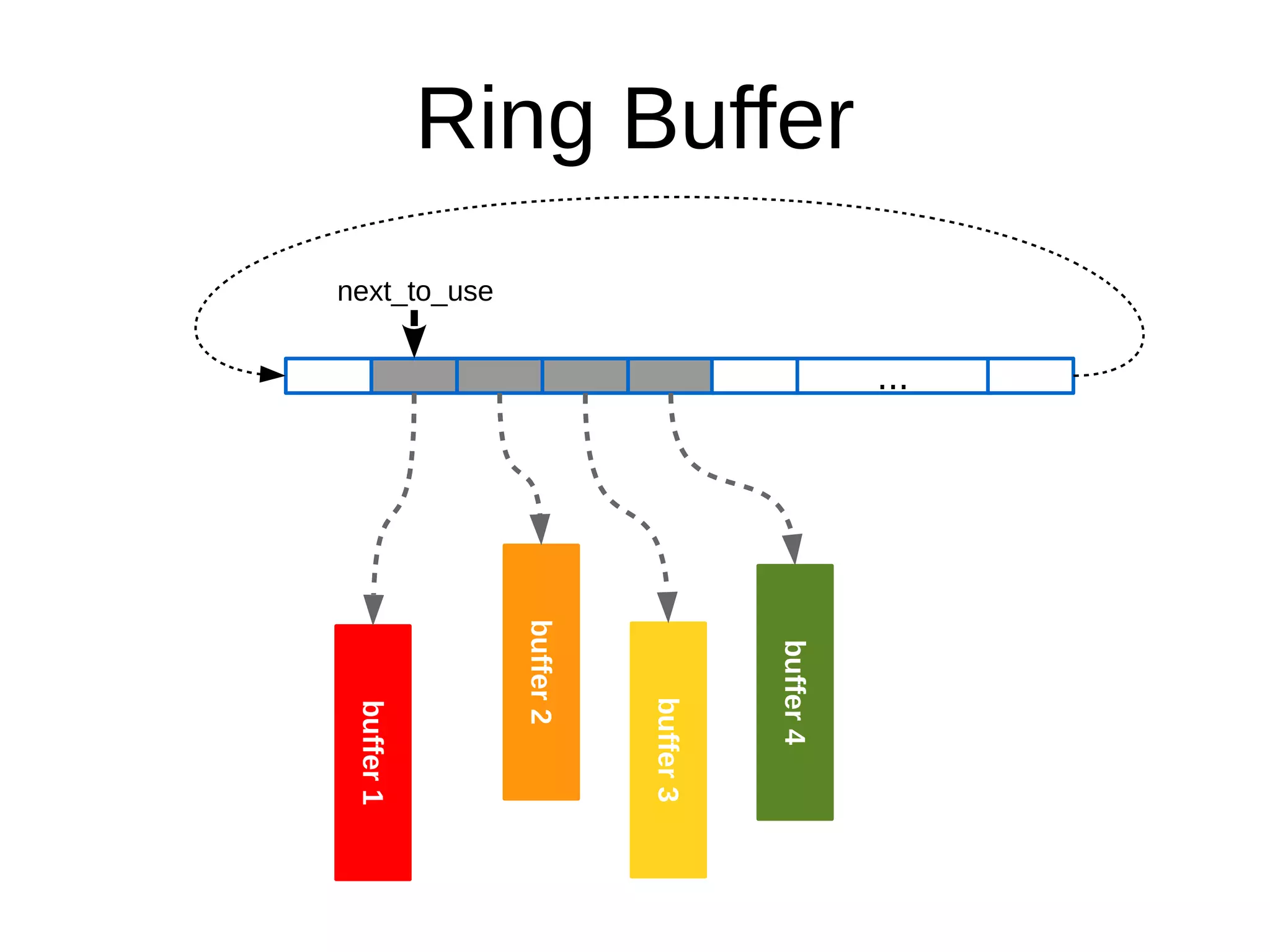

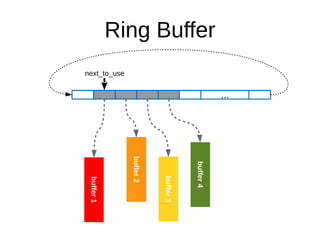

16. ...
Ring Buffer
buffer1
buffer2
buffer3
buffer4
next_to_use

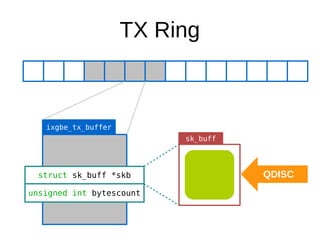

17. TX Ring
ixgbe_tx_buffer
sk_buff
QDISCstruct sk_buff *skb
unsigned int bytescount

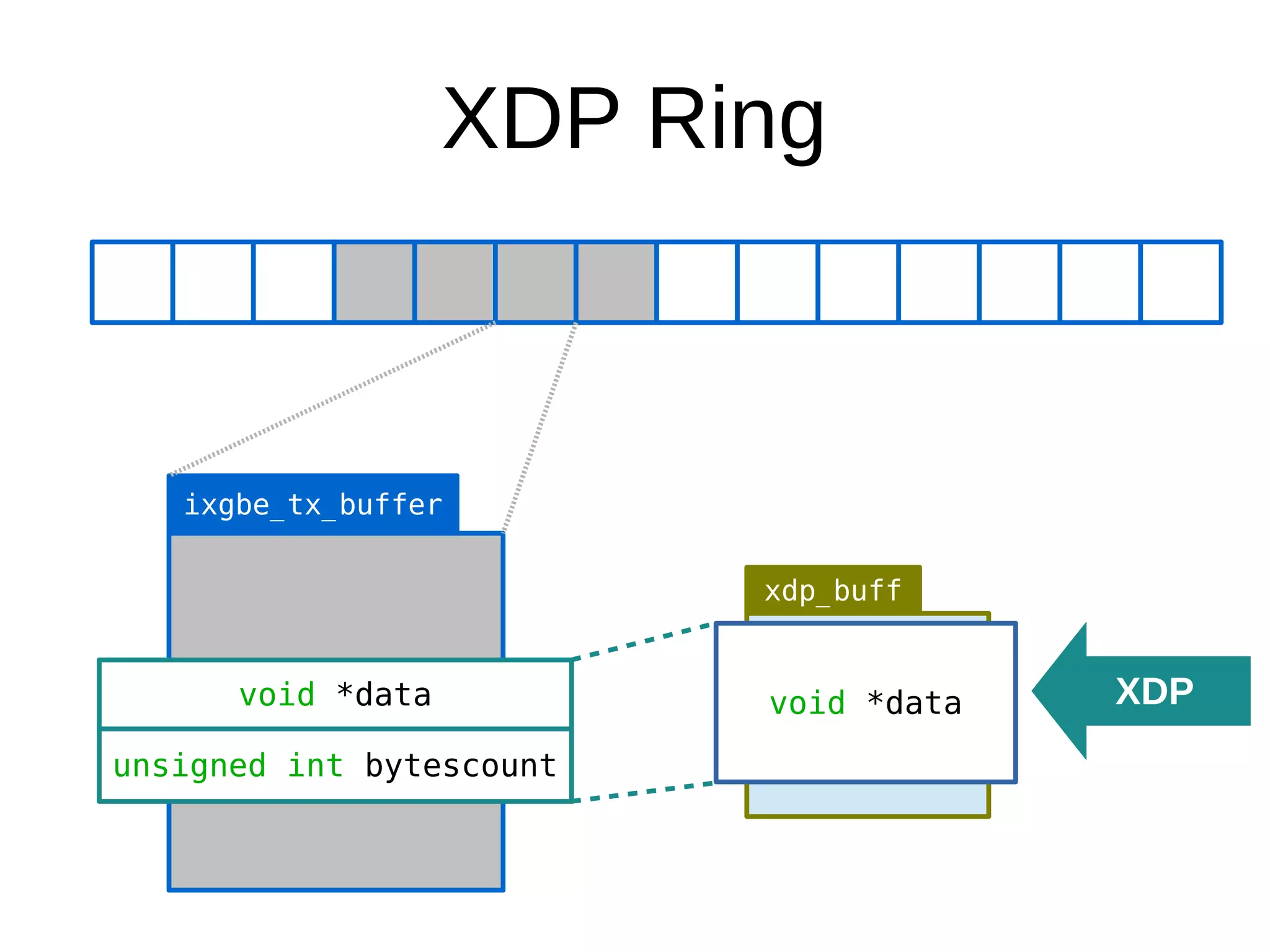

18. XDP Ring
ixgbe_tx_buffer
void *data
xdp_buff
XDP
unsigned int bytescount
void *data

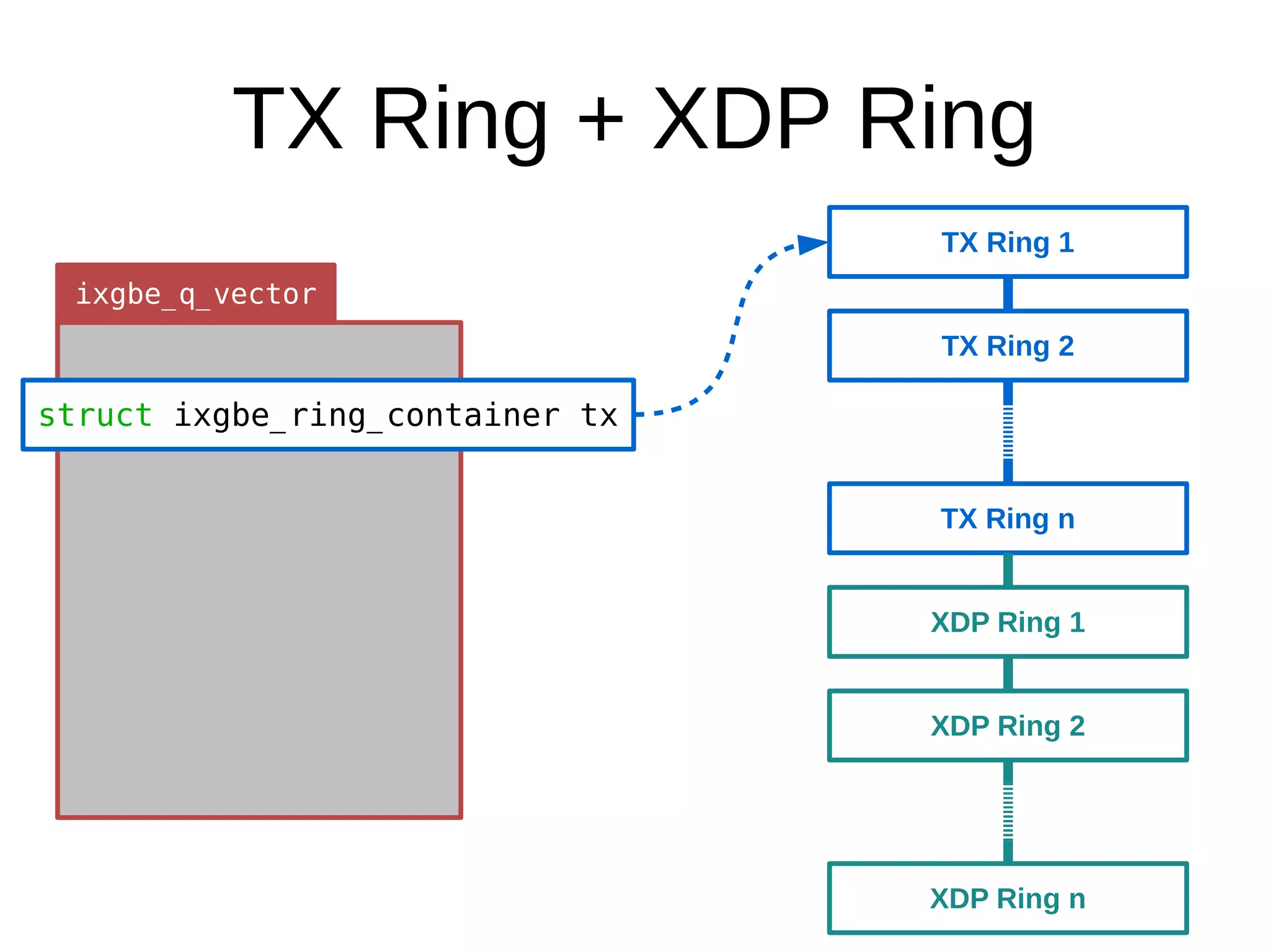

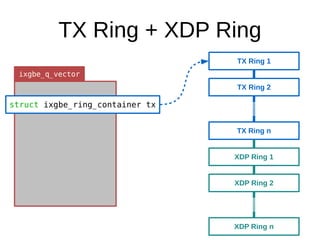

19. TX Ring + XDP Ring
ixgbe_q_vector
struct ixgbe_ring_container tx
TX Ring 1
TX Ring 2
TX Ring n
XDP Ring 1
XDP Ring 2
XDP Ring n

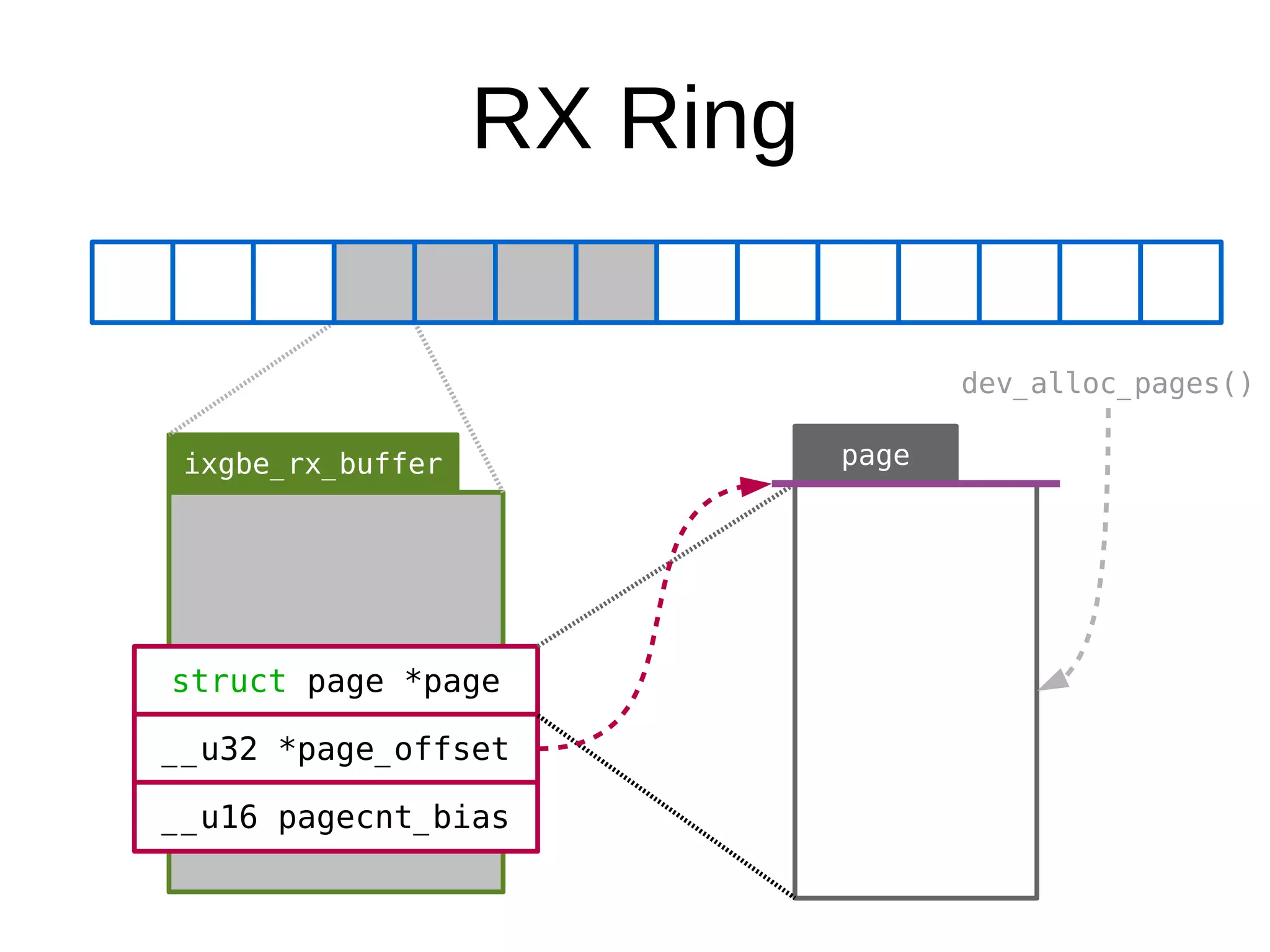

20. RX Ring
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
dev_alloc_pages()

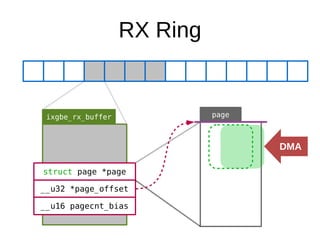

21. RX Ring
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
DMA

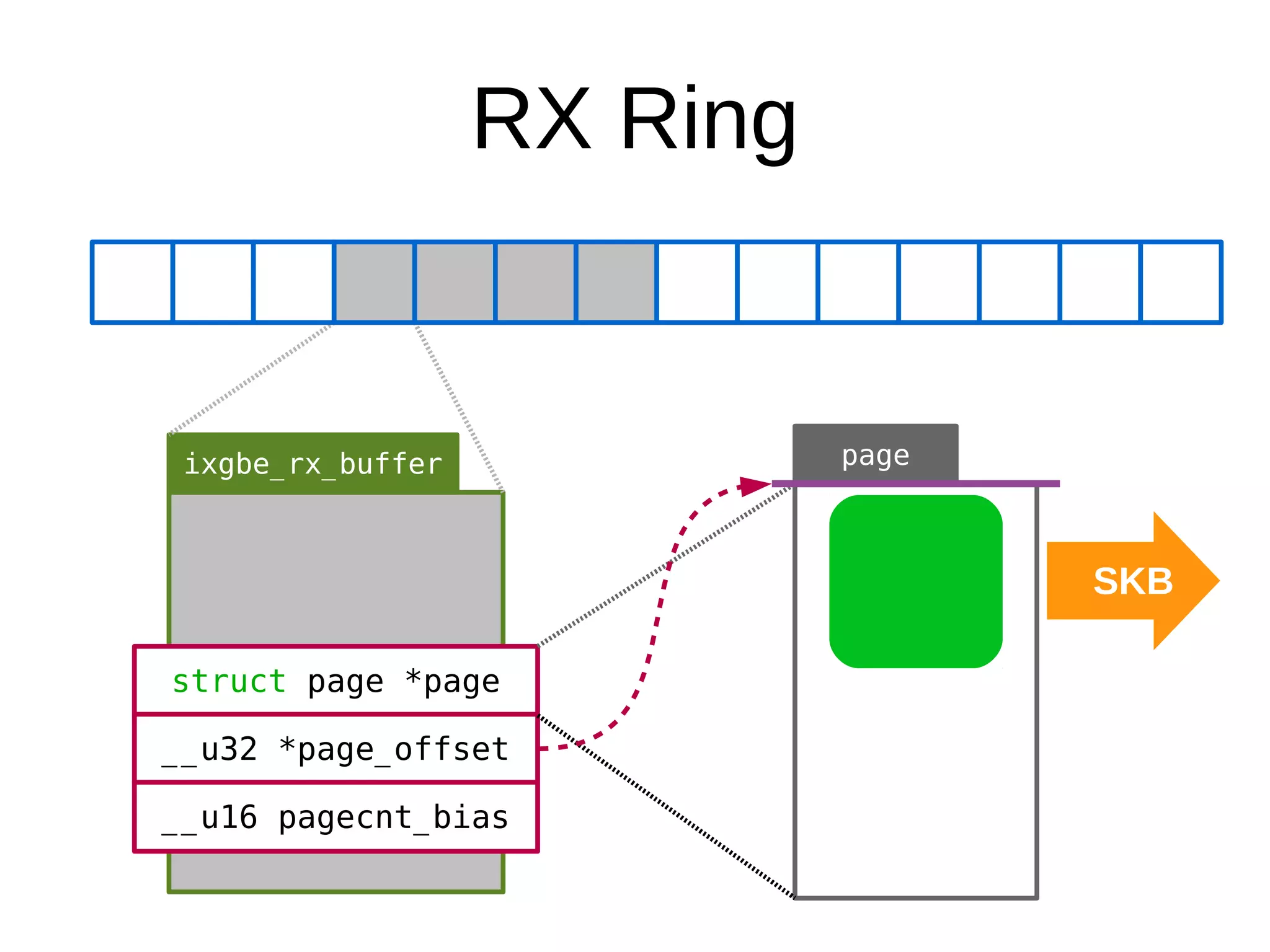

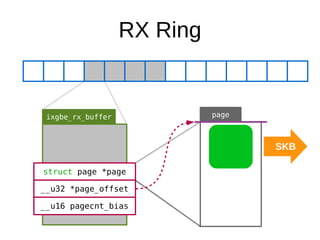

22. RX Ring
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
SKB

23. RX Ring
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
Flip
Flip: page_offset ^= page_size / 2

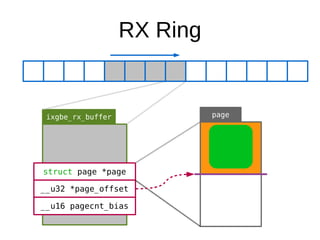

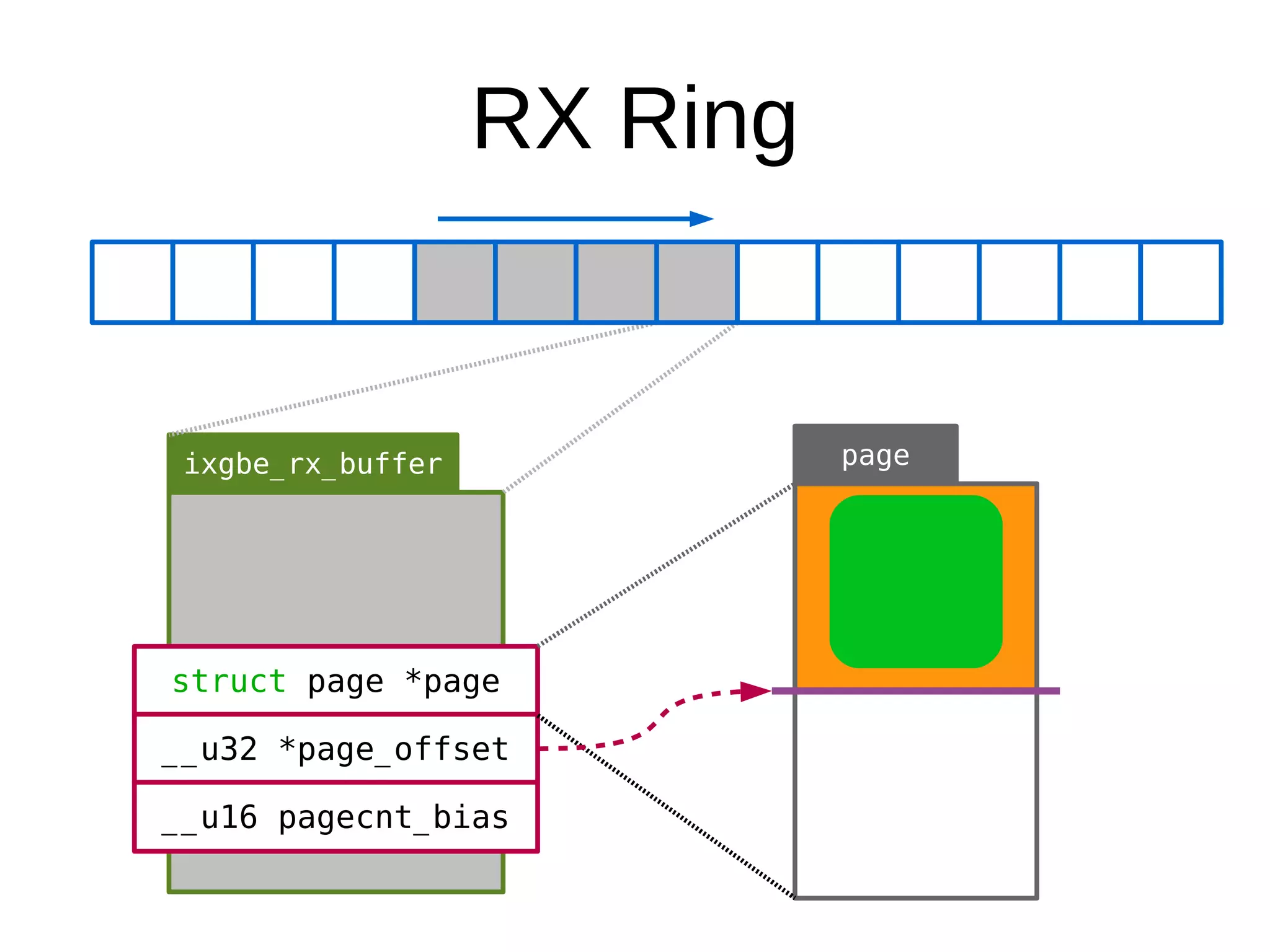

24. RX Ring
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page

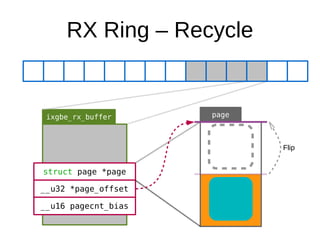

25. RX Ring – Recycle
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
Flip

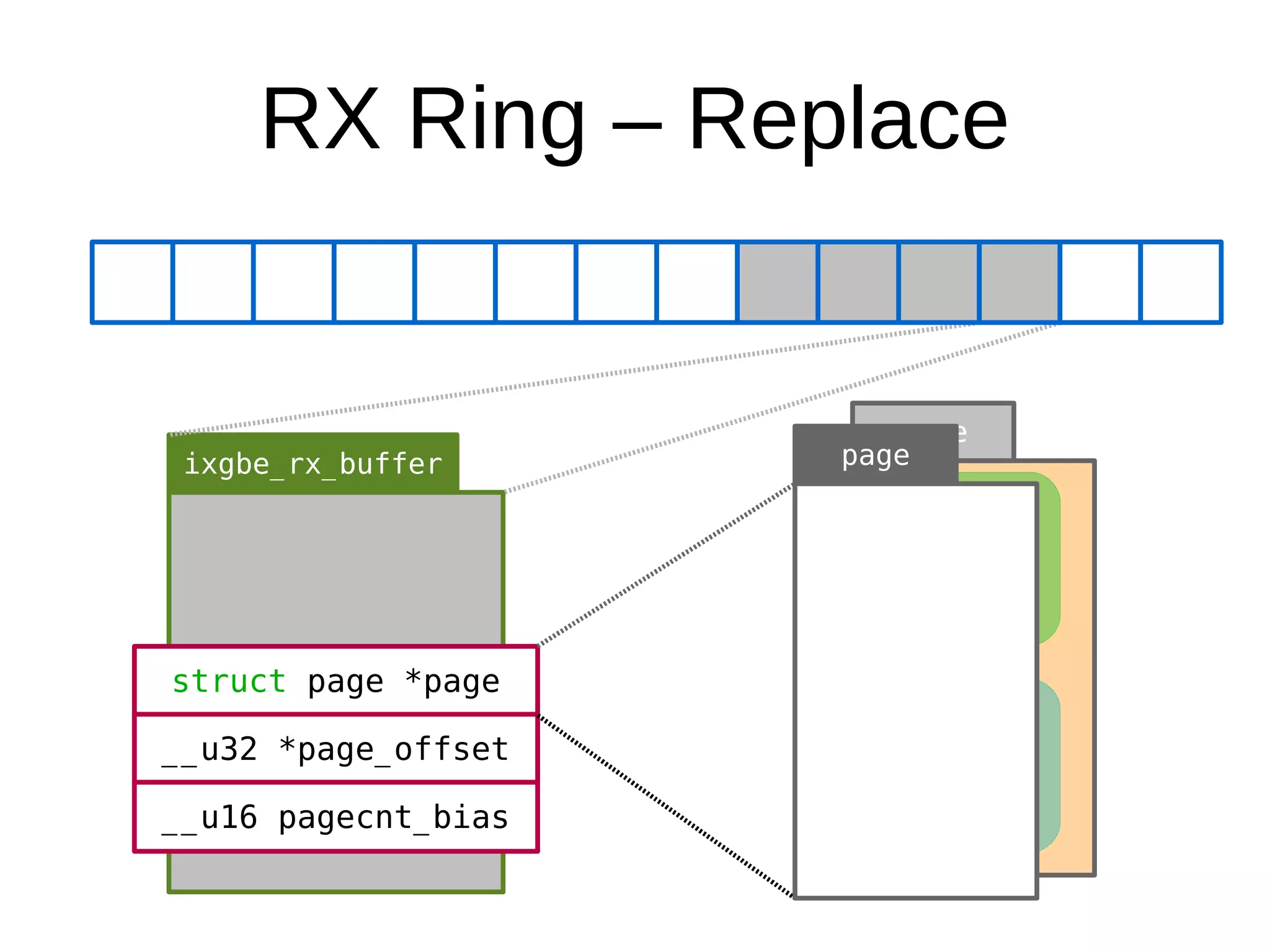

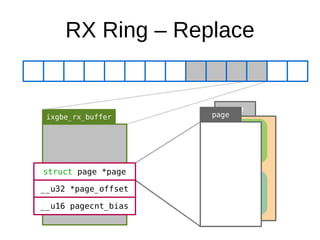

26. RX Ring – Replace
ixgbe_rx_buffer
struct page *page
__u32 *page_offset
__u16 pagecnt_bias
page
page

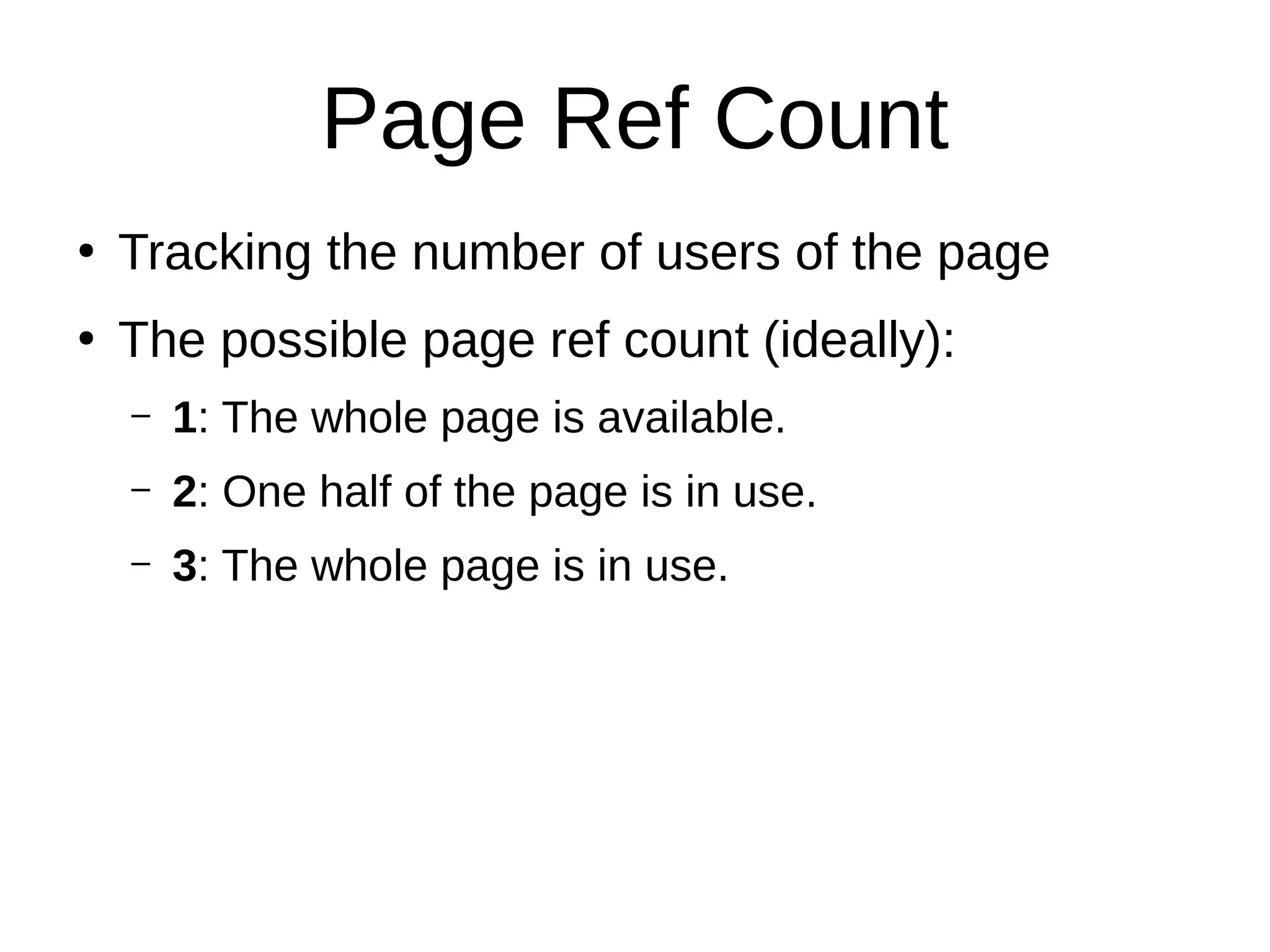

27. Page Ref Count
●
Tracking the number of users of the page
●
The possible page ref count (ideally):
– 1: The whole page is available.
– 2: One half of the page is in use.
– 3: The whole page is in use.

28. Page Count Operations
static inline void set_page_count(struct page *page, int v)
{
atomic_set(&page->_refcount, v);
if (page_ref_tracepoint_active(__tracepoint_page_ref_set))
__page_ref_set(page, v);
}
static inline void page_ref_add(struct page *page, int nr)
{
atomic_add(nr, &page->_refcount);
if (page_ref_tracepoint_active(__tracepoint_page_ref_mod))
__page_ref_mod(page, nr);
}
static inline void page_ref_sub(struct page *page, int nr)
{
atomic_sub(nr, &page->_refcount);
if (page_ref_tracepoint_active(__tracepoint_page_ref_mod))
__page_ref_mod(page, -nr);
}

29. Atomic operations are
expensive!

30. Adjusted Ref Count (1/3)
●
A locally maintained pagecnt_bias for the RX
page
●
Initial value of pagecnt_bias: 1
●
adj_pagecnt = pagecnt – pagecnt_bias
– 0: The whole page is available.
– 1: One half of the page is in use.
– 2: The whole page is in use.

31. Adjusted Ref Count (2/3)
●

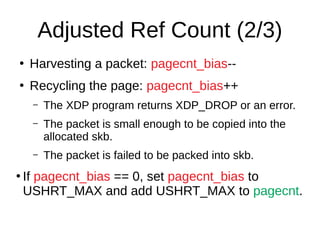

Harvesting a packet: pagecnt_bias--
●
Recycling the page: pagecnt_bias++
– The XDP program returns XDP_DROP or an error.
– The packet is small enough to be copied into the
allocated skb.
– The packet is failed to be packed into skb.
●
If pagecnt_bias == 0, set pagecnt_bias to
USHRT_MAX and add USHRT_MAX to pagecnt.

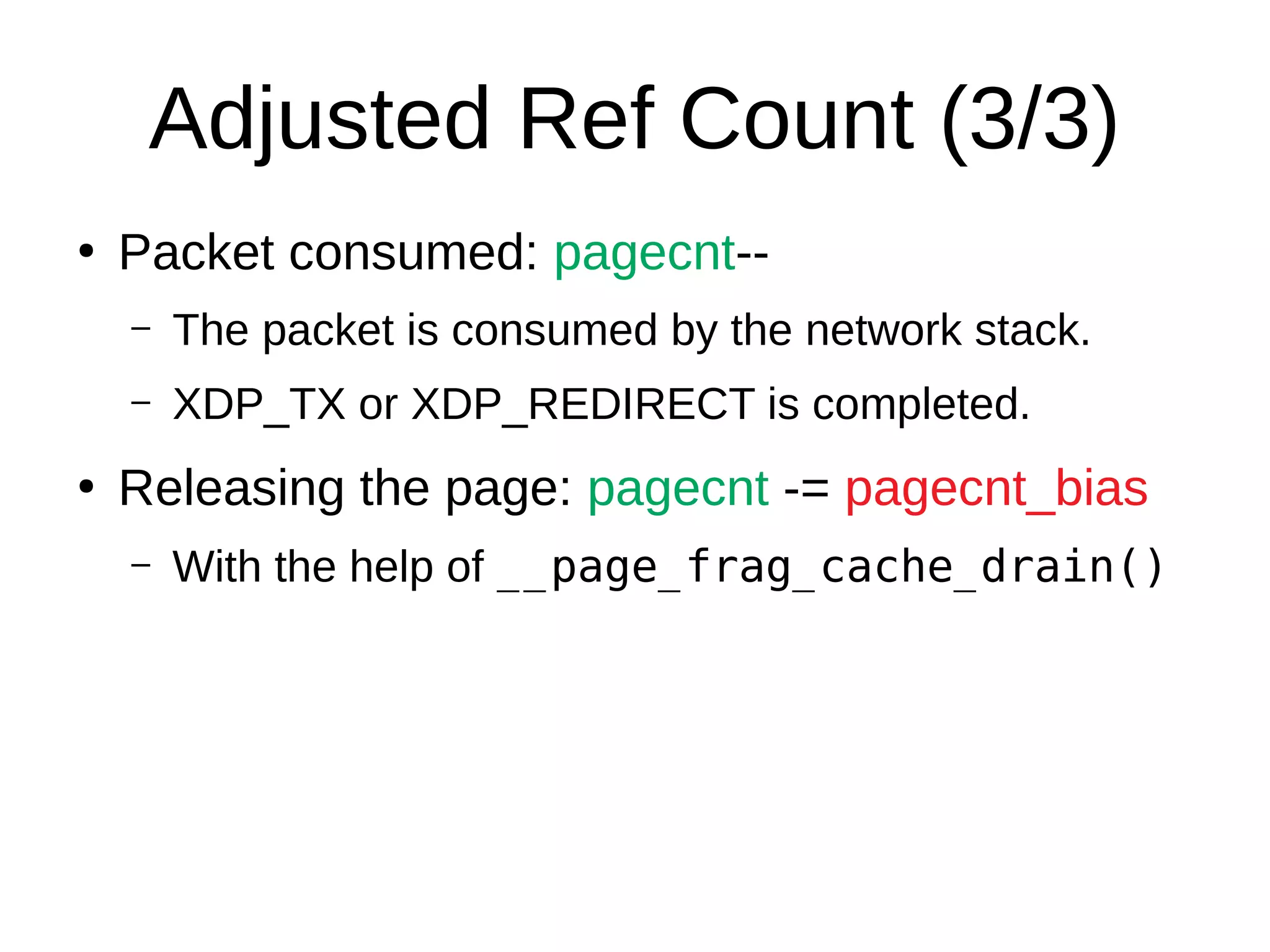

32. Adjusted Ref Count (3/3)
●
Packet consumed: pagecnt--
– The packet is consumed by the network stack.
– XDP_TX or XDP_REDIRECT is completed.
●
Releasing the page: pagecnt -= pagecnt_bias
– With the help of __page_frag_cache_drain()

33. XDP

34. TX Q
RX Q
Network
Stack
PASS
DROP
eBPF
Program
TX
NIC Driver

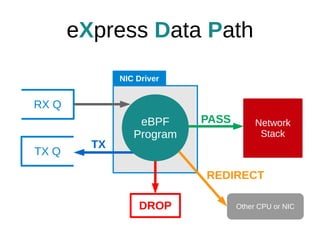

eXpress Data Path
REDIRECT
Other CPU or NIC

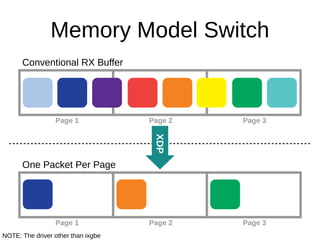

35. Page 1 Page 2 Page 3
Conventional RX Buffer
Page 1 Page 2 Page 3
One Packet Per Page
Memory Model Switch
XDP
NOTE: The driver other than ixgbe

36. For ixgbe, memory model switch is
not necessary!

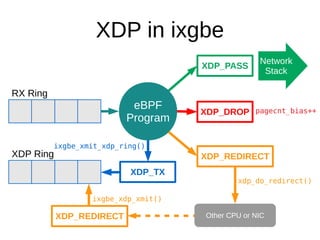

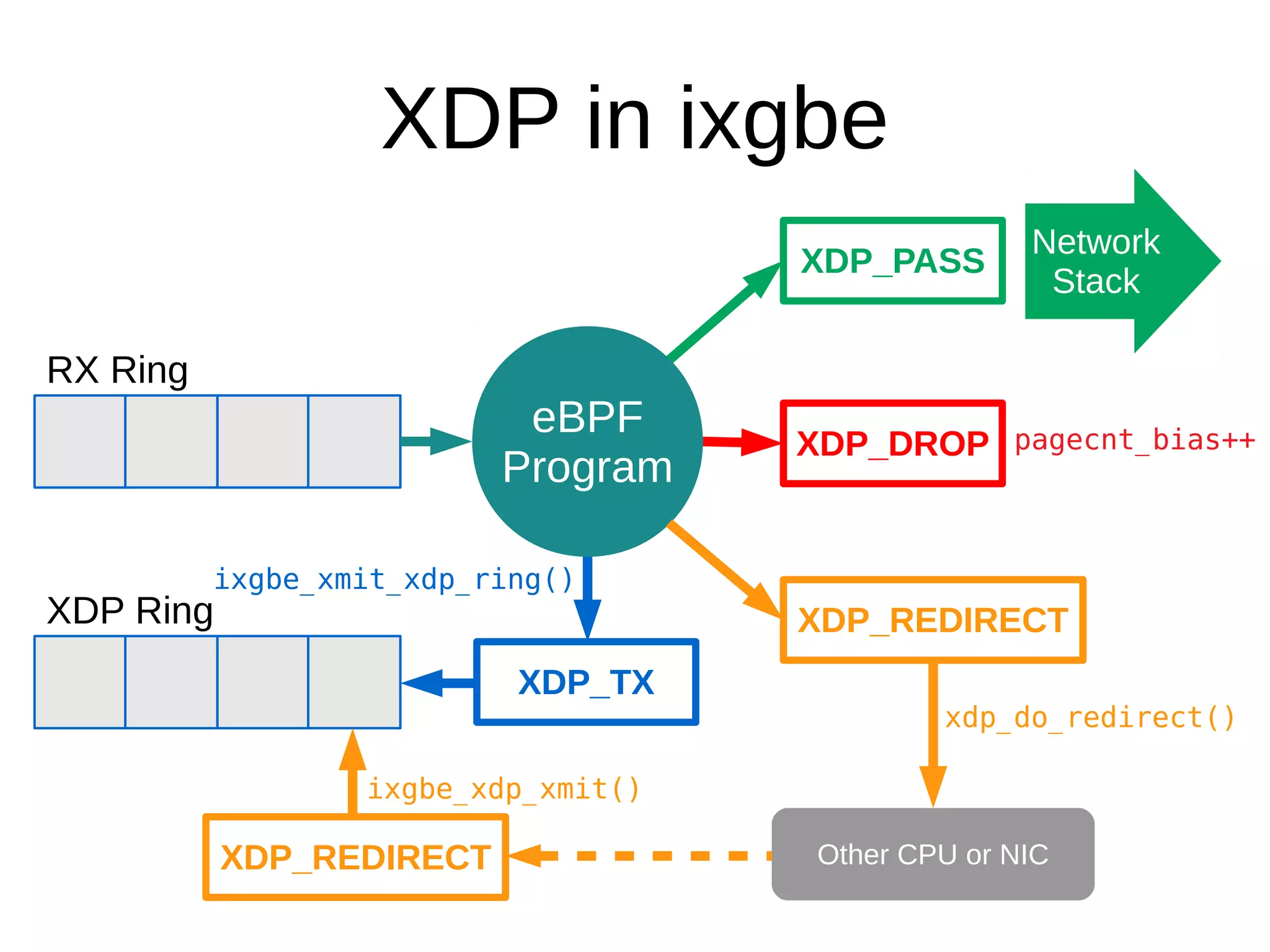

37. XDP in ixgbe
eBPF
Program
XDP_PASS
Network
Stack
RX Ring
XDP Ring
XDP_DROP
XDP_TX
XDP_REDIRECT
Other CPU or NICXDP_REDIRECT
ixgbe_xdp_xmit()
xdp_do_redirect()
ixgbe_xmit_xdp_ring()
pagecnt_bias++

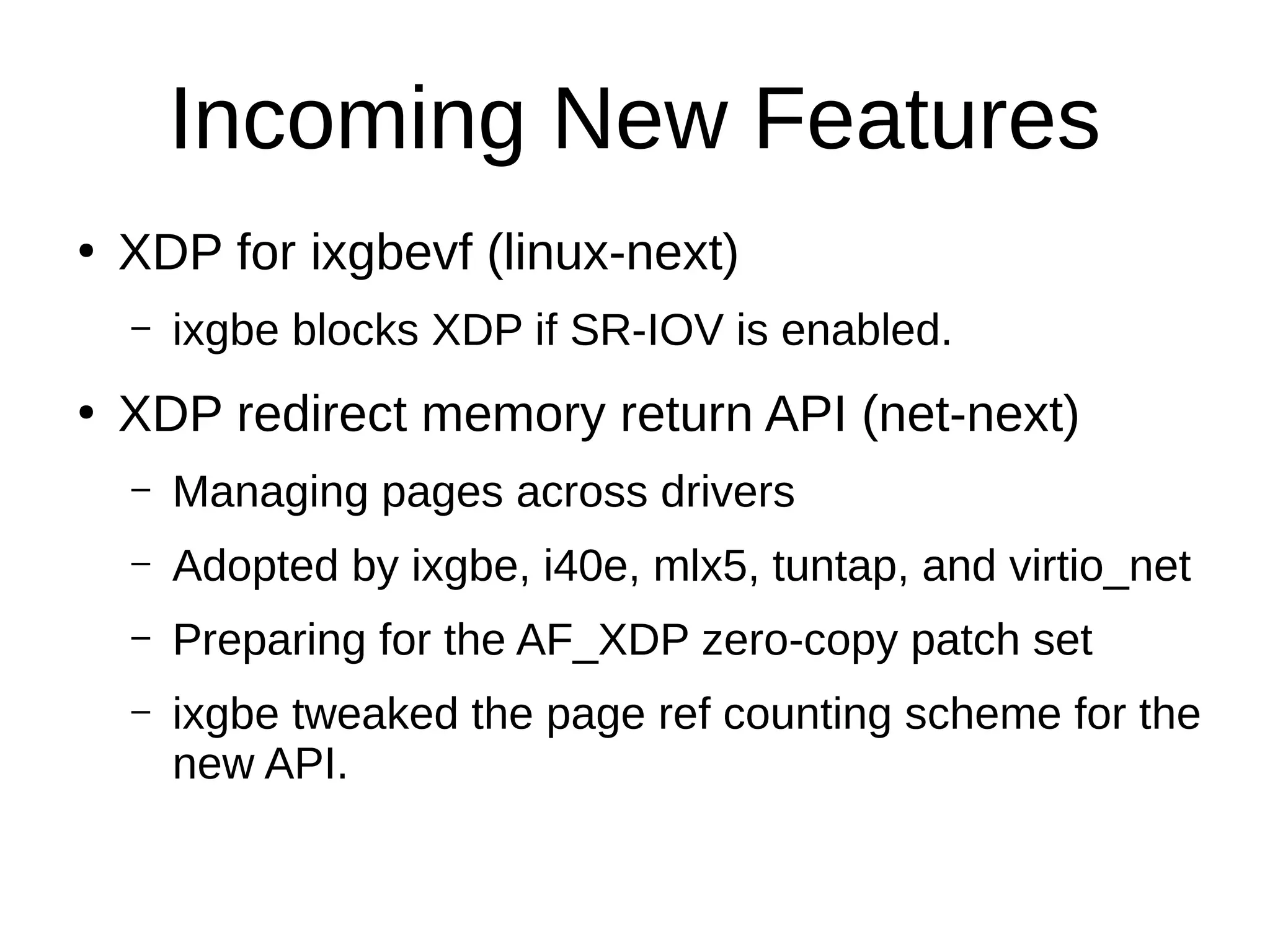

38. Incoming New Features
●
XDP for ixgbevf (linux-next)
– ixgbe blocks XDP if SR-IOV is enabled.
●
XDP redirect memory return API (net-next)
– Managing pages across drivers
– Adopted by ixgbe, i40e, mlx5, tuntap, and virtio_net
– Preparing for the AF_XDP zero-copy patch set
– ixgbe tweaked the page ref counting scheme for the
new API.

39. Question?

40. Thank You!

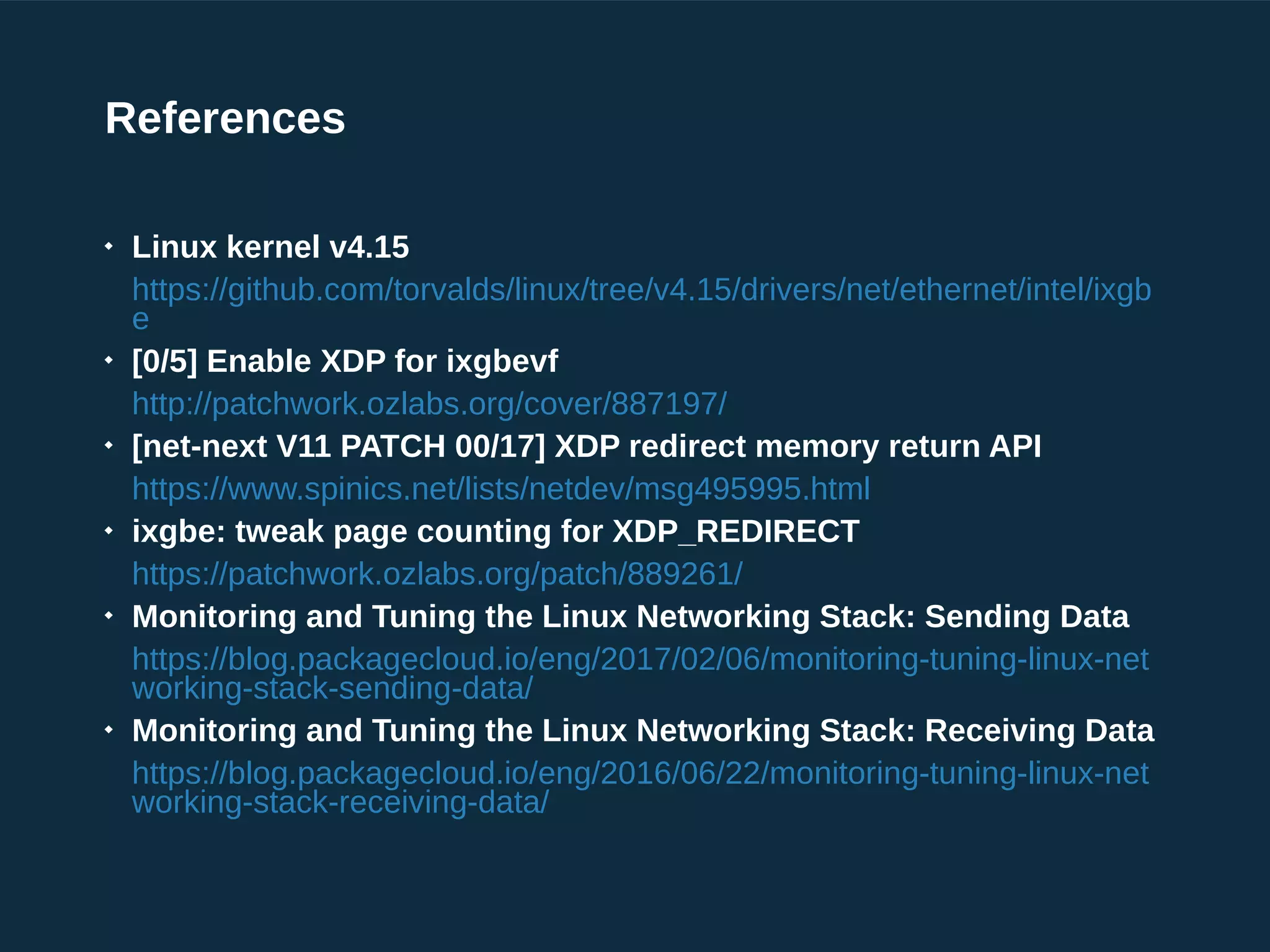

42. References

