MOBILE COMPUTING
Unit II
Dr Gnanasekaran Thangavel

2. 2
UNIT II
MOBILE INTERNET PROTOCOL AND
TRANSPORT LAYER
Overview of Mobile IP – Features of Mobile IP – Key Mechanism in Mobile IP –
route Optimization. Overview of TCP/IP – Architecture of TCP/IP- Adaptation of
TCP Window – Improvement in TCP Performance.

3. 3

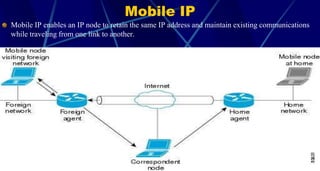

4. Mobile IP
Mobile IP enables an IP node to retain the same IP address and maintain existing communications
while traveling from one link to another.
4

5. 5
Mobile IP
Tunneling

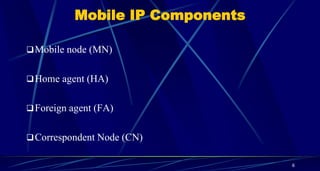

6. Mobile IP Components
Mobile node (MN)
Home agent (HA)
Foreign agent (FA)
Correspondent Node (CN)
6

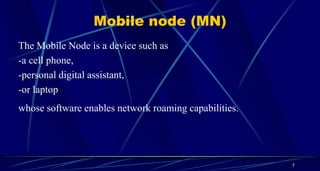

7. Mobile node (MN)
The Mobile Node is a device such as
-a cell phone,
-personal digital assistant,
-or laptop
whose software enables network roaming capabilities.
7

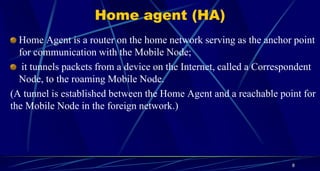

8. Home agent (HA)
Home Agent is a router on the home network serving as the anchor point
for communication with the Mobile Node;
it tunnels packets from a device on the Internet, called a Correspondent
Node, to the roaming Mobile Node.
(A tunnel is established between the Home Agent and a reachable point for
the Mobile Node in the foreign network.)
8

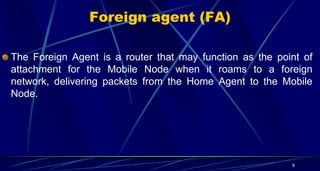

9. Foreign agent (FA)
The Foreign Agent is a router that may function as the point of
attachment for the Mobile Node when it roams to a foreign
network, delivering packets from the Home Agent to the Mobile
Node.
9

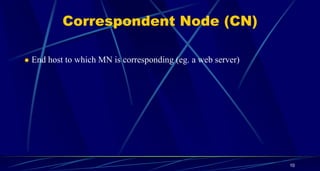

10. Correspondent Node (CN)
 End host to which MN is corresponding (eg. a web server)
10

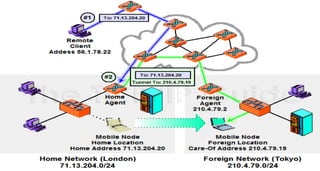

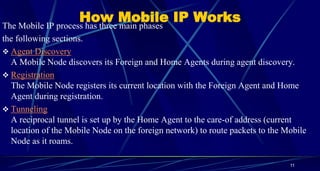

11. How Mobile IP WorksThe Mobile IP process has three main phases
the following sections.
 Agent Discovery
A Mobile Node discovers its Foreign and Home Agents during agent discovery.
 Registration
The Mobile Node registers its current location with the Foreign Agent and Home
Agent during registration.
 Tunneling
A reciprocal tunnel is set up by the Home Agent to the care-of address (current
location of the Mobile Node on the foreign network) to route packets to the Mobile
Node as it roams.
11

12. Two IP addresses for mobile node
 Home address: static
 Care-of address: topologically significant address
The care-of address is the termination point of the tunnel toward the Mobile Node
when it is on a foreign network. The Home Agent maintains an association
between the home IP address of the Mobile Node and its care-of address, which is
the current location of the Mobile Node on the foreign or visited network
12

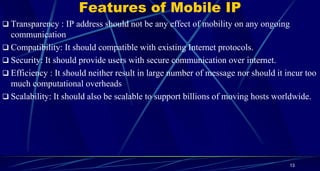

13. Features of Mobile IP
 Transparency : IP address should not be any effect of mobility on any ongoing
communication
 Compatibility: It should compatible with existing Internet protocols.
 Security: It should provide users with secure communication over internet.
 Efficiency : It should neither result in large number of message nor should it incur too
much computational overheads
 Scalability: It should also be scalable to support billions of moving hosts worldwide.
13

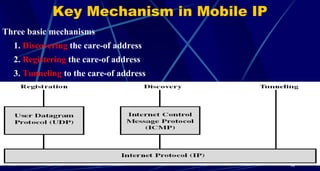

14. Key Mechanism in Mobile IP
Three basic mechanisms
1. Discovering the care-of address
2. Registering the care-of address
3. Tunneling to the care-of address
14

15. 15
1.Discovery the care-of-address
Extension of ICMP Router Advertisement
• Home agents and foreign agents broadcast agent advertisements at
regular intervals
Allows for the detection of mobility agents
Lists one or more available care-of addresses
Informs the mobile node about special features
Mobile node selects its care-of address
Mobile node checks whether the agent is a home agent or foreign
agent
– Mobile node issues an ICMP router solicitation message

16. 16
Mobile IP Agent Advertisement Message

17. 17

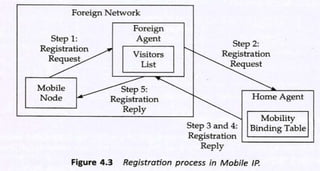

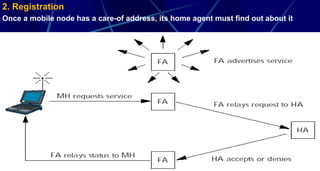

2. Registration
Once a mobile node has a care-of address, its home agent must find out about it

18. 18

19. 19

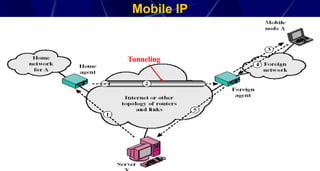

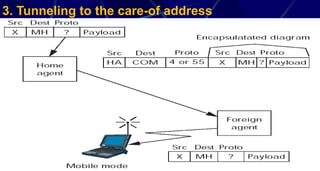

3. Tunneling to the care-of address

20. 20
Mobile IP Tunneling
Across Internet

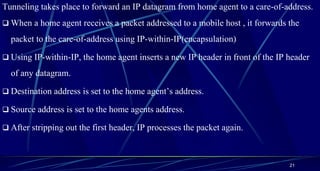

21. Tunneling takes place to forward an IP datagram from home agent to a care-of-address.
 When a home agent receives a packet addressed to a mobile host , it forwards the
packet to the care-of-address using IP-within-IP(encapsulation)
 Using IP-within-IP, the home agent inserts a new IP header in front of the IP header
of any datagram.
 Destination address is set to the home agent’s address.
 Source address is set to the home agents address.
 After stripping out the first header, IP processes the packet again.
21

22. 22

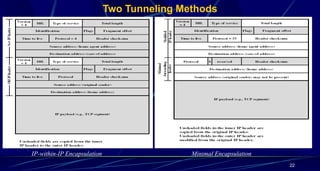

Two Tunneling Methods
IP-within-IP Encapsulation Minimal Encapsulation

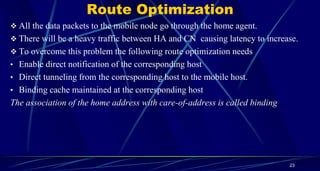

23. Route Optimization
 All the data packets to the mobile node go through the home agent.
 There will be a heavy traffic between HA and CN causing latency to increase.
 To overcome this problem the following route optimization needs
• Enable direct notification of the corresponding host
• Direct tunneling from the corresponding host to the mobile host.
• Binding cache maintained at the corresponding host
The association of the home address with care-of-address is called binding
23

24. Overview of TCP/IP
TCP/IP protocol suite is a collection of a large number of protocols.
The four layer of protocols are
• Application layer
• Transport layer
• Internet layer
• Network layer
• TCP/IP allows any of the standard protocols to be used for network
interface
24

25. 25

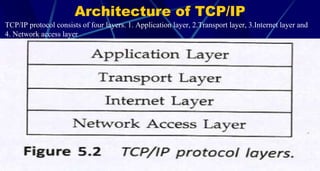

26. Architecture of TCP/IP
TCP/IP protocol consists of four layers. 1. Application layer, 2.Transport layer, 3.Internet layer and
4. Network access layer
26

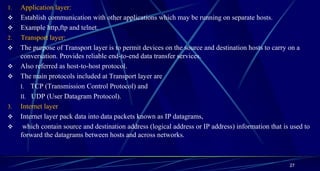

27. 1. Application layer:
 Establish communication with other applications which may be running on separate hosts.
 Example http,ftp and telnet.
2. Transport layer:
 The purpose of Transport layer is to permit devices on the source and destination hosts to carry on a
conversation. Provides reliable end-to-end data transfer services.
 Also referred as host-to-host protocol.
 The main protocols included at Transport layer are
I. TCP (Transmission Control Protocol) and
II. UDP (User Datagram Protocol).
3. Internet layer
 Internet layer pack data into data packets known as IP datagrams,
 which contain source and destination address (logical address or IP address) information that is used to
forward the datagrams between hosts and across networks.
27

28. 4. Network access layer
 The Network Access Layer of the TCP/IP model is associated with the Physical Layer (Layer 1) and the Data Link
layer (Layer 2) of the OSI model.
 The Network Access Layer's function is to move bits (0s and 1s) over the network medium such as coaxial cable,
optical fiber, or twisted pair copper wire.
 The OSI Physical layer is responsible for converting the frame into a stream of bits suitable for the transmission
medium and synchronizes signals for the actual transmission.
 On the destination device, the Physical layer reassembles these signals into a data frame.
 The OSI Data Link layer is again subdivided into the following two sub layers according to their function:
 Media Access Control (MAC) Sublayer :— MAC sublayer provides an interface with the network adapter.
 Logical Link Control (LLC) Sublayer :— LLC sublayer is responsible for error-checking functions for frames
delivered also responsible for managing links between communicating devices.
28

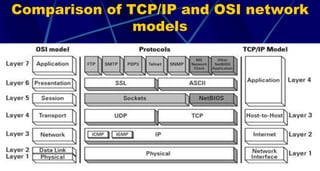

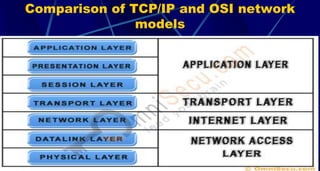

29. Comparison of TCP/IP and OSI network
models
29

30. Comparison of TCP/IP and OSI network
models
30

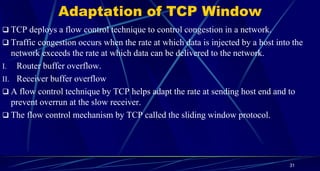

31. Adaptation of TCP Window
 TCP deploys a flow control technique to control congestion in a network.
 Traffic congestion occurs when the rate at which data is injected by a host into the
network exceeds the rate at which data can be delivered to the network.
I. Router buffer overflow.
II. Receiver buffer overflow
 A flow control technique by TCP helps adapt the rate at sending host end and to
prevent overrun at the slow receiver.
 The flow control mechanism by TCP called the sliding window protocol.
31

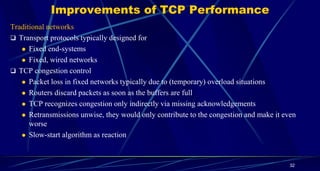

32. Improvements of TCP Performance
Traditional networks
 Transport protocols typically designed for
 Fixed end-systems
 Fixed, wired networks
 TCP congestion control
 Packet loss in fixed networks typically due to (temporary) overload situations
 Routers discard packets as soon as the buffers are full
 TCP recognizes congestion only indirectly via missing acknowledgements
 Retransmissions unwise, they would only contribute to the congestion and make it even
worse
 Slow-start algorithm as reaction
32

33. Classification of Schemes
33

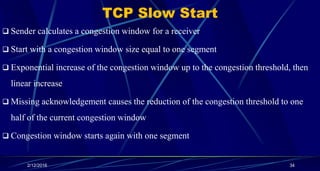

34. TCP Slow Start
 Sender calculates a congestion window for a receiver
 Start with a congestion window size equal to one segment
 Exponential increase of the congestion window up to the congestion threshold, then
linear increase
 Missing acknowledgement causes the reduction of the congestion threshold to one
half of the current congestion window
 Congestion window starts again with one segment
2/12/2016 34

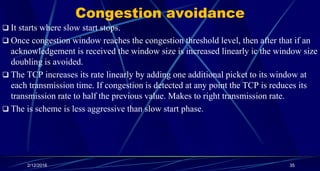

35. Congestion avoidance
 It starts where slow start stops.
 Once congestion window reaches the congestion threshold level, then after that if an
acknowledgement is received the window size is increased linearly ic the window size
doubling is avoided.
 The TCP increases its rate linearly by adding one additional picket to its window at
each transmission time. If congestion is detected at any point the TCP is reduces its
transmission rate to half the previous value. Makes to right transmission rate.
 The is scheme is less aggressive than slow start phase.
2/12/2016 35

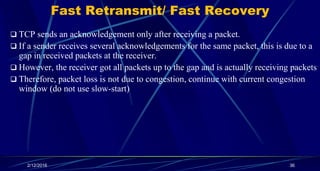

36. Fast Retransmit/ Fast Recovery
 TCP sends an acknowledgement only after receiving a packet.
 If a sender receives several acknowledgements for the same packet, this is due to a
gap in received packets at the receiver.
 However, the receiver got all packets up to the gap and is actually receiving packets
 Therefore, packet loss is not due to congestion, continue with current congestion
window (do not use slow-start)
2/12/2016 36

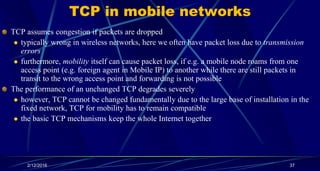

37. TCP in mobile networks
TCP assumes congestion if packets are dropped
 typically wrong in wireless networks, here we often have packet loss due to transmission
errors
 furthermore, mobility itself can cause packet loss, if e.g. a mobile node roams from one
access point (e.g. foreign agent in Mobile IP) to another while there are still packets in
transit to the wrong access point and forwarding is not possible
The performance of an unchanged TCP degrades severely
 however, TCP cannot be changed fundamentally due to the large base of installation in the
fixed network, TCP for mobility has to remain compatible
 the basic TCP mechanisms keep the whole Internet together
2/12/2016 37

38. Indirect TCP (I -TCP)
 Indirect TCP or I-TCP segments the connection
 no changes to the TCP protocol for hosts connected to the wired Internet, millions of computers use
(variants of) this protocol
 optimized TCP protocol for mobile hosts
 splitting of the TCP connection at, e.g., the foreign agent into 2 TCP connections, no real end-to-end
connection any longer
 hosts in the fixed part of the net do not notice the characteristics of the wireless part
mobile host
access point
(foreign agent) wired Internet
“wireless” TCP standard TCP
2/12/2016 38

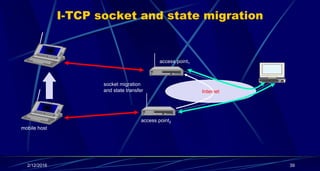

39. I-TCP socket and state migration
mobile host
access point2
Internet
access point1
socket migration
and state transfer
2/12/2016 39

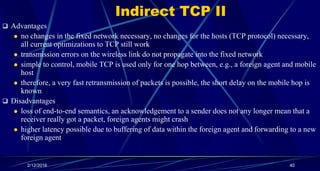

40. Indirect TCP II
 Advantages
 no changes in the fixed network necessary, no changes for the hosts (TCP protocol) necessary,
all current optimizations to TCP still work
 transmission errors on the wireless link do not propagate into the fixed network
 simple to control, mobile TCP is used only for one hop between, e.g., a foreign agent and mobile
host
 therefore, a very fast retransmission of packets is possible, the short delay on the mobile hop is
known
 Disadvantages
 loss of end-to-end semantics, an acknowledgement to a sender does not any longer mean that a
receiver really got a packet, foreign agents might crash
 higher latency possible due to buffering of data within the foreign agent and forwarding to a new
foreign agent
2/12/2016 40

41. Snooping TCP (S-TCP)
 Transparent extension of TCP within the foreign agent
 buffering of packets sent to the mobile host
 lost packets on the wireless link (both directions!) will be retransmitted immediately by the mobile host or
foreign agent, respectively (so called “local” retransmission)
 the foreign agent therefore “snoops” the packet flow and recognizes acknowledgements in both directions, it
also filters ACKs
 changes of TCP only within the foreign agent (+min. MH change)
„wired“ Internet
buffering of data
end-to-end TCP connection
local retransmission correspondent
hostforeign
agent
mobile
host
snooping of ACKs
2/12/2016 41

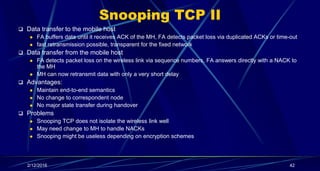

42. Snooping TCP II
 Data transfer to the mobile host
 FA buffers data until it receives ACK of the MH, FA detects packet loss via duplicated ACKs or time-out
 fast retransmission possible, transparent for the fixed network
 Data transfer from the mobile host
 FA detects packet loss on the wireless link via sequence numbers, FA answers directly with a NACK to
the MH
 MH can now retransmit data with only a very short delay
 Advantages:
 Maintain end-to-end semantics
 No change to correspondent node
 No major state transfer during handover
 Problems
 Snooping TCP does not isolate the wireless link well
 May need change to MH to handle NACKs
 Snooping might be useless depending on encryption schemes
2/12/2016 42

43. Mobile TCP(M-TCP)
 Special handling of lengthy and/or frequent disconnections
 M-TCP splits as I-TCP does
 unmodified TCP fixed network to supervisory host (SH)
 optimized TCP SH to MH
 Supervisory host
 no caching, no retransmission
 monitors all packets, if disconnection detected
 set sender window size to 0
 sender automatically goes into persistent mode
 old or new SH reopen the window
 Advantages
 maintains semantics, supports disconnection, no buffer forwarding
 Disadvantages
 loss on wireless link propagated into fixed network
 adapted TCP on wireless link
2/12/2016 43

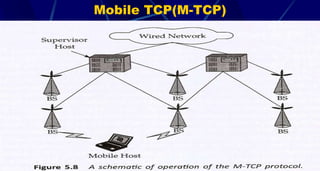

44. Mobile TCP(M-TCP)
44

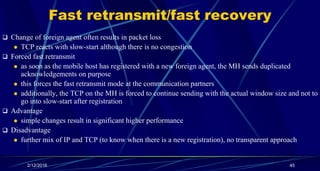

45. Fast retransmit/fast recovery
 Change of foreign agent often results in packet loss
 TCP reacts with slow-start although there is no congestion
 Forced fast retransmit
 as soon as the mobile host has registered with a new foreign agent, the MH sends duplicated
acknowledgements on purpose
 this forces the fast retransmit mode at the communication partners
 additionally, the TCP on the MH is forced to continue sending with the actual window size and not to
go into slow-start after registration
 Advantage
 simple changes result in significant higher performance
 Disadvantage
 further mix of IP and TCP (to know when there is a new registration), no transparent approach
2/12/2016 45

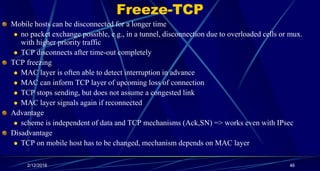

46. Freeze-TCP
Mobile hosts can be disconnected for a longer time
 no packet exchange possible, e.g., in a tunnel, disconnection due to overloaded cells or mux.
with higher priority traffic
 TCP disconnects after time-out completely
TCP freezing
 MAC layer is often able to detect interruption in advance
 MAC can inform TCP layer of upcoming loss of connection
 TCP stops sending, but does not assume a congested link
 MAC layer signals again if reconnected
Advantage
 scheme is independent of data and TCP mechanisms (Ack,SN) => works even with IPsec
Disadvantage
 TCP on mobile host has to be changed, mechanism depends on MAC layer
2/12/2016 46

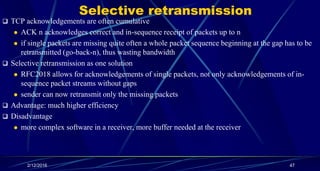

47. Selective retransmission
 TCP acknowledgements are often cumulative
 ACK n acknowledges correct and in-sequence receipt of packets up to n
 if single packets are missing quite often a whole packet sequence beginning at the gap has to be
retransmitted (go-back-n), thus wasting bandwidth
 Selective retransmission as one solution
 RFC2018 allows for acknowledgements of single packets, not only acknowledgements of in-
sequence packet streams without gaps
 sender can now retransmit only the missing packets
 Advantage: much higher efficiency
 Disadvantage
 more complex software in a receiver, more buffer needed at the receiver
2/12/2016 47

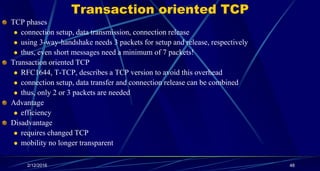

48. Transaction oriented TCP
TCP phases
 connection setup, data transmission, connection release
 using 3-way-handshake needs 3 packets for setup and release, respectively
 thus, even short messages need a minimum of 7 packets!
Transaction oriented TCP
 RFC1644, T-TCP, describes a TCP version to avoid this overhead
 connection setup, data transfer and connection release can be combined
 thus, only 2 or 3 packets are needed
Advantage
 efficiency
Disadvantage
 requires changed TCP
 mobility no longer transparent
2/12/2016 48

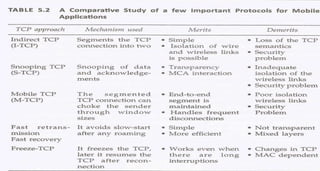

49. 49

50. References
Book: Prasant Kumar Pattnaik, Rajib Mall, “Fundamentals of Mobile Computing”, PHI Learning
Pvt. Ltd, New Delhi – 2012.
http://www.omnisecu.com/tcpip/tcpip-model.php
http://www.computernetworkhomeworkhelp.com/comparison-models/
http://www.tcpipguide.com/free/t_InternetProtocolMobilitySupportMobileIP.htm
PPT:
https://cs.uccs.edu/~chow/pub/master/ycai/mobile_computing_mtu.ppt
http://www.slideshare.net/ayyakathir/it6601-mobile-computing-54556306
https:// cs.winona.edu/lin/cs313/CS313DataLink2.ppt
50

51. 51
Thank You
Questions and Comments?
