The ISMED Support Programme provides an overview of public-private partnerships (PPPs), which are contracts between public and private sectors for infrastructure provision and related services, typically lasting 25-30 years. It discusses two main types of PPPs: concession-based and availability-based, highlighting risk allocation, advantages, and disadvantages. Key aspects include the roles of parties involved, major contracts, risk sharing, and the importance of structured agreements to ensure project accountability and efficiency.

1. ISMED Support Programme Public Private
Partnership Overview
Andrew Fitzpatrick
Cairo 17 September 2014

2. The ISMED Support Program PPP
Overview
What is a Public Private Partnership PPP?
• Contract between public-sector and private-sector entities for the provision
of an asset and in many cases the delivery of related services and
maintenance. Some element of risk transferred to the private party.
• Contractor paid pre-determined fees or granted revenue-raising power.
• Contracts usually of a 25-30 year term plus construction period.
• Ownership of the asset often retained by the state, operational hand-back
at end of term.
•Design Build
•Design Build Finance
•Design Build Finance Operate
•Design Build Finance Operate Maintain 2

3. 3
Two Major Types of PPPs:
Who pays the Private Sector?
Who takes traffic risk?
Where does the private sector’s revenue come from?
• Two main types of PPPs: Concession-based. Availability-based.
• Concession-based PPP: Private-sector’s revenue, to cover costs plus
profit, comes from fees paid by users. Only possible with well-defined
and predicable traffic/volume. Pushes traffic/volume risk to the
private sector.
• Availability-based: Private-sector’s revenue comes from payments
paid directly to the developer by the state. The state is paying for the
asset being “available for use.” Deductions made for poor quality or
periods when the asset/facility is not available. State takes
traffic/volume risk.
• Possible to share traffic/volume risk: A minimum payment is made on
the basis of availability. Additional revenue for the private sector to
depend on traffic/volume.

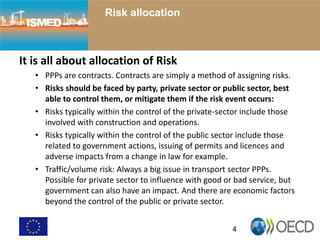

4. 4
Risk allocation
It is all about allocation of Risk
• PPPs are contracts. Contracts are simply a method of assigning risks.
• Risks should be faced by party, private sector or public sector, best
able to control them, or mitigate them if the risk event occurs:
• Risks typically within the control of the private-sector include those
involved with construction and operations.
• Risks typically within the control of the public sector include those
related to government actions, issuing of permits and licences and
adverse impacts from a change in law for example.
• Traffic/volume risk: Always a big issue in transport sector PPPs.
Possible for private sector to influence with good or bad service, but
government can also have an impact. And there are economic factors
beyond the control of the public or private sector.

5. 5
Why a Public Private Partnership (P3)?
• Private sector expertise and experience; efficiencies lower
construction and lifecycle cost creating savings for state.
• Private sector takes construction risk; agrees to build at a fixed price.
• Private sector contributes equity; lowers cost to the state.
• Frees up state resources (money and capacity) to pursue multiple
projects simultaneously.
• Gets state out of the “building/development business,” allowing focus
on core role of government.
• It works, infrastructure gets built, usually on time and on budget.
Rationale for a P3
Advantages: Good Reasons
to contract by PPP

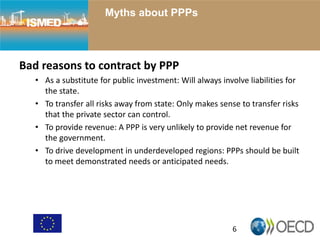

6. 6
Myths about PPPs
Bad reasons to contract by PPP
• As a substitute for public investment: Will always involve liabilities for
the state.
• To transfer all risks away from state: Only makes sense to transfer risks
that the private sector can control.
• To provide revenue: A PPP is very unlikely to provide net revenue for
the government.
• To drive development in underdeveloped regions: PPPs should be built
to meet demonstrated needs or anticipated needs.

7. 7
Rationale for a PPP
Disadvantages?
Downsides?
• Theoretically more expensive due to profit motive, higher interest rate
on debt.
• Complexity; legal and structuring costs.
• Governments often lack expertise in deal structuring, can agree to
sub-optimal terms.
• Can create government accounting/transparency issues; it is not a free
asset, payment obligations remain a liability of the state.
• Most effective with a highly-rated public sector counterparty; will be
more difficult to find investors with a non-investment grade state
counterparty.

8. • Construction Phase
– Most risky phase
– Usually 2-5 years, can be
longer
– Contractor must finance;
no cash flow from state
without hitting
milestones (or from
users)
– Strength/ability and
reputation of builder
paramount
• Service/Operations
Phase
– Seen as much less risky,
typically routine tasks
– Up to 30 years
– Predictable cash flow
from a state entity
(availability)
– Main risks: imperfect
inflation adjustment,
lifecycle risk and pricing
too low
8
Conceptually Two Stages

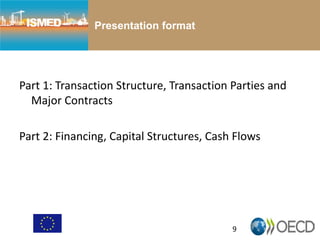

9. 9
Presentation format
Part 1: Transaction Structure, Transaction Parties and
Major Contracts
Part 2: Financing, Capital Structures, Cash Flows

10. Tra
Transaction Structure
Transaction Parties
Major Contracts
10
Public Private Partnership Overview: Part 1

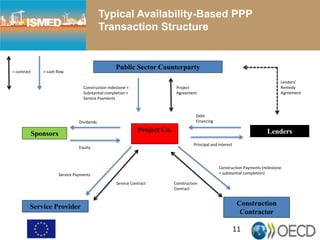

11. Typical Availability-Based PPP
Transaction Structure
Public Sector Counterparty
Project Co.
Construction
Contractor
Service Provider
11
LendersSponsors
Construction milestone +
Substantial completion +
Service Payments
Project
Agreement
Equity
Dividends
Service Payments
Debt
Financing
Principal and Interest
Service Contract Construction
Contract
Construction Payments (milestone
+ substantial completion)
Lenders’
Remedy
Agreement
= contract = cash flow

12. Typical Concession-based PPP
Transaction Structure
Public Sector Counterparty
Project Co.
Construction
Contractor
Service Provider
12
Lenders
Sponsors
Percentage of revenue above a
threshold
Project
Agreement
Equity
Dividends
Service Payments
Debt
Financing
Principal and Interest
Service Contract Construction
Contract
Construction Payments
Lenders’
Remedy
Agreement
= contract = cash flow
Users Fees/tolls

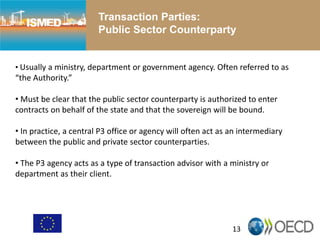

13. 13
Transaction Parties:
Public Sector Counterparty
• Usually a ministry, department or government agency. Often referred to as
“the Authority.”
• Must be clear that the public sector counterparty is authorized to enter
contracts on behalf of the state and that the sovereign will be bound.
• In practice, a central P3 office or agency will often act as an intermediary
between the public and private sector counterparties.
• The P3 agency acts as a type of transaction advisor with a ministry or
department as their client.

14. 14
Transaction Parties:
ProjectCo
• ProjectCo is at the heart of the transaction.
• ProjectCo will enter the Project Agreement with the Public Sector
Counterparty and will incur any debt needed to finance the project.
• Subsequently passes on obligations under the Project Agreement to a
Construction Contractor and a Service Provider.
• ProjectCo is usually structured as a Special Purpose Vehicle (SPV) with no
employees or assets beyond contractual rights and business powers limited to
those necessary to carry out the project.
• ProjectCo should be bankruptcy-remote from its sponsors, i.e. a bankruptcy
of one of the sponsors will not impact the SPV.

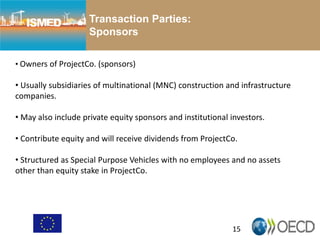

15. 15
Transaction Parties:
Sponsors
• Owners of ProjectCo. (sponsors)
• Usually subsidiaries of multinational (MNC) construction and infrastructure
companies.
• May also include private equity sponsors and institutional investors.
• Contribute equity and will receive dividends from ProjectCo.
• Structured as Special Purpose Vehicles with no employees and no assets
other than equity stake in ProjectCo.

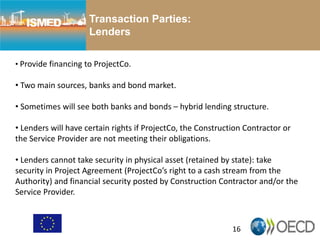

16. 16
Transaction Parties:
Lenders
• Provide financing to ProjectCo.
• Two main sources, banks and bond market.
• Sometimes will see both banks and bonds – hybrid lending structure.
• Lenders will have certain rights if ProjectCo, the Construction Contractor or
the Service Provider are not meeting their obligations.
• Lenders cannot take security in physical asset (retained by state): take
security in Project Agreement (ProjectCo’s right to a cash stream from the
Authority) and financial security posted by Construction Contractor and/or the
Service Provider.

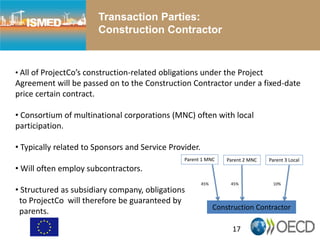

17. Transaction Parties:
Construction Contractor
17
• All of ProjectCo’s construction-related obligations under the Project
Agreement will be passed on to the Construction Contractor under a fixed-date
price certain contract.
• Consortium of multinational corporations (MNC) often with local
participation.
• Typically related to Sponsors and Service Provider.
• Will often employ subcontractors.
• Structured as subsidiary company, obligations
to ProjectCo will therefore be guaranteed by
parents. Construction Contractor
Parent 1 MNC
45%
Parent 2 MNC
45%
Parent 3 Local
10%

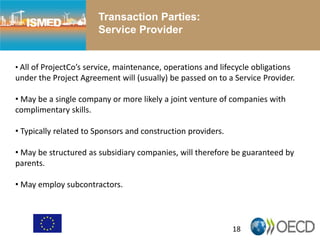

18. 18
Transaction Parties:
Service Provider
• All of ProjectCo’s service, maintenance, operations and lifecycle obligations
under the Project Agreement will (usually) be passed on to a Service Provider.
• May be a single company or more likely a joint venture of companies with
complimentary skills.
• Typically related to Sponsors and construction providers.
• May be structured as subsidiary companies, will therefore be guaranteed by
parents.
• May employ subcontractors.

19. 19
Major Contracts:
Project Agreement
• Master agreement between the Public Sector Counterparty and ProjectCo
governing all aspects of their relationship.
• In well-developed markets, typically a standardized contract with multiple
appendices. The appendices are drafted as appropriate for the requirements of
each particular project.
• ProjectCo agrees to deliver the infrastructure at a fixed-date and price and to
provide the services as defined in the Project Agreement.
•Outlines construction and operational requirements, risk sharing, variations
and dispute settlement.
•ProjectCo may be allowed to pursue revenue generating activities beyond the
scope of the services required under the Project Agreement, for example
operate retail space.

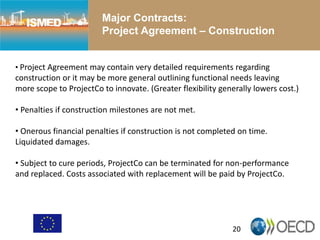

20. Major Contracts:
Project Agreement – Construction
20
• Project Agreement may contain very detailed requirements regarding
construction or it may be more general outlining functional needs leaving
more scope to ProjectCo to innovate. (Greater flexibility generally lowers cost.)
• Penalties if construction milestones are not met.
• Onerous financial penalties if construction is not completed on time.
Liquidated damages.
• Subject to cure periods, ProjectCo can be terminated for non-performance
and replaced. Costs associated with replacement will be paid by ProjectCo.

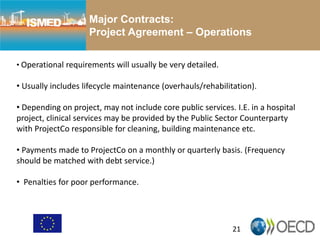

21. 21
Major Contracts:
Project Agreement – Operations
• Operational requirements will usually be very detailed.
• Usually includes lifecycle maintenance (overhauls/rehabilitation).
• Depending on project, may not include core public services. I.E. in a hospital
project, clinical services may be provided by the Public Sector Counterparty
with ProjectCo responsible for cleaning, building maintenance etc.
• Payments made to ProjectCo on a monthly or quarterly basis. (Frequency
should be matched with debt service.)
• Penalties for poor performance.

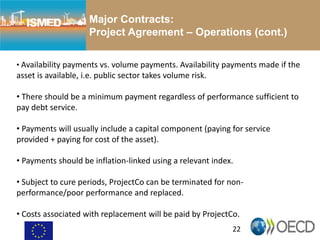

22. 22
Major Contracts:
Project Agreement – Operations (cont.)
• Availability payments vs. volume payments. Availability payments made if the
asset is available, i.e. public sector takes volume risk.
• There should be a minimum payment regardless of performance sufficient to
pay debt service.
• Payments will usually include a capital component (paying for service
provided + paying for cost of the asset).
• Payments should be inflation-linked using a relevant index.
• Subject to cure periods, ProjectCo can be terminated for non-
performance/poor performance and replaced.
• Costs associated with replacement will be paid by ProjectCo.

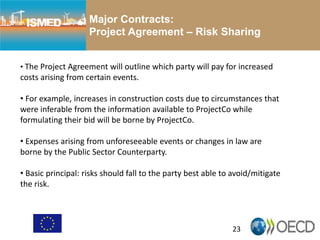

23. 23
Major Contracts:
Project Agreement – Risk Sharing
• The Project Agreement will outline which party will pay for increased
costs arising from certain events.
• For example, increases in construction costs due to circumstances that
were inferable from the information available to ProjectCo while
formulating their bid will be borne by ProjectCo.
• Expenses arising from unforeseeable events or changes in law are
borne by the Public Sector Counterparty.
• Basic principal: risks should fall to the party best able to avoid/mitigate
the risk.

24. 24
Major Contracts:
Project Agreement – Variations
• Variations: The Project Agreement should contain a detailed variation
procedure.
• Both ProjectCo and the Public Sector Counterparty may request a
variation.
• Unforeseen circumstances (e.g. geotechnical), changing requirements
(e.g. need to handle more cargo).
• Variation procedure will be subject to dispute resolution provisions.
• Basic principal: Any variation to the Project should leave each party in the
same position as before the variation. I.E, each party retains the benefits
and burdens of the original contract, no better and no worse.

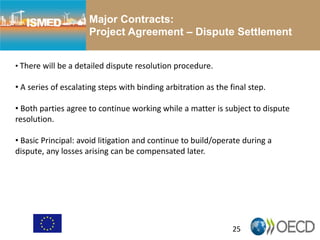

25. 25
Major Contracts:
Project Agreement – Dispute Settlement
• There will be a detailed dispute resolution procedure.
• A series of escalating steps with binding arbitration as the final step.
• Both parties agree to continue working while a matter is subject to dispute
resolution.
• Basic Principal: avoid litigation and continue to build/operate during a
dispute, any losses arising can be compensated later.

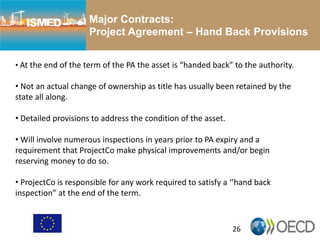

26. 26
Major Contracts:
Project Agreement – Hand Back Provisions
• At the end of the term of the PA the asset is “handed back” to the authority.
• Not an actual change of ownership as title has usually been retained by the
state all along.
• Detailed provisions to address the condition of the asset.
• Will involve numerous inspections in years prior to PA expiry and a
requirement that ProjectCo make physical improvements and/or begin
reserving money to do so.
• ProjectCo is responsible for any work required to satisfy a ‘’hand back
inspection” at the end of the term.

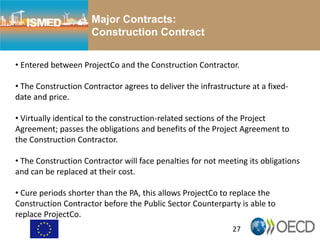

27. 27
Major Contracts:
Construction Contract
• Entered between ProjectCo and the Construction Contractor.
• The Construction Contractor agrees to deliver the infrastructure at a fixed-
date and price.
• Virtually identical to the construction-related sections of the Project
Agreement; passes the obligations and benefits of the Project Agreement to
the Construction Contractor.
• The Construction Contractor will face penalties for not meeting its obligations
and can be replaced at their cost.
• Cure periods shorter than the PA, this allows ProjectCo to replace the
Construction Contractor before the Public Sector Counterparty is able to
replace ProjectCo.

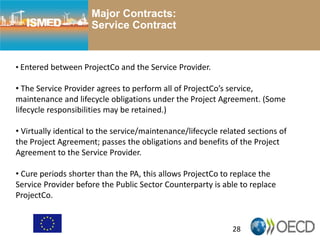

28. 28
Major Contracts:
Service Contract
• Entered between ProjectCo and the Service Provider.
• The Service Provider agrees to perform all of ProjectCo’s service,
maintenance and lifecycle obligations under the Project Agreement. (Some
lifecycle responsibilities may be retained.)
• Virtually identical to the service/maintenance/lifecycle related sections of
the Project Agreement; passes the obligations and benefits of the Project
Agreement to the Service Provider.
• Cure periods shorter than the PA, this allows ProjectCo to replace the
Service Provider before the Public Sector Counterparty is able to replace
ProjectCo.

29. 29
Major Contracts:
Service Contract (cont.)
• Lifecycle refers to major planned preventive maintenance and upkeep. For
example, repaving a road at years 14 and 29 of a 30-year contract or a
scheduled overhaul of a turbine at a power plant.
• Monthly payment based on availability (not usage). Mechanisms to
compensate for increased volume.
• Penalties for poor performance/non-performance.
• Service Provider can be terminated and replaced at their cost.

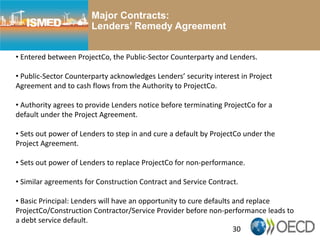

30. 30
Major Contracts:
Lenders’ Remedy Agreement
• Entered between ProjectCo, the Public-Sector Counterparty and Lenders.
• Public-Sector Counterparty acknowledges Lenders’ security interest in Project
Agreement and to cash flows from the Authority to ProjectCo.
• Authority agrees to provide Lenders notice before terminating ProjectCo for a
default under the Project Agreement.
• Sets out power of Lenders to step in and cure a default by ProjectCo under the
Project Agreement.
• Sets out power of Lenders to replace ProjectCo for non-performance.
• Similar agreements for Construction Contract and Service Contract.
• Basic Principal: Lenders will have an opportunity to cure defaults and replace
ProjectCo/Construction Contractor/Service Provider before non-performance leads to
a debt service default.

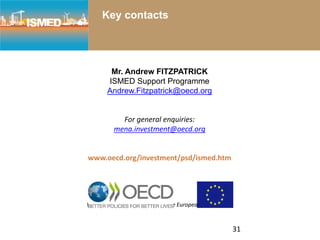

31. Key contacts
Mr. Andrew FITZPATRICK
ISMED Support Programme
Andrew.Fitzpatrick@oecd.org
For general enquiries:
mena.investment@oecd.org
www.oecd.org/investment/psd/ismed.htm
With the financial assistance of the European Commission
31
