The New Smart Video Door Entry System The document introduces the IpDoor smart video door entry system, a new product from the XM World Group. IpDoor uses IP technology to enable features like remote access and control via a smartphone app. It provides safety, comfort and convenience for customers. The system includes external door stations, internal monitors, licenses for additional features, and can integrate with other smart home and access control systems. IpDoor aims to simplify daily life through innovative, user-friendly technology.

1. The New Smart Video Door Entry System

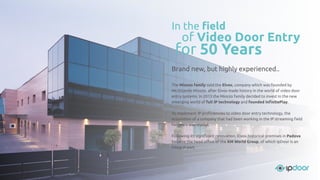

2. Brand new, but highly experienced..
The Miozzo family sold the Elvox, company which was founded by
Mr.Orlando Miozzo, after Elvox made history in the world of video door
entry systems. In 2013 the Miozzo family decided to invest in the new
emerging world of full IP technology and founded InfinitePlay.
To implement IP proficiencies to video door entry technology, the
acquisition of a company that had been working in the IP streaming field
for years was crucial.
Following its significant renovation, Elvox historical premises in Padova
became the head office of the XM World Group, of which IpDoor is an
integral part.
In the field
for 50 Years
of Video Door Entry

3. The IpDoor Team
Working today for tomorrow's technology
We are a young brand made up of professionals who have
decades of experience in the field of video intercoms. This makes
us very receptive to understanding the needs of the individual
customer and to promptly finding the solution that best suits their
needs.
We have an innate passion for research and innovation: every day
we experiment, study and apply new features to our completely
Made in Italy products. In fact we believe that it’s only continuous
growth and improvement that can serve as the basis for the
creation of truly effective and innovative products.
Our goal is to simplify all the many small aspects of everyday life.
Safety, comfort and control are the three drivers to our research.
We know that by improving how our customers approach
technology and enabling them to live in a safer, more satisfying
environment, we can offer well-being to everyone in our society.

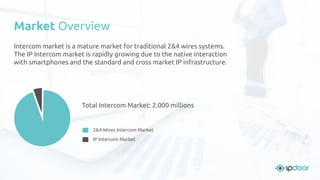

4. Total Intercom Market: 2.000 millions
Intercom market is a mature market for traditional 2&4 wires systems.
The IP Intercom market is rapidly growing due to the native interaction
with smartphones and the standard and cross market IP infrastructure.
Market Overview
IP Intercom Market
2&4 Wires Intercom Market

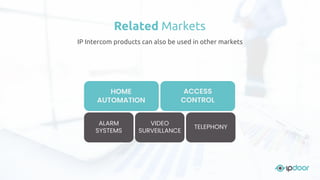

5. IP Intercom products can also be used in other markets
Related Markets
HOME
AUTOMATION
ACCESS
CONTROL
ALARM
SYSTEMS
TELEPHONY
VIDEO
SURVEILLANCE

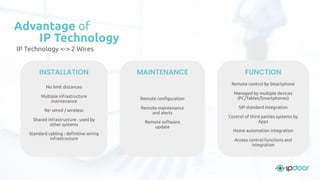

6. IP Technology <-> 2 Wires
Advantage of
IP Technology
INSTALLATION
No limit distances
Multiple infrastructure
maintenance
Re: wired / wireless
Shared infrastructure : used by
other systems
Standard cabling : definitive wiring
infrastructure
MAINTENANCE
Remote configuration
Remote maintenance
and alerts
Remote software
update
FUNCTION
Remote control by Smartphone
Managed by multiple devices
(PC/Tablet/Smartphones)
SIP standard Integration
Control of third parties systems by
Apps
Home automation integration
Access control functions and
integration

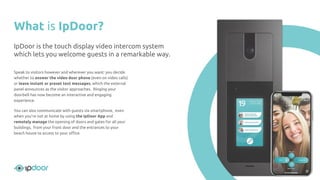

7. What is IpDoor?

8. What is IpDoor?
Speak to visitors however and wherever you want: you decide
whether to answer the video door phone (even on video calls)
or leave instant or preset text messages, which the external
panel announces as the visitor approaches. Ringing your
doorbell has now become an interactive and engaging
experience.
You can also communicate with guests via smartphone, even
when you’re not at home by using the IpDoor App and
remotely manage the opening of doors and gates for all your
buildings, from your front door and the entrances to your
beach house to access to your office.
IpDoor is the touch display video intercom system
which lets you welcome guests in a remarkable way.

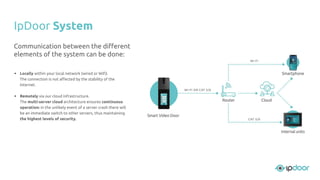

9. IpDoor System

10. • Locally within your local network (wired or Wifi).
The connection is not affected by the stability of the
Internet.
• Remotely via our cloud infrastructure.
The multi-server cloud architecture ensures continuous
operation: in the unlikely event of a server crash there will
be an immediate switch to other servers, thus maintaining
the highest levels of security.
IpDoor System
Communication between the different
elements of the system can be done:

11. What can you do with IpDoor?

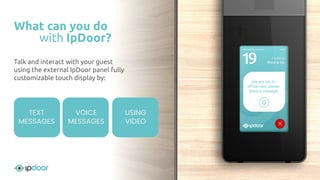

12. Using video
What can you do
with IpDoor?
TEXT
MESSAGES
VOICE
MESSAGES
USING
VIDEO
Talk and interact with your guest
using the external IpDoor panel fully
customizable touch display by:

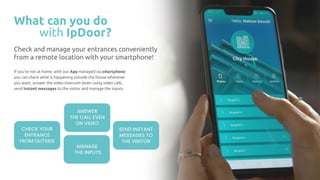

13. What can you do
with IpDoor?

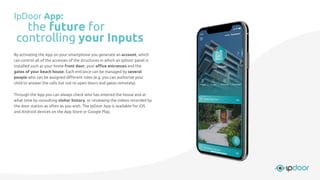

If you’re not at home, with our App managed via smartphone
you can check what is happening outside the house whenever
you want, answer the video intercom (even using video call),
send instant messages to the visitor and manage the inputs.
Check and manage your entrances conveniently
from a remote location with your smartphone!
CHECK YOUR
ENTRANCE
FROM OUTSIDE
ANSWER
THE CALL EVEN
ON VIDEO
SEND INSTANT
MESSAGES TO
THE VISITOR
MANAGE
THE INPUTS

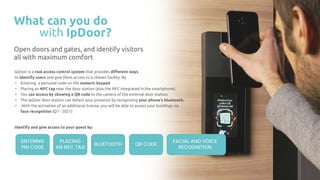

14. What can you do
with IpDoor?
Open doors and gates, and identify visitors
all with maximum comfort

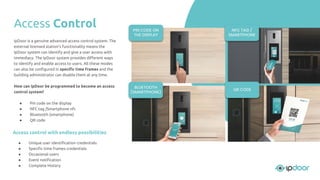

IpDoor is a real access control system that provides different ways
to identify users and give them access to a chosen facility. By
• Entering a personal code on the numeric keypad
• Placing an NFC tag near the door station (also the NFC integrated in the smartphone).
• You can access by showing a QR code to the camera of the external door station.
• The IpDoor door station can detect your presence by recognizing your phone's bluetooth.
• With the activation of an additional license, you will be able to access your buildings via
face recognition (Q1 - 2021)
ENTERING
PIN CODE
PLACING
AN NFC TAG
QR CODE
FACIAL AND VOICE
RECOGNITION
BLUETOOTH
Identify and give access to your guest by:

15. IpDoor Product Range

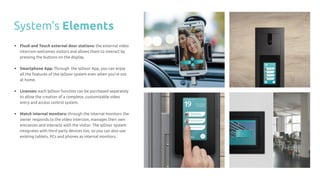

16. • Flush and Touch external door stations: the external video
intercom welcomes visitors and allows them to interact by
pressing the buttons on the display.
• Smartphone App: Through the IpDoor App, you can enjoy
all the features of the IpDoor system even when you’re not
at home.
• Licenses: each IpDoor function can be purchased separately
to allow the creation of a complete, customizable video
entry and access control system.

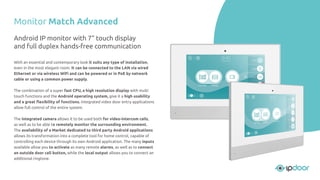

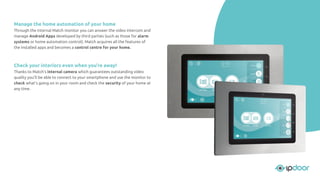

• Match internal monitors: through the internal monitors the
owner responds to the video intercom, manages their own
entrances and interacts with the visitor. The IpDoor system
integrates with third party devices too, so you can also use
existing tablets, PCs and phones as internal monitors.
System's Elements

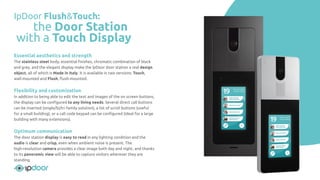

17. IpDoor Touch&Flush

18. Essential aesthetics and strength
The stainless steel body, essential finishes, chromatic combination of black
and grey, and the elegant display make the IpDoor door station a real design
object, all of which is Made in Italy. It is available in two versions: Touch,
wall-mounted and Flush, flush-mounted.
Flexibility and customization
In addition to being able to edit the text and images of the on screen buttons,
the display can be configured to any living needs. Several direct call buttons
can be inserted (single/bi/tri family solution), a list of scroll buttons (useful
for a small building), or a call code keypad can be configured (ideal for a large
building with many extensions).
Optimum communication
The door station display is easy to read in any lighting condition and the
audio is clear and crisp, even when ambient noise is present. The
high-resolution camera provides a clear image both day and night, and thanks
to its panoramic view will be able to capture visitors wherever they are
standing.
IpDoor Flush&Touch:
the Door Station
with a Touch Display

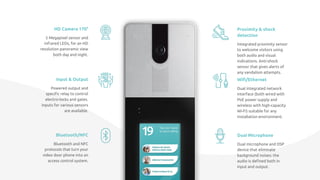

19. HD Camera 170°
5 Megapixel sensor and
infrared LEDs, for an HD
resolution panoramic view
both day and night.
Proximity & shock
detection
Integrated proximity sensor
to welcome visitors using
both audio and visual
indications. Anti-shock
sensor that gives alerts of
any vandalism attempts.
Input & Output
Powered output and
specific relay to control
electro-locks and gates.
Inputs for various sensors
are available.
Wifi/Ethernet
Dual integrated network
interface (both wired with
PoE power supply and
wireless with high-capacity
Wi-Fi) suitable for any
installation environment.
Bluetooth/NFC
Bluetooth and NFC
protocols that turn your
video door phone into an
access control system.
Dual Microphone
Dual microphone and DSP
device that eliminate
background noises: the
audio is defined both in
input and output.

20. IpDoor Licenses

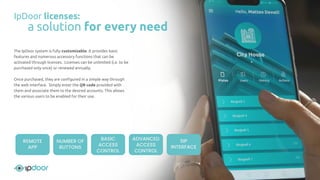

21. The IpDoor system is fully customizable. It provides basic
features and numerous accessory functions that can be
activated through licenses. Licenses can be unlimited (i.e. to be
purchased only once) or renewed annually.
Once purchased, they are configured in a simple way through
the web interface. Simply enter the QR code provided with
them and associate them to the desired accounts. This allows
the various users to be enabled for their use.
IpDoor licenses:
a solution for every need
REMOTE
APP
NUMBER OF
BUTTONS
BASIC
ACCESS
CONTROL
ADVANCED
ACCESS
CONTROL
SIP
INTERFACE

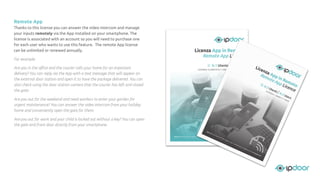

22. Remote App
Thanks to this license you can answer the video intercom and manage
your inputs remotely via the App installed on your smartphone. The
license is associated with an account so you will need to purchase one
for each user who wants to use this feature. The remote App license
can be unlimited or renewed annually.
For example:
Are you in the office and the courier calls your home for an important
delivery? You can reply via the App with a text message that will appear on
the external door station and open it to have the package delivered. You can
also check using the door station camera that the courier has left and closed
the gate.
Are you out for the weekend and need workers to enter your garden for
urgent maintenance? You can answer the video intercom from your holiday
home and conveniently open the gate for them.
Are you out for work and your child is locked out without a key? You can open
the gate and front door directly from your smartphone.

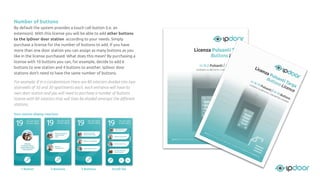

23. Number of buttons
By default the system provides a touch call button (i.e. an
extension). With this license you will be able to add other buttons
to the IpDoor door station according to your needs. Simply
purchase a license for the number of buttons to add. If you have
more than one door station you can assign as many buttons as you
like in the license purchased. What does this mean? By purchasing a
license with 10 buttons you can, for example, decide to add 6
buttons to one station and 4 buttons to another. IpDoor door
stations don’t need to have the same number of buttons.
For example: If in a condominium there are 80 interiors divided into two
stairwells of 50 and 30 apartments each, each entrance will have its
own door station and you will need to purchase a number of buttons
license with 80 interiors that will then be divided amongst the different
stations.
1 Button 2 Buttons 3 Buttons Scroll list
Door station display interface

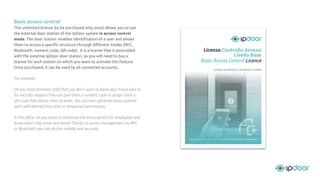

24. Basic access control
This unlimited license (to be purchased only once) allows you to use
the external door station of the IpDoor system in access control
mode. The door station enables identification of a user and allows
them to access a specific structure through different modes (NFC,
Bluetooth, numeric code, QR code). It is a license that is associated
with the external IpDoor door station, so you will need to buy a
license for each station on which you want to activate this feature.
Once purchased, it can be used by all connected accounts.
For example:
Do you have domestic staff that you don't want to leave your house keys to
for security reasons? You can give them a numeric code or assign them a
QR code that allows them to enter. You can even generate entry systems
with well-defined time slots or temporary permissions.
In the office, do you want to automate the entry system for employees and
know when they enter and leave? Thanks to access management via NFC
or Bluetooth, you can do this reliably and securely.

25. Advanced access control
This unlimited license (to be purchased only once) unlocks all
basic access control features plus facial recognition, the most
innovative and secure way to identify a user.
Furthermore the system provides dual security, because in
addition to the verification of facial features, it is possible to
associate voice recognition, avoiding possible false recognition.

26. SIP interface
This unlimited license allows you to enable the IpDoor system to
communicate with devices in the SIP standard.
For example:
Within a company it makes it possible to interface with telephone exchanges that
in turn manage the individual internal phones. When a visitor rings using the door
station , the call will arrive directly to the company's proprietary phones so they
may open the entrances.
In residential contexts such as villas this strong technological characteristic makes
it possible to interface with internal home automation devices. When a visitor
rings using the door station the user can answer, for example, from the internal
home automation device.
In private or in accommodation facilities such as a Bed & Breakfast it’s possible to
interface with SIP service providers which divert the call to the traditional
telephone network. This feature is very useful in areas where there is a poor
mobile signal (e.g. in the mountains): when a visitor rings using the video intercom
the call will arrive in telephone form and not only via App.

27. IpDoor App

28. By activating the App on your smartphone you generate an account, which
can control all of the accesses of the structures in which an IpDoor panel is
installed such as your home front door, your office entrances and the
gates of your beach house. Each entrance can be managed by several
people who can be assigned different roles (e.g. you can authorize your
child to answer the calls but not to open doors and gates remotely).
Through the App you can always check who has entered the house and at
what time by consulting visitor history, or reviewing the videos recorded by
the door station as often as you wish. The IpDoor App is available for iOS
and Android devices on the App Store or Google Play.
IpDoor App:
the future for
controlling your Inputs

29. Push Notification
Thanks to push notifications,
the App must not be active and
does not consume battery. It
will be awakened to the call.
Interactive Messaging
Through the App you can
customize interaction messages
with the user or even reply in real
time with a text message.
Integration and Home Automation
The opening of doors and gates and the
interaction with surveillance and home
automation management systems allow you
to have total control of your home, even
remotely.

30. IpDoor Match

31. Practicality and refined design
Flush-mounted or wall-mounted, the internal Match monitor is available in
the 7" or 10" version in different finishes. Its essential lines make it perfect
in any residential or business context, and excellent sound is guaranteed in
any condition.
The use of an internal monitor is optional but strongly recommended. It
makes answering the video door phone a simple operation even for those
who are less familiar with technology or have not created an IpDoor account
via the App (e.g. elderly relatives or domestic helpers). In addition, the
monitor is guaranteed to always be available and active whenever other
mobile devices are downloading and therefore unusable.
IpDoor Match:
the internal monitor with
excellent performance

32. Manage the home automation of your home
Through the internal Match monitor you can answer the video intercom and
manage Android Apps developed by third parties (such as those for alarm
systems or home automation control). Match acquires all the features of
the installed apps and becomes a control centre for your home.
Check your interiors even when you’re away!
Thanks to Match's internal camera which guarantees outstanding video
quality you'll be able to connect to your smartphone and use the monitor to
check what's going on in your room and check the security of your home at
any time.

33. Monitor Match Advanced
With an essential and contemporary look it suits any type of installation,
even in the most elegant room. It can be connected to the LAN via wired
Ethernet or via wireless WiFi and can be powered or in PoE by network
cable or using a common power supply.
The combination of a super fast CPU, a high resolution display with multi
touch functions and the Android operating system, give it a high usability
and a great flexibility of functions. Integrated video door entry applications
allow full control of the entire system.
The integrated camera allows it to be used both for video-intercom calls,
as well as to be able to remotely monitor the surrounding environment.
The availability of a Market dedicated to third party Android applications
allows its transformation into a complete tool for home control, capable of
controlling each device through its own Android application. The many inputs
available allow you to activate as many remote alarms, as well as to connect
an outside door call button, while the local output allows you to connect an
additional ringtone.
Android IP monitor with 7” touch display
and full duplex hands-free communication

34. Application Contexts

35. In single or multi-family villas, the IpDoor system can give a really unique
entrance. The owner can customize the door station with graphics and
messages that welcome the visitor, and get an impressive experience.
The owner can enter the building using advanced access control functions,
using smartphones or soon via face and voice recognition. Still he can enable
temporary access to occasional workers (domestic staff and installers)
using a Badge a QR code. The integration with the Home Automation and
the Smart home complete the system functions.
IpDoor strengths in this segment are:
● Door station can be wired or wireless
● Cost effective due to no need of server and internal monitors
● Easy installation and locks control directly from door station
● Easy Configuration in cloud driven by wizard
● Elegance of design and full metal and glass materials
● Custom messages via display and voice
● Panoramic camera can see even people aside
● Access control for owner: NFC/Bluetooth/Face/PIN
● Access control for visitors in scheduled time: QR/Badge/PIN
● Android optional monitor with third party App
Villa

36. IP120D Product code DS-KV8113-WME1 4894HIM IP BASE D2101V T26
729€ List price 847€ 633€ 545€ 1411€
Price (Net price / Web) 147€ 425€ 508€ 436€ 936€
5MP (170°) Camera 2 MP (129°) 0.3 MP (90°) 1 MP (135°) 1 MP (180°) 6 MP (180°)
YES Wi-Fi OPTION YES NO NO NO NO
Glass+Steel Materials Aluminum Aluminum Plastic Steel Glass Fiber
IP 65 Wheater Resistnace IP65 IP54 IP65 IP65 IP65
IK7 Vandal Resistance IK8 IK7 IK10 IK10
ITALY Manufactured in CHINA ITALY CEZCH GERMANY GERMANY
DISPLAY 1 - unlimited Number of buttons 1 1 2 1 1
YES POE YES NO YES YES YES
YES Input/Output on board YES YES YES YES NO
PIN/NFC Card/BT/ Face & Voice
recognition
Integrated Access control Card NO Card Card Option
Villa

37. External Unit
Monitor & App
CAT 5/6
Concierge
management
Lock / Gate
Cloud
Cloud
In residential complexes, IpDoor has a great flexibility. It can work starting from a
door station connected to Internet and only Apps for apartments, but can also be
installed in a very complete infrastructure, including indoor monitors and optional
ringbells. The resident can grant access by advanced access control functions,
using smartphones or soon via face and voice recognition.
Lift control integration, custom voice messages and enhanced graphics, give to the
vistor a very easy interface.
IpDoor strengths in this segment are:
● No internal monitor needed
● Internal monitor can be connected via cloud without wiring
● Easy replacement of existing systems without wiring
(renovations, transformations from audio to video, tourist complexes)
● Licensing system managed by an administrator also for takeovers
● Access control with different door opener for each user
● Remote alerts to the installer for a very efficient maintenance
● Remote configuration and backup in the cloud
Buildings
Cloud
Cloud
Cloud
Cloud
Cloud
External Unit
Apartments with
cabled infrastructure
Apartments with Cloud
infrastructure

38. IP220D Product code DS-KD8002-VM 3452HD IP VERSO D21DKV MILO - 9532
999€ List price 2112€ 1446€ 2010€ 1534€
Price (Net price / Web) 455€ 1600€ 1230€ 1900€ 1150€
5MP (170°) Camera 2 MP (180°) 2 MP (110°) 1 MP (145°) 1 MP (180°) 1.2 MP (72°)
Glass+Steel Materials Steel Steel Plastic+Aluminuim Steel Glass+Aluminuim
IP 65 Wheater Resistnace IP65 IP54 IP54 IP65 IP54
IK7 Vandal Resistance IK8 IK8 IK8 IK10 IK10
ITALY Manufactured in CHINA ITALY CEZCH GERMANY SPAIN
Touch Display Call Interface Physical buttons Touch buttons Touch buttons Physical buttons Touch buttons
PIN/NFC Card/BT/ Face & Voice
recognition
Integrated Access control Card Card Card Card Card
YES Only App option YES YES YES YES
YES Android OPEN internal monitor NO NO YES NO YES
Q!/2021 Face recognition OPTION OPTION NO NO OPTION
Buildings

39. IP220D Product code VTO1210B-X R28A
999€ List price 597 638€
Price (Net price / Web) 274€ 450€
5MP (170°) Camera 2 MP (113°) 2 MP (116°)
Glass+Steel Materials Plastic Plastic
IP 65 Wheater Resistnace IP65 IP65
IK7 Vandal Resistance
ITALY Manufactured in CHINA CHINA
Touch Display Call Interface Touch buttons Physical buttons
PIN/NFC Card/BT/ Face & Voice
recognition
Integrated Access control Card Card
YES Only App option YES
YES Android OPEN internal monitor NO YES
Q!/2021 Face recognition OPTION OPTION
Buildings

40. External Unit
Switch
PoE
Router
Sip Phone
PC Sip
Client
Remote
services
Lock / Gate
Secretariat
CCTV
The IpDoor system is useful in the management of individual offices or shops
(accountant's office, notary's office etc.).
The particularly user friendly and customizable interface is a plus in commercial
activities where welcoming the customer is fundamental.
Through the App, it is possible to set welcome messages or text messages (e.g.
plan to be reached, opening hours etc.) that the door station will pronounce
upon the visitor's arrival.
IpDoor strengths in this segment are:
● Easy installation
● Integration with existing PC network
● Integration with IP telephony
● Elegance of the product
● Access control with codes and tags and access log
● Display and voice messages for visitors
● Differentiated calls in time slot
Office
Cloud

41. IpDoor is an efficient product to use also for all those who manage a
Bed&Breakfast. Thanks to its access control functions, it will be possible to
create temporary credentials for autonomous access for guests during their
stay. The owner does not have to be always present and can at any time check
who has entered the property and at what time by consulting the access logs
and short videos recorded from the external door station via App.
Bed&Breakfast

42. In the industrial sector, the IpDoor external door station easily integrates into a
complex infrastructure consisting of network and telephony devices already
present within companies. The IpDoor door station will be able to call PCs and
telephones and in turn be controlled by them for the activation / opening of
gates. The integration of the IpDoor system does not require any modification or
doubling of the corporate network infrastructure.
IpDoor strengths in this segment are:
● Integration with existing PC network
● Integration with IP telephony
● Audio quality of the product even in the presence of trucks
● Access control with codes and tags and access log
● Display and voice messages for visitors
● Centralized management of remote offices
Industrial

43. 43
SYSTEM STRENGTHS
• Entering a personal code on the
numeric keypad
Further System Strengths

44. Access control with endless possibilities
● Unique user identification credentials
● Specific time frames credentials
● Occasional users
● Event notification
● Complete History
IpDoor is a genuine advanced access control system. The
external licensed station’s functionality means the
IpDoor system can identify and give a user access with
immediacy. The IpDoor system provides different ways
to identify and enable access to users. All these modes
can also be configured in specific time frames and the
building administrator can disable them at any time.
How can IpDoor be programmed to become an access
control system?
● Pin code on the display
● NFC tag /Smartphone nfc
● Bluetooth (smartphone)
● QR code
Access Control NFC TAG /
SMARTPHONE
PIN CODE ON
THE DISPLAY
BLUETOOTH
(SMARTPHONE)
QR CODE

45. Access control with endless possibilities
Unique user identification
credentials
During the web configuration process it’s
possible to combine user identification
credentials with certain actions that the
system activates after “recognizing” the
user. For example, when the system
identifies the user by their numerical
code, it’s possible to set the opening of
the entrance door. Alternatively, when
the user is identified by their NFC code,
the opening of the garage door can be
set. A user may also have several
credentials of the same type that
correspond to different actions.
For example:
Typing code 1234 on the station could open the
entrance door, while code 4567 could open not
only the door but also deactivate the alarm.
This programming possibility is very useful in
families: with parents being able to generate
many codes for different functions and provide
their children with only those they consider most
appropriate.
Occasional users
IpDoor is an access control system that
goes beyond the usual door opener
functionality. it’s designed for those who
want to give access to their buildings to
occasional users (e.g. domestic staff)
only at certain times of the day. Using
the various identification methods, it’s
possible to configure credentials for
autonomous but timed access. This
feature is also very useful for B&B
owners who can allow guests
autonomous access to a property during
their stay.
Event notification
When users/guest access the building,
information events can be activated on
the owner’s App (a notification, viewing a
video recorded by the video surveillance
system, etc.) which allow him/her to
check who has entered and at what time.
For example in the absence of an internal
video surveillance system, it’s possible to
know exactly how much time a
professional has taken to carry out
maintenance work in the house. By
providing the professional with a
temporary numeric code to be entered
upon entering and leaving, the owner
can be notified as soon as the code has
been entered.
Complete History
From the mobile app the user can also
check at any time when a door or gate
has been opened and who has entered,
as well as checking the access history and
viewing the videos that are recorded by
the licensed station every time someone
approaches or rings the video intercom.
The administrator can view the access
log via the web in macro detail, whereas
users of the same group/family can view
it via the App using a series of filters.
Residents of a flat within a building can
view all accesses related to that flat via
the App, whereas the administrator for
all the flats within a building can monitor
the accesses to each of those flats.

46. Flexibility: decide whether to configure the system
on site or in the office remotely
User friendly interface: change configurations easily
from your smartphone while you are on site. (easy
and immediate)
Installation independent from configuration: the
product does not require to be installed for the
configuration
Smart maintenance: remote interaction with the
system via web
Data backup: you do not lose the configuration in
case of system failure and hardware upgrade
Configuration

47. The IpDoor system integrates easily into complex infrastructures
composed of a pre-existing network and telephony devices typical of
business environments.
The external licensed station thus becomes a device that can call PCs and
telephones, and in turn be controlled by the latter for the activation of
commands such as opening gates.
The adoption of the Android operating system in all of the system’s devices
whether that be an outdoor station or an indoor monitor facilitates
communication and allows the monitors to host applications developed by
third parties for the control of specific equipment. Thanks to its extensive
compatibility IpDoor is easy to build, and completes your automated home -
even when that home is made up of devices developed by different
manufacturers.
Integrations:
Smart Home, Video Surveillance, etc.

48. The wireless installation is made
connecting the integrated 2.4Ghz Wi-fi card
to a wireless access point or router. This
type of connection requires the use of an
external 24VDC power supply like ICA0001
to be connected directly to the door station.
Wi-Fi Installation
Diagram with wireless network
connection and external power supply
LAN Installation
Connection diagram with CAT5/6 network
cable and external power supply
PoE Installation
Connection diagram with CAT5/6 network cable to a PoE
IEEE802.3af device without external power supply
The LAN installation is made connecting a
CAT5/6 network cable between the network
card, located on the back of the door
station, and the router (or switch). This type
of connection requires the use of an
external 24VDC power supply like ICA0001
to be connected directly to the door station.
The PoE installation is made connecting a
CAT5/6 network cable between the network
card, located on the back of the door station
and an injector like the ICA0002 or an
IEEE802.3af PoE switch. In this case the power
is supplied directly through the network cable,
therefore it is not necessary to use an external
power supply.
Installation examples

49. Thank you
