1. ELVOX IP VIDEO DOOR ENTRY
SYSTEM
A CUTTING EDGE, WELCOME, ALWAYS CONNECTED

2. IP TECHNOLOGY:
INTELLIGENT AND ADVANCED
IP technology overcomes the limits of conventional video door
entry systems
• Performance increases using 100% digital transmission signals
• Distance limited only by standard network infrastructure and mobile
network
• Multiple simultaneous audio/video communication between any stations
• Unlimited number of users
• Connected simply via new and/or existing LAN/VPN/Mobile networks.

3. INTEROPERABILITY
The IP technology makes it possible to interface the video door
entry systems with other existing IP systems, expanding the
potential applications including:
• IP CCTV system
• Third party SIP devices without the use of specific interfaces
• Elevator management systems
• Alarm and monitoring systems

4. SIMPLE AND INTUITIVE INSTALLATION.
Installation is always quick and functional
• Self-configuration for small simple systems
• Configurable via a software on a PC for complex installations, aided and
simplified by an auto-discovery function for IP Elvox video door entry
devices.

5. TOTAL RELIABILITY
Simple systems need no centralized server. System data is
replicated throughout the system ensuring redundant backup
and constant system operation.
In the event of a component or partial network failure service is
continued seamlessly using the stored redundant information.

6. ACCESSIBLE ANYWHERE
BY SMARTPHONE AND TABLET.
The Elvox IP system allows users to connect smartphones and
tablets to the system to:
• Receive video calls from entry panels or concierge
• Send and receive text messages
• View the video surveillance cameras
• Open the door

7. ELVOX STRIVES TO PROVIDE THE HIGHEST
LEVELS OF TECHNOLOGY AND DESIGN
The Video Monitor stations provide a slim, elegant and essential
design in both 7” and 4.3” LCD color displays with or without Wi-
Fi.
Technology and style, blended without compromise.

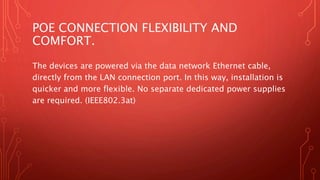

8. POE CONNECTION FLEXIBILITY AND
COMFORT.
The devices are powered via the data network Ethernet cable,
directly from the LAN connection port. In this way, installation is
quicker and more flexible. No separate dedicated power supplies
are required. (IEEE802.3at)

9. NEW VIDEO-DOOR IP APP FOR COMPLETE
CONNECTIVITY.
The Video-door IP app is intuitive:
To configure, simply scan the QR code on the video door entry
monitor and follow the wizard step by step.
The App manages the video door entry functions even when you
are away from home.
Downloadable from app stores for iOS and Android.

10. TAB 7 IP AND 7S IP
ADVANCED AND CONSTANTLY
CONNECTED
7” Color LCD display:
• High-level visual performance. The video door entry units come with an LCD colour
display to guarantee even broader and clearer image viewing.
Capacitive keypad and visual call indicators:
• The Tab 7” video door entry unit has a pushbutton keypad with Soft-Touch technology for
the main functions (reply and door opening). When the symbol is pressed visual
(backlighting) and acoustic (control tone) feedback confirms the command.
Slim profile:
• Elegant design in two colour variants, black and white, slim profile and minimum stand-
out from the wall. Modern and easy to combine, they enhance any interior design style.

11. TAB 7 IP AND 7S IP
ADVANCED AND CONSTANTLY
CONNECTED
• Monitoring of IP cameras.
• Switching the lights on or activating other functions.
• Opening the gate or entrance door, simply by pressing a button.
• Communicating with concierge service to warn of an arriving guest or
incoming package.
• Graphic OSD, 5 soft-touchbuttons for surfing the menus and activating the
services (such as intercom calls).
• Up to 10 recordable video answering machine messages.
• Receipt of text messages from the concierge switchboard or other TAB7S IP
monitors.

12. FUNCTIONS AVAILABLE
ONLY ON TAB 7S IP
• Built-in Wi-Fi connection.
• Touchscreen display.
• Clear, intuitive graphic interface to control all the video door entry
functions simply and intuitively (to manage calls, contact list and
favourite contacts).
• Remote video door entry functions from your smartphone/tablet.
• Up to 100 recordable video answering machine messages.
• Sending and receipt of text to and from the concierge switchboard or
other TAB 7S IP monitors.

13. TAB 4.3 IP AND 4.3S IP:
INTELLIGENT AND SOPHISTICATED
• Color LCD display high-level visual performance.
The video door entry units utilize LCD color display to guarantee perfect image viewing with capacitive
keypad and visual call indicators. The Tab 4.3 video door entry unit has a push-buttons with Soft-Touch technology.
When any symbol is pressed visual and acoustic feedback confirms the command.
• Slim profile, elegant design.
Elegant low profile design in black or white utilizing transparent finish to make the video unit easily blend
into any decor.
• Customizable ringtones.
10 different set tunes stored in the memory. Simply choose your favorite and set the volume to suit your
needs and application.
• Monitoring of IP cameras connected to the home system.
• Receipt of text messages from the porter switchboard or other monitors.

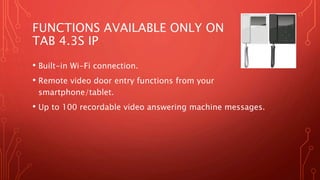

14. FUNCTIONS AVAILABLE ONLY ON
TAB 4.3S IP
• Built-in Wi-Fi connection.
• Remote video door entry functions from your
smartphone/tablet.
• Up to 100 recordable video answering machine messages.

15. PIXEL IP AUDIO/VIDEO ENTRY
MODULE
• Wide-angle high resolution camera (viewing angle 104° H x 83° V).
• Automatic image adjustment depending on the brightness in the recording area.
• Remote controlled Zoom & Pan, if the speaker is not standing perfectly in front of the outdoor unit, the function
allows you to select the part of the image to view directly on the indoor monitor during the conversation.
• Perfect audio reproduction with:
Full duplex communication and echo eliminator.
Adaptive Noise Compensation: the microphone level adjusts to the ambient noise, to ensure perfect
communication levels.
Accessibility for hearing impaired users with thanks to details like the integrated Tcoil teleloop,
Voice synthesis and LED visual signals.
• PoE power supply supplied directly from the LAN connection port.

16. PC CONCIERGE
SWITCHBOARD
The concierge switchboard can be used via web without being installed on the PC, it is the very core of
the control functions and can coordinate the communication flows between different units to perfection.
It ensures continuous, intelligent and advanced call management, even in large residential complexes.
• Intuitive
The graphic interface make the instrument extremely user-friendly, also compatible with
touch screen PCs.
• Guaranteed continuity of service in the event of failures or PC theft.
The software is App web-based, so it is accessible and usable from the web, is not installed on
the computer therefore independent from any device.
• Multi-call management.
It can manage several calls at the same time, with caller preview, call hold and forwarding to
the required extension functions.

17. PC CONCIERGE SWITCHBOARD
• Management of text messages.
Used by reception to send and receive text messages with or without images. The
messages can be sent to single users, groups or in broadcast (for service notices
sent to all tenants).
• Monitoring of IP cameras.
The graphic interface makes viewing simple, any IP CCTV cameras.
• Simultaneous updating of Web App and configuration in a single tool, Video-door IP
Manager.
• Multi-switchboard service configuration
The IP system can manage several switchboards at a time, each one managing a
specific zone, both in terms of time slots and/or users managed. The system can also
be configured to allow different switchboards to replace each other effectively.

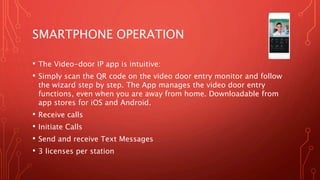

18. SMARTPHONE OPERATION
• The Video-door IP app is intuitive:
• Simply scan the QR code on the video door entry monitor and follow
the wizard step by step. The App manages the video door entry
functions, even when you are away from home. Downloadable from
app stores for iOS and Android.
• Receive calls
• Initiate Calls
• Send and receive Text Messages
• 3 licenses per station

19. VIDEO DOOR IP HOME SCREEN
Mute Ringtone
Do Not Disturb
Answering Machine
Call Home Intercom Station
Self Start
Release Door

20. VIDEO DOOR IP MESSAGE SCREEN
Message Log
Message Search
Create Text Message
Make Video Call
Make Audio Call

21. FAVORITES
Function control
Access Building directory
Access IP Cameras
Activate Relays and Lock
s

22. SENT MESSAGE LOG

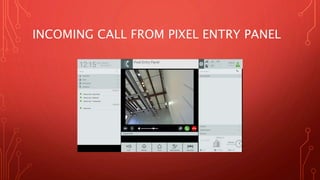

23. INCOMING CALL FROM PIXEL ENTRY PANEL

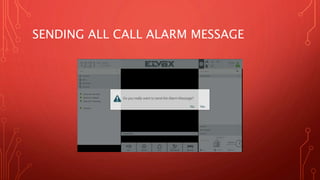

24. SENDING ALL CALL ALARM MESSAGE

25. CONFIRMATION OF MESSAGE

26. CALENDAR

27. KEYPAD

28. DIRECTORY AND INFORMATION

29. SETTINGS : PASSWORD

30. SETTINGS: APPEARANCE

31. SETTINGS: AUDIO AND VIDEO DEVICES

32. SETTINGS: ALERT VISUAL AND AUDIO
MESSAGES

33. SETTINGS: QUICK ACCESS ICONS

34. SETTINGS: SIP PARAMETERS

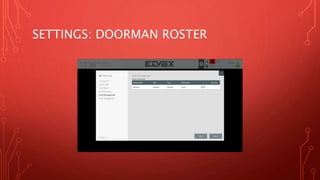

35. SETTINGS: DOORMAN ROSTER

36. SETTINGS: TIMED FUNCTIONALITY

37. SETTINGS: SPECIAL/HOLIDAY OPERATION

38. ELVOX IP VIDEO DOOR ENTRY
SYSTEM
A CUTTING EDGE, WELCOME, ALWAYS CONNECTED
