The document introduces VoIP (Voice over IP) concepts. It discusses digitization of audio, real-time compression/encoding, transport over UDP, and problems with UDP like packet loss and jitter. It also covers protocols like SIP for signaling, SDP for session description, and RTP for media transport. Key VoIP services that can be implemented with SIP are discussed, like call transfer and voicemail.

1. Introduction to Internet telephony (VoIP) Kundan Singh Columbia University

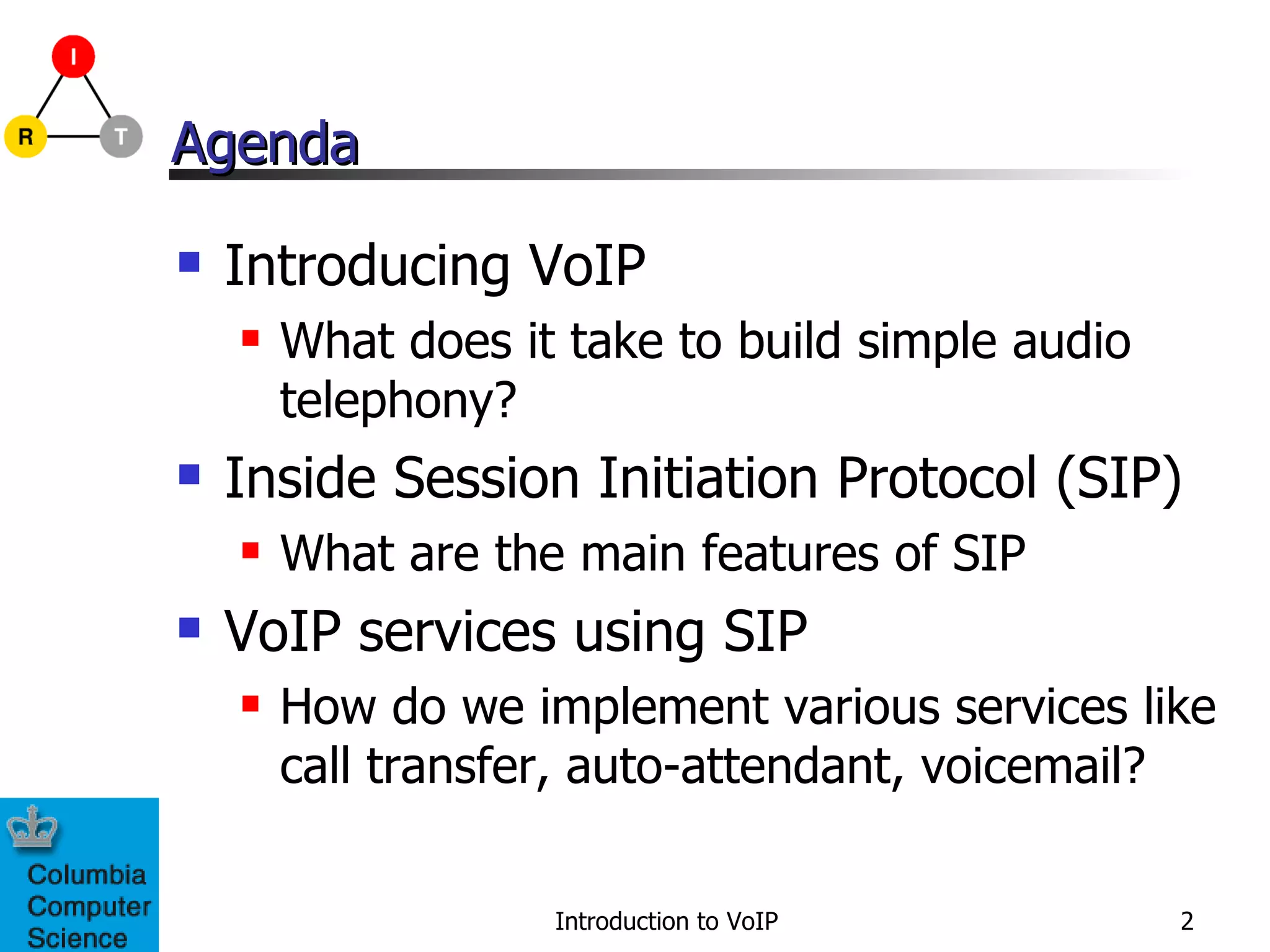

2. Agenda Introducing VoIP What does it take to build simple audio telephony? Inside Session Initiation Protocol (SIP) What are the main features of SIP VoIP services using SIP How do we implement various services like call transfer, auto-attendant, voicemail?

3. Digitization (e.g., sampling at 8kHz, 16 bits per sample, i.e, 128 kb/s or 320 bytes per 20 ms) Real-time compression/ encoding (e.g., G.729A at 8 kb/s) Transport to remote IP address and port number over UDP (Why not TCP?) Processing on receiver side is the reverse Audio Packet Transfer …

4. Sampling, Quantization, Encoding 10101111…01101101 Sample at twice the highest voice frequency 2 x 4000=8000 Hz (interval of 125 µ sec) Round off samples to one of 256 levels (introduces noise) Encode each quantized sample into 8 bit code word PCM: 8000 x 8 bits = 64 kb/s Other techniques (differential coding, linear prediction) 2.4 kb/s to 64 kb/s +127 +0 -127

5. Problems with UDP Unreliable UDP Packet loss Out-of-order (very rarely) Jitter (delay variation) 1 2 3 5 7 6 1 2 3 4 5 6 7 timeline Sender Receiver (a) (b)

6. Receive buffer (playout buffer or circular buffer) playout buffer while (true) { buf = read (au,20ms); //blocks if (!silence) sendto (remote, buf); … buf = get (20 ms); write (au, buf); } while (true) { buf = recvfrom(...); // blocks put(buf); } 20 ms packet microphone sendto(remote IP:port) read speaker 20 ms packet write get Received packet recvfrom() put

7. Receive buffer (playout buffer or circular buffer) Receive buffer: to absorb jitter Tradeoff in buffer size Adaptive delay adjustment Sequence number: to detect packet loss; Just ignore the loss! Sender Receiver 1 2 3 5 7 6 1 2 3 4 5 6 7 8 9 0 2 3 4 8 9 0 1 2 3 4 3 2 1 1 2 1 2 1 2 3 5 7 5 7 6 8 7 9 8 0 9 0 2 3 2

8. Timestamp vs sequence number Silence suppression Variable length packets 1 2 3 4 1 2 3 4 Sender Receiver 5 6 7 5 6 7 Silence … t1 t2 t3 t4 t5 t6 t7 t8 t9 Playout time vs packet loss detection

9. Real-time Transport Protocol (RTP) Encoded Audio RTP Header UDP header IP header msg sendto(…, msg, …) recvfrom(…, msg, …) Sequence number Optional contributors’ list (CSrc) Source identifier (SSrc) Timestamp (proportional to sampling time) Payload type CC M V P X RTP: media transport RTCP: QoS feedback 8 bits 8 bits 16 bits

10. RTP-based conference 224.1.2.3:8000 ssrc=5263 ssrc=7182 ssrc=2639 ssrc=9844 Session identified using receive IP address + port

11. RTP-based conference   Mixer Transcoder  -law  -law G.729 G.729  -law  -law Mixer mixes multiple streams, and puts rtp.ssrc s of contributors in the mixed packet as rtp.csrc Transcoder converts one encoding to another. Typically to accommodate heterogeneous bandwidth links.

12. Why do we need signaling? Alice 128.59.19.194 Bob 202.16.49.27 Sam 154.28.32.112 Henry 125.33.2.81 Locate destination user Negotiate session parameters Bob=>192.1.2.3 Sam 154.28.32.112 Henry=>125.33.2.81 Alice=>128.59.19.194 Where is Alice? 128.59.19.194 INVITE for a call using µ -law and G.729 at 202.16.49.27:8000 OK using µ-law at 128.59.19.194

13. Session Initiation Protocol (SIP) Address similar to email sip:alice@home.com Two stage lookup: DNS: uses naming authority pointer and service records Database or service logic: within a domain columbia.edu yahoo.com home.com office.com Alice Bob 128.59.19.194 Jane 128.59.19.61 $ dig –t naptr columbia.edu columbia.edu. 3600 IN NAPTR 1 0 "s" "SIP+D2U" "" _sip._udp.columbia.edu. columbia.edu. 3600 IN NAPTR 2 0 "s" "SIP+D2T" "" _sip._tcp.columbia.edu. $ dig –t srv _sip._udp.columbia.edu _sip._udp.columbia.edu. 3600 IN SRV 10 10 5060 cocoa.cc.columbia.edu . _sip._udp.columbia.edu. 3600 IN SRV 10 10 5060 eclair.cc.columbia.edu. $ dig –t a cocoa.cc.columbia.edu cocoa.cc.columbia.edu. 3600 IN A 128.59.59.199

14. SIP message format INVITE sip:alice@home.com SIP/2.0 From: “Bob” <bob@office.com> To: “Alice” <alice@home.com> Subject : How are you? ... SIP/2.0 200 OK From: “Bob” <bob@office.com> To: “Alice” <alice@home.com> Subject: How are you? ... Request Response

15. Session Description Protocol (SDP) Alice Bob INVITE alice@home.com I can support  -law and G.729 Send me audio at 202.16.49.27:6780 OK; I can support  -law Send me audio at 128.59.19.194:8000 202.16.49.27 128.59.19.194 ACK To port 8000 RTP To port 6780 RTP

16. SDP message format and offer answer INVITE sip:alice@home.com SIP/2.0 ... v=0 o=bob 26172 27162 IN IP4 202.16.49.27 s=SIP call c=IN IP4 202.16.49.27 t=0 0 m= audio 6780 RTP/AVP 0 8 5 m= video 6790 RTP/AVP 31 Request Response SIP/2.0 200 OK ... c=IN IP4 128.59.19.194 t=0 0 m= audio 8000 RTP/AVP 0 8 m= video 0 RTP/AVP 31

17. Agenda Introducing VoIP What does it take to build simple audio telephony? Inside Session Initiation Protocol (SIP) What are the main features of SIP VoIP services using SIP How do we implement various services like call transfer, auto-attendant, voicemail?

18. SIP is …, SIP is not … SIP = core protocol for establishing sessions in the Internet (peer-to-peer) Transports session description information from initiator (caller) to receiver (callee) Allows change of parameters in mid-session Terminate session NOT for distribution of multimedia data NOT suitable for media gateway control . . . SIP applications typically fall in following categories: setting up voice-over-IP calls setting up multimedia conferences event notification => IM and presence text and general messaging signaling transport

19. Addressing Personal mobility: Examples: “ Alice Smith” <sip:alice@columbia.edu> sip:alice@128.59.19.194:5070 sip:alice@columbia.edu;user=phone;transport=tcp tel:12125551234 tel:19172223333 pc12.columbia.edu yahoo.com columbia.edu [email_address] [email_address] [email_address] [email_address]

20. SIP message format Very similar to HTTP/1.1 Text-based, request-response Request method operates on the resource/entity identified in URI Headers: To, From, Call-ID, CSeq: transaction identification Via: response traverses the reverse request path Content-Length, Content-Type: message body information Syntax: White-space doesn’t matter except in first line Lines can be folded Multi-valued header fields can be combiled as a comma-list Requests: INVITE, ACK, BYE, CANCEL: related to call setup and tear down OPTIONS, INFO, COMET, PRACK, SUBSCRIBE, NOTIFY, PUBLISH, REFER, … Responses: Provisional : 100 Trying, 180 Ringing, 183 Session progress, … Success : 200 OK, 202 Pending, … Redirection : 301 Moved permanently, 302 Moved temporarily, … Request failure : 400 Bad Request, 401 Unauthorized, 404 Not found, 480 Not available, 486 Busy here, … Server failure : 500 Internal server error, 501 Not implemented, … Global failure : 600 Busy everywhere, 603 Decline, …

21. Building blocks SIP user agent IP phone, PC, conference bridge,… SIP redirect server returns new location for requests SIP stateless proxy routes call requests SIP (forking) stateful proxy routes call requests SIP registrar accepts name to address mapping Location server maintains name to address mapping Maintaining state stateless: each request and each response handled independently Fast load balancing proxies; robust (transaction) stateful: remember a whole request/response transaction Enterprise servers, . . . call stateful: remember a call from beginning to end Billing, NAT traversal, . . . Typically implemented in a single software or box Other entities: outbound proxy, back-to-back user agent (b2bua), application-level-gateway (ALG), …

22. Message routing Response follows the reverse request path Via header in SIP message records the request path Request routing decision at each hop Usually direct end-to-end transport after initial request Forcing request path: Record-route and Route headers. Request forking: parallel vs sequential (use q-value in Contact ) Caller and callee info: further govern request routing q=1.0 q=0.7 q=0.2 Via: a.home.com Via: b.example.com Via: a.home.com Via: c.yahoo.com Via: b.example.com Via: a.home.com [email_address] [email_address] [email_address] [email_address] Via: a.home.com Via: b.example.com Via: a.home.com Via: c.yahoo.com Via: b.example.com Via: a.home.com INVITE 302 moved 486 busy 200 OK

23. Example call setup (3) invite (4) moved (5) @school.edu Bob @home.com (6) (6) (6) unavailable (7) Alice (8) (11) cancel (12) ok (1) invite (2) moved @yahoo.com @residence.net @visiting.com @lab.school.edu (9) ok (10) (13)

24. Transport SIP can operate on any packet network, reliable or unreliable UDP: most common Low state overhead But small max packet size TCP: Use with SSL Connection setup overhead Head of line blocking for trunks (use SCTP instead) Transport reliability Request retransmissions, exponential back-off interval INVITE different than other methods Retransmit INVITE response after provisional response was sent

25. NAT traversal Problem: Solutions: Smart servers (open)SER allows detecting nodes behind a NAT Use application level gateway and media-proxy SIP Signaling Symmetric response routing for UDP (rport) Connection reuse for TCP/TLS (sip-outbound) Media STUN: Simple traversal of UDP through NAT TURN: Traversal using relay NAT ICE: Interactive connectivity establishment L=10.1.2.3:5060 iptel.org REGISTER alice@iptel.org Contact: sip:alice@10.1.2.3:5060 . . . E=128.59.19.194:8123 INVITE alice@

26. NAT traversal (ICE) Address gathering Negotiation Connectivity check L=10.1.2.3:8000 192.168.1.2:6000 example.net STUN server stun01.sipphone.com E=128.59.19.194:8123 R=192.1.2.3:7002 Gather addresses (L,E,R) 10.1.2.3:8000 (local) 128.59.19.194:8123 (external) 192.1.2.3:7002 (relay) Gather addresses 192.168.1.2:6000 (local) 135.59.22.99:6000 (external) 192.1.2.4:9004 (relay) INVITE (offer) OK (answer) 10.1.2.3:8000

27. Agenda Introducing VoIP What does it take to build simple audio telephony? Inside Session Initiation Protocol (SIP) What are the main features of SIP VoIP services using SIP How do we implement various services like call transfer, auto-attendant, voicemail?

28. IP telephony services (PSTN) Call routing services: pre-call, one party speed dial call forwarding “ follow me” call filtering/blocking (in/out) do not disturb distinctive ringing Call handling features autoanswer Multi-party features call waiting call transfer (blind, consultative) conference call call park call pickup music on hold call monitoring IP-telephony can’t win by just providing what PSTN has

29. IP telephony services (Internet) Presence-enabled calls place call only if callee is available Presence-enabled conferencing call conference participants when all are online and not busy IM conference alerts receive IM when someone joins a conference Unified messaging receive email, IM alert for new voicemails Programmability of services

30. Where do the services reside? Make call when boss is online … Enter your authentication PIN for billing… B2BUA Double ringing sound when boss calls… Endpoint Forward to office phone during day, and home phone during evening… Proxy/registrar Endpoint Service control on client vs server Use finger for locating user…

31. Endpoint call control Language for End System Services (LESS) for endpoint service creation Direct user interaction, direct media control Handle converged information, e.g., call, presence, email Example: when buddy is online, make a call <less name=&quot;online_call&quot; require=&quot;generic presence ui&quot;> <notification status=&quot; online &quot; priority=&quot;0.5&quot;> <address-switch field=&quot;origin&quot;> <address is=“ [email_address] &quot;> < call /> < alert sound=“ring.au&quot; text=&quot;Calling …&quot; /> </address> </address-switch> </notification> </less>

32. Network call control Common gateway interface -- SIP-CGI (RFC 3050) Call processing language -- CPL (XML-based, allows GUI) SIP servlets (Java) Priority.pl SIP_FROM SIP_TO stdin CGI-PROXY-REQUEST stdout SIP proxy Urgent Low-priority Voicemail Phone if (defined $ENV{SIP_FROM} && $ENV{ SIP_FROM } =~ /sip: boss@ mycompany.com/) { foreach $reg (get_regs()) { print &quot;CGI-PROXY-REQUEST $reg SIP/2.0\n&quot;; print &quot; Priority: urgent \n\n&quot;; } }

33. Call transfer REFER Blind/ consultation/ attended active call REFER C Referred-By: B INVITE C Referred-By: B BYE A A B C active call

34. B2BUA and third-party call control Back-to-back UA Incoming call triggers outgoing call Services Calling card Anonymizer INVITE A B C OK (SDP1) ACK INVITE (SDP1) OK (SDP2) ACK INVITE (SDP2) OK ACK SIP SIP

35. Voicemail Various design alternatives vmail.pl SIP_FROM SIP_TO stdin CGI-PROXY-REQUEST stdout If no response Proxy controls accept after 15s Voicemail acts like a phone [email_address] Redirect after 10s Endpoint based

36. Interactive voice response using VoiceXML Telephone PSTN IVR platform Voice and telephony functions (ASR, TTS, DTMF) Service logic (application specific) VXML Browser Gateway Voice gateway Web server Service logic (CGI, servlet, JSP) Voice and telephony functions VoiceXML browser Internet user VXML HTML Internet

37. VoiceXML contd. <form action=“url”> Enter your Id: < input name=‘id’> <input type=‘submit’> </form> <form> < field name=‘id’> <prompt> Your ID, please. </prompt> </field> <block> <submit next=“url”/> </block> </form> Telephony, speech synthesis or audio output, user input and grammar, program flow, variable and properties, error handling, …

38. DTMF Telephone SIP/PSTN gateway PSTN Internet Internet user D D Audio SIP INFO RTP/ RFC2833

39. Interworking with telephone network Translating audio (µ-law/A-law) Translating signaling (PRI/T1,ISUP) Overlap signaling Advanced features in SIP are lost in PSTN Translating identifiers (phone number) Determining transition points Telephone network SIP/PSTN gateway SIP server IP endpoint Telephone subscriber +1-415-123-4567 sip:bob@home.com IP to telephone Static mapping 1-212854xxxx=>@gw1.columbia.edu Gateway information is dynamic: Overlapping networks Multiple providers Load balancing Telephony routing over IP (TRIP) Route advertisement Can be implemented in outbound proxy Suitable for current hierarchical network +1 @service.mci.com at 4¢/min +1212 @nyc.gw.com at 1¢/min +1212939 @itgw1.columbia.edu free Telephone to IP Gateway knows the SIP server <sip:4567@gateway2.example.com;user=phone> ENUM – E164 numbering (using DNS) +1 212 9397042 => 2.4.0.7.9.3.9.2.1.2.1.e164.arpa => sip:hgs@cs.columbia.edu Suitable for relatively “static” contacts

40. Summary Introducing VoIP Basic audio transfer, why we need RTP and SIP/SDP?… Inside SIP Message format, addressing, building blocks, routing, transport, NAT traversal, … VoIP services using SIP Types of services, programmability, call transfer, third-party, voicemail, interactive voice response, telephone interworking, …

41. VoIP activities IETF working groups: sip, sipping, mmusic, xcon, p2psip, simple, impp, iptel, enum, ecrit, avt, sigtran, midcom, … Elsewhere: 3GPP, ITU-T, W3C, Jabber/XSF, ETSI-Tiphon, IMTC, sip-forum, VON, …

42. References SIP: RFC 3261-3265 http://www.cs.columbia.edu/sip RTP: RFC 3550, 3551, http://www.cs.columbia.edu/~hgs/rtp My thesis: http://www.cs.columbia.edu/~kns10/publication/thesis.pdf (part III: Enterprise IP telephony) Open source SIP server: http://www.openser.org Free SIP accounts: http:// iptel.org
