This document provides an introduction to the Semantic Web, covering topics such as what the Semantic Web is, how semantic data is represented and stored, querying semantic data using SPARQL, and who is implementing Semantic Web technologies. The presentation includes definitions of key concepts, examples to illustrate technical aspects, and discussions of how the Semantic Web compares to other technologies. Major companies implementing aspects of the Semantic Web are highlighted.

1. Tomasz Pluskiewicz PGS Software
INTRODUCTION TO
THE SEMANTIC WEB
2012-11-28
Introduction to the Semantic Web 1

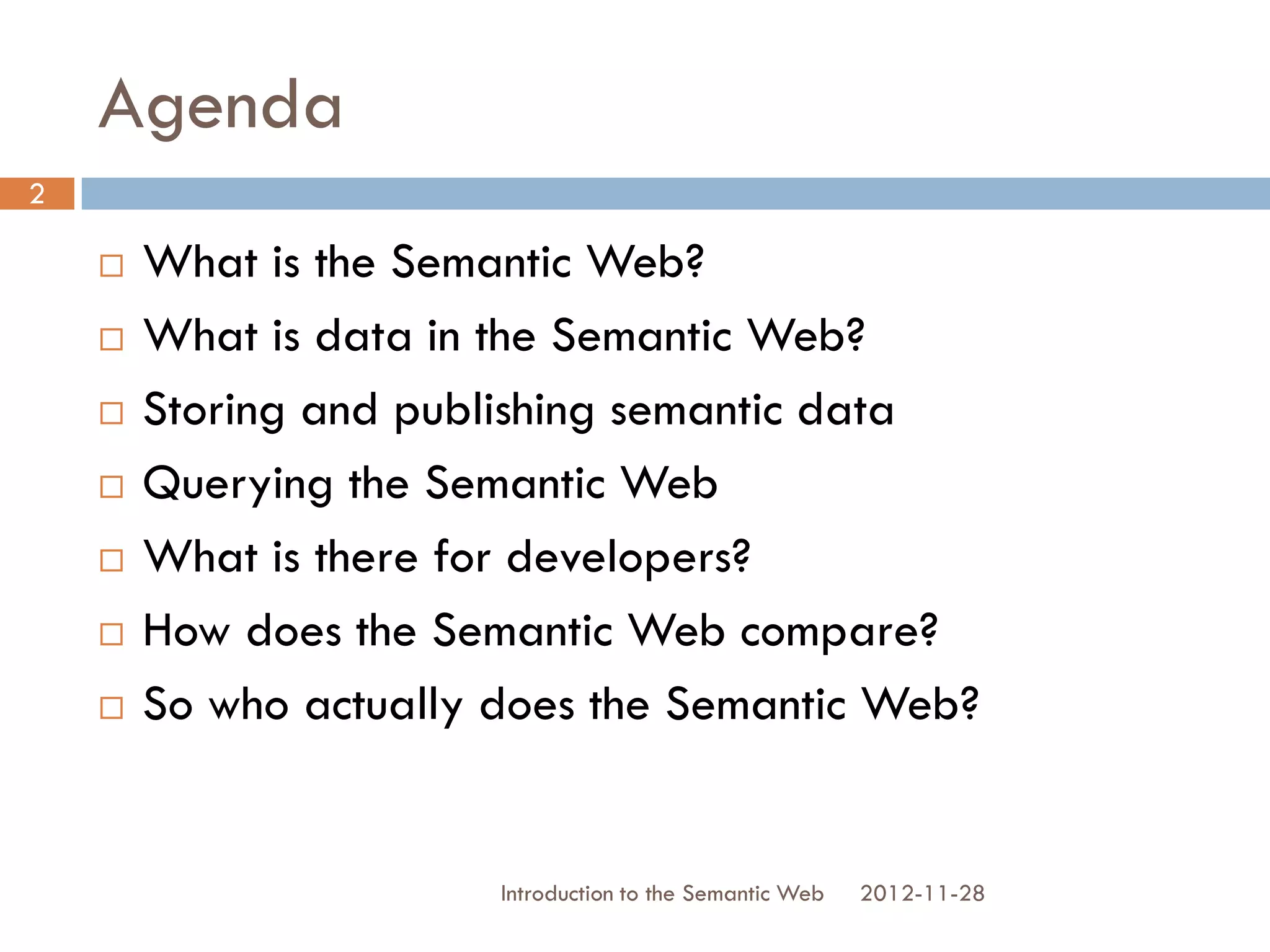

2. Agenda
 What is the Semantic Web?
 What is data in the Semantic Web?
 Storing and publishing semantic data
 Querying the Semantic Web
 What is there for developers?
 How does the Semantic Web compare?
 So who actually does the Semantic Web?
2012-11-28Introduction to the Semantic Web
2

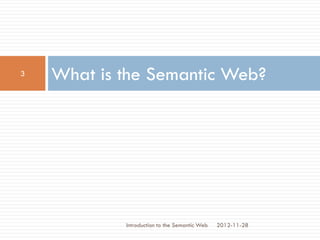

3. What is the Semantic Web?
2012-11-28
3
Introduction to the Semantic Web

4. What is the Semantic Web?
 Semantics = meaning (from Greek)
 Set of practices and standards
 Synonymous or related to:
 Web of data
 Linked data (cloud)
 Giant Global Graph (GGG)
 Web 3.0
 Open Data
 Big Data
2012-11-28Introduction to the Semantic Web
4

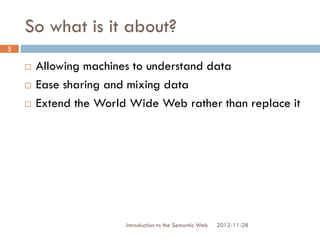

5. So what is it about?
 Allowing machines to understand data
 Ease sharing and mixing data
 Extend the World Wide Web rather than
replace it
2012-11-28Introduction to the Semantic Web
5

6. Little bit of history
 1969: paper Semantic Information Processing
by Ross Quillial
 1980s: CYC and WordNet
 mid- to late 1990s: Tim Berners-Lee coins the
term Semantic Web
 Today: dbpedia: 1.2m triples
2012-11-28Introduction to the Semantic Web
6

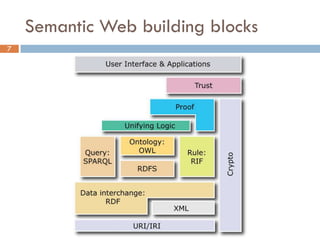

7. Semantic Web building blocks
7

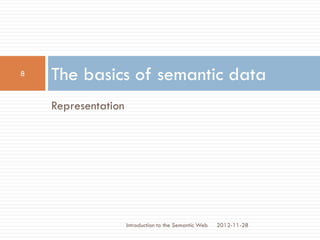

8. Representation
The basics of semantic data
2012-11-28
8
Introduction to the Semantic Web

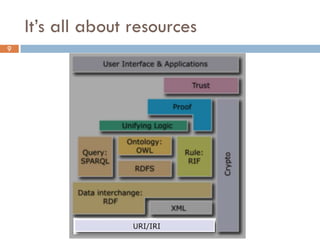

9. It’s all about resources
9

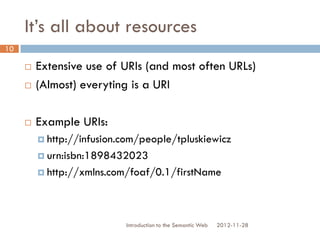

10. It’s all about resources
 Extensive use of URIs (and most often URLs)
 (Almost) everyting is a URI
 Example URIs:
 http://infusion.com/people/tpluskiewicz
 urn:isbn:1898432023
 http://xmlns.com/foaf/0.1/firstName
2012-11-28Introduction to the Semantic Web
10

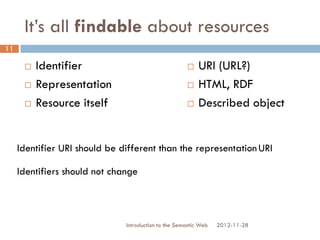

11. It’s all findable about resources
2012-11-28
 Identifier
 Representation
 Resource itself
11
 URI (URL?)
 HTML, RDF
 Described object
Introduction to the Semantic Web
Identifier URI should be different than the representationURI
Identifiers should not change

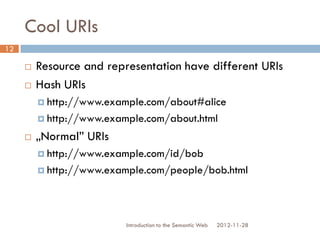

12. Cool URIs
 Resource and representation have different
URIs
 Hash URIs
 http://www.example.com/about#alice
 http://www.example.com/about.html
 „Normal” URIs
 http://www.example.com/id/bob
 http://www.example.com/people/bob.html
2012-11-28Introduction to the Semantic Web
12

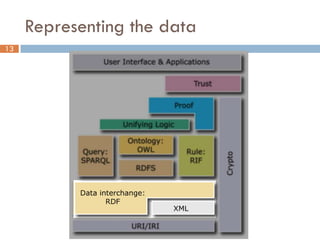

13. Representing the data
13

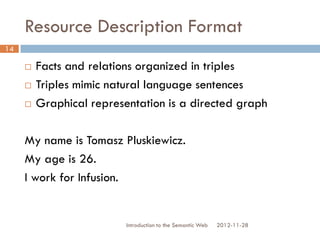

14. Resource Description Format
 Facts and relations organized in triples
 Triples mimic natural language sentences
 Graphical representation is a directed graph
My name is Tomasz Pluskiewicz.
My age is 26.
I work for PGS Software.
2012-11-28Introduction to the Semantic Web
14

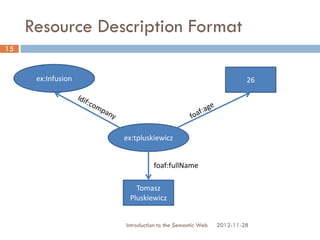

15. Resource Description Framework
ex:tpluskiewicz
2012-11-28Introduction to the Semantic Web
15
Tomasz
Pluskiewicz
26
foaf:fullName
ex:PGS-
Software

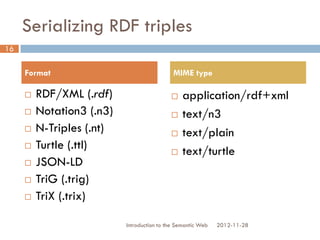

16. Serializing RDF triples
2012-11-28
 RDF/XML (.rdf)
 Notation3 (.n3)
 N-Triples (.nt)
 Turtle (.ttl)
 JSON-LD
 TriG (.trig)
 TriX (.trix)
 application/rdf+xml
 text/n3
 text/plain
 text/turtle
16
Format MIME type
Introduction to the Semantic Web

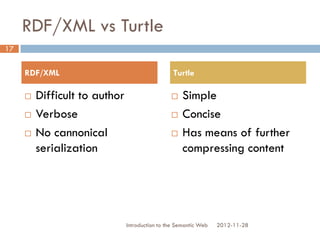

17. RDF/XML vs Turtle
2012-11-28
 Difficult to author
 Verbose
 No cannonical
serialization
 Simple
 Concise
 Has means of
further compressing
content
17
RDF/XML Turtle
Introduction to the Semantic Web

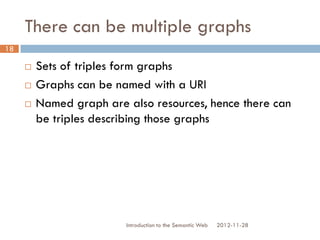

18. There can be multiple graphs
 Sets of triples form graphs
 Graphs can be named with a URI
 Named graph are also resources, hence there
can be triples describing those graphs
2012-11-28Introduction to the Semantic Web
18

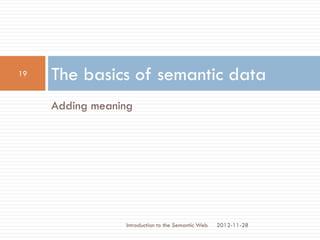

19. Adding meaning
The basics of semantic data
2012-11-28
19
Introduction to the Semantic Web

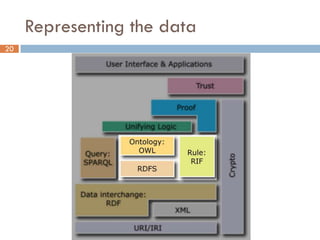

20. Representing the data
20

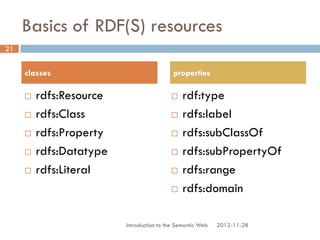

21. Basics of RDF(S) resources
2012-11-28
 rdfs:Resource
 rdfs:Class
 rdfs:Property
 rdfs:Datatype
 rdfs:Literal
 rdf:type
 rdfs:label
 rdfs:subClassOf
 rdfs:subPropertyOf
 rdfs:range
 rdfs:domain
21
classes properties
Introduction to the Semantic Web

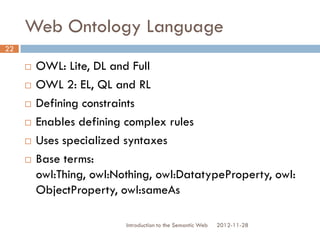

22. Web Ontology Language
 OWL: Lite, DL and Full
 OWL 2: EL, QL and RL
 Defining constraints
 Enables defining complex rules
 Uses specialized syntaxes
 Base terms: owl:Thing, owl:Nothing,
owl:DatatypeProperty, owl:ObjectProperty,
owl:sameAs
2012-11-28Introduction to the Semantic Web
22

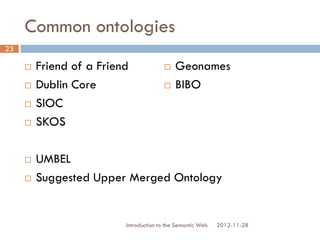

23. Common ontologies
 Friend of a Friend
 Dublin Core
 SIOC
 SKOS
 UMBEL
 Suggested Upper Merged Ontology
2012-11-28Introduction to the Semantic Web
23
 Geonames
 BIBO

24. Specialized ontologies
 Gene Ontology
 GOLD (General O. for Linguistic Description)
 Foundational Model of Anatomy
 GoodRelations
 Lexvo
2012-11-28Introduction to the Semantic Web
24

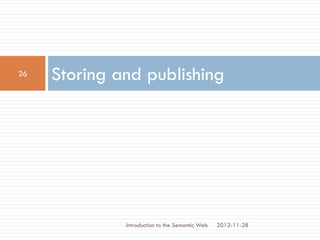

25. Storing and publishing
2012-11-28
26
Introduction to the Semantic Web

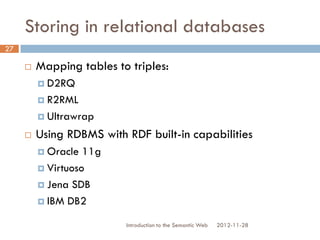

26. Storing in relational databases
 Mapping tables to triples:
 D2RQ
 R2RML
 Ultrawrap
 Using RDBMS with RDF built-in capabilities
 Oracle 11g
 Virtuoso
 Jena SDB
 IBM DB2
2012-11-28Introduction to the Semantic Web
27

27. Native triplestores
 Using native triple (quad) stores
 Virtuoso
 AllegroGraph
 BigOWLIM
 Jena TDB
 4store
 Stardog
 Dydra
2012-11-28Introduction to the Semantic Web
28

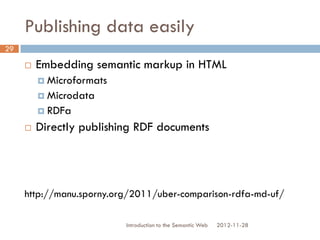

28. Publishing data easily
 Embedding semantic markup in HTML
 Microformats
 Microdata
 RDFa
 Directly publishing RDF documents
http://manu.sporny.org/2011/uber-comparison-rdfa-md-uf/
2012-11-28Introduction to the Semantic Web
29

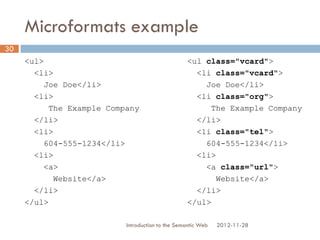

29. Microformats example
2012-11-28
<ul>
<li>
Joe Doe</li>
<li>
The Example Company
</li>
<li>
604-555-1234</li>
<li>
<a>
Website</a>
</li>
</ul>
30
<ul class="vcard">
<li class="vcard">
Joe Doe</li>
<li class="org">
The Example Company
</li>
<li class="tel">
604-555-1234</li>
<li>
<a class="url">
Website</a>
</li>
</ul>
Introduction to the Semantic Web

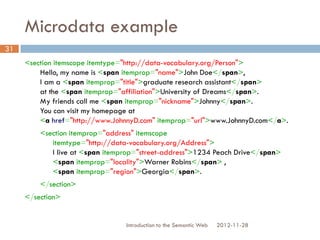

30. Microdata example
<section itemscope itemtype="http://data-vocabulary.org/Person">
Hello, my name is <span itemprop="name">John Doe</span>,
I am a <span itemprop="title">graduate research assistant</span>
at the <span itemprop="affiliation">University of Dreams</span>.
My friends call me <span itemprop="nickname">Johnny</span>.
You can visit my homepage at
<a href="http://www.JohnnyD.com"
itemprop="url">www.JohnnyD.com</a>.
<section itemprop="address" itemscope
itemtype="http://data-vocabulary.org/Address">
I live at <span itemprop="street-address">1234 Peach Drive</span>
<span itemprop="locality">Warner Robins</span> ,
<span itemprop="region">Georgia</span>.
</section>
</section>
2012-11-28Introduction to the Semantic Web
31

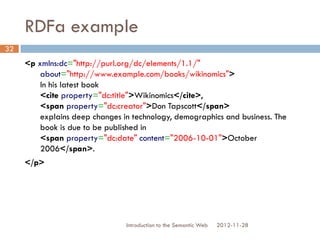

31. RDFa example
<p xmlns:dc="http://purl.org/dc/elements/1.1/"
about="http://www.example.com/books/wikinomics">
In his latest book
<cite property="dc:title">Wikinomics</cite>,
<span property="dc:creator">Don Tapscott</span>
explains deep changes in technology, demographics and business.
The book is due to be published in
<span property="dc:date" content="2006-10-01">October
2006</span>.
</p>
2012-11-28Introduction to the Semantic Web
32

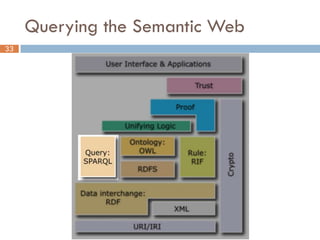

32. Querying the Semantic Web
33

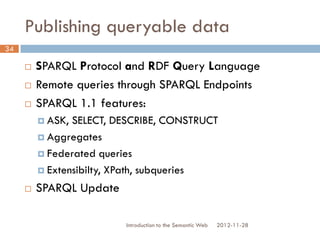

33. Publishing queryable data
 SPARQL Protocol and RDF Query Language
 Remote queries through SPARQL Endpoints
 SPARQL 1.1 features:
 ASK, SELECT, DESCRIBE, CONSTRUCT
 Aggregates
 Federated queries
 Extensibilty, XPath, subqueries
 SPARQL Update
2012-11-28Introduction to the Semantic Web
34

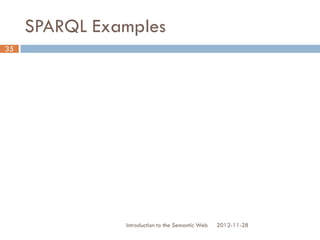

34. SPARQL Examples
2012-11-28Introduction to the Semantic Web
35

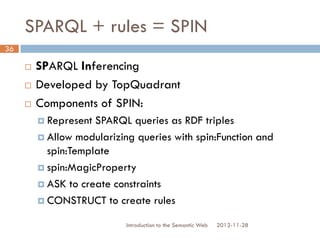

35. SPARQL + rules = SPIN
 SPARQL Inferencing
 Developed by TopQuadrant
 Components of SPIN:
 Represent SPARQL queries as RDF triples
 Allow modularizing queries with spin:Function and
spin:Template
 spin:MagicProperty
 ASK to create constraints
 CONSTRUCT to create rules
2012-11-28Introduction to the Semantic Web
36

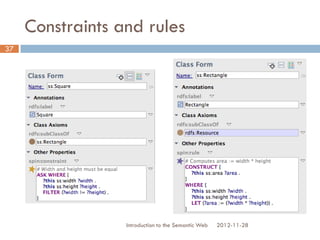

36. Constraints and rules
2012-11-28
37
Introduction to the Semantic Web

37. Functions and templates
2012-11-28
38
Introduction to the Semantic Web

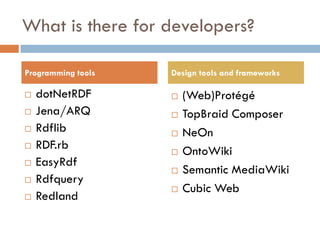

38. What is there for developers?
 dotNetRDF
 Jena/ARQ
 Rdflib
 RDF.rb
 EasyRdf
 Rdfquery
 Redland
 (Web)Protégé
 TopBraid Composer
 NeOn
 OntoWiki
 Semantic MediaWiki
 Cubic Web
Programming tools Design tools and frameworks

39. Semantic Web vs X
2012-11-28
40
Introduction to the Semantic Web

40. Semantic Web vs XML
2012-11-28
 Data representation
(model)
 Graph
 xsd and XPath
 Schema defined with
RDFS or OWL
 URI identifiers
 Data serialization
(syntax)
 Tree
 xsd and XPath
 DTD or XML schema
 No built-in identifiers
41
Semantic Web (RDF) XML
Introduction to the Semantic Web

41. Semantic Web vs REST
2012-11-28
 URIs identify resources
 HTTP encouraged to
allow dereferencing
 Uniform RDF messages
 Resources are linked
(triples)
 Application specific
 Resource Identification
 Uniform Interface
 Self-Describing
Messages
 Hypermedia Driving
Application State
 Stateless Interactions
42
Semantic Web REST
Introduction to the Semantic Web

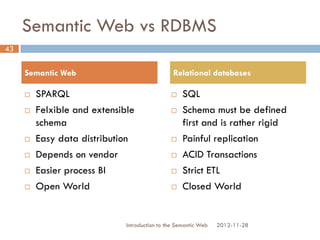

42. Semantic Web vs RDBMS
2012-11-28
 SPARQL
 Felxible and extensible
schema
 Easy data distribution
 Depends on vendor
 Easier process BI
 Open World
 SQL
 Schema must be defined
first and is rather rigid
 Painful replication
 ACID Transactions
 Strict ETL
 Closed World
43
Semantic Web Relational databases
Introduction to the Semantic Web

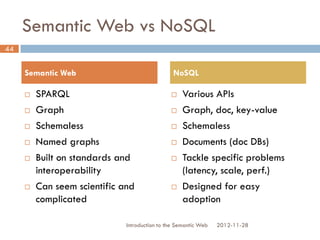

43. Semantic Web vs NoSQL
2012-11-28
 SPARQL
 Graph
 Schemaless
 Named graphs
 Built on standards and
interoperability
 Can seem scientific and
complicated
 Various APIs
 Graph, doc, key-value
 Schemaless
 Documents (doc DBs)
 Tackle specific problems
(latency, scale, perf.)
 Designed for easy
adoption
44
Semantic Web NoSQL
Introduction to the Semantic Web

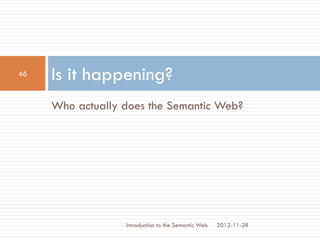

44. Who actually does the Semantic Web?
Is it happening?
2012-11-28
46
Introduction to the Semantic Web

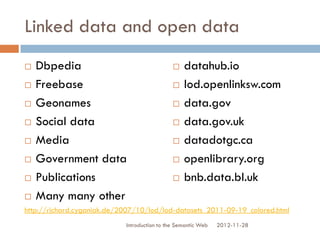

45. Linked data and open data
 Dbpedia
 Freebase
 Geonames
 Social data
 Media
 Government data
 Publications
 Many many other
 datahub.io
 lod.openlinksw.com
 data.gov
 data.gov.uk
 datadotgc.ca
 openlibrary.org
 bnb.data.bl.uk
2012-11-28Introduction to the Semantic Web
http://richard.cyganiak.de/2007/10/lod/lod-datasets_2011-09-19_colored.html

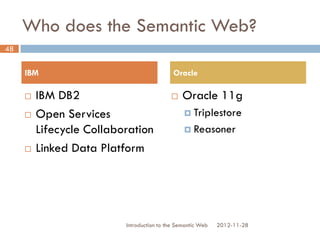

46. Who does the Semantic Web?
2012-11-28
 IBM DB2
 Open Services
Lifecycle
Collaboration
 Linked Data
Platform
 Oracle 11g
 Triplestore
 Reasoner
48
IBM Oracle
Introduction to the Semantic Web

47. Who does the Semantic Web?
2012-11-28
 Webmaster tools
 Knowledge graph
 Freebase
 RDFa/Microdata
(also Yahoo)
 Open Graph
Protocol
49
Google Facebook
Introduction to the Semantic Web

48. Who does the Semantic Web?
2012-11-28
Thousands of datasets
Some offered in RDF
Linked by Linking Open
Government Data project
(200 datasets)
Open Government
Partnership (50+
countries)
 Gene research
 Language
processing
 Semantic MediaWiki
50
Government/public data Academic work
Introduction to the Semantic Web

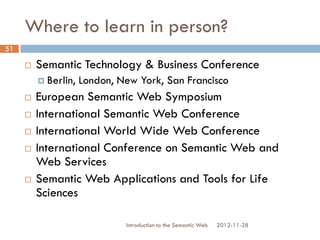

49. Where to learn in person?
 Semantic Technology & Business Conference
 Berlin, London, New York, San Francisco
 European Semantic Web Symposium
 International Semantic Web Conference
 International World Wide Web Conference
 International Conference on Semantic Web
and Web Services
 Semantic Web Applications and Tools for Life
Sciences
2012-11-28Introduction to the Semantic Web
51

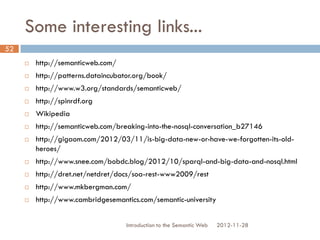

50. Some interesting links...
 http://semanticweb.com/
 http://patterns.dataincubator.org/book/
 http://www.w3.org/standards/semanticweb/
 http://spinrdf.org
 Wikipedia
 http://semanticweb.com/breaking-into-the-nosql-conversation_b27146
 http://gigaom.com/2012/03/11/is-big-data-new-or-have-we-forgotten-its-old-
heroes/
 http://www.snee.com/bobdc.blog/2012/10/sparql-and-big-data-and-
nosql.html
 http://dret.net/netdret/docs/soa-rest-www2009/rest
 http://www.mkbergman.com/
 http://www.cambridgesemantics.com/semantic-university
2012-11-28Introduction to the Semantic Web
52

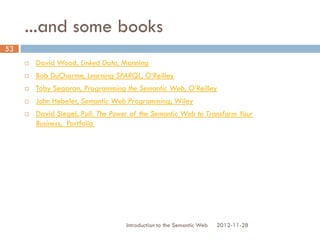

51. ...and some books
 David Wood, Linked Data, Manning
 Bob DuCharme, Learning SPARQL, O’Reilly
 Toby Segaran, Programming the Semantic Web, O’Reilly
 John Hebeler, Semantic Web Programming, Wiley
 David Siegel, Pull: The Power of the Semantic Web to Transform Your
Business, Portfolio
2012-11-28Introduction to the Semantic Web
53
