This document provides an introduction and overview of Java applications, including:
- A brief history of Java's development starting in 1990s.
- The objectives and topics covered include introductions, history, architecture, security and a sample program.
- Java was designed to be a platform-independent language that can create applications running on a single computer or distributed network.

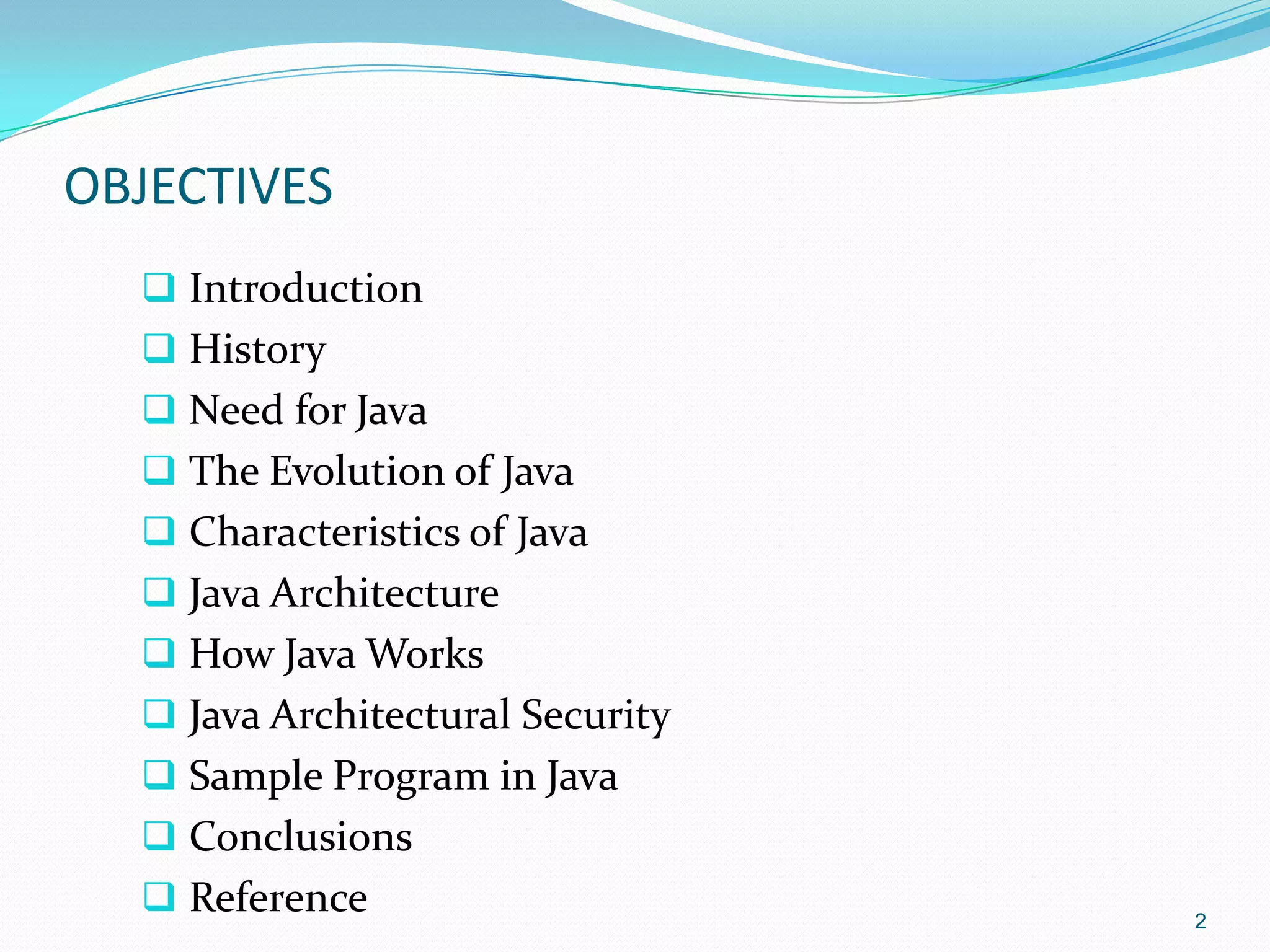

2. OBJECTIVES
Introduction
History
Need for Java
The Evolution of Java
Characteristics of Java
Java Architecture
How Java Works
Java Architectural Security
Sample Program in Java
Conclusions
Reference
2

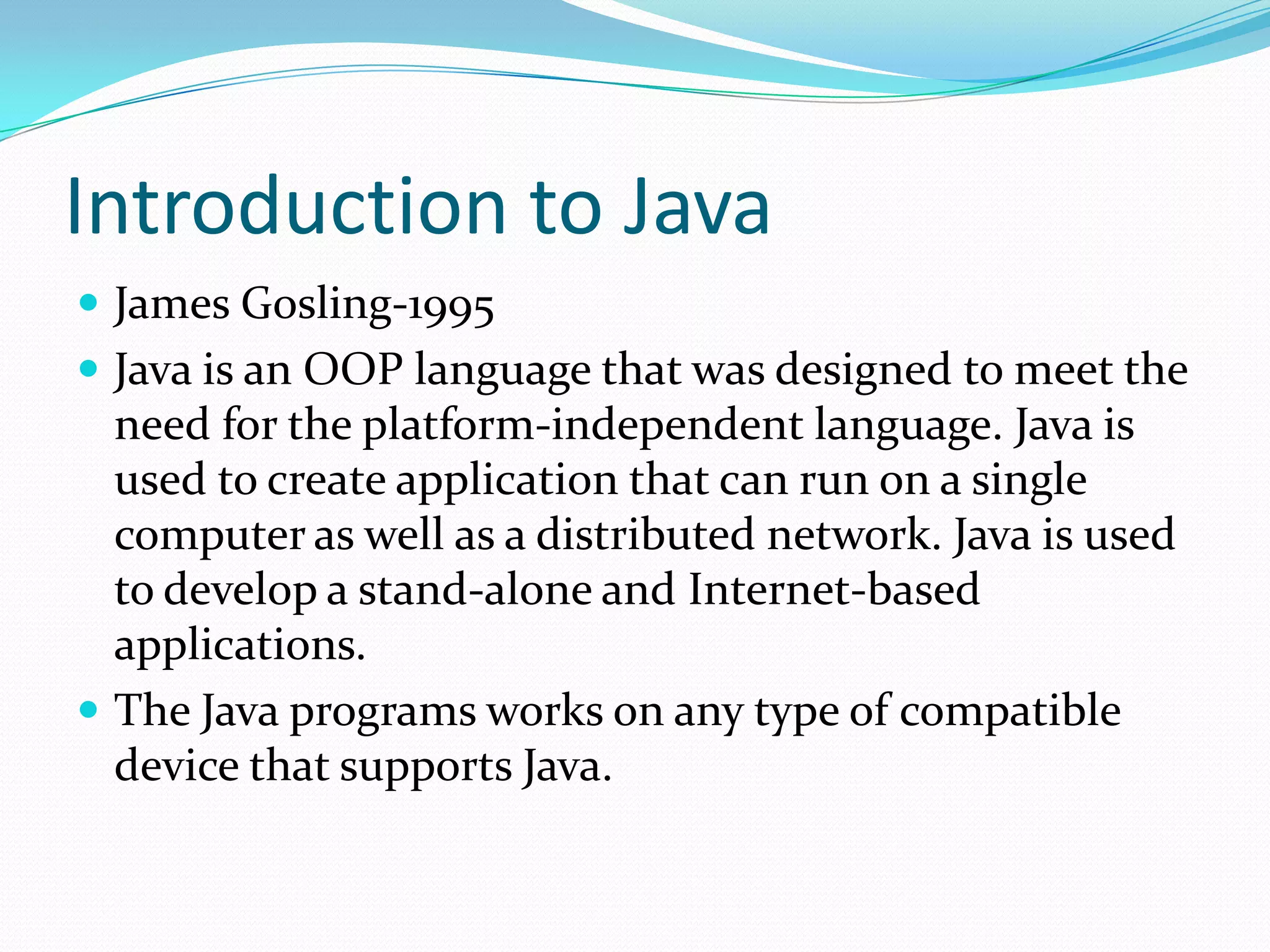

3. Introduction to Java
James Gosling-1995
Java is an OOP language that was designed to meet the
need for the platform-independent language. Java is
used to create application that can run on a single
computer as well as a distributed network. Java is used
to develop a stand-alone and Internet-based
applications.
The Java programs works on any type of compatible
device that supports Java.

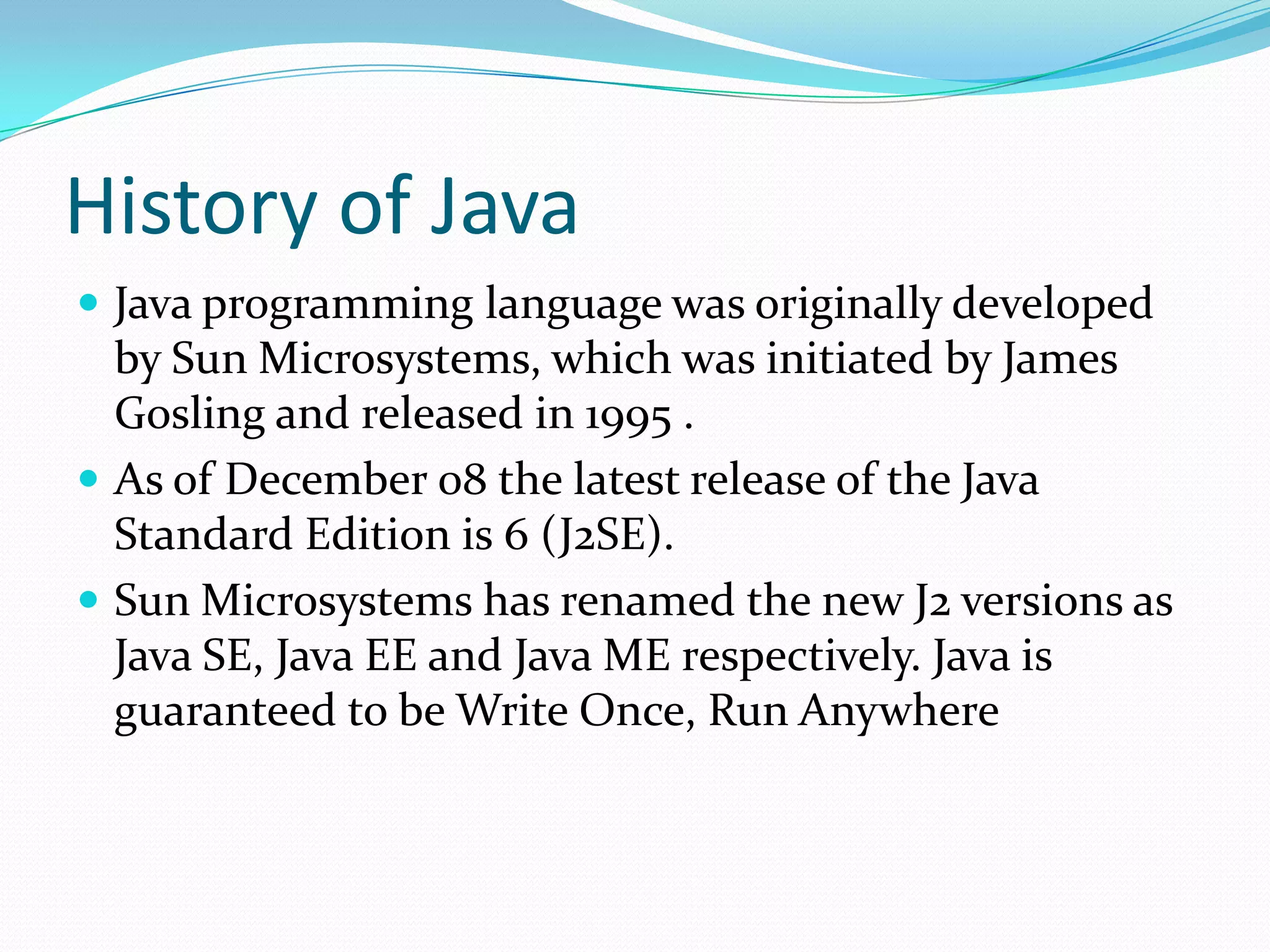

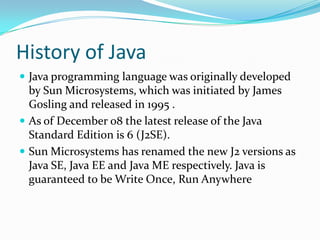

4. History of Java
Java programming language was originally developed
by Sun Microsystems, which was initiated by James
Gosling and released in 1995 .
As of December 08 the latest release of the Java
Standard Edition is 6 (J2SE).
Sun Microsystems has renamed the new J2 versions as
Java SE, Java EE and Java ME respectively. Java is
guaranteed to be Write Once, Run Anywhere

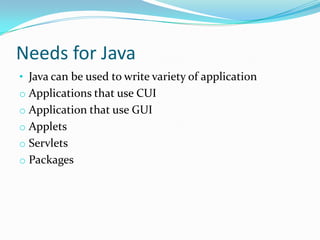

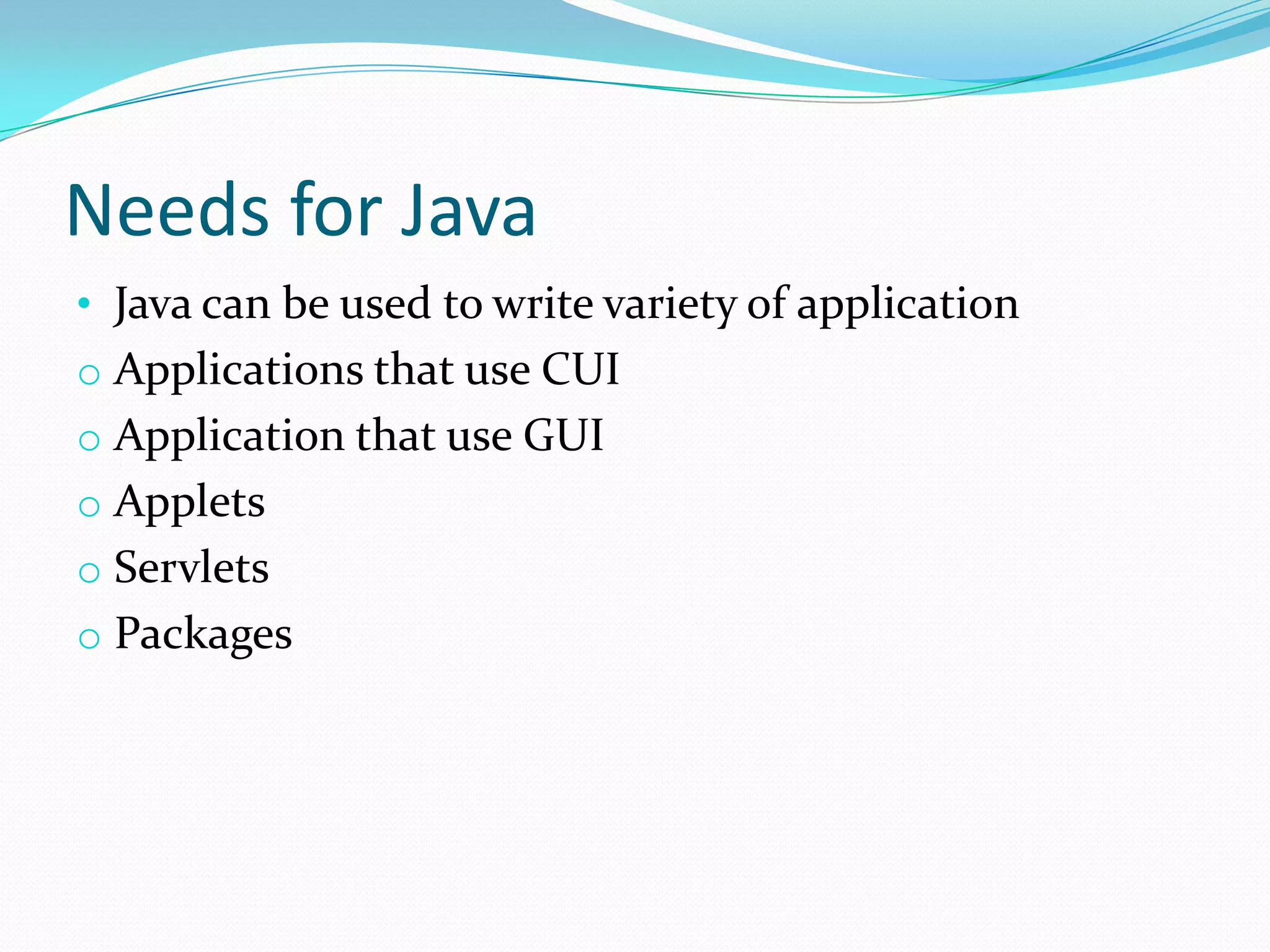

5. Needs for Java
• Java can be used to write variety of application
o Applications that use CUI
o Application that use GUI
o Applets
o Servlets
o Packages

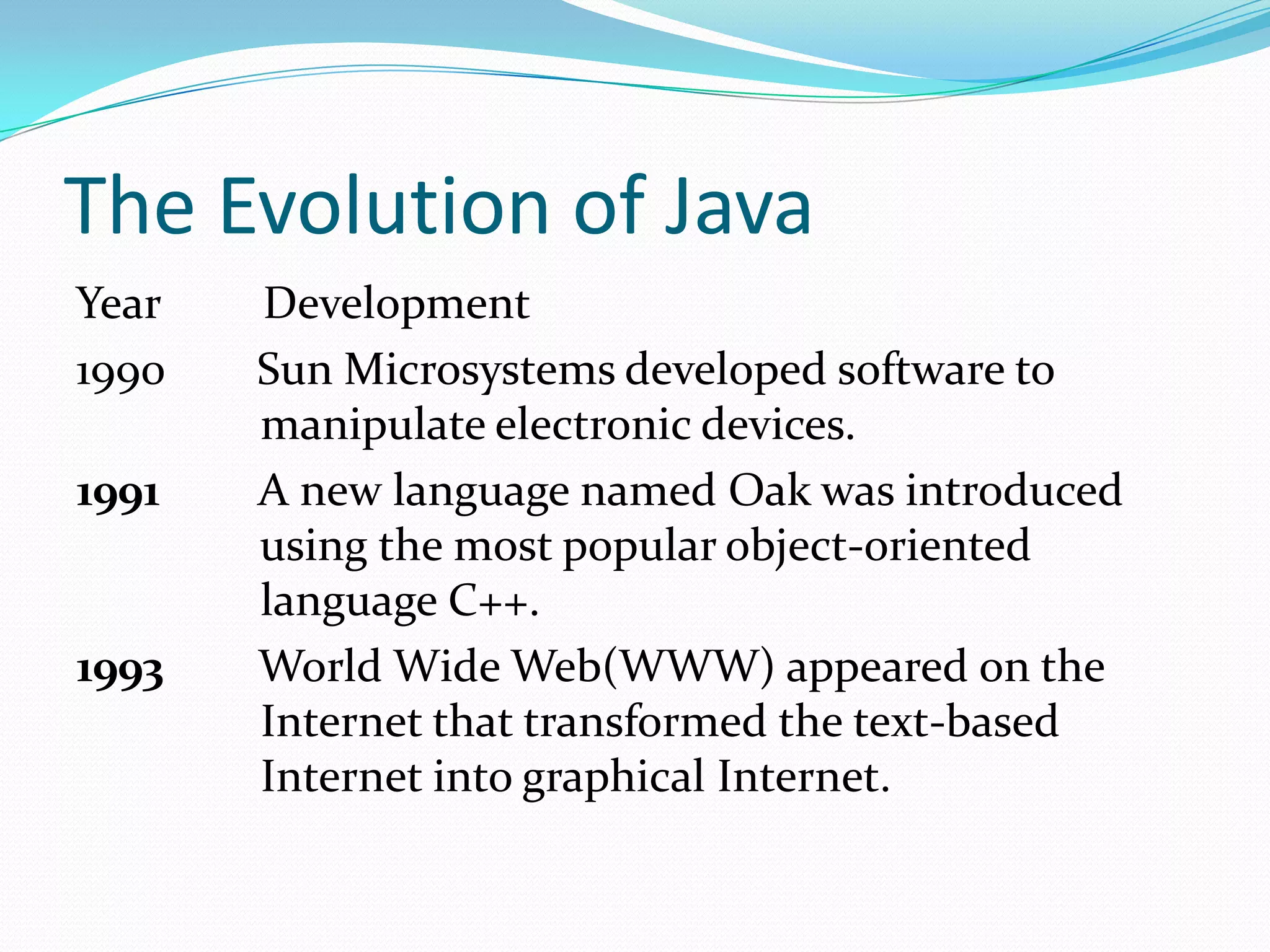

6. The Evolution of Java
Year
1990
1991
1993
Development
Sun Microsystems developed software to
manipulate electronic devices.
A new language named Oak was introduced
using the most popular object-oriented
language C++.
World Wide Web(WWW) appeared on the
Internet that transformed the text-based
Internet into graphical Internet.

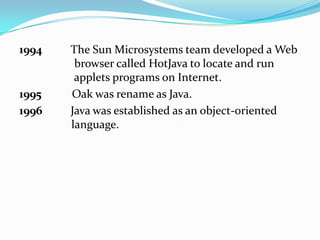

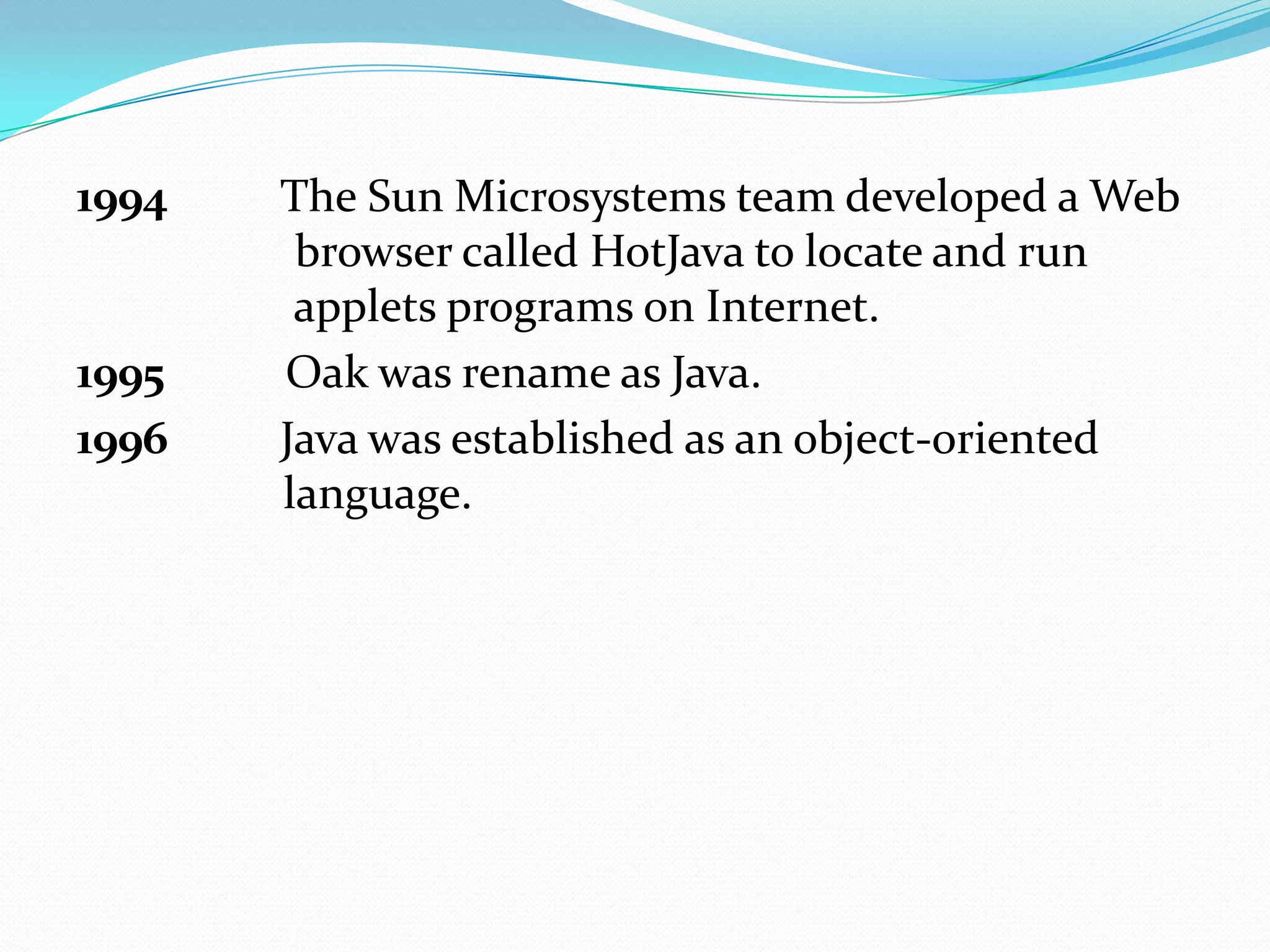

7. 1994
1995
1996
The Sun Microsystems team developed a Web
browser called HotJava to locate and run
applets programs on Internet.
Oak was rename as Java.
Java was established as an object-oriented
language.

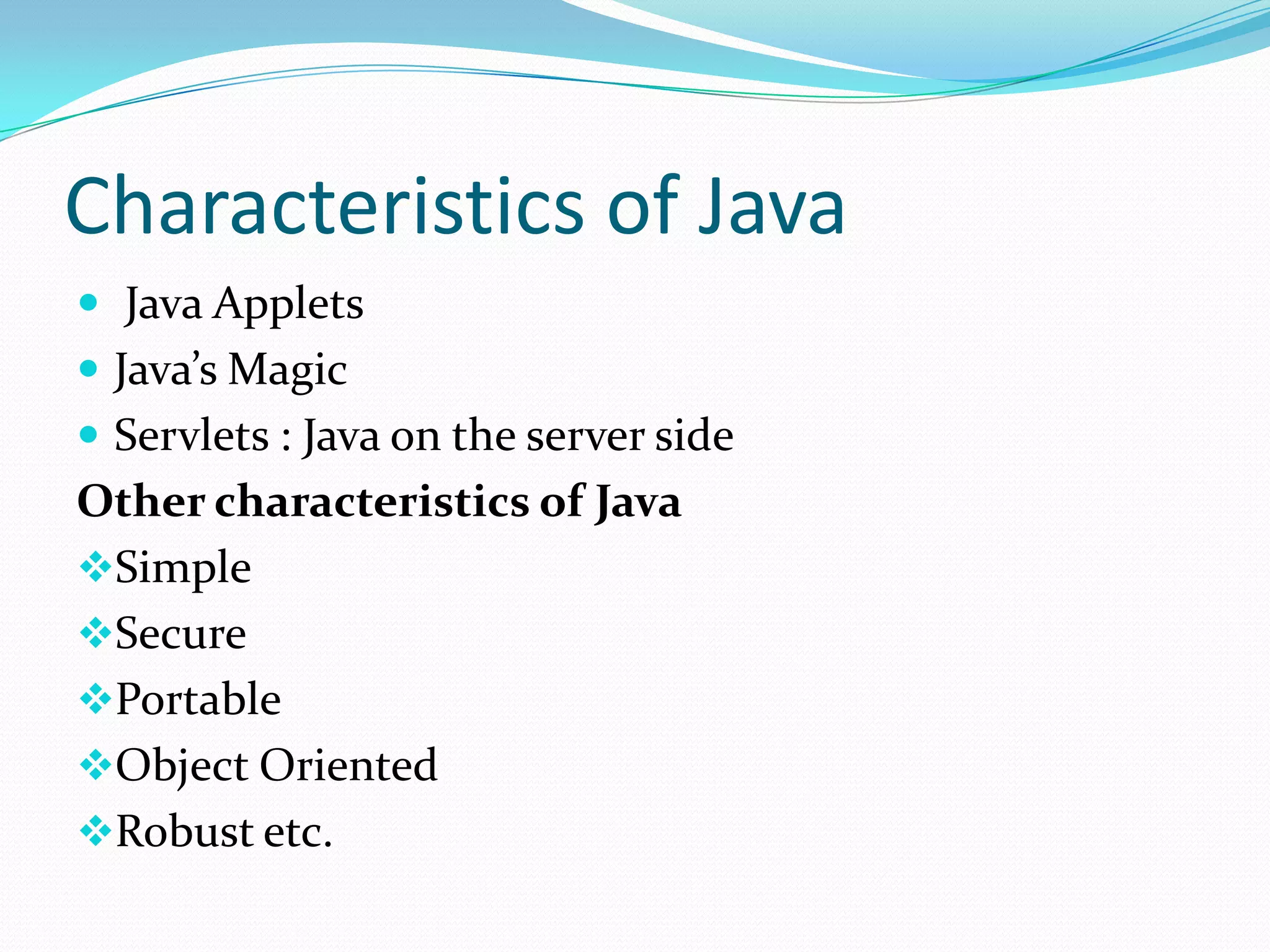

8. Characteristics of Java
Java Applets
Java’s Magic
Servlets : Java on the server side
Other characteristics of Java
Simple
Secure
Portable
Object Oriented
Robust etc.

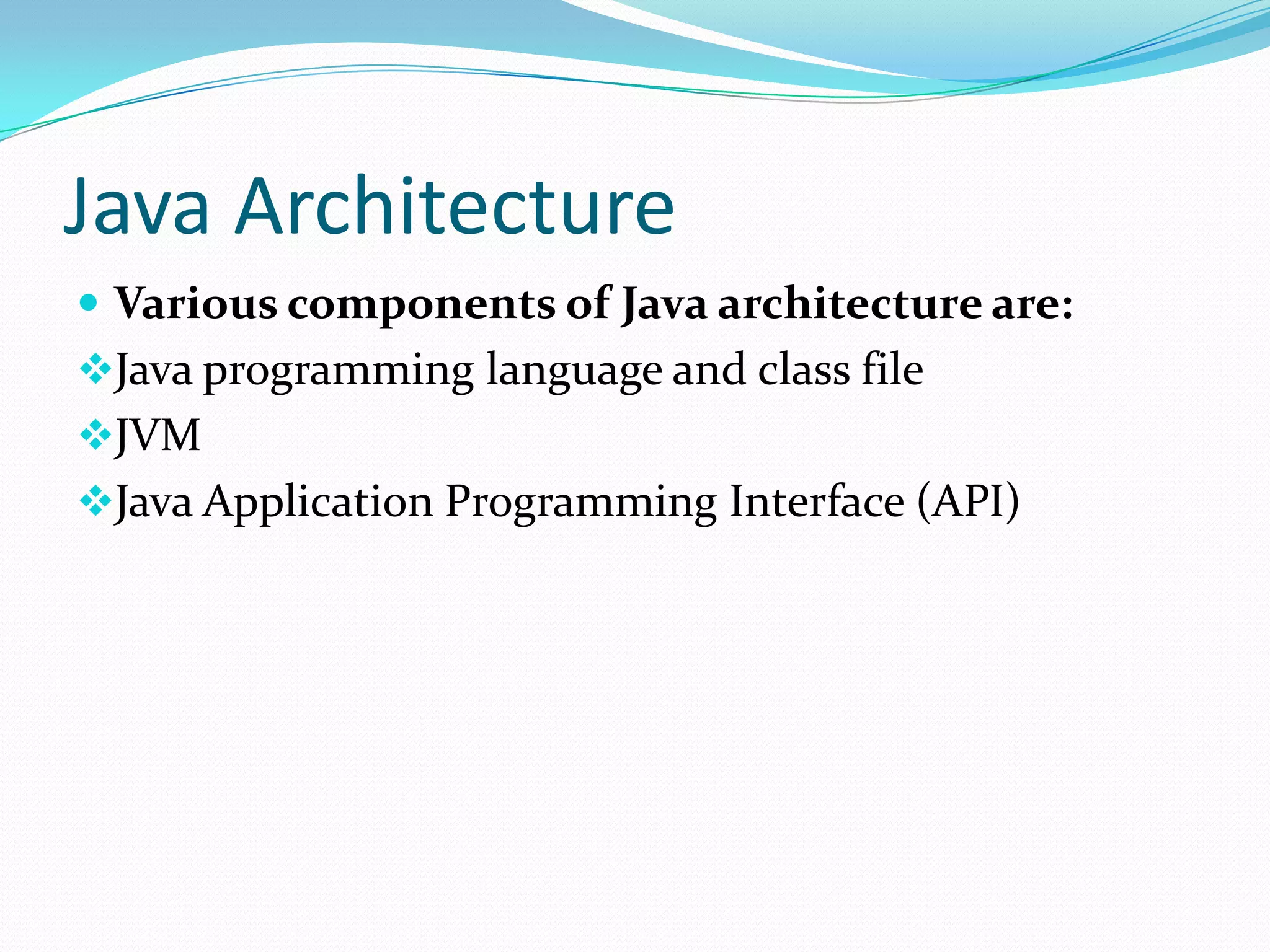

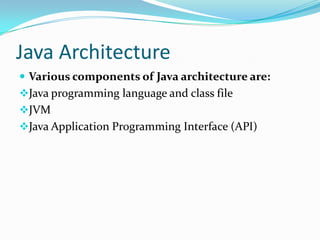

9. Java Architecture
Various components of Java architecture are:
Java programming language and class file
JVM
Java Application Programming Interface (API)

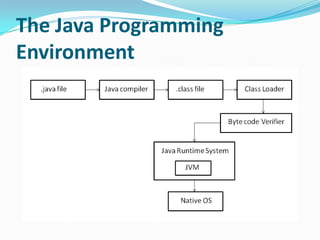

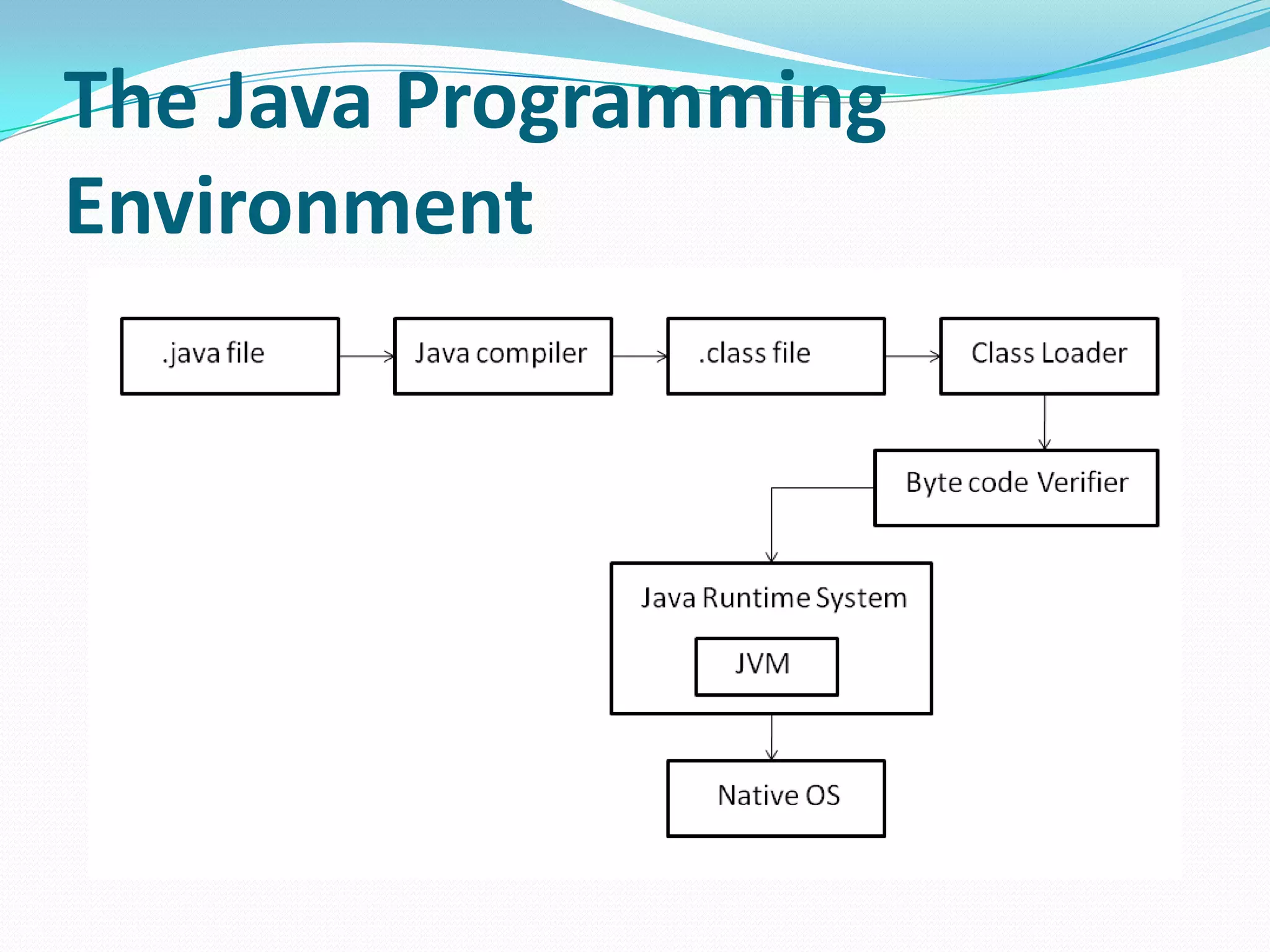

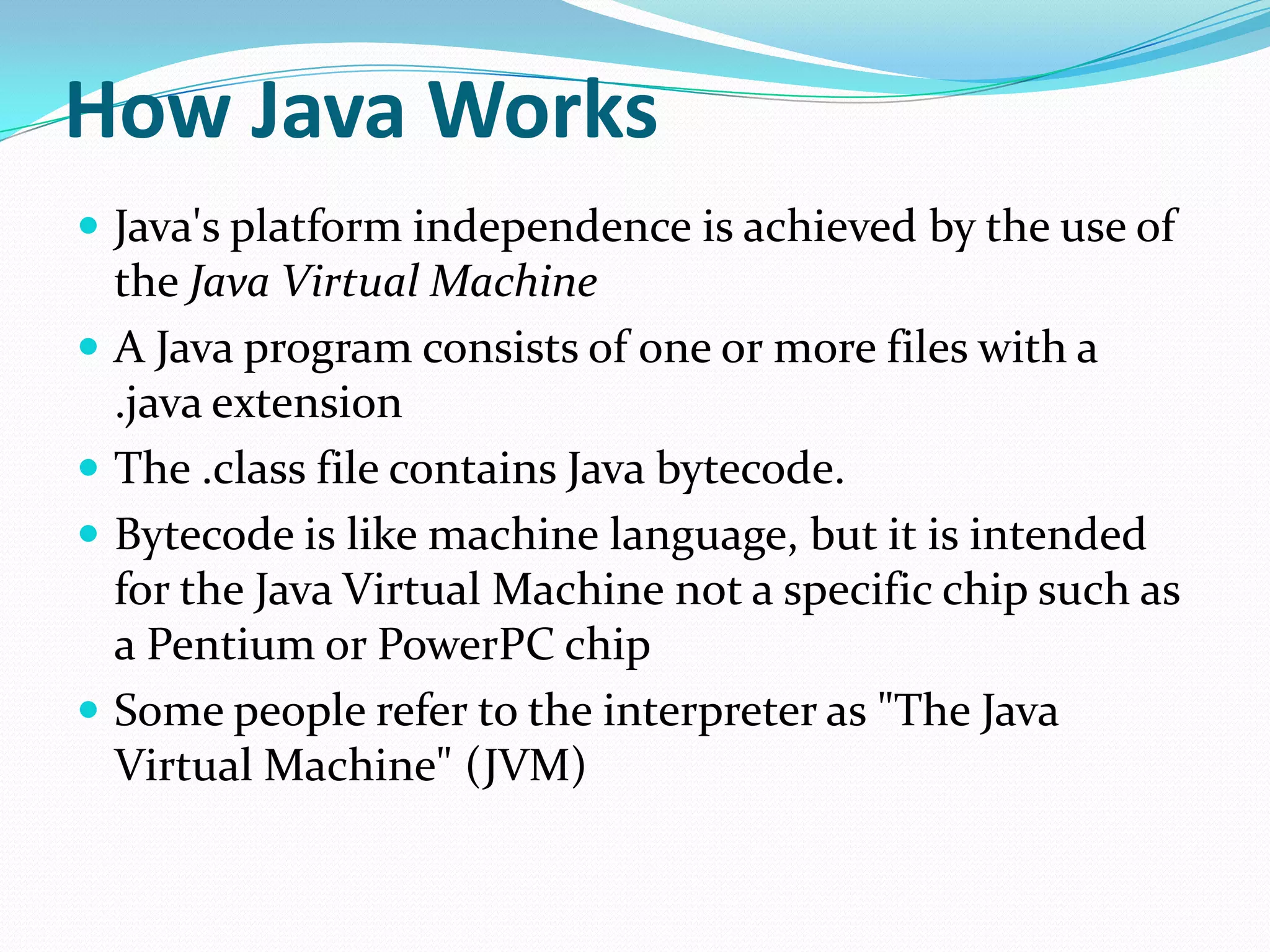

11. How Java Works
Java's platform independence is achieved by the use of
the Java Virtual Machine
A Java program consists of one or more files with a
.java extension
The .class file contains Java bytecode.
Bytecode is like machine language, but it is intended
for the Java Virtual Machine not a specific chip such as
a Pentium or PowerPC chip
Some people refer to the interpreter as "The Java
Virtual Machine" (JVM)

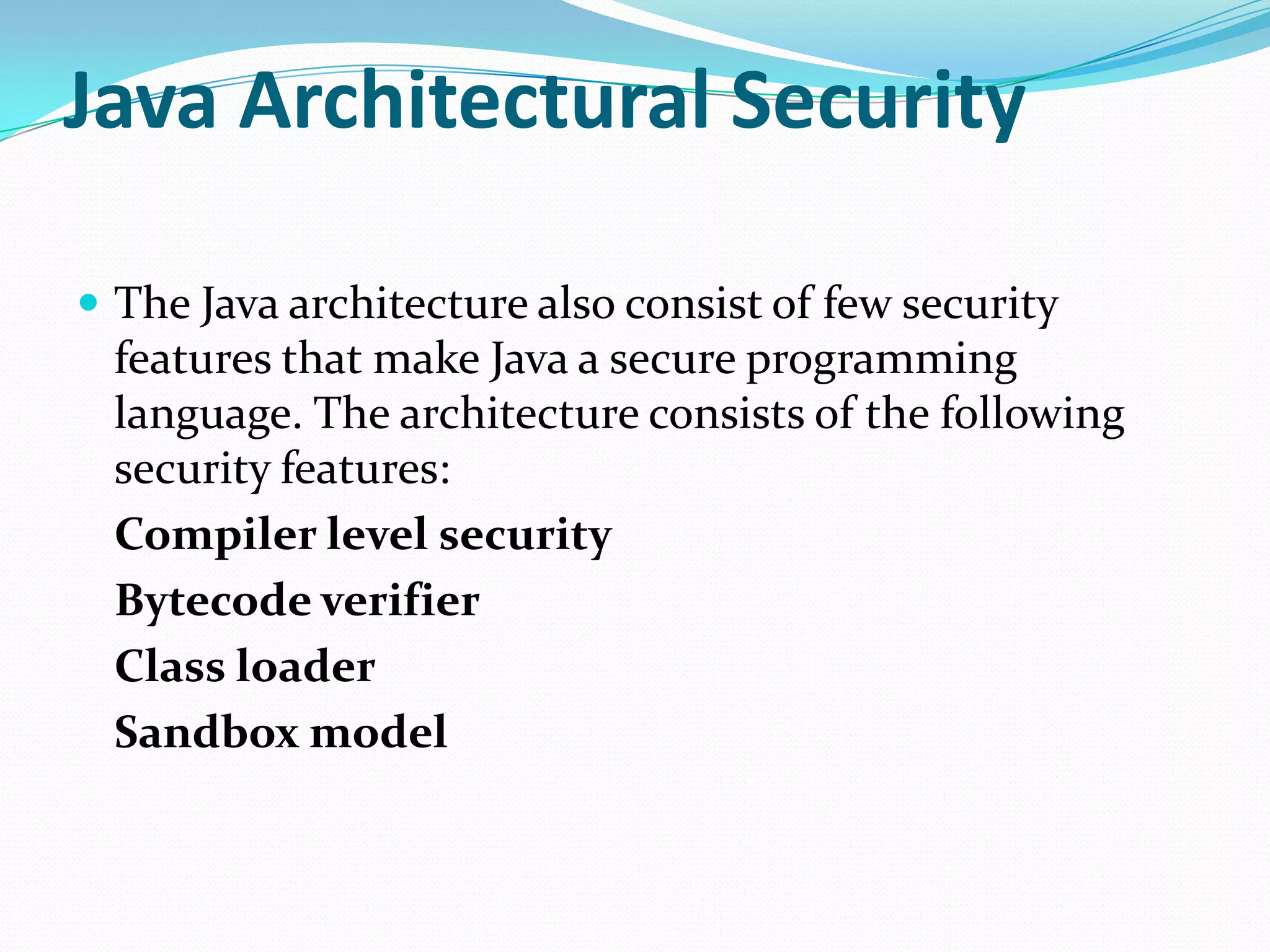

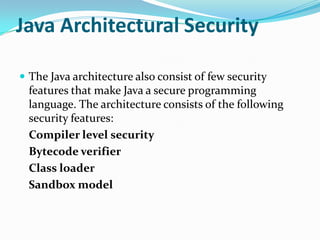

12. Java Architectural Security
The Java architecture also consist of few security
features that make Java a secure programming
language. The architecture consists of the following
security features:
Compiler level security
Bytecode verifier
Class loader
Sandbox model

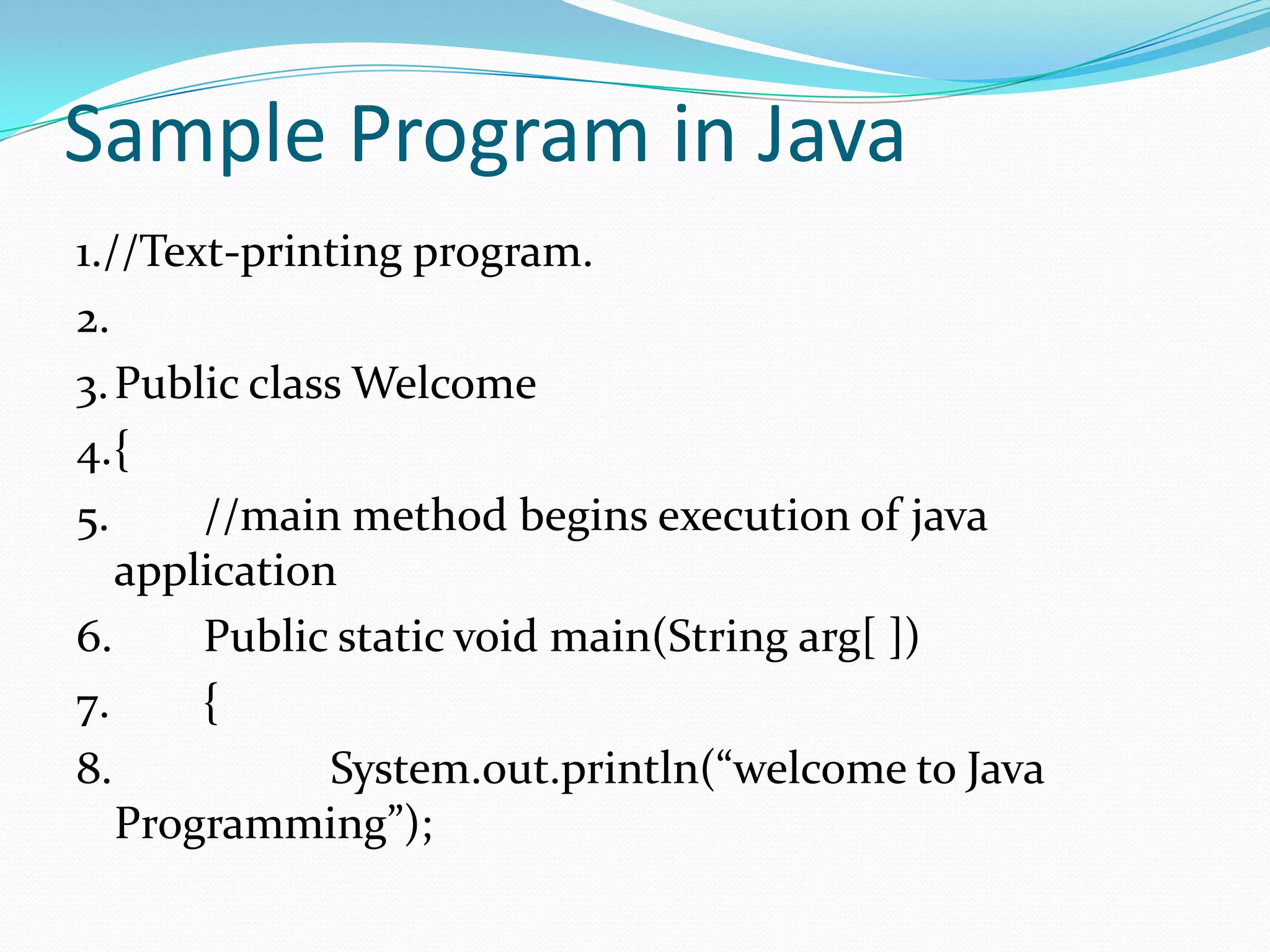

13. Sample Program in Java
1.//Text-printing program.
2.
3. Public class Welcome
4.{
5.
//main method begins execution of java
application
6.
Public static void main(String arg[ ])
7.
{
8.
System.out.println(“welcome to Java
Programming”);

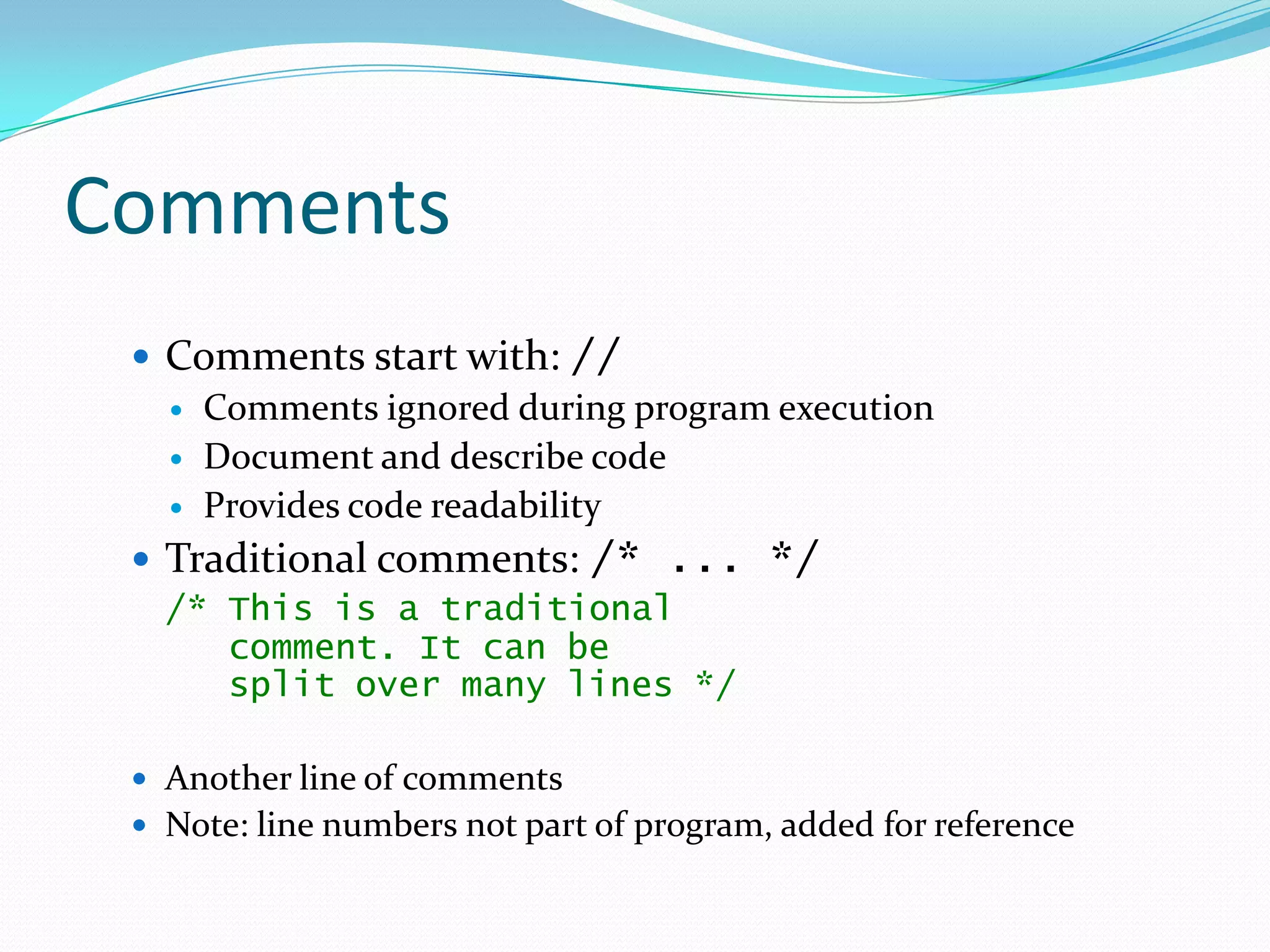

15. Comments
Comments start with: //
Comments ignored during program execution
Document and describe code
Provides code readability
Traditional comments: /* ... */
/* This is a traditional
comment. It can be
split over many lines */
Another line of comments
Note: line numbers not part of program, added for reference

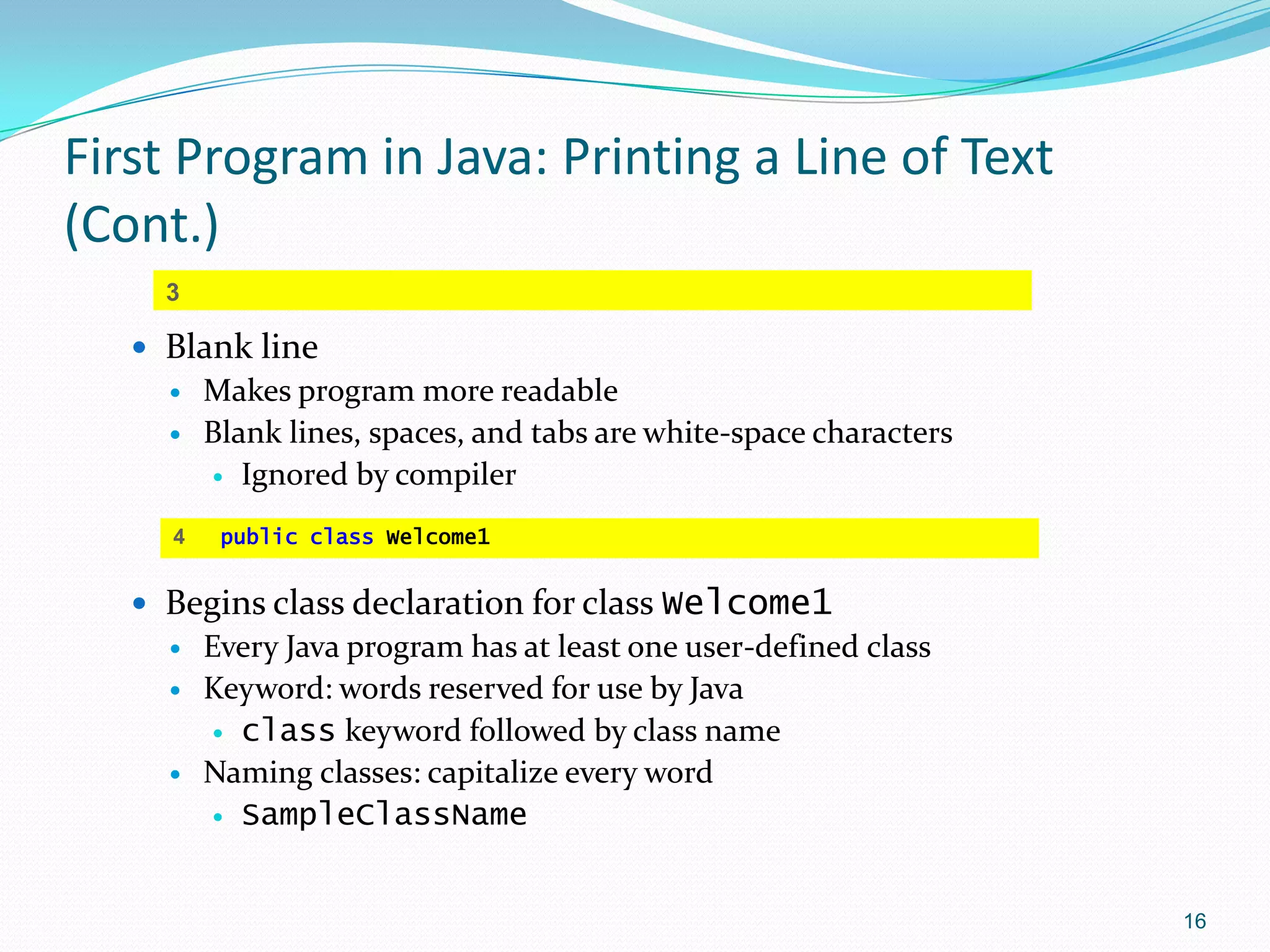

16. First Program in Java: Printing a Line of Text
(Cont.)
3
Blank line
4
Makes program more readable
Blank lines, spaces, and tabs are white-space characters
Ignored by compiler
public class Welcome1
Begins class declaration for class Welcome1
Every Java program has at least one user-defined class
Keyword: words reserved for use by Java
class keyword followed by class name
Naming classes: capitalize every word
SampleClassName
16

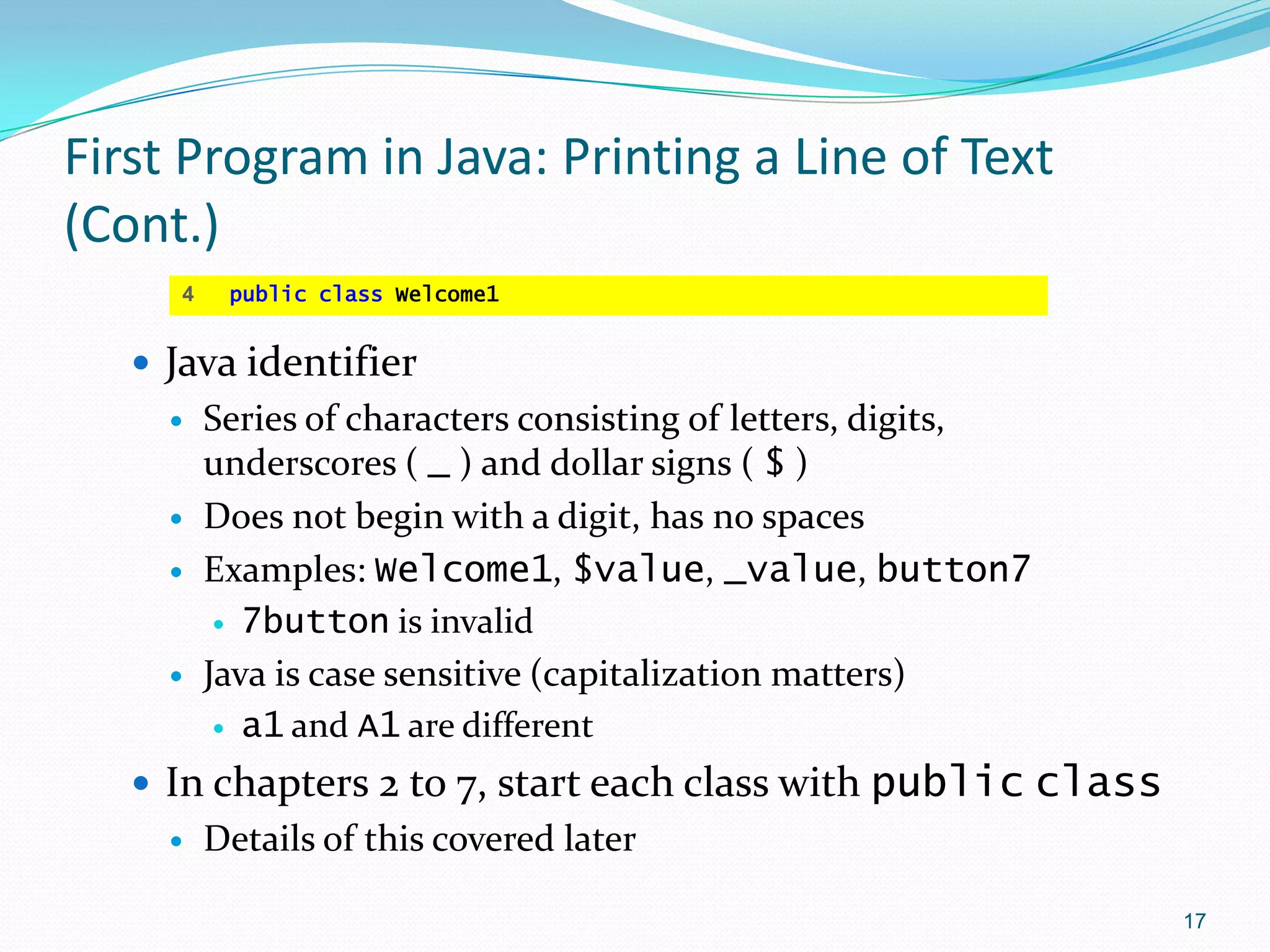

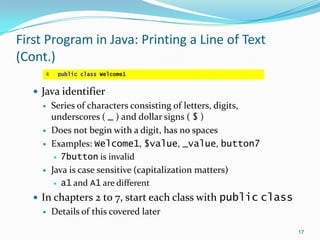

17. First Program in Java: Printing a Line of Text
(Cont.)
4
public class Welcome1
Java identifier
Series of characters consisting of letters, digits,
underscores ( _ ) and dollar signs ( $ )
Does not begin with a digit, has no spaces
Examples: Welcome1, $value, _value, button7
7button is invalid
Java is case sensitive (capitalization matters)
a1 and A1 are different
In chapters 2 to 7, start each class with public class
Details of this covered later
17

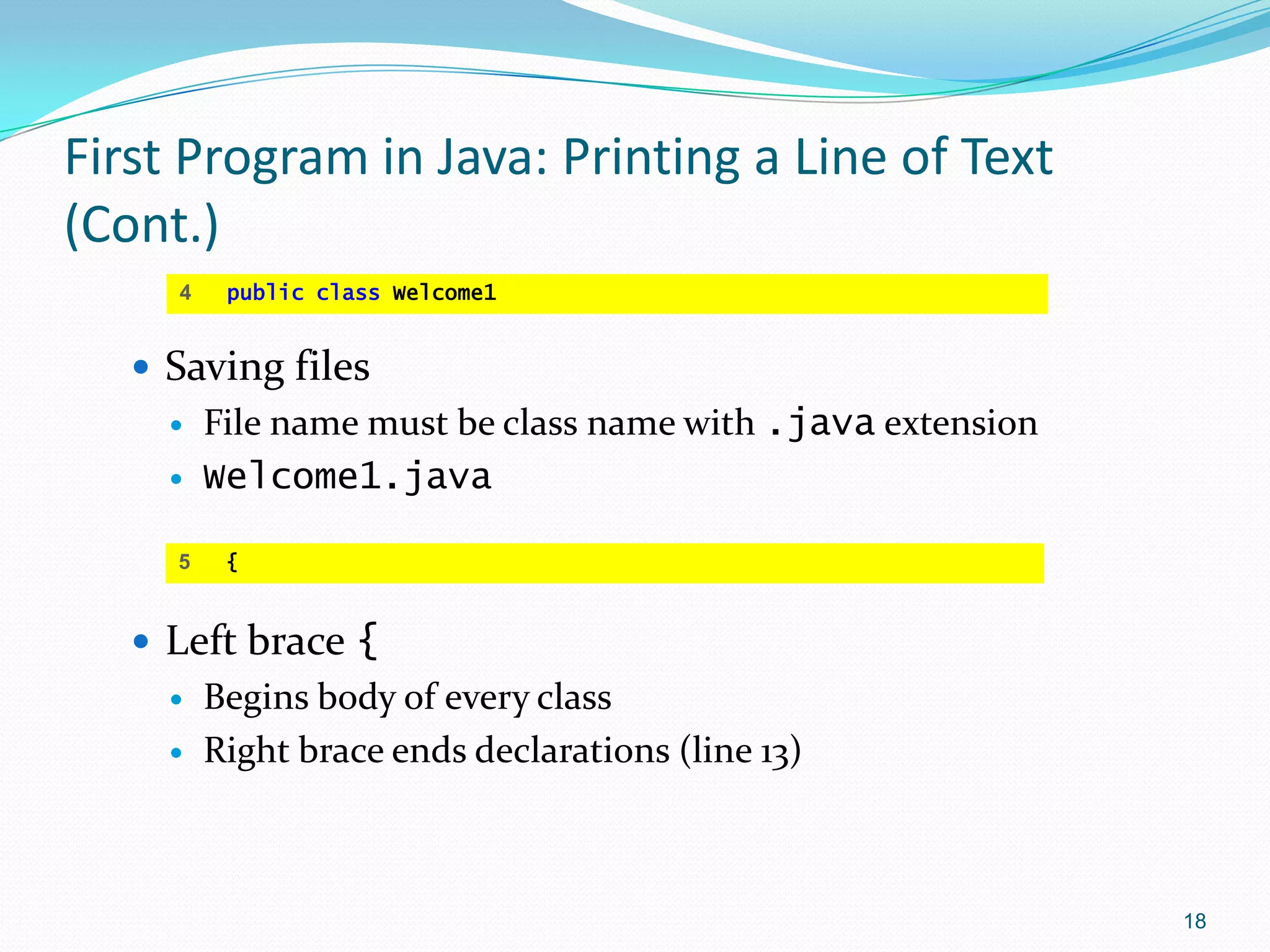

18. First Program in Java: Printing a Line of Text
(Cont.)
4
public class Welcome1
Saving files
5
File name must be class name with .java extension
Welcome1.java
{
Left brace {
Begins body of every class
Right brace ends declarations (line 13)
18

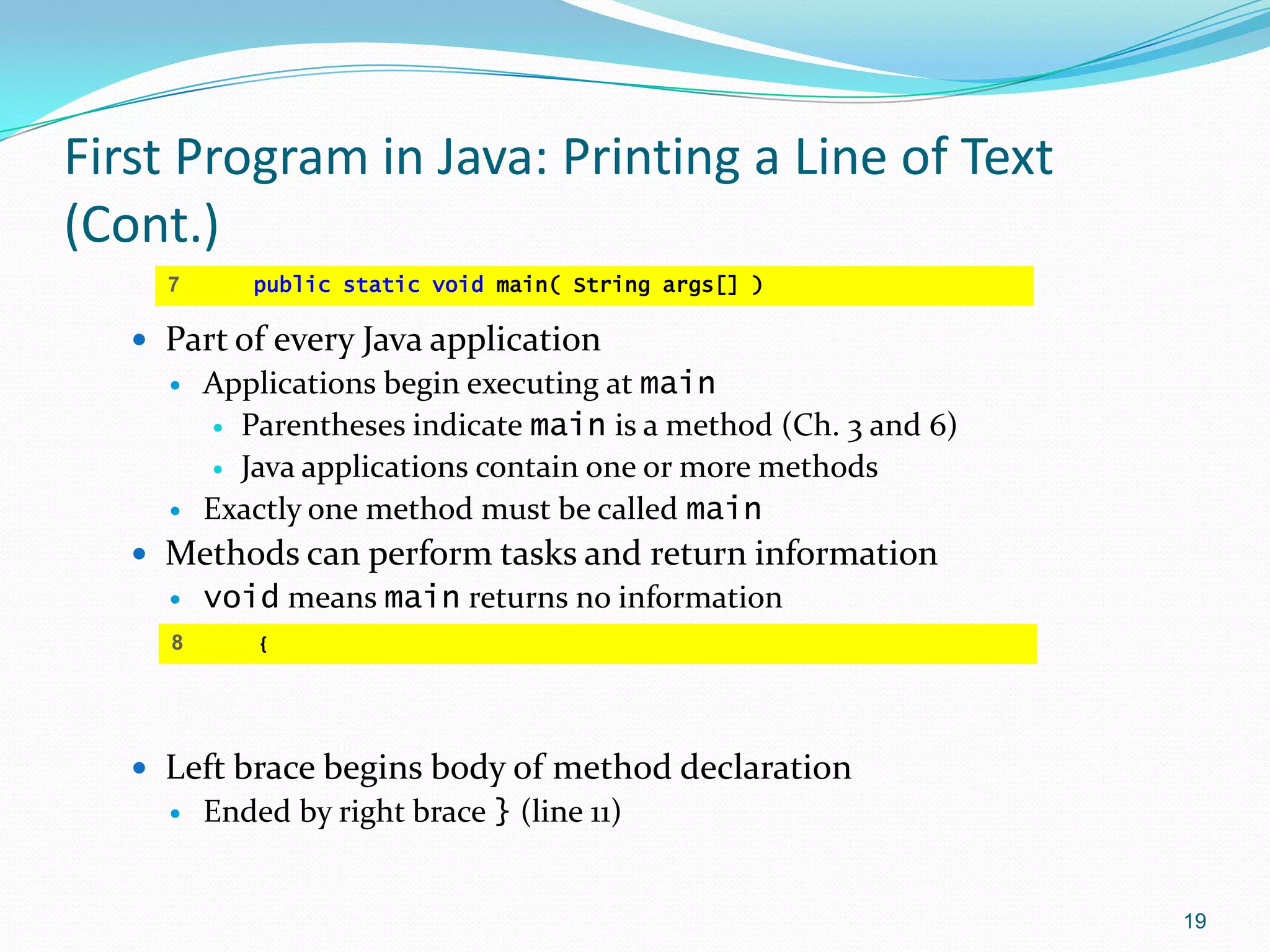

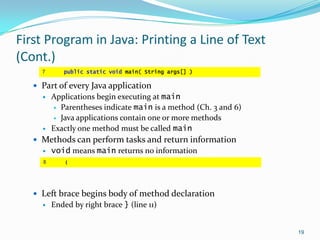

19. First Program in Java: Printing a Line of Text
(Cont.)
7
public static void main( String args[] )
Part of every Java application
Applications begin executing at main
Parentheses indicate main is a method (Ch. 3 and 6)
Java applications contain one or more methods
Exactly one method must be called main
Methods can perform tasks and return information
8
void means main returns no information
For now, mimic main's first line
{
Left brace begins body of method declaration
Ended by right brace } (line 11)
19

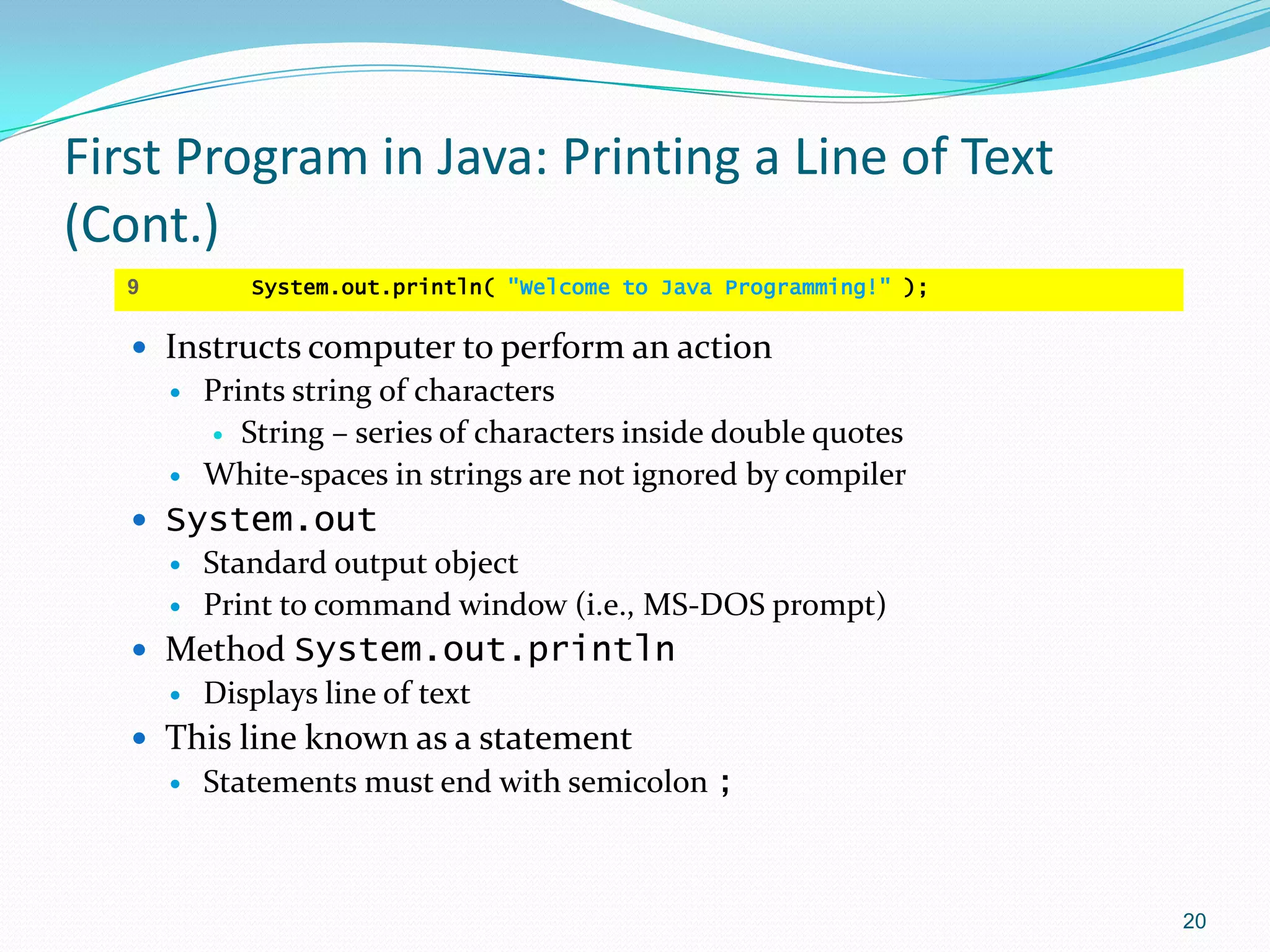

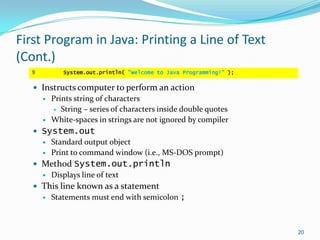

20. First Program in Java: Printing a Line of Text
(Cont.)
System.out.println( "Welcome to Java Programming!" );
9
Instructs computer to perform an action
Prints string of characters
String – series of characters inside double quotes
White-spaces in strings are not ignored by compiler
System.out
Standard output object
Print to command window (i.e., MS-DOS prompt)
Method System.out.println
Displays line of text
This line known as a statement
Statements must end with semicolon ;
20

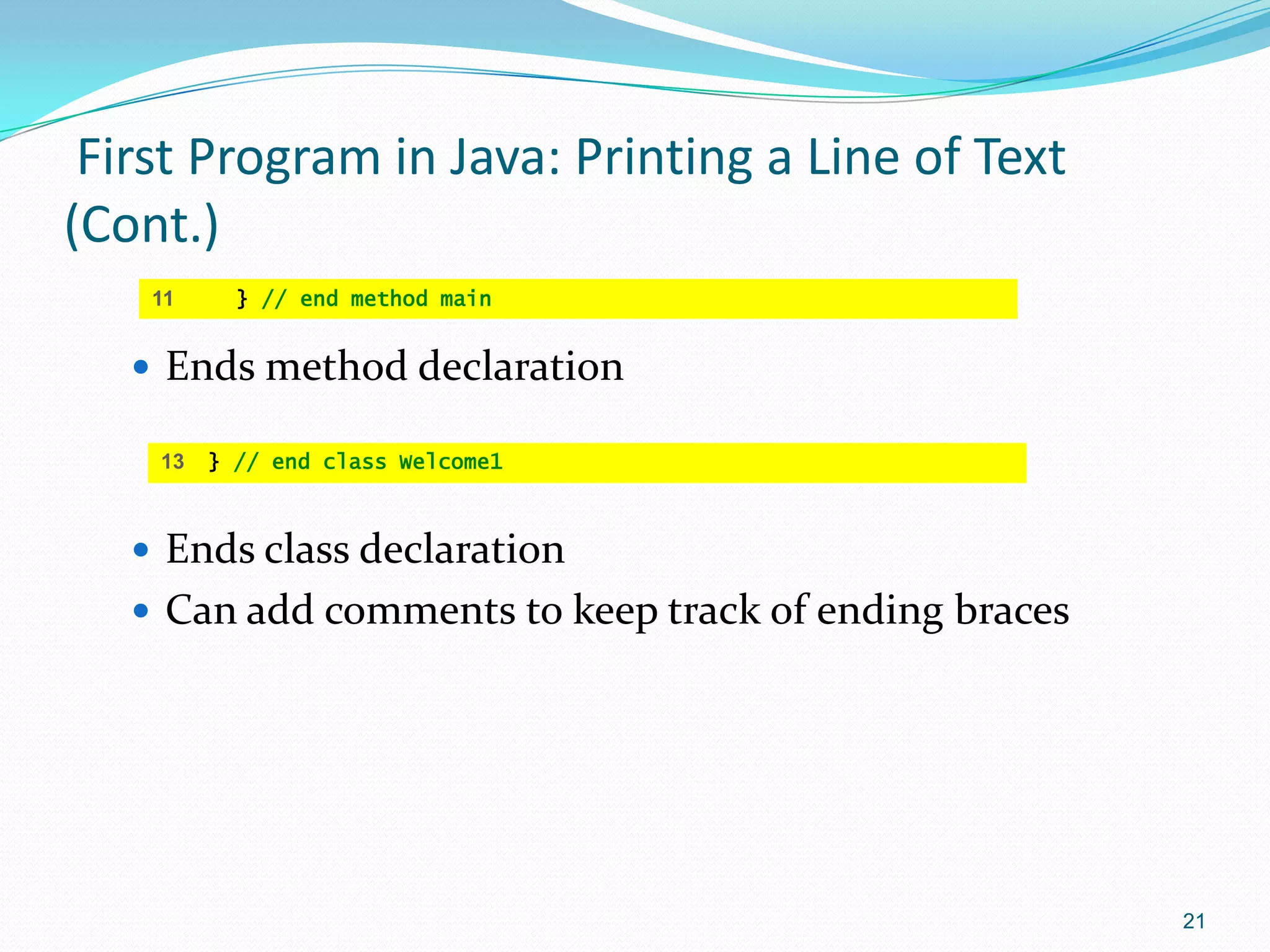

21. First Program in Java: Printing a Line of Text
(Cont.)
11
} // end method main
Ends method declaration
13
} // end class Welcome1
Ends class declaration
Can add comments to keep track of ending braces
21

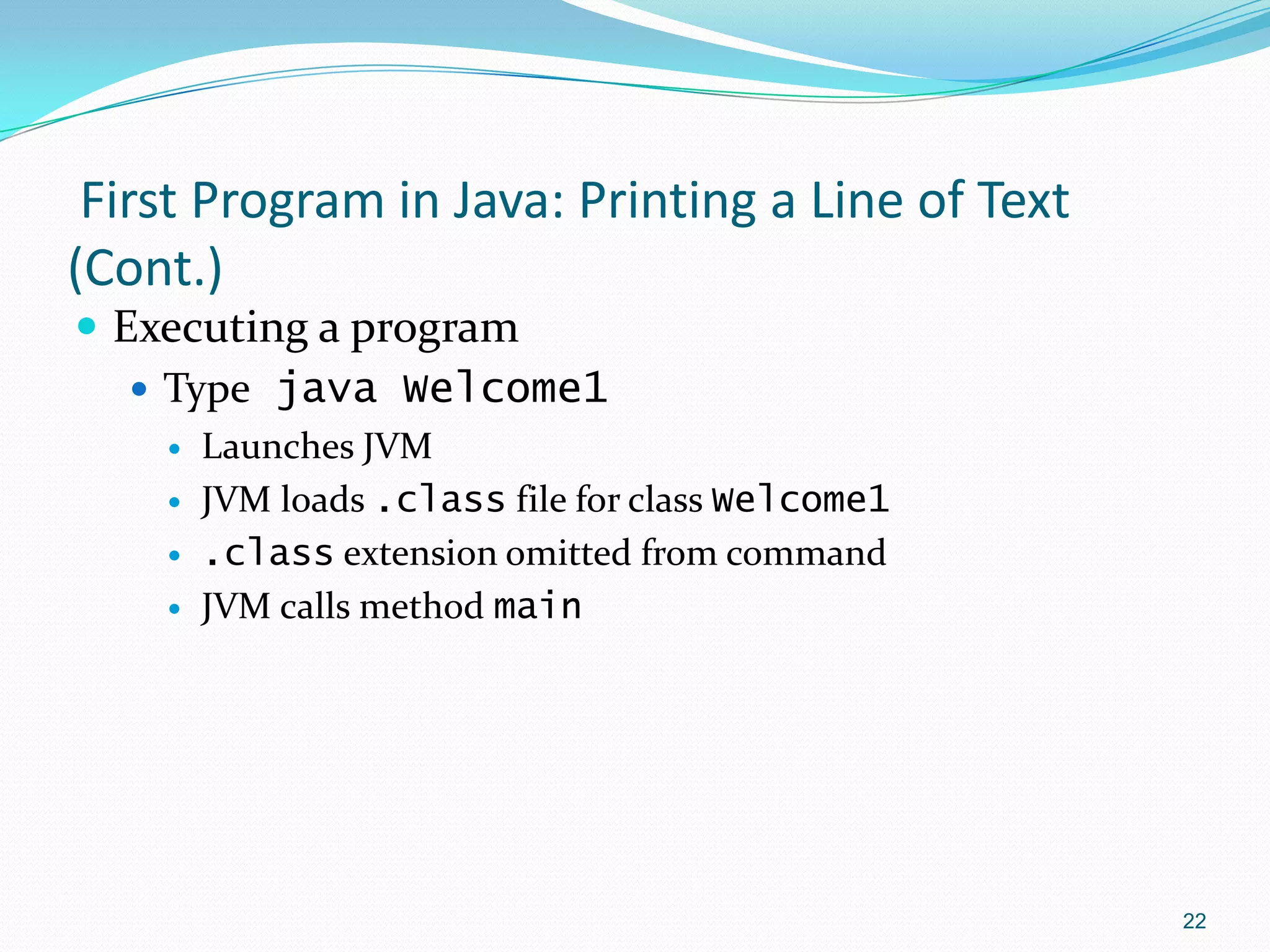

22. First Program in Java: Printing a Line of Text
(Cont.)
Executing a program
Type java Welcome1
Launches JVM
JVM loads .class file for class Welcome1
.class extension omitted from command
JVM calls method main
22

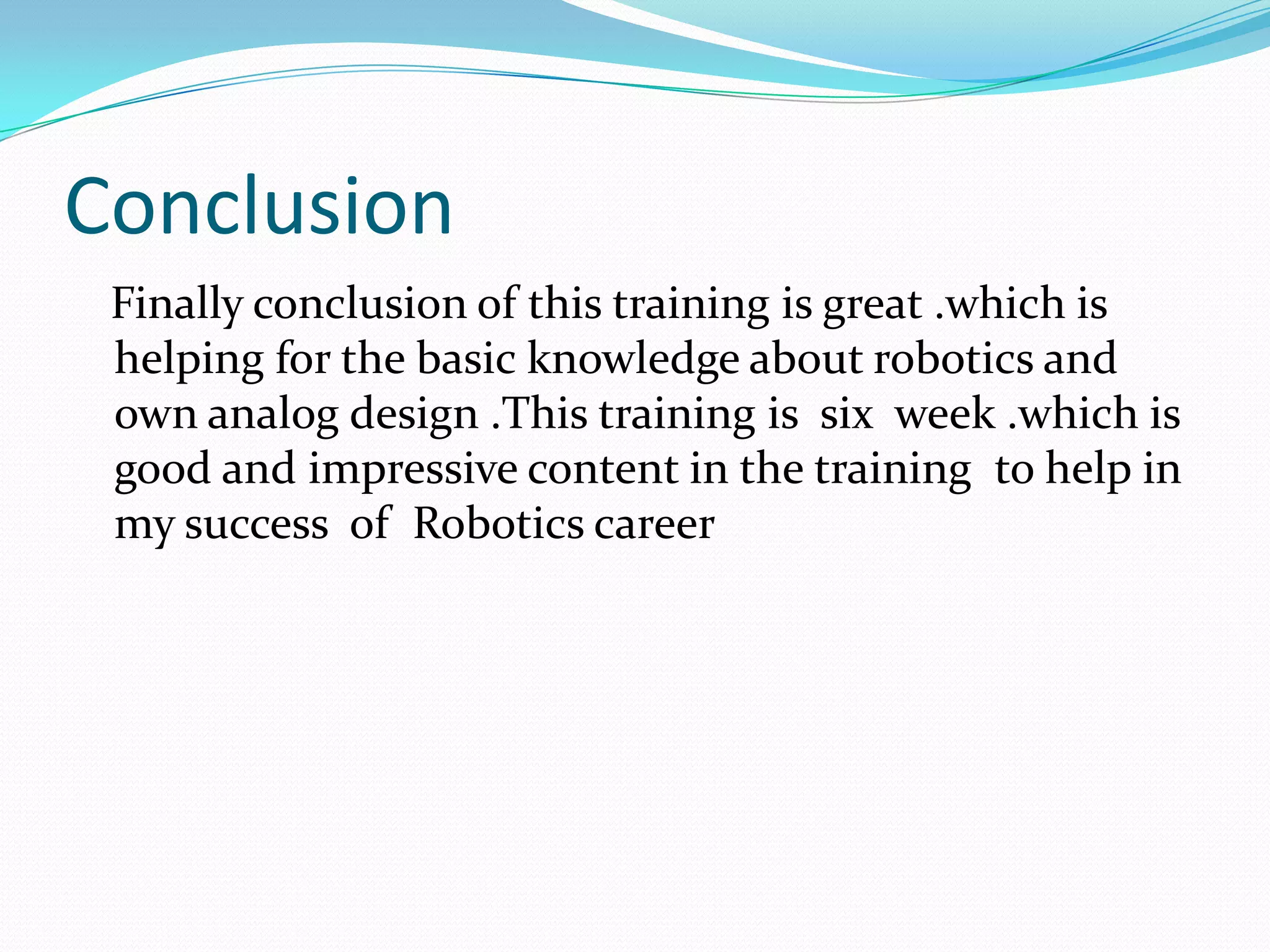

23. Conclusion
Finally conclusion of this training is great .which is
helping for the basic knowledge about robotics and
own analog design .This training is six week .which is
good and impressive content in the training to help in
my success of Robotics career
