Introduction to Apache Accumulo
1. Introduction to Apache Accumulo provides an overview of the key-value store Accumulo. 2. Accumulo is a sorted, distributed key-value store that enables interactive access to trillions of records across hundreds to thousands of servers. It provides cell-based access control and customizable server-side processing. 3. The document discusses Accumulo's history and architecture, including how it uses Hadoop for storage and Zookeeper for coordination. It also covers Accumulo's features like iterators for server-side programming and cell-level access control labels.
More Related Content
Similar to Introduction to Apache Accumulo
Introduction to Apache Accumulo
- 1. Introduction to ApacheAccumulo Boulder/Denver BigData Meetup - March 21,2012 Jared Winick @jaredwinick

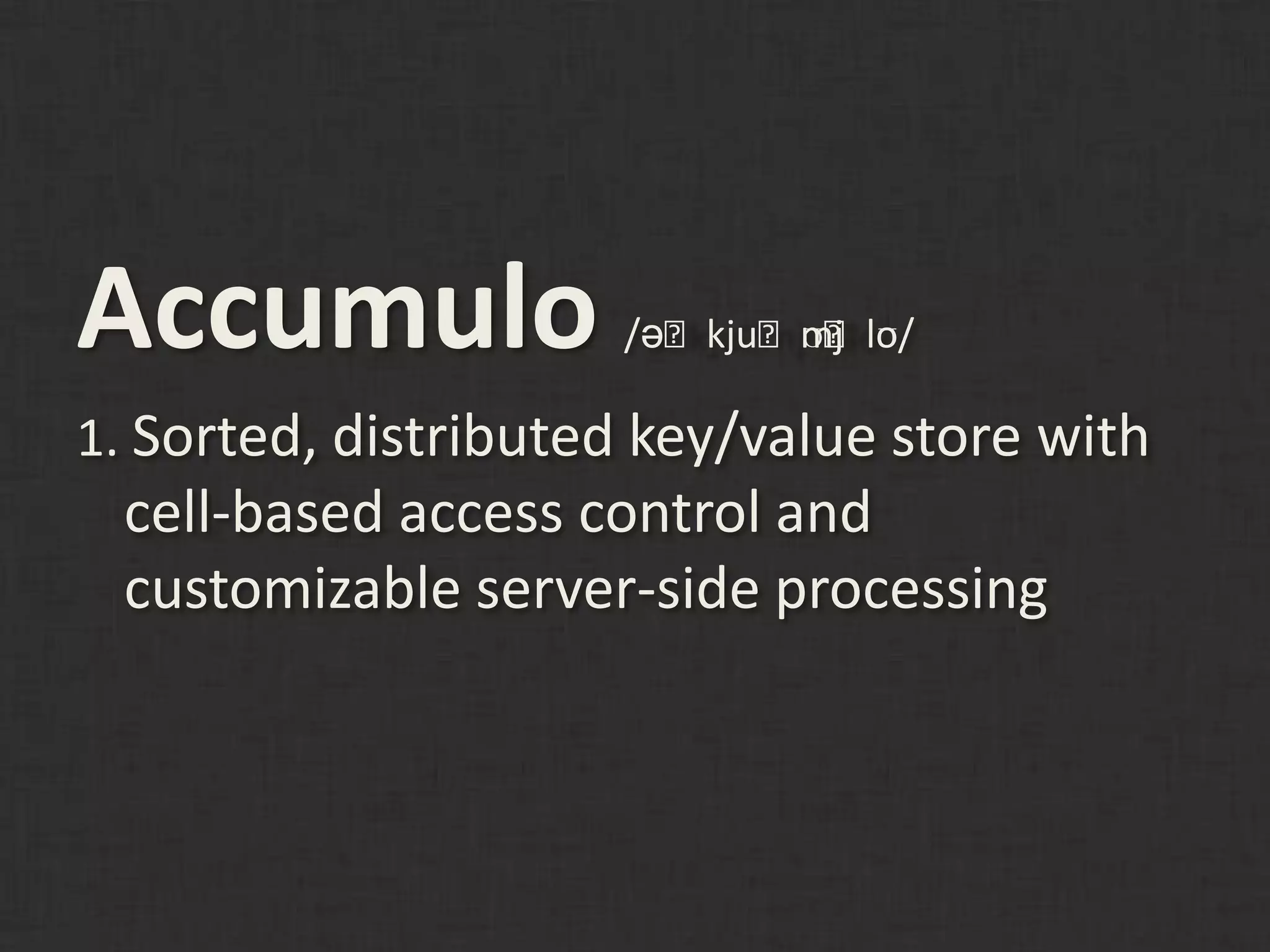

- 2. Accumulo /əˈkjuˈmj ʊ/ ʊˈlo 1. Sorted, distributed key/value store with cell-based access control and customizable server-side processing
- 3.

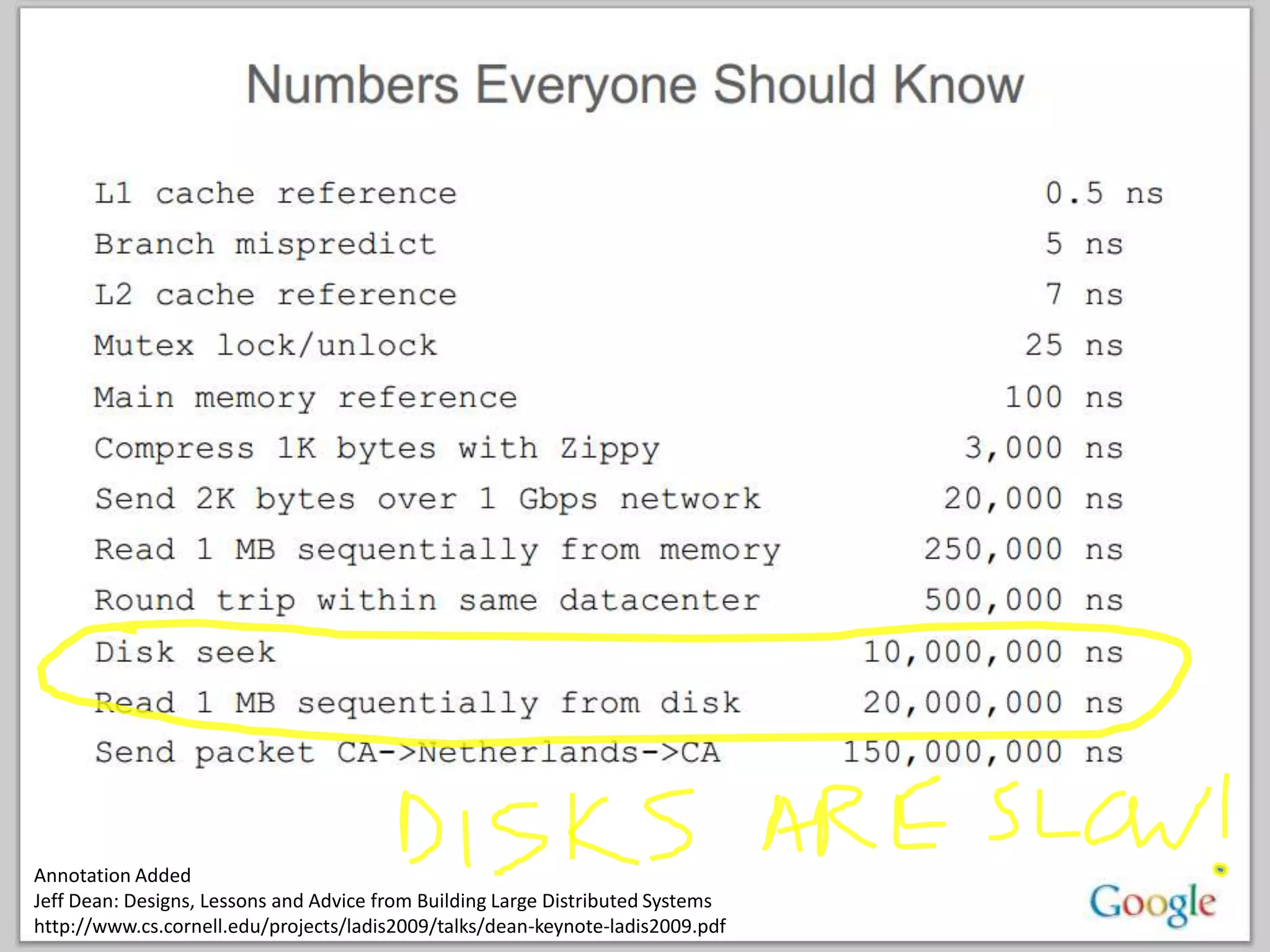

- 4. Annotation Added Jeff Dean:Designs, Lessons and Advice from Building Large Distributed Systems http://www.cs.cornell.edu/projects/ladis2009/talks/dean-keynote-ladis2009.pdf

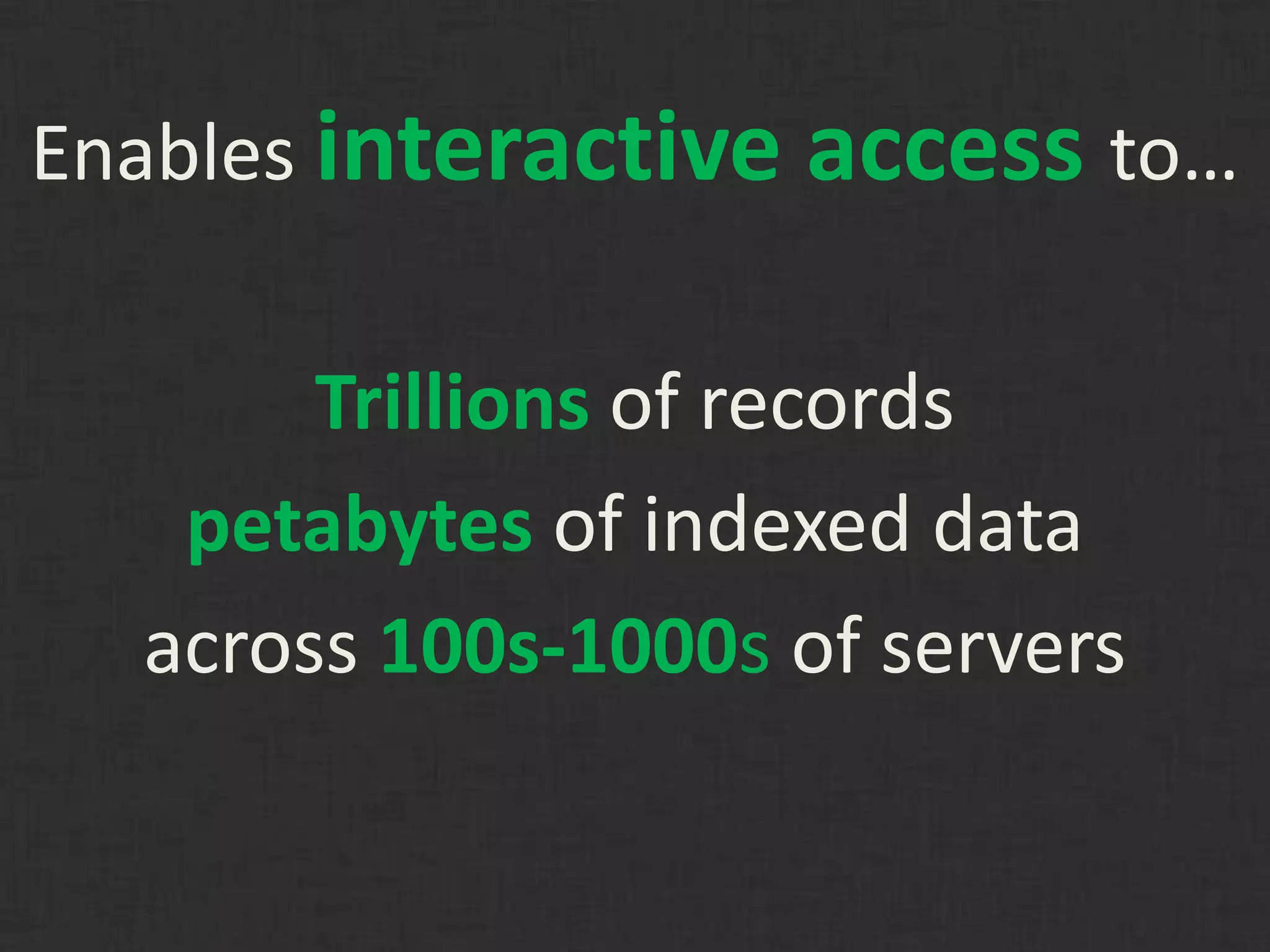

- 5. Enables interactive accessto… Trillions of records petabytes of indexed data across 100s-1000s of servers

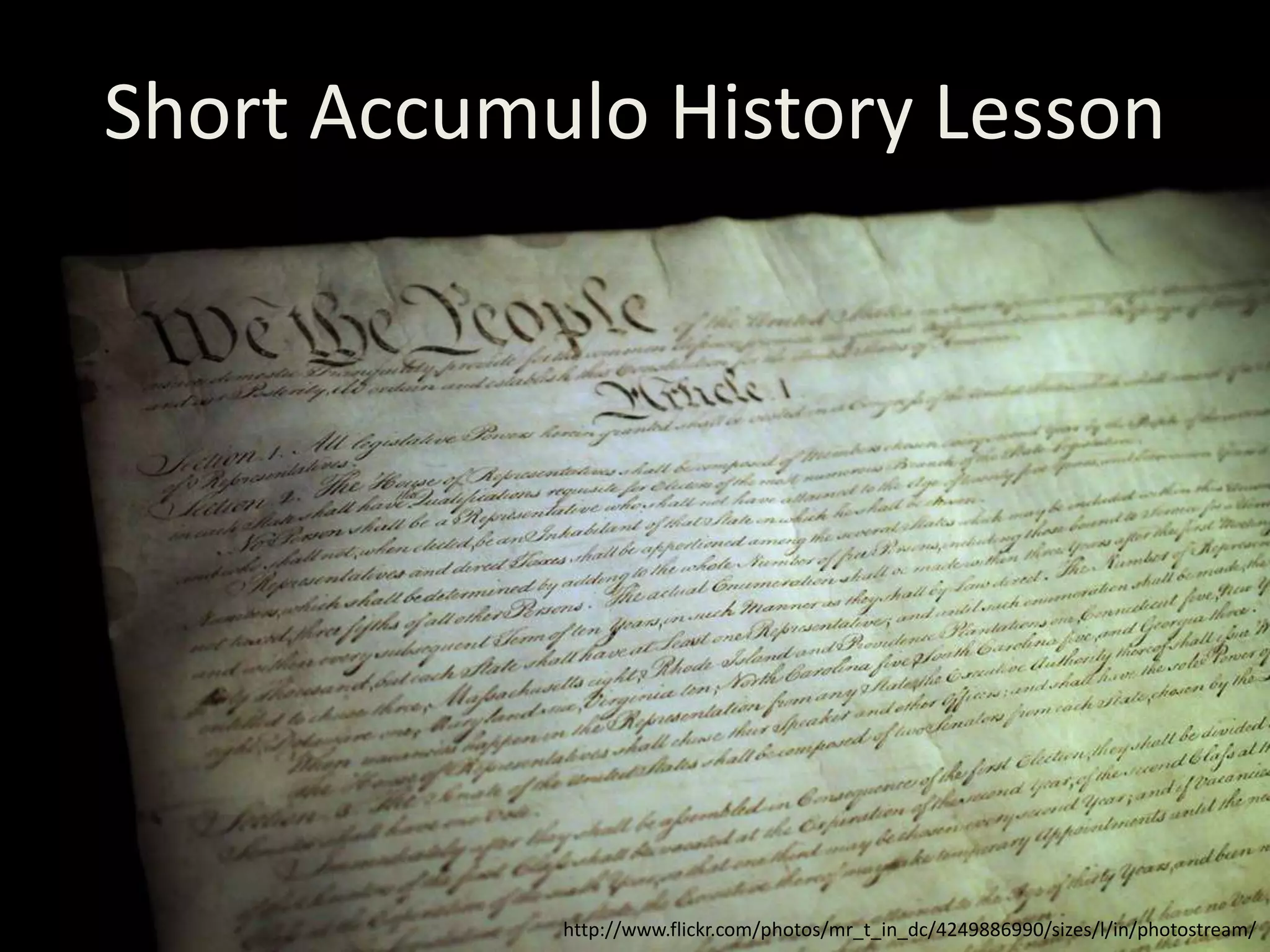

- 6. Short Accumulo HistoryLesson http://www.flickr.com/photos/mr_t_in_dc/4249886990/sizes/l/in/photostream/
- 7.
- 8.
- 9.
- 10.
- 11. Uses of BigTableand Kin (BigTable) (HBase) •Google Analytics1 •Messages3,4,6 •Crawl1 •Insights5,6 •AppEngine Datastore2 •Many more1 (Cassandra) (Accumulo) •Rainbird (realtime analytics)7 •??? 1.) http://static.googleusercontent.com/external_content/untrusted_dlcp/research.google.com/en/us/archive/bigtable-osdi06.pdf 2.) http://code.google.com/appengine/articles/storage_breakdown.html 3.) http://www.facebook.com/note.php?note_id=454991608919 4.) http://mvdirona.com/jrh/TalksAndPapers/KannanMuthukkaruppan_StorageInfraBehindMessages.pdf 5.) http://www.facebook.com/note.php?note_id=10150103900258920 6.) http://borthakur.com/ftp/SIGMODRealtimeHadoopPresentation.pdf 7.) http://www.slideshare.net/kevinweil/rainbird-realtime-analytics-at-twitter-strata-2011

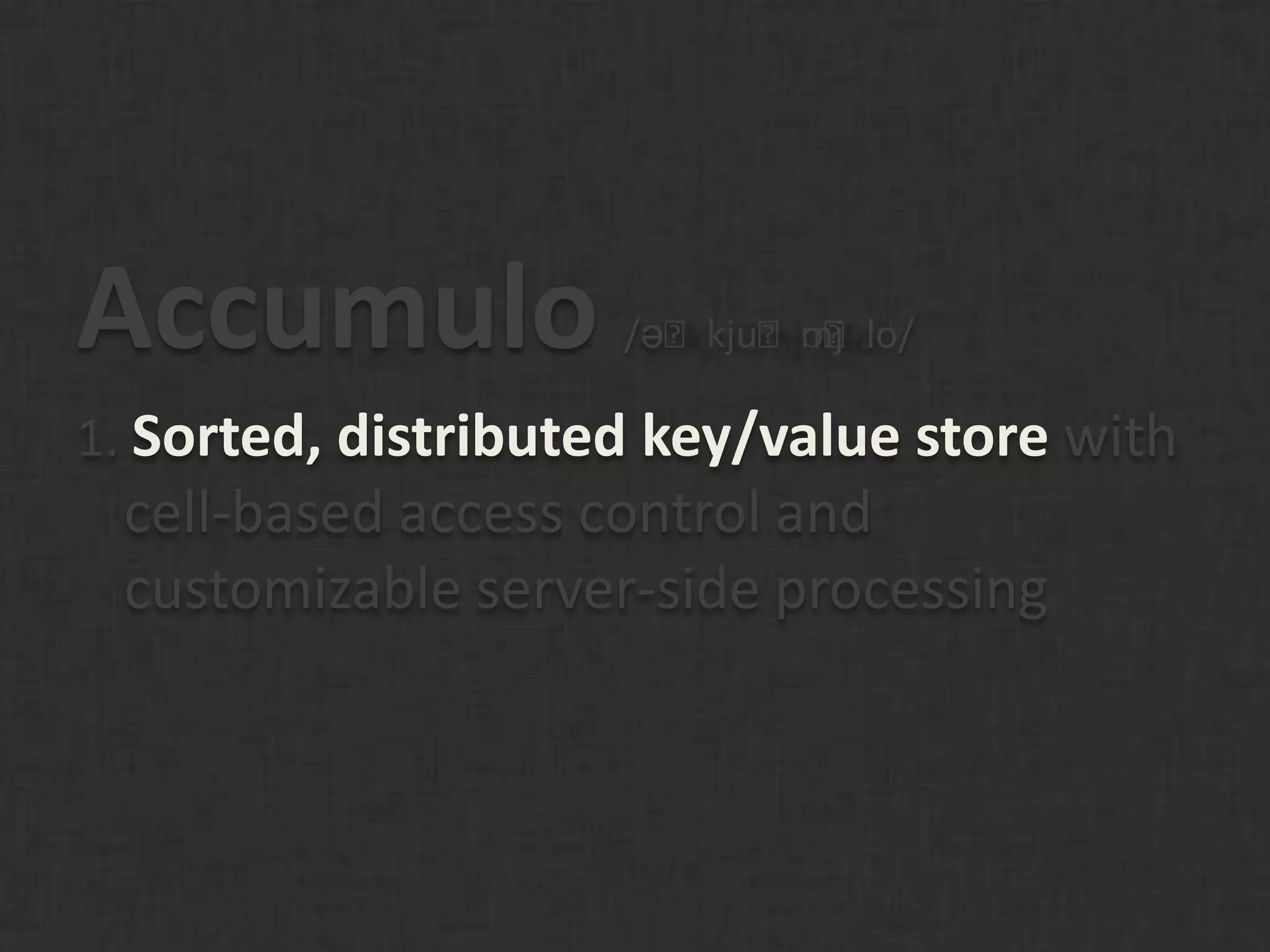

- 12. Accumulo /əˈkjuˈmj ʊ/ ʊˈlo 1. Sorted, distributed key/value store with cell-based access control and customizable server-side processing

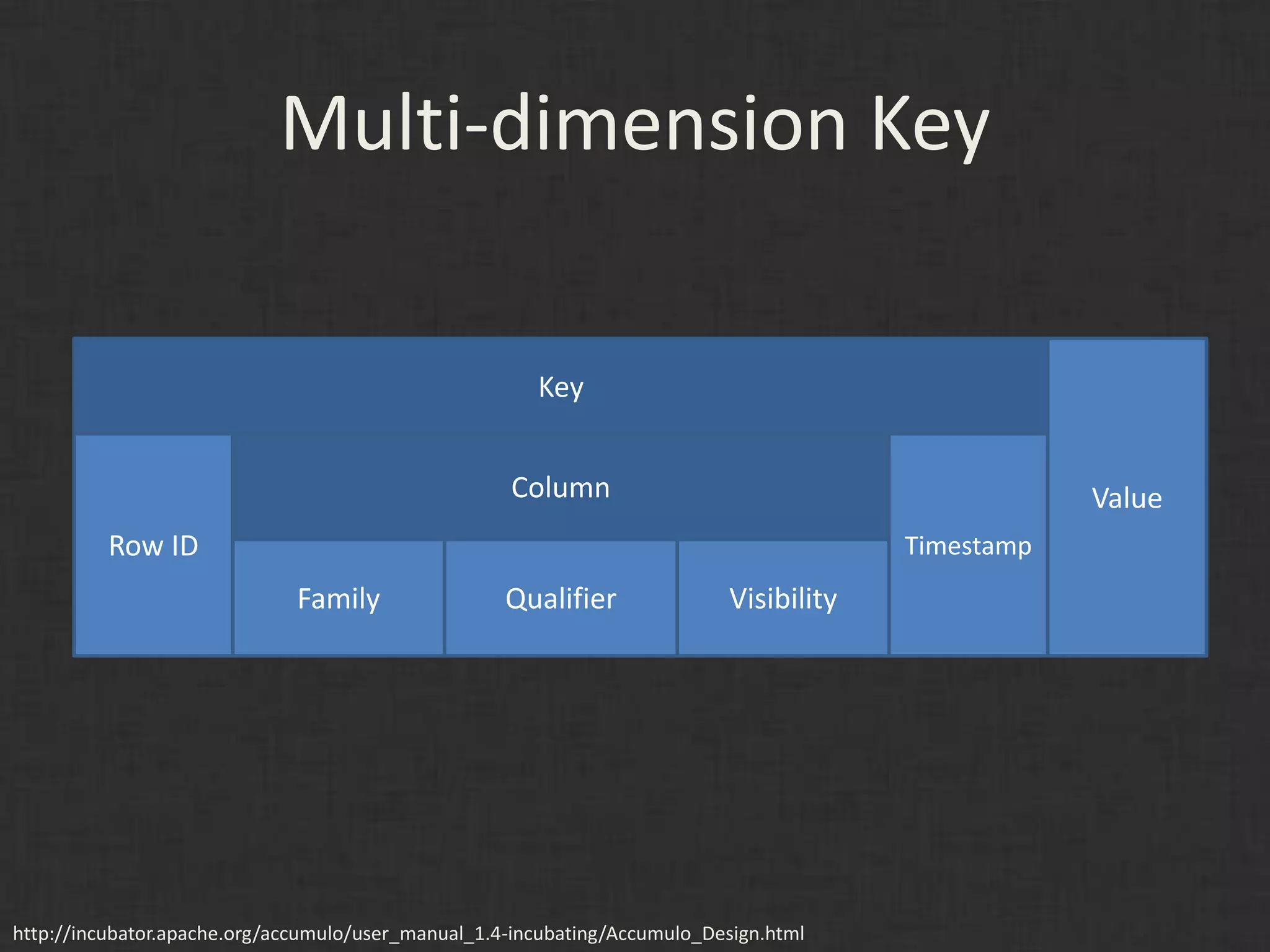

- 13. Multi-dimension Key Key Column Value Row ID Timestamp Family Qualifier Visibility http://incubator.apache.org/accumulo/user_manual_1.4-incubating/Accumulo_Design.html

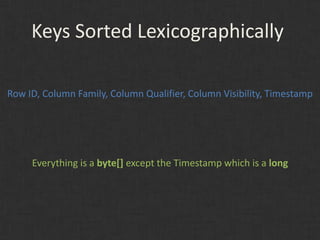

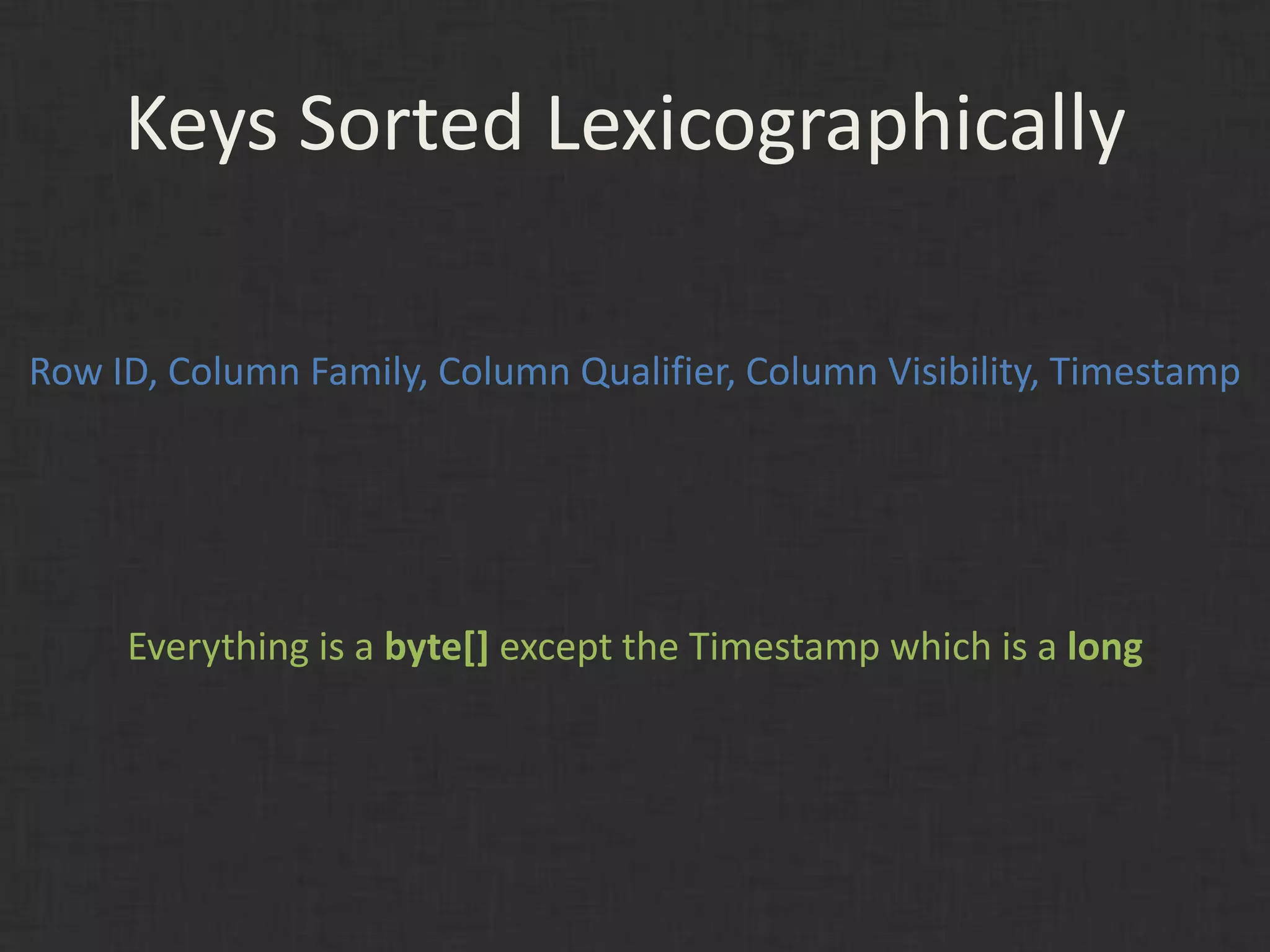

- 14. Keys Sorted Lexicographically RowID, Column Family, Column Qualifier, Column Visibility, Timestamp Everything is a byte[] except the Timestamp which is a long

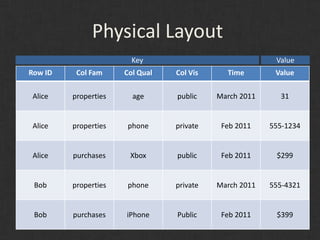

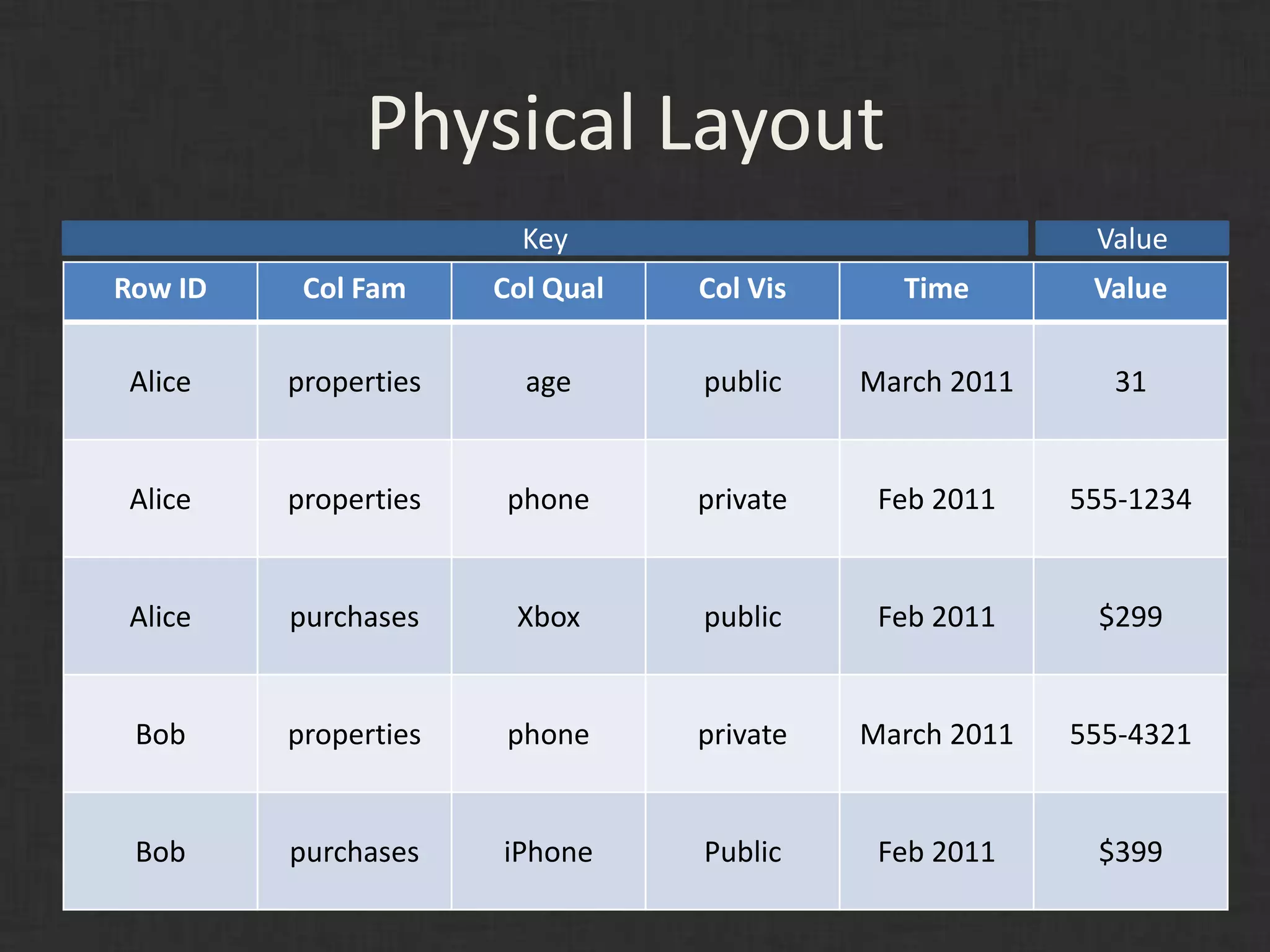

- 15. Physical Layout Key Value Row ID Col Fam Col Qual Col Vis Time Value Alice properties age public March 2011 31 Alice properties phone private Feb 2011 555-1234 Alice purchases Xbox public Feb 2011 $299 Bob properties phone private March 2011 555-4321 Bob purchases iPhone Public Feb 2011 $399

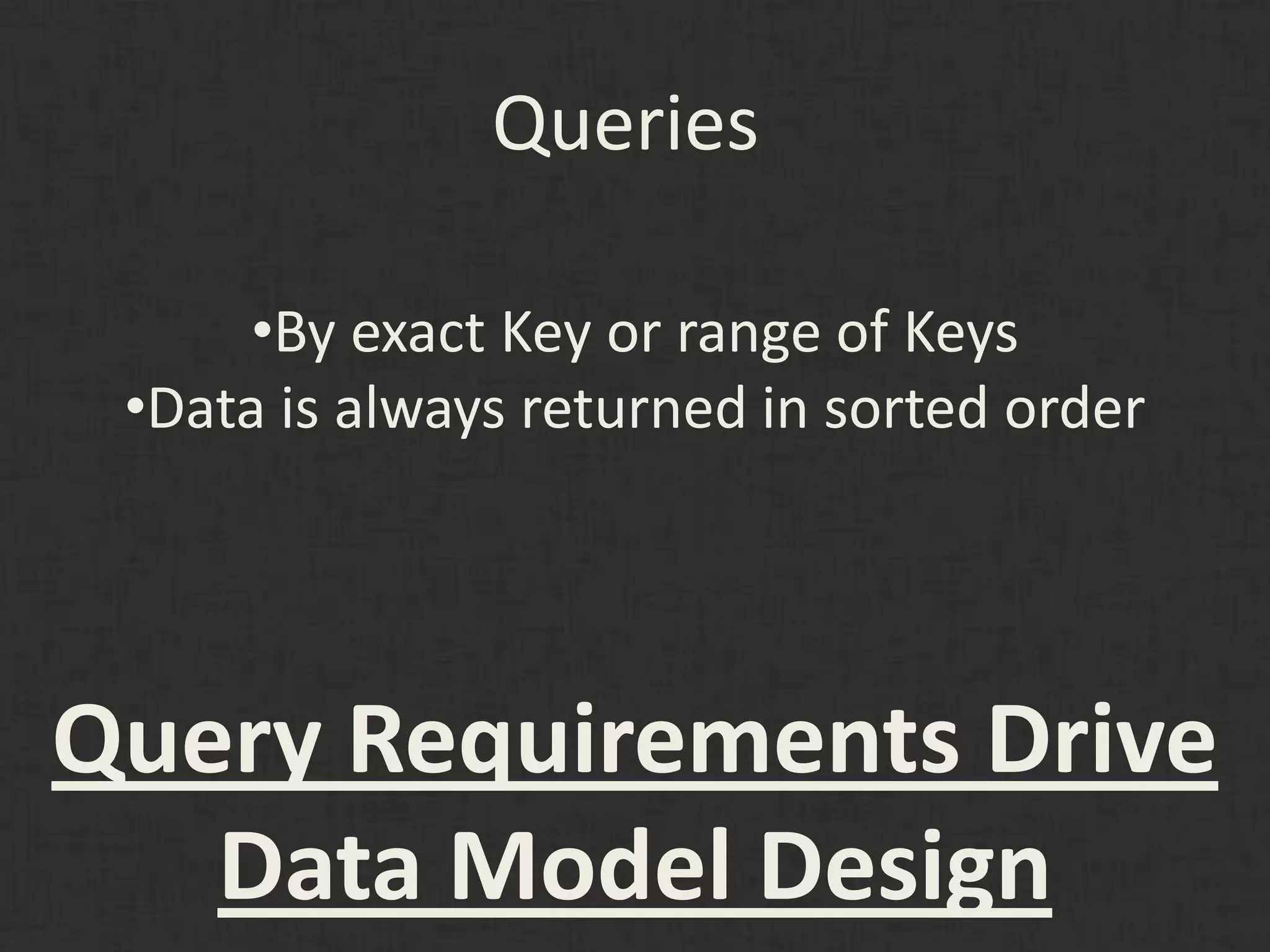

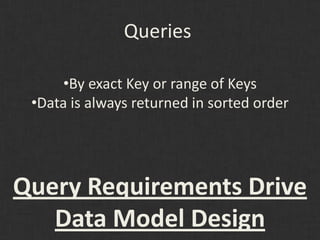

- 16. Queries •By exact Key or range of Keys •Data is always returned in sorted order Query Requirements Drive Data Model Design
- 17.

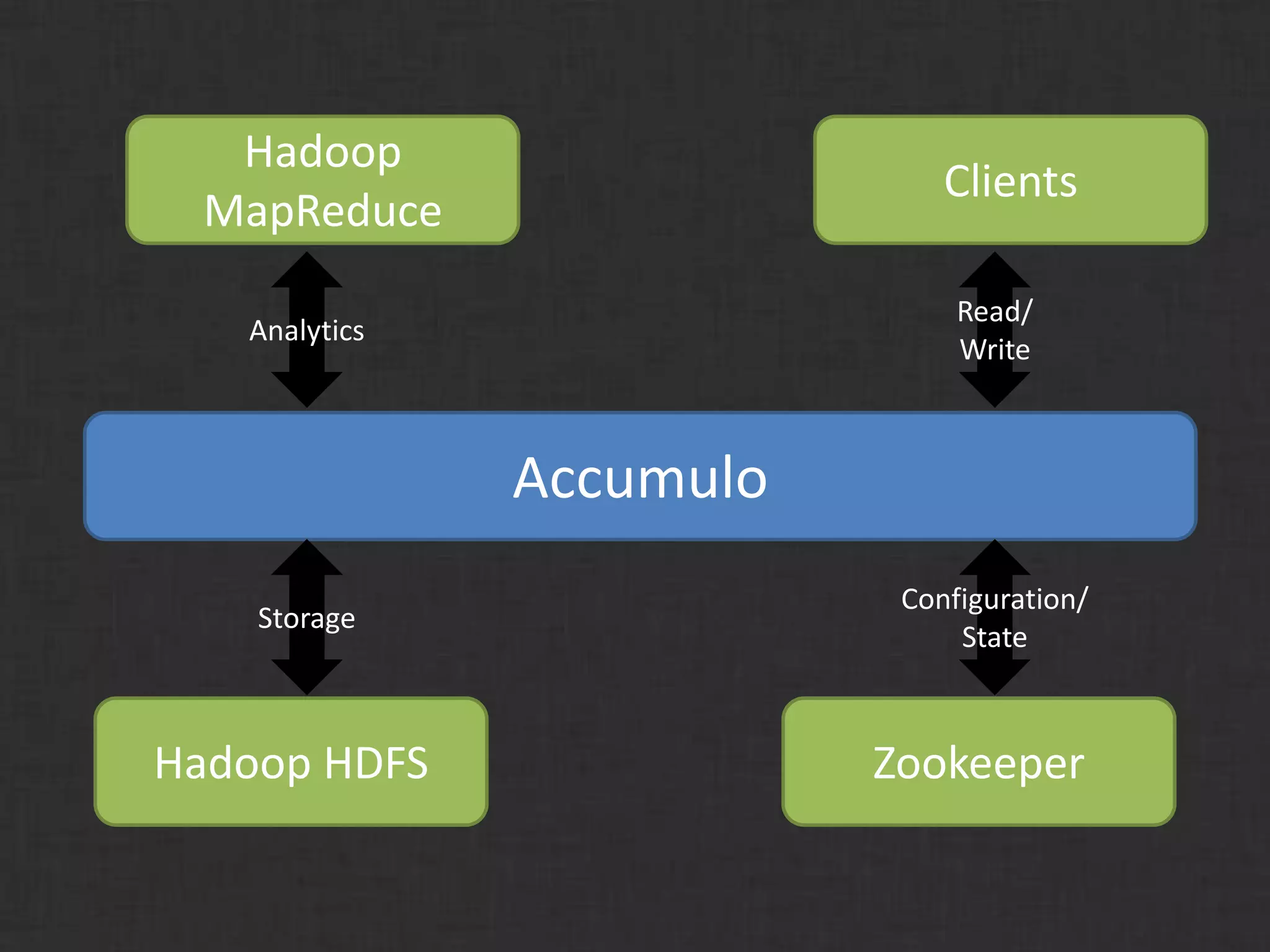

- 18. Hadoop Clients MapReduce Read/ Analytics Write Accumulo Configuration/ Storage State Hadoop HDFS Zookeeper

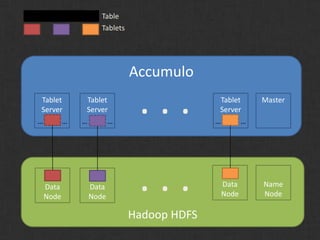

- 19. Table Tablets Accumulo … Tablet Server … … Tablet Server … ... … Tablet Server … Master Data Node Data Node ... Data Node Name Node Hadoop HDFS

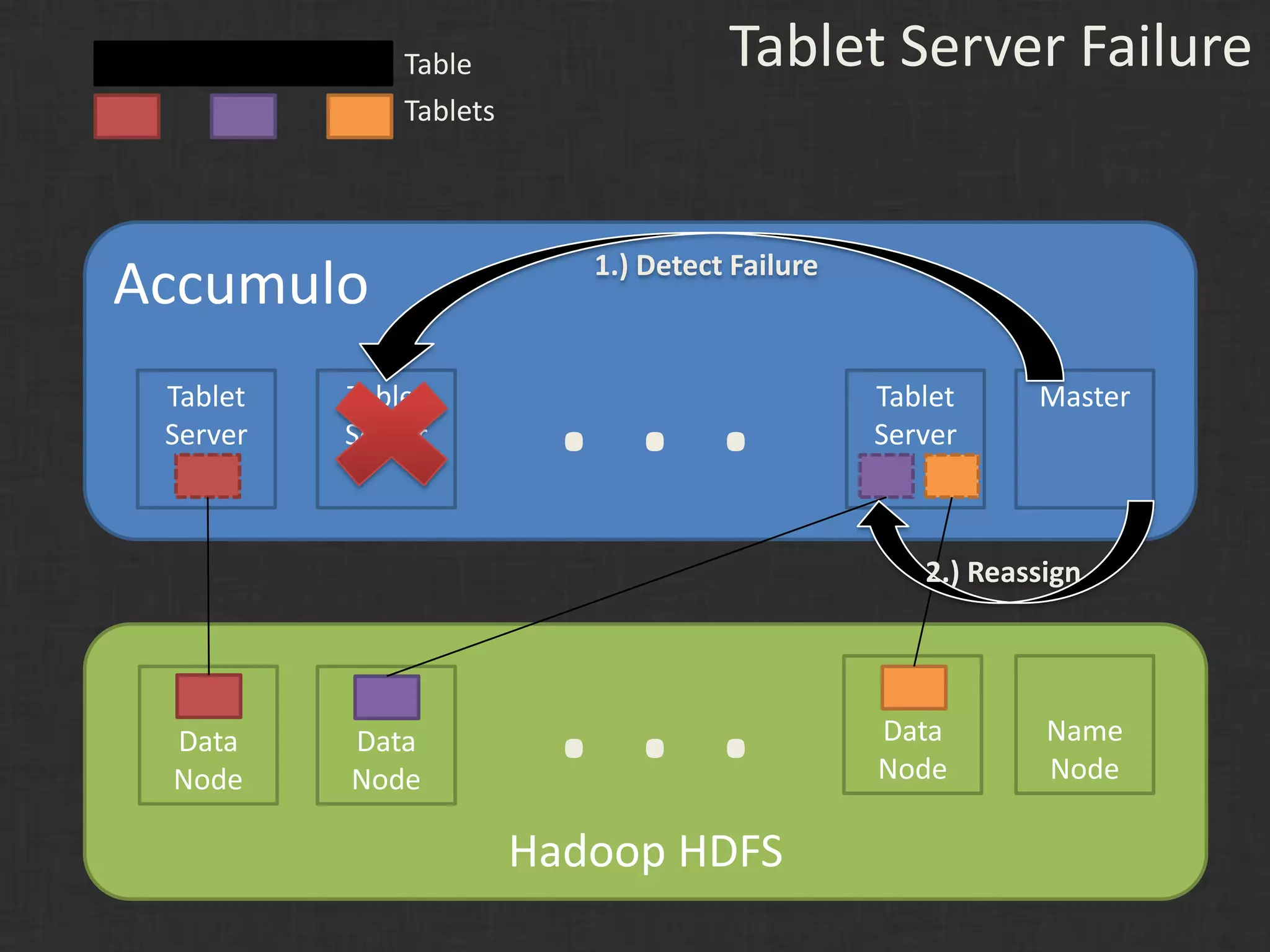

- 20. Table Tablet Server Failure Tablets 1.) Detect Failure Accumulo Tablet Server Tablet Server ... Tablet Server Master 2.) Reassign Data Node Data Node ... Data Node Name Node Hadoop HDFS

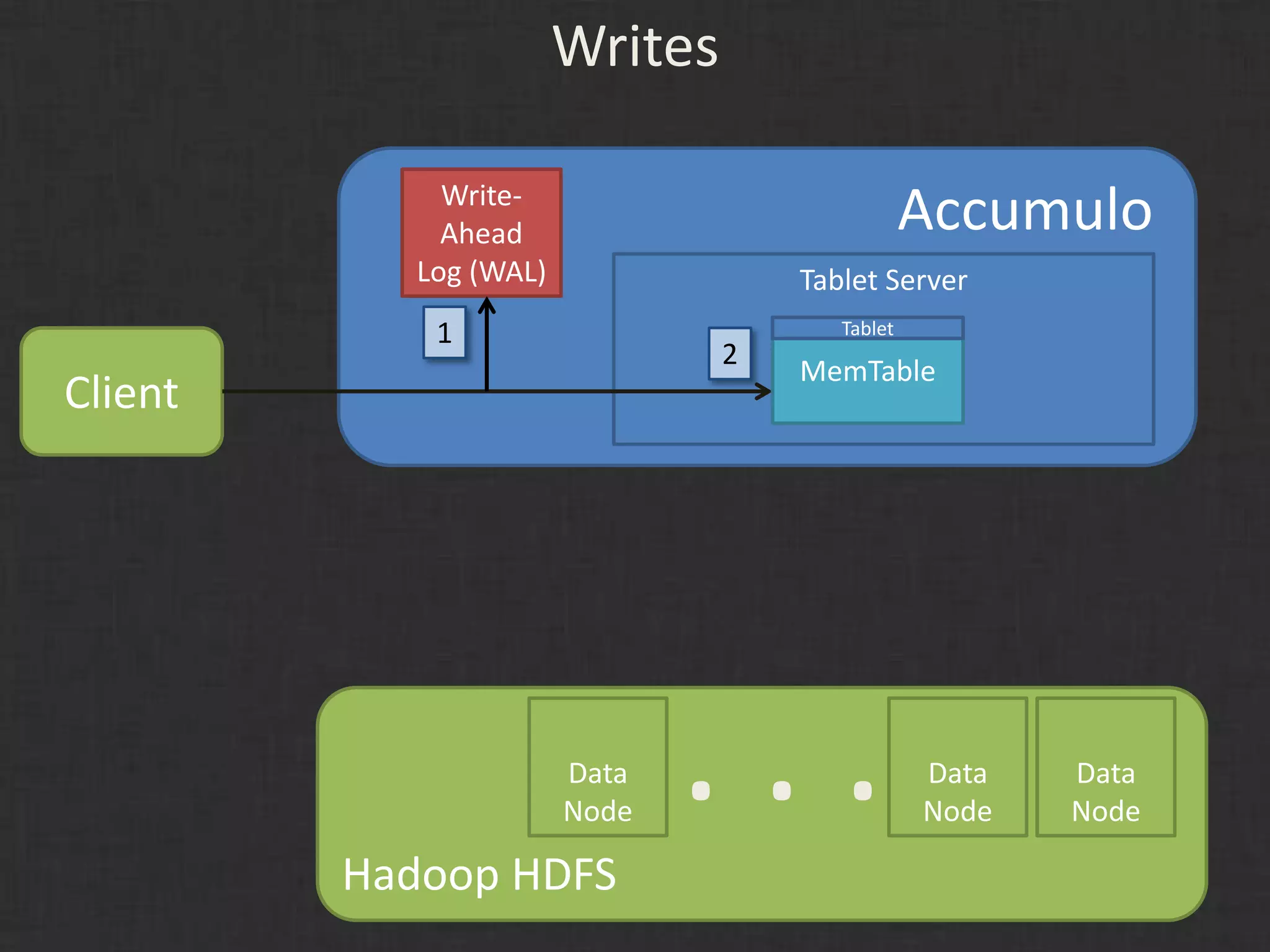

- 21. Writes Write- Ahead Accumulo Log (WAL) Tablet Server 1 Tablet 2 MemTable Client Data Node ... Data Node Data Node Hadoop HDFS

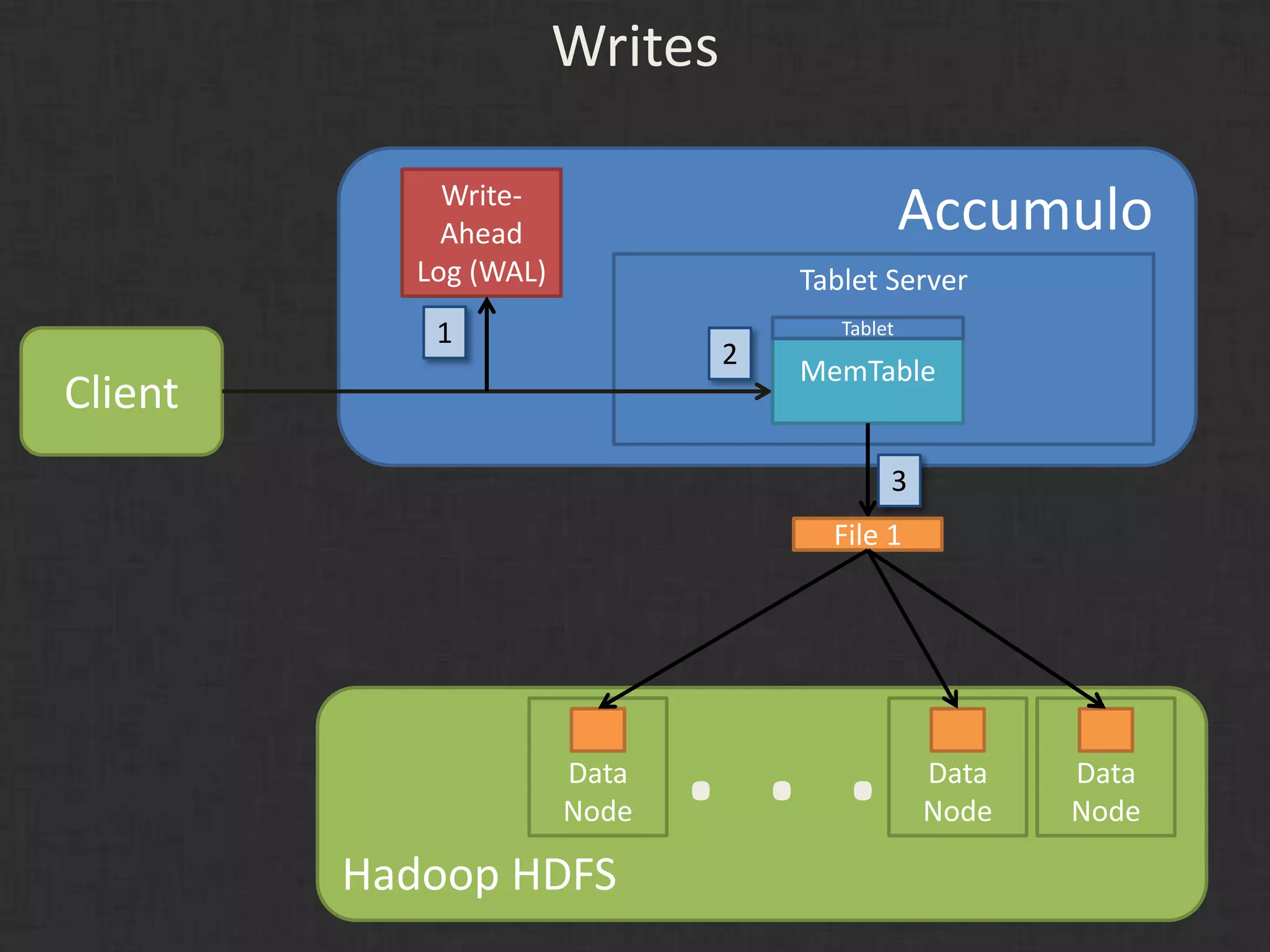

- 22. Writes Write- Ahead Accumulo Log (WAL) Tablet Server 1 Tablet 2 MemTable Client 3 File 1 Data Node ... Data Node Data Node Hadoop HDFS

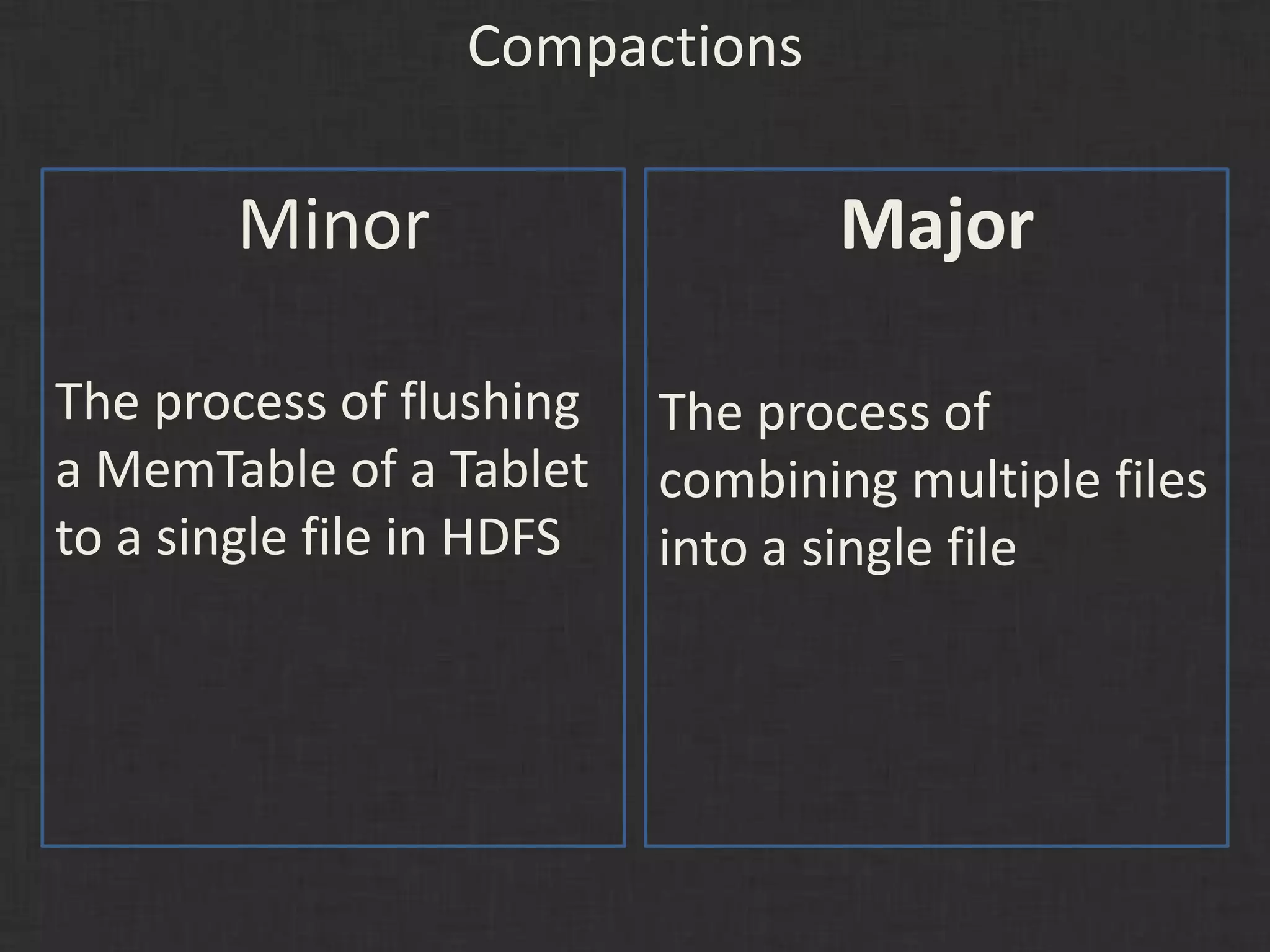

- 23. Compactions Minor Major The process of flushing The process of a MemTable of a Tablet combining multiple files to a single file in HDFS into a single file

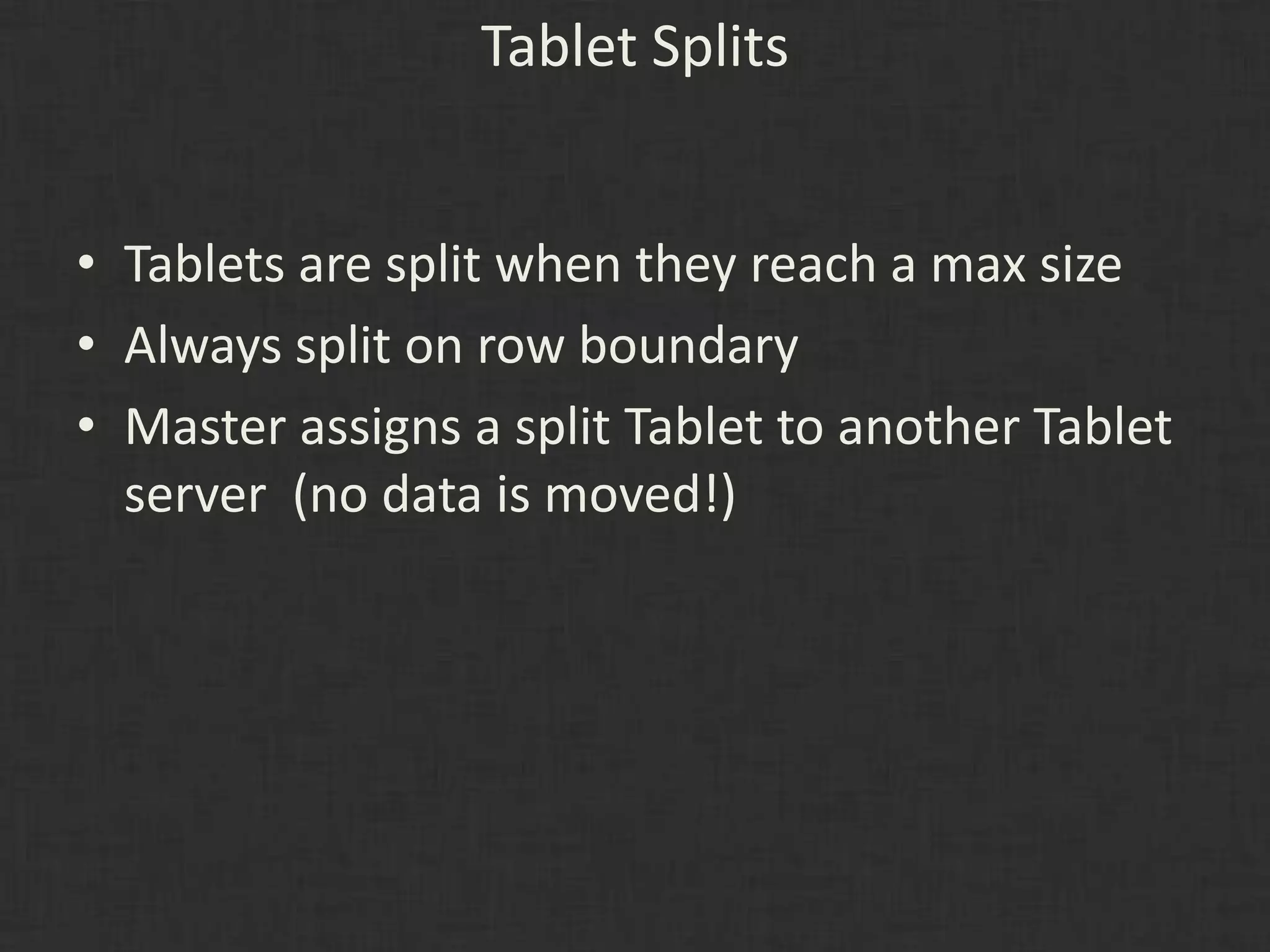

- 24. Tablet Splits • Tabletsare split when they reach a max size • Always split on row boundary • Master assigns a split Tablet to another Tablet server (no data is moved!)

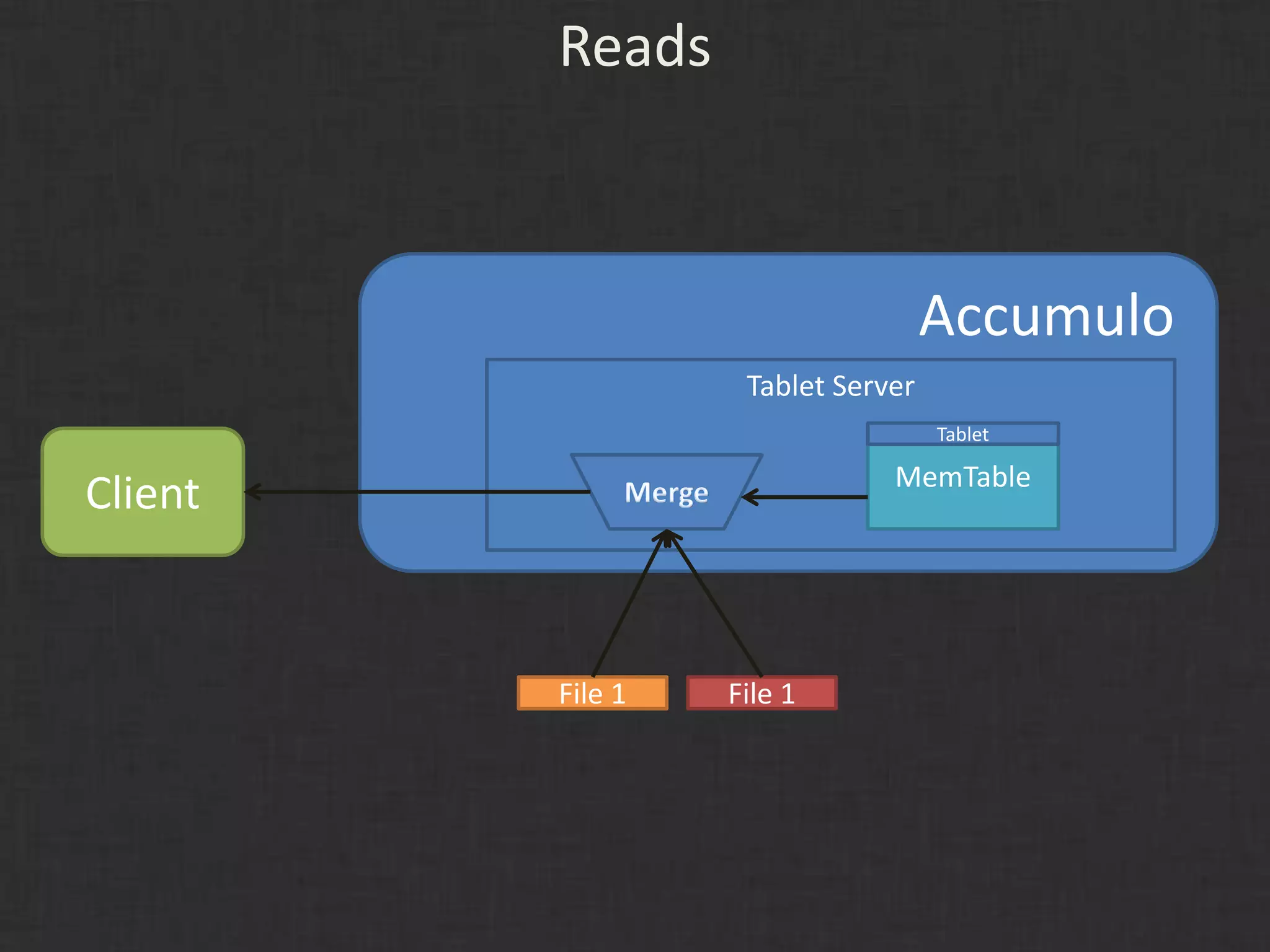

- 25. Reads Accumulo Tablet Server Tablet MemTable Client File 1 File 1

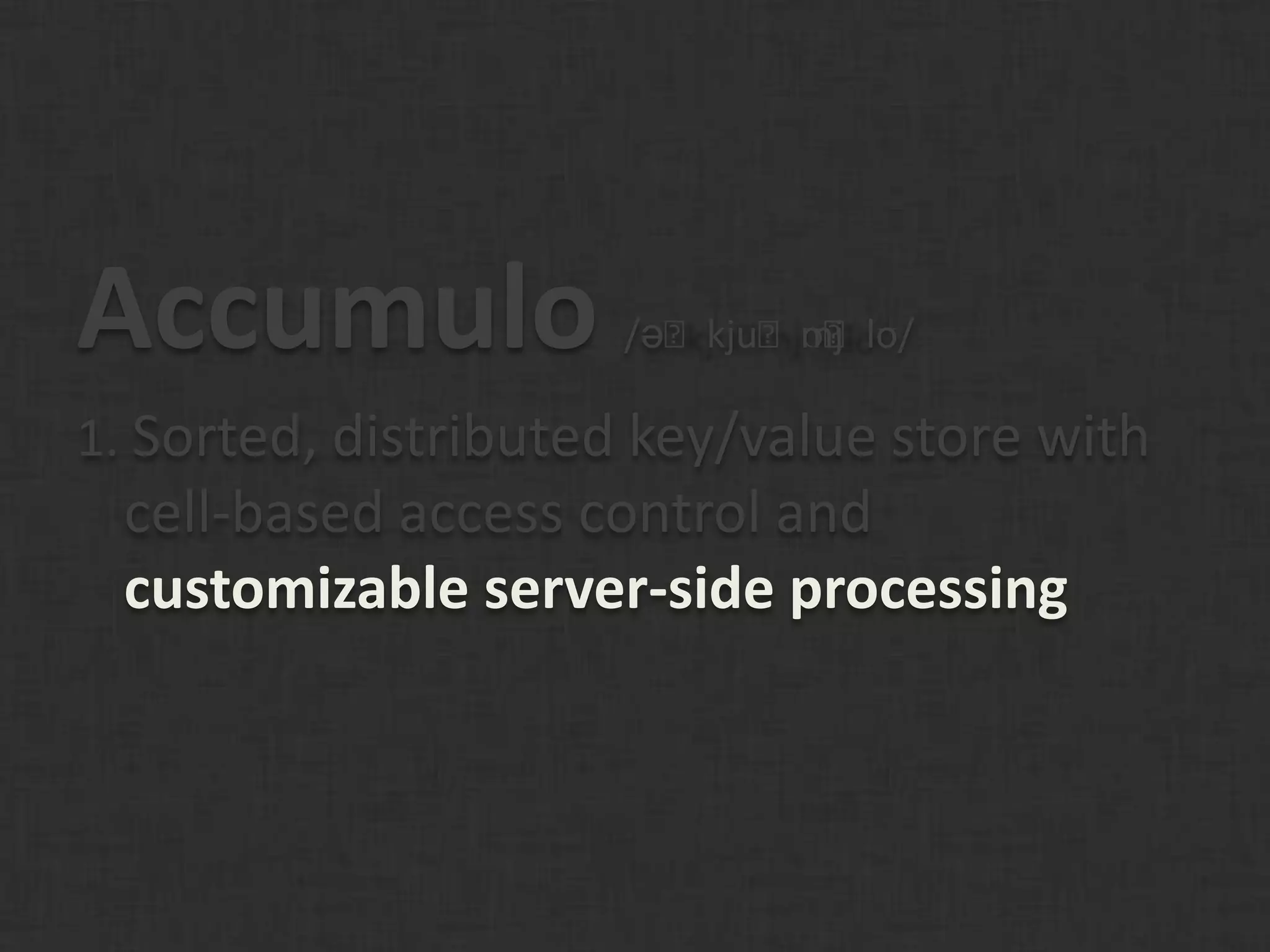

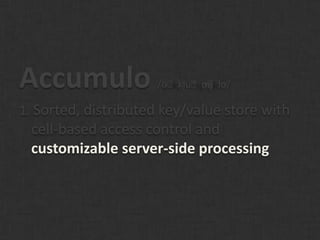

- 26. Accumulo /əˈkjuˈmj ʊ/ ʊˈlo 1. Sorted, distributed key/value store with cell-based access control and customizable server-side processing

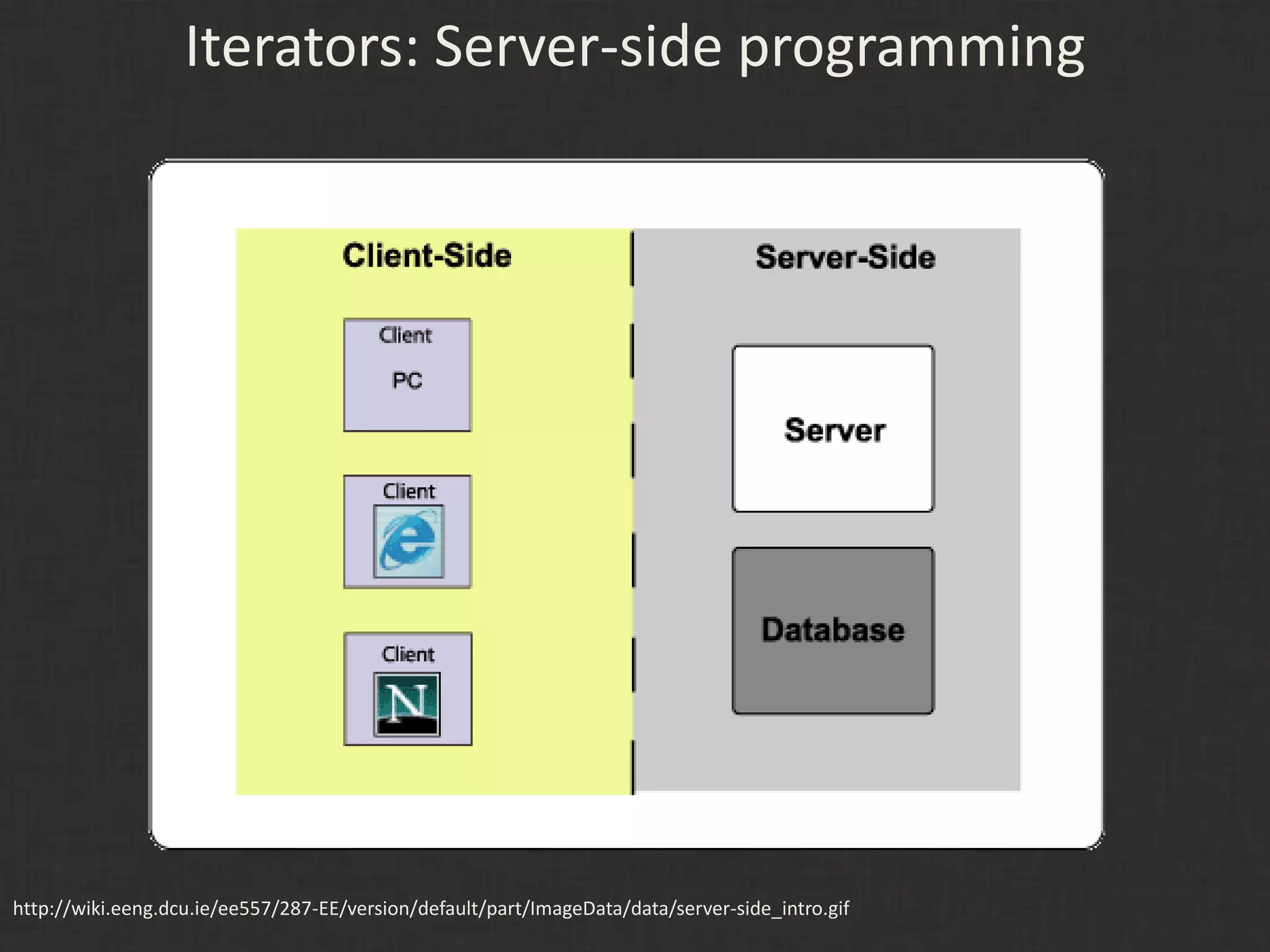

- 27.

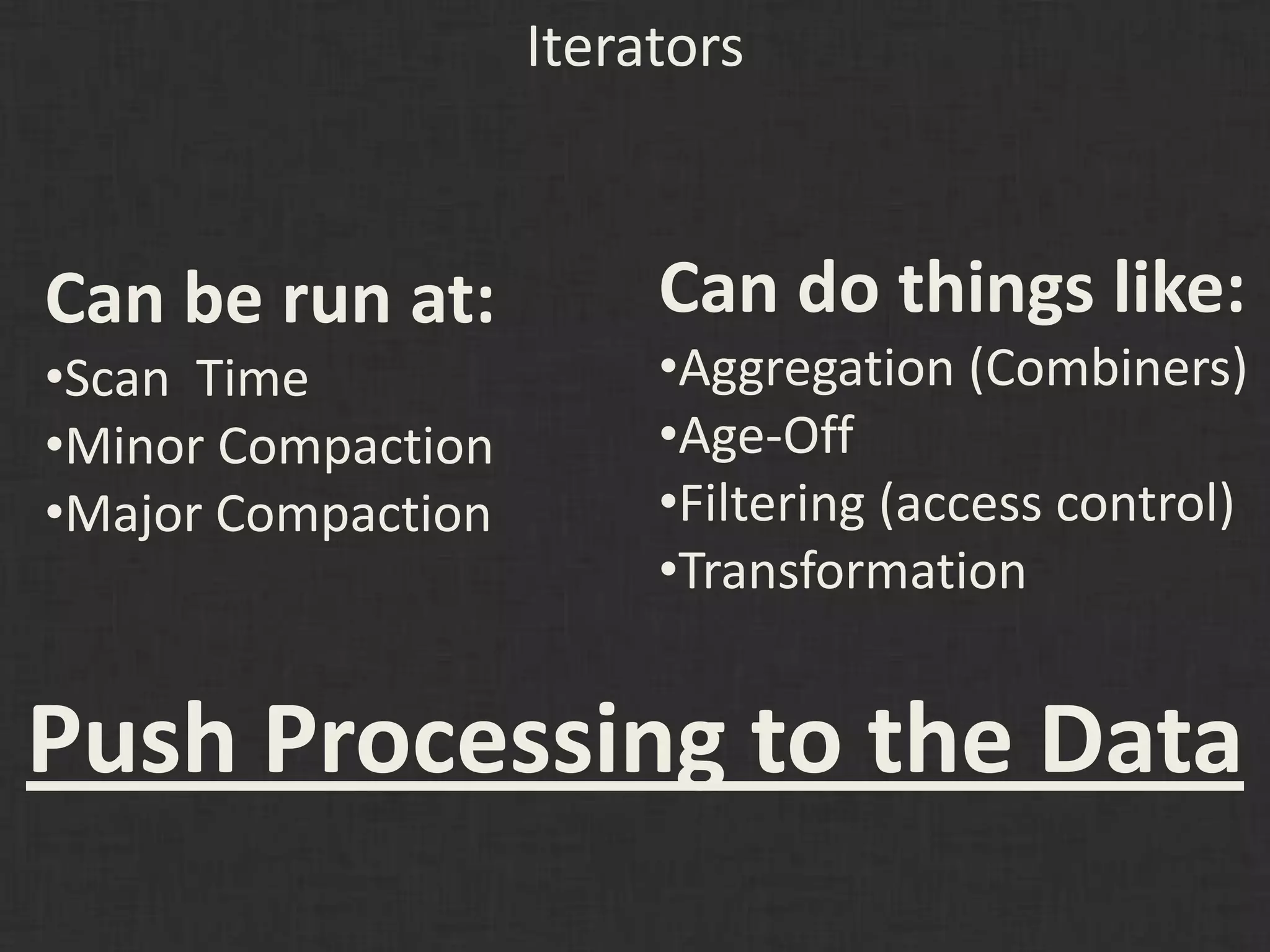

- 28. Iterators Can be runat: Can do things like: •Scan Time •Aggregation (Combiners) •Minor Compaction •Age-Off •Major Compaction •Filtering (access control) •Transformation Push Processing to the Data

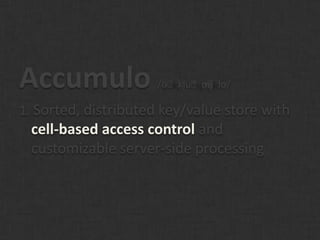

- 29. Accumulo /əˈkjuˈmj ʊ/ ʊˈlo 1. Sorted, distributed key/value store with cell-based access control and customizable server-side processing

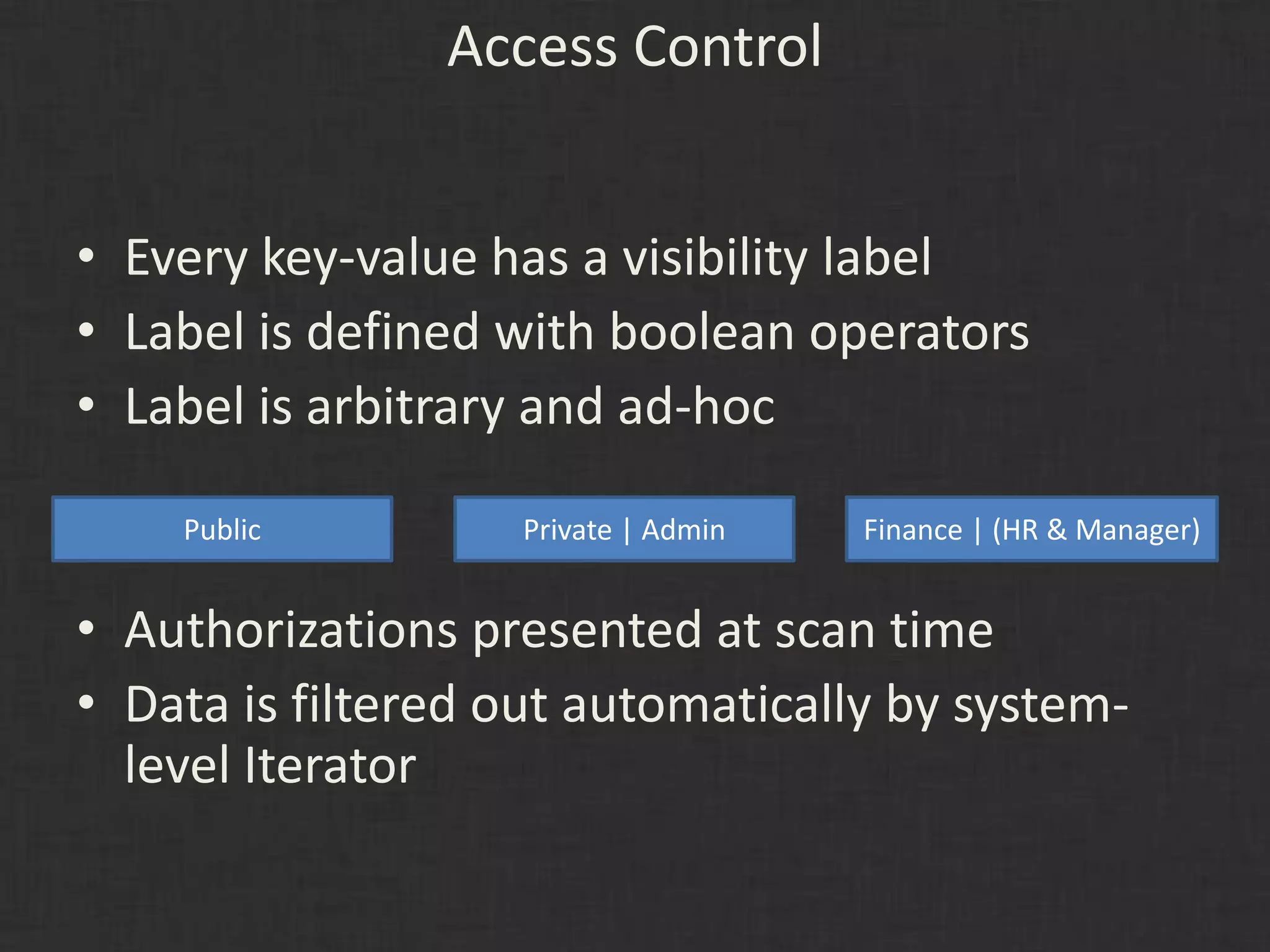

- 30. Access Control • Everykey-value has a visibility label • Label is defined with boolean operators • Label is arbitrary and ad-hoc Public Private | Admin Finance | (HR & Manager) • Authorizations presented at scan time • Data is filtered out automatically by system- level Iterator

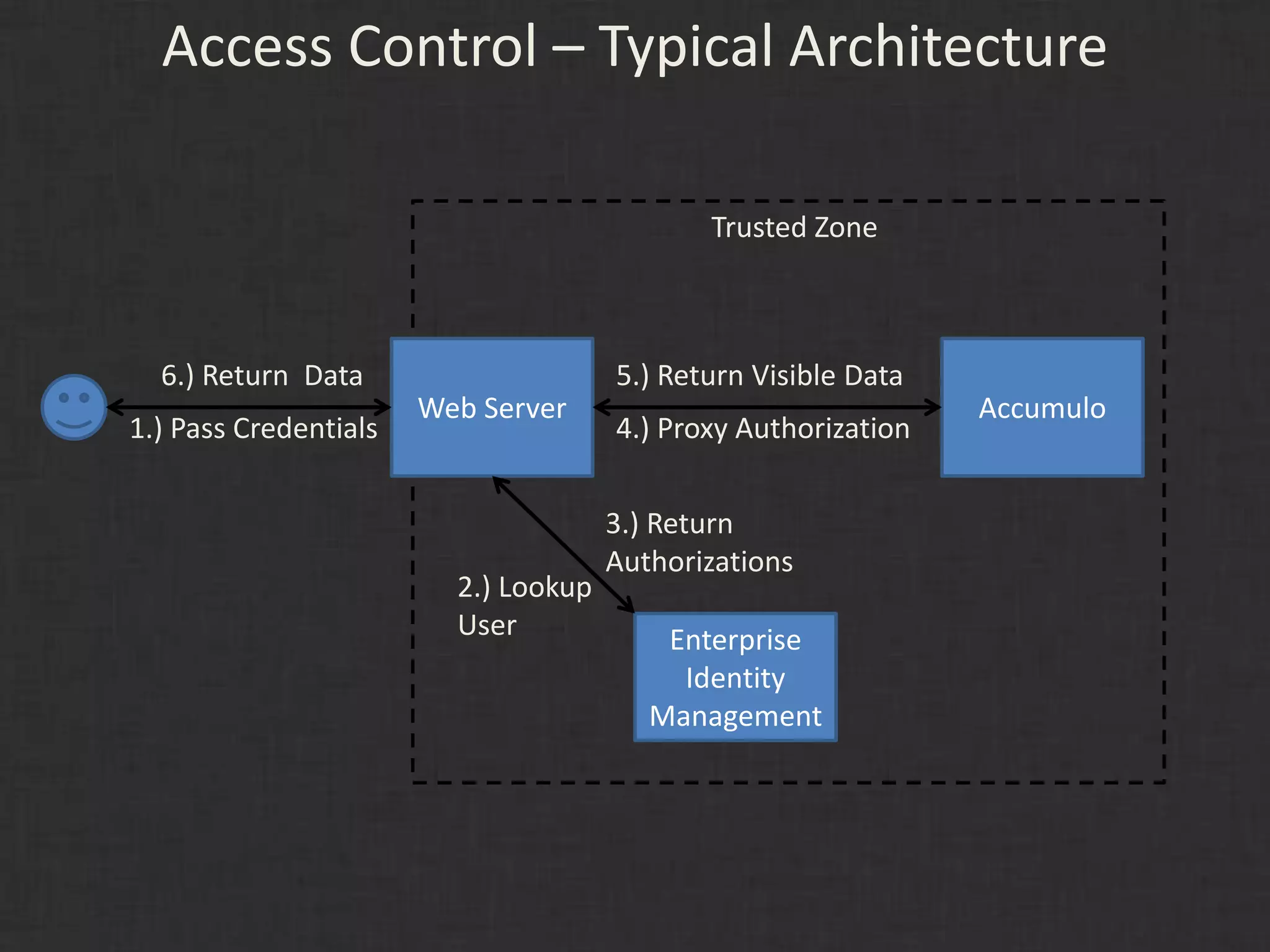

- 31. Access Control –Typical Architecture Trusted Zone 6.) Return Data 5.) Return Visible Data Web Server Accumulo 1.) Pass Credentials 4.) Proxy Authorization 3.) Return Authorizations 2.) Lookup User Enterprise Identity Management

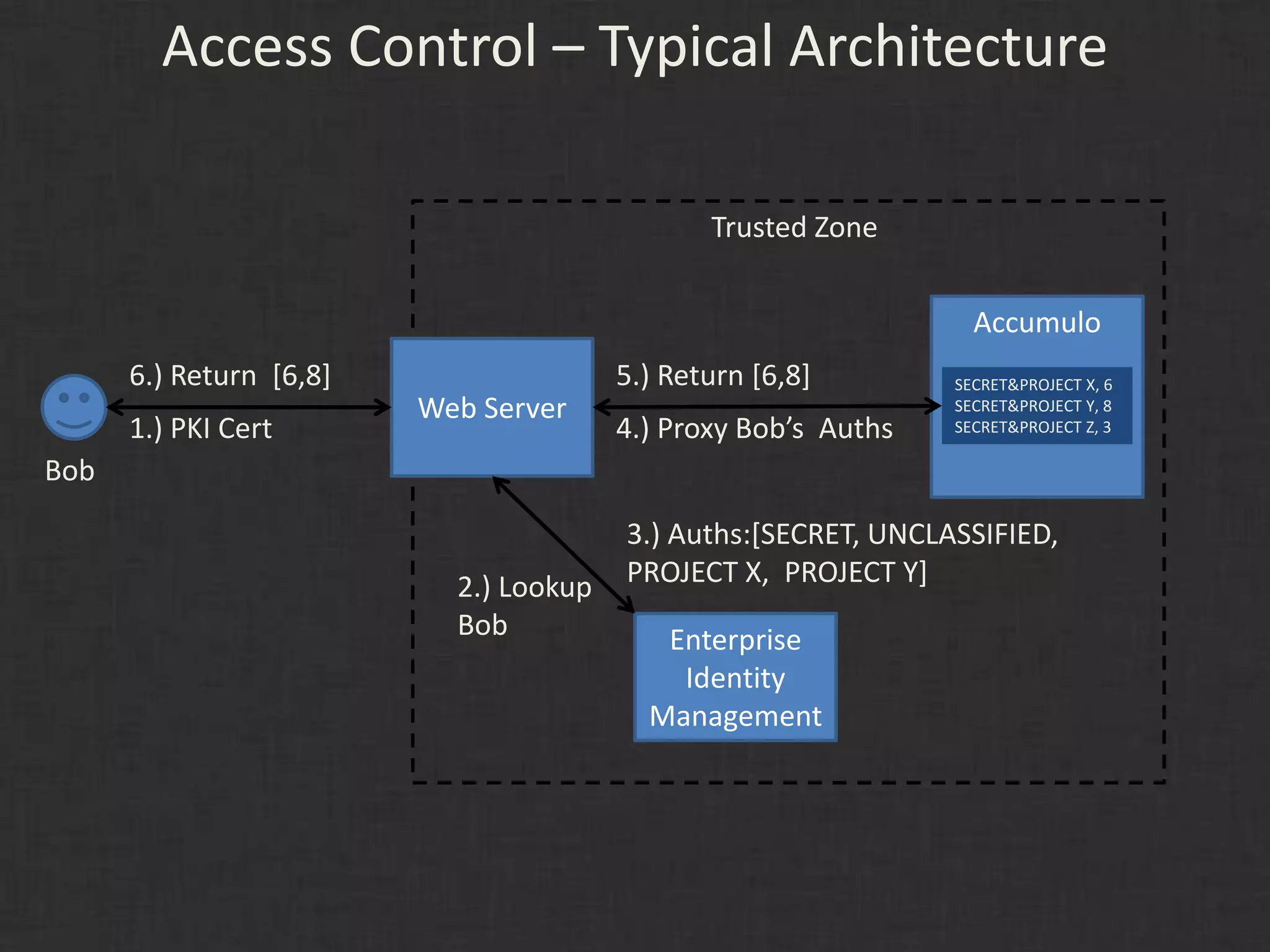

- 32. Access Control –Typical Architecture Trusted Zone Accumulo 6.) Return [6,8] 5.) Return [6,8] SECRET&PROJECT X, 6 Web Server SECRET&PROJECT Y, 8 1.) PKI Cert 4.) Proxy Bob’s Auths SECRET&PROJECT Z, 3 Bob 3.) Auths:[SECRET, UNCLASSIFIED, 2.) Lookup PROJECT X, PROJECT Y] Bob Enterprise Identity Management
- 33.

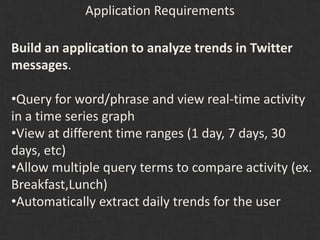

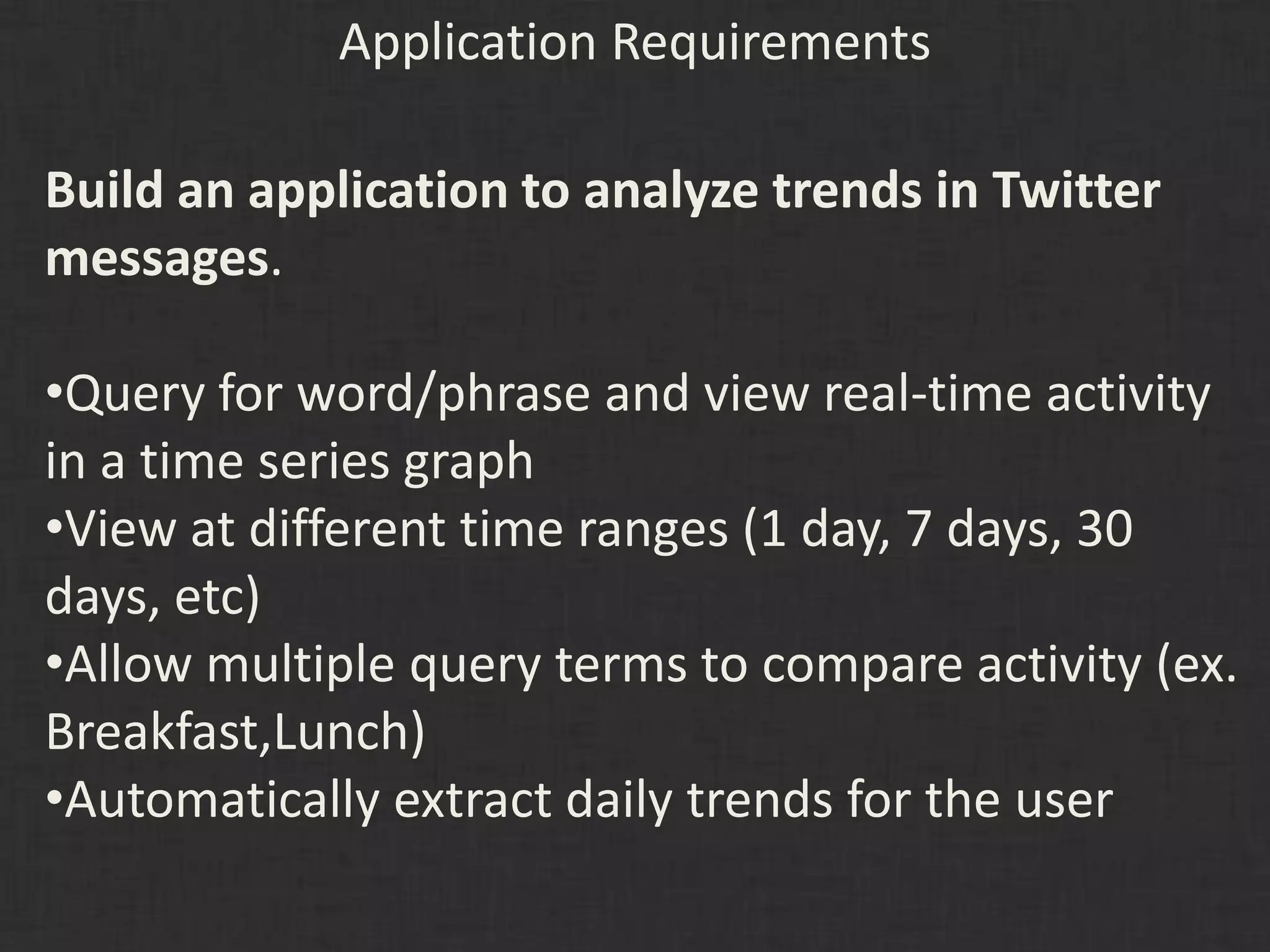

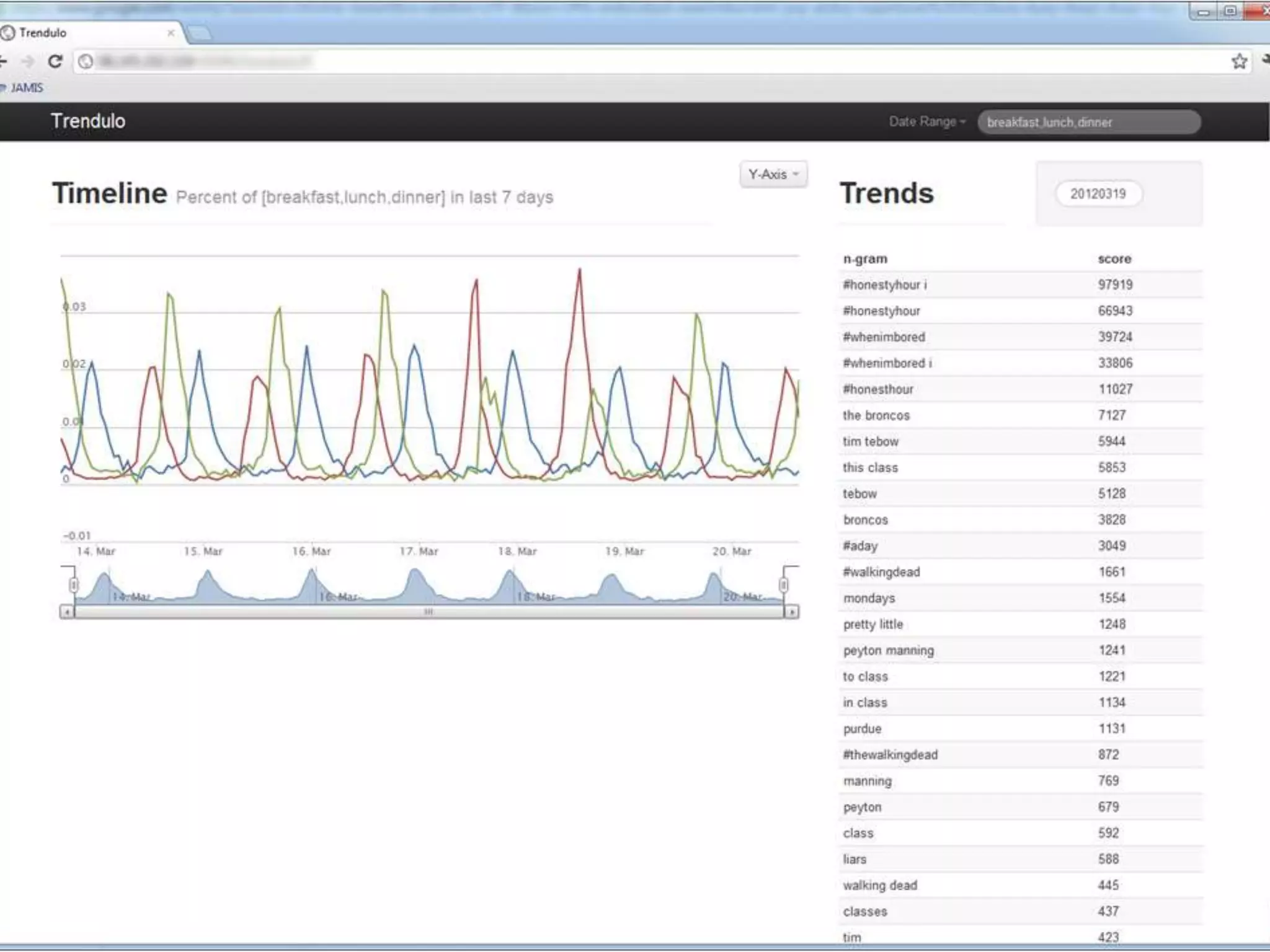

- 34. Application Requirements Build anapplication to analyze trends in Twitter messages. •Query for word/phrase and view real-time activity in a time series graph •View at different time ranges (1 day, 7 days, 30 days, etc) •Allow multiple query terms to compare activity (ex. Breakfast,Lunch) •Automatically extract daily trends for the user

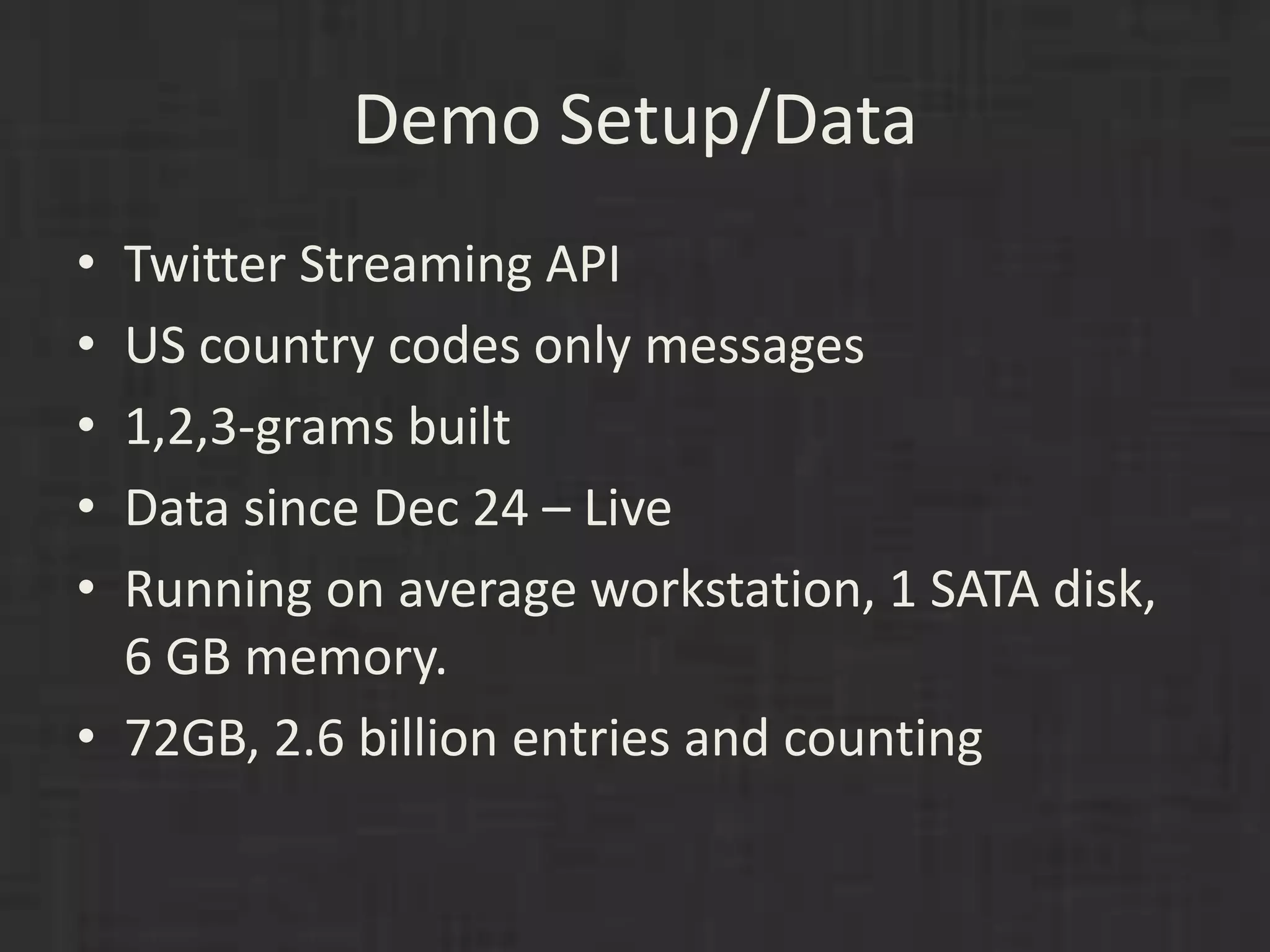

- 35. Demo Setup/Data • TwitterStreaming API • US country codes only messages • 1,2,3-grams built • Data since Dec 24 – Live • Running on average workstation, 1 SATA disk, 6 GB memory. • 72GB, 2.6 billion entries and counting

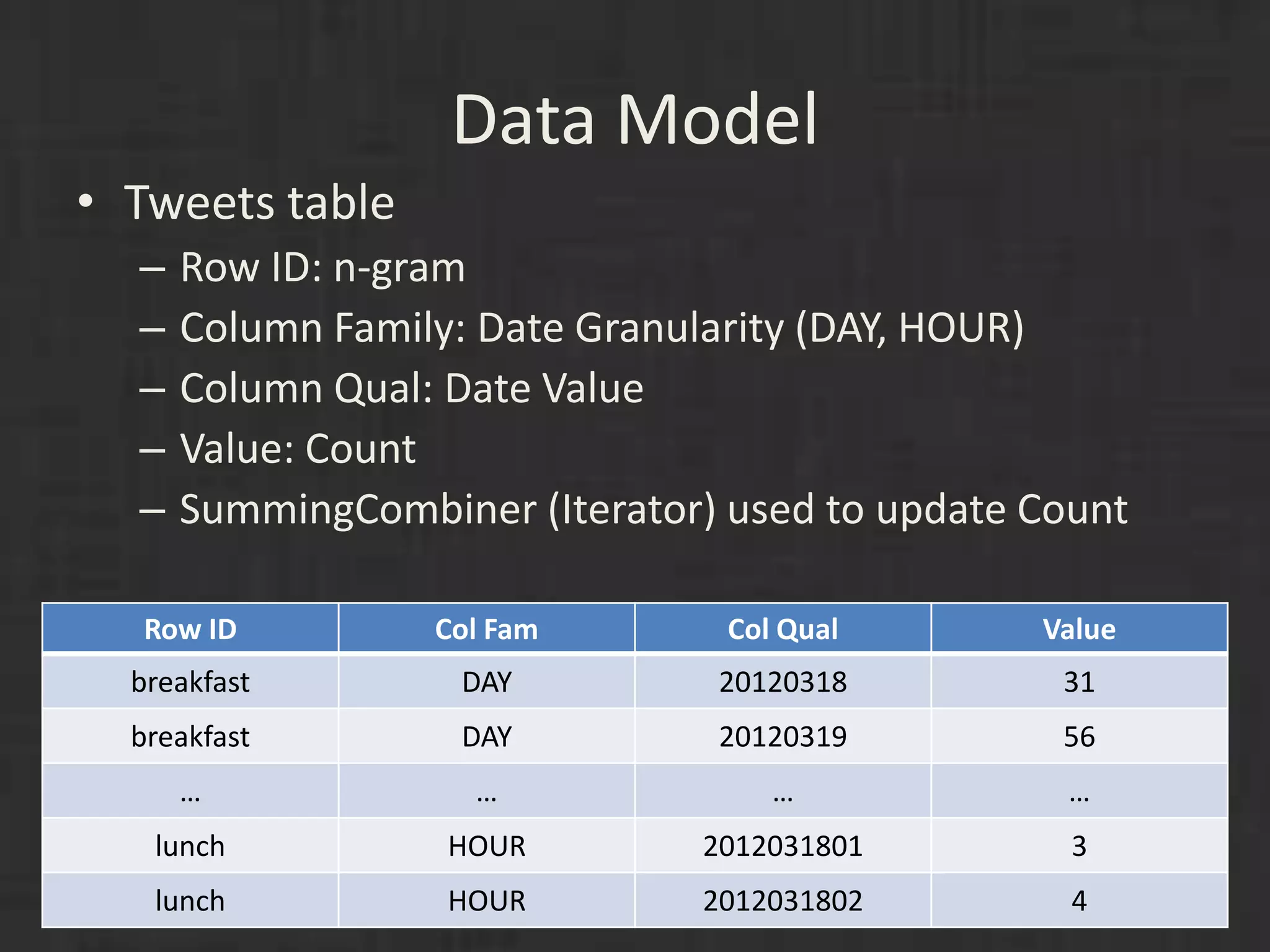

- 37. Data Model • Tweetstable – Row ID: n-gram – Column Family: Date Granularity (DAY, HOUR) – Column Qual: Date Value – Value: Count – SummingCombiner (Iterator) used to update Count Row ID Col Fam Col Qual Value breakfast DAY 20120318 31 breakfast DAY 20120319 56 … … … … lunch HOUR 2012031801 3 lunch HOUR 2012031802 4

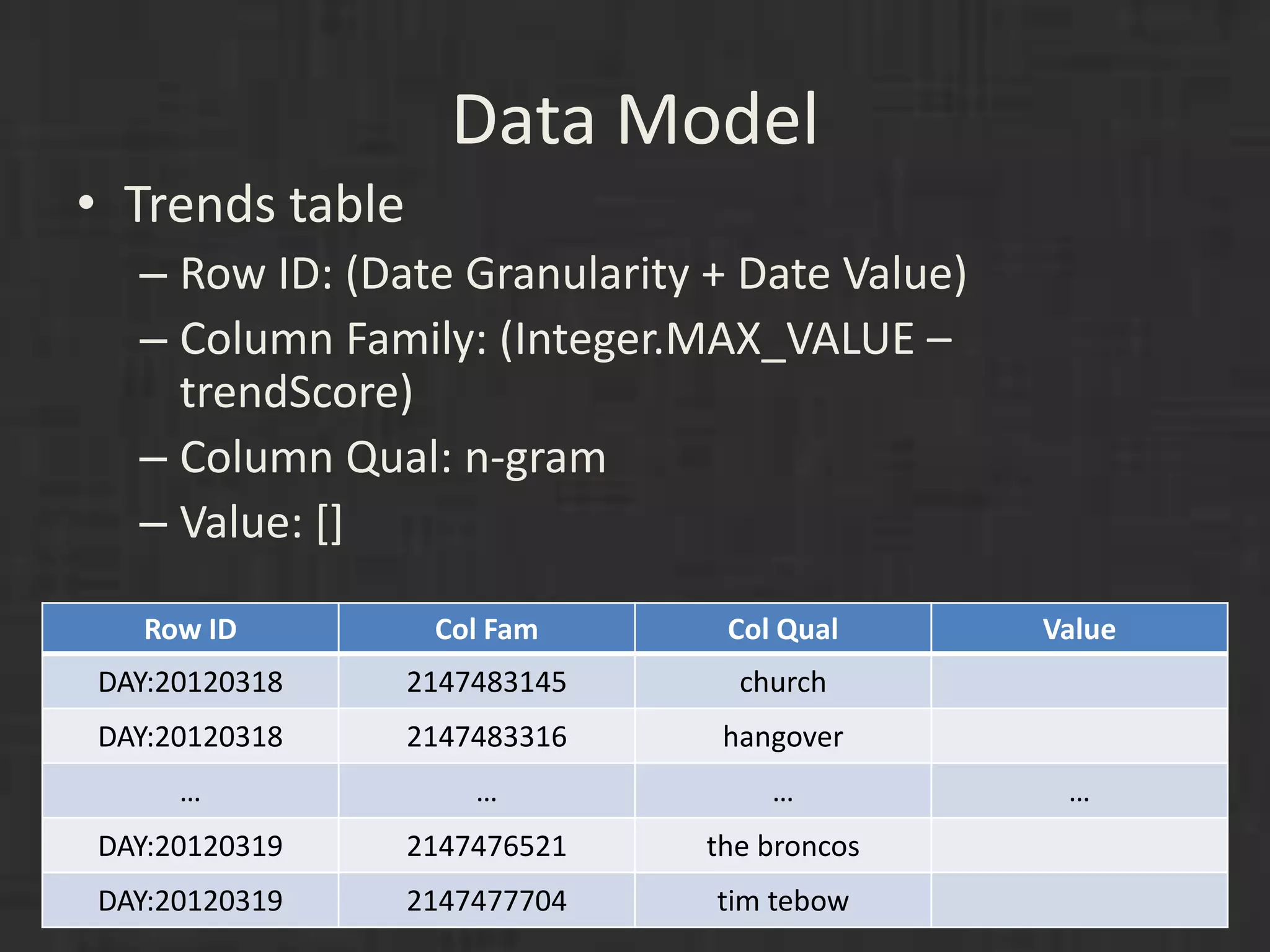

- 38. Data Model • Trendstable – Row ID: (Date Granularity + Date Value) – Column Family: (Integer.MAX_VALUE – trendScore) – Column Qual: n-gram – Value: [] Row ID Col Fam Col Qual Value DAY:20120318 2147483145 church DAY:20120318 2147483316 hangover … … … … DAY:20120319 2147476521 the broncos DAY:20120319 2147477704 tim tebow

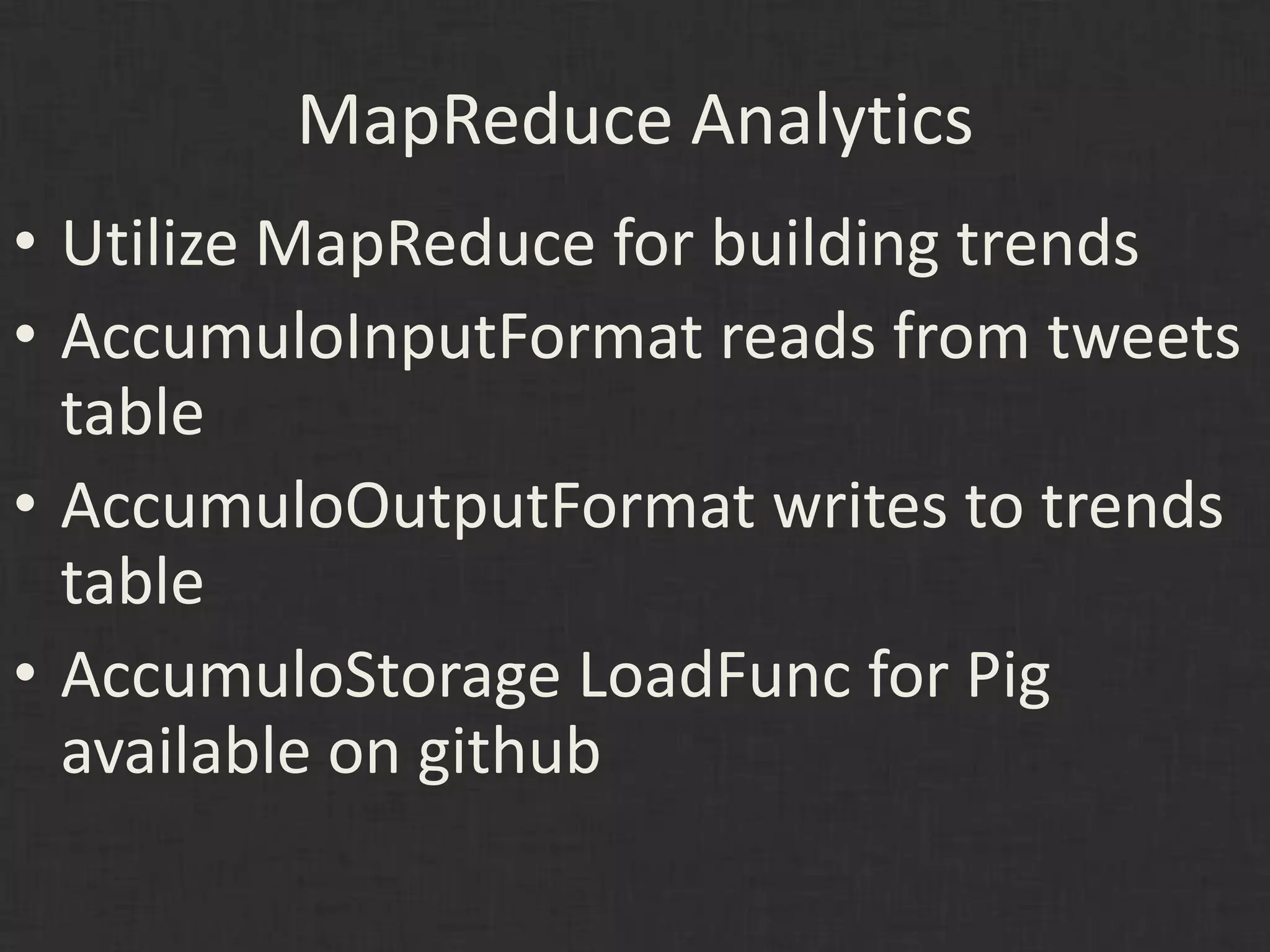

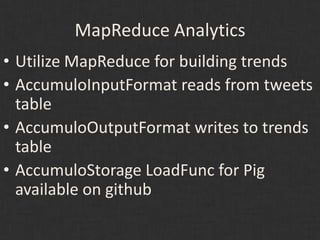

- 39. MapReduce Analytics • UtilizeMapReduce for building trends • AccumuloInputFormat reads from tweets table • AccumuloOutputFormat writes to trends table • AccumuloStorage LoadFunc for Pig available on github

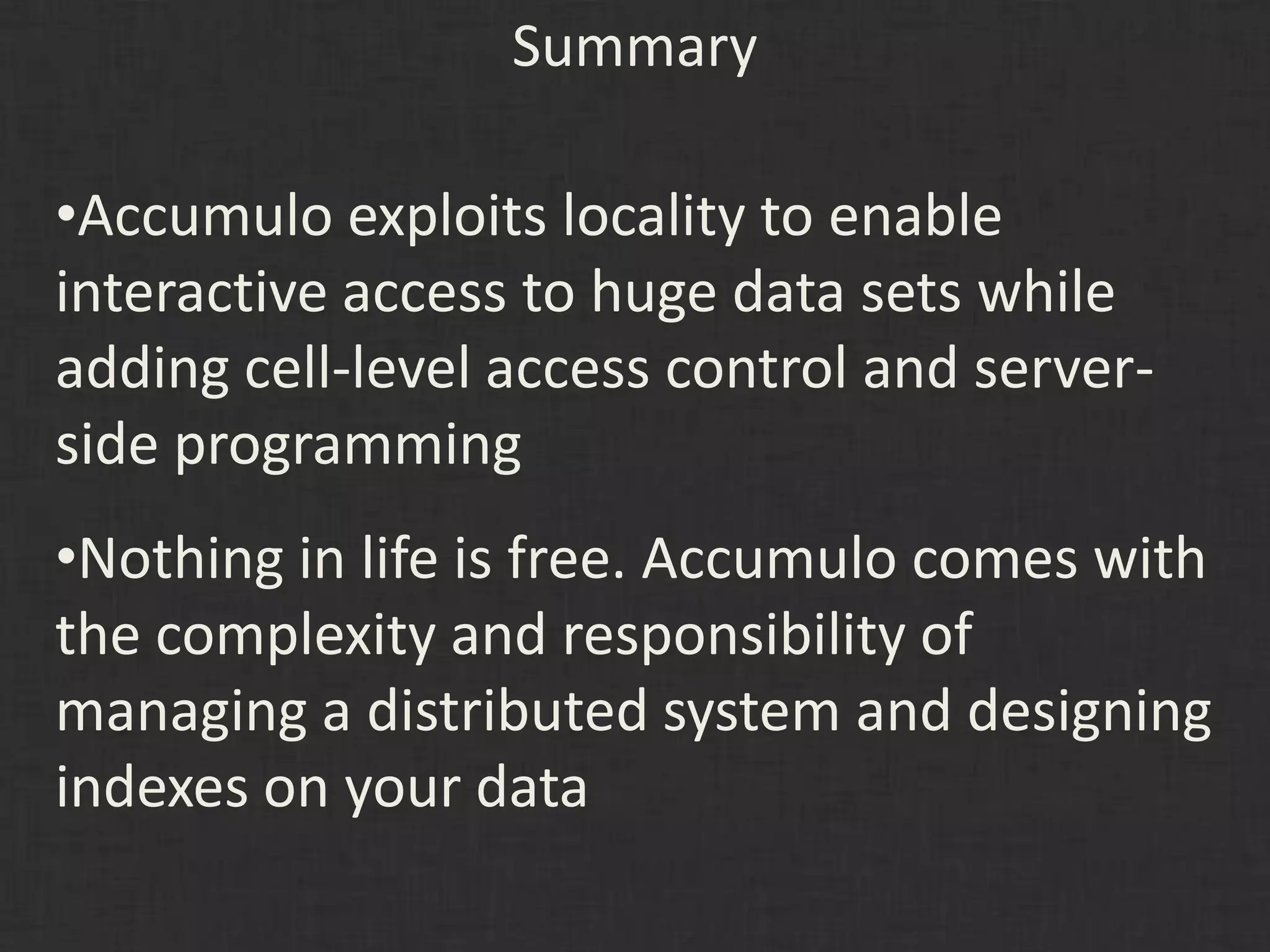

- 41. Summary •Accumulo exploits localityto enable interactive access to huge data sets while adding cell-level access control and server- side programming •Nothing in life is free. Accumulo comes with the complexity and responsibility of managing a distributed system and designing indexes on your data

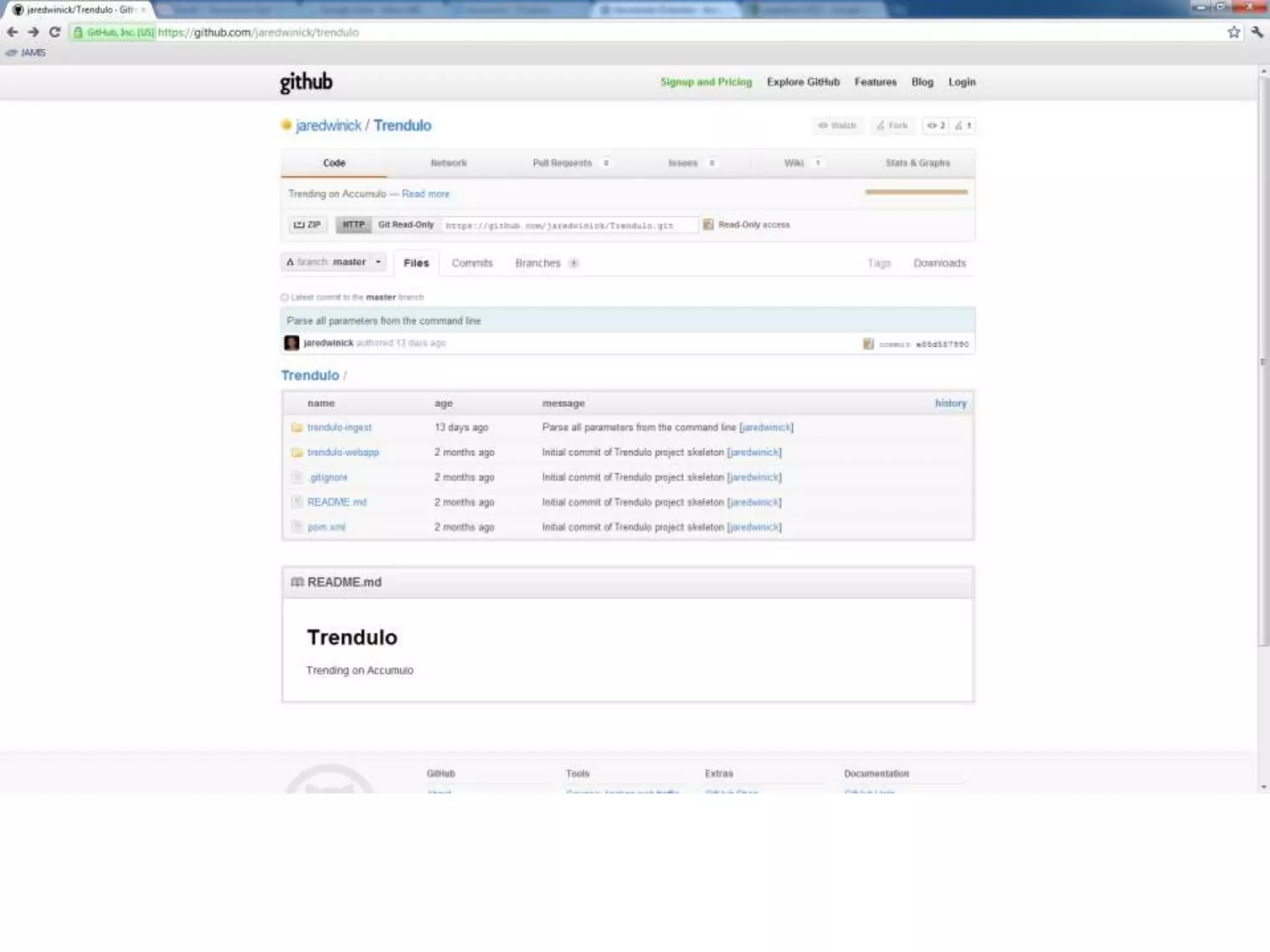

- 42. References • Documentation, MailingLists, Links http://incubator.apache.org/accumulo/ • HBase Shootout http://www.slideshare.net/cloudera/h-base-and-accumulo-todd-lipcom-jan-25-2012 • Trendulo https://github.com/jaredwinick/trendulo
Editor's Notes
- #6 Obviously most people’s data set isn’t this large. If you can fit your data into memory of a single large server, Accumulo probably isn’t for you.
- #12 20 billion events day for Insights6+ billion msg -> 75 billion rw operations/day
- #16 Sparse,sorted

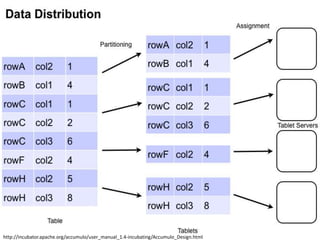

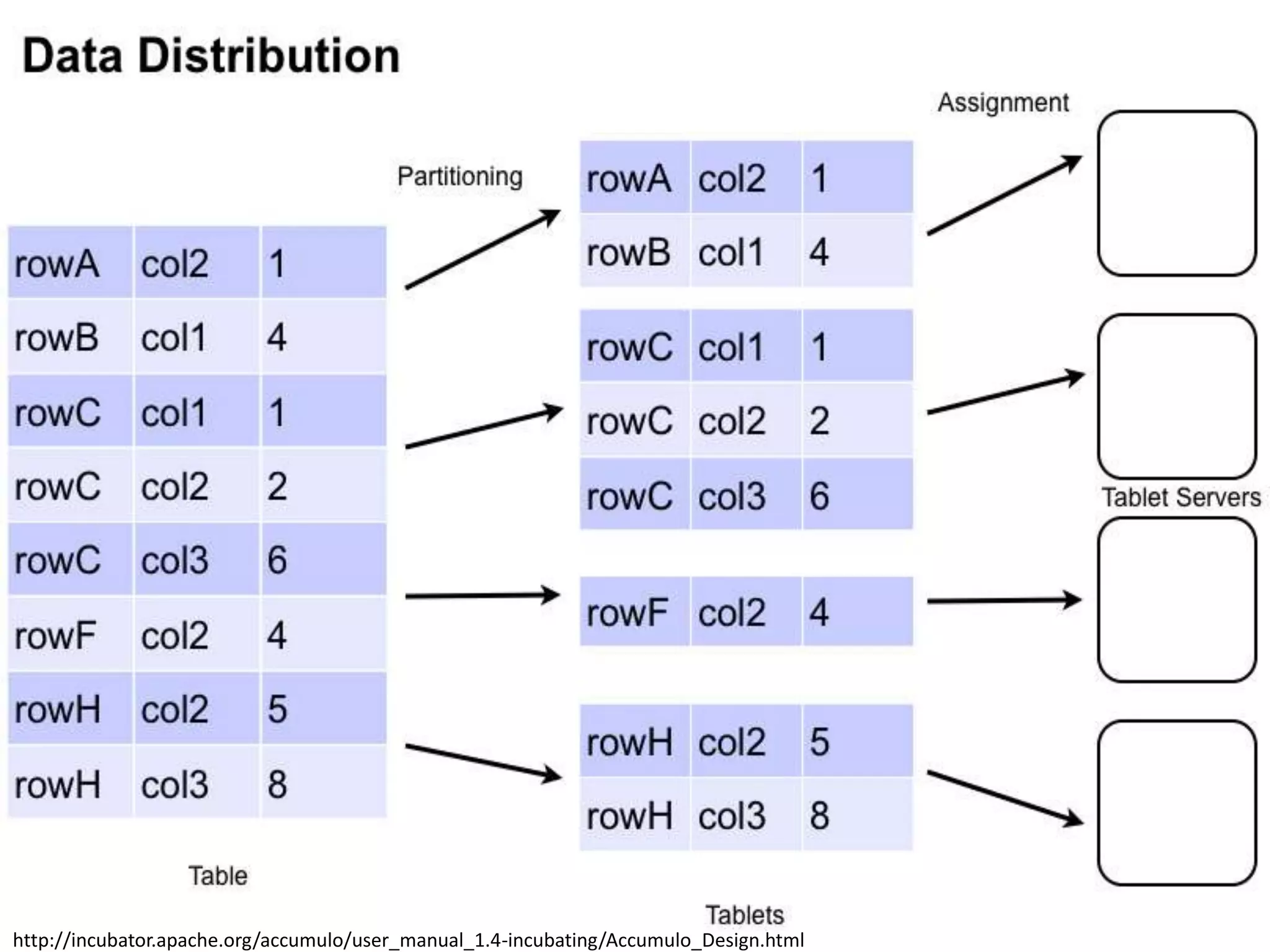

- #18 Table is partitioned into tablets which are logically assigned to tablet servers (they are physically in HDFS). Tablet is a range of keys.
- #20 Tablets are only logically assigned to tablet servers by theAccumulo Master. The are physically stored in HDFS. Tablet is one or more files.
- #22 Data first written to WAL (outside of HDFS on a different machine), then inserted into sorted MemTable (balanced, sorted binary tree)
- #23 When MemTable is full, it gets flushed to a file which is stored in HDFS (minor compaction). Writes to disk are sequential as MemTable is sorted
- #24 All of these files are always sorted!
- #26 TabletServer merges key-values from all its files and its MemTable to present a complete sorted view of data
- #29 One of the most powerful features of Accumulo – a lot to learn. Come back to aggregation in demo
- #35 Example: Trendistic (http://trendistic.indextank.com)
- #43 Documentation is a work in progress…
