2. ACI Programmability
Ravi Chamarthy
ravchama@cisco.com
Principal Engineer, Cisco Systems

3. Agenda
• API Driven Design
• Managed Objects
• REST API Constructs
• Cobra SDK
• Live Code

4. API Driven Design
• Inventory
• Discovery
• Fabric Bring up
• Firmware
• Topology
• Security
• Monitoring
• Troubleshooting
• Debugging
• L2 Connectivity
• External Connectivity
• VM Management
• L4-L7 Services
• Application Policies

5. API Layers
Network
API
Application
API
REST API
CLITEST GUI

6. Cisco ACI: Object Model

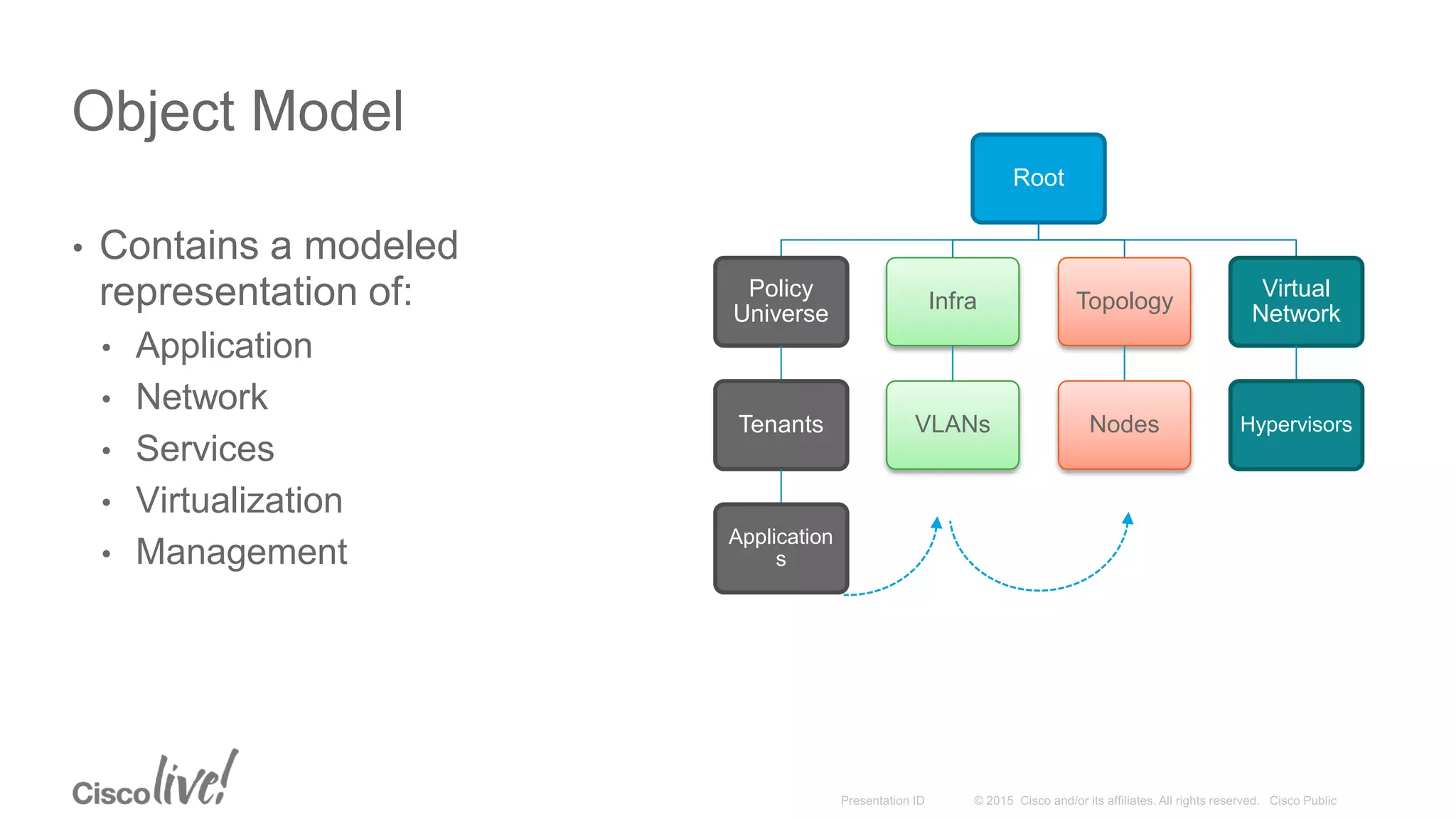

7. Object Model
• Contains a modeled
representation of:
• Application
• Network
• Services
• Virtualization
• Management
Root
Policy
Universe
Tenants
Application
s
Infra
VLANs
Topology
Nodes
Virtual
Network
Hypervisors

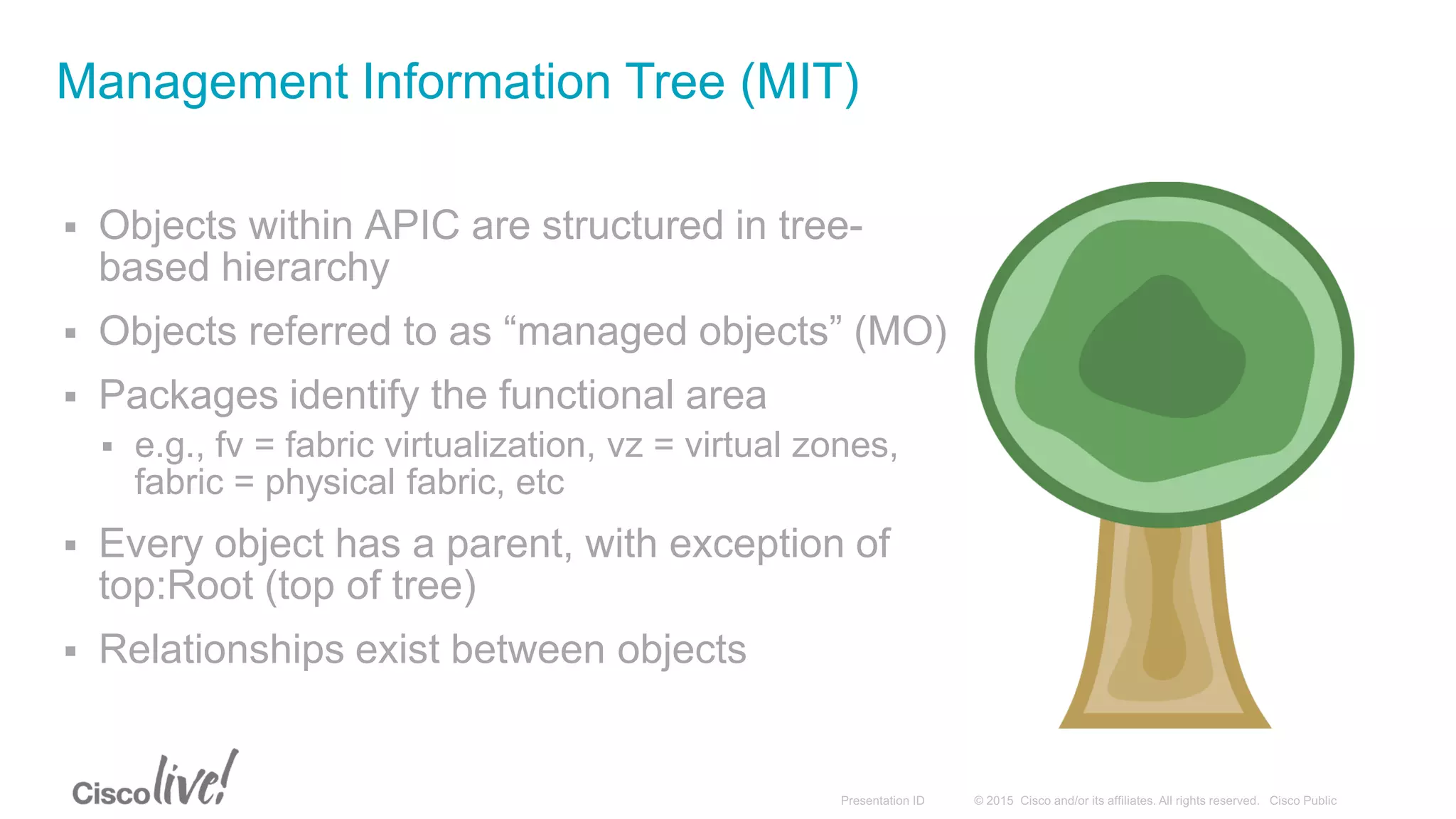

8.  Objects within APIC are structured in tree-
based hierarchy
 Objects referred to as “managed objects” (MO)
 Packages identify the functional area
 e.g., fv = fabric virtualization, vz = virtual zones,
fabric = physical fabric, etc
 Every object has a parent, with exception of
top:Root (top of tree)
 Relationships exist between objects
Management Information Tree (MIT)

9. Managed Objects
Root
Everything is an object
Objects are hierarchically organized
Class identifies object type
Card, Port, Path, EPG…
Class Inheritance
Access port is a subclass of port.
A leaf node is a subclass of fabric node.
Set of attributes
identity states descriptions
references lifecycle
MO
• class
• dn
• prop1
• prop2, etc
Distributed Managed Information Tree (dMIT) contains
comprehensive system information
• discovered components
• system configuration
• operational status including statistics and faults
dMIT
Full unified description of entities.
No artificial separation of configuration, state,
runtime data.

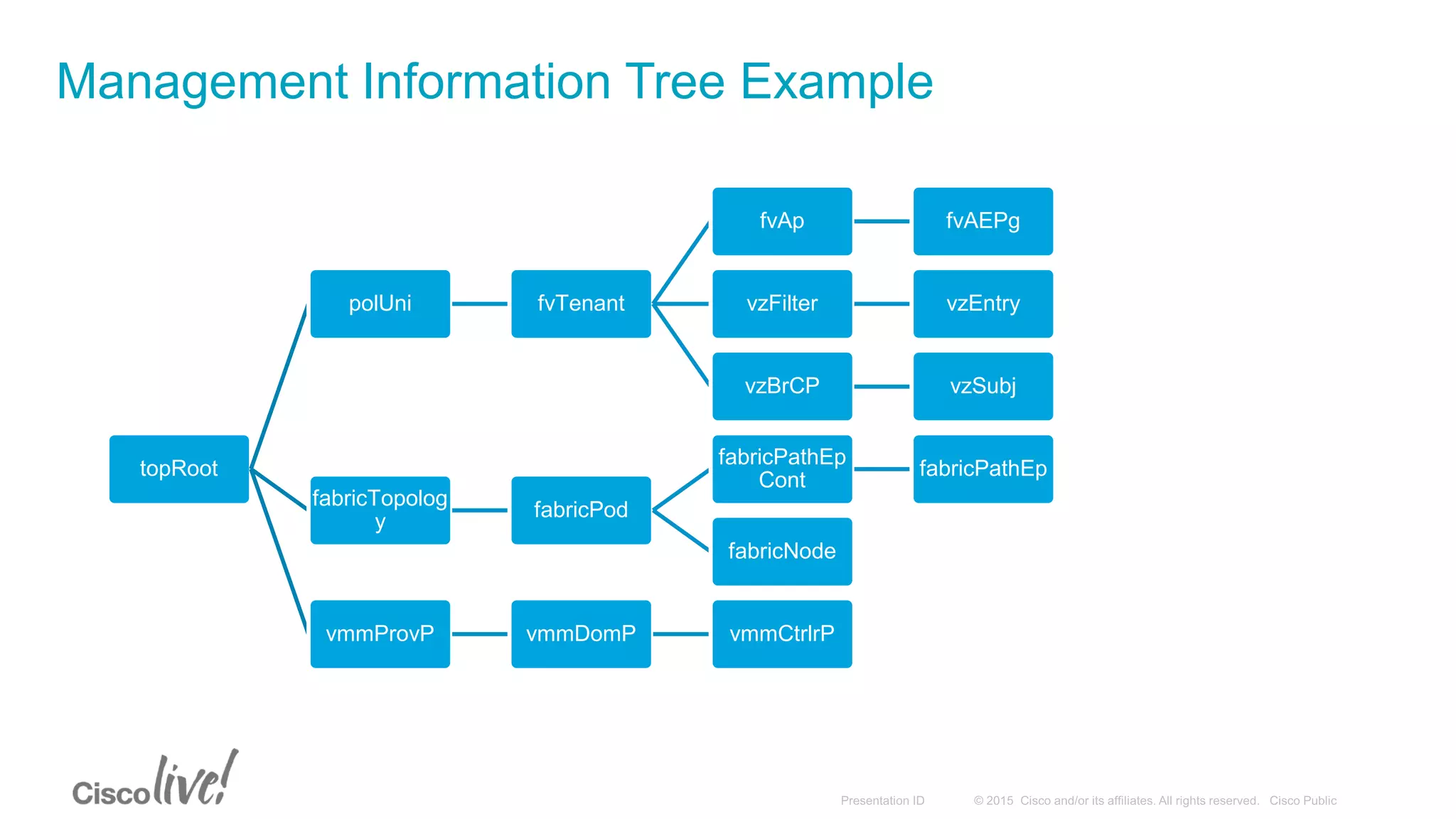

10. Management Information Tree Example
topRoot
polUni fvTenant
fvAp fvAEPg
vzFilter vzEntry
vzBrCP vzSubj
fabricTopolog
y
fabricPod
fabricPathEp
Cont
fabricPathEp
fabricNode
vmmProvP vmmDomP vmmCtrlrP

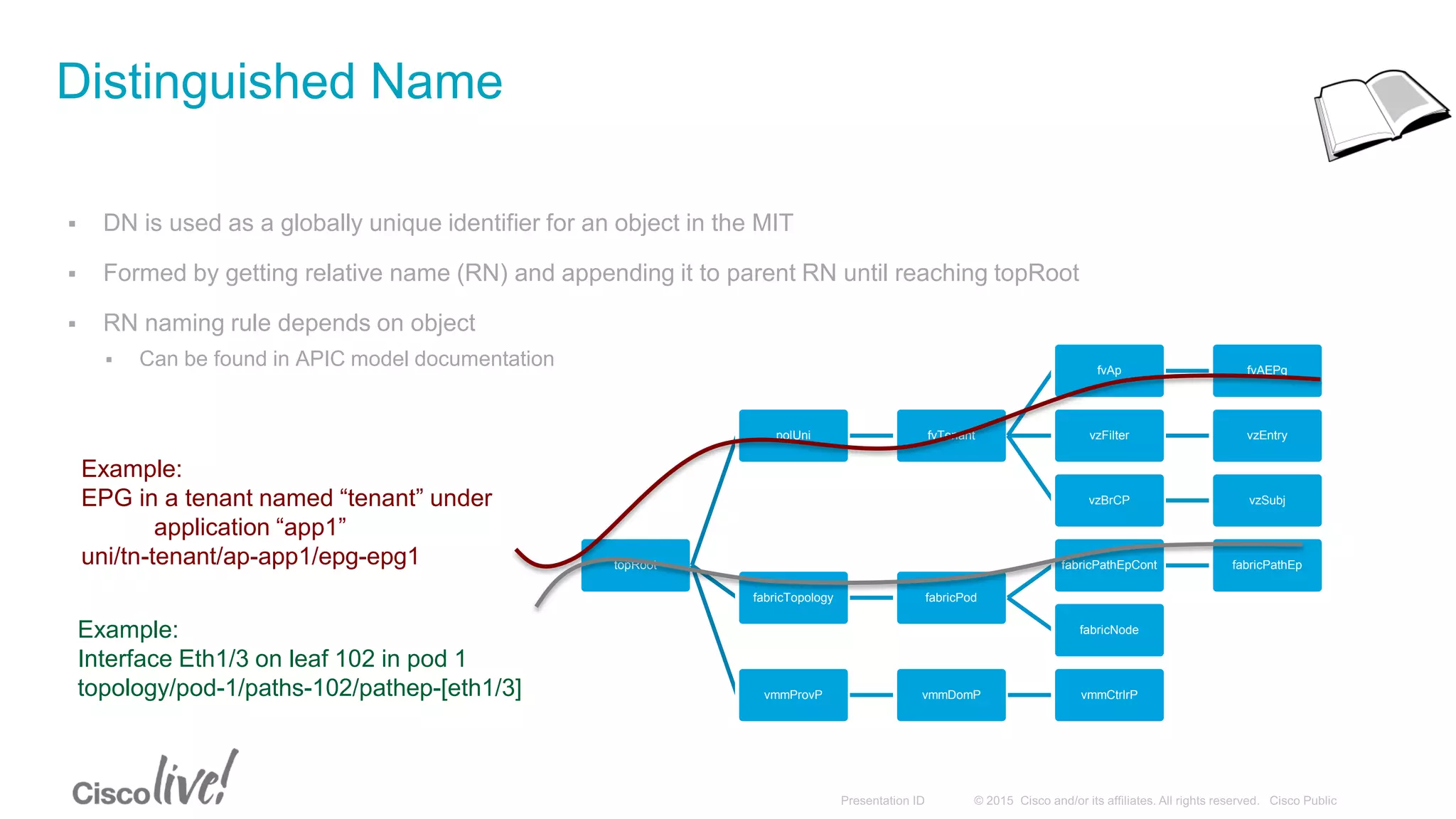

11.  DN is used as a globally unique identifier for an object in the MIT
 Formed by getting relative name (RN) and appending it to parent RN until reaching topRoot
 RN naming rule depends on object
 Can be found in APIC model documentation
Distinguished Name
topRoot
polUni fvTenant
fvAp fvAEPg
vzFilter vzEntry
vzBrCP vzSubj
fabricTopology fabricPod
fabricPathEpCont fabricPathEp
fabricNode
vmmProvP vmmDomP vmmCtrlrP
Example:
EPG in a tenant named “tenant” under
application “app1”
uni/tn-tenant/ap-app1/epg-epg1
Example:
Interface Eth1/3 on leaf 102 in pod 1
topology/pod-1/paths-102/pathep-[eth1/3]

12. Cisco ACI: REST API

13.  Standard REST methods supported
REST API: Basics
Method Action Behavior
POST Create / Update Idempotent
GET Read Nullipotent
DELETE Delete Idempotent
• Payloads can be either XML or JSON
Specified by the file extension in URI
Content-Type and Accept header is ignored

14. REST API: Read Operations
/api
API
Operator
/{mo|class}
Specify
Managed
Object or Class
Operator
/{dn|classname}
Distinguished
name or Object
Class
.{xml|json}
Encoding for
response
?[options]
Specify filters,
selectors or
modifiers to query,
joined using
ampersand (&)
host:port
APIC host
and port
http(s)://
http or https
protocol
http://apic/api/mo/uni/tn-Cisco/ap-Software/epg-Download.xml
Read properties for an EPG by Distinguished Name
http://apic/api/class/l1PhysIf.xml?query-target-filter=eq(l1PhysIf.speed,"10G")
Find all 10G ports on Fabric

15. REST API: Create/Update Operations
/api /mo /dn .{xml|json} ?[options]host:porthttp(s)://
<fvTenant name="NewTenant">
<fvAp name="NewApplication">
<fvAEPg name="WebTier">
<fvRsPathAtt encap="vlan-1" mode="regular"
tDn="topology/pod-1/paths-17/pathep-[eth1/1]"/>
</fvAEPg>
</fvAp>
</fvTenant>
Payload is XML/JSON representation of API Command Body

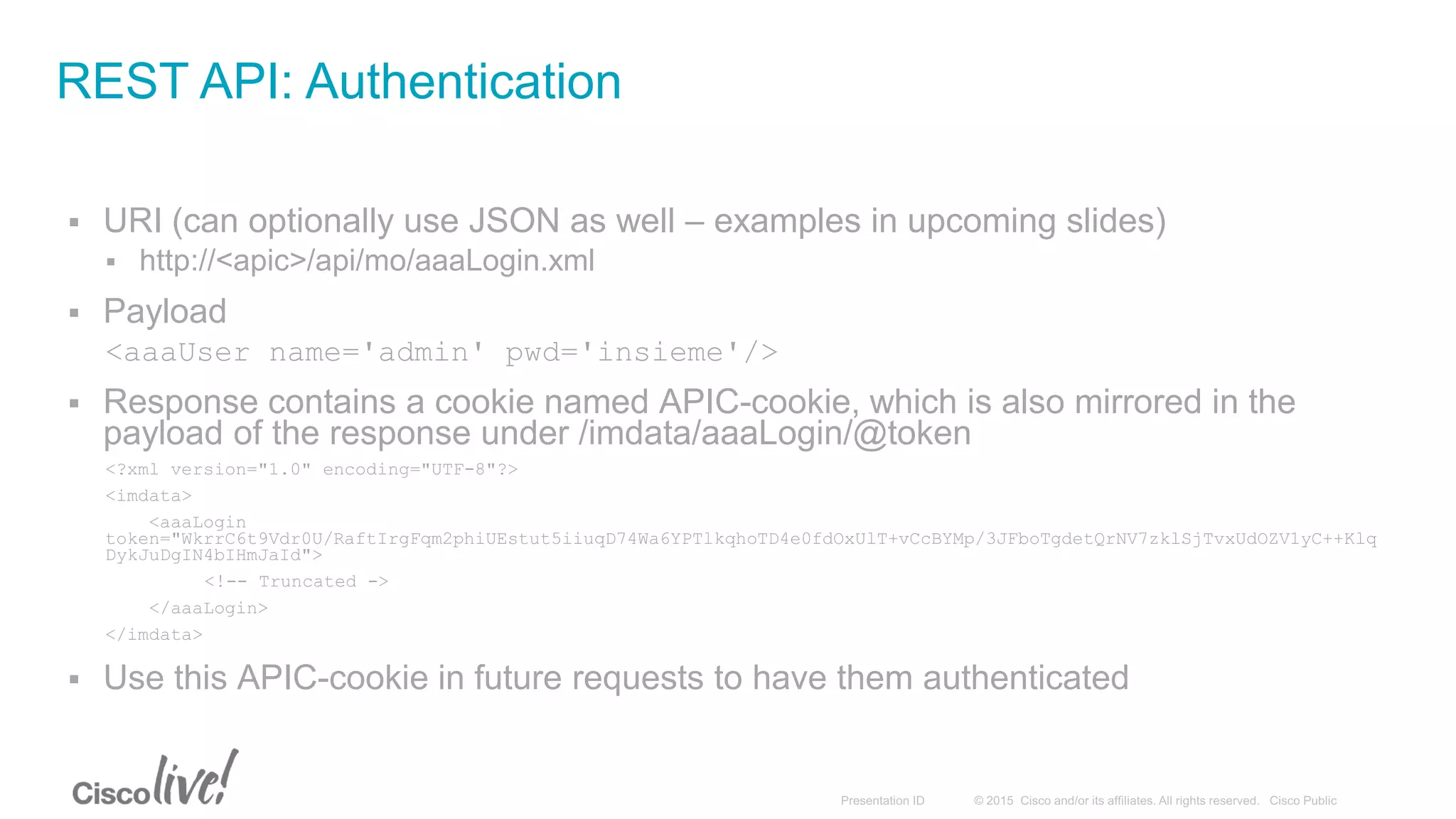

16.  URI (can optionally use JSON as well – examples in upcoming slides)
 http://<apic>/api/mo/aaaLogin.xml
 Payload
<aaaUser name='admin' pwd='insieme'/>
 Response contains a cookie named APIC-cookie, which is also mirrored in the
payload of the response under /imdata/aaaLogin/@token
<?xml version="1.0" encoding="UTF-8"?>
<imdata>
<aaaLogin
token="WkrrC6t9Vdr0U/RaftIrgFqm2phiUEstut5iiuqD74Wa6YPTlkqhoTD4e0fdOxUlT+vCcBYMp/3JFboTgdetQrNV7zklSjTvxUdOZV1yC++Klq
DykJuDgIN4bIHmJaId">
<!-- Truncated ->
</aaaLogin>
</imdata>
 Use this APIC-cookie in future requests to have them authenticated
REST API: Authentication

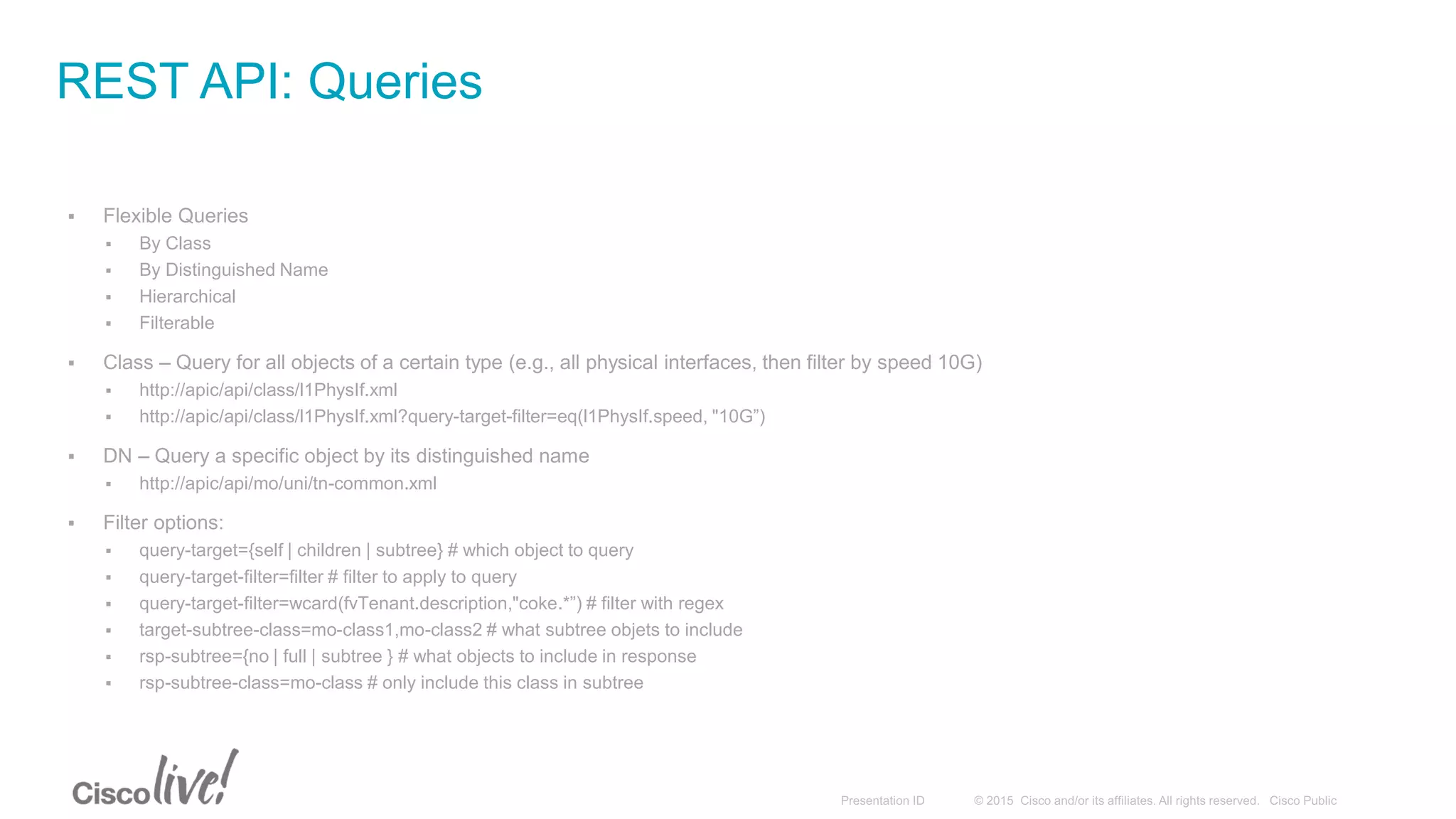

17.  Flexible Queries
 By Class
 By Distinguished Name
 Hierarchical
 Filterable
 Class – Query for all objects of a certain type (e.g., all physical interfaces, then filter by speed 10G)
 http://apic/api/class/l1PhysIf.xml
 http://apic/api/class/l1PhysIf.xml?query-target-filter=eq(l1PhysIf.speed, "10G”)
 DN – Query a specific object by its distinguished name
 http://apic/api/mo/uni/tn-common.xml
 Filter options:
 query-target={self | children | subtree} # which object to query
 query-target-filter=filter # filter to apply to query
 query-target-filter=wcard(fvTenant.description,"coke.*”) # filter with regex
 target-subtree-class=mo-class1,mo-class2 # what subtree objets to include
 rsp-subtree={no | full | subtree } # what objects to include in response
 rsp-subtree-class=mo-class # only include this class in subtree
REST API: Queries

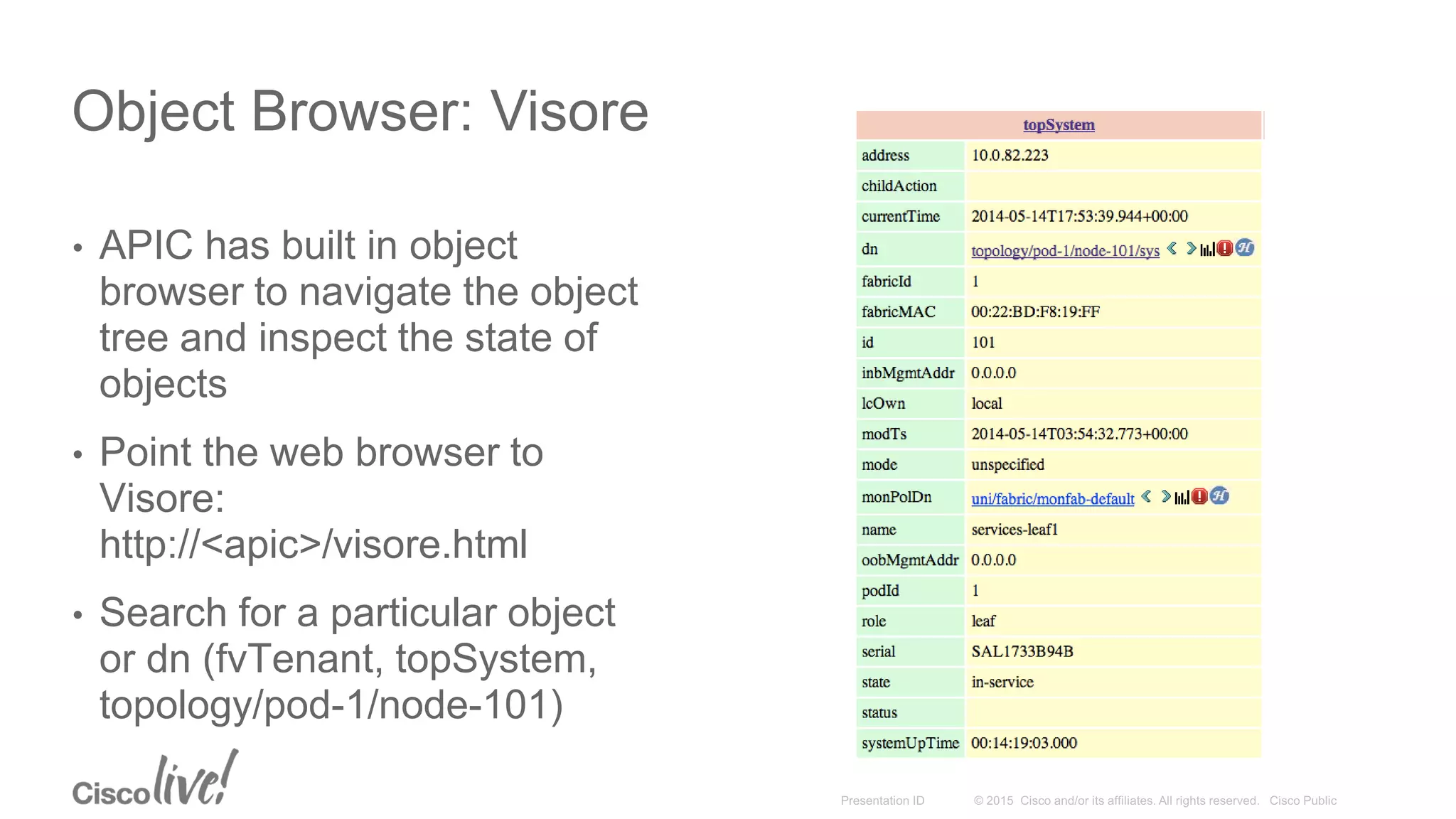

18. Object Browser: Visore
• APIC has built in object
browser to navigate the object
tree and inspect the state of
objects
• Point the web browser to
Visore:
http://<apic>/visore.html
• Search for a particular object
or dn (fvTenant, topSystem,
topology/pod-1/node-101)

19.  www.getpostman.com
 Chrome plugin that enables rapid testing of REST based queries
 GET request to http://apic/api/class/fvTenant.xml will return the object
configuration for all fvTenant classes
 GET request to http://apic/api/mo/uni/tn-common.xml will return the
specific object referenced by DN uni/tn-common as XML
 POST request to http://apic/api/mo/uni/.xml with a payload will create a
tenant.
 <fvTenant name="test"/>
 DELETE request to http://apic/api/mo/uni/tn-test.xml will delete
tenant test. Deletes tenant and children
POSTman

20. Cisco ACI: SDK

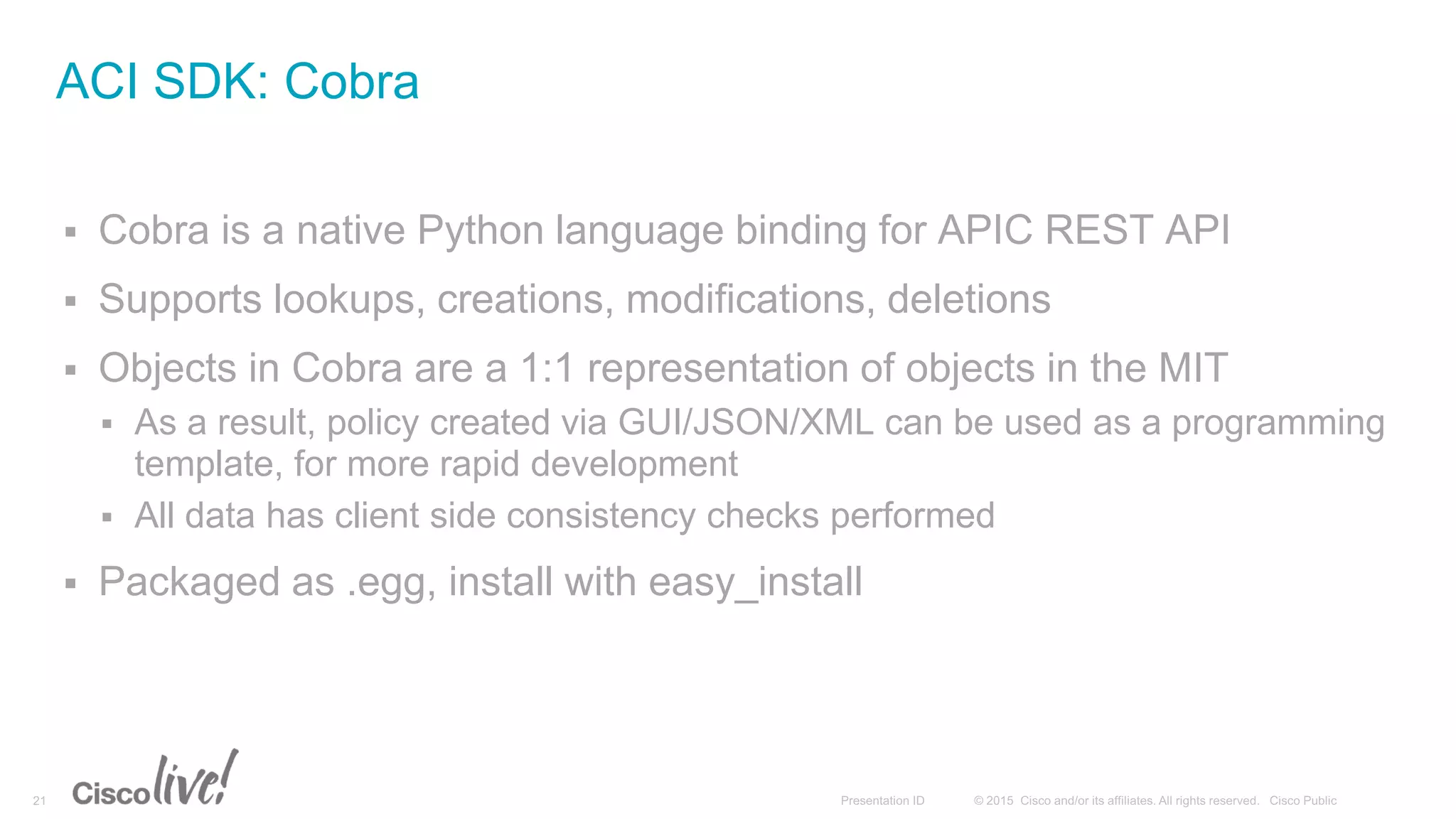

21.  Cobra is a native Python language binding for APIC REST API
 Supports lookups, creations, modifications, deletions
 Objects in Cobra are a 1:1 representation of objects in the MIT
 As a result, policy created via GUI/JSON/XML can be used as a programming
template, for more rapid development
 All data has client side consistency checks performed
 Packaged as .egg, install with easy_install
ACI SDK: Cobra

22. Getting started: Logging in
import cobra.mit.access
import cobra.mit.session
ls = cobra.mit.session.LoginSession(
'http://apic', 'username', 'password')
md = cobra.mit.access.MoDirectory(ls)
md.login()
Link the
credentials to
the APIC
Define an APIC
to which we
will login
LoginSession
stores URI
and
credentials

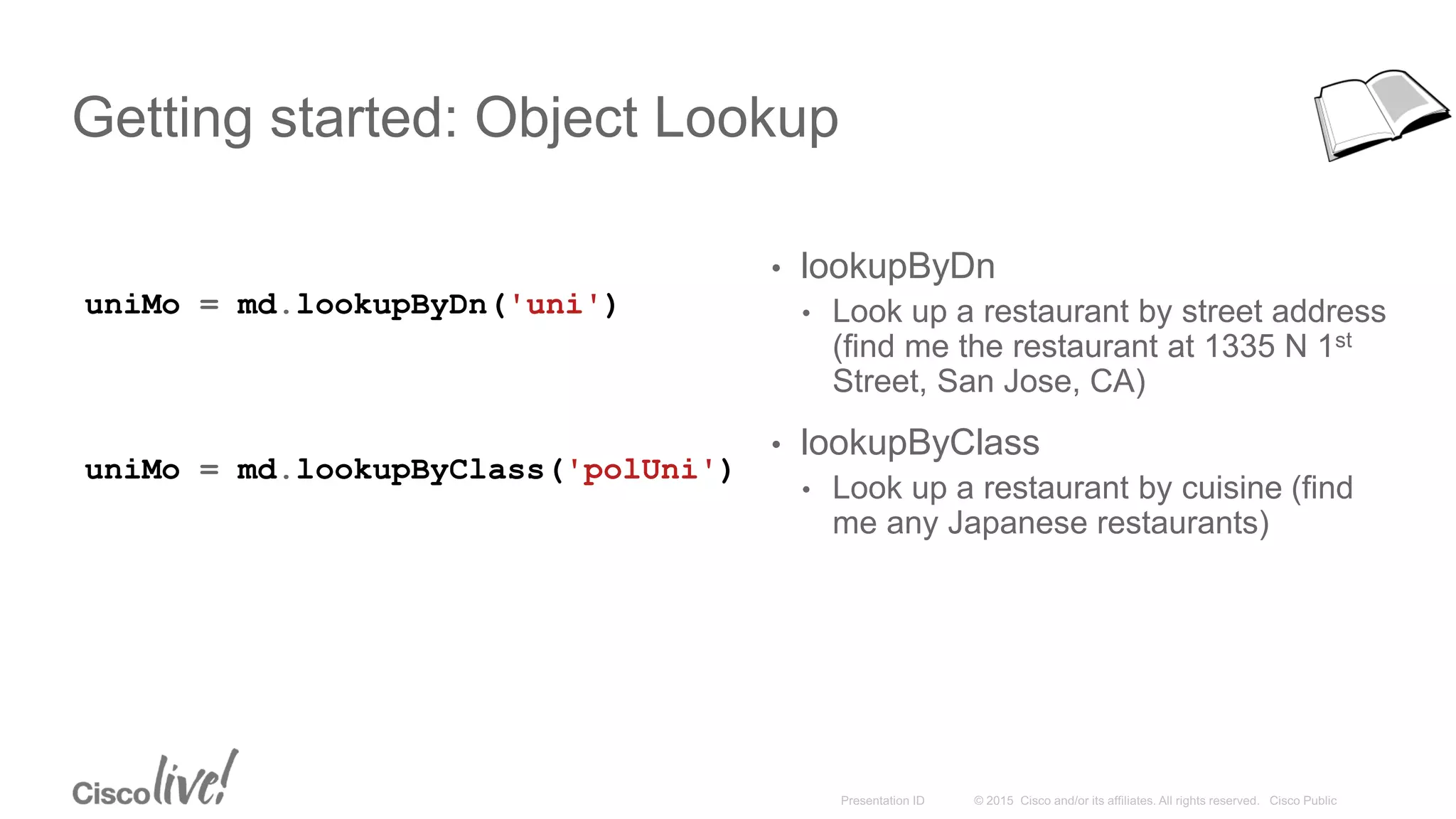

23. Getting started: Object Lookup
uniMo = md.lookupByDn('uni')
• lookupByDn
• Look up a restaurant by street address
(find me the restaurant at 1335 N 1st
Street, San Jose, CA)
• lookupByClass
• Look up a restaurant by cuisine (find
me any Japanese restaurants)
uniMo = md.lookupByClass('polUni')

24. Getting started: Object Creation
import cobra.model.fabric
# Advice: Don’t hardcode Dn’s.
topMo = md.lookupByDn('uni/controller/nodeidentpol')
leaf1IdentP = cobra.model.fabric.NodeIdentP(
topMo, serial='TEP-1-17', nodeId='17', name='leaf1')
spine1IdentP = cobra.model.fabric.NodeIdentP(
topMo, serial='TEP-1-19', nodeId='19', name='spine1')
Use Visore to
find the class
Note – These objects are created locally only,
to save them to the APIC use a
ConfigRequest.

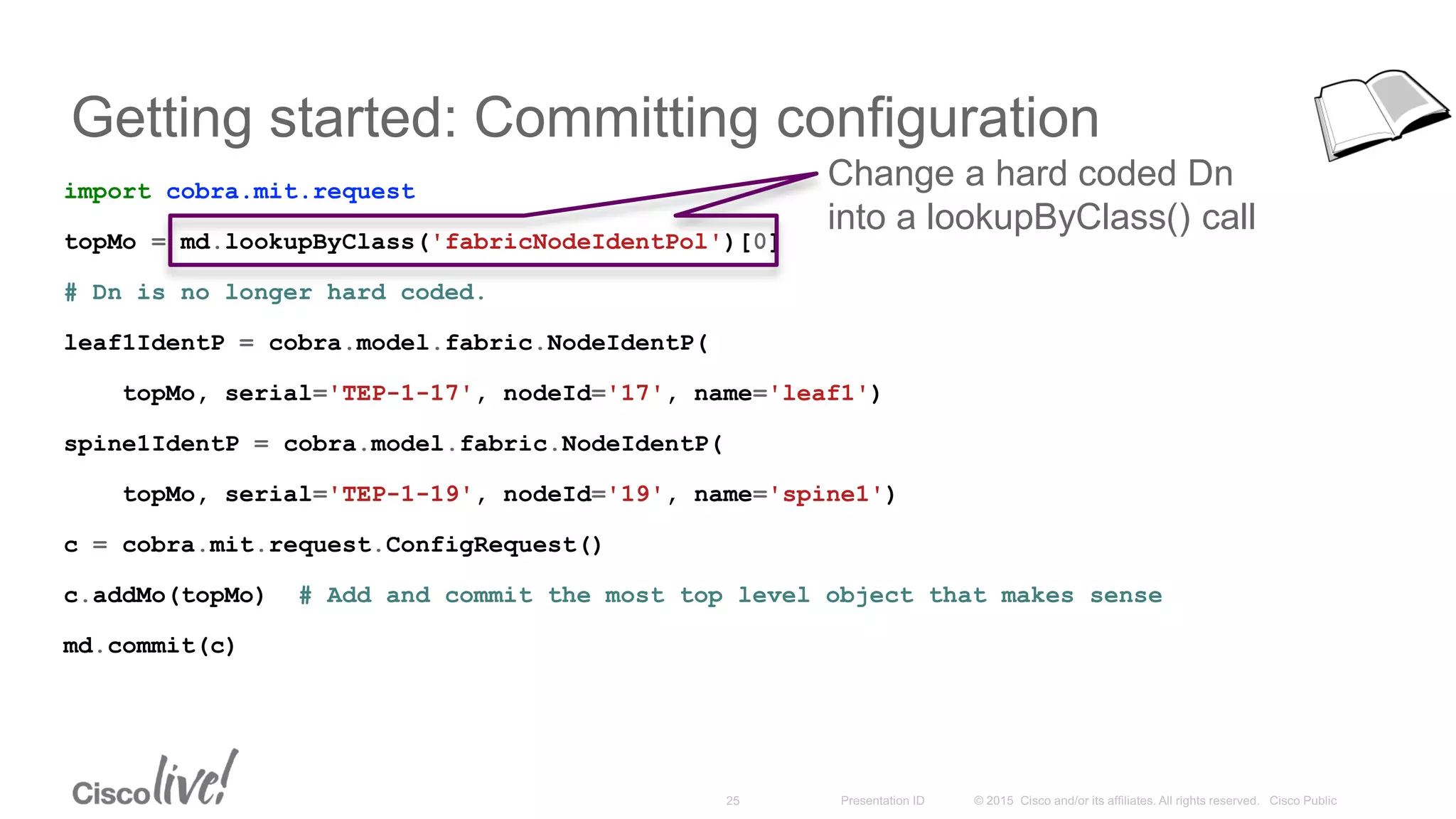

25. Getting started: Committing configuration
import cobra.mit.request
topMo = md.lookupByClass('fabricNodeIdentPol')[0]
# Dn is no longer hard coded.
leaf1IdentP = cobra.model.fabric.NodeIdentP(
topMo, serial='TEP-1-17', nodeId='17', name='leaf1')
spine1IdentP = cobra.model.fabric.NodeIdentP(
topMo, serial='TEP-1-19', nodeId='19', name='spine1')
c = cobra.mit.request.ConfigRequest()
c.addMo(topMo) # Add and commit the most top level object that makes sense
md.commit(c)
Change a hard coded Dn
into a lookupByClass() call

26. from cobra.model.fv import Tenant
from cobra.model.pol import Uni
from cobra.mit.request import ConfigRequest
uniMo = Uni('') # Uni is a static Mo, so we don’t need to look it up
t = Tenant(uniMo, 'Tenant1') # We create a tenant as a child of the universe
c = ConfigRequest() # Create a ConfigRequest to contain our new object
c.addMo(t) # Add our tenant to the ConfigRequest
moDir.commit(c) # Commit our configuration request
Create a tenant

27. from cobra.model.fv import *
from cobra.model.pol import Uni
uniMo = Uni('')
t = Tenant(uniMo, 'Tenant1')
ap = Ap(t, 'Exchange')
epg1 = AEPg(ap, 'OWA')
epg2 = AEPg(ap, 'FrontEnd')
epg3 = AEPg(ap, 'MailBox')
ep = RsPathAtt(epg1, tDn=‘topology/pod-1/paths-17/paths-[eth1/1]’,
mode=‘regular’, encap=‘vlan-10’)
c = ConfigRequest()
c.addMo(t)
moDir.commit(c)
Create a simple application
Note – Bridge Domain configuration omitted for
brevity. Please see the Cobra SDK or APIC
Configuration Guide for a complete configuration

28. Live Code!

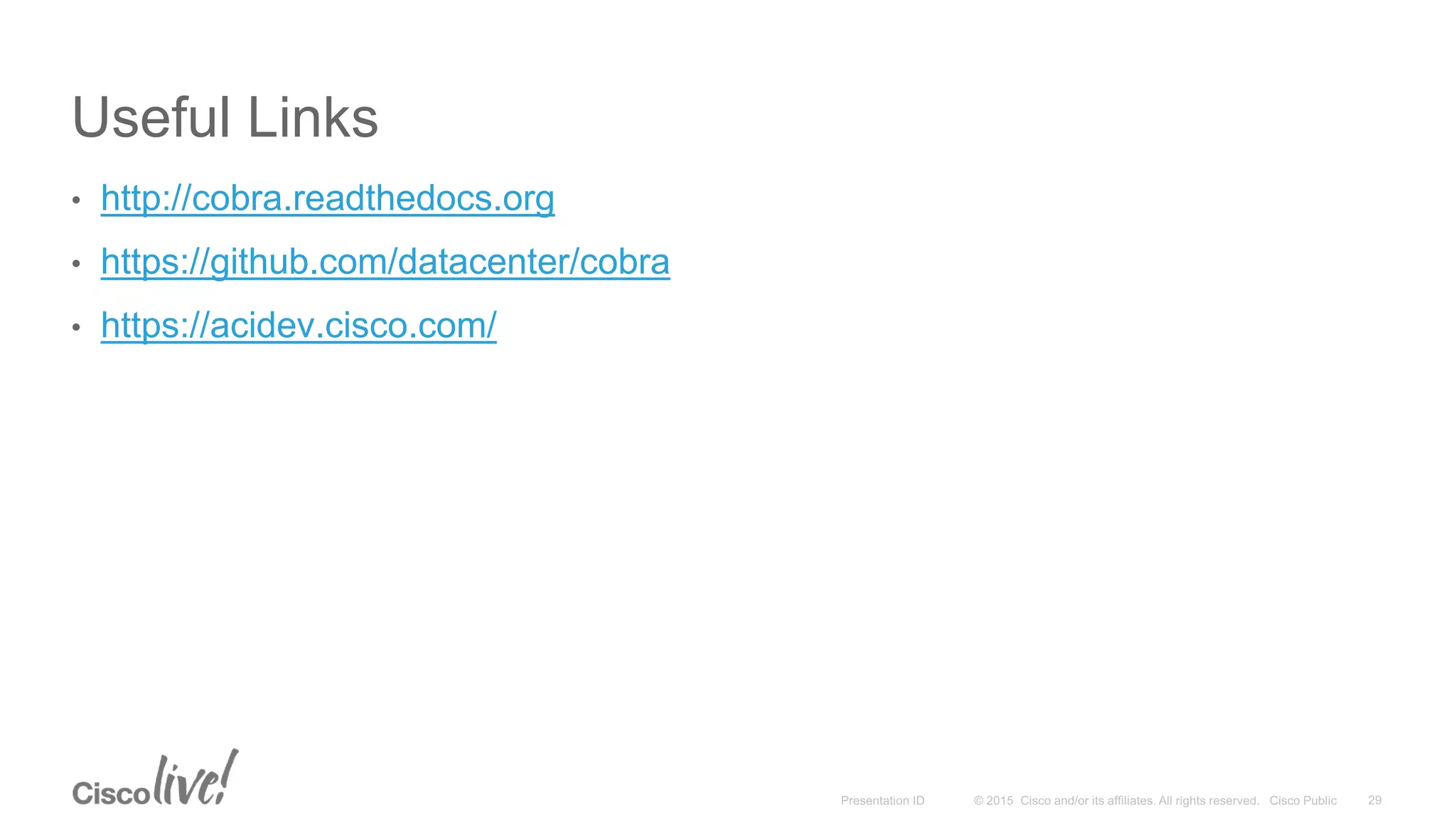

29. Useful Links
• http://cobra.readthedocs.org
• https://github.com/datacenter/cobra
• https://acidev.cisco.com/
