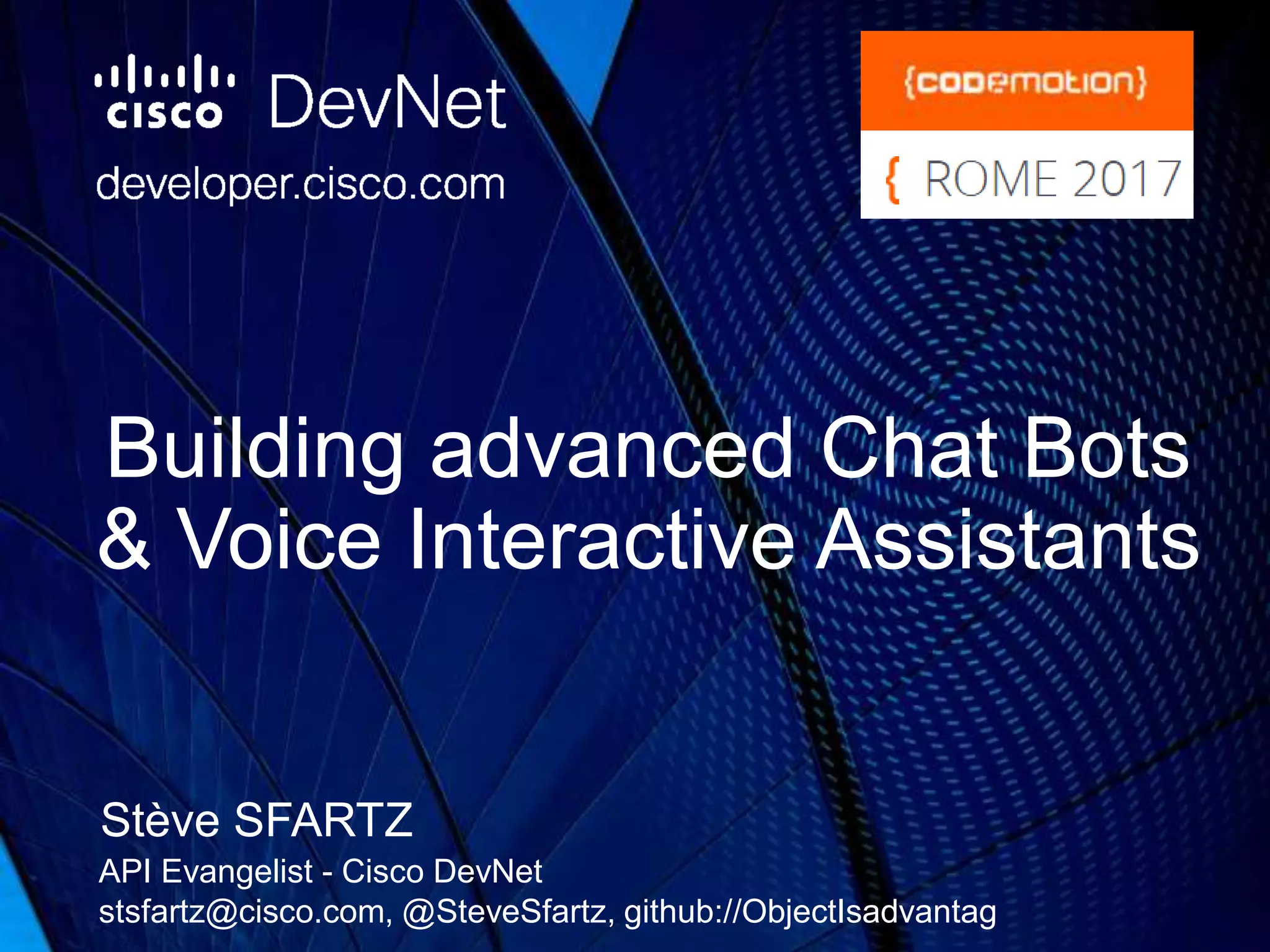

1. Building advanced Chat Bots
& Voice Interactive Assistants
Stève SFARTZ
API Evangelist - Cisco DevNet
stsfartz@cisco.com, @SteveSfartz, github://ObjectIsadvantag

2. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
/Cisco/DevNet/SteveSfartz
• API Evangelist @CiscoDevNet
• Cisco Spark Apps & Tropo APIs
• code addict, nodejs, love story
with #golang
• France and all around Europe
• hosted @PIRL – Paris Innovation
Center & Research Lab
• twitter://@SteveSfartz
• github://ObjectIsAdvantag
“vision without
execution is
hallucination”
-- Thomas Edison
stsfartz@cisco.com
@SteveSfartz

3. 3
 Zero to advanced Voice Machines, ChatBots
 Demoes & code samples
 +39-069-480-4685,
 QuizBot@sparkbot.io
 Challenges & Lessons learnt
T
so what’s on the menu

4. From Zero to advanced
Voice Machines with Tropo

5. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
What is Tropo ?
Cloud APIs enabling developers to quickly
and easily embed communication capabilities
into their applications and business processes.

6. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
+
• Ask
• Call
• Conference
• Hangup
• Record
• Reject
• Say
• Transfer
6
Tropo in a nutshell

7. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
say("hello world");
7

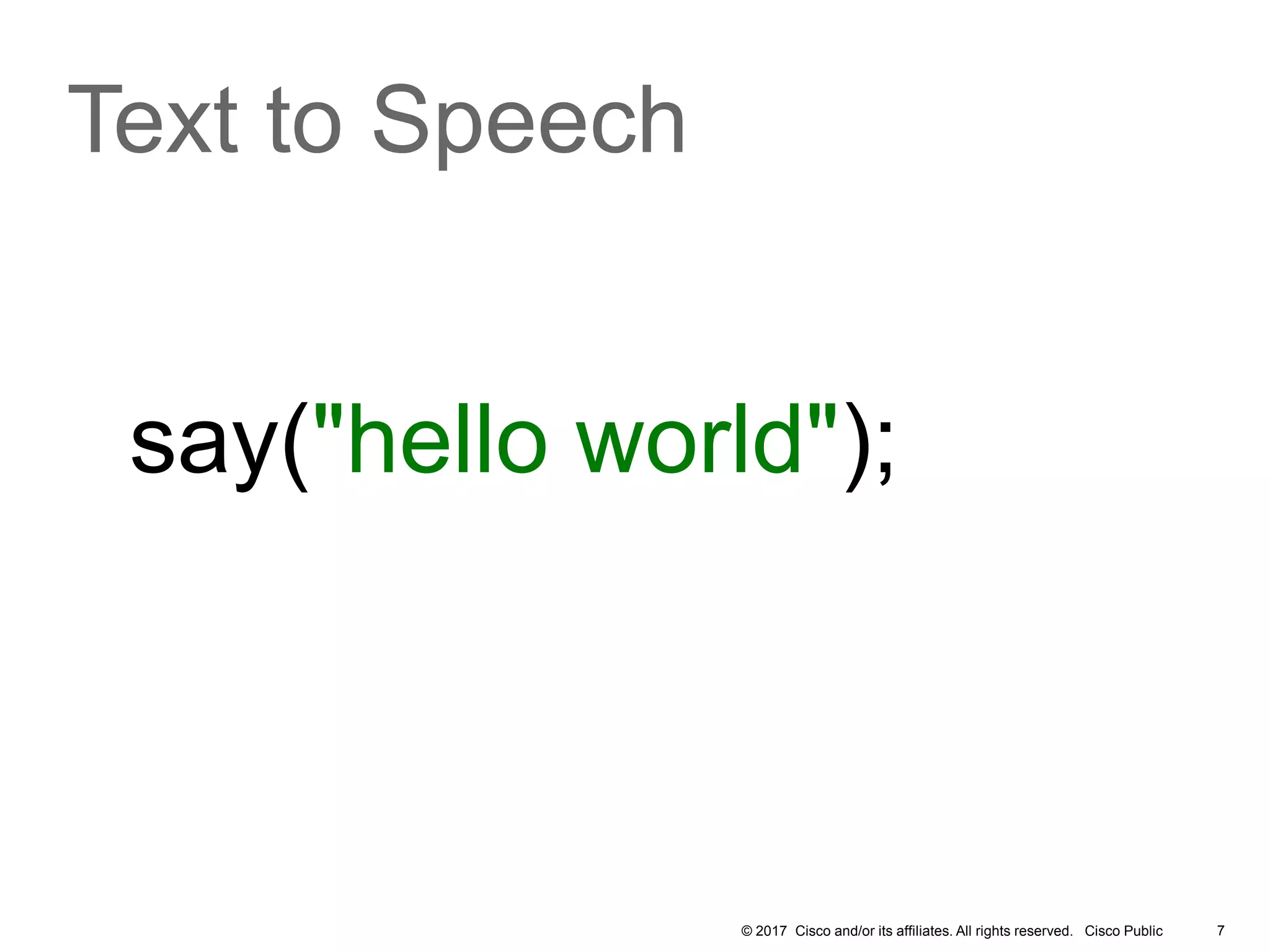

Text to Speech

8. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 8

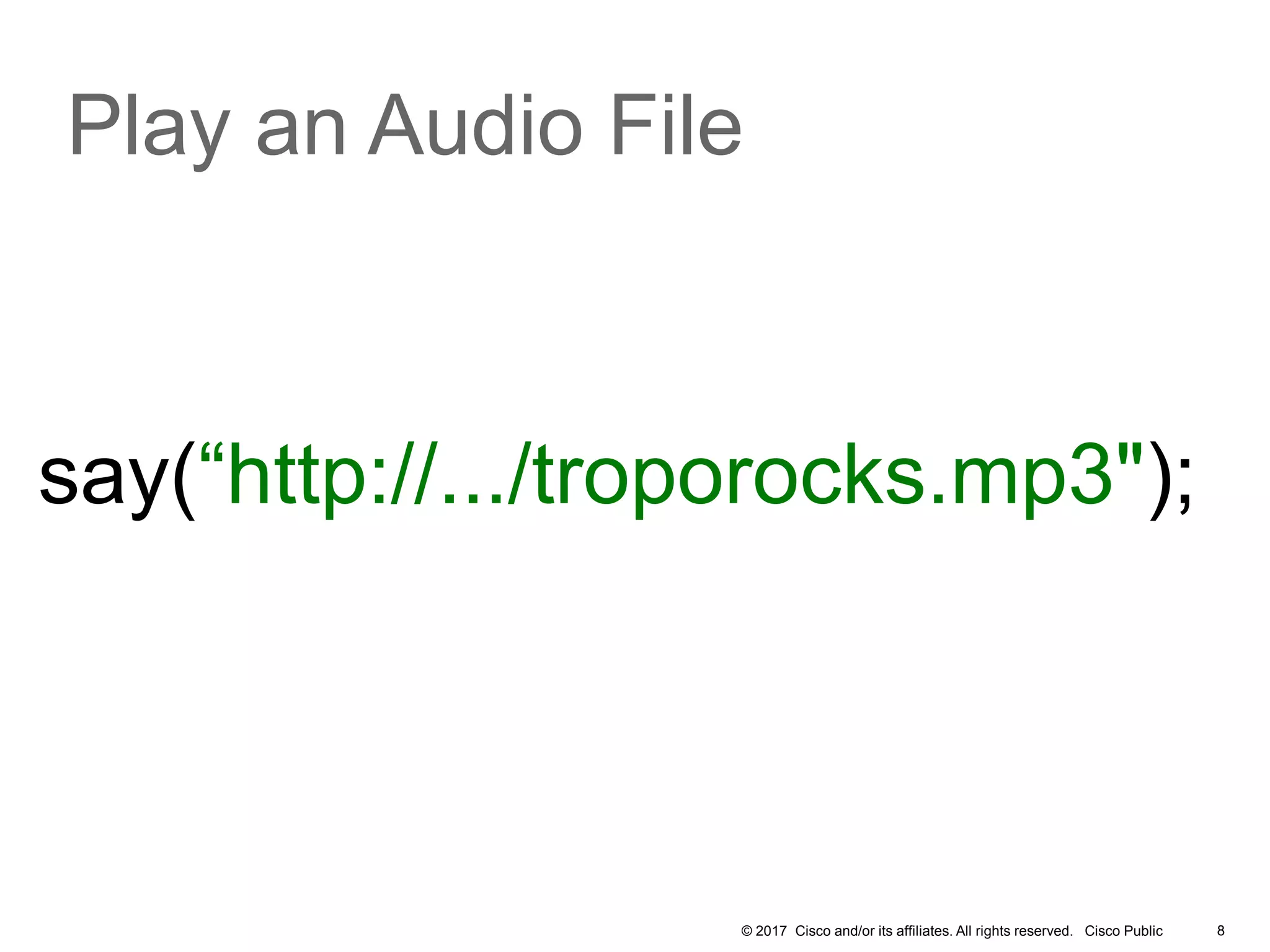

Play an Audio File
say(“http://.../troporocks.mp3");

9. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

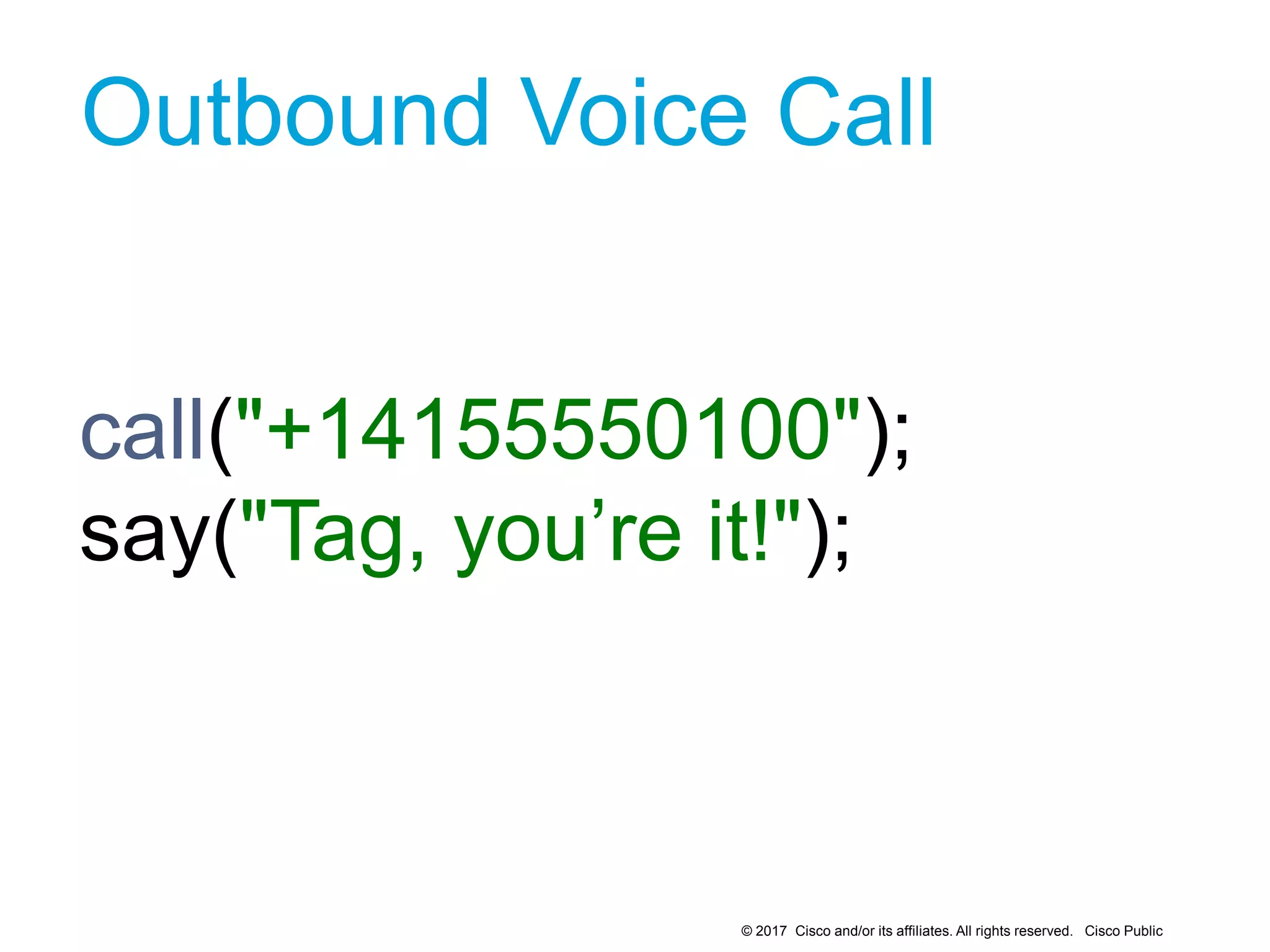

Outbound Voice Call
call("+14155550100");
say("Tag, you’re it!");
9

10. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

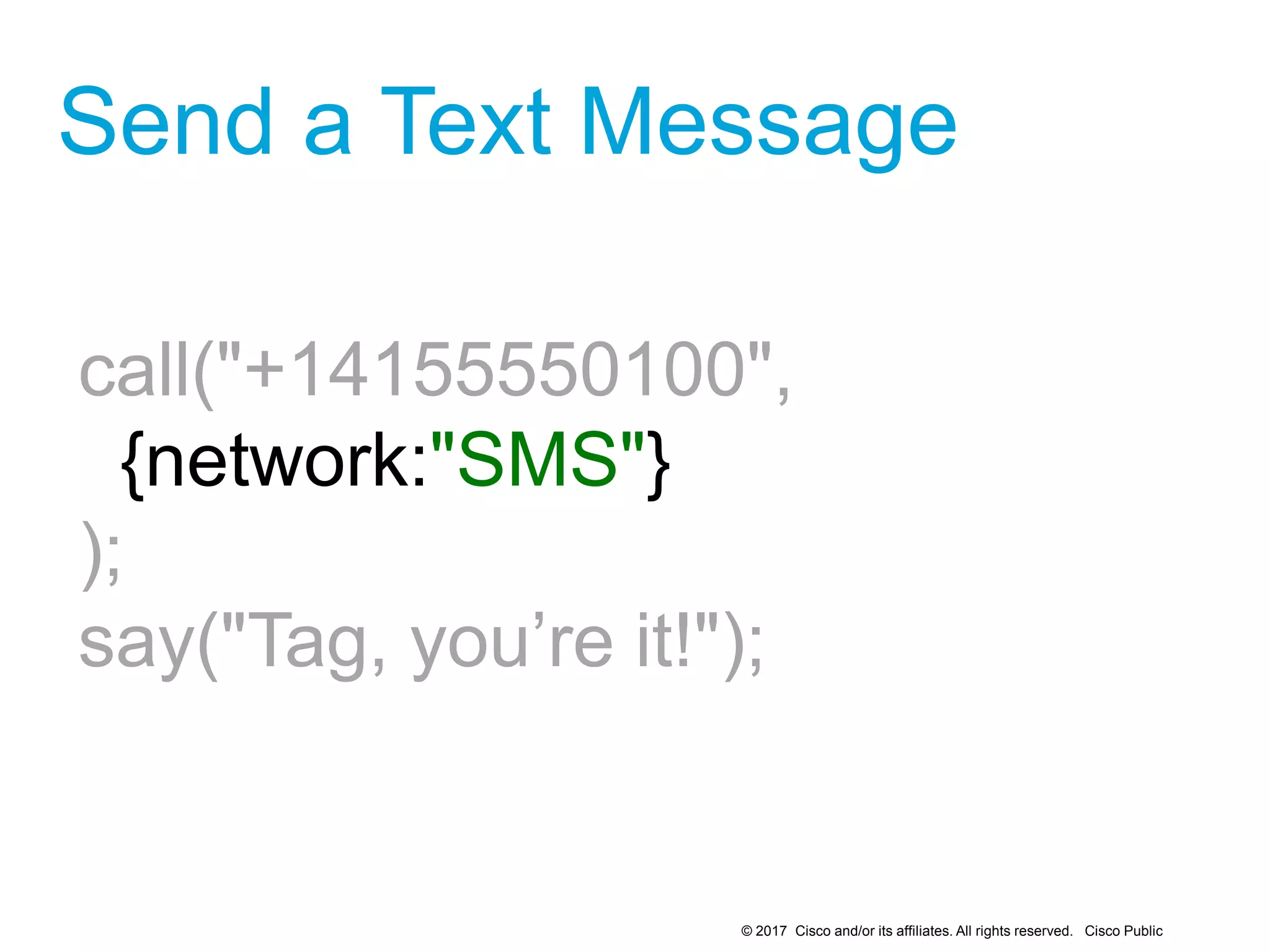

Send a Text Message
call("+14155550100",
{network:"SMS"}
);
say("Tag, you’re it!");
1

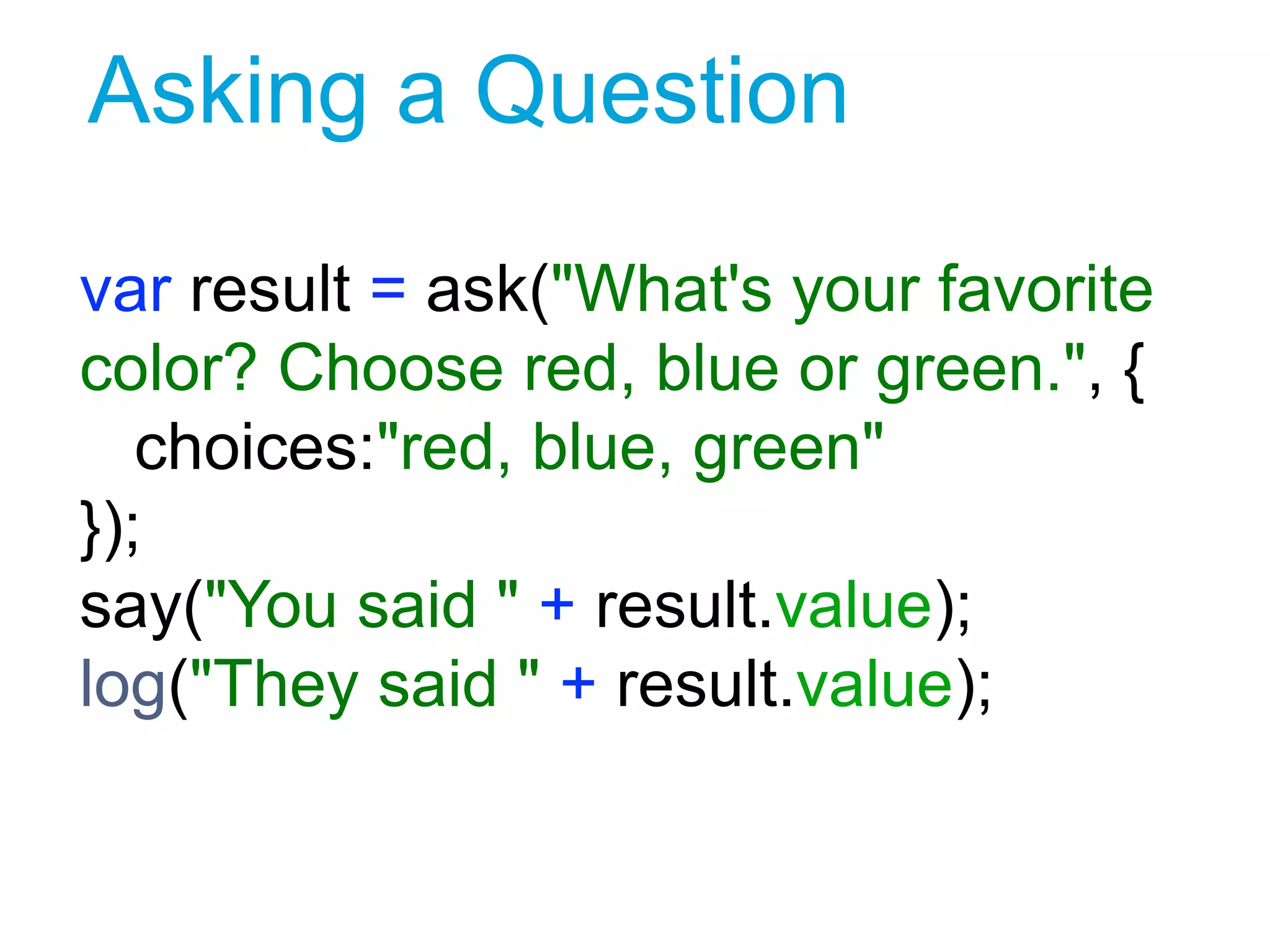

11. Asking a Question
var result = ask("What's your favorite
color? Choose red, blue or green.", {
choices:"red, blue, green"
});
say("You said " + result.value);
log("They said " + result.value);
1

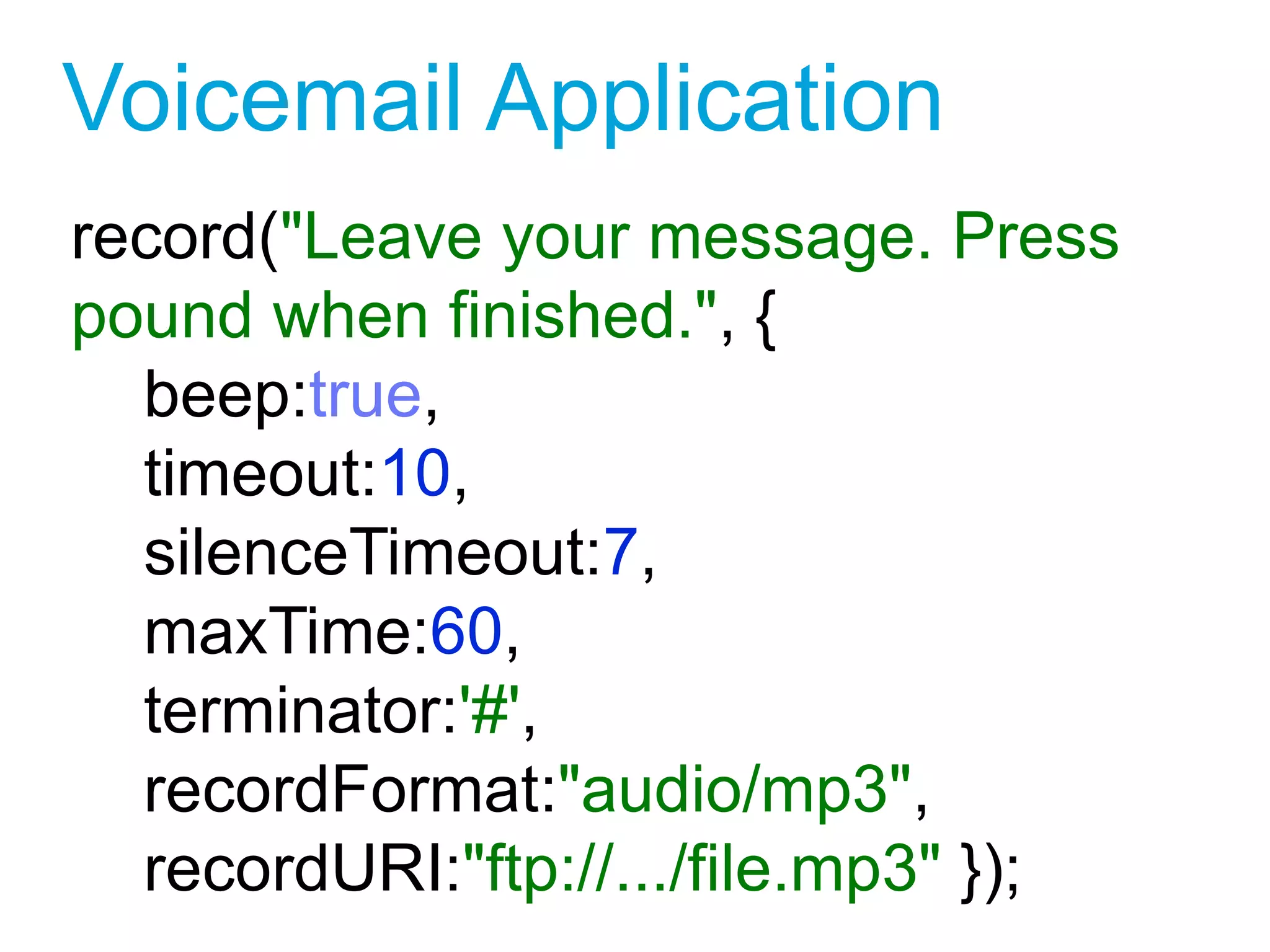

12. Voicemail Application
record("Leave your message. Press
pound when finished.", {
beep:true,
timeout:10,
silenceTimeout:7,
maxTime:60,
terminator:'#',
recordFormat:"audio/mp3",
recordURI:"ftp://.../file.mp3" });
1

13. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

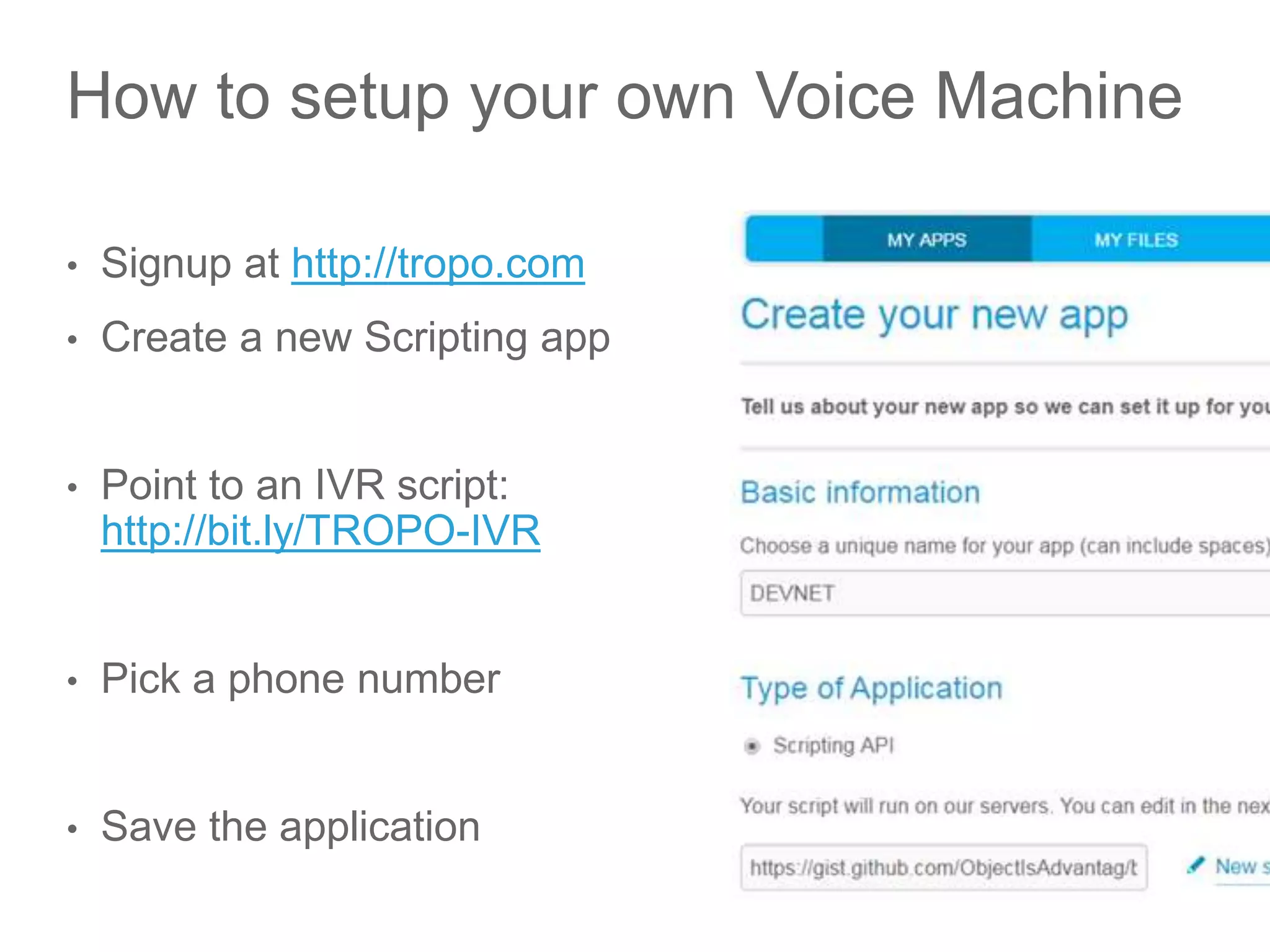

How to setup your own Voice Machine
• Signup at http://tropo.com
• Create a new Scripting app
• Point to an IVR script:
http://bit.ly/TROPO-IVR
• Pick a phone number
• Save the application
13

14. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Globally available
Global Outgoing Calls & Messages
Numbers in 42 countries
80 speech languages
14

15. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

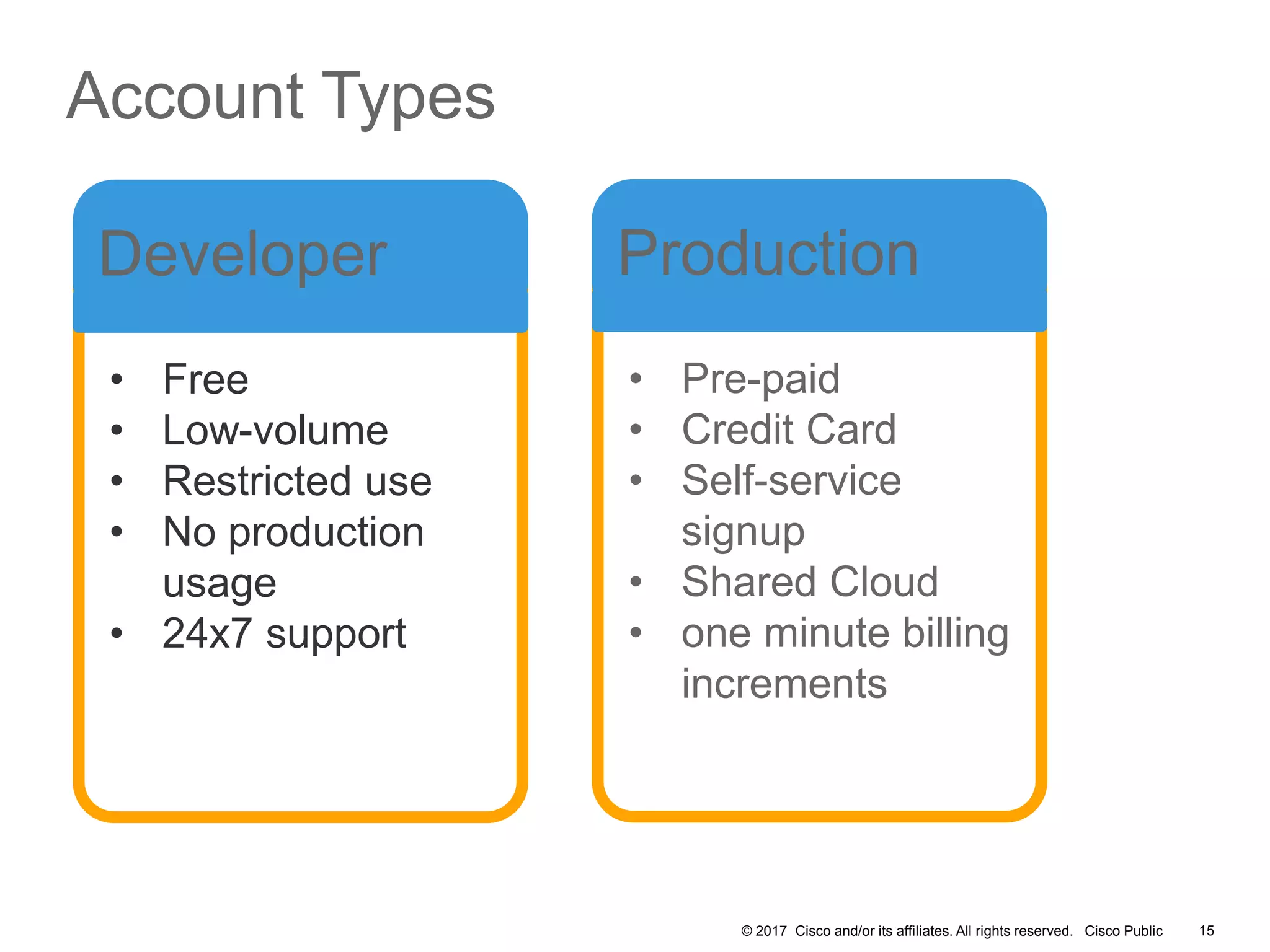

Account Types
• Free
• Low-volume
• Restricted use
• No production
usage
• 24x7 support
Developer
• Pre-paid
• Credit Card
• Self-service
signup
• Shared Cloud
• one minute billing
increments
Production
15

16. Check upcoming talks
via CodeMotion Rome’s
Voice Machine
+39 069 480 4685

17. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

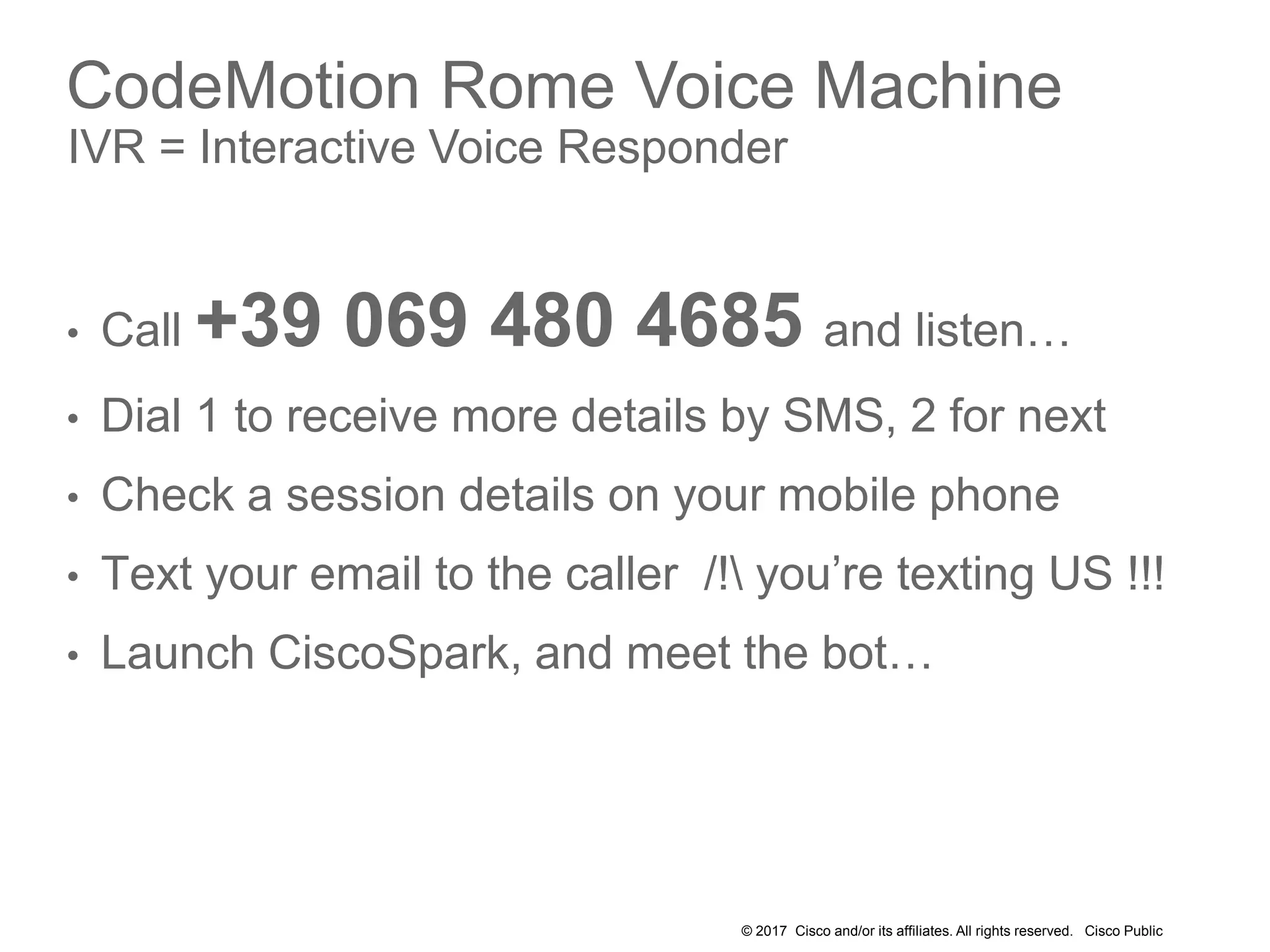

CodeMotion Rome Voice Machine
IVR = Interactive Voice Responder
• Call +39 069 480 4685 and listen…
• Dial 1 to receive more details by SMS, 2 for next
• Check a session details on your mobile phone
• Text your email to the caller /! you’re texting US !!!
• Launch CiscoSpark, and meet the bot…

18. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

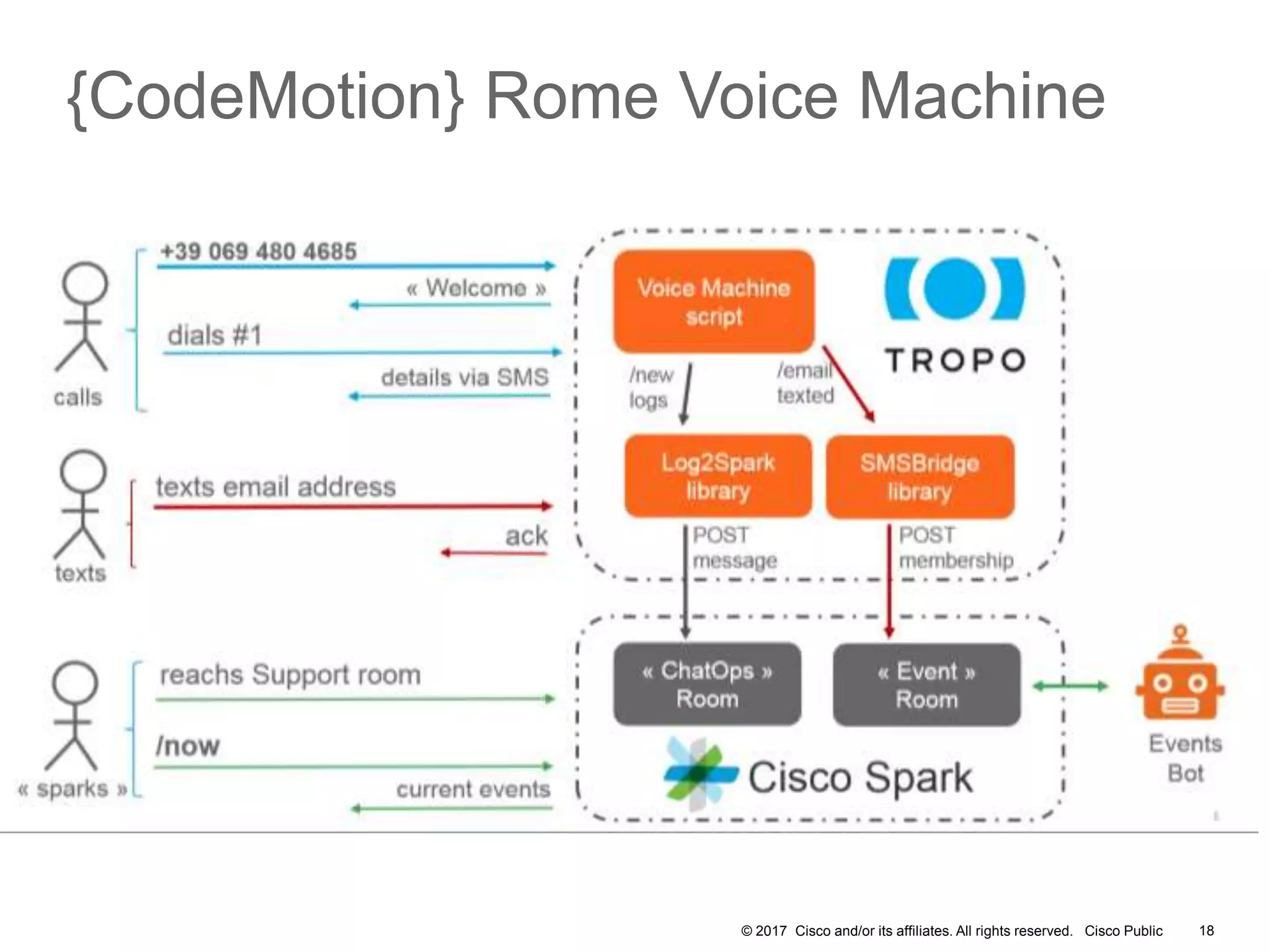

{CodeMotion} Rome Voice Machine
18

19. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

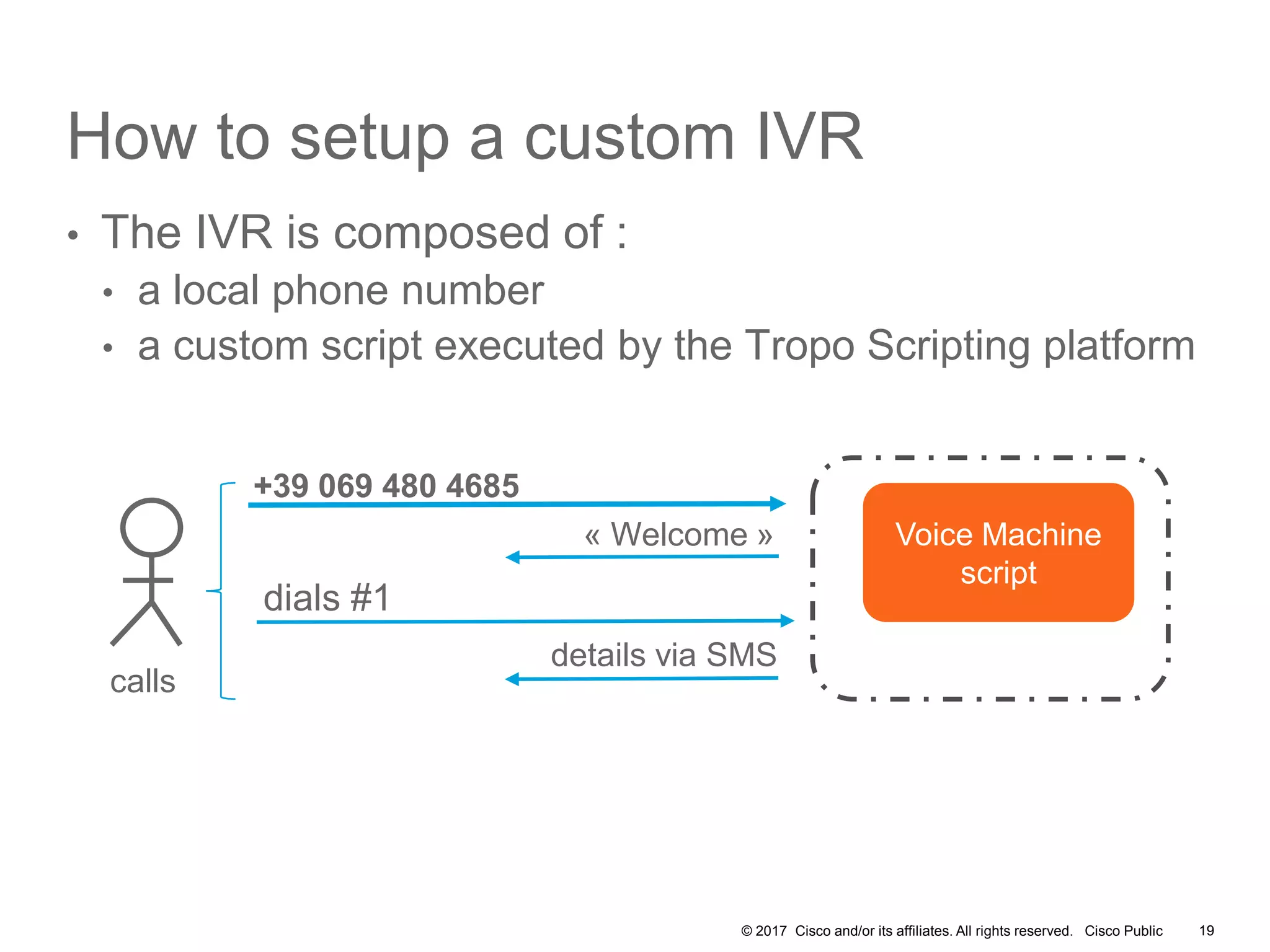

How to setup a custom IVR
• The IVR is composed of :
• a local phone number
• a custom script executed by the Tropo Scripting platform
dials #1
+39 069 480 4685
« Welcome »
details via SMS
calls
Voice Machine
script
19

20. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

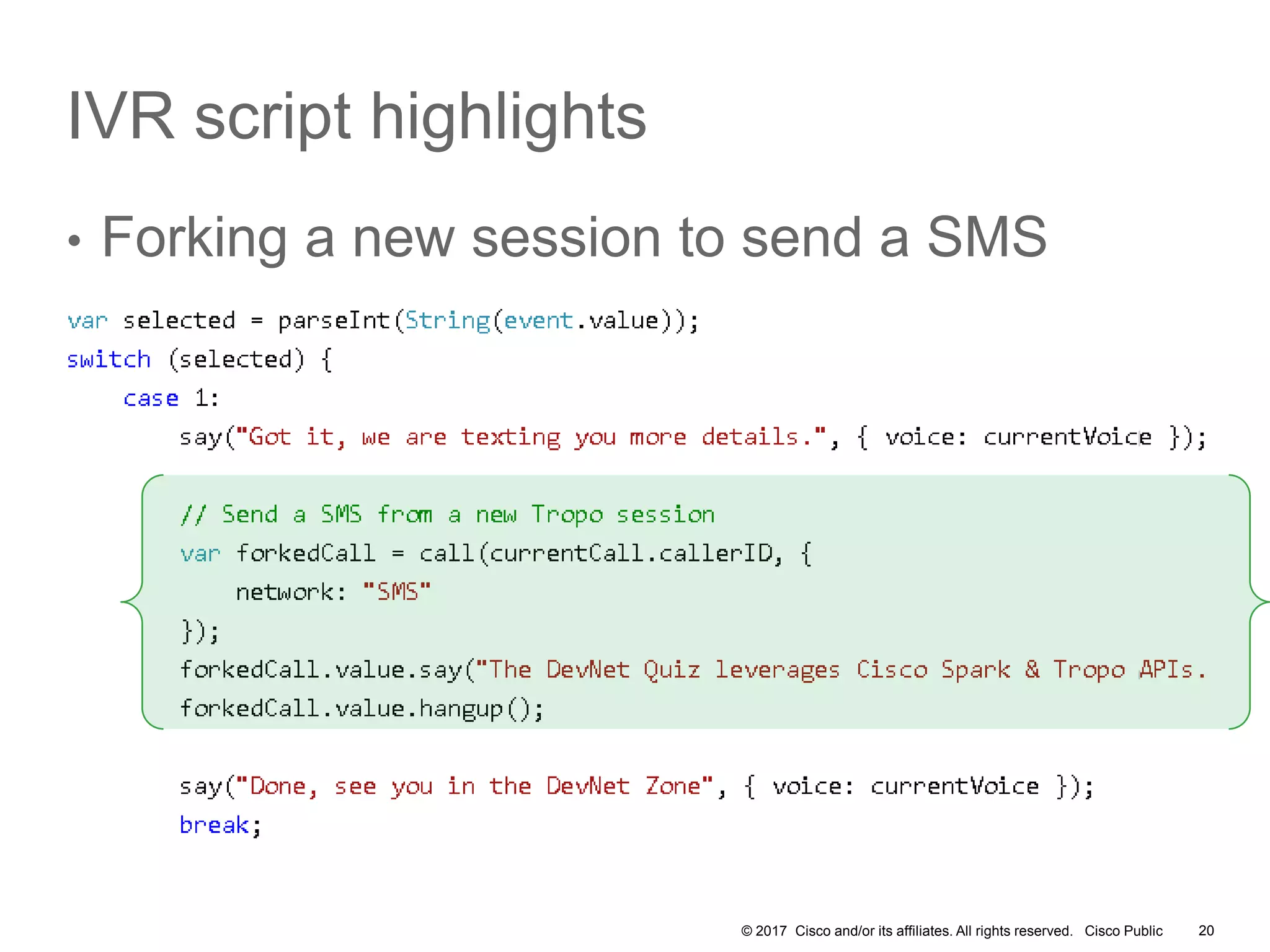

IVR script highlights
• Forking a new session to send a SMS
20

21. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

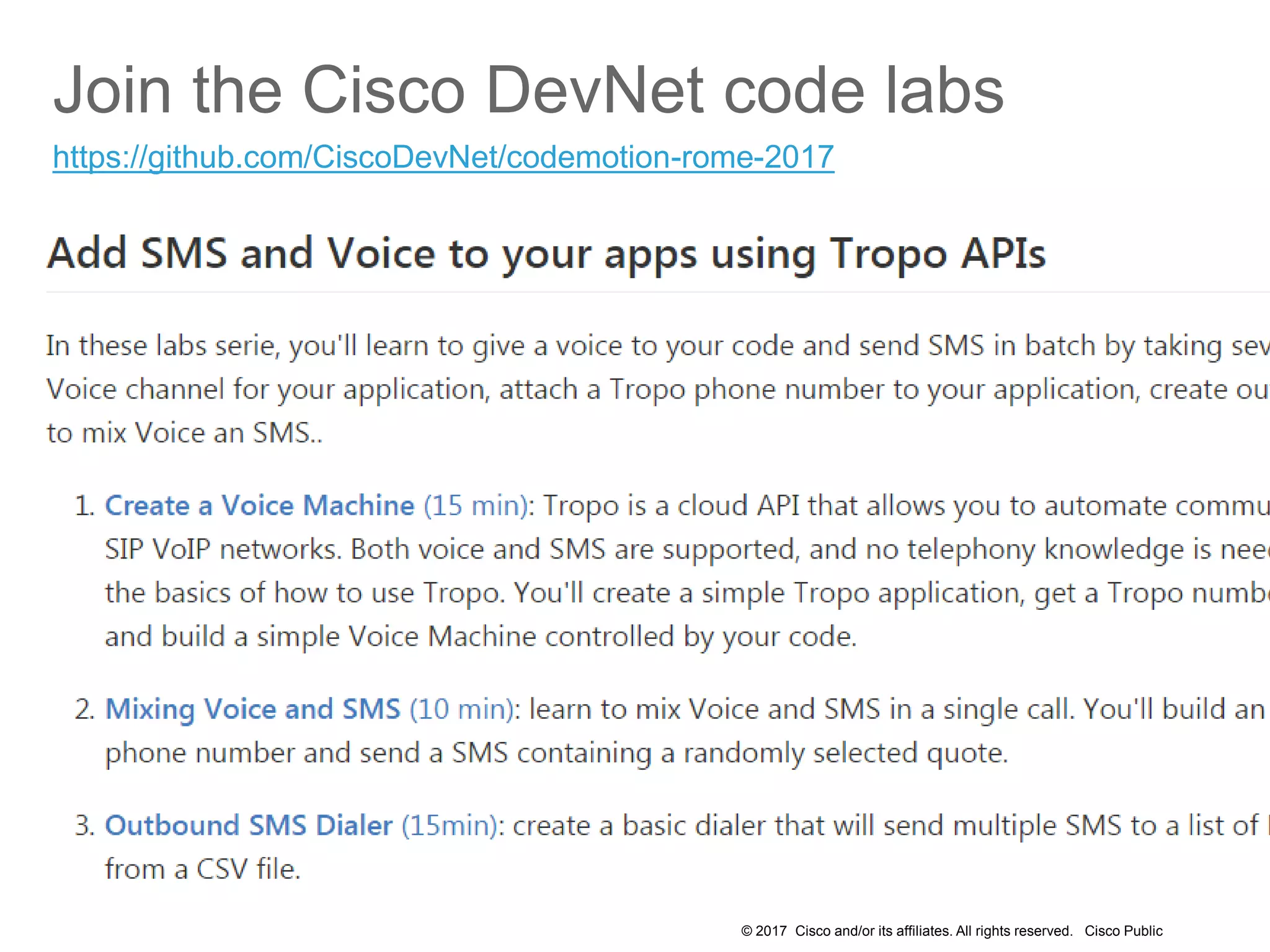

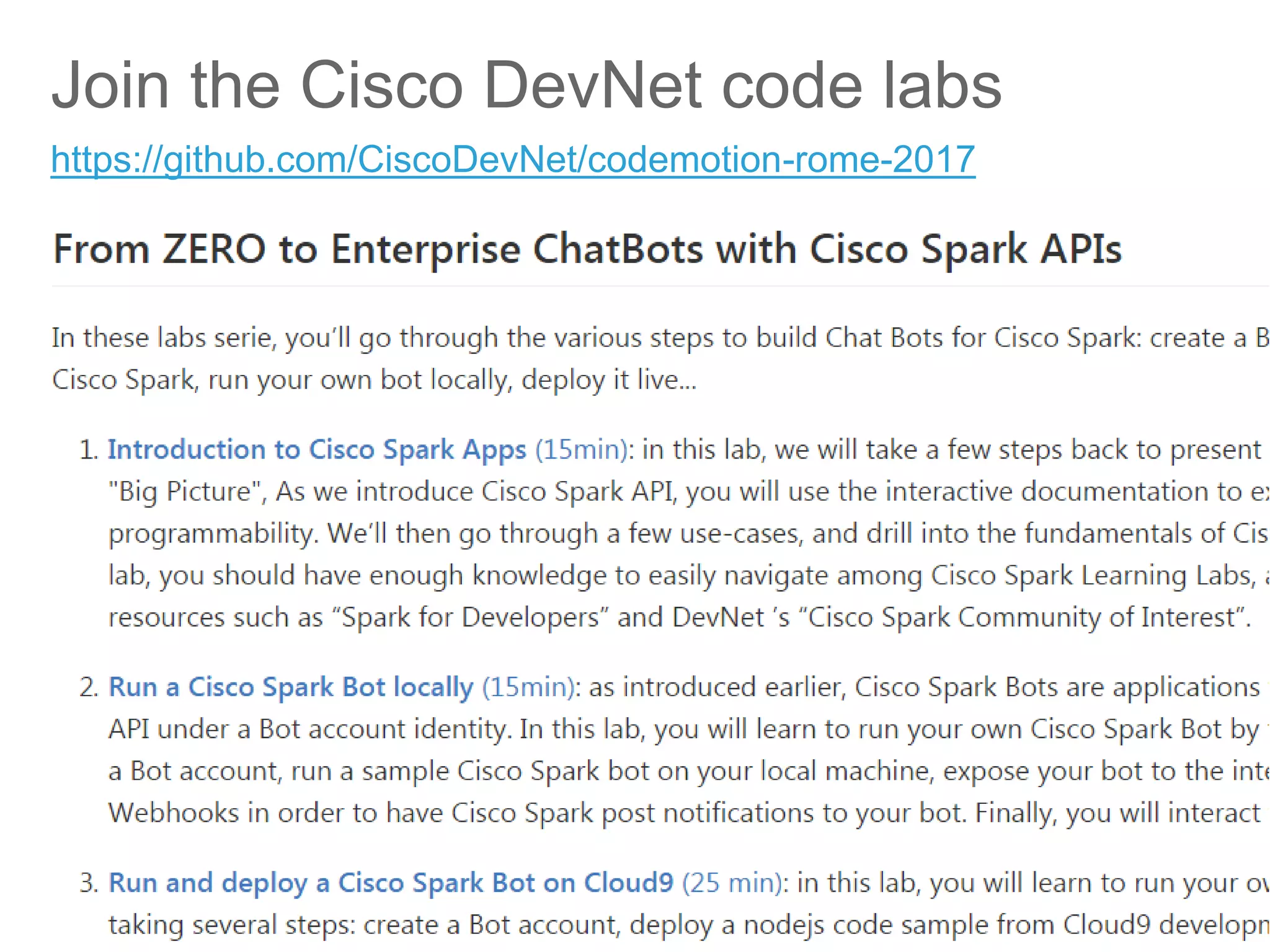

Join the Cisco DevNet code labs
https://github.com/CiscoDevNet/codemotion-rome-2017

22. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

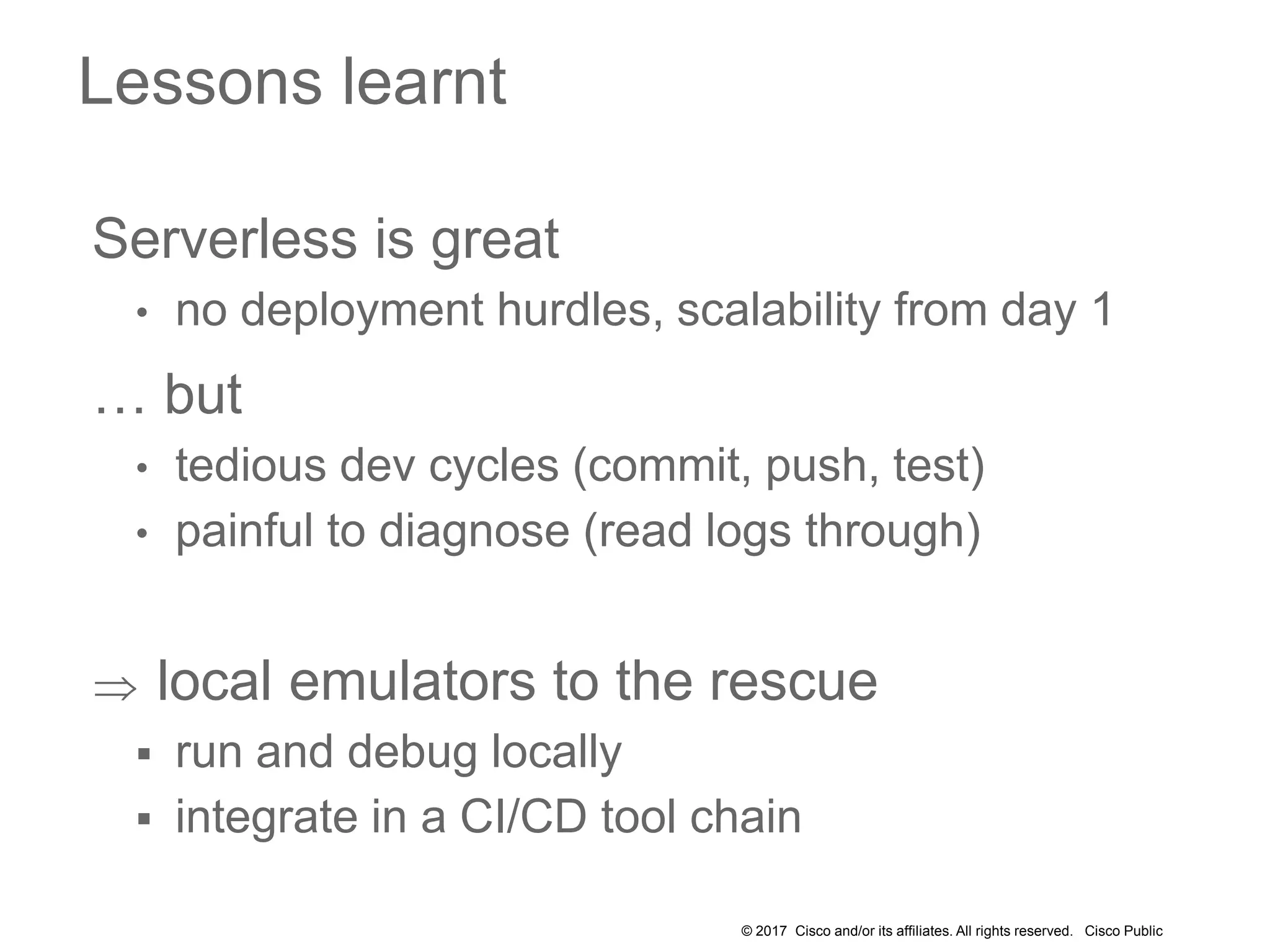

Serverless is great
• no deployment hurdles, scalability from day 1
… but
• tedious dev cycles (commit, push, test)
• painful to diagnose (read logs through)
 local emulators to the rescue
 run and debug locally
 integrate in a CI/CD tool chain
Lessons learnt

23. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

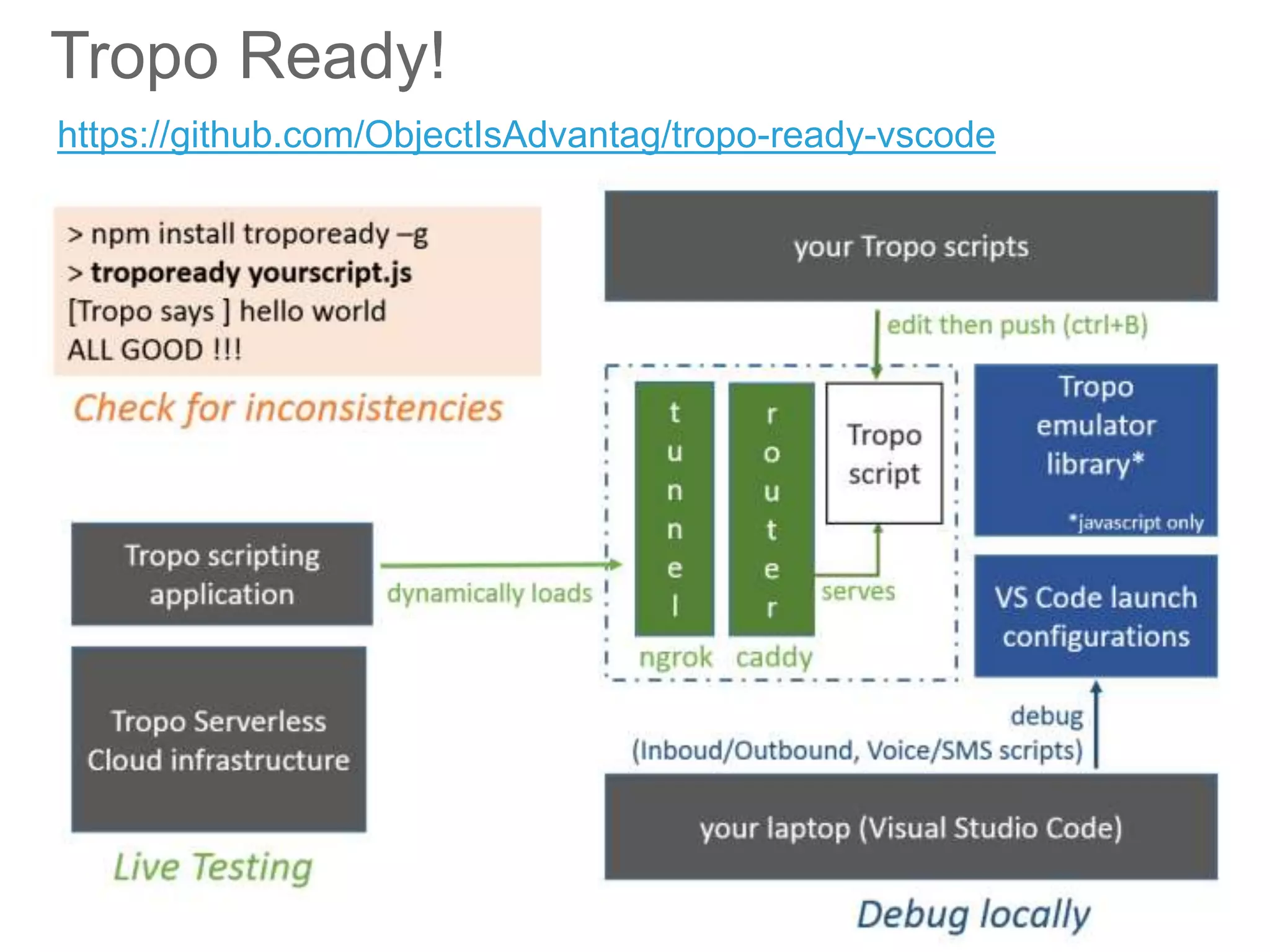

Tropo Ready!
• Tropo Ready!
• + URL to the project
• Browse the project
https://github.com/ObjectIsAdvantag/tropo-ready-vscode

24. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

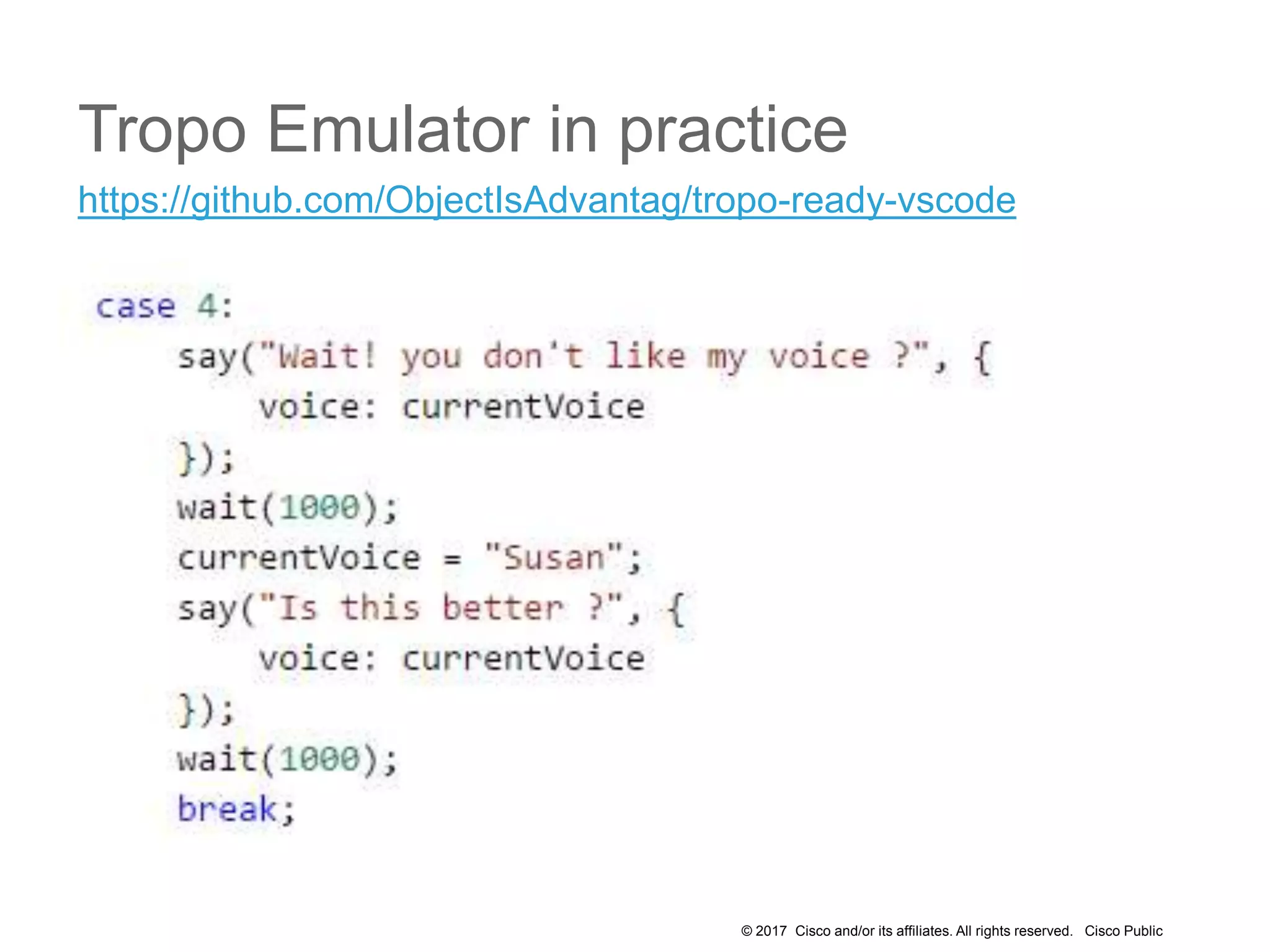

Tropo Emulator in practice
https://github.com/ObjectIsAdvantag/tropo-ready-vscode

25. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

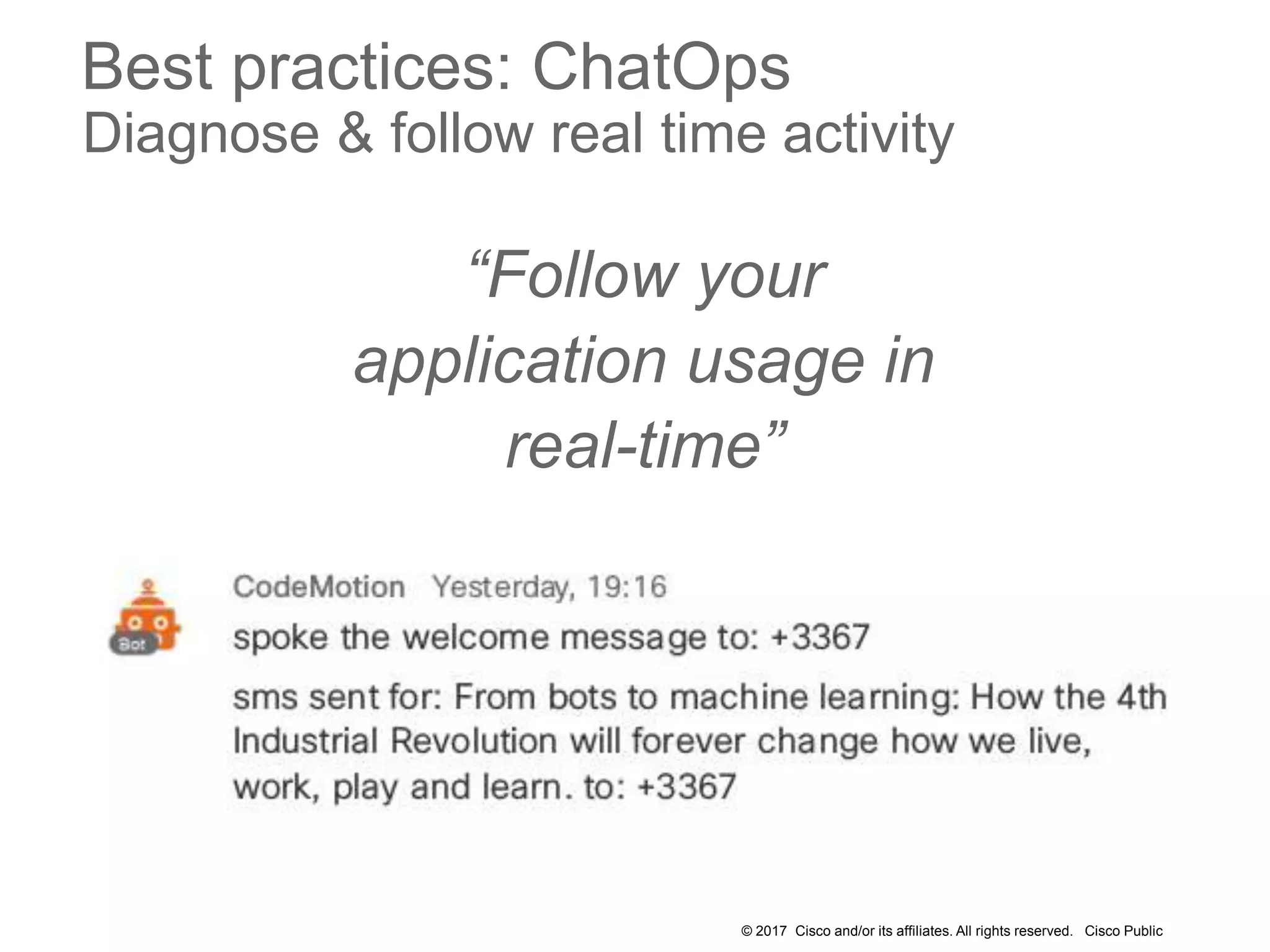

Best practices: ChatOps
Diagnose & follow real time activity
“Follow your
application usage in
real-time”

26. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Best practices: ChatOps
Diagnose & follow real time activity
“Follow your
application usage in
real-time”

27. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Best practices: ChatOps
Diagnose & follow real time activity

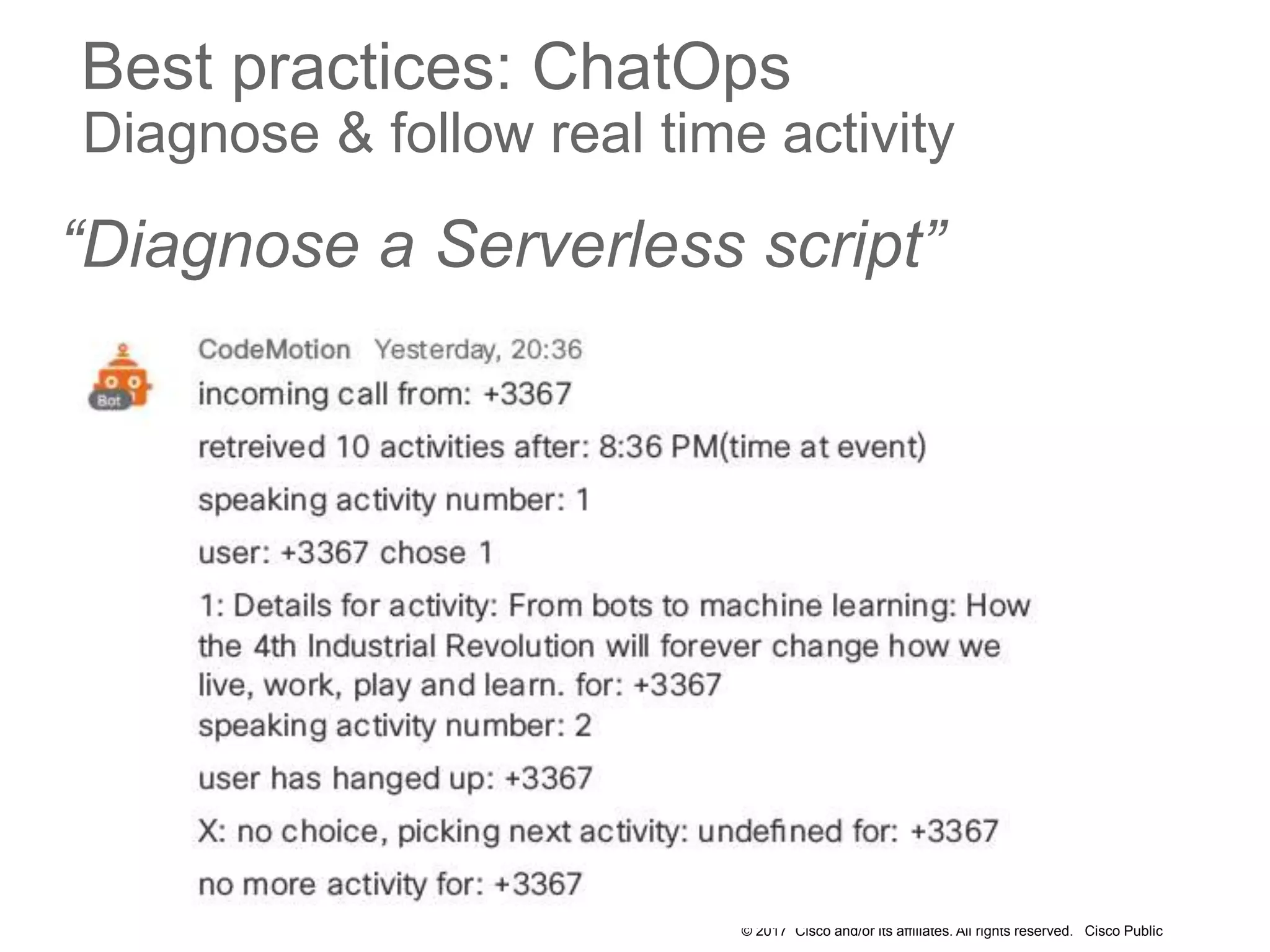

“Diagnose a Serverless script”

28. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

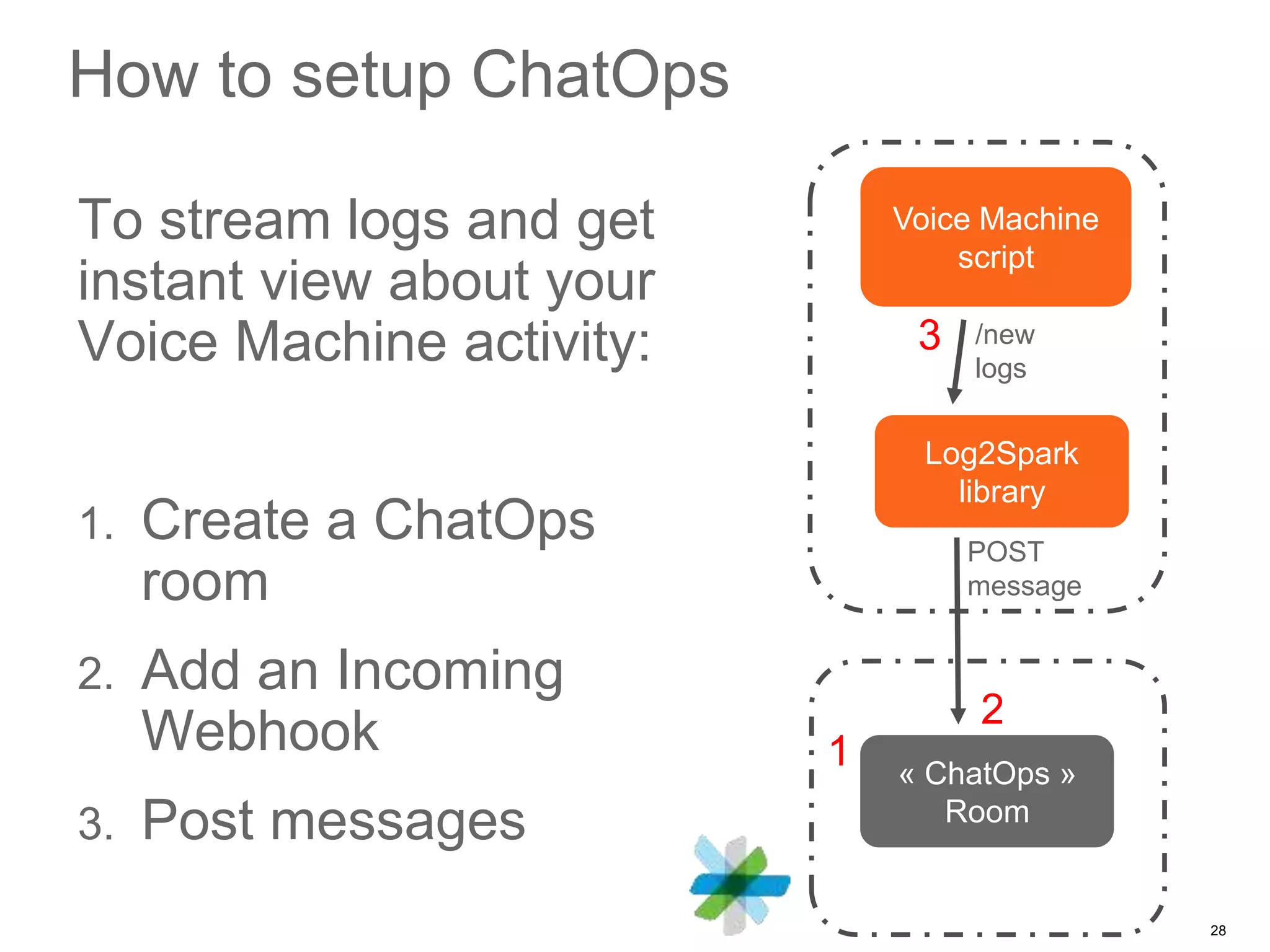

How to setup ChatOps
To stream logs and get
instant view about your
Voice Machine activity:
1. Create a ChatOps
room
2. Add an Incoming
Webhook
3. Post messages
Voice Machine
script
Log2Spark
library
/new
logs
POST
message
« ChatOps »
Room
1
2
3
28

29. From Zero to advanced
Chat Bots with Cisco Spark

30. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

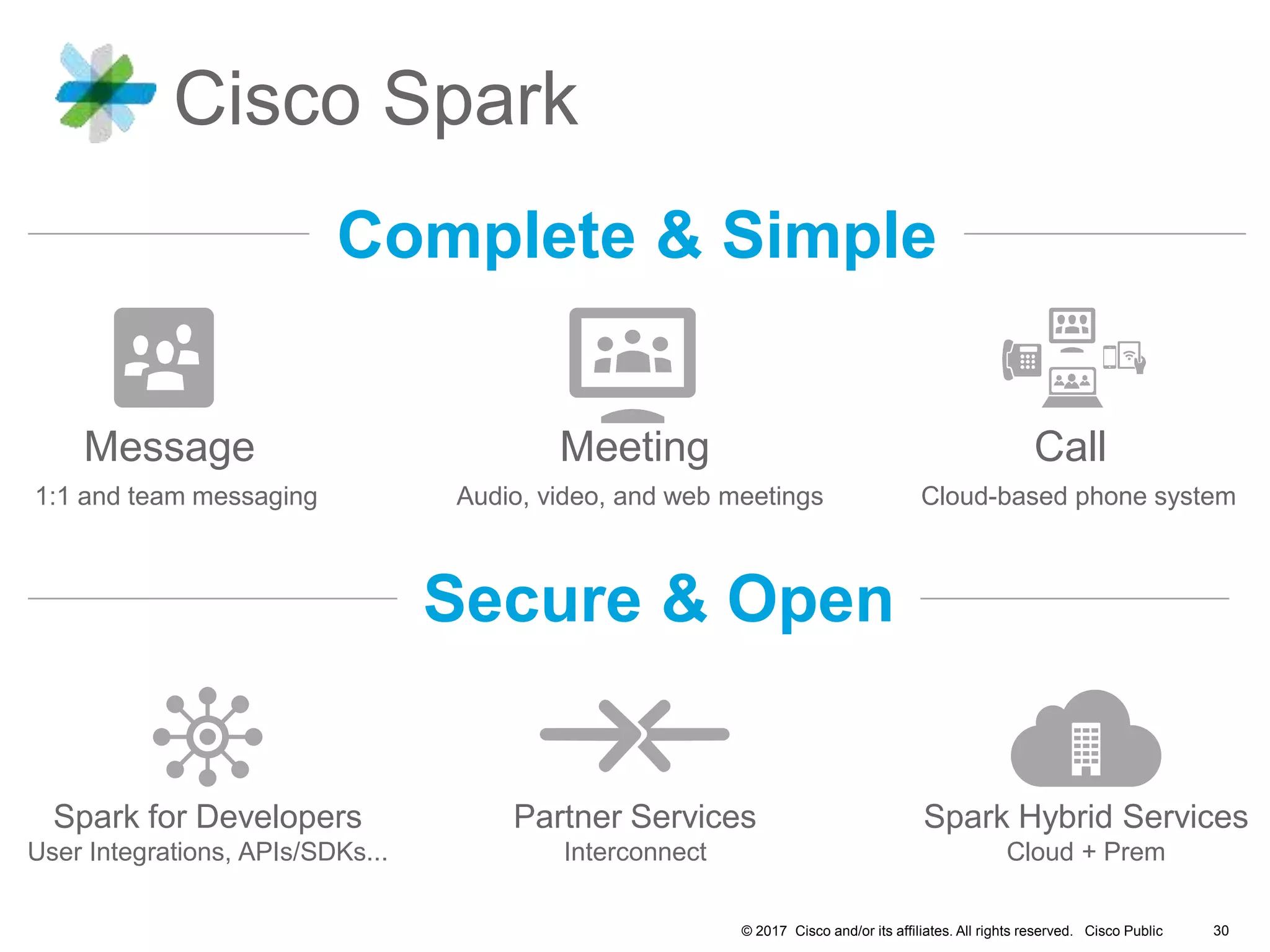

Cisco Spark
Secure & Open
Complete & Simple
Spark for Developers
User Integrations, APIs/SDKs...
Spark Hybrid Services
Cloud + Prem
Partner Services
Interconnect
Message Meeting Call
1:1 and team messaging Cloud-based phone systemAudio, video, and web meetings
30

31. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

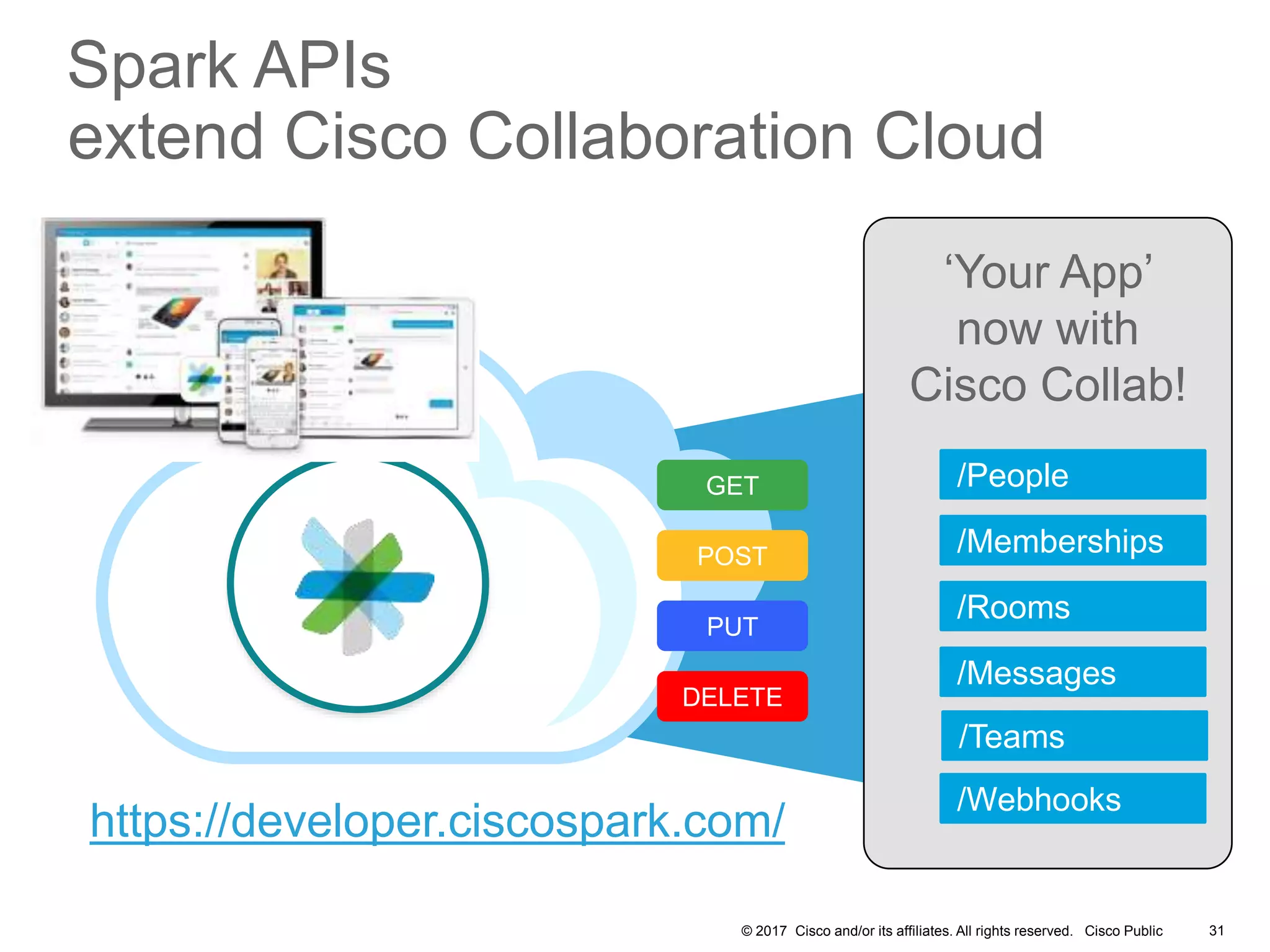

‘Your App’
now with
Cisco Collab!
Spark APIs
extend Cisco Collaboration Cloud
GET
POST
DELETE
PUT
/Rooms
/Memberships
/Messages
/Webhooks
/People
31
/Teams
https://developer.ciscospark.com/

32. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 32

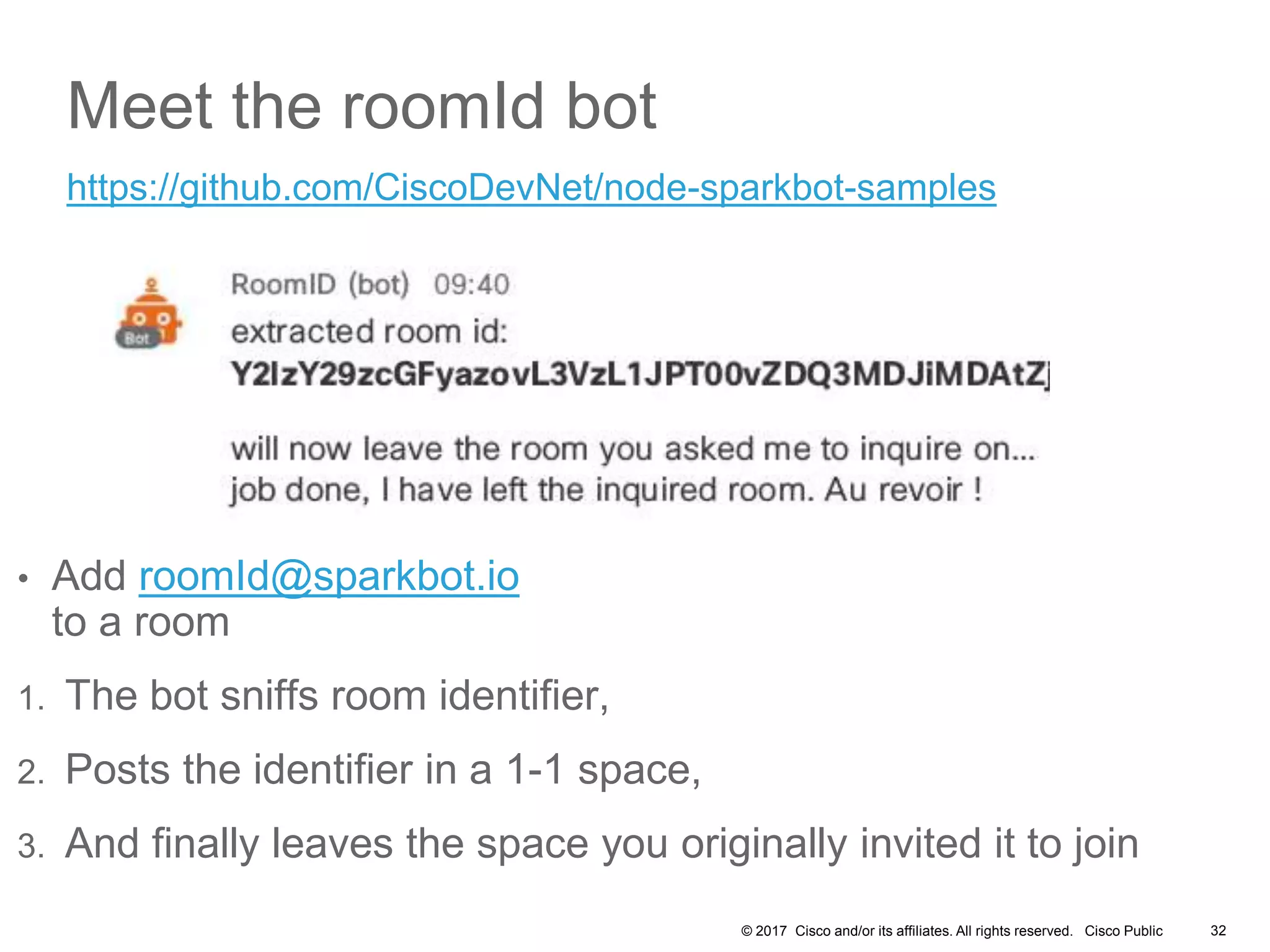

Meet the roomId bot
• Add roomId@sparkbot.io
to a room
1. The bot sniffs room identifier,
2. Posts the identifier in a 1-1 space,
3. And finally leaves the space you originally invited it to join
https://github.com/CiscoDevNet/node-sparkbot-samples

33. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
• nothing more than an API responding to
events
• a few lines of code with a Bot framework

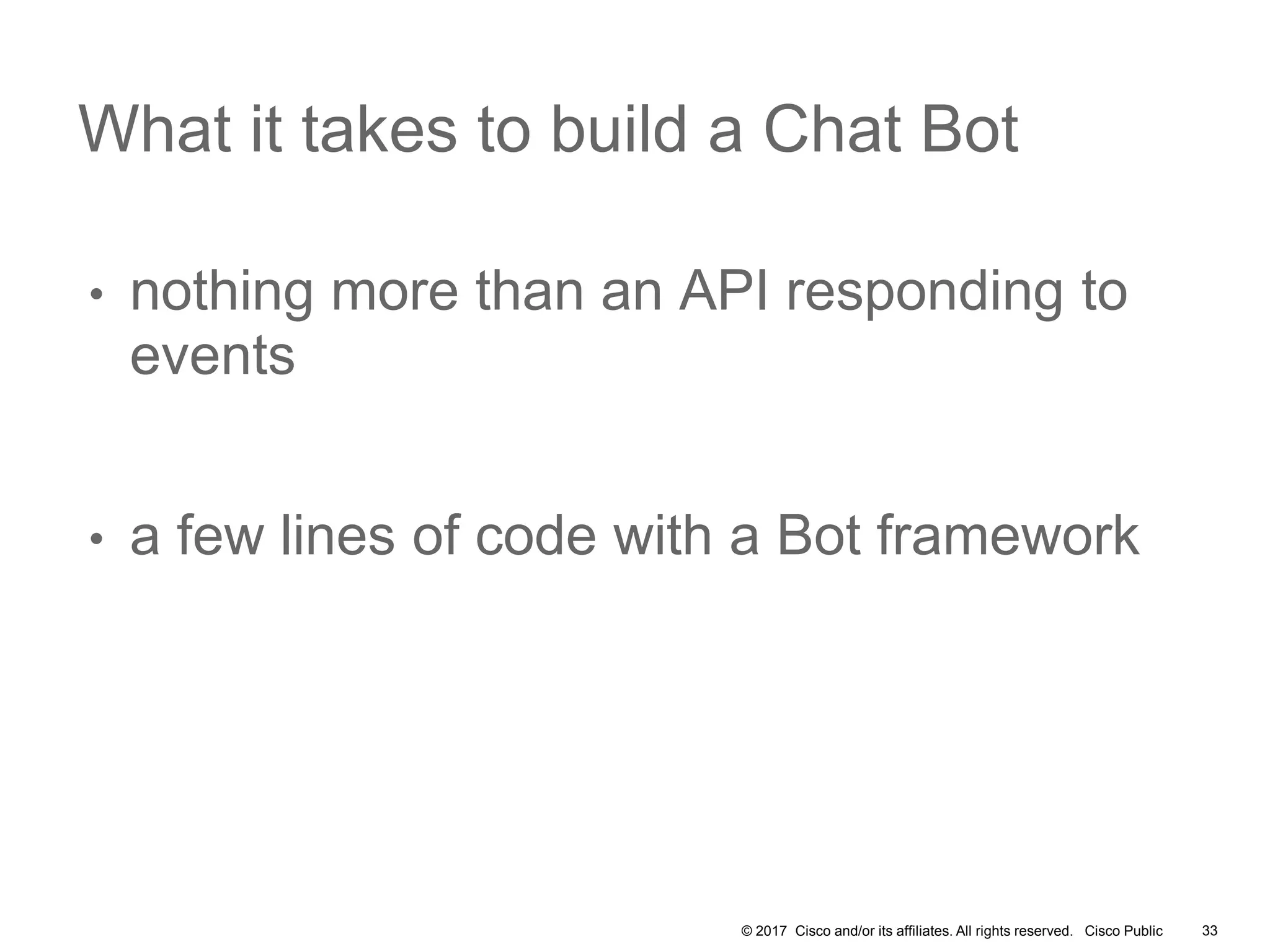

What it takes to build a Chat Bot
33

34. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

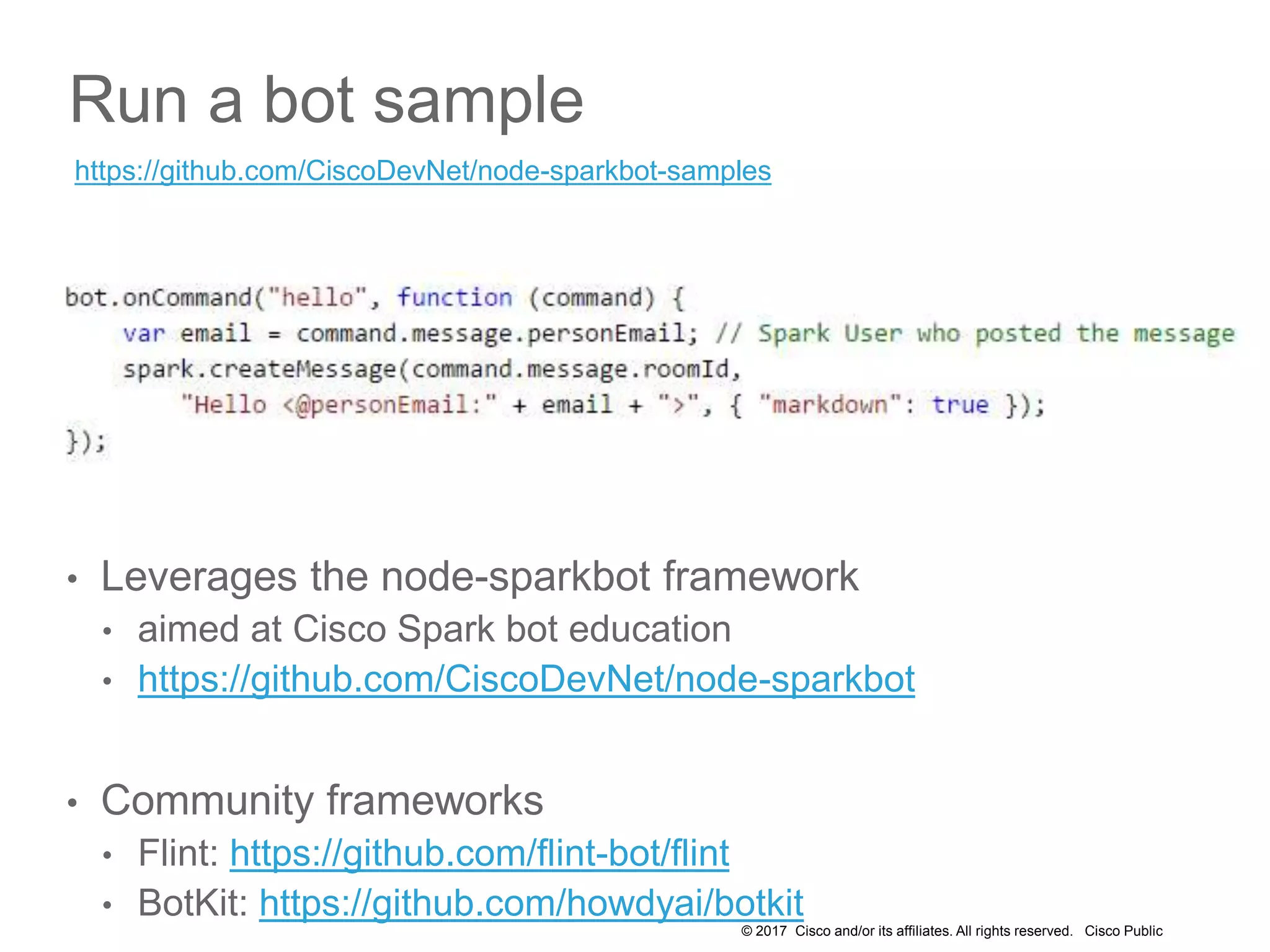

Run a bot sample
• Leverages the node-sparkbot framework
• aimed at Cisco Spark bot education
• https://github.com/CiscoDevNet/node-sparkbot
• Community frameworks
• Flint: https://github.com/flint-bot/flint
• BotKit: https://github.com/howdyai/botkit
https://github.com/CiscoDevNet/node-sparkbot-samples

35. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in spaces
via a Cisco Spark client
Cisco Spark User
Your Bot code running
On-premise or on a Public Coud
2. posts notifications to
registered WebHooks
Publicly accessible APIs
3. posts messages
as notifications fly in

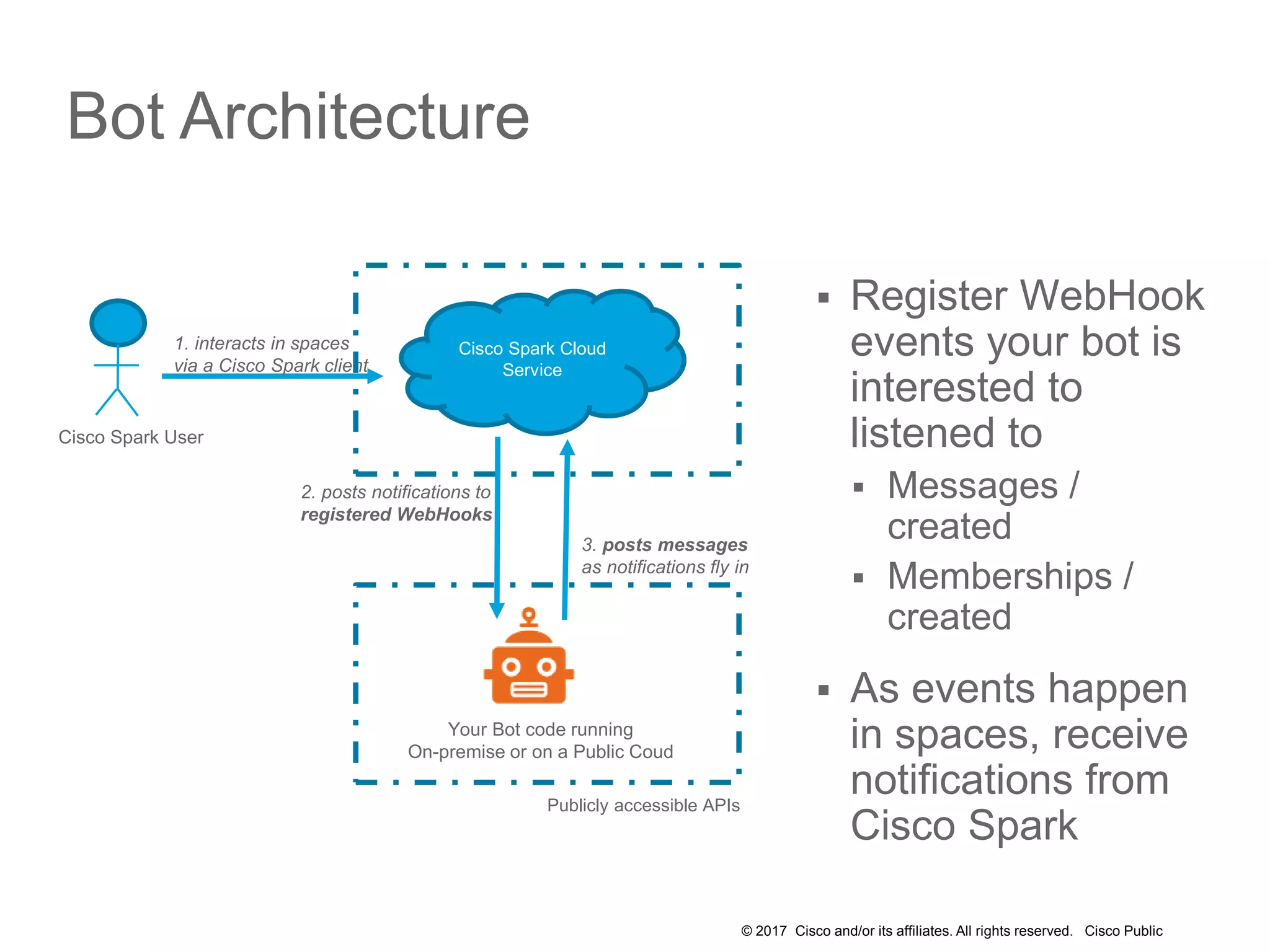

Bot Architecture
 Register WebHook
events your bot is
interested to
listened to
 Messages /
created
 Memberships /
created
 As events happen
in spaces, receive
notifications from
Cisco Spark

36. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in spaces
via a Cisco Spark client
Cisco Spark User
DMZ
2. posts notifications to
registered WebHooks
Publicly accessible
3. responds to
Webhook events
Your Bot code running
on-premises
Enterprise secured
2b. forwards notifications

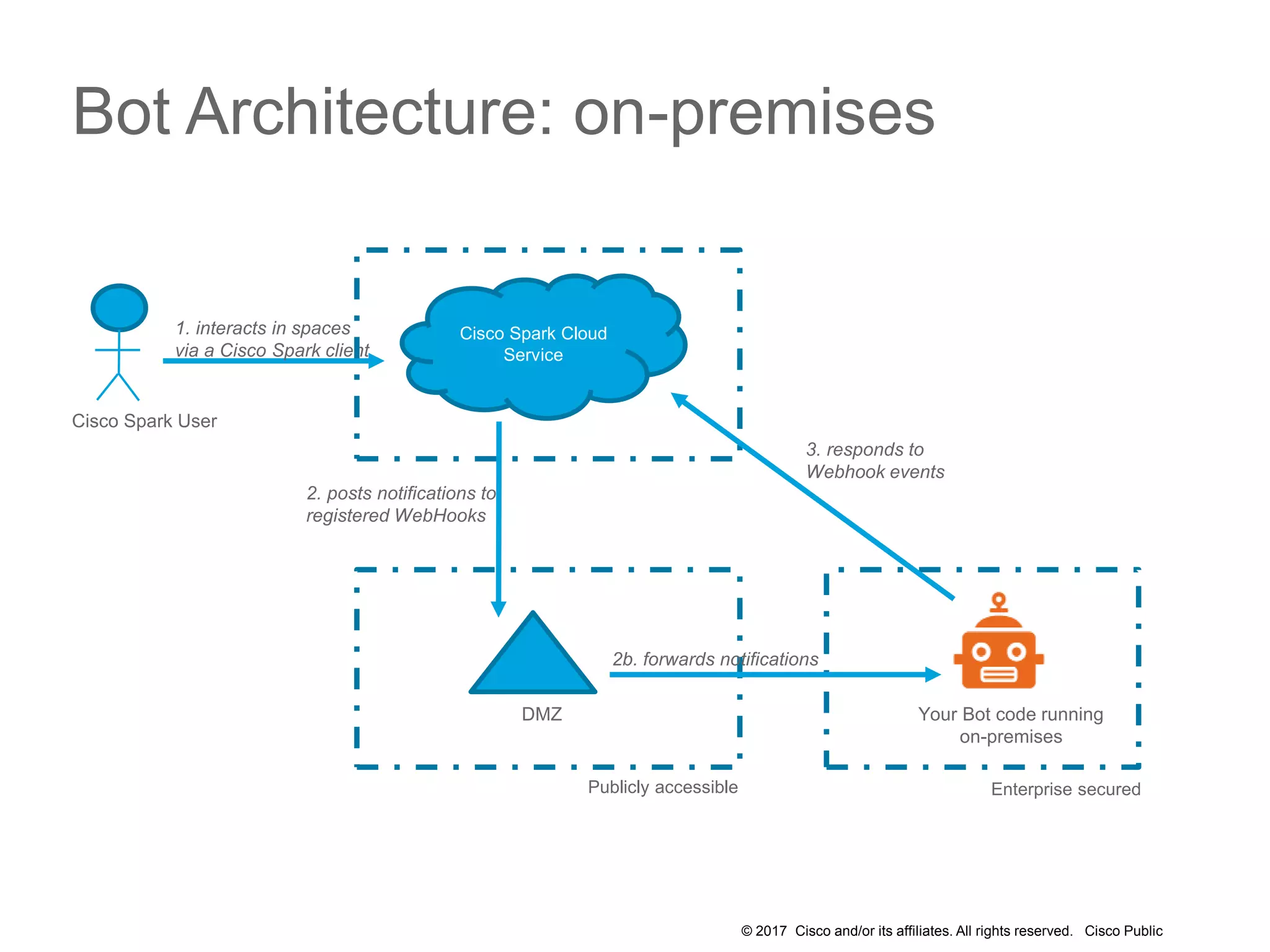

Bot Architecture: on-premises

37. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Cisco Spark Cloud
Service
1. interacts in Rooms
via the various Spark Clients
Cisco Spark User
Tunneling
infrastructure
Your Bot code running
on your local machine
2. posts notifications to
registered WebHooks
Dev environmentPublicly accessible
2b. forwards
Webhook events
3. responds to
Webhook events

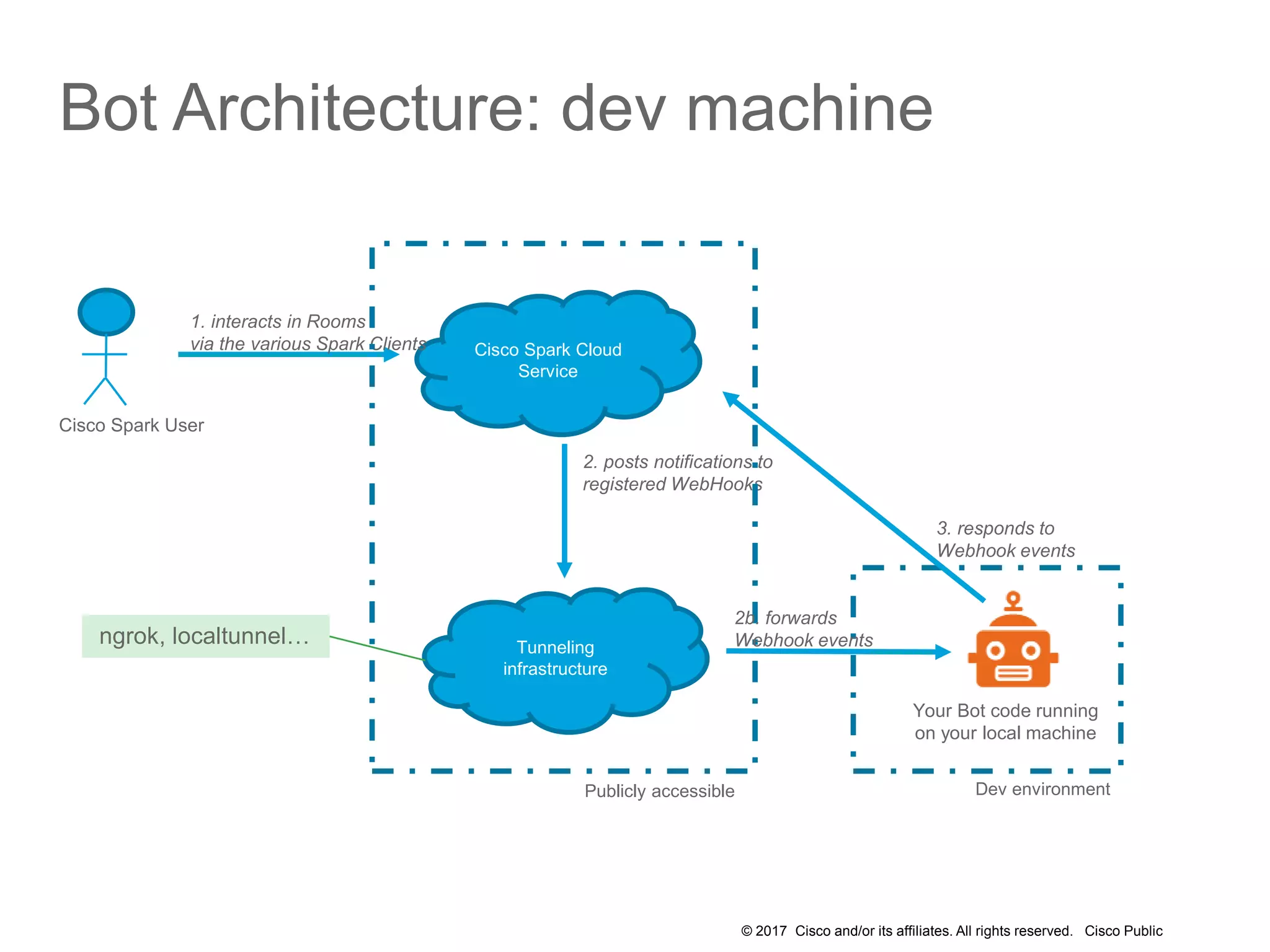

Bot Architecture: dev machine
ngrok, localtunnel…

38. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

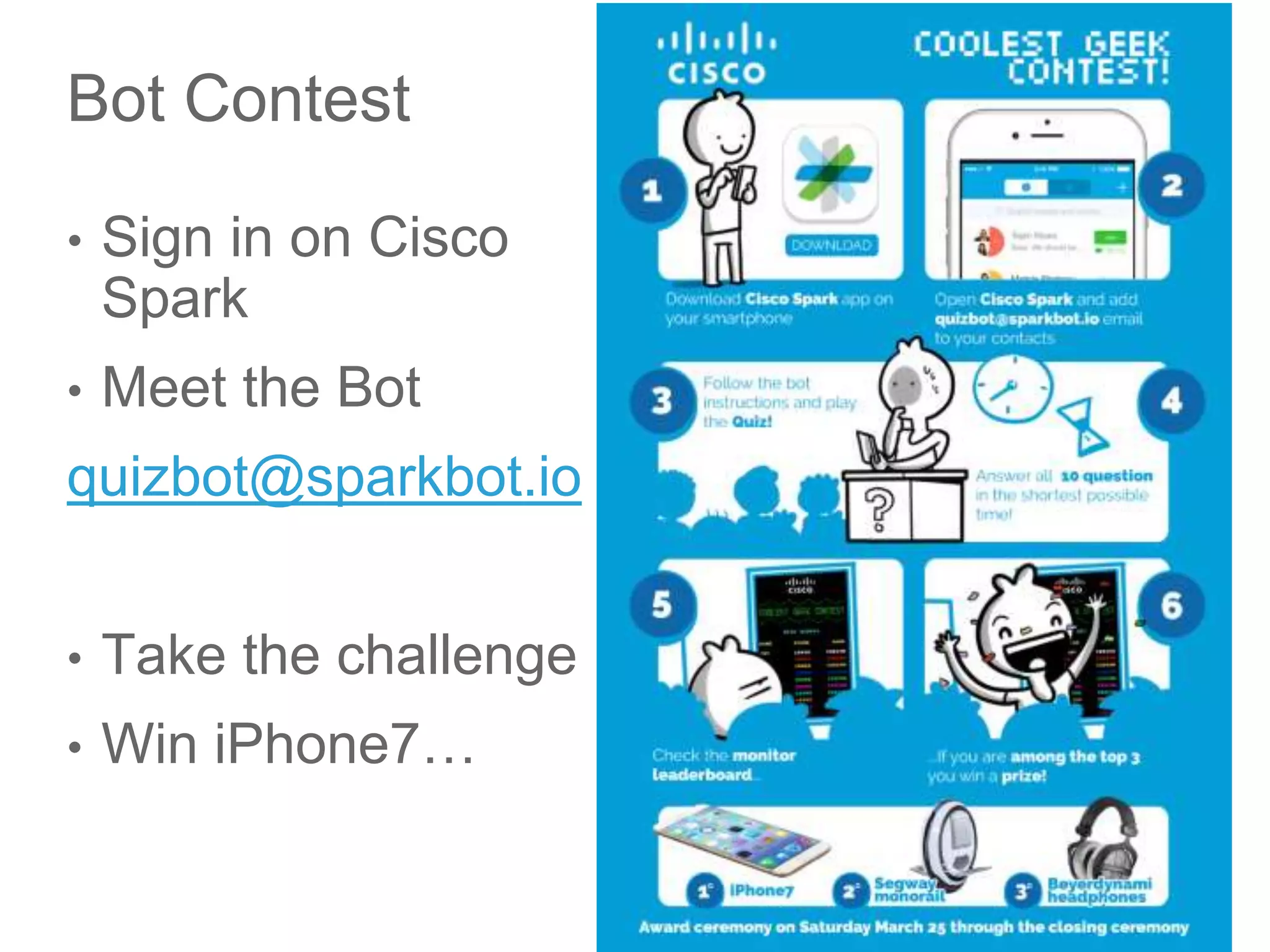

Bot Contest
Sign in on CiscoSpark
Meet the Bot
quizbot@sparkbot.io
Take the challenge
Win an iPhone7…

39. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

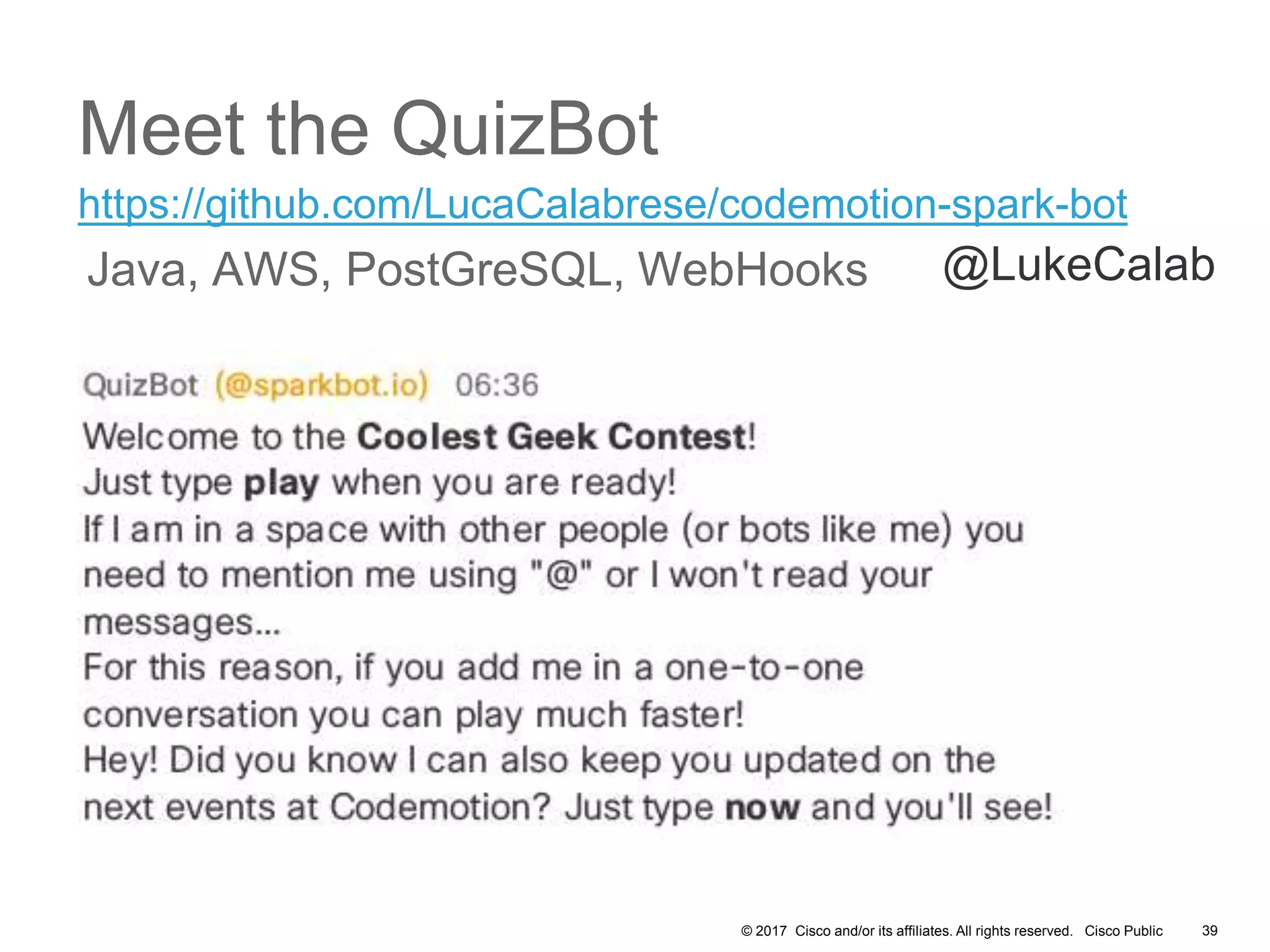

Meet the QuizBot
39
https://github.com/LucaCalabrese/codemotion-spark-bot
Java, AWS, PostGreSQL, WebHooks @LukeCalab

40. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 40

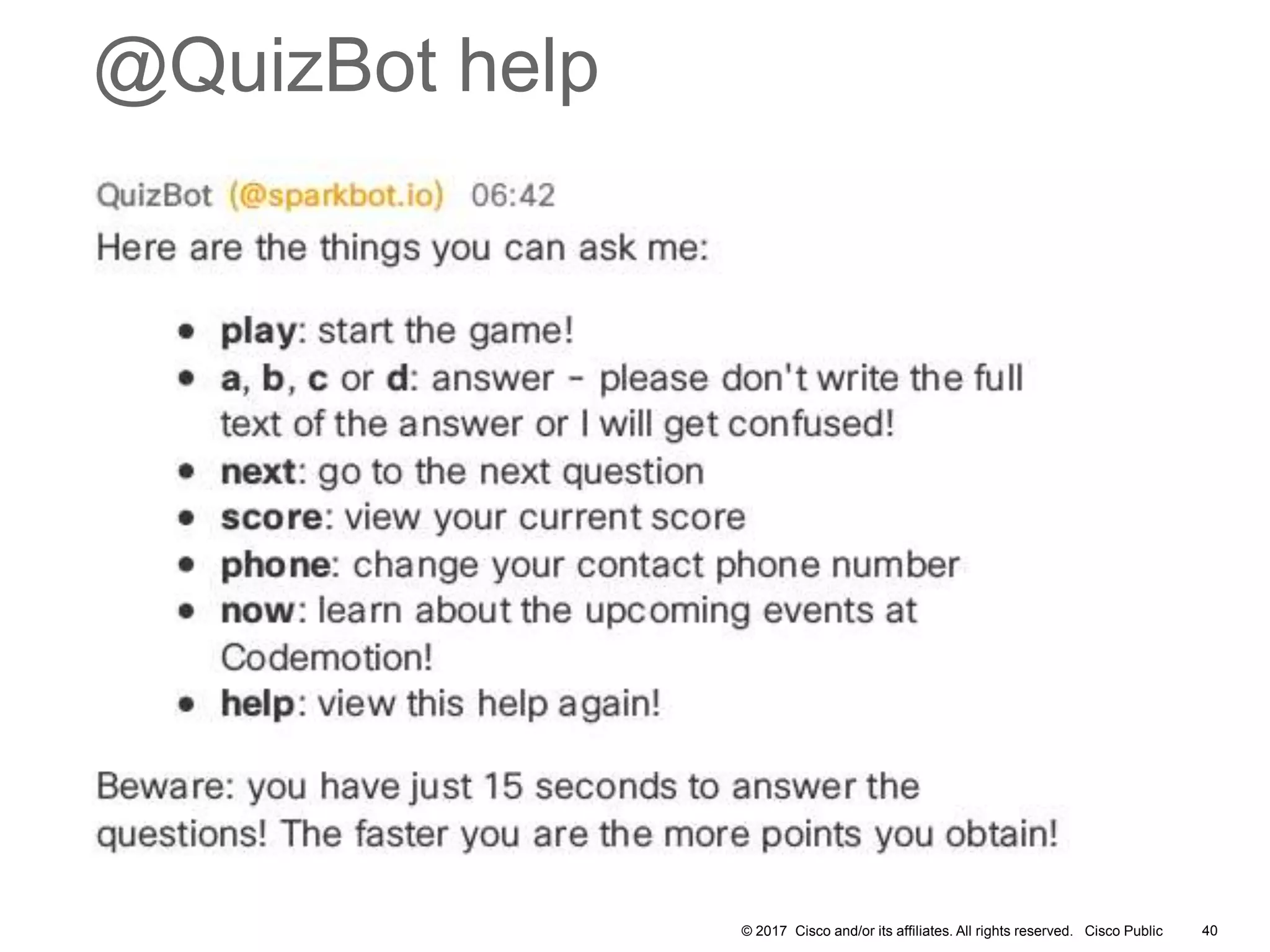

@QuizBot help

41. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

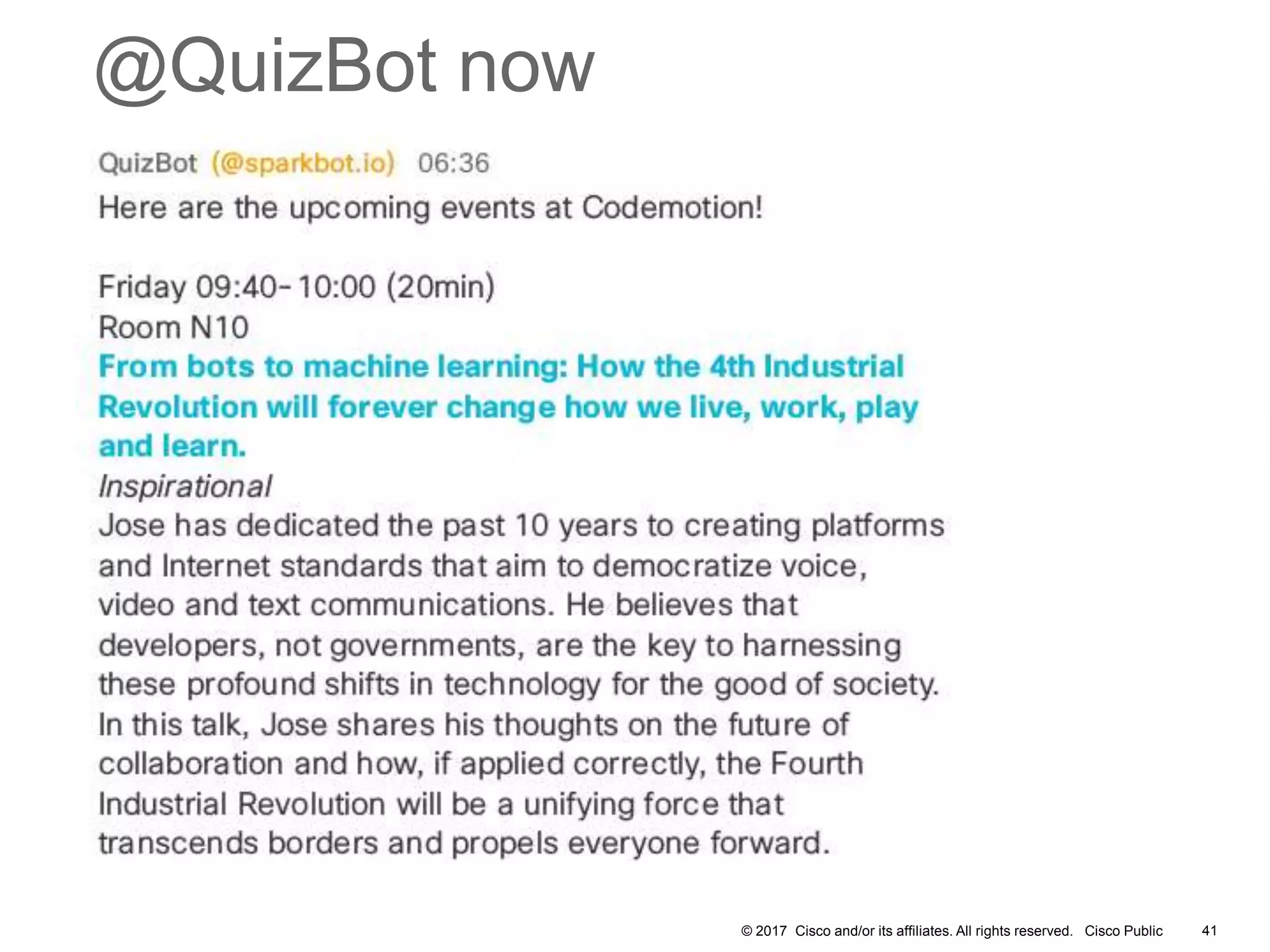

@QuizBot now
41

42. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

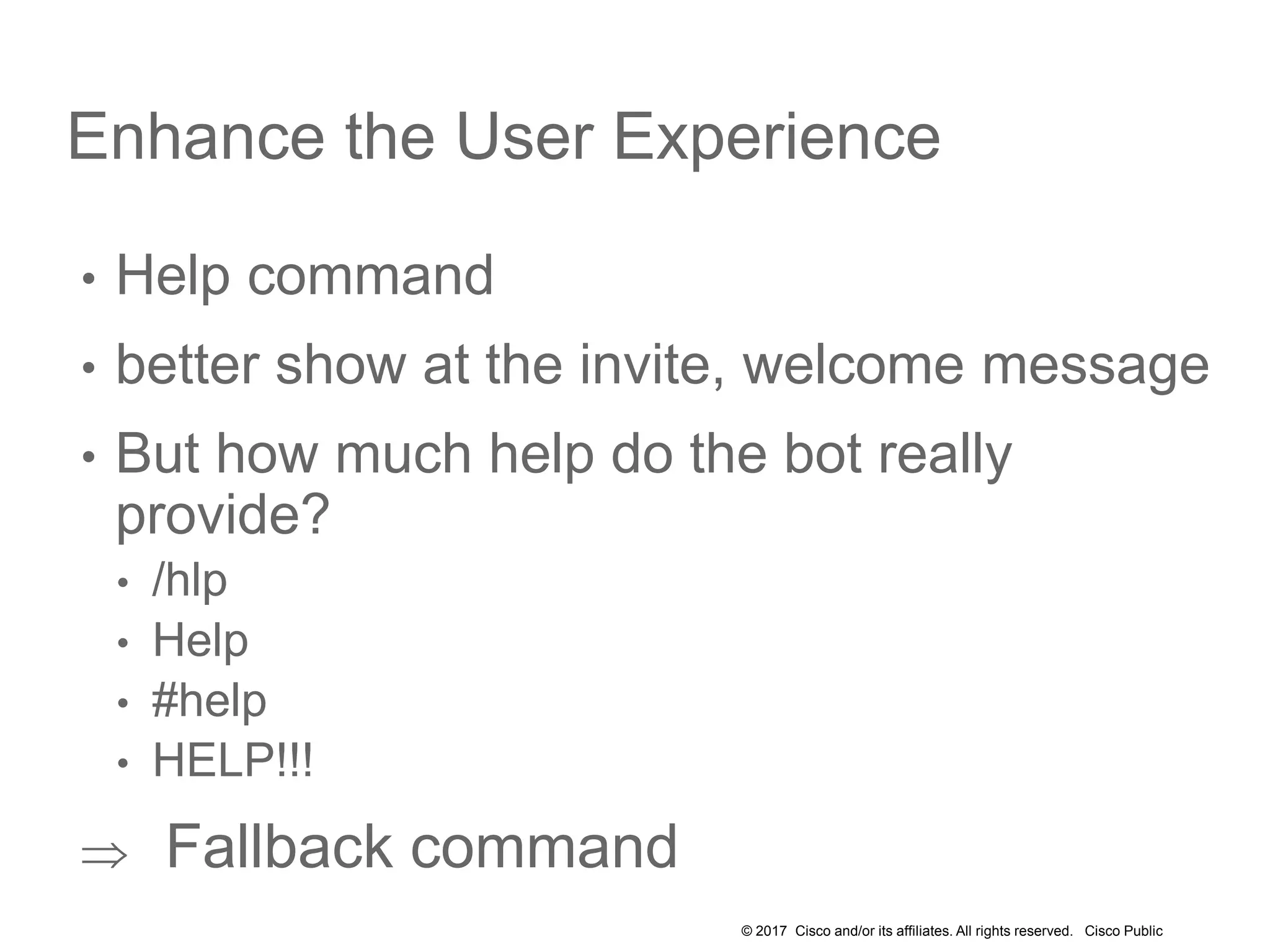

Enhance the User Experience
• Help command
• better show at the invite, welcome message
• But how much help do the bot really
provide?
• /hlp
• Help
• #help
• HELP!!!
 Fallback command

43. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

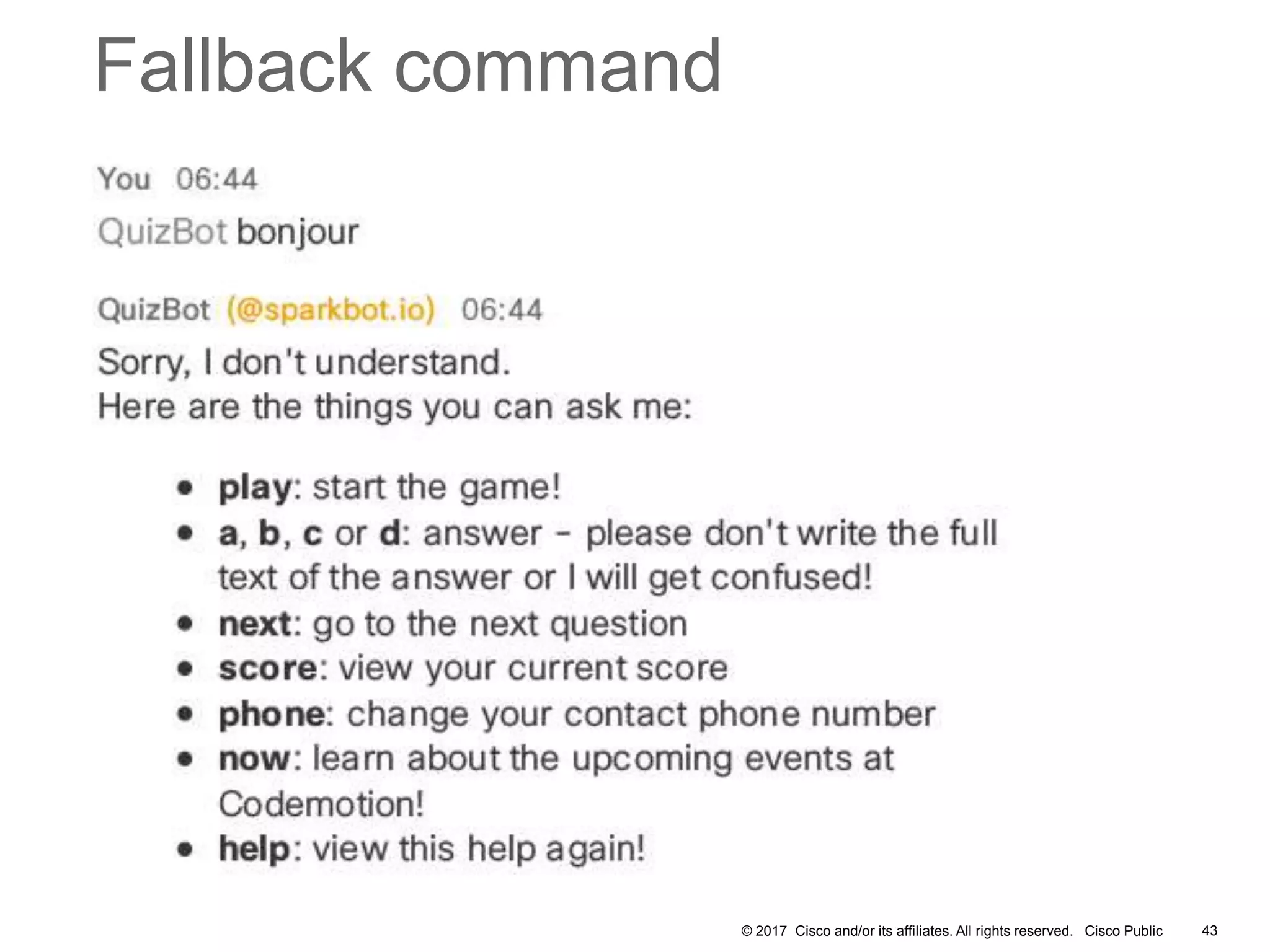

Fallback command
43

44. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

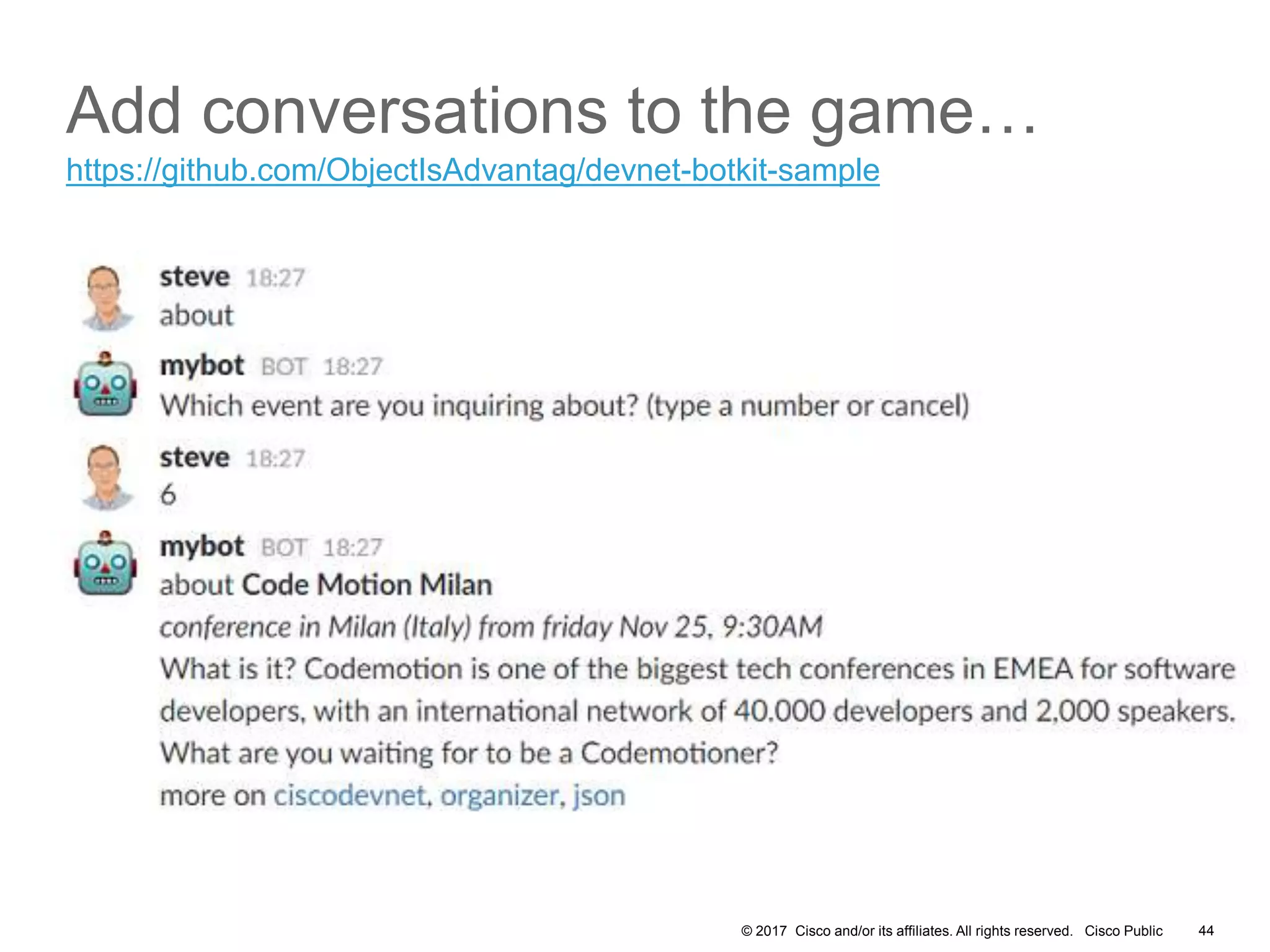

Add conversations to the game…
44
https://github.com/ObjectIsAdvantag/devnet-botkit-sample

45. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

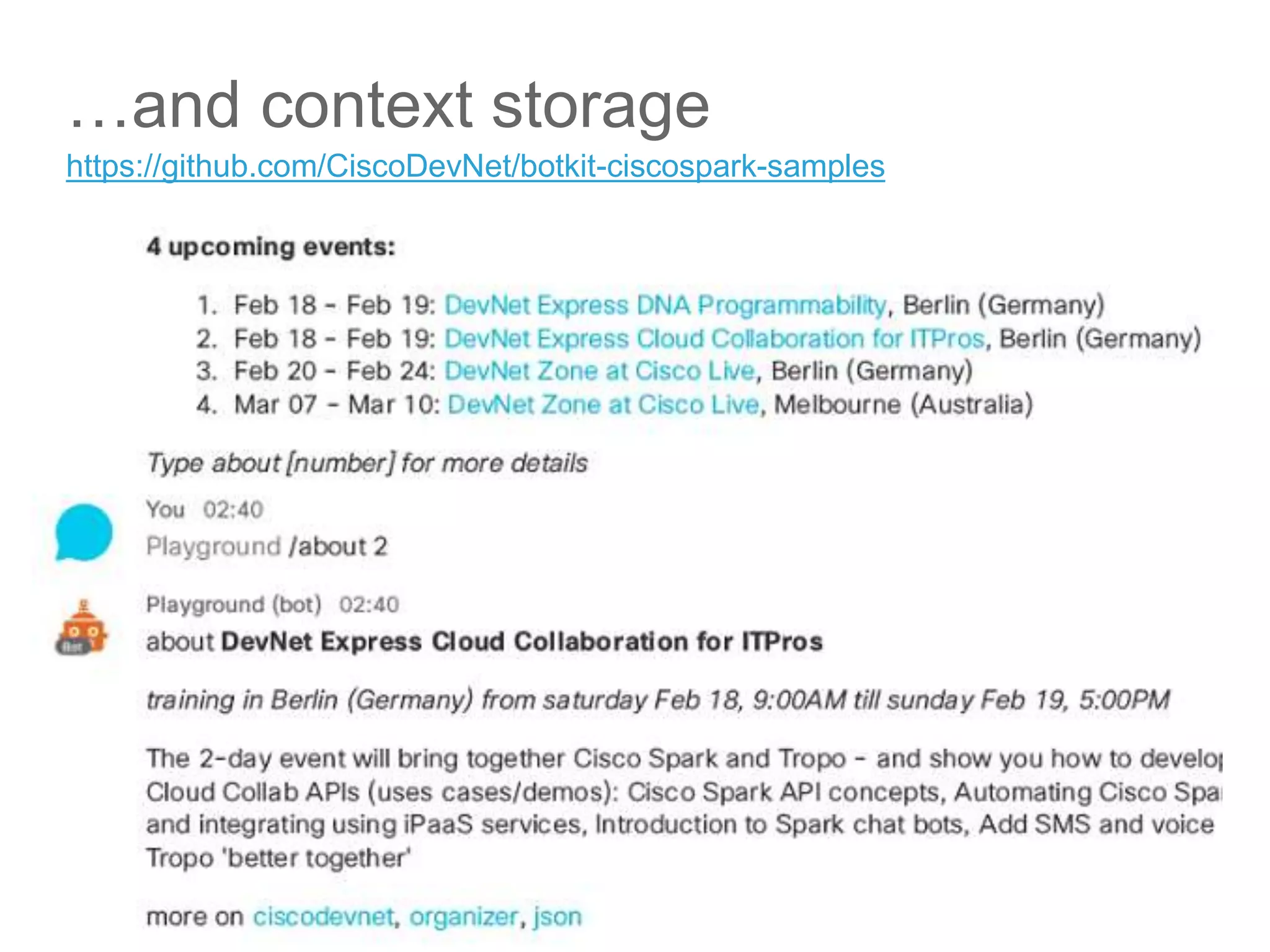

…and context storage
45
https://github.com/CiscoDevNet/botkit-ciscospark-samples

46. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 46

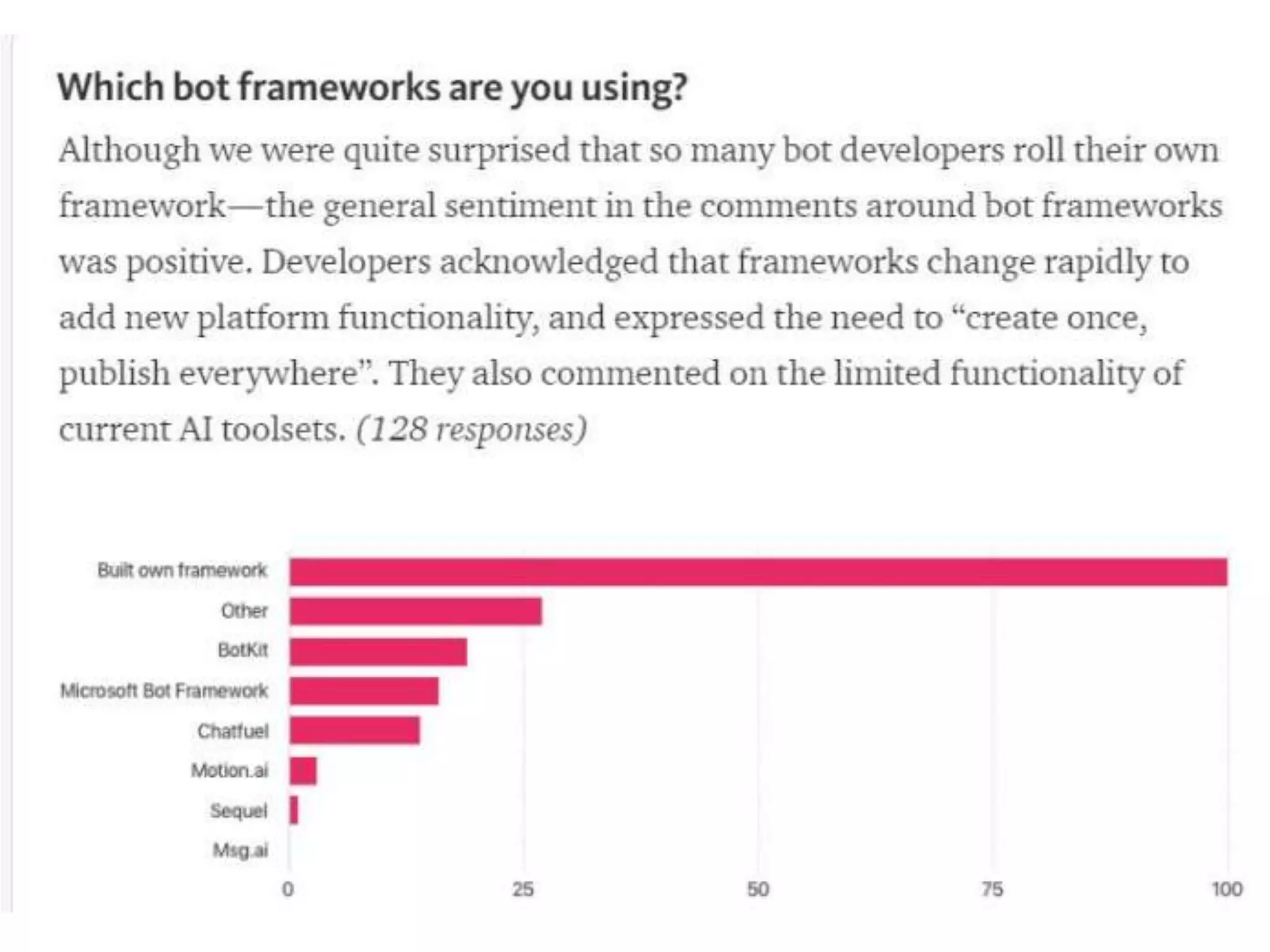

Bot Frameworks survey

47. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

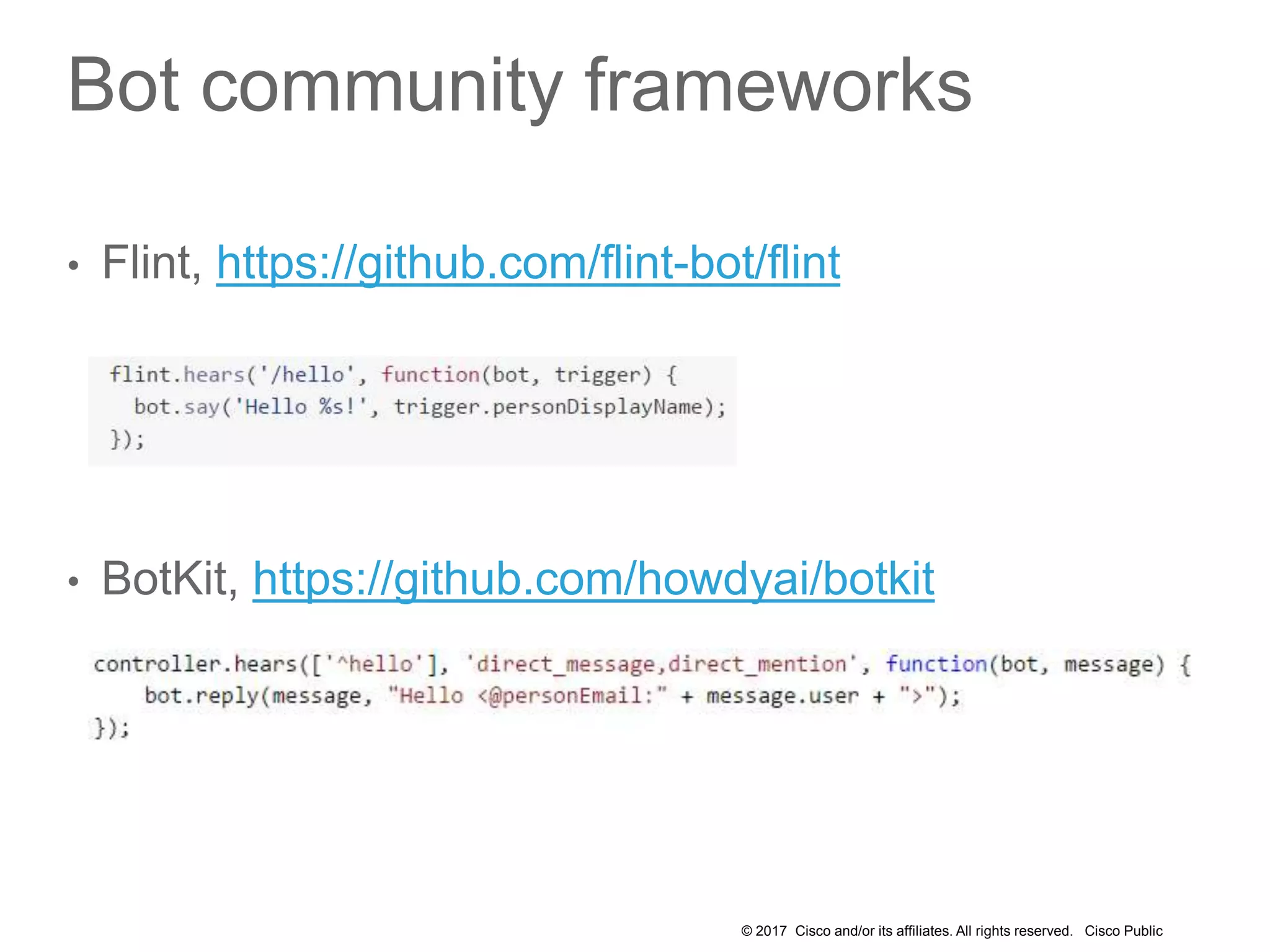

Bot community frameworks
• Flint, https://github.com/flint-bot/flint
• BotKit, https://github.com/howdyai/botkit

48. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

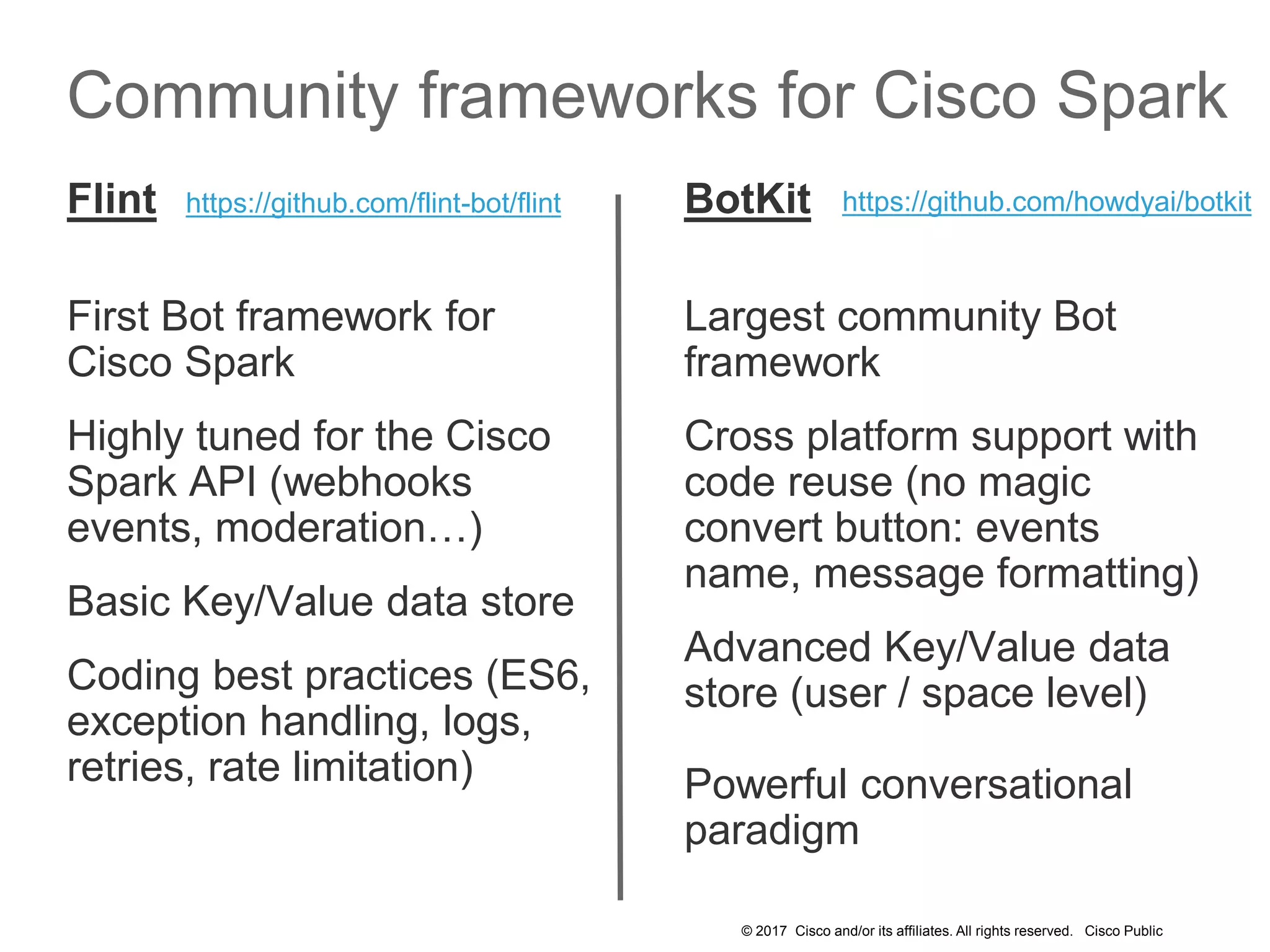

Community frameworks for Cisco Spark
Flint
First Bot framework for
Cisco Spark
Highly tuned for the Cisco
Spark API (webhooks
events, moderation…)
Basic Key/Value data store
Coding best practices (ES6,
exception handling, logs,
retries, rate limitation)
BotKit
Largest community Bot
framework
Cross platform support with
code reuse (no magic
convert button: events
name, message formatting)
Advanced Key/Value data
store (user / space level)
Powerful conversational
paradigm
https://github.com/flint-bot/flint https://github.com/howdyai/botkit

49. Taking bots to the next
stage

50. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

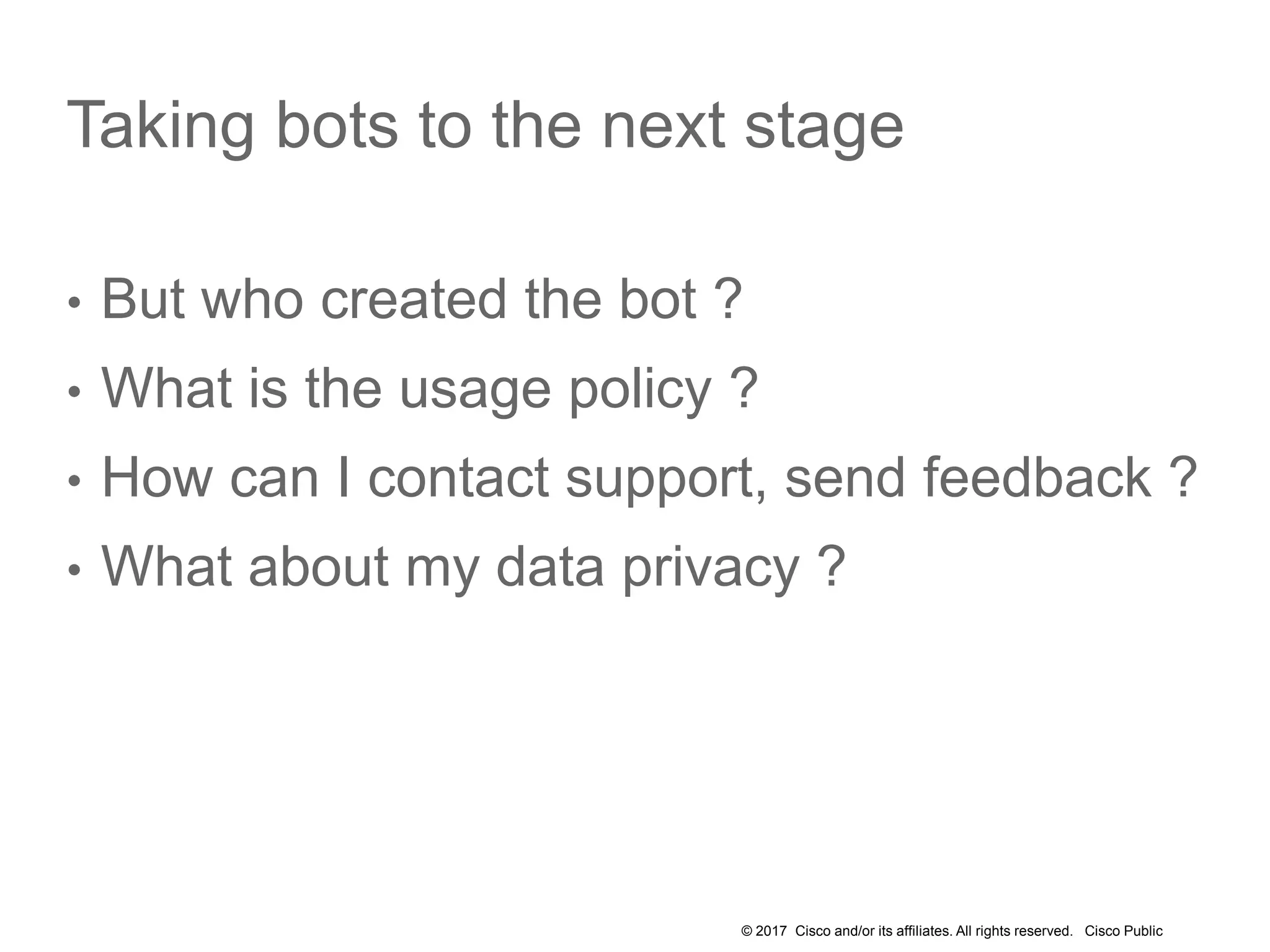

Taking bots to the next stage
• But who created the bot ?
• What is the usage policy ?
• How can I contact support, send feedback ?
• What about my data privacy ?

51. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

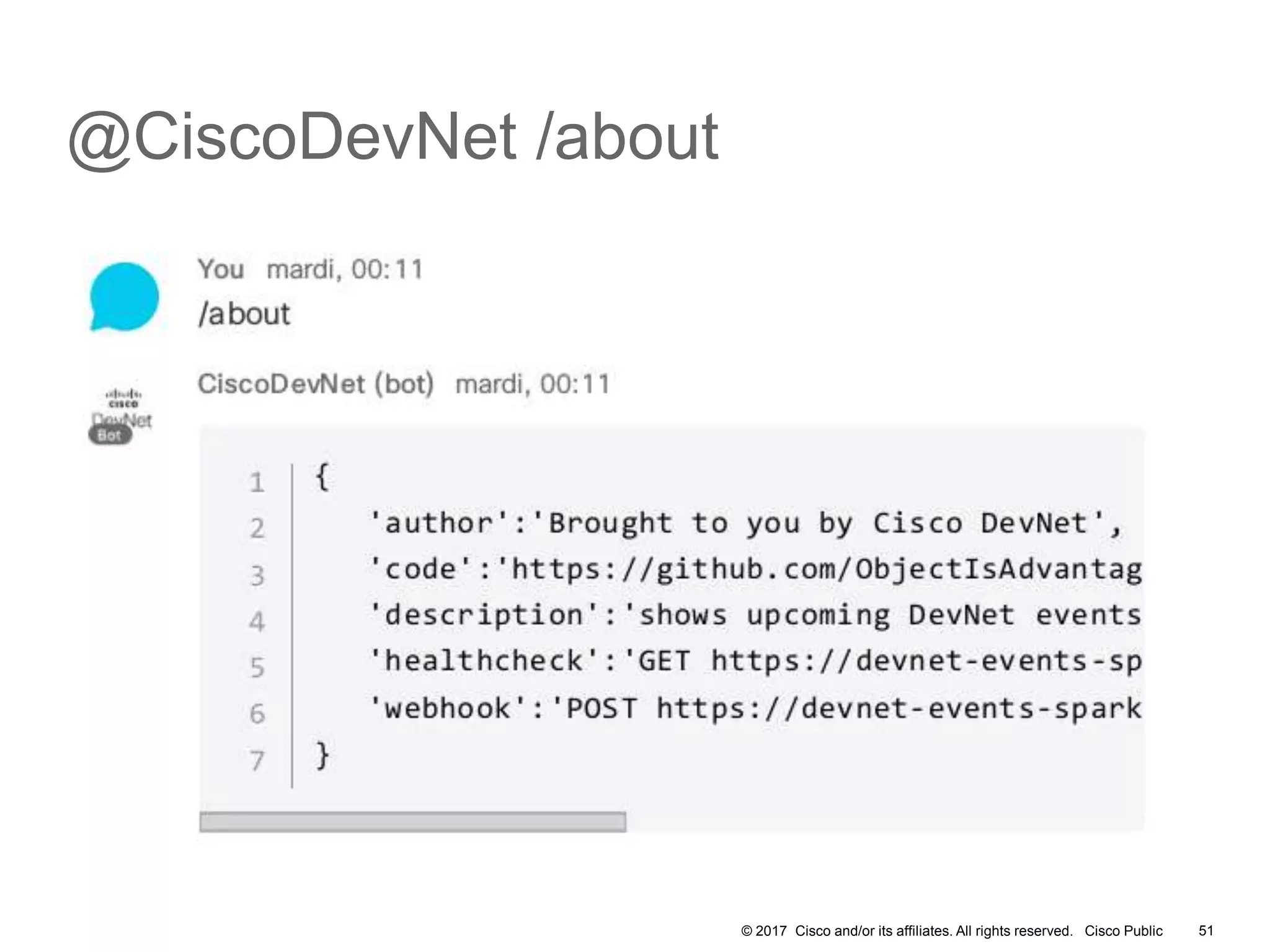

@CiscoDevNet /about
51

52. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Taking bots to the next stage

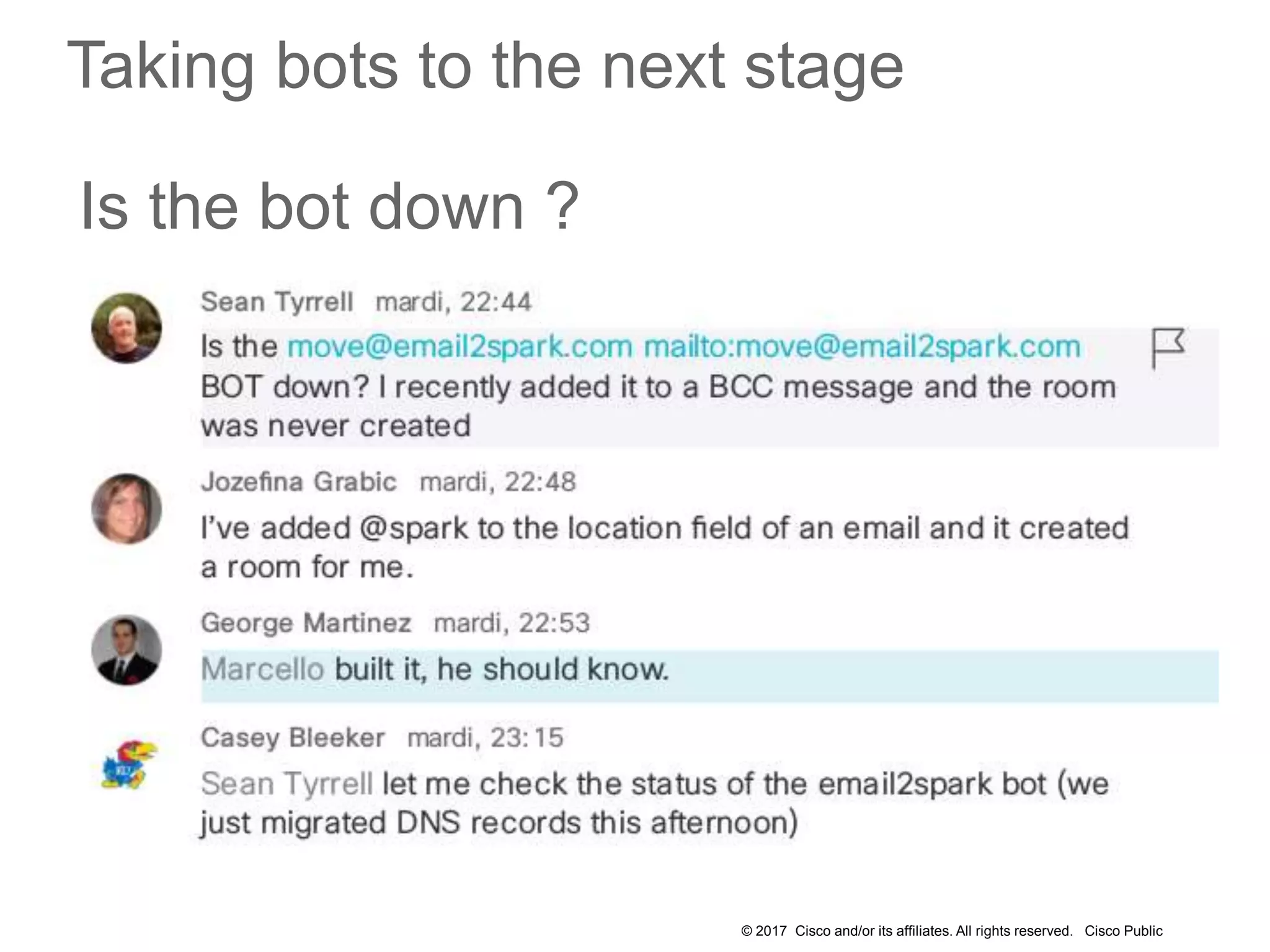

Is the bot down ?

53. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public 53

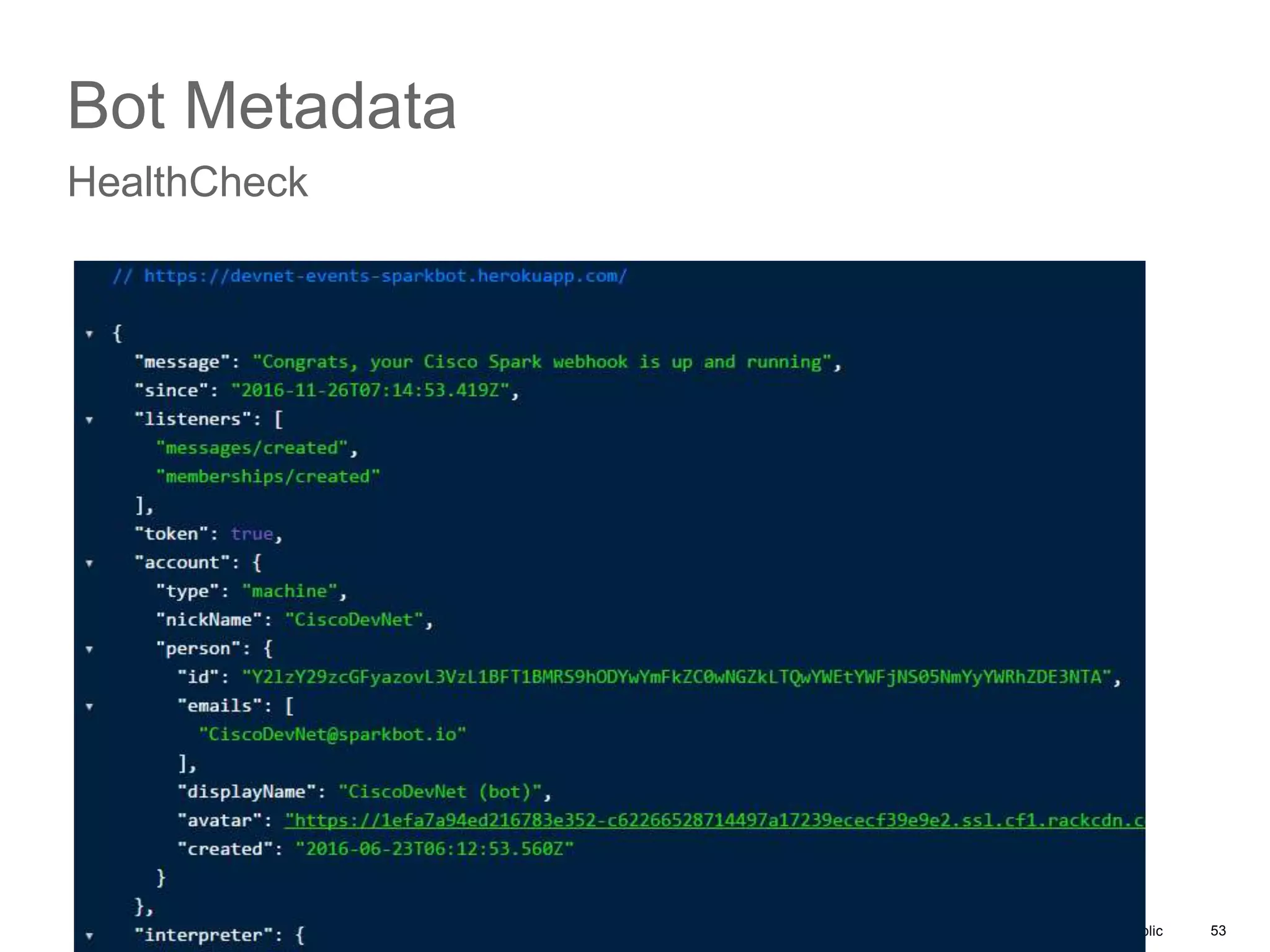

Bot Metadata
HealthCheck

54. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Is the bot down ? a proposal
• Register the Bot in a Universal Database
• Chat services supported
• Healthcheck endpoints
• Author, Policies
• Metadata again…
• chatbot.land domain reserved
• who’s in ? twitter://@SteveSfartz
54

55. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Taking bots to the next stage

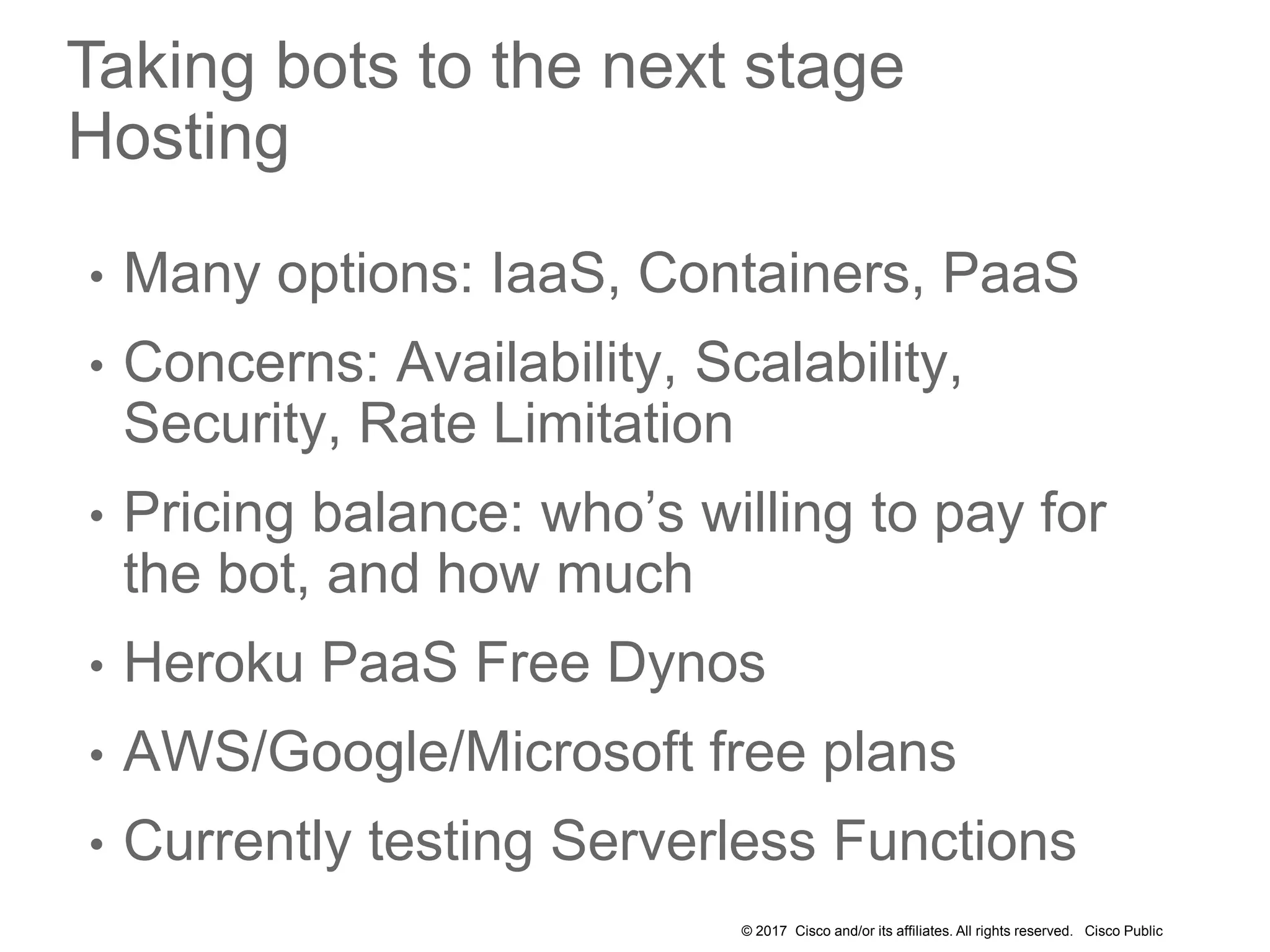

Hosting
• Many options: IaaS, Containers, PaaS
• Concerns: Availability, Scalability,
Security, Rate Limitation
• Pricing balance: who’s willing to pay for
the bot, and how much
• Heroku PaaS Free Dynos
• AWS/Google/Microsoft free plans
• Currently testing Serverless Functions

56. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

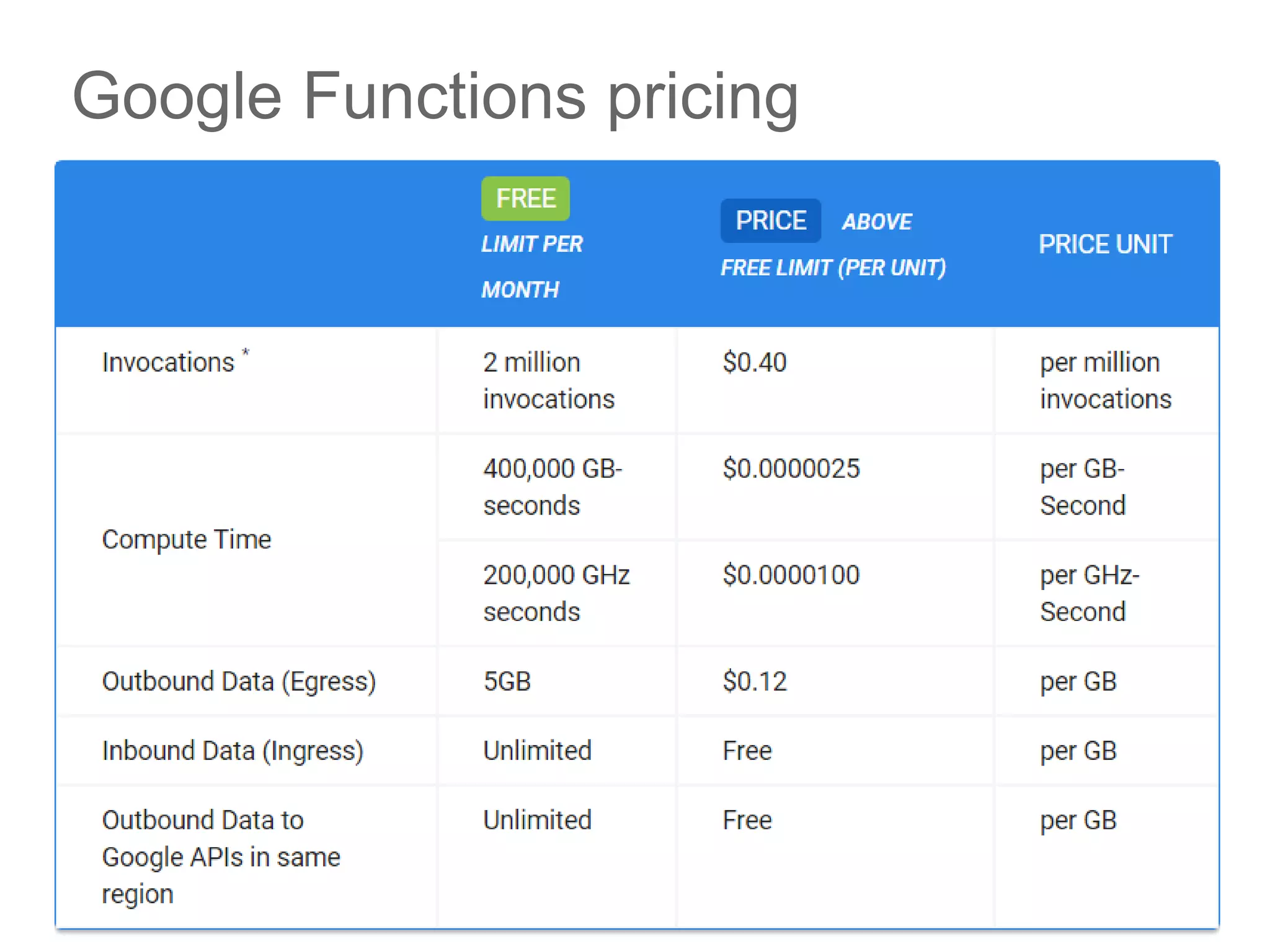

Google Functions pricing
56

57. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
The Serverless Functions opportunity
57

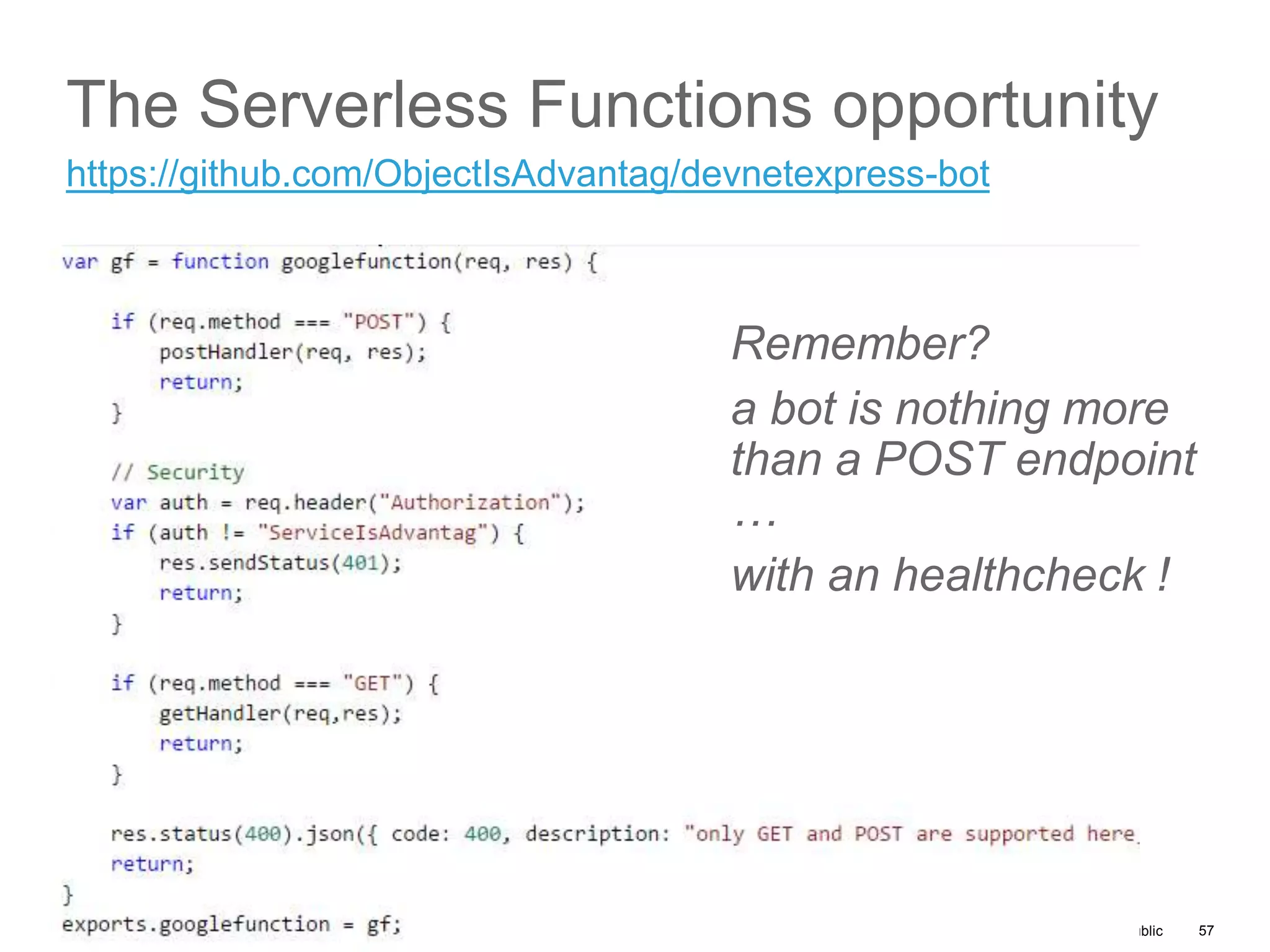

https://github.com/ObjectIsAdvantag/devnetexpress-bot
Remember?
a bot is nothing more
than a POST endpoint
…
with an healthcheck !

58. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
The Serverless Functions opportunity

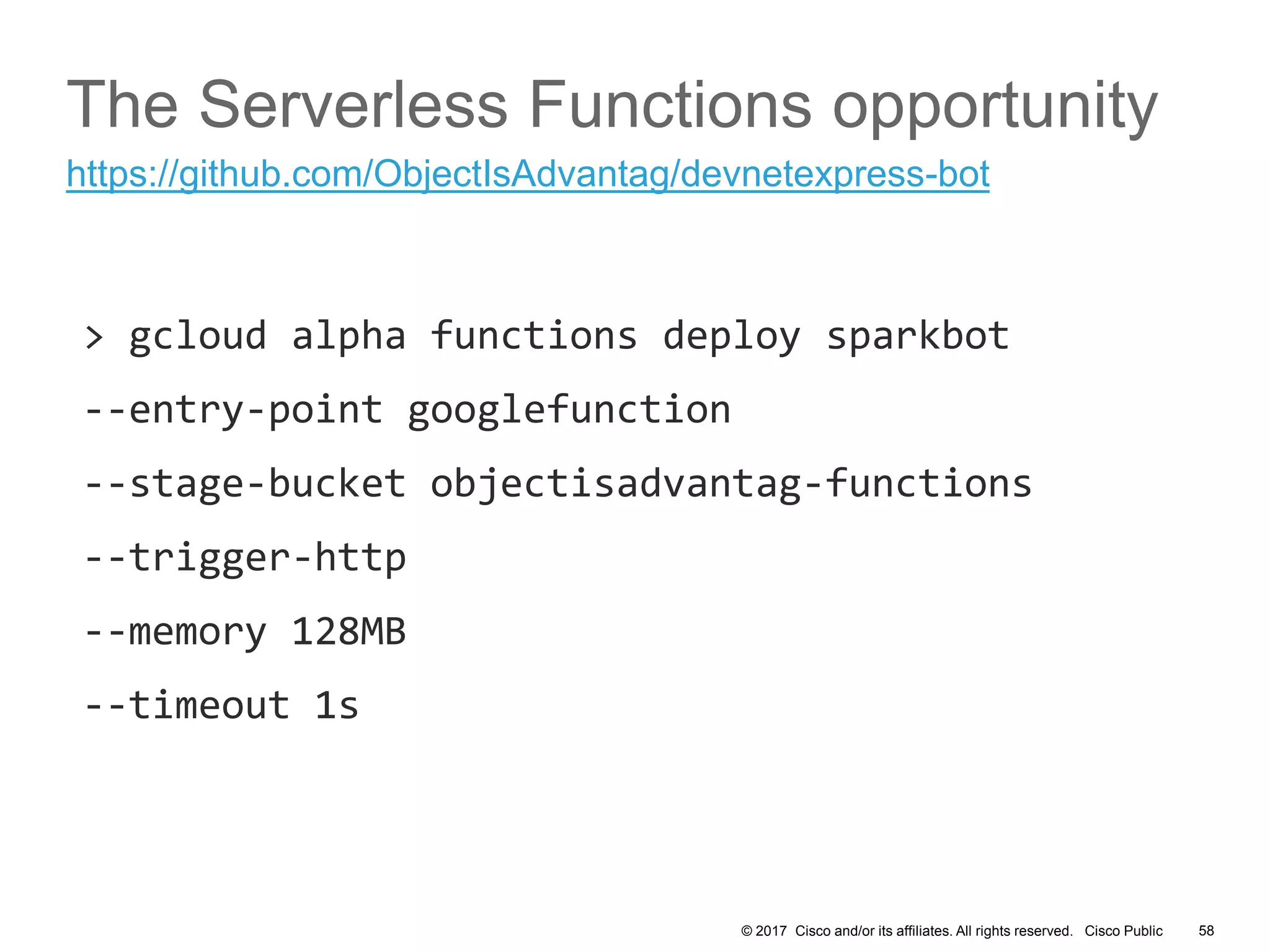

> gcloud alpha functions deploy sparkbot
--entry-point googlefunction
--stage-bucket objectisadvantag-functions
--trigger-http
--memory 128MB
--timeout 1s
58
https://github.com/ObjectIsAdvantag/devnetexpress-bot

59. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
The Serverless Functions opportunity

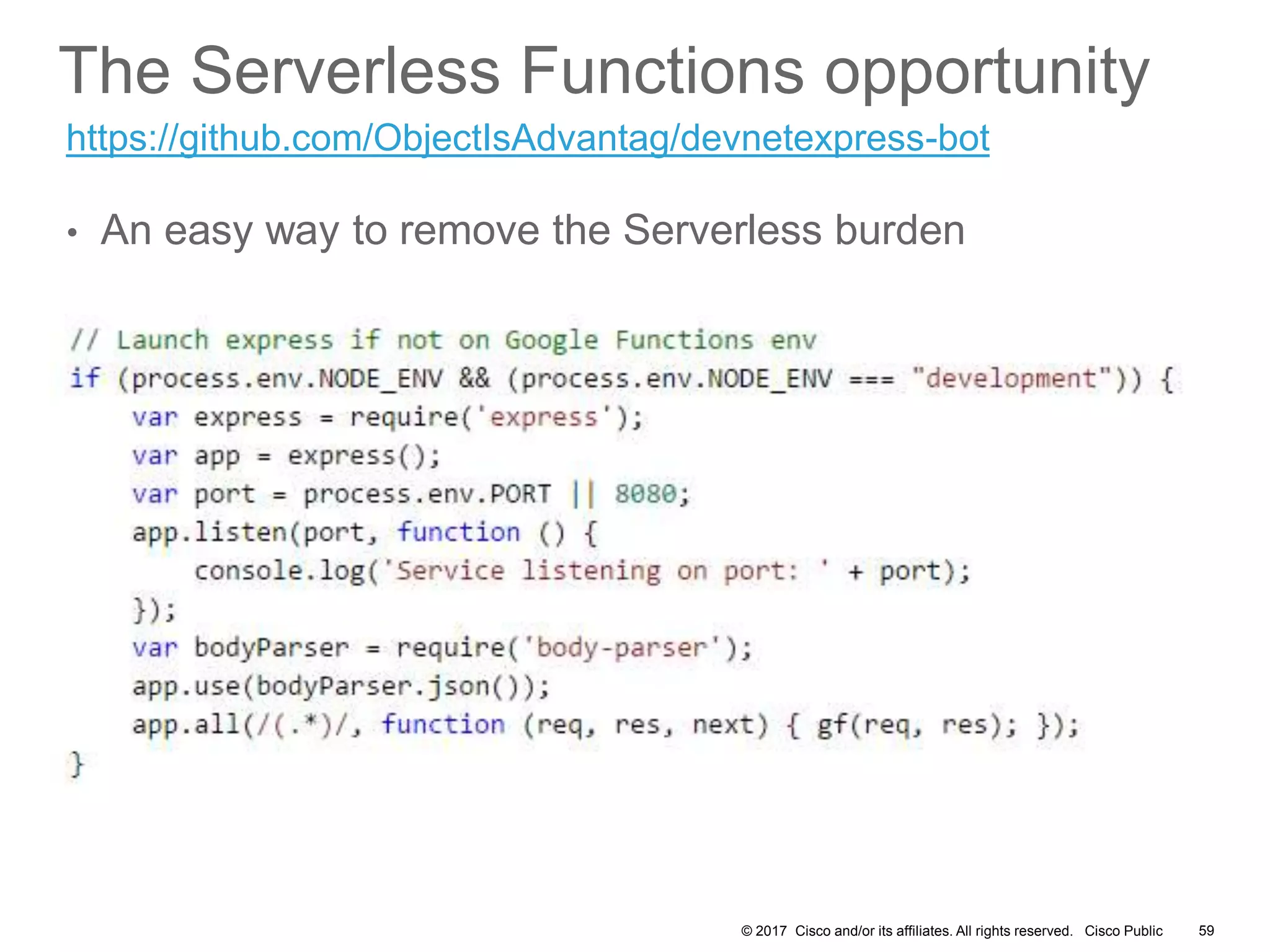

• An easy way to remove the Serverless burden
59
https://github.com/ObjectIsAdvantag/devnetexpress-bot

60. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Taking bots to the next stage
• Pick Bots coding best practices & frameworks
• Exception management, Retries
• Help, Fallback command, Healthcheck
• Conversations (test is challenging)
• Choose the best hosting approach
• Monitor your bot activity
• Chatops + Analytics
• Think twice before going to NLP and then
choose the best approach (local vs 3rd party)
https://devnetcreate.io/2017 Nick Marus’s Talk

61. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Taking bots to the next stage

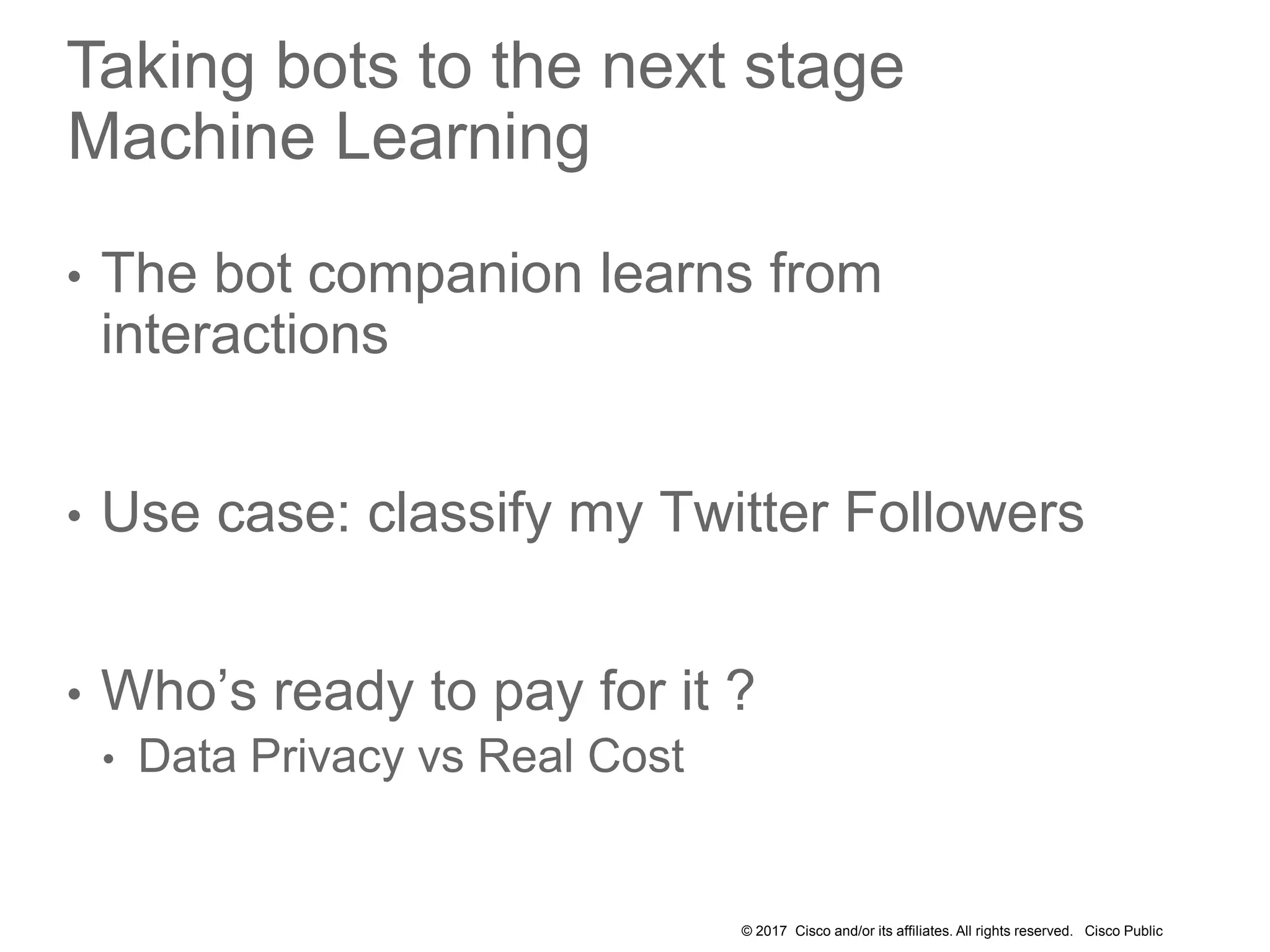

Machine Learning
• The bot companion learns from
interactions
• Use case: classify my Twitter Followers
• Who’s ready to pay for it ?
• Data Privacy vs Real Cost

62. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Join the Cisco DevNet code labs
https://github.com/CiscoDevNet/codemotion-rome-2017

63. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public
Bot Contest
• Sign in on Cisco
Spark
• Meet the Bot
quizbot@sparkbot.io
• Take the challenge
• Win iPhone7…

64. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Public

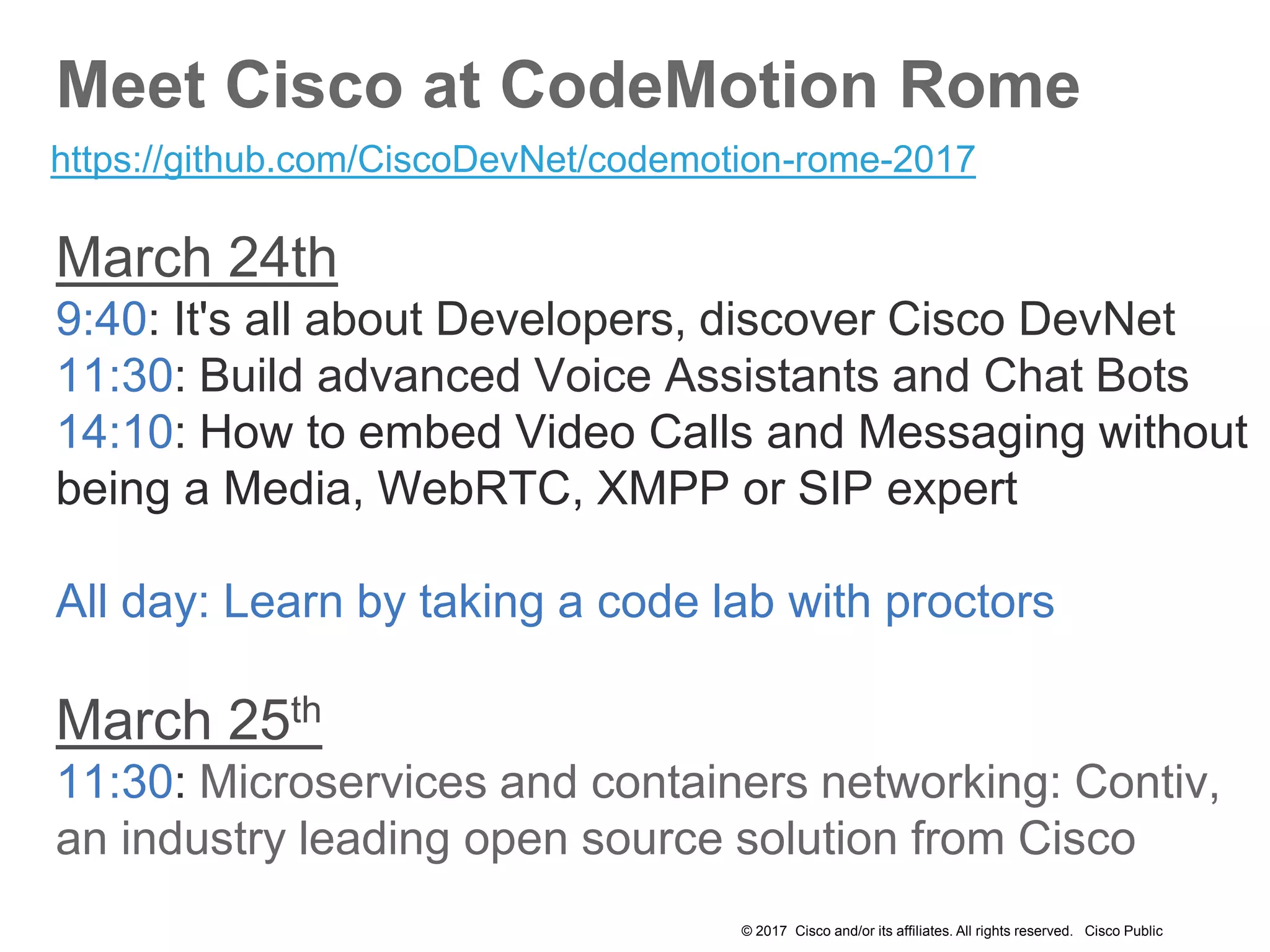

Meet Cisco at CodeMotion Rome
March 24th
9:40: It's all about Developers, discover Cisco DevNet
11:30: Build advanced Voice Assistants and Chat Bots
14:10: How to embed Video Calls and Messaging without
being a Media, WebRTC, XMPP or SIP expert
All day: Learn by taking a code lab with proctors
March 25th
11:30: Microservices and containers networking: Contiv,
an industry leading open source solution from Cisco
https://github.com/CiscoDevNet/codemotion-rome-2017

65. Thank you
@CiscoDevNet
@CiscoSparkDev
@SteveSfartz
