APIC DC: API Deep Dive
DevNet-1003/1029
Paul Lesiak, Solutions Architect

© 2015 Cisco and/or its affiliates. All rights reserved.Presentation_ID Cisco Public

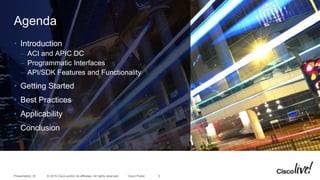

Agenda
• Introduction
– ACI and APIC DC
– Programmatic Interfaces
– API/SDK Features and Functionality
• Getting Started
• Best Practices
• Applicability

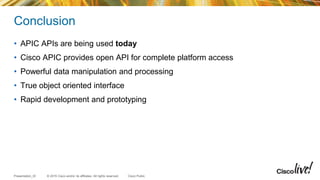

• Conclusion
3

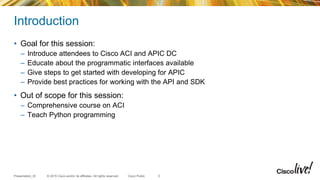

Introduction
• Goal for this session:
– Introduce attendees to Cisco ACI and APIC DC
– Educate about the programmatic interfaces available
– Give steps to get started with developing for APIC
– Provide best practices for working with the API and SDK
• Out of scope for this session:
– Comprehensive course on ACI
– Teach Python programming
5

Leveraging Programmability
• Speed
• Efficiency / Cost
• Quality
• Automate common tasks
• Troubleshooting tasks
• Deployment workflows
• Partners
• Customers
• Integrators
• Cisco
• Everyone
6

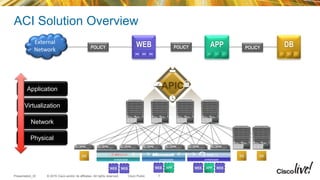

Physical
Virtualization
Network
APP DBPOLICY WEB
HYPERVISORHYPERVISOR HYPERVISOR
APICApplication
External
Network POLICY POLICY
ACI Solution Overview
7

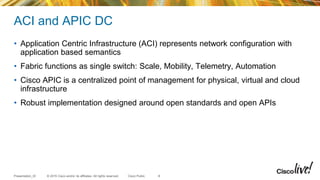

ACI and APIC DC
• Application Centric Infrastructure (ACI) represents network configuration with
application based semantics
• Fabric functions as single switch: Scale, Mobility, Telemetry, Automation
• Cisco APIC is a centralized point of management for physical, virtual and cloud
infrastructure
• Robust implementation designed around open standards and open APIs
8

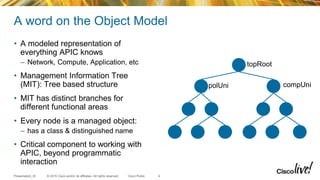

A word on the Object Model
• A modeled representation of
everything APIC knows
– Network, Compute, Application, etc
• Management Information Tree
(MIT): Tree based structure
• MIT has distinct branches for
different functional areas
• Every node is a managed object:
– has a class & distinguished name
• Critical component to working with
APIC, beyond programmatic
interaction
9
topRoot
polUni compUni

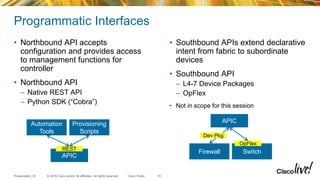

Programmatic Interfaces
• Northbound API accepts
configuration and provides access
to management functions for
controller
• Northbound API
– Native REST API
– Python SDK (“Cobra”)
• Southbound APIs extend declarative
intent from fabric to subordinate
devices
• Southbound API
– L4-7 Device Packages
– OpFlex
• Not in scope for this session
10
Automation
Tools
Provisioning
Scripts
APIC
REST
Firewall Switch
OpFlex
APIC
Dev Pkg

REST Interface
GUI
CLI
Web
Browser
API Tools
Object
Browser
(visore)
APIC Cluster +
Leaves & Spines
R
E
S
T
Python
SDK
11

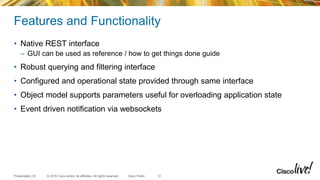

Features and Functionality
• Native REST interface
– GUI can be used as reference / how to get things done guide
• Robust querying and filtering interface
• Configured and operational state provided through same interface
• Object model supports parameters useful for overloading application state
• Event driven notification via websockets
12

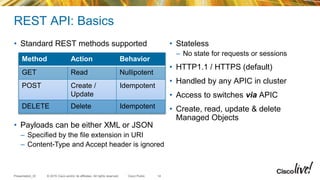

REST API: Basics
• Standard REST methods supported • Stateless
– No state for requests or sessions
• HTTP1.1 / HTTPS (default)
• Handled by any APIC in cluster
• Access to switches via APIC
• Create, read, update & delete
Managed Objects
Method Action Behavior
GET Read Nullipotent
POST Create /
Update
Idempotent
DELETE Delete Idempotent
• Payloads can be either XML or JSON
– Specified by the file extension in URI
– Content-Type and Accept header is ignored
14

REST API: Read Operations
/api
API
Operator
/{mo|class}
Specify
Managed
Object or Class
Operator
/{dn|classname}
Distinguished
name or Object
Class
.{xml|json}
Encoding for
response
?[options]
Specify filters,
selectors or
modifiers to query,
joined using
ampersand (&)
host:port
APIC host
and port
http(s)://
http or
https
protocol
http://apic/api/mo/uni/tn-Cisco/ap-Software/epg-Download.xml
Read properties for an EPG by Distinguished Name
http://apic/api/class/l1PhysIf.xml?query-target-filter=eq(l1PhysIf.speed,"10G")
Find all 10G ports on Fabric
15

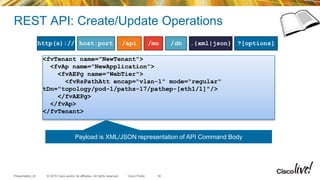

REST API: Create/Update Operations
/api /mo /dn .{xml|json} ?[options]host:porthttp(s)://
<fvTenant name="NewTenant">
<fvAp name="NewApplication">
<fvAEPg name="WebTier">
<fvRsPathAtt encap="vlan-1" mode="regular"
tDn="topology/pod-1/paths-17/pathep-[eth1/1]"/>
</fvAEPg>
</fvAp>
</fvTenant>
Payload is XML/JSON representation of API Command Body
16

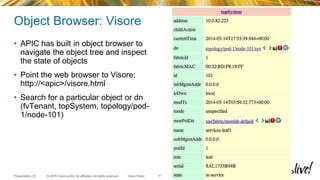

Object Browser: Visore
• APIC has built in object browser to
navigate the object tree and inspect
the state of objects
• Point the web browser to Visore:
http://<apic>/visore.html
• Search for a particular object or dn
(fvTenant, topSystem, topology/pod-
1/node-101)
17

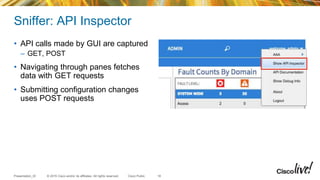

Sniffer: API Inspector
• API calls made by GUI are captured
– GET, POST
• Navigating through panes fetches
data with GET requests
• Submitting configuration changes
uses POST requests
18

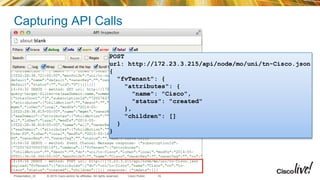

Capturing API Calls
19
POST
url: http://172.23.3.215/api/node/mo/uni/tn-Cisco.json
{
"fvTenant": {
"attributes": {
"name": "Cisco",
"status": "created"
},
"children": []
}
}

Getting Started
1. Get the Cobra SDK
2. Get the documentation
3. Establish authenticated session
4. Simple queries
5. Inserting data into object store
20

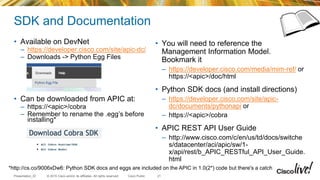

SDK and Documentation
• Available on DevNet
– https://developer.cisco.com/site/apic-dc/
– Downloads -> Python Egg Files
• Can be downloaded from APIC at:
– https://<apic>/cobra
– Remember to rename the .egg’s before
installing*
• You will need to reference the
Management Information Model.
Bookmark it
– https://developer.cisco.com/media/mim-ref/ or
https://<apic>/doc/html
• Python SDK docs (and install directions)
– https://developer.cisco.com/site/apic-
dc/documents/pythonapi or
– https://<apic>/cobra
• APIC REST API User Guide
– http://www.cisco.com/c/en/us/td/docs/switche
s/datacenter/aci/apic/sw/1-
x/api/rest/b_APIC_RESTful_API_User_Guide.
html
21
*http://cs.co/9006xDw6: Python SDK docs and eggs are included on the APIC in 1.0(2*) code but there's a catch

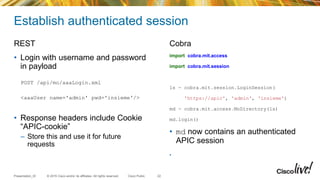

Establish authenticated session
REST
• Login with username and password
in payload
POST /api/mo/aaaLogin.xml
<aaaUser name='admin' pwd='insieme'/>
• Response headers include Cookie
“APIC-cookie”
– Store this and use it for future
requests
Cobra
import cobra.mit.access
import cobra.mit.session
ls = cobra.mit.session.LoginSession(
'https://apic', 'admin', 'insieme')
md = cobra.mit.access.MoDirectory(ls)
md.login()
• md now contains an authenticated
APIC session
•
22

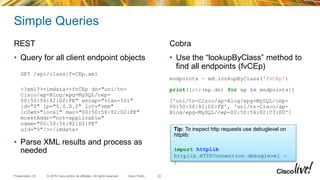

Simple Queries
REST
• Query for all client endpoint objects
GET /api/class/fvCEp.xml
<?xml?><imdata><fvCEp dn="uni/tn-
Cisco/ap-Blog/epg-MySQL/cep-
00:50:56:82:D2:FE" encap="vlan-501"
id="0" ip="0.0.0.0" lcC="vmm"
lcOwn="local" mac="00:50:56:82:D2:FE"
mcastAddr="not-applicable"
name="00:50:56:82:D2:FE”
uid="0"/></imdata>
• Parse XML results and process as
needed
Cobra
• Use the “lookupByClass” method to
find all endpoints (fvCEp)
endpoints = md.lookupByClass('fvCEp')
print([str(ep.dn) for ep in endpoints])
['uni/tn-Cisco/ap-Blog/epg-MySQL/cep-
00:50:56:82:D2:FE', 'uni/tn-Cisco/ap-
Blog/epg-MySQL/cep-00:50:56:82:C3:D0']
23
Tip: To inspect http requests use debuglevel on
httplib:
import httplib
httplib.HTTPConnection.debuglevel =
1

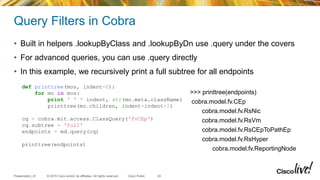

Query Filters in Cobra
• Built in helpers .lookupByClass and .lookupByDn use .query under the covers
• For advanced queries, you can use .query directly
• In this example, we recursively print a full subtree for all endpoints
24
def printtree(mos, indent=0):
for mo in mos:
print ' ' * indent, str(mo.meta.className)
printtree(mo.children, indent=indent+2)
cq = cobra.mit.access.ClassQuery('fvCEp')
cq.subtree = 'full'
endpoints = md.query(cq)
printtree(endpoints)
>>> printtree(endpoints)
cobra.model.fv.CEp
cobra.model.fv.RsNic
cobra.model.fv.RsVm
cobra.model.fv.RsCEpToPathEp
cobra.model.fv.RsHyper
cobra.model.fv.ReportingNode

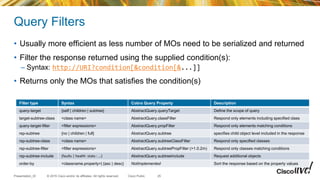

Query Filters
• Usually more efficient as less number of MOs need to be serialized and returned
• Filter the response returned using the supplied condition(s):
– Syntax: http://URI?condition[&condition[&...]]
• Returns only the MOs that satisfies the condition(s)
Filter type Syntax Cobra Query Property Description
query-target {self | children | subtree} AbstractQuery.queryTarget Define the scope of query
target-subtree-class <class name> AbstractQuery.classFilter Respond only elements including specified class
query-target-filter <filter expressions> AbstractQuery.propFilter Respond only elements matching conditions
rsp-subtree {no | children | full} AbstractQuery.subtree specifies child object level included in the response
rsp-subtree-class <class name> AbstractQuery.subtreeClassFilter Respond only specified classes
rsp-subtree-filter <filter expressions> AbstractQuery.subtreePropFilter (>1.0.2m) Respond only classes matching conditions
rsp-subtree-include {faults | health :stats : …} AbstractQuery.subtreeInclude Request additional objects
order-by <classname.property>| {asc | desc} NotImplemented Sort the response based on the property values
25

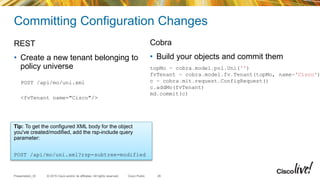

Committing Configuration Changes
REST
• Create a new tenant belonging to
policy universe
POST /api/mo/uni.xml
<fvTenant name="Cisco"/>
Cobra
• Build your objects and commit them
26
Tip: To get the configured XML body for the object
you've created/modified, add the rsp-include query
parameter:
POST /api/mo/uni.xml?rsp-subtree=modified
topMo = cobra.model.pol.Uni('')
fvTenant = cobra.model.fv.Tenant(topMo, name='Cisco')
c = cobra.mit.request.ConfigRequest()
c.addMo(fvTenant)
md.commit(c)

APIC REST to Python Adapter: arya.py
• GUI creates REST
• API Inspector shows REST
• arya.py creates code from
REST
• Auto-generate code to
automate tasks, without
heavy lifting
• Available at
http://github.com/datacenter/ACI
XML/JSON
arya.py
Python
code
{"fvTenant":{"attributes":{"dn":"uni/tn-
Cisco","name":"Cisco","rn":"tn-
Cisco","status":"created"},"children":[{"fvBD":{"attribut
es":{"dn":"uni/tn-Cisco/BD-
CiscoBd","mac":"00:22:BD:F8:19:FF","name":"CiscoBd","rn":
"BD-
CiscoBd","status":"created"},"children":[{"fvRsCtx":{"att
ributes":{"tnFvCtxName":"CiscoNetwork","status":"created,
modified"},"children":[]}},{"fvSubnet":{"attributes":{"dn
":"uni/tn-Cisco/BD-CiscoBd/subnet-
[10.0.0.1/8]","ip":"10.0.0.1/8","rn":"subnet-
[10.0.0.1/8]","status":"created"},"children":[]}}]}},{"fv
Ctx":{"attributes":{"dn":"uni/tn-Cisco/ctx-
CiscoNetwork","name":"CiscoNetwork","rn":"ctx-
CiscoNetwork","status":"created"},"children":[]}}]}}
fvTenant = cobra.model.fv.Tenant(topMo, name='Cisco')
fvCtx = cobra.model.fv.Ctx(fvTenant, name='CiscoNetwork')
fvBD = cobra.model.fv.BD(fvTenant,
mac='00:22:BD:F8:19:FF', name='CiscoBd')
fvRsCtx = cobra.model.fv.RsCtx(fvBD,
tnFvCtxName=fvCtx.name)
fvSubnet = cobra.model.fv.Subnet(fvBD, ip='10.0.0.1/8')
27

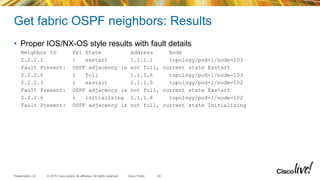

Sample: Get fabric OSPF neighbors
• Typical operations task is to check neighbors
• Want to have the same look and feel
• Take advantage of single fabric API to get
details from entire fabric
• Solution: Query fabric for all OSPF neighbors,
and output status in IOS/NX-OS fashion

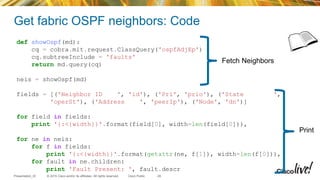

Get fabric OSPF neighbors: Code
29
def showOspf(md):
cq = cobra.mit.request.ClassQuery('ospfAdjEp')
cq.subtreeInclude = 'faults'
return md.query(cq)
neis = showOspf(md)
fields = [('Neighbor ID ', 'id'), ('Pri', 'prio'), ('State ',
'operSt'), ('Address ', 'peerIp'), ('Node', 'dn')]
for field in fields:
print '{:<{width}}'.format(field[0], width=len(field[0])),
for ne in neis:
for f in fields:
print '{:<{width}}'.format(getattr(ne, f[1]), width=len(f[0])),
for fault in ne.children:
print 'Fault Present: ', fault.descr
Fetch Neighbors
Print

Get fabric OSPF neighbors: Results
• Proper IOS/NX-OS style results with fault details
Neighbor ID Pri State Address Node
2.2.2.1 1 exstart 1.1.1.1 topology/pod-1/node-103
Fault Present: OSPF adjacency is not full, current state Exstart
2.2.2.6 1 full 1.1.1.6 topology/pod-1/node-103
2.2.2.3 1 exstart 1.1.1.5 topology/pod-1/node-102
Fault Present: OSPF adjacency is not full, current state Exstart
2.2.2.6 1 initializing 1.1.1.6 topology/pod-1/node-102
Fault Present: OSPF adjacency is not full, current state Initializing
30

Best Practices
1. Utilize built in naming and Dn methods
2. Be granular/specific with your commits and queries
3. Avoid hard coding Dn’s that contain naming properties
4. Avoid multiple lookups by starting off with static Dn’s instead of resolving
5. Build sparse trees and leverage default values
6. Don’t use ‘from’ in imports to avoid namespace collisions
7. Use REST API filtering to reduce result set
32

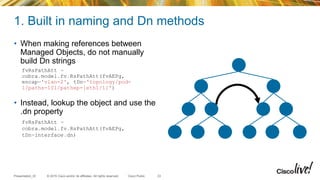

1. Built in naming and Dn methods
• When making references between
Managed Objects, do not manually
build Dn strings
• Instead, lookup the object and use the
.dn property
33
fvRsPathAtt =
cobra.model.fv.RsPathAtt(fvAEPg,
encap='vlan-2', tDn='topology/pod-
1/paths-101/pathep-[eth1/1]')
fvRsPathAtt =
cobra.model.fv.RsPathAtt(fvAEPg,
tDn=interface.dn)

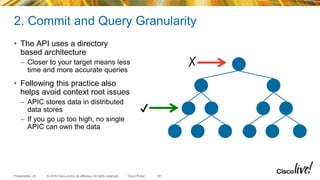

2. Commit and Query Granularity
• The API uses a directory
based architecture
– Closer to your target means less
time and more accurate queries
• Following this practice also
helps avoid context root issues
– APIC stores data in distributed
data stores
– If you go up too high, no single
APIC can own the data
34
✔
✗

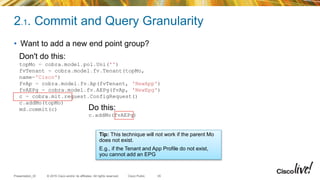

2.1. Commit and Query Granularity
35
• Want to add a new end point group?
Do this:
c.addMo(fvAEPg)
Don't do this:
fvTenant = cobra.model.fv.Tenant(topMo,
name='Cisco')
fvAp = cobra.model.fv.Ap(fvTenant, 'NewApp')
fvAEPg = cobra.model.fv.AEPg(fvAp, 'NewEpg')
c = cobra.mit.request.ConfigRequest()
c.addMo(topMo)
md.commit(c)
Tip: This technique will not work if the parent Mo
does not exist.
E.g., if the Tenant and App Profile do not exist,
you cannot add an EPG

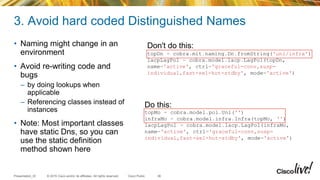

3. Avoid hard coded Distinguished Names
• Naming might change in an
environment
• Avoid re-writing code and
bugs
– by doing lookups when
applicable
– Referencing classes instead of
instances
• Note: Most important classes
have static Dns, so you can
use the static definition
method shown here
36
Don't do this:
topDn = cobra.mit.naming.Dn.fromString('uni/infra')
lacpLagPol = cobra.model.lacp.LagPol(topDn,
name='active', ctrl='graceful-conv,susp-
individual,fast-sel-hot-stdby', mode='active')
Do this:
infraMo = cobra.model.infra.Infra(topMo, '')
lacpLagPol = cobra.model.lacp.LagPol(infraMo,
name='active', ctrl='graceful-conv,susp-
individual,fast-sel-hot-stdby', mode='active')

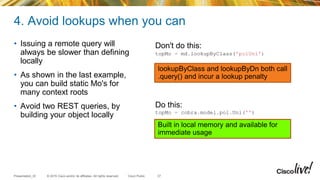

4. Avoid lookups when you can
• Issuing a remote query will
always be slower than defining
locally
• As shown in the last example,
you can build static Mo's for
many context roots
• Avoid two REST queries, by
building your object locally
37
Don't do this:
topMo = md.lookupByClass('polUni')
Do this:
lookupByClass and lookupByDn both call
.query() and incur a lookup penalty
Built in local memory and available for
immediate usage

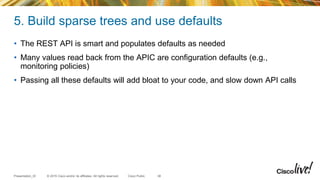

5. Build sparse trees and use defaults
• The REST API is smart and populates defaults as needed
• Many values read back from the APIC are configuration defaults (e.g.,
monitoring policies)
• Passing all these defaults will add bloat to your code, and slow down API calls
38

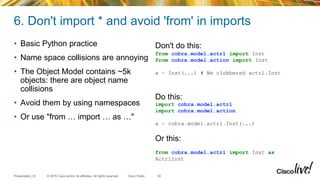

6. Don't import * and avoid 'from' in imports
• Basic Python practice
• Name space collisions are annoying
• The Object Model contains ~5k
objects: there are object name
collisions
• Avoid them by using namespaces
• Or use "from … import … as …"
39
Don't do this:
from cobra.model.actrl import Inst
from cobra.model.action import Inst
a = Inst(...) # We clobbered actrl.Inst
Do this:
import cobra.model.actrl
import cobra.model.action
a = cobra.model.actrl.Inst(...)
Or this:
from cobra.model.actrl import Inst as
ActrlInst

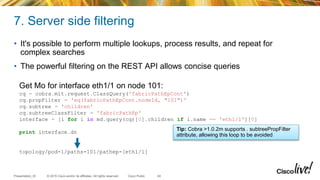

7. Server side filtering
• It's possible to perform multiple lookups, process results, and repeat for
complex searches
• The powerful filtering on the REST API allows concise queries
40
Get Mo for interface eth1/1 on node 101:
cq = cobra.mit.request.ClassQuery('fabricPathEpCont')
cq.propFilter = 'eq(fabricPathEpCont.nodeId, "101")'
cq.subtree = 'children'
cq.subtreeClassFilter = 'fabricPathEp'
interface = [i for i in md.query(cq)[0].children if i.name == 'eth1/1'][0]
print interface.dn
topology/pod-1/paths-101/pathep-[eth1/1]
Tip: Cobra >1.0.2m supports . subtreePropFilter
attribute, allowing this loop to be avoided

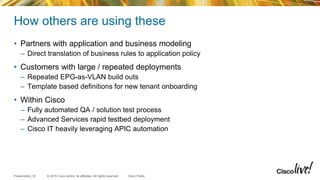

How others are using these
• Partners with application and business modeling
– Direct translation of business rules to application policy
• Customers with large / repeated deployments
– Repeated EPG-as-VLAN build outs
– Template based definitions for new tenant onboarding
• Within Cisco
– Fully automated QA / solution test process
– Advanced Services rapid testbed deployment
– Cisco IT heavily leveraging APIC automation

Conclusion
• APIC APIs are being used today
• Cisco APIC provides open API for complete platform access
• Powerful data manipulation and processing
• True object oriented interface
• Rapid development and prototyping

Apic dc api deep dive

More Related Content

What's hot

Viewers also liked

Similar to Apic dc api deep dive

More from Cisco DevNet

Recently uploaded

Apic dc api deep dive

Editor's Notes
