Introducing the West Range

WEST Control Solutions – Your global partner for measurement and control technology
Introducing the West Range

2

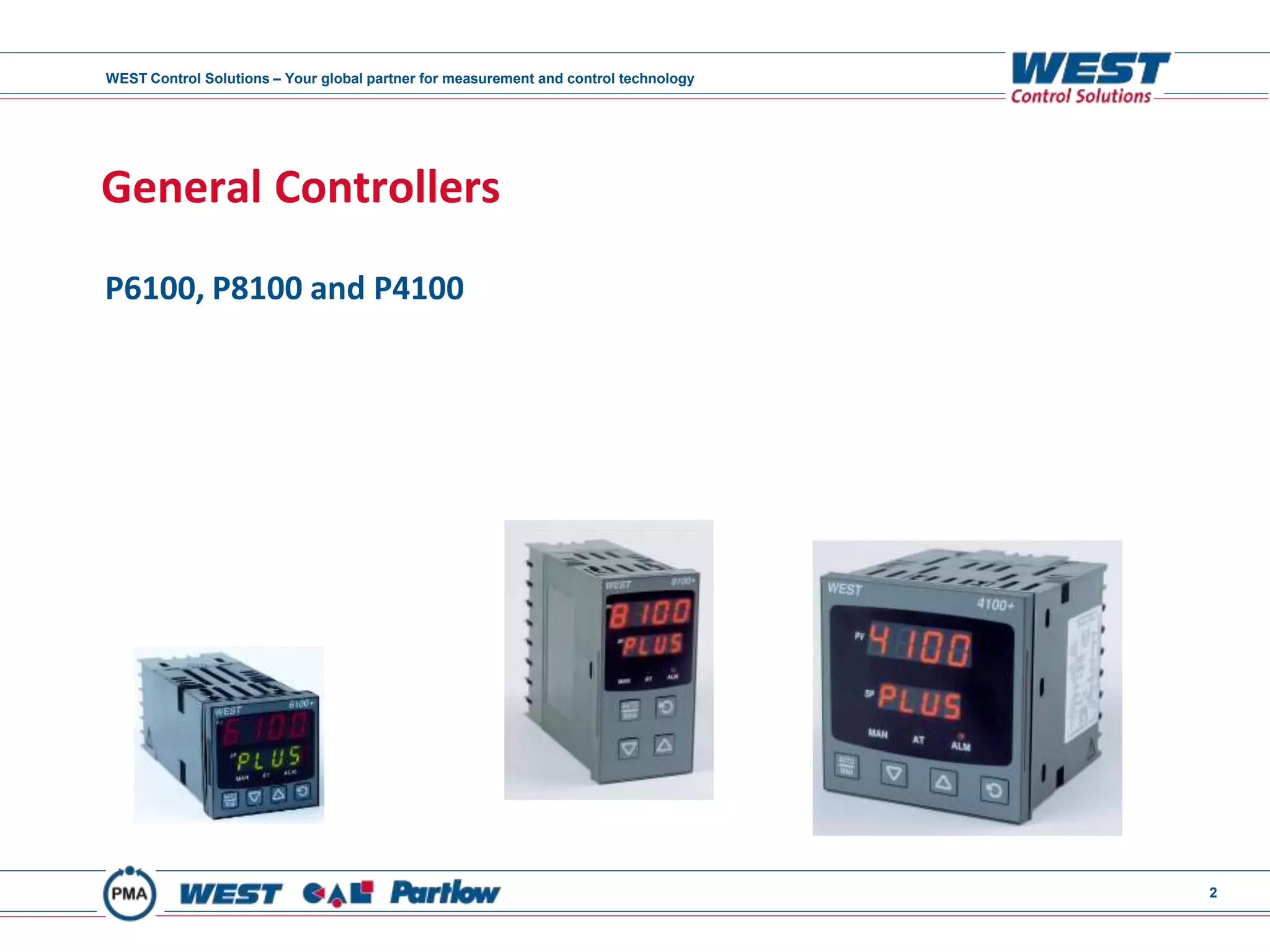

General Controllers
P6100, P8100 and P4100

3

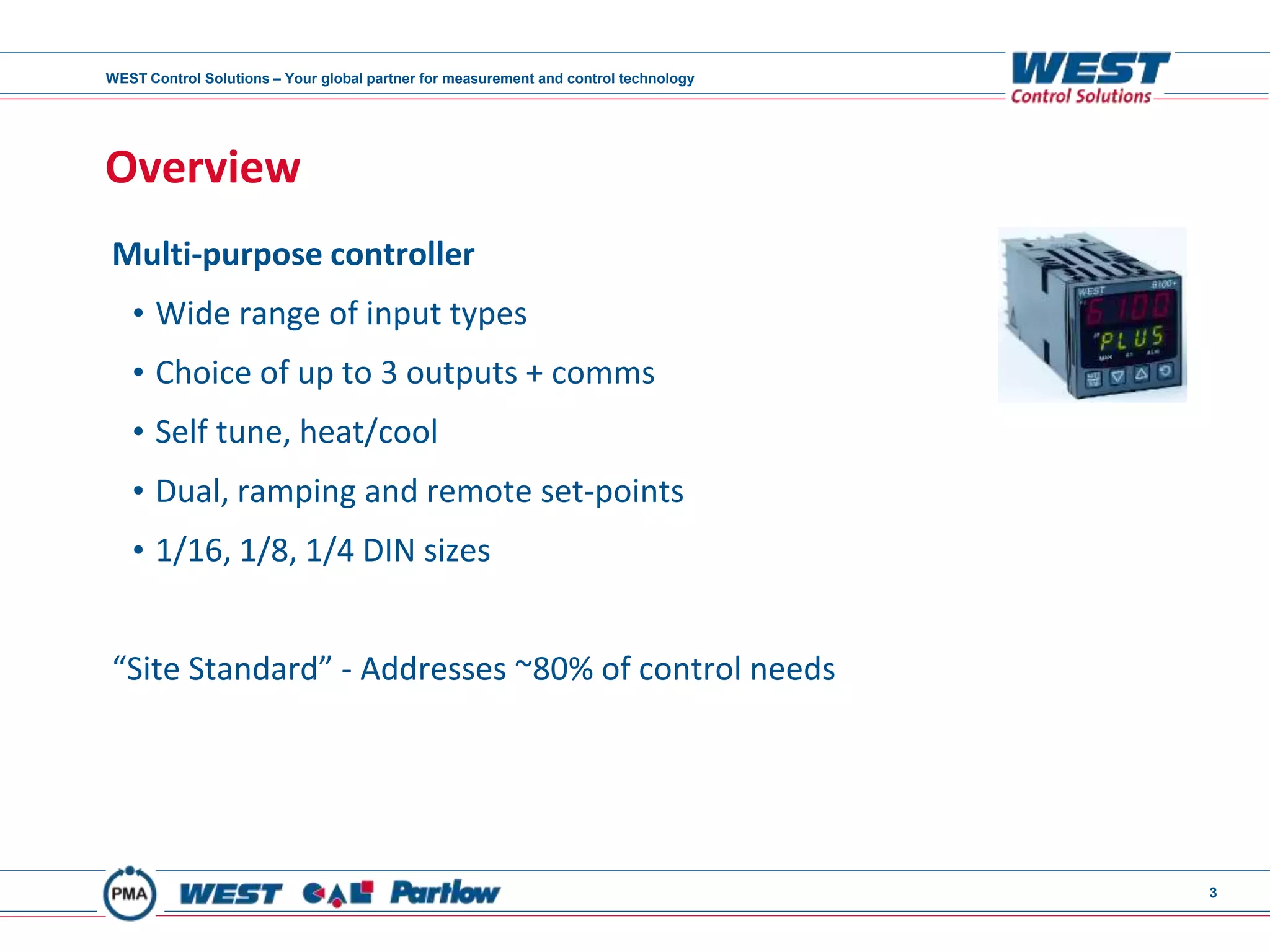

Overview
Multi-purpose controller
• Wide range of input types
• Choice of up to 3 outputs + comms
• Self tune, heat/cool
• Dual, ramping and remote set-points
• 1/16, 1/8, 1/4 DIN sizes
“Site Standard” - Addresses ~80% of control needs

4

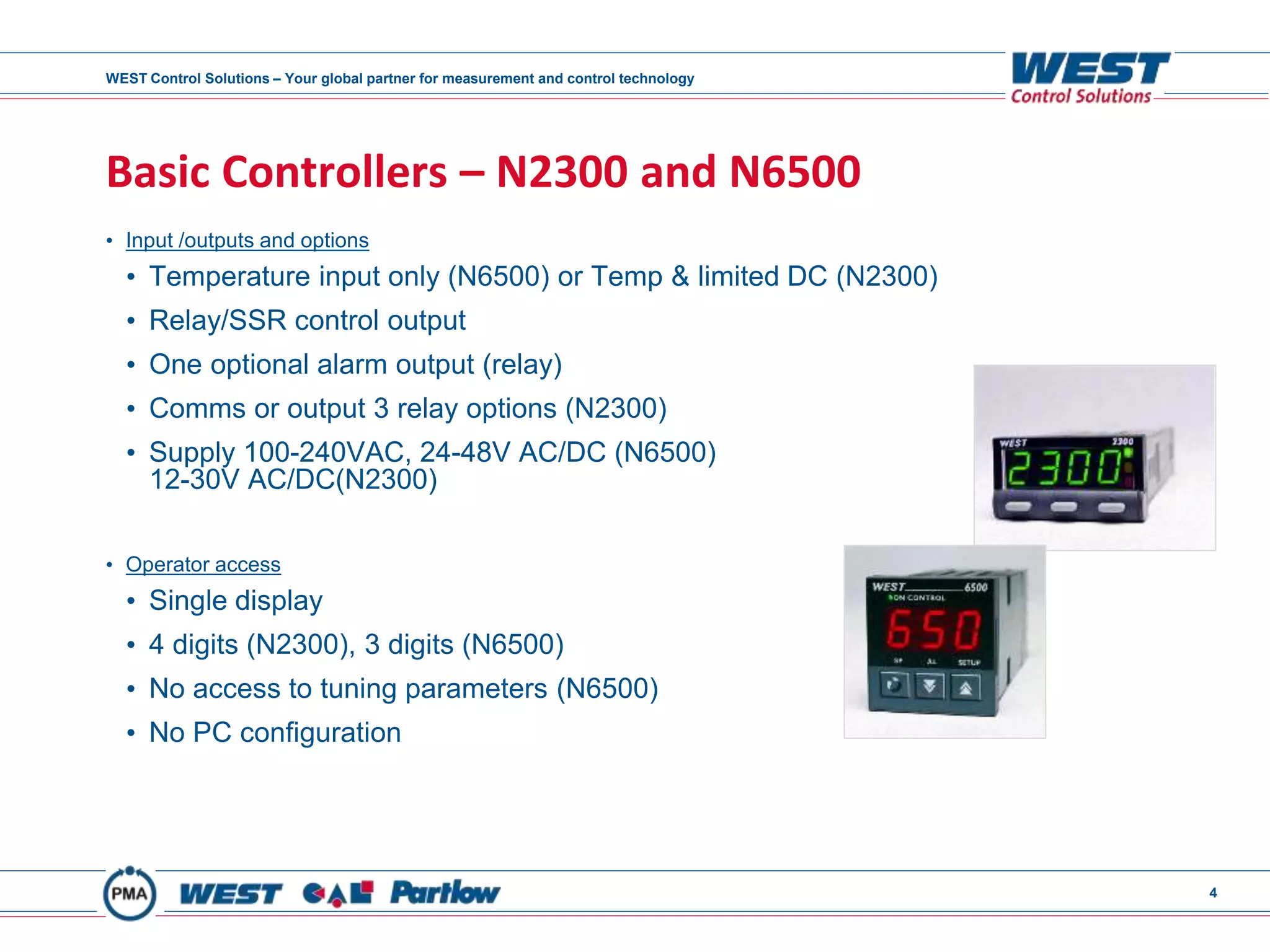

Basic Controllers – N2300 and N6500
• Input /outputs and options
• Temperature input only (N6500) or Temp & limited DC (N2300)
• Relay/SSR control output
• One optional alarm output (relay)
• Comms or output 3 relay options (N2300)
• Supply 100-240VAC, 24-48V AC/DC (N6500)
12-30V AC/DC(N2300)
• Operator access
• Single display
• 4 digits (N2300), 3 digits (N6500)
• No access to tuning parameters (N6500)
• No PC configuration

5

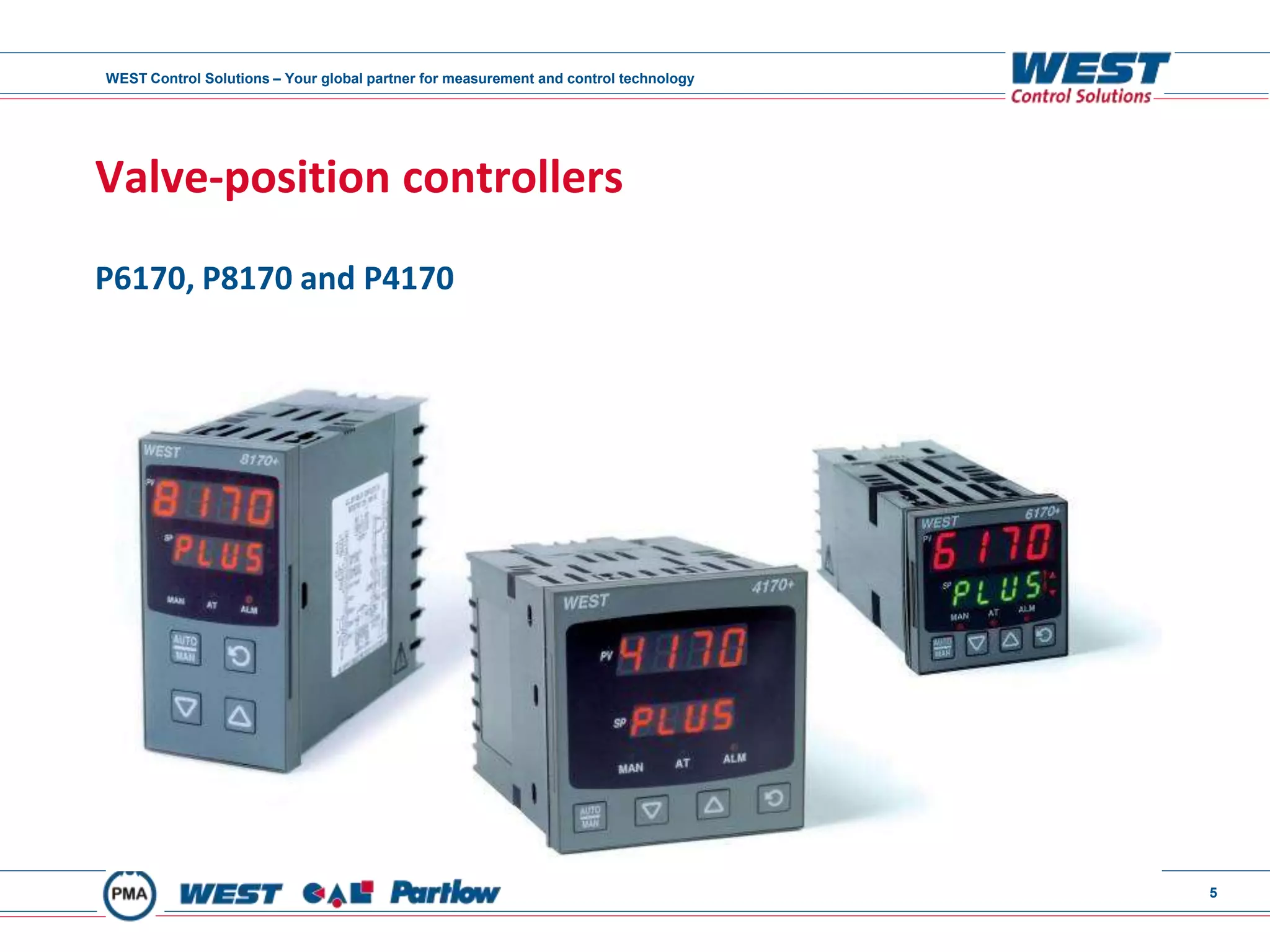

Valve-position controllers
P6170, P8170 and P4170

6
What is valve-position control?
Controlling the position of a motorised proportional valve
• the valve position can be varied from 0% to 100% open
• the controller selects the valve position = via control outputs
• the valve motor has separate contacts for “open” and “close”
• two separate control outputs are connected to these contacts

7

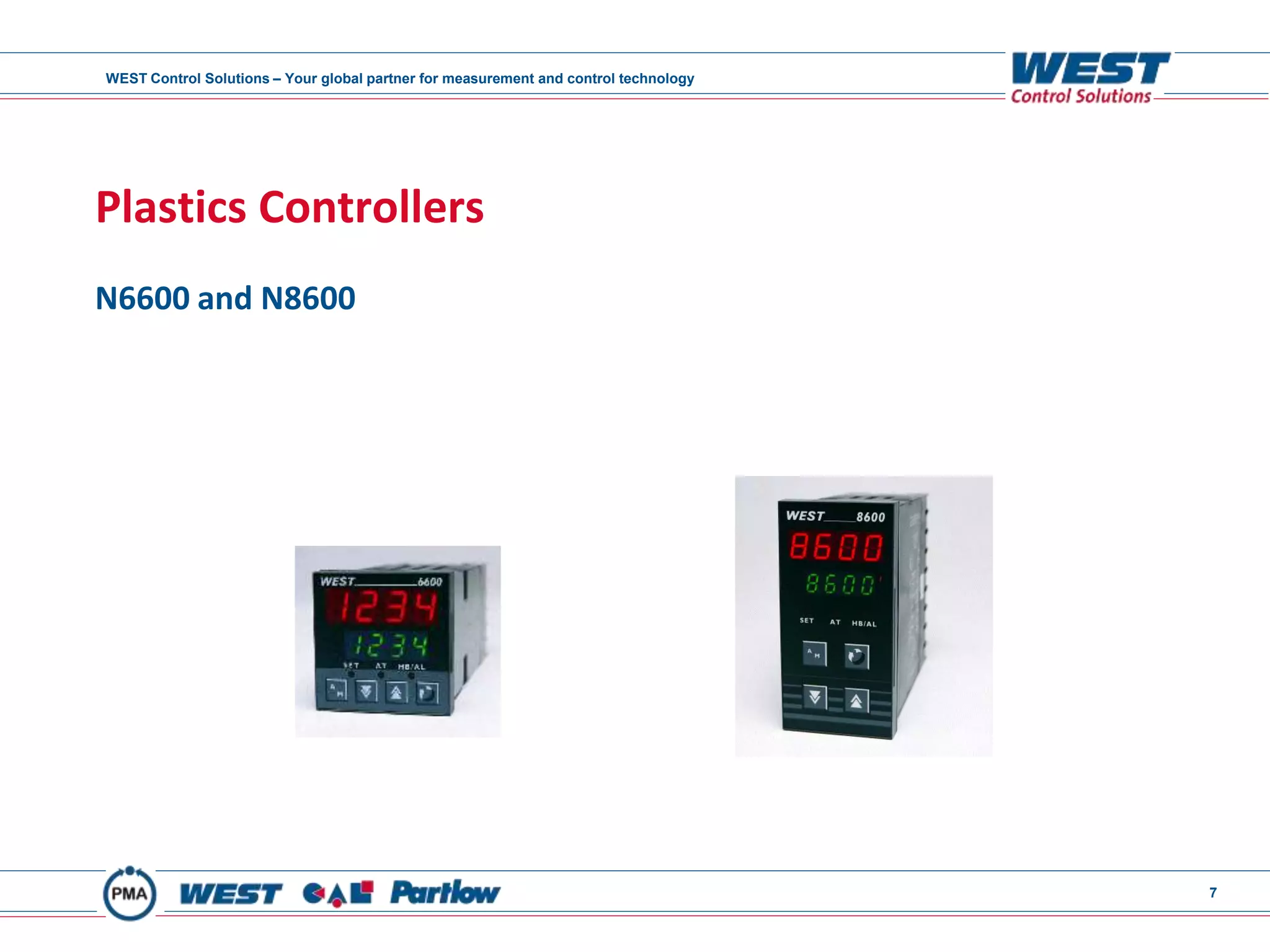

Plastics Controllers
N6600 and N8600

8

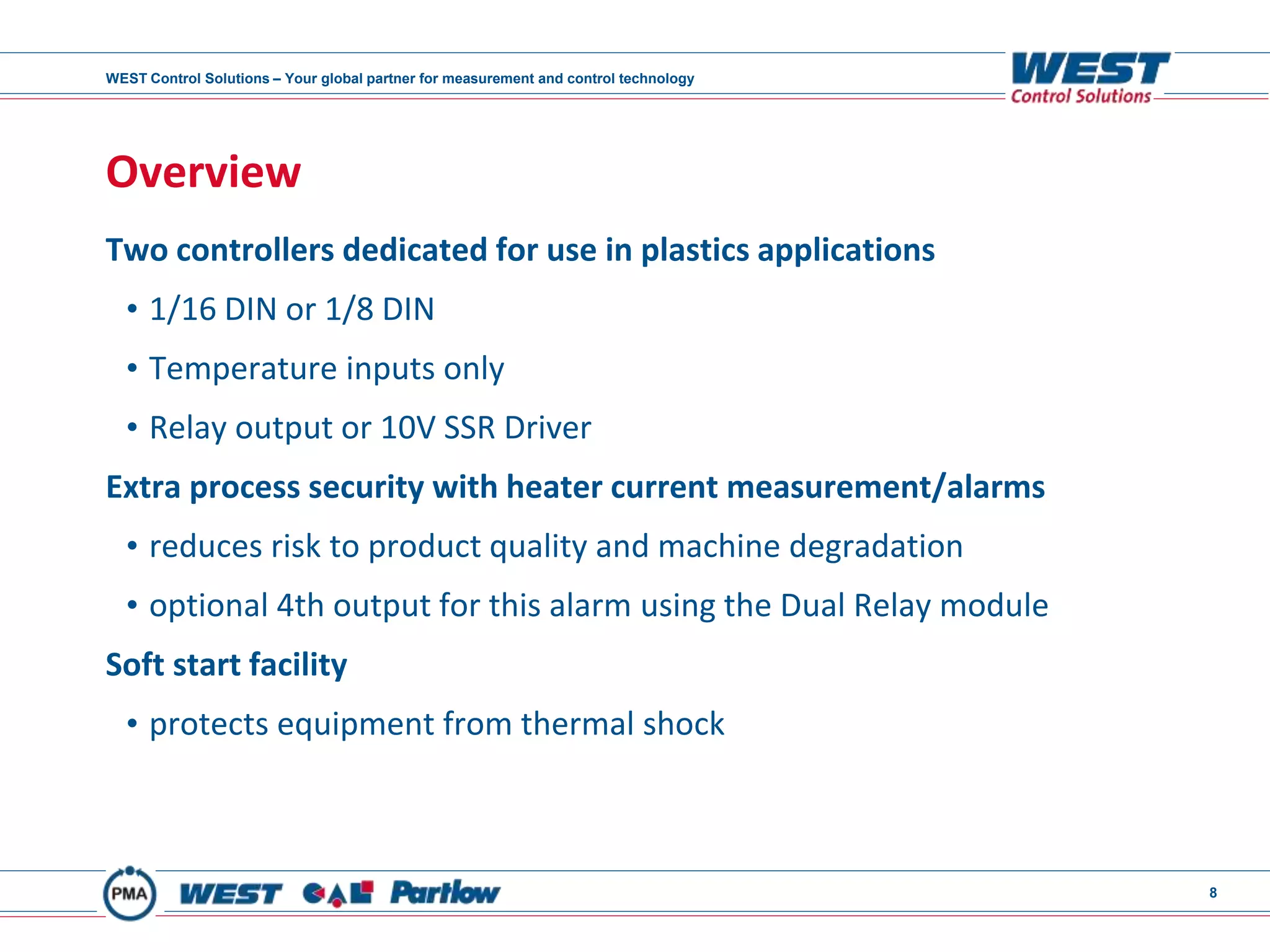

Overview
Two controllers dedicated for use in plastics applications
• 1/16 DIN or 1/8 DIN
• Temperature inputs only
• Relay output or 10V SSR Driver
Extra process security with heater current measurement/alarms
• reduces risk to product quality and machine degradation
• optional 4th output for this alarm using the Dual Relay module
Soft start facility
• protects equipment from thermal shock

9

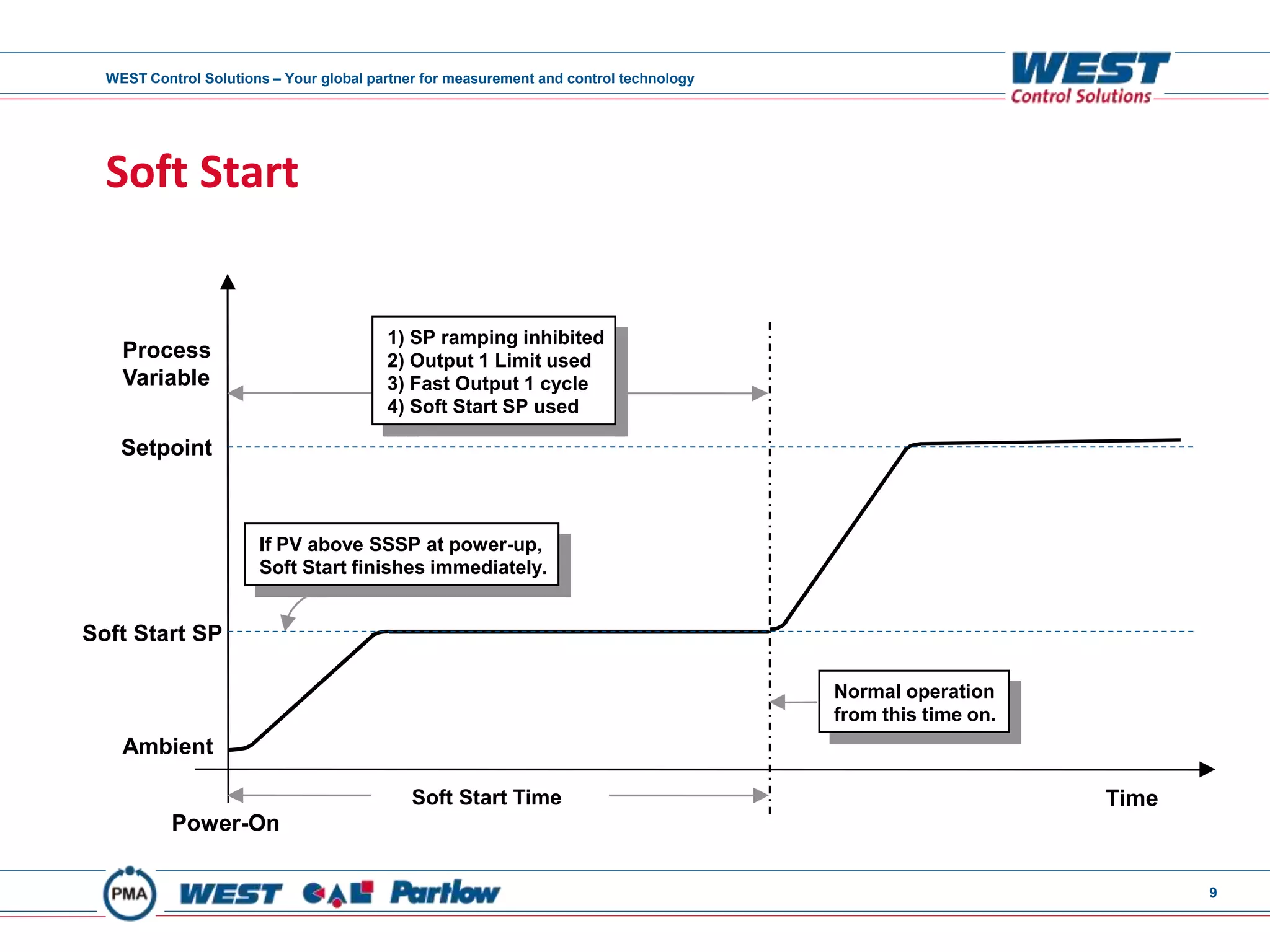

Soft Start
Ambient
Process
Variable
Time
Power-On
Setpoint
Soft Start SP
If PV above SSSP at power-up,
Soft Start finishes immediately.
If PV above SSSP at power-up,
Soft Start finishes immediately.
1) SP ramping inhibited
2) Output 1 Limit used
3) Fast Output 1 cycle
4) Soft Start SP used
1) SP ramping inhibited
2) Output 1 Limit used
3) Fast Output 1 cycle
4) Soft Start SP used
Soft Start Time
Normal operation
from this time on.
Normal operation
from this time on.

10

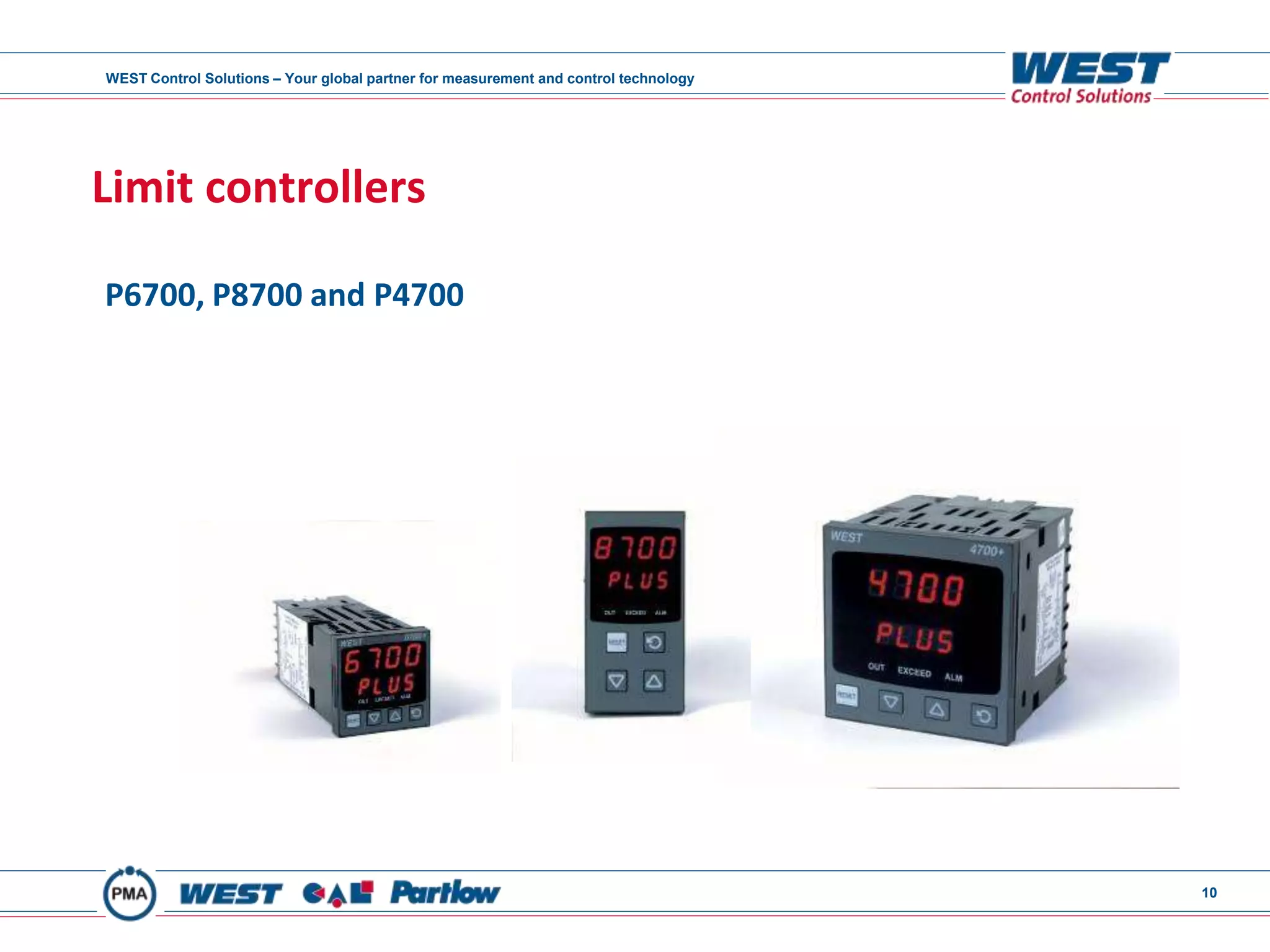

Limit controllers
P6700, P8700 and P4700

11
Overview
• The process watchdog
• in 1/16, 1/8 and 1/4 DIN sizes
• A dedicated alarm unit, not a true controller
• A “policeman” for out of control processes

12

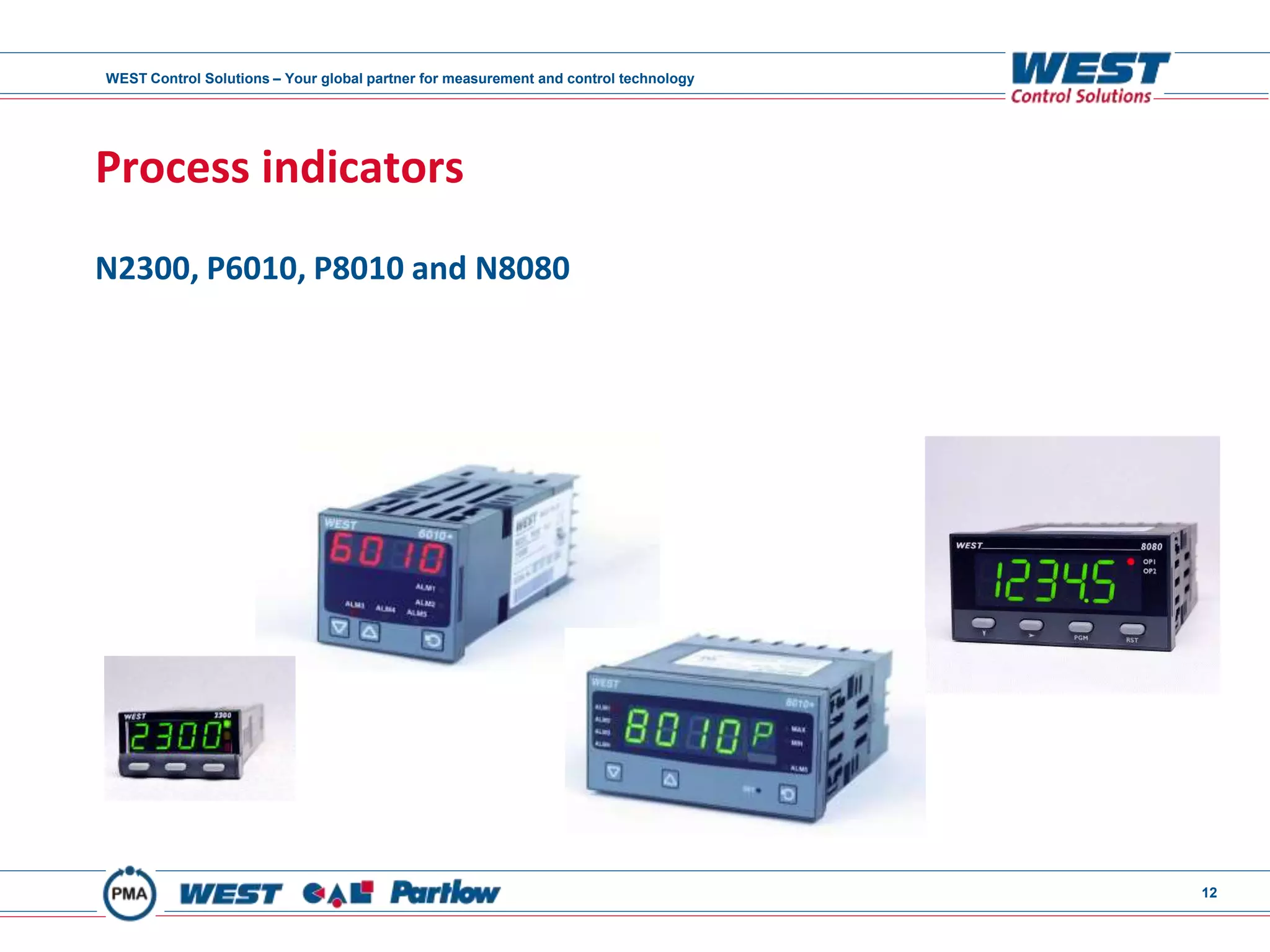

Process indicators
N2300, P6010, P8010 and N8080

13
Overview
• Choice of four indicators to show process values
>1/32, 1/16 and 1/8 DIN (horizontal)
• Universal inputs for most types of measurement device (not N8080)
>t/c, RTD, 4-20 mA etc.
• Range of alarm, retransmission and comms options.
• Choice of display sizes and modes

14

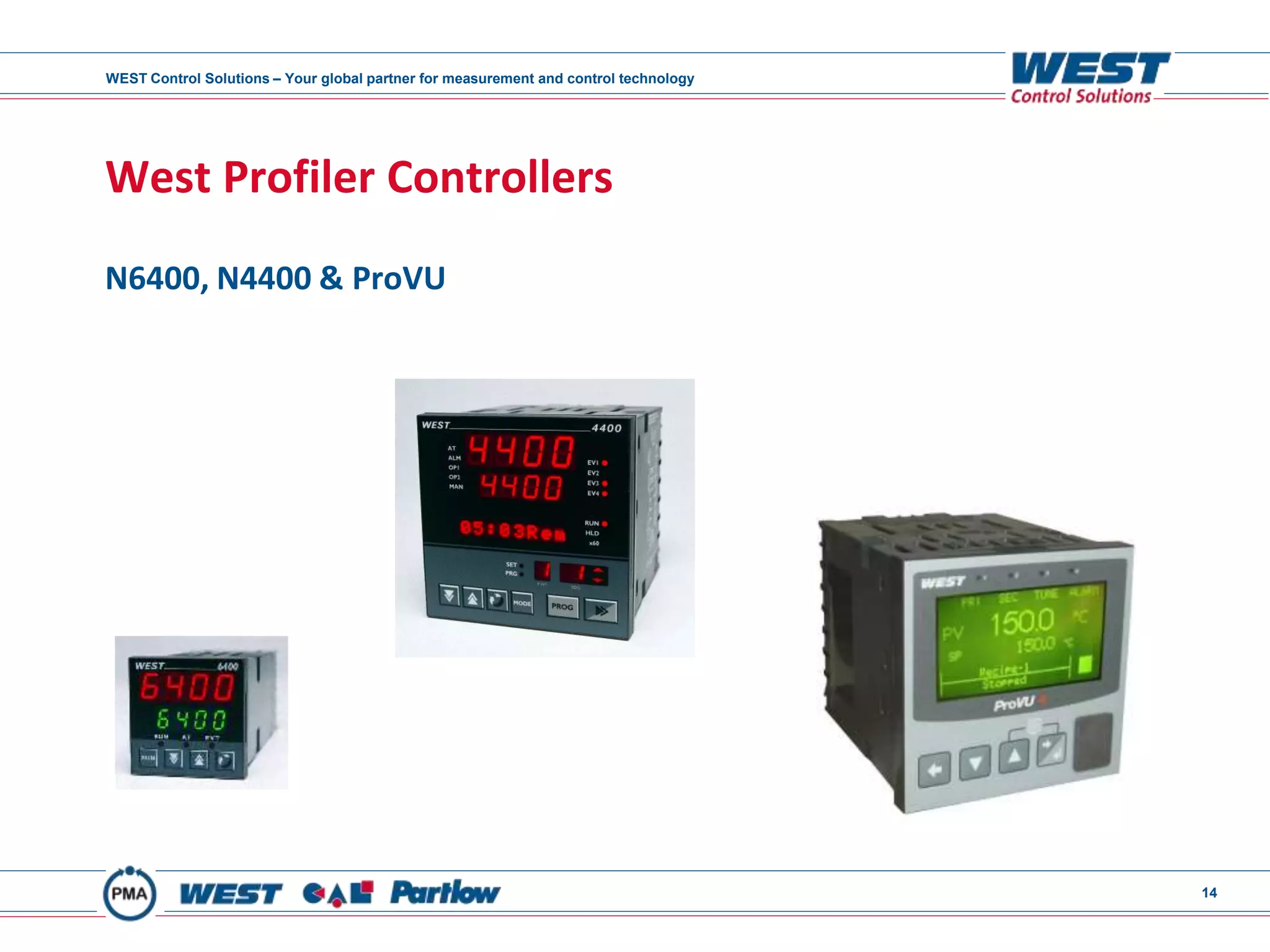

West Profiler Controllers
N6400, N4400 & ProVU

15

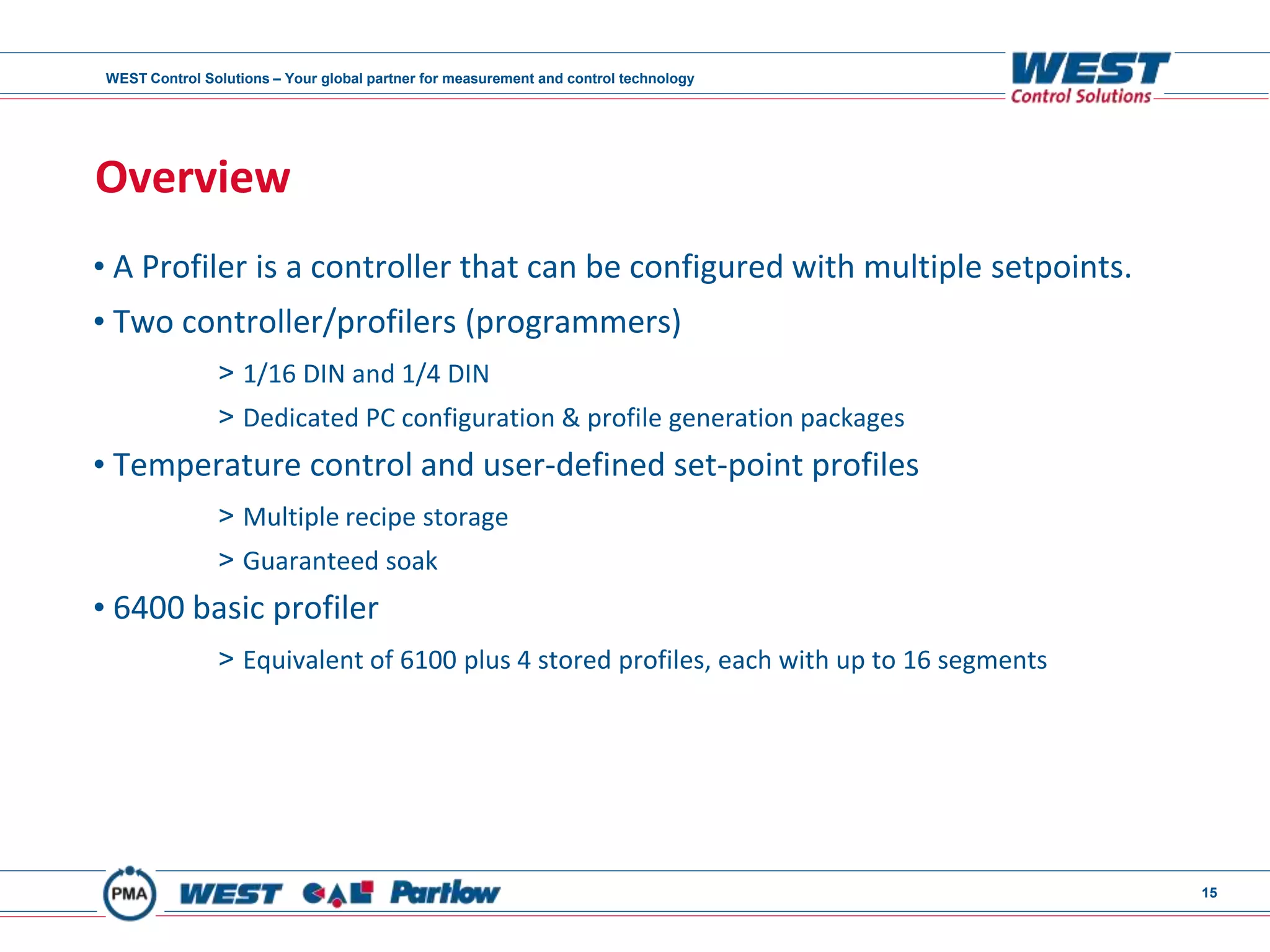

Overview
• A Profiler is a controller that can be configured with multiple setpoints.
• Two controller/profilers (programmers)
> 1/16 DIN and 1/4 DIN
> Dedicated PC configuration & profile generation packages
• Temperature control and user-defined set-point profiles
> Multiple recipe storage
> Guaranteed soak
• 6400 basic profiler
> Equivalent of 6100 plus 4 stored profiles, each with up to 16 segments

16

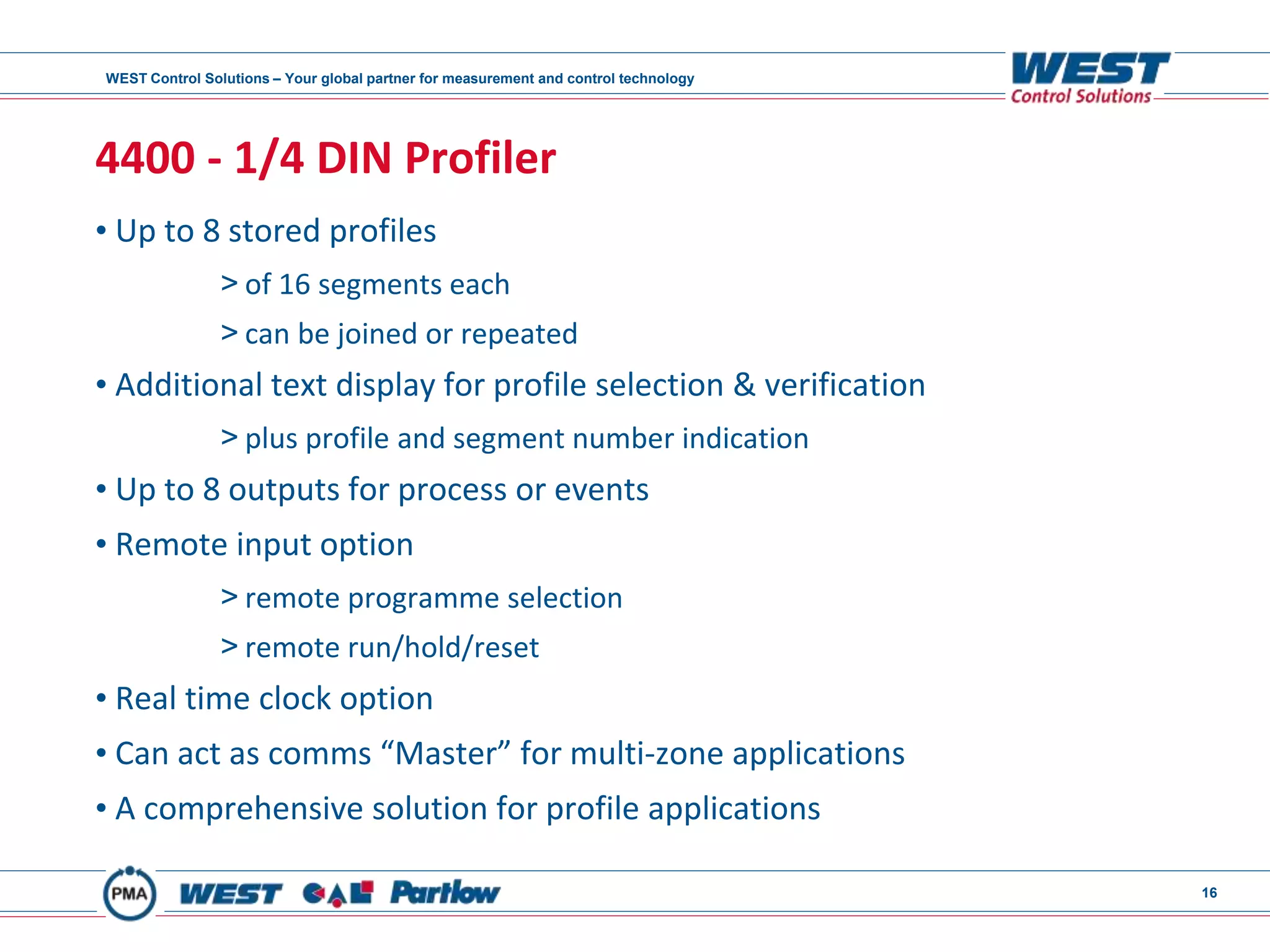

4400 - 1/4 DIN Profiler
• Up to 8 stored profiles
> of 16 segments each
> can be joined or repeated
• Additional text display for profile selection & verification
> plus profile and segment number indication
• Up to 8 outputs for process or events
• Remote input option
> remote programme selection
> remote run/hold/reset
• Real time clock option
• Can act as comms “Master” for multi-zone applications
• A comprehensive solution for profile applications

17

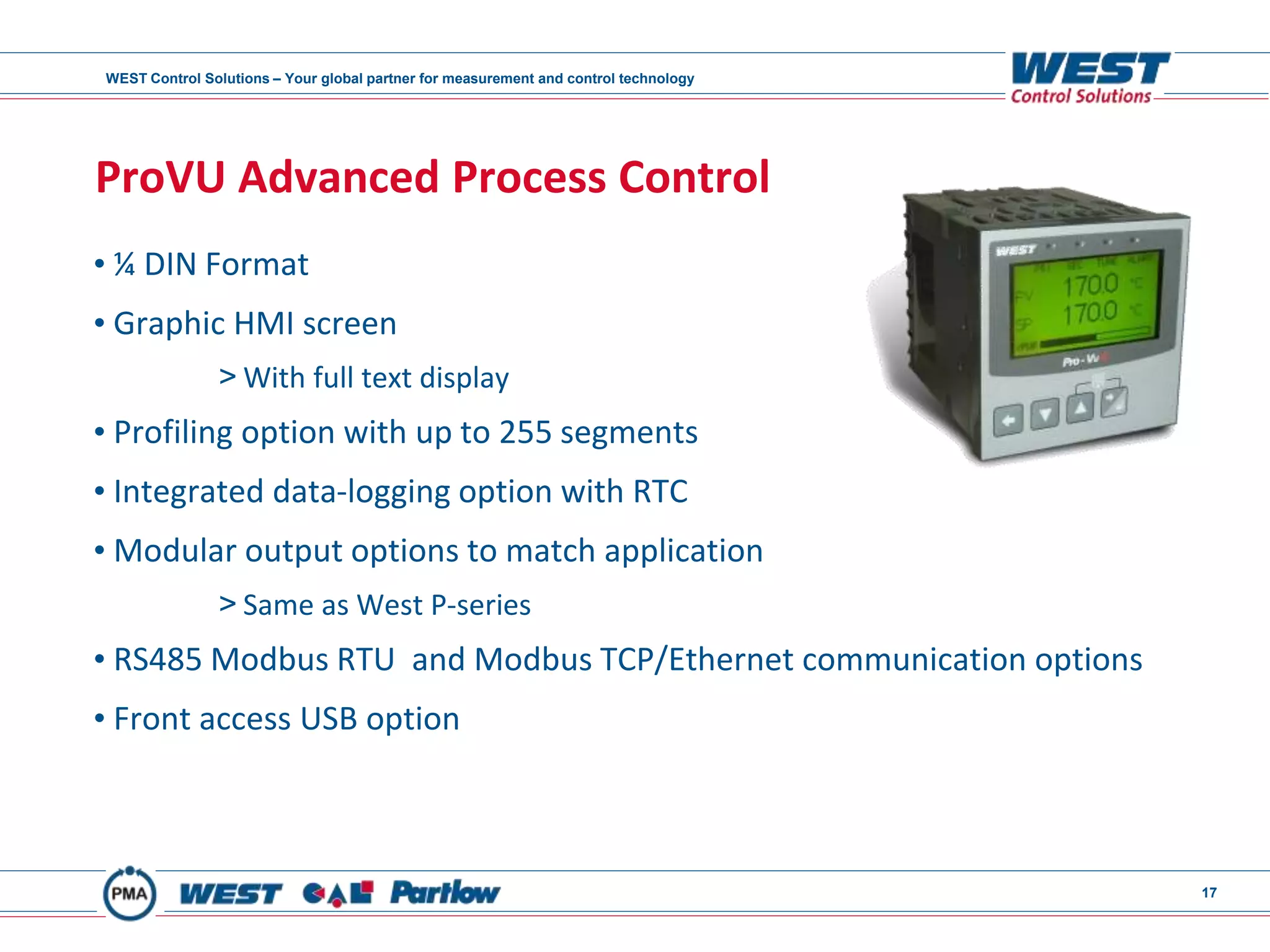

ProVU Advanced Process Control
• ¼ DIN Format
• Graphic HMI screen
> With full text display
• Profiling option with up to 255 segments
• Integrated data-logging option with RTC
• Modular output options to match application
> Same as West P-series
• RS485 Modbus RTU and Modbus TCP/Ethernet communication options
• Front access USB option

18

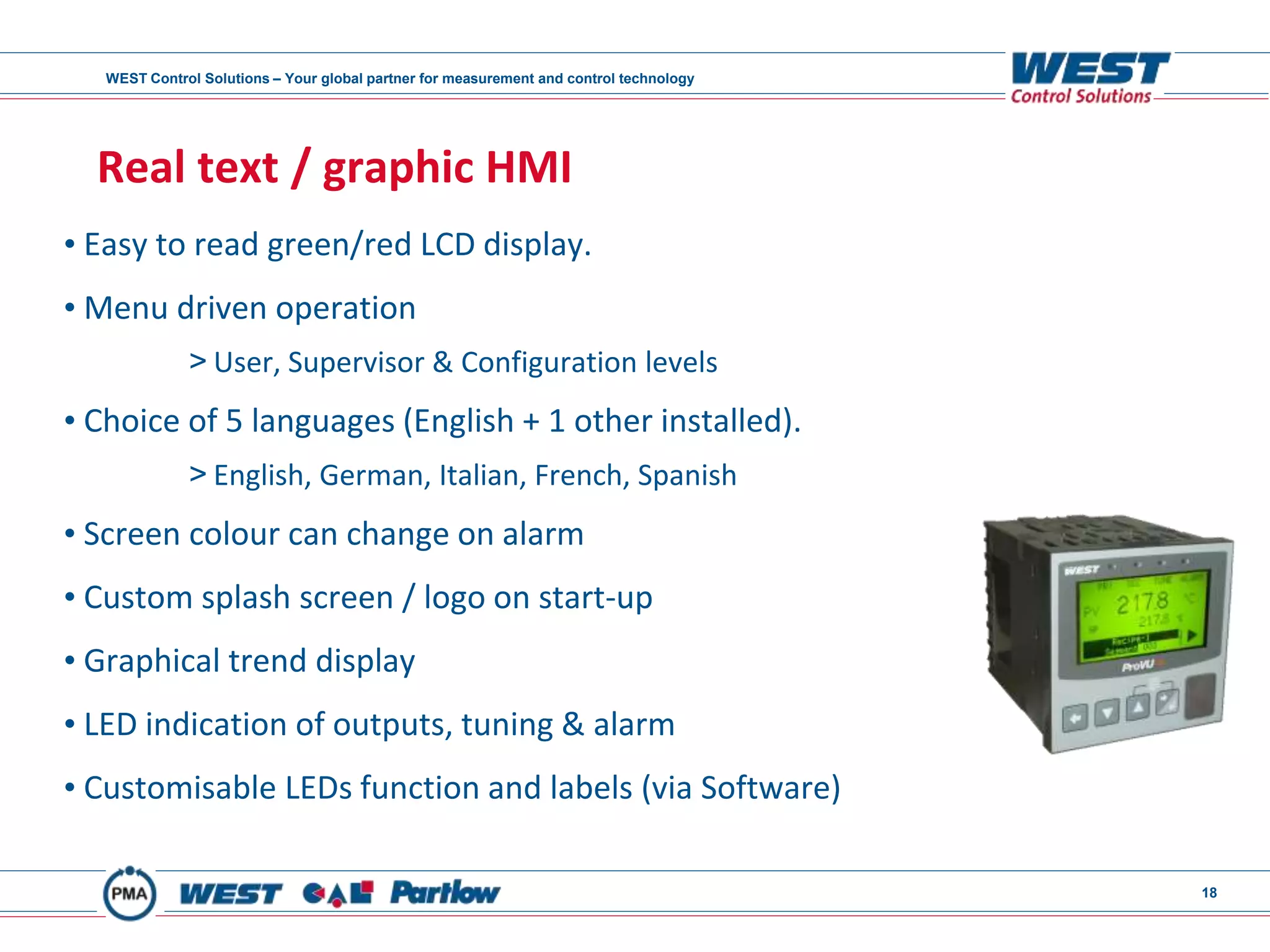

Real text / graphic HMI
• Easy to read green/red LCD display.
• Menu driven operation
> User, Supervisor & Configuration levels
• Choice of 5 languages (English + 1 other installed).
> English, German, Italian, French, Spanish
• Screen colour can change on alarm
• Custom splash screen / logo on start-up
• Graphical trend display
• LED indication of outputs, tuning & alarm
• Customisable LEDs function and labels (via Software)

19

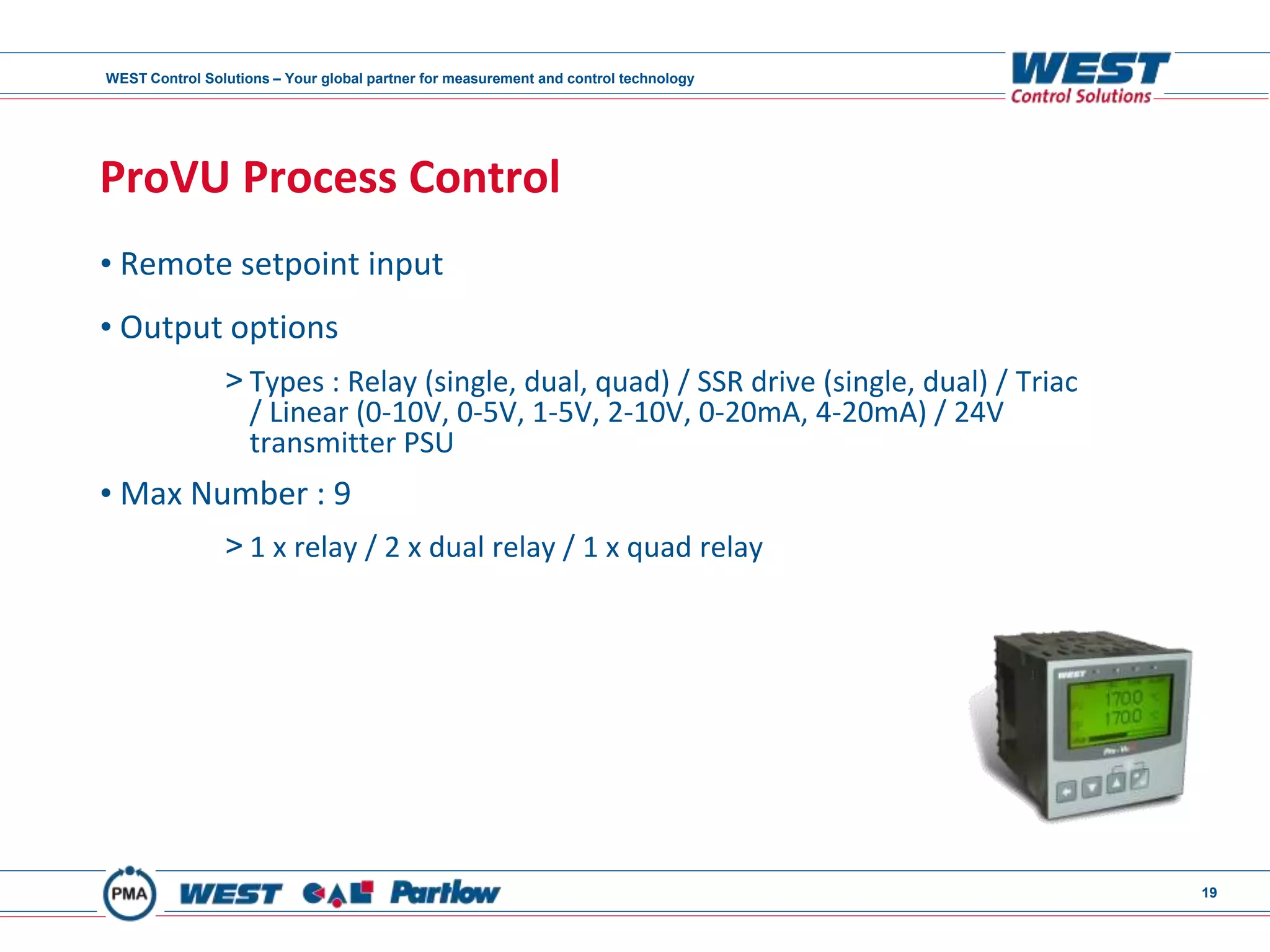

ProVU Process Control
• Remote setpoint input
• Output options
> Types : Relay (single, dual, quad) / SSR drive (single, dual) / Triac
/ Linear (0-10V, 0-5V, 1-5V, 2-10V, 0-20mA, 4-20mA) / 24V
transmitter PSU
• Max Number : 9
> 1 x relay / 2 x dual relay / 1 x quad relay

20

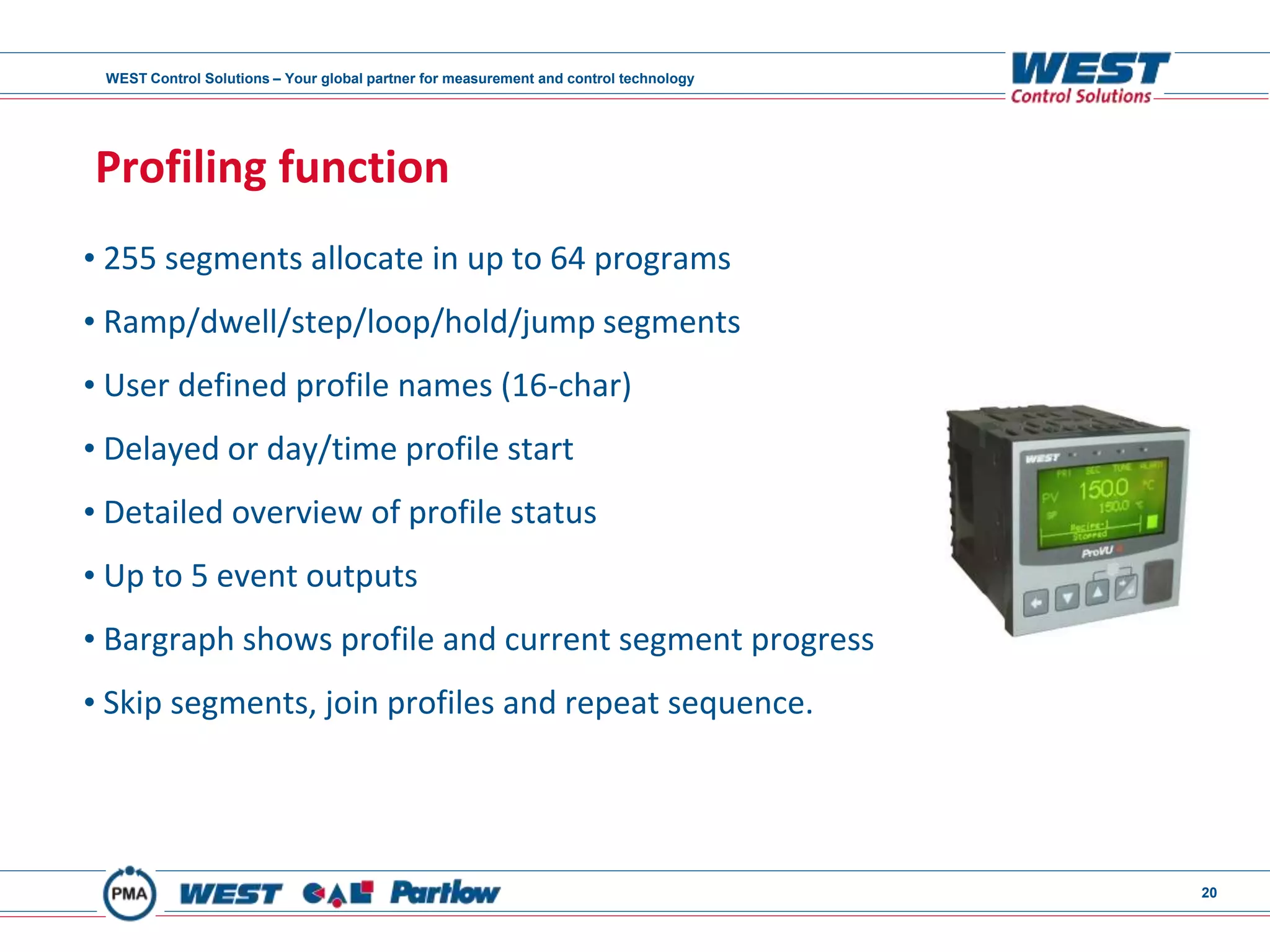

Profiling function
• 255 segments allocate in up to 64 programs
• Ramp/dwell/step/loop/hold/jump segments
• User defined profile names (16-char)
• Delayed or day/time profile start
• Detailed overview of profile status
• Up to 5 event outputs
• Bargraph shows profile and current segment progress
• Skip segments, join profiles and repeat sequence.

21
Datalogging function
• Record process data for analysis or reporting
• Export .CSV data files via USB
• Log process values, setpoints or alarms/events
> including min & max between samples
• FIFO (first in-first out) or run until full
• 1, 2, 5, 10, 15, 30 sec/min log intervals

22

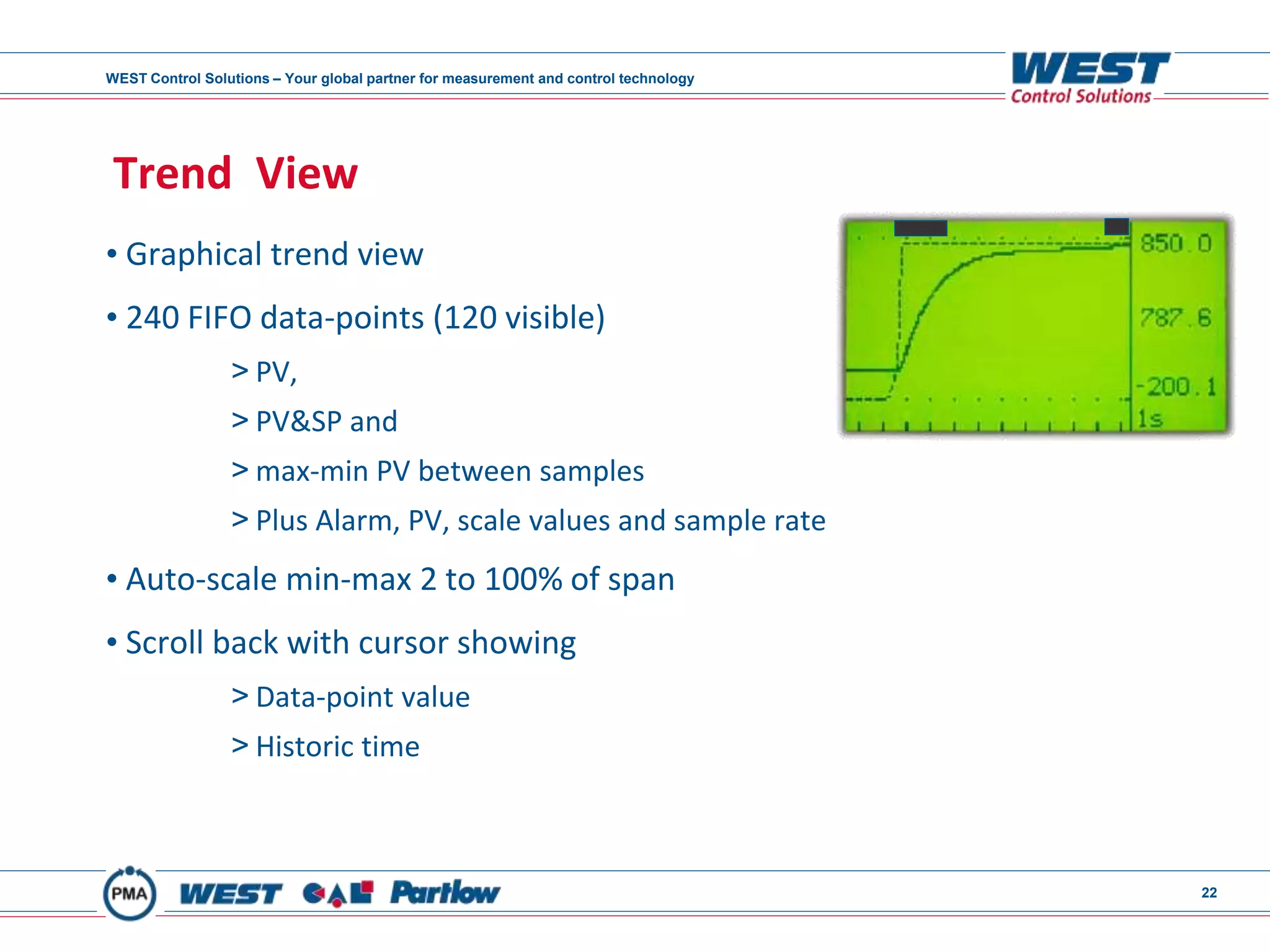

Trend View
• Graphical trend view
• 240 FIFO data-points (120 visible)
> PV,
> PV&SP and
> max-min PV between samples
> Plus Alarm, PV, scale values and sample rate
• Auto-scale min-max 2 to 100% of span
• Scroll back with cursor showing
> Data-point value
> Historic time

23

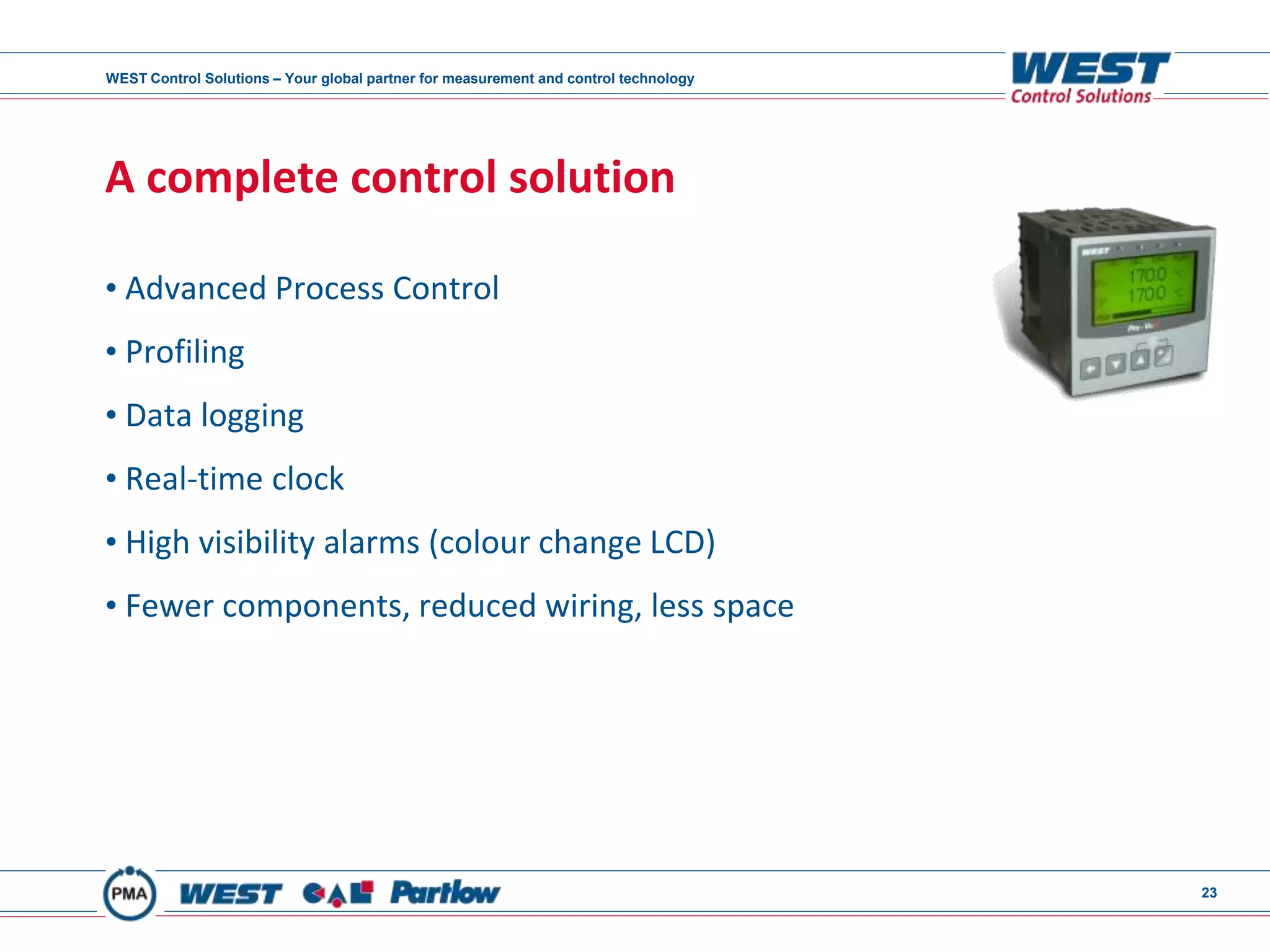

A complete control solution
• Advanced Process Control
• Profiling
• Data logging
• Real-time clock
• High visibility alarms (colour change LCD)
• Fewer components, reduced wiring, less space

24

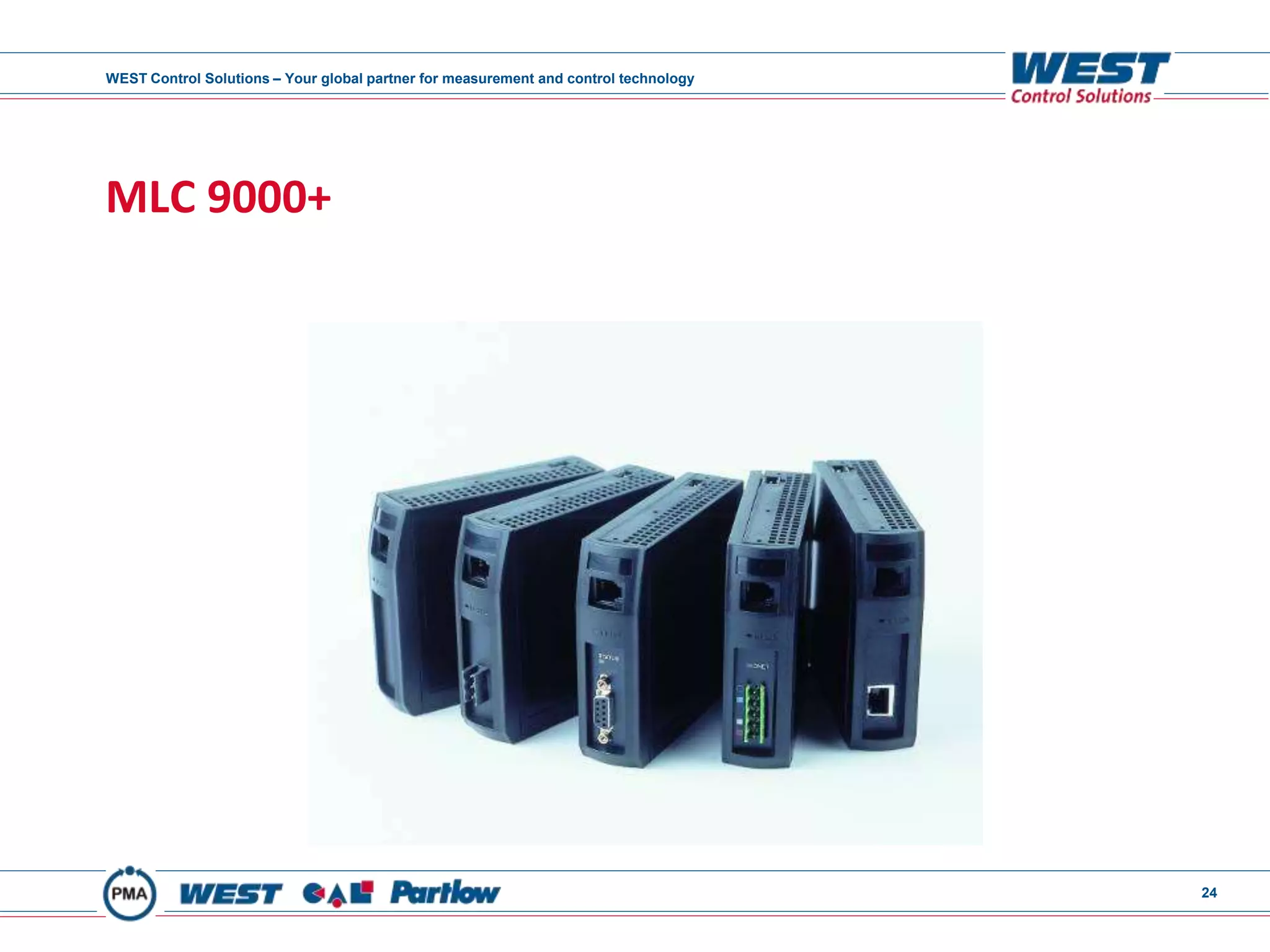

MLC 9000+

25

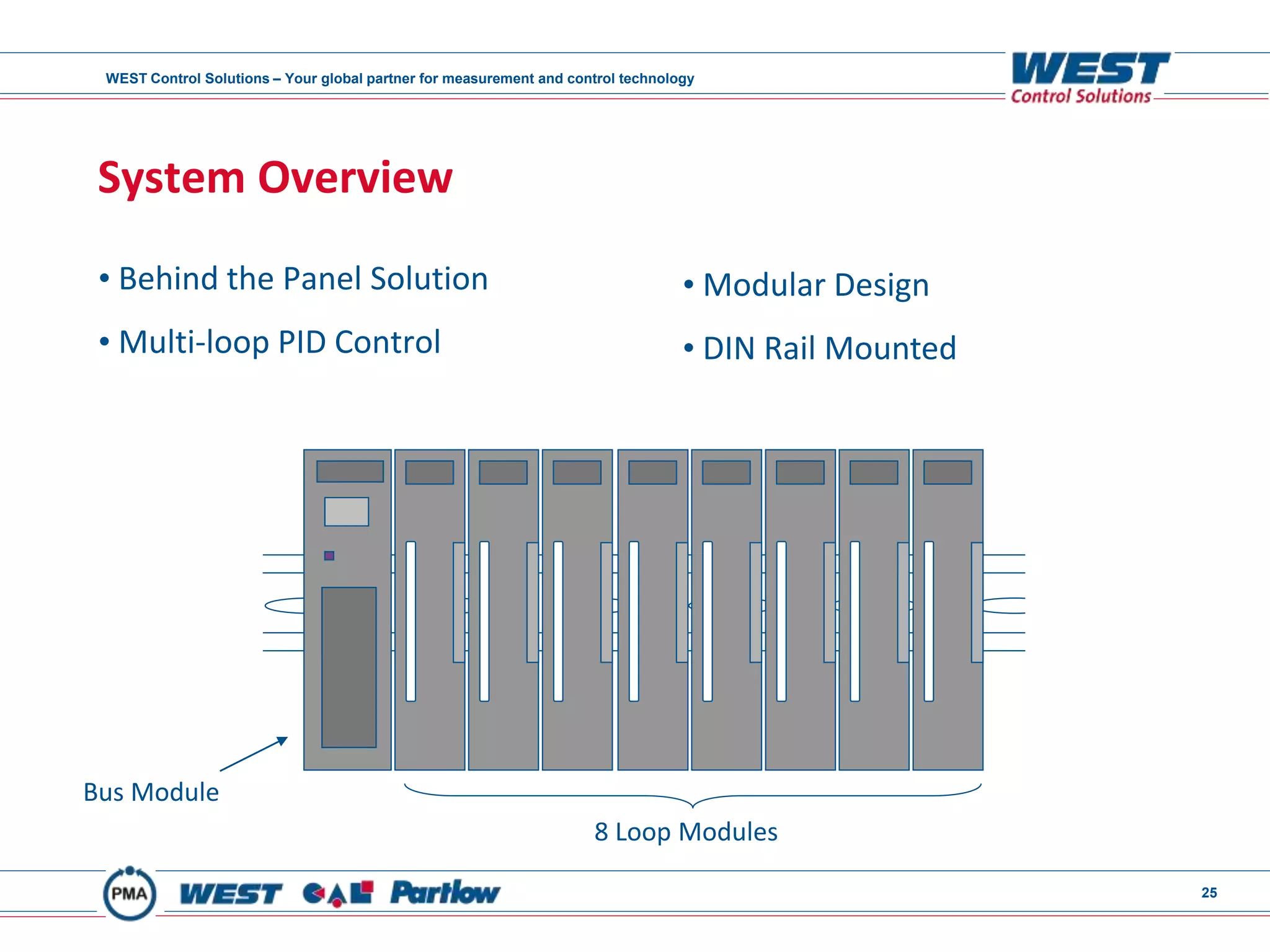

System Overview
• Behind the Panel Solution
• Multi-loop PID Control
Bus Module
8 Loop Modules
• Modular Design
• DIN Rail Mounted

26

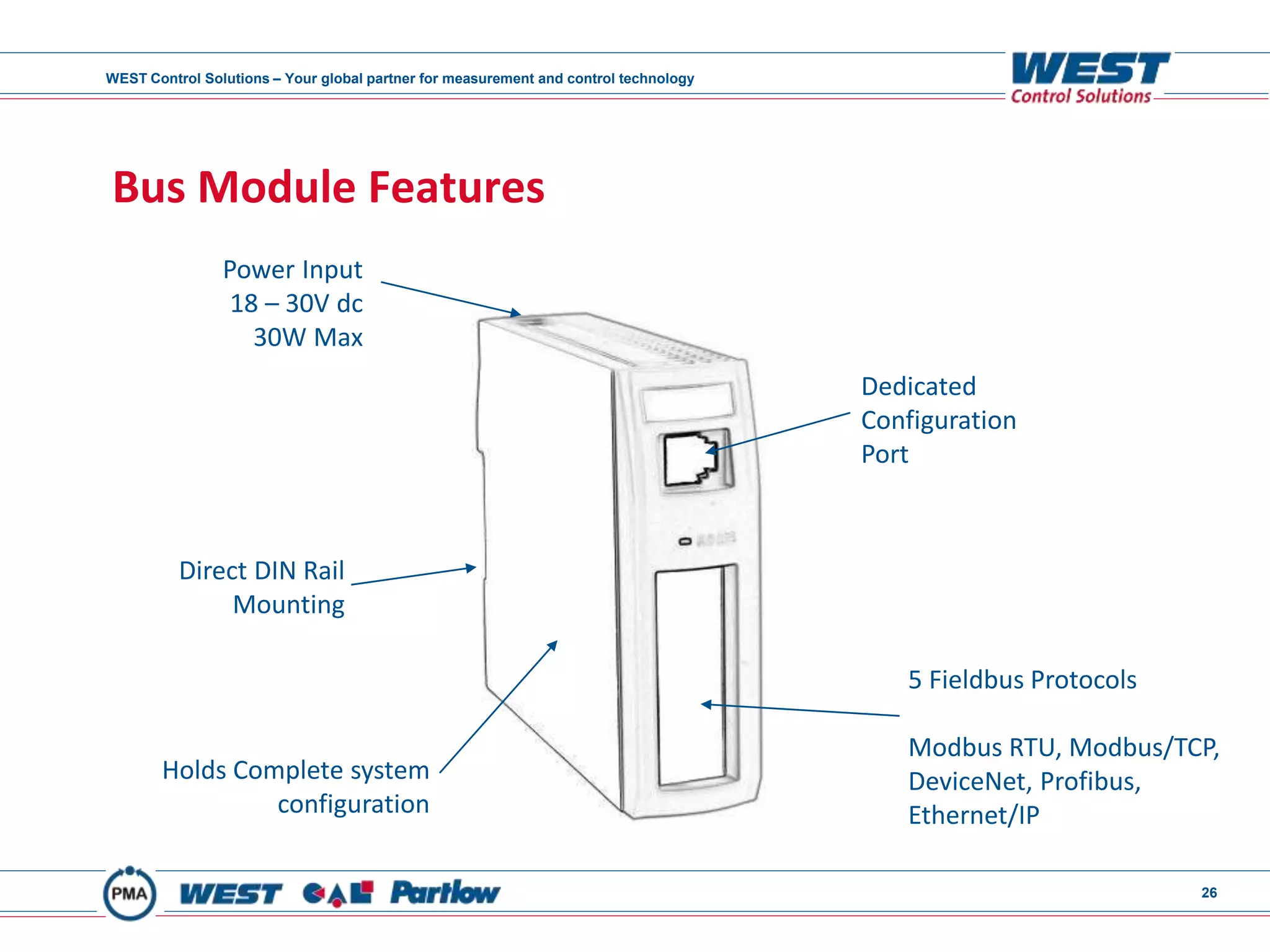

Bus Module Features
Dedicated
Configuration
Port
Power Input
18 – 30V dc
30W Max
5 Fieldbus Protocols
Modbus RTU, Modbus/TCP,
DeviceNet, Profibus,
Ethernet/IP
Holds Complete system
configuration
Direct DIN Rail
Mounting

27

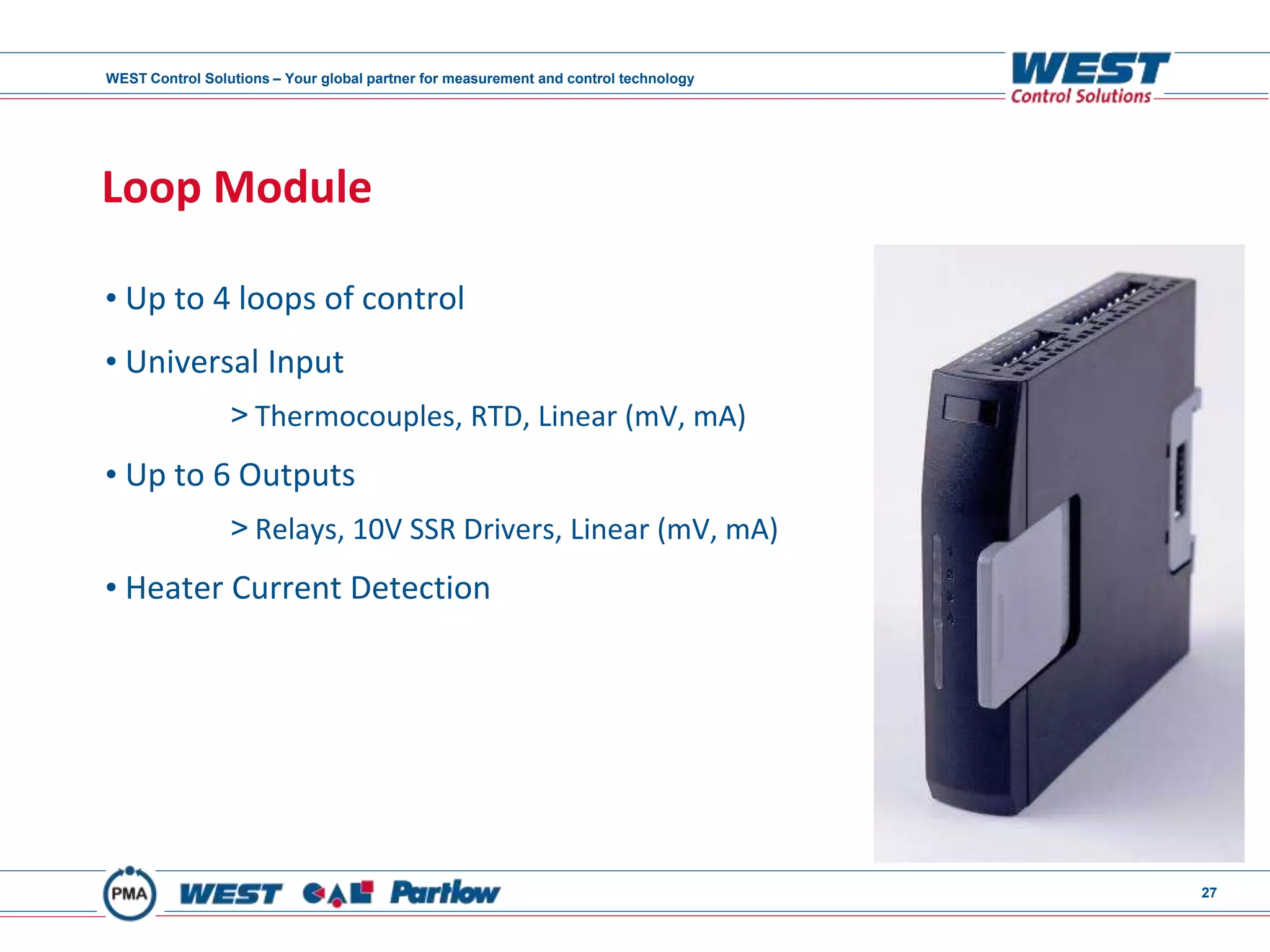

Loop Module
• Up to 4 loops of control
• Universal Input
> Thermocouples, RTD, Linear (mV, mA)
• Up to 6 Outputs
> Relays, 10V SSR Drivers, Linear (mV, mA)
• Heater Current Detection

28

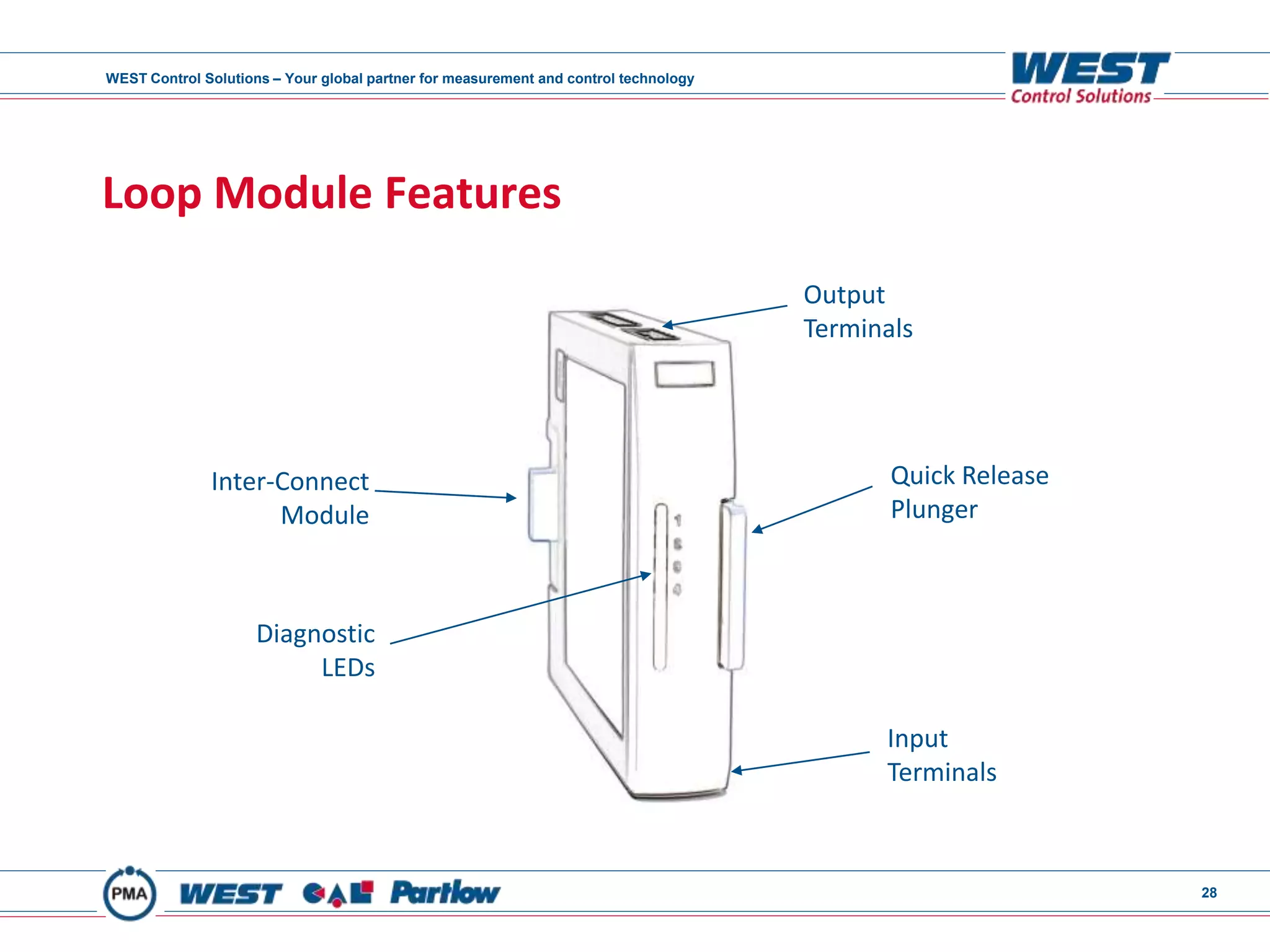

Loop Module Features
Quick Release
Plunger
Inter-Connect
Module
Diagnostic
LEDs
Output
Terminals
Input
Terminals

Thank you.
For full product specifications and associated literature please
view the West product range online.
For technical help please contact the Technical Support Team.
29August 15
