- 1. Flexible and SecureConnectivity for Cloud Data Centers Uli Schlegel, BD Enterprise 23. Oktober 2013
- 2. Who We Are 2 ©2013 ADVA Optical Networking. All rights reserved. Confidential.
- 3. ADVA Optical Networking OurHistory • Two decades of innovation Our Markets • Operator, enterprise, government, research & education Our Quality Commitment • TL 9000 and ISO 14001 Our Leadership • #1 in Ethernet Access Devices and #4 in Metro WDM “Our mission is to be the trusted partner for innovative Optical+Ethernet transport solutions that ADVANCE next-generation networks for data, storage, voice and video services.” Your trusted partner for speed and innovation 3 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

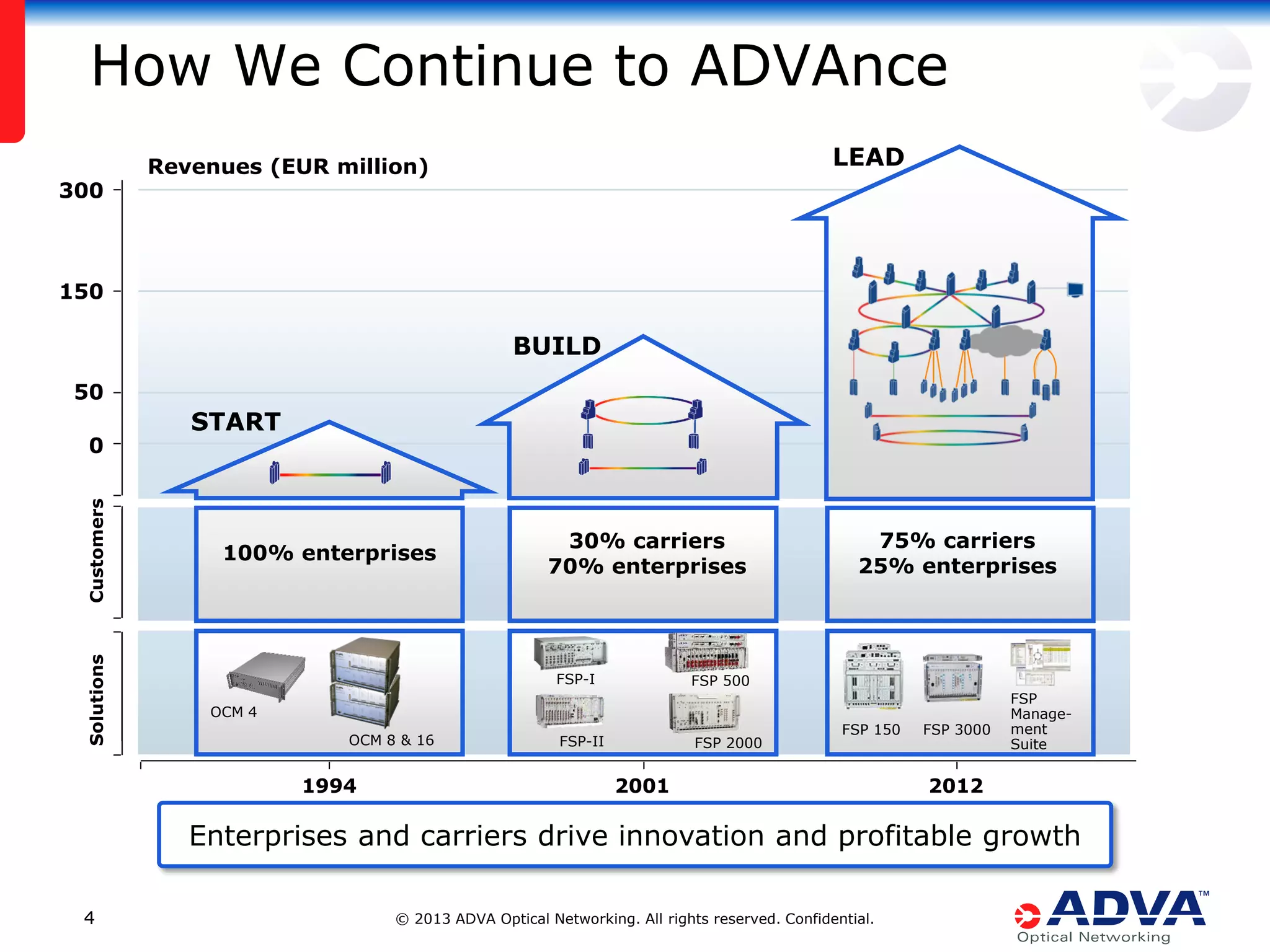

- 4. How We Continueto ADVAnce 300 LEAD Revenues (EUR million) 150 BUILD 50 Solutions Customers 0 START 100% enterprises 30% carriers 70% enterprises FSP-I 75% carriers 25% enterprises FSP 500 OCM 4 OCM 8 & 16 1994 FSP-II FSP 2000 FSP 150 2001 FSP 3000 FSP Management Suite 2012 Enterprises and carriers drive innovation and profitable growth 4 © 2013 ADVA Optical Networking. All rights reserved. Confidential.
- 5. Products and Solutions 5 ©2013 ADVA Optical Networking. All rights reserved. Confidential.

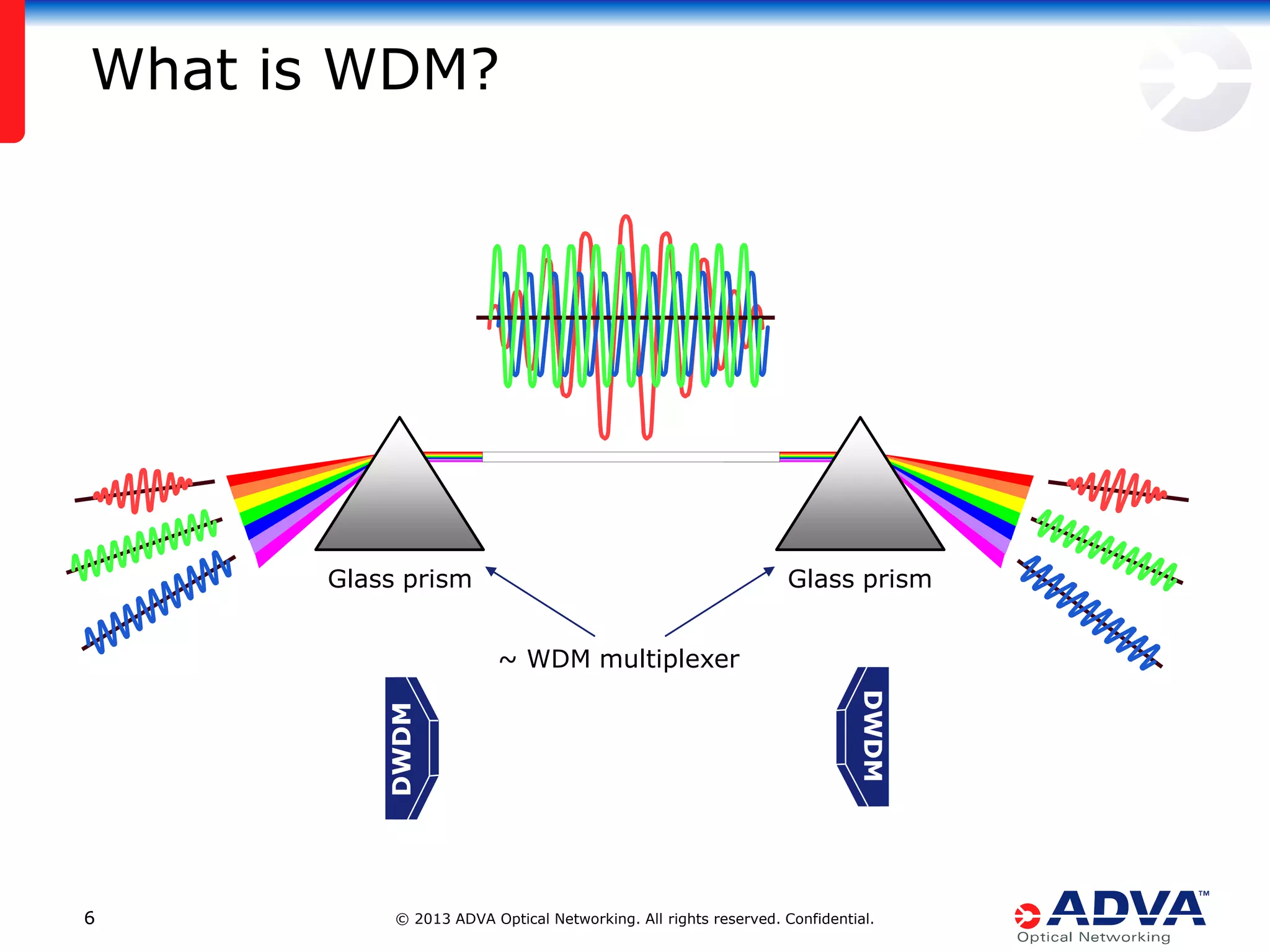

- 6. What is WDM? Glassprism Glass prism ~ WDM multiplexer 6 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

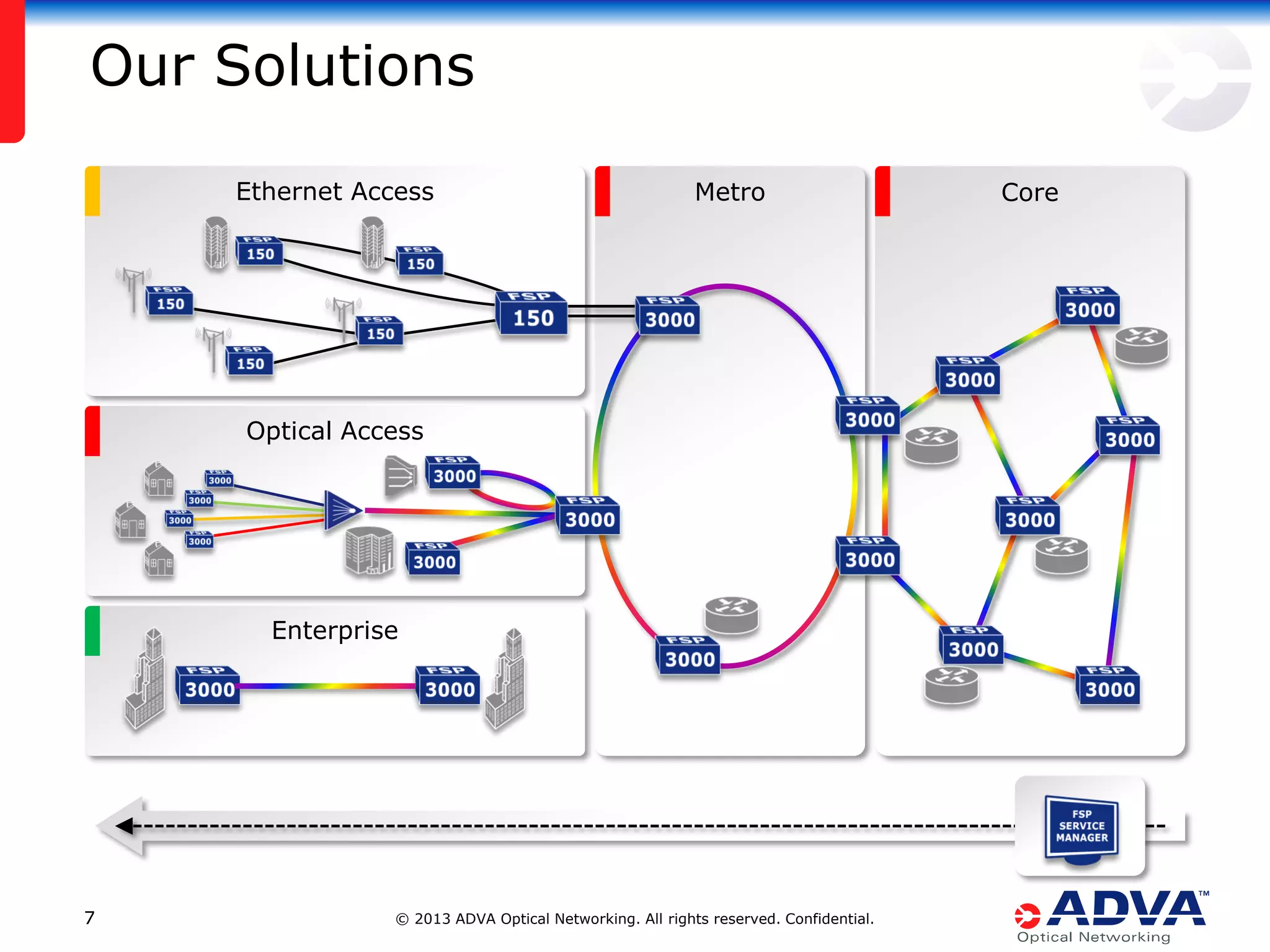

- 7. Our Solutions Ethernet Access Metro OpticalAccess Enterprise 7 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Core
- 8. Market & MarketDrivers 8 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

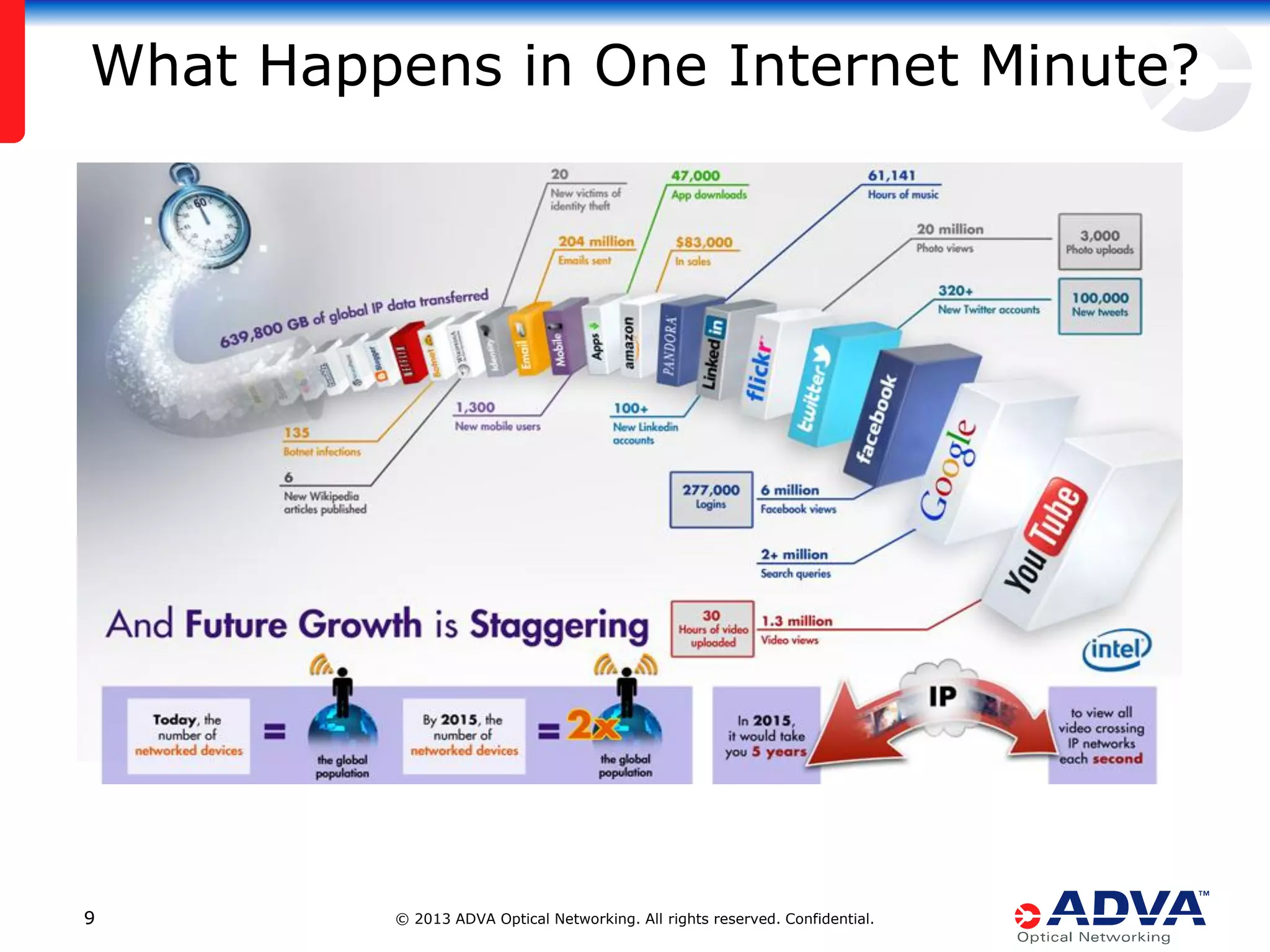

- 9. What Happens inOne Internet Minute? 9 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

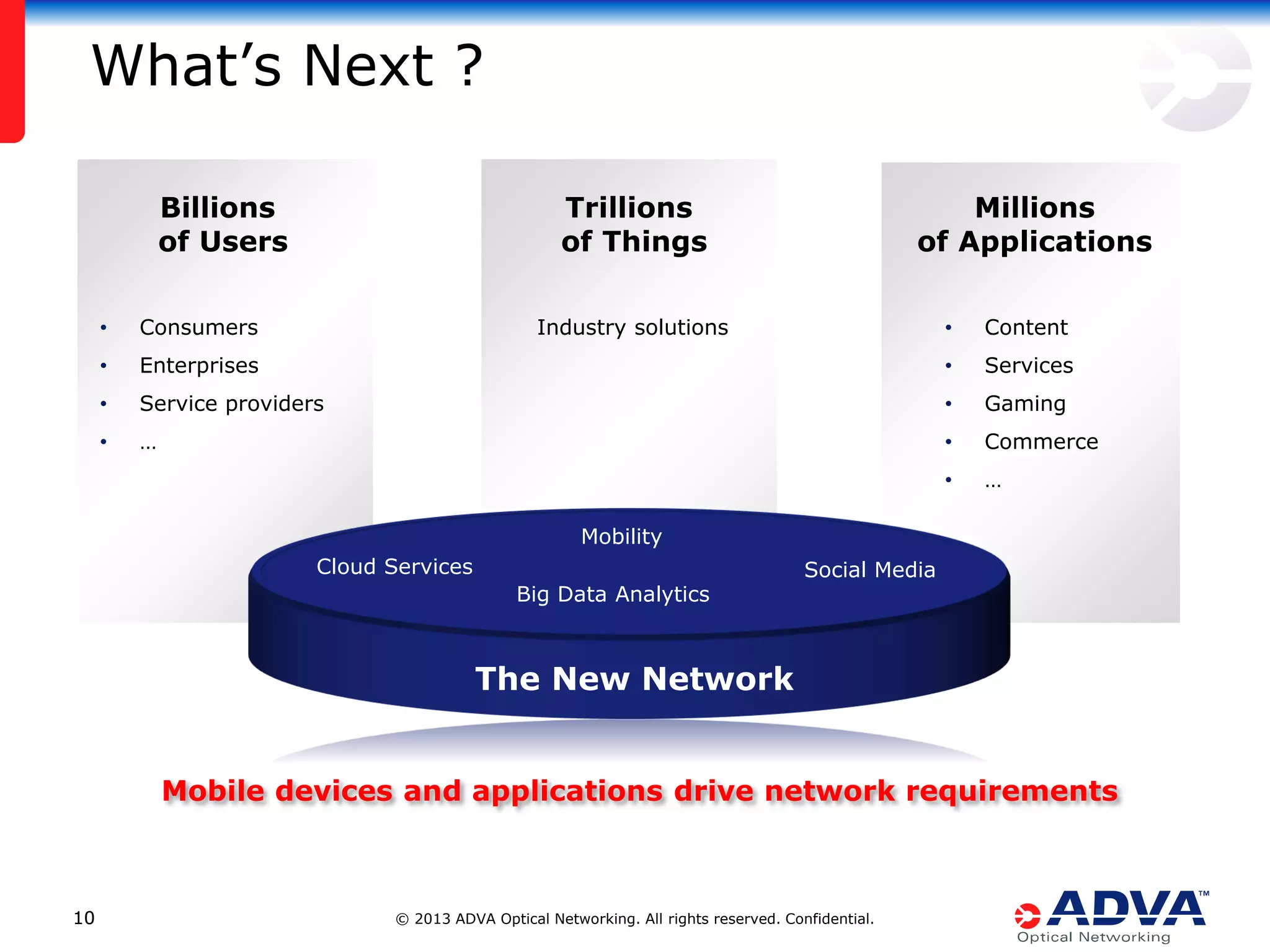

- 10. What’s Next ? Billions ofUsers • Consumers • Trillions of Things Millions of Applications Industry solutions • Content Enterprises • Services • Service providers • Gaming • … • Commerce • … Mobility Cloud Services Big Data Analytics Social Media The New Network Mobile devices and applications drive network requirements 10 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

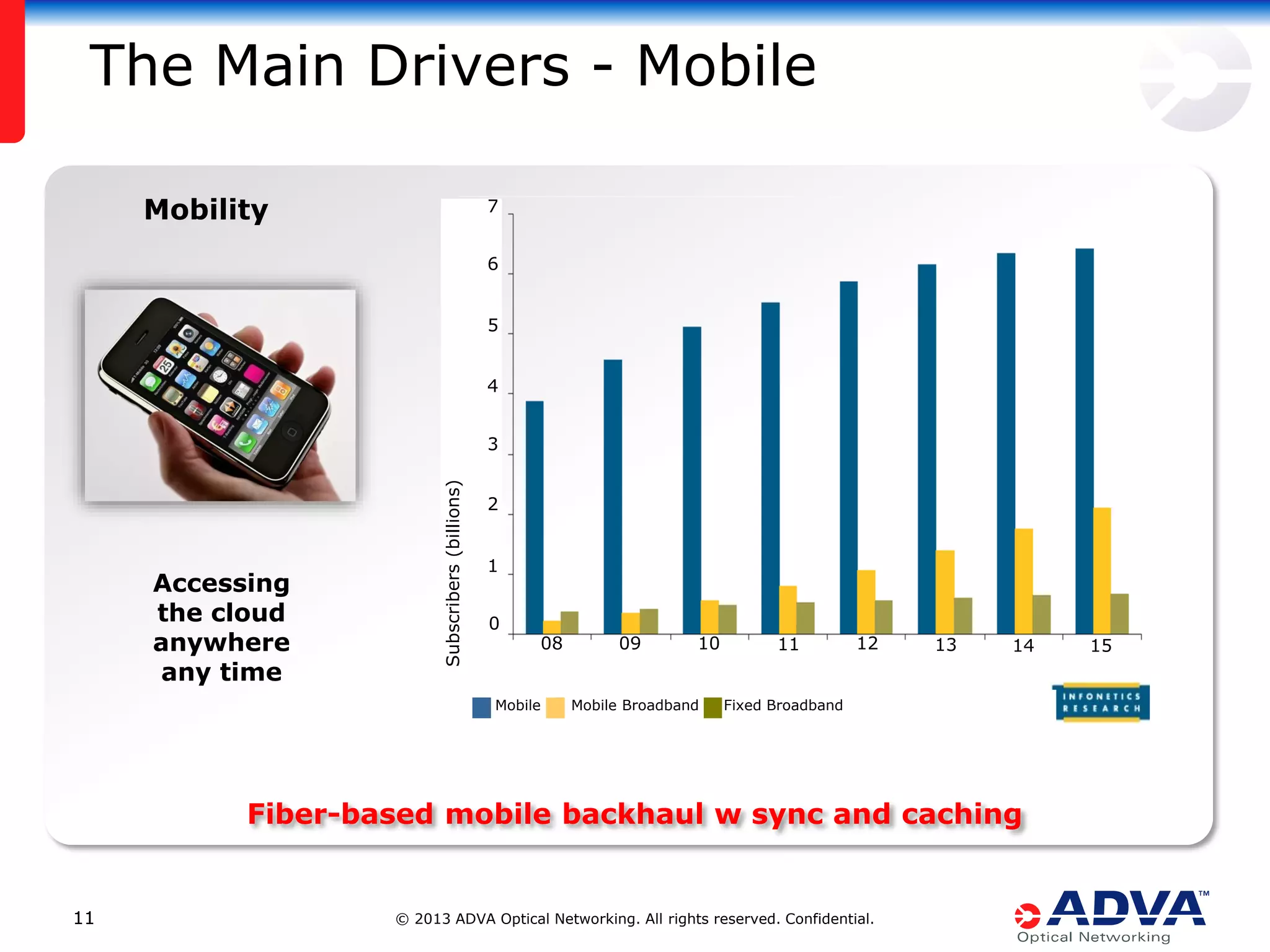

- 11. The Main Drivers- Mobile Mobility 7 6 5 4 Accessing the cloud anywhere any time Subscribers (billions) 3 2 1 0 08 Mobile 09 10 Mobile Broadband 11 12 13 14 Fixed Broadband Fiber-based mobile backhaul w sync and caching 11 © 2013 ADVA Optical Networking. All rights reserved. Confidential. 15
- 12. The Main Drivers- Video HD Video Personalized, on-demand HD content “Verizon’s wireline group now has 8.8 million broadband subscribers, a 2.6 percent year-over-year increase. All of those gains, however, come from its FiOS fiber-to-the-home markets […] accounting for 5.1 million, or 58% of its broadband connections.” GigaOM, July 2012 Scalable energy-efficient residential broadband 12 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

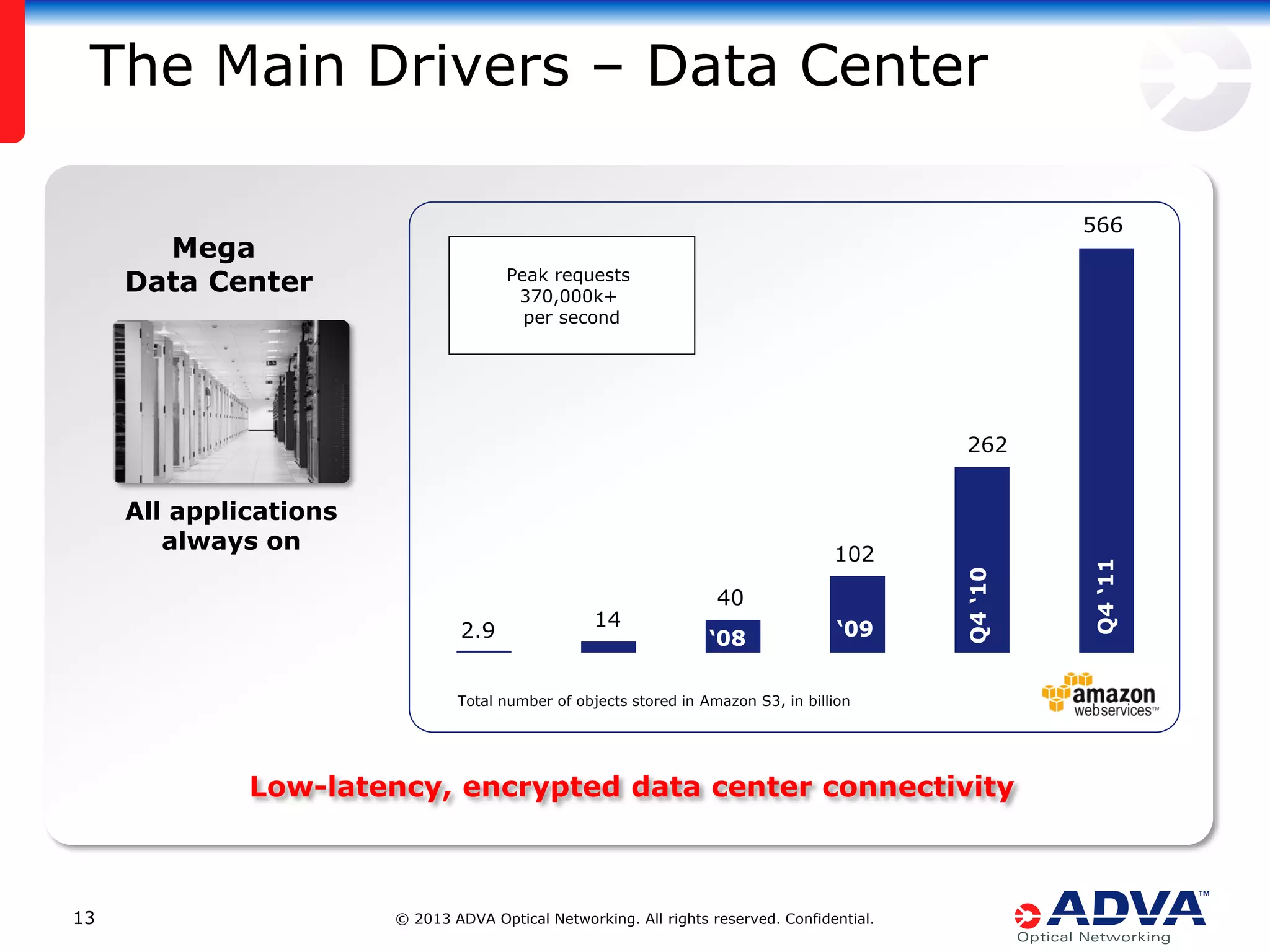

- 13. The Main Drivers– Data Center 566 Mega Data Center Peak requests 370,000k+ per second All applications always on 2.9 14 40 ‘08 ‘09 Q4 ‘10 102 Total number of objects stored in Amazon S3, in billion Low-latency, encrypted data center connectivity 13 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Q4 ‘11 262

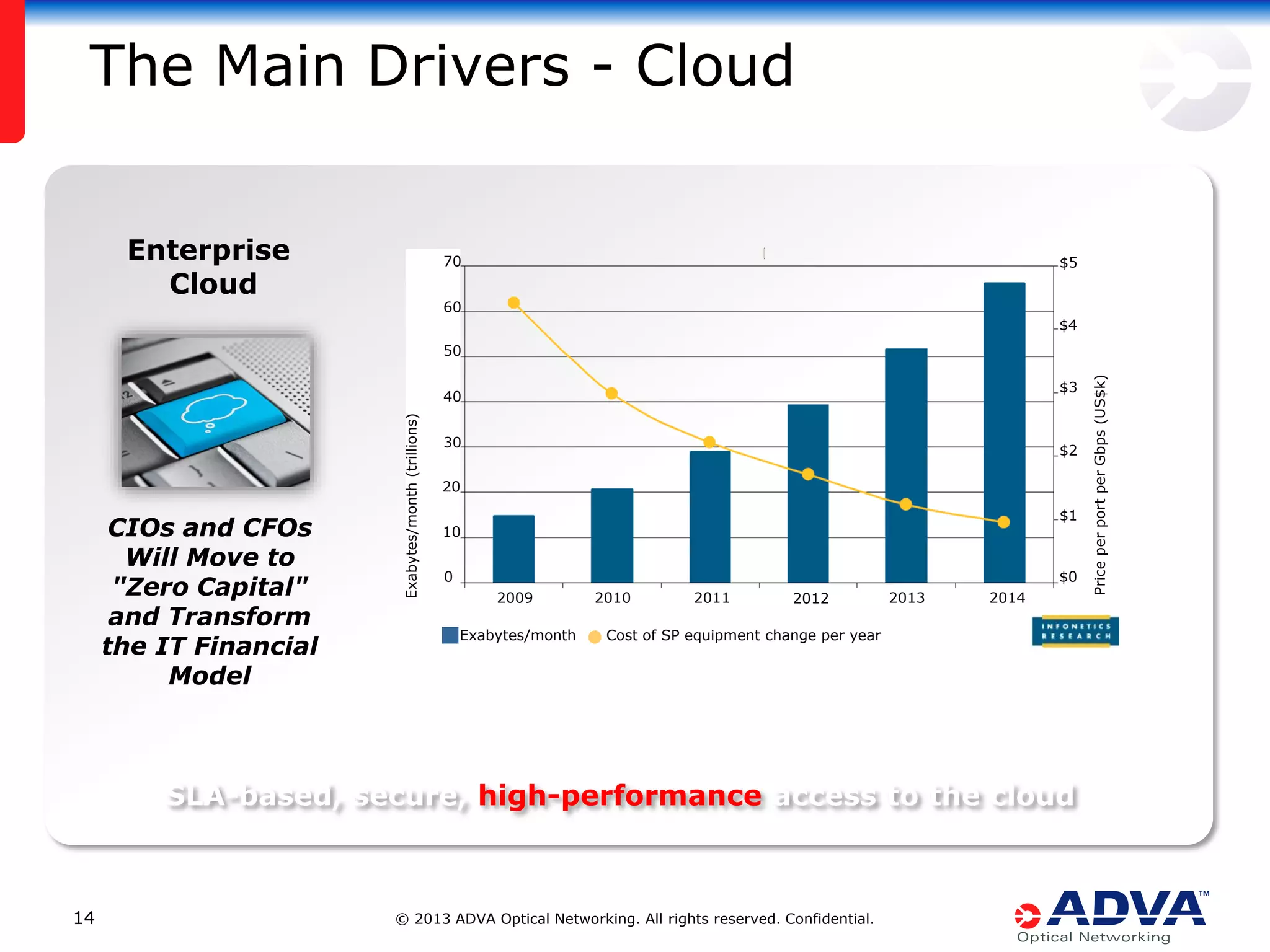

- 14. The Main Drivers- Cloud Enterprise Cloud 70 $5 60 $4 $3 CIOs and CFOs Will Move to "Zero Capital" and Transform the IT Financial Model Exabytes/month (trillions) 40 30 $2 20 $1 10 0 $0 2009 Exabytes/month 2010 2011 2012 2013 2014 Cost of SP equipment change per year SLA-based, secure, high-performance access to the cloud 14 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Price per port per Gbps (US$k) 50
- 15. Datacenter Evolution 15 © 2013ADVA Optical Networking. All rights reserved. Confidential.

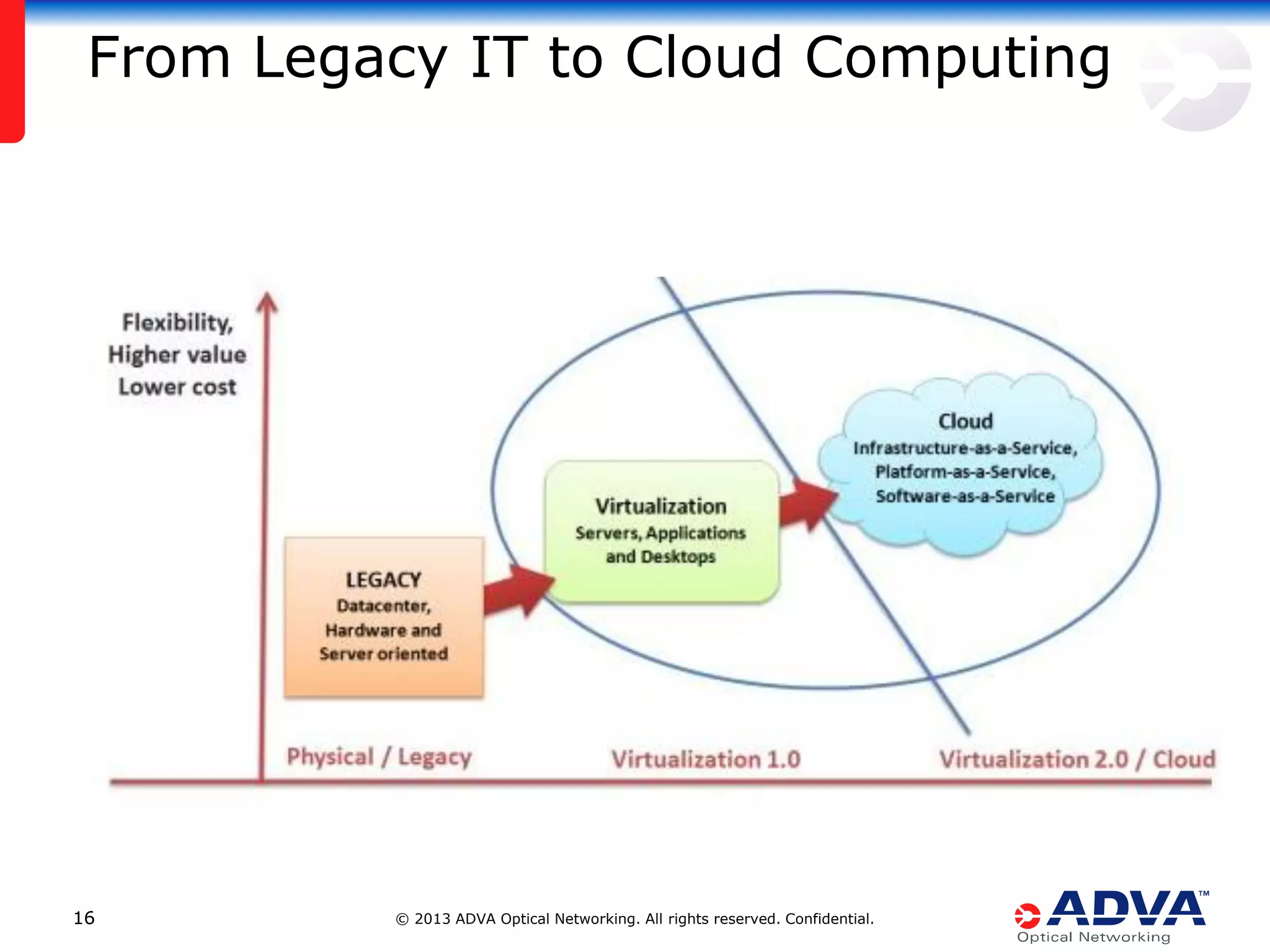

- 16. From Legacy ITto Cloud Computing 16 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

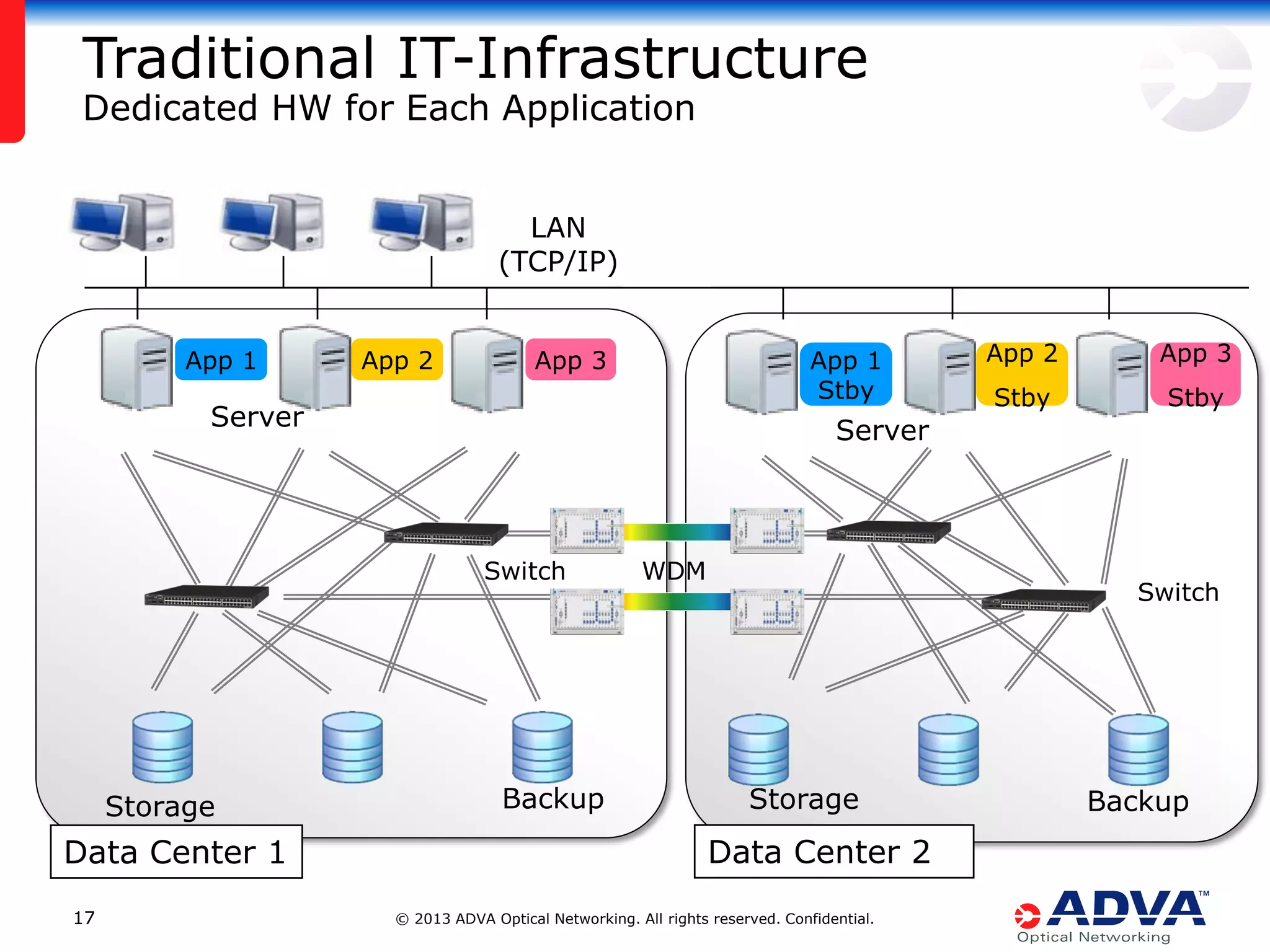

- 17. Traditional IT-Infrastructure Dedicated HWfor Each Application LAN (TCP/IP) App 1 App 2 App 3 App 1 Stby Server App 2 App 3 Stby Stby Server Switch WDM Switch W Storage Data Center 1 17 Backup Storage Data Center 2 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Backup

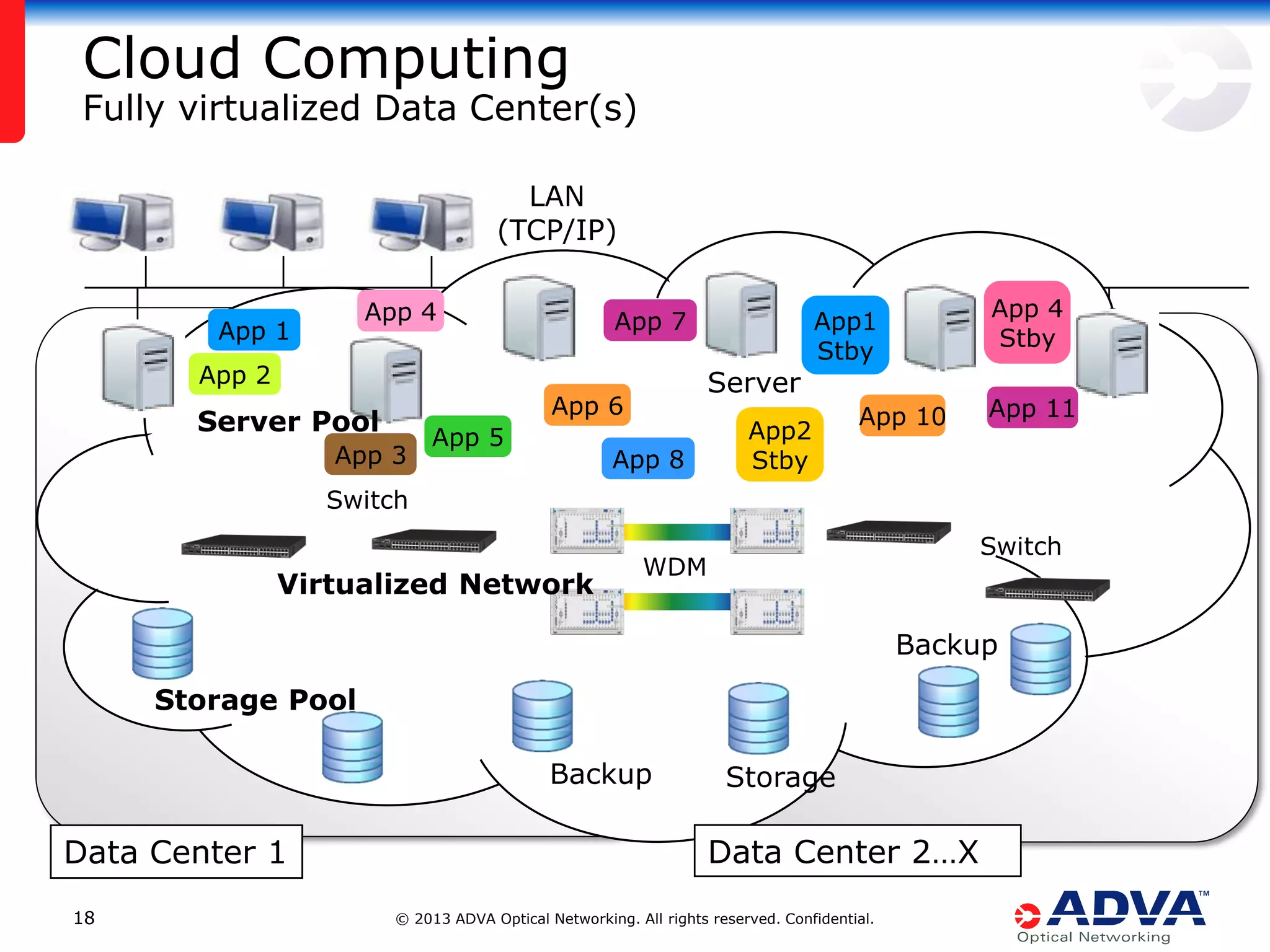

- 18. Cloud Computing Fully virtualizedData Center(s) LAN (TCP/IP) App 4 App 1 App 7 App 2 Server App 6 Server Pool App 3 App 5 App 8 App 4 Stby App1 Stby App2 Stby App 10 App 11 Switch Virtualized Network Switch WDM Backup Storage Pool W Backup Data Center 1 18 Storage Data Center 2…X © 2013 ADVA Optical Networking. All rights reserved. Confidential.

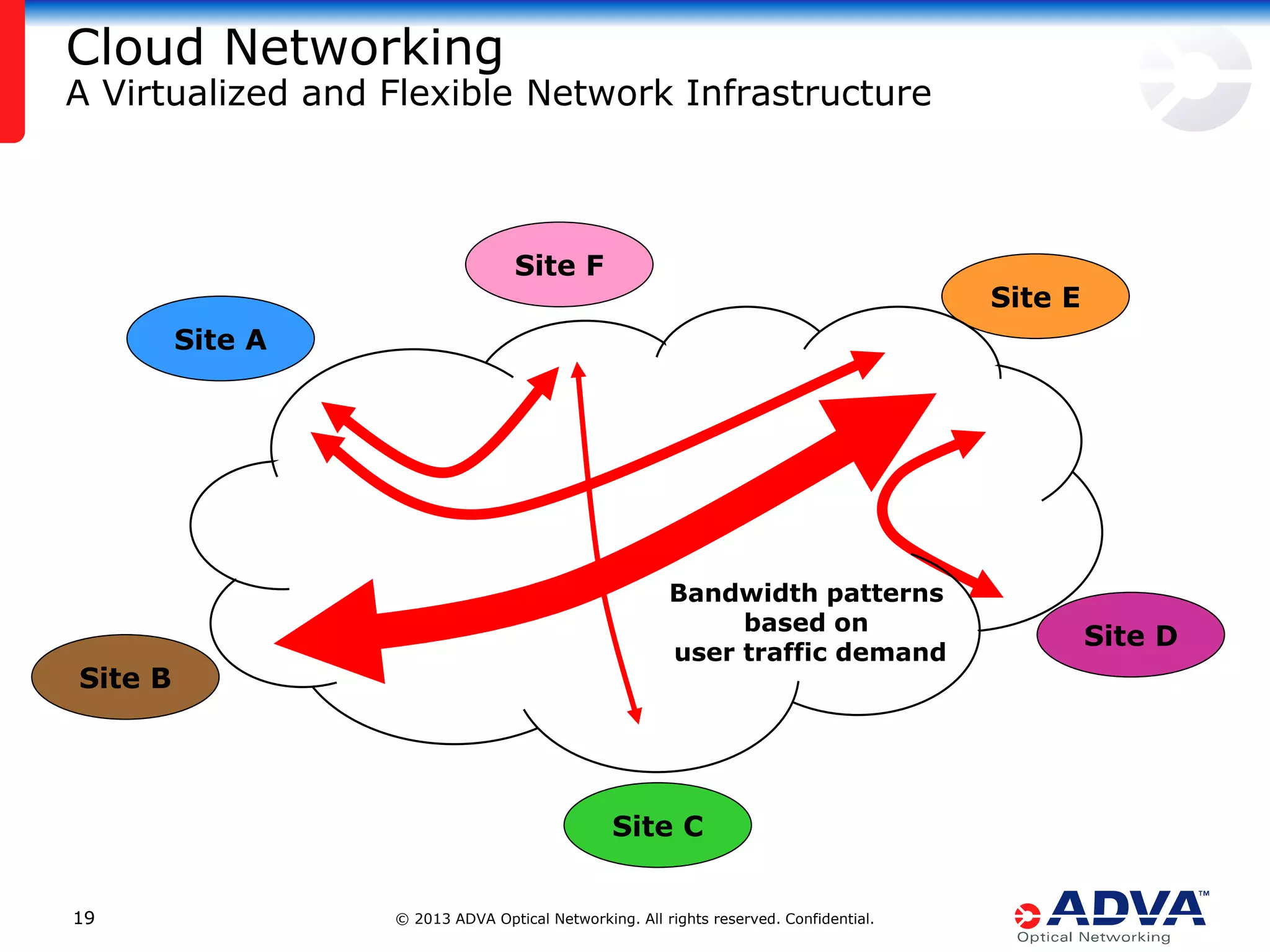

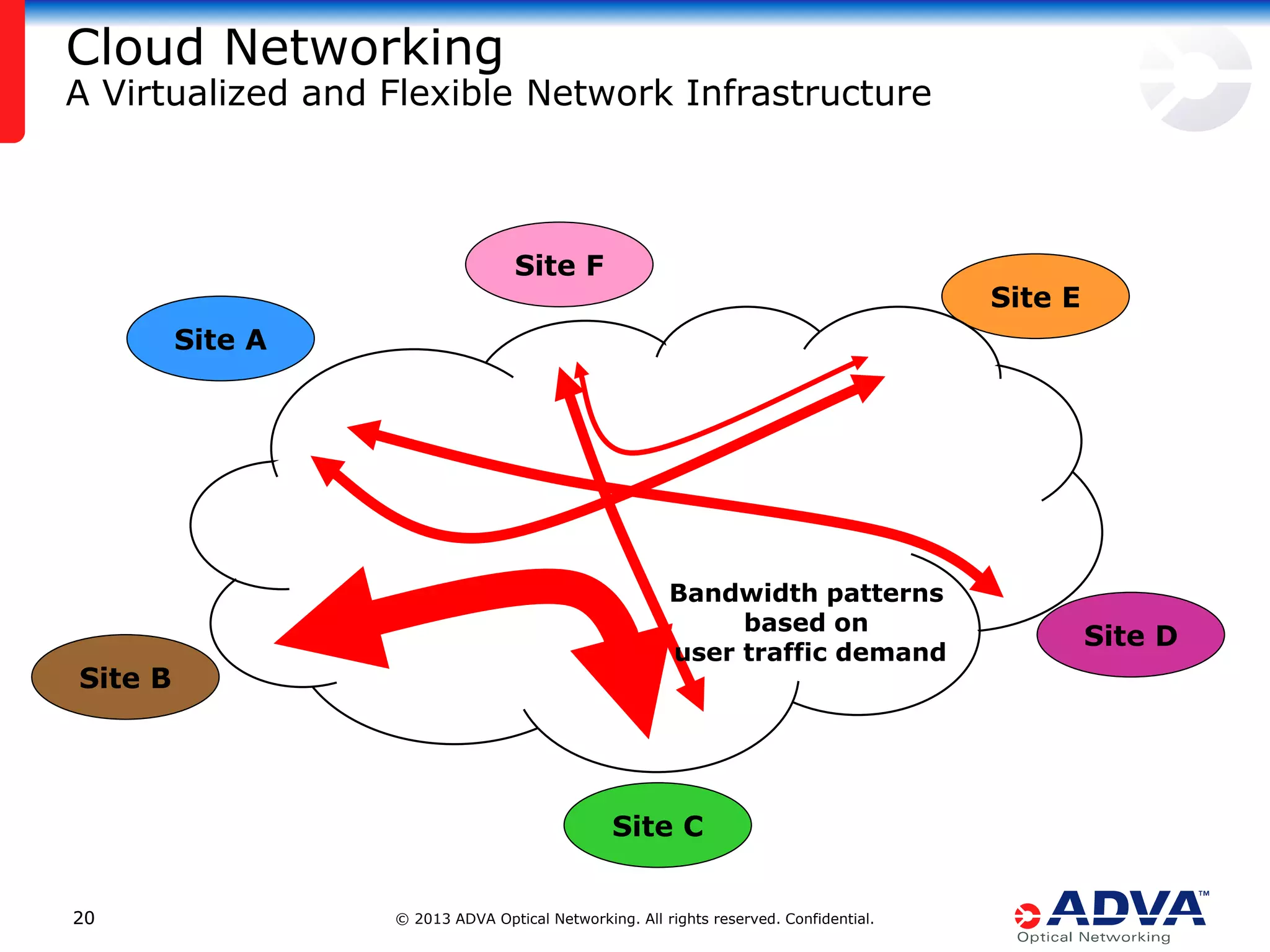

- 19. Cloud Networking A Virtualizedand Flexible Network Infrastructure Site F Site E Site A Site B Bandwidth patterns based on user traffic demand Site C 19 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Site D
- 20. Cloud Networking A Virtualizedand Flexible Network Infrastructure Site F Site E Site A Site B Bandwidth patterns based on user traffic demand Site C 20 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Site D

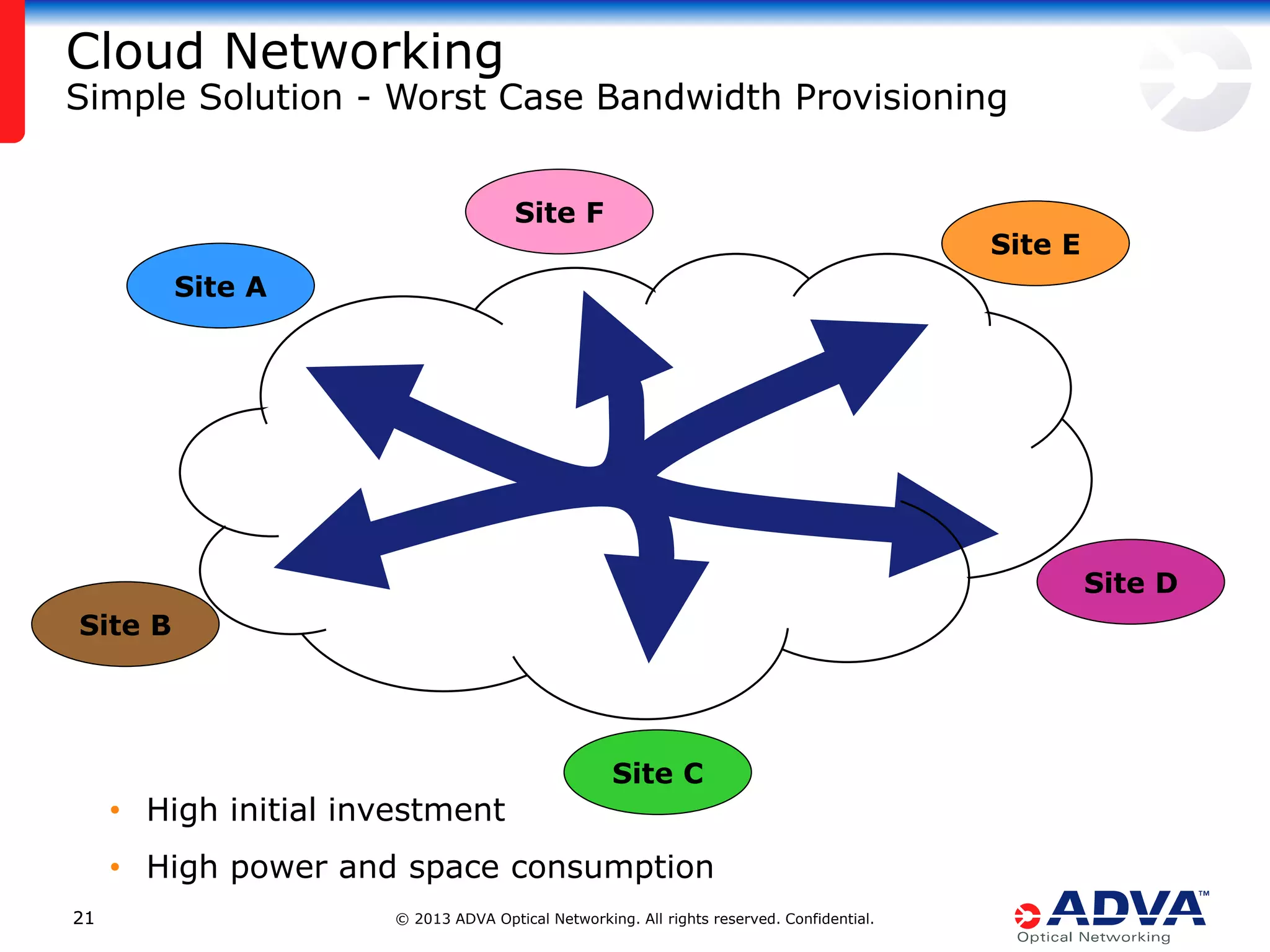

- 21. Cloud Networking Simple Solution- Worst Case Bandwidth Provisioning Site F Site E Site A Site D Site B • High initial investment Site C • High power and space consumption 21 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

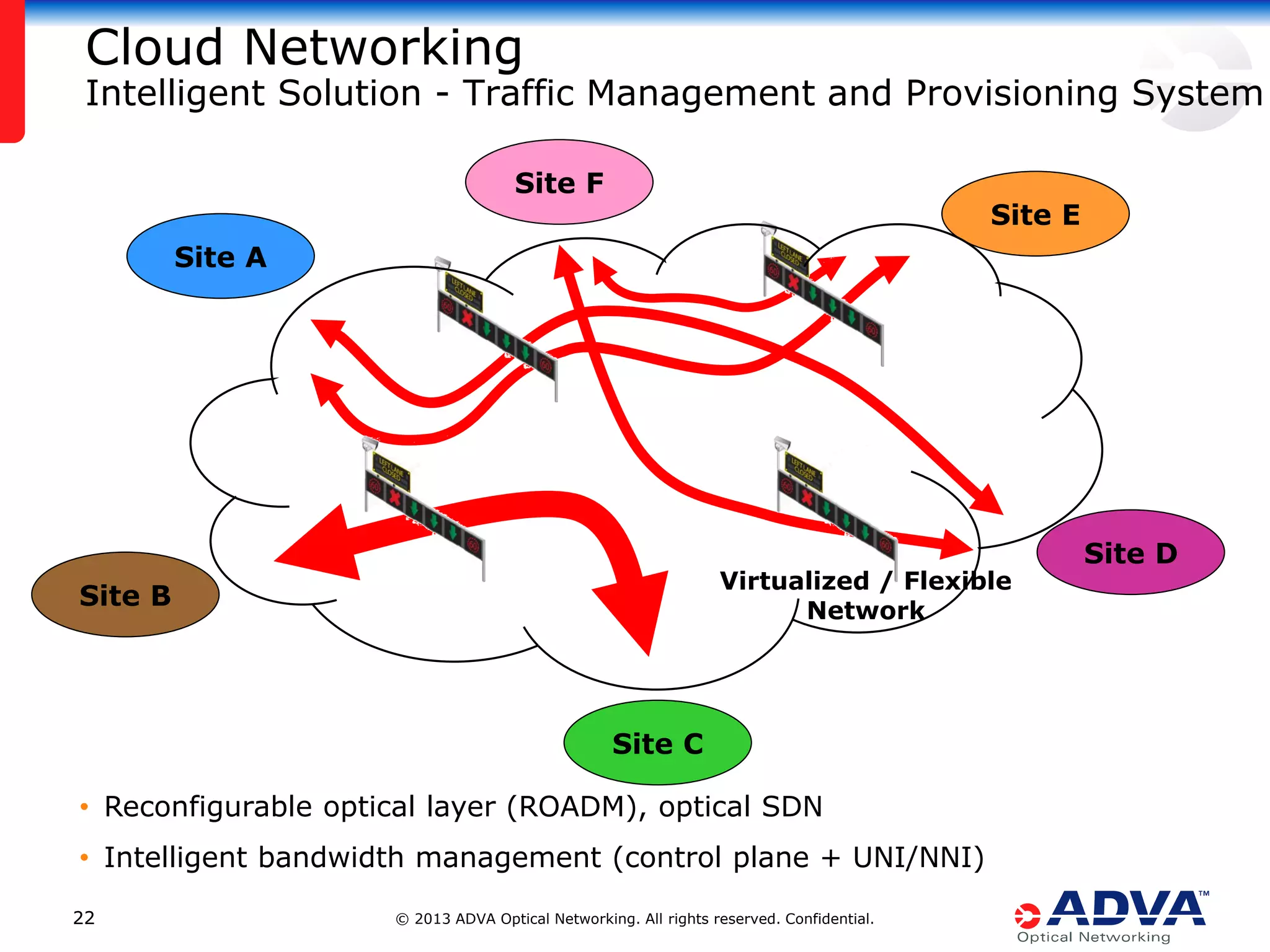

- 22. Cloud Networking Intelligent Solution- Traffic Management and Provisioning System Site F Site E Site A Virtualized / Flexible Network Site B Site C • Reconfigurable optical layer (ROADM), optical SDN • Intelligent bandwidth management (control plane + UNI/NNI) 22 © 2013 ADVA Optical Networking. All rights reserved. Confidential. Site D

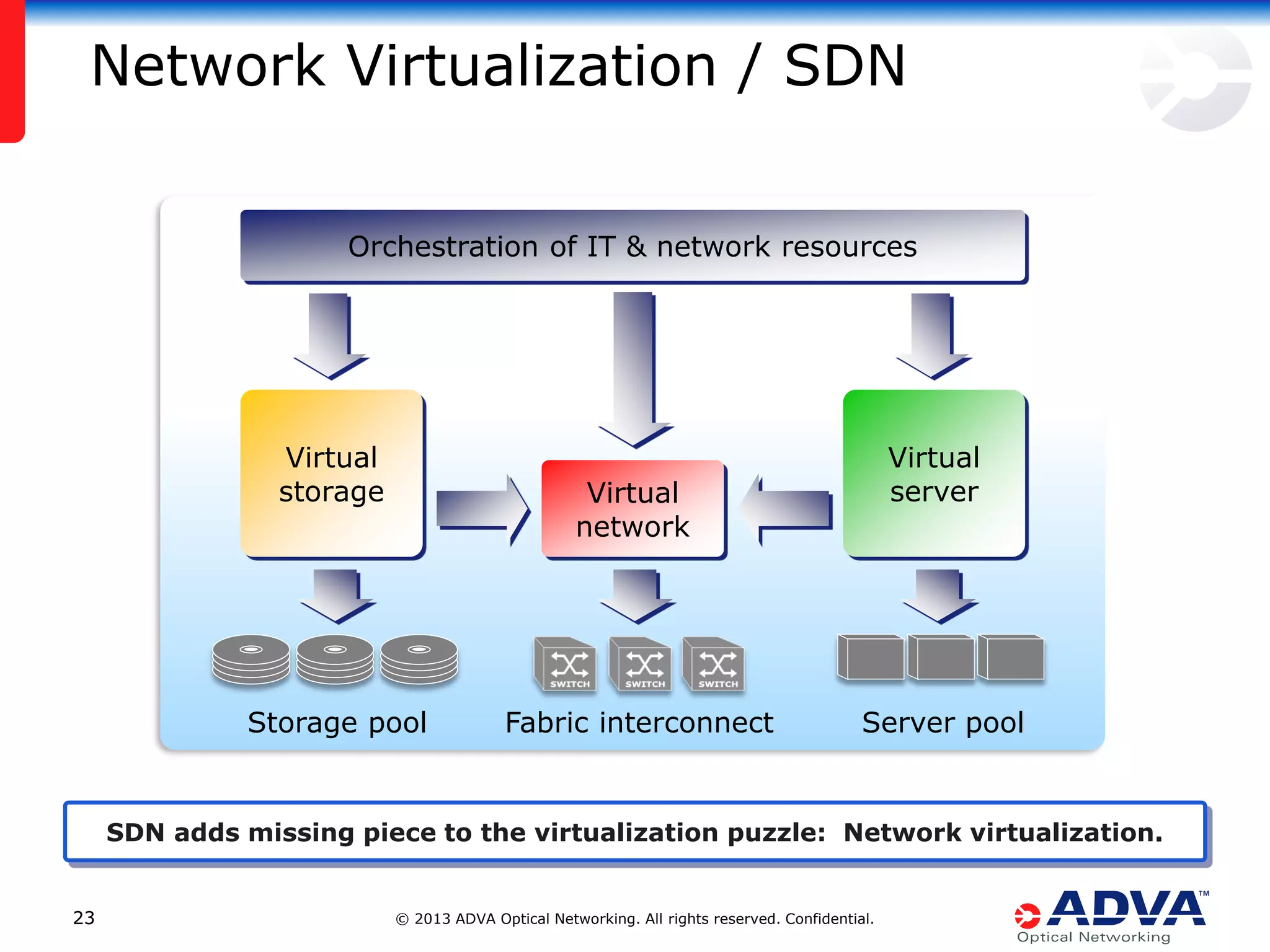

- 23. Network Virtualization /SDN Orchestration of IT & network resources Virtual storage Virtual server Virtual network Storage pool Fabric interconnect Server pool SDN adds missing piece to the virtualization puzzle: Network virtualization. 23 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

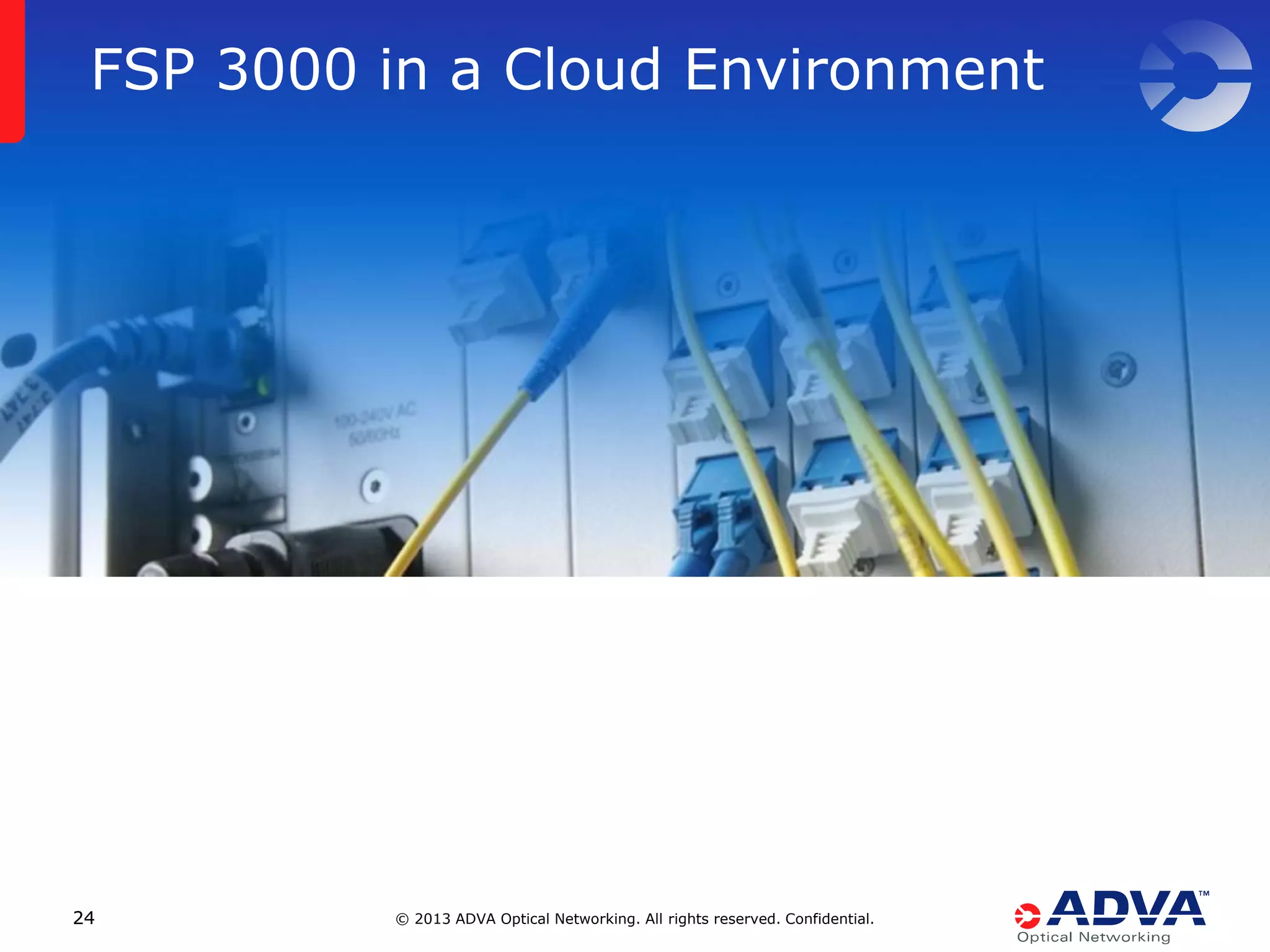

- 24. FSP 3000 ina Cloud Environment 24 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

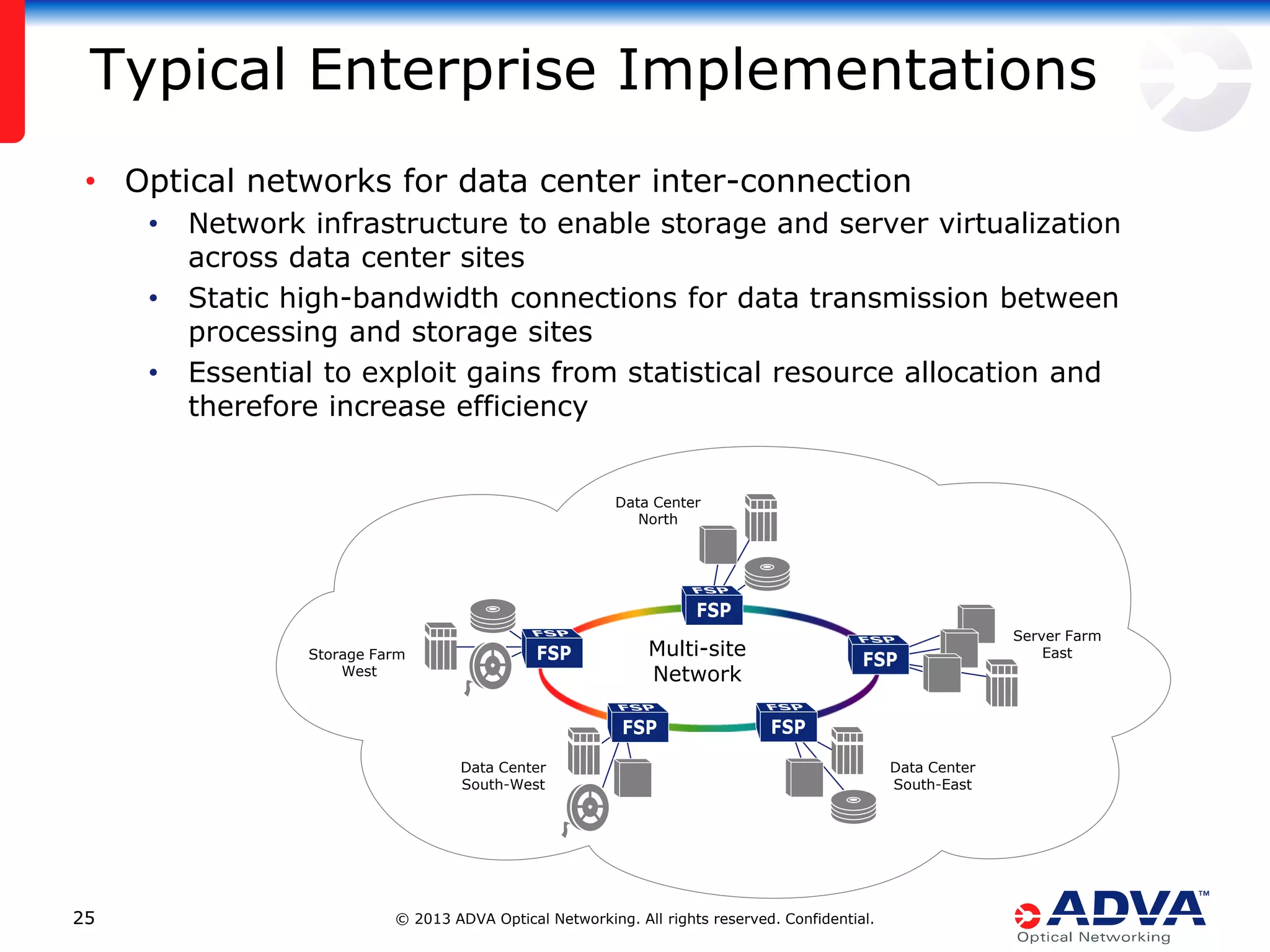

- 25. Typical Enterprise Implementations •Optical networks for data center inter-connection • • • Network infrastructure to enable storage and server virtualization across data center sites Static high-bandwidth connections for data transmission between processing and storage sites Essential to exploit gains from statistical resource allocation and therefore increase efficiency Data Center North Data Center South-West 25 Server Farm East Multi-site Network Storage Farm West © 2013 ADVA Optical Networking. All rights reserved. Confidential. Data Center South-East

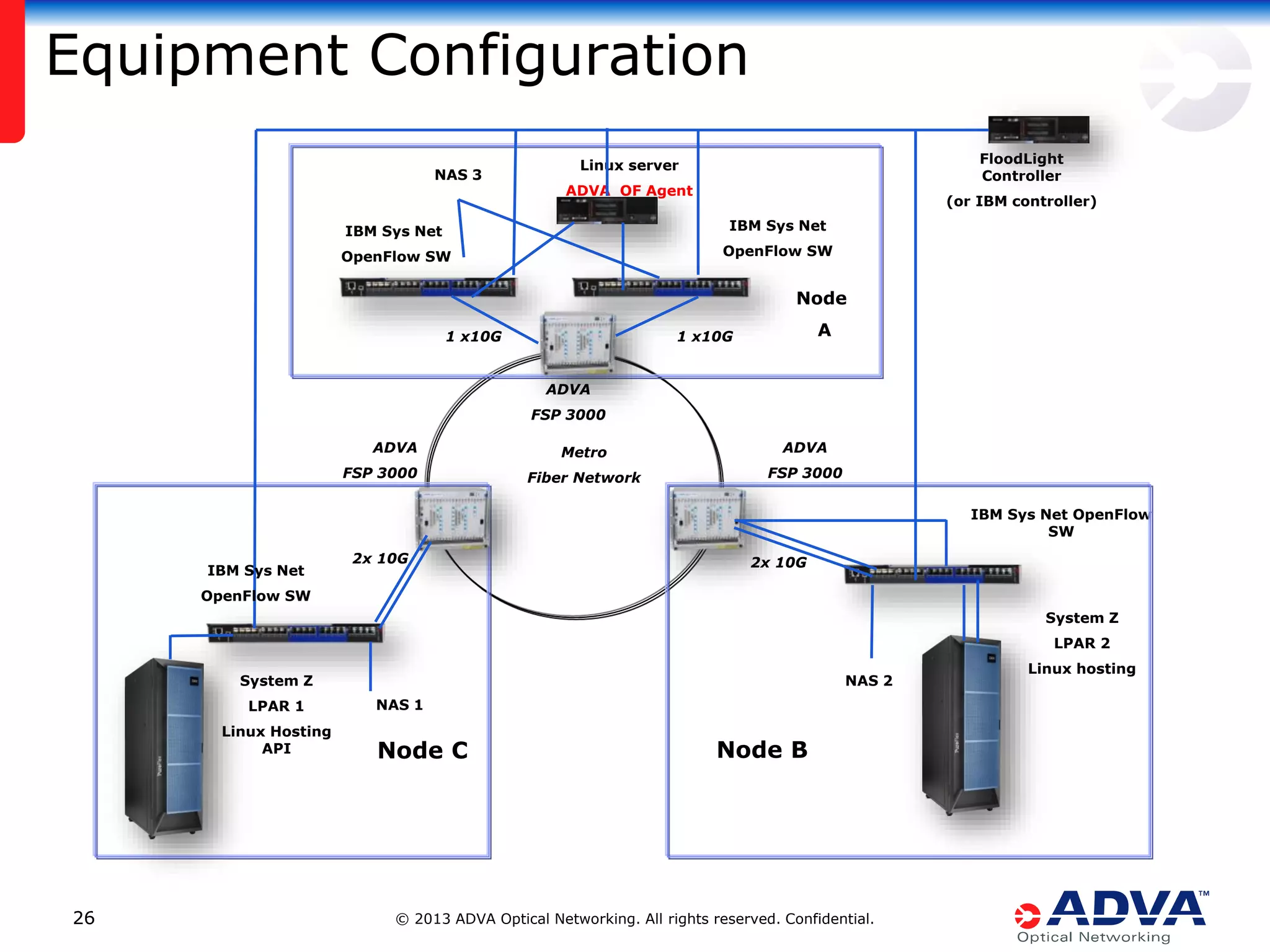

- 26. Equipment Configuration NAS 3 FloodLight Controller Linuxserver ADVA OF Agent (or IBM controller) IBM Sys Net IBM Sys Net OpenFlow SW OpenFlow SW Node 1 x10G A 1 x10G ADVA FSP 3000 ADVA FSP 3000 Metro ADVA Fiber Network FSP 3000 IBM Sys Net OpenFlow SW IBM Sys Net 2x 10G 2x 10G OpenFlow SW System Z LPAR 2 System Z LPAR 1 Linux Hosting API 26 NAS 2 NAS 1 Node C Node B © 2013 ADVA Optical Networking. All rights reserved. Confidential. Linux hosting

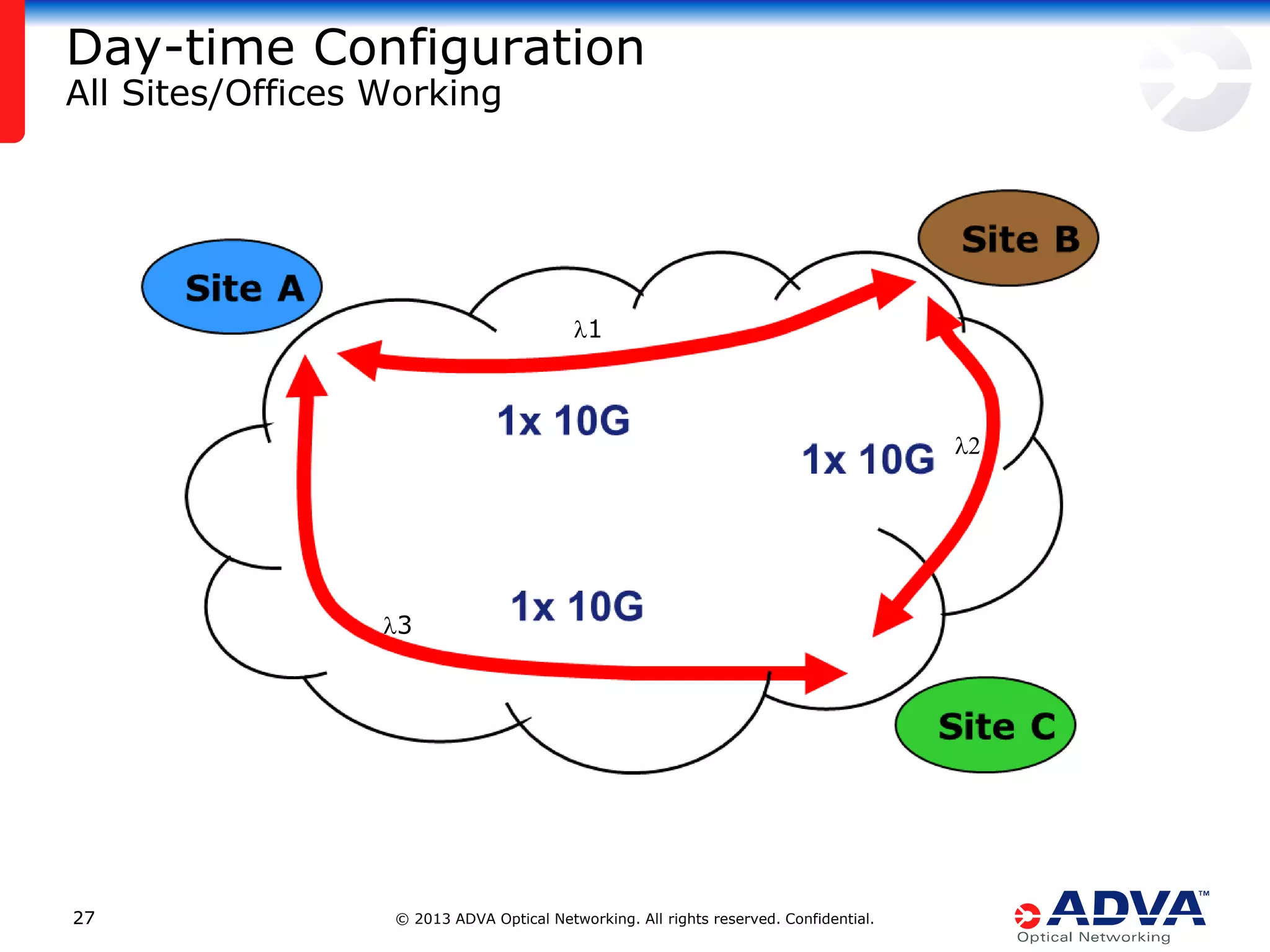

- 27. Day-time Configuration All Sites/OfficesWorking l1 l2 l3 27 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

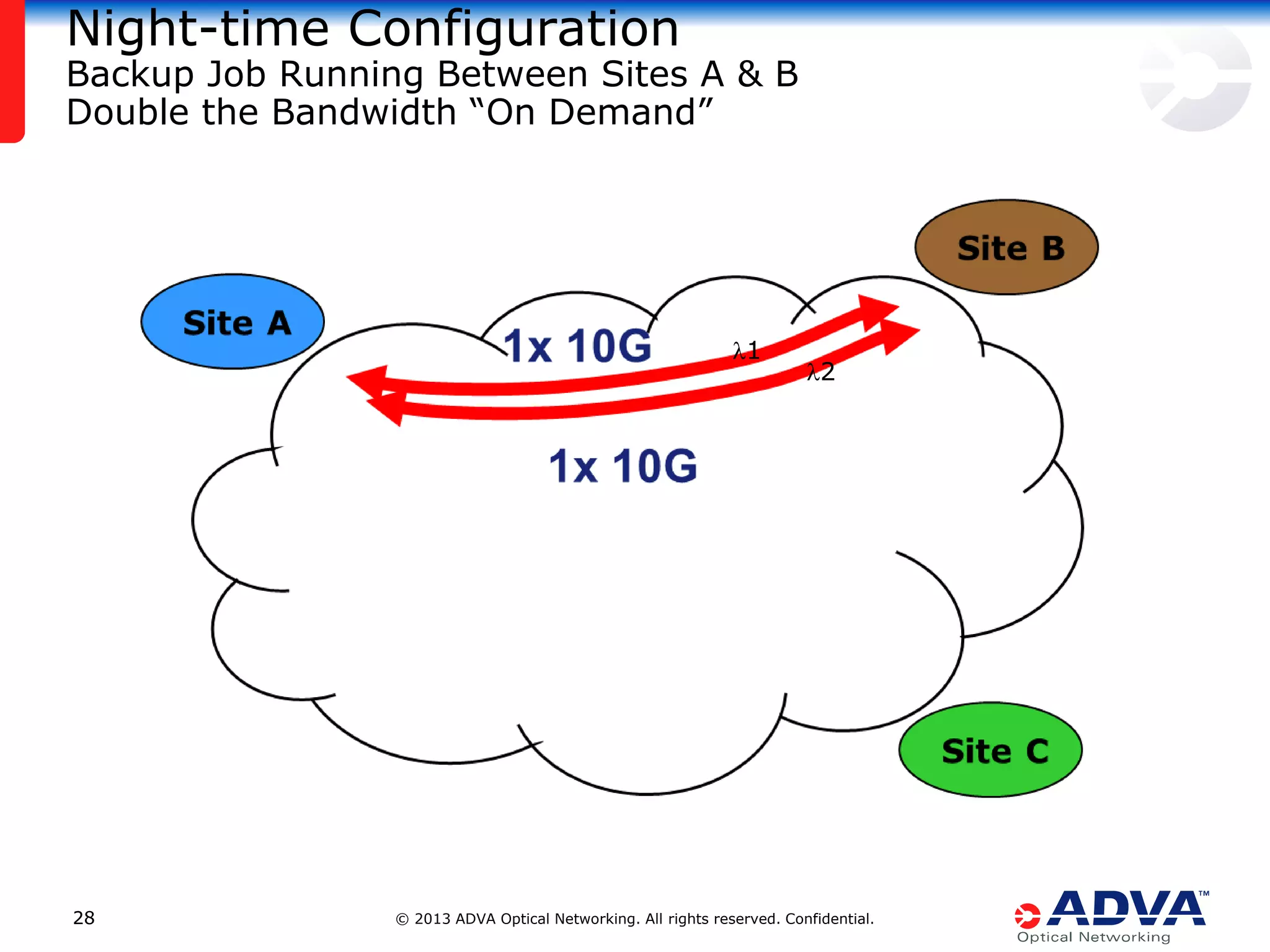

- 28. Night-time Configuration Backup JobRunning Between Sites A & B Double the Bandwidth “On Demand” l1 28 l2 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

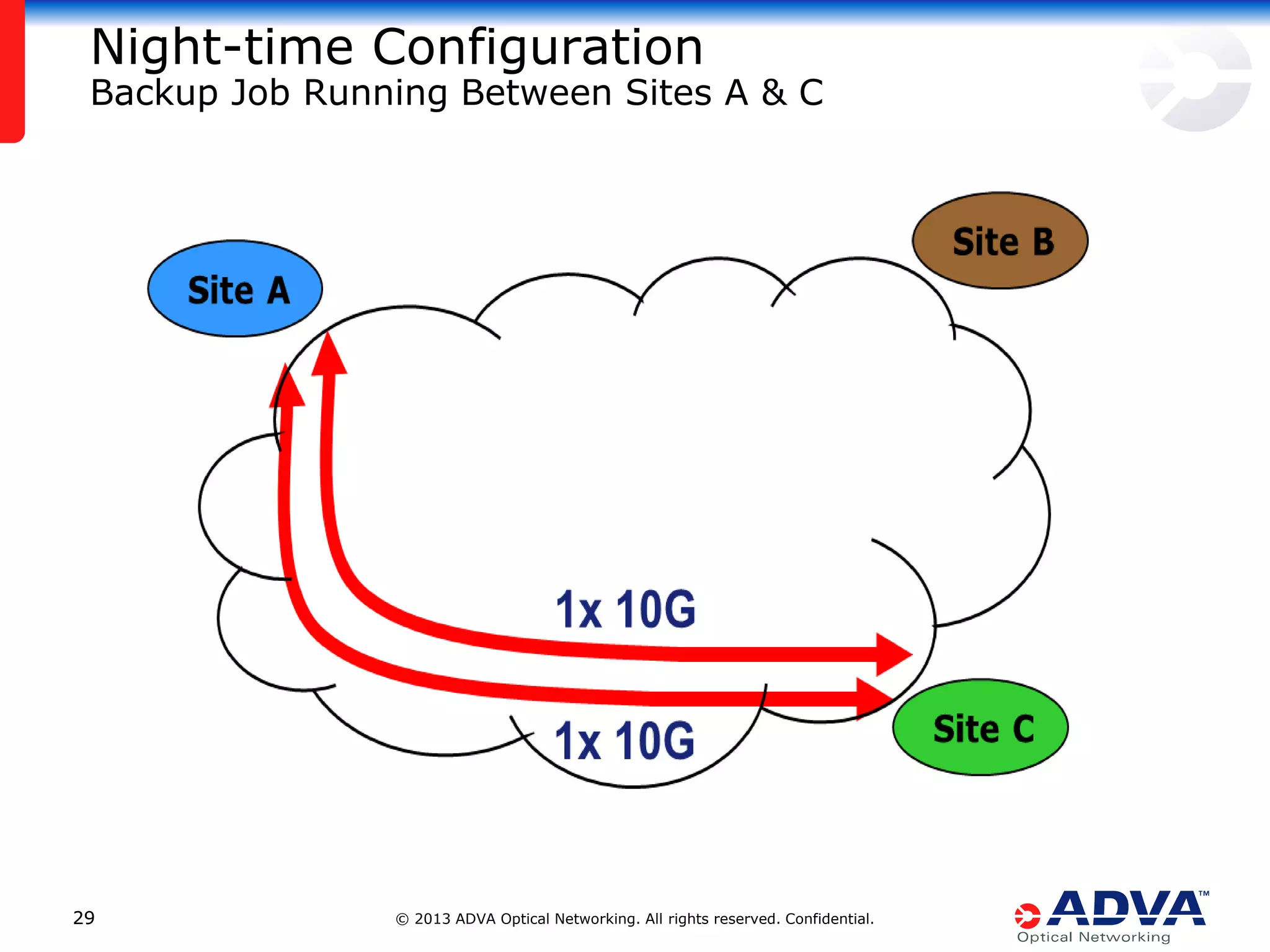

- 29. Night-time Configuration Backup JobRunning Between Sites A & C 29 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

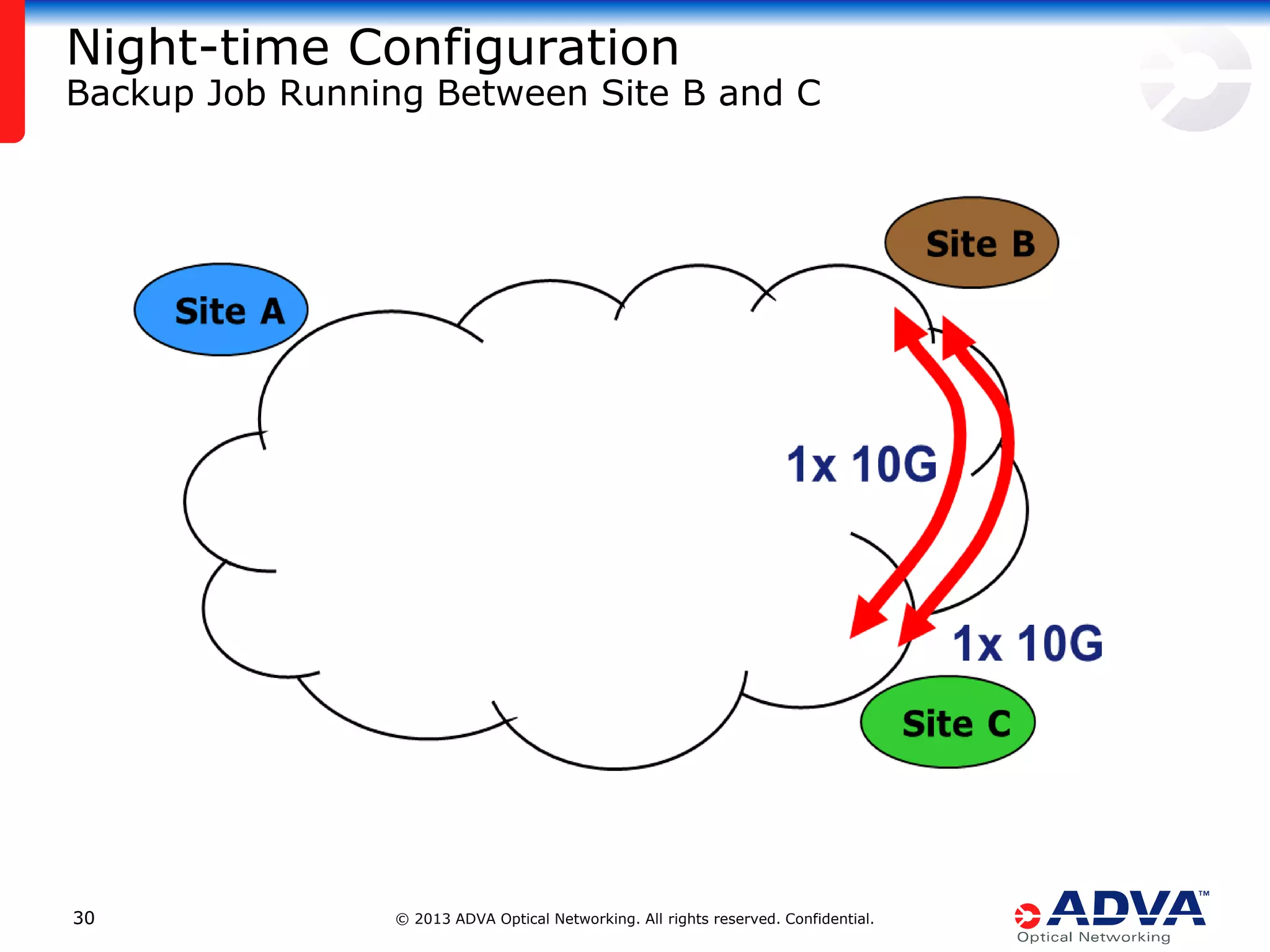

- 30. Night-time Configuration Backup JobRunning Between Site B and C 30 © 2013 ADVA Optical Networking. All rights reserved. Confidential.

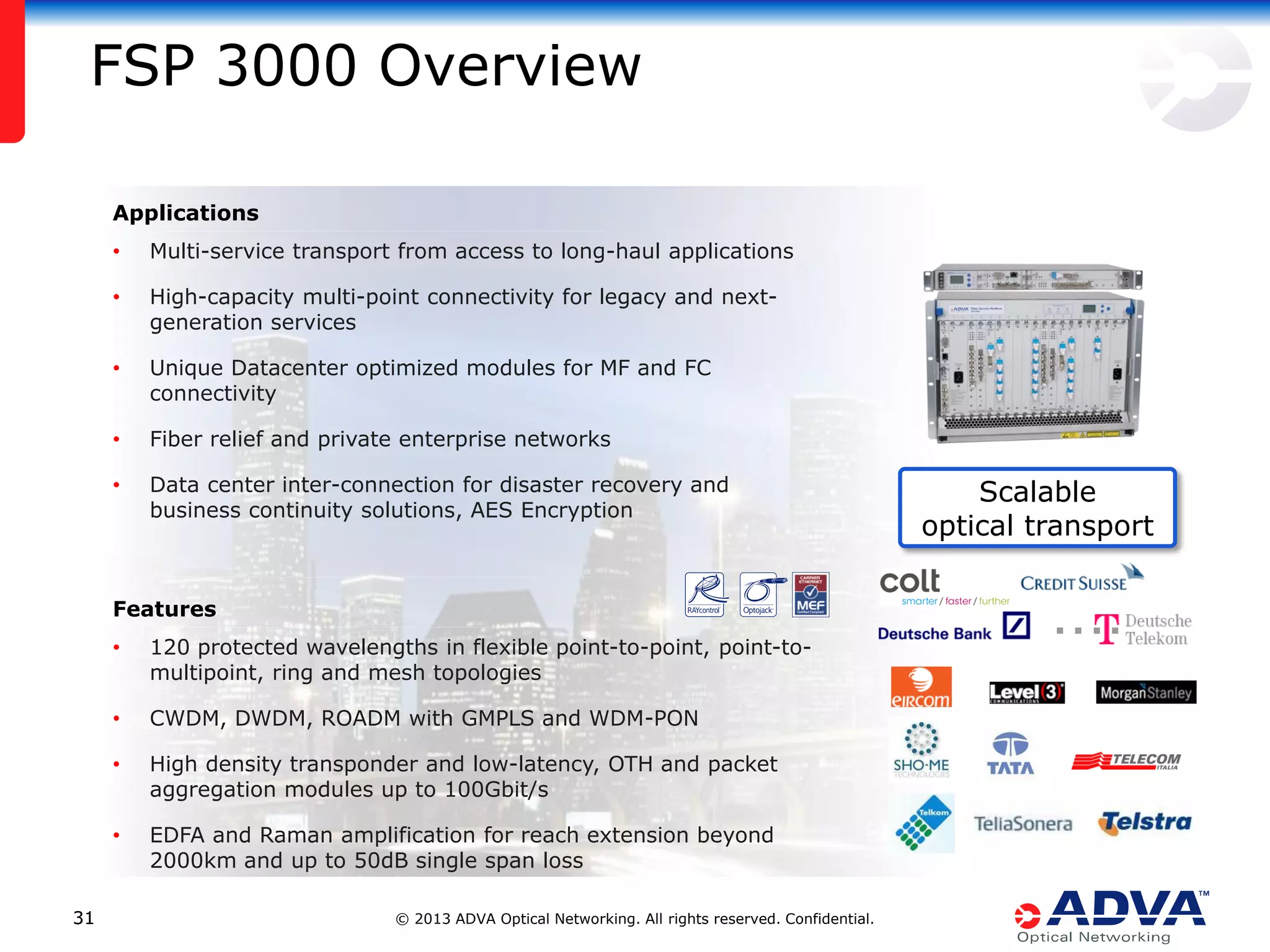

- 31. FSP 3000 Overview Applications • Multi-servicetransport from access to long-haul applications • High-capacity multi-point connectivity for legacy and nextgeneration services • Unique Datacenter optimized modules for MF and FC connectivity • Fiber relief and private enterprise networks • Data center inter-connection for disaster recovery and business continuity solutions, AES Encryption Features • • CWDM, DWDM, ROADM with GMPLS and WDM-PON • High density transponder and low-latency, OTH and packet aggregation modules up to 100Gbit/s • 31 120 protected wavelengths in flexible point-to-point, point-tomultipoint, ring and mesh topologies EDFA and Raman amplification for reach extension beyond 2000km and up to 50dB single span loss © 2013 ADVA Optical Networking. All rights reserved. Confidential. Scalable optical transport
- 32. Outlook 32 © 2013 ADVAOptical Networking. All rights reserved. Confidential.

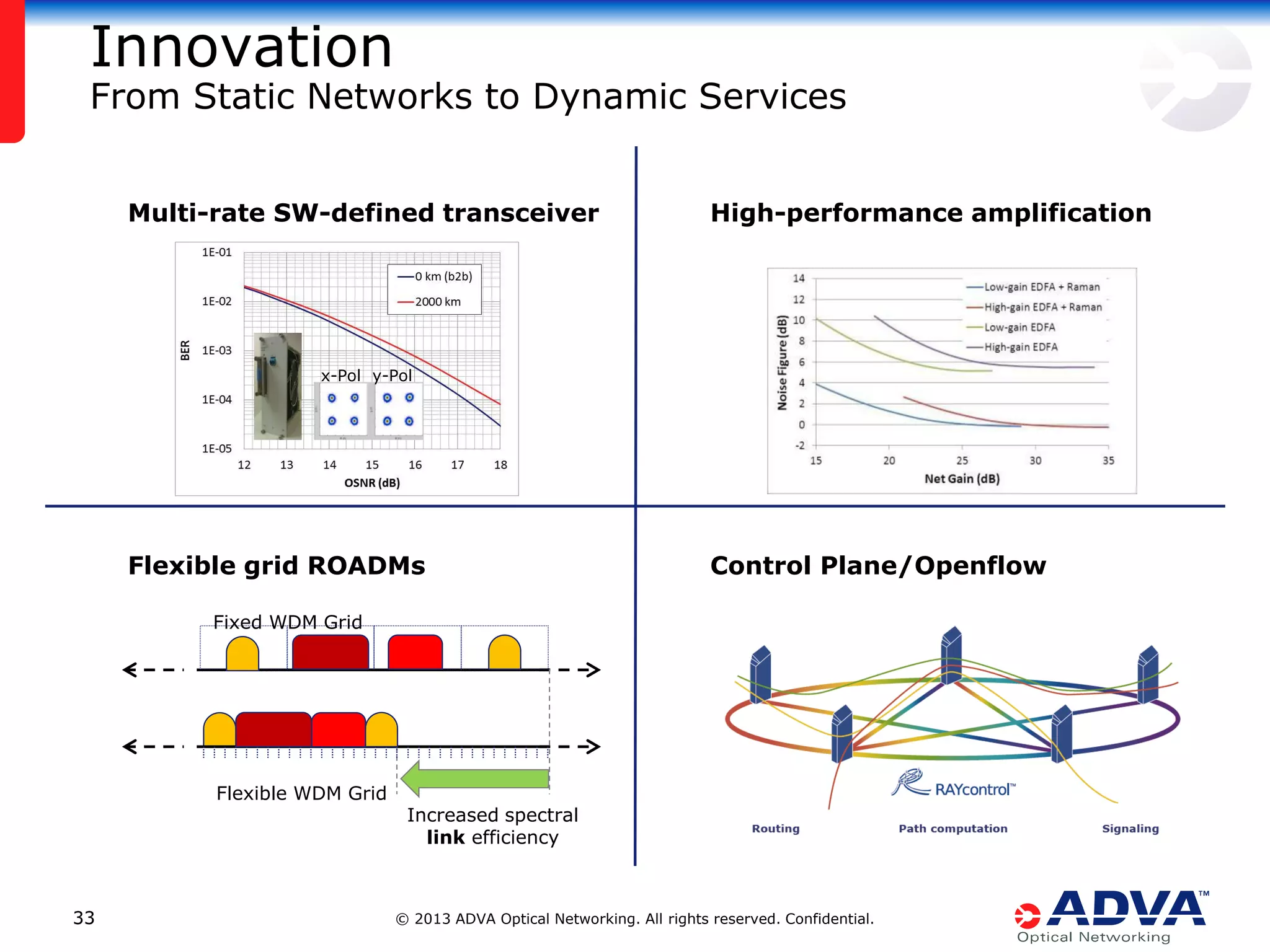

- 33. Innovation From Static Networksto Dynamic Services Multi-rate SW-defined transceiver High-performance amplification x-Pol y-Pol Flexible grid ROADMs Control Plane/Openflow Fixed WDM Grid Flexible WDM Grid 33 Increased spectral link efficiency © 2013 ADVA Optical Networking. All rights reserved. Confidential.

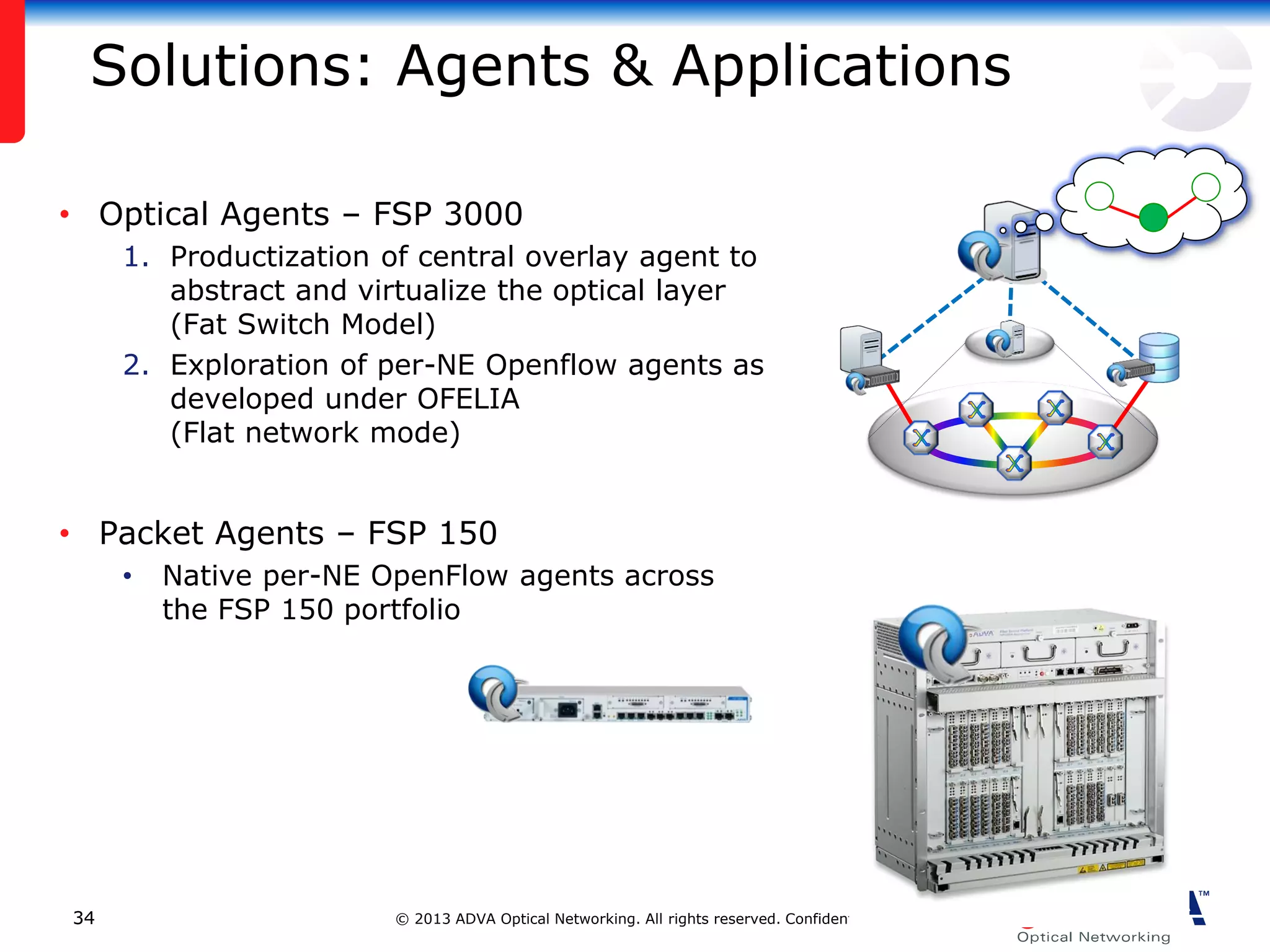

- 34. Solutions: Agents &Applications • Optical Agents – FSP 3000 1. Productization of central overlay agent to abstract and virtualize the optical layer (Fat Switch Model) 2. Exploration of per-NE Openflow agents as developed under OFELIA (Flat network mode) • Packet Agents – FSP 150 • 34 Native per-NE OpenFlow agents across the FSP 150 portfolio © 2013 ADVA Optical Networking. All rights reserved. Confidential.
- 35.
