The document discusses the advantages of adopting Network Functions Virtualization (NFV) in business services, emphasizing cost reductions and revenue opportunities. It outlines how the FSP 150-GE110Pro series is designed to facilitate NFV-enabled networks through advanced features like programmability and integrated server functionality. Key takeaways include the importance of NFV for service innovation and the suitability of centralized vCPE models for various business sizes.

1. June 2015
FSP 150-GE110Pro Series
Innovation in demarcation clears the way to NFV

2. © 2015 ADVA Optical Networking. All rights reserved. Confidential.2

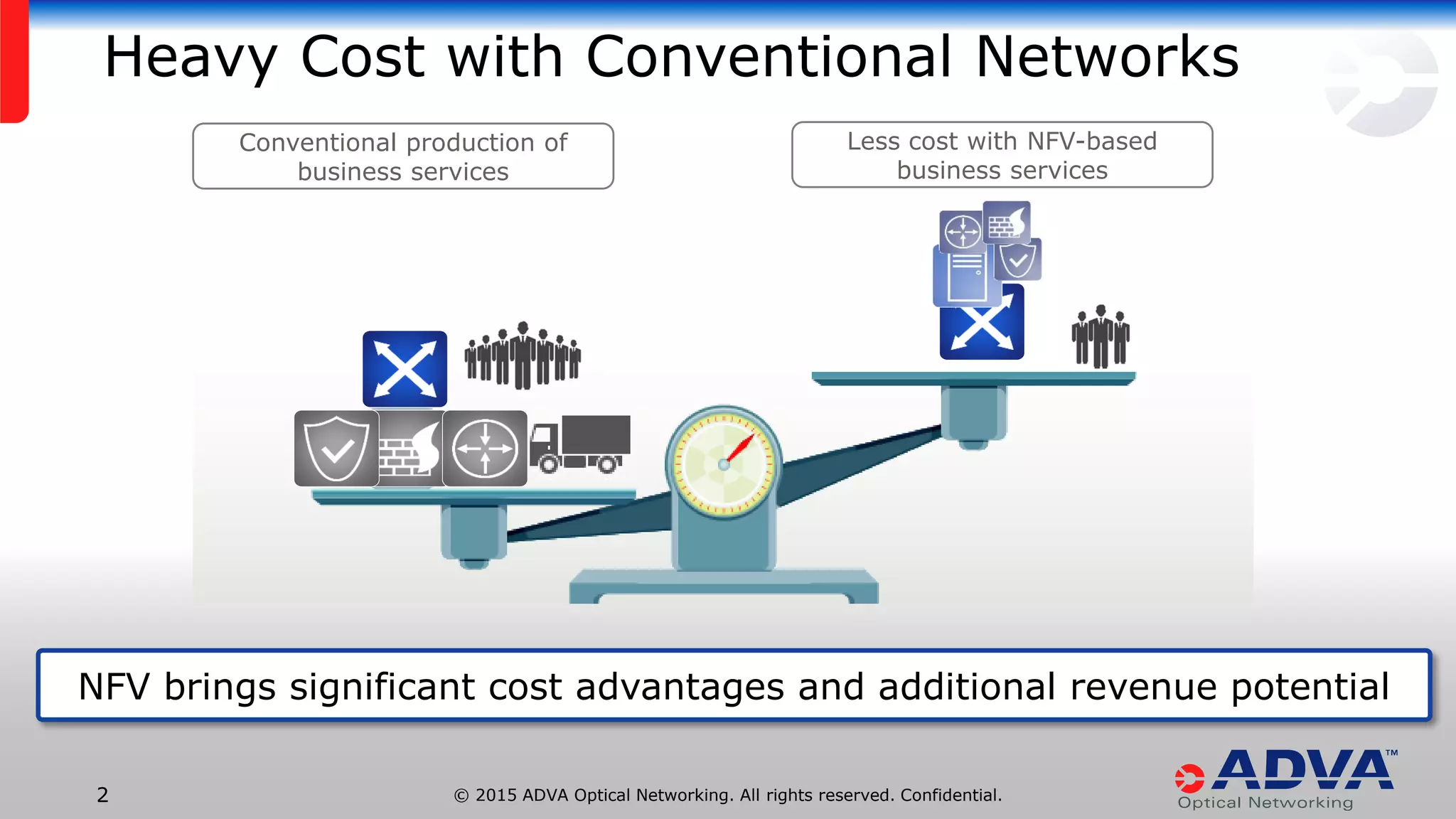

Heavy Cost with Conventional Networks
Conventional production of
business services
Less cost with NFV-based
business services
NFV brings significant cost advantages and additional revenue potential

3. © 2015 ADVA Optical Networking. All rights reserved. Confidential.3

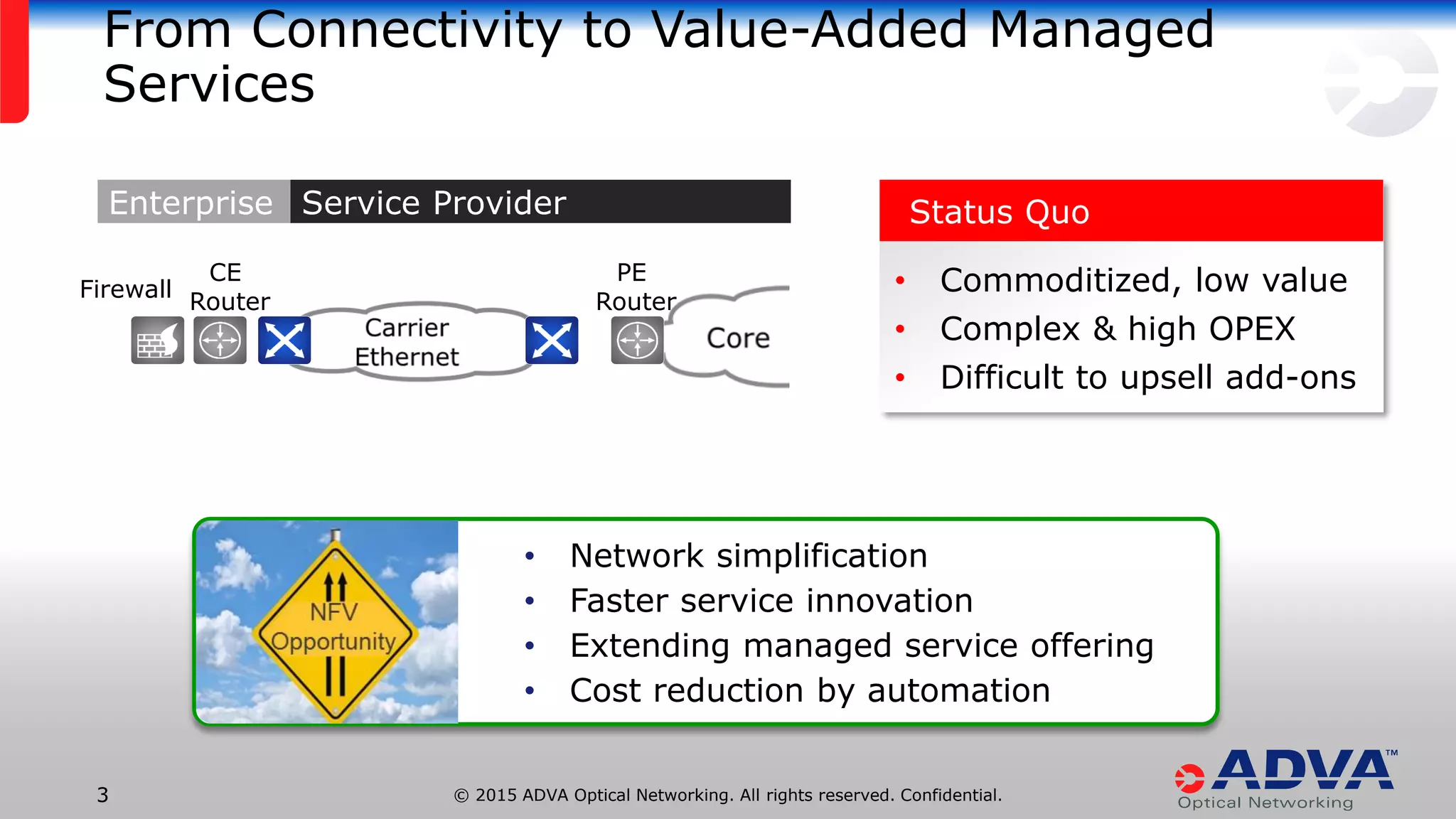

From Connectivity to Value-Added Managed
Services
• Commoditized, low value
• Complex & high OPEX
• Difficult to upsell add-ons
PE
Router
CE
Router
Firewall
Enterprise Service Provider Status Quo
• Network simplification
• Faster service innovation
• Extending managed service offering
• Cost reduction by automation

4. © 2015 ADVA Optical Networking. All rights reserved. Confidential.4

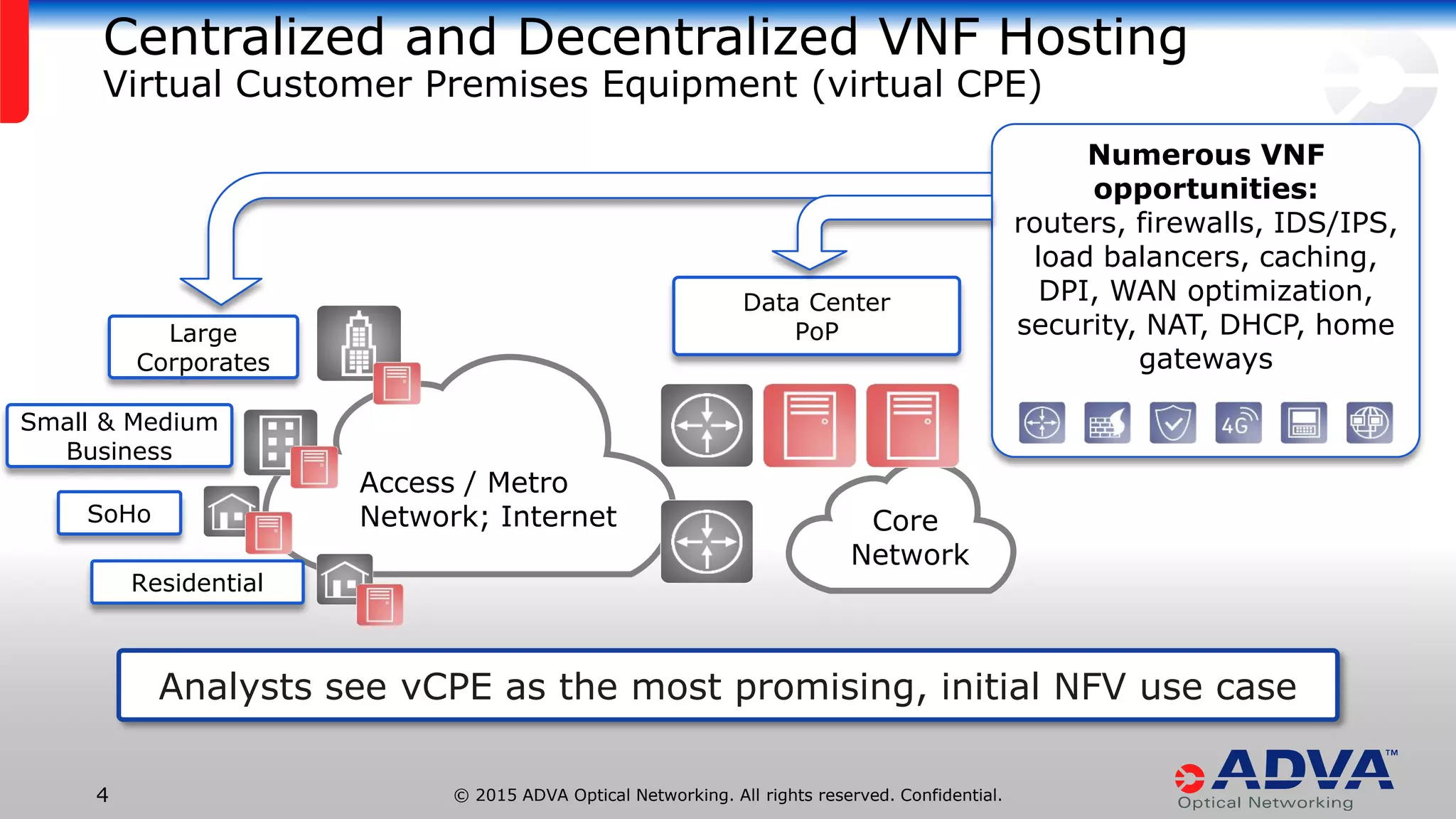

Centralized and Decentralized VNF Hosting
Virtual Customer Premises Equipment (virtual CPE)
SoHo
Data Center
PoP
Core
Network
Access / Metro
Network; Internet
Large
Corporates
Residential
Small & Medium
Business
Numerous VNF
opportunities:
routers, firewalls, IDS/IPS,
load balancers, caching,
DPI, WAN optimization,
security, NAT, DHCP, home
gateways
Analysts see vCPE as the most promising, initial NFV use case

5. © 2015 ADVA Optical Networking. All rights reserved. Confidential.5

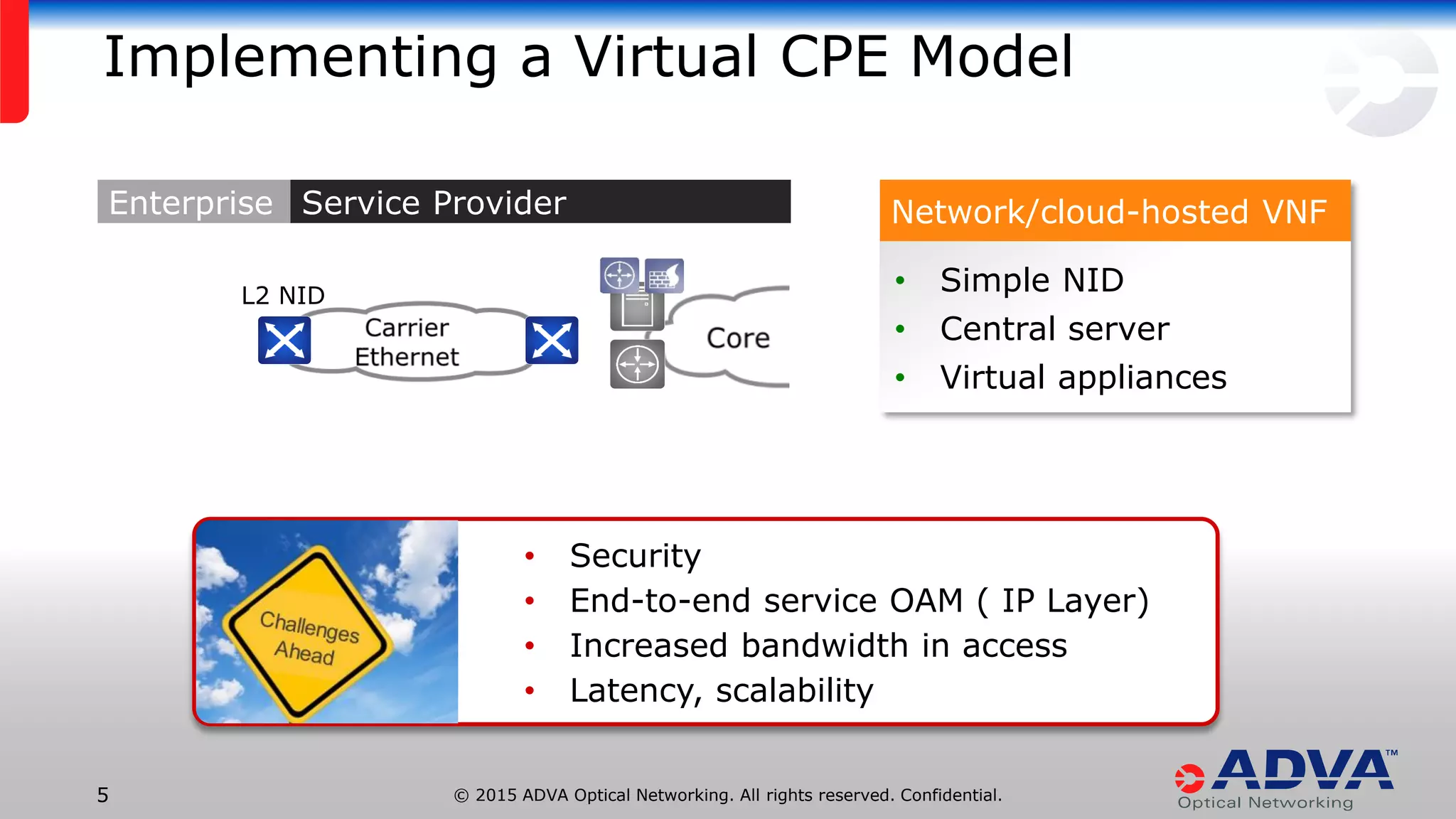

Implementing a Virtual CPE Model
L2 NID
Enterprise Service Provider
• Simple NID
• Central server
• Virtual appliances
Network/cloud-hosted VNF
• Security
• End-to-end service OAM ( IP Layer)
• Increased bandwidth in access
• Latency, scalability

6. © 2015 ADVA Optical Networking. All rights reserved. Confidential.6
ADVA NFV-Optimized Demarcation Technology
Make your network NFV-ready
Secure connection from
enterprise into the cloud
Ethernet encryption
OAM and performance
management above L2
Service assurance
Configurable forwarding for
service chaining and best
resource utilization
Programmability
Virtual resources managed by
standardized protocols and
open-source software
Integrated server/storage
+

7. © 2015 ADVA Optical Networking. All rights reserved. Confidential.7

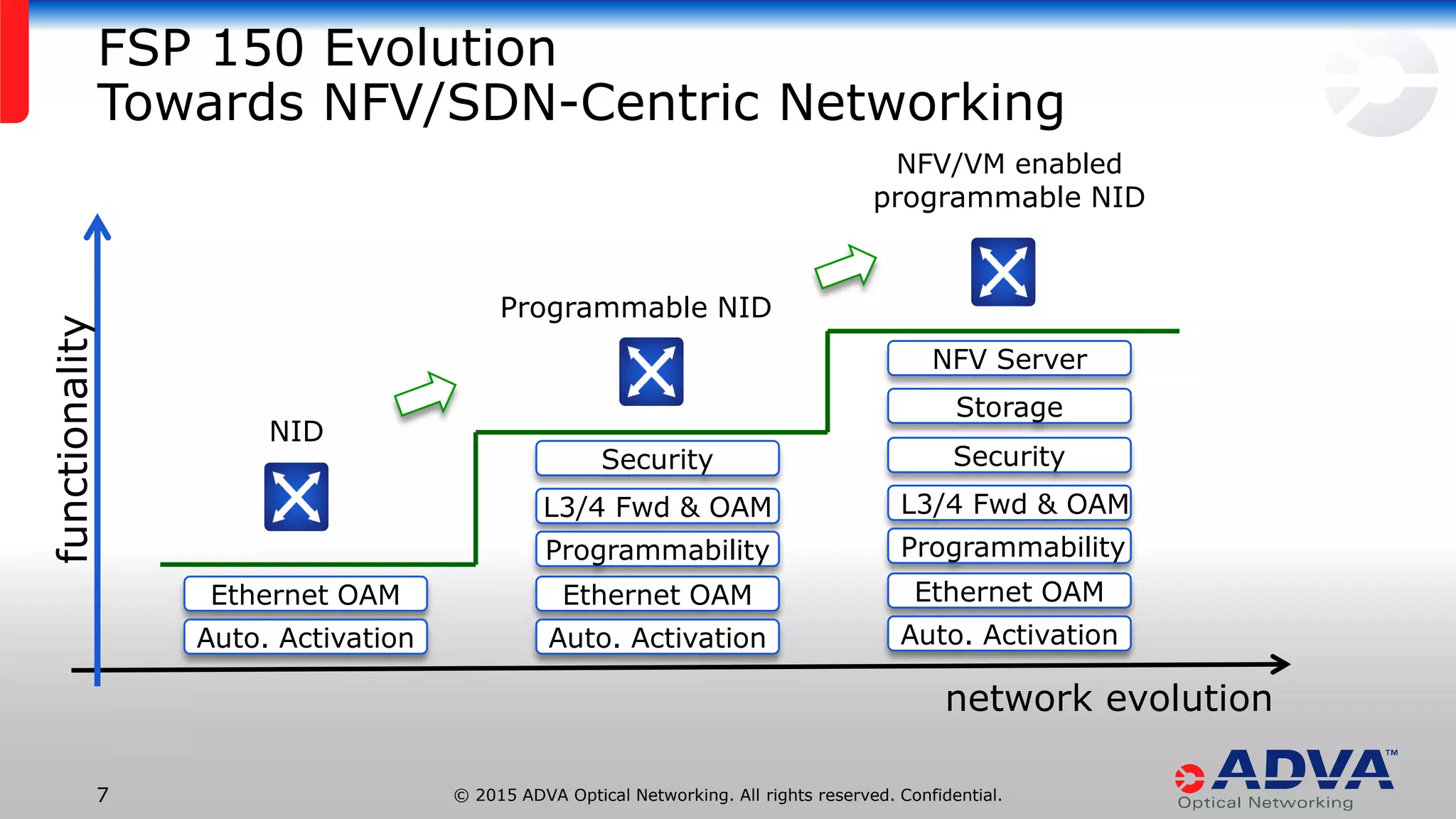

FSP 150 Evolution
Towards NFV/SDN-Centric Networking
Ethernet OAM
Auto. Activation
Ethernet OAM
Auto. Activation
L3/4 Fwd & OAM
Programmability
Security
Ethernet OAM
Auto. Activation
L3/4 Fwd & OAM
Programmability
Security
Storage
NFV Server
functionality
network evolution
Programmable NID
NFV/VM enabled
programmable NID
NID

8. © 2015 ADVA Optical Networking. All rights reserved. Confidential.8

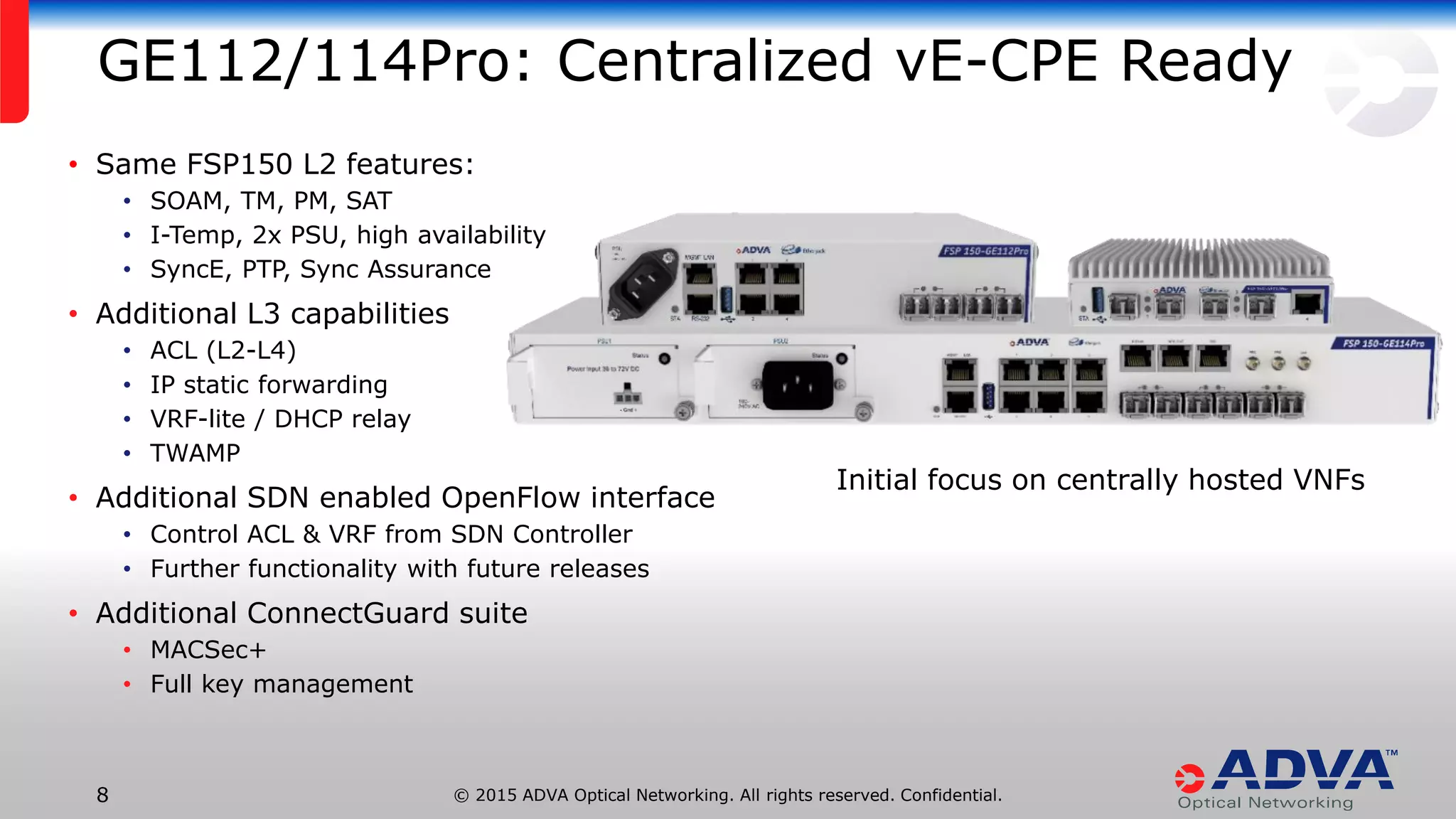

GE112/114Pro: Centralized vE-CPE Ready
• Same FSP150 L2 features:
• SOAM, TM, PM, SAT
• I-Temp, 2x PSU, high availability
• SyncE, PTP, Sync Assurance
• Additional L3 capabilities
• ACL (L2-L4)
• IP static forwarding
• VRF-lite / DHCP relay
• TWAMP
• Additional SDN enabled OpenFlow interface
• Control ACL & VRF from SDN Controller
• Further functionality with future releases
• Additional ConnectGuard suite
• MACSec+
• Full key management
Initial focus on centrally hosted VNFs

9. © 2015 ADVA Optical Networking. All rights reserved. Confidential.9
NIDServer
Hypervisor
OpenStack agent
• OpenStack for Virtual
Infrastructure Management
(VIM)
• GUI allowing point-and-click
provisioning
Open-Source Management

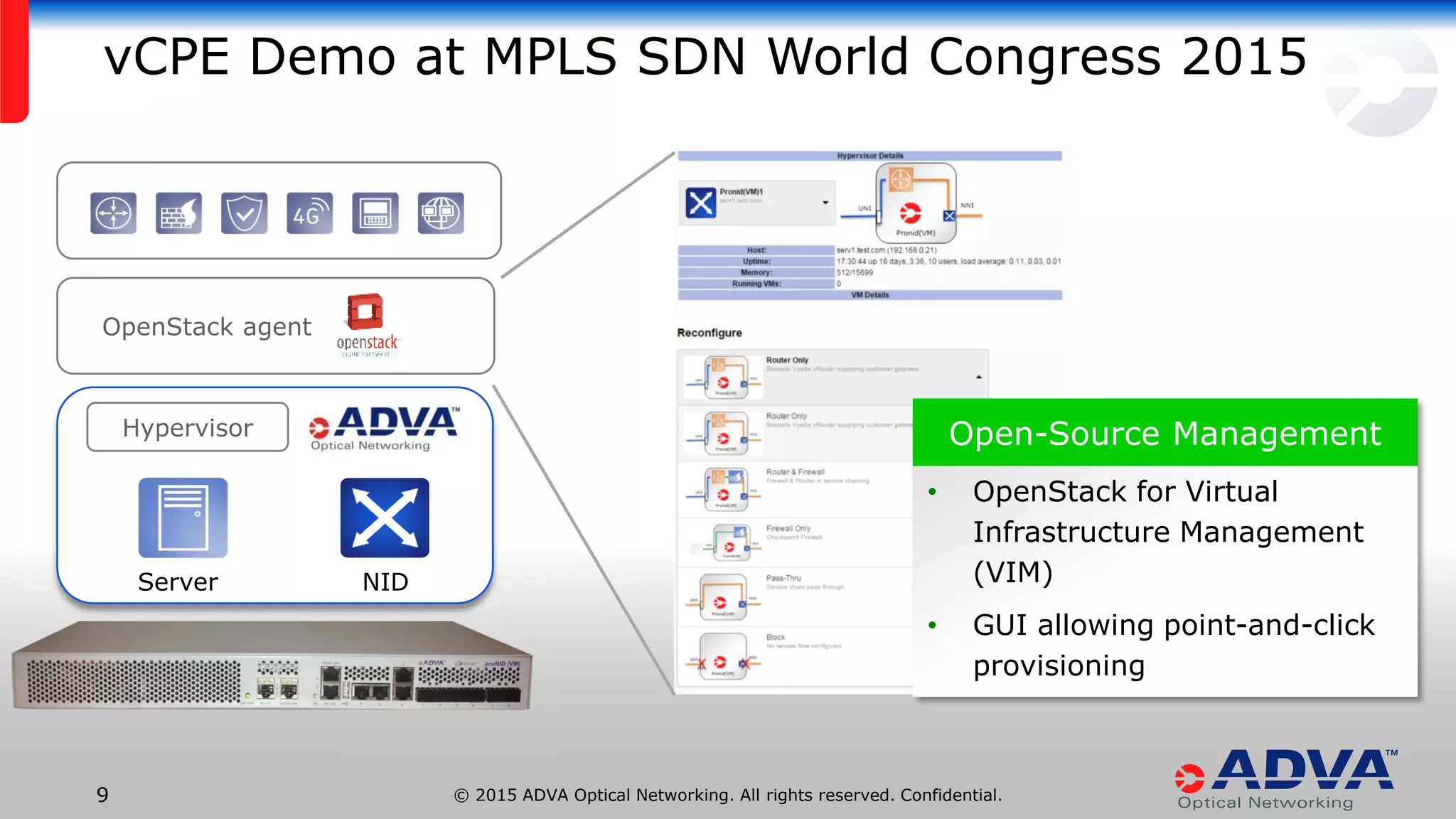

vCPE Demo at MPLS SDN World Congress 2015

10. © 2015 ADVA Optical Networking. All rights reserved. Confidential.10
Key Takeaways
• NFV for fast and agile service
innovation
• Physical network functions support
VNFs
• Advanced OAM features
• Programmability
• Security
• Integrated server for single-box
demarcation and VNF hosting
• FSP 150-GE110Pro series is
optimized for NFV-centric networks
