In the Postgres Enterprise Manager 5.0, DBAs and Developers can take advantage of more customizable metric gathering, richer alerting, better log analysis and easier configuration. Postgres Enterprise Manager is the only solution available today that allows you to intelligently monitor, manage, and tune large numbers of Postgres database servers enterprise-wide from an integrated graphical console. In this release of Postgres Enterprise Manager 5.0 EntepriseDB brings you even more features to manage your Postgres database. * Custom Probes allow DBAs to add to the 225+ ready to use out-of-the-box probes by creating their own. * Richer alerting control with low/medium/high thresholds and time-of-day based alerting. * A Log Analyst Expert that reports on statistics like longest running queries, frequently run queries, unique queries and much more. * Easier setup with auto-discovery of managed servers and remote monitoring capabilities using direct JDBC connections. Target Audience: This presentation is intended for IT Decision-makers or any member of an IT team who purchases or deploys a database. If you are currently using a Postgres database, or are interested in adding Postgres to your data center, this is the perfect opportunity to learn more about EnterpriseDB’s Postgres Enterprise Manager. For more details on Postgres Enterprise Manager please email sales@enterprisedb.com.

1. © 2015 EnterpriseDB Corporation. All rights reserved. 1
Introducing Postgres Enterprise Manager 5.0
To view the recording of this presentation visit
EnterpriseDB > Resources > Webcasts > On Demand Webcasts

2. © 2015 EnterpriseDB Corporation. All rights reserved. 2

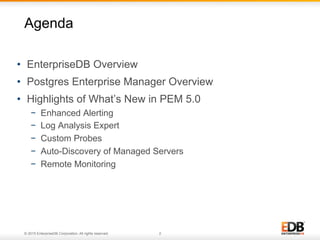

• EnterpriseDB Overview
• Postgres Enterprise Manager Overview
• Highlights of What’s New in PEM 5.0
− Enhanced Alerting
− Log Analysis Expert
− Custom Probes
− Auto-Discovery of Managed Servers
− Remote Monitoring
Agenda

3. © 2015 EnterpriseDB Corporation. All rights reserved. 3

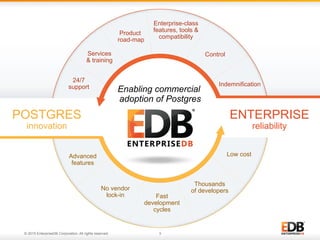

POSTGRES
innovation
ENTERPRISE
reliability
24/7
support
Services
& training
Enterprise-class
features, tools &
compatibility
Indemnification
Product
road-map
Control
Thousands
of developers
Fast
development
cycles
Low cost
No vendor
lock-in
Advanced
features
Enabling commercial
adoption of Postgres

4. © 2015 EnterpriseDB Corporation. All rights reserved. 4

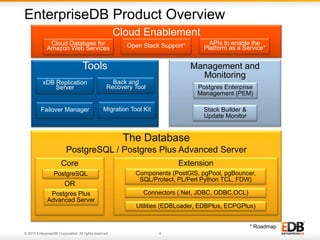

The Database
PostgreSQL / Postgres Plus Advanced Server
Tools
xDB Replication
Server
Failover Manager
Management and
Monitoring
Back and
Recovery Tool Postgres Enterprise
Management (PEM)
Stack Builder &
Update Monitor
Cloud Enablement
Cloud Database for
Amazon Web Services Open Stack Support*
Core
OR
PostgreSQL
Postgres Plus
Advanced Server
Extension
Components (PostGIS, pgPool, pgBouncer,
SQL/Protect, PL/Perl Python TCL, FDW)
Connectors (.Net, JDBC, ODBC,OCL)
Utilities (EDBLoader, EDBPlus, ECPGPlus)
Migration Tool Kit
* Roadmap
EnterpriseDB Product Overview
APIs to enable the
Platform as a Service*

5. © 2015 EnterpriseDB Corporation. All rights reserved. 5

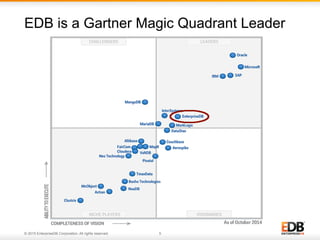

EDB is a Gartner Magic Quadrant Leader

6. © 2015 EnterpriseDB Corporation. All rights reserved. 6

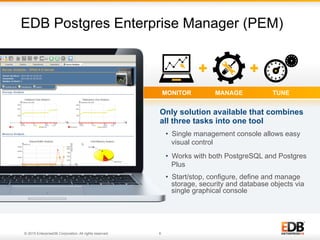

• Single management console allows easy
visual control
• Works with both PostgreSQL and Postgres
Plus
• Start/stop, configure, define and manage
storage, security and database objects via
single graphical console
MONITOR MANAGE TUNE
Only solution available that combines
all three tasks into one tool
EDB Postgres Enterprise Manager (PEM)

7. © 2015 EnterpriseDB Corporation. All rights reserved. 7
Unmanaged
Hosts
An efficient distributed
architecture perfectly
suited for managing,
monitoring and tuning
large numbers of Postgres
servers in multiple
locations
Monitoring Data
Enterprise Management
Connections
PEM Clients
or Web
Clients
Managed
Hosts
with PEM
Agents
Enterprise
Manager Agent
Installed on each
managed
machine; collects
data on OS and
database health
and operations PEM
Server
Enterprise
Manager Server
Centralized
storage for agent-
collected data and
client dashboards
Host Database
Management
Connection
Enterprise Manager Clients
User GUI console with global at-a-
glance monitoring dashboards;
used to carry out centralized
database administration and tuning
Platform-specific and web clients
POSTGRES
ENTERPRISE
MANAGER
(PEM)
EDB

8. © 2015 EnterpriseDB Corporation. All rights reserved. 8
Monitor All Your Postgres Databases From
One Screen
• Customized global
dashboard
• View up/down status
of all agents
• Monitor alerts from
many servers in one
place
• Navigate to
Dashboards for
further analysis

9. © 2015 EnterpriseDB Corporation. All rights reserved. 9

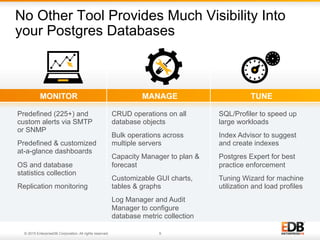

Predefined (225+) and
custom alerts via SMTP
or SNMP
Predefined & customized
at-a-glance dashboards
OS and database
statistics collection
Replication monitoring
MONITOR TUNEMANAGE
CRUD operations on all
database objects
Bulk operations across
multiple servers
Capacity Manager to plan &
forecast
Customizable GUI charts,
tables & graphs
Log Manager and Audit
Manager to configure
database metric collection
SQL/Profiler to speed up
large workloads
Index Advisor to suggest
and create indexes
Postgres Expert for best
practice enforcement
Tuning Wizard for machine
utilization and load profiles
No Other Tool Provides Much Visibility Into
your Postgres Databases

10. © 2015 EnterpriseDB Corporation. All rights reserved. 10

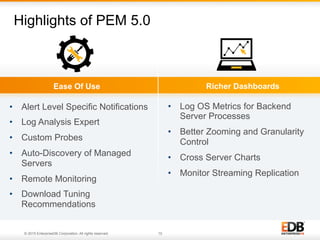

Highlights of PEM 5.0
• Alert Level Specific Notifications
• Log Analysis Expert
• Custom Probes
• Auto-Discovery of Managed
Servers
• Remote Monitoring
• Download Tuning
Recommendations
• Log OS Metrics for Backend
Server Processes
• Better Zooming and Granularity
Control
• Cross Server Charts
• Monitor Streaming Replication
Ease Of Use Richer Dashboards

11. © 2015 EnterpriseDB Corporation. All rights reserved. 11
Model your Support Staff Rotation in PEM
for Email Alerting
• Decide who is
externally notified of
alerts by creating the
email groups.
• Define different email
envelope information,
depending on time of
day.

12. © 2015 EnterpriseDB Corporation. All rights reserved. 12

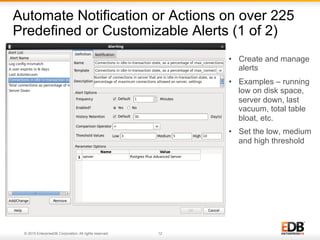

Automate Notification or Actions on over 225
Predefined or Customizable Alerts (1 of 2)
• Create and manage
alerts
• Examples – running
low on disk space,
server down, last
vacuum, total table
bloat, etc.
• Set the low, medium
and high threshold

13. © 2015 EnterpriseDB Corporation. All rights reserved. 13

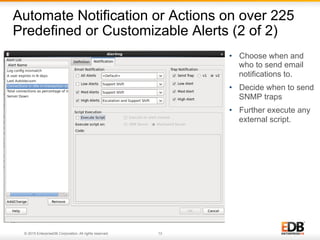

Automate Notification or Actions on over 225
Predefined or Customizable Alerts (2 of 2)
• Choose when and
who to send email
notifications to.
• Decide when to send
SNMP traps
• Further execute any
external script.

14. © 2015 EnterpriseDB Corporation. All rights reserved. 14
• Generate reports on stats
like locks and queries that
are collected by the Log
Manager
• Collects information based
on historical csv data, not
dependent on live logs.
• First configure Log Manager
to enable collection of log
files.
• Once you have logs
collected, use the Log
Analysis Expert to select
which reports to generate
• More details in the ‘Log
Analysis Expert’ section of
the Online Help
Better Understand Database Activities with
Log Analysis Expert

15. © 2015 EnterpriseDB Corporation. All rights reserved. 15

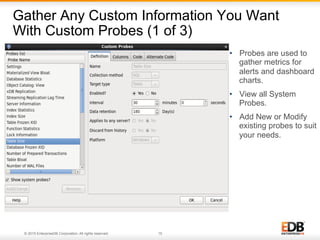

Gather Any Custom Information You Want
With Custom Probes (1 of 3)
• Probes are used to
gather metrics for
alerts and dashboard
charts.
• View all System
Probes.
• Add New or Modify
existing probes to suit
your needs.

16. © 2015 EnterpriseDB Corporation. All rights reserved. 16

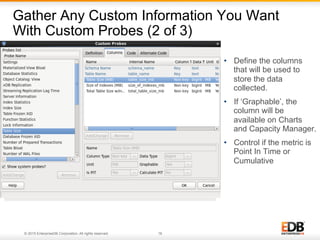

Gather Any Custom Information You Want
With Custom Probes (2 of 3)
• Define the columns
that will be used to
store the data
collected.
• If ‘Graphable’, the
column will be
available on Charts
and Capacity Manager.
• Control if the metric is
Point In Time or
Cumulative

17. © 2015 EnterpriseDB Corporation. All rights reserved. 17

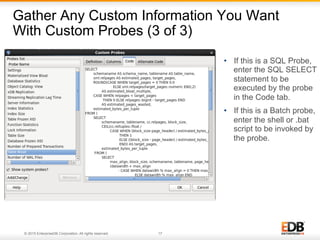

Gather Any Custom Information You Want
With Custom Probes (3 of 3)
• If this is a SQL Probe,
enter the SQL SELECT
statement to be
executed by the probe
in the Code tab.
• If this is a Batch probe,
enter the shell or .bat
script to be invoked by
the probe.

18. © 2015 EnterpriseDB Corporation. All rights reserved. 18

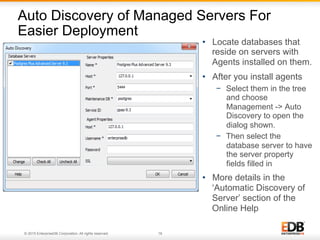

• Locate databases that
reside on servers with
Agents installed on them.
• After you install agents
− Select them in the tree
and choose
Management -> Auto
Discovery to open the
dialog shown.
− Then select the
database server to have
the server property
fields filled in
• More details in the
‘Automatic Discovery of
Server’ section of the
Online Help
Auto Discovery of Managed Servers For
Easier Deployment

19. © 2015 EnterpriseDB Corporation. All rights reserved. 19

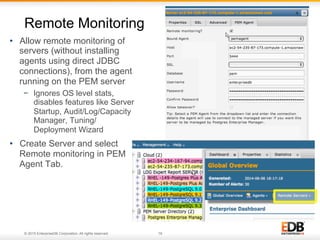

• Allow remote monitoring of
servers (without installing
agents using direct JDBC
connections), from the agent
running on the PEM server
− Ignores OS level stats,
disables features like Server
Startup, Audit/Log/Capacity
Manager, Tuning/
Deployment Wizard
• Create Server and select
Remote monitoring in PEM
Agent Tab.
Remote Monitoring

20. © 2015 EnterpriseDB Corporation. All rights reserved. 20

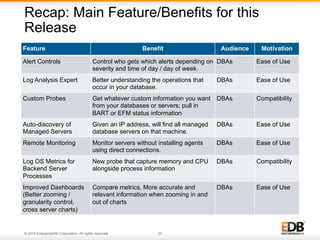

Feature Benefit Audience Motivation
Alert Controls Control who gets which alerts depending on
severity and time of day / day of week.
DBAs Ease of Use
Log Analysis Expert Better understanding the operations that
occur in your database.
DBAs Ease of Use
Custom Probes Get whatever custom information you want
from your databases or servers; pull in
BART or EFM status information
DBAs Compatibility
Auto-discovery of
Managed Servers
Given an IP address, will find all managed
database servers on that machine.
DBAs Ease of Use
Remote Monitoring Monitor servers without installing agents
using direct connections.
DBAs Ease of Use
Log OS Metrics for
Backend Server
Processes
New probe that capture memory and CPU
alongside process information
DBAs Compatibility
Improved Dashboards
(Better zooming /
granularity control,
cross server charts)
Compare metrics, More accurate and
relevant information when zooming in and
out of charts
DBAs Ease of Use
Recap: Main Feature/Benefits for this
Release

21. © 2015 EnterpriseDB Corporation. All rights reserved. 21

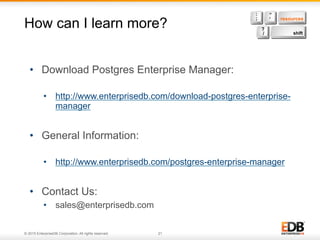

How can I learn more?
• Download Postgres Enterprise Manager:
• http://www.enterprisedb.com/download-postgres-enterprise-
manager
• General Information:
• http://www.enterprisedb.com/postgres-enterprise-manager
• Contact Us:
• sales@enterprisedb.com
