Managing Postgres at Scale With Postgres Enterprise Manager

© Copyright EnterpriseDB Corporation, 2019. All rights reserved.
Managing Postgres
At Scale
With Postgres Enterprise Manager
Dave Page
VP & Chief Software Architect, Tools & Installers
PostgreSQL Core Team
1

© Copyright EnterpriseDB Corporation, 2019. All rights reserved.2

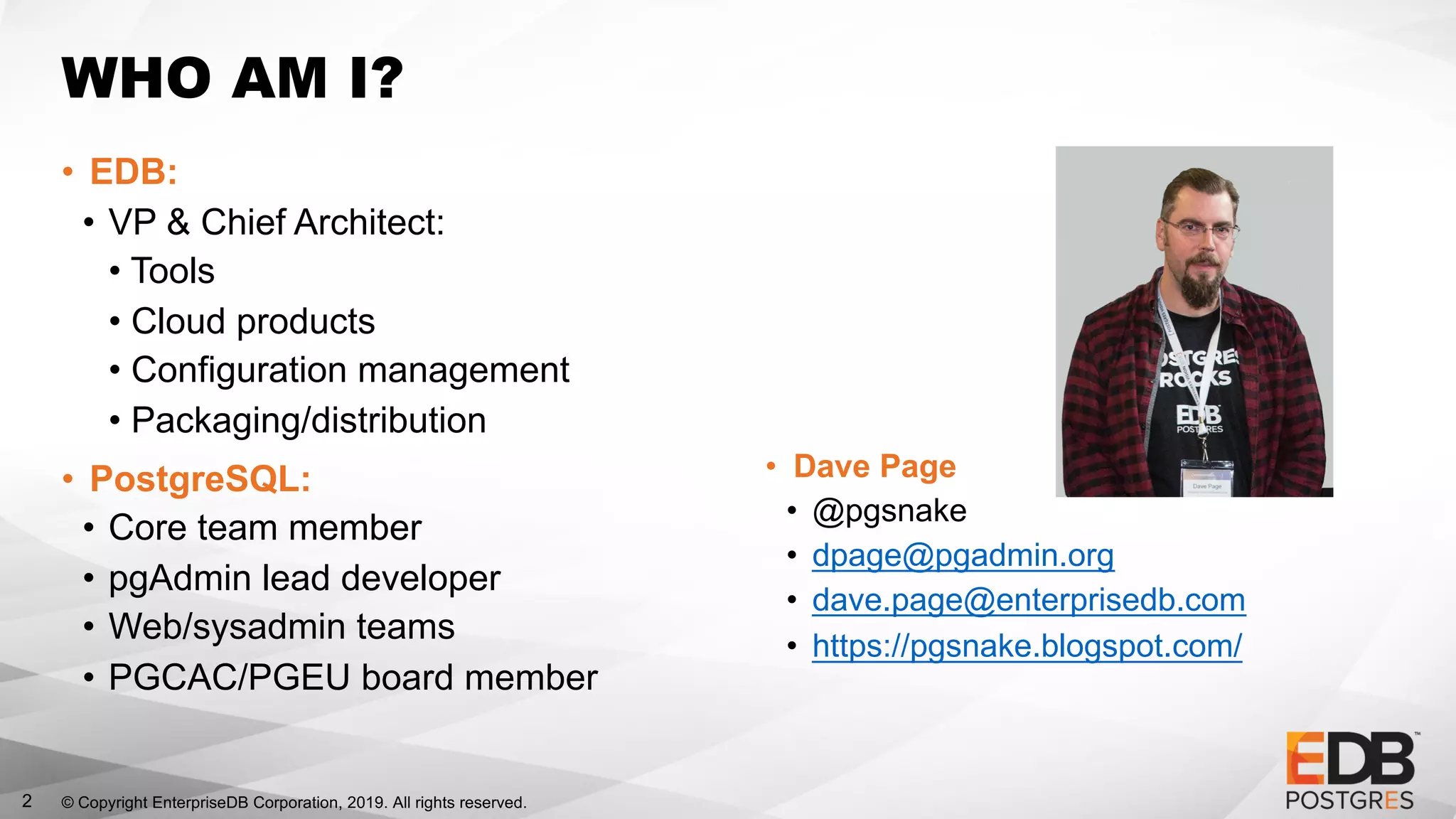

WHO AM I?
• EDB:
• VP & Chief Architect:
• Tools
• Cloud products
• Configuration management
• Packaging/distribution
• PostgreSQL:
• Core team member
• pgAdmin lead developer
• Web/sysadmin teams
• PGCAC/PGEU board member
• Dave Page
• @pgsnake
• dpage@pgadmin.org
• dave.page@enterprisedb.com
• https://pgsnake.blogspot.com/

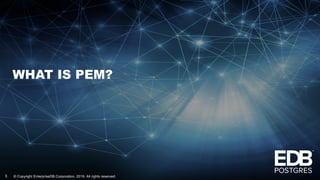

WHAT IS PEM?

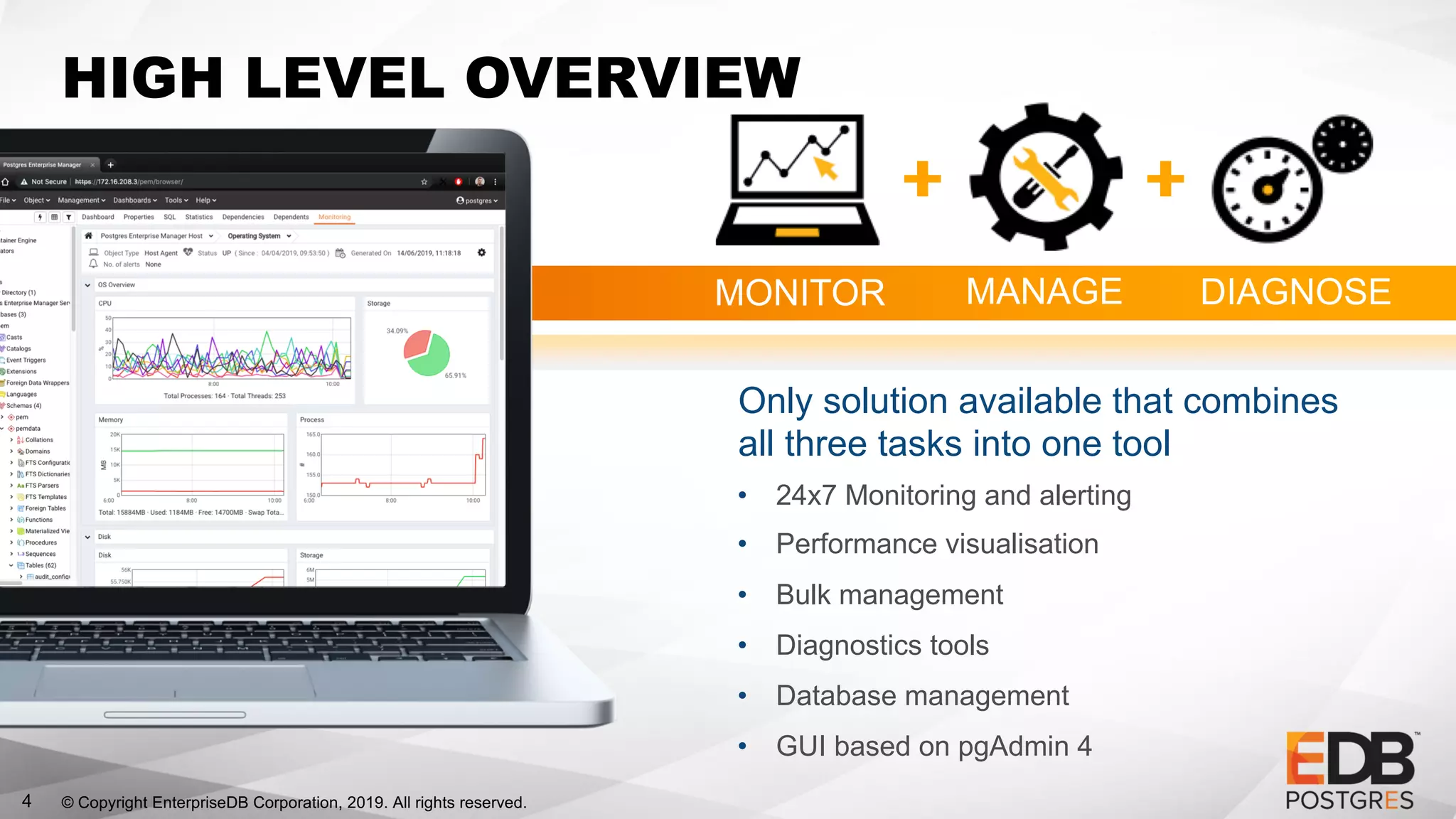

HIGH LEVEL OVERVIEW
• 24x7 Monitoring and alerting
• Performance visualisation
• Bulk management
• Diagnostics tools
• Database management
• GUI based on pgAdmin 4
MONITOR MANAGE DIAGNOSE
Only solution available that combines
all three tasks into one tool

ARCHITECTURE - SERVER
• EDB Postgres Advanced Server or PostgreSQL
database:
• Stores system configuration data
• Stores monitoring data
• System scheduler
• Primary PEM Agent:
• Alert processing
• SMTP/SNMP/Nagios spoolers
• Garbage collection

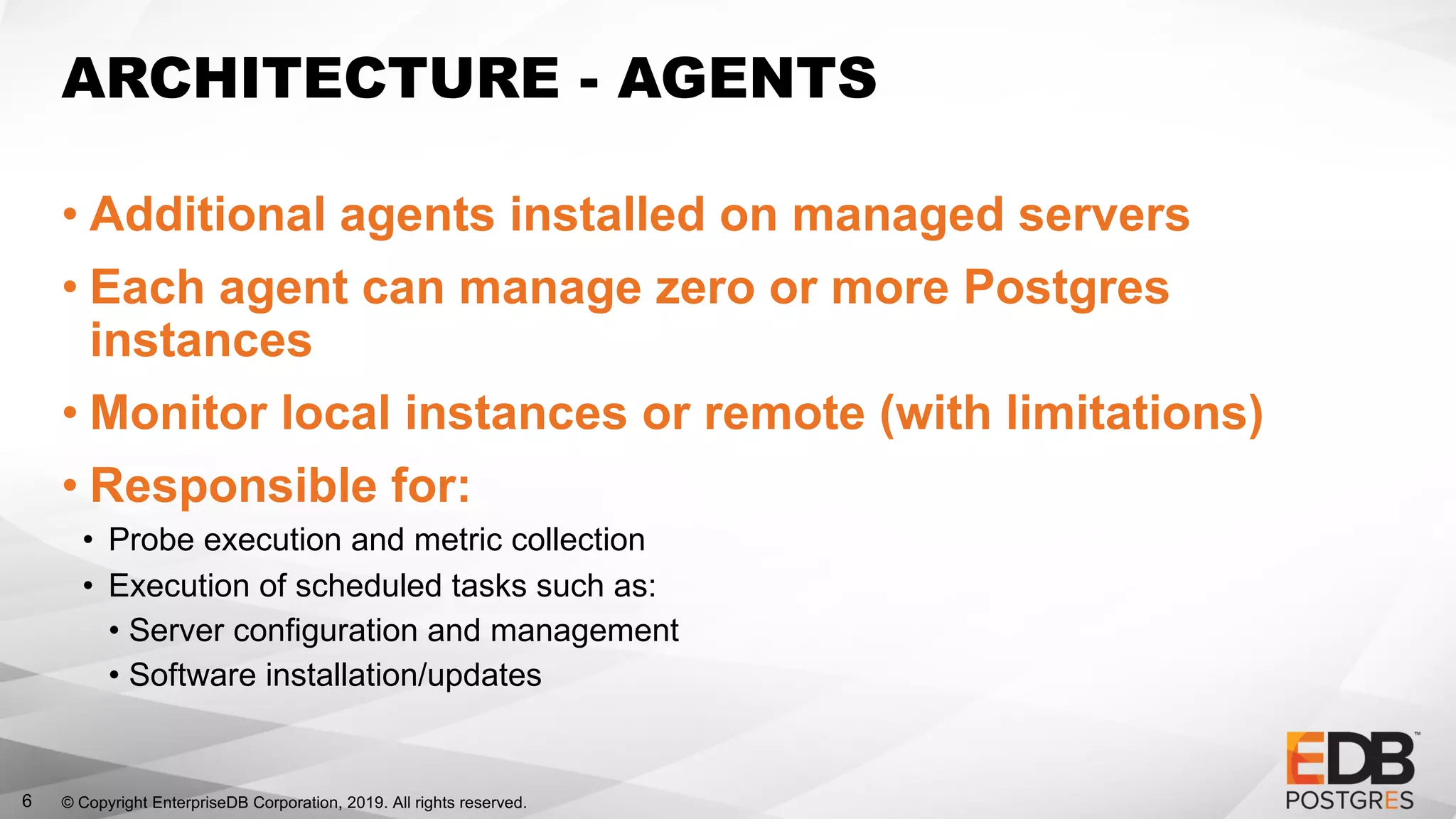

ARCHITECTURE - AGENTS
• Additional agents installed on managed servers
• Each agent can manage zero or more Postgres
instances
• Monitor local instances or remote (with limitations)
• Responsible for:
• Probe execution and metric collection
• Execution of scheduled tasks such as:
• Server configuration and management
• Software installation/updates

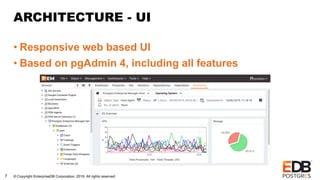

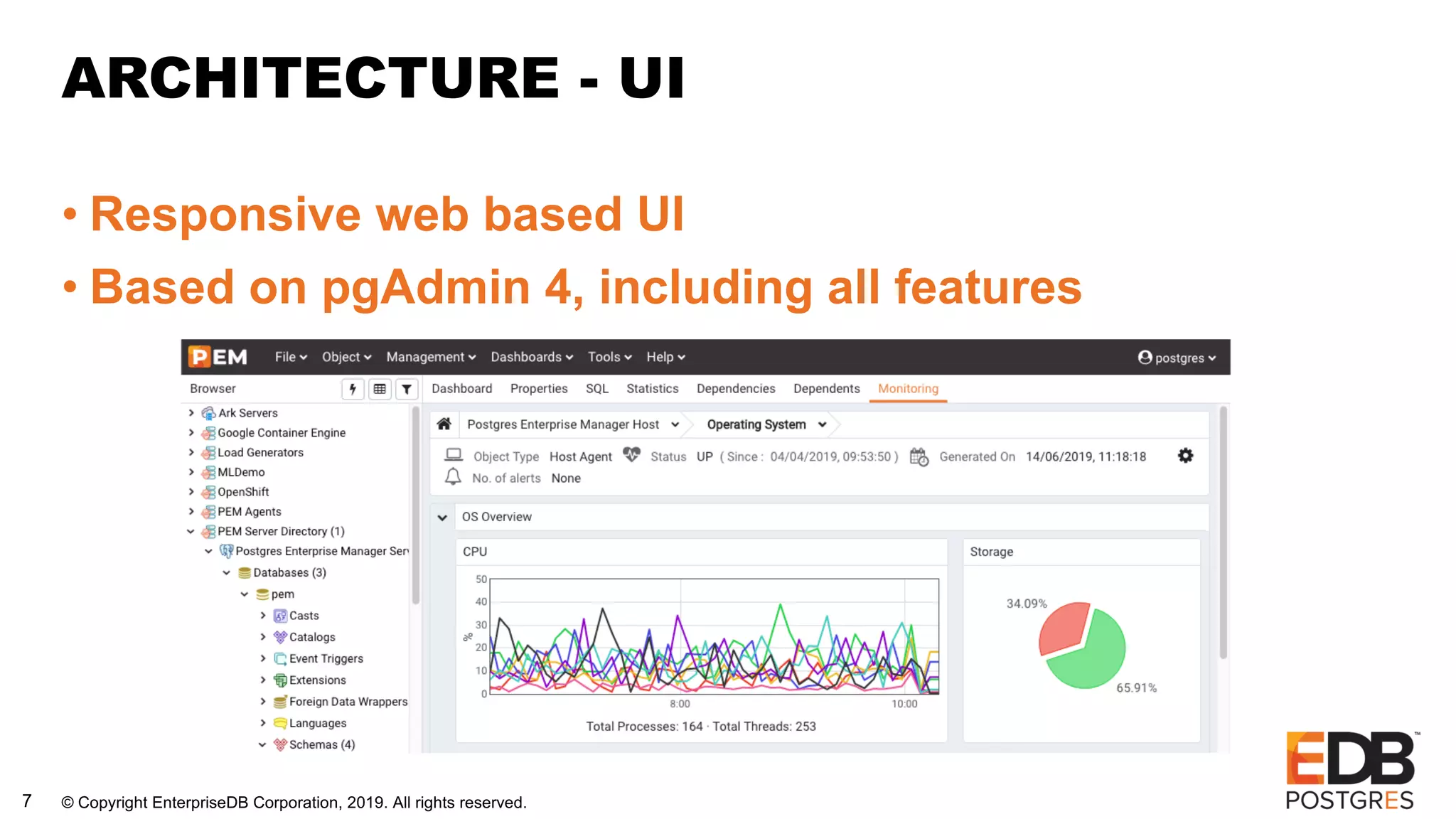

ARCHITECTURE - UI
• Responsive web based UI
• Based on pgAdmin 4, including all features

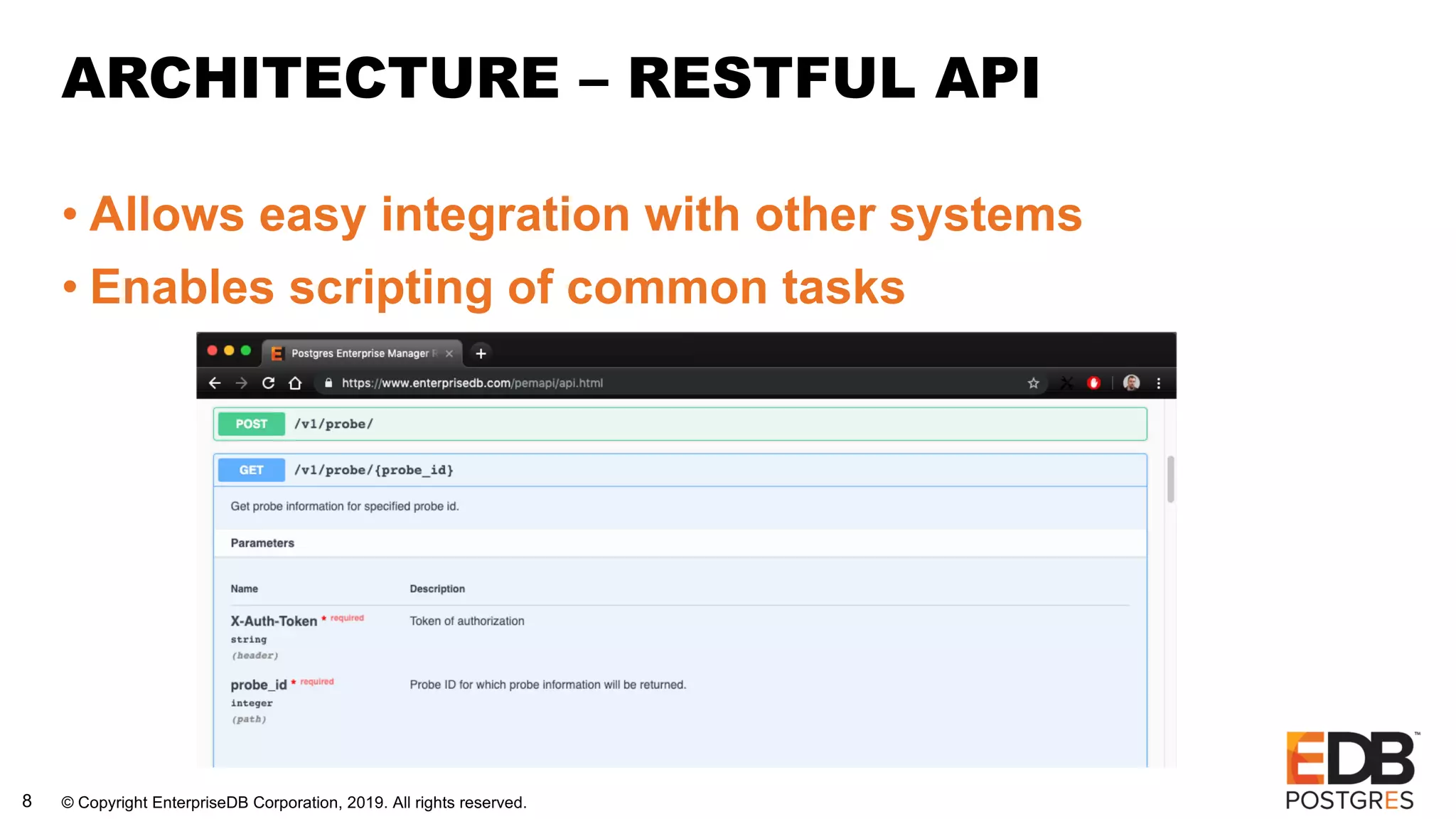

ARCHITECTURE – RESTFUL API
• Allows easy integration with other systems
• Enables scripting of common tasks

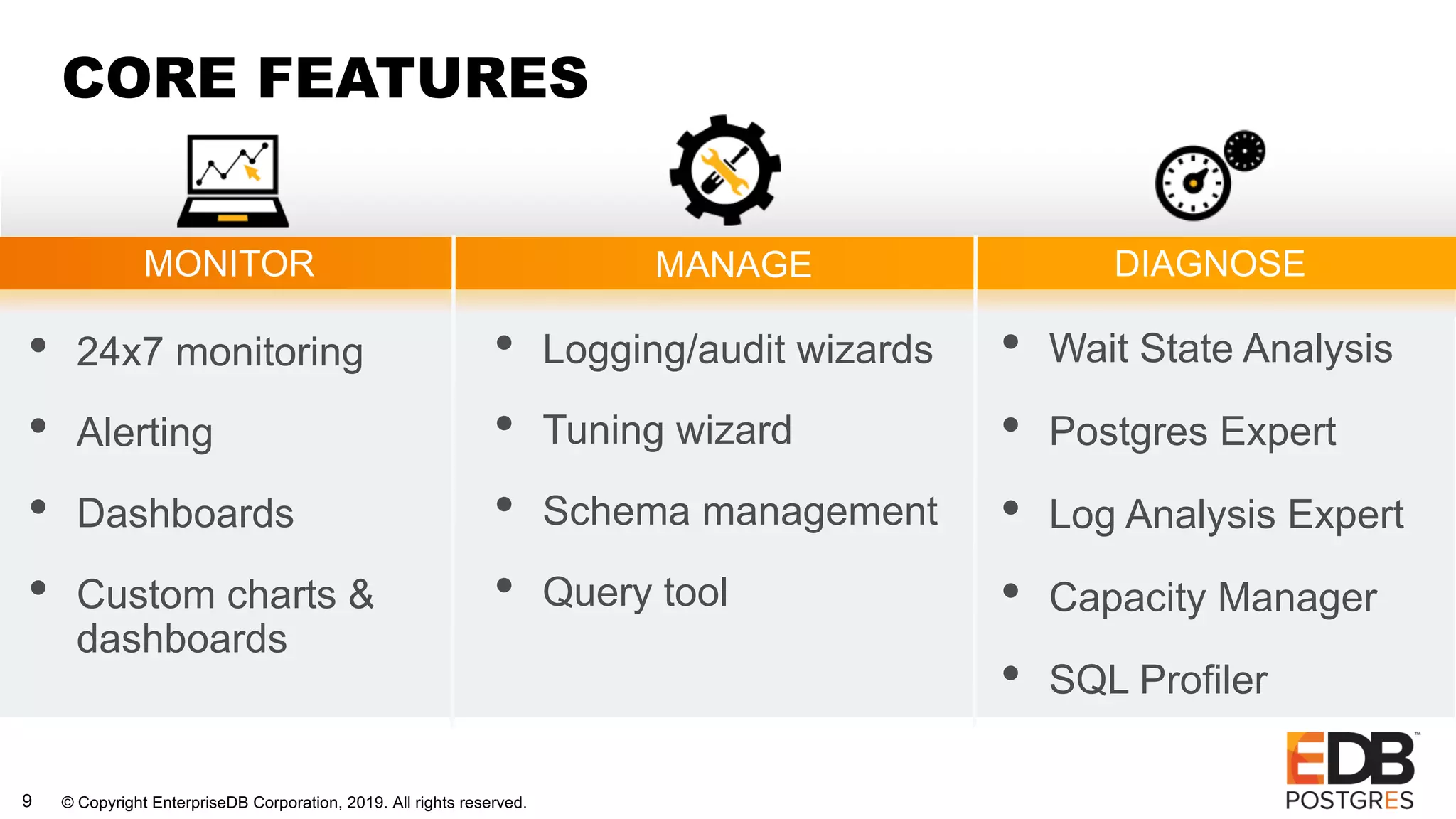

CORE FEATURES
• 24x7 monitoring
• Alerting
• Dashboards
• Custom charts &
dashboards
MONITOR DIAGNOSEMANAGE
• Logging/audit wizards
• Tuning wizard
• Schema management
• Query tool
• Wait State Analysis
• Postgres Expert
• Log Analysis Expert
• Capacity Manager
• SQL Profiler

MANAGEMENT AT SCALE

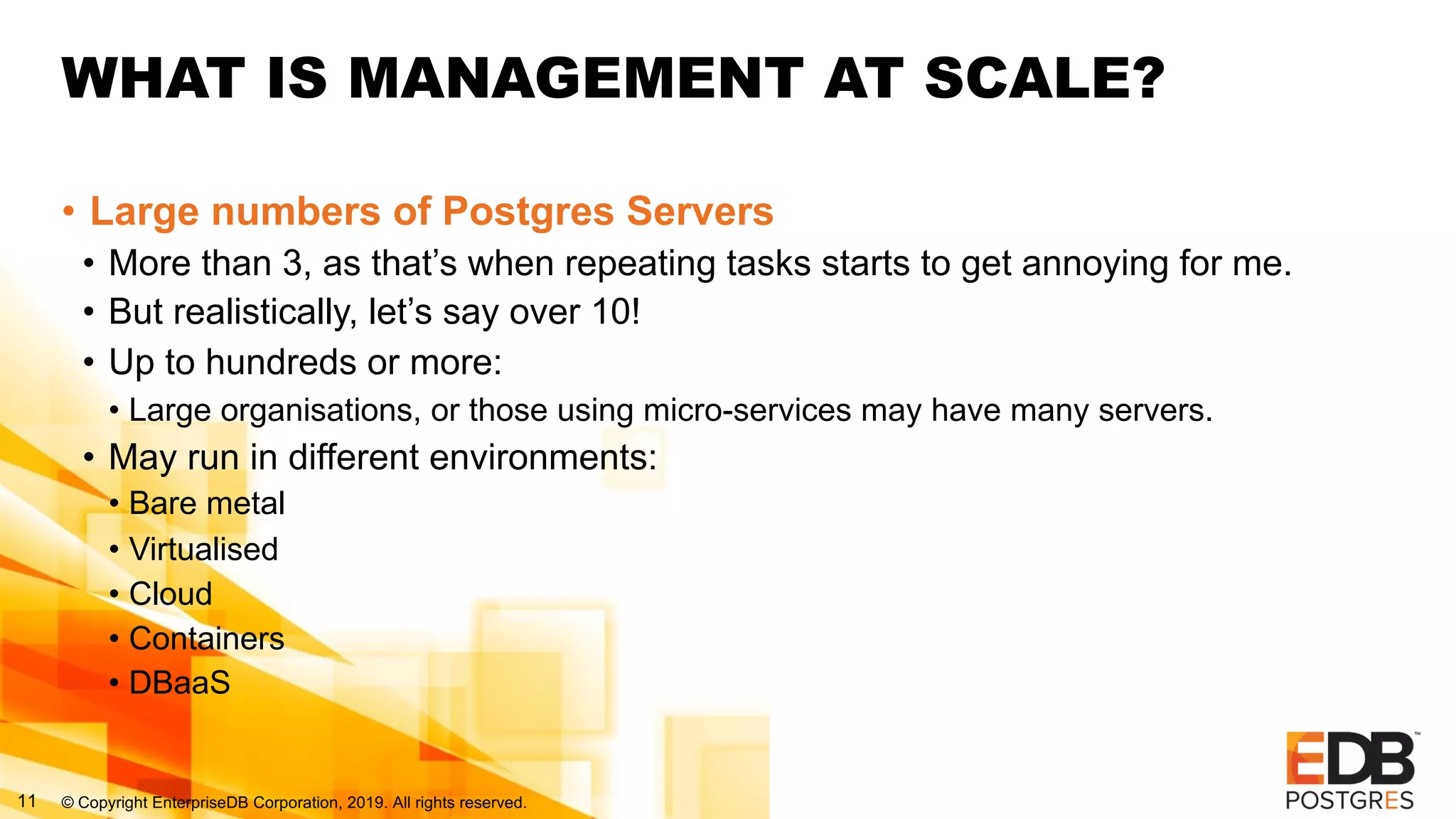

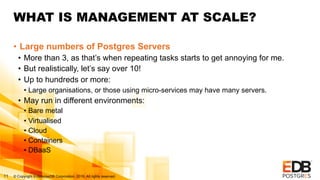

WHAT IS MANAGEMENT AT SCALE?
• Large numbers of Postgres Servers
• More than 3, as that’s when repeating tasks starts to get annoying for me.
• But realistically, let’s say over 10!
• Up to hundreds or more:
• Large organisations, or those using micro-services may have many servers.
• May run in different environments:
• Bare metal
• Virtualised
• Cloud
• Containers
• DBaaS

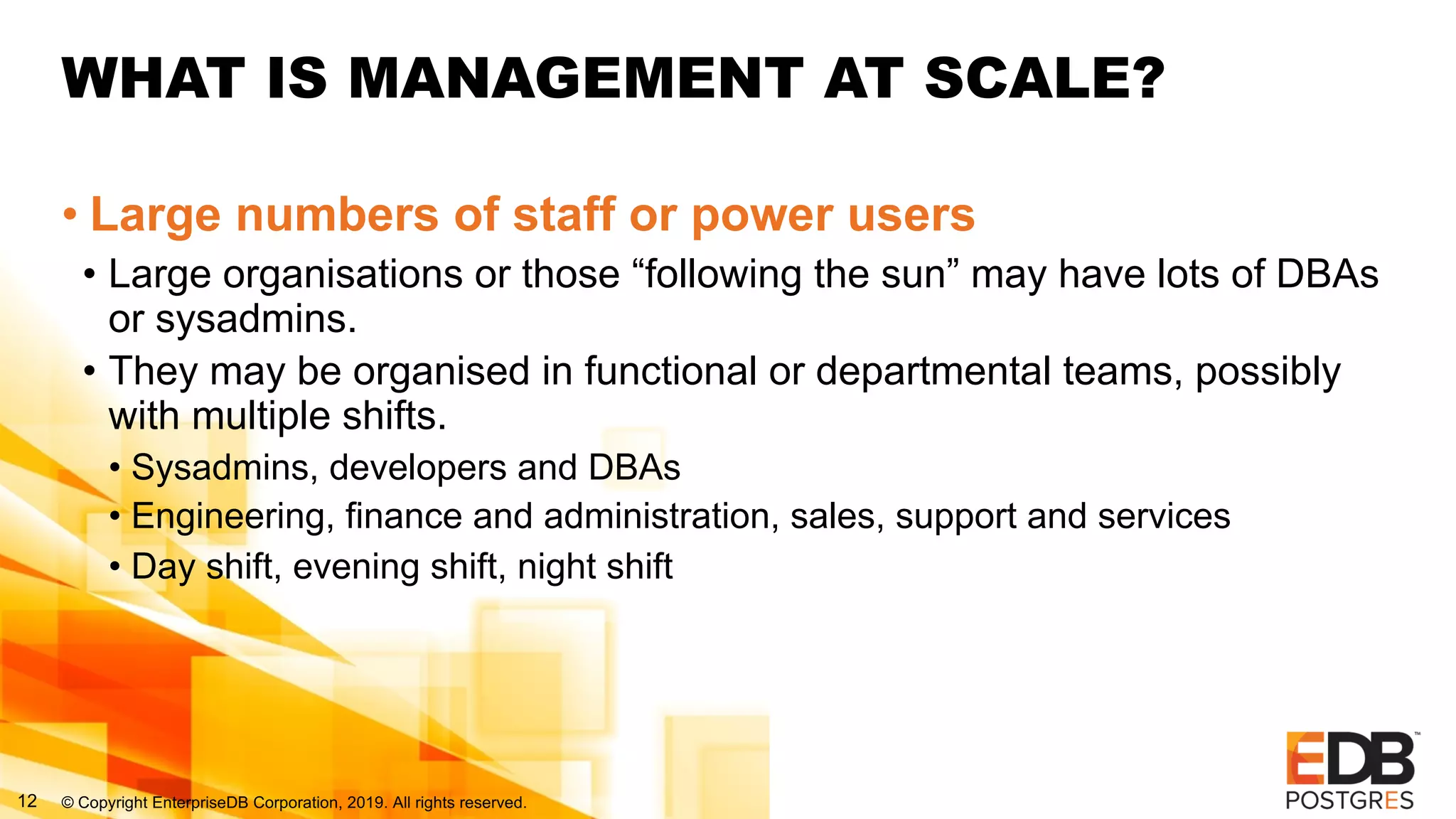

• Large numbers of staff or power users
• Large organisations or those “following the sun” may have lots of DBAs
or sysadmins.
• They may be organised in functional or departmental teams, possibly
with multiple shifts.
• Sysadmins, developers and DBAs
• Engineering, finance and administration, sales, support and services
• Day shift, evening shift, night shift

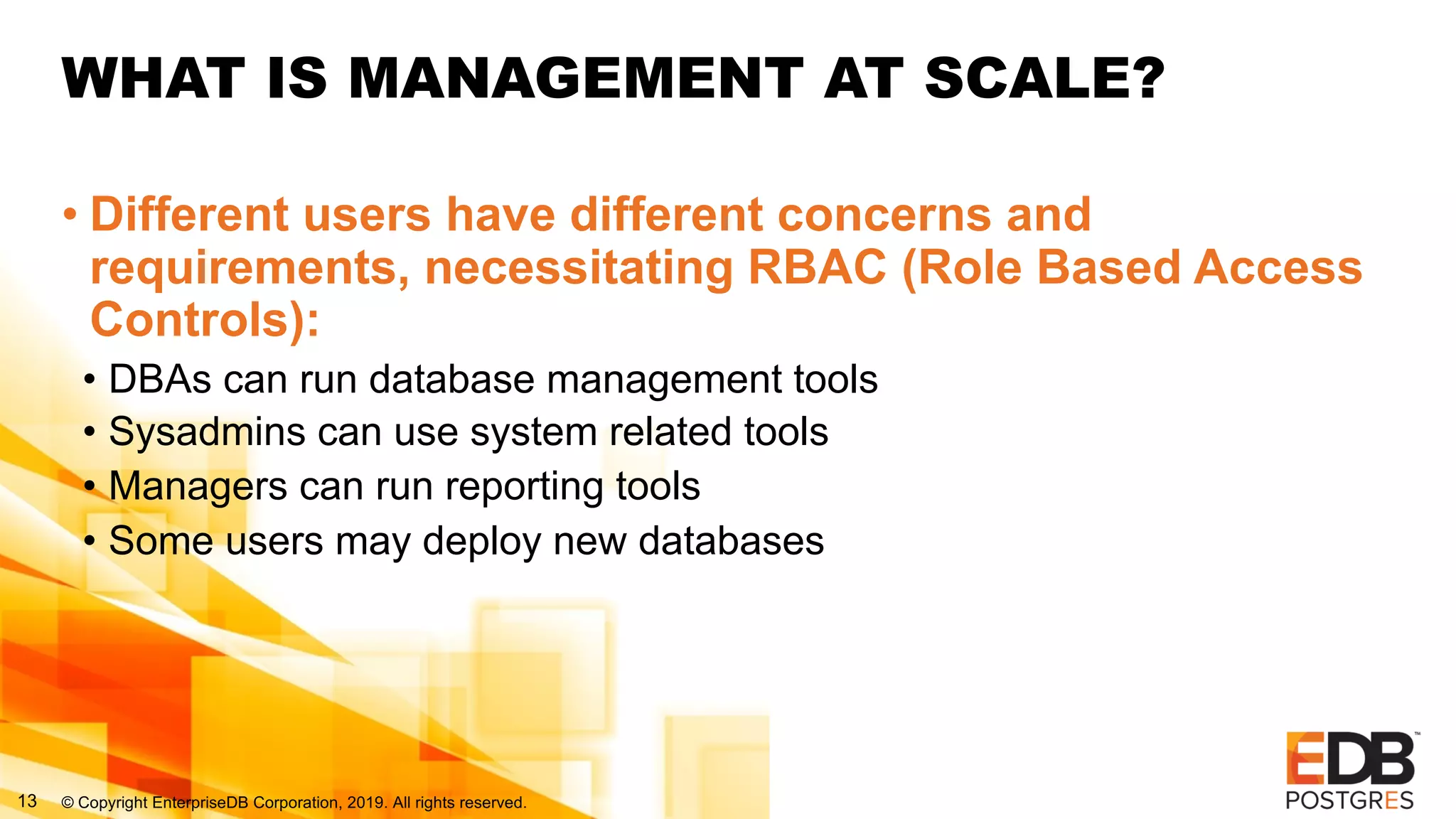

• Different users have different concerns and
requirements, necessitating RBAC (Role Based Access
Controls):
• DBAs can run database management tools
• Sysadmins can use system related tools
• Managers can run reporting tools
• Some users may deploy new databases

SCALING THE TEAM

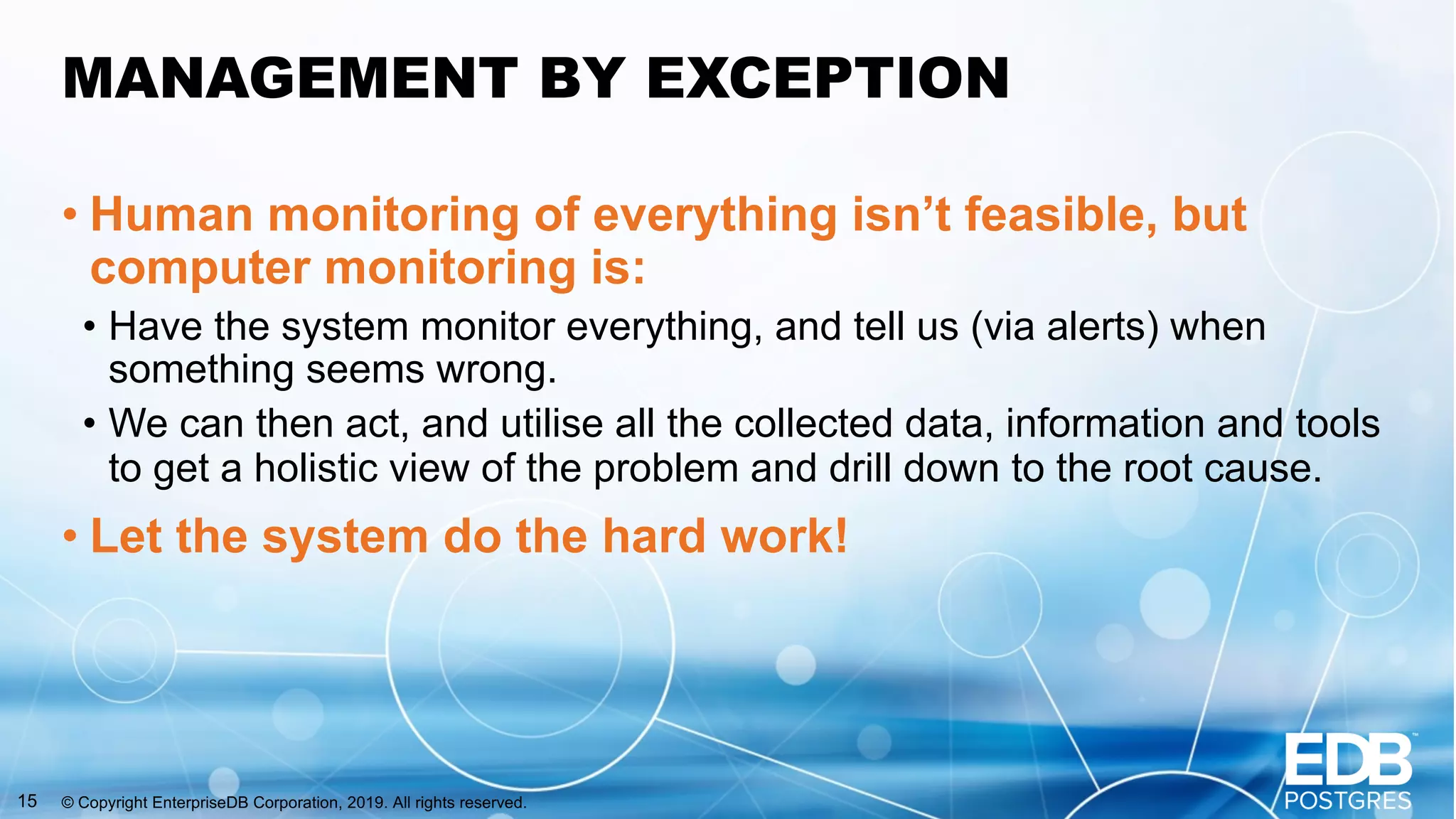

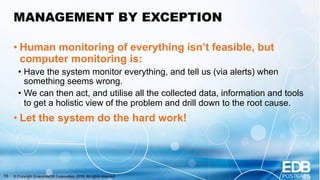

MANAGEMENT BY EXCEPTION
• Human monitoring of everything isn’t feasible, but
computer monitoring is:
• Have the system monitor everything, and tell us (via alerts) when
something seems wrong.
• We can then act, and utilise all the collected data, information and tools
to get a holistic view of the problem and drill down to the root cause.
• Let the system do the hard work!

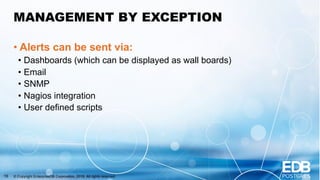

MANAGEMENT BY EXCEPTION
• Alerts can be sent via:
• Dashboards (which can be displayed as wall boards)
• Email
• SNMP
• Nagios integration
• User defined scripts

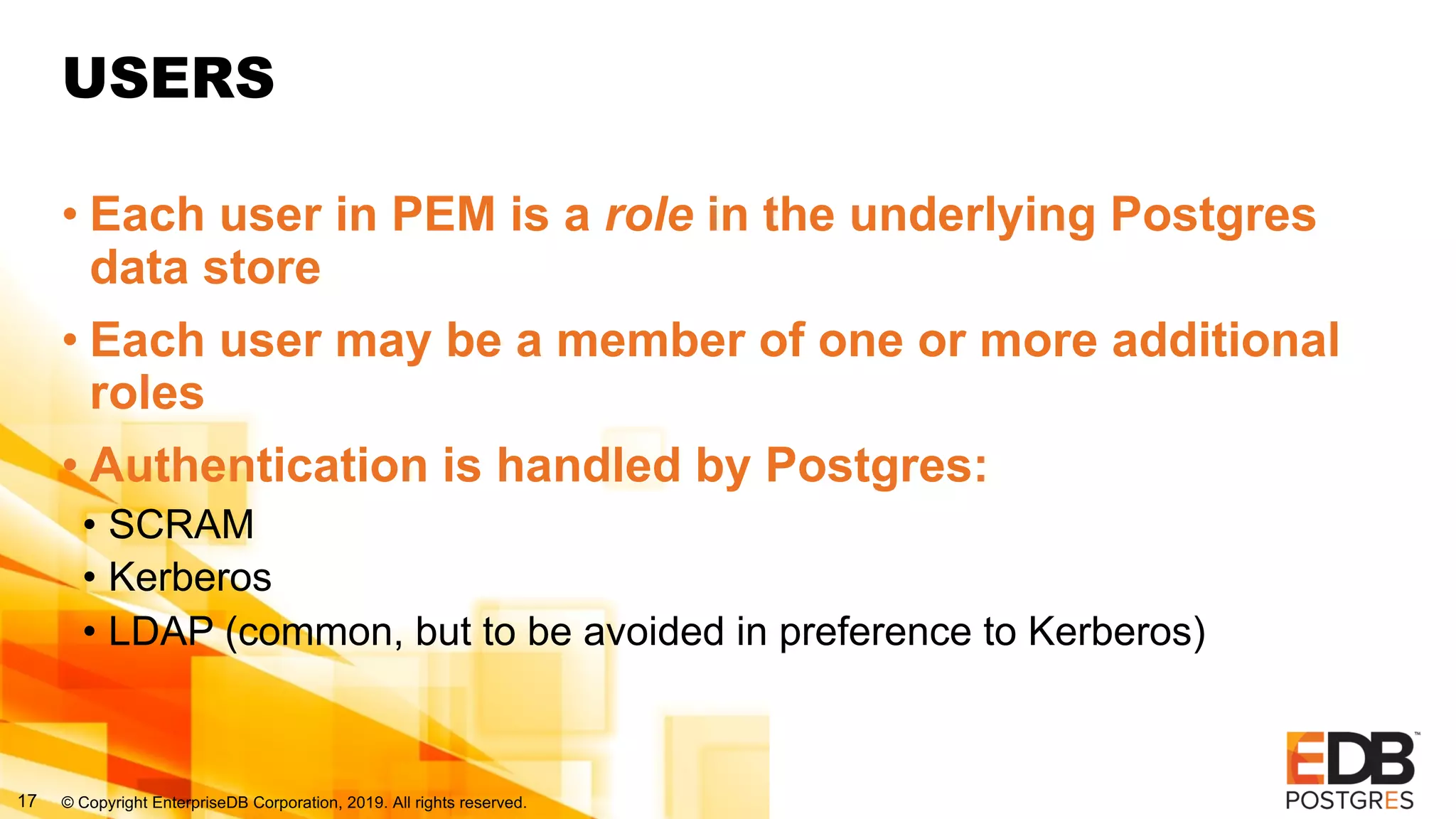

USERS
• Each user in PEM is a role in the underlying Postgres
data store
• Each user may be a member of one or more additional
roles
• Authentication is handled by Postgres:
• SCRAM
• Kerberos
• LDAP (common, but to be avoided in preference to Kerberos)

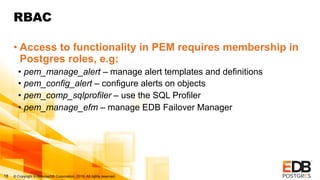

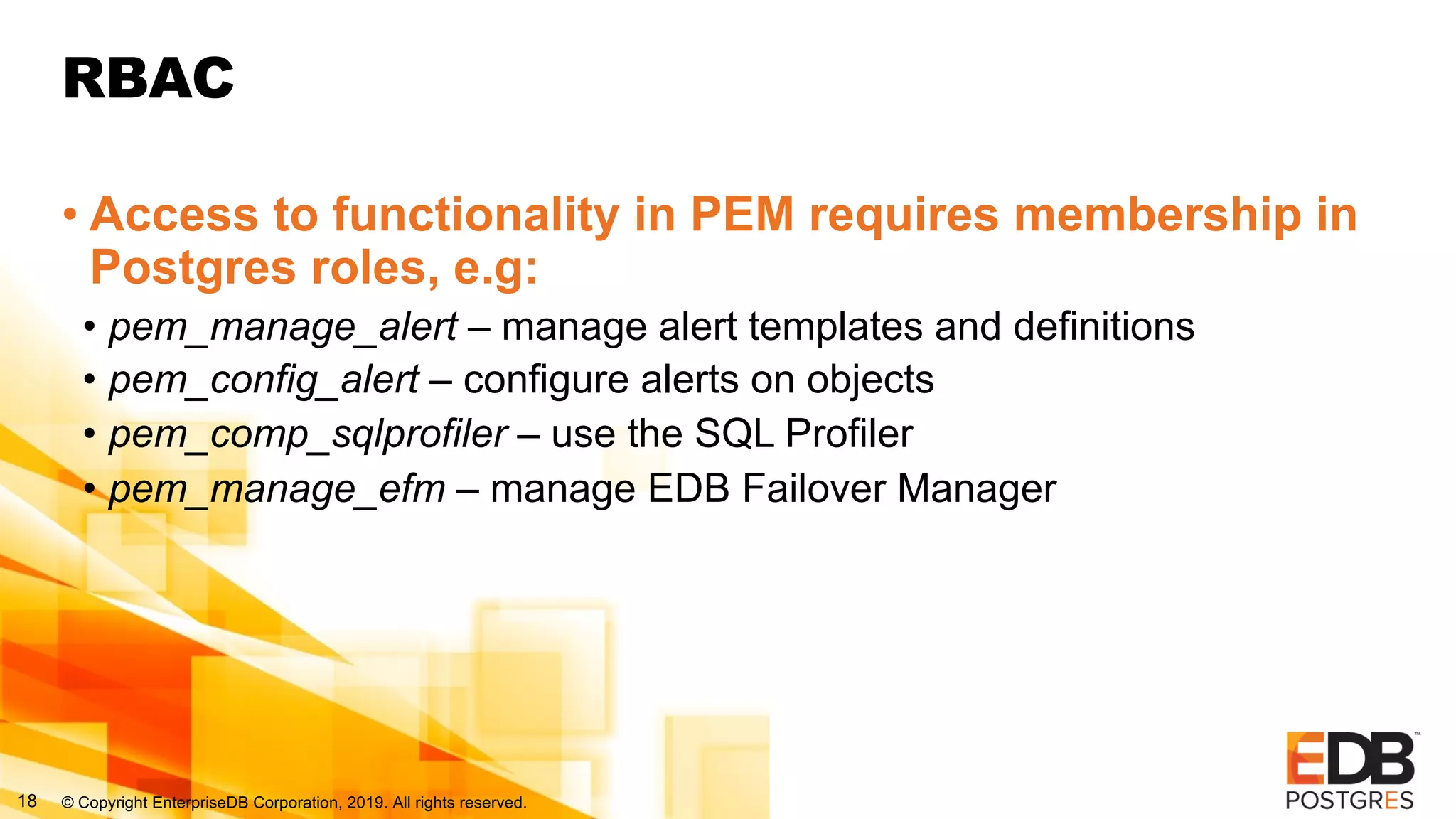

RBAC
• Access to functionality in PEM requires membership in
Postgres roles, e.g:
• pem_manage_alert – manage alert templates and definitions
• pem_config_alert – configure alerts on objects
• pem_comp_sqlprofiler – use the SQL Profiler
• pem_manage_efm – manage EDB Failover Manager

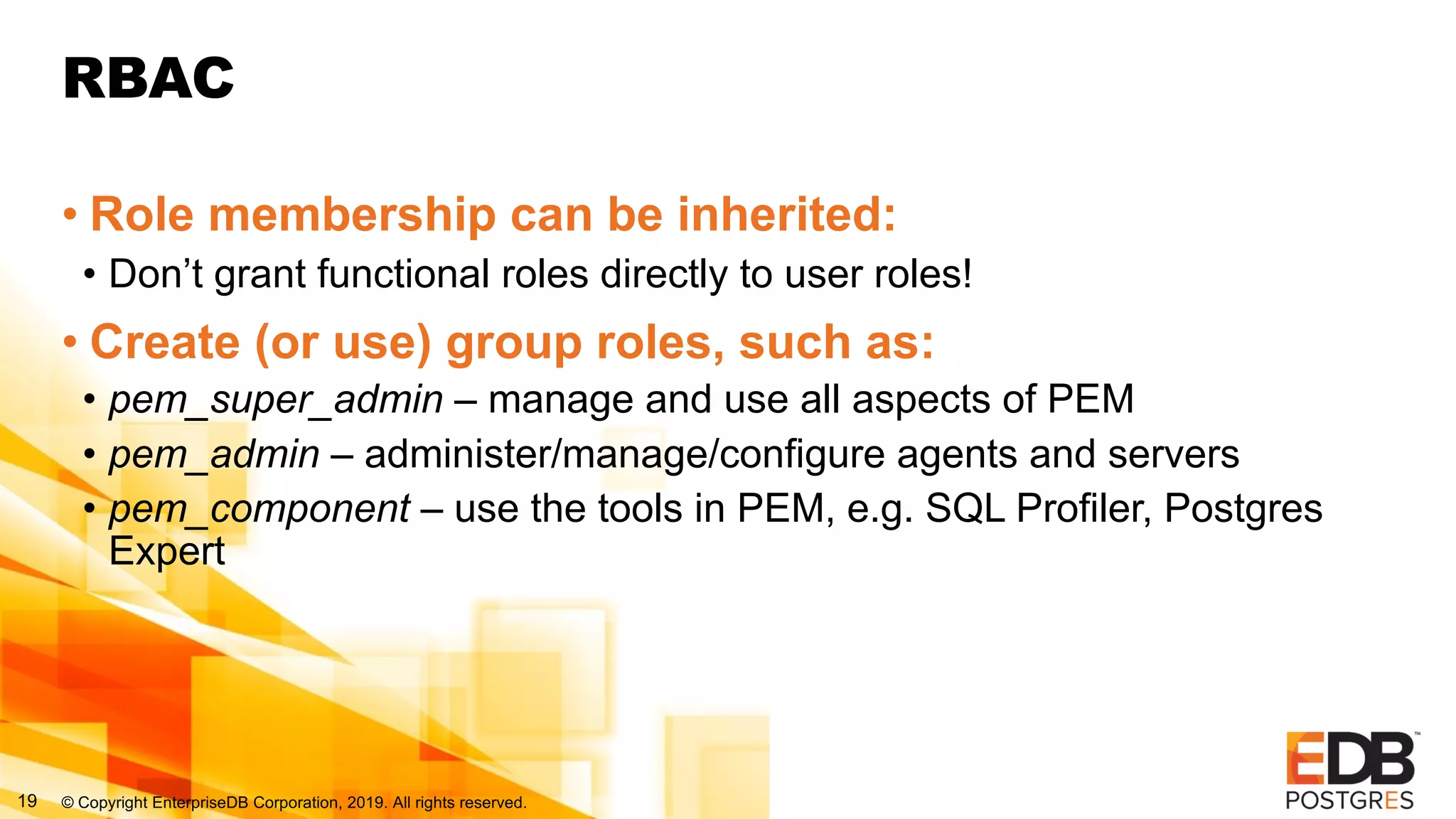

RBAC
• Role membership can be inherited:
• Don’t grant functional roles directly to user roles!
• Create (or use) group roles, such as:
• pem_super_admin – manage and use all aspects of PEM
• pem_admin – administer/manage/configure agents and servers
• pem_component – use the tools in PEM, e.g. SQL Profiler, Postgres
Expert

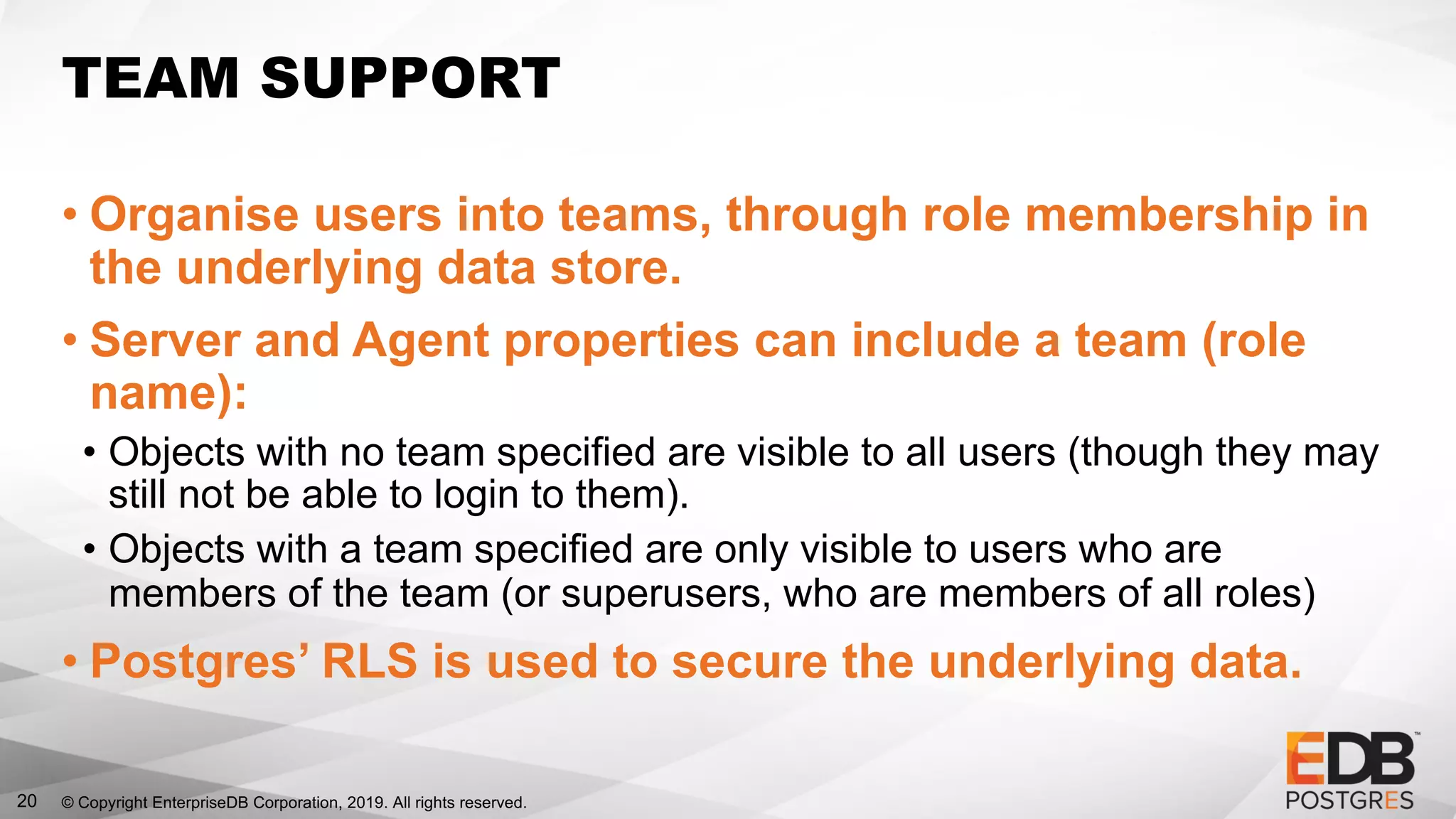

TEAM SUPPORT
• Organise users into teams, through role membership in
the underlying data store.
• Server and Agent properties can include a team (role
name):
• Objects with no team specified are visible to all users (though they may
still not be able to login to them).
• Objects with a team specified are only visible to users who are
members of the team (or superusers, who are members of all roles)
• Postgres’ RLS is used to secure the underlying data.

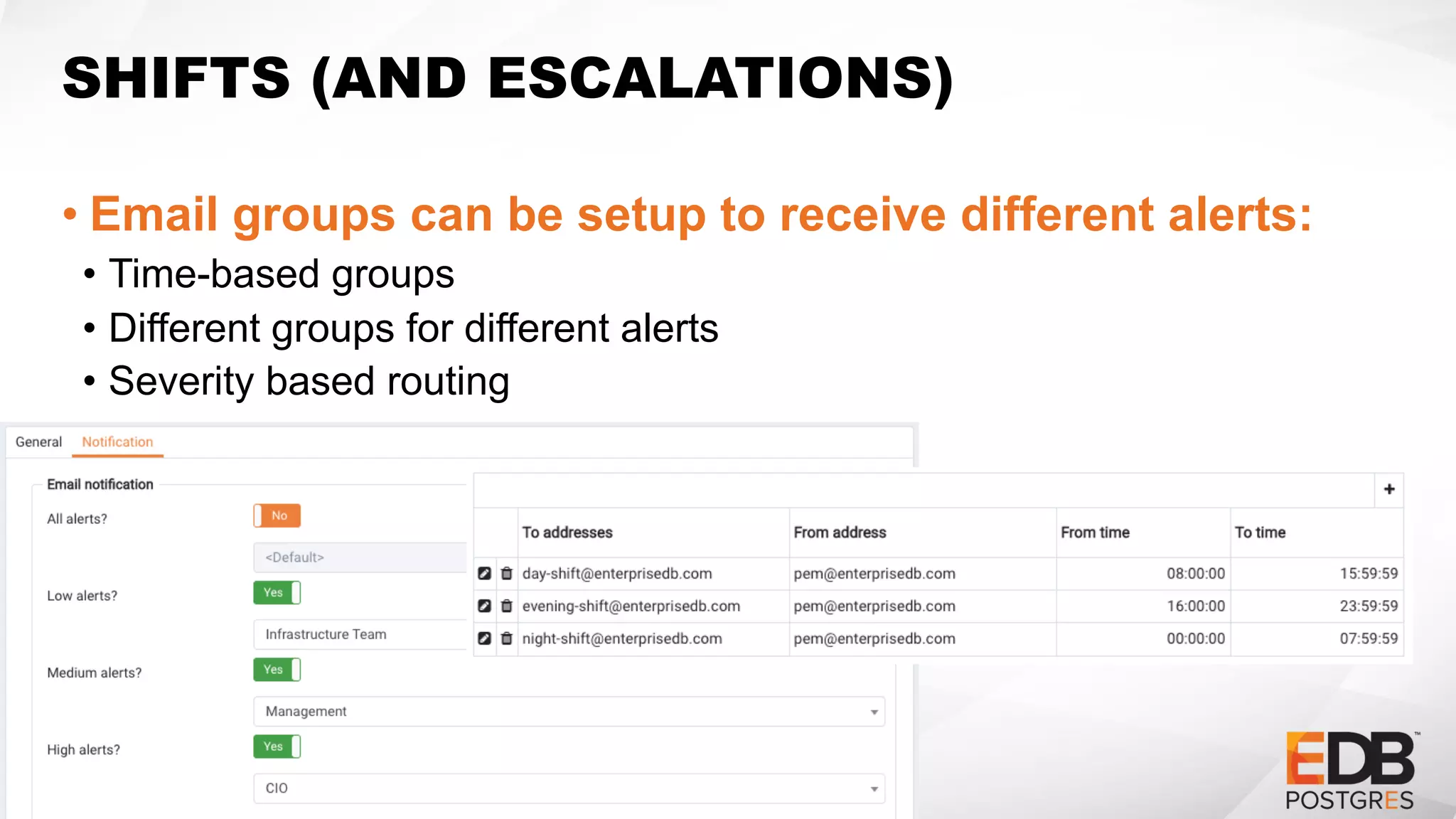

SHIFTS (AND ESCALATIONS)
• Email groups can be setup to receive different alerts:
• Time-based groups
• Different groups for different alerts
• Severity based routing

SCALING THE INFRASTRUCTURE ESTATE

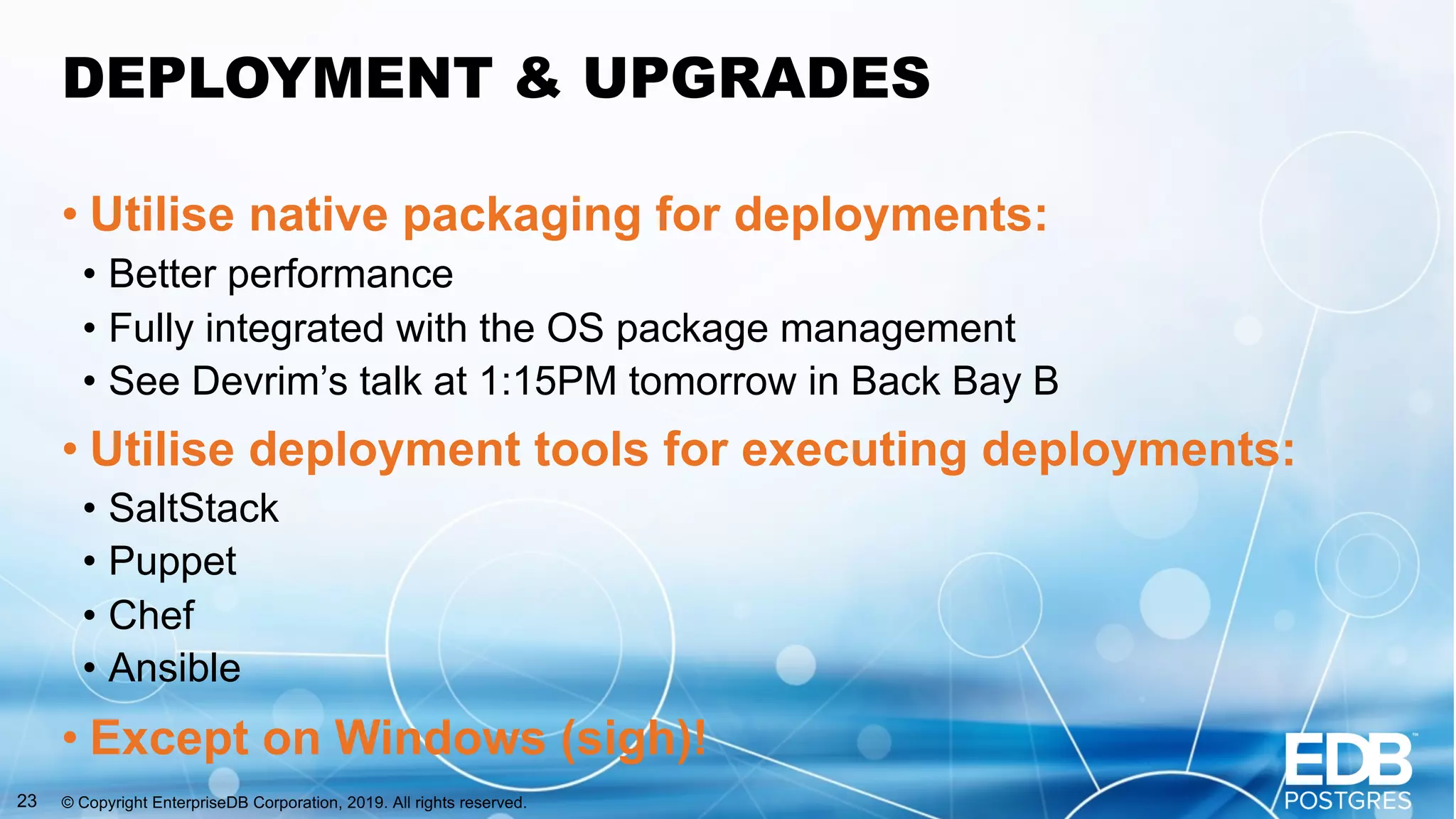

DEPLOYMENT & UPGRADES
• Utilise native packaging for deployments:
• Better performance
• Fully integrated with the OS package management
• See Devrim’s talk at 1:15PM tomorrow in Back Bay B
• Utilise deployment tools for executing deployments:
• SaltStack
• Puppet
• Chef
• Ansible
• Except on Windows (sigh)!

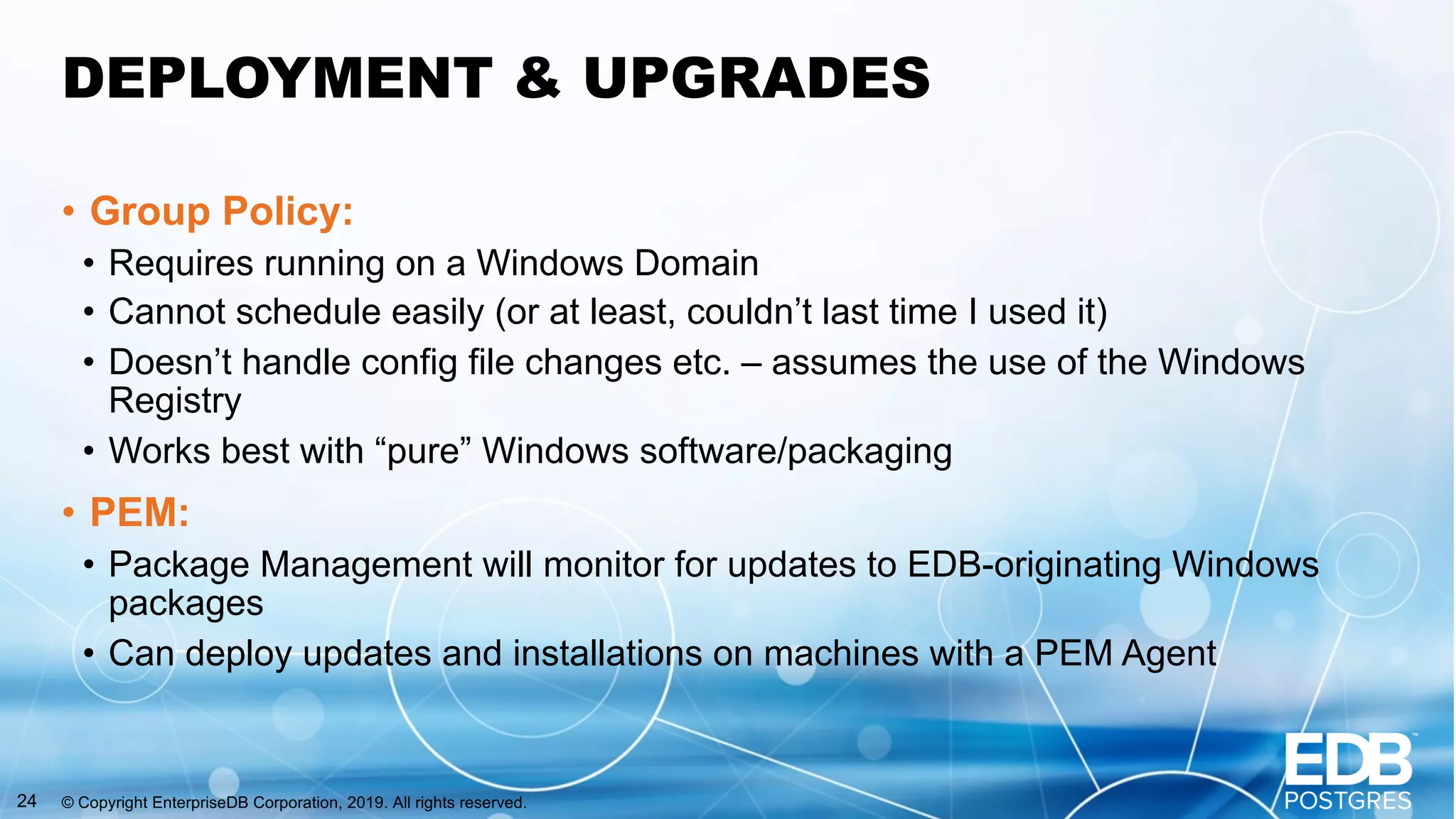

DEPLOYMENT & UPGRADES
• Group Policy:
• Requires running on a Windows Domain
• Cannot schedule easily (or at least, couldn’t last time I used it)
• Doesn’t handle config file changes etc. – assumes the use of the Windows
Registry
• Works best with “pure” Windows software/packaging
• PEM:
• Package Management will monitor for updates to EDB-originating Windows
packages
• Can deploy updates and installations on machines with a PEM Agent

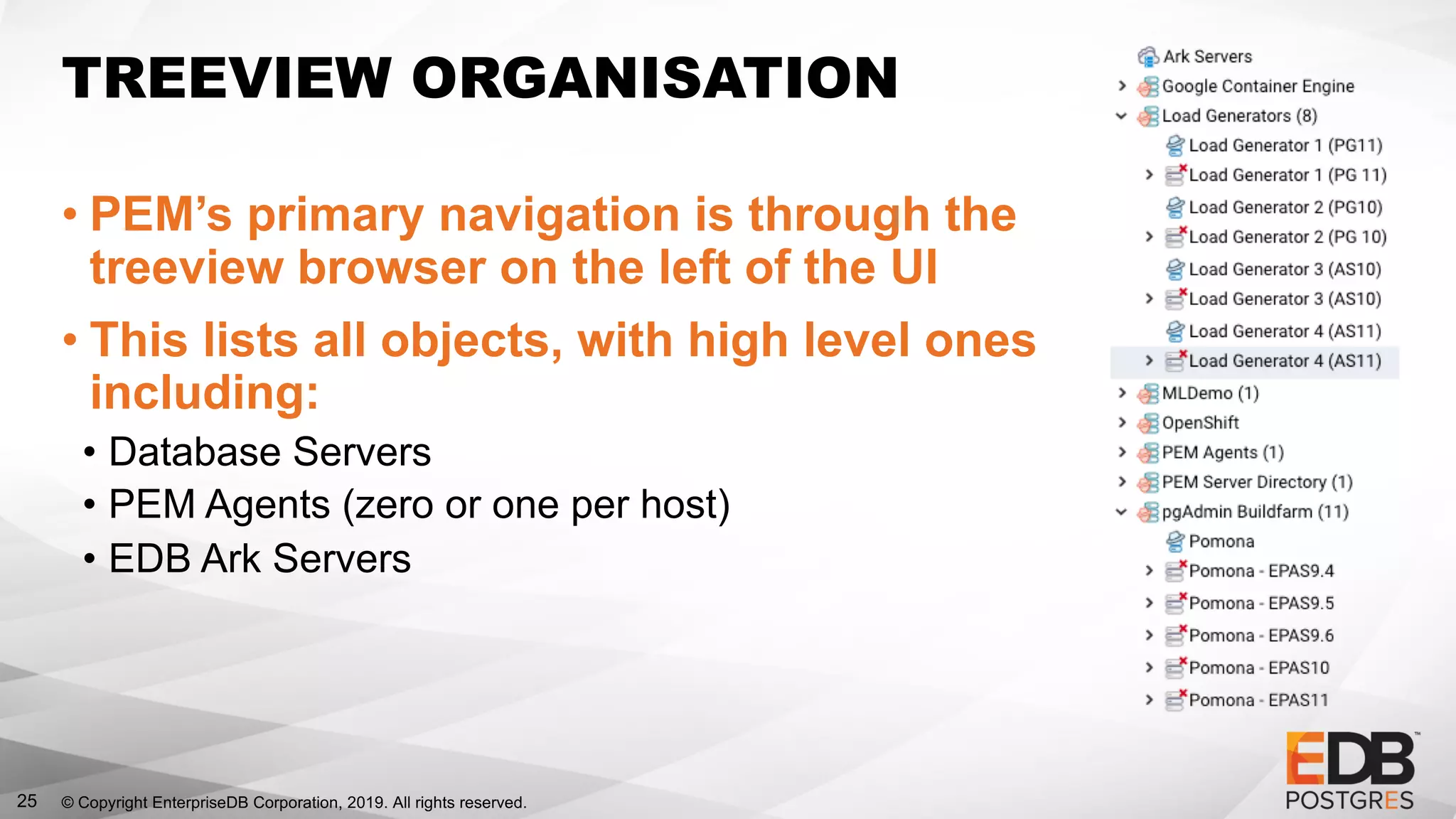

TREEVIEW ORGANISATION
• PEM’s primary navigation is through the
treeview browser on the left of the UI
• This lists all objects, with high level ones
including:
• Database Servers
• PEM Agents (zero or one per host)
• EDB Ark Servers

• Organise objects into logical
groups to suit your needs:
• Development vs. Production
• AWS vs. Azure vs. Google Cloud
• Finance vs. HR vs. Engineering
• K8s vs. Openshift vs. Cloud vs. Metal

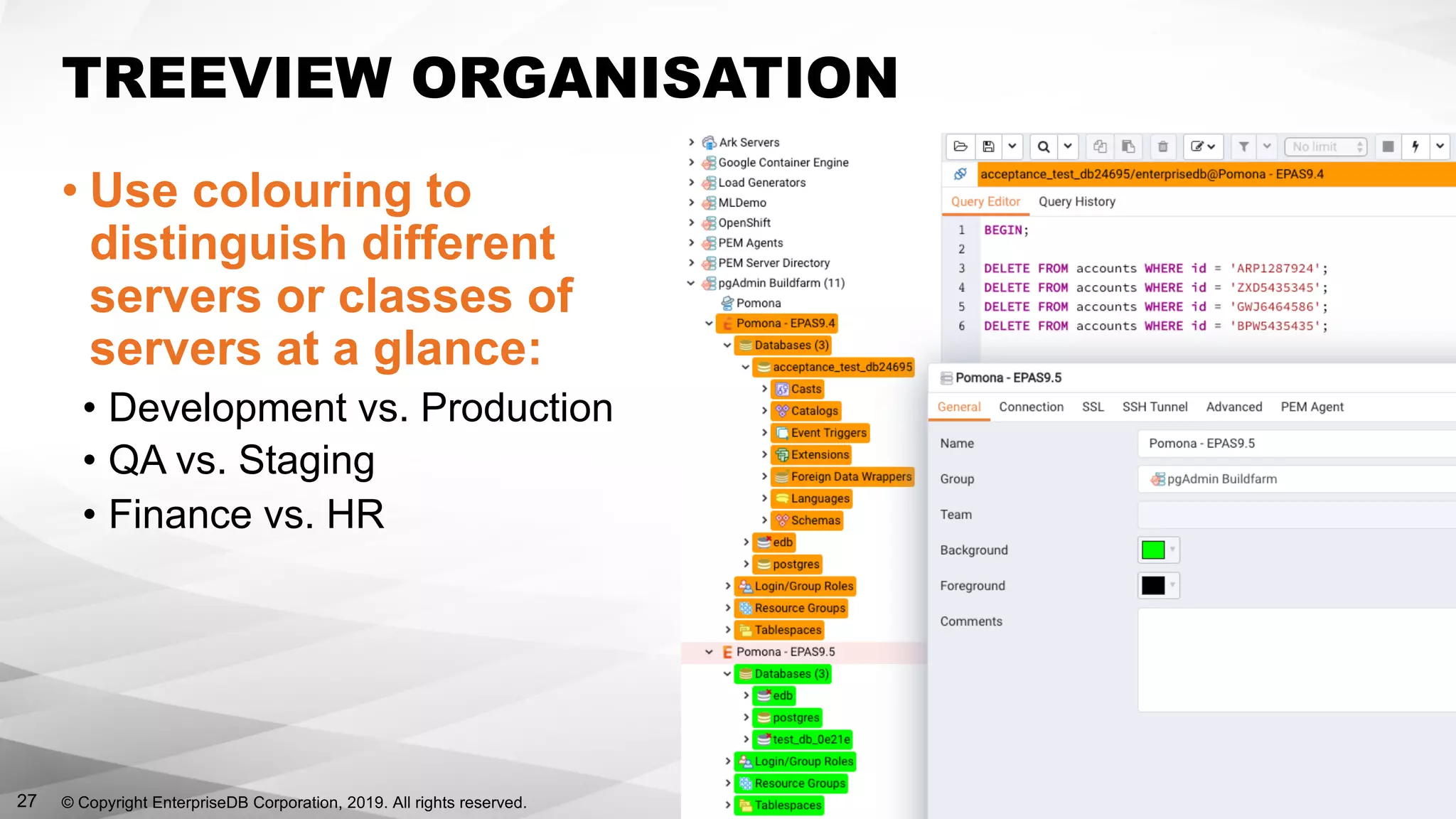

• Use colouring to
distinguish different
servers or classes of
servers at a glance:
• Development vs. Production
• QA vs. Staging
• Finance vs. HR

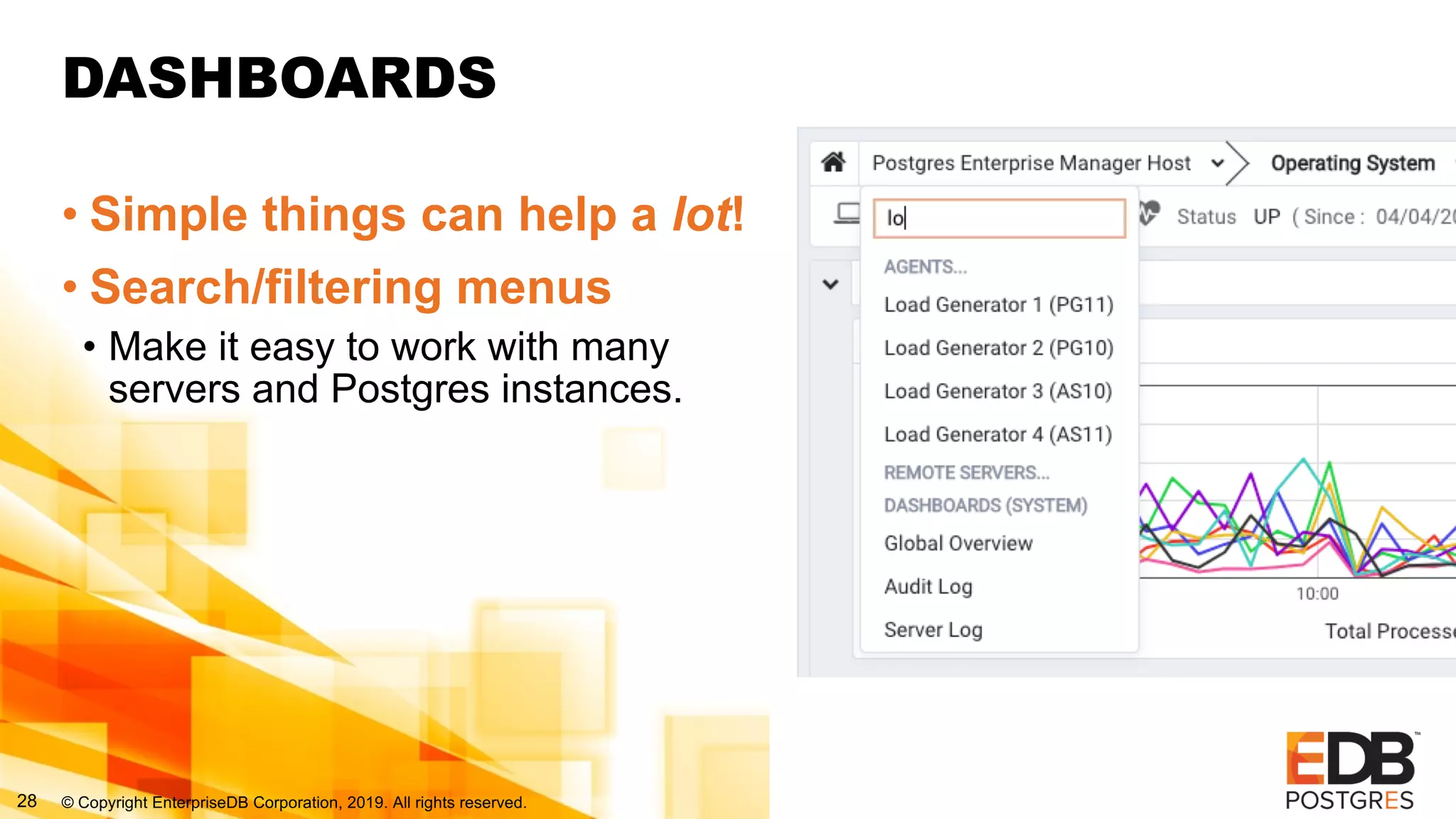

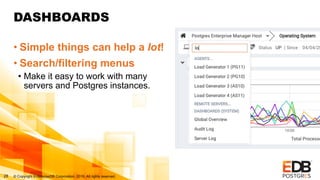

DASHBOARDS
• Simple things can help a lot!
• Search/filtering menus
• Make it easy to work with many
servers and Postgres instances.

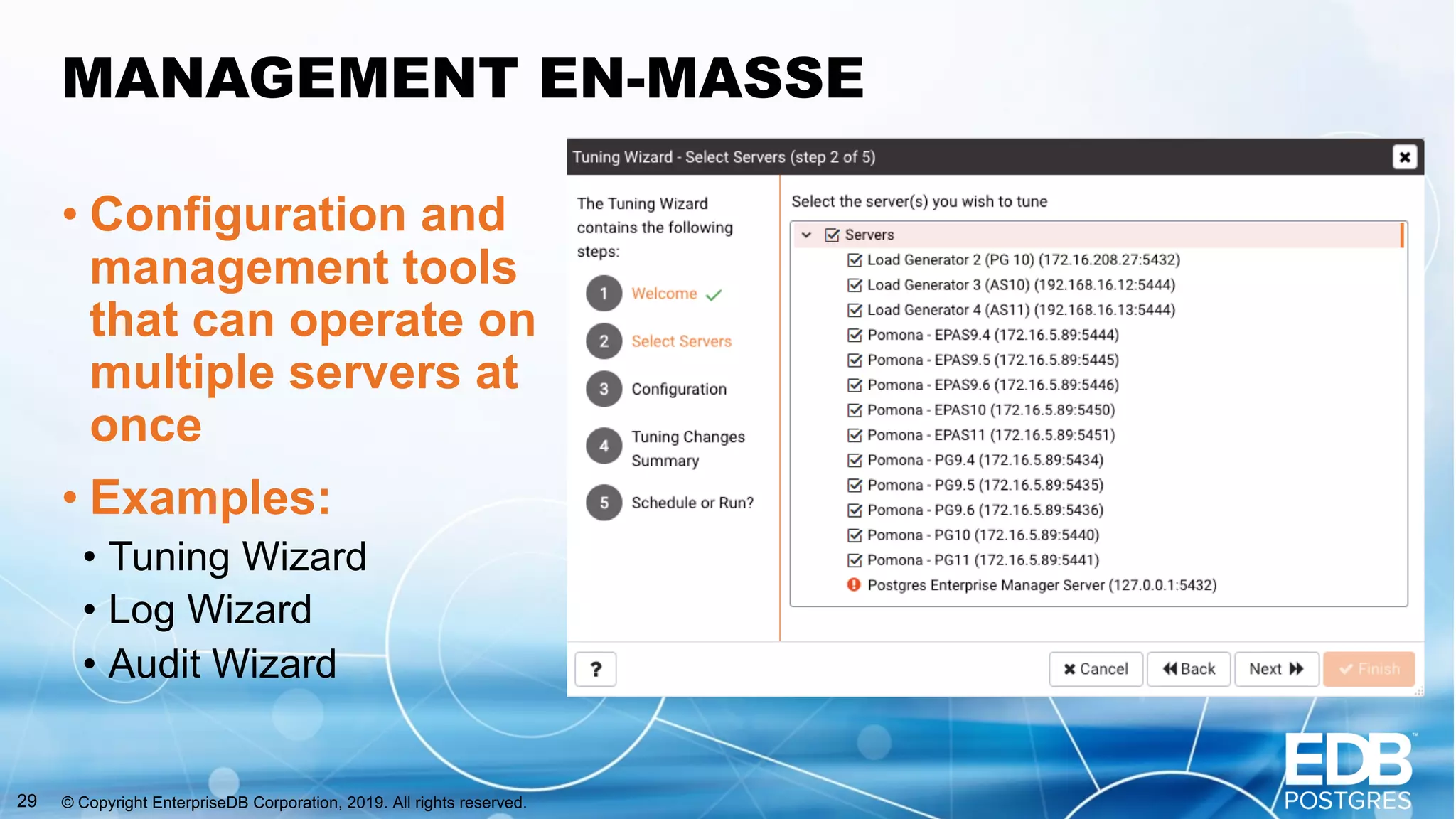

MANAGEMENT EN-MASSE
• Configuration and
management tools
that can operate on
multiple servers at
once
• Examples:
• Tuning Wizard
• Log Wizard
• Audit Wizard

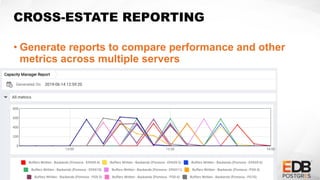

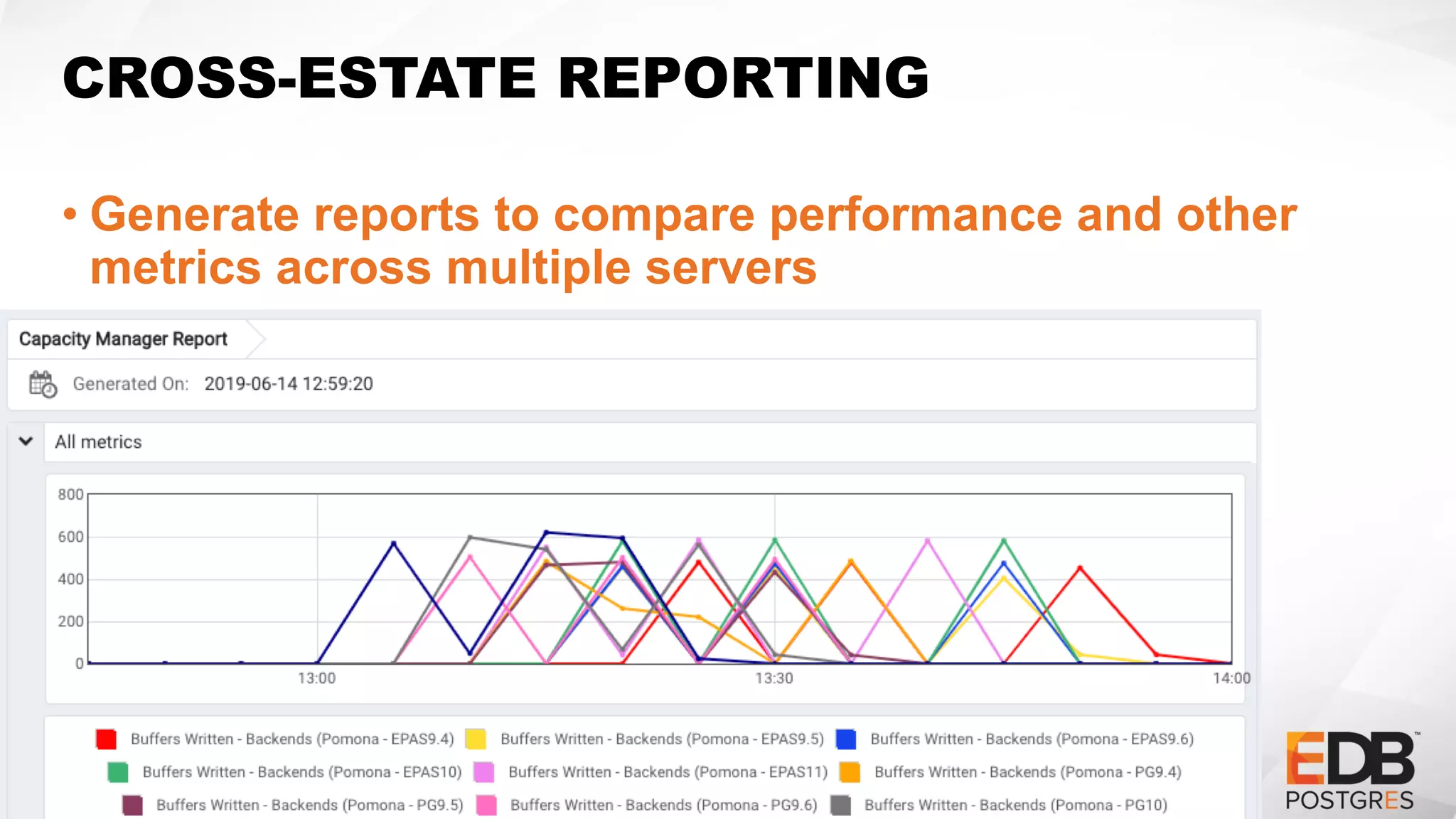

CROSS-ESTATE REPORTING
• Generate reports to compare performance and other
metrics across multiple servers

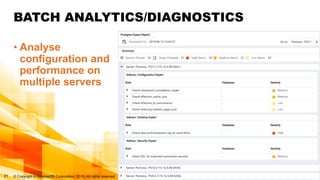

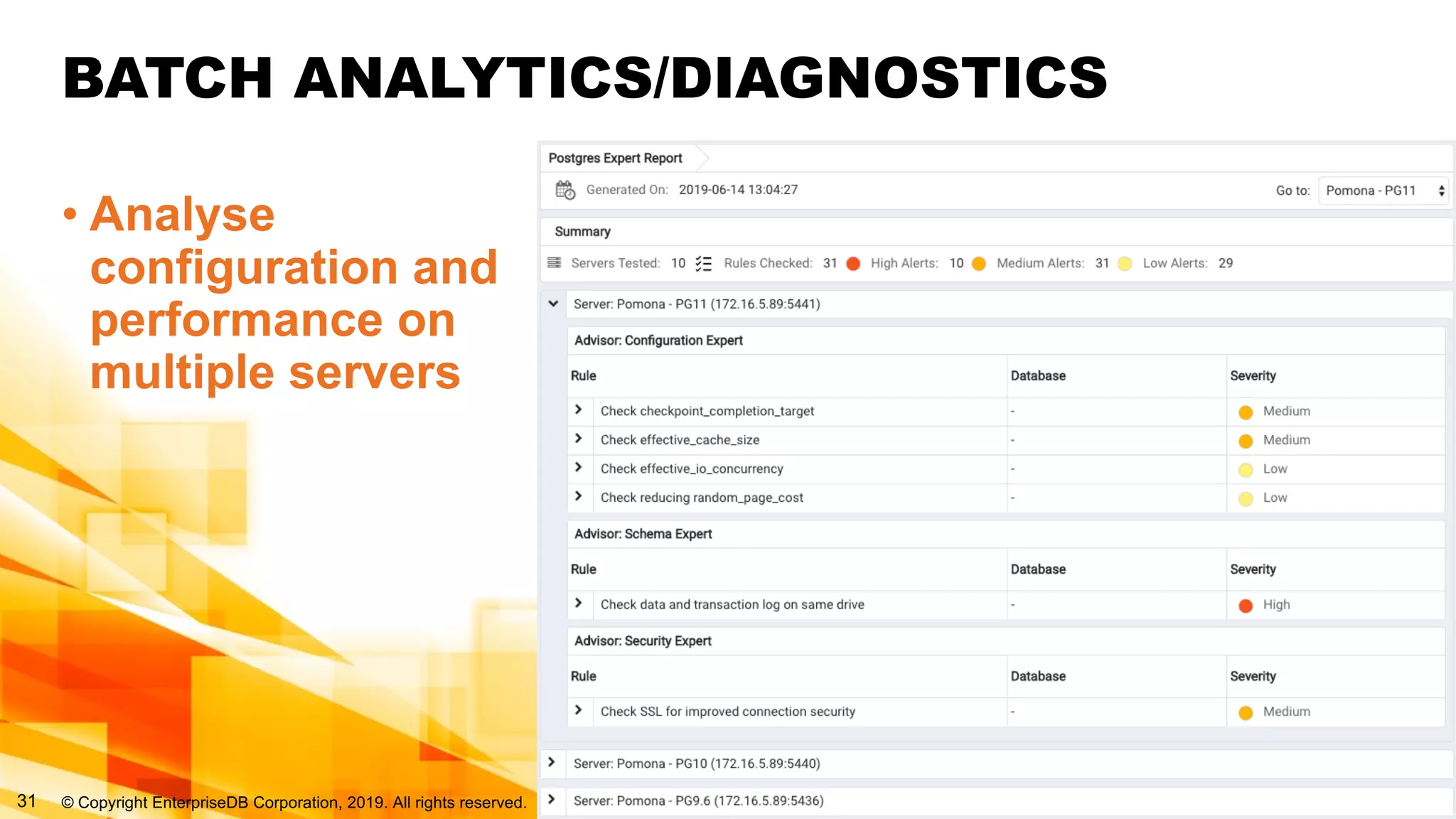

BATCH ANALYTICS/DIAGNOSTICS
• Analyse
configuration and
performance on
multiple servers

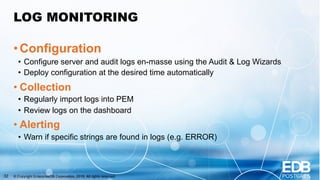

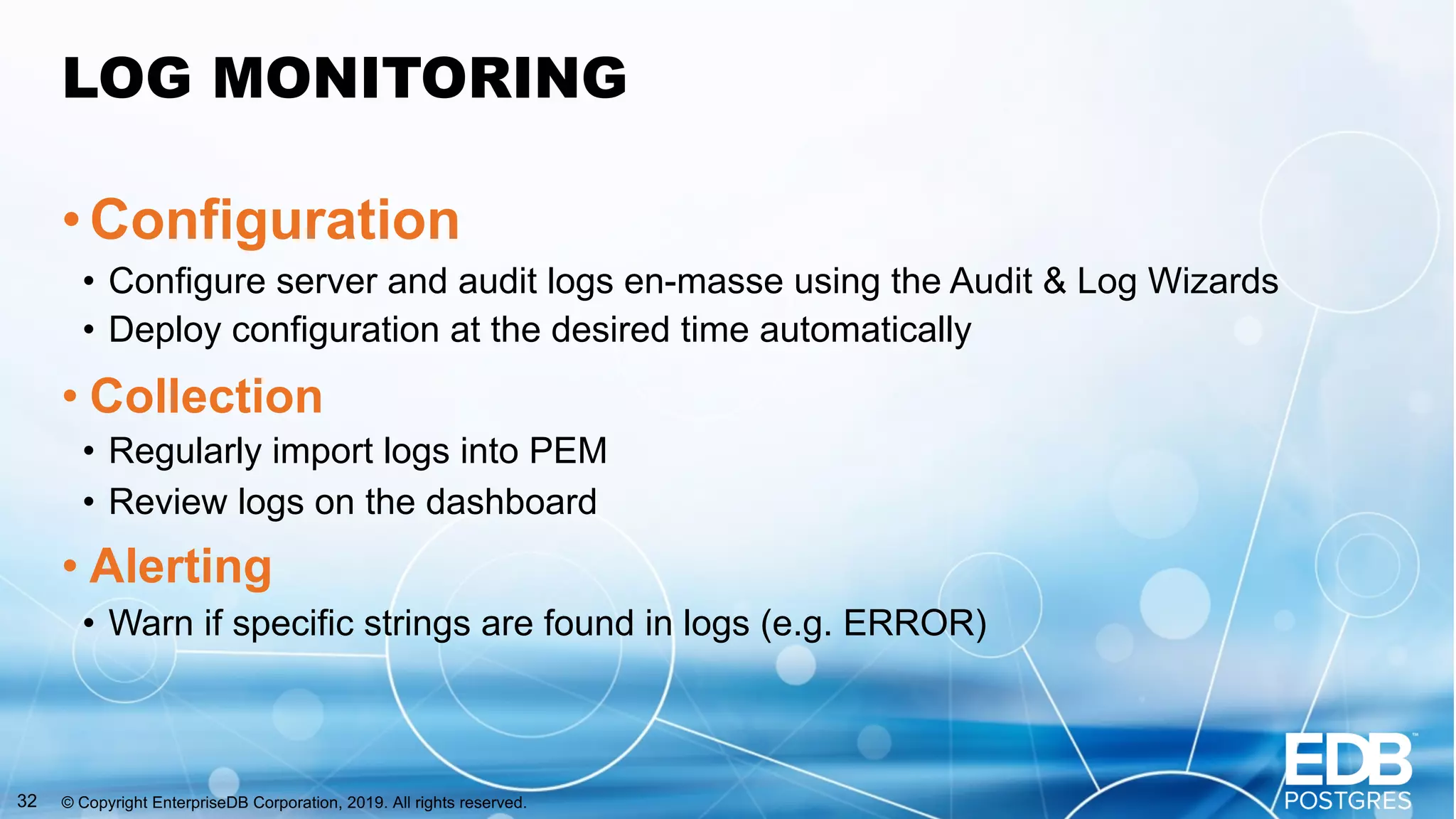

LOG MONITORING
•Configuration
• Configure server and audit logs en-masse using the Audit & Log Wizards
• Deploy configuration at the desired time automatically
• Collection
• Regularly import logs into PEM
• Review logs on the dashboard
• Alerting
• Warn if specific strings are found in logs (e.g. ERROR)

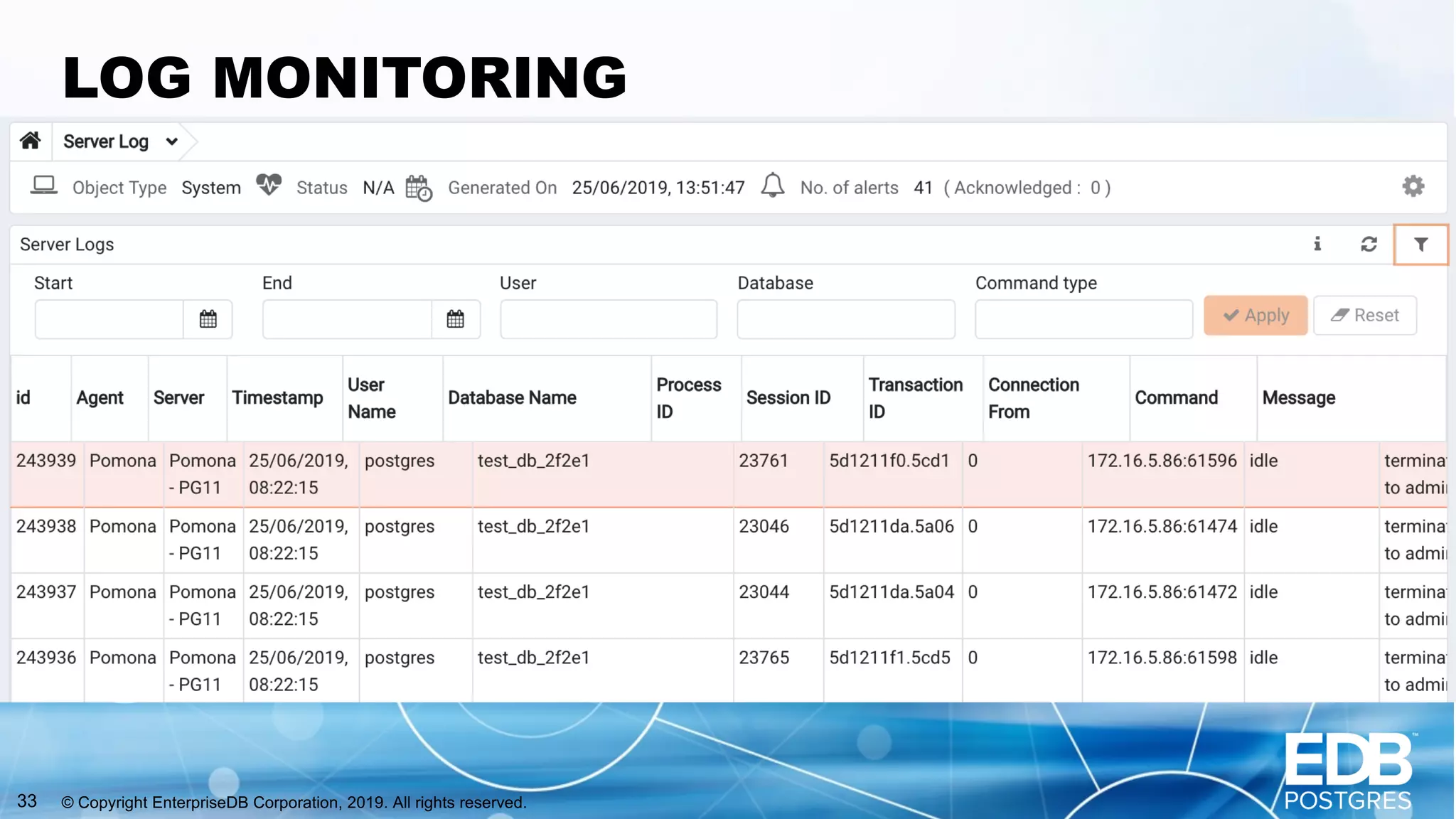

LOG MONITORING

CONCLUSIONS

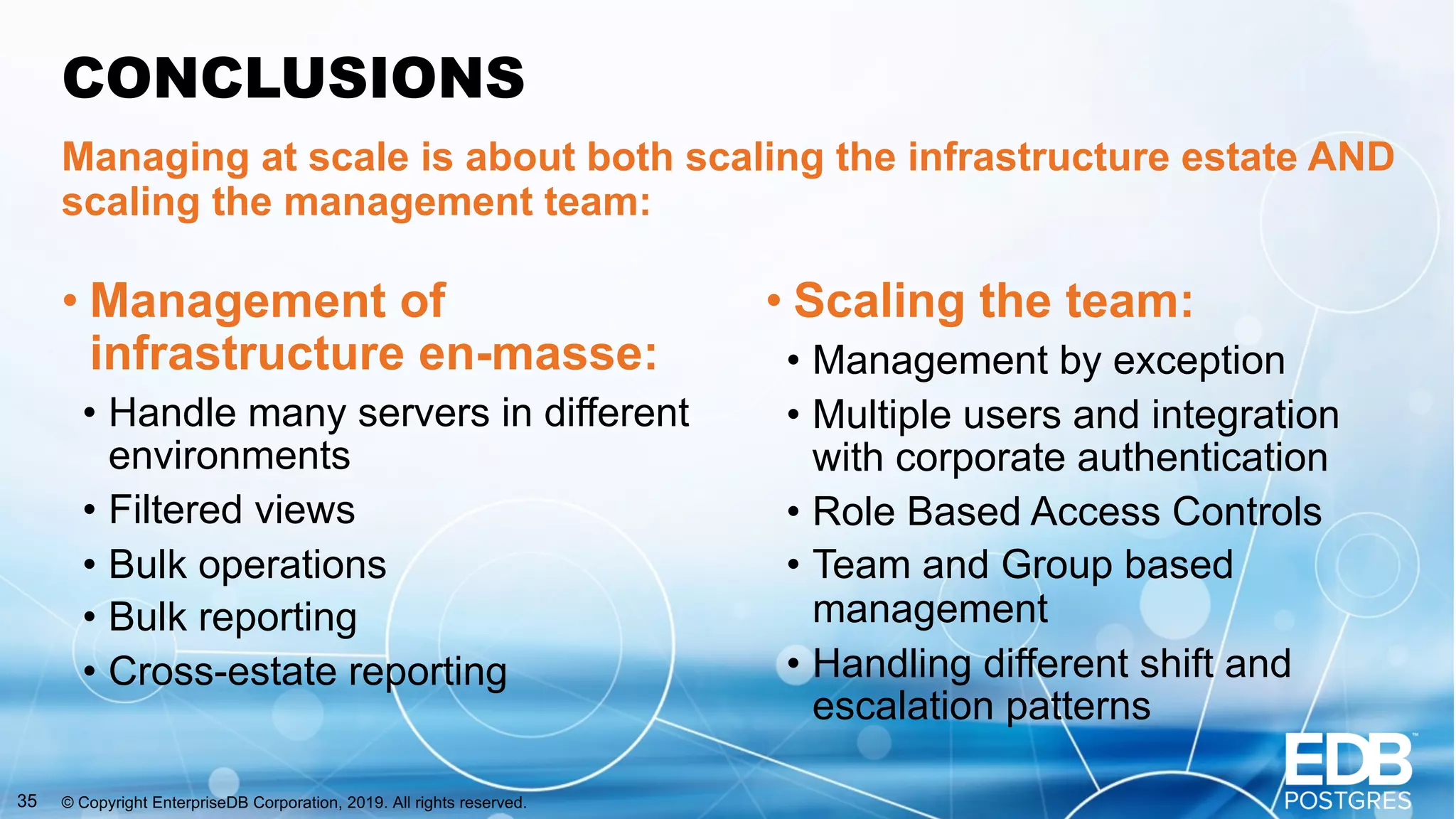

CONCLUSIONS
Managing at scale is about both scaling the infrastructure estate AND
scaling the management team:
• Management of
infrastructure en-masse:
• Handle many servers in different
environments
• Filtered views
• Bulk operations
• Bulk reporting
• Cross-estate reporting
• Scaling the team:
• Management by exception
• Multiple users and integration
with corporate authentication
• Role Based Access Controls
• Team and Group based
management
• Handling different shift and
escalation patterns

QUESTIONS & DISCUSSION
36

THANK YOU
info@enterprisedb.com
www.enterprisedb.com
37
