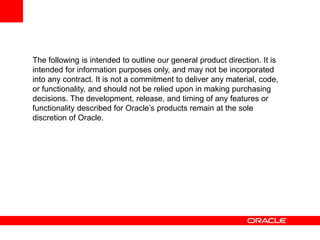

2. The following is intended to outline our general product direction. It is
intended for information purposes only, and may not be incorporated
into any contract. It is not a commitment to deliver any material, code,
or functionality, and should not be relied upon in making purchasing
decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remain at the sole
discretion of Oracle.

3. <Insert Picture Here>
Optimized Data Protection and Archival
Better ROI Through Tiered Storage

4. Information is Exploding…
Causing customers to rethink data management
MASSIVE DATA GROWTH
60% compound annual growth
rate.1 1,200 Extabytes of data
will be generated in 2010.2
HETEROGENEOUS
ENVIRONMENTS
Multi-application/OS/location
data sources need to be
consolidated and managed.
RESOURCE CONSTRAINTS
Purchasing, power, space and
cooling costs all need
containment.
LEGAL REQUIREMENTS
Severe penalties for data loss
and extremely lengthy
retention requirements.
Source: 1) The Economist 2010. 2) IDC 2008
4

5. 5
Aligning the value of data with the cost of storage is more important than ever
Sources: 1) Merrill Lynch 2, 5) © 2007 Jupiter Media Corporation and The StorageIO Group, Report to Congress on Server and Data Energy Efficiency
(08/2007) 3, 4, 6, 8) IDC. 7) Gartner Graphic: ESG, Gartner, IDC

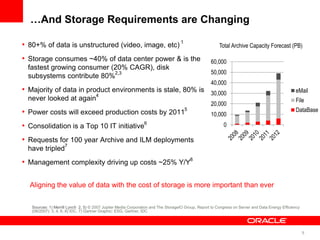

…And Storage Requirements are Changing
• 80+% of data is unstructured (video, image, etc)
1
• Storage consumes ~40% of data center power & is the
fastest growing consumer (20% CAGR), disk
subsystems contribute 80%
2,3
• Majority of data in product environments is stale, 80% is
never looked at again
4
• Power costs will exceed production costs by 2011
5
• Consolidation is a Top 10 IT initiative
6
• Requests for 100 year Archive and ILM deployments
have tripled
7
• Management complexity driving up costs ~25% Y/Y
8
0
10,000
20,000
30,000
40,000
50,000
60,000
eMail
File
DataBase
Total Archive Capacity Forecast (PB)

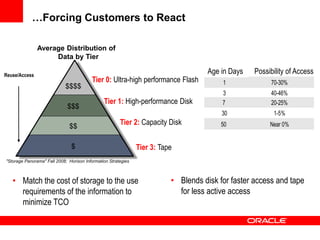

6. Age in Days Probability of Re-reference
1 70-30%
3 40-46%
7 20-25%
30 1-5%
50 Near 0%
Tier 0: Ultra-high performance Flash
Tier 1: High-performance Disk
Tier 2: Capacity Disk
Tier 3: Tape
Average Distribution of
Data by Tier
Reuse/Access
…Forcing Customers to React
• Match the cost of storage to the use
requirements of the information to
minimize TCO
• Blends disk for faster access and tape
for less active access
"Storage Panorama" Fall 2008; Horison Information Strategies
Age in Days Possibility of Access
$$$$
$$$
$$
$

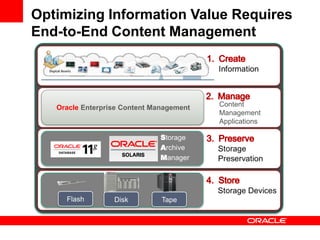

7. Optimizing Information Value Requires
End-to-End Content Management
Storage
Archive
Manager
Flash TapeDisk
Content
Management
Applications
Oracle Enterprise Content Management

8. Flash TapeDisk
Content
Management
Applications
Oracle Enterprise Content Management
Storage
Archive
Manager

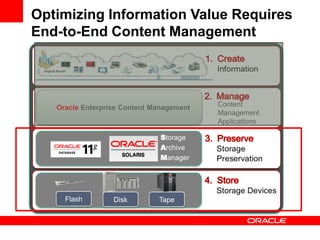

Optimizing Information Value Requires
End-to-End Content Management

9. Likelihoodofaccess
High
Low
Data Lifecycle
Just created Long term retention
Access Time
Cost
Capacity
Flash
Cost
Capacity
Access Disk Capacity Disk
Cost
Capacity
Access Time
Access Tape
Cost
Capacity
Capacity Tape
Capacity
Cost
Access Time Access Time Access Time

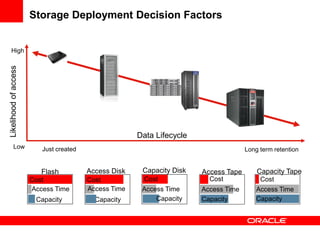

Storage Deployment Decision Factors

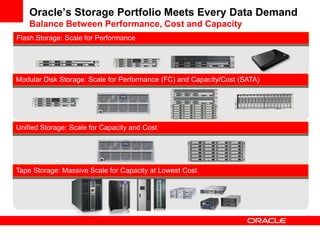

10. Unified Storage: Scale for Capacity and Cost
Modular Disk Storage: Scale for Performance (FC) and Capacity/Cost (SATA)
Flash Storage: Scale for Performance
Tape Storage: Massive Scale for Capacity at Lowest Cost
Oracle‟s Storage Portfolio Meets Every Data Demand
Balance Between Performance, Cost and Capacity

11. Technology Price per GB Predictions
Tape‟s Cost Advantage Is Increasing

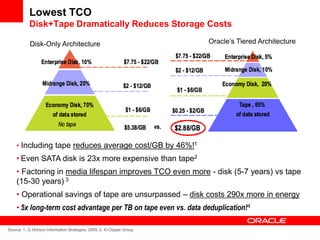

12. Oracle’s Tiered ArchitectureDisk-Only Architecture
• Including tape reduces average cost/GB by 46%!1
• Even SATA disk is 23x more expensive than tape2
• Factoring in media lifespan improves TCO even more - disk (5-7 years) vs tape
(15-30 years) 3
• Operational savings of tape are unsurpassed – disk costs 290x more in energy
• 5x long-term cost advantage per TB on tape even vs. data deduplication!4
Source: 1, 3) Horison Information Strategies, 2009. 2, 4) Clipper Group
Lowest TCO
Disk+Tape Dramatically Reduces Storage Costs

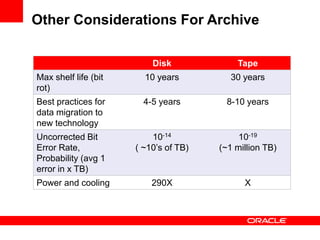

13. Other Considerations For Archive
Disk Tape
Max shelf life (bit
rot)
10 years 30 years
Best practices for
data migration to
new technology
4-5 years 8-10 years
Uncorrected Bit
Error Rate,
Probability (avg 1
error in x TB)
10-14
( ~10’s of TB)
10-19
(~1 million TB)
Power and cooling 290X X

14. Entry
SL8500
VSM
SL3000
SL500
SL24/48
• Best TCO
• Best scalability - consolidation and virtualization
• Industry leading reliability and availability
• Strongest investment protection

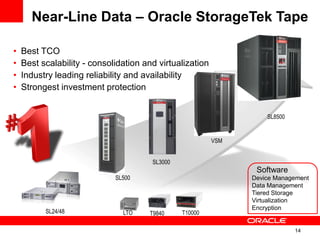

Near-Line Data – Oracle StorageTek Tape
Industry‟s Strongest Tape Portfolio
Software
Device Management
Data Management
Tiered Storage
Virtualization
Encryption
T9840LTO T10000
14

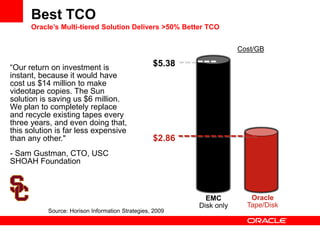

15. Best TCO
Oracle‟s Multi-tiered Solution Delivers >50% Better TCO
“Our return on investment is
instant, because it would have
cost us $14 million to make
videotape copies. The Sun
solution is saving us $6 million.
We plan to completely replace
and recycle existing tapes every
three years, and even doing that,
this solution is far less expensive
than any other."
- Sam Gustman, CTO, USC
SHOAH Foundation
Source: Horison Information Strategies, 2009
Oracle
Tape/Disk
EMC
Disk only
Cost/GB
$2.86
$5.38

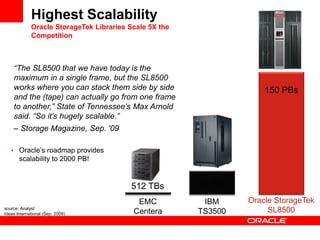

16. Highest Scalability
Oracle StorageTek Libraries Scale 5X the
Competition
EMC
Centerasource: Analyst
Ideas International (Sep. 2009)
“The SL8500 that we have today is the
maximum in a single frame, but the SL8500
works where you can stack them side by side
and the (tape) can actually go from one frame
to another,” State of Tennessee’s Max Arnold
said. “So it’s hugely scalable.”
– Storage Magazine, Sep. '09
IBM
TS3500
Oracle StorageTek
SL8500
30 PBs
150 PBs
512 TBs
• Oracle’s roadmap provides
scalability to 2000 PB!

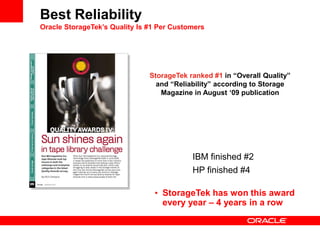

17. StorageTek ranked #1 in “Overall Quality”
and “Reliability” according to Storage
Magazine in August „09 publication
Best Reliability
Oracle StorageTek‟s Quality Is #1 Per Customers
IBM finished #2
HP finished #4
• StorageTek has won this award
every year – 4 years in a row

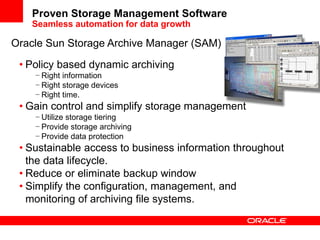

18. • Policy based dynamic archiving
− Right information
− Right storage devices
− Right time.
• Gain control and simplify storage management
− Utilize storage tiering
− Provide storage archiving
− Provide data protection
• Sustainable access to business information throughout
the data lifecycle.
• Reduce or eliminate backup window
• Simplify the configuration, management, and
monitoring of archiving file systems.
Proven Storage Management Software
Seamless automation for data growth
Oracle Sun Storage Archive Manager (SAM)

19. Database Backup Architectures
Performance, Scalability, Reliability
Reference
Architecture
Database Backup

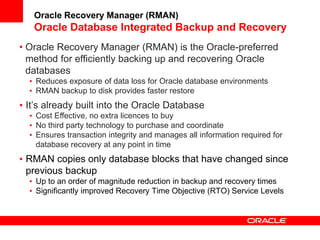

20. • Oracle Recovery Manager (RMAN) is the Oracle-preferred
method for efficiently backing up and recovering Oracle
databases
• Reduces exposure of data loss for Oracle database environments
• RMAN backup to disk provides faster restore
• It’s already built into the Oracle Database
• Cost Effective, no extra licences to buy
• No third party technology to purchase and coordinate
• Ensures transaction integrity and manages all information required for
database recovery at any point in time
• RMAN copies only database blocks that have changed since
previous backup
• Up to an order of magnitude reduction in backup and recovery times
• Significantly improved Recovery Time Objective (RTO) Service Levels
Oracle Recovery Manager (RMAN)
Oracle Database Integrated Backup and Recovery

21. • Simplifies all of the different operations, copies, and locations of files
• Assists in keeping track of the state of all these various backup
images as well as their locations
• Assists in making the decision that particular backup information
has become obsolete and can therefore be safely retired
• Makes recovery for the DBA much simpler since RMAN keeps track
of all of the files required for recovery operations
Oracle Recovery Manager (RMAN)
Oracle Database Integrated Backup and Recovery

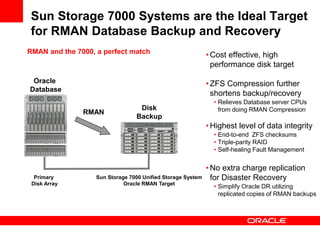

22. Sun Storage 7000 Systems are the Ideal Target
for RMAN Database Backup and Recovery
Oracle
Database
Sun Storage 7000 Unified Storage System
Oracle RMAN Target
Primary
Disk Array
RMAN
Disk
Backup
•Cost effective, high
performance disk target
•ZFS Compression further
shortens backup/recovery
• Relieves Database server CPUs
from doing RMAN Compression
•Highest level of data integrity
• End-to-end ZFS checksums
• Triple-parity RAID
• Self-healing Fault Management
•No extra charge replication
for Disaster Recovery
• Simplify Oracle DR utilizing
replicated copies of RMAN backups
RMAN and the 7000, a perfect match

23. Enterprise Disaster Recovery
•For all critical Oracle environments, best practice is to replicate to a
secondary recovery location
•Multiple copies of the data on disk in separate locations
Oracle
Database
Sun Storage 7000 Unified Storage System
Oracle RMAN Target
Primary
Disk Array
RMAN
Disk
Backup
Replicated
Oracle RMAN Target
Disk
Backup

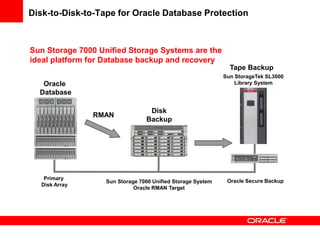

24. Disk-to-Disk-to-Tape for Oracle Database Protection
Oracle
Database
Tape Backup
Sun Storage 7000 Unified Storage System
Oracle RMAN Target
Primary
Disk Array
RMAN
Disk
Backup
Oracle Secure Backup
Sun StorageTek SL3000
Library System
Sun Storage 7000 Unified Storage Systems are the
ideal platform for Database backup and recovery

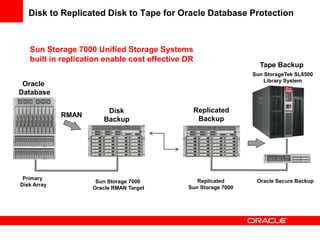

25. Disk to Replicated Disk to Tape for Oracle Database Protection
Oracle
Database
Tape Backup
Sun Storage 7000
Oracle RMAN Target
Primary
Disk Array
RMAN
Disk
Backup
Oracle Secure Backup
Sun StorageTek SL8500
Library System
Sun Storage 7000 Unified Storage Systems
built in replication enable cost effective DR
Replicated
Sun Storage 7000
Replicated
Backup

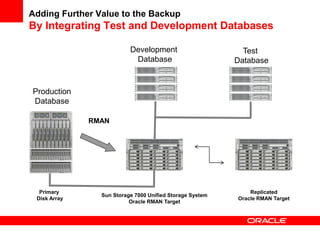

26. Adding Further Value to the Backup
By Integrating Test and Development Databases
Sun Storage 7000 Unified Storage System
Oracle RMAN Target
Primary
Disk Array
RMAN
Replicated
Oracle RMAN Target
Development
Database
Test
Database
Production
Database

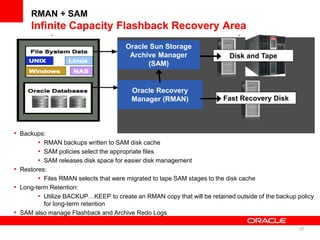

27. RMAN + SAM
Infinite Capacity Flashback Recovery Area
• Backups:
• RMAN backups written to SAM disk cache
• SAM policies select the appropriate files
• SAM releases disk space for easier disk management
• Restores:
• Files RMAN selects that were migrated to tape SAM stages to the disk cache
• Long-term Retention:
• Utilize BACKUP…KEEP to create an RMAN copy that will be retained outside of the backup policy
for long-term retention
• SAM also manage Flashback and Archive Redo Logs
27
Oracle Sun Storage
Archive Manager
(SAM)
Oracle Recovery
Manager (RMAN)
Disk and Tape
Fast Recovery Disk

28. Content & Management Tier
Flash TapeDisk
Content
Management
Applications
Oracle Enterprise Content Management
Storage
Archive
Manager

29. Disk

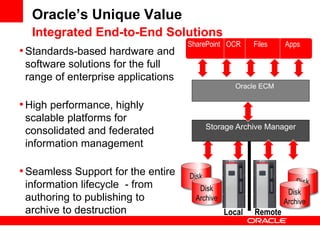

Oracle‟s Unique Value
Integrated End-to-End Solutions
OCR
Disk
Archive
Disk
Disk
Archive
SharePoint Files
Oracle ECM
Storage Archive Manager
Local Remote
Apps
•Standards-based hardware and
software solutions for the full
range of enterprise applications
•High performance, highly
scalable platforms for
consolidated and federated
information management
•Seamless Support for the entire
information lifecycle - from
authoring to publishing to
archive to destruction

30. Core Content Services
A
P
P
L
I
C
A
T
I
O
N
A
D
A
P
T
E
R
S
Capture
Web Content
Mgmt
Imaging
Digital Asset
Mgmt
Document
Mgmt
Information
Rights
Records and
Retention
Oracle Content Management
Oracle Content Management
A Complete, Open and Unified Platform
Capture paper and
electronic
documents
Role-based, multi-lingual
WCM framework to create,
deploy and manage web sites
Certified
integrations
with Oracle
Applications
Store, find,
access and
share digital
assets
Author share
and distribute
documents and
reports
Apply records
management
policies and
practices on
content
Forms
Recognition
Intelligent parsing of
complex forms
Image processing
and workflows
Secure and audit document
access beyond the firewall
In addition to Oracle DB, Oracle ECM
can manage and publish content
stored in other repositories and ECM
systems
Storage and Storage SW
Disk, Tape, Sun Storage
Archive Manager

31. Summary - Oracle‟s Tiered Storage
Unlocking the Value of Information
Most Cost Effective
• Map data based on value across fast access or capacity
optimized best-of-class disk and tape technologies
• Protect investment in legacy data through background
migration
Most Scalable
• Seamlessly scale within each tier of storage
• Transparently move data between tiers based on policy
Lowest Risk
• Open storage formats assure accessibility
• Enforce the highest levels of security through proven
technologies certified and supported by Oracle
31

33. Industry specific cover image
