Our Ensemble Simulator precisely mirrors production networks for risk-free testing, training and development. Hosted on a self-provided server or in the cloud, this powerful new software tool enables multiple users to work independently in a virtual sandbox to evaluate configurations, verify APIs and simulate what-if scenarios. With Ensemble Simulator, optical network operators can significantly reduce the cost and unpredictability of network upgrades, accelerate innovation adoption and improve quality of experience for end users.

1. Introducing Ensemble Simulator – ADVA’s virtual networking
environment
Increase efficiency through accelerated testing, training and integration of network assets
February 2022

2. © 2022 ADVA. All rights reserved.
2

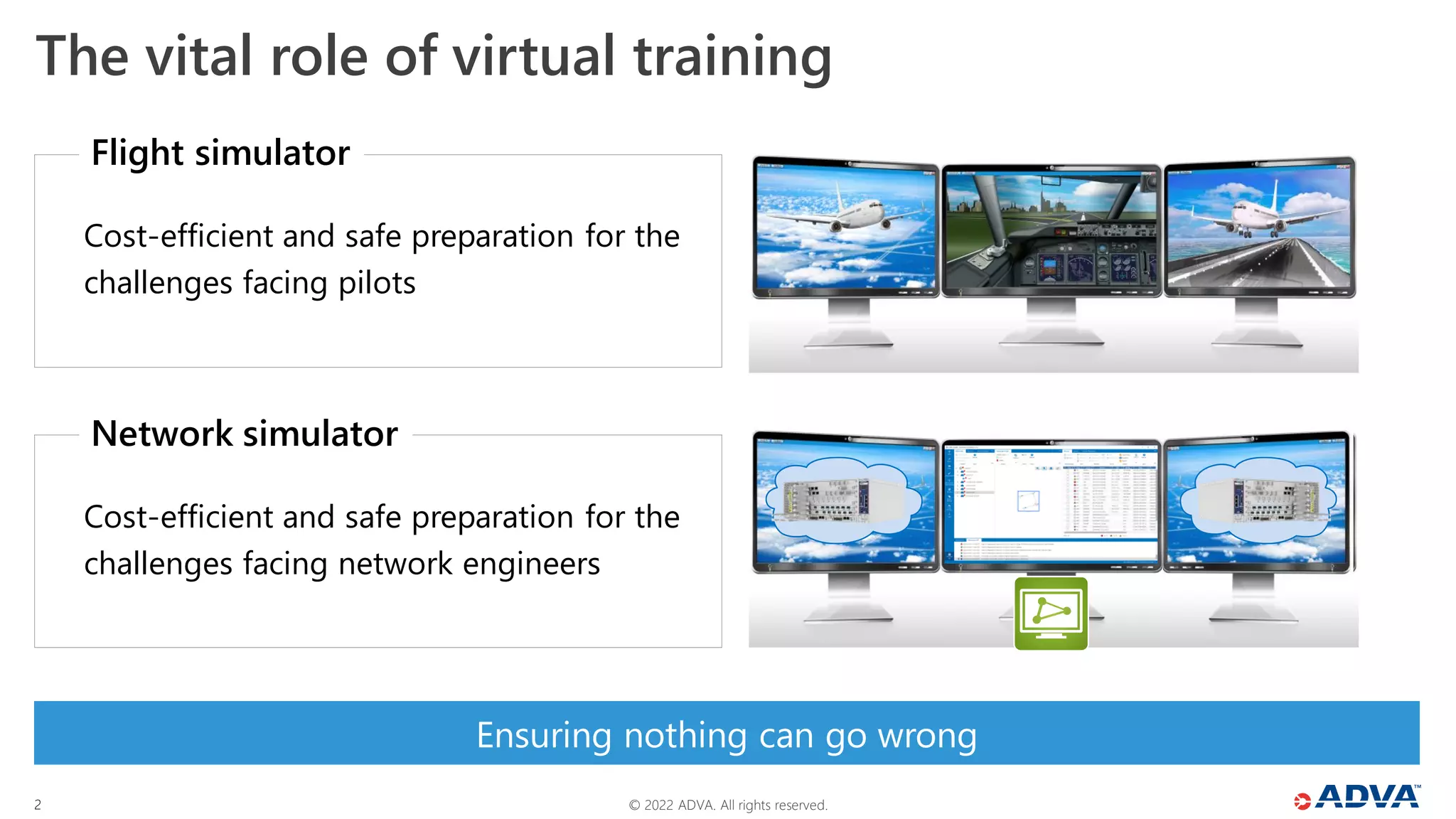

The vital role of virtual training
Cost-efficient and safe preparation for the
challenges facing pilots
Flight simulator
Cost-efficient and safe preparation for the
challenges facing network engineers
Network simulator
Ensuring nothing can go wrong

3. © 2022 ADVA. All rights reserved.
3

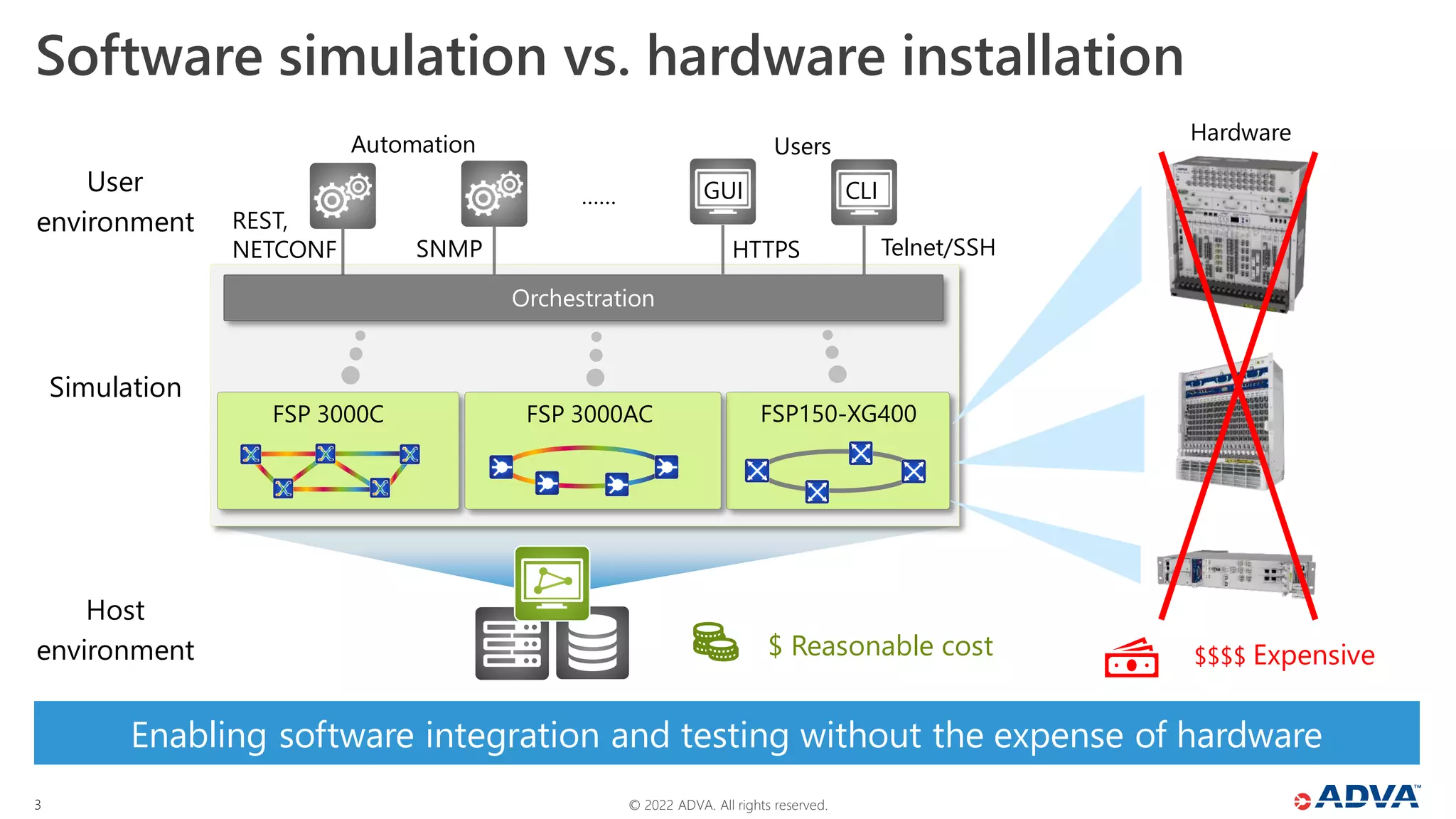

Software simulation vs. hardware installation
FSP 3000C
GUI
Host
environment
Simulation
User
environment
HTTPS
REST,
NETCONF
Automation Users
Orchestration
Hardware
$ Reasonable cost
CLI
Telnet/SSH
SNMP
$$$$ Expensive
……
FSP150-XG400
FSP 3000AC
Enabling software integration and testing without the expense of hardware

4. © 2022 ADVA. All rights reserved.
4

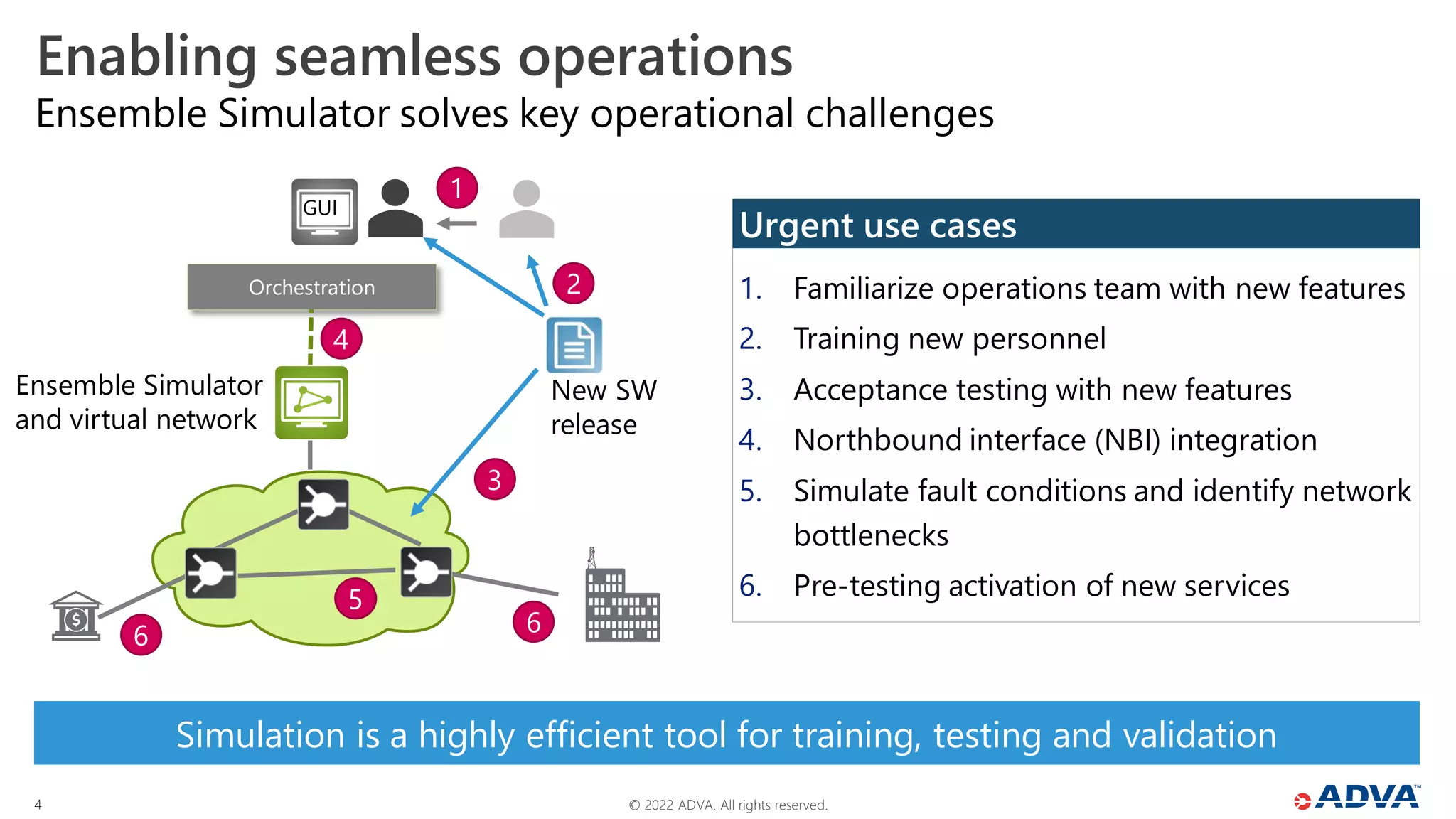

Ensemble Simulator solves key operational challenges
Enabling seamless operations
GUI
Orchestration 1. Familiarize operations team with new features
2. Training new personnel
3. Acceptance testing with new features
4. Northbound interface (NBI) integration
5. Simulate fault conditions and identify network
bottlenecks
6. Pre-testing activation of new services
Urgent use cases
1
Simulation is a highly efficient tool for training, testing and validation
6 6
4
5
3
2
New SW
release
Ensemble Simulator
and virtual network

5. © 2022 ADVA. All rights reserved.
5

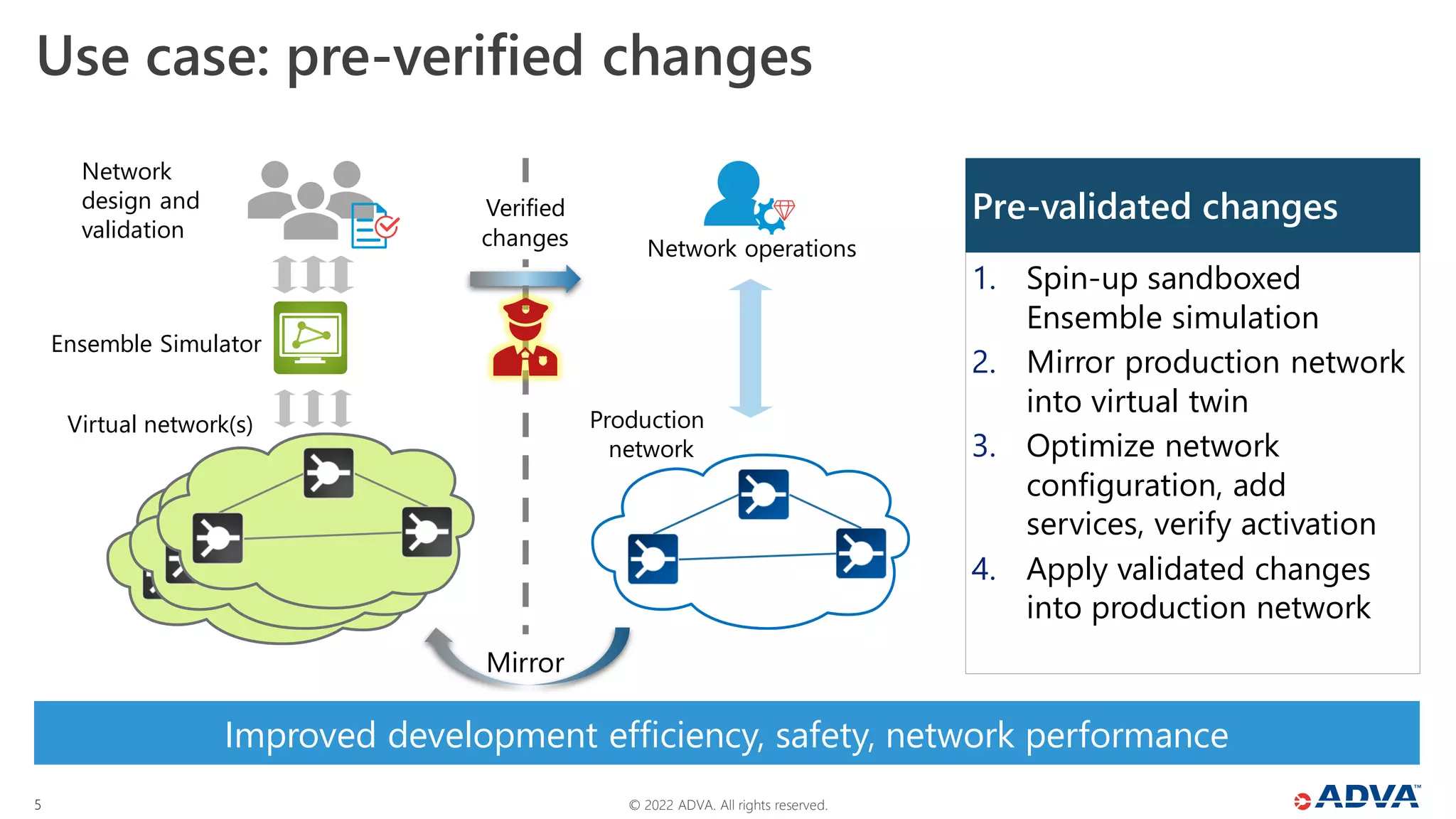

Use case: pre-verified changes
Mirror
Network
design and
validation
Network operations
Production
network
Verified
changes
Virtual network(s)
Ensemble Simulator
1. Spin-up sandboxed
Ensemble simulation
2. Mirror production network
into virtual twin
3. Optimize network
configuration, add
services, verify activation
4. Apply validated changes
into production network
Pre-validated changes
Improved development efficiency, safety, network performance

6. © 2022 ADVA. All rights reserved.
6

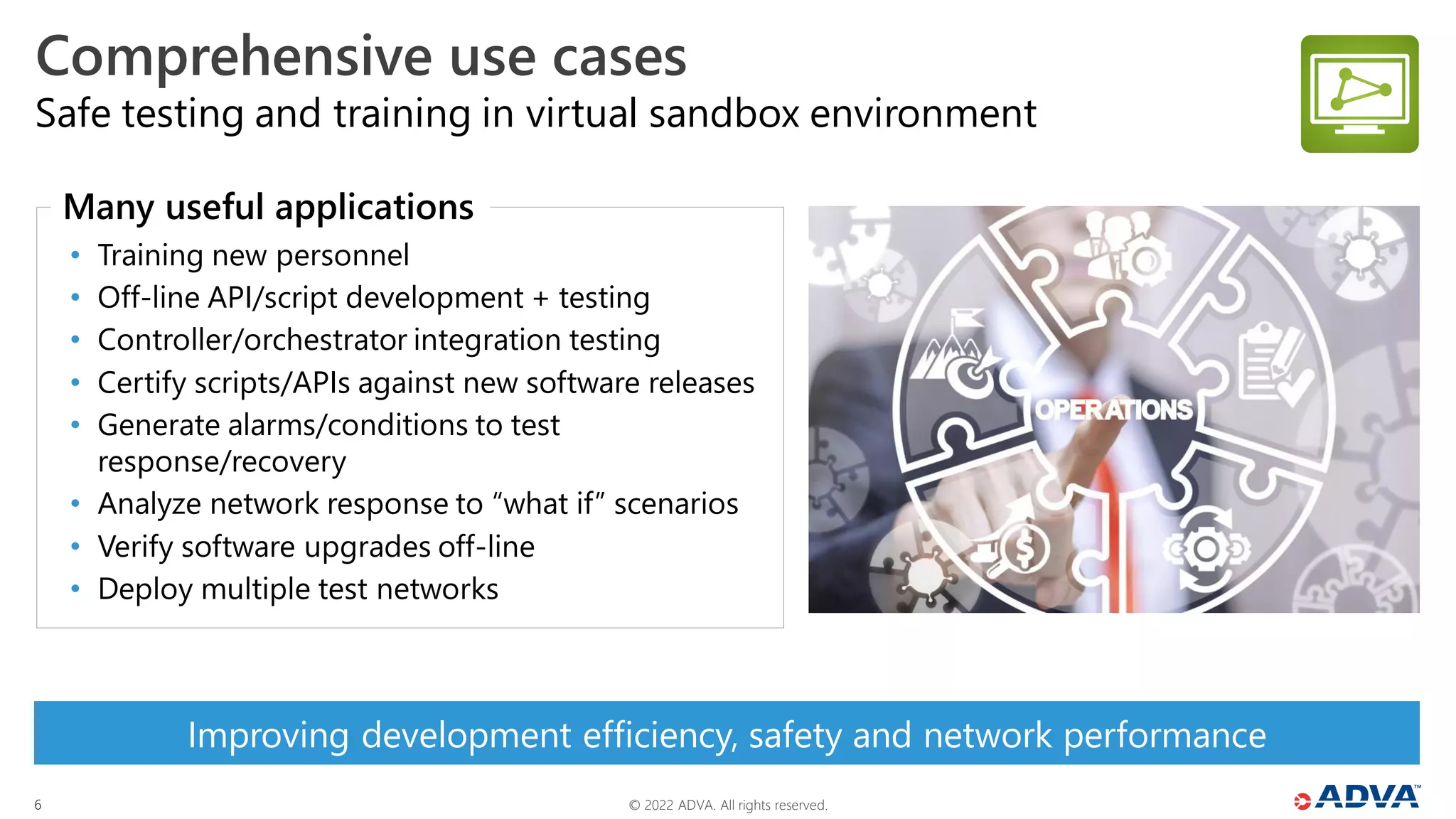

Safe testing and training in virtual sandbox environment
Comprehensive use cases
Improving development efficiency, safety and network performance
• Training new personnel
• Off-line API/script development + testing
• Controller/orchestrator integration testing
• Certify scripts/APIs against new software releases
• Generate alarms/conditions to test
response/recovery
• Analyze network response to “what if” scenarios
• Verify software upgrades off-line
• Deploy multiple test networks
Many useful applications

7. © 2022 ADVA. All rights reserved.
7

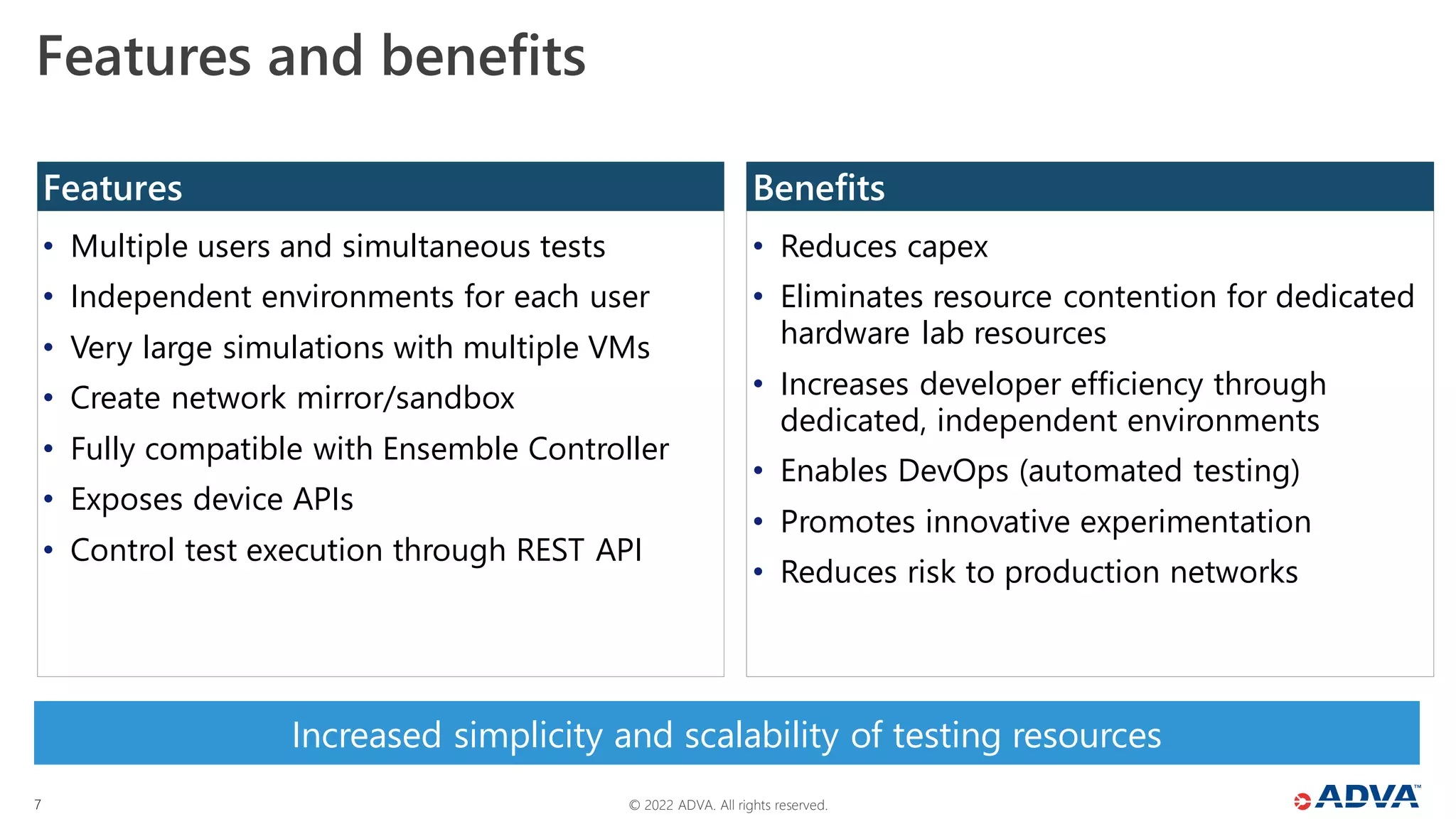

Features and benefits
• Multiple users and simultaneous tests
• Independent environments for each user
• Very large simulations with multiple VMs
• Create network mirror/sandbox
• Fully compatible with Ensemble Controller
• Exposes device APIs
• Control test execution through REST API
Features
• Reduces capex
• Eliminates resource contention for dedicated
hardware lab resources
• Increases developer efficiency through
dedicated, independent environments
• Enables DevOps (automated testing)
• Promotes innovative experimentation
• Reduces risk to production networks
Benefits
Increased simplicity and scalability of testing resources

8. © 2022 ADVA. All rights reserved.
8

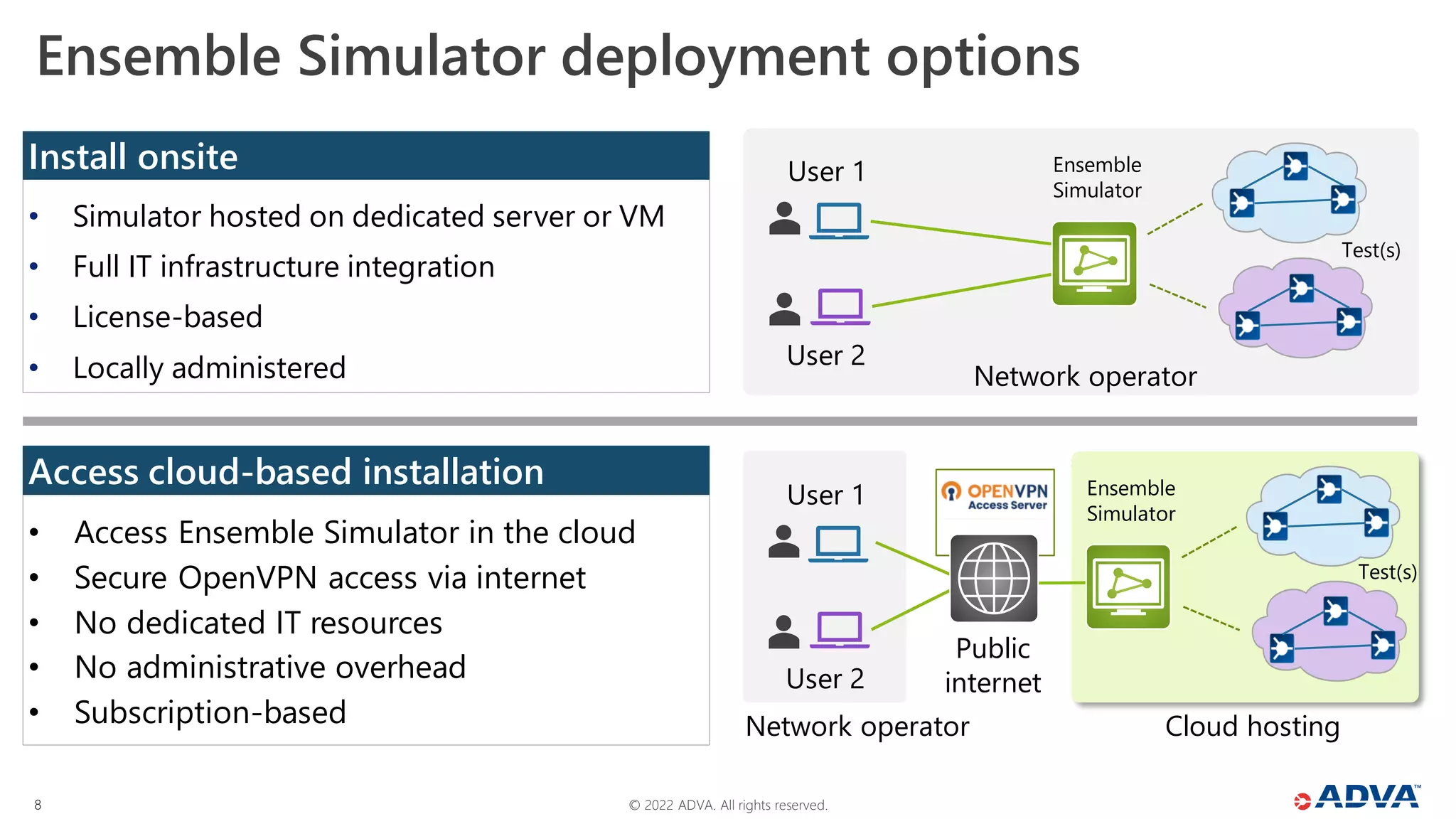

Ensemble Simulator deployment options
Ensemble
Simulator
Test(s)
User 1
Public
internet
User 2
Network operator Cloud hosting
Ensemble
Simulator
Test(s)
User 1
User 2
Network operator
• Simulator hosted on dedicated server or VM
• Full IT infrastructure integration
• License-based
• Locally administered
Install onsite
• Access Ensemble Simulator in the cloud
• Secure OpenVPN access via internet
• No dedicated IT resources
• No administrative overhead
• Subscription-based
Access cloud-based installation

9. © 2022 ADVA. All rights reserved.
9

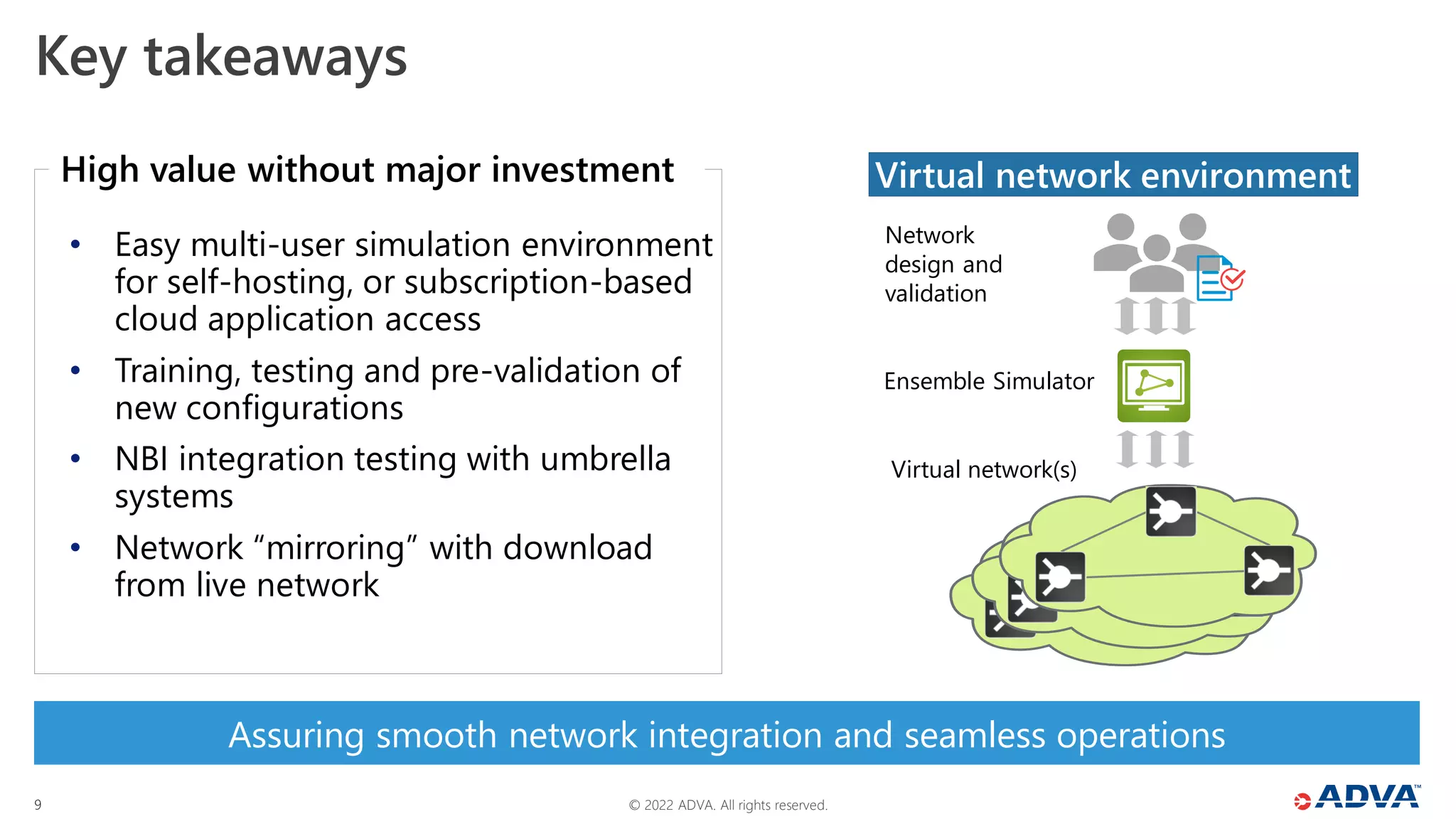

Key takeaways
Assuring smooth network integration and seamless operations
Network
design and
validation
Virtual network(s)
Ensemble Simulator
Virtual network environment
• Easy multi-user simulation environment
for self-hosting, or subscription-based
cloud application access
• Training, testing and pre-validation of
new configurations
• NBI integration testing with umbrella
systems
• Network “mirroring” with download
from live network
High value without major investment
