Internal Carotid Artery and Normal Variants

This document provides an overview of normal variants and anatomy of the intracranial arteries, beginning with abbreviations used. It then describes the gross anatomy and specific segments of the internal carotid, basilar, vertebral, and posterior cerebral arteries. Vascular territories supplied by each artery are outlined. Finally, the document discusses normal variants and anomalies that can occur in the internal carotid artery anatomy. In particular, it notes that fenestration of the distal internal carotid artery is a rare finding associated with aneurysm formation. It also describes hyperplastic anterior choroidal arteries as a normal variant where the artery is enlarged beyond typical size.

Embed presentation

Downloaded 42,664 times
INTRACRANIAL ARTERIES INTERNAL CAROTID ARTERY AND NORMAL VARIANTS REVIEW SHERLOCKRADIOLOGY.COM

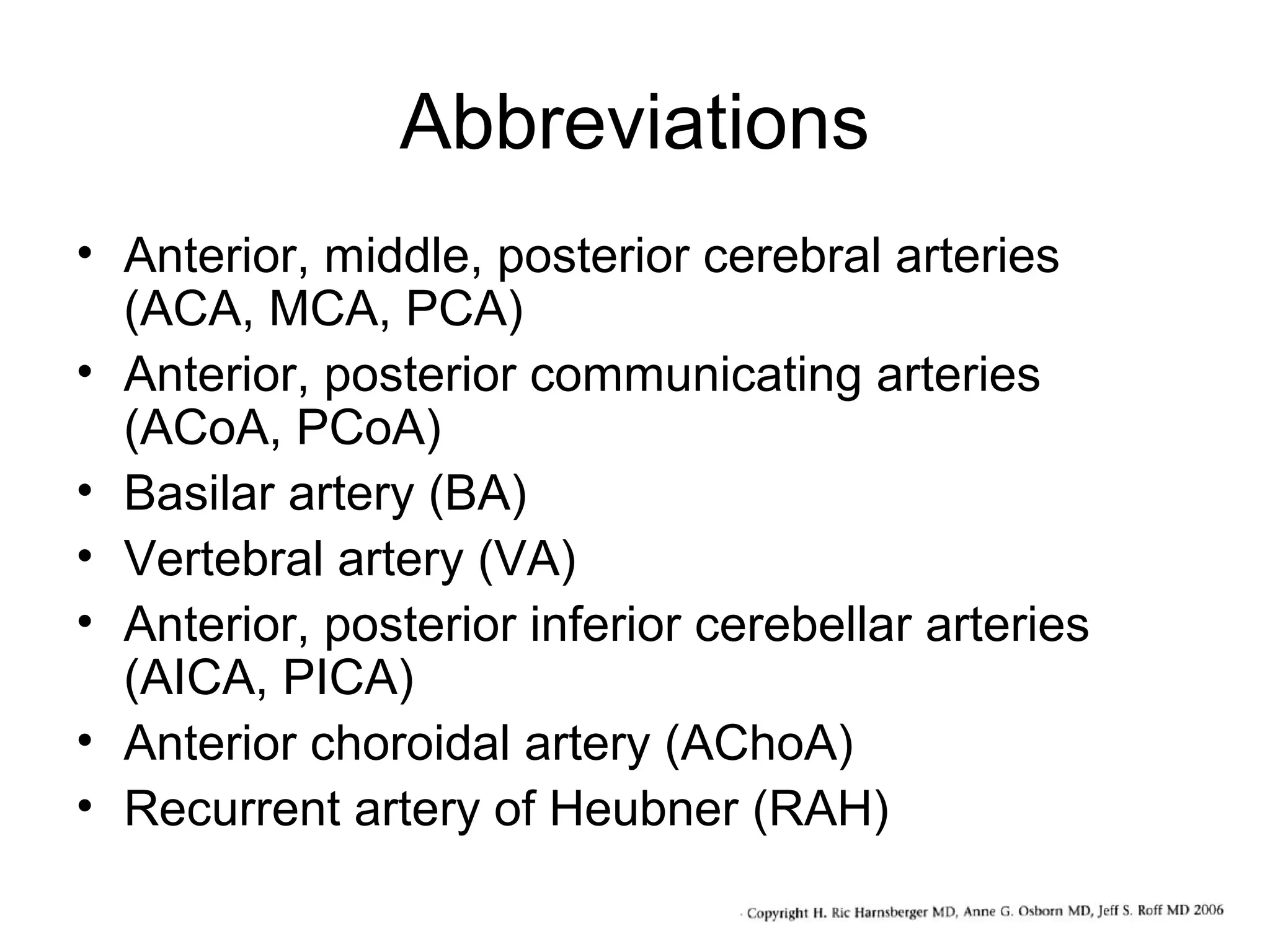

Abbreviations • Anterior, middle, posterior cerebral arteries (ACA, MCA, PCA) • Anterior, posterior communicating arteries (ACoA, PCoA) • Basilar artery (BA) • Vertebral artery (VA) • Anterior, posterior inferior cerebellar arteries (AICA, PICA) • Anterior choroidal artery (AChoA) • Recurrent artery of Heubner (RAH)
Gross Anatomy • Anterior Circulation - Intracranial Internal carotid artery and its branches + ACoA, PCoA • Posterior Circulation - Basilar artery and its branches

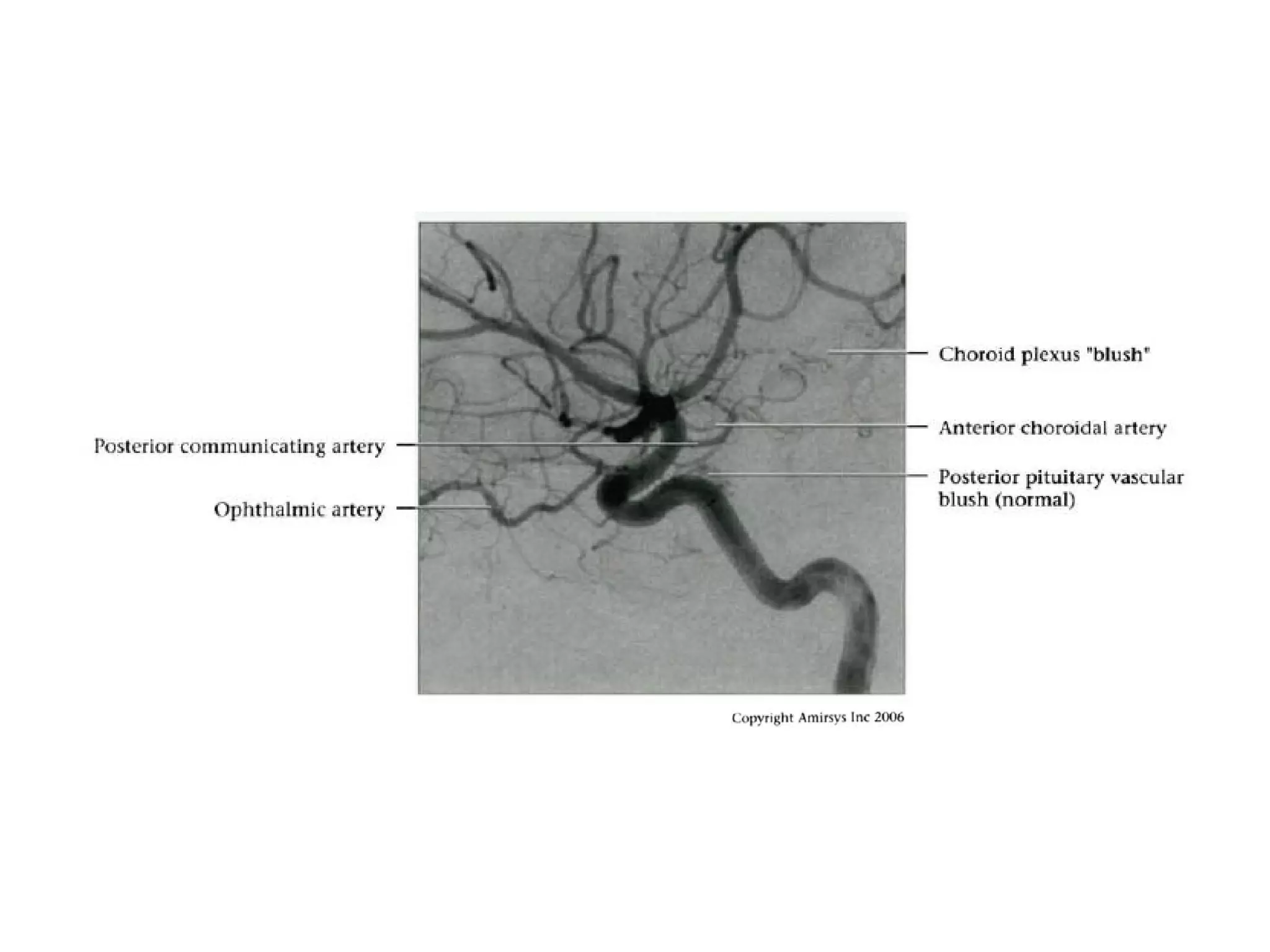

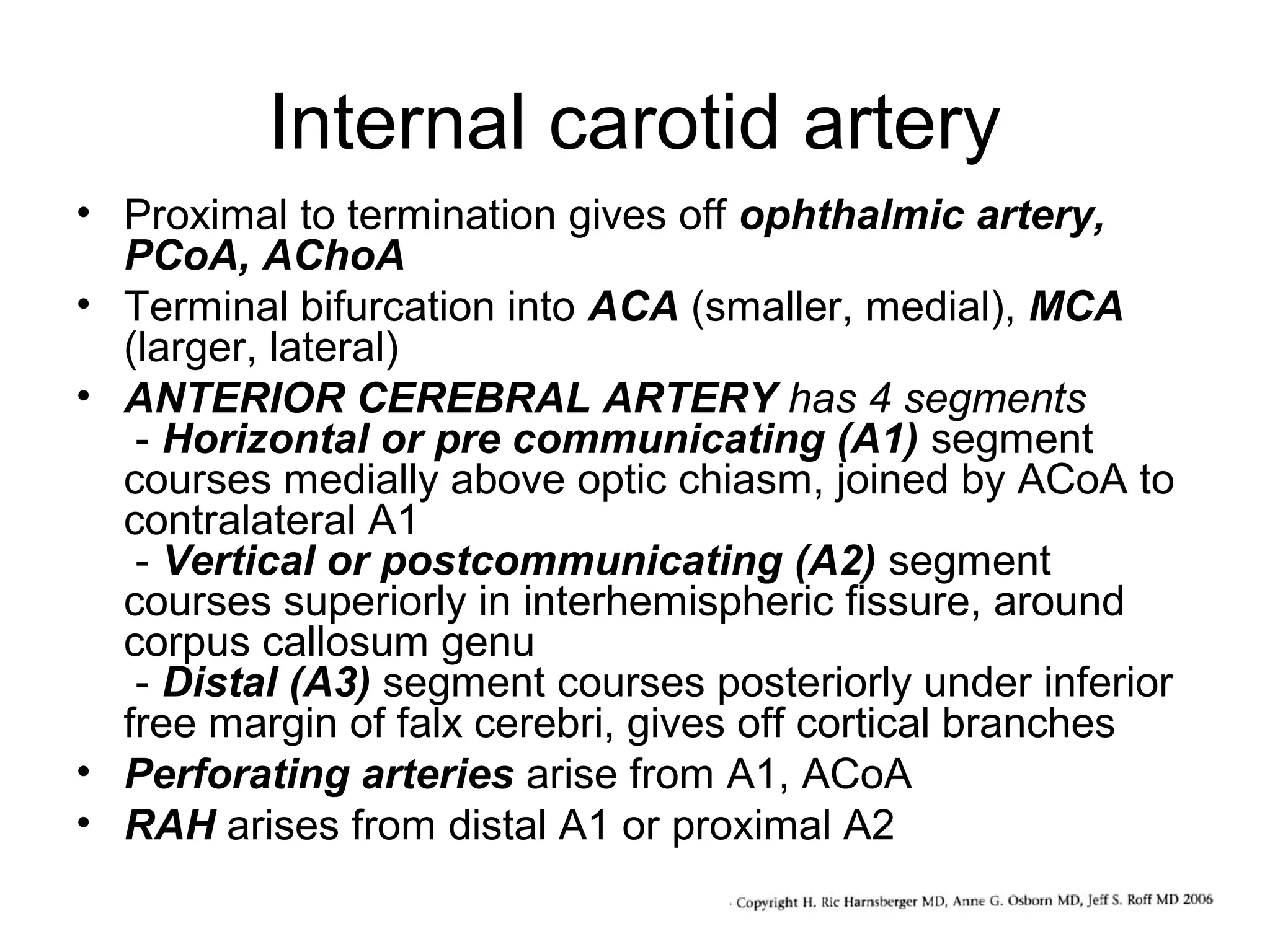

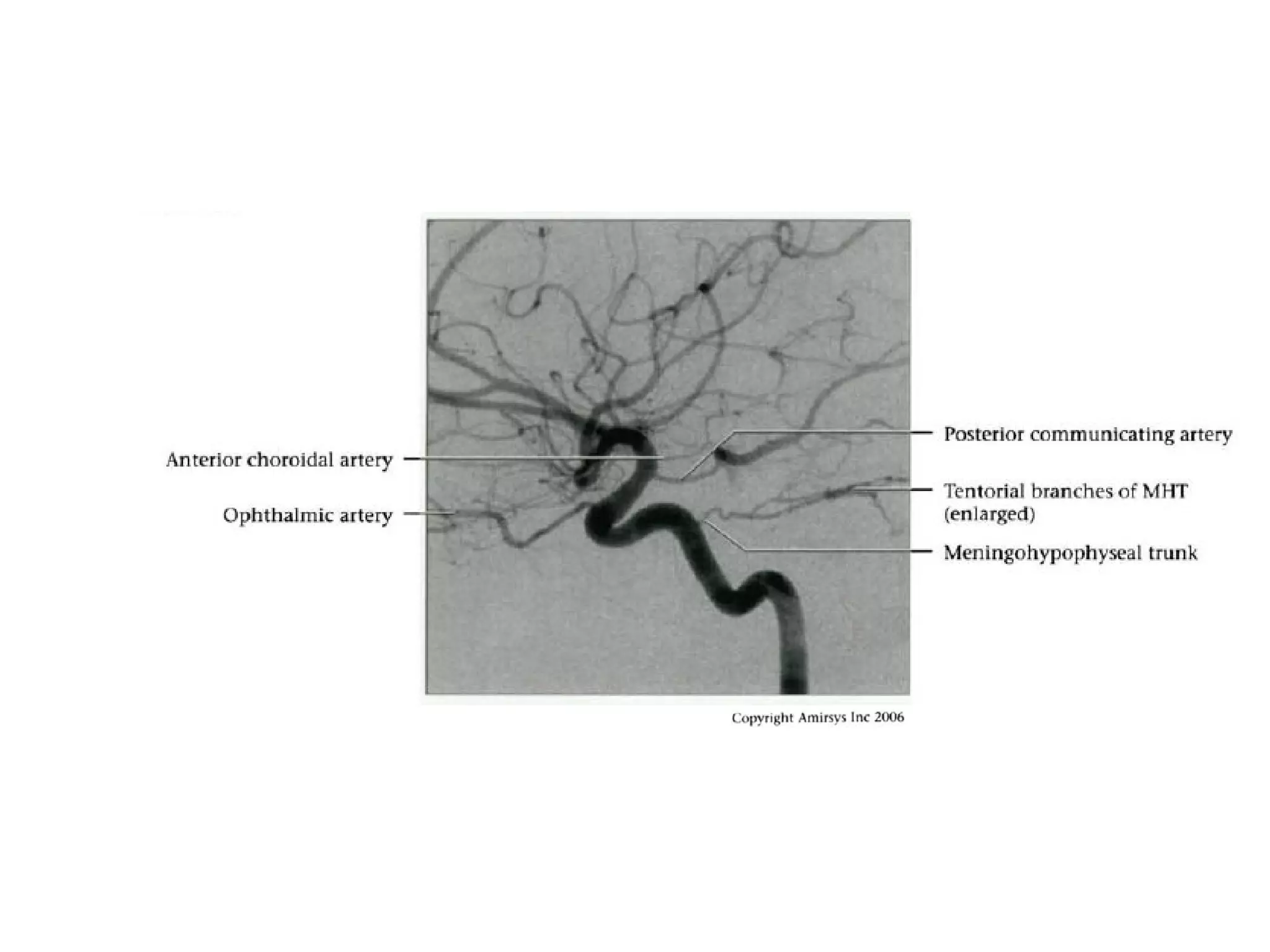

Internal carotid artery • Proximal to termination gives off ophthalmic artery, PCoA, AChoA • Terminal bifurcation into ACA (smaller, medial), MCA (larger, lateral) • ANTERIOR CEREBRAL ARTERY has 4 segments - Horizontal or pre communicating (A1) segment courses medially above optic chiasm, joined by ACoA to contralateral A1 - Vertical or postcommunicating (A2) segment courses superiorly in interhemispheric fissure, around corpus callosum genu - Distal (A3) segment courses posteriorly under inferior free margin of falx cerebri, gives off cortical branches • Perforating arteries arise from A1, ACoA • RAH arises from distal A1 or proximal A2

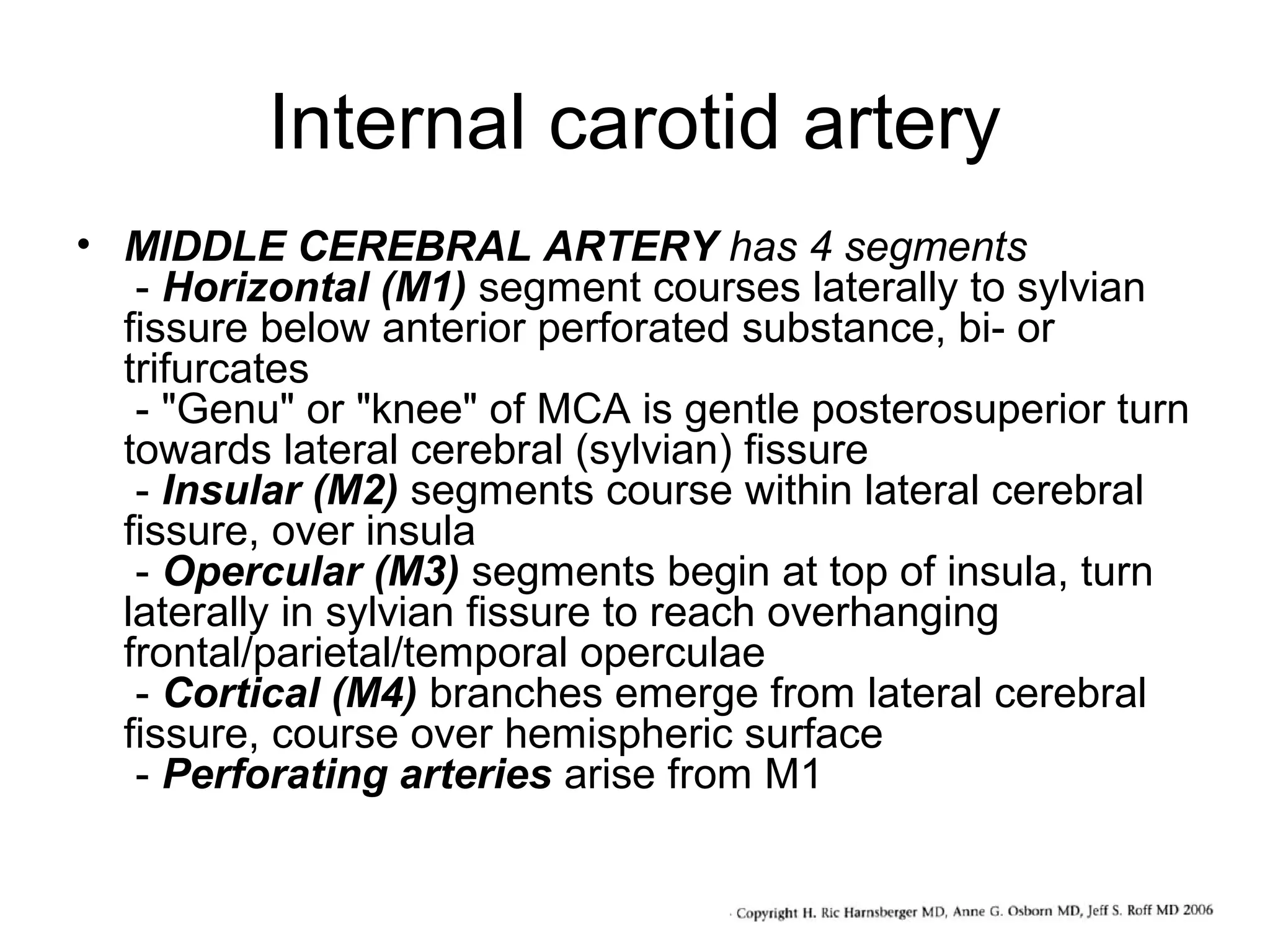

Internal carotid artery • MIDDLE CEREBRAL ARTERY has 4 segments - Horizontal (M1) segment courses laterally to sylvian fissure below anterior perforated substance, bi- or trifurcates - "Genu" or "knee" of MCA is gentle posterosuperior turn towards lateral cerebral (sylvian) fissure - Insular (M2) segments course within lateral cerebral fissure, over insula - Opercular (M3) segments begin at top of insula, turn laterally in sylvian fissure to reach overhanging frontal/parietal/temporal operculae - Cortical (M4) branches emerge from lateral cerebral fissure, course over hemispheric surface - Perforating arteries arise from M1

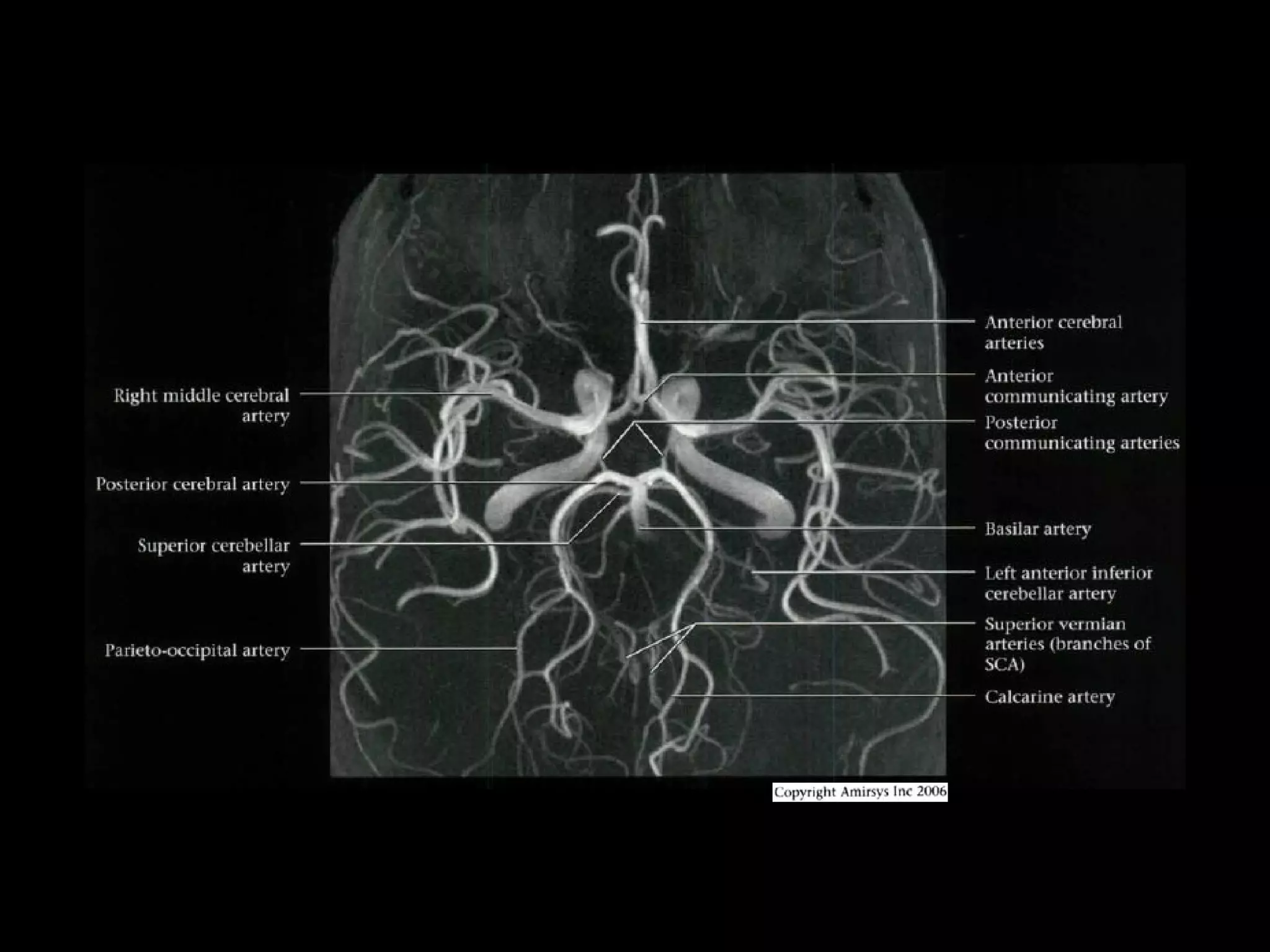

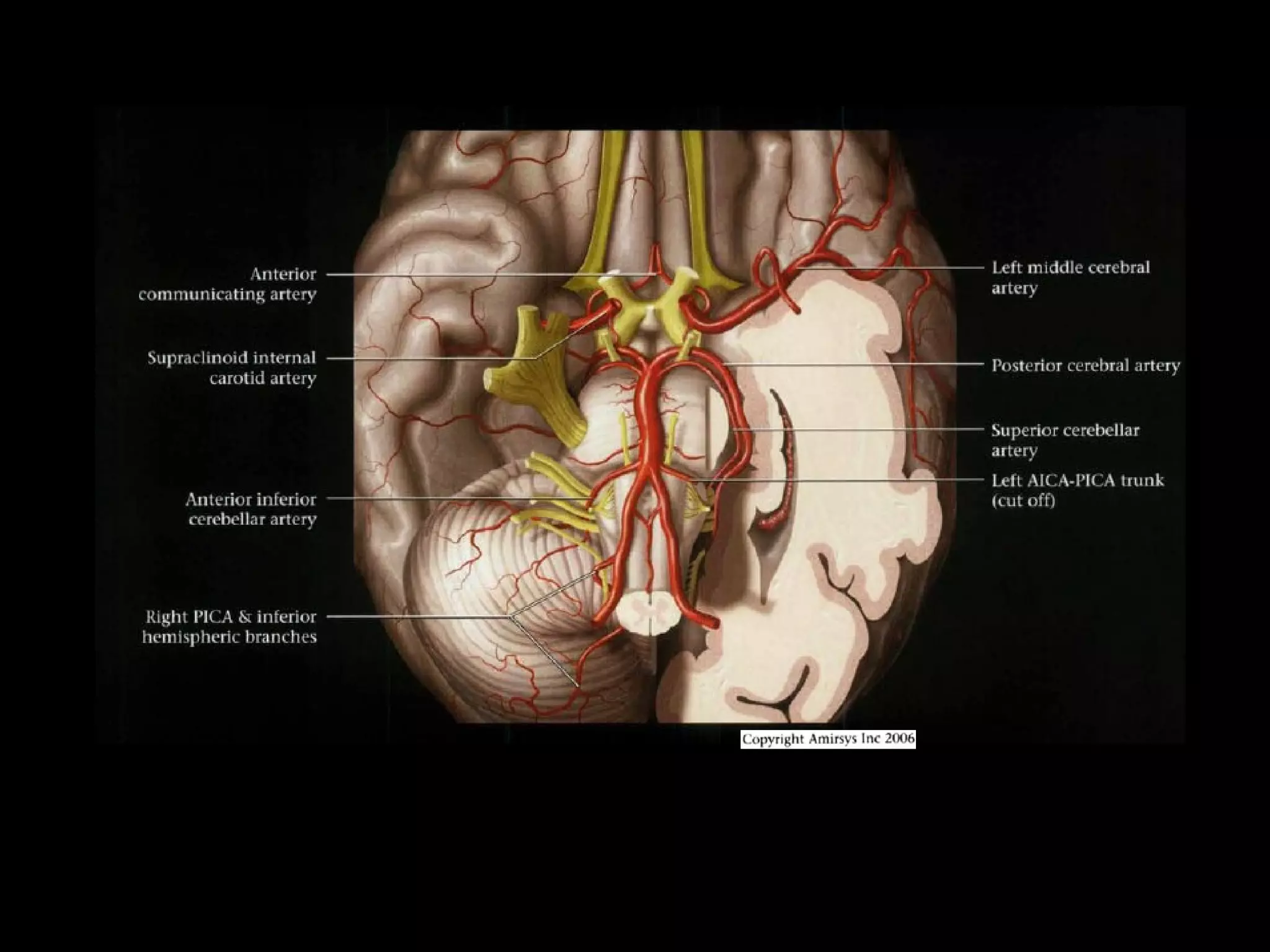

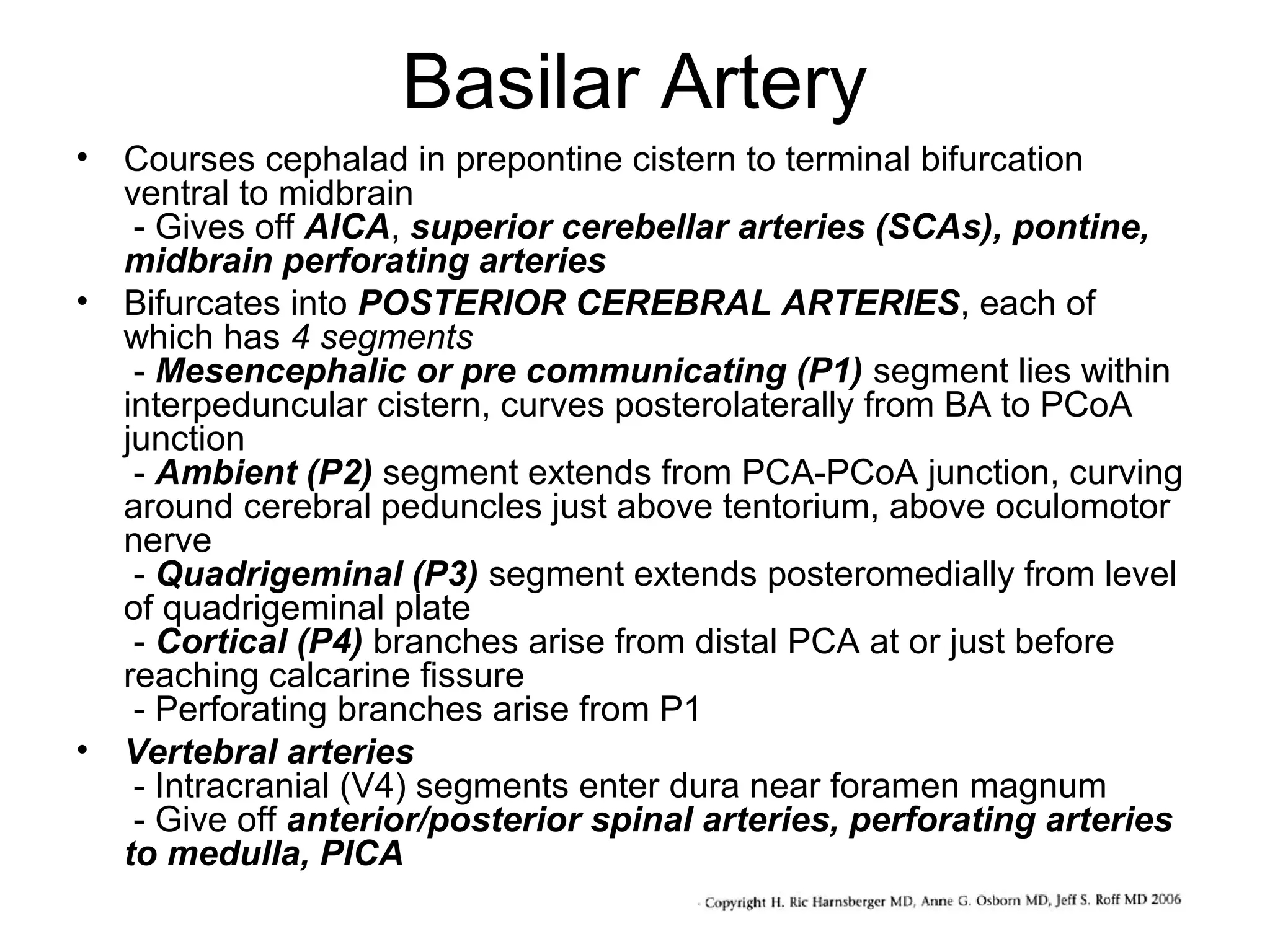

Basilar Artery • Courses cephalad in prepontine cistern to terminal bifurcation ventral to midbrain - Gives off AICA, superior cerebellar arteries (SCAs), pontine, midbrain perforating arteries • Bifurcates into POSTERIOR CEREBRAL ARTERIES, each of which has 4 segments - Mesencephalic or pre communicating (P1) segment lies within interpeduncular cistern, curves posterolaterally from BA to PCoA junction - Ambient (P2) segment extends from PCA-PCoA junction, curving around cerebral peduncles just above tentorium, above oculomotor nerve - Quadrigeminal (P3) segment extends posteromedially from level of quadrigeminal plate - Cortical (P4) branches arise from distal PCA at or just before reaching calcarine fissure - Perforating branches arise from P1 • Vertebral arteries - Intracranial (V4) segments enter dura near foramen magnum - Give off anterior/posterior spinal arteries, perforating arteries to medulla, PICA

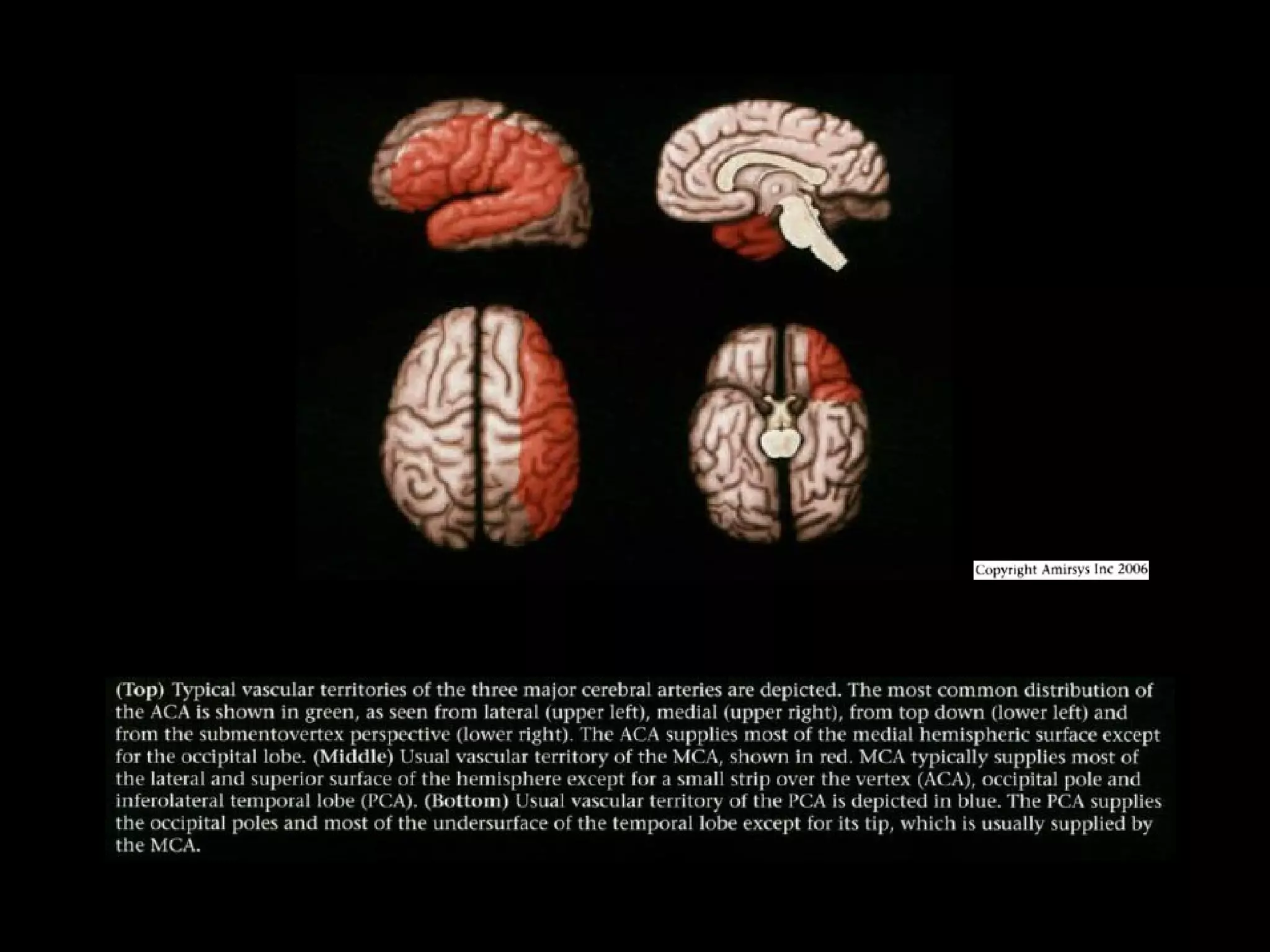

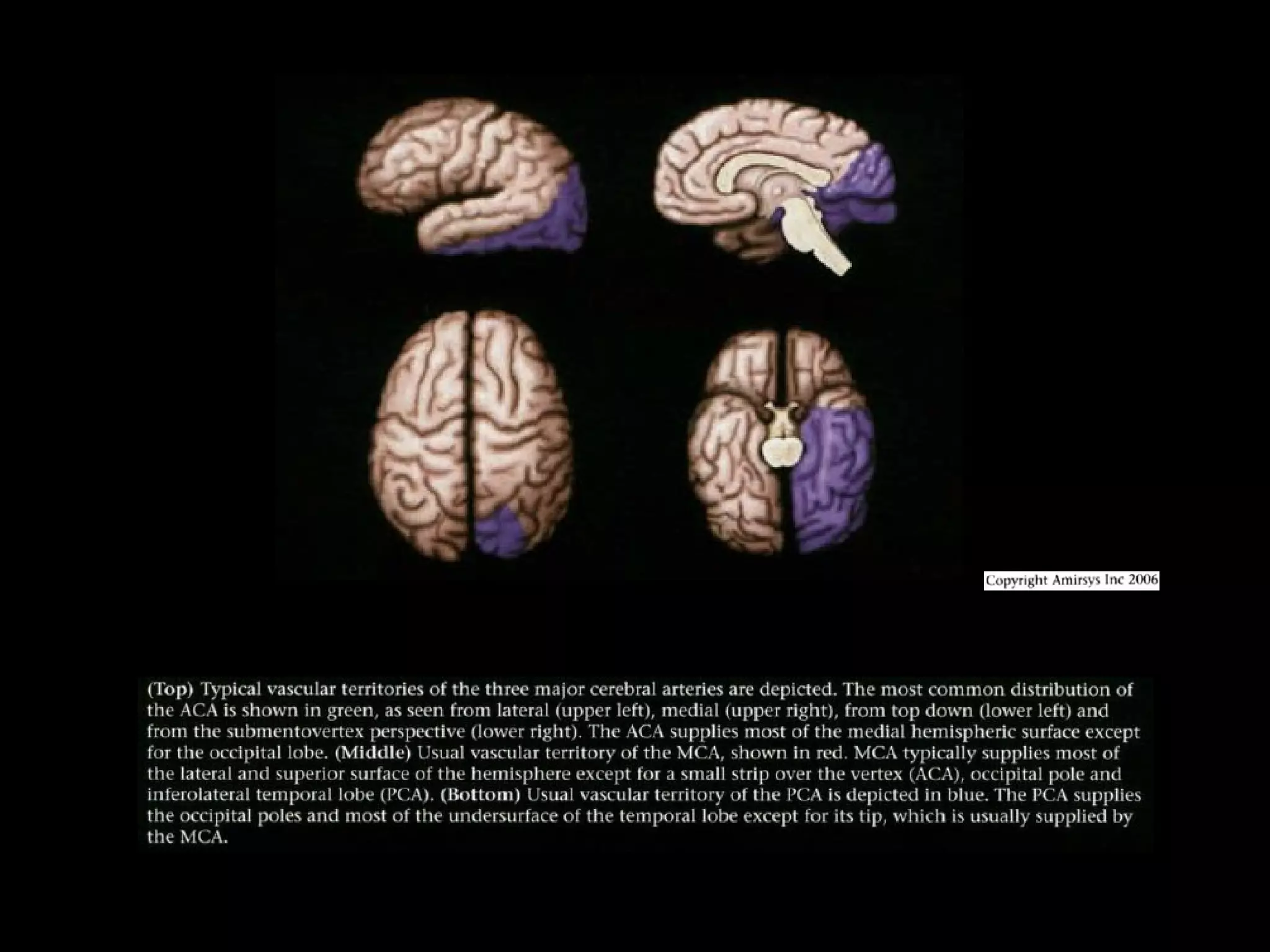

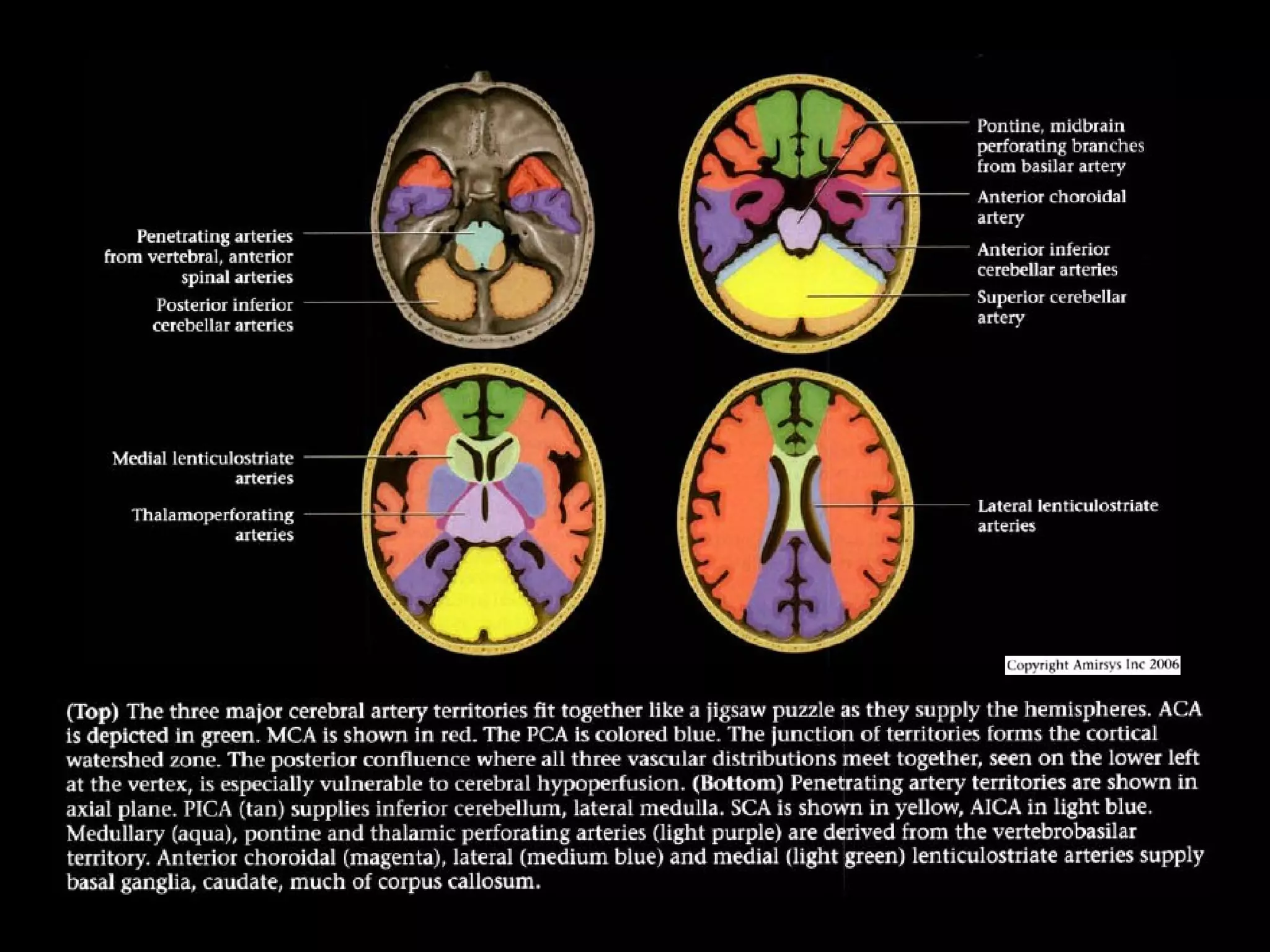

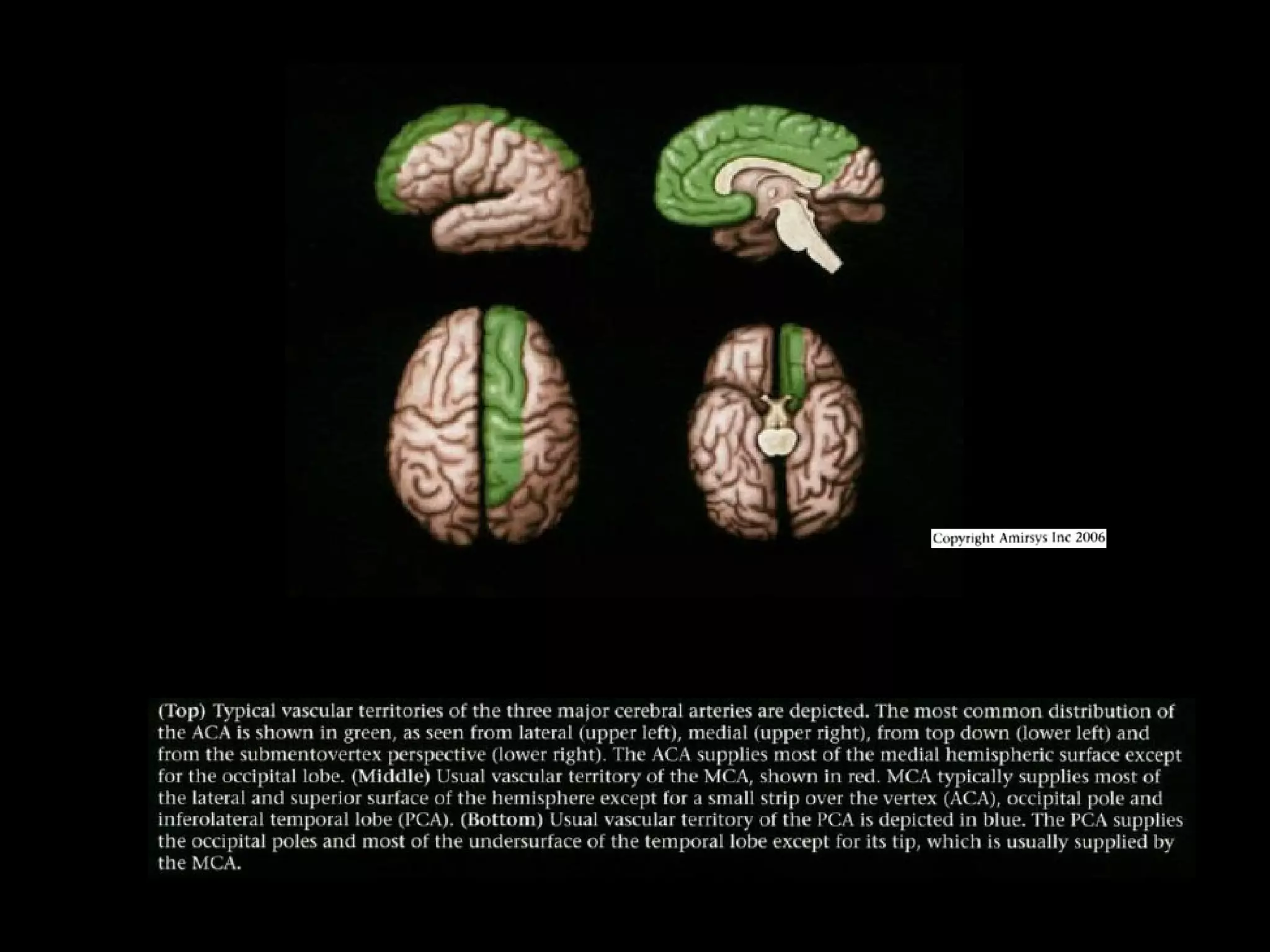

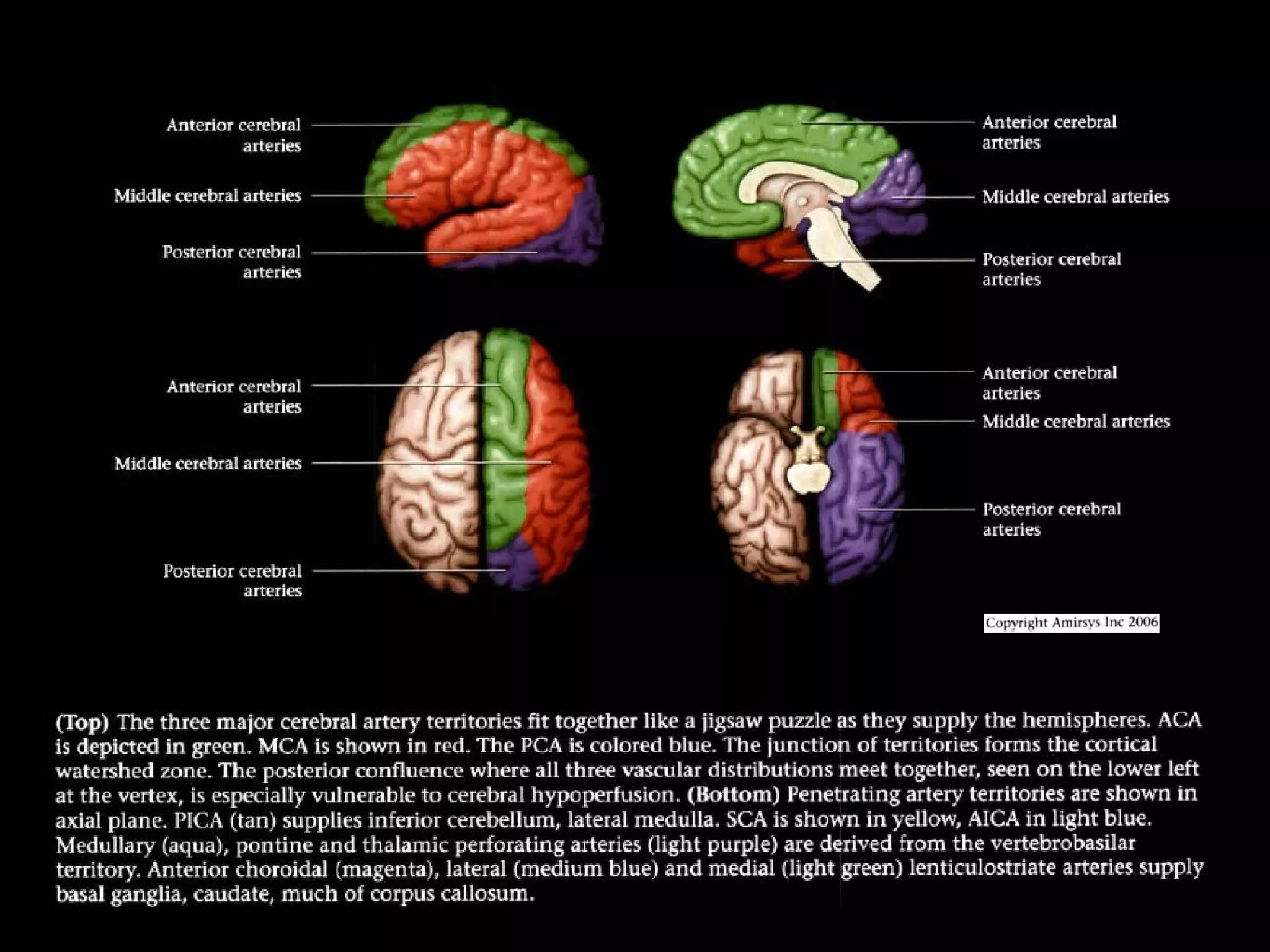

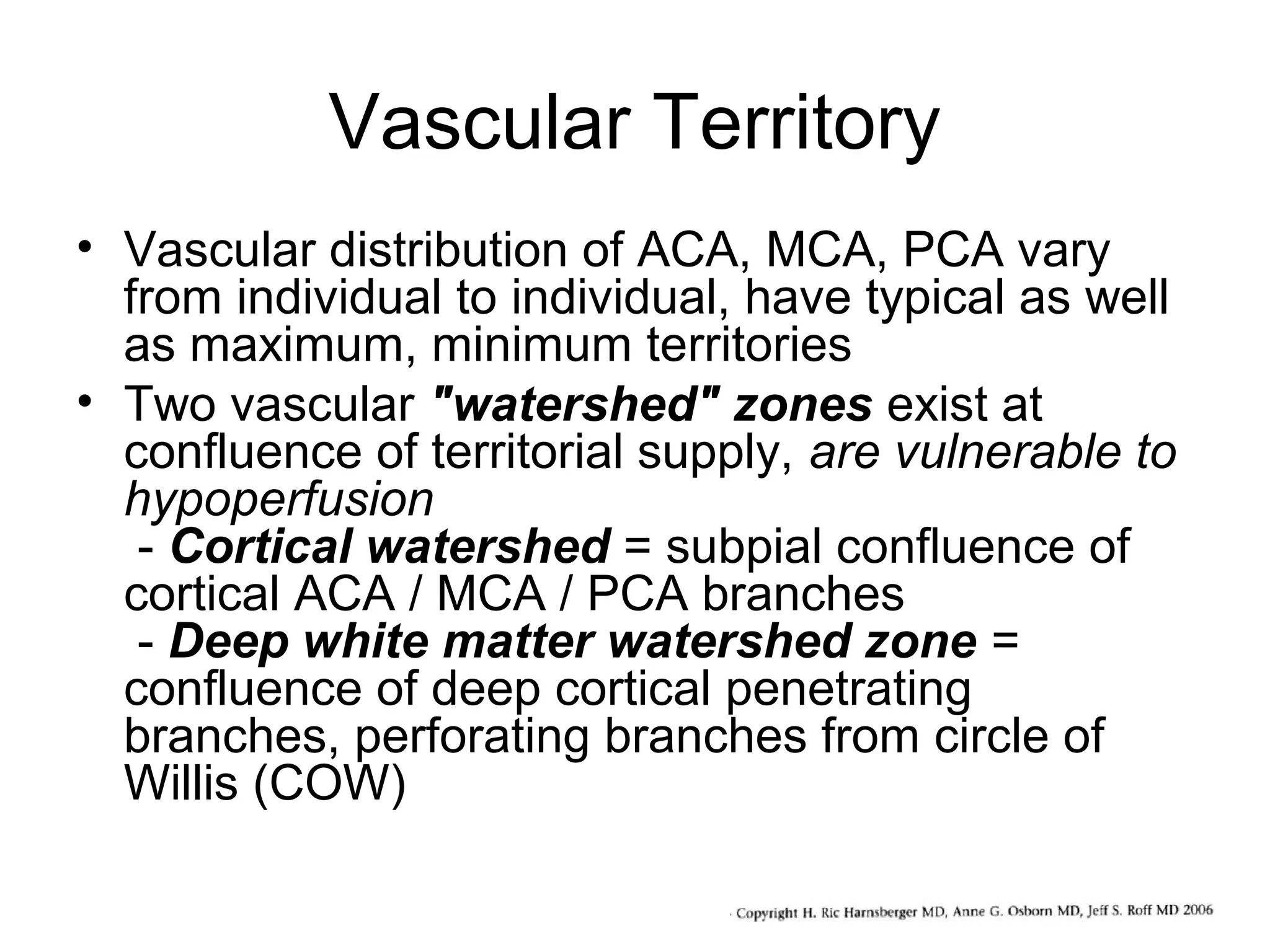

Vascular Territory • Vascular distribution of ACA, MCA, PCA vary from individual to individual, have typical as well as maximum, minimum territories • Two vascular "watershed" zones exist at confluence of territorial supply, are vulnerable to hypoperfusion - Cortical watershed = subpial confluence of cortical ACA / MCA / PCA branches - Deep white matter watershed zone = confluence of deep cortical penetrating branches, perforating branches from circle of Willis (COW)

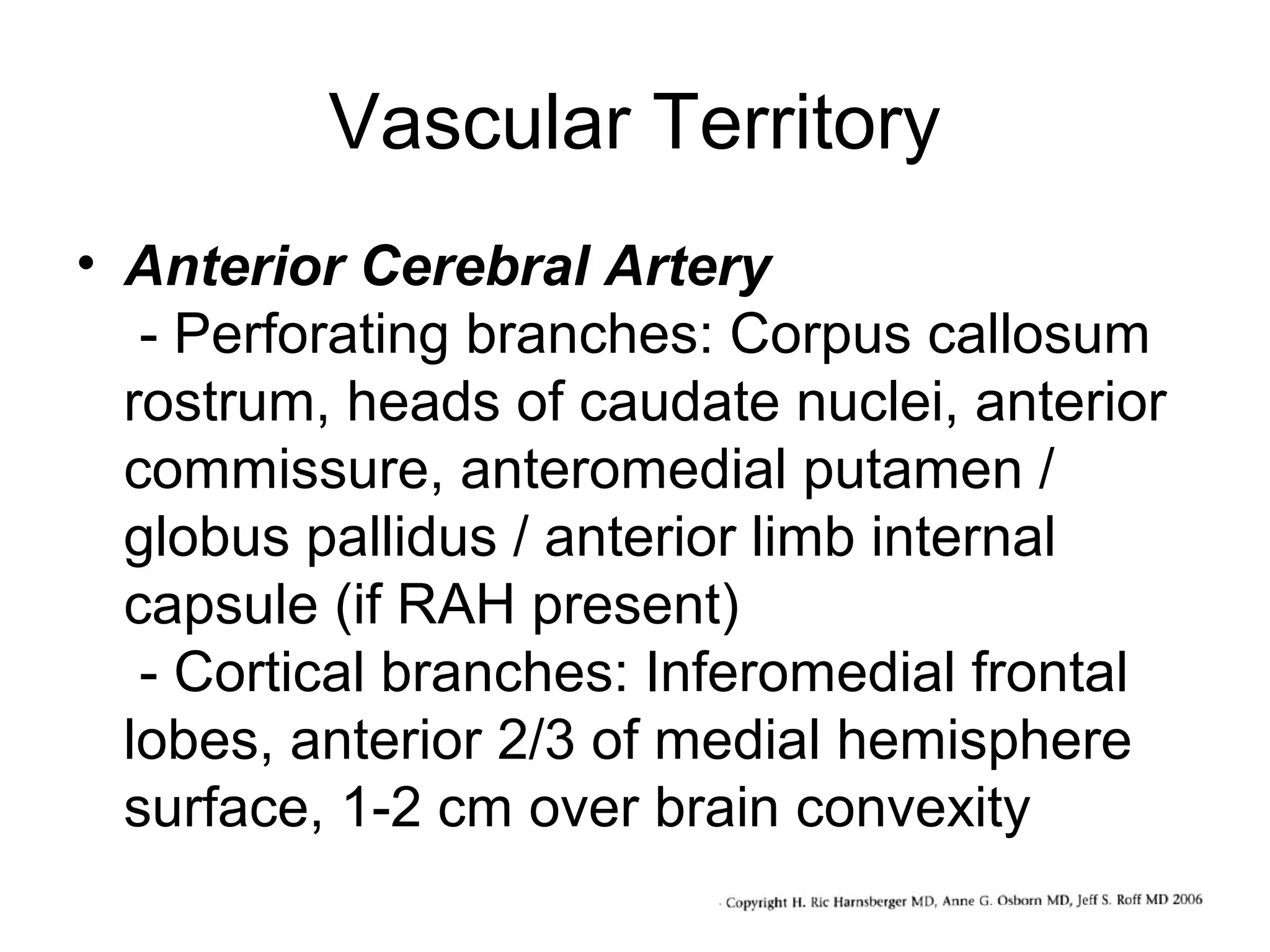

Vascular Territory • Anterior Cerebral Artery - Perforating branches: Corpus callosum rostrum, heads of caudate nuclei, anterior commissure, anteromedial putamen / globus pallidus / anterior limb internal capsule (if RAH present) - Cortical branches: Inferomedial frontal lobes, anterior 2/3 of medial hemisphere surface, 1-2 cm over brain convexity

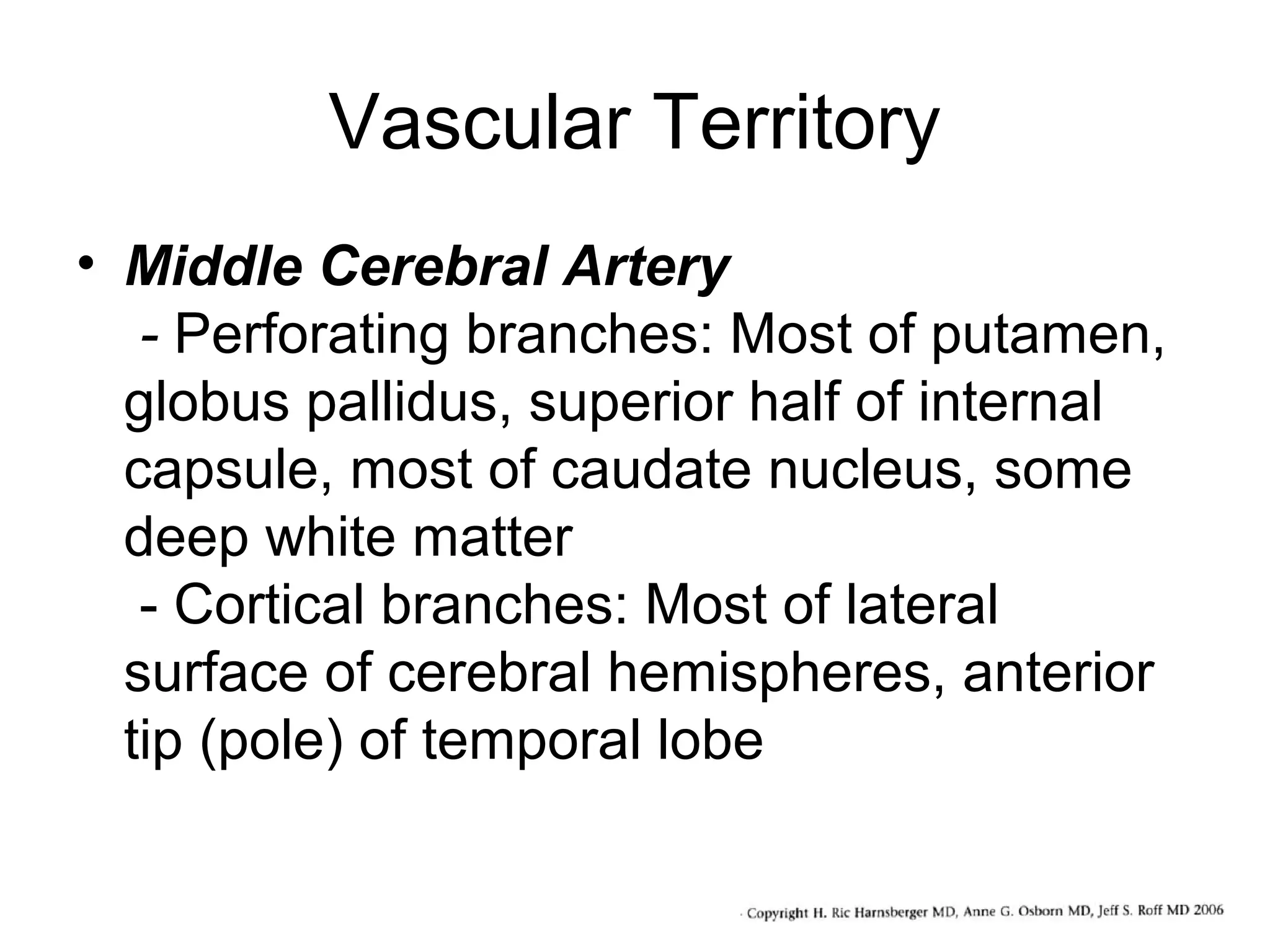

Vascular Territory • Middle Cerebral Artery - Perforating branches: Most of putamen, globus pallidus, superior half of internal capsule, most of caudate nucleus, some deep white matter - Cortical branches: Most of lateral surface of cerebral hemispheres, anterior tip (pole) of temporal lobe

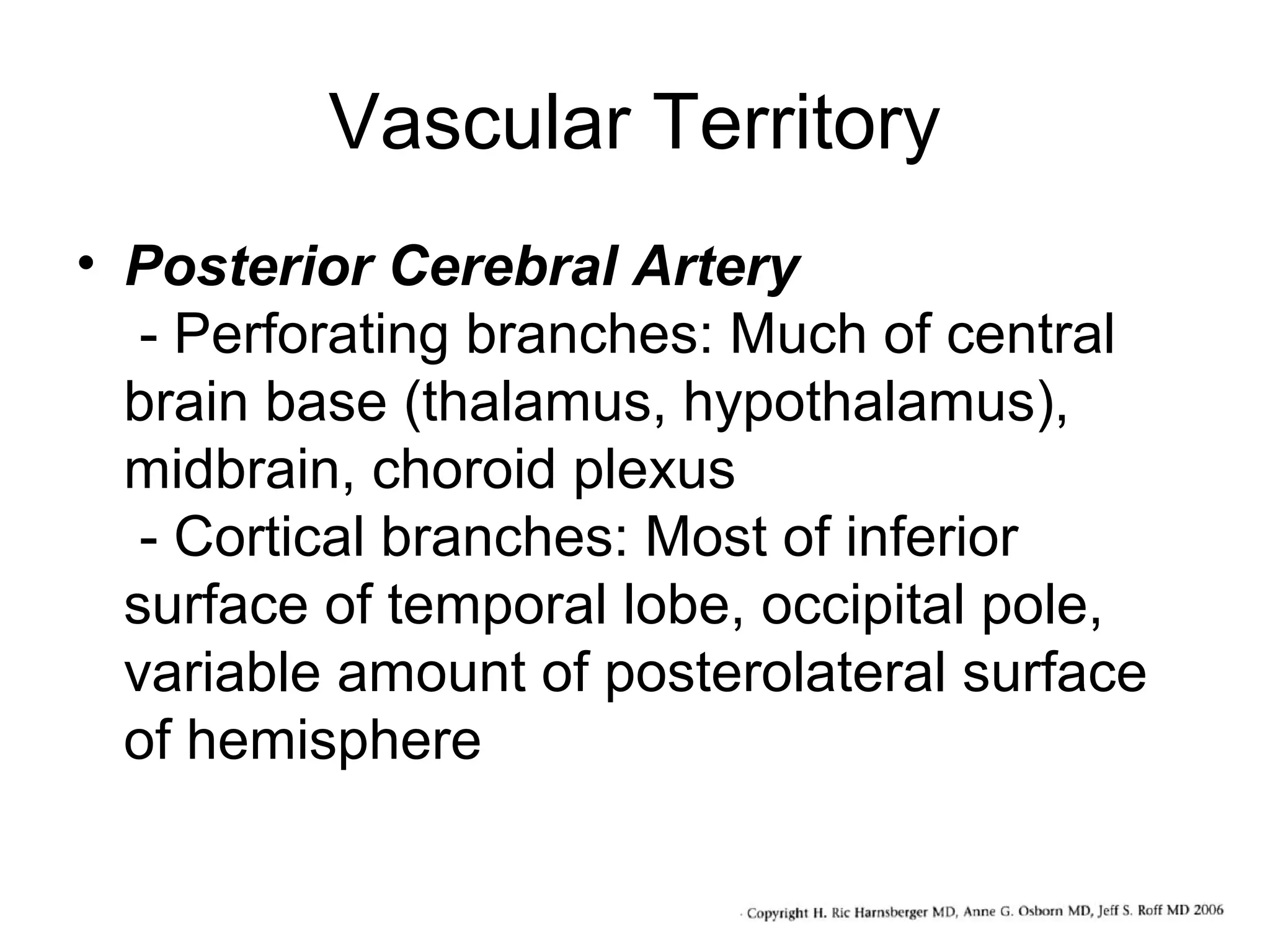

Vascular Territory • Posterior Cerebral Artery - Perforating branches: Much of central brain base (thalamus, hypothalamus), midbrain, choroid plexus - Cortical branches: Most of inferior surface of temporal lobe, occipital pole, variable amount of posterolateral surface of hemisphere

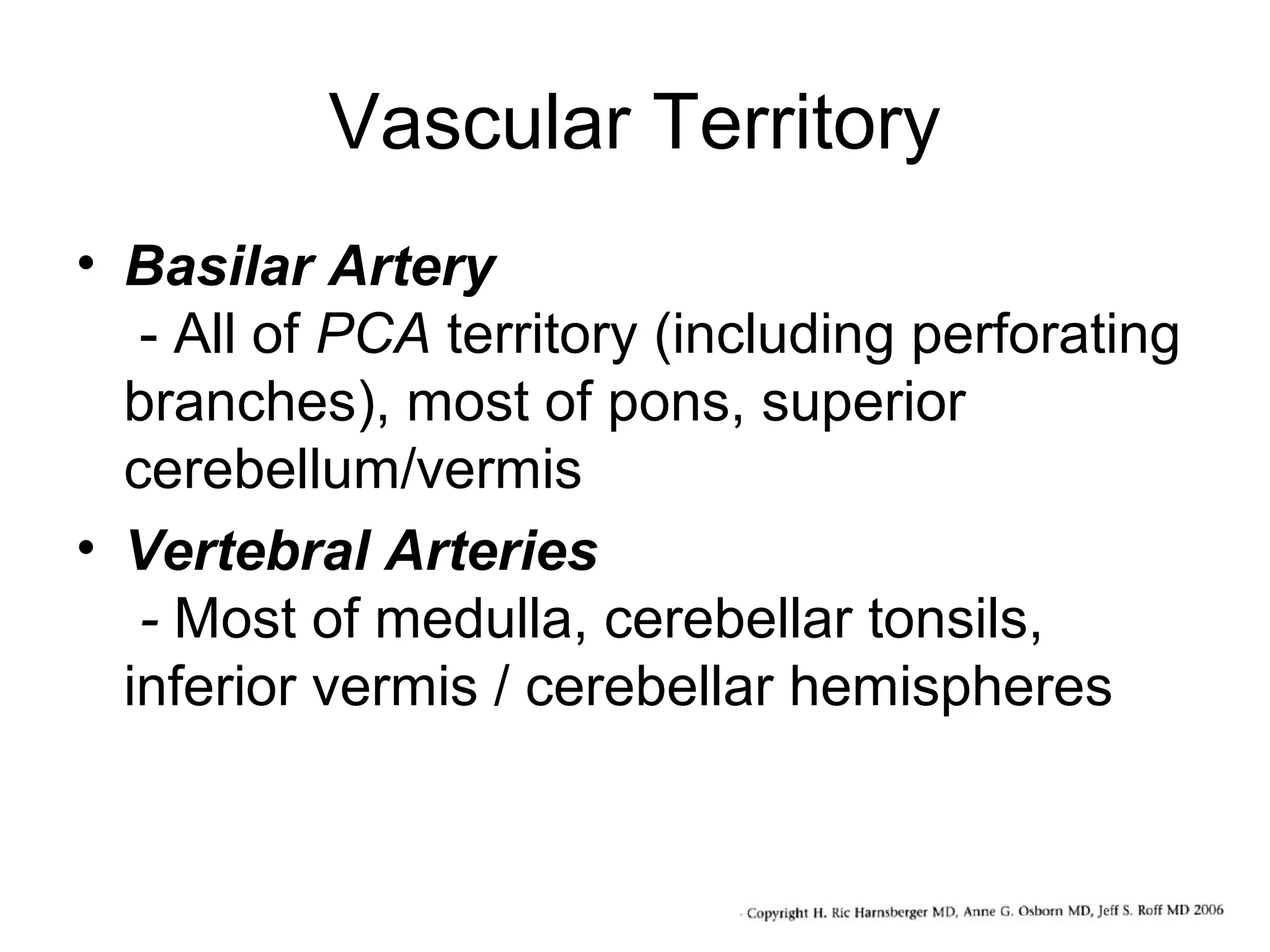

Vascular Territory • Basilar Artery - All of PCA territory (including perforating branches), most of pons, superior cerebellum/vermis • Vertebral Arteries - Most of medulla, cerebellar tonsils, inferior vermis / cerebellar hemispheres

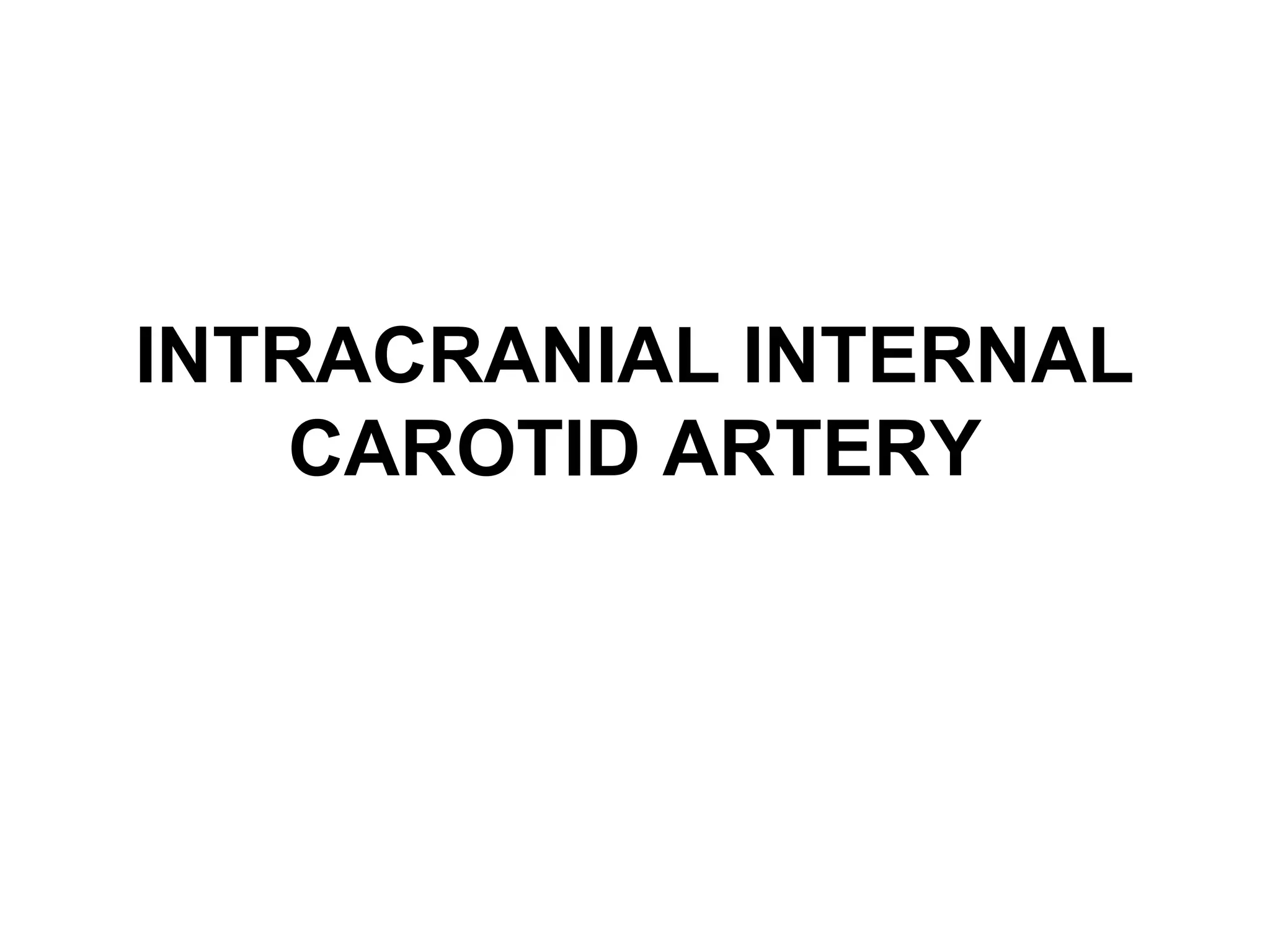

INTRACRANIAL INTERNAL CAROTID ARTERY

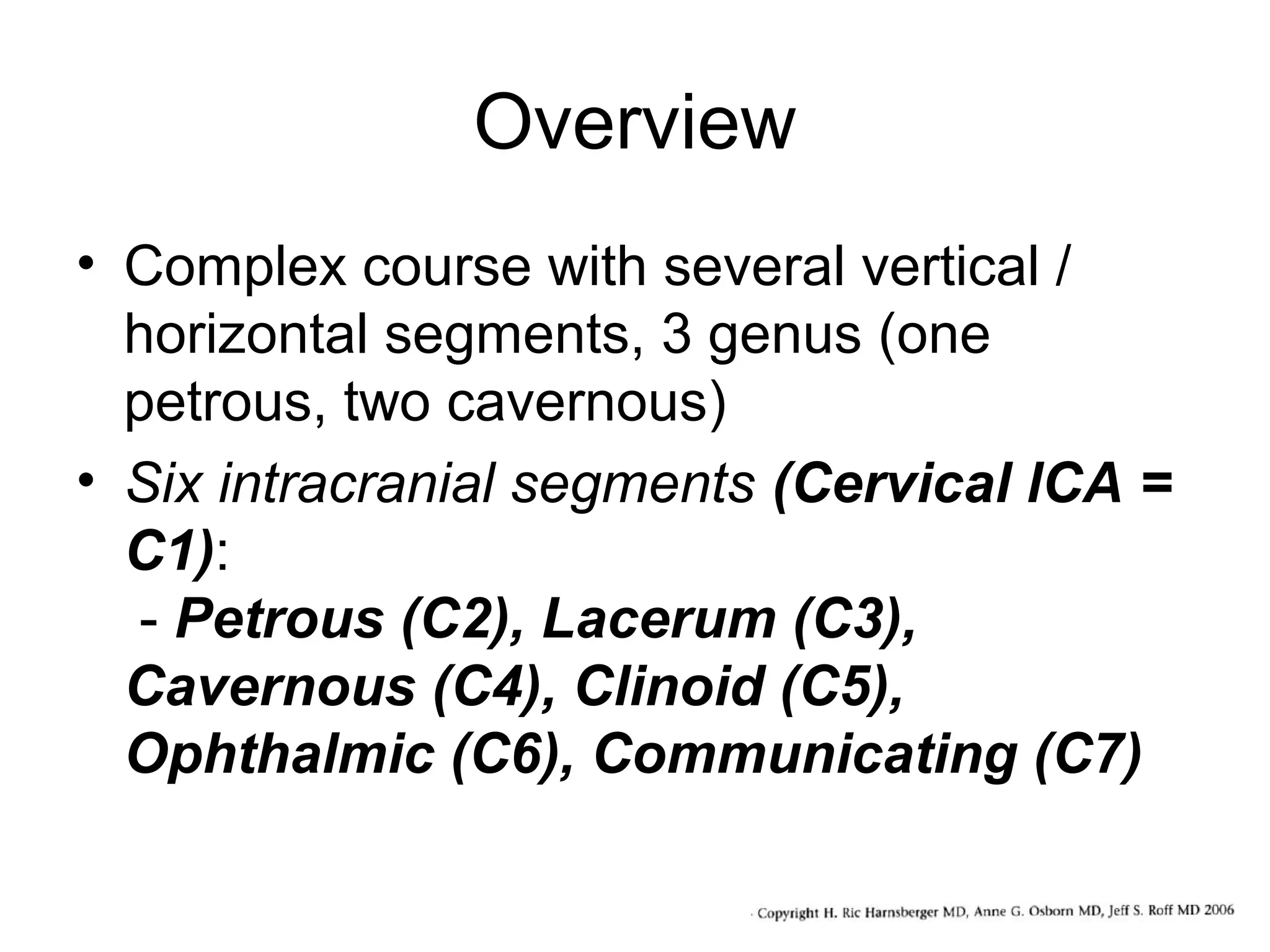

Overview • Complex course with several vertical / horizontal segments, 3 genus (one petrous, two cavernous) • Six intracranial segments (Cervical lCA = C1): - Petrous (C2), Lacerum (C3), Cavernous (C4), Clinoid (C5), Ophthalmic (C6), Communicating (C7)

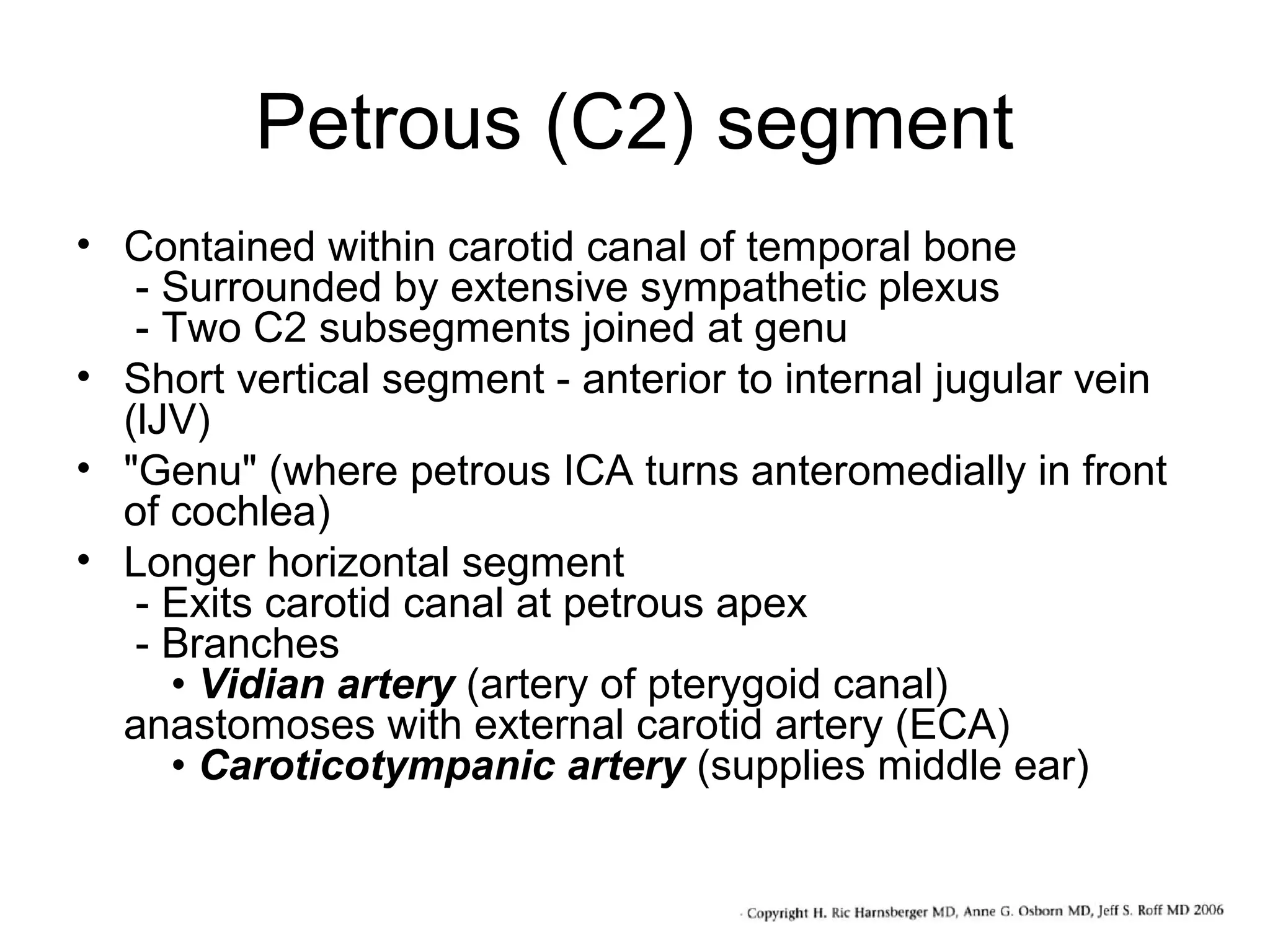

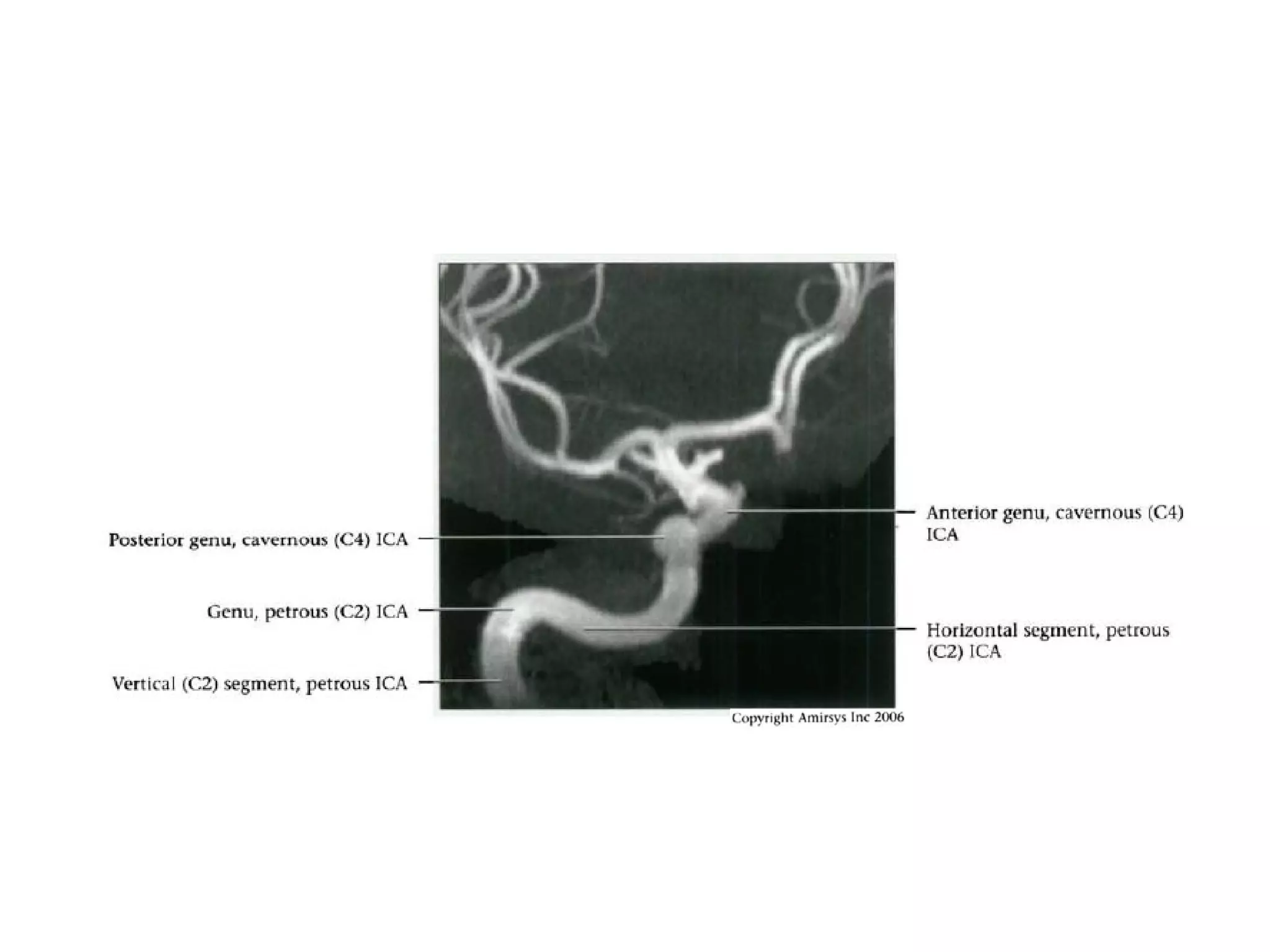

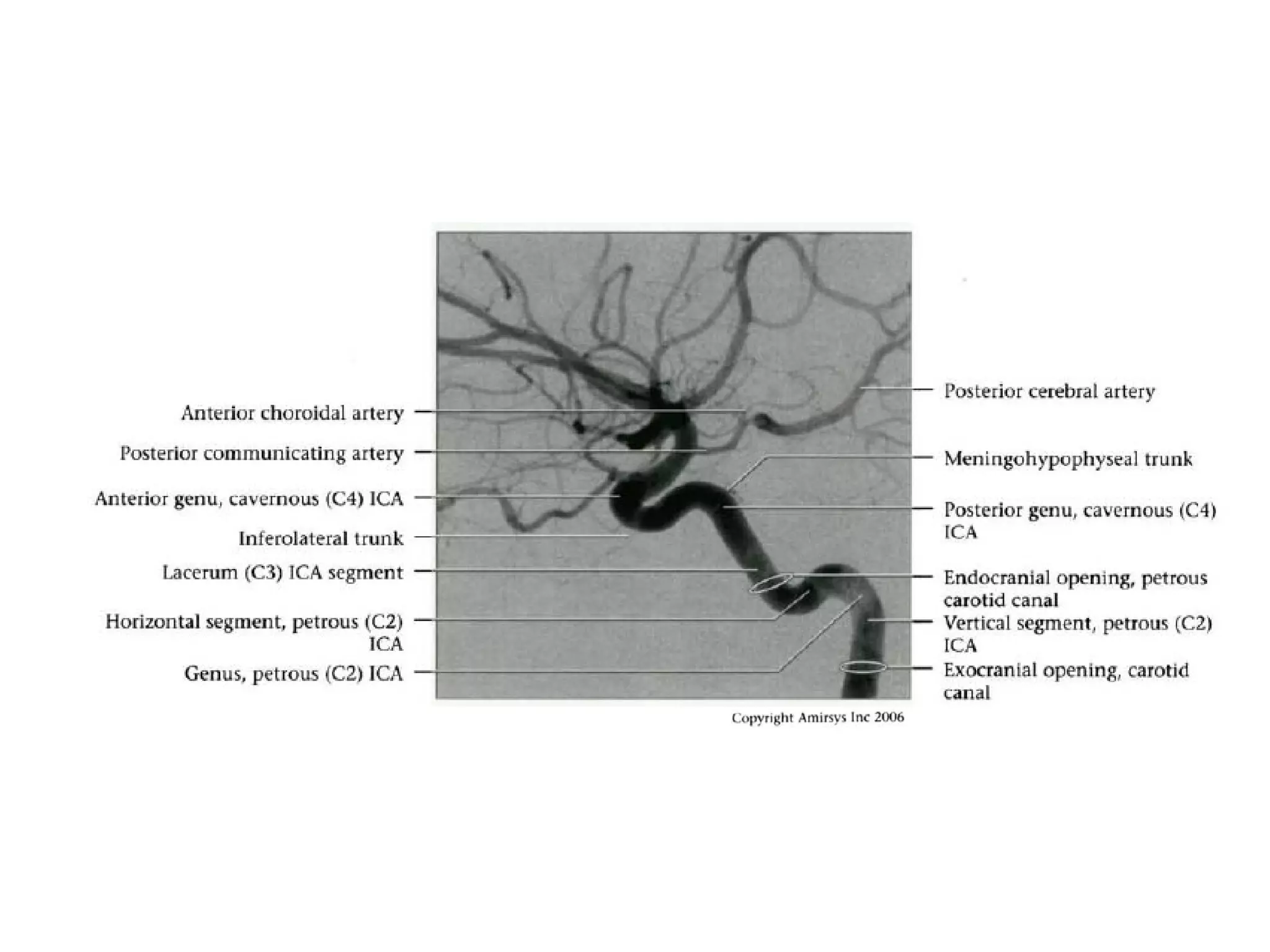

Petrous (C2) segment • Contained within carotid canal of temporal bone - Surrounded by extensive sympathetic plexus - Two C2 subsegments joined at genu • Short vertical segment - anterior to internal jugular vein (lJV) • "Genu" (where petrous ICA turns anteromedially in front of cochlea) • Longer horizontal segment - Exits carotid canal at petrous apex - Branches • Vidian artery (artery of pterygoid canal) anastomoses with external carotid artery (ECA) • Caroticotympanic artery (supplies middle ear)

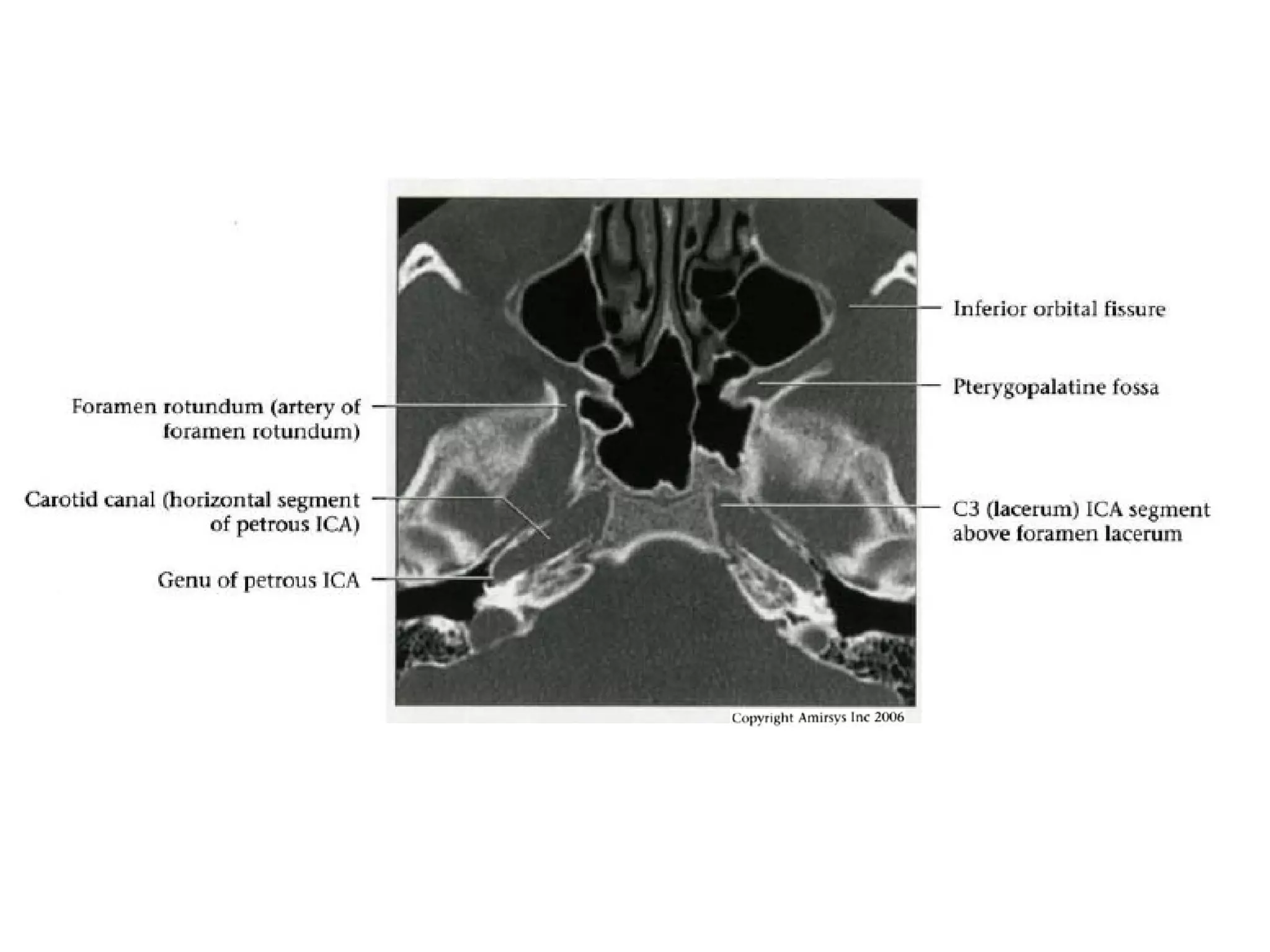

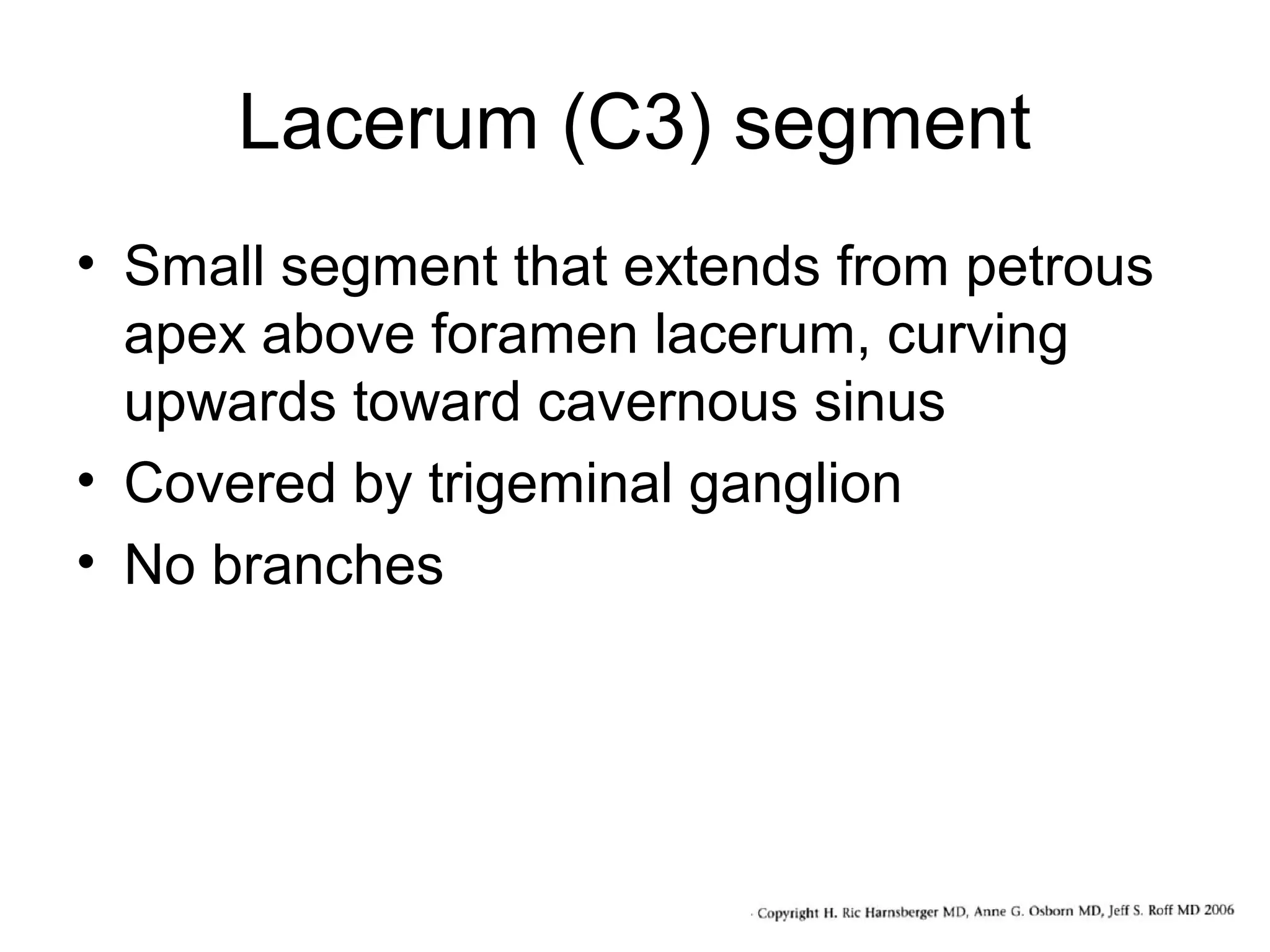

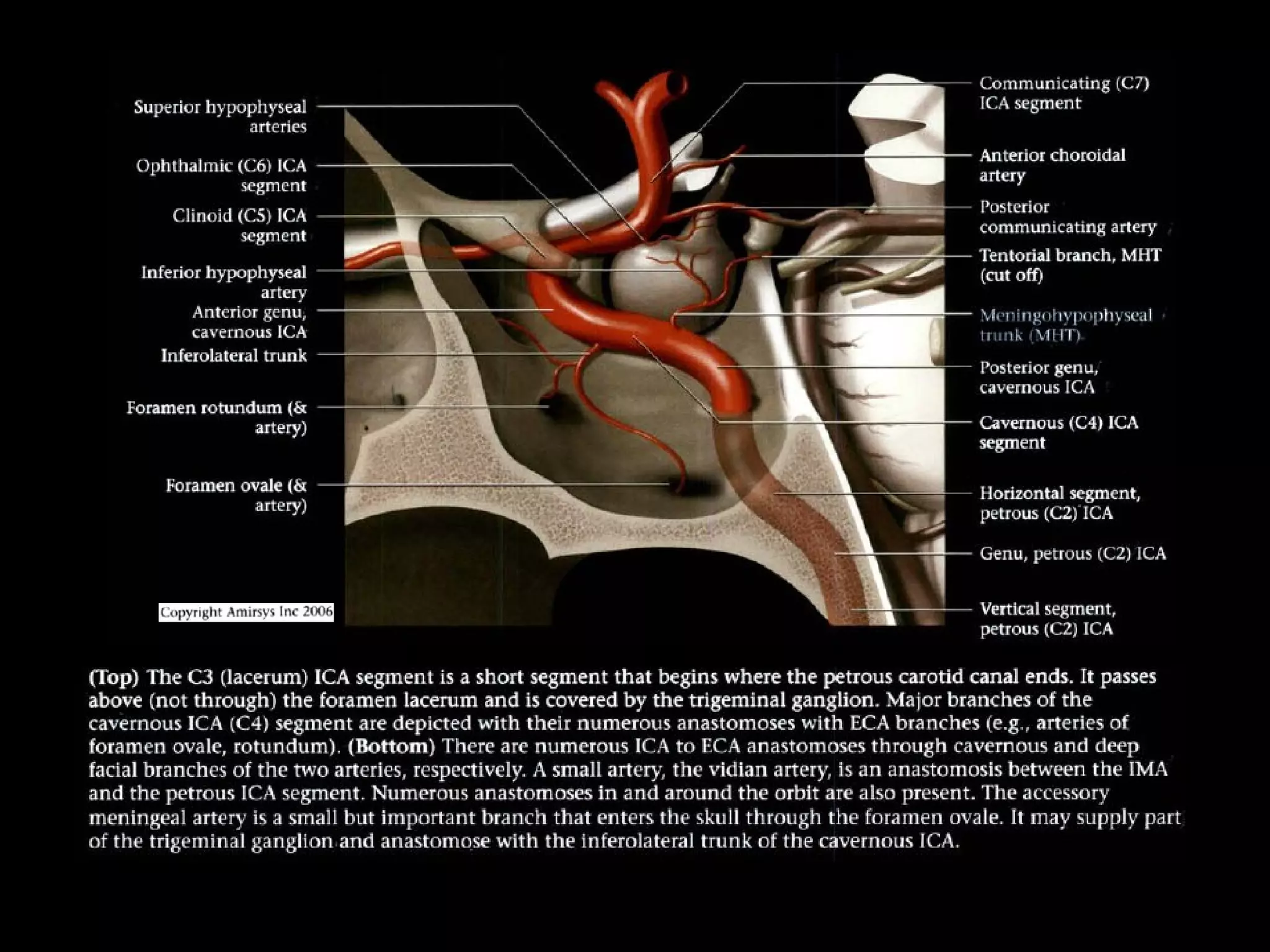

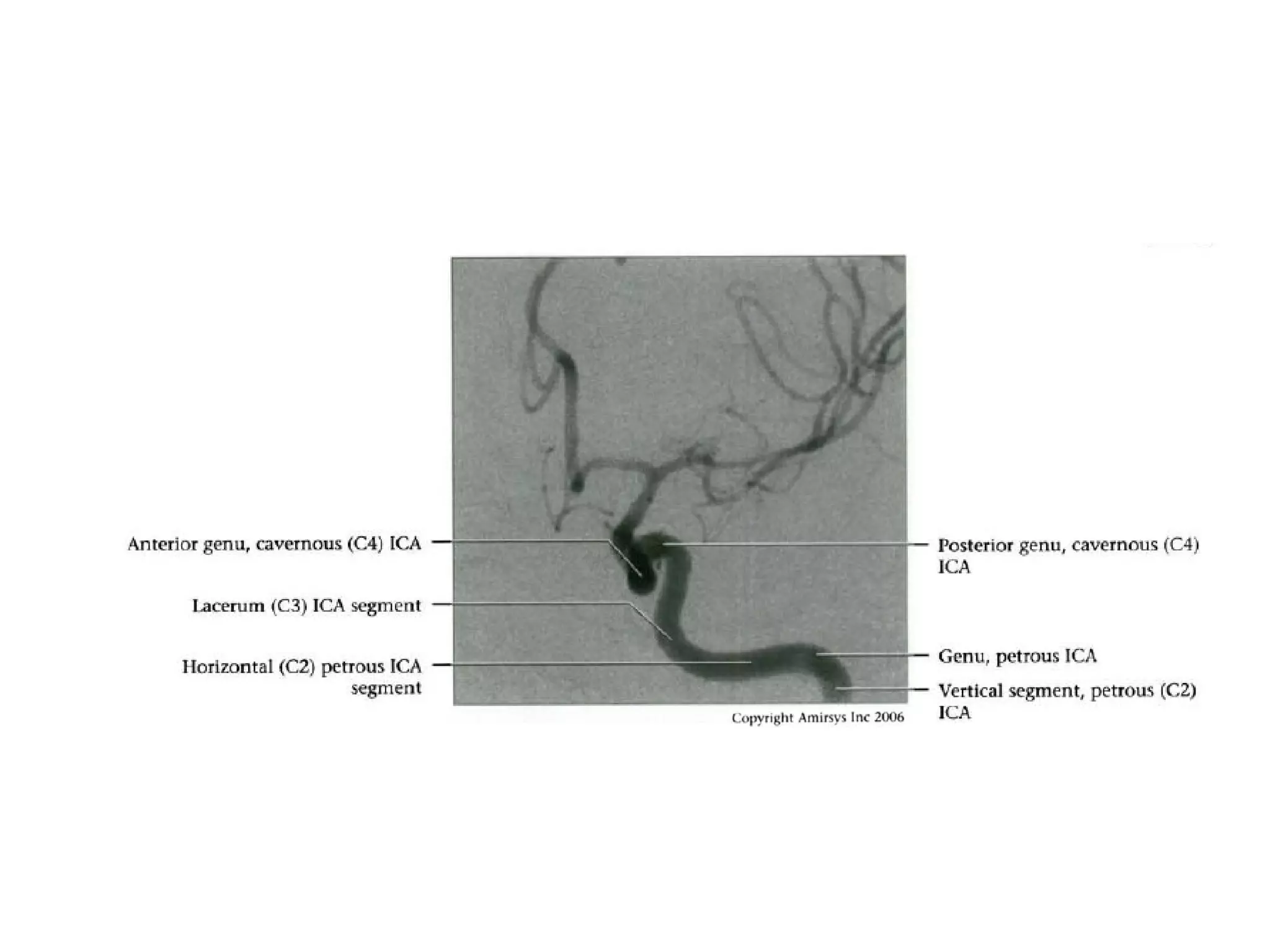

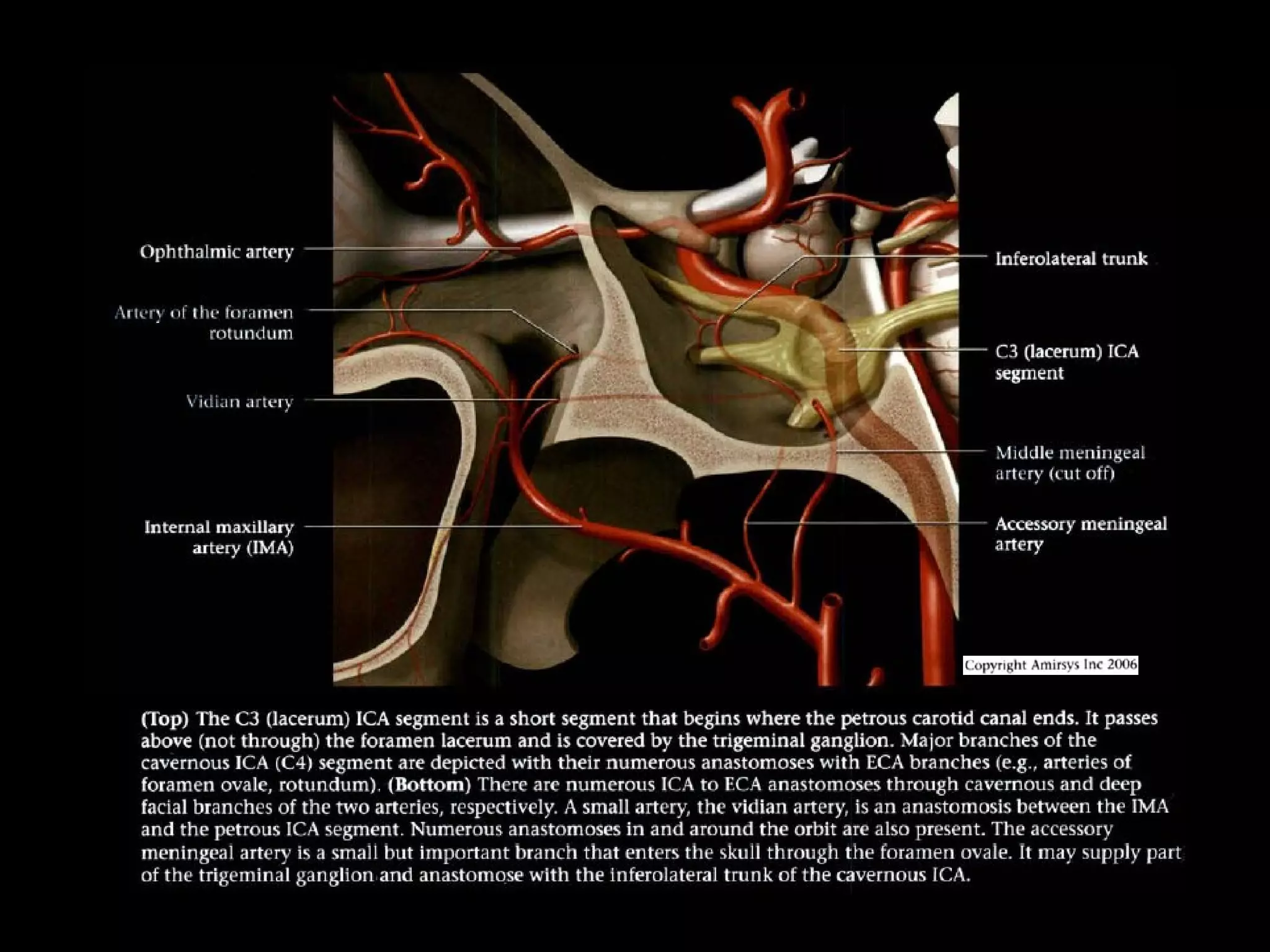

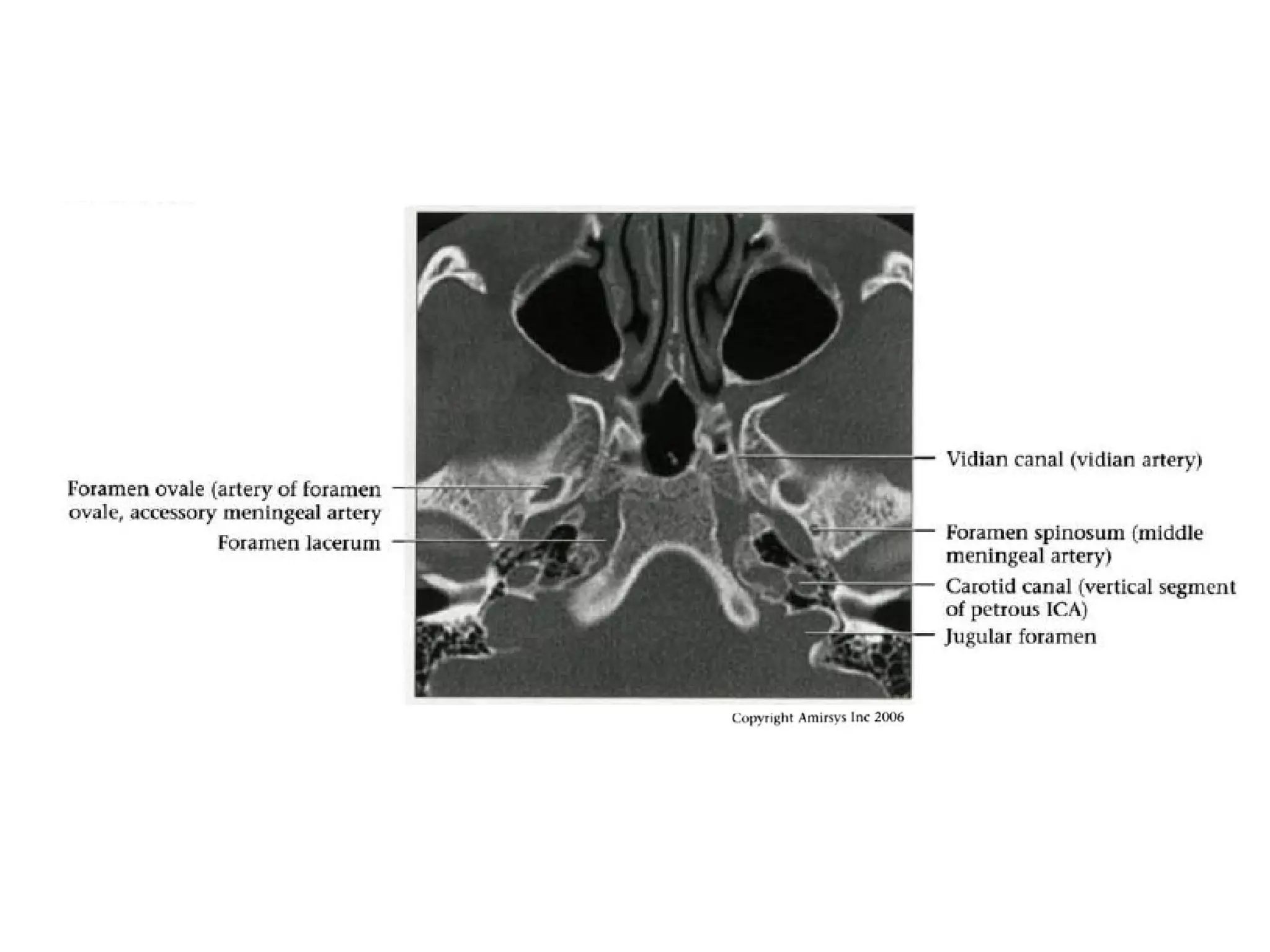

Lacerum (C3) segment • Small segment that extends from petrous apex above foramen lacerum, curving upwards toward cavernous sinus • Covered by trigeminal ganglion • No branches

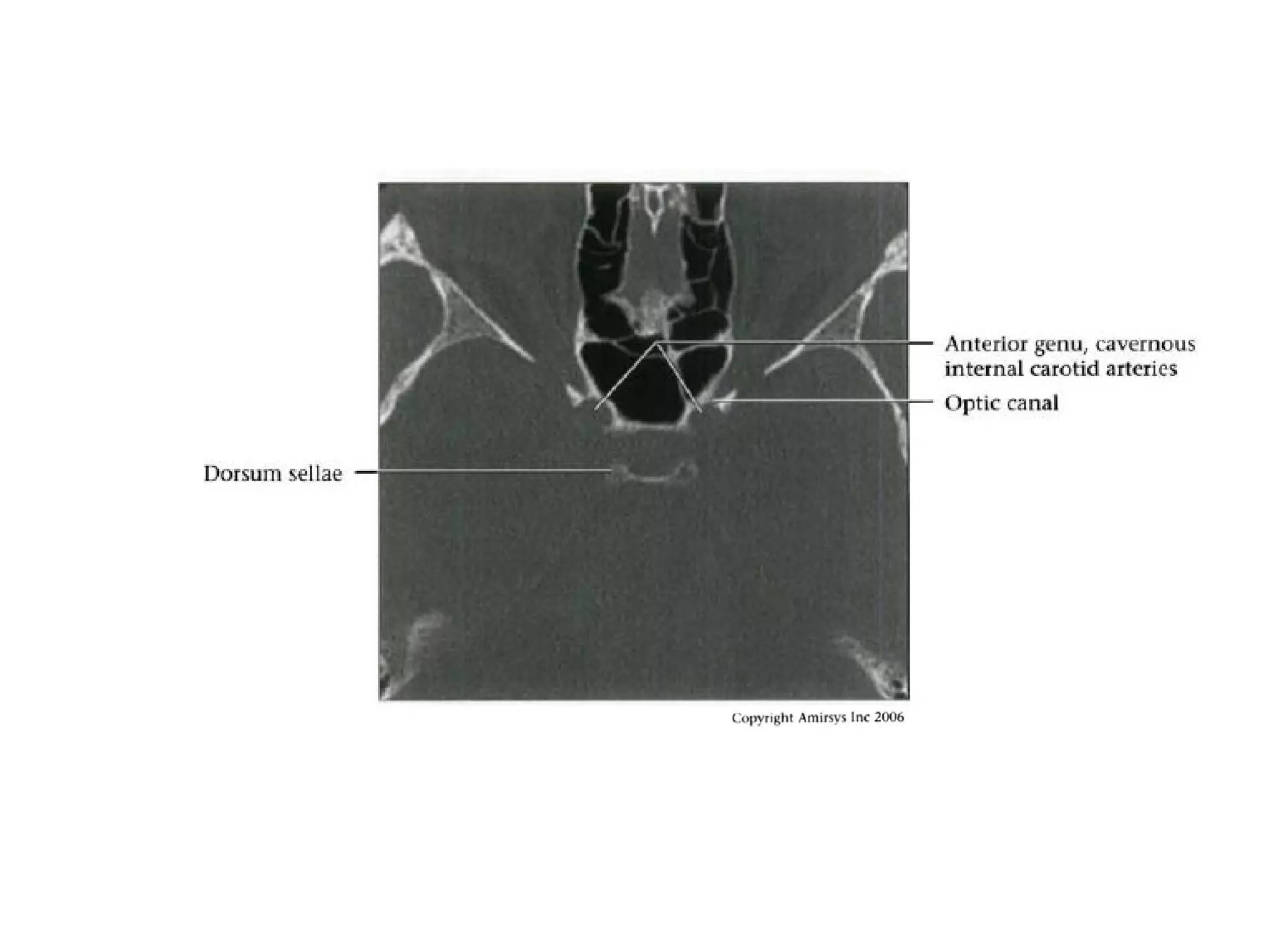

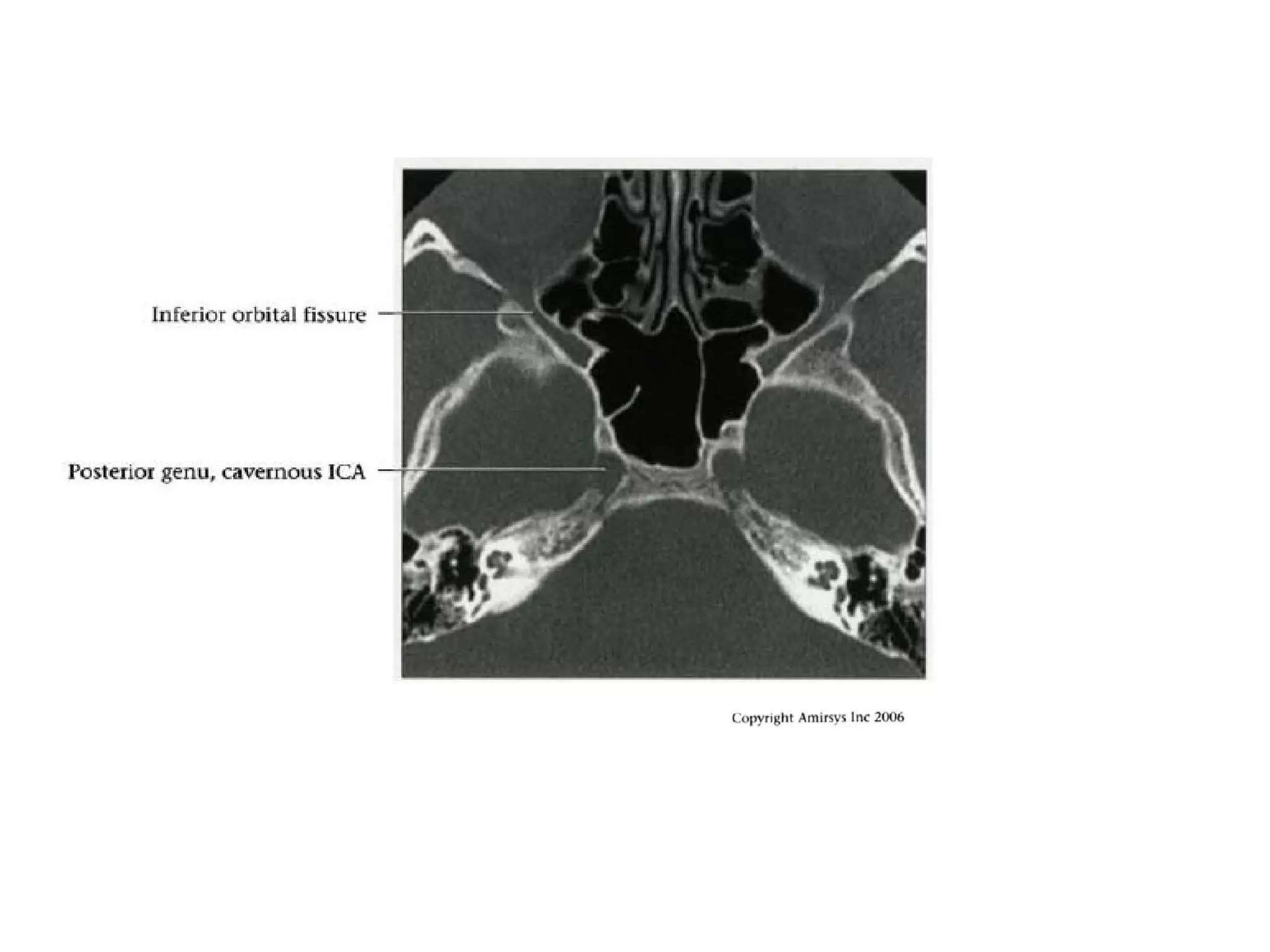

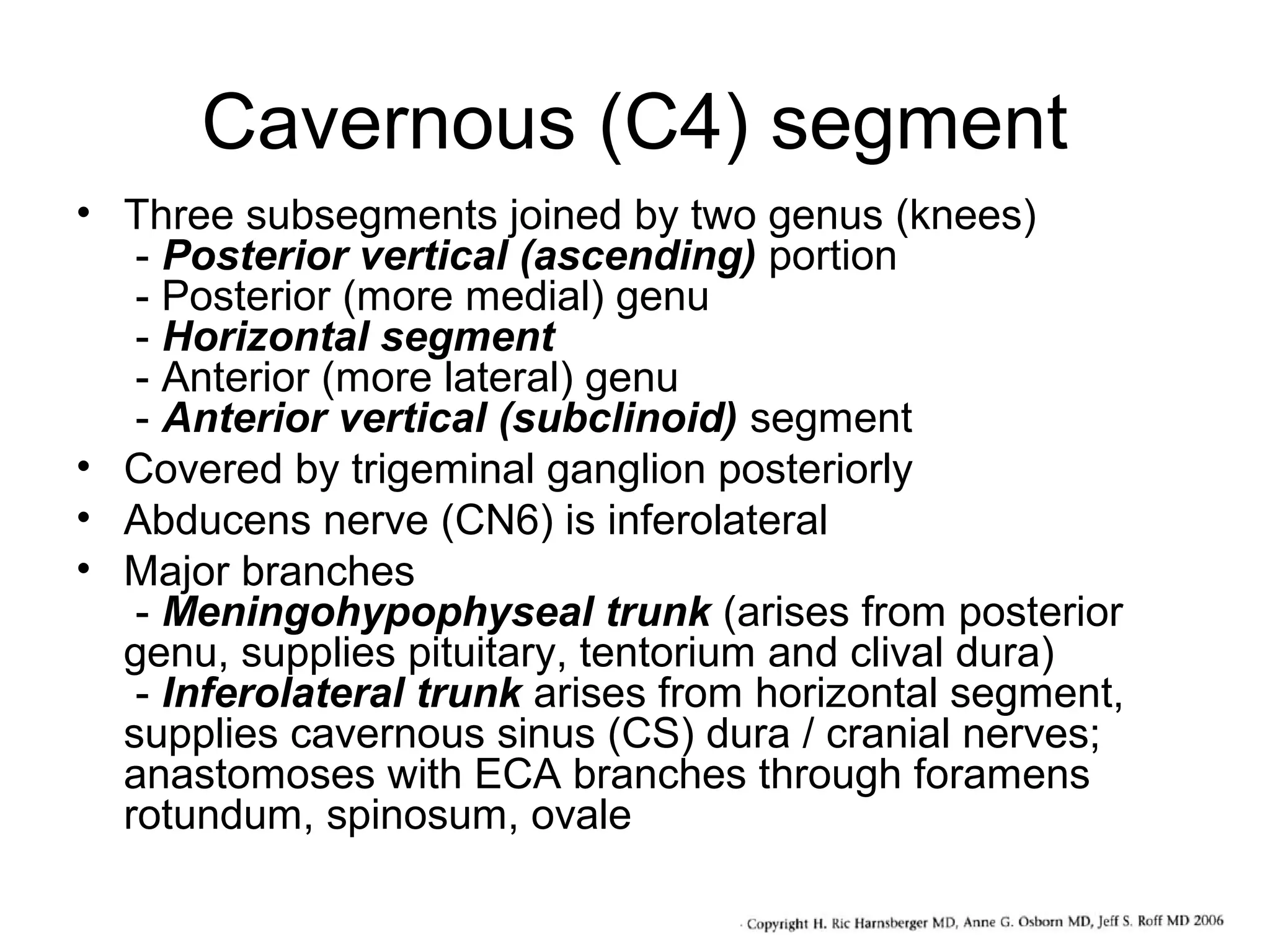

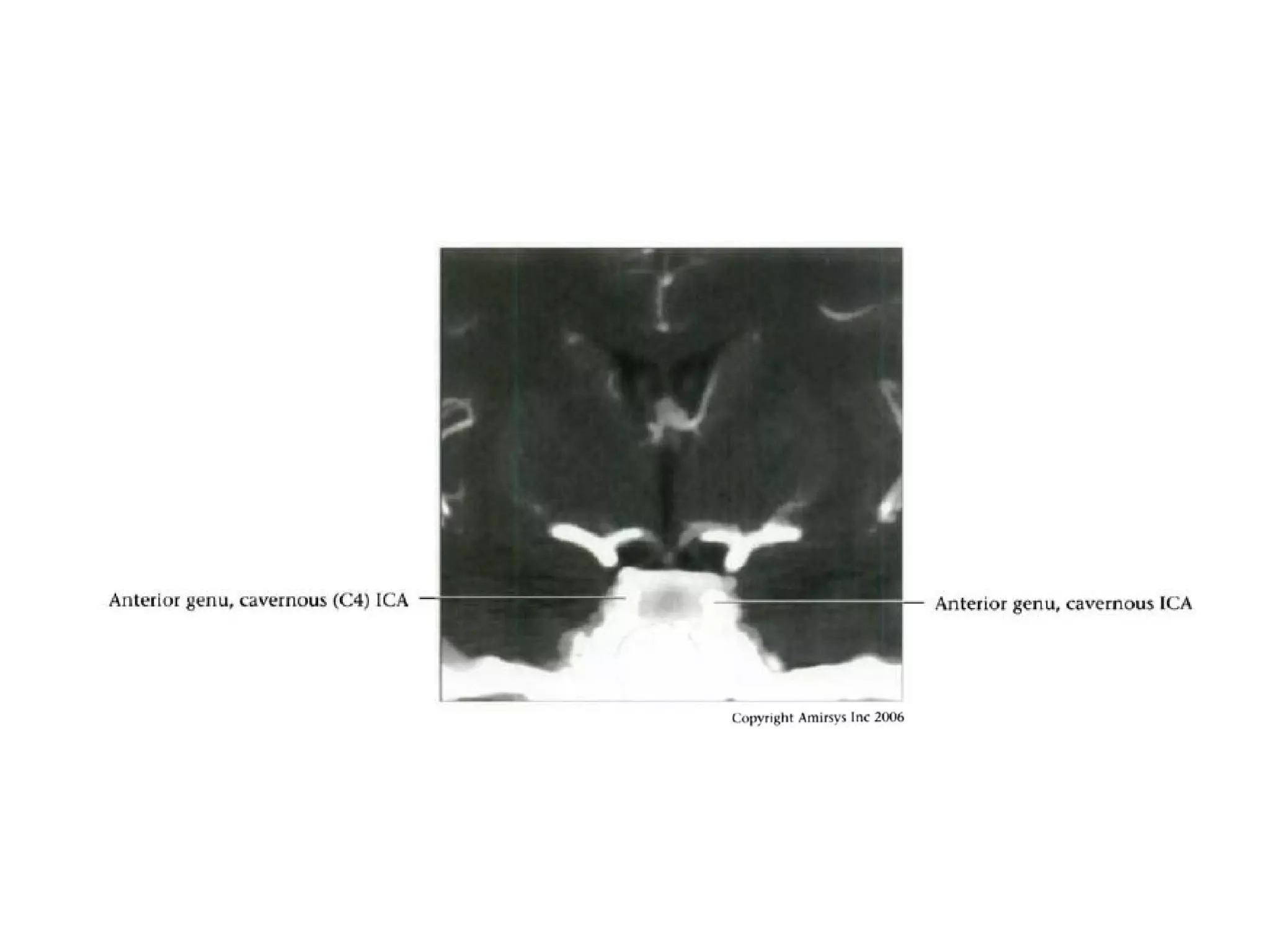

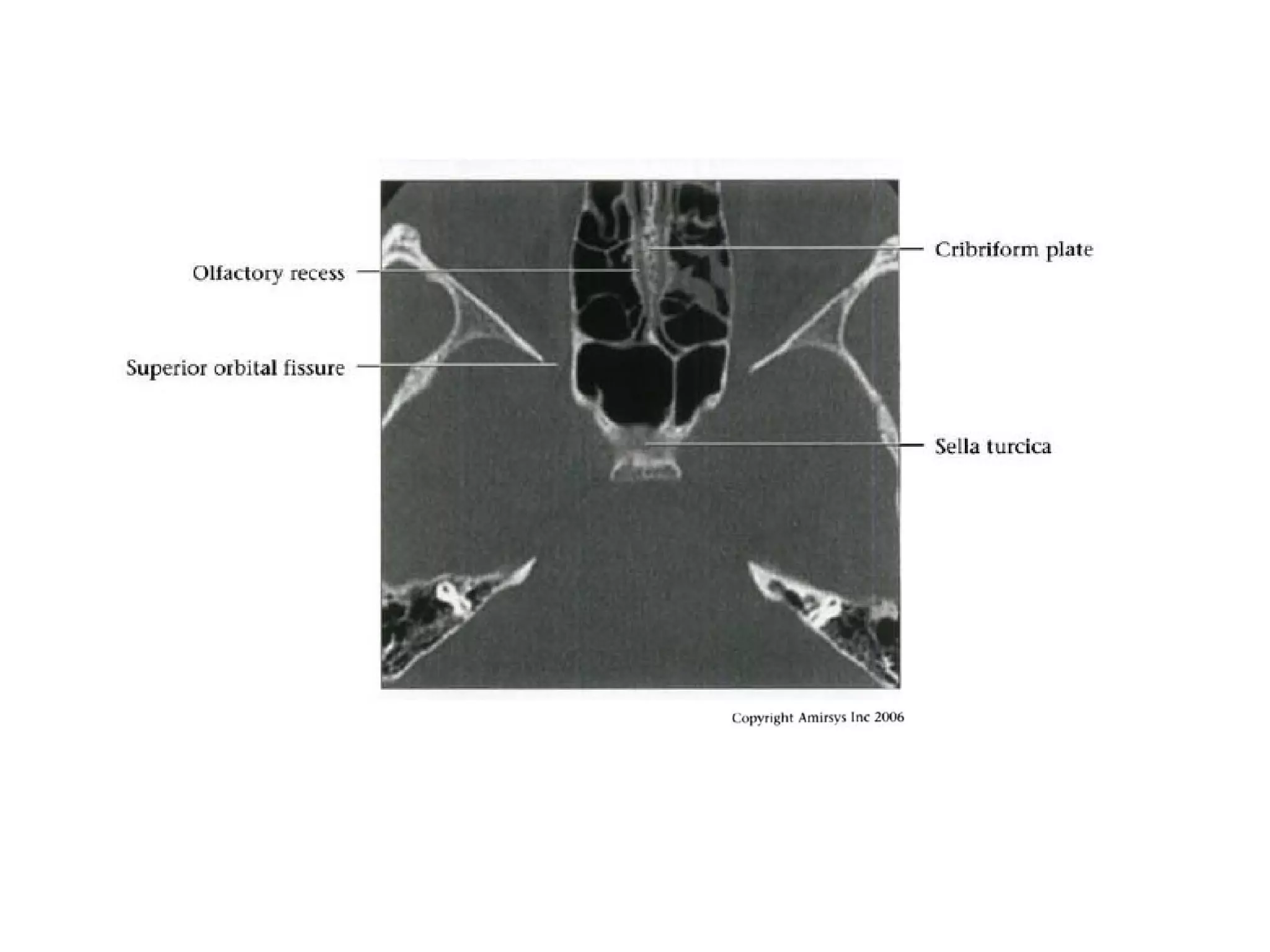

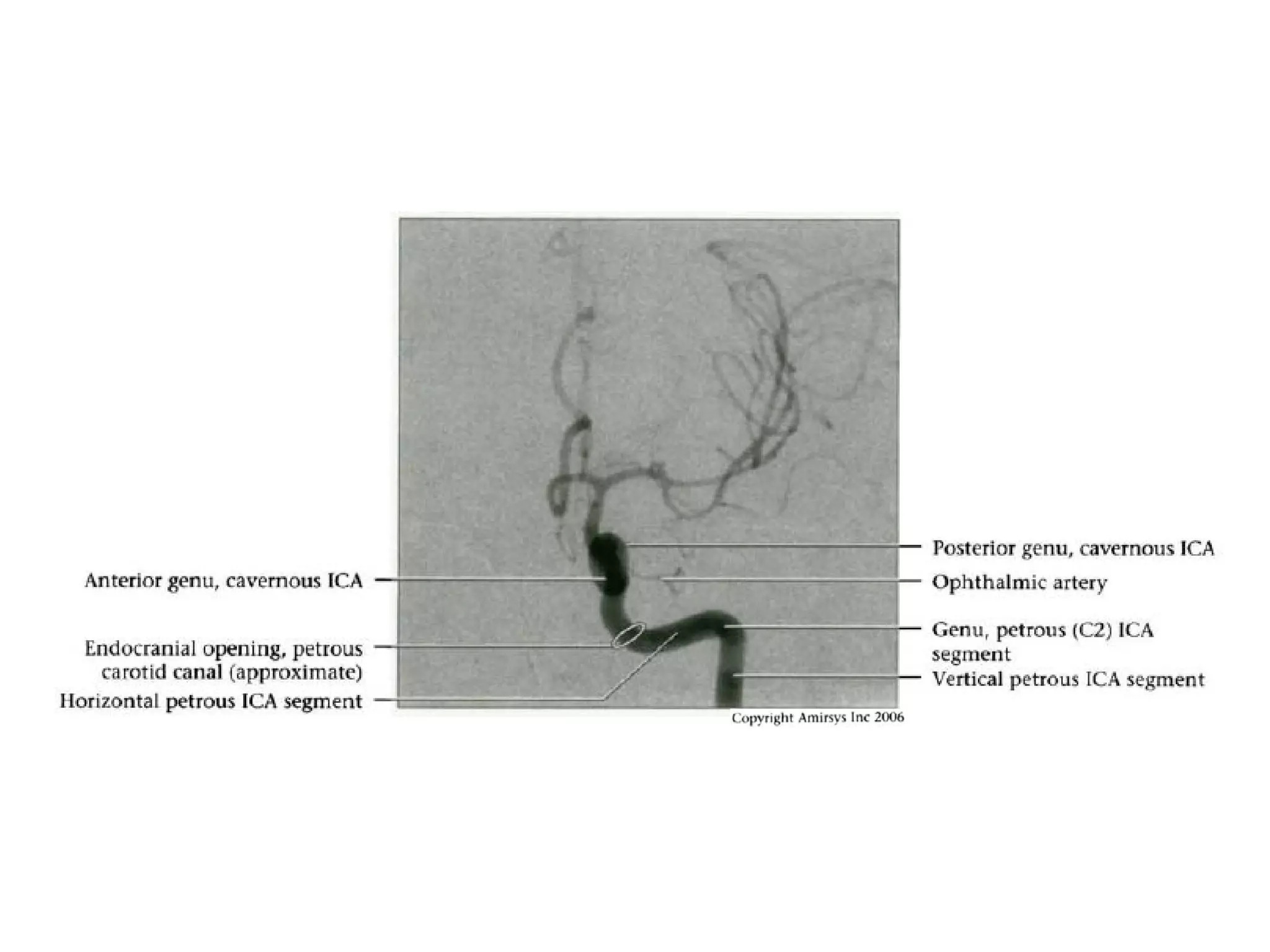

Cavernous (C4) segment • Three subsegments joined by two genus (knees) - Posterior vertical (ascending) portion - Posterior (more medial) genu - Horizontal segment - Anterior (more lateral) genu - Anterior vertical (subclinoid) segment • Covered by trigeminal ganglion posteriorly • Abducens nerve (CN6) is inferolateral • Major branches - Meningohypophyseal trunk (arises from posterior genu, supplies pituitary, tentorium and clival dura) - Inferolateral trunk arises from horizontal segment, supplies cavernous sinus (CS) dura / cranial nerves; anastomoses with ECA branches through foramens rotundum, spinosum, ovale

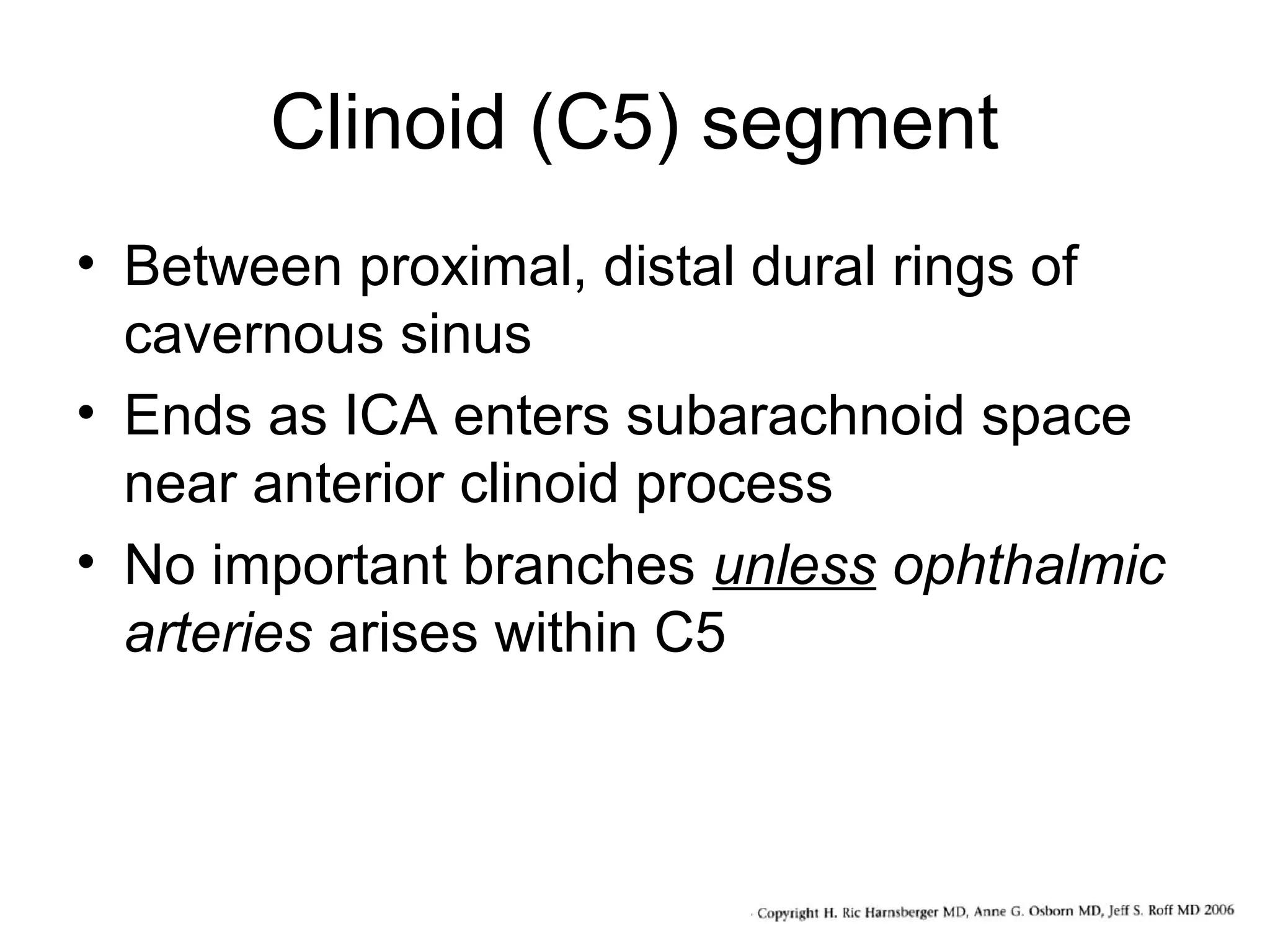

Clinoid (C5) segment • Between proximal, distal dural rings of cavernous sinus • Ends as ICA enters subarachnoid space near anterior clinoid process • No important branches unless ophthalmic arteries arises within C5

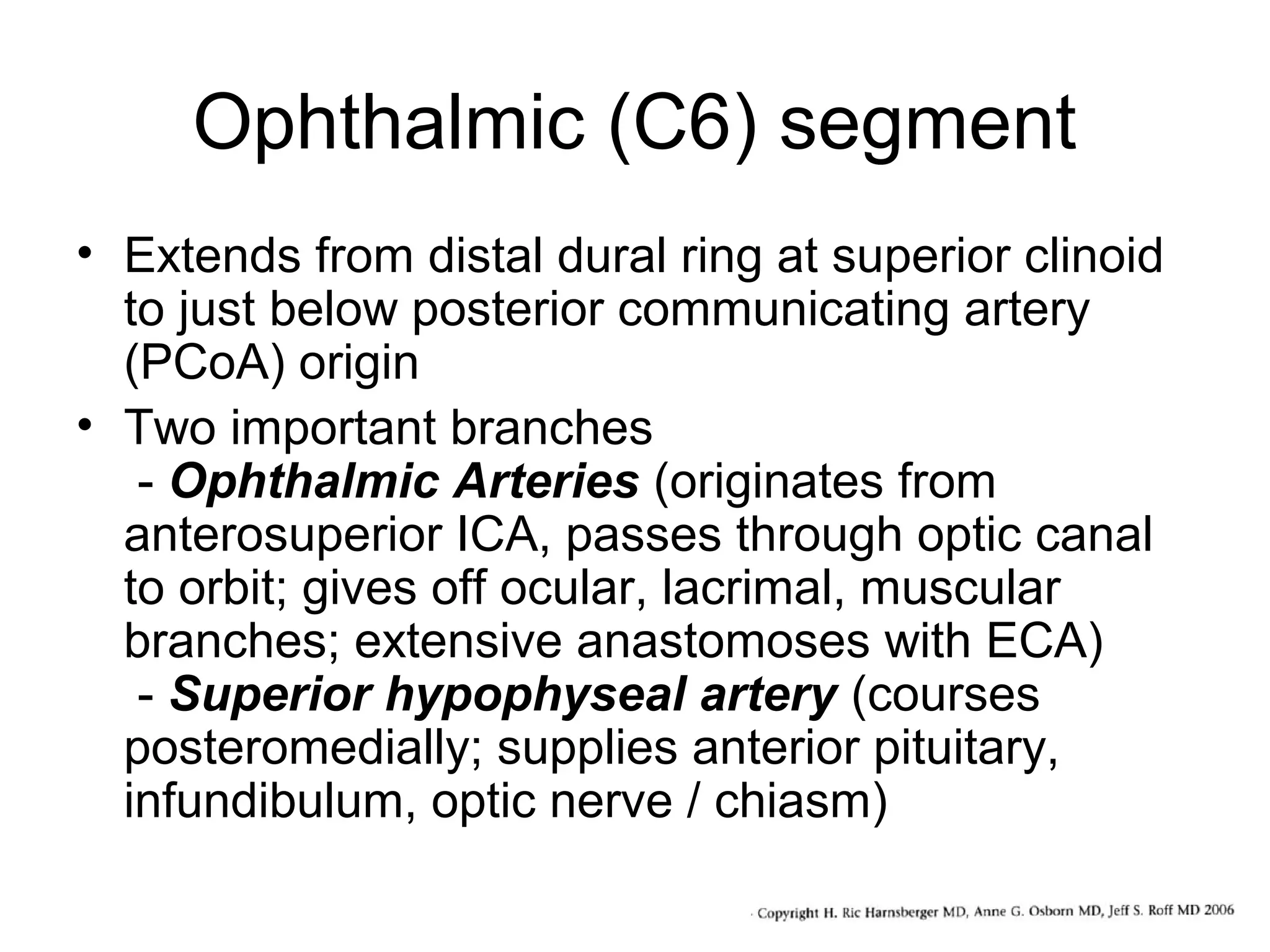

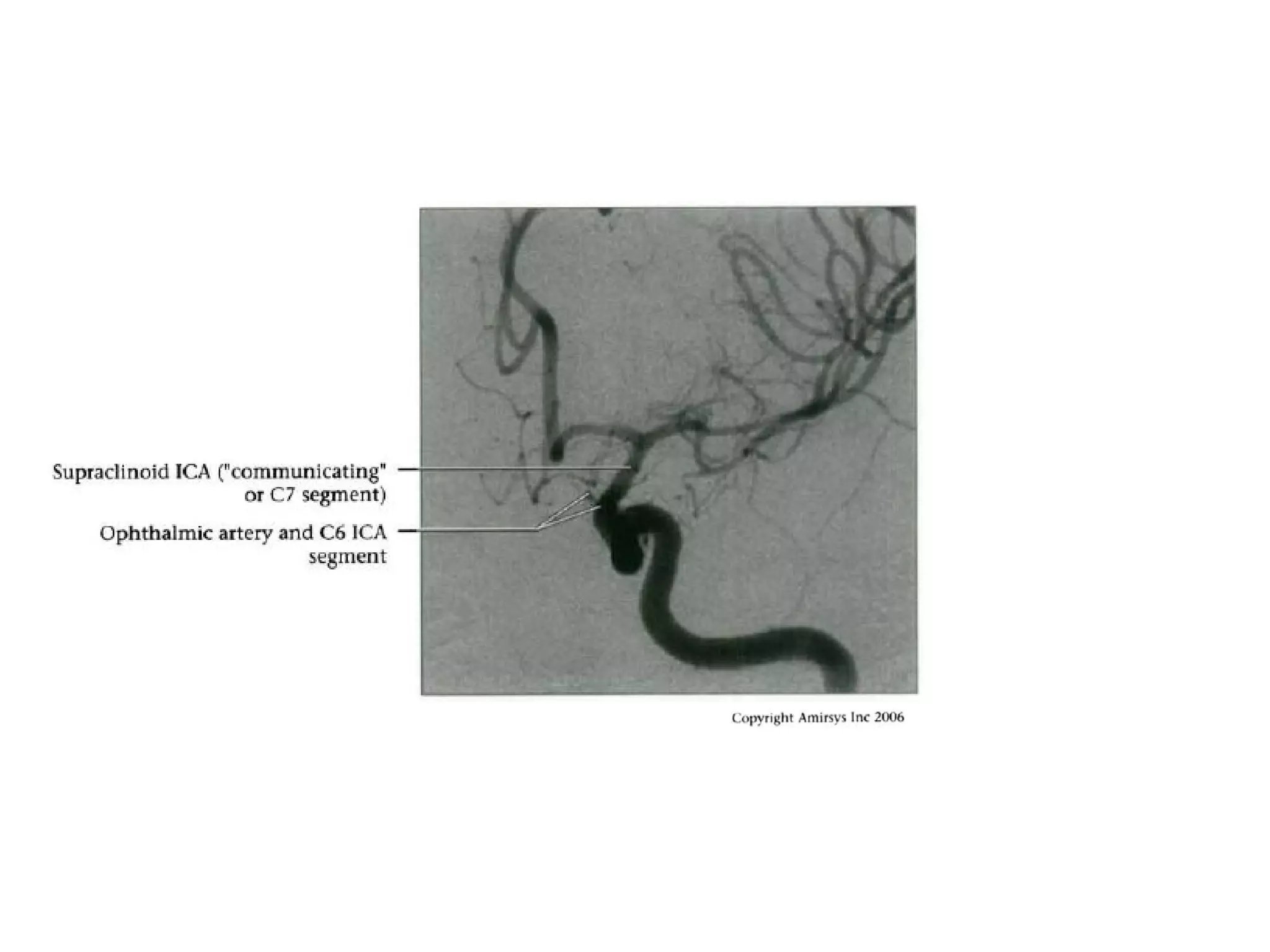

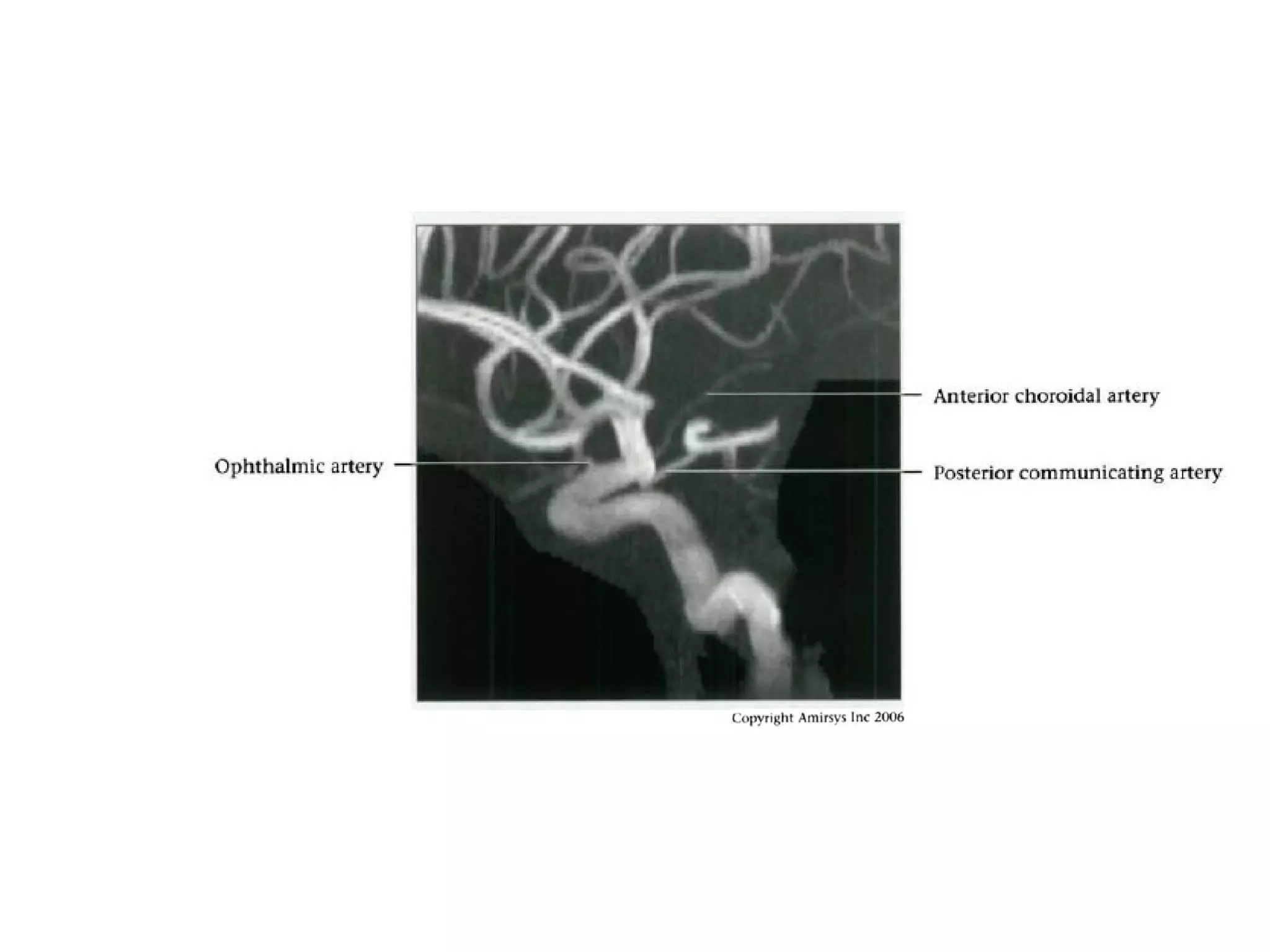

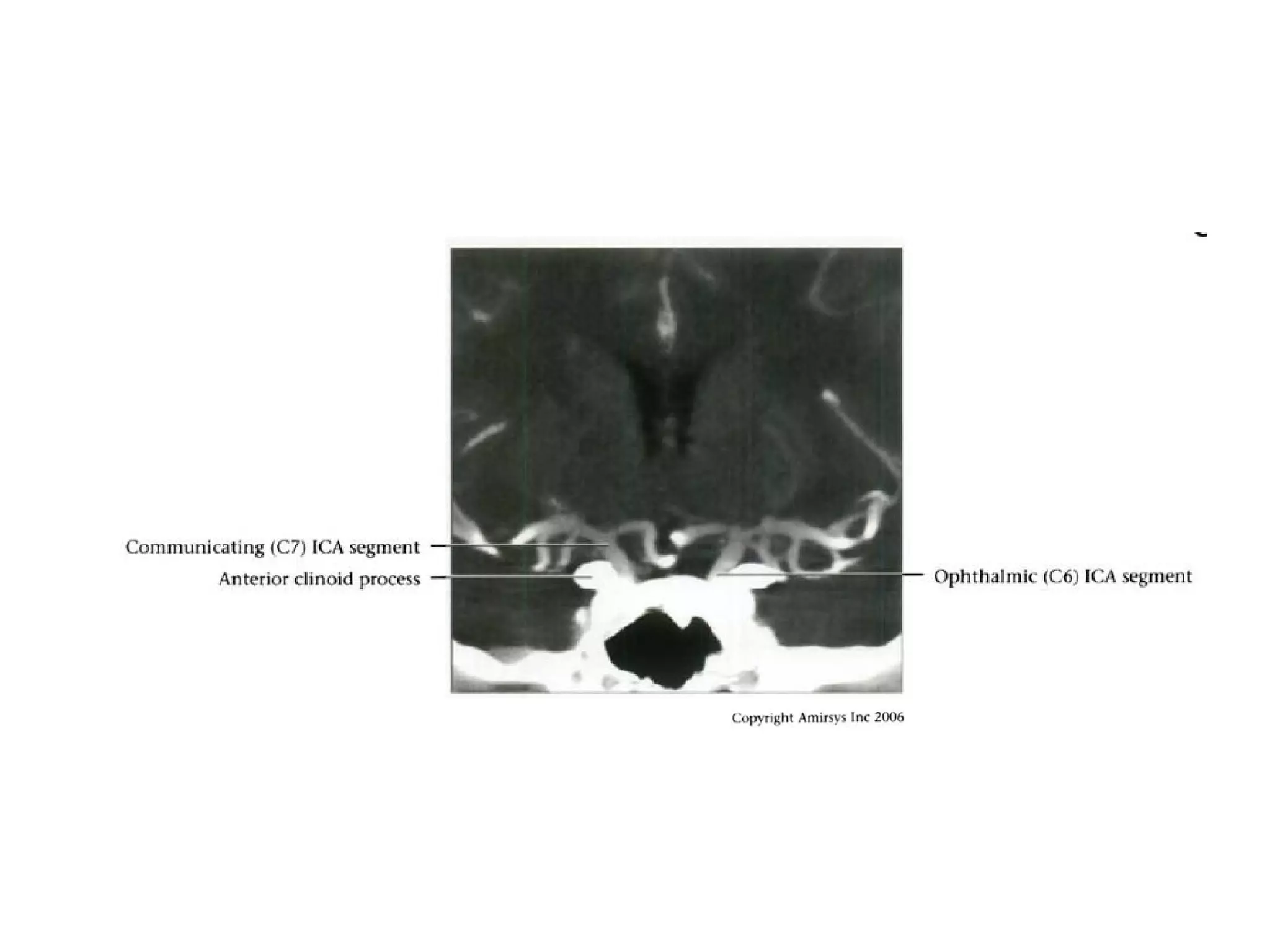

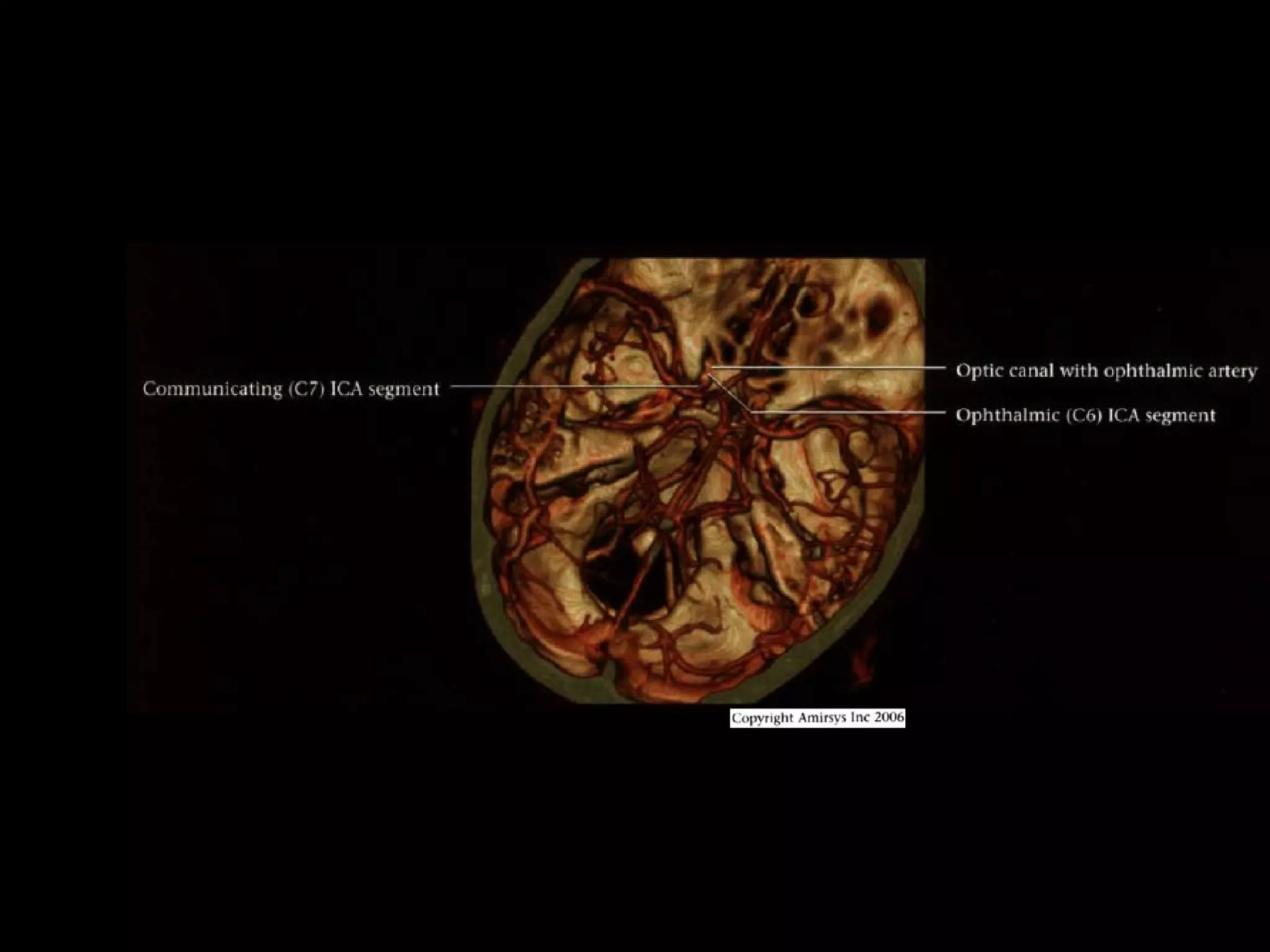

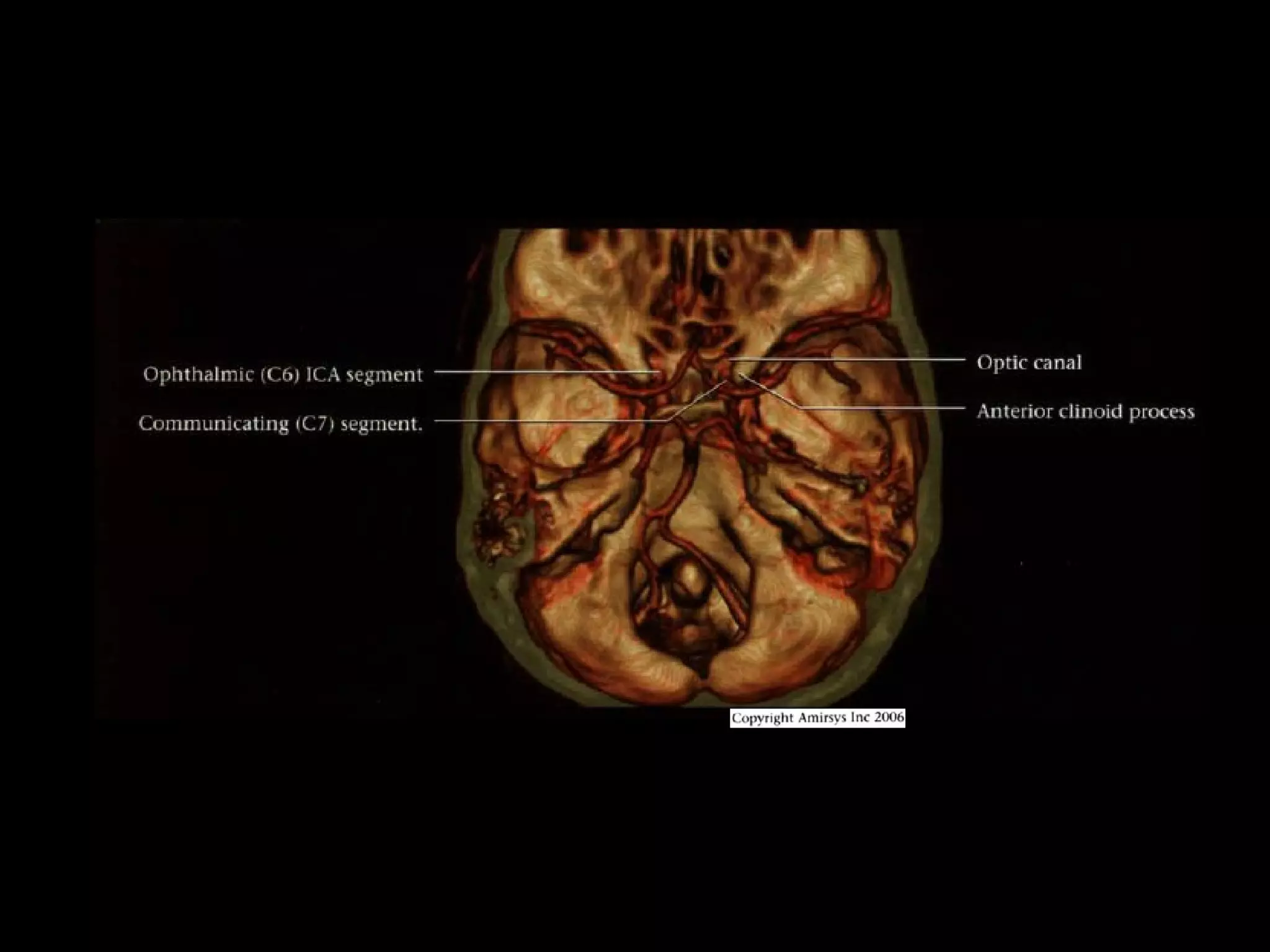

Ophthalmic (C6) segment • Extends from distal dural ring at superior clinoid to just below posterior communicating artery (PCoA) origin • Two important branches - Ophthalmic Arteries (originates from anterosuperior ICA, passes through optic canal to orbit; gives off ocular, lacrimal, muscular branches; extensive anastomoses with ECA) - Superior hypophyseal artery (courses posteromedially; supplies anterior pituitary, infundibulum, optic nerve / chiasm)

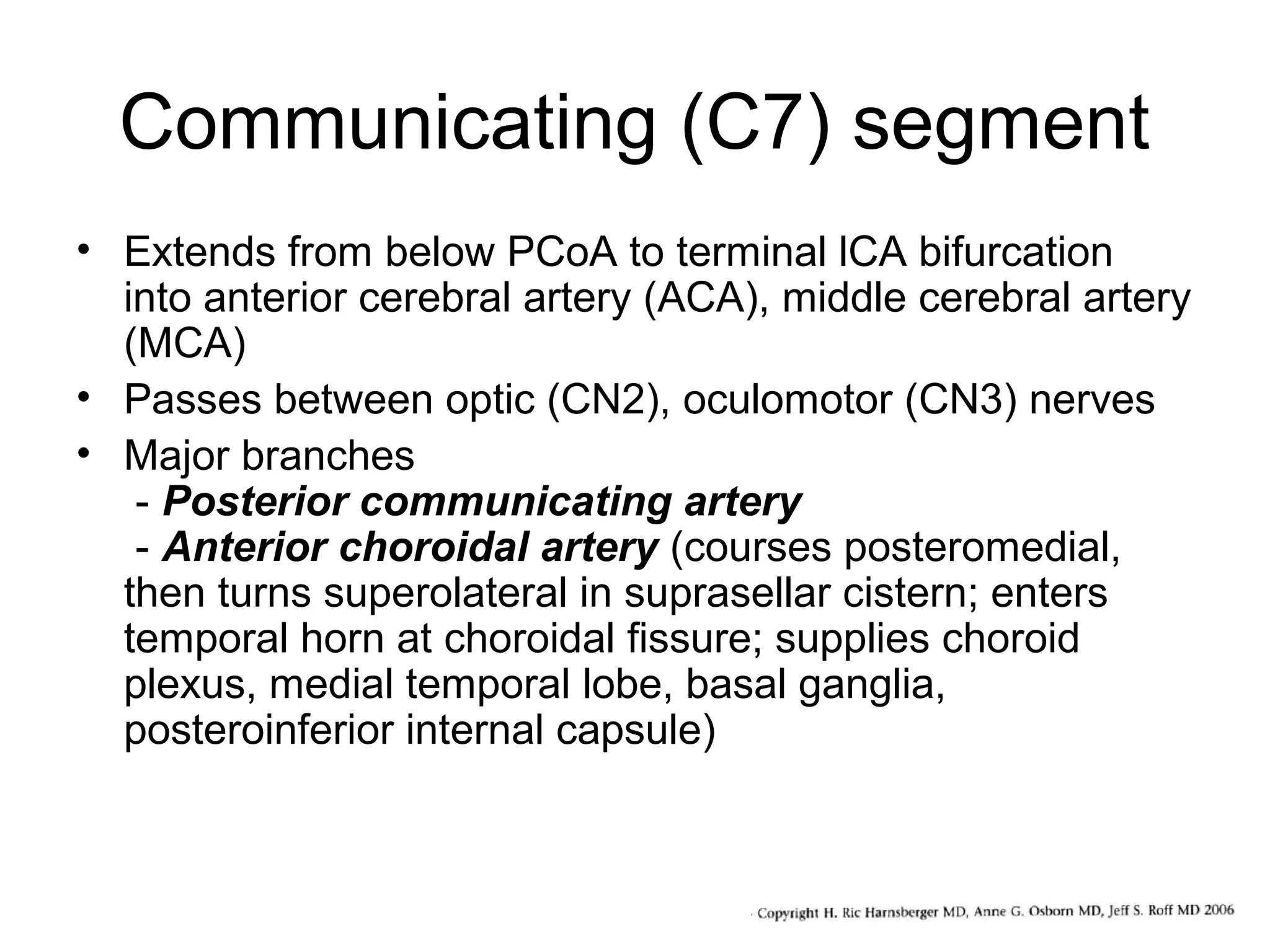

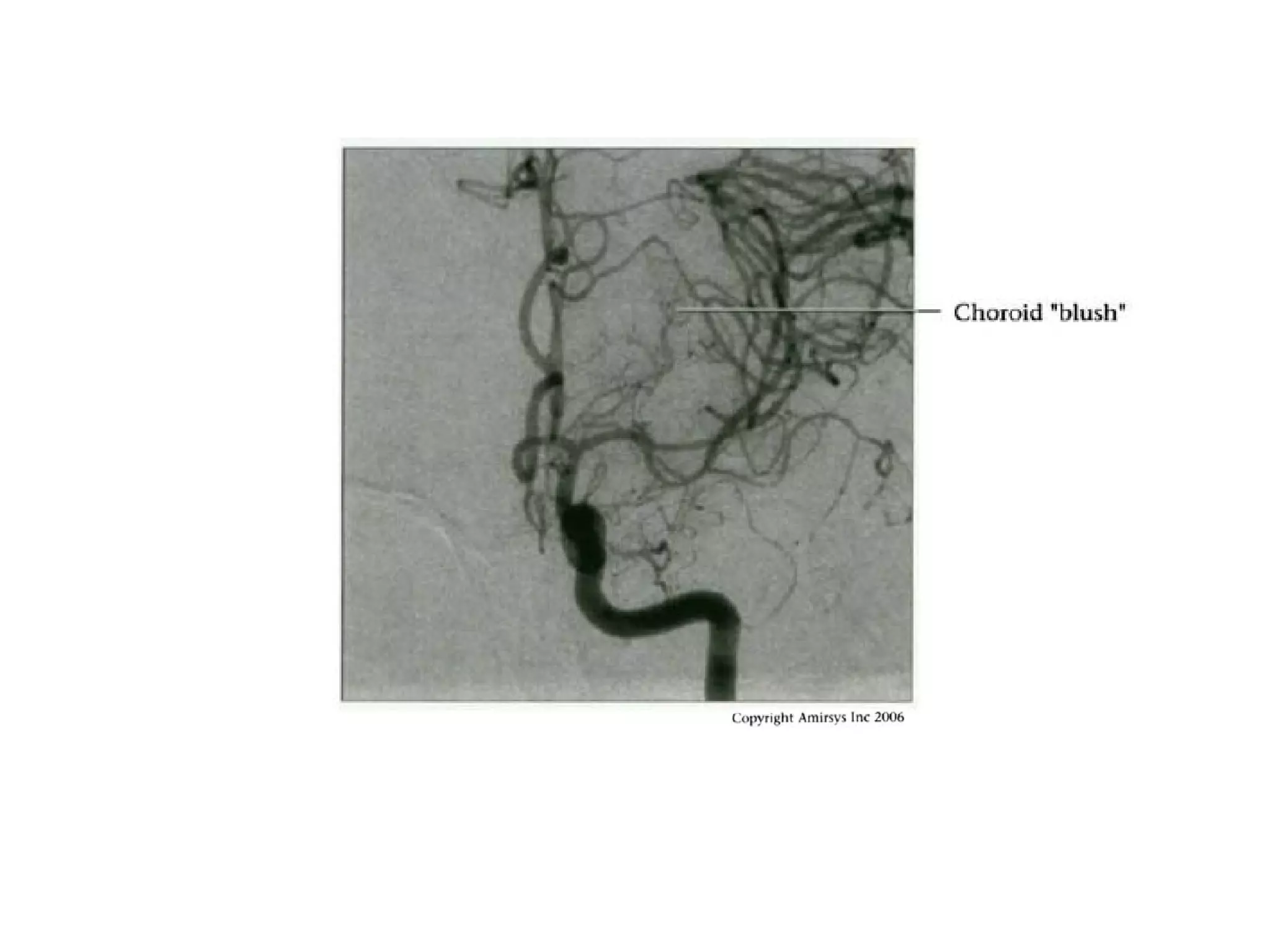

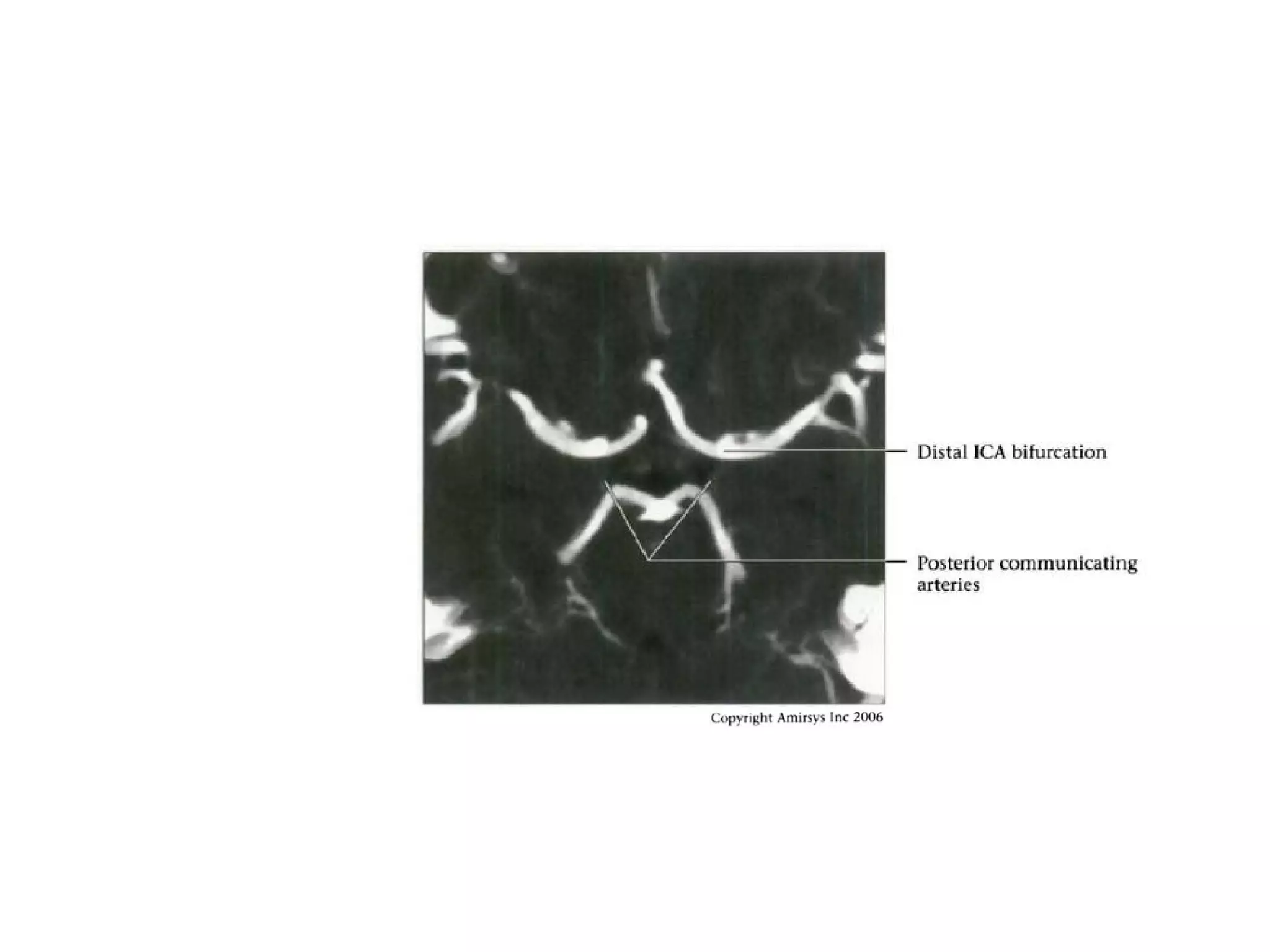

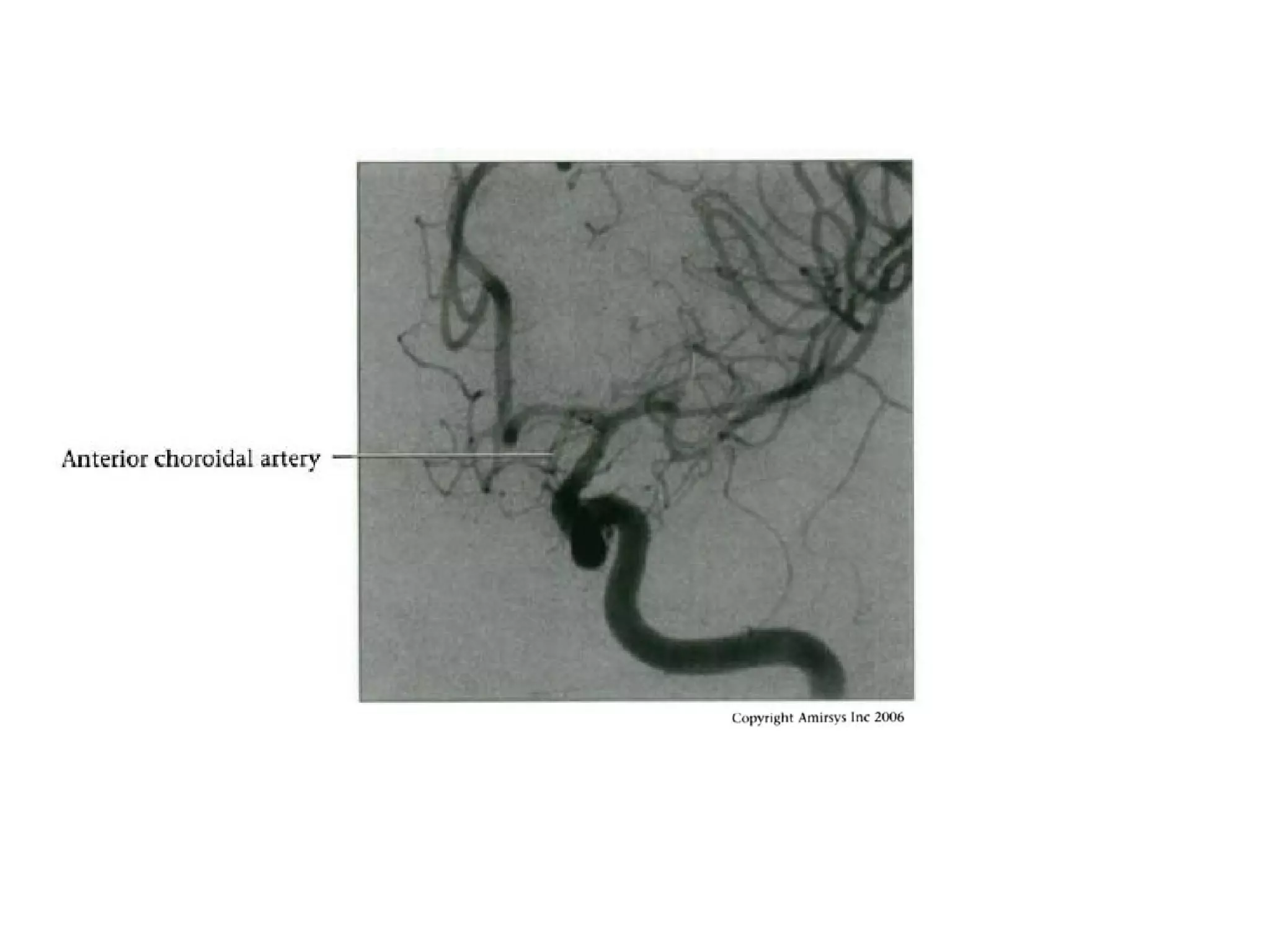

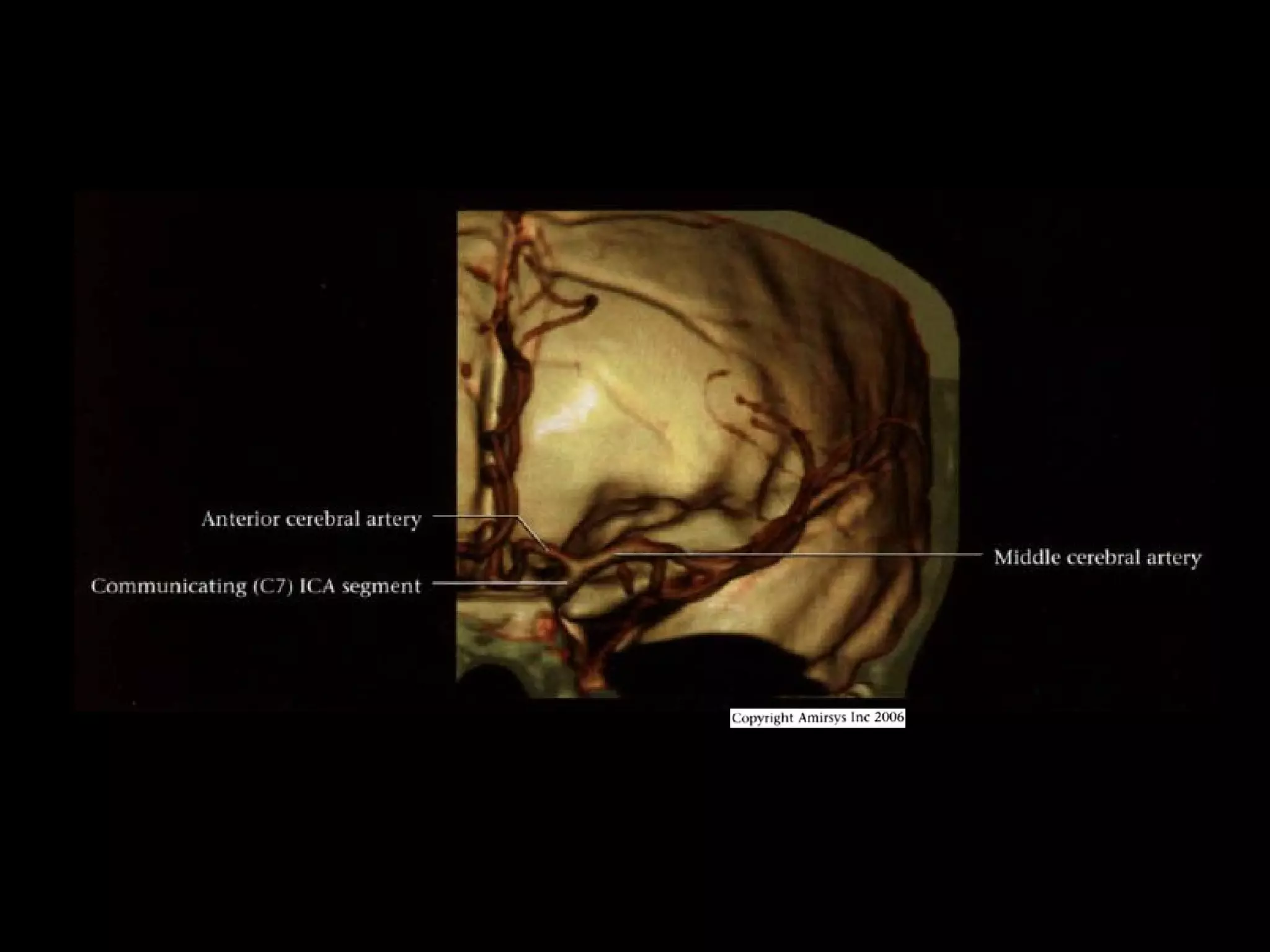

Communicating (C7) segment • Extends from below PCoA to terminal lCA bifurcation into anterior cerebral artery (ACA), middle cerebral artery (MCA) • Passes between optic (CN2), oculomotor (CN3) nerves • Major branches - Posterior communicating artery - Anterior choroidal artery (courses posteromedial, then turns superolateral in suprasellar cistern; enters temporal horn at choroidal fissure; supplies choroid plexus, medial temporal lobe, basal ganglia, posteroinferior internal capsule)

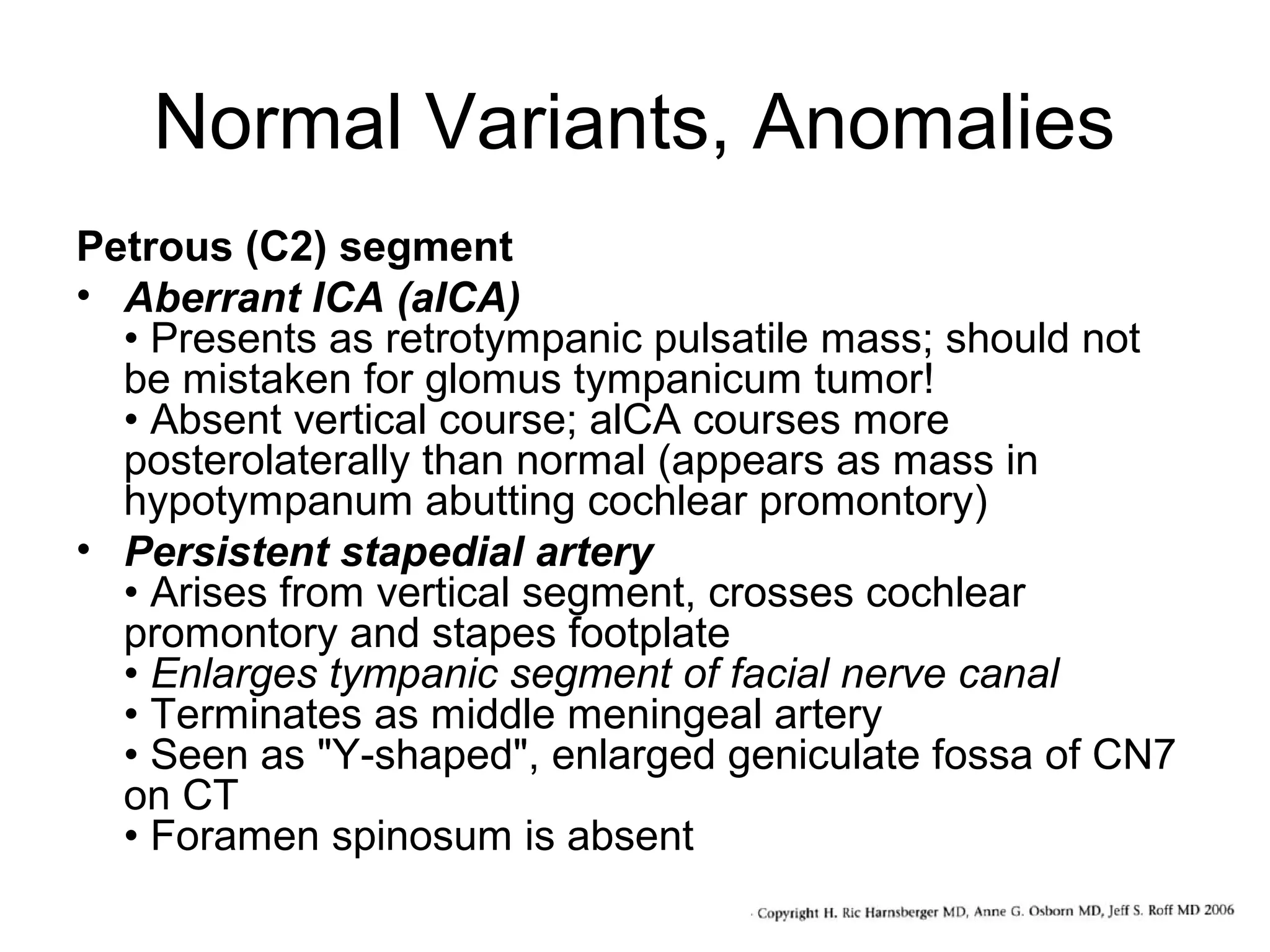

Normal Variants, Anomalies Petrous (C2) segment • Aberrant ICA (aICA) • Presents as retrotympanic pulsatile mass; should not be mistaken for glomus tympanicum tumor! • Absent vertical course; alCA courses more posterolaterally than normal (appears as mass in hypotympanum abutting cochlear promontory) • Persistent stapedial artery • Arises from vertical segment, crosses cochlear promontory and stapes footplate • Enlarges tympanic segment of facial nerve canal • Terminates as middle meningeal artery • Seen as "Y-shaped", enlarged geniculate fossa of CN7 on CT • Foramen spinosum is absent

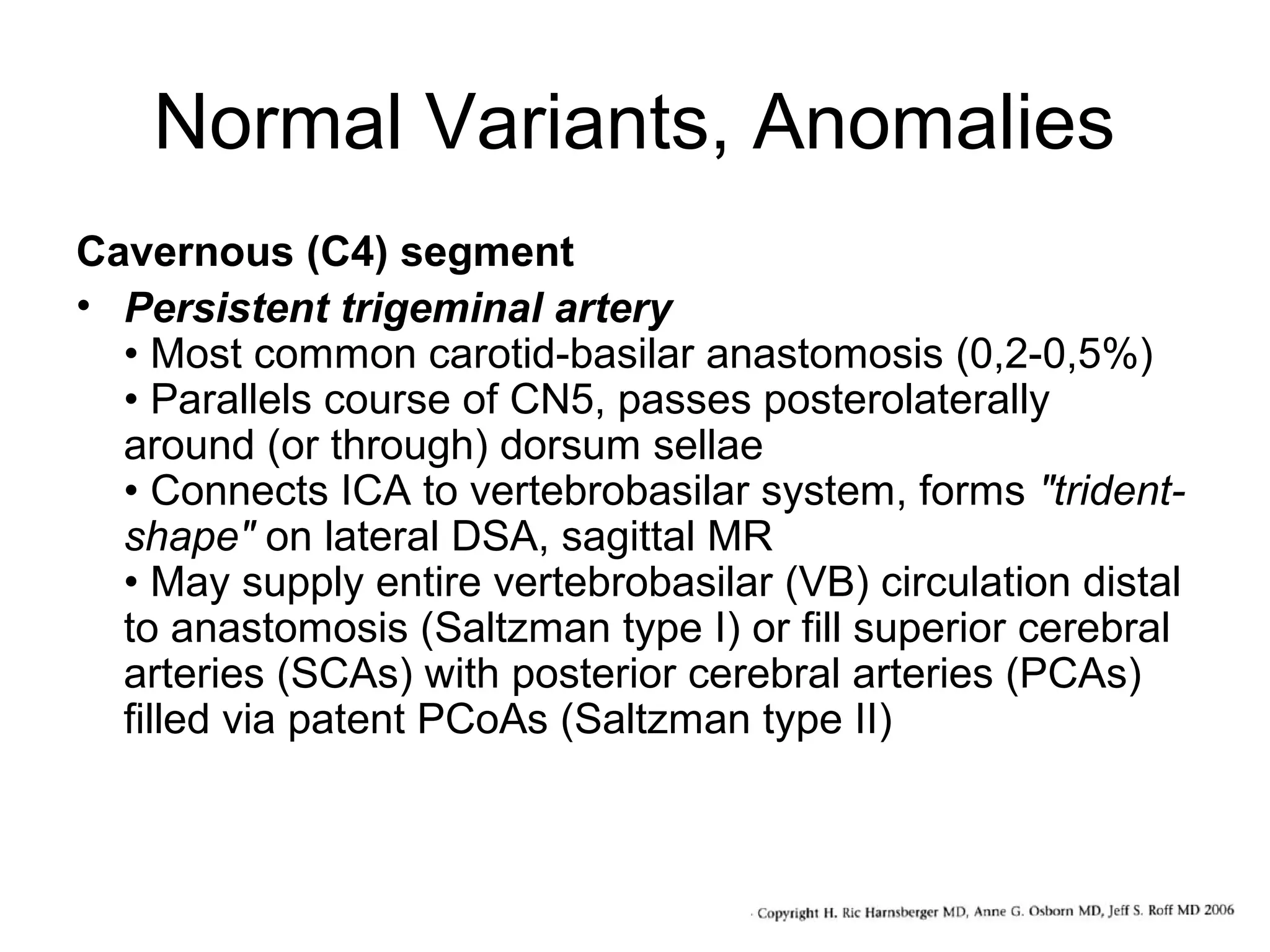

Normal Variants, Anomalies Cavernous (C4) segment • Persistent trigeminal artery • Most common carotid-basilar anastomosis (0,2-0,5%) • Parallels course of CN5, passes posterolaterally around (or through) dorsum sellae • Connects ICA to vertebrobasilar system, forms "tridentshape" on lateral DSA, sagittal MR • May supply entire vertebrobasilar (VB) circulation distal to anastomosis (Saltzman type I) or fill superior cerebral arteries (SCAs) with posterior cerebral arteries (PCAs) filled via patent PCoAs (Saltzman type II)

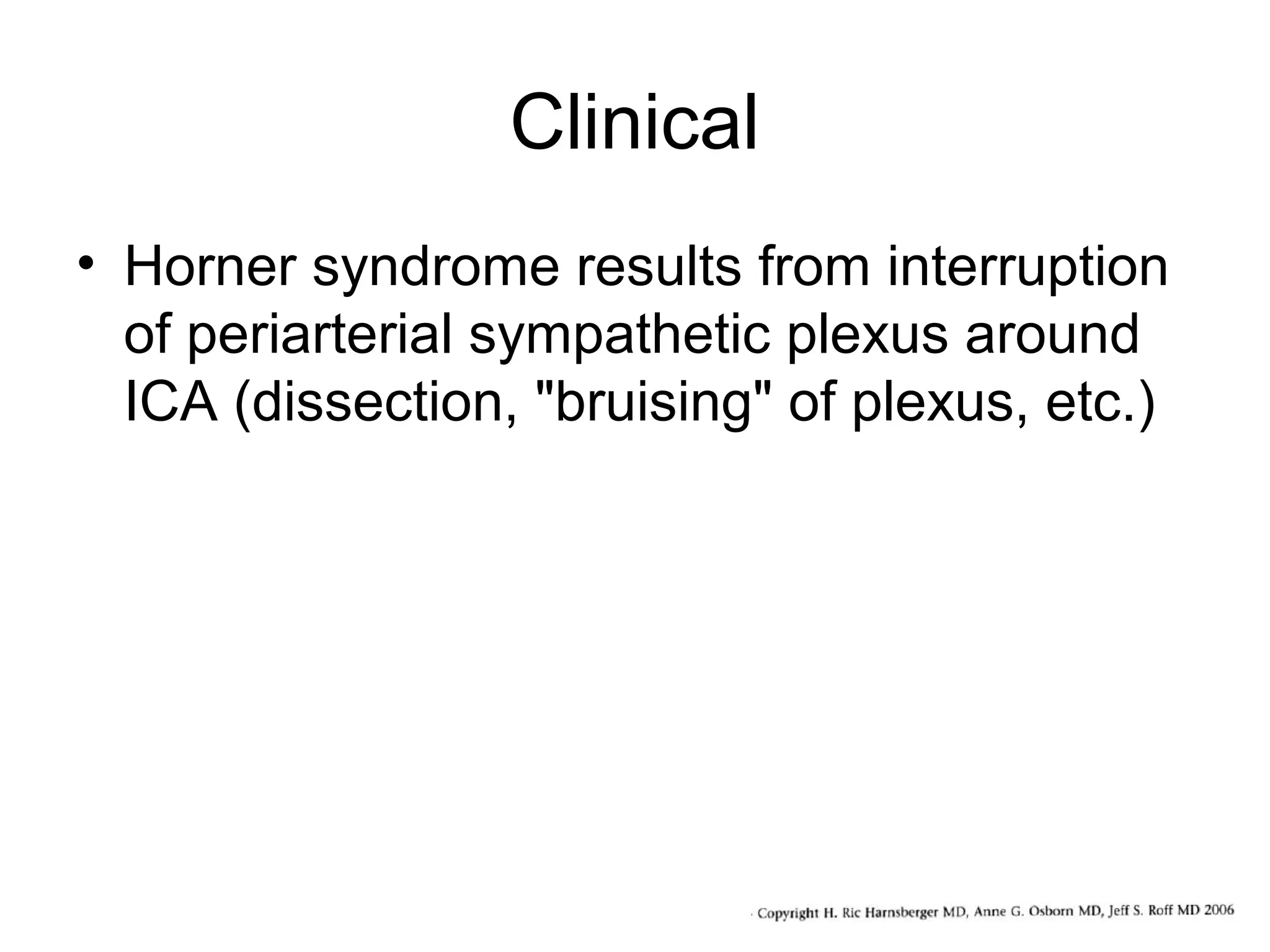

Clinical • Horner syndrome results from interruption of periarterial sympathetic plexus around ICA (dissection, "bruising" of plexus, etc.)

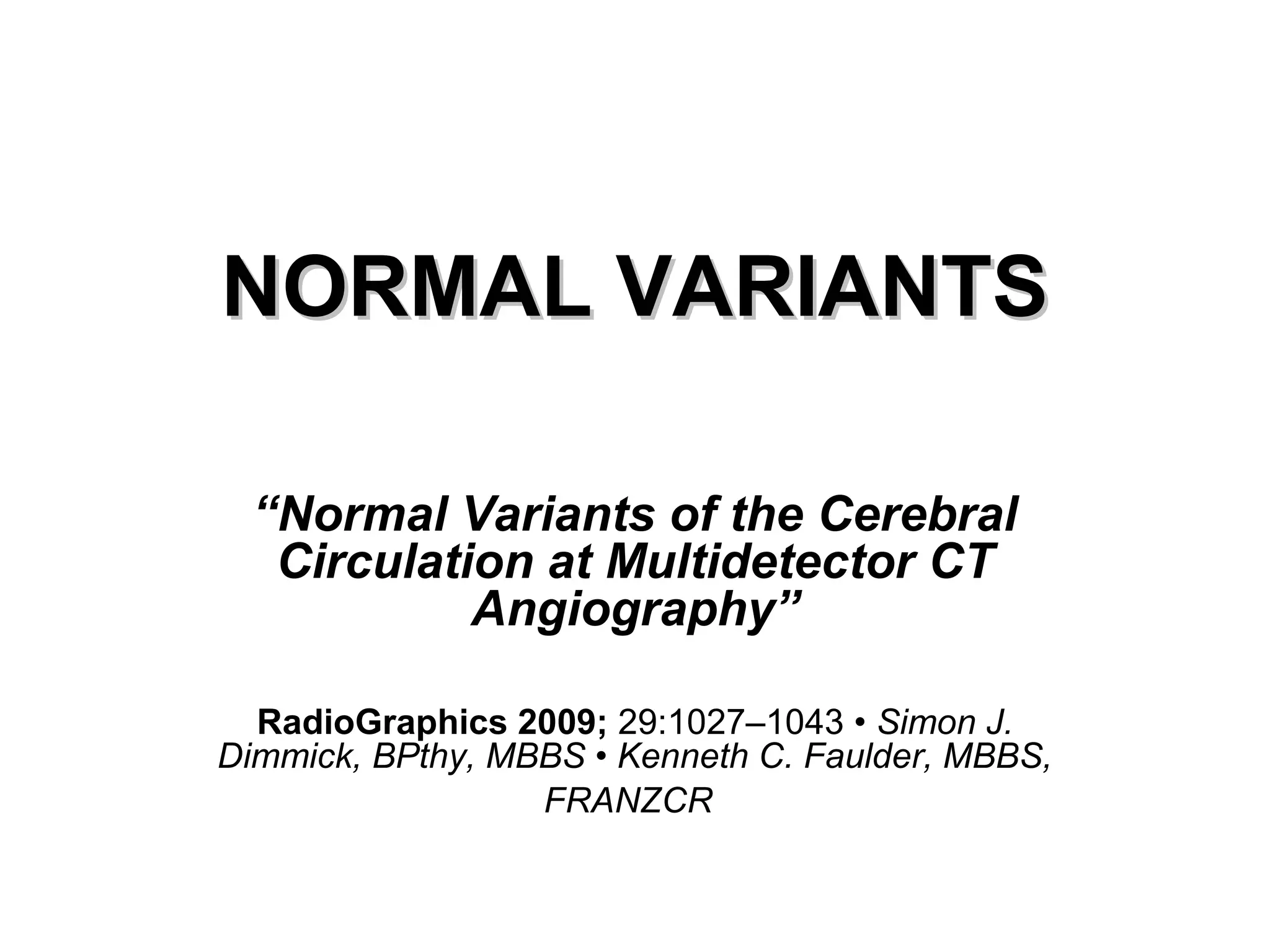

NORMAL VARIANTS “Normal Variants of the Cerebral Circulation at Multidetector CT Angiography” RadioGraphics 2009; 29:1027–1043 • Simon J. Dimmick, BPthy, MBBS • Kenneth C. Faulder, MBBS, FRANZCR

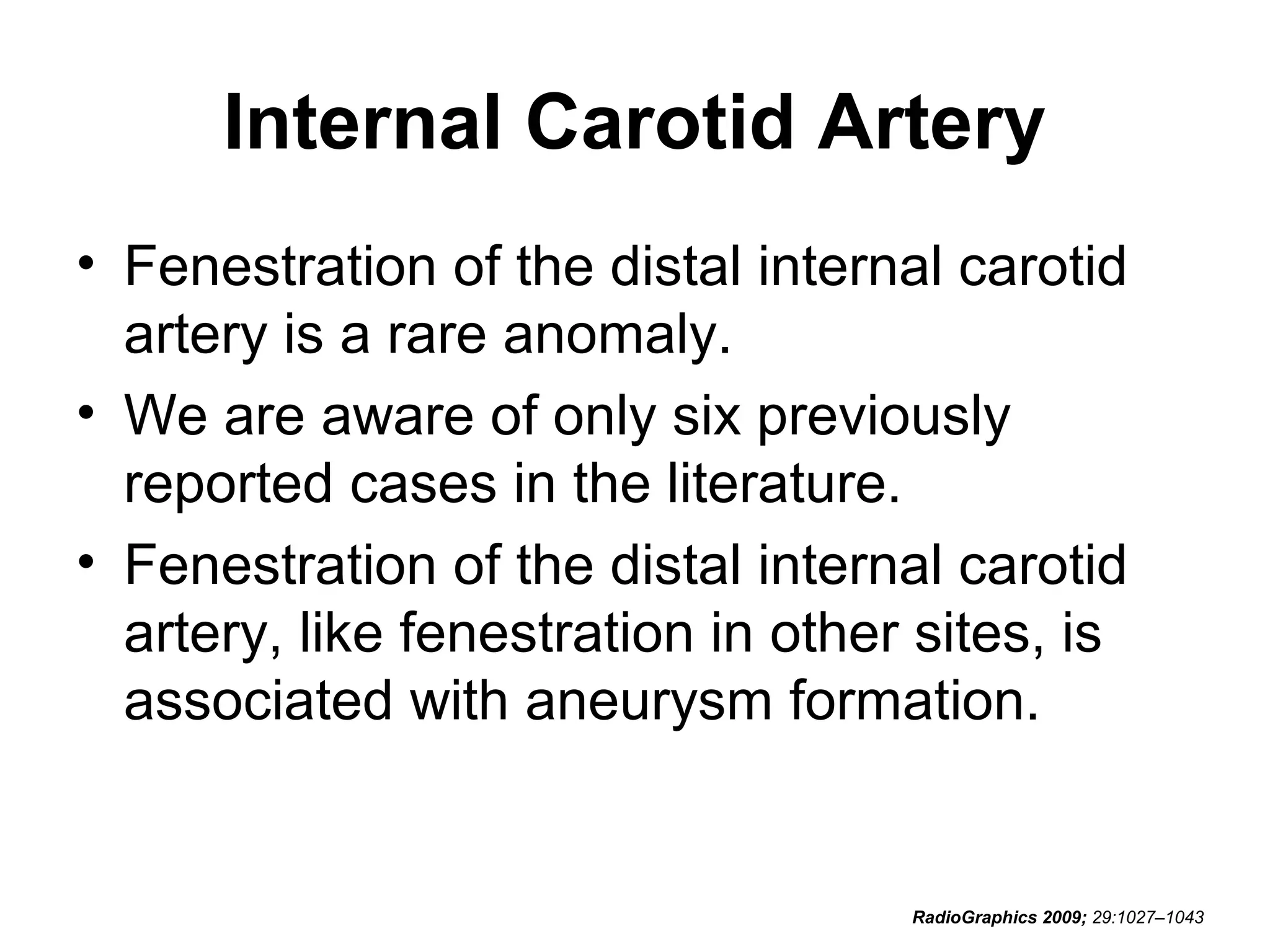

Internal Carotid Artery • Fenestration of the distal internal carotid artery is a rare anomaly. • We are aware of only six previously reported cases in the literature. • Fenestration of the distal internal carotid artery, like fenestration in other sites, is associated with aneurysm formation. RadioGraphics 2009; 29:1027–1043

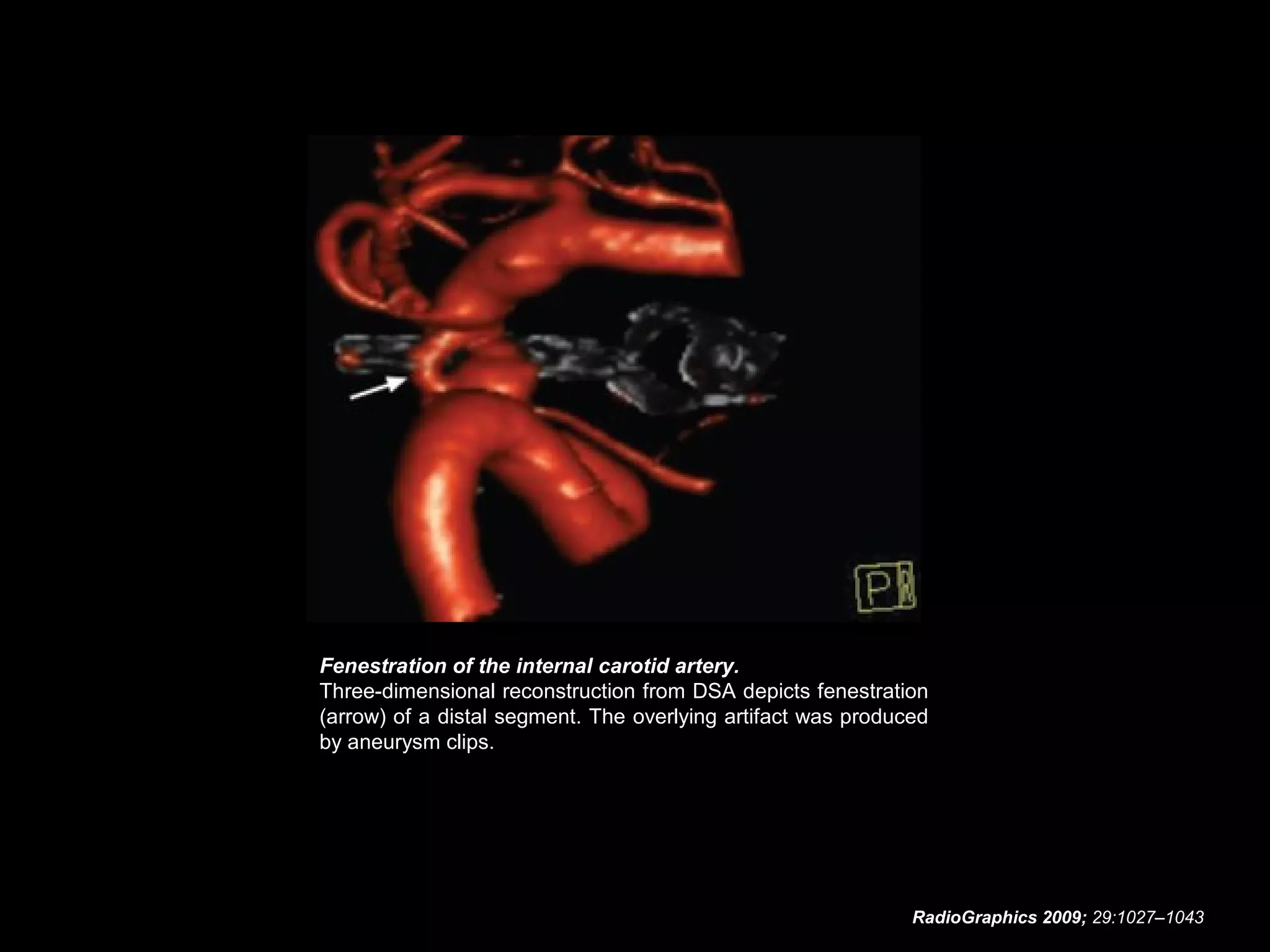

Fenestration of the internal carotid artery. Three-dimensional reconstruction from DSA depicts fenestration (arrow) of a distal segment. The overlying artifact was produced by aneurysm clips. RadioGraphics 2009; 29:1027–1043

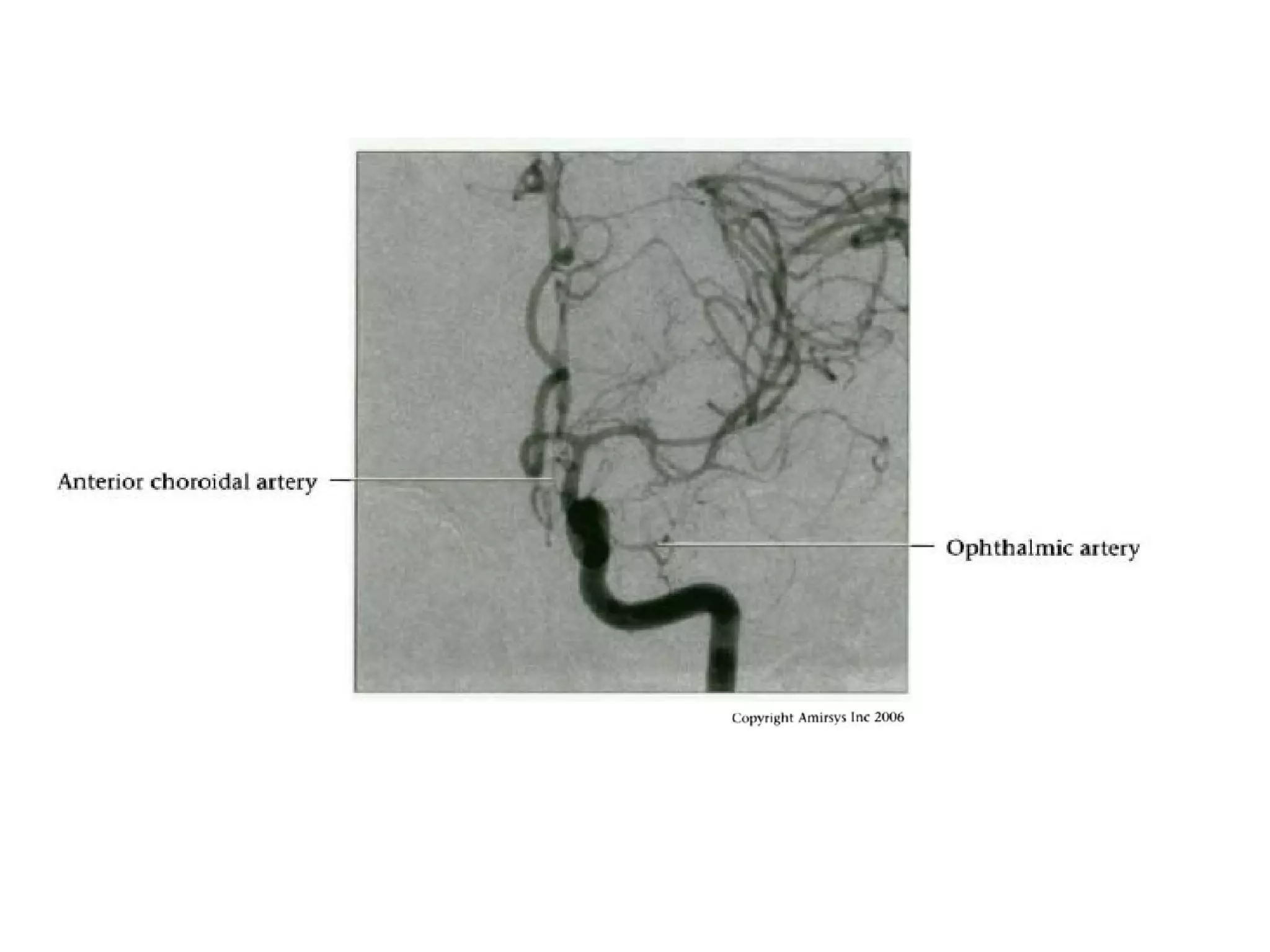

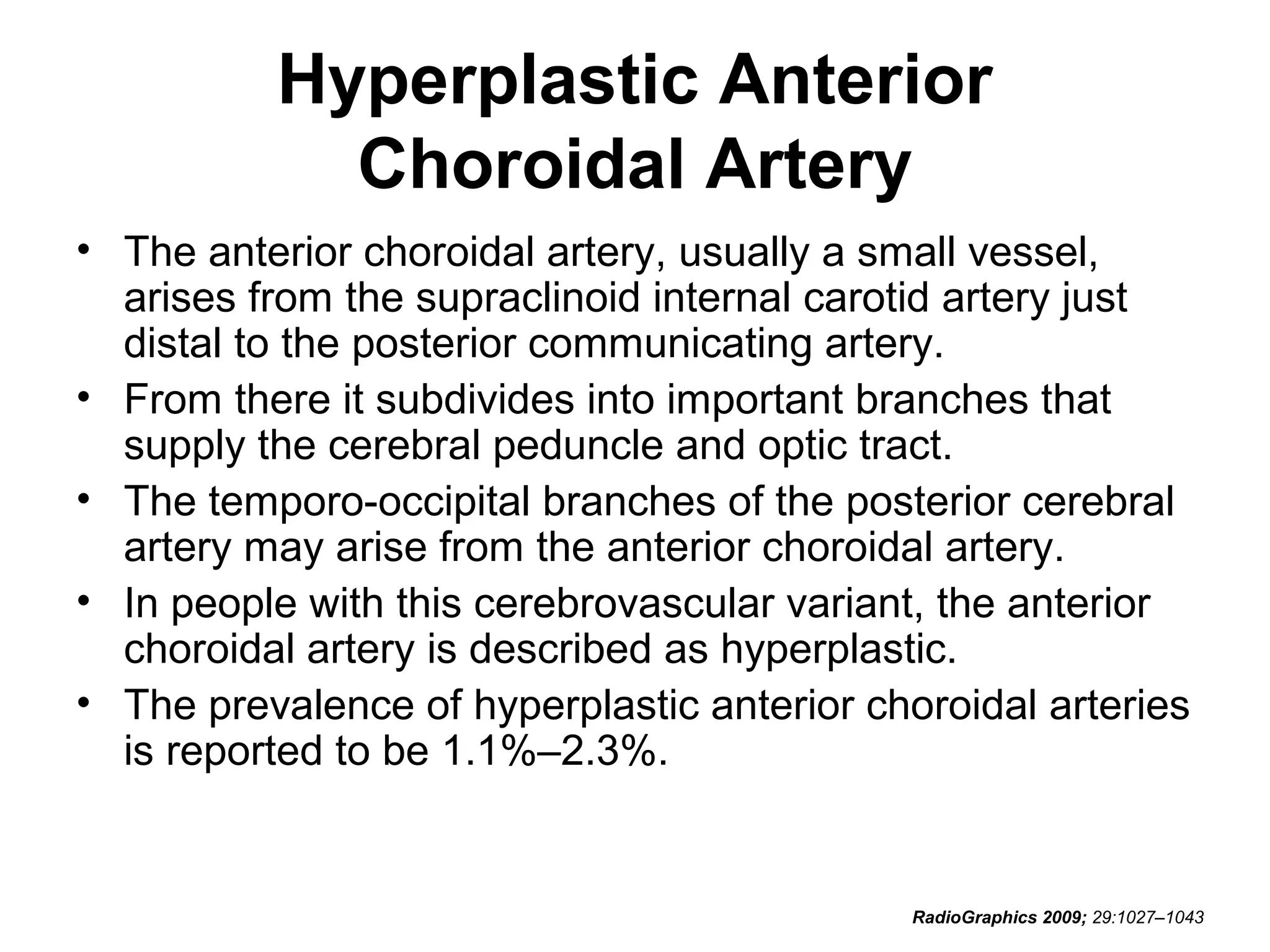

Hyperplastic Anterior Choroidal Artery • The anterior choroidal artery, usually a small vessel, arises from the supraclinoid internal carotid artery just distal to the posterior communicating artery. • From there it subdivides into important branches that supply the cerebral peduncle and optic tract. • The temporo-occipital branches of the posterior cerebral artery may arise from the anterior choroidal artery. • In people with this cerebrovascular variant, the anterior choroidal artery is described as hyperplastic. • The prevalence of hyperplastic anterior choroidal arteries is reported to be 1.1%–2.3%. RadioGraphics 2009; 29:1027–1043

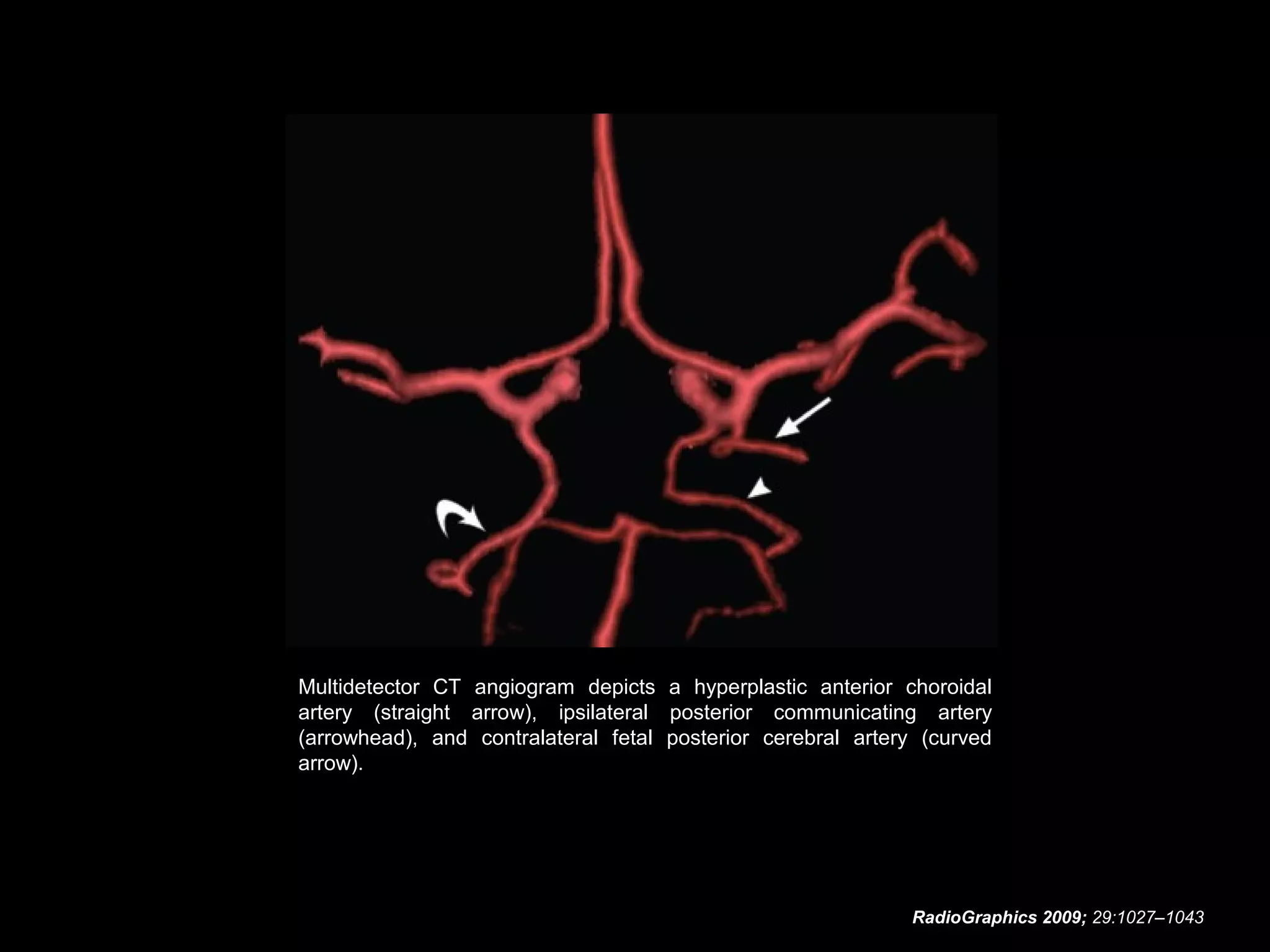

Multidetector CT angiogram depicts a hyperplastic anterior choroidal artery (straight arrow), ipsilateral posterior communicating artery (arrowhead), and contralateral fetal posterior cerebral artery (curved arrow). RadioGraphics 2009; 29:1027–1043

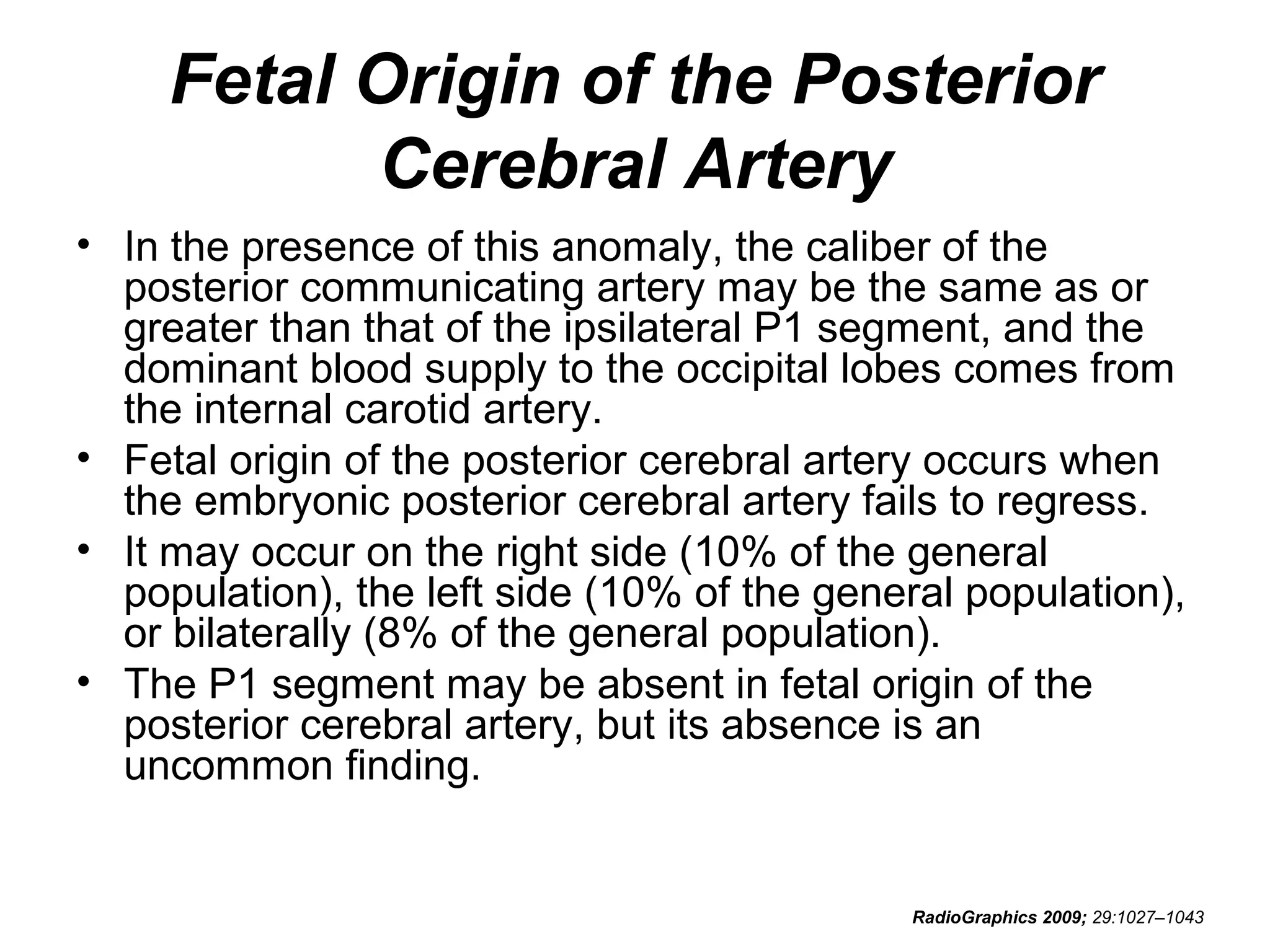

Fetal Origin of the Posterior Cerebral Artery • In the presence of this anomaly, the caliber of the posterior communicating artery may be the same as or greater than that of the ipsilateral P1 segment, and the dominant blood supply to the occipital lobes comes from the internal carotid artery. • Fetal origin of the posterior cerebral artery occurs when the embryonic posterior cerebral artery fails to regress. • It may occur on the right side (10% of the general population), the left side (10% of the general population), or bilaterally (8% of the general population). • The P1 segment may be absent in fetal origin of the posterior cerebral artery, but its absence is an uncommon finding. RadioGraphics 2009; 29:1027–1043

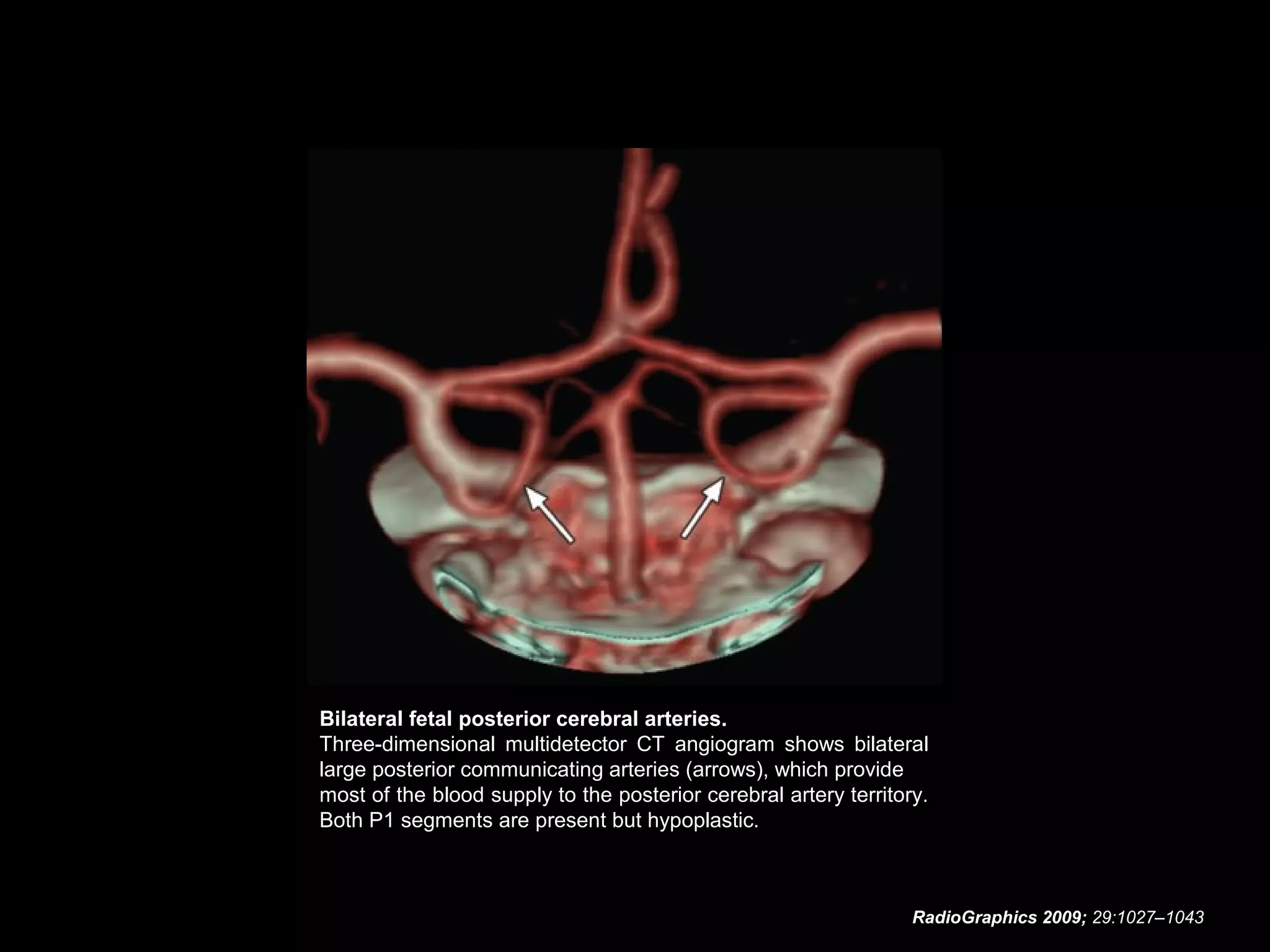

Bilateral fetal posterior cerebral arteries. Three-dimensional multidetector CT angiogram shows bilateral large posterior communicating arteries (arrows), which provide most of the blood supply to the posterior cerebral artery territory. Both P1 segments are present but hypoplastic. RadioGraphics 2009; 29:1027–1043
CT angiogram shows bilateral fetal posterior cerebral arteries (arrows). Both P1 segments are absent. The arrowheads indicate the superior cerebellar arteries. RadioGraphics 2009; 29:1027–1043

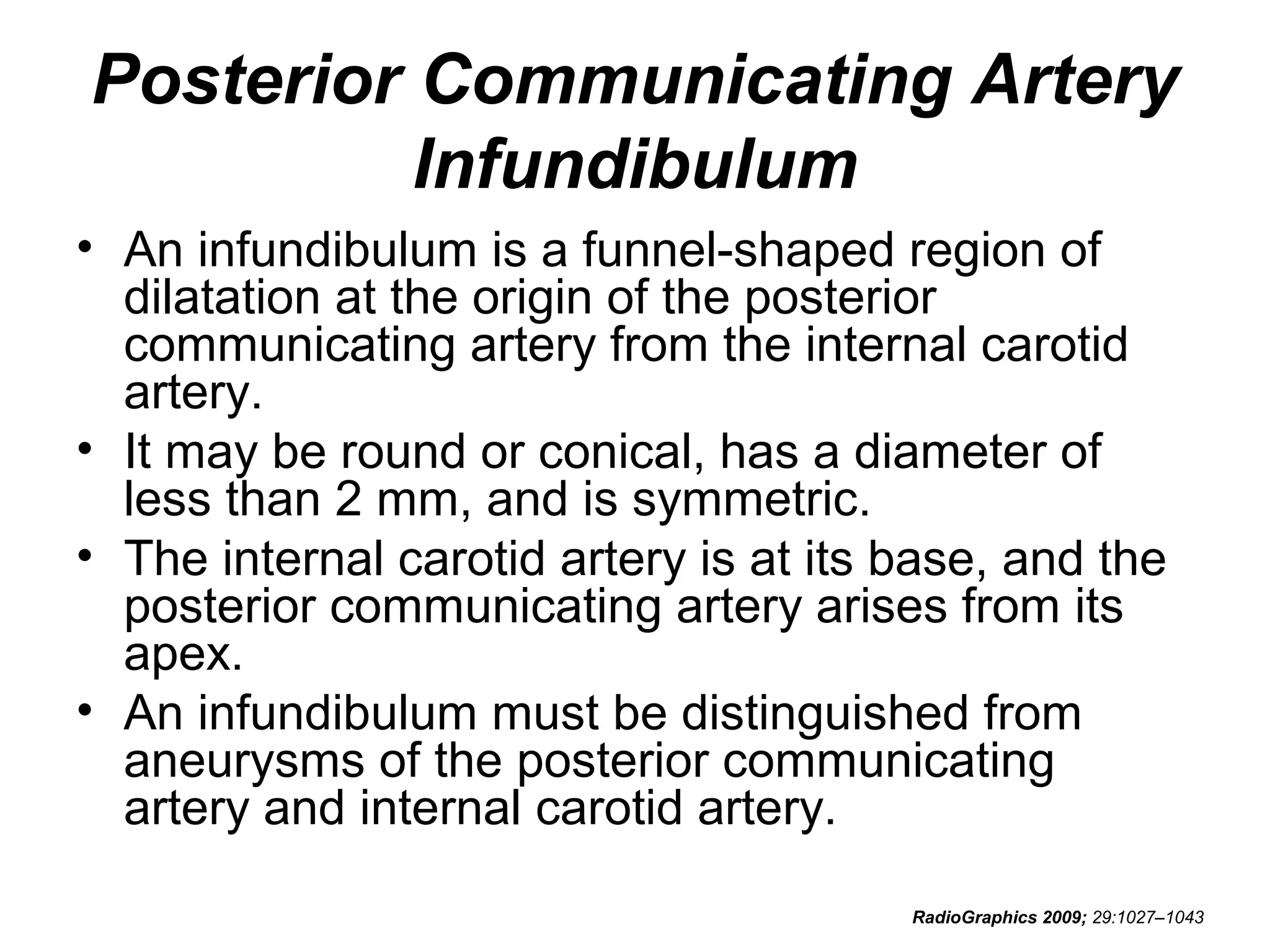

Posterior Communicating Artery Infundibulum • An infundibulum is a funnel-shaped region of dilatation at the origin of the posterior communicating artery from the internal carotid artery. • It may be round or conical, has a diameter of less than 2 mm, and is symmetric. • The internal carotid artery is at its base, and the posterior communicating artery arises from its apex. • An infundibulum must be distinguished from aneurysms of the posterior communicating artery and internal carotid artery. RadioGraphics 2009; 29:1027–1043

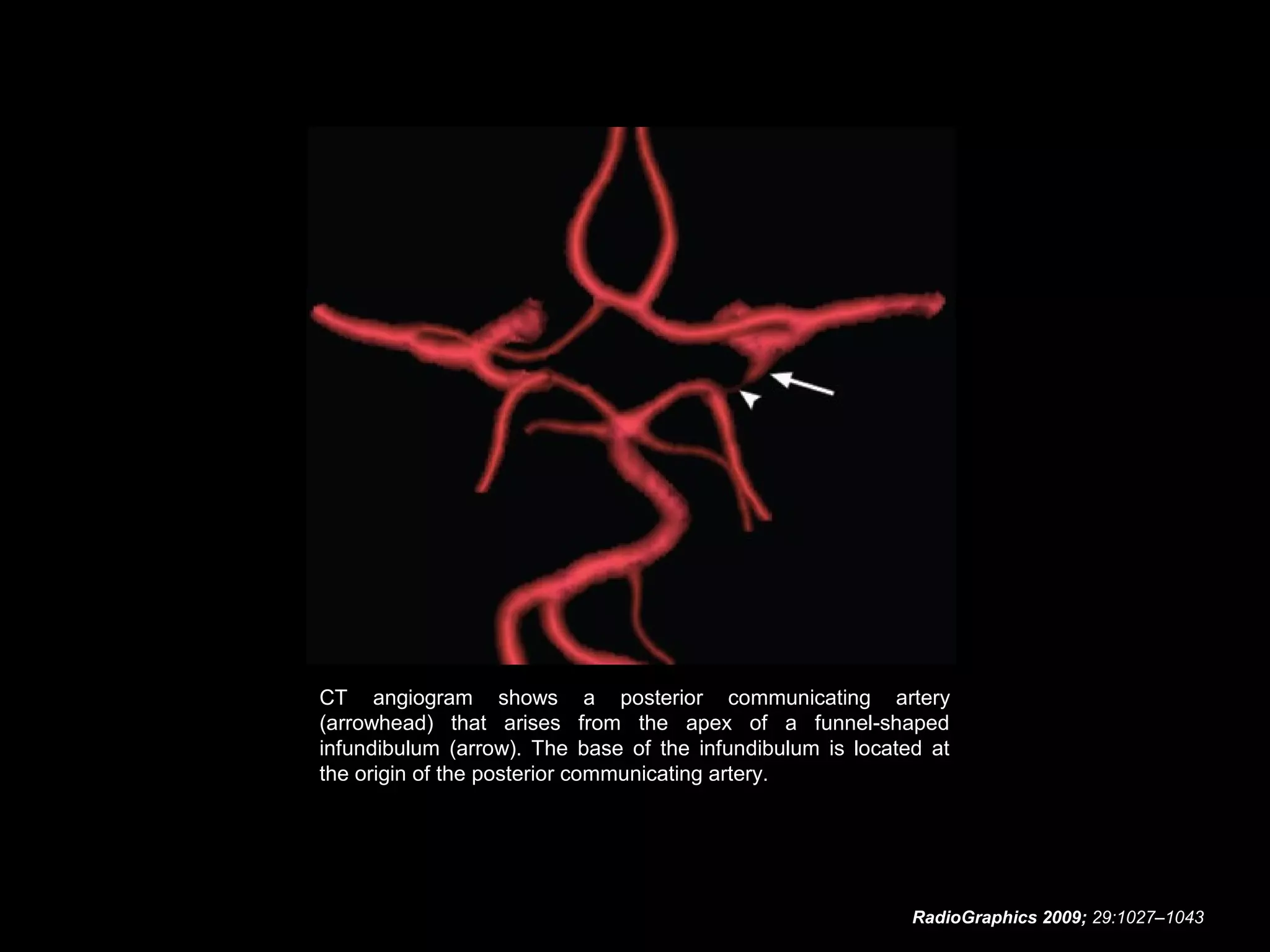

CT angiogram shows a posterior communicating artery (arrowhead) that arises from the apex of a funnel-shaped infundibulum (arrow). The base of the infundibulum is located at the origin of the posterior communicating artery. RadioGraphics 2009; 29:1027–1043

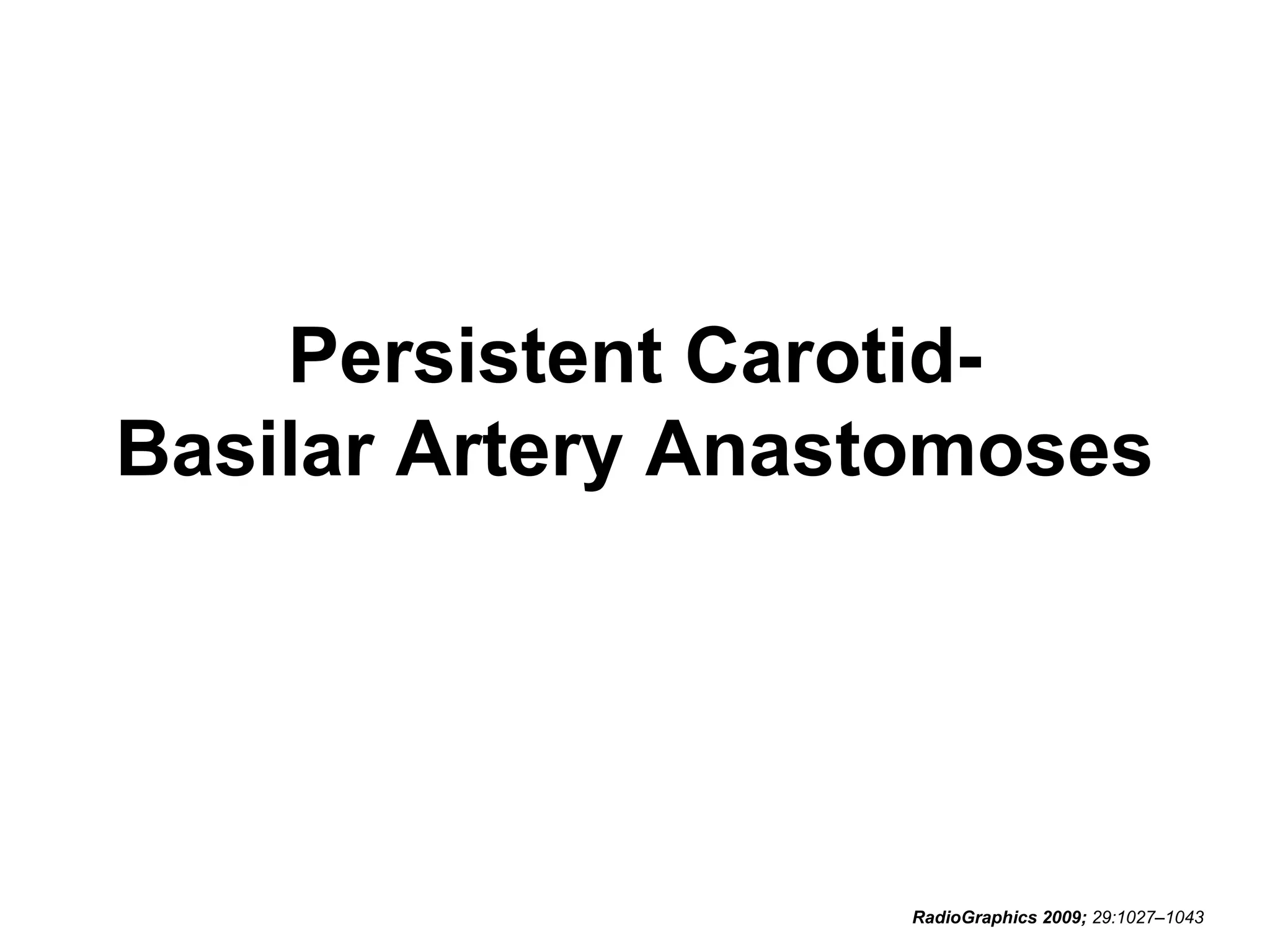

Persistent CarotidBasilar Artery Anastomoses RadioGraphics 2009; 29:1027–1043

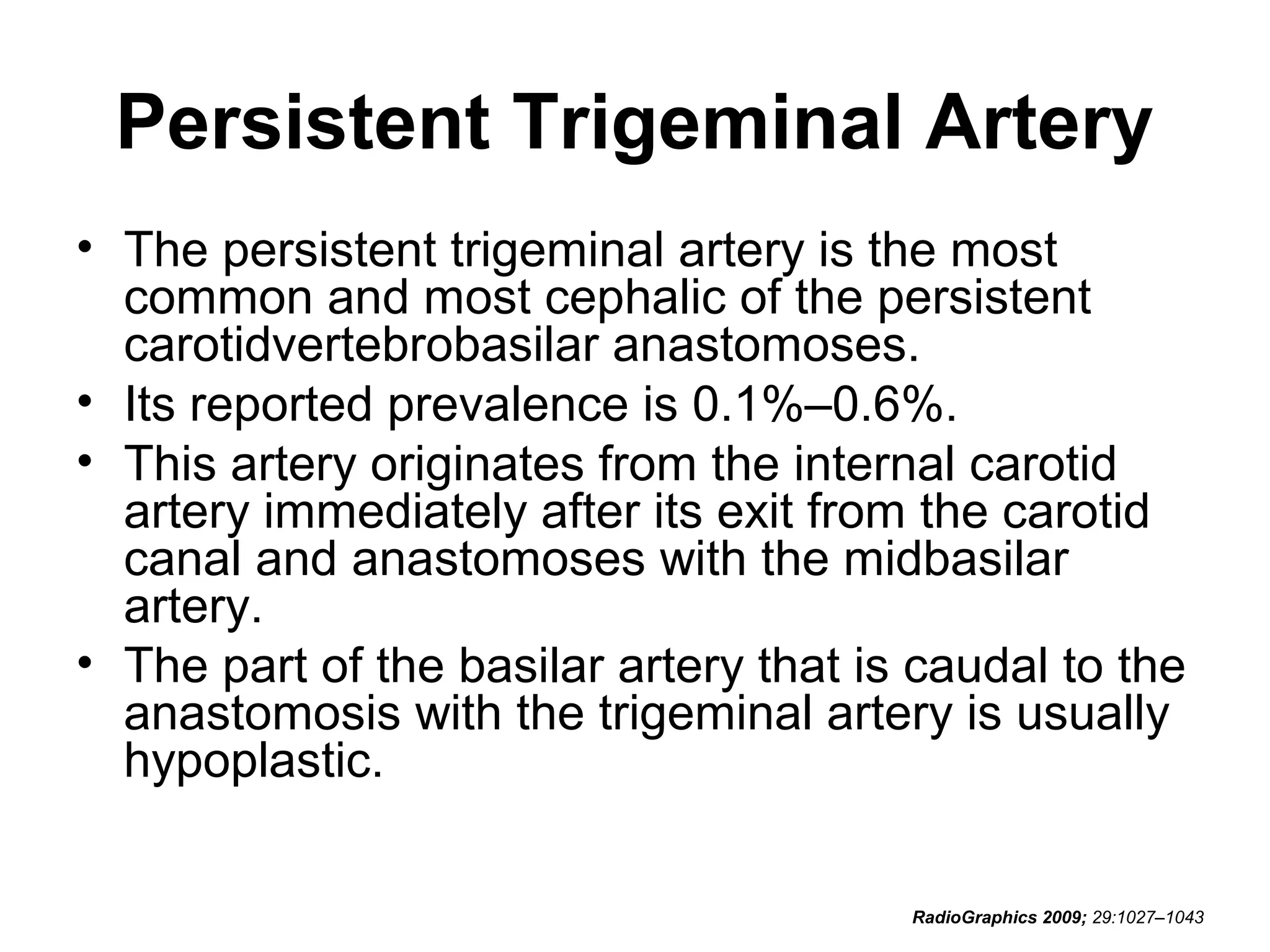

Persistent Trigeminal Artery • The persistent trigeminal artery is the most common and most cephalic of the persistent carotidvertebrobasilar anastomoses. • Its reported prevalence is 0.1%–0.6%. • This artery originates from the internal carotid artery immediately after its exit from the carotid canal and anastomoses with the midbasilar artery. • The part of the basilar artery that is caudal to the anastomosis with the trigeminal artery is usually hypoplastic. RadioGraphics 2009; 29:1027–1043

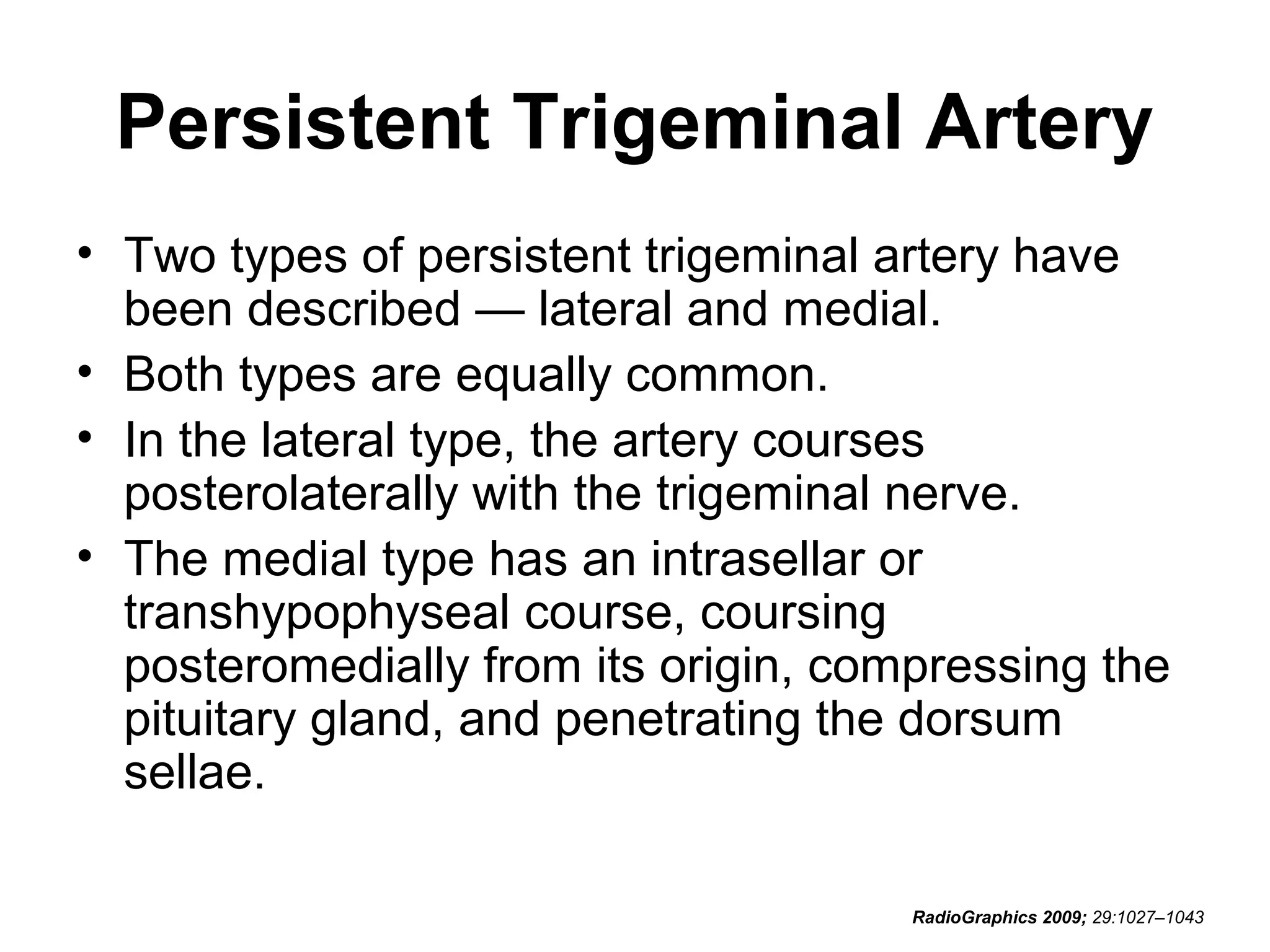

Persistent Trigeminal Artery • Two types of persistent trigeminal artery have been described — lateral and medial. • Both types are equally common. • In the lateral type, the artery courses posterolaterally with the trigeminal nerve. • The medial type has an intrasellar or transhypophyseal course, coursing posteromedially from its origin, compressing the pituitary gland, and penetrating the dorsum sellae. RadioGraphics 2009; 29:1027–1043

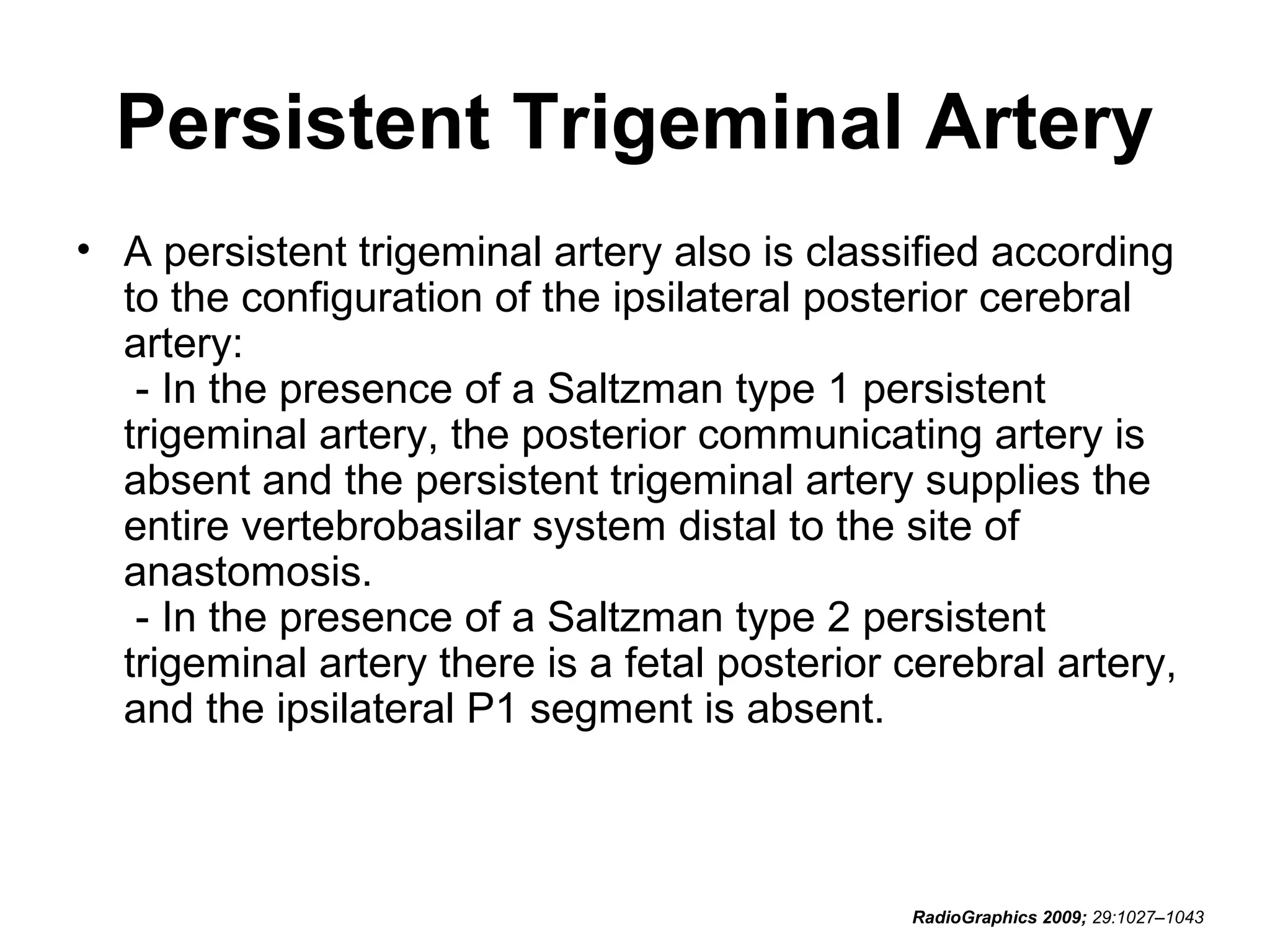

Persistent Trigeminal Artery • A persistent trigeminal artery also is classified according to the configuration of the ipsilateral posterior cerebral artery: - In the presence of a Saltzman type 1 persistent trigeminal artery, the posterior communicating artery is absent and the persistent trigeminal artery supplies the entire vertebrobasilar system distal to the site of anastomosis. - In the presence of a Saltzman type 2 persistent trigeminal artery there is a fetal posterior cerebral artery, and the ipsilateral P1 segment is absent. RadioGraphics 2009; 29:1027–1043

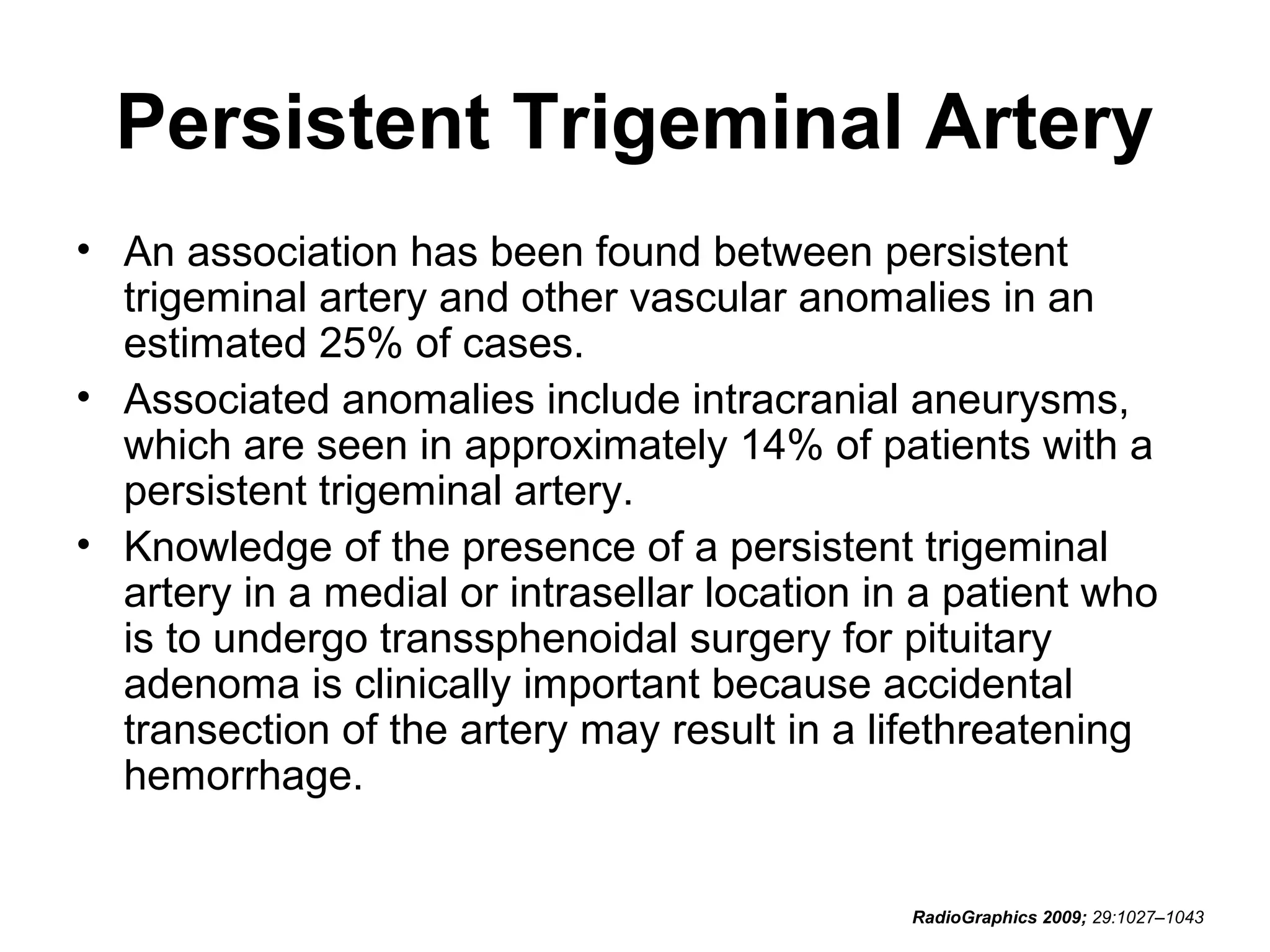

Persistent Trigeminal Artery • An association has been found between persistent trigeminal artery and other vascular anomalies in an estimated 25% of cases. • Associated anomalies include intracranial aneurysms, which are seen in approximately 14% of patients with a persistent trigeminal artery. • Knowledge of the presence of a persistent trigeminal artery in a medial or intrasellar location in a patient who is to undergo transsphenoidal surgery for pituitary adenoma is clinically important because accidental transection of the artery may result in a lifethreatening hemorrhage. RadioGraphics 2009; 29:1027–1043

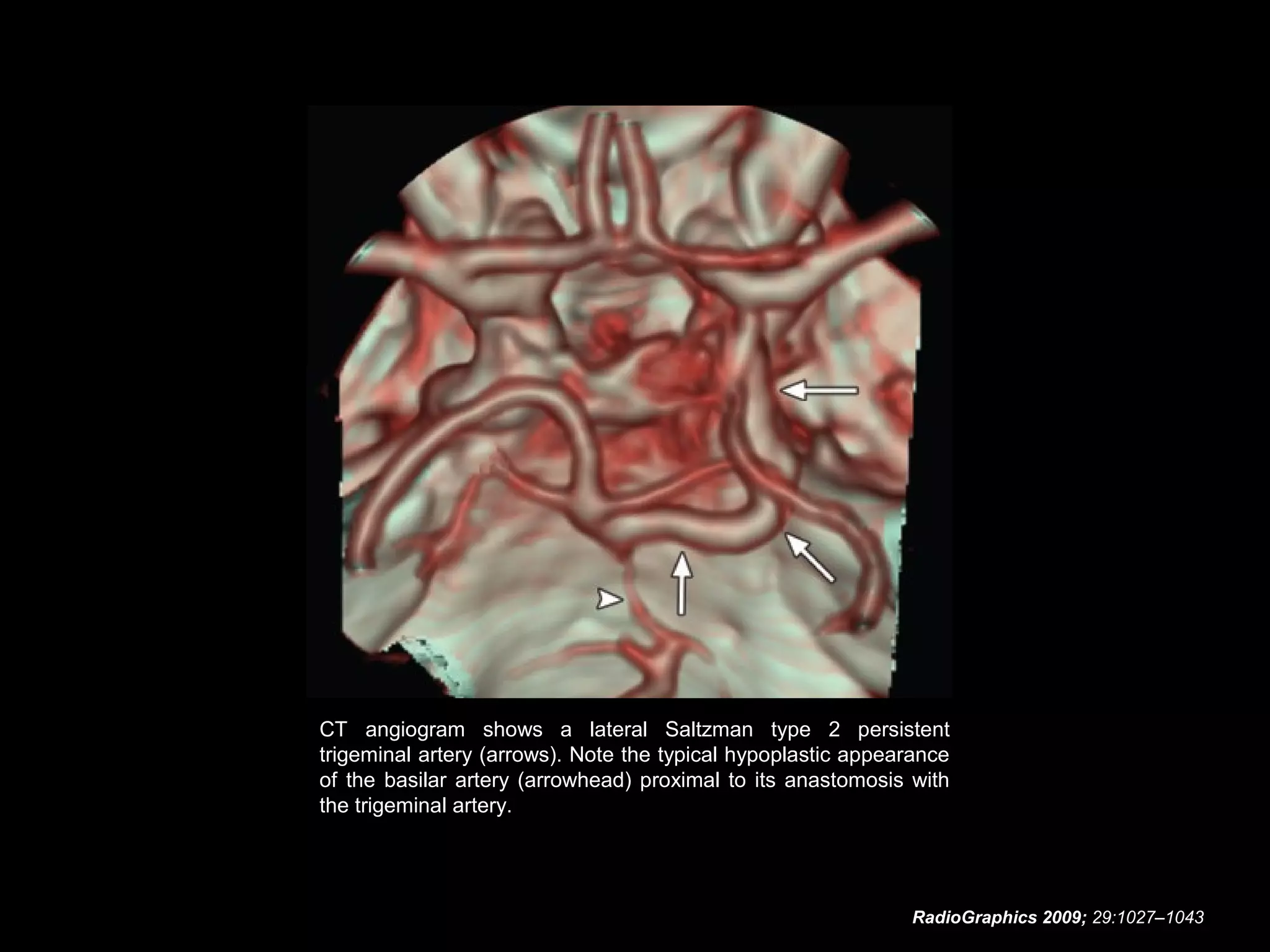

CT angiogram shows a lateral Saltzman type 2 persistent trigeminal artery (arrows). Note the typical hypoplastic appearance of the basilar artery (arrowhead) proximal to its anastomosis with the trigeminal artery. RadioGraphics 2009; 29:1027–1043

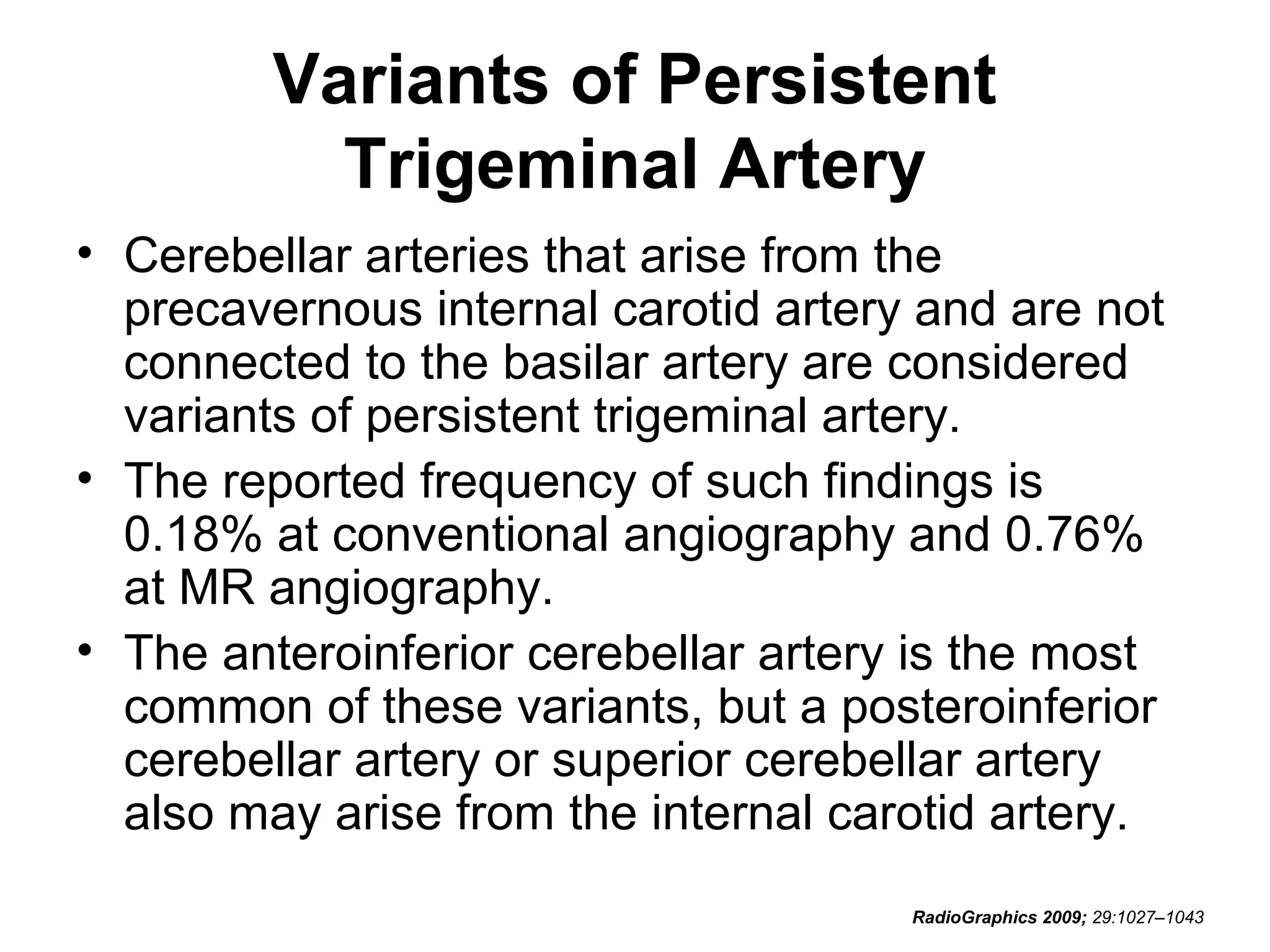

Variants of Persistent Trigeminal Artery • Cerebellar arteries that arise from the precavernous internal carotid artery and are not connected to the basilar artery are considered variants of persistent trigeminal artery. • The reported frequency of such findings is 0.18% at conventional angiography and 0.76% at MR angiography. • The anteroinferior cerebellar artery is the most common of these variants, but a posteroinferior cerebellar artery or superior cerebellar artery also may arise from the internal carotid artery. RadioGraphics 2009; 29:1027–1043

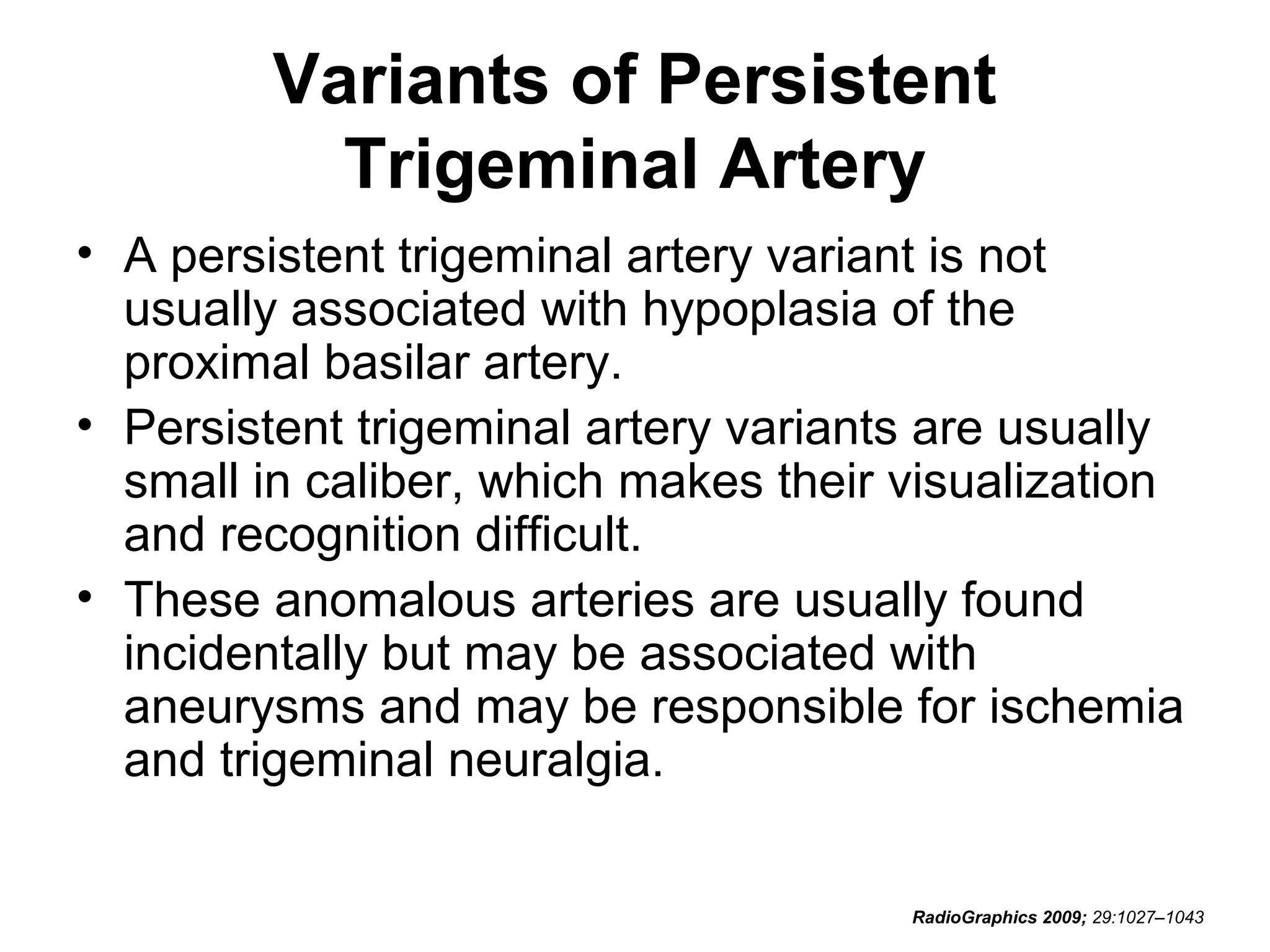

Variants of Persistent Trigeminal Artery • A persistent trigeminal artery variant is not usually associated with hypoplasia of the proximal basilar artery. • Persistent trigeminal artery variants are usually small in caliber, which makes their visualization and recognition difficult. • These anomalous arteries are usually found incidentally but may be associated with aneurysms and may be responsible for ischemia and trigeminal neuralgia. RadioGraphics 2009; 29:1027–1043

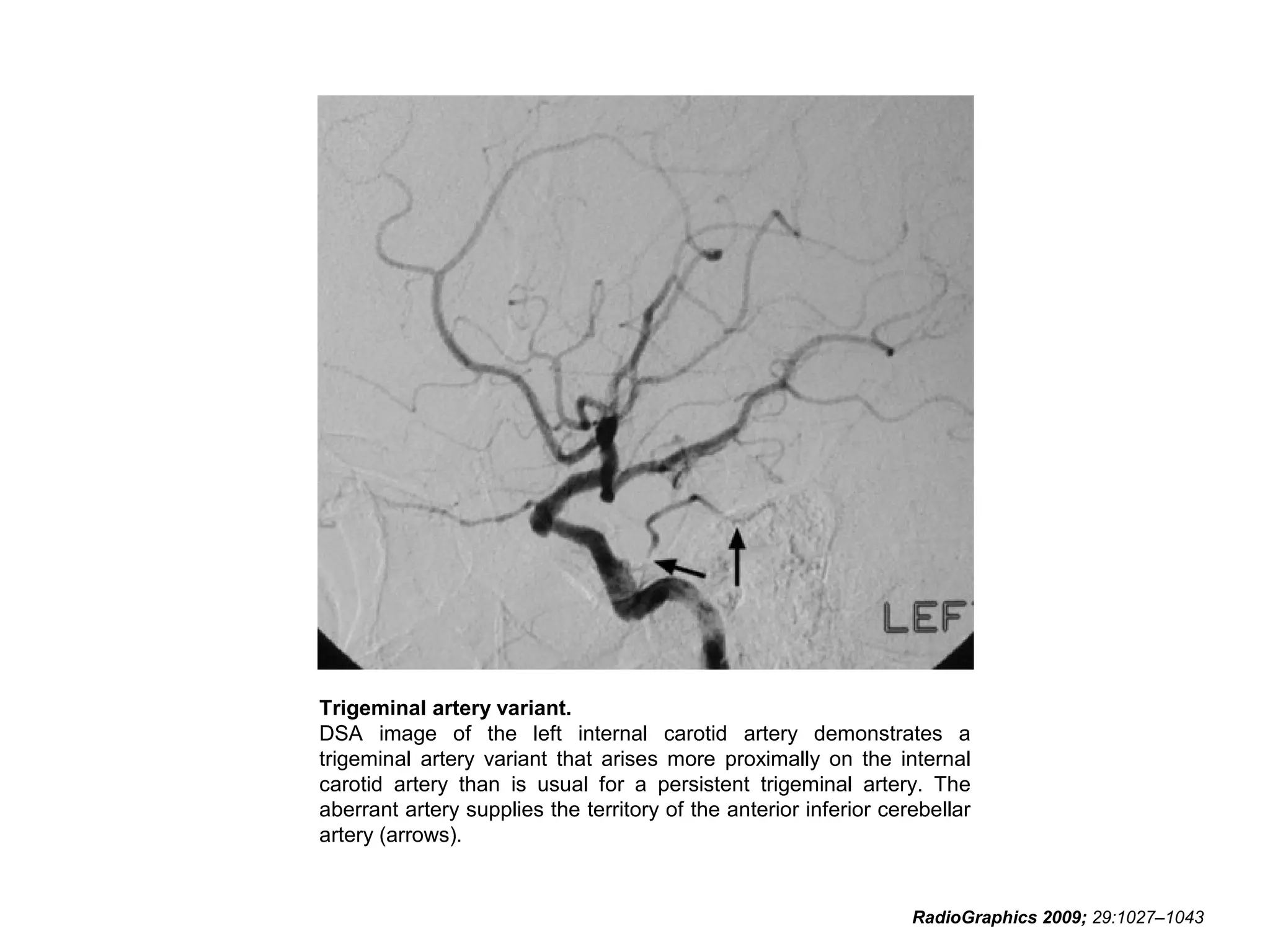

Trigeminal artery variant. DSA image of the left internal carotid artery demonstrates a trigeminal artery variant that arises more proximally on the internal carotid artery than is usual for a persistent trigeminal artery. The aberrant artery supplies the territory of the anterior inferior cerebellar artery (arrows). RadioGraphics 2009; 29:1027–1043

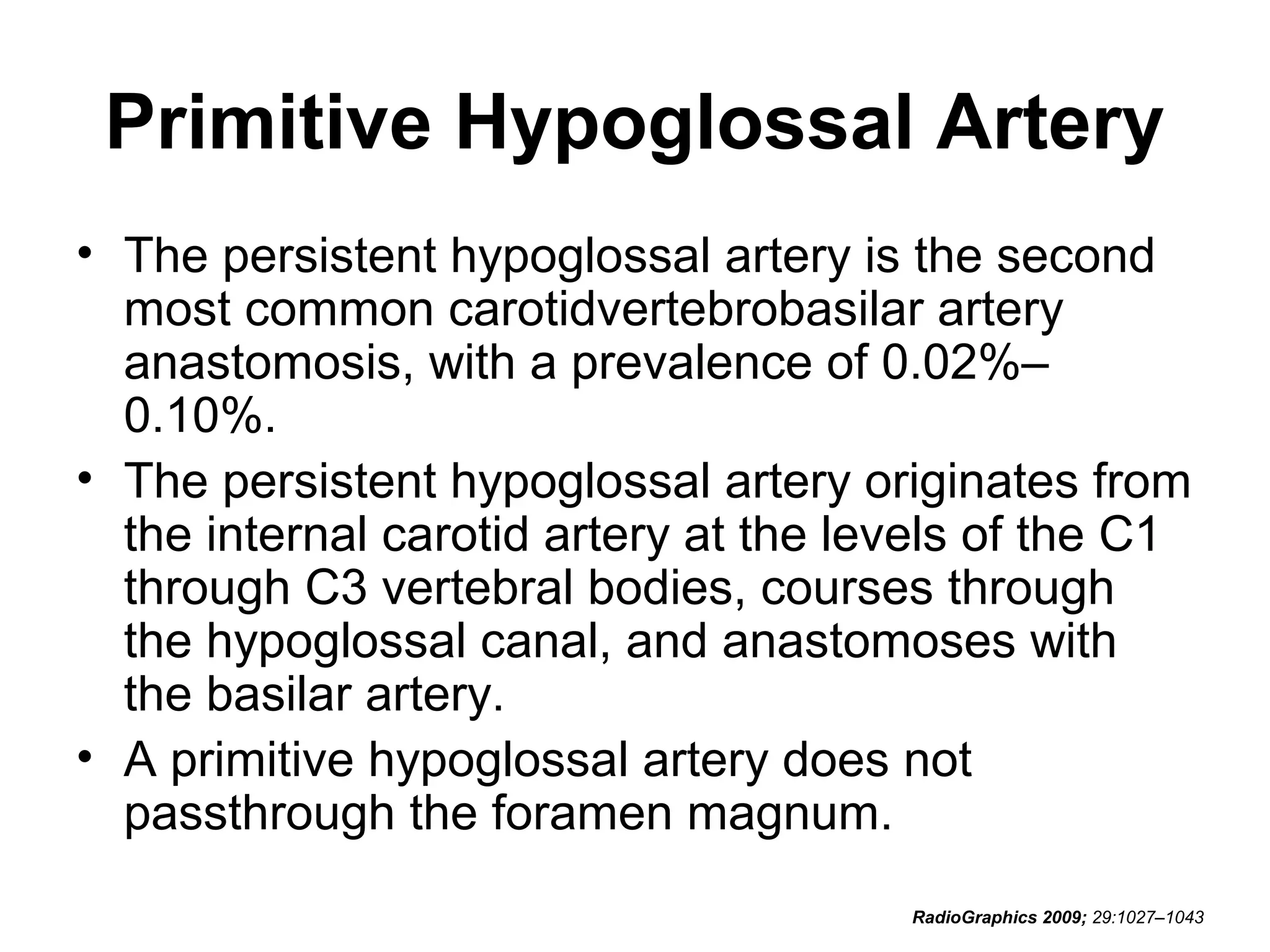

Primitive Hypoglossal Artery • The persistent hypoglossal artery is the second most common carotidvertebrobasilar artery anastomosis, with a prevalence of 0.02%– 0.10%. • The persistent hypoglossal artery originates from the internal carotid artery at the levels of the C1 through C3 vertebral bodies, courses through the hypoglossal canal, and anastomoses with the basilar artery. • A primitive hypoglossal artery does not passthrough the foramen magnum. RadioGraphics 2009; 29:1027–1043

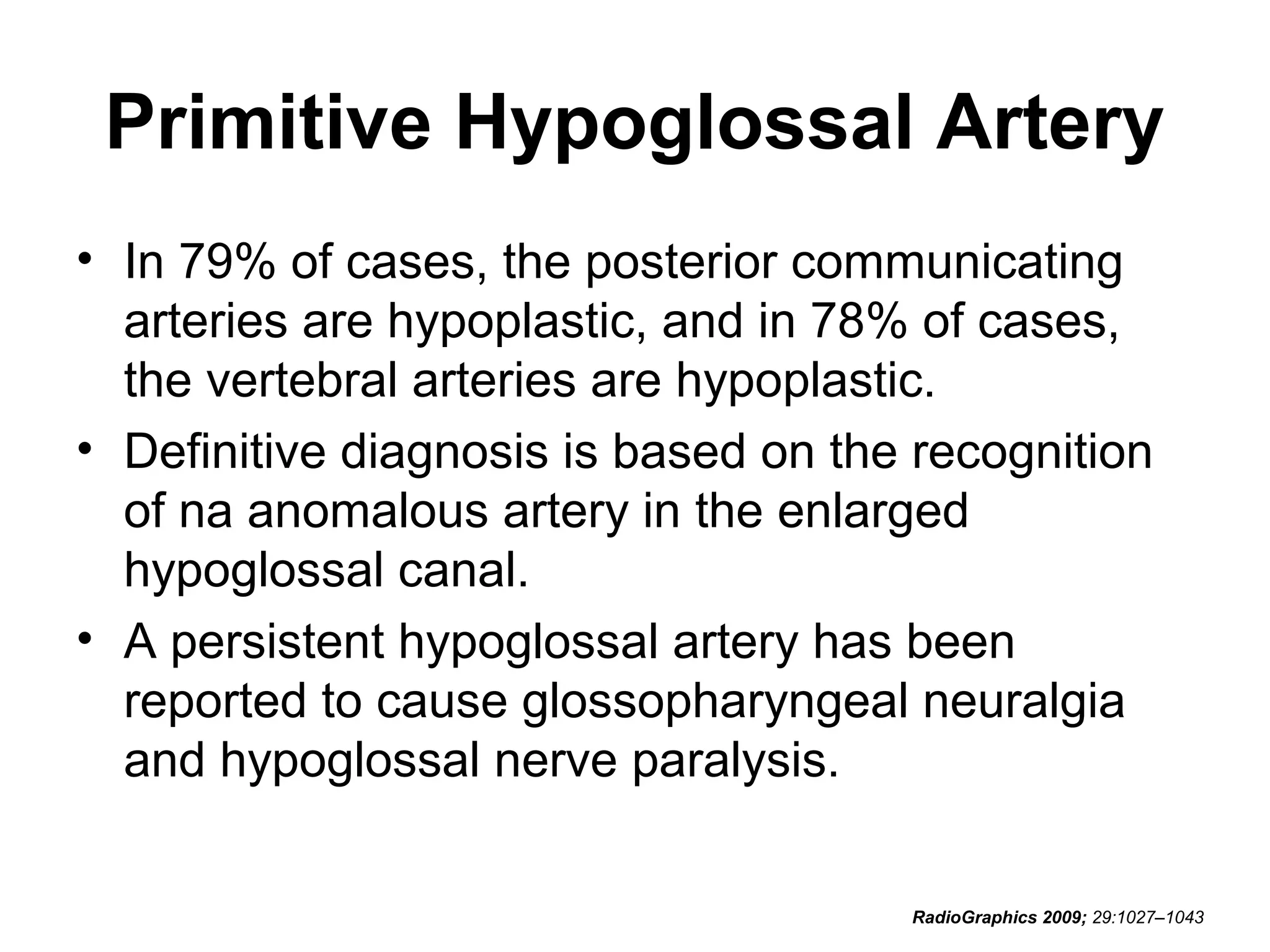

Primitive Hypoglossal Artery • In 79% of cases, the posterior communicating arteries are hypoplastic, and in 78% of cases, the vertebral arteries are hypoplastic. • Definitive diagnosis is based on the recognition of na anomalous artery in the enlarged hypoglossal canal. • A persistent hypoglossal artery has been reported to cause glossopharyngeal neuralgia and hypoglossal nerve paralysis. RadioGraphics 2009; 29:1027–1043

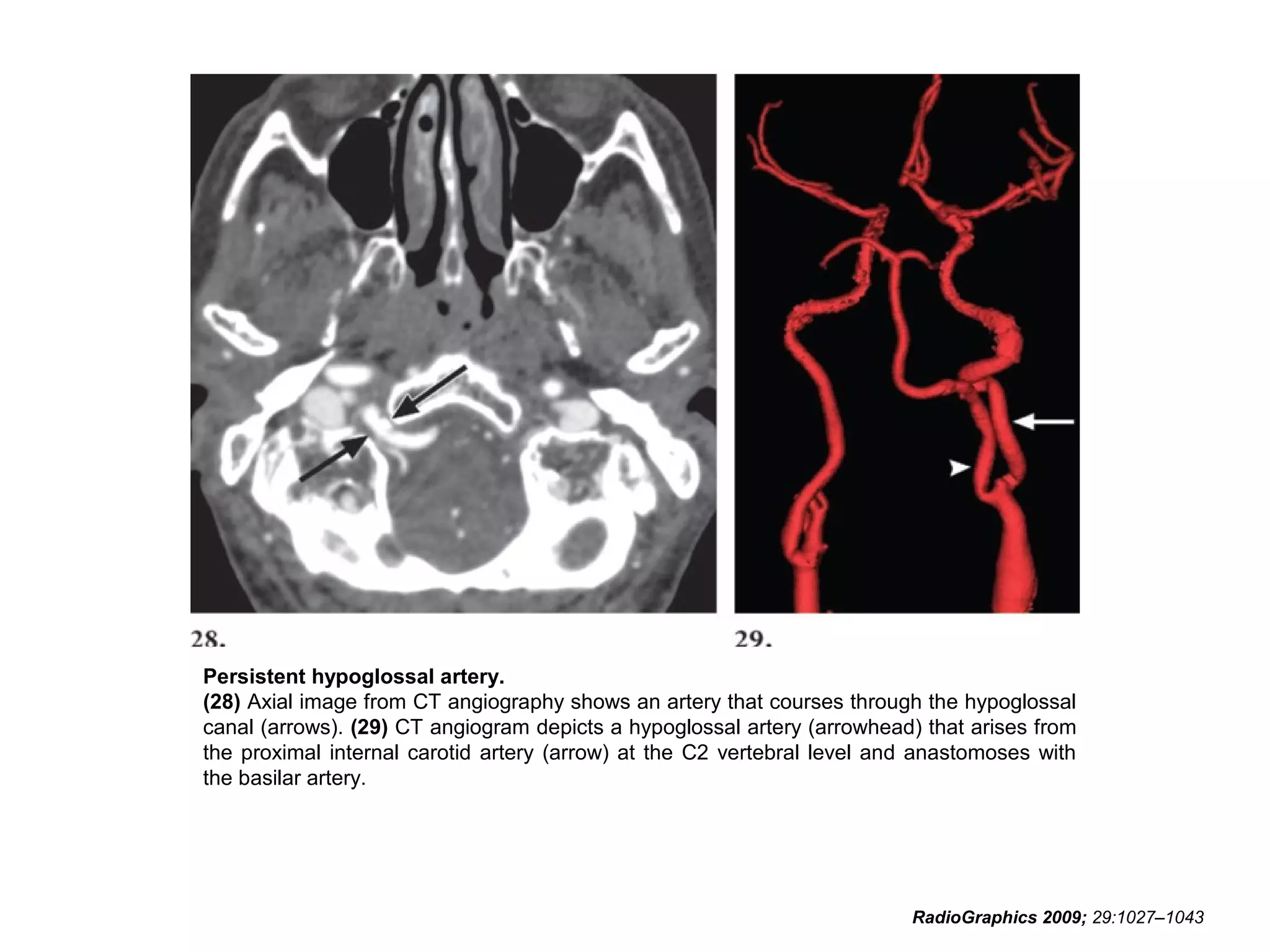

Persistent hypoglossal artery. (28) Axial image from CT angiography shows an artery that courses through the hypoglossal canal (arrows). (29) CT angiogram depicts a hypoglossal artery (arrowhead) that arises from the proximal internal carotid artery (arrow) at the C2 vertebral level and anastomoses with the basilar artery. RadioGraphics 2009; 29:1027–1043

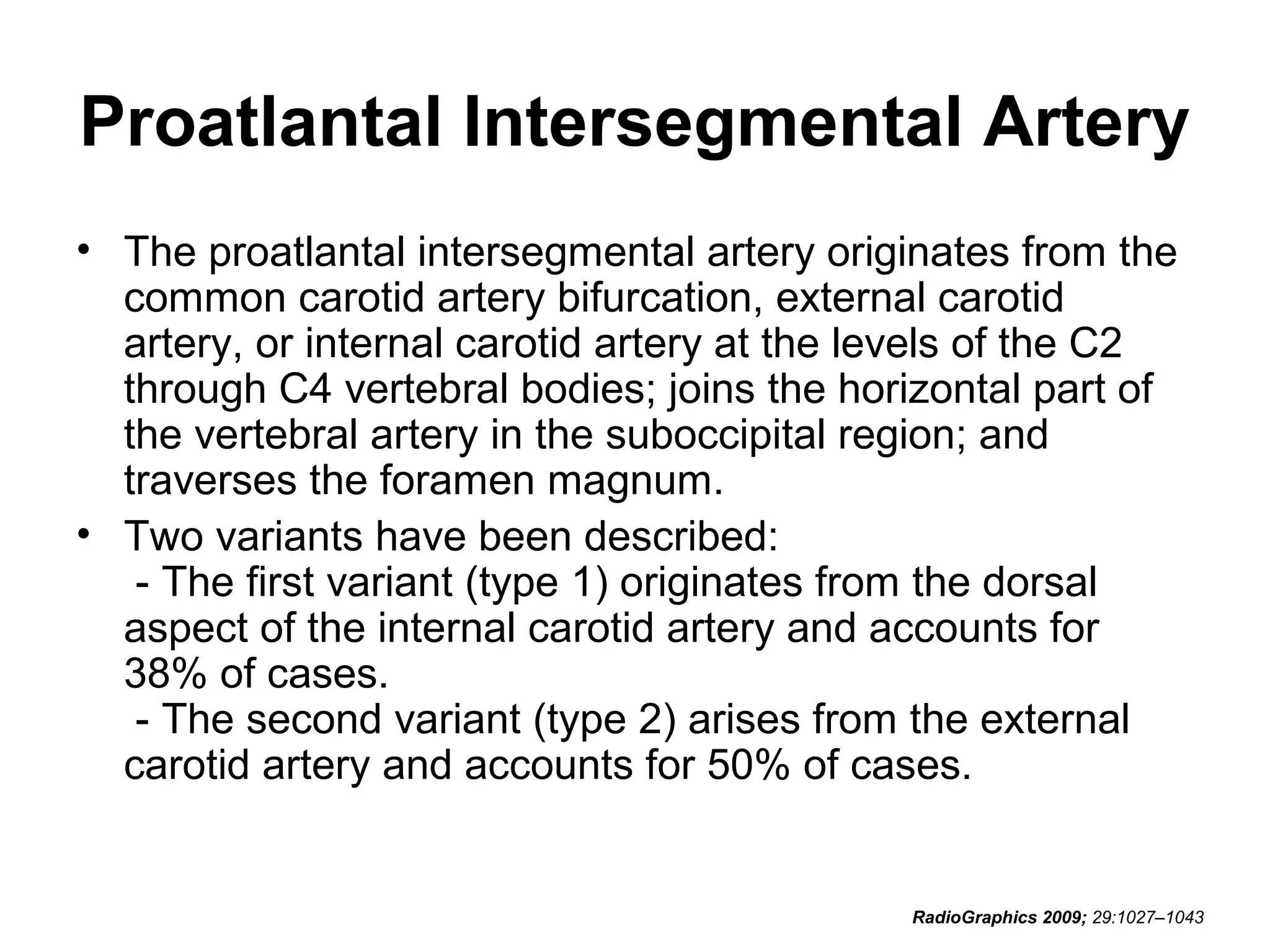

Proatlantal Intersegmental Artery • The proatlantal intersegmental artery originates from the common carotid artery bifurcation, external carotid artery, or internal carotid artery at the levels of the C2 through C4 vertebral bodies; joins the horizontal part of the vertebral artery in the suboccipital region; and traverses the foramen magnum. • Two variants have been described: - The first variant (type 1) originates from the dorsal aspect of the internal carotid artery and accounts for 38% of cases. - The second variant (type 2) arises from the external carotid artery and accounts for 50% of cases. RadioGraphics 2009; 29:1027–1043

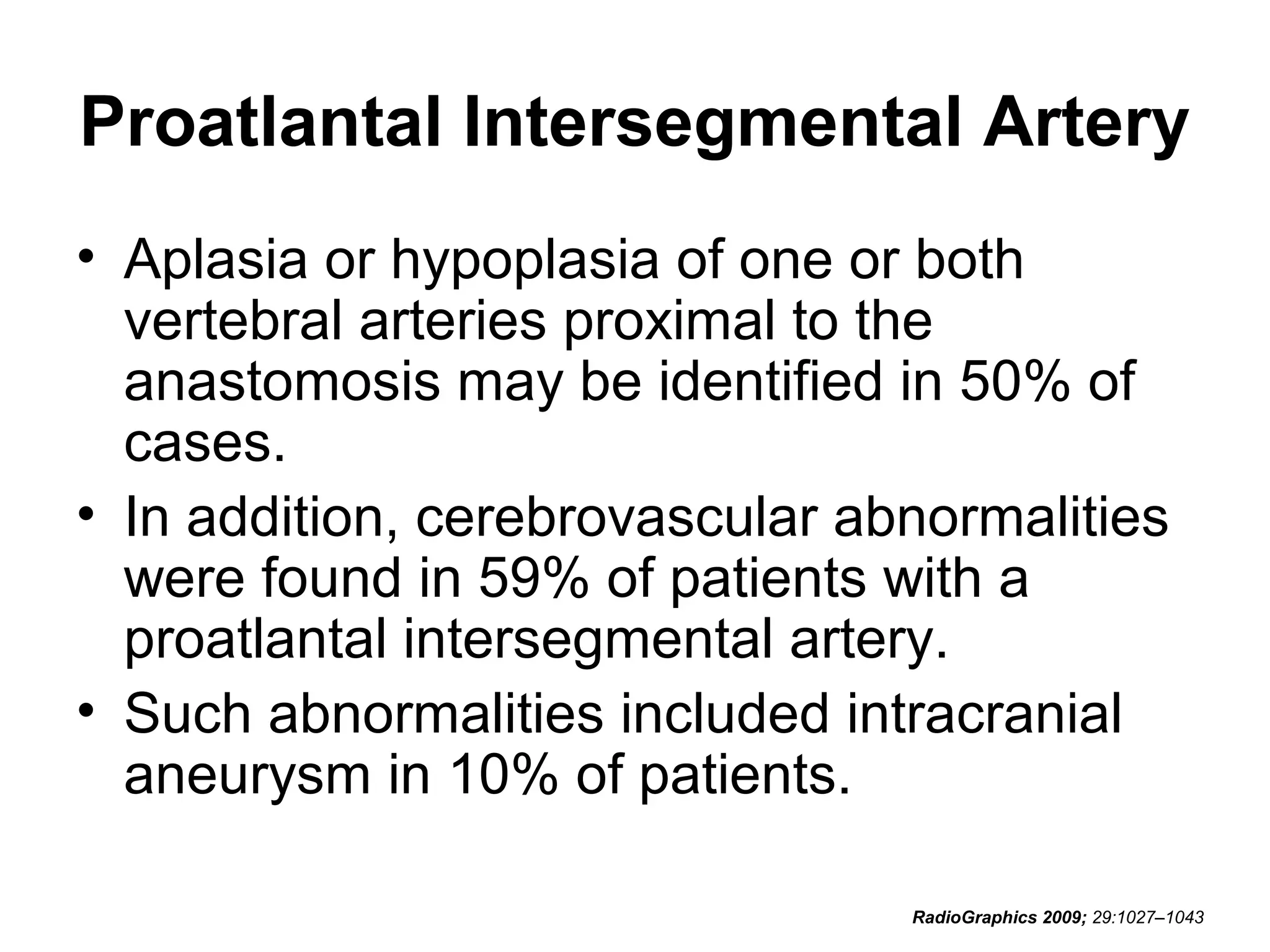

Proatlantal Intersegmental Artery • Aplasia or hypoplasia of one or both vertebral arteries proximal to the anastomosis may be identified in 50% of cases. • In addition, cerebrovascular abnormalities were found in 59% of patients with a proatlantal intersegmental artery. • Such abnormalities included intracranial aneurysm in 10% of patients. RadioGraphics 2009; 29:1027–1043

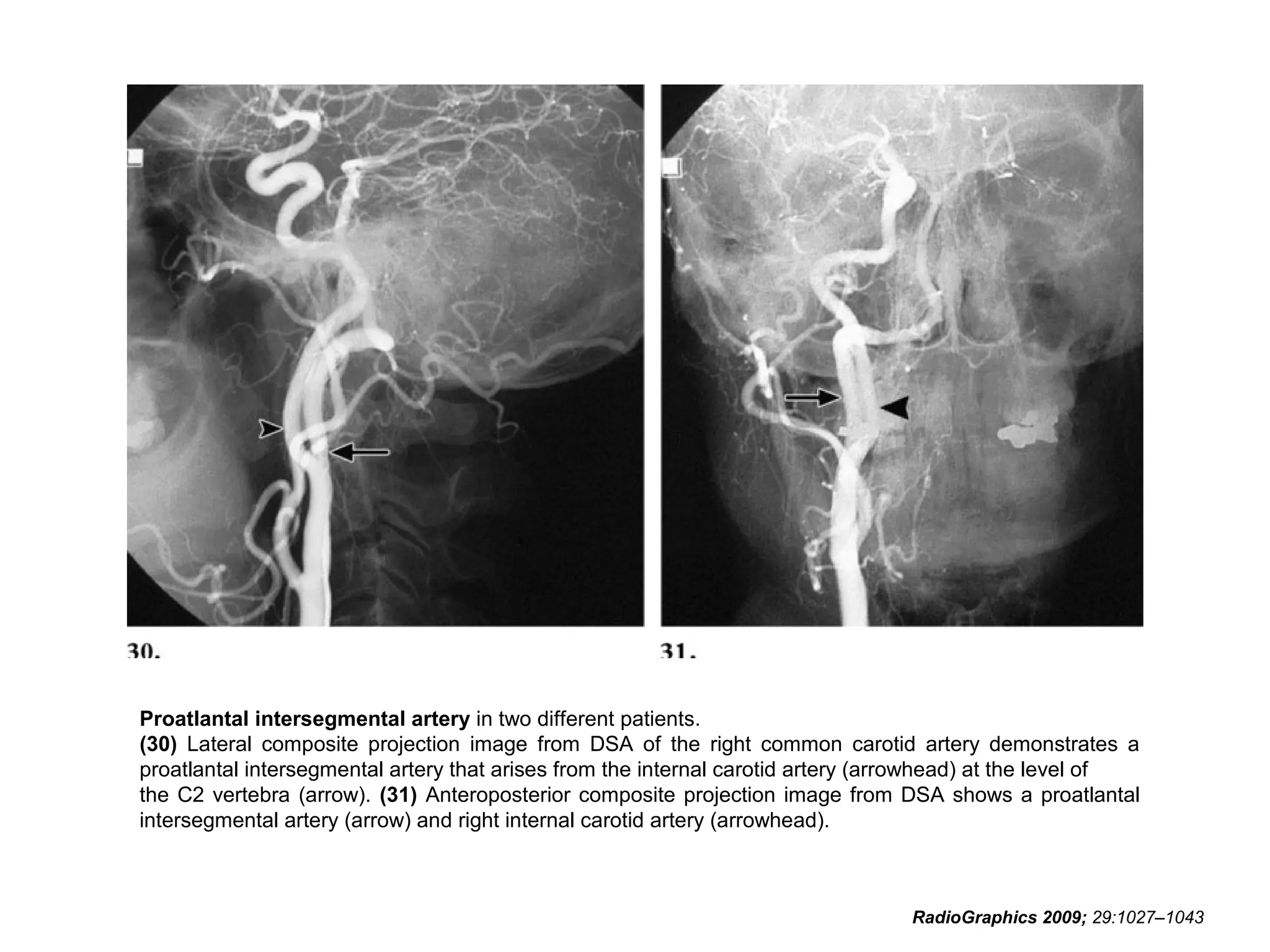

Proatlantal intersegmental artery in two different patients. (30) Lateral composite projection image from DSA of the right common carotid artery demonstrates a proatlantal intersegmental artery that arises from the internal carotid artery (arrowhead) at the level of the C2 vertebra (arrow). (31) Anteroposterior composite projection image from DSA shows a proatlantal intersegmental artery (arrow) and right internal carotid artery (arrowhead). RadioGraphics 2009; 29:1027–1043

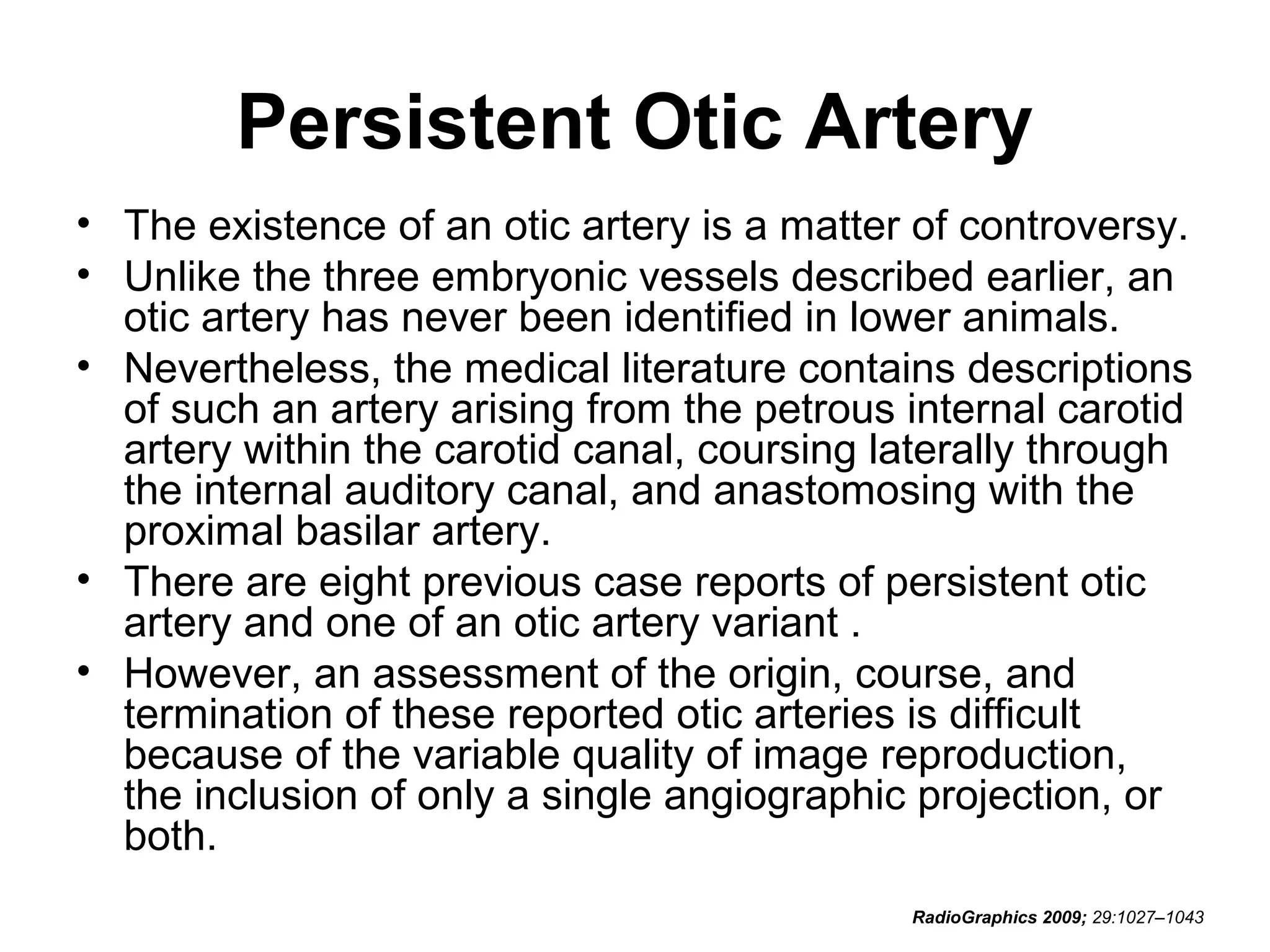

Persistent Otic Artery • The existence of an otic artery is a matter of controversy. • Unlike the three embryonic vessels described earlier, an otic artery has never been identified in lower animals. • Nevertheless, the medical literature contains descriptions of such an artery arising from the petrous internal carotid artery within the carotid canal, coursing laterally through the internal auditory canal, and anastomosing with the proximal basilar artery. • There are eight previous case reports of persistent otic artery and one of an otic artery variant . • However, an assessment of the origin, course, and termination of these reported otic arteries is difficult because of the variable quality of image reproduction, the inclusion of only a single angiographic projection, or both. RadioGraphics 2009; 29:1027–1043

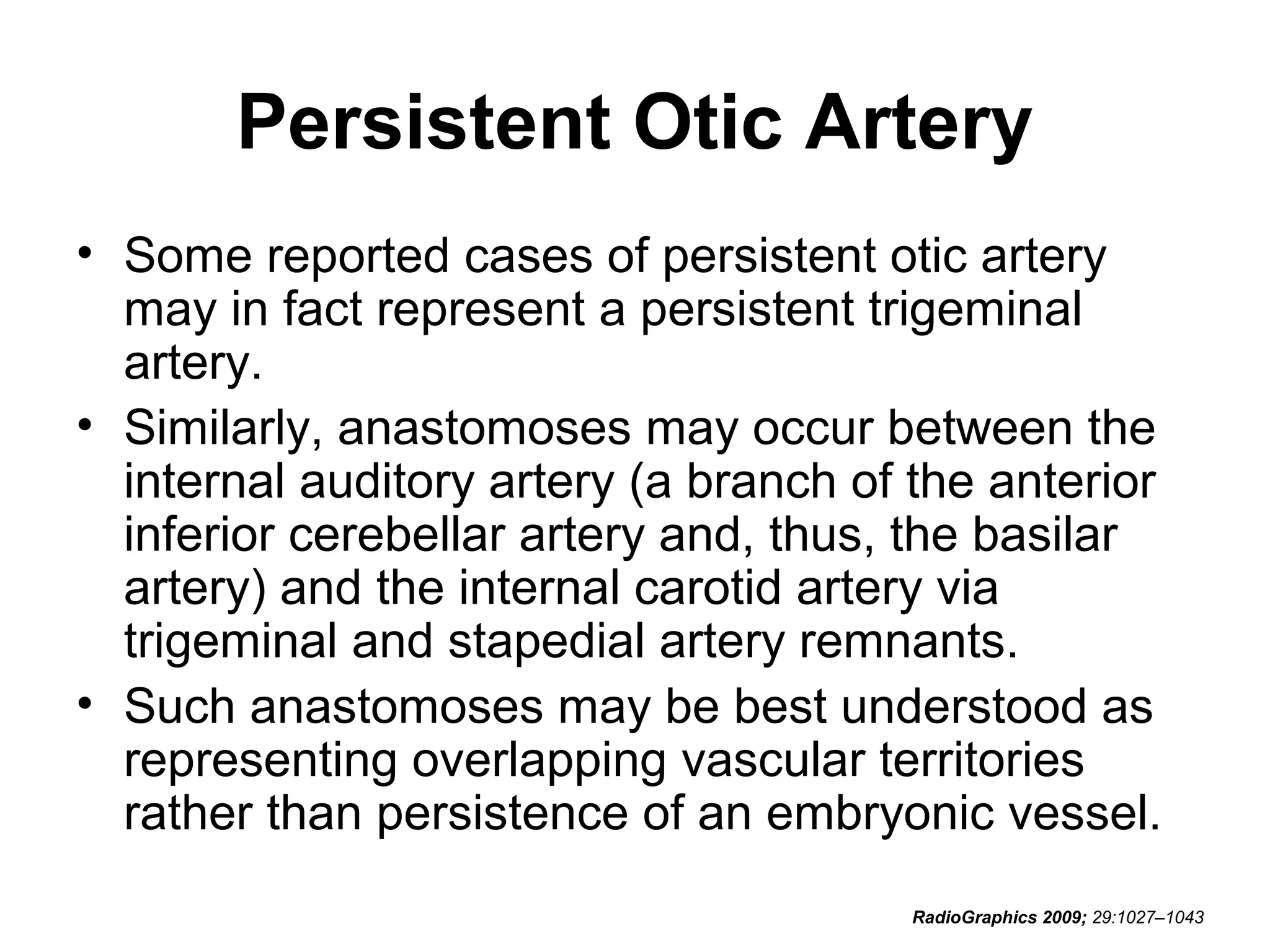

Persistent Otic Artery • Some reported cases of persistent otic artery may in fact represent a persistent trigeminal artery. • Similarly, anastomoses may occur between the internal auditory artery (a branch of the anterior inferior cerebellar artery and, thus, the basilar artery) and the internal carotid artery via trigeminal and stapedial artery remnants. • Such anastomoses may be best understood as representing overlapping vascular territories rather than persistence of an embryonic vessel. RadioGraphics 2009; 29:1027–1043

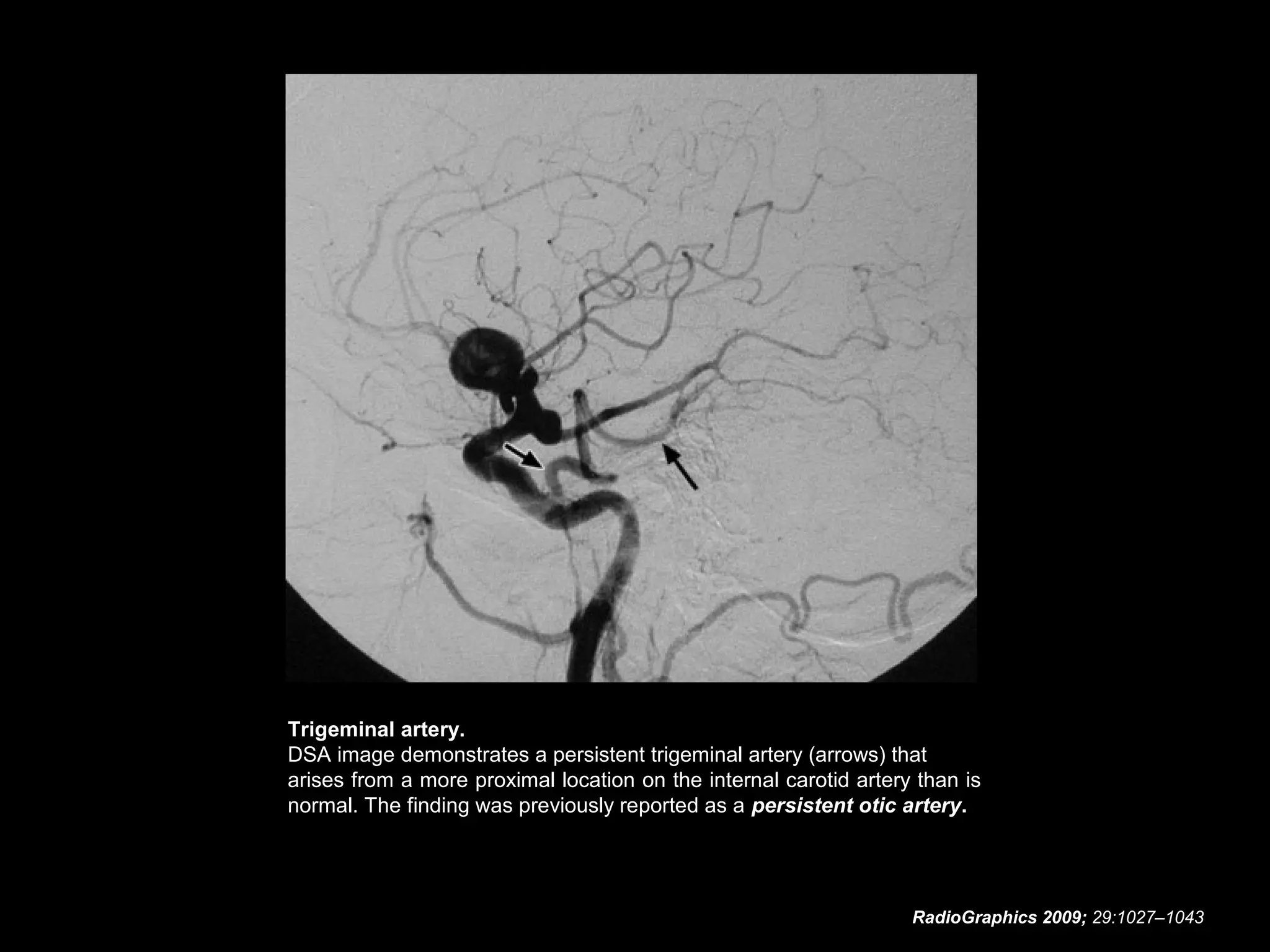

Trigeminal artery. DSA image demonstrates a persistent trigeminal artery (arrows) that arises from a more proximal location on the internal carotid artery than is normal. The finding was previously reported as a persistent otic artery. RadioGraphics 2009; 29:1027–1043

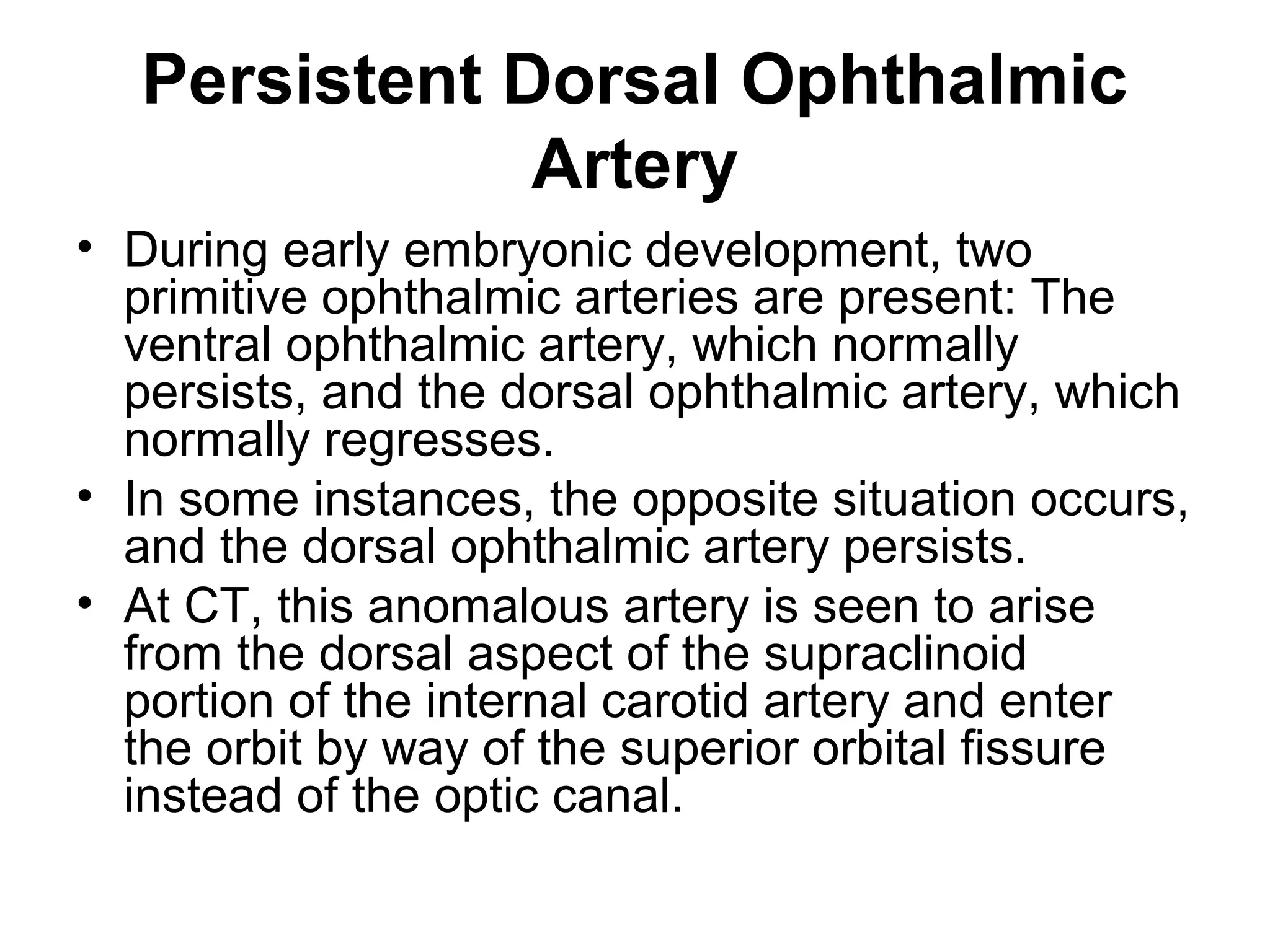

Persistent Dorsal Ophthalmic Artery • During early embryonic development, two primitive ophthalmic arteries are present: The ventral ophthalmic artery, which normally persists, and the dorsal ophthalmic artery, which normally regresses. • In some instances, the opposite situation occurs, and the dorsal ophthalmic artery persists. • At CT, this anomalous artery is seen to arise from the dorsal aspect of the supraclinoid portion of the internal carotid artery and enter the orbit by way of the superior orbital fissure instead of the optic canal.

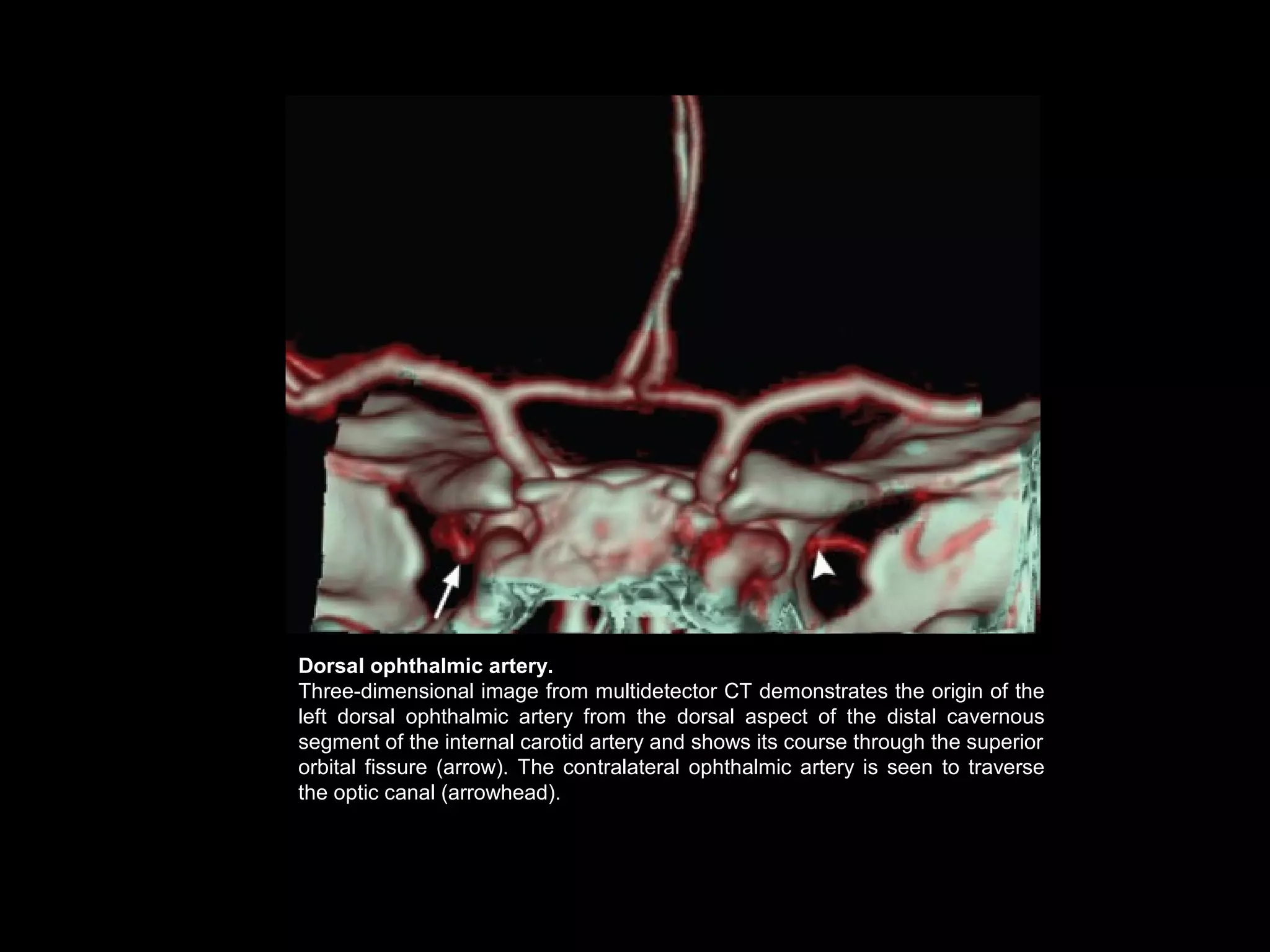

Dorsal ophthalmic artery. Three-dimensional image from multidetector CT demonstrates the origin of the left dorsal ophthalmic artery from the dorsal aspect of the distal cavernous segment of the internal carotid artery and shows its course through the superior orbital fissure (arrow). The contralateral ophthalmic artery is seen to traverse the optic canal (arrowhead).

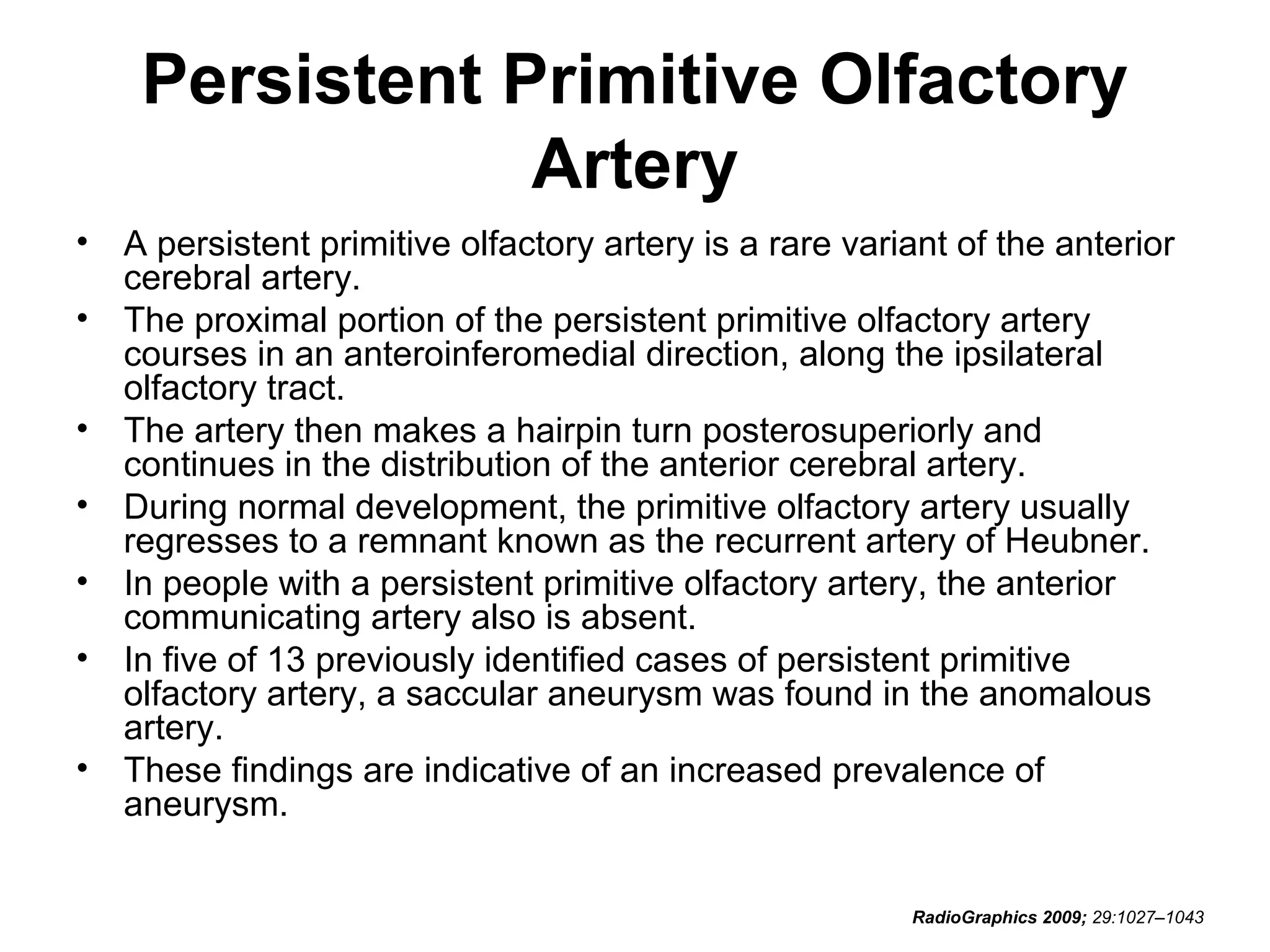

Persistent Primitive Olfactory Artery • • • • • • • A persistent primitive olfactory artery is a rare variant of the anterior cerebral artery. The proximal portion of the persistent primitive olfactory artery courses in an anteroinferomedial direction, along the ipsilateral olfactory tract. The artery then makes a hairpin turn posterosuperiorly and continues in the distribution of the anterior cerebral artery. During normal development, the primitive olfactory artery usually regresses to a remnant known as the recurrent artery of Heubner. In people with a persistent primitive olfactory artery, the anterior communicating artery also is absent. In five of 13 previously identified cases of persistent primitive olfactory artery, a saccular aneurysm was found in the anomalous artery. These findings are indicative of an increased prevalence of aneurysm. RadioGraphics 2009; 29:1027–1043

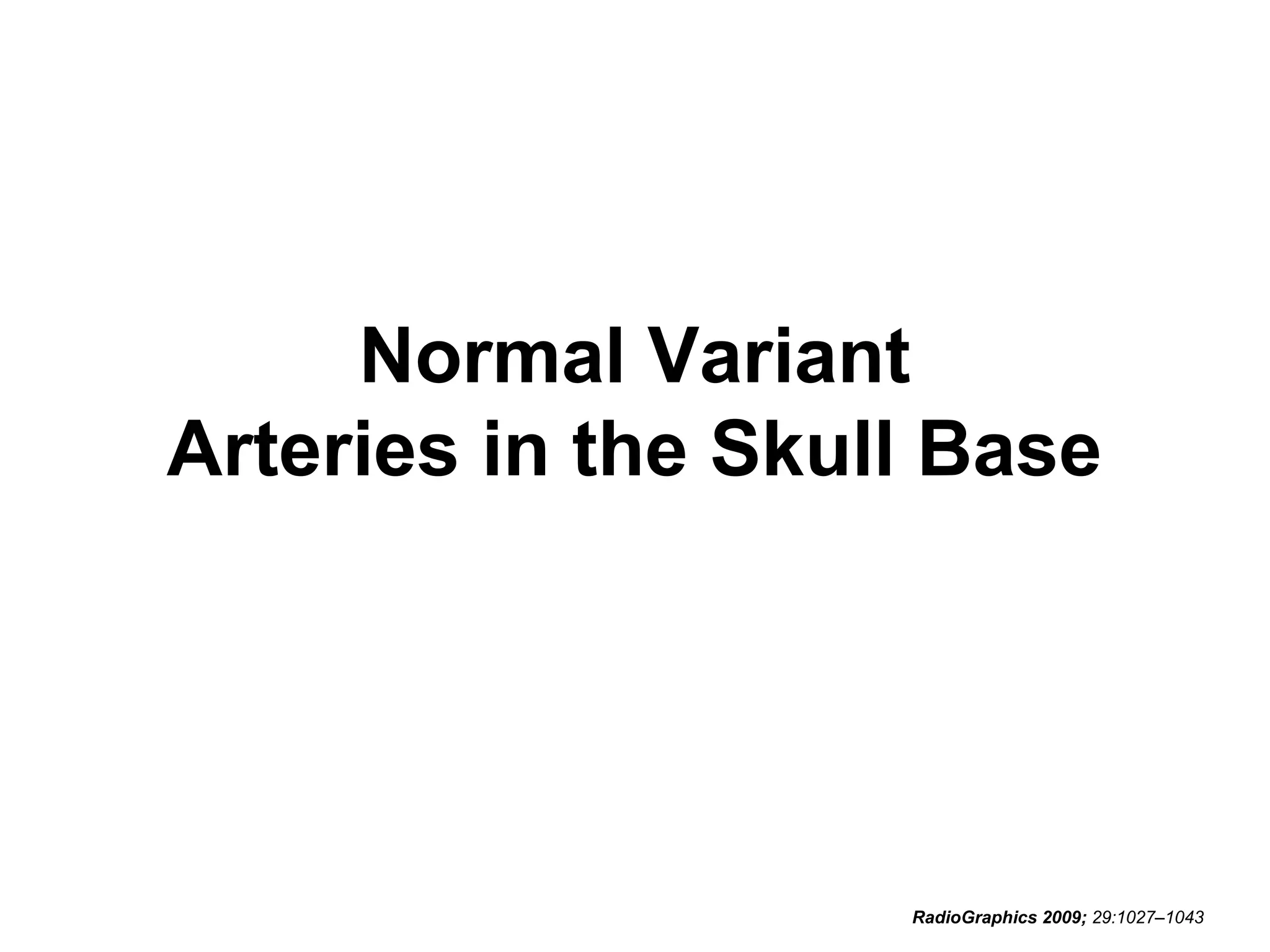

Normal Variant Arteries in the Skull Base RadioGraphics 2009; 29:1027–1043

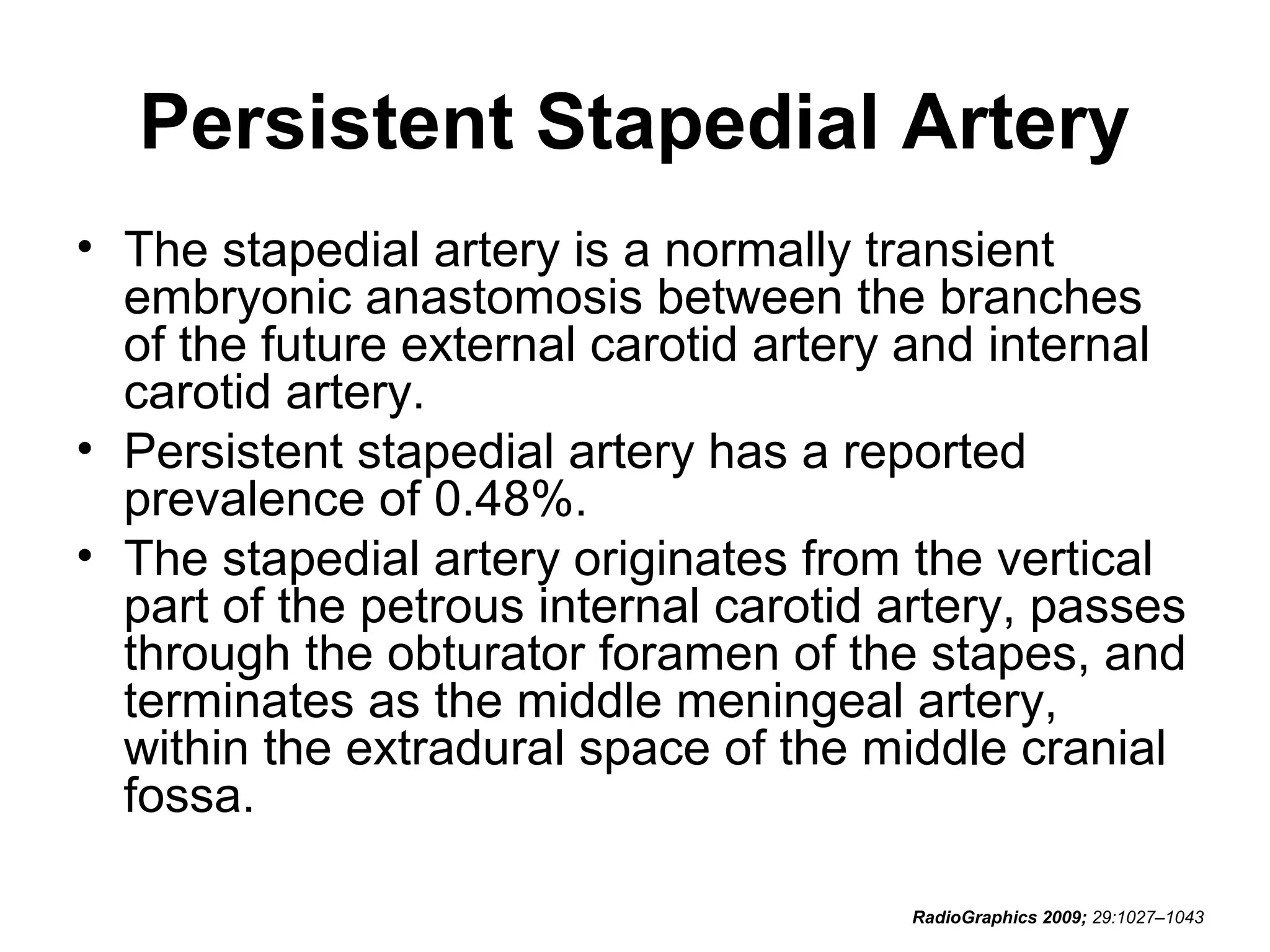

Persistent Stapedial Artery • The stapedial artery is a normally transient embryonic anastomosis between the branches of the future external carotid artery and internal carotid artery. • Persistent stapedial artery has a reported prevalence of 0.48%. • The stapedial artery originates from the vertical part of the petrous internal carotid artery, passes through the obturator foramen of the stapes, and terminates as the middle meningeal artery, within the extradural space of the middle cranial fossa. RadioGraphics 2009; 29:1027–1043

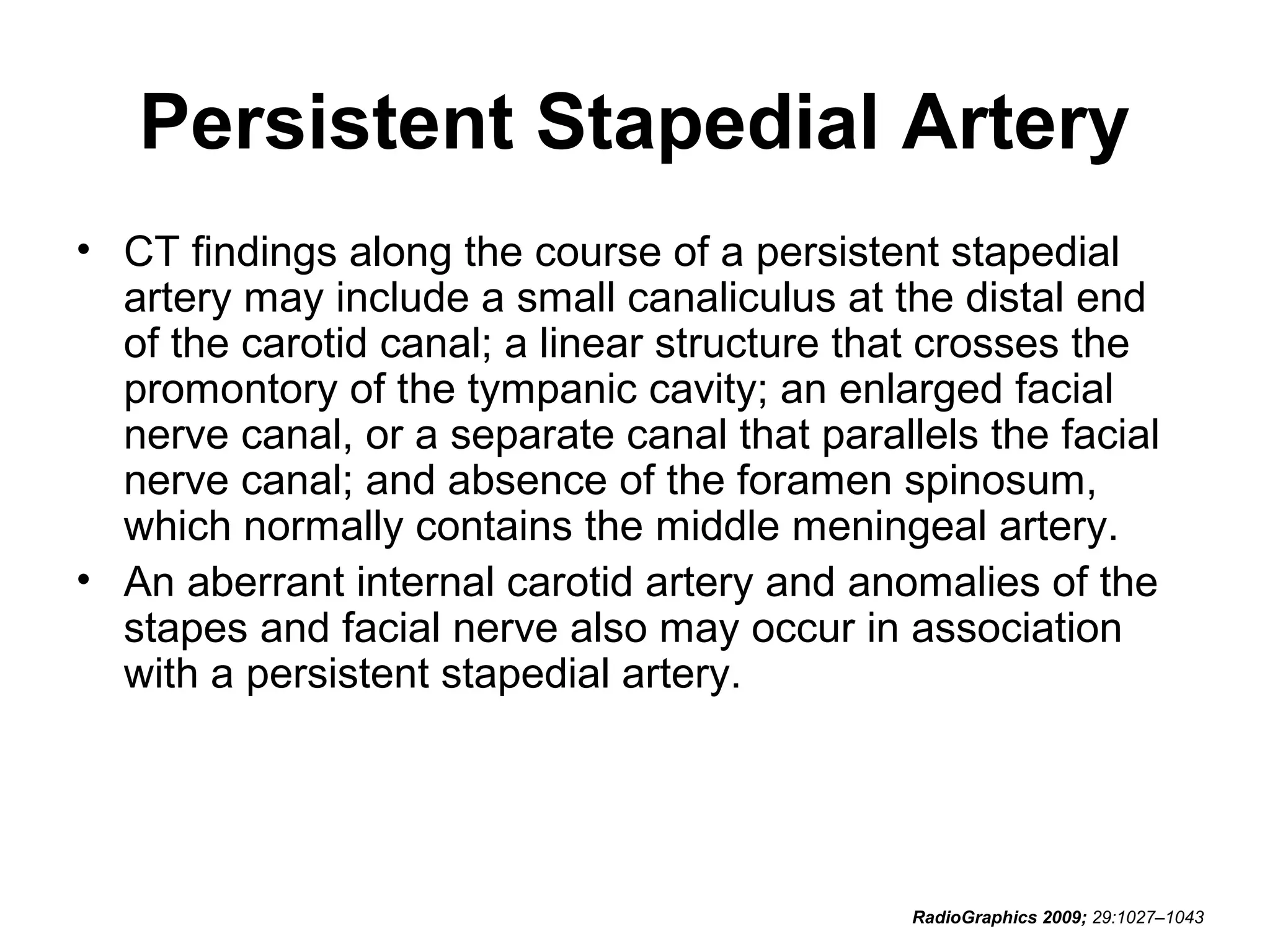

Persistent Stapedial Artery • CT findings along the course of a persistent stapedial artery may include a small canaliculus at the distal end of the carotid canal; a linear structure that crosses the promontory of the tympanic cavity; an enlarged facial nerve canal, or a separate canal that parallels the facial nerve canal; and absence of the foramen spinosum, which normally contains the middle meningeal artery. • An aberrant internal carotid artery and anomalies of the stapes and facial nerve also may occur in association with a persistent stapedial artery. RadioGraphics 2009; 29:1027–1043

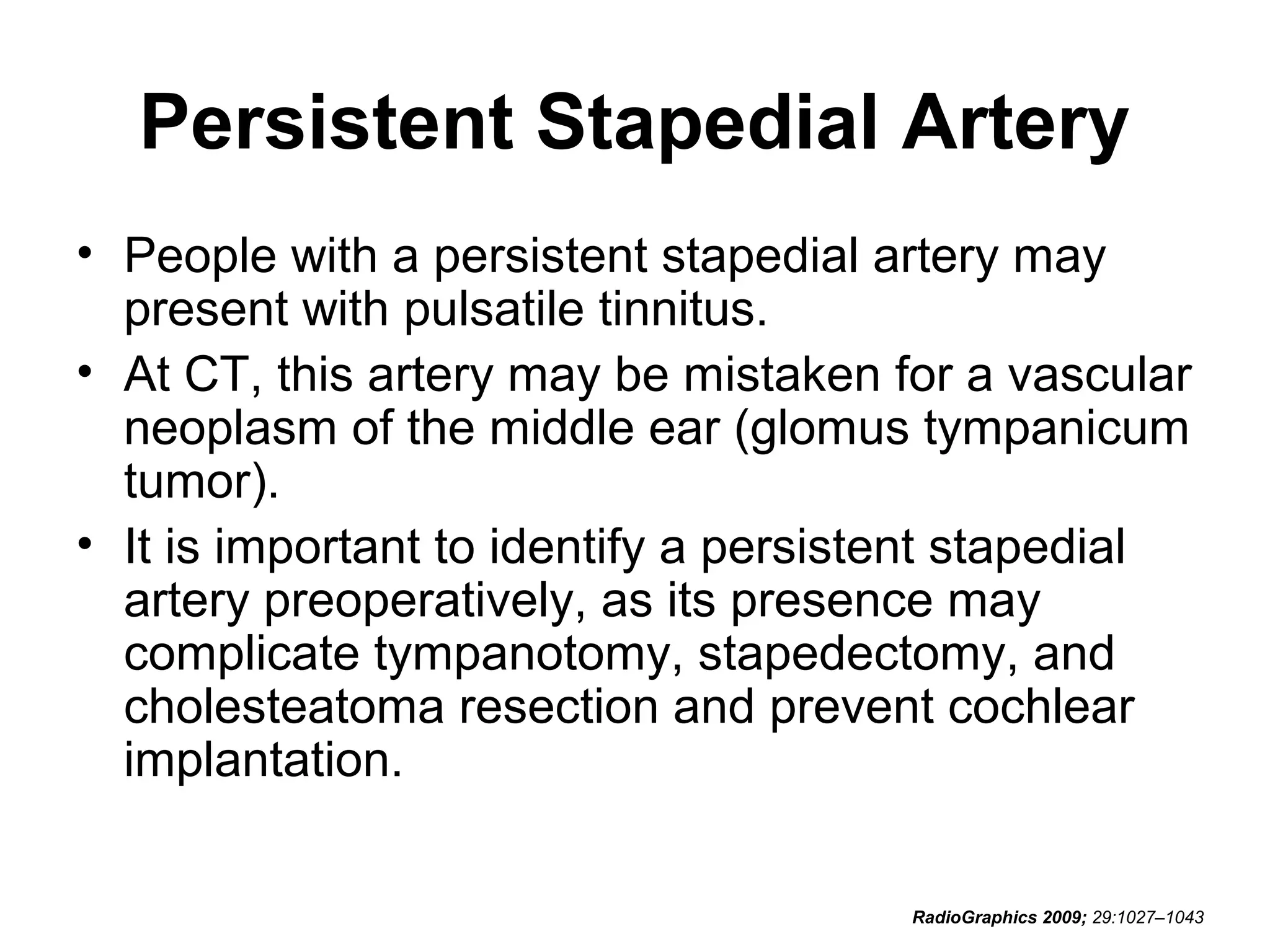

Persistent Stapedial Artery • People with a persistent stapedial artery may present with pulsatile tinnitus. • At CT, this artery may be mistaken for a vascular neoplasm of the middle ear (glomus tympanicum tumor). • It is important to identify a persistent stapedial artery preoperatively, as its presence may complicate tympanotomy, stapedectomy, and cholesteatoma resection and prevent cochlear implantation. RadioGraphics 2009; 29:1027–1043

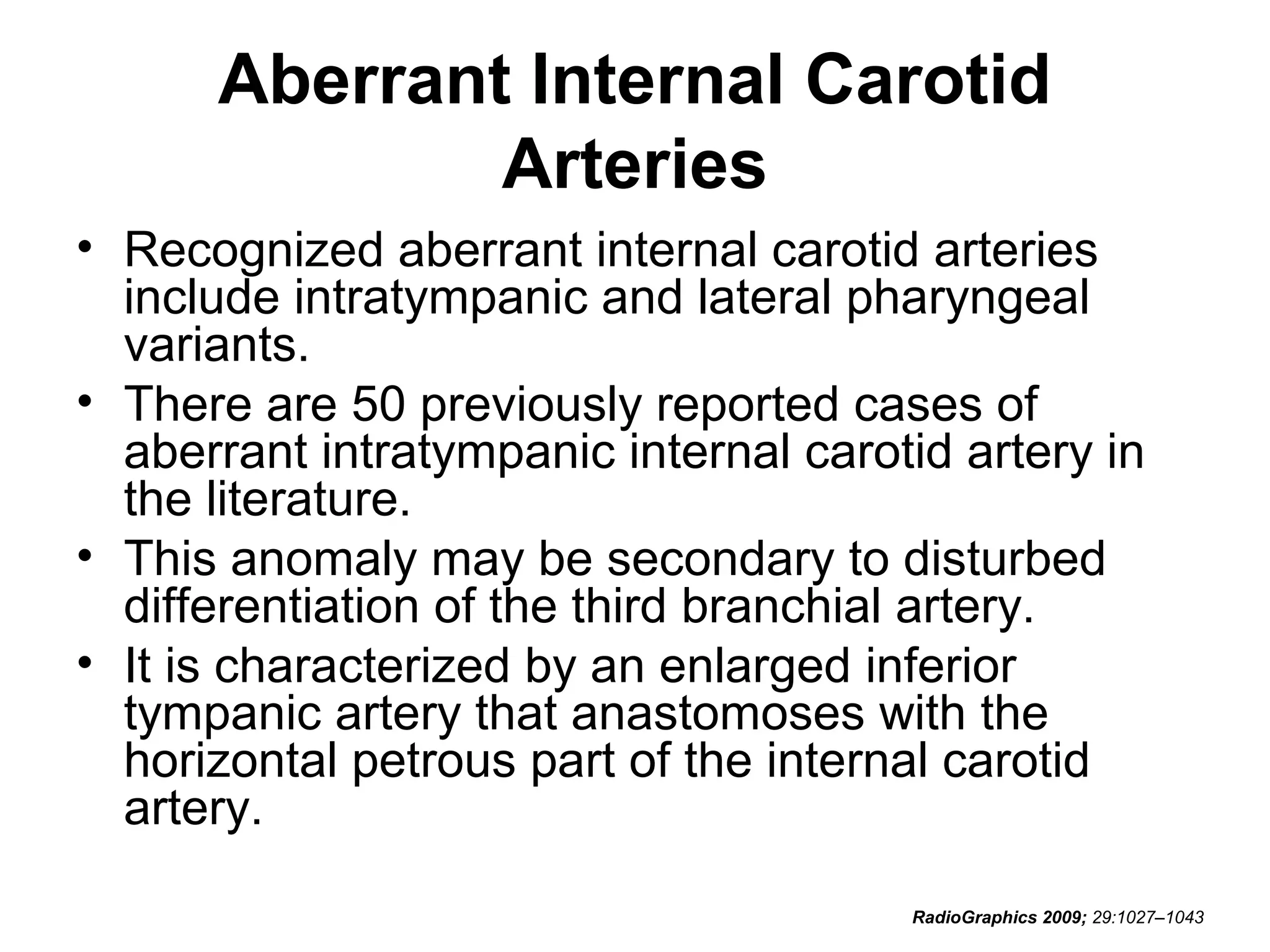

Aberrant Internal Carotid Arteries • Recognized aberrant internal carotid arteries include intratympanic and lateral pharyngeal variants. • There are 50 previously reported cases of aberrant intratympanic internal carotid artery in the literature. • This anomaly may be secondary to disturbed differentiation of the third branchial artery. • It is characterized by an enlarged inferior tympanic artery that anastomoses with the horizontal petrous part of the internal carotid artery. RadioGraphics 2009; 29:1027–1043
Aberrant Internal Carotid Arteries • On axial CT images, the presence of an aberrant intratympanic internal carotid artery may be signaled by: (a) an internal carotid artery with a reduced diameter and a course posterior and parallel to the jugular bulb (b) a mass in the hypotympanum (c) deficiency of the bony plate along the tympanic portion of the internal carotid artery (d) absence of the vertical segment of the carotid canal. • On coronal CT images, the important features are a hypotympanic mass and enlargement of the inferior tympanic canaliculus. RadioGraphics 2009; 29:1027–1043
Aberrant Internal Carotid Arteries • Preoperative recognition of an aberrant intratympanic internal carotid artery is essential for avoiding potentially catastrophic consequences during myringotomy and middle ear surgery. • This vascular anomaly, like a persistent stapedial artery, may mimic a glomus tumor. • The lateral pharyngeal internal carotid artery is an anomalous vessel that extends to or near the midline of the posterior pharyngeal wall and is at risk during oropharyngeal tumor resection, tonsillectomy, adenoidectomy, or palatopharyngoplasty RadioGraphics 2009; 29:1027–1043

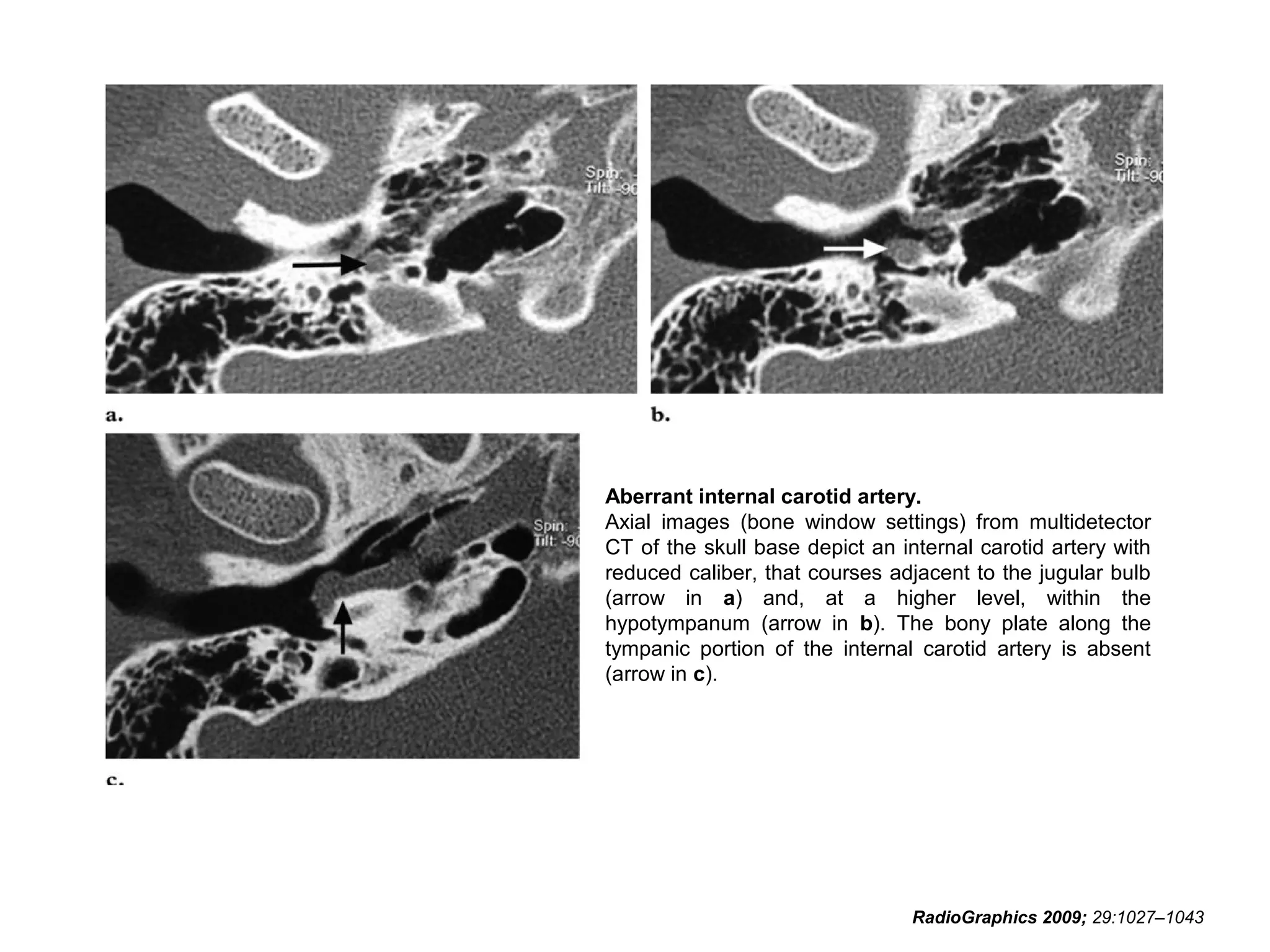

Aberrant internal carotid artery. Axial images (bone window settings) from multidetector CT of the skull base depict an internal carotid artery with reduced caliber, that courses adjacent to the jugular bulb (arrow in a) and, at a higher level, within the hypotympanum (arrow in b). The bony plate along the tympanic portion of the internal carotid artery is absent (arrow in c). RadioGraphics 2009; 29:1027–1043

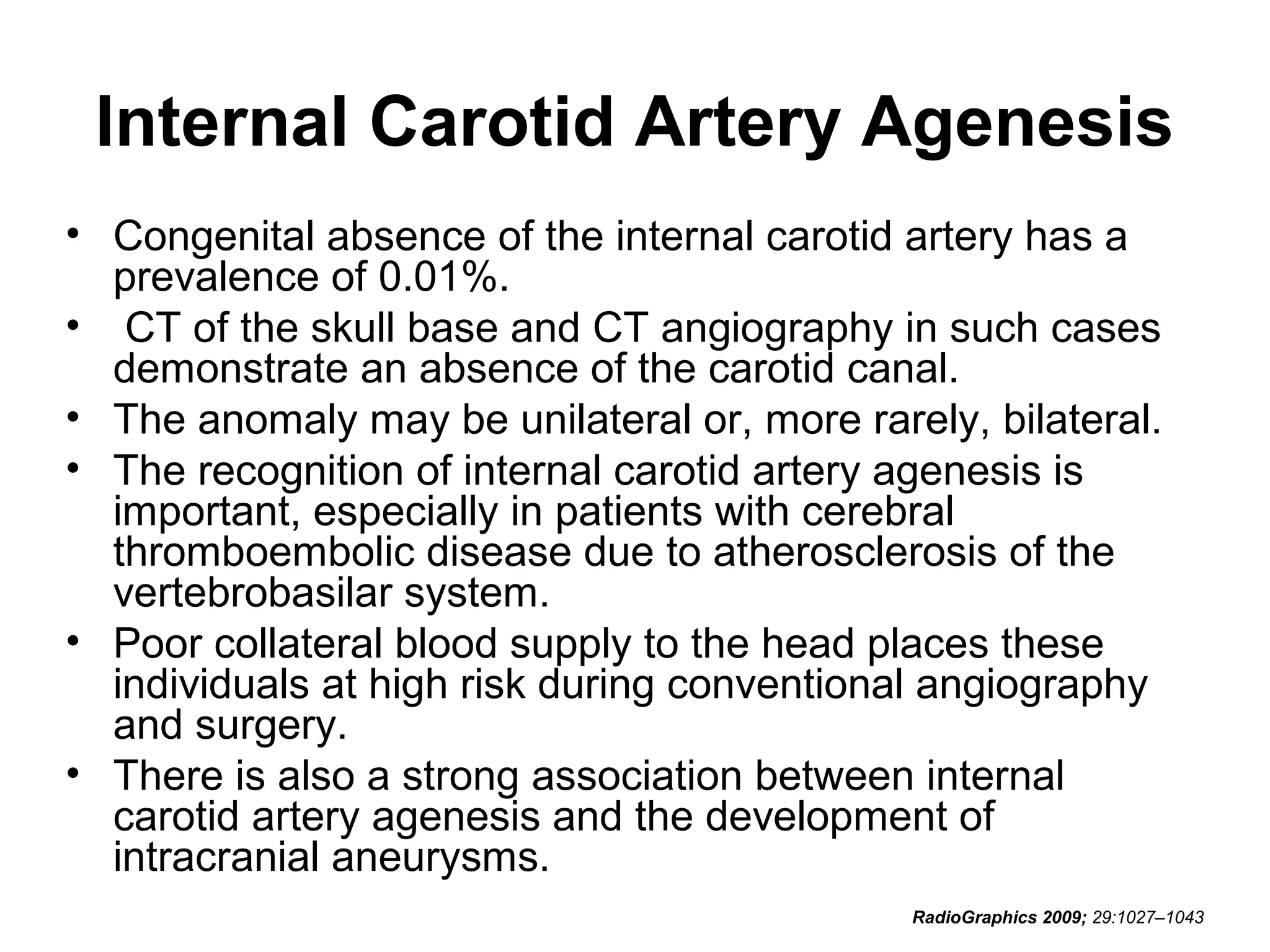

Internal Carotid Artery Agenesis • Congenital absence of the internal carotid artery has a prevalence of 0.01%. • CT of the skull base and CT angiography in such cases demonstrate an absence of the carotid canal. • The anomaly may be unilateral or, more rarely, bilateral. • The recognition of internal carotid artery agenesis is important, especially in patients with cerebral thromboembolic disease due to atherosclerosis of the vertebrobasilar system. • Poor collateral blood supply to the head places these individuals at high risk during conventional angiography and surgery. • There is also a strong association between internal carotid artery agenesis and the development of intracranial aneurysms. RadioGraphics 2009; 29:1027–1043

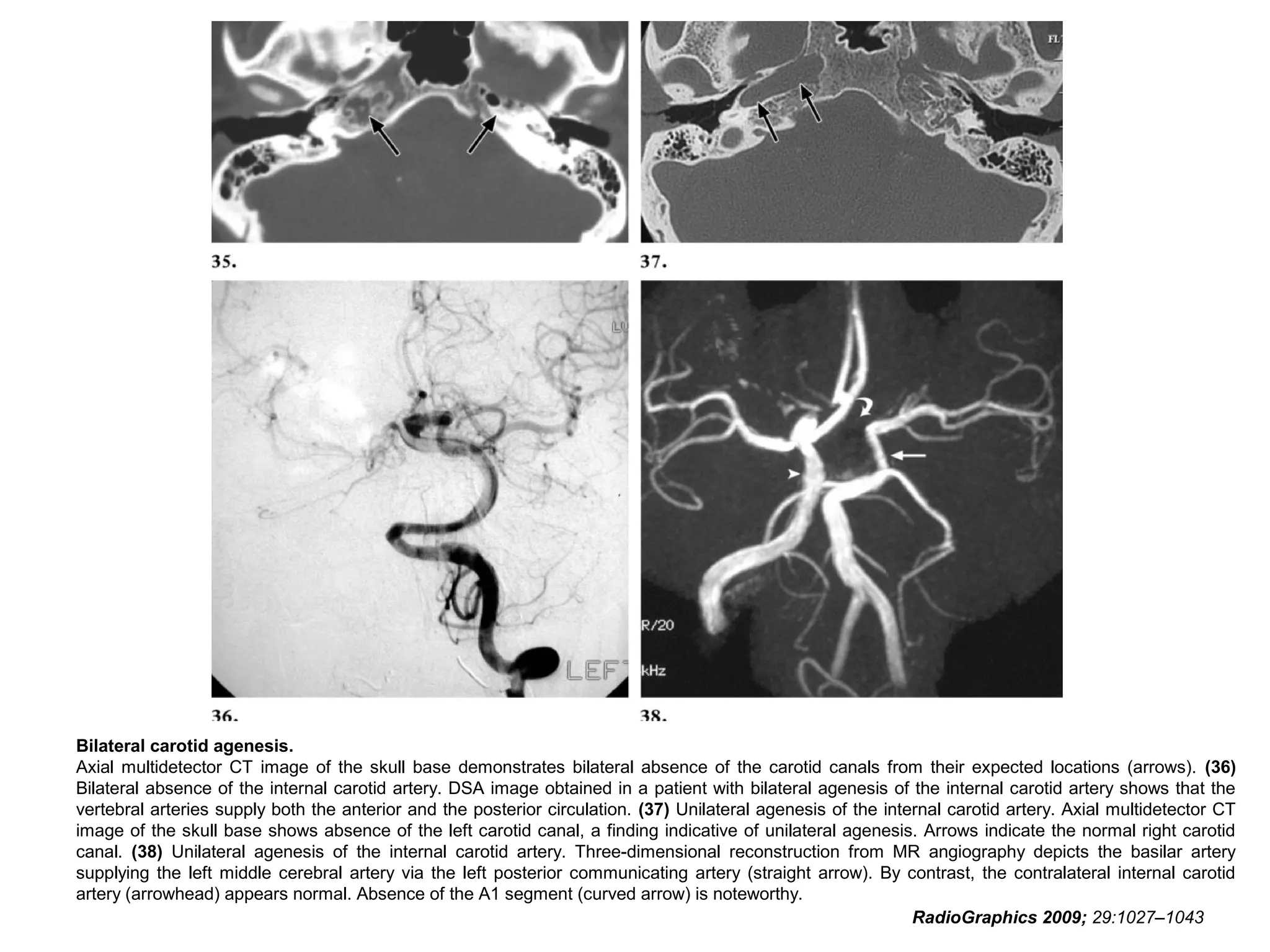

Bilateral carotid agenesis. Axial multidetector CT image of the skull base demonstrates bilateral absence of the carotid canals from their expected locations (arrows). (36) Bilateral absence of the internal carotid artery. DSA image obtained in a patient with bilateral agenesis of the internal carotid artery shows that the vertebral arteries supply both the anterior and the posterior circulation. (37) Unilateral agenesis of the internal carotid artery. Axial multidetector CT image of the skull base shows absence of the left carotid canal, a finding indicative of unilateral agenesis. Arrows indicate the normal right carotid canal. (38) Unilateral agenesis of the internal carotid artery. Three-dimensional reconstruction from MR angiography depicts the basilar artery supplying the left middle cerebral artery via the left posterior communicating artery (straight arrow). By contrast, the contralateral internal carotid artery (arrowhead) appears normal. Absence of the A1 segment (curved arrow) is noteworthy. RadioGraphics 2009; 29:1027–1043

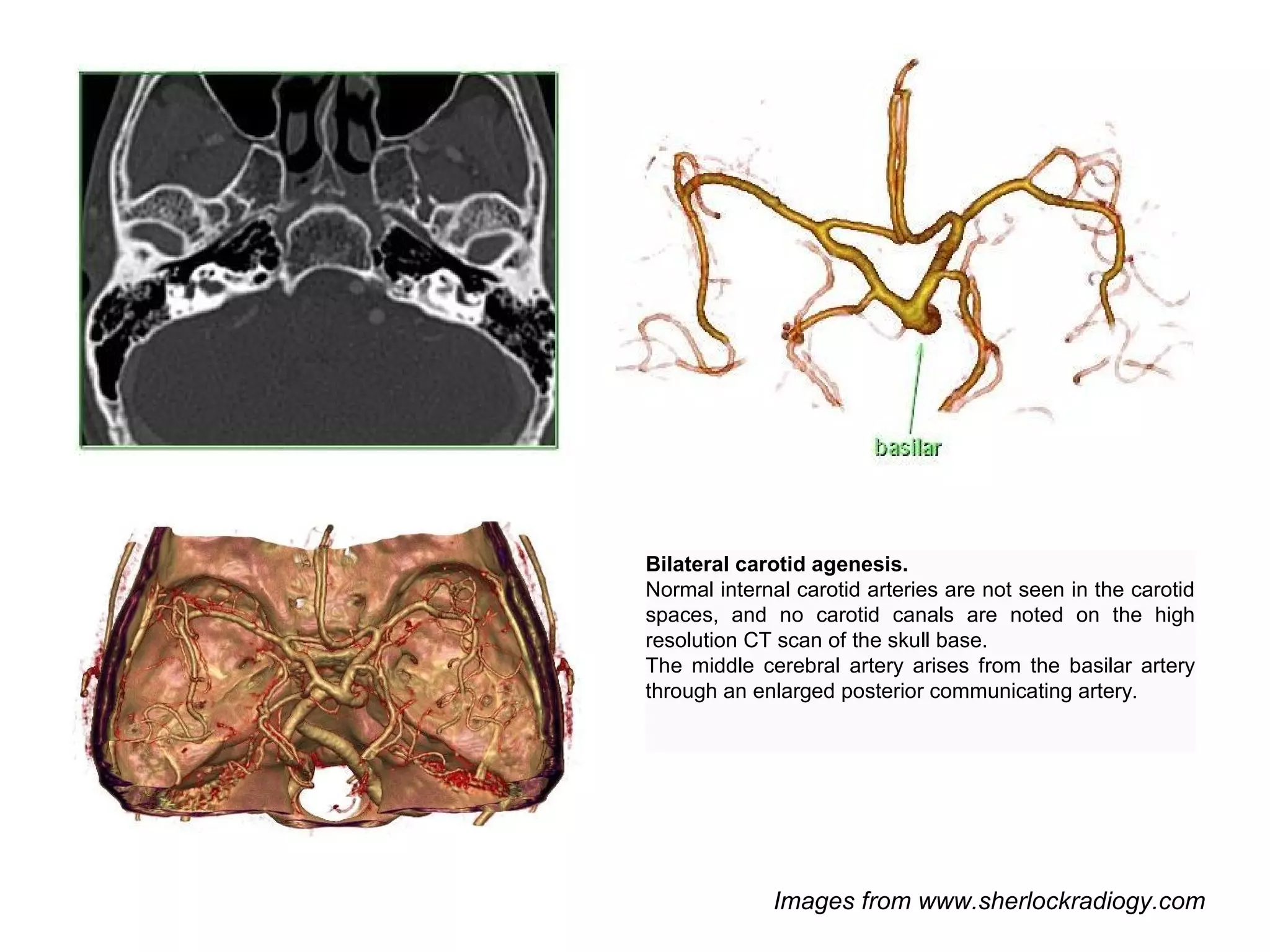

Bilateral carotid agenesis. Normal internal carotid arteries are not seen in the carotid spaces, and no carotid canals are noted on the high resolution CT scan of the skull base. The middle cerebral artery arises from the basilar artery through an enlarged posterior communicating artery. Images from www.sherlockradiogy.com

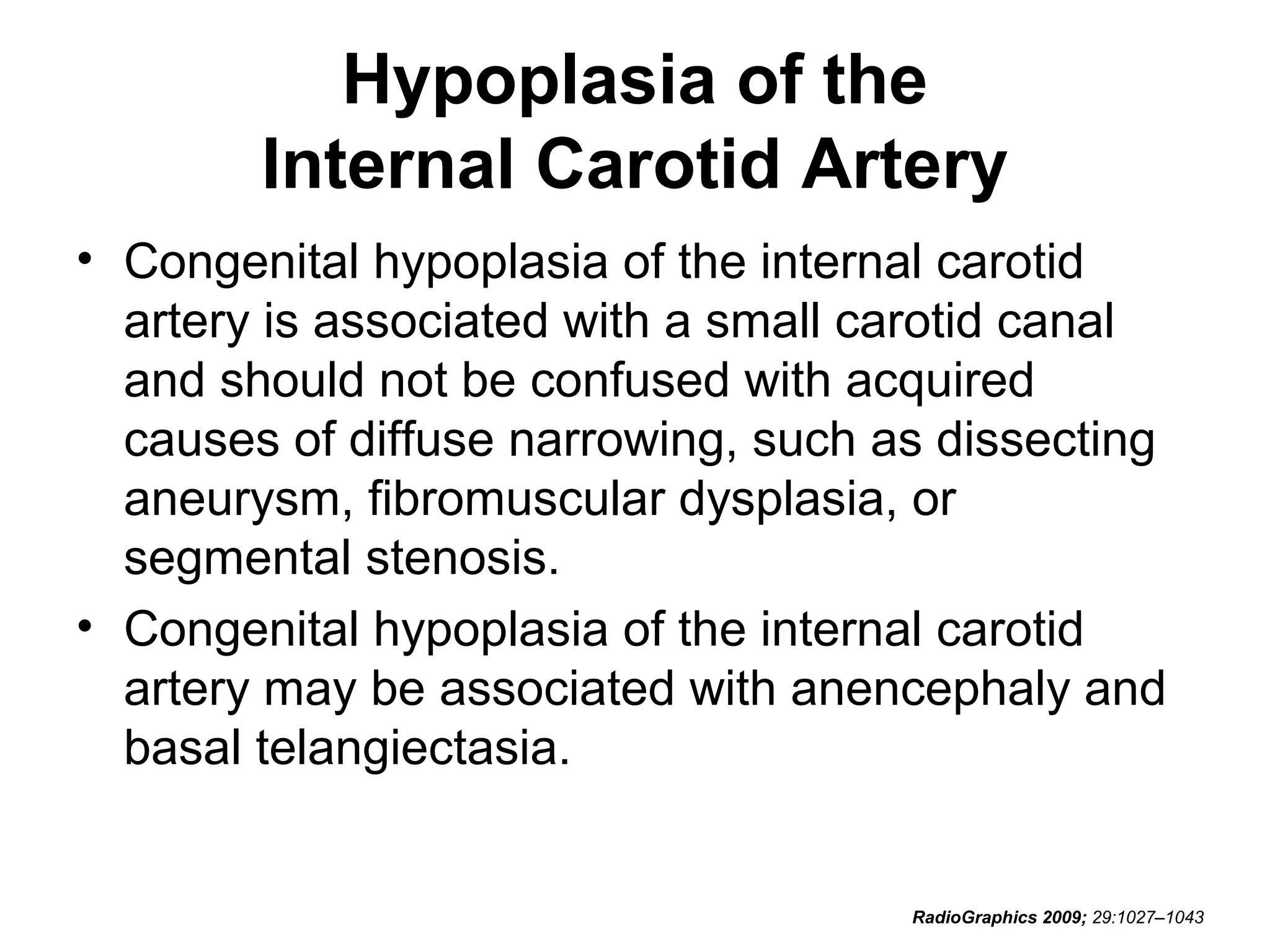

Hypoplasia of the Internal Carotid Artery • Congenital hypoplasia of the internal carotid artery is associated with a small carotid canal and should not be confused with acquired causes of diffuse narrowing, such as dissecting aneurysm, fibromuscular dysplasia, or segmental stenosis. • Congenital hypoplasia of the internal carotid artery may be associated with anencephaly and basal telangiectasia. RadioGraphics 2009; 29:1027–1043

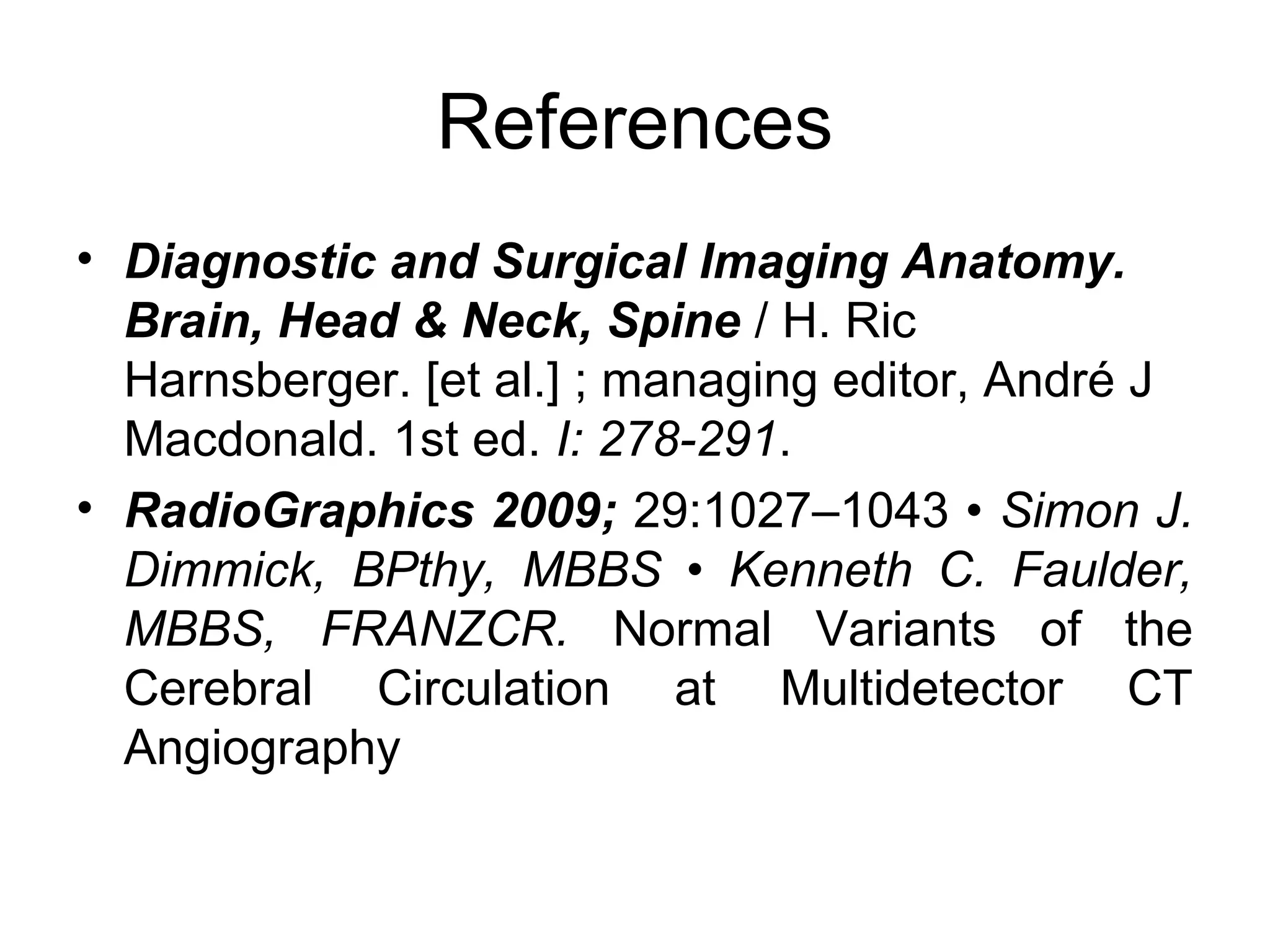

References • Diagnostic and Surgical Imaging Anatomy. Brain, Head & Neck, Spine / H. Ric Harnsberger. [et al.] ; managing editor, André J Macdonald. 1st ed. I: 278-291. • RadioGraphics 2009; 29:1027–1043 • Simon J. Dimmick, BPthy, MBBS • Kenneth C. Faulder, MBBS, FRANZCR. Normal Variants of the Cerebral Circulation at Multidetector CT Angiography

More Related Content

PPTX
ICA anatomy
byMohamed E Elsebaey

PPT
Cerebral Venous anatomy
byMohamed M.A. Zaitoun

PPT
Anatomy of the external carotid artery (ECA)
byMohamed M.A. Zaitoun

PPTX
RADIOLOGICAL ANATOMY OF ARTERIAL SUPPLY OF BRAIN
byMohammad Naufal

PPTX
imaging and anatomy of blood supply of brain
bySunil Kumar

PPTX
radiology Arterial and venous supply of brain neuroimaging part 1
bySameeha Khan

PPTX
Cerebral Vascular Anatomy and Technique
byMohamed M.A. Zaitoun

PPT
Interventional Neuroradiology: Anatomy of the internal carotid artery (ICA)
byMohamed M.A. Zaitoun

ICA anatomy
byMohamed E Elsebaey

Cerebral Venous anatomy
byMohamed M.A. Zaitoun

Anatomy of the external carotid artery (ECA)
byMohamed M.A. Zaitoun

RADIOLOGICAL ANATOMY OF ARTERIAL SUPPLY OF BRAIN
byMohammad Naufal

imaging and anatomy of blood supply of brain
bySunil Kumar

radiology Arterial and venous supply of brain neuroimaging part 1
bySameeha Khan

Cerebral Vascular Anatomy and Technique
byMohamed M.A. Zaitoun

Interventional Neuroradiology: Anatomy of the internal carotid artery (ICA)
byMohamed M.A. Zaitoun


What's hot

PPTX
Cisterns of brain
bysuresh Bishokarma

PPTX
Venous anatomy of the brain
byKode Sashanka

PPTX
Insular lobe anatomy
byAnkit Jain

PPT
Anatomy of the posterior cerebral circulation
byMohamed M.A. Zaitoun

PPTX
Embryology of the Craniovertebral Junction
byShashank Gandhi

PPTX
Venous anatomy of brain - Radiology
bySunil Kumar

PPTX
Radiologic Venous Anatomy of Brain
byMohammad Naufal

PPT
CSF cisterns
byHytham Nafady

PPT
Anatomy of the anterior cerebral artery (ACA)
byMohamed M.A. Zaitoun

PPTX
Third ventricle surgical anatomy and approaches
byDr Praveen kumar tripathi

PPT
Anatomy of the middle cerebral artery (MCA)
byMohamed M.A. Zaitoun

PPTX
Posterior cerebral artery-Brain blood supply
byMuhammad Jamil

PPTX
Radiologic anatomy of the cranial nerves
byhazem youssef

PPT
Vascular Anatomy of Spinal Cord
byDr. Arun Mathai Mani

PPTX
Cross sectional anatomy of neck spaces
byRamanGhimire3

PPTX
Anatomy of sellar suprasellar region
byPGINeurosurgery

PPTX
Dural arteriovenous fistula & AVM
byairwave12

PPTX
Presentation1.pptx sellar and para sellar masses
byAbdellah Nazeer

PPTX
Cavernous sinus-ANATOMY AND SURGICAL APPROACHES
bySanjeev Sreenivasan

PPTX
Radiology of ventricles
bySrirama Anjaneyulu

Cisterns of brain
bysuresh Bishokarma

Venous anatomy of the brain
byKode Sashanka

Insular lobe anatomy
byAnkit Jain

Anatomy of the posterior cerebral circulation
byMohamed M.A. Zaitoun

Embryology of the Craniovertebral Junction
byShashank Gandhi

Venous anatomy of brain - Radiology
bySunil Kumar

Radiologic Venous Anatomy of Brain
byMohammad Naufal

CSF cisterns
byHytham Nafady

Anatomy of the anterior cerebral artery (ACA)
byMohamed M.A. Zaitoun

Third ventricle surgical anatomy and approaches
byDr Praveen kumar tripathi

Anatomy of the middle cerebral artery (MCA)
byMohamed M.A. Zaitoun

Posterior cerebral artery-Brain blood supply
byMuhammad Jamil

Radiologic anatomy of the cranial nerves
byhazem youssef

Vascular Anatomy of Spinal Cord
byDr. Arun Mathai Mani

Cross sectional anatomy of neck spaces
byRamanGhimire3

Anatomy of sellar suprasellar region
byPGINeurosurgery

Dural arteriovenous fistula & AVM
byairwave12

Presentation1.pptx sellar and para sellar masses
byAbdellah Nazeer

Cavernous sinus-ANATOMY AND SURGICAL APPROACHES
bySanjeev Sreenivasan

Radiology of ventricles
bySrirama Anjaneyulu


Viewers also liked

PPTX
Segments of internal carotid artery
byANDREA TITUS

PPTX
External carotid artery
byManthru Naik Ramavath

PPTX
External carotid artery, branches and ligation
bybenjamin Emmanuel

PPT
Intracranial arteries
byMATIAS FREITAS FH

PPS
Carotid Arteries (Anatomy of the Neck)
byDr. Sherif Fahmy

PPTX
Blood supply of the brain
byPawan Maurya

PPTX
Anatomy and intervention in cerebral vasculature
bycharusmita chaudhary

PPTX
Blood supply of face
by1423262214

PPTX
Anterior cerebral circulation
byDr. Mohammed Sadiq Azam M.D.

PPT
Clinical Anatomy Circle Of Willis & Cavernous Sinus
byAnkit Punjabi

PPTX
Brain angiography
bysamirelansary

PDF
Blood supply of the brain
byDr. Noura El Tahawy

PPTX
Circle of willis 360°
byMurali Chand Nallamothu

DOCX
Ligation of arteries in maxillofacial region
byIndian dental academy

PPT
Blood supply of brain
byNepalese army institute of health sciences

PPTX
Blood Supply of the Face & Mouth
byKristel Keith

PPTX
367 Intracranial internal carotid artery aneurysm
byNeurosurgery Vajira

PPT
Blood supply of the brain
byKING EDWARD medical university

PPT
Blood vessels of head and neck
byrineekhanna

PPTX
Venous drainage of head and neck
byAvneet Soni

Segments of internal carotid artery
byANDREA TITUS

External carotid artery
byManthru Naik Ramavath

External carotid artery, branches and ligation
bybenjamin Emmanuel

Intracranial arteries
byMATIAS FREITAS FH

Carotid Arteries (Anatomy of the Neck)
byDr. Sherif Fahmy

Blood supply of the brain
byPawan Maurya

Anatomy and intervention in cerebral vasculature
bycharusmita chaudhary

Blood supply of face
by1423262214

Anterior cerebral circulation
byDr. Mohammed Sadiq Azam M.D.

Clinical Anatomy Circle Of Willis & Cavernous Sinus
byAnkit Punjabi

Brain angiography
bysamirelansary

Blood supply of the brain
byDr. Noura El Tahawy

Circle of willis 360°
byMurali Chand Nallamothu

Ligation of arteries in maxillofacial region
byIndian dental academy

Blood supply of brain
byNepalese army institute of health sciences

Blood Supply of the Face & Mouth
byKristel Keith

367 Intracranial internal carotid artery aneurysm
byNeurosurgery Vajira

Blood supply of the brain
byKING EDWARD medical university

Blood vessels of head and neck
byrineekhanna

Venous drainage of head and neck
byAvneet Soni


Similar to Internal Carotid Artery and Normal Variants

PPTX
Vascular Anatomy of Brain............pptx
byDr. Koirala

PPTX
vascularanatomy of brain by dr budha ram.pptx
byhkuntal39

PPTX
Brain anatomy (part 4)
byAli Aboelsouad

PPTX
35 Anatomy of Blood Supply of the brain2 final.pptx
byleulsegedamsalu63

PPTX
Vascular brain anatomy for Radiology by Dr Soumitra Halder
bySoumitra Halder

PPTX
Blood supply of brain.pptx
byDr Manish Mittal

PPTX
Non-traumatic Vasculogenic Lesions of the Brain
byAbhineet Dey

PPT
Diagnostic Imaging of Stroke
byMohamed M.A. Zaitoun

PPT
blood supply of brain.ppt. with radiological correlation
byneurologykotaseminar

PPTX
Cerebral blood flow -Varun
byvarunbobby

PPTX
Blood supply of brain and Stroke - Dr Sameep Koshti (Consultant Neurosurgeon)
bySameep Koshti

PPTX
Normal cerebral angiogram final
bynikhilzandu

PPTX
Vascular anatomy of head, [autosaved]
byDactarAdhikari

PPTX
Radiologic Anatomy of the Blood Supply to the Brain.pptx
byWilliamsMusa1

PPTX
Basics srikanths angio
bySrikanth Yadav

PPT
Blood supply of brain
byMonir Hossain

PPTX
Arterial and venous supply of brain part2
bySameeha Khan

PPTX
Vascular anatomy of brain
byPrajwith Rai

PPTX
brain arterial anatomy 2vish.pptx
byVishnuDutt40

PPTX
Arterial supply of brain
byAhmed Mohamed

Vascular Anatomy of Brain............pptx
byDr. Koirala

vascularanatomy of brain by dr budha ram.pptx
byhkuntal39

Brain anatomy (part 4)
byAli Aboelsouad

35 Anatomy of Blood Supply of the brain2 final.pptx
byleulsegedamsalu63

Vascular brain anatomy for Radiology by Dr Soumitra Halder
bySoumitra Halder

Blood supply of brain.pptx
byDr Manish Mittal

Non-traumatic Vasculogenic Lesions of the Brain
byAbhineet Dey

Diagnostic Imaging of Stroke
byMohamed M.A. Zaitoun

blood supply of brain.ppt. with radiological correlation
byneurologykotaseminar

Cerebral blood flow -Varun
byvarunbobby

Blood supply of brain and Stroke - Dr Sameep Koshti (Consultant Neurosurgeon)
bySameep Koshti

Normal cerebral angiogram final
bynikhilzandu

Vascular anatomy of head, [autosaved]
byDactarAdhikari

Radiologic Anatomy of the Blood Supply to the Brain.pptx
byWilliamsMusa1

Basics srikanths angio
bySrikanth Yadav

Blood supply of brain
byMonir Hossain

Arterial and venous supply of brain part2
bySameeha Khan

Vascular anatomy of brain
byPrajwith Rai

brain arterial anatomy 2vish.pptx
byVishnuDutt40

Arterial supply of brain
byAhmed Mohamed


More from MATIAS FREITAS FH

PPT
Mayer rokitansky-küster-hauser syndrome
byMATIAS FREITAS FH

PPT
Petrous apex and skull base
byMATIAS FREITAS FH

PPT
Cranial nerves part ii
byMATIAS FREITAS FH

PPT
Cranial nerves part i
byMATIAS FREITAS FH

PPT
Limbic system
byMATIAS FREITAS FH

PPT
Cranial nerves part 2
byMATIAS FREITAS FH

PPT
Cranial nerves part 1
byMATIAS FREITAS FH

PPT
Petrous apex and skull base
byMATIAS FREITAS FH

PPT
Limbic system
byMATIAS FREITAS FH

Mayer rokitansky-küster-hauser syndrome
byMATIAS FREITAS FH

Petrous apex and skull base
byMATIAS FREITAS FH

Cranial nerves part ii
byMATIAS FREITAS FH

Cranial nerves part i
byMATIAS FREITAS FH

Limbic system
byMATIAS FREITAS FH

Cranial nerves part 2
byMATIAS FREITAS FH

Cranial nerves part 1
byMATIAS FREITAS FH

Petrous apex and skull base
byMATIAS FREITAS FH

Limbic system
byMATIAS FREITAS FH


Recently uploaded

PPTX
Central Venous Line: Insertion Technique & Complications
byDr Jebish Pradhan

PPTX
Surgery instruments for MBBS Students, pptx
bycbmesurgery

PPTX
2025 APVRS-PAO Diplopia After Cataract & Retina Surgery.pptx
byAlvina Pauline Santiago, MD

PPTX
INTELLIGENCE (PSYCHOLOGY IN NURSING).pptx
byPahari Sharma

PPTX
Apporach to lung biopsy [Auto-saved].pptx latest
byRayAdhikariRatnesh

PPTX
Holistic Oral Care- Danta Davana and Jihwa nilekhana in Ayurveda: Classical ...
bySudha Sumathy

PDF
Ppt bls basic life support for respiratory arrest developed by devansh and n...
bydevanshshankhwar05

PDF
Comprehensive survey of median nerve-Prof.Dr.N.Mugunthan.pdf
byKanyakumari Medical Mission Research Center, Muttom

PPTX
FACIAL NERVE AND ITS APPLIED ANATOMY BY Dr. AASTHA DUBEY
byAASTHA DUBEY

PPT
Next-Generation Solutions to Optimize Glioma Care: Applying The Latest Eviden...
byPVI, PeerView Institute for Medical Education

PPTX
Sahil Srivastava ppt on Moringa Oleifera.pptx
bySahil Srivastava

PPTX
Speech language Pathology-1 (lecture 1).pptx
byDr Zonera Khalid PT

PPTX
CELL PHYSIOLOGY: STRUCTURE AND FUNCTIONS
byDR.P.S SUDHAKAR

PPTX
composition, functions of Extra cellular matrix. ECM Proteins, glycoproteins ...
byDr. Santhosh Kumar. N

PDF
Unit II 02.2 Non-Aqueous Titration, Acidimetry and Alkalimetry
bysanjayudps2016

PPTX
IgA Nephropathy: overview of Clinical trials (Journal Club)
byibrahimgalalah

PDF
2. Structural organization of Proteins & denaturation of proteins
byDr. Santhosh Kumar. N

PPTX
HD catheters, what do we need to know 2025 updated.pptx
byJAFAR ALSAID

PPTX
MEDICAL RESEARCH UNIT_III_RESEARCH METHODOLOGY & BIOSTATISTICS.pptx
byDHANASHREE KOLHEKAR

PDF
COMPREHENSIVE SURVEY OF UPPER LIMB NERVES-Prof.Dr.N.Mugunthan.pdf
byKanyakumari Medical Mission Research Center, Muttom

Central Venous Line: Insertion Technique & Complications
byDr Jebish Pradhan

Surgery instruments for MBBS Students, pptx
bycbmesurgery

2025 APVRS-PAO Diplopia After Cataract & Retina Surgery.pptx
byAlvina Pauline Santiago, MD

INTELLIGENCE (PSYCHOLOGY IN NURSING).pptx
byPahari Sharma

Apporach to lung biopsy [Auto-saved].pptx latest
byRayAdhikariRatnesh

Holistic Oral Care- Danta Davana and Jihwa nilekhana in Ayurveda: Classical ...
bySudha Sumathy

Ppt bls basic life support for respiratory arrest developed by devansh and n...
bydevanshshankhwar05

Comprehensive survey of median nerve-Prof.Dr.N.Mugunthan.pdf
byKanyakumari Medical Mission Research Center, Muttom

FACIAL NERVE AND ITS APPLIED ANATOMY BY Dr. AASTHA DUBEY
byAASTHA DUBEY

Next-Generation Solutions to Optimize Glioma Care: Applying The Latest Eviden...
byPVI, PeerView Institute for Medical Education

Sahil Srivastava ppt on Moringa Oleifera.pptx
bySahil Srivastava

Speech language Pathology-1 (lecture 1).pptx
byDr Zonera Khalid PT

CELL PHYSIOLOGY: STRUCTURE AND FUNCTIONS
byDR.P.S SUDHAKAR

composition, functions of Extra cellular matrix. ECM Proteins, glycoproteins ...
byDr. Santhosh Kumar. N

Unit II 02.2 Non-Aqueous Titration, Acidimetry and Alkalimetry
bysanjayudps2016

IgA Nephropathy: overview of Clinical trials (Journal Club)
byibrahimgalalah

2. Structural organization of Proteins & denaturation of proteins
byDr. Santhosh Kumar. N

HD catheters, what do we need to know 2025 updated.pptx
byJAFAR ALSAID

MEDICAL RESEARCH UNIT_III_RESEARCH METHODOLOGY & BIOSTATISTICS.pptx
byDHANASHREE KOLHEKAR

COMPREHENSIVE SURVEY OF UPPER LIMB NERVES-Prof.Dr.N.Mugunthan.pdf
byKanyakumari Medical Mission Research Center, Muttom


Internal Carotid Artery and Normal Variants

  • 1.
    INTRACRANIAL ARTERIES INTERNAL CAROTID ARTERY AND NORMALVARIANTS REVIEW SHERLOCKRADIOLOGY.COM
  • 2.
    Abbreviations • Anterior, middle,posterior cerebral arteries (ACA, MCA, PCA) • Anterior, posterior communicating arteries (ACoA, PCoA) • Basilar artery (BA) • Vertebral artery (VA) • Anterior, posterior inferior cerebellar arteries (AICA, PICA) • Anterior choroidal artery (AChoA) • Recurrent artery of Heubner (RAH)
  • 3.
    Gross Anatomy • AnteriorCirculation - Intracranial Internal carotid artery and its branches + ACoA, PCoA • Posterior Circulation - Basilar artery and its branches
  • 4.
    Internal carotid artery •Proximal to termination gives off ophthalmic artery, PCoA, AChoA • Terminal bifurcation into ACA (smaller, medial), MCA (larger, lateral) • ANTERIOR CEREBRAL ARTERY has 4 segments - Horizontal or pre communicating (A1) segment courses medially above optic chiasm, joined by ACoA to contralateral A1 - Vertical or postcommunicating (A2) segment courses superiorly in interhemispheric fissure, around corpus callosum genu - Distal (A3) segment courses posteriorly under inferior free margin of falx cerebri, gives off cortical branches • Perforating arteries arise from A1, ACoA • RAH arises from distal A1 or proximal A2
  • 5.
    Internal carotid artery •MIDDLE CEREBRAL ARTERY has 4 segments - Horizontal (M1) segment courses laterally to sylvian fissure below anterior perforated substance, bi- or trifurcates - "Genu" or "knee" of MCA is gentle posterosuperior turn towards lateral cerebral (sylvian) fissure - Insular (M2) segments course within lateral cerebral fissure, over insula - Opercular (M3) segments begin at top of insula, turn laterally in sylvian fissure to reach overhanging frontal/parietal/temporal operculae - Cortical (M4) branches emerge from lateral cerebral fissure, course over hemispheric surface - Perforating arteries arise from M1
  • 6.
    Basilar Artery • Courses cephaladin prepontine cistern to terminal bifurcation ventral to midbrain - Gives off AICA, superior cerebellar arteries (SCAs), pontine, midbrain perforating arteries • Bifurcates into POSTERIOR CEREBRAL ARTERIES, each of which has 4 segments - Mesencephalic or pre communicating (P1) segment lies within interpeduncular cistern, curves posterolaterally from BA to PCoA junction - Ambient (P2) segment extends from PCA-PCoA junction, curving around cerebral peduncles just above tentorium, above oculomotor nerve - Quadrigeminal (P3) segment extends posteromedially from level of quadrigeminal plate - Cortical (P4) branches arise from distal PCA at or just before reaching calcarine fissure - Perforating branches arise from P1 • Vertebral arteries - Intracranial (V4) segments enter dura near foramen magnum - Give off anterior/posterior spinal arteries, perforating arteries to medulla, PICA
  • 7.
    Vascular Territory • Vasculardistribution of ACA, MCA, PCA vary from individual to individual, have typical as well as maximum, minimum territories • Two vascular "watershed" zones exist at confluence of territorial supply, are vulnerable to hypoperfusion - Cortical watershed = subpial confluence of cortical ACA / MCA / PCA branches - Deep white matter watershed zone = confluence of deep cortical penetrating branches, perforating branches from circle of Willis (COW)
  • 8.
    Vascular Territory • AnteriorCerebral Artery - Perforating branches: Corpus callosum rostrum, heads of caudate nuclei, anterior commissure, anteromedial putamen / globus pallidus / anterior limb internal capsule (if RAH present) - Cortical branches: Inferomedial frontal lobes, anterior 2/3 of medial hemisphere surface, 1-2 cm over brain convexity
  • 9.
    Vascular Territory • MiddleCerebral Artery - Perforating branches: Most of putamen, globus pallidus, superior half of internal capsule, most of caudate nucleus, some deep white matter - Cortical branches: Most of lateral surface of cerebral hemispheres, anterior tip (pole) of temporal lobe
  • 10.
    Vascular Territory • PosteriorCerebral Artery - Perforating branches: Much of central brain base (thalamus, hypothalamus), midbrain, choroid plexus - Cortical branches: Most of inferior surface of temporal lobe, occipital pole, variable amount of posterolateral surface of hemisphere
  • 11.
    Vascular Territory • BasilarArtery - All of PCA territory (including perforating branches), most of pons, superior cerebellum/vermis • Vertebral Arteries - Most of medulla, cerebellar tonsils, inferior vermis / cerebellar hemispheres
  • 19.
  • 20.

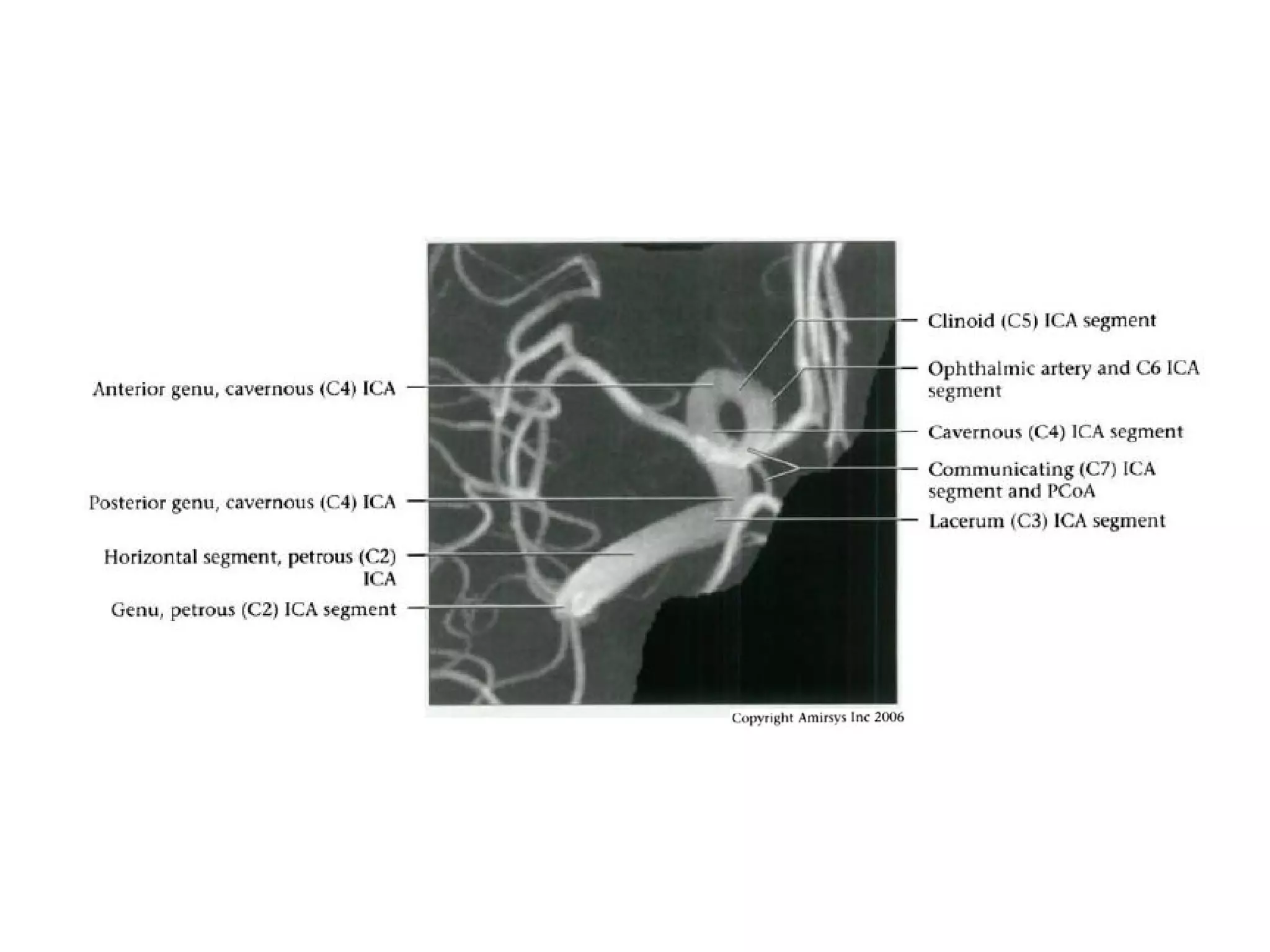

    Overview • Complex coursewith several vertical / horizontal segments, 3 genus (one petrous, two cavernous) • Six intracranial segments (Cervical lCA = C1): - Petrous (C2), Lacerum (C3), Cavernous (C4), Clinoid (C5), Ophthalmic (C6), Communicating (C7)
  • 21.
    Petrous (C2) segment •Contained within carotid canal of temporal bone - Surrounded by extensive sympathetic plexus - Two C2 subsegments joined at genu • Short vertical segment - anterior to internal jugular vein (lJV) • "Genu" (where petrous ICA turns anteromedially in front of cochlea) • Longer horizontal segment - Exits carotid canal at petrous apex - Branches • Vidian artery (artery of pterygoid canal) anastomoses with external carotid artery (ECA) • Caroticotympanic artery (supplies middle ear)
  • 22.
    Lacerum (C3) segment •Small segment that extends from petrous apex above foramen lacerum, curving upwards toward cavernous sinus • Covered by trigeminal ganglion • No branches
  • 23.
    Cavernous (C4) segment •Three subsegments joined by two genus (knees) - Posterior vertical (ascending) portion - Posterior (more medial) genu - Horizontal segment - Anterior (more lateral) genu - Anterior vertical (subclinoid) segment • Covered by trigeminal ganglion posteriorly • Abducens nerve (CN6) is inferolateral • Major branches - Meningohypophyseal trunk (arises from posterior genu, supplies pituitary, tentorium and clival dura) - Inferolateral trunk arises from horizontal segment, supplies cavernous sinus (CS) dura / cranial nerves; anastomoses with ECA branches through foramens rotundum, spinosum, ovale
  • 24.
    Clinoid (C5) segment •Between proximal, distal dural rings of cavernous sinus • Ends as ICA enters subarachnoid space near anterior clinoid process • No important branches unless ophthalmic arteries arises within C5
  • 25.
    Ophthalmic (C6) segment •Extends from distal dural ring at superior clinoid to just below posterior communicating artery (PCoA) origin • Two important branches - Ophthalmic Arteries (originates from anterosuperior ICA, passes through optic canal to orbit; gives off ocular, lacrimal, muscular branches; extensive anastomoses with ECA) - Superior hypophyseal artery (courses posteromedially; supplies anterior pituitary, infundibulum, optic nerve / chiasm)
  • 26.
    Communicating (C7) segment •Extends from below PCoA to terminal lCA bifurcation into anterior cerebral artery (ACA), middle cerebral artery (MCA) • Passes between optic (CN2), oculomotor (CN3) nerves • Major branches - Posterior communicating artery - Anterior choroidal artery (courses posteromedial, then turns superolateral in suprasellar cistern; enters temporal horn at choroidal fissure; supplies choroid plexus, medial temporal lobe, basal ganglia, posteroinferior internal capsule)
  • 27.
    Normal Variants, Anomalies Petrous(C2) segment • Aberrant ICA (aICA) • Presents as retrotympanic pulsatile mass; should not be mistaken for glomus tympanicum tumor! • Absent vertical course; alCA courses more posterolaterally than normal (appears as mass in hypotympanum abutting cochlear promontory) • Persistent stapedial artery • Arises from vertical segment, crosses cochlear promontory and stapes footplate • Enlarges tympanic segment of facial nerve canal • Terminates as middle meningeal artery • Seen as "Y-shaped", enlarged geniculate fossa of CN7 on CT • Foramen spinosum is absent
  • 28.
    Normal Variants, Anomalies Cavernous(C4) segment • Persistent trigeminal artery • Most common carotid-basilar anastomosis (0,2-0,5%) • Parallels course of CN5, passes posterolaterally around (or through) dorsum sellae • Connects ICA to vertebrobasilar system, forms "tridentshape" on lateral DSA, sagittal MR • May supply entire vertebrobasilar (VB) circulation distal to anastomosis (Saltzman type I) or fill superior cerebral arteries (SCAs) with posterior cerebral arteries (PCAs) filled via patent PCoAs (Saltzman type II)
  • 29.
    Clinical • Horner syndromeresults from interruption of periarterial sympathetic plexus around ICA (dissection, "bruising" of plexus, etc.)
  • 55.
    NORMAL VARIANTS “Normal Variantsof the Cerebral Circulation at Multidetector CT Angiography” RadioGraphics 2009; 29:1027–1043 • Simon J. Dimmick, BPthy, MBBS • Kenneth C. Faulder, MBBS, FRANZCR
  • 56.
    Internal Carotid Artery •Fenestration of the distal internal carotid artery is a rare anomaly. • We are aware of only six previously reported cases in the literature. • Fenestration of the distal internal carotid artery, like fenestration in other sites, is associated with aneurysm formation. RadioGraphics 2009; 29:1027–1043
  • 57.
    Fenestration of theinternal carotid artery. Three-dimensional reconstruction from DSA depicts fenestration (arrow) of a distal segment. The overlying artifact was produced by aneurysm clips. RadioGraphics 2009; 29:1027–1043
  • 58.
    Hyperplastic Anterior Choroidal Artery •The anterior choroidal artery, usually a small vessel, arises from the supraclinoid internal carotid artery just distal to the posterior communicating artery. • From there it subdivides into important branches that supply the cerebral peduncle and optic tract. • The temporo-occipital branches of the posterior cerebral artery may arise from the anterior choroidal artery. • In people with this cerebrovascular variant, the anterior choroidal artery is described as hyperplastic. • The prevalence of hyperplastic anterior choroidal arteries is reported to be 1.1%–2.3%. RadioGraphics 2009; 29:1027–1043
  • 59.
    Multidetector CT angiogramdepicts a hyperplastic anterior choroidal artery (straight arrow), ipsilateral posterior communicating artery (arrowhead), and contralateral fetal posterior cerebral artery (curved arrow). RadioGraphics 2009; 29:1027–1043
  • 60.
    Fetal Origin ofthe Posterior Cerebral Artery • In the presence of this anomaly, the caliber of the posterior communicating artery may be the same as or greater than that of the ipsilateral P1 segment, and the dominant blood supply to the occipital lobes comes from the internal carotid artery. • Fetal origin of the posterior cerebral artery occurs when the embryonic posterior cerebral artery fails to regress. • It may occur on the right side (10% of the general population), the left side (10% of the general population), or bilaterally (8% of the general population). • The P1 segment may be absent in fetal origin of the posterior cerebral artery, but its absence is an uncommon finding. RadioGraphics 2009; 29:1027–1043
  • 61.
    Bilateral fetal posteriorcerebral arteries. Three-dimensional multidetector CT angiogram shows bilateral large posterior communicating arteries (arrows), which provide most of the blood supply to the posterior cerebral artery territory. Both P1 segments are present but hypoplastic. RadioGraphics 2009; 29:1027–1043
  • 62.
    CT angiogram showsbilateral fetal posterior cerebral arteries (arrows). Both P1 segments are absent. The arrowheads indicate the superior cerebellar arteries. RadioGraphics 2009; 29:1027–1043
  • 63.
    Posterior Communicating Artery Infundibulum •An infundibulum is a funnel-shaped region of dilatation at the origin of the posterior communicating artery from the internal carotid artery. • It may be round or conical, has a diameter of less than 2 mm, and is symmetric. • The internal carotid artery is at its base, and the posterior communicating artery arises from its apex. • An infundibulum must be distinguished from aneurysms of the posterior communicating artery and internal carotid artery. RadioGraphics 2009; 29:1027–1043
  • 64.
    CT angiogram showsa posterior communicating artery (arrowhead) that arises from the apex of a funnel-shaped infundibulum (arrow). The base of the infundibulum is located at the origin of the posterior communicating artery. RadioGraphics 2009; 29:1027–1043
  • 65.
    Persistent CarotidBasilar ArteryAnastomoses RadioGraphics 2009; 29:1027–1043
  • 66.
    Persistent Trigeminal Artery •The persistent trigeminal artery is the most common and most cephalic of the persistent carotidvertebrobasilar anastomoses. • Its reported prevalence is 0.1%–0.6%. • This artery originates from the internal carotid artery immediately after its exit from the carotid canal and anastomoses with the midbasilar artery. • The part of the basilar artery that is caudal to the anastomosis with the trigeminal artery is usually hypoplastic. RadioGraphics 2009; 29:1027–1043
  • 67.
    Persistent Trigeminal Artery •Two types of persistent trigeminal artery have been described — lateral and medial. • Both types are equally common. • In the lateral type, the artery courses posterolaterally with the trigeminal nerve. • The medial type has an intrasellar or transhypophyseal course, coursing posteromedially from its origin, compressing the pituitary gland, and penetrating the dorsum sellae. RadioGraphics 2009; 29:1027–1043
  • 68.
    Persistent Trigeminal Artery •A persistent trigeminal artery also is classified according to the configuration of the ipsilateral posterior cerebral artery: - In the presence of a Saltzman type 1 persistent trigeminal artery, the posterior communicating artery is absent and the persistent trigeminal artery supplies the entire vertebrobasilar system distal to the site of anastomosis. - In the presence of a Saltzman type 2 persistent trigeminal artery there is a fetal posterior cerebral artery, and the ipsilateral P1 segment is absent. RadioGraphics 2009; 29:1027–1043
  • 69.
    Persistent Trigeminal Artery •An association has been found between persistent trigeminal artery and other vascular anomalies in an estimated 25% of cases. • Associated anomalies include intracranial aneurysms, which are seen in approximately 14% of patients with a persistent trigeminal artery. • Knowledge of the presence of a persistent trigeminal artery in a medial or intrasellar location in a patient who is to undergo transsphenoidal surgery for pituitary adenoma is clinically important because accidental transection of the artery may result in a lifethreatening hemorrhage. RadioGraphics 2009; 29:1027–1043
  • 70.
    CT angiogram showsa lateral Saltzman type 2 persistent trigeminal artery (arrows). Note the typical hypoplastic appearance of the basilar artery (arrowhead) proximal to its anastomosis with the trigeminal artery. RadioGraphics 2009; 29:1027–1043
  • 71.
    Variants of Persistent TrigeminalArtery • Cerebellar arteries that arise from the precavernous internal carotid artery and are not connected to the basilar artery are considered variants of persistent trigeminal artery. • The reported frequency of such findings is 0.18% at conventional angiography and 0.76% at MR angiography. • The anteroinferior cerebellar artery is the most common of these variants, but a posteroinferior cerebellar artery or superior cerebellar artery also may arise from the internal carotid artery. RadioGraphics 2009; 29:1027–1043
  • 72.
    Variants of Persistent TrigeminalArtery • A persistent trigeminal artery variant is not usually associated with hypoplasia of the proximal basilar artery. • Persistent trigeminal artery variants are usually small in caliber, which makes their visualization and recognition difficult. • These anomalous arteries are usually found incidentally but may be associated with aneurysms and may be responsible for ischemia and trigeminal neuralgia. RadioGraphics 2009; 29:1027–1043
  • 73.
    Trigeminal artery variant. DSAimage of the left internal carotid artery demonstrates a trigeminal artery variant that arises more proximally on the internal carotid artery than is usual for a persistent trigeminal artery. The aberrant artery supplies the territory of the anterior inferior cerebellar artery (arrows). RadioGraphics 2009; 29:1027–1043
  • 74.
    Primitive Hypoglossal Artery •The persistent hypoglossal artery is the second most common carotidvertebrobasilar artery anastomosis, with a prevalence of 0.02%– 0.10%. • The persistent hypoglossal artery originates from the internal carotid artery at the levels of the C1 through C3 vertebral bodies, courses through the hypoglossal canal, and anastomoses with the basilar artery. • A primitive hypoglossal artery does not passthrough the foramen magnum. RadioGraphics 2009; 29:1027–1043
  • 75.
    Primitive Hypoglossal Artery •In 79% of cases, the posterior communicating arteries are hypoplastic, and in 78% of cases, the vertebral arteries are hypoplastic. • Definitive diagnosis is based on the recognition of na anomalous artery in the enlarged hypoglossal canal. • A persistent hypoglossal artery has been reported to cause glossopharyngeal neuralgia and hypoglossal nerve paralysis. RadioGraphics 2009; 29:1027–1043
  • 76.
    Persistent hypoglossal artery. (28)Axial image from CT angiography shows an artery that courses through the hypoglossal canal (arrows). (29) CT angiogram depicts a hypoglossal artery (arrowhead) that arises from the proximal internal carotid artery (arrow) at the C2 vertebral level and anastomoses with the basilar artery. RadioGraphics 2009; 29:1027–1043
  • 77.
    Proatlantal Intersegmental Artery •The proatlantal intersegmental artery originates from the common carotid artery bifurcation, external carotid artery, or internal carotid artery at the levels of the C2 through C4 vertebral bodies; joins the horizontal part of the vertebral artery in the suboccipital region; and traverses the foramen magnum. • Two variants have been described: - The first variant (type 1) originates from the dorsal aspect of the internal carotid artery and accounts for 38% of cases. - The second variant (type 2) arises from the external carotid artery and accounts for 50% of cases. RadioGraphics 2009; 29:1027–1043
  • 78.
    Proatlantal Intersegmental Artery •Aplasia or hypoplasia of one or both vertebral arteries proximal to the anastomosis may be identified in 50% of cases. • In addition, cerebrovascular abnormalities were found in 59% of patients with a proatlantal intersegmental artery. • Such abnormalities included intracranial aneurysm in 10% of patients. RadioGraphics 2009; 29:1027–1043
  • 79.
    Proatlantal intersegmental arteryin two different patients. (30) Lateral composite projection image from DSA of the right common carotid artery demonstrates a proatlantal intersegmental artery that arises from the internal carotid artery (arrowhead) at the level of the C2 vertebra (arrow). (31) Anteroposterior composite projection image from DSA shows a proatlantal intersegmental artery (arrow) and right internal carotid artery (arrowhead). RadioGraphics 2009; 29:1027–1043
  • 80.
    Persistent Otic Artery •The existence of an otic artery is a matter of controversy. • Unlike the three embryonic vessels described earlier, an otic artery has never been identified in lower animals. • Nevertheless, the medical literature contains descriptions of such an artery arising from the petrous internal carotid artery within the carotid canal, coursing laterally through the internal auditory canal, and anastomosing with the proximal basilar artery. • There are eight previous case reports of persistent otic artery and one of an otic artery variant . • However, an assessment of the origin, course, and termination of these reported otic arteries is difficult because of the variable quality of image reproduction, the inclusion of only a single angiographic projection, or both. RadioGraphics 2009; 29:1027–1043
  • 81.
    Persistent Otic Artery •Some reported cases of persistent otic artery may in fact represent a persistent trigeminal artery. • Similarly, anastomoses may occur between the internal auditory artery (a branch of the anterior inferior cerebellar artery and, thus, the basilar artery) and the internal carotid artery via trigeminal and stapedial artery remnants. • Such anastomoses may be best understood as representing overlapping vascular territories rather than persistence of an embryonic vessel. RadioGraphics 2009; 29:1027–1043
  • 82.
    Trigeminal artery. DSA imagedemonstrates a persistent trigeminal artery (arrows) that arises from a more proximal location on the internal carotid artery than is normal. The finding was previously reported as a persistent otic artery. RadioGraphics 2009; 29:1027–1043
  • 83.
    Persistent Dorsal Ophthalmic Artery •During early embryonic development, two primitive ophthalmic arteries are present: The ventral ophthalmic artery, which normally persists, and the dorsal ophthalmic artery, which normally regresses. • In some instances, the opposite situation occurs, and the dorsal ophthalmic artery persists. • At CT, this anomalous artery is seen to arise from the dorsal aspect of the supraclinoid portion of the internal carotid artery and enter the orbit by way of the superior orbital fissure instead of the optic canal.
  • 84.
    Dorsal ophthalmic artery. Three-dimensionalimage from multidetector CT demonstrates the origin of the left dorsal ophthalmic artery from the dorsal aspect of the distal cavernous segment of the internal carotid artery and shows its course through the superior orbital fissure (arrow). The contralateral ophthalmic artery is seen to traverse the optic canal (arrowhead).
  • 85.
    Persistent Primitive Olfactory Artery • • • • • • • Apersistent primitive olfactory artery is a rare variant of the anterior cerebral artery. The proximal portion of the persistent primitive olfactory artery courses in an anteroinferomedial direction, along the ipsilateral olfactory tract. The artery then makes a hairpin turn posterosuperiorly and continues in the distribution of the anterior cerebral artery. During normal development, the primitive olfactory artery usually regresses to a remnant known as the recurrent artery of Heubner. In people with a persistent primitive olfactory artery, the anterior communicating artery also is absent. In five of 13 previously identified cases of persistent primitive olfactory artery, a saccular aneurysm was found in the anomalous artery. These findings are indicative of an increased prevalence of aneurysm. RadioGraphics 2009; 29:1027–1043
  • 86.
    Normal Variant Arteries inthe Skull Base RadioGraphics 2009; 29:1027–1043
  • 87.
    Persistent Stapedial Artery •The stapedial artery is a normally transient embryonic anastomosis between the branches of the future external carotid artery and internal carotid artery. • Persistent stapedial artery has a reported prevalence of 0.48%. • The stapedial artery originates from the vertical part of the petrous internal carotid artery, passes through the obturator foramen of the stapes, and terminates as the middle meningeal artery, within the extradural space of the middle cranial fossa. RadioGraphics 2009; 29:1027–1043
  • 88.
    Persistent Stapedial Artery •CT findings along the course of a persistent stapedial artery may include a small canaliculus at the distal end of the carotid canal; a linear structure that crosses the promontory of the tympanic cavity; an enlarged facial nerve canal, or a separate canal that parallels the facial nerve canal; and absence of the foramen spinosum, which normally contains the middle meningeal artery. • An aberrant internal carotid artery and anomalies of the stapes and facial nerve also may occur in association with a persistent stapedial artery. RadioGraphics 2009; 29:1027–1043
  • 89.
    Persistent Stapedial Artery •People with a persistent stapedial artery may present with pulsatile tinnitus. • At CT, this artery may be mistaken for a vascular neoplasm of the middle ear (glomus tympanicum tumor). • It is important to identify a persistent stapedial artery preoperatively, as its presence may complicate tympanotomy, stapedectomy, and cholesteatoma resection and prevent cochlear implantation. RadioGraphics 2009; 29:1027–1043
  • 90.
    Aberrant Internal Carotid Arteries •Recognized aberrant internal carotid arteries include intratympanic and lateral pharyngeal variants. • There are 50 previously reported cases of aberrant intratympanic internal carotid artery in the literature. • This anomaly may be secondary to disturbed differentiation of the third branchial artery. • It is characterized by an enlarged inferior tympanic artery that anastomoses with the horizontal petrous part of the internal carotid artery. RadioGraphics 2009; 29:1027–1043
  • 91.
    Aberrant Internal Carotid Arteries •On axial CT images, the presence of an aberrant intratympanic internal carotid artery may be signaled by: (a) an internal carotid artery with a reduced diameter and a course posterior and parallel to the jugular bulb (b) a mass in the hypotympanum (c) deficiency of the bony plate along the tympanic portion of the internal carotid artery (d) absence of the vertical segment of the carotid canal. • On coronal CT images, the important features are a hypotympanic mass and enlargement of the inferior tympanic canaliculus. RadioGraphics 2009; 29:1027–1043
  • 92.
    Aberrant Internal Carotid Arteries •Preoperative recognition of an aberrant intratympanic internal carotid artery is essential for avoiding potentially catastrophic consequences during myringotomy and middle ear surgery. • This vascular anomaly, like a persistent stapedial artery, may mimic a glomus tumor. • The lateral pharyngeal internal carotid artery is an anomalous vessel that extends to or near the midline of the posterior pharyngeal wall and is at risk during oropharyngeal tumor resection, tonsillectomy, adenoidectomy, or palatopharyngoplasty RadioGraphics 2009; 29:1027–1043
  • 93.
    Aberrant internal carotidartery. Axial images (bone window settings) from multidetector CT of the skull base depict an internal carotid artery with reduced caliber, that courses adjacent to the jugular bulb (arrow in a) and, at a higher level, within the hypotympanum (arrow in b). The bony plate along the tympanic portion of the internal carotid artery is absent (arrow in c). RadioGraphics 2009; 29:1027–1043
  • 94.
    Internal Carotid ArteryAgenesis • Congenital absence of the internal carotid artery has a prevalence of 0.01%. • CT of the skull base and CT angiography in such cases demonstrate an absence of the carotid canal. • The anomaly may be unilateral or, more rarely, bilateral. • The recognition of internal carotid artery agenesis is important, especially in patients with cerebral thromboembolic disease due to atherosclerosis of the vertebrobasilar system. • Poor collateral blood supply to the head places these individuals at high risk during conventional angiography and surgery. • There is also a strong association between internal carotid artery agenesis and the development of intracranial aneurysms. RadioGraphics 2009; 29:1027–1043
  • 95.
    Bilateral carotid agenesis. Axialmultidetector CT image of the skull base demonstrates bilateral absence of the carotid canals from their expected locations (arrows). (36) Bilateral absence of the internal carotid artery. DSA image obtained in a patient with bilateral agenesis of the internal carotid artery shows that the vertebral arteries supply both the anterior and the posterior circulation. (37) Unilateral agenesis of the internal carotid artery. Axial multidetector CT image of the skull base shows absence of the left carotid canal, a finding indicative of unilateral agenesis. Arrows indicate the normal right carotid canal. (38) Unilateral agenesis of the internal carotid artery. Three-dimensional reconstruction from MR angiography depicts the basilar artery supplying the left middle cerebral artery via the left posterior communicating artery (straight arrow). By contrast, the contralateral internal carotid artery (arrowhead) appears normal. Absence of the A1 segment (curved arrow) is noteworthy. RadioGraphics 2009; 29:1027–1043
  • 96.
    Bilateral carotid agenesis. Normalinternal carotid arteries are not seen in the carotid spaces, and no carotid canals are noted on the high resolution CT scan of the skull base. The middle cerebral artery arises from the basilar artery through an enlarged posterior communicating artery. Images from www.sherlockradiogy.com
  • 97.
    Hypoplasia of the InternalCarotid Artery • Congenital hypoplasia of the internal carotid artery is associated with a small carotid canal and should not be confused with acquired causes of diffuse narrowing, such as dissecting aneurysm, fibromuscular dysplasia, or segmental stenosis. • Congenital hypoplasia of the internal carotid artery may be associated with anencephaly and basal telangiectasia. RadioGraphics 2009; 29:1027–1043
  • 98.
    References • Diagnostic andSurgical Imaging Anatomy. Brain, Head & Neck, Spine / H. Ric Harnsberger. [et al.] ; managing editor, André J Macdonald. 1st ed. I: 278-291. • RadioGraphics 2009; 29:1027–1043 • Simon J. Dimmick, BPthy, MBBS • Kenneth C. Faulder, MBBS, FRANZCR. Normal Variants of the Cerebral Circulation at Multidetector CT Angiography

Editor's Notes
