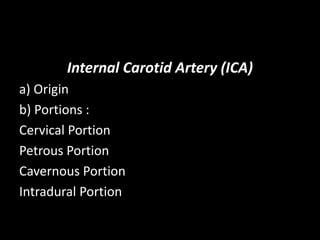

6. Internal Carotid Artery (ICA)
a) Origin
b) Portions :
Cervical Portion
Petrous Portion
Cavernous Portion
Intradural Portion

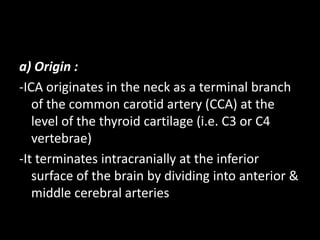

7. a) Origin :
-ICA originates in the neck as a terminal branch
of the common carotid artery (CCA) at the
level of the thyroid cartilage (i.e. C3 or C4
vertebrae)
-It terminates intracranially at the inferior
surface of the brain by dividing into anterior &
middle cerebral arteries
8.

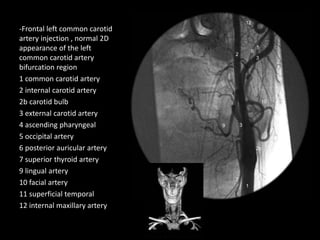

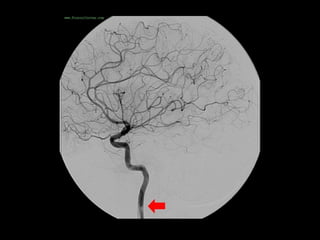

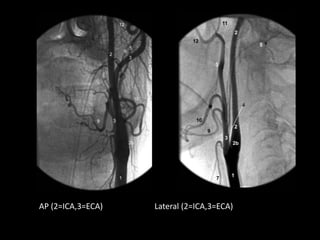

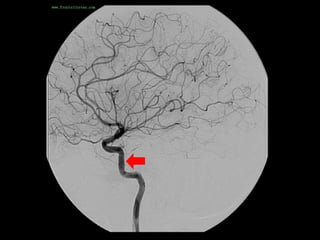

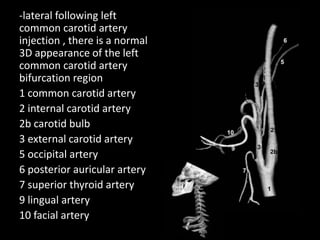

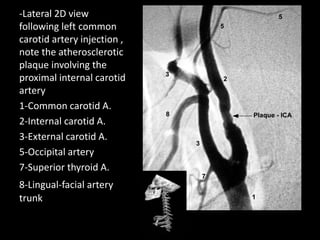

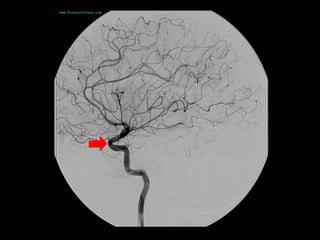

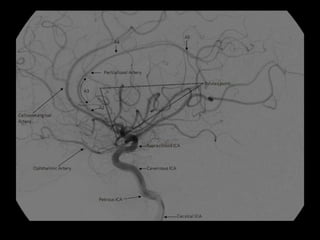

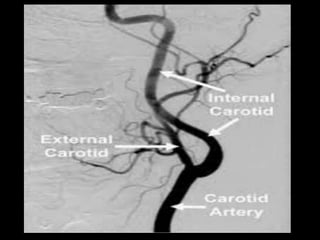

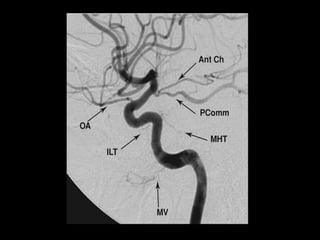

9. -Lateral 2D view
following left common
carotid artery injection ,
note the atherosclerotic
plaque involving the
proximal internal carotid
artery
1-Common carotid A.
2-Internal carotid A.
3-External carotid A.
5-Occipital artery
7-Superior thyroid A.
8-Lingual-facial artery
trunk

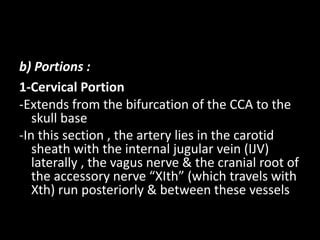

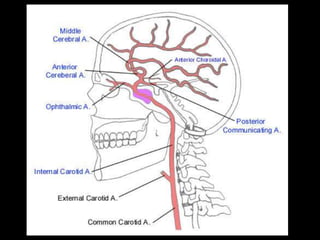

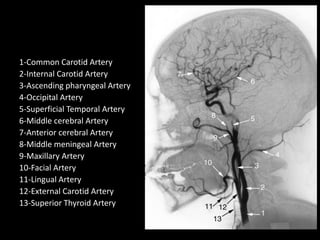

12. b) Portions :
1-Cervical Portion
-Extends from the bifurcation of the CCA to the
skull base

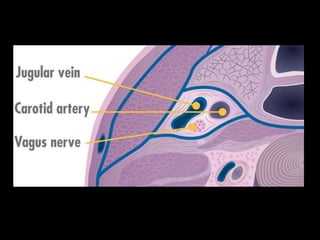

-In this section , the artery lies in the carotid
sheath with the internal jugular vein (IJV)
laterally , the vagus nerve & the cranial root of
the accessory nerve “XIth” (which travels with
Xth) run posteriorly & between these vessels

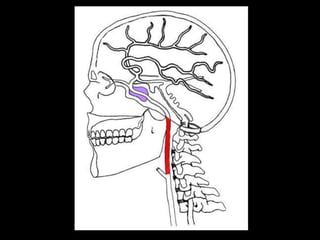

13.
14.
15.

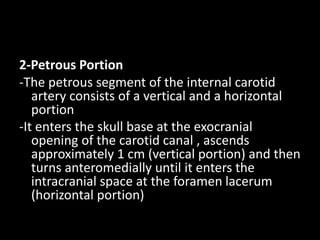

16. 2-Petrous Portion
-The petrous segment of the internal carotid
artery consists of a vertical and a horizontal
portion
-It enters the skull base at the exocranial
opening of the carotid canal , ascends
approximately 1 cm (vertical portion) and then
turns anteromedially until it enters the
intracranial space at the foramen lacerum
(horizontal portion)

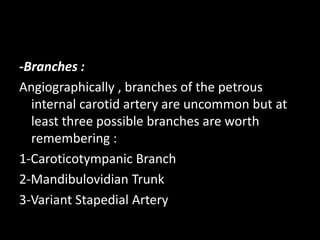

17. -Branches :
Angiographically , branches of the petrous
internal carotid artery are uncommon but at
least three possible branches are worth
remembering :
1-Caroticotympanic Branch
2-Mandibulovidian Trunk
3-Variant Stapedial Artery
18.

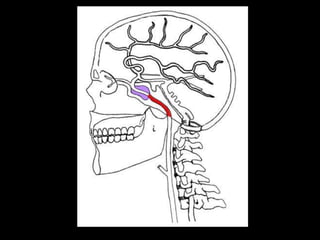

19.
20.

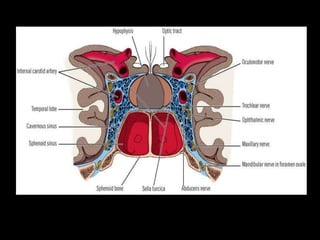

21. 3-Cavernous Segment
-Following its petrous passage , the ICA enters the
cavernous sinus and lies medial to the Gasserian
ganglion , the ophthalmic division of the
trigeminal nerve and the oculomotor , trochlear
and abducens cranial nerves
-It runs horizontally forwards and then turns
superiorly and medial to the anterior clinoid
process , passes through the dural ring and enters
its final intradural and supraclinoid course
22.

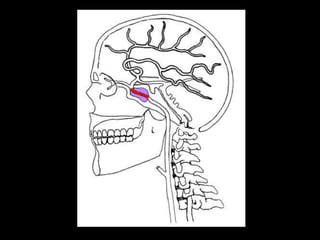

23.
24.
25. -Branches : 3 Groups
1-The Meningohypophyseal Trunk (MHT)
2-The Inferolateral Trunk (ILT)
3-The Capsular Arteries of McConnell
26.

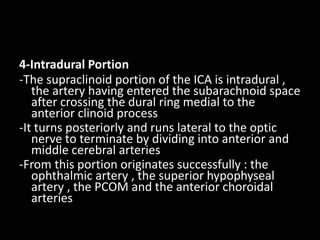

27. 4-Intradural Portion
-The supraclinoid portion of the ICA is intradural ,
the artery having entered the subarachnoid space
after crossing the dural ring medial to the
anterior clinoid process
-It turns posteriorly and runs lateral to the optic
nerve to terminate by dividing into anterior and
middle cerebral arteries
-From this portion originates successfully : the
ophthalmic artery , the superior hypophyseal
artery , the PCOM and the anterior choroidal
arteries

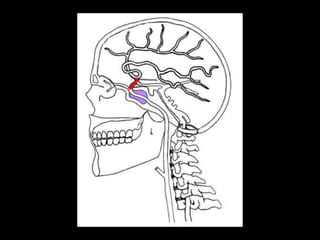

28.

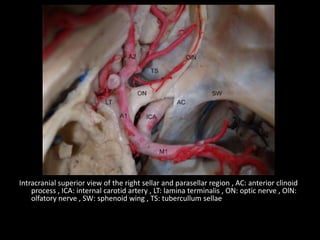

29. Intracranial superior view of the right sellar and parasellar region , AC: anterior clinoid
process , ICA: internal carotid artery , LT: lamina terminalis , ON: optic nerve , OlN:
olfatory nerve , SW: sphenoid wing , TS: tubercullum sellae

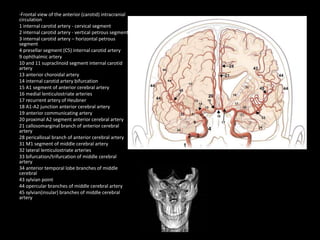

33. -Top down view (superior to inferior) of the
skull base
BLACK KEY
5 meningohypophyseal trunk
6 horizontal (C4) intracavernous ICA
7 inferolateral trunk
9 ophthalmic artery
12 PCOM
13 anterior choroidal artery
14 ICA bifurcation
15 A1 segment of ACA
19 ACOM
20 proximal A2 segment ACA
21 callosomarginal branch of ACA
28 pericallosal branch of anterior cerebral
31 M1 segment of MCA
33 bifurcation/trifurcation of MCA
34 anterior temporal lobe branches of MCA
35 orbitofrontal branch of MCA
45 sylvian(insular) branches of MCA
RED KEY
1 vertebral artery
2 PICA
3 basilar artery
4 AICA
5 superior cerebellar artery
6.1 P1 segment PCA
6.2 P2 segment PCA
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
14 vertebral-basilar junction
16 pontine perforators
17 anterior spinal artery

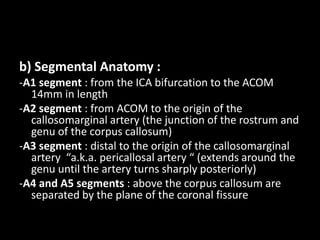

34. b) Segmental Anatomy :
-A1 segment : from the ICA bifurcation to the ACOM
14mm in length
-A2 segment : from ACOM to the origin of the
callosomarginal artery (the junction of the rostrum and
genu of the corpus callosum)
-A3 segment : distal to the origin of the callosomarginal
artery “a.k.a. pericallosal artery “ (extends around the
genu until the artery turns sharply posteriorly)
-A4 and A5 segments : above the corpus callosum are
separated by the plane of the coronal fissure

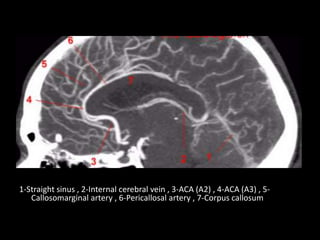

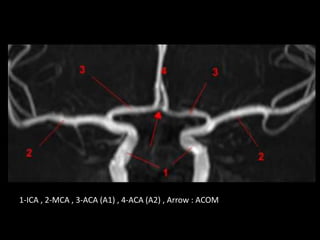

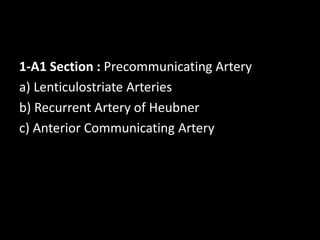

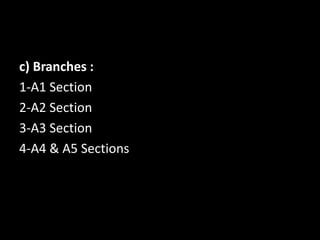

39. 1-A1 Section : Precommunicating Artery
a) Lenticulostriate Arteries
b) Recurrent Artery of Heubner
c) Anterior Communicating Artery

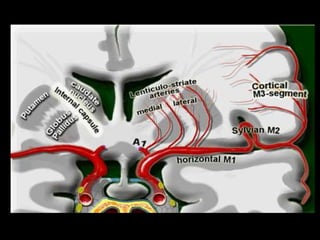

40. Anterior circle of Willis showing lenticulostriate arteries arising from the anterior
cerebral arteries (M medial group) and middle cerebral artery (L lateral group) , On
the left , the anterior choroidal (AChA) and on the right the recurrent artery of
Heubner (RaH) , note that anterior perforating arteries also arise from the anterior
communicating artery
41.
42.
43.

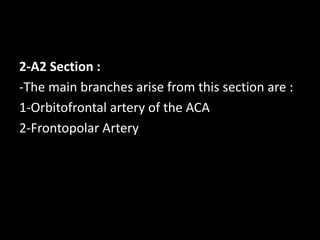

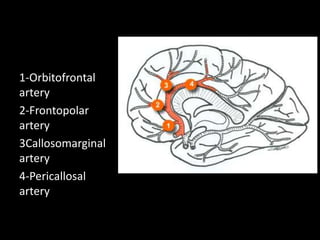

44. 2-A2 Section :
-The main branches arise from this section are :
1-Orbitofrontal artery of the ACA
2-Frontopolar Artery

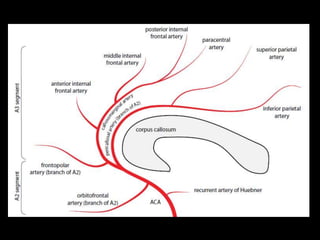

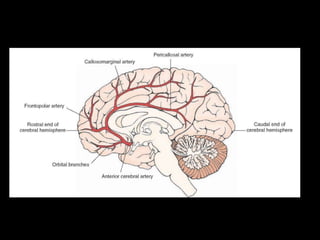

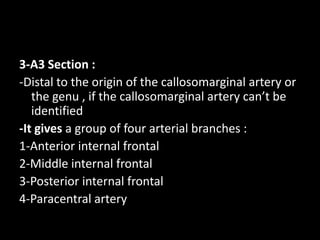

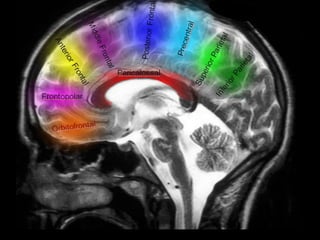

49. 3-A3 Section :
-Distal to the origin of the callosomarginal artery or
the genu , if the callosomarginal artery can’t be
identified
-It gives a group of four arterial branches :
1-Anterior internal frontal
2-Middle internal frontal
3-Posterior internal frontal
4-Paracentral artery

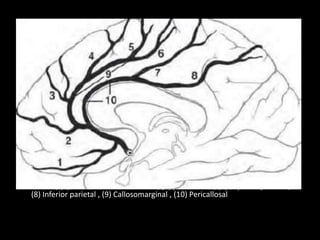

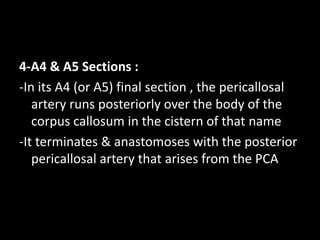

51. 4-A4 & A5 Sections :
-In its A4 (or A5) final section , the pericallosal
artery runs posteriorly over the body of the
corpus callosum in the cistern of that name
-It terminates & anastomoses with the posterior
pericallosal artery that arises from the PCA

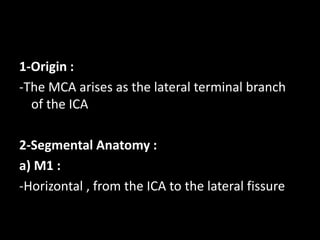

53. 1-Origin :
-The MCA arises as the lateral terminal branch
of the ICA
2-Segmental Anatomy :
a) M1 :
-Horizontal , from the ICA to the lateral fissure

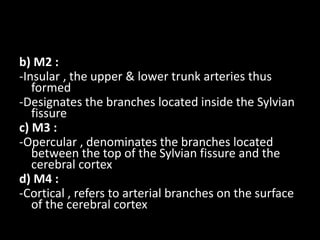

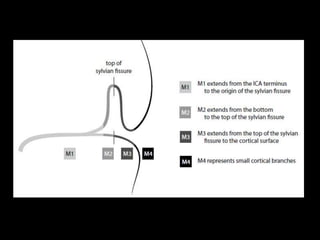

54. b) M2 :
-Insular , the upper & lower trunk arteries thus
formed
-Designates the branches located inside the Sylvian
fissure
c) M3 :
-Opercular , denominates the branches located
between the top of the Sylvian fissure and the
cerebral cortex
d) M4 :
-Cortical , refers to arterial branches on the surface
of the cerebral cortex

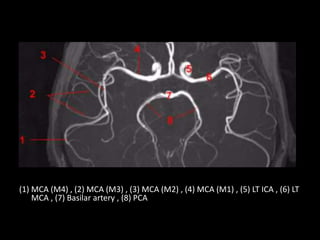

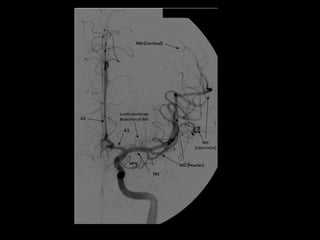

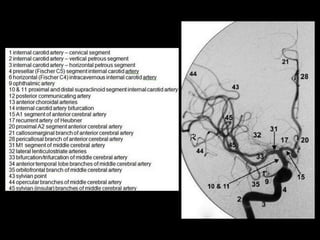

61. -2D frontal view following right ICA
injection , the appearance of the carotid
circulation is normal , Note the early
bifurcation of MCA (normal variant)
1 ICA – cervical segment
2 ICA – vertical petrous segment
3 ICA – horizontal petrous segment
4 presellar (Fischer C5) ICA
6 horizontal (Fischer C4) intracavernous
ICA
9 ophthalmic artery
10 & 11 proximal and distal supraclinoid
segment ICA
12 posterior communicating artery
13 anterior choroidal artery
14 internal carotid artery bifurcation
15 A1 segment of ACA
17 recurrent artery of Heubner
20 proximal A2 segment ACA
21 callosomarginal branch ACA
28 pericallosal branch of ACA
31 M1 segment of MCA
32 lateral lenticulostriate arteries
33 bifurcation/trifurcation of MCA
34 anterior temporal lobe branches of
MCA
35 orbitofrontal branch of MCA
43 sylvian point
44 opercular branches of MCA
45 sylvian (insular) branches of MCA

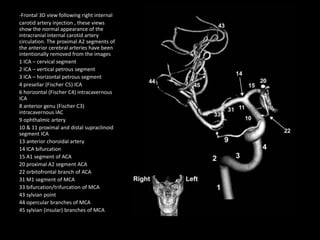

62. -Frontal 3D view following right internal
carotid artery injection , these views
show the normal appearance of the
intracranial internal carotid artery
circulation. The proximal A2 segments of
the anterior cerebral arteries have been
intentionally removed from the images
1 ICA – cervical segment
2 ICA – vertical petrous segment
3 ICA – horizontal petrous segment
4 presellar (Fischer C5) ICA
6 horizontal (Fischer C4) intracavernous
ICA
8 anterior genu (Fischer C3)
intracavernous IAC
9 ophthalmic artery
10 & 11 proximal and distal supraclinoid
segment ICA
13 anterior choroidal artery
14 ICA bifurcation
15 A1 segment of ACA
20 proximal A2 segment ACA
22 orbitofrontal branch of ACA
31 M1 segment of MCA
33 bifurcation/trifurcation of MCA
43 sylvian point
44 opercular branches of MCA
45 sylvian (insular) branches of MCA
63. -Lateral 2D view following
CA injection in the late arterial phase
-The triangle placed on the image is
called the sylvian triangle , this represents
the geometric representation of the MCA
overlying the insular cortex
-Alteration in the shape of this triangle
can indicate mass displacements of the
(MCA) branches
1 ICA – cervical segment
2 ICA – vertical petrous segment
3 ICA – horizontal petrous segment
4 presellar (Fischer C5) segment ICA
6 horizontal (Fischer C4) intracavernous
ICA
8 anterior genu (Fischer C3)
intracavernous ICA
9 ophthalmic artery
35 orbitofrontal branch of MCA
36 operculofrontal branches of MCA
37 pre-central branch(es) of MCA
38 central rolandic branches of MCA
39a anterior parietal branch of MCA
39p posterior parietal branch of MCA
40 angular artery
42m middle temporal branches of MCA
42p posterior temporal branches of MCA
43 sylvian point
44 opercular branches of MCA

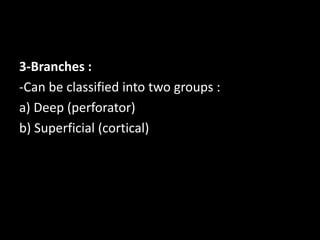

64. 3-Branches :
-Can be classified into two groups :
a) Deep (perforator)
b) Superficial (cortical)

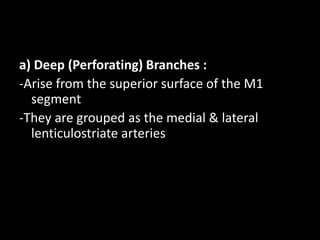

65. a) Deep (Perforating) Branches :
-Arise from the superior surface of the M1
segment
-They are grouped as the medial & lateral
lenticulostriate arteries

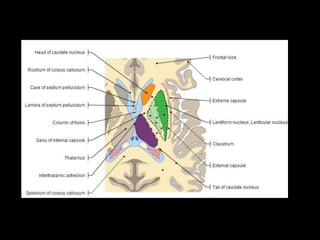

66.

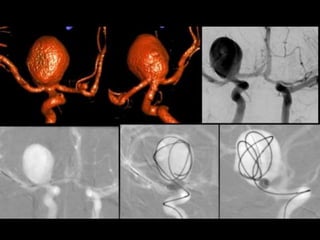

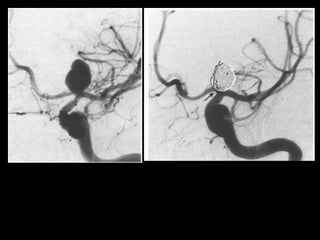

67. -2D frontal view following left ICA injections ,
these images show an aneurysm in the region
of the left MCA bifurcation/trifurcation
2 ICA – vertical petrous segment
3 ICA – horizontal petrous segment
4 presellar (Fischer C5) ICA
6 horizontal (Fischer C4) intracavernous ICA
8 anterior genu (Fischer C3) intracavernous
ICA
9 ophthalmic artery
10 & 11 proximal and distal supraclinoid
segments ICA
12 PCOM
13 anterior choroidal artery
14 ICA bifurcation
15 A1 segment of ACA
18 A1-A2 junction ACA
20 proximal A2 segment ACA
21 callosomarginal branch of ACA
22 orbitofrontal branch of ACA
28 pericallosal branch of ACA
31 M1 segment of MCA
32 lateral lenticulostriate arteries
33 bifurcation/trifurcation MCA
34 anterior temporal lobe branches MCA
35 orbitofrontal branch MCA
43 sylvian point
44 opercular branches MCA
45 sylvian (insular) branches MCA

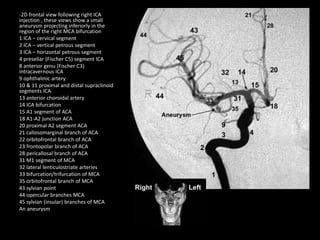

68. -2D frontal view following right ICA
injection , these views show a small
aneurysm projecting inferiorly in the
region of the right MCA bifurcation
1 ICA – cervical segment
2 ICA – vertical petrous segment
3 ICA – horizontal petrous segment
4 presellar (Fischer C5) segment ICA
8 anterior genu (Fischer C3)
intracavernous ICA
9 ophthalmic artery
10 & 11 proximal and distal supraclinoid
segments ICA
13 anterior choroidal artery
14 ICA bifurcation
15 A1 segment of ACA
18 A1-A2 junction ACA
20 proximal A2 segment ACA
21 callosomarginal branch of ACA
22 orbitofrontal branch of ACA
23 frontopolar branch of ACA
28 pericallosal branch of ACA
31 M1 segment of MCA
32 lateral lenticulostriate arteries
33 bifurcation/trifurcation of MCA
35 orbitofrontal branch of MCA
43 sylvian point
44 opercular branches MCA
45 sylvian (insular) branches of MCA
An aneurysm
69. b) Superficial (Cortical) branches :
-Supply a considerable proportion of the superficial
hemispheric cortex

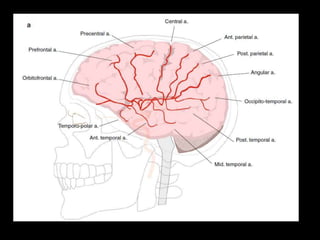

*Arteries to the Frontal lobe :
-These run superiorly after leaving the fissure , from
anterior to posterior :
1-Orbitofrontal artery of the MCA
2-Prefrontal artery (supplies Broca’s area)
3-Precentral artery (or Pre-Rolandic artery of Sillon)
4-Central artery (or artery of the Rolandic fissure)
70.

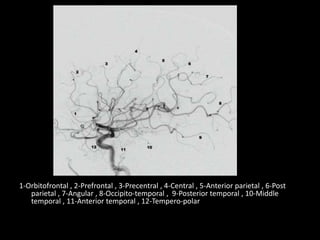

71. - Lateral 2D view following
internal carotid artery injection mid
arterial phase , non-filling of the anterior
cerebral artery allows for an unobtrusive
view of the more distal (mca) branches. A
template type
labeling of the distal middle cerebral
artery branches allows for greater
variability in the proximal branching
pattern of the mca vessels. Note the
choroidal blush along the posterior
margin of the globe (eye)
1 internal carotid artery – cervical
segment
2 internal carotid artery – vertical
petrous segment
3 internal carotid artery – horizontal
petrous segment
4 presellar (Fischer C5) segment
internal carotid artery
6 horizontal (Fischer C4)
intracavernous
segment internal carotid artery
8 anterior genu (Fischer C3)
intracavernous segment ICA
10 & 11 proximal and distal
supraclinoid segments internal carotid
artery

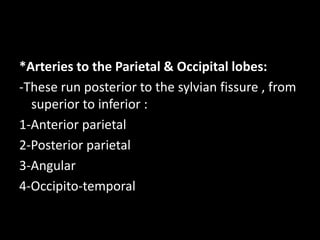

72. *Arteries to the Parietal & Occipital lobes:
-These run posterior to the sylvian fissure , from
superior to inferior :
1-Anterior parietal
2-Posterior parietal
3-Angular
4-Occipito-temporal

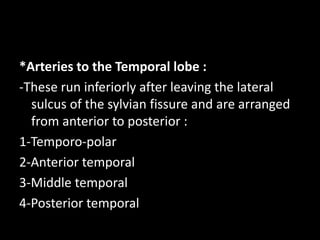

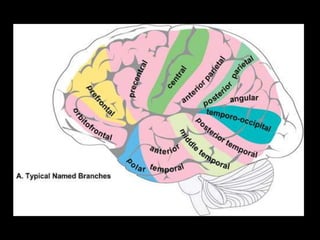

74. *Arteries to the Temporal lobe :
-These run inferiorly after leaving the lateral
sulcus of the sylvian fissure and are arranged
from anterior to posterior :
1-Temporo-polar
2-Anterior temporal
3-Middle temporal
4-Posterior temporal

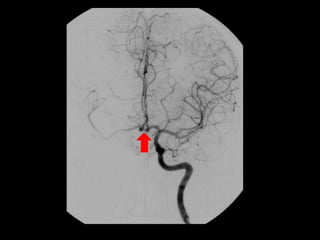

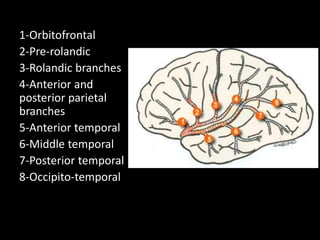

76. -Anterior temporal branch (best seen in AP view) , a typical
appearance of an anterior temporal branch of the MCA
proximal to the main bifurcation is indicated with the arrow

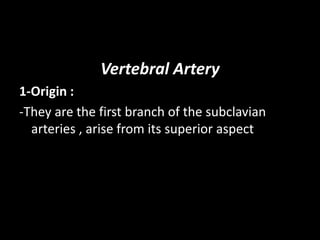

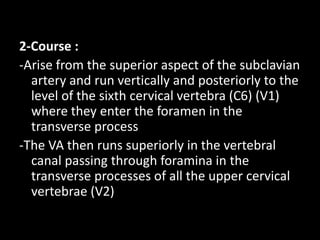

80. 2-Course :
-Arise from the superior aspect of the subclavian
artery and run vertically and posteriorly to the
level of the sixth cervical vertebra (C6) (V1)
where they enter the foramen in the
transverse process
-The VA then runs superiorly in the vertebral
canal passing through foramina in the
transverse processes of all the upper cervical
vertebrae (V2)
81. -After leaving the superior border of the foramen of the
atlas (C2) , it runs horizontally and posteriorly to pass
through the more laterally positioned foramen of the
axis (C1) and then turns medially to the foramen
magnum (V3)
-There , it penetrates the atlantooccipital membrane
and dura to enter the cranial cavity through the
foramen magnum and then runs upwards and
medially to terminate as the basilar artery , formed
by joining its contralateral counterpart anterior to
the upper border of the medulla oblongata (V4)
82.

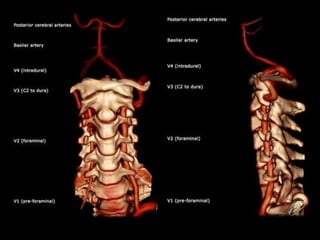

83. 3D volume-rendered (a) and curved reformatted (b) images from contrast-enhanced CT
angiography show the segments of the vertebral artery. V1 = between its origin and its entry
into the transverse foramen of the C6 vertebra, V2 = midcervical course between the
processes of C6 to C2, V3 = atlas loop region, V4 = intracranial segment. Note the asymmetric
venous plexus enhancement around the V3 segment (arrow in a)

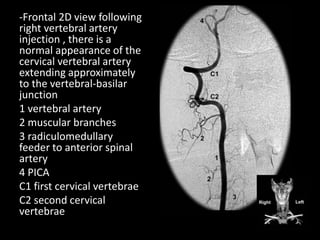

84. -Frontal 2D view following
right vertebral artery
injection , there is a
normal appearance of the
cervical vertebral artery
extending approximately
to the vertebral-basilar
junction
1 vertebral artery
2 muscular branches
3 radiculomedullary
feeder to anterior spinal
artery
4 PICA
C1 first cervical vertebrae
C2 second cervical
vertebrae

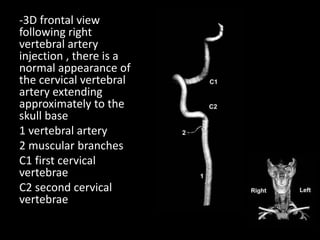

85. -3D frontal view
following right
vertebral artery
injection , there is a
normal appearance of
the cervical vertebral
artery extending
approximately to the
skull base
1 vertebral artery
2 muscular branches
C1 first cervical
vertebrae
C2 second cervical
vertebrae
86. -3D posterior view
following right
vertebral artery
injection , there is a
normal appearance of
the cervical vertebral
artery extending
approximately to the
skull base
1 vertebral artery
2 muscular branches
C1 first cervical
vertebrae
C2 second cervical
vertebrae

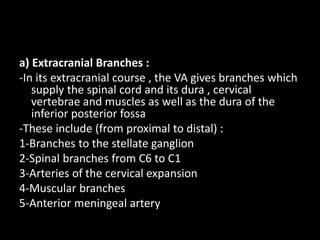

88. a) Extracranial Branches :
-In its extracranial course , the VA gives branches which
supply the spinal cord and its dura , cervical
vertebrae and muscles as well as the dura of the
inferior posterior fossa
-These include (from proximal to distal) :
1-Branches to the stellate ganglion
2-Spinal branches from C6 to C1
3-Arteries of the cervical expansion
4-Muscular branches
5-Anterior meningeal artery

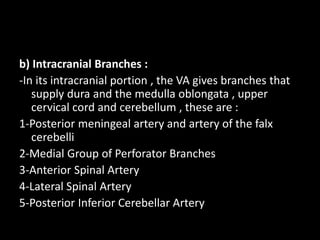

89. b) Intracranial Branches :
-In its intracranial portion , the VA gives branches that
supply dura and the medulla oblongata , upper
cervical cord and cerebellum , these are :
1-Posterior meningeal artery and artery of the falx
cerebelli
2-Medial Group of Perforator Branches
3-Anterior Spinal Artery
4-Lateral Spinal Artery
5-Posterior Inferior Cerebellar Artery

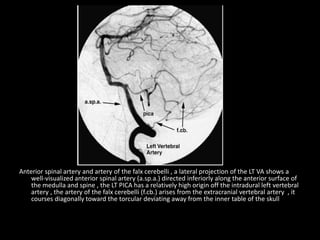

90. Anterior spinal artery and artery of the falx cerebelli , a lateral projection of the LT VA shows a
well-visualized anterior spinal artery (a.sp.a.) directed inferiorly along the anterior surface of
the medulla and spine , the LT PICA has a relatively high origin off the intradural left vertebral
artery , the artery of the falx cerebelli (f.cb.) arises from the extracranial vertebral artery , it
courses diagonally toward the torcular deviating away from the inner table of the skull

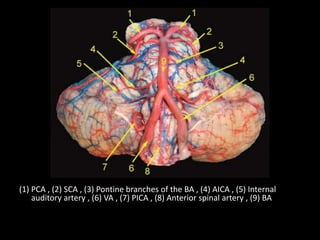

91. (1) PCA , (2) SCA , (3) Pontine branches of the BA , (4) AICA , (5) Internal
auditory artery , (6) VA , (7) PICA , (8) Anterior spinal artery , (9) BA

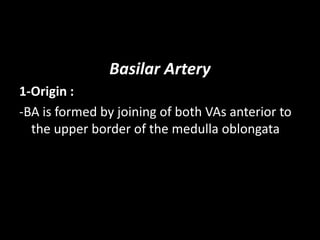

92. Basilar Artery
1-Origin :
-BA is formed by joining of both VAs anterior to
the upper border of the medulla oblongata

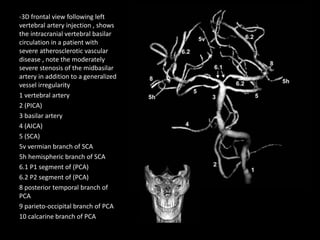

93. -3D frontal view following left
vertebral artery injection , shows
the intracranial vertebral basilar
circulation in a patient with
severe atherosclerotic vascular
disease , note the moderately
severe stenosis of the midbasilar
artery in addition to a generalized
vessel irregularity
1 vertebral artery
2 (PICA)
3 basilar artery
4 (AICA)
5 (SCA)
5v vermian branch of SCA
5h hemispheric branch of SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
8 posterior temporal branch of
PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA

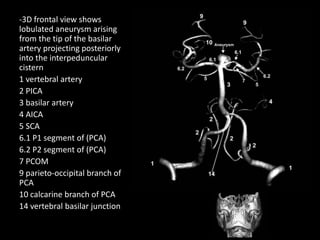

94. -3D frontal view shows
lobulated aneurysm arising
from the tip of the basilar
artery projecting posteriorly
into the interpeduncular
cistern
1 vertebral artery
2 PICA
3 basilar artery
4 AICA
5 SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
7 PCOM
9 parieto-occipital branch of
PCA
10 calcarine branch of PCA
14 vertebral basilar junction
95. -2D frontal view following vertebral
artery injection , shows normal
intracranial vertebral basilar
circulation , note the blush (*) of the
choroid plexus
1 vertebral artery
2 posterior inferior cerebellar artery
(PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 anterior inferior cerebellar artery
(AICA)
5 superior cerebellar artery (SCA)
5h hemispheric branch of SCA
5v vermian branch of SCA
6 posterior cerebral artery (PCA)
6.2 P2 segment of PCA
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
12 posterior thalamoperforating arteries
13L lateral posterior choroidal artery
16 pontine perforating artery
* blush of choroids plexus

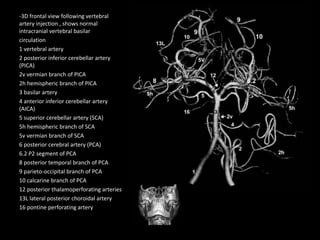

96. -3D frontal view following vertebral
artery injection , shows normal
intracranial vertebral basilar
circulation
1 vertebral artery
2 posterior inferior cerebellar artery
(PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 anterior inferior cerebellar artery
(AICA)
5 superior cerebellar artery (SCA)
5h hemispheric branch of SCA
5v vermian branch of SCA
6 posterior cerebral artery (PCA)
6.2 P2 segment of PCA
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
12 posterior thalamoperforating arteries
13L lateral posterior choroidal artery
16 pontine perforating artery
97. 2-Branches :
-Its branches can be divided into two groups ,
the perforating arteries and the long
circumferential arteries
98. a) The Perforating Arteries :
-Are paramedian and circumferential in
distribution
-They supply the corticospinal tracts , other
connecting white matter tracts and the vital
deep nuclei of the pons and midbrain
-In the physiological state , they are rarely visible
on angiography and do not cross the midline

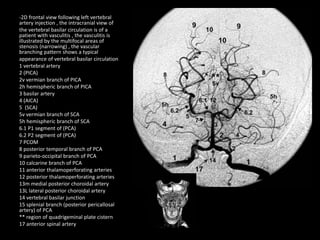

99. -2D frontal view following left vertebral
artery injection , the intracranial view of
the vertebral basilar circulation is of a
patient with vasculitis , the vasculitis is
illustrated by the multifocal areas of
stenosis (narrowing) , the vascular
branching pattern shows a typical
appearance of vertebral basilar circulation
1 vertebral artery
2 (PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 (AICA)
5 (SCA)
5v vermian branch of SCA
5h hemispheric branch of SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
7 PCOM
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
11 anterior thalamoperforating arteries
12 posterior thalamoperforating arteries
13m medial posterior choroidal artery
13L lateral posterior choroidal artery
14 vertebral basilar junction
15 splenial branch (posterior pericallosal
artery) of PCA
** region of quadrigeminal plate cistern
17 anterior spinal artery

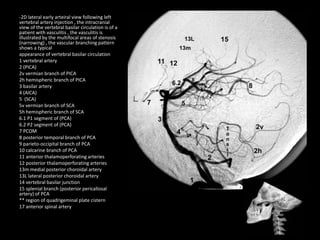

100. -2D lateral early arteiral view following left
vertebral artery injection , the intracranial
view of the vertebral basilar circulation is of a
patient with vasculitis , the vasculitis is
illustrated by the multifocal areas of stenosis
(narrowing) , the vascular branching pattern
shows a typical
appearance of vertebral basilar circulation
1 vertebral artery
2 (PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 (AICA)
5 (SCA)
5v vermian branch of SCA
5h hemispheric branch of SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
7 PCOM
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
11 anterior thalamoperforating arteries
12 posterior thalamoperforating arteries
13m medial posterior choroidal artery
13L lateral posterior choroidal artery
14 vertebral basilar junction
15 splenial branch (posterior pericallosal
artery) of PCA
** region of quadrigeminal plate cistern
17 anterior spinal artery

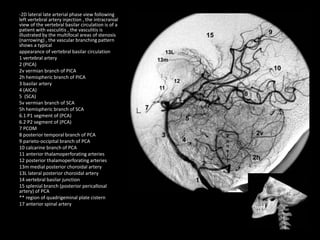

101. -2D lateral late arterial phase view following
left vertebral artery injection , the intracranial
view of the vertebral basilar circulation is of a
patient with vasculitis , the vasculitis is
illustrated by the multifocal areas of stenosis
(narrowing) , the vascular branching pattern
shows a typical
appearance of vertebral basilar circulation
1 vertebral artery
2 (PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 (AICA)
5 (SCA)
5v vermian branch of SCA
5h hemispheric branch of SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
7 PCOM
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
11 anterior thalamoperforating arteries
12 posterior thalamoperforating arteries
13m medial posterior choroidal artery
13L lateral posterior choroidal artery
14 vertebral basilar junction
15 splenial branch (posterior pericallosal
artery) of PCA
** region of quadrigeminal plate cistern
17 anterior spinal artery

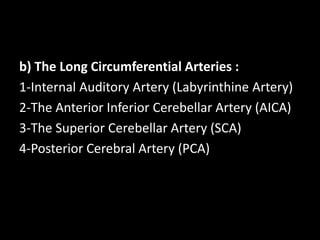

102. b) The Long Circumferential Arteries :
1-Internal Auditory Artery (Labyrinthine Artery)
2-The Anterior Inferior Cerebellar Artery (AICA)
3-The Superior Cerebellar Artery (SCA)
4-Posterior Cerebral Artery (PCA)

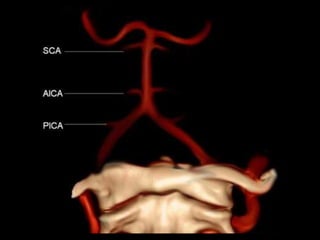

103.
104.

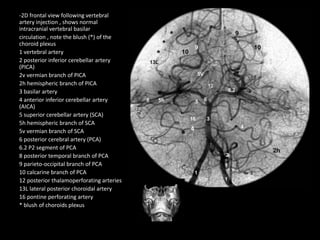

105. -2D frontal view following vertebral
artery injection , shows normal
intracranial vertebral basilar
circulation , note the blush (*) of the
choroid plexus
1 vertebral artery
2 posterior inferior cerebellar artery
(PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 anterior inferior cerebellar artery
(AICA)
5 superior cerebellar artery (SCA)
5h hemispheric branch of SCA
5v vermian branch of SCA
6 posterior cerebral artery (PCA)
6.2 P2 segment of PCA
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
12 posterior thalamoperforating arteries
13L lateral posterior choroidal artery
16 pontine perforating artery
* blush of choroids plexus

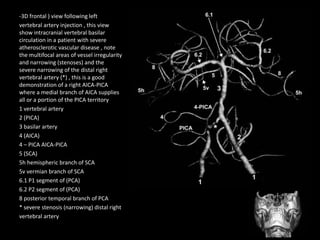

106. -3D frontal ) view following left
vertebral artery injection , this view
show intracranial vertebral basilar
circulation in a patient with severe
atherosclerotic vascular disease , note
the multifocal areas of vessel irregularity
and narrowing (stenoses) and the
severe narrowing of the distal right
vertebral artery (*) , this is a good
demonstration of a right AICA-PICA
where a medial branch of AICA supplies
all or a portion of the PICA territory
1 vertebral artery
2 (PICA)
3 basilar artery
4 (AICA)
4 – PICA AICA-PICA
5 (SCA)
5h hemispheric branch of SCA
5v vermian branch of SCA
6.1 P1 segment of (PCA)
6.2 P2 segment of (PCA)
8 posterior temporal branch of PCA
* severe stenosis (narrowing) distal right
vertebral artery
107. -2D lateral view following vertebral
artery injection , intracranial vertebral
basilar circulation is seen with a
moderate-size aneurysm arising from
the distal vertebral artery near the
origin of the PICA
vertebral artery
2 (PICA)
2v vermian branch of PICA
2h hemispheric branch of PICA
3 basilar artery
4 (AICA)
5 (SCA)
5h hemispheric branch of SCA
6 (PCA)
6.1 P1 segment of PCA
6.2 P2 segment of PCA
8 posterior temporal branch of PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
12 posterior thalamoperforating arteries
13m medial posterior choroidal arteries
13L lateral posterior choroidal arteries
15 splenial branch (posterior pericallosal
artery) branch of PCA

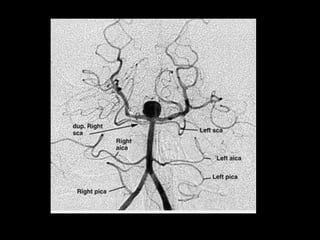

108.

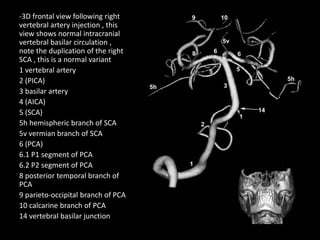

109. -3D frontal view following right
vertebral artery injection , this
view shows normal intracranial
vertebral basilar circulation ,
note the duplication of the right
SCA , this is a normal variant
1 vertebral artery
2 (PICA)
3 basilar artery
4 (AICA)
5 (SCA)
5h hemispheric branch of SCA
5v vermian branch of SCA
6 (PCA)
6.1 P1 segment of PCA
6.2 P2 segment of PCA
8 posterior temporal branch of
PCA
9 parieto-occipital branch of PCA
10 calcarine branch of PCA
14 vertebral basilar junction
111. a) Origin :
-Bifurcation of the common carotid artery
b) Supply :
-The ECA supplies the tissues of the scalp , face
and neck

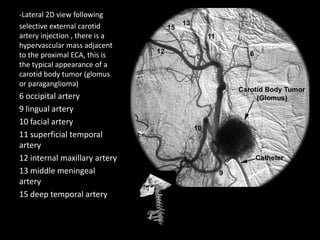

112. -Lateral 2D view following
selective external carotid
artery injection , there is a
hypervascular mass adjacent
to the proximal ECA, this is
the typical appearance of a
carotid body tumor (glomus
or paraganglioma)
6 occipital artery
9 lingual artery
10 facial artery
11 superficial temporal
artery
12 internal maxillary artery
13 middle meningeal
artery
15 deep temporal artery

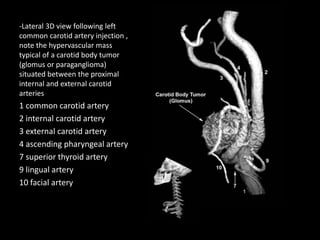

113. -Lateral 3D view following left
common carotid artery injection ,
note the hypervascular mass
typical of a carotid body tumor
(glomus or paraganglioma)
situated between the proximal
internal and external carotid
arteries
1 common carotid artery
2 internal carotid artery
3 external carotid artery
4 ascending pharyngeal artery
7 superior thyroid artery
9 lingual artery
10 facial artery

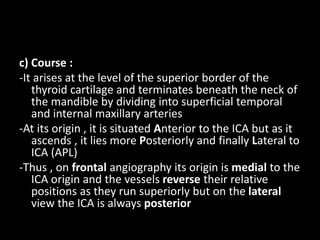

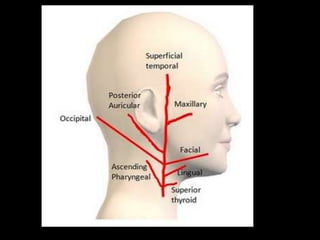

114. c) Course :
-It arises at the level of the superior border of the
thyroid cartilage and terminates beneath the neck of
the mandible by dividing into superficial temporal
and internal maxillary arteries
-At its origin , it is situated Anterior to the ICA but as it
ascends , it lies more Posteriorly and finally Lateral to
ICA (APL)
-Thus , on frontal angiography its origin is medial to the
ICA origin and the vessels reverse their relative
positions as they run superiorly but on the lateral
view the ICA is always posterior

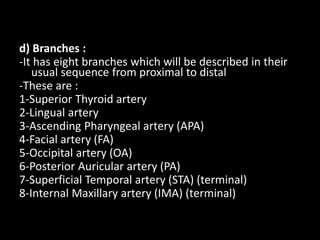

116. d) Branches :
-It has eight branches which will be described in their
usual sequence from proximal to distal
-These are :
1-Superior Thyroid artery
2-Lingual artery
3-Ascending Pharyngeal artery (APA)
4-Facial artery (FA)
5-Occipital artery (OA)
6-Posterior Auricular artery (PA)
7-Superficial Temporal artery (STA) (terminal)
8-Internal Maxillary artery (IMA) (terminal)
117.
118.

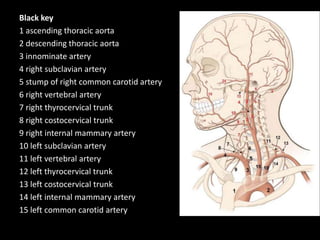

119. Black key
1 ascending thoracic aorta
2 descending thoracic aorta
3 innominate artery
4 right subclavian artery
5 stump of right common carotid artery
6 right vertebral artery
7 right thyrocervical trunk
8 right costocervical trunk
9 right internal mammary artery
10 left subclavian artery
11 left vertebral artery
12 left thyrocervical trunk
13 left costocervical trunk
14 left internal mammary artery
15 left common carotid artery

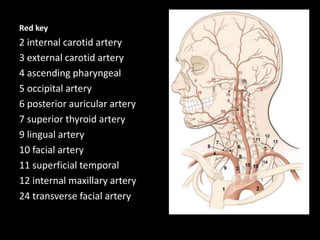

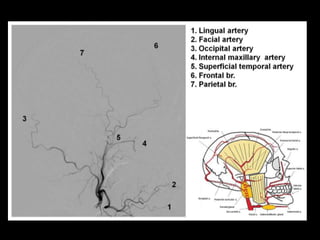

122. -Frontal left common carotid
artery injection , normal 2D
appearance of the left
common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
4 ascending pharyngeal
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery
11 superficial temporal
12 internal maxillary artery

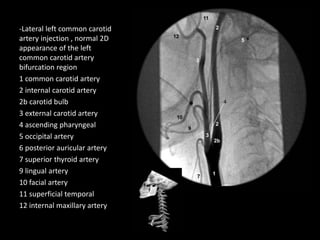

123. -Lateral left common carotid
artery injection , normal 2D
appearance of the left
common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
4 ascending pharyngeal
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery
11 superficial temporal
12 internal maxillary artery

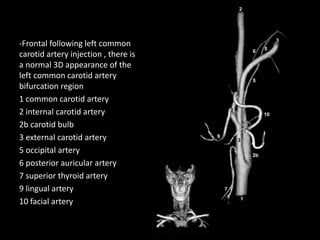

124. -Frontal following left common
carotid artery injection , there is
a normal 3D appearance of the
left common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery
125. -lateral following left
common carotid artery
injection , there is a normal
3D appearance of the left
common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery
126. -Posterior following left
common carotid artery
injection , there is a normal
3D appearance of the left
common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery

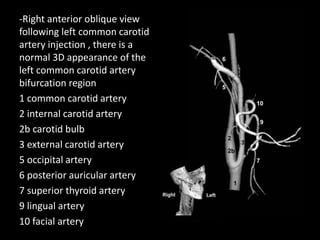

127. -Right anterior oblique view
following left common carotid
artery injection , there is a
normal 3D appearance of the
left common carotid artery
bifurcation region
1 common carotid artery
2 internal carotid artery
2b carotid bulb
3 external carotid artery
5 occipital artery
6 posterior auricular artery
7 superior thyroid artery
9 lingual artery
10 facial artery

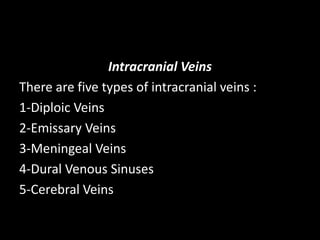

130. Intracranial Veins
There are five types of intracranial veins :
1-Diploic Veins
2-Emissary Veins
3-Meningeal Veins
4-Dural Venous Sinuses
5-Cerebral Veins

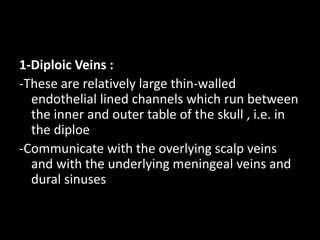

131. 1-Diploic Veins :
-These are relatively large thin-walled
endothelial lined channels which run between
the inner and outer table of the skull , i.e. in
the diploe
-Communicate with the overlying scalp veins
and with the underlying meningeal veins and
dural sinuses
132.
133.
134.

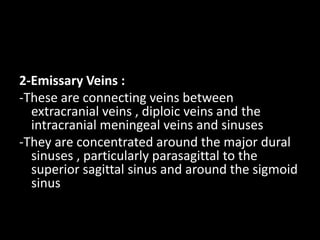

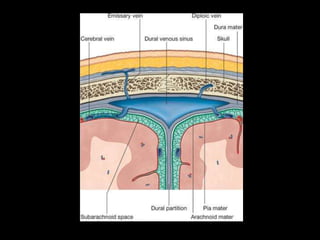

135. 2-Emissary Veins :
-These are connecting veins between
extracranial veins , diploic veins and the
intracranial meningeal veins and sinuses
-They are concentrated around the major dural
sinuses , particularly parasagittal to the
superior sagittal sinus and around the sigmoid
sinus
136.

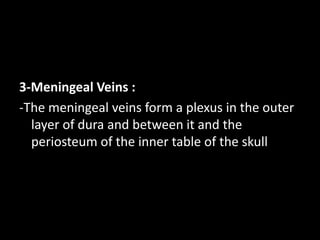

137. 3-Meningeal Veins :
-The meningeal veins form a plexus in the outer
layer of dura and between it and the
periosteum of the inner table of the skull
138.

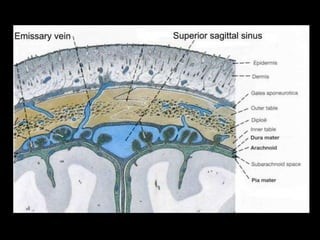

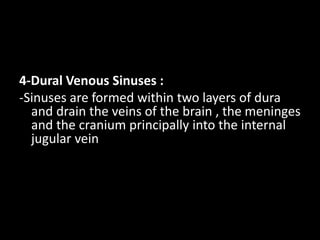

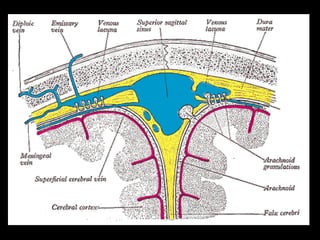

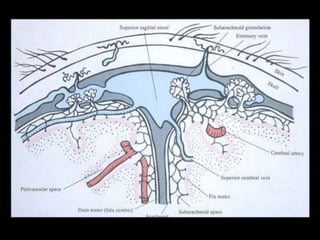

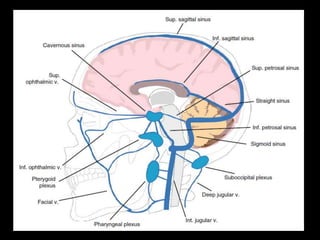

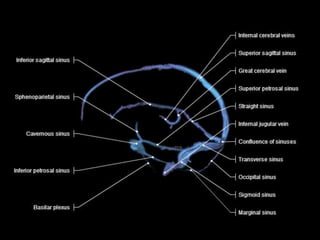

139. 4-Dural Venous Sinuses :
-Sinuses are formed within two layers of dura
and drain the veins of the brain , the meninges
and the cranium principally into the internal
jugular vein

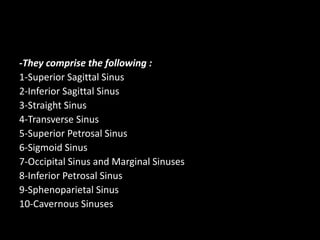

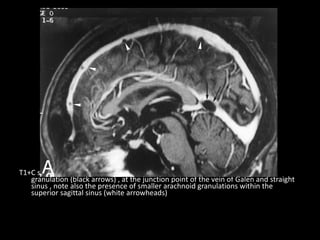

143. T1+C shows a large CSF-isointense filling defect , consistent with an arachnoid
granulation (black arrows) , at the junction point of the vein of Galen and straight
sinus , note also the presence of smaller arachnoid granulations within the
superior sagittal sinus (white arrowheads)
147. Endovascular Treatments of Intracranial
Aneurysms
1-Aim of Treatment
2-Parent Artery Occlusion
3-Endosaccular Embolization
4-Adjuvant Endovascular Treatments

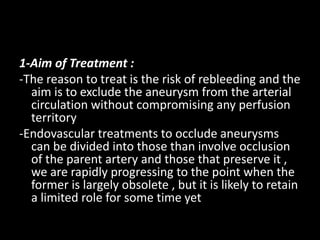

148. 1-Aim of Treatment :
-The reason to treat is the risk of rebleeding and the
aim is to exclude the aneurysm from the arterial
circulation without compromising any perfusion
territory
-Endovascular treatments to occlude aneurysms
can be divided into those than involve occlusion
of the parent artery and those that preserve it ,
we are rapidly progressing to the point when the
former is largely obsolete , but it is likely to retain
a limited role for some time yet

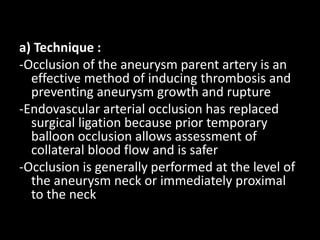

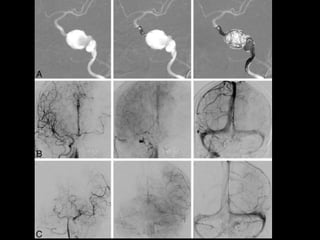

150. a) Technique :
-Occlusion of the aneurysm parent artery is an
effective method of inducing thrombosis and
preventing aneurysm growth and rupture
-Endovascular arterial occlusion has replaced
surgical ligation because prior temporary
balloon occlusion allows assessment of
collateral blood flow and is safer
-Occlusion is generally performed at the level of
the aneurysm neck or immediately proximal
to the neck

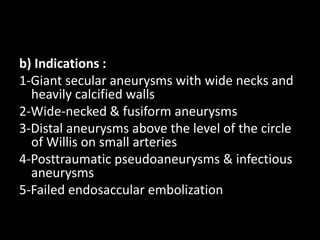

151. b) Indications :
1-Giant secular aneurysms with wide necks and
heavily calcified walls
2-Wide-necked & fusiform aneurysms
3-Distal aneurysms above the level of the circle
of Willis on small arteries
4-Posttraumatic pseudoaneurysms & infectious
aneurysms
5-Failed endosaccular embolization

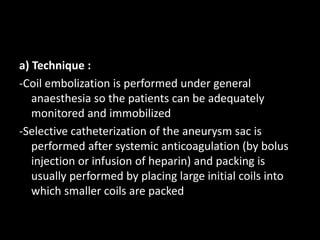

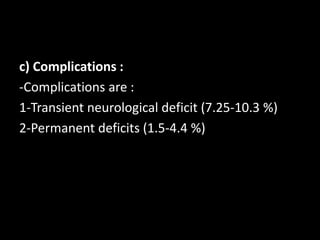

155. a) Technique :

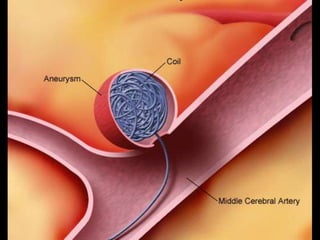

-Coil embolization is performed under general
anaesthesia so the patients can be adequately
monitored and immobilized
-Selective catheterization of the aneurysm sac is
performed after systemic anticoagulation (by bolus
injection or infusion of heparin) and packing is
usually performed by placing large initial coils into
which smaller coils are packed

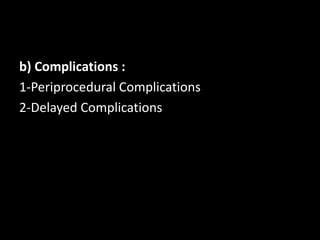

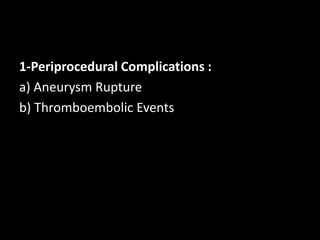

162. 2-Delayed Complications :
a) Aneurysm Rebleeding
b) Rupture of Previously Unruptured Aneurysms
c) Exacerbation of compression syndromes
d) Hydrocephalus
e) Sterile meningitic reaction adjacent to the thrombosed
aneurysm
f) Transient ischemic episodes
g) Radiation induced alopecia
h) Seizures
i) Coil compaction causing aneurysms recurrence

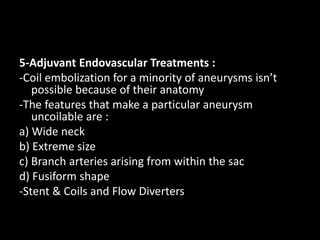

163. 5-Adjuvant Endovascular Treatments :
-Coil embolization for a minority of aneurysms isn’t
possible because of their anatomy
-The features that make a particular aneurysm
uncoilable are :
a) Wide neck
b) Extreme size
c) Branch arteries arising from within the sac
d) Fusiform shape
-Stent & Coils and Flow Diverters

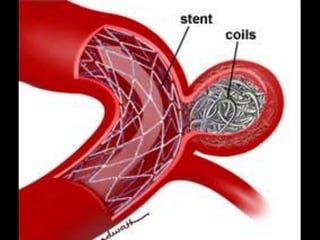

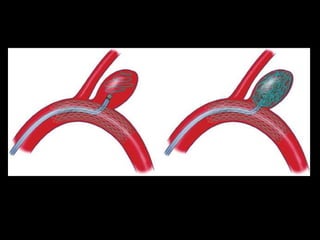

164. a) Stent & Coil :
-Placing a stent in the parent artery is a logical solution
to the problem of retaining coils in sessile very wide-
necked aneurysms
-Initially , the combined use of coils and stents was
confined to treatments of unruptured aneurysms
because of the need to place patients on antiplatelet
drugs (in addition to periprocedural heparin) as
prophylaxis against thrombosis within the stent
165.
166.
167.
168. b) Balloon-Assisted Coiling :
-Balloon-assisted coiling (BAC) which is also known
as (the remodelling technique) involves
placement of a suitably sized compliant balloon
across the aneurysm neck during coil deployment
, the balloon is used to retain coils within the
aneurysm to compress their profile at the neck
(i.e. remodelling) and to be available to arrest
blood flow should rupture occur during
embolization
169.
170.

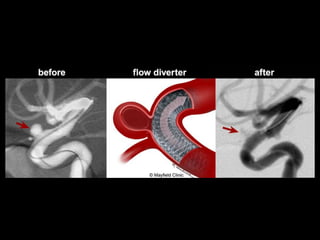

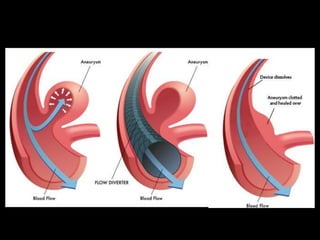

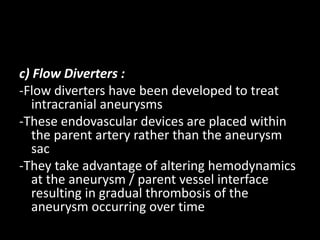

171. c) Flow Diverters :
-Flow diverters have been developed to treat
intracranial aneurysms
-These endovascular devices are placed within
the parent artery rather than the aneurysm
sac
-They take advantage of altering hemodynamics
at the aneurysm / parent vessel interface
resulting in gradual thrombosis of the
aneurysm occurring over time
175. Treatment of Brain AVM
-The principle aim of treatment is to eliminate the
lifelong risk of hemorrhage
-The assumption underlying any form of
intervention is that complete obliteration /
removal of the BAVM means that the patient is
no longer at risk of future hemorrhage
-Incomplete treatment risks recurrence and future
bleeding
-The effects of anatomical cure on other symptoms
are less certain

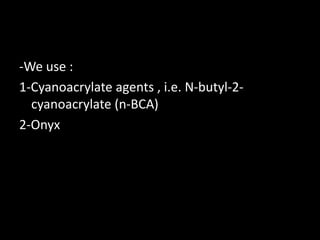

177. Embolisation
-Embolisation is used alone or as an adjuvant
treatment combined with surgery or
radiotherapy
-The goals of treatment are different if it is
attempted for complete cure , to facilitate
surgery or radiotherapy or used as palliative
treatment

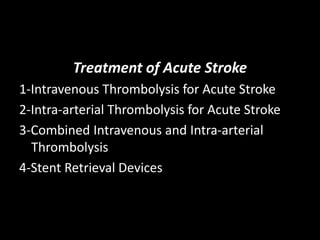

180. Treatment of Acute Stroke
1-Intravenous Thrombolysis for Acute Stroke
2-Intra-arterial Thrombolysis for Acute Stroke
3-Combined Intravenous and Intra-arterial
Thrombolysis
4-Stent Retrieval Devices

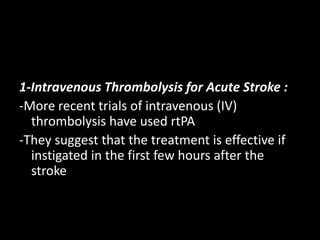

181. 1-Intravenous Thrombolysis for Acute Stroke :
-More recent trials of intravenous (IV)
thrombolysis have used rtPA
-They suggest that the treatment is effective if
instigated in the first few hours after the
stroke

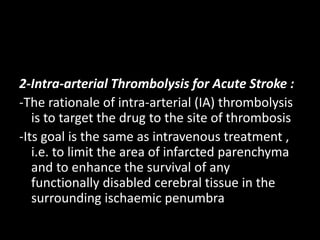

182. 2-Intra-arterial Thrombolysis for Acute Stroke :
-The rationale of intra-arterial (IA) thrombolysis
is to target the drug to the site of thrombosis
-Its goal is the same as intravenous treatment ,
i.e. to limit the area of infarcted parenchyma
and to enhance the survival of any
functionally disabled cerebral tissue in the
surrounding ischaemic penumbra

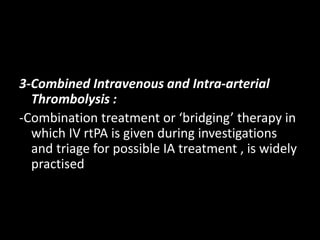

183. 3-Combined Intravenous and Intra-arterial
Thrombolysis :
-Combination treatment or ‘bridging’ therapy in
which IV rtPA is given during investigations
and triage for possible IA treatment , is widely
practised

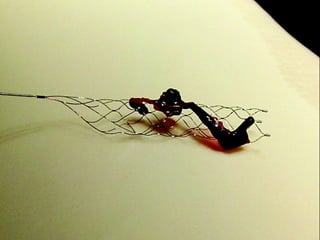

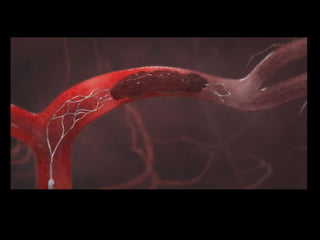

184. 4-Stent Retrieval Devices :
-The technique involves passing a microcatheter
(over a standard guidewire) through the
thrombus and then delivering the retrievable
stent device across the occluded segment
-The stent device is deployed by retrieving the
microcatheter, and then a period of 3-5 min
should be allowed for the clot to become
entrapped within the frame of the device
-The device (and contained thrombus) is then
retrieved during the arrest of blood flow in the
proximal artery
